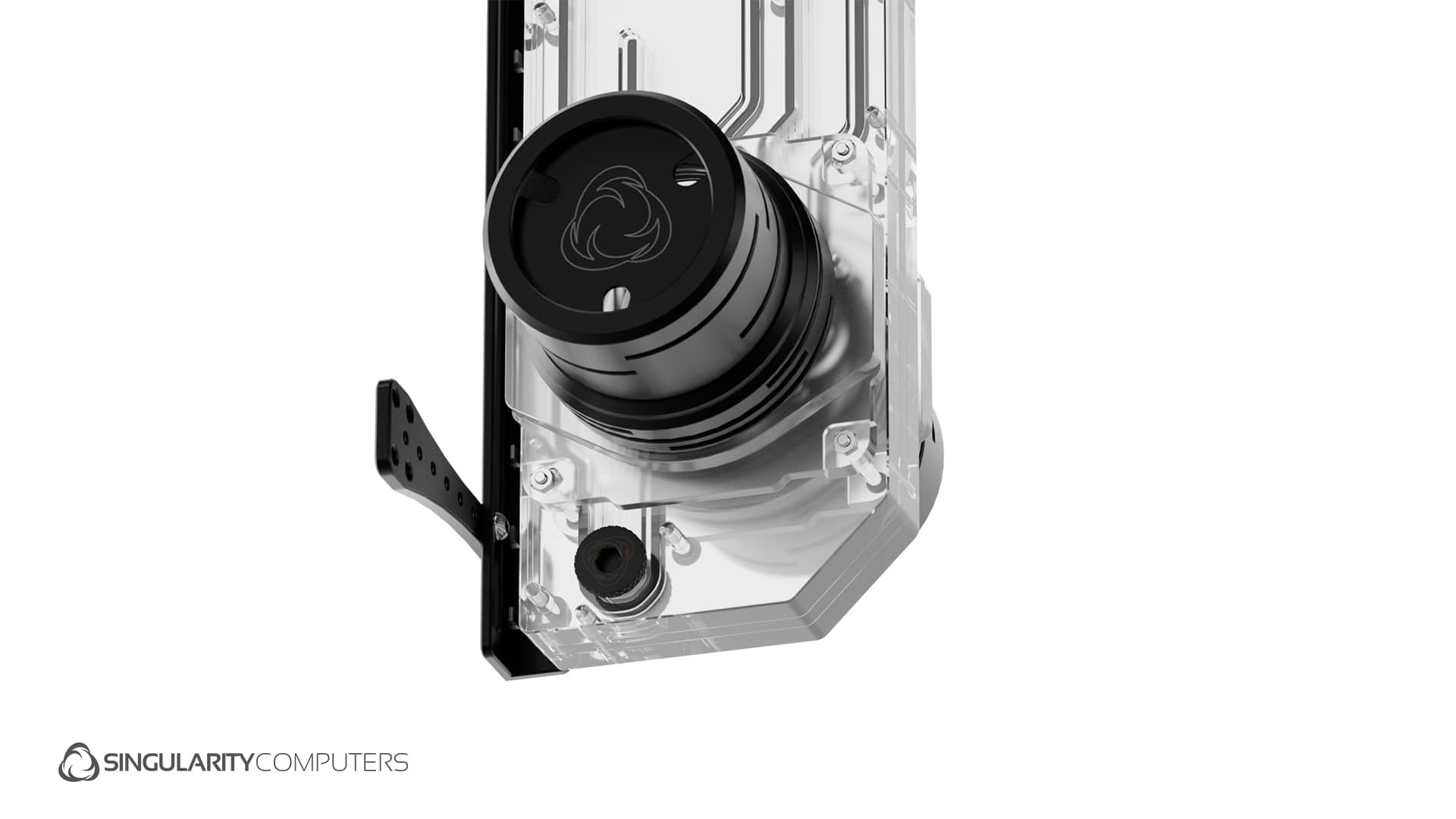

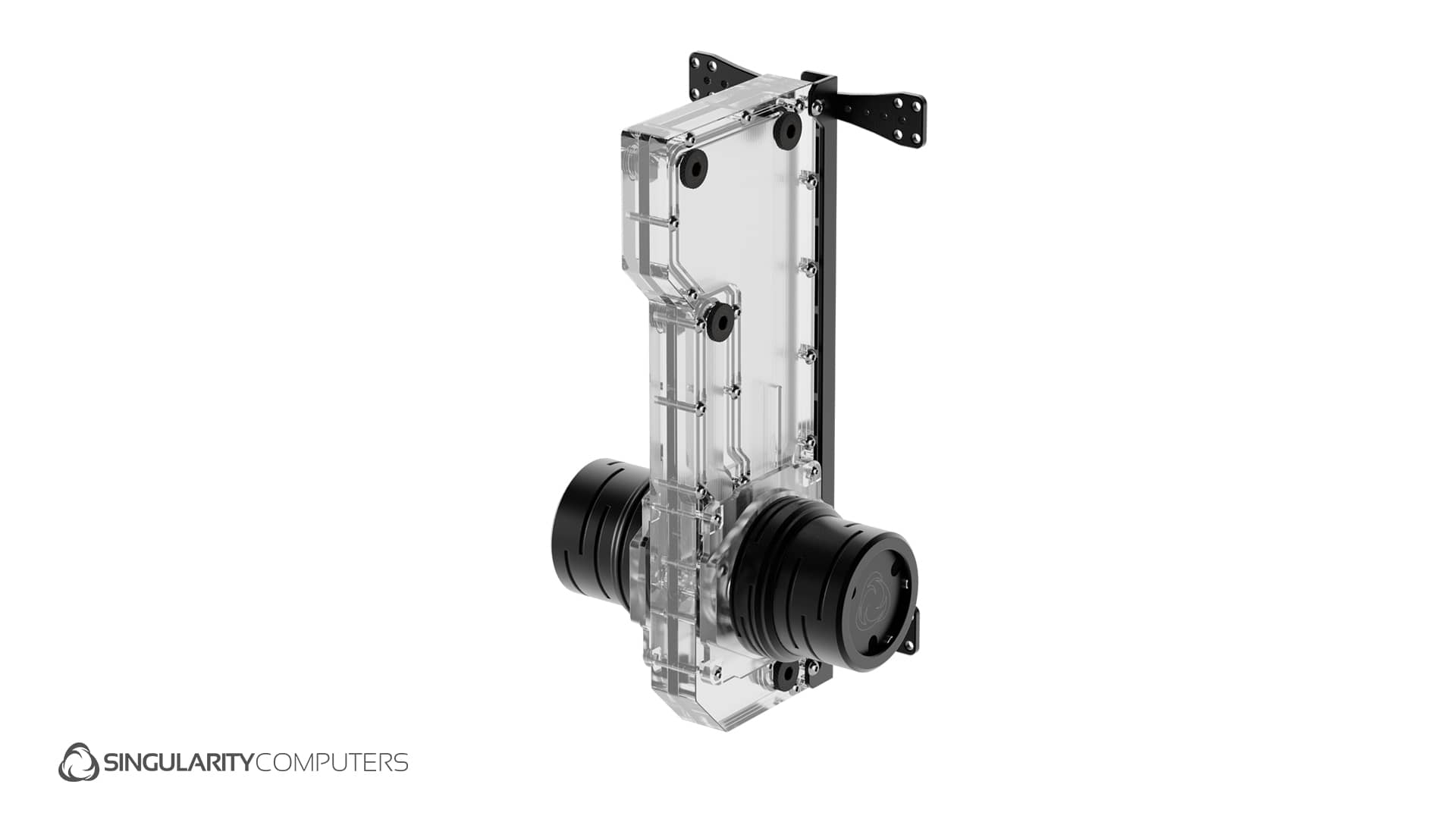

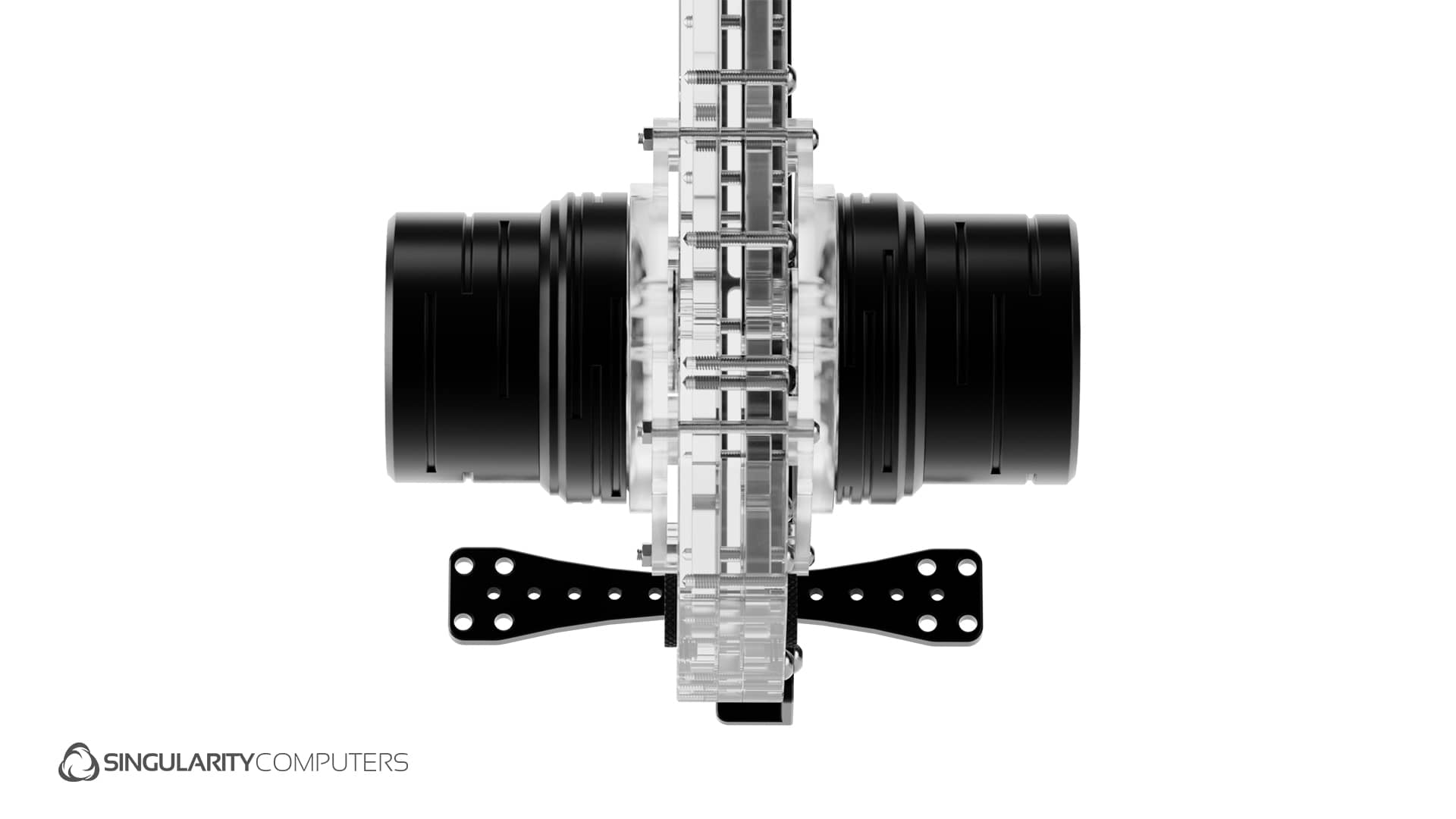

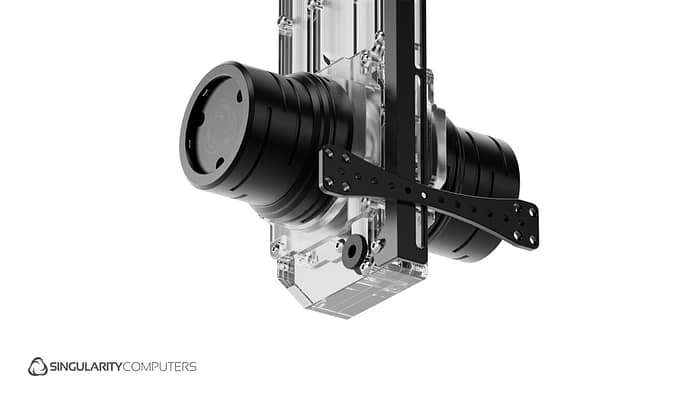

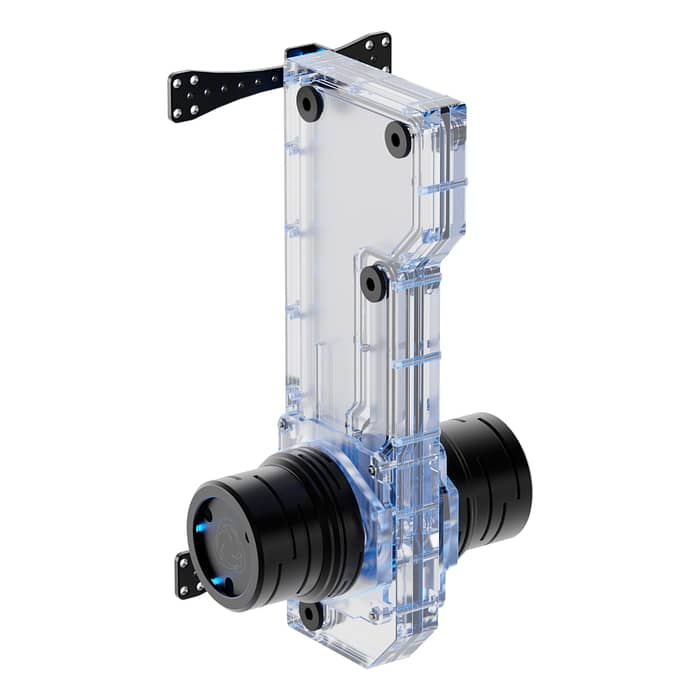

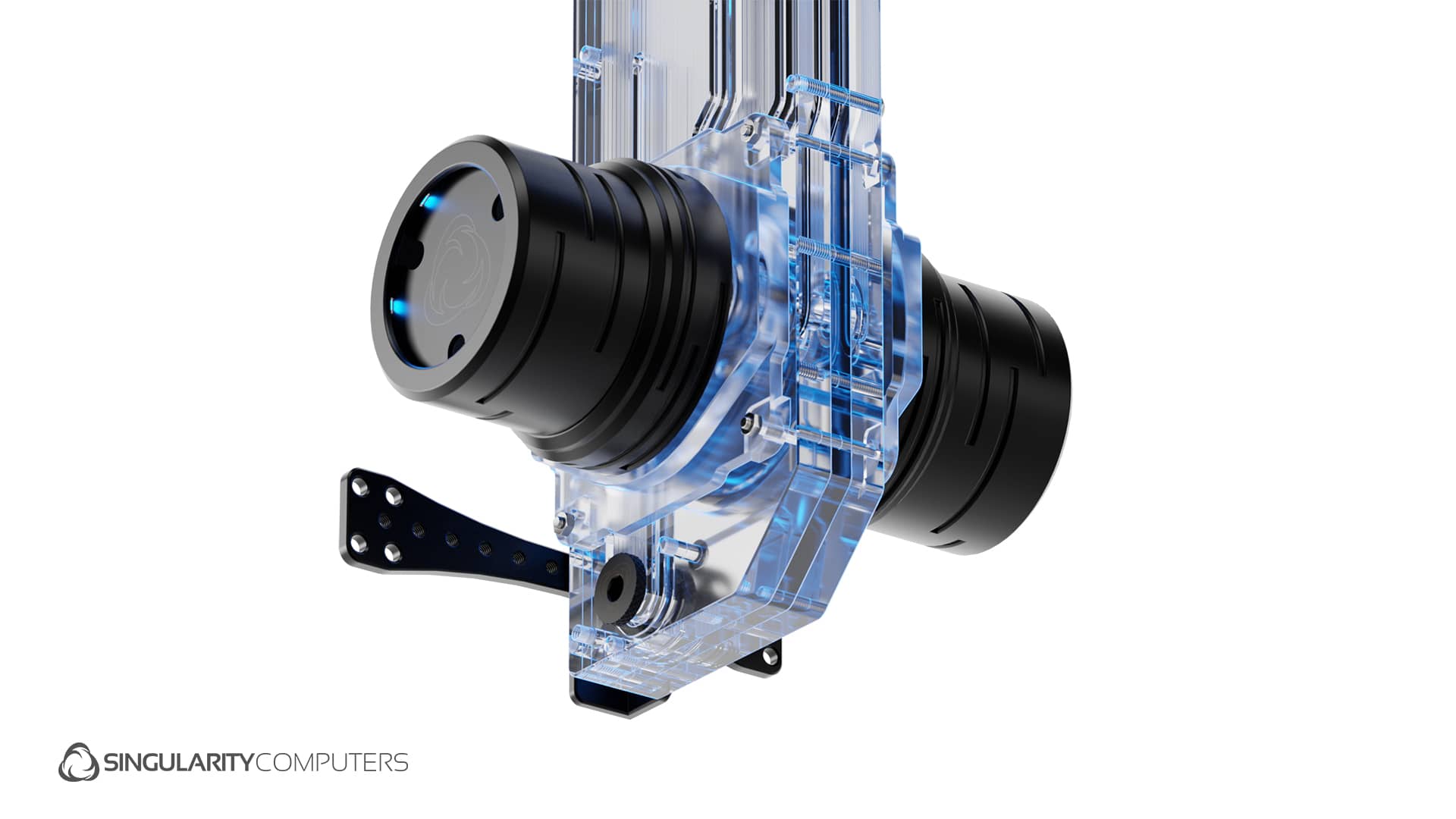

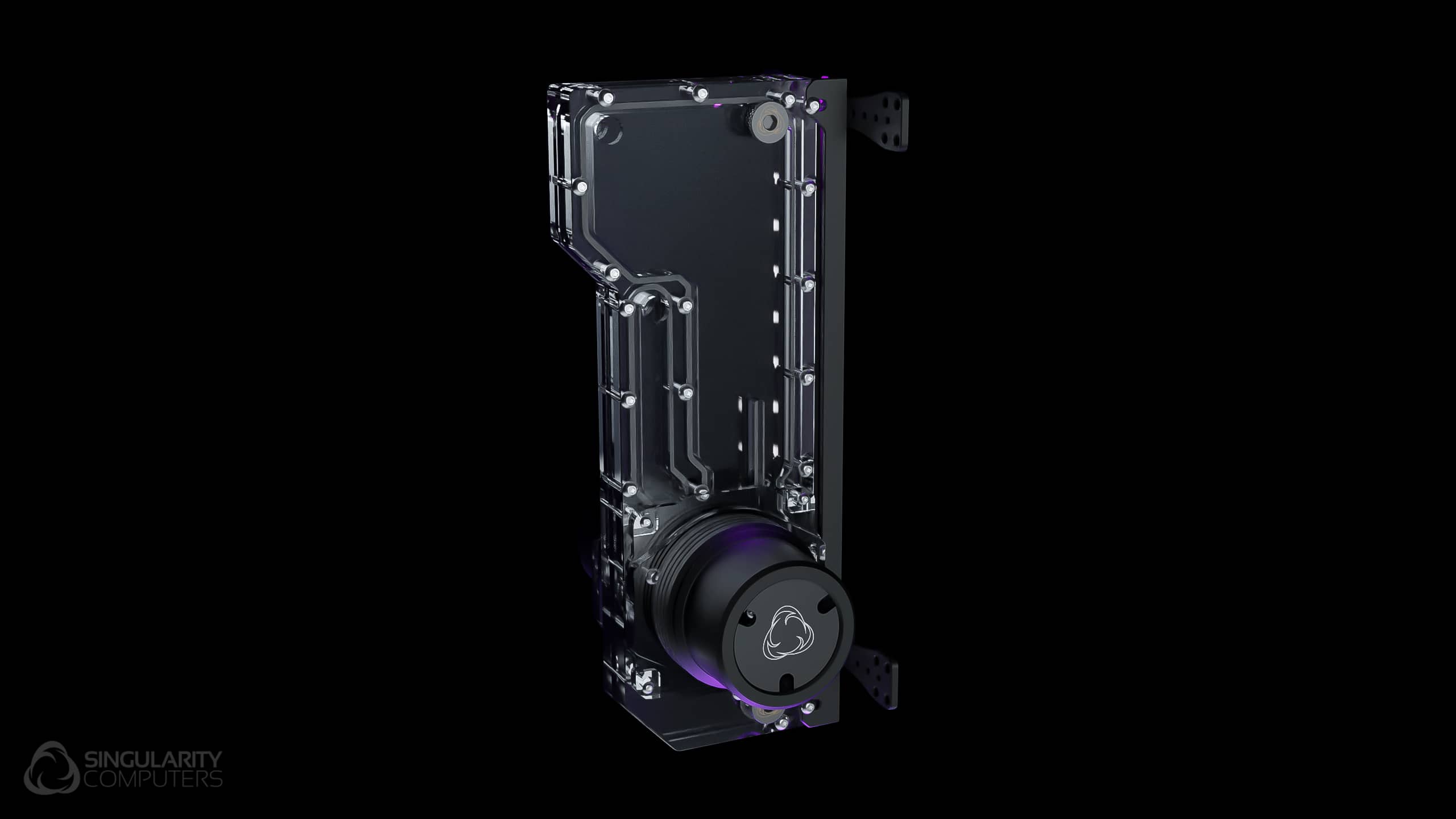

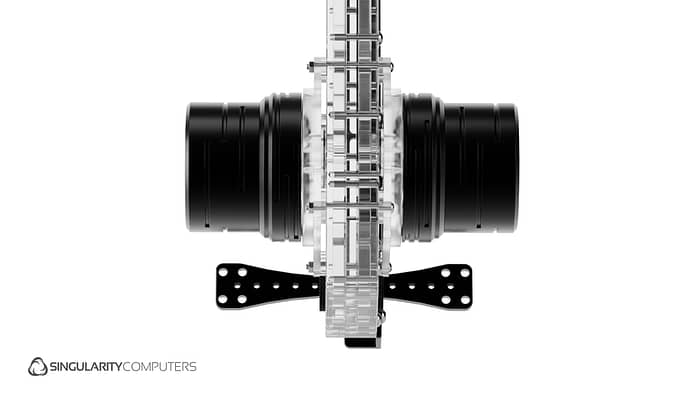

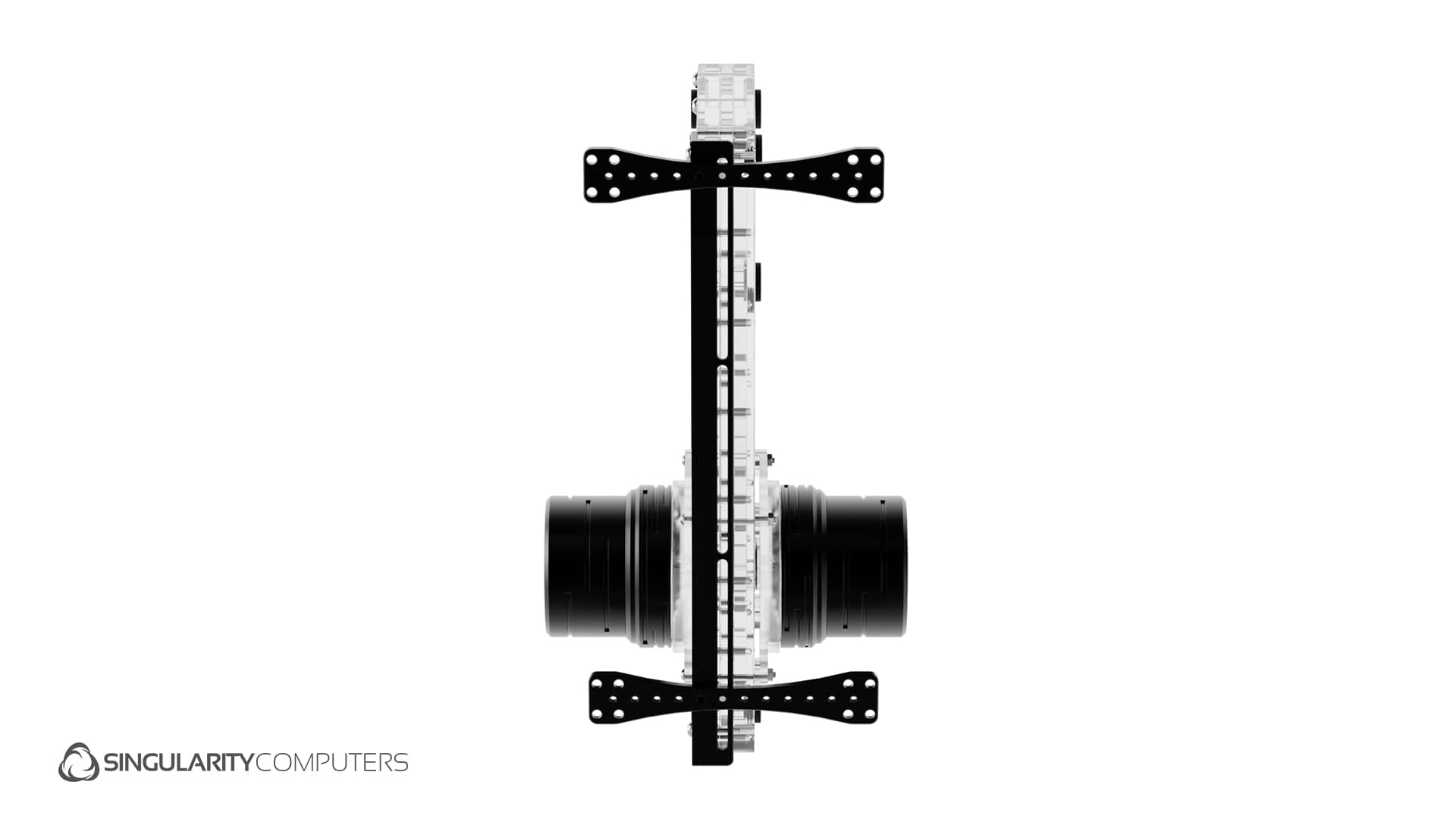

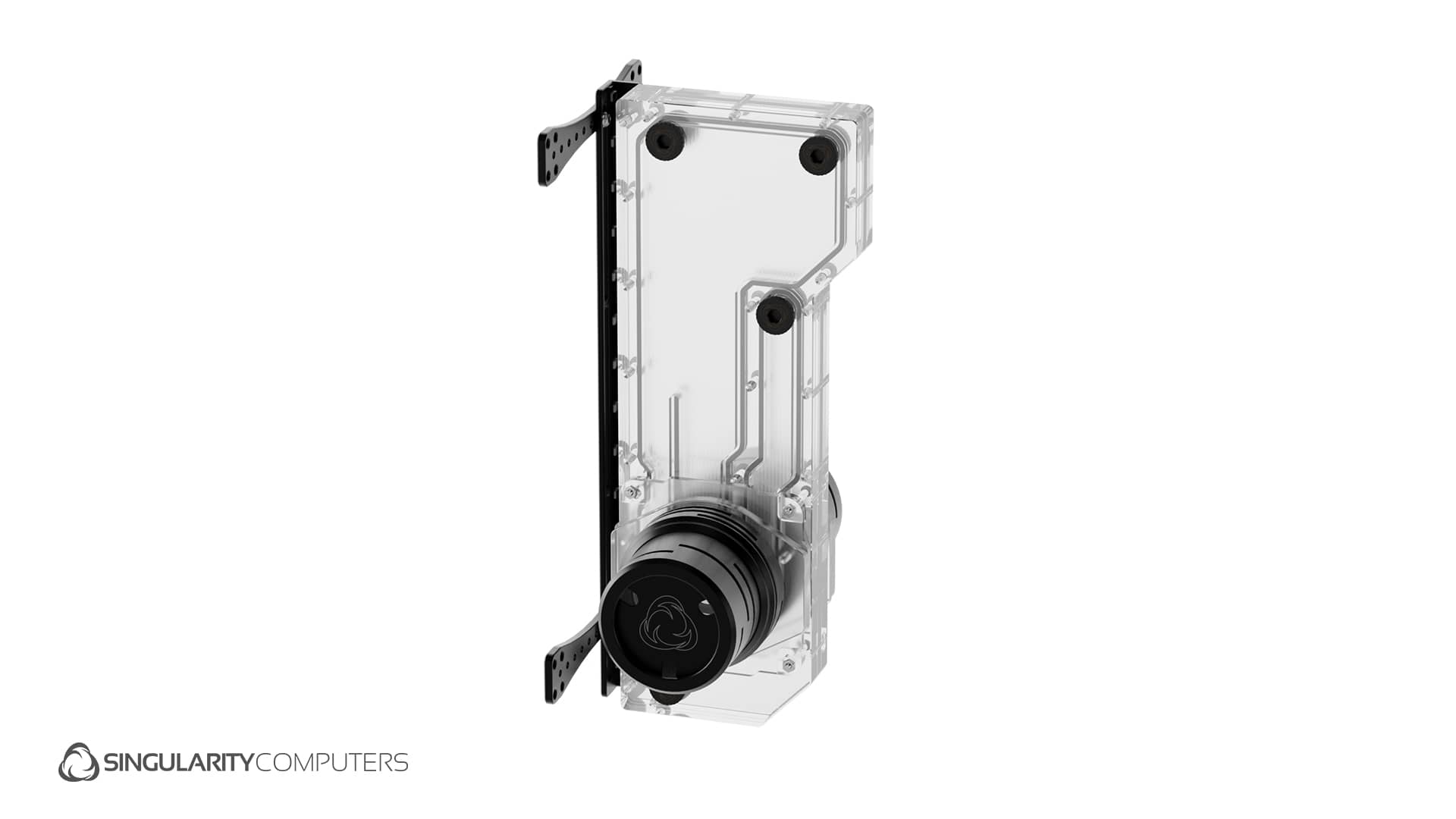

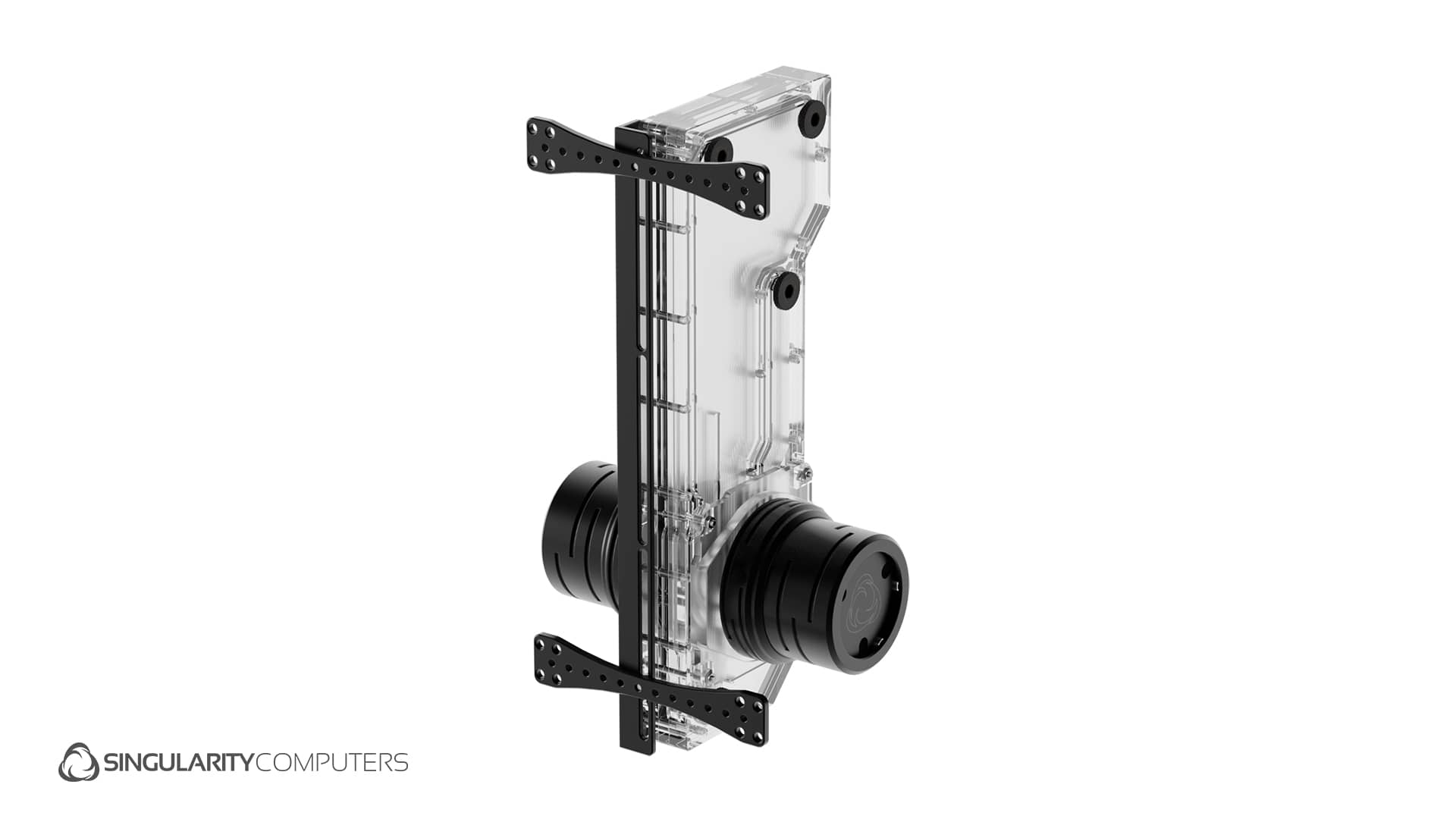

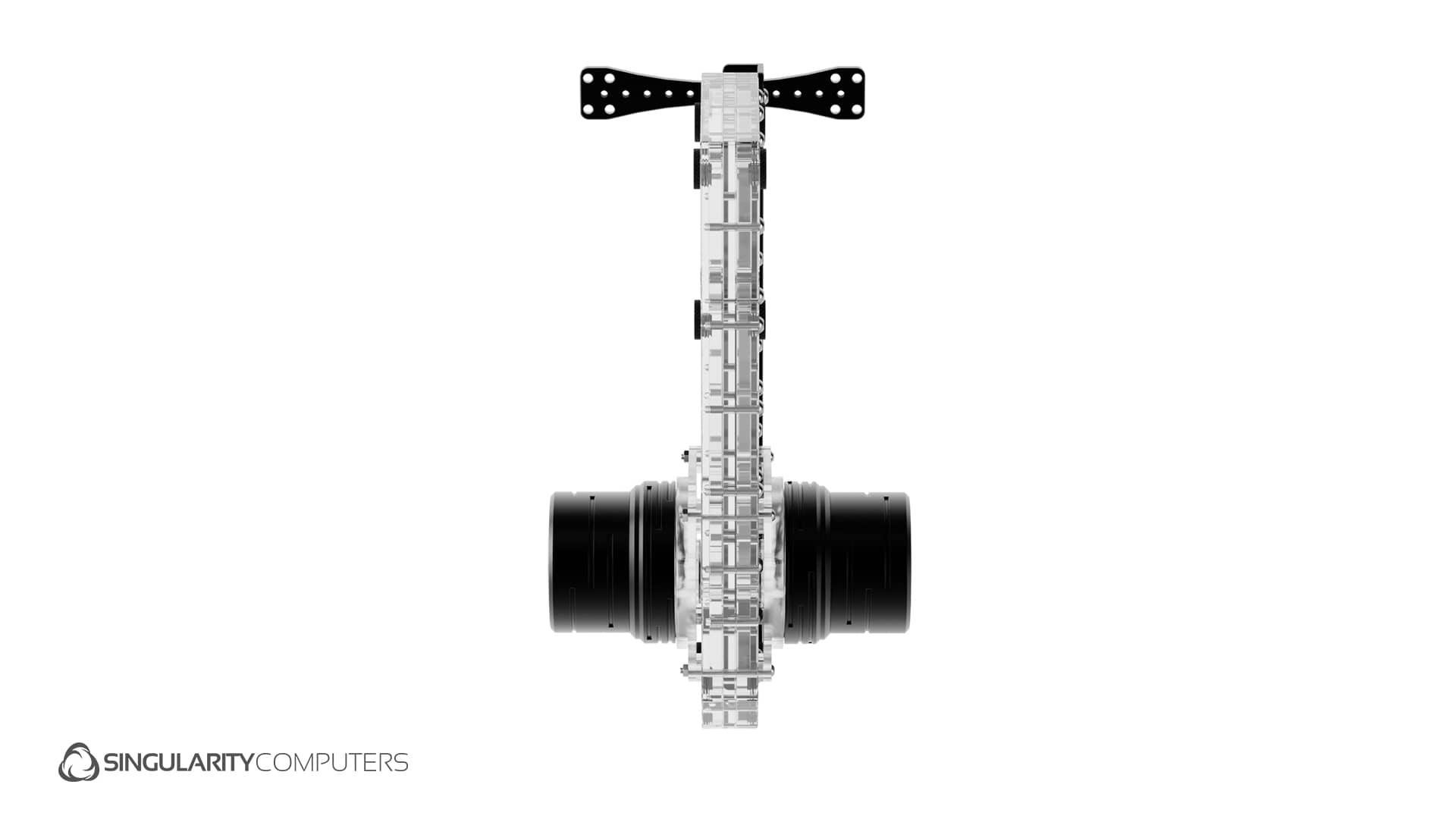

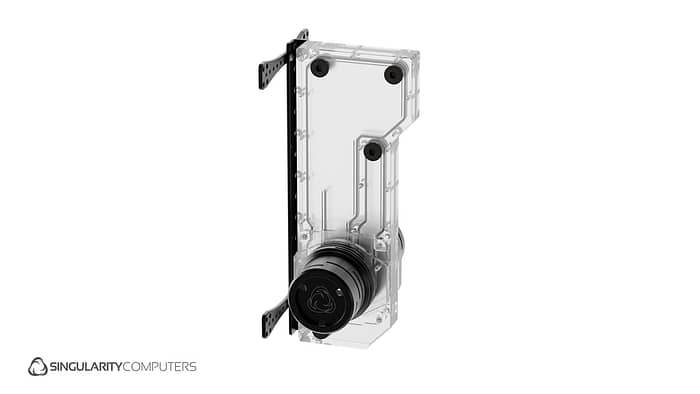

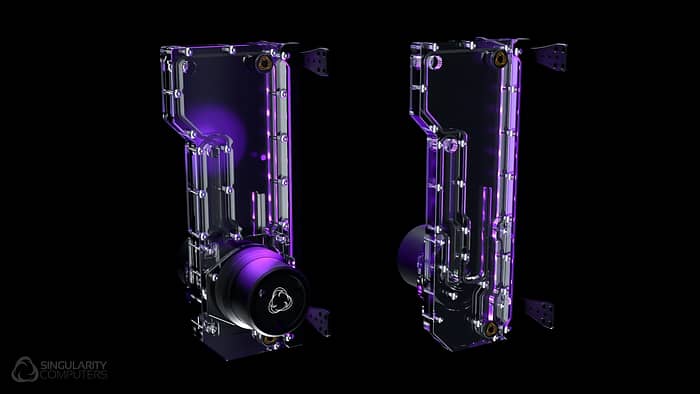

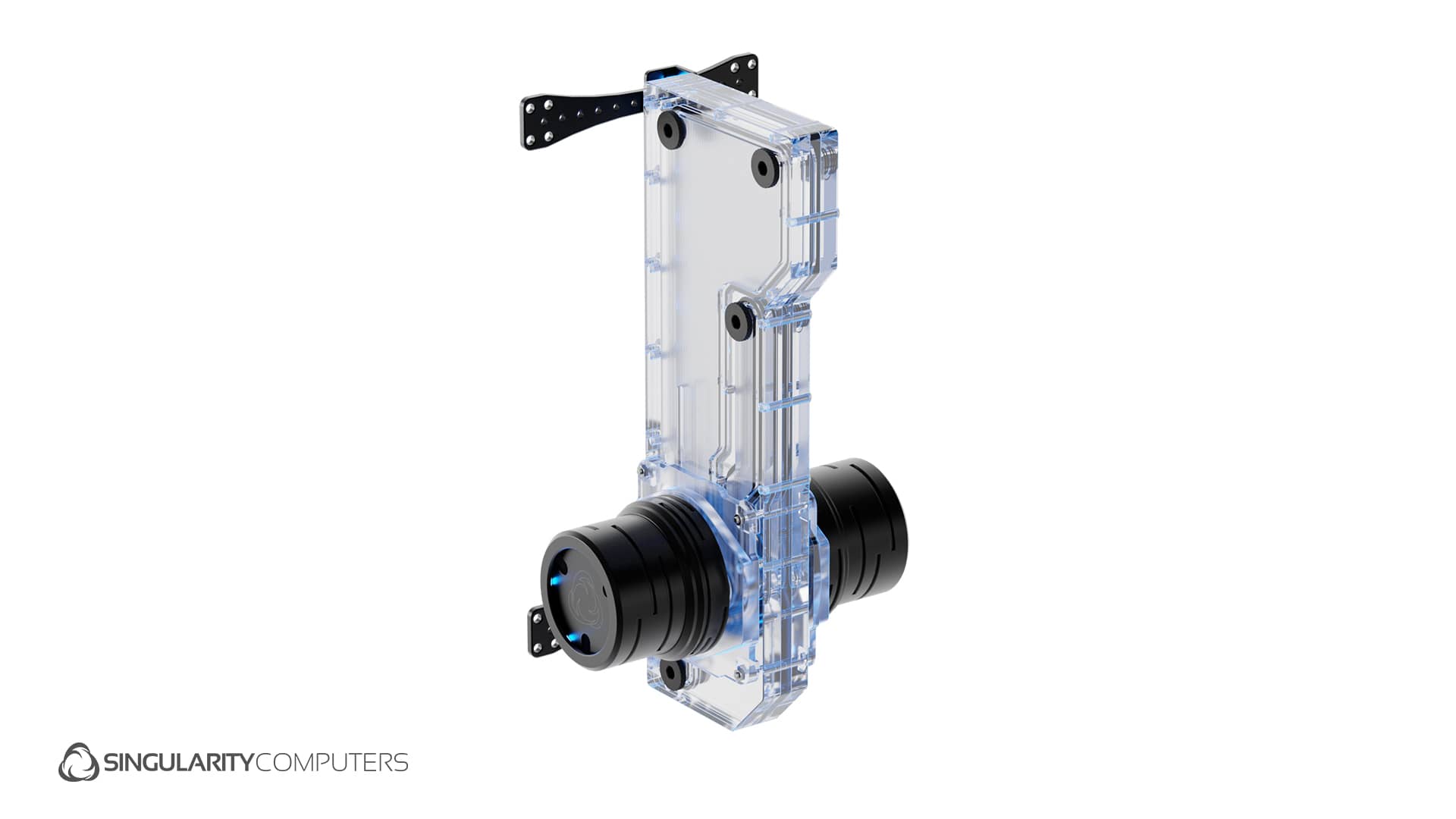

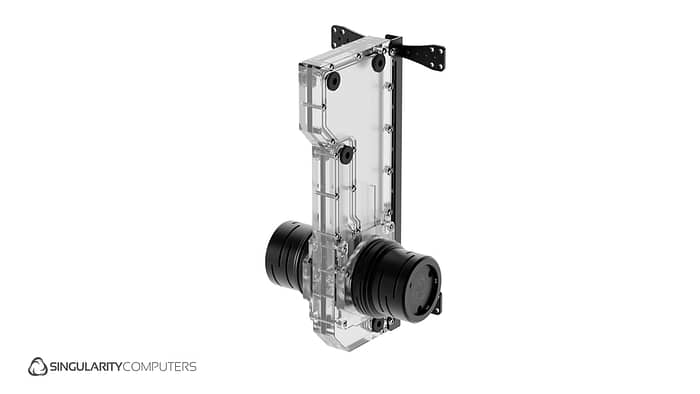

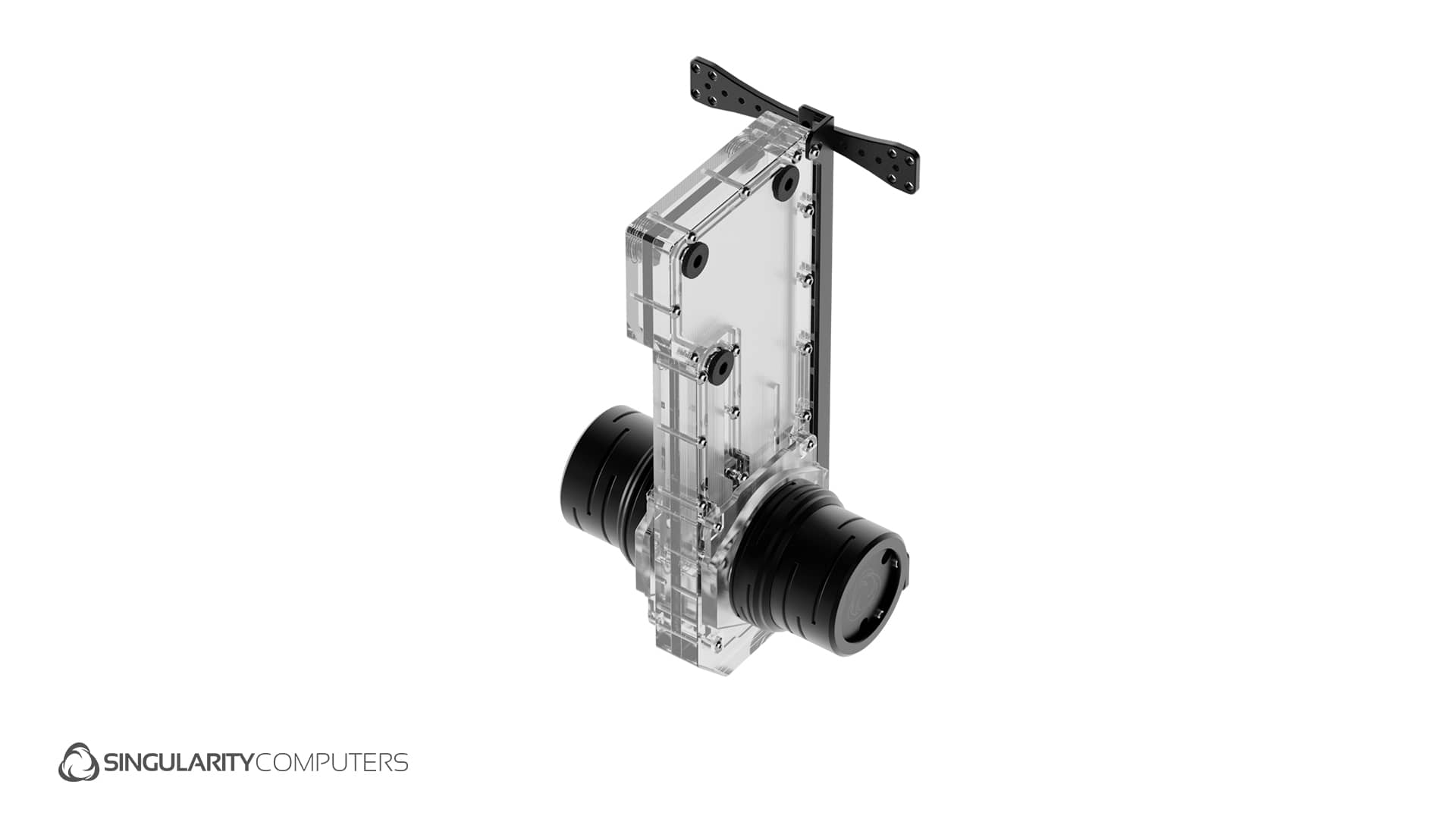

Resonance 2.0 D5 Reservoir Combo Dual Loop Distribution Plate

In stock

Order processing time 1-2 days.

  • Highly versatile dual reservoir distribution plate for single or dual-loop systems
  • Supports single-loop configurations with one or two D5 pumps, or dual-loop configurations
  • Two integrated reservoirs, D5 pump tops and D5 pump covers
  • 8 ports with 2 outlets and 6 inlets for flexible loop routing
  • Four ports can be used for filling, draining or accessories
  • 3-axis adjustable mounting system for maximum compatibility and precise port alignment
  • Universal 120mm/140mm Back Plate for direct radiator mounting

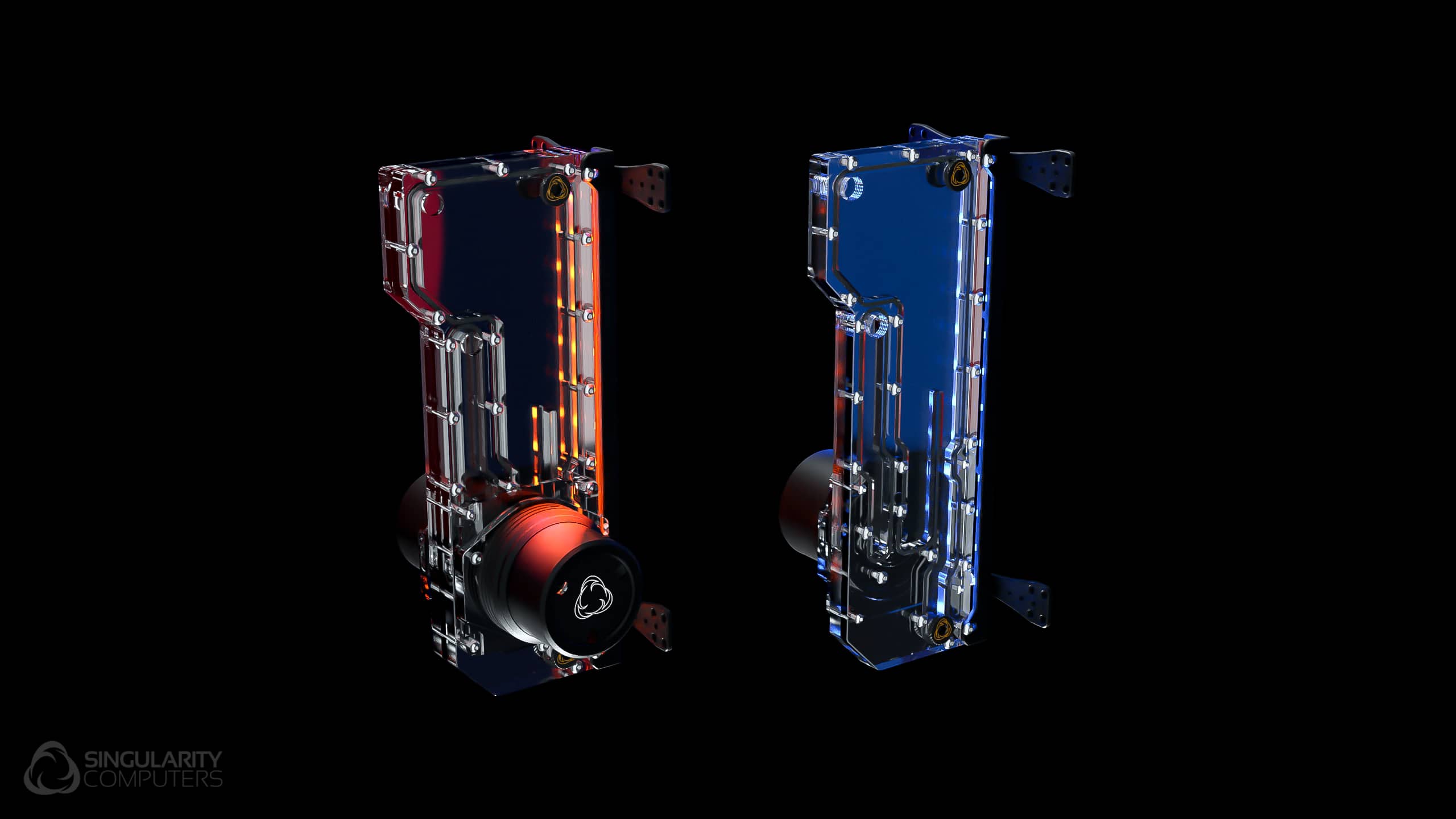

  • Integrated DRGB lighting with support for multiple coolant colors and lighting effects
  • Compact design optimized for mid-tower and larger cases
  • Height matches an ATX motherboard while remaining more compact than traditional pump/reservoir combos

Manuals

US$249.00

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump Cover Options x2 (optional) USD $78
None Black +US$78.00 Silver +US$78.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump x2 (optional) USD $208
None Yes +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x4 (optional) USD $16
None Yes +US$16.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

  • 1x Resonance 2.0 D5 Reservoir Combo Dual Loop Distribution Plate
    US$249.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182002568 SKU: SC-RSN-2-DUAL Categories: ,

Description

Read More +Read Less − full description

A new take on the pump and reservoir combination which exponentially increases versatility compared to traditional options. Resonance 2.0 Dual is capable of Single Loop with single or Dual D5 Pumps, and Dual Loops. It has 8 ports with 4 on each side meaning it is capable of a vast number of loop routing options. It has 2 outlets and 6 inlets, 4 of which can be used for fill, drain or accessory ports. The dimensions and ports were designed based on statistics from the water-cooling system layouts in many builds. Resonance 2.0 Dual has two integrated Reservoirs, D5 Pump Tops, D5 Pump Covers and parts of the loop. With different coolant colors in each reservoir and the included DRGB lighting, many colors and effects are possible. The mounting systems has 3 axis adjustment for maximum compatibility, port alignment and fitting into tight spaces. Direct to radiator mounting with a universal 120/140mm back plate. Resonance is optimized for mid tower cases and upwards, the height of Resonance is the same as an ATX motherboard, although it can fit into smaller cases being overall more compact than traditional pump/reservoir combos.

Specifications

Resonance 2.0 D5 Reservoir Combo Dual Loop Distribution Plate: Clear Cast Acrylic, CNC Machined. x1.
Integrated Reservoirs: x2.
Integrated Pump Tops D5: x2.
Ports: x4 per loop.
Pump Covers: D5 6061 Aluminum, CNC Machined, Anodized Black. x2.
Resonance Mount: 6061 Aluminum, CNC Machined, Anodized Black. x1.
Resonance Universal 120/140 Back Plate: Aluminum, CNC Machined, Anodized Black. x2.
O-Rings Silicone White 70 Durometer: Protium D5 O-Ring: x2.
Spectrum 2.0 30cm DRGB LED Strip: x1.
Fasteners Stainless Steel: M4 8mm Button head. x2.
Dimensions: L: 300mm x W: 161.6mm x H: 131mm.
Weight: 1kg.
Packaged Dimensions: L: 355mm x W: 135mm x H: 110mm.
Packaged Weight: 1.5kg.

Installation:
Resonance 2.0 is designed to be mounted onto any 120mm or 140mm wide radiator via the universal back plate. The mounting system has 3-axis adjustment for alignment with components and ports. There are ports on both sides of Resonance for maximum loop routing options. D5 pumps will need to be installed (not included), make sure the included O-rings are in position. A long fill tube is recommended at least 20-30cm.
