Resonance 2.0 S DDC Reservoir Combo Distribution Plate

In stock

Order processing time 1-2 days.

  • DDC reservoir combo distribution plate for small to medium water-cooling loops
  • Integrated DDC pump top compatible with all DDC pumps
  • 120mm × 120mm design for mounting to 120mm radiators
  • Also compatible with 140mm, 240mm and 280mm radiators
  • Ideal for SFF and compact mid-tower builds
  • Side-mounted orientation keeps the distribution plate fully visible
  • Single inlet, outlet and fill port
  • Addressable ARGB lighting compatible with standard motherboard and controller connections
  • Universal Back Plate for 120mm and 140mm radiators, fans or fan mounting locations
  • Removable cover with customizable color and finish options

Manuals

US$69.00

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$5.52 Silver Mirror +US$5.52 Gold Mirror +US$5.52 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select Mounting Colour Options (included)
None Black Silver Black

Back Plates Black
The Singularity Computers Universal Back Plate is designed to mount all Protium Pump Reservoir Combos, Pump Tops, and Reservoir Mounts onto a 120mm or 140mm wide radiator. With horizontal adjustment in 10mm increments, you can easily offset components on the radiator. The design aims to minimize overhang, especially when used with a 120mm radiator.
Select the colour for the included mounting back plates.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

DDC Pump Cover Black (optional) USD $39
None Yes +US$39.00

DDC Pump Cover
The Singularity Computers DDC Pump Cover is built from CNC machined anodized aluminum. It covers the DDC to improve aesthetics, but it also has a built in heatsink for extra cooling of the pump motor which is known to run hot and is not cooled by the coolant. The DDC Pump Cover has a Singularity Computers logo on the base. It is compatible with all DDC Pumps and Pump Tops.

Stop Fitting (optional) USD $4
None Yes +US$4.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

  • 1x Resonance 2.0 S DDC Reservoir Combo Distribution Plate
    US$69.00

Subtotal excludes shipping & tax

25% off Storewide With SCHAL | All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182003756 SKU: SC-RSN-2-S Categories: ,

Description

Read More +Read Less − full description

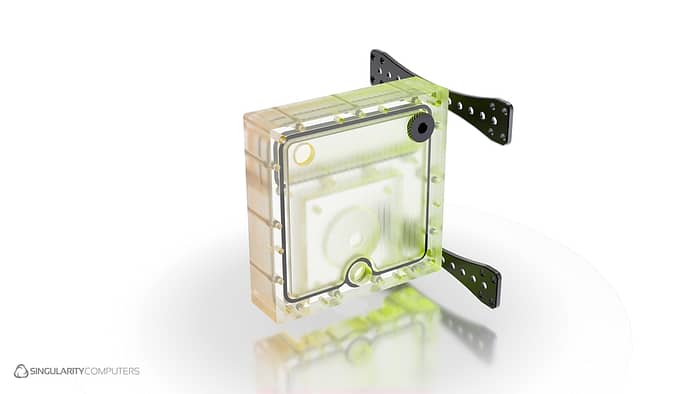

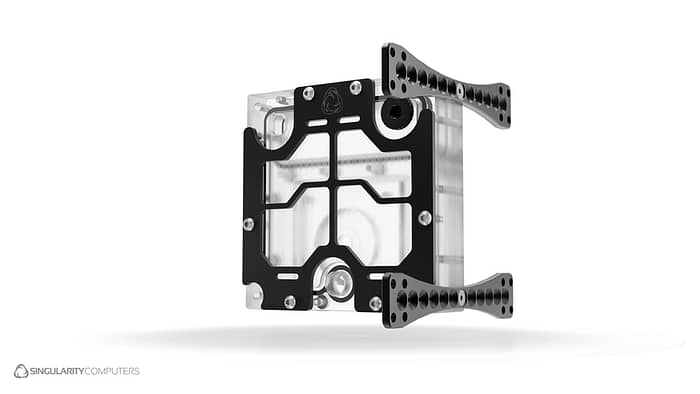

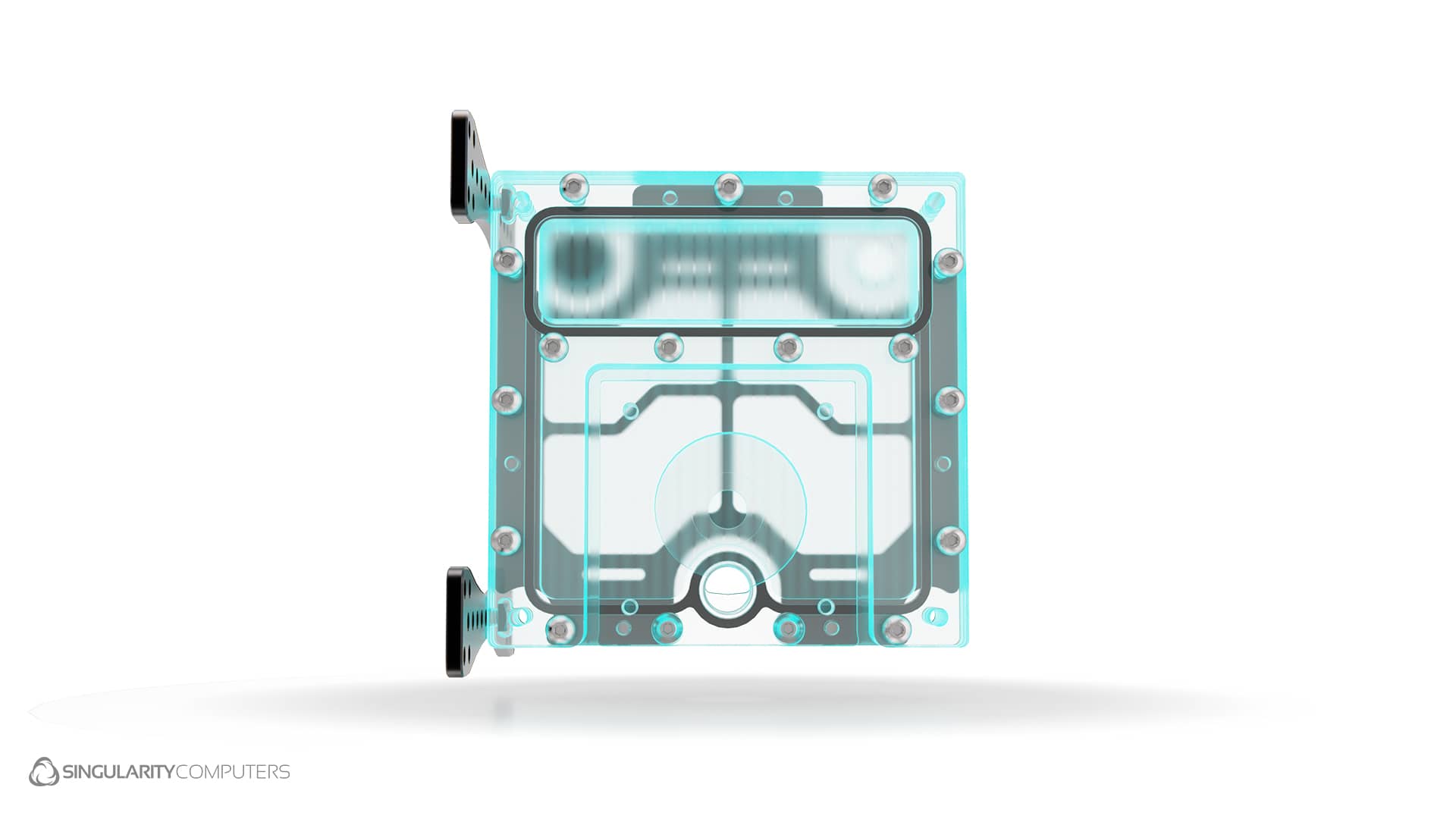

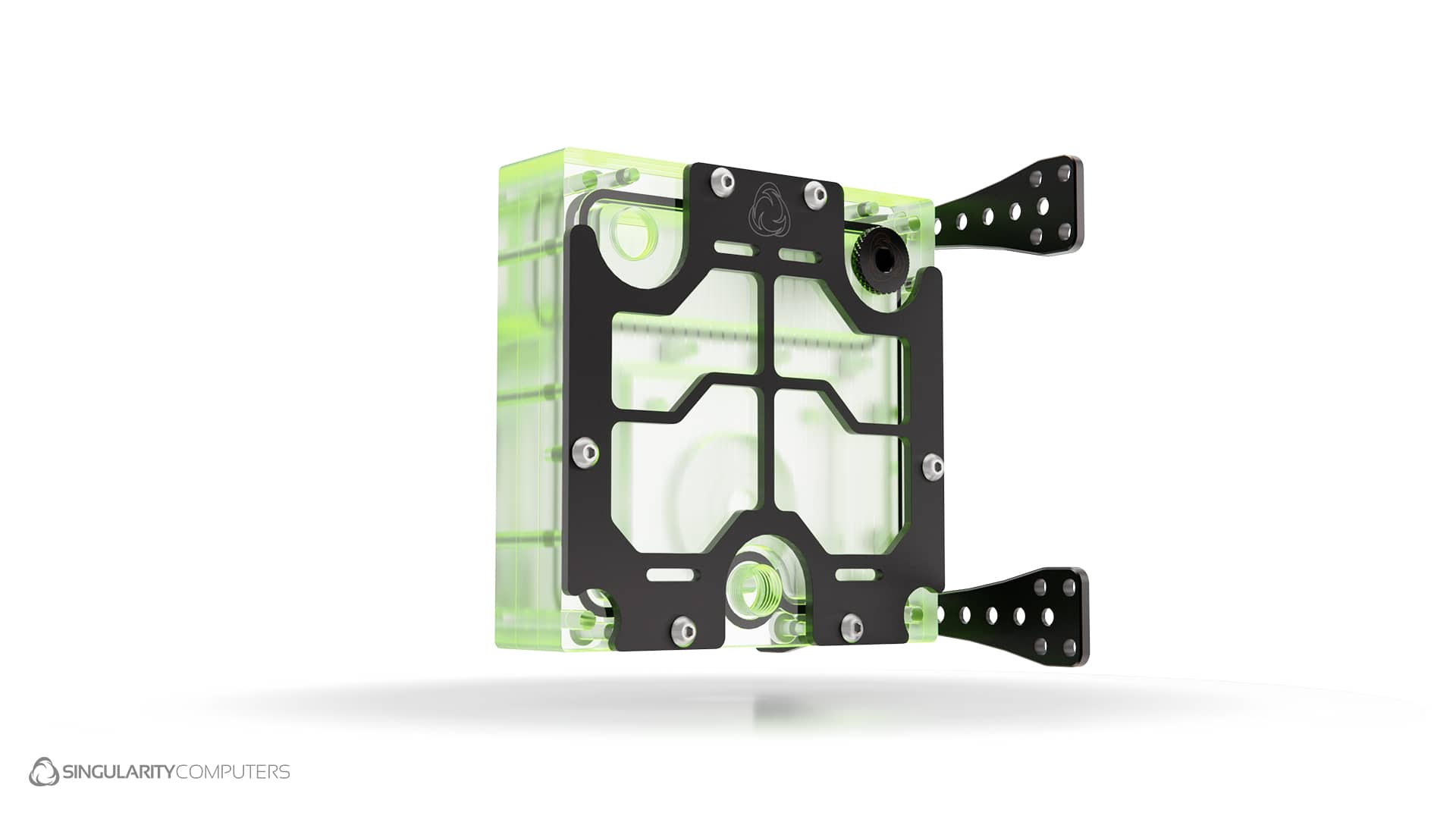

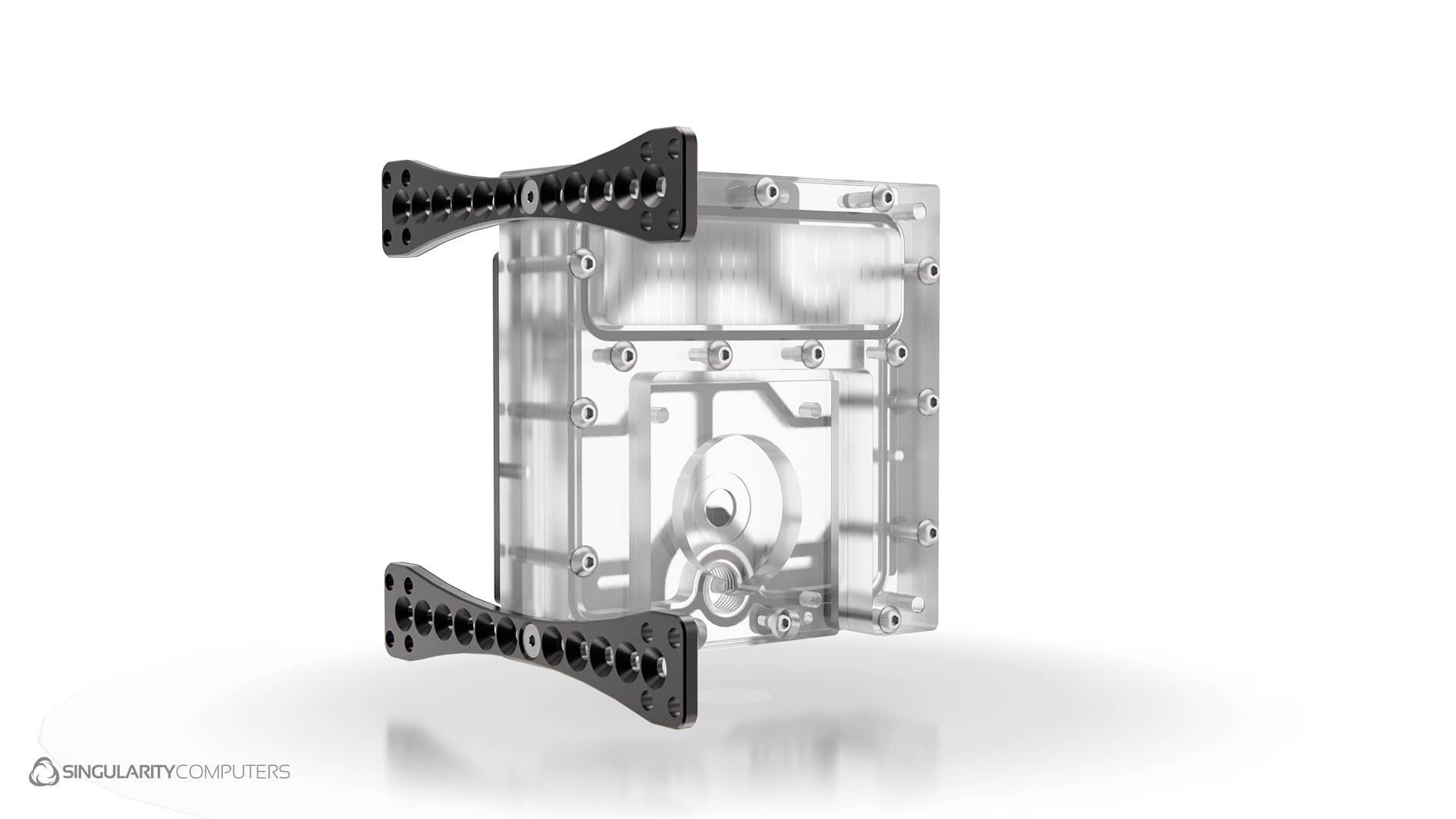

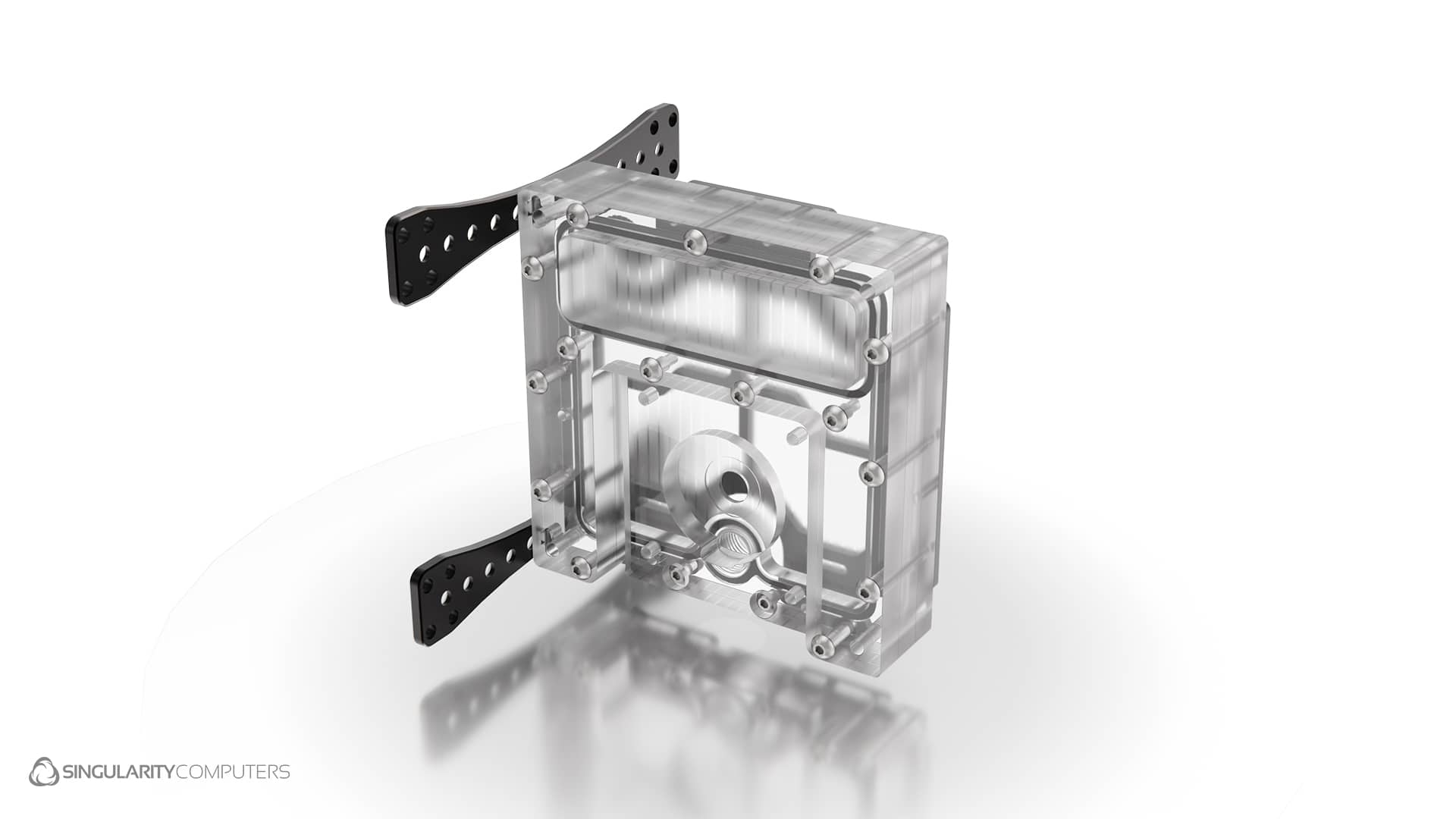

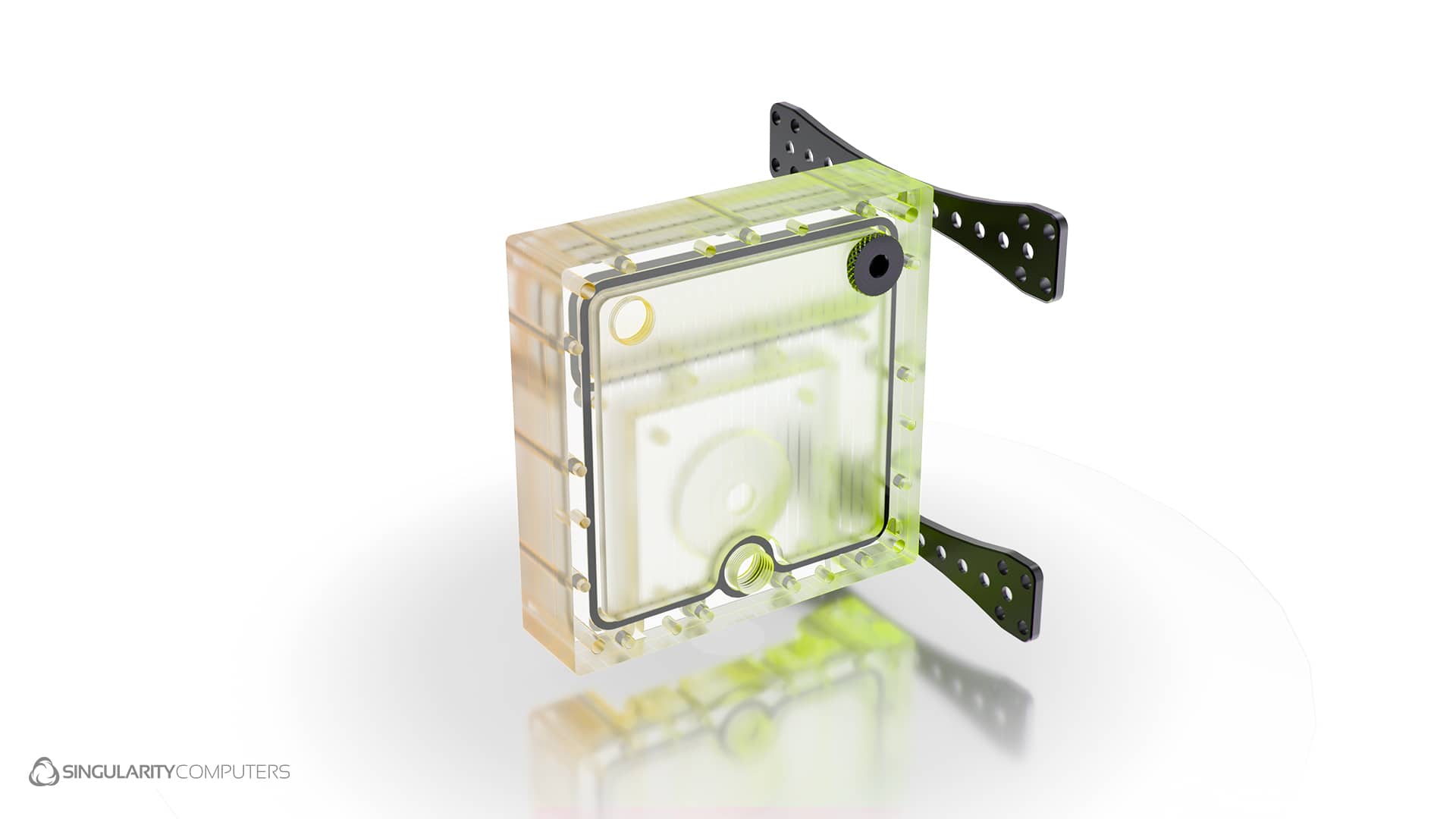

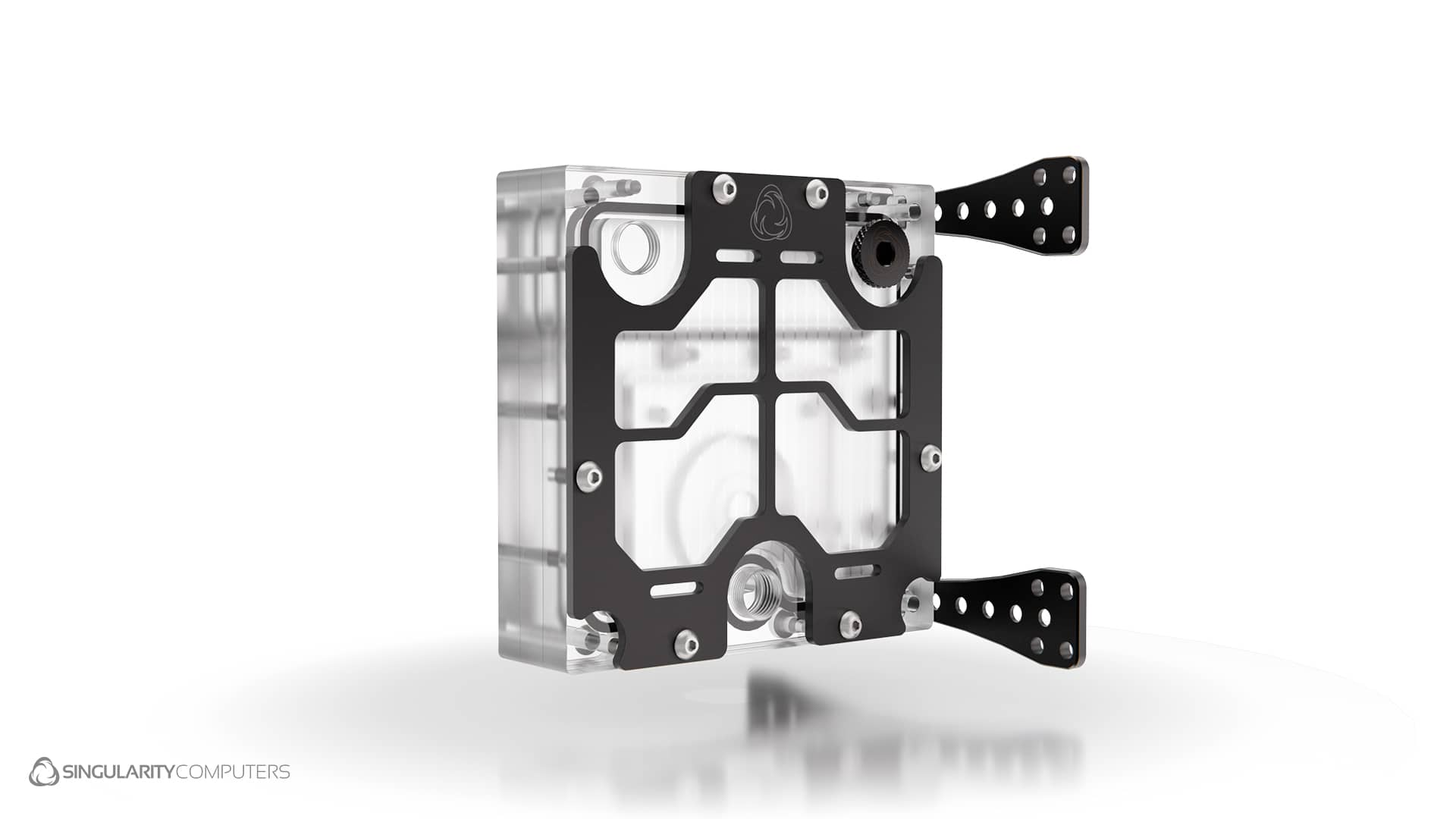

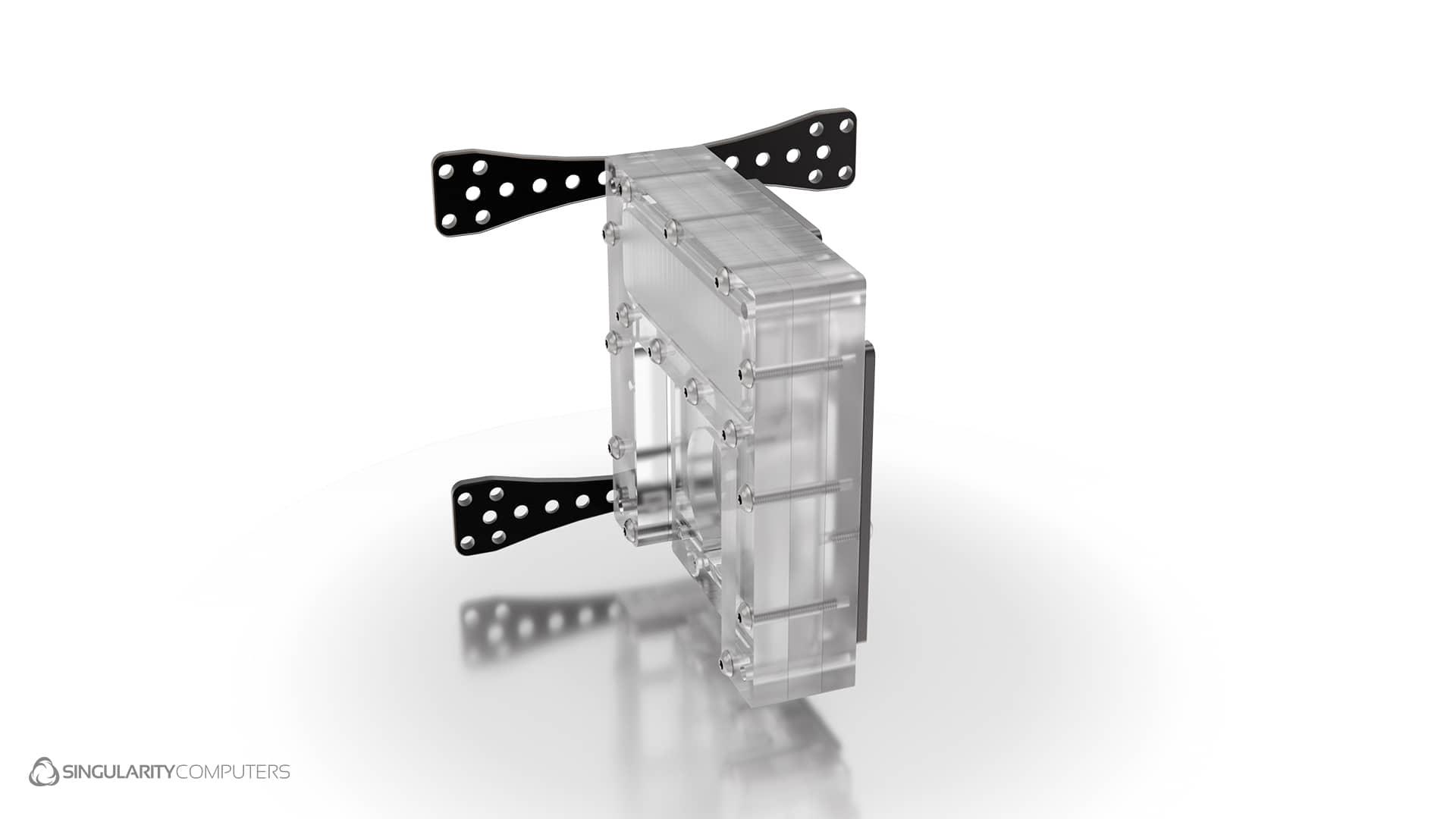

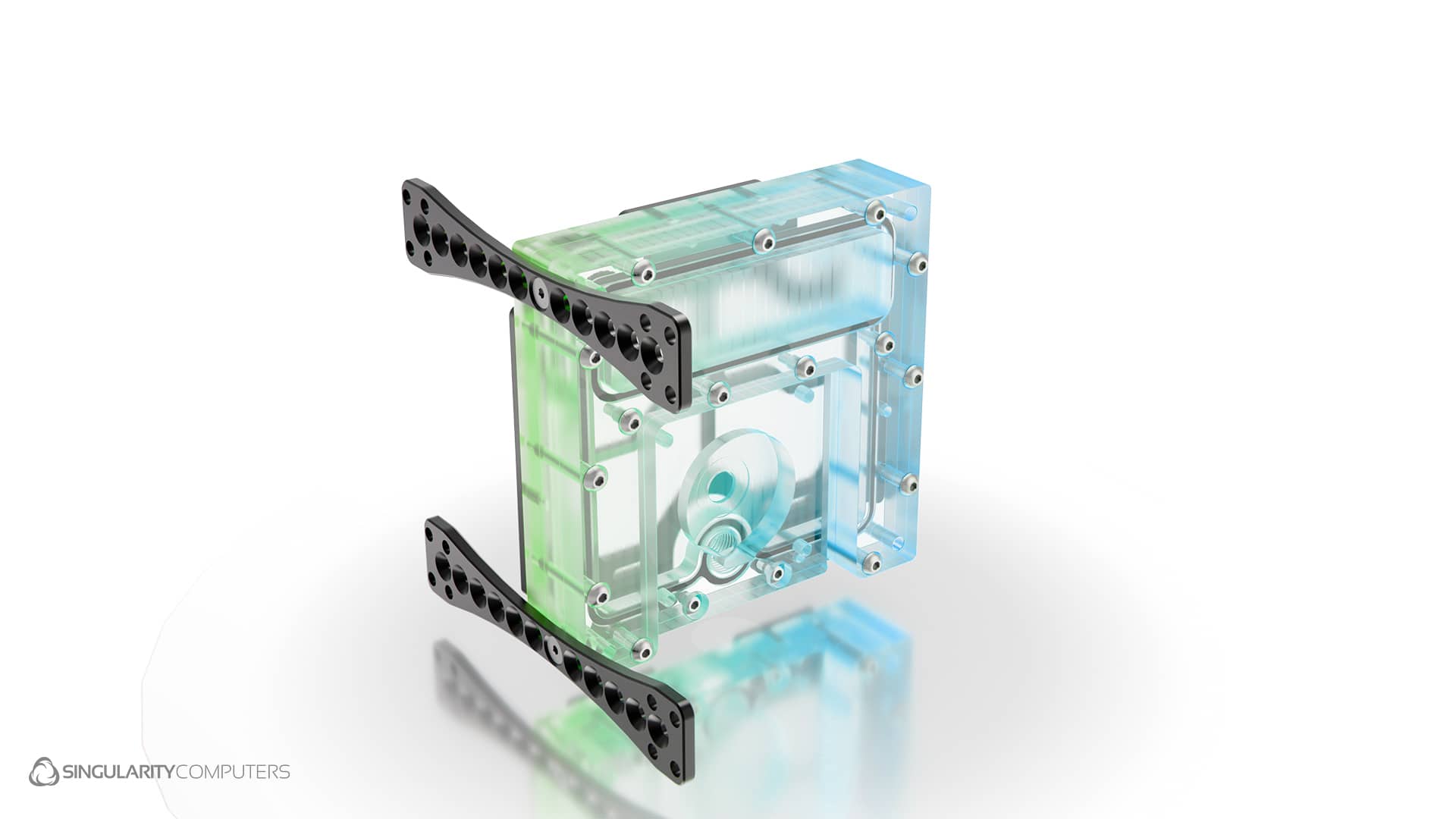

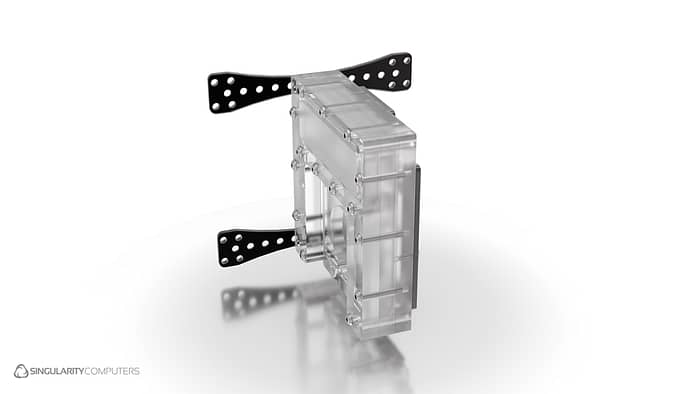

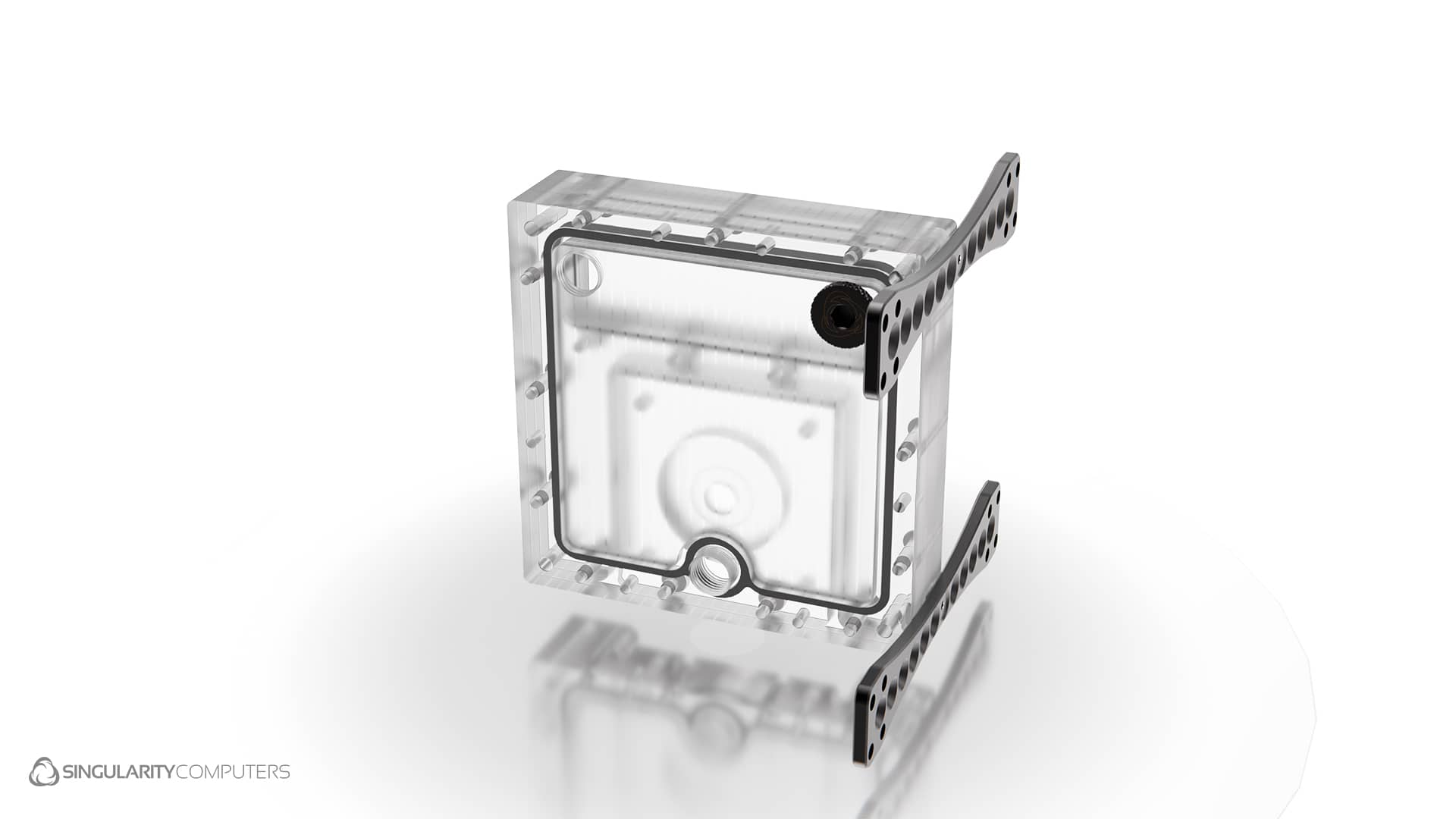

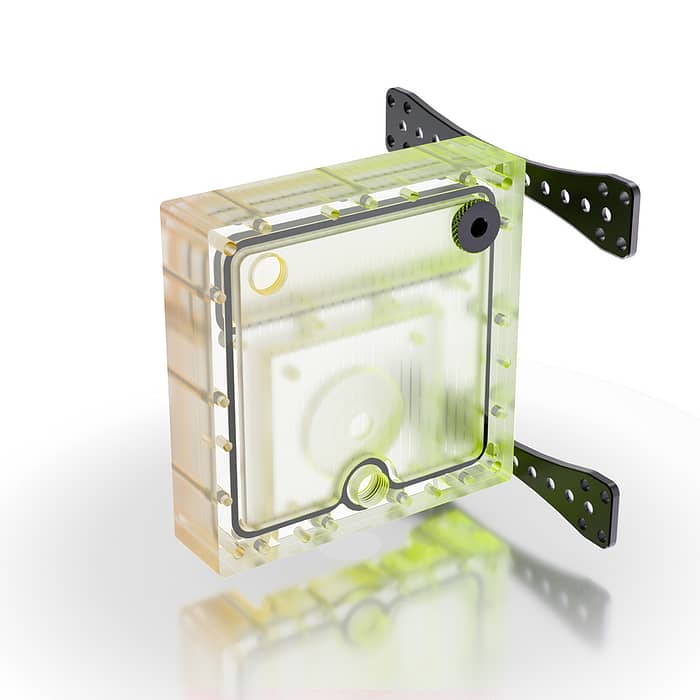

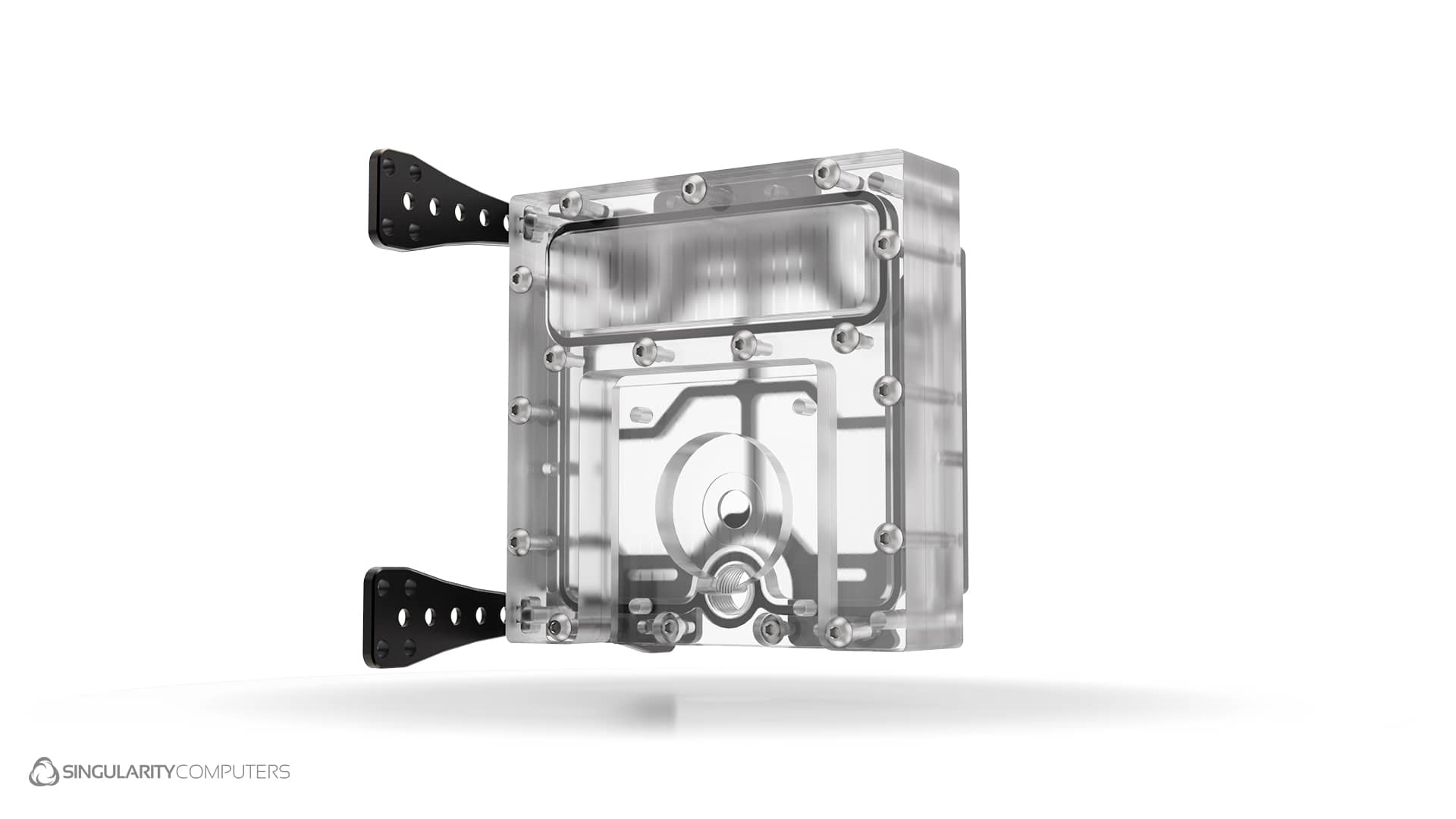

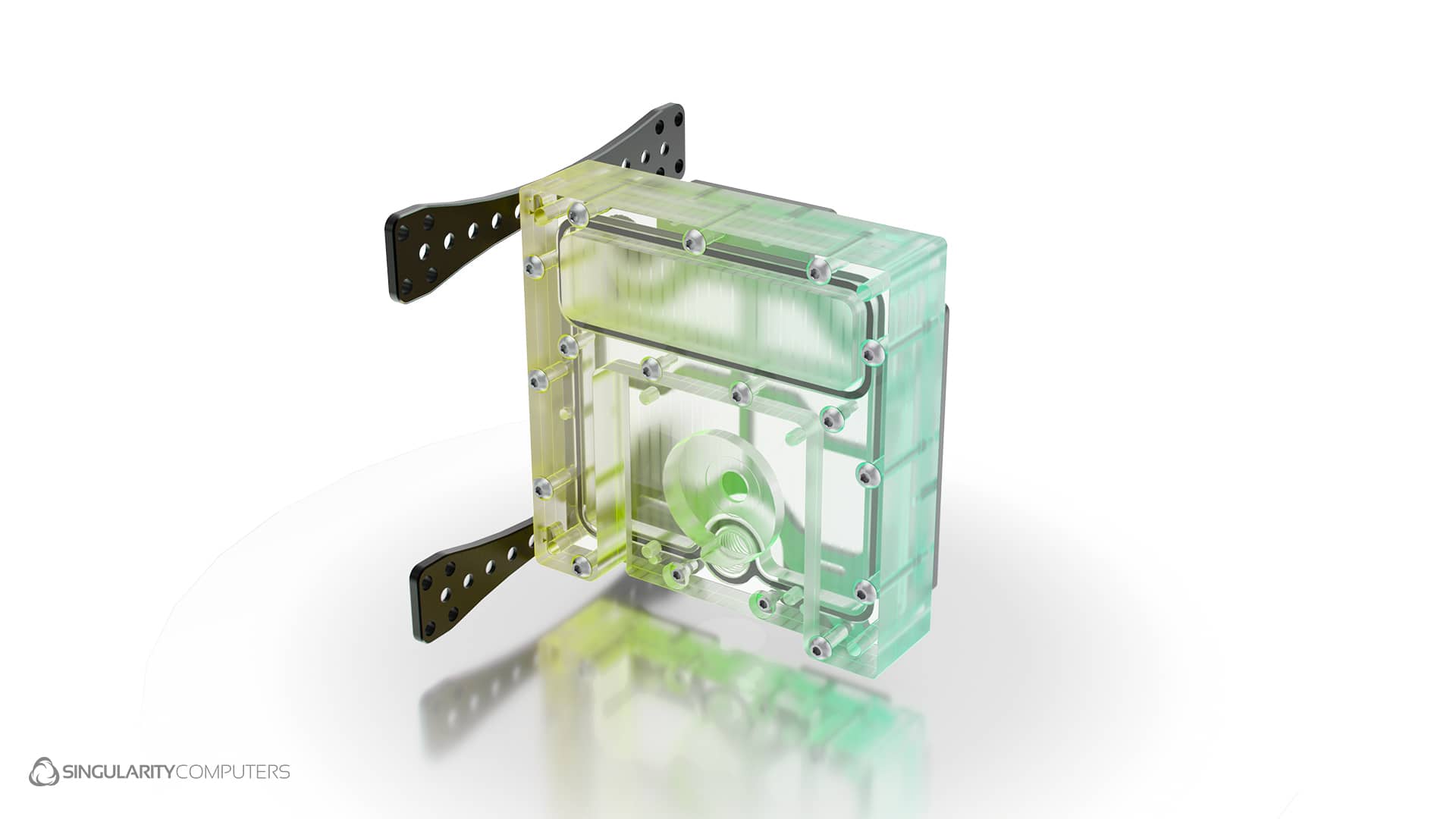

The Resonance 2.0 S DDC Reservoir Combo Distribution Plate is a pump reservoir combo distribution plate designed for small to medium water-cooling loops. It comes included with an integrated DDC pump top. It is 120mm in height and width meaning that it is designed to be mounted onto a 120mm radiator, but it is also a good fit on a 140mm, 240mm or 280mm radiator. It is generally designed for SFF or compact mid tower case builds. The standard mounting orientation is side mounted so that the distribution plate is in full view with the pump facing towards the back. It has a single inlet and outlet and a fill port. The lighting is ARGB addressable and is compatible with any motherboard or controller which uses standard ARGB connections. The back plate is universal for mounting onto 120mm or 140mm wide radiators, fans or fan mounting positions. The pump top is compatible with all DDC pumps. The distribution plate comes with a cover which can be removed if more transparency is desired, select from the color/finish options below for the cover.

Specifications

Resonance 2.0 S DDC Reservoir Combo Distribution Plate.
Integrated Reservoir.
Integrated Pump Top DDC.
Universal Backplate: Black. Anodized. CNC Machined. x2.
LED Strip: ARGB 5V Addressable. 50cm Black Cable.
Fasteners: M4 x 10mm CS x2. M4 x 40mm x4. M4 Nuts x4. M4 Spacer 5mm x4.
Dimensions: L: 240mm x W: 120mm x H: 58mm.
Weight: 0.39kg.
Packaged Dimensions: L: 290mm x W: 170mm x H: 108mm.
Packaged Weight: 0.42kg.

Installation:
Compatible with all DDC Pumps. Mounts onto any 120mm or 140mm wide radiator, fans or fan mounting position. Can also be flat mounted on a 120mm radiator, radiator mount or fan (fasteners not included).
