Resonance 2.0 M D5 Reservoir Combo Distribution Plate

In stock

Order processing time 1-2 days.

  • D5 reservoir combo distribution plate for medium to large water-cooling loops
  • Integrated D5 pump top and retention ring
  • 240mm height designed for mounting to 240mm radiators
  • Compatible with 120mm and 140mm wide radiators and radiator mounts
  • Edge-mounted via Back Plates or flat-mounted onto a 240mm radiator
  • Ideal for compact mid-tower and full-tower builds
  • Side-mounted orientation keeps the distribution plate fully visible
  • Single inlet and outlet with fill and drain ports
  • Addressable ARGB lighting compatible with standard motherboard and controller connections
  • D5 pump top and retention ring compatible with all D5 pumps, including Aquacomputer D5 Next
  • Removable cover with customizable color and finish options

Manuals

US$129.00

Select Acrylic Cover and Back Plate Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$10.32 Silver Mirror +US$10.32 Gold Mirror +US$10.32 Satin Black

The distribution plate will remain transparent, this colour option is for the covers and back plates.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring & Mounting Colour Options (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.
Select the colour for the D5 Retention Ring and Mounting Back Plates.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump Cover (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x2 (optional) USD $8
None Yes +US$8.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

  • 1x Resonance 2.0 M D5 Reservoir Combo Distribution Plate
    US$129.00

Subtotal excludes shipping & tax

25% off Storewide With SCHAL | All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182003787 SKU: SC-RSN-2-M Categories: ,

Description

Read More +Read Less − full description

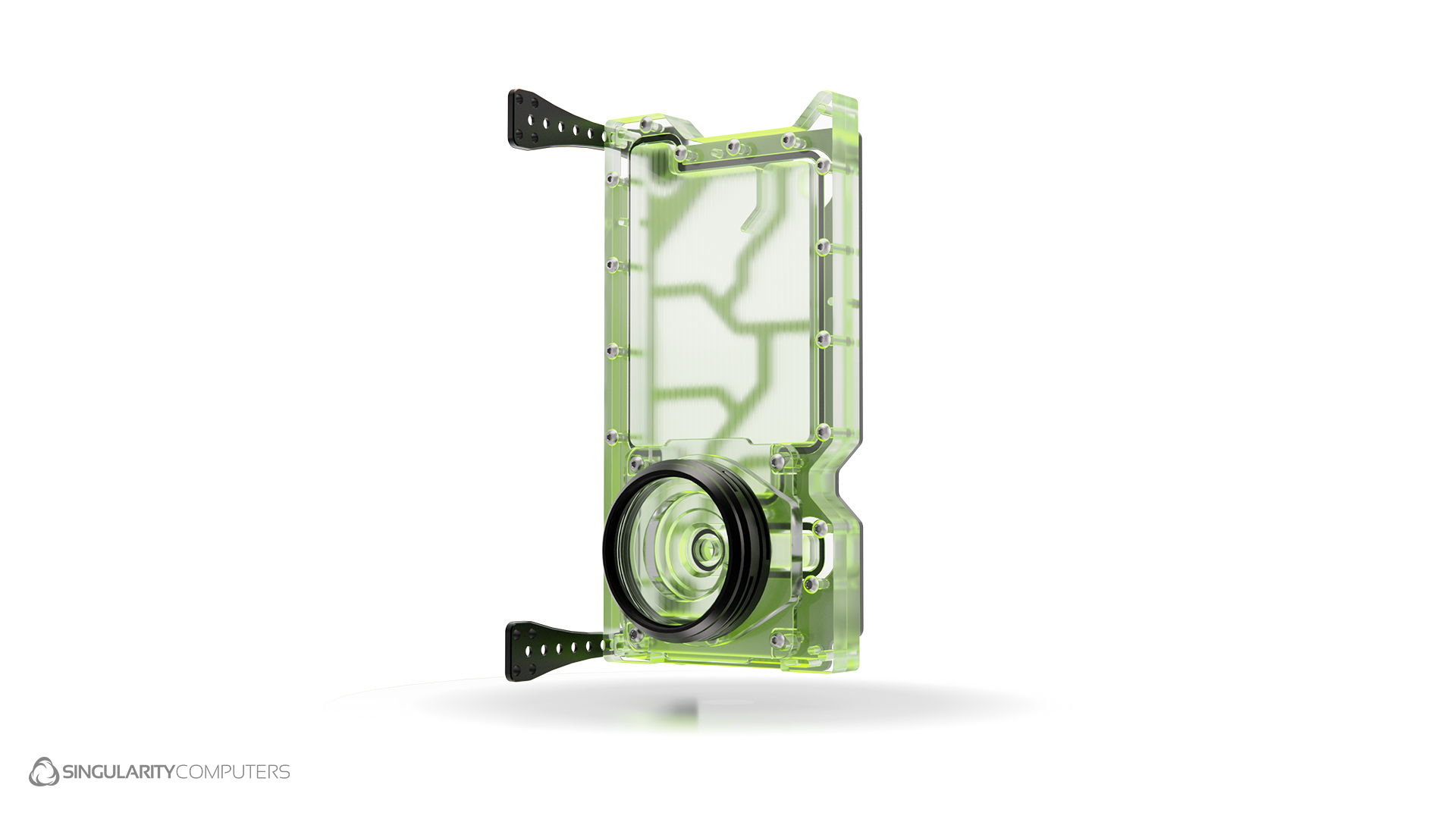

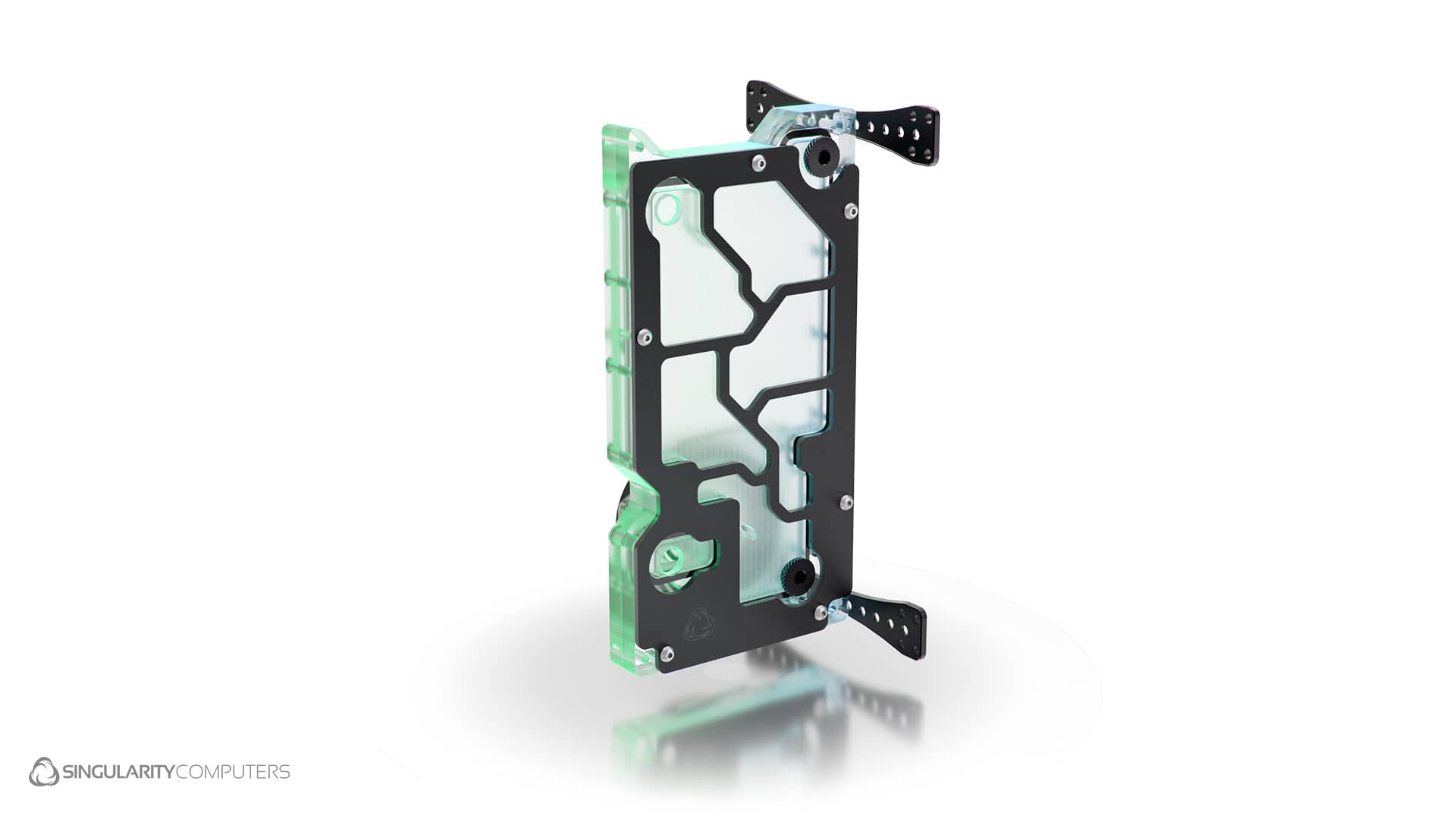

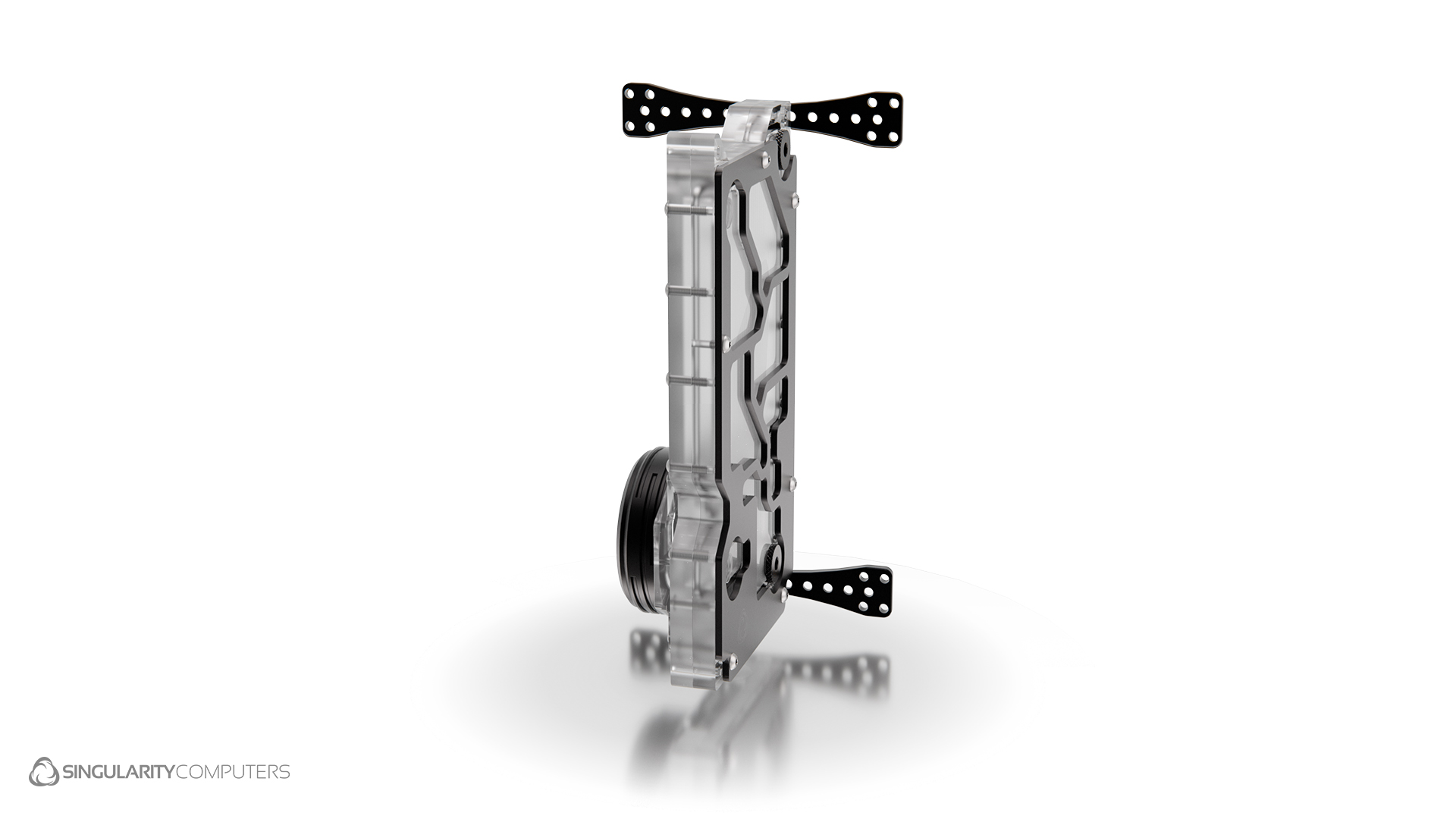

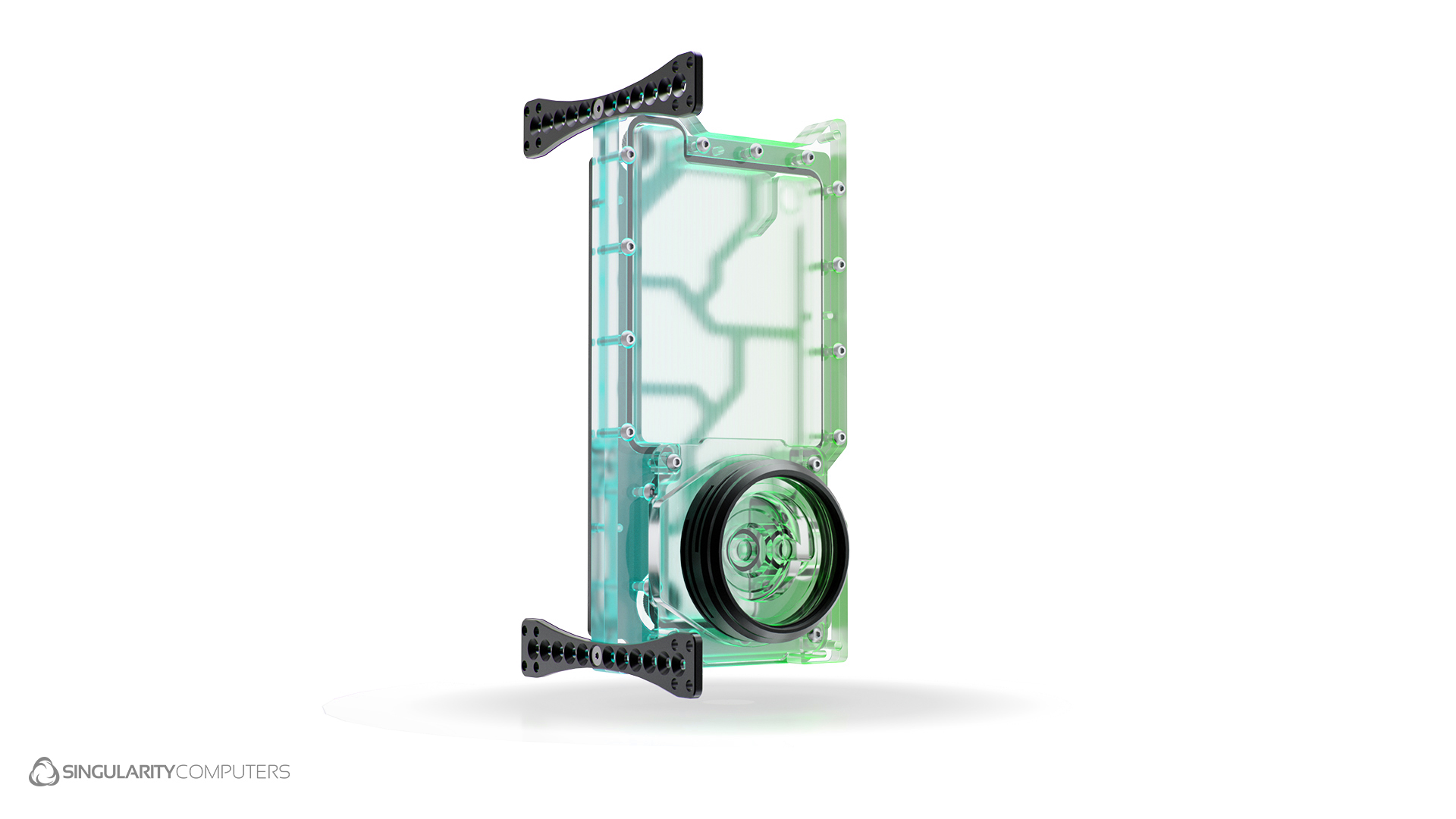

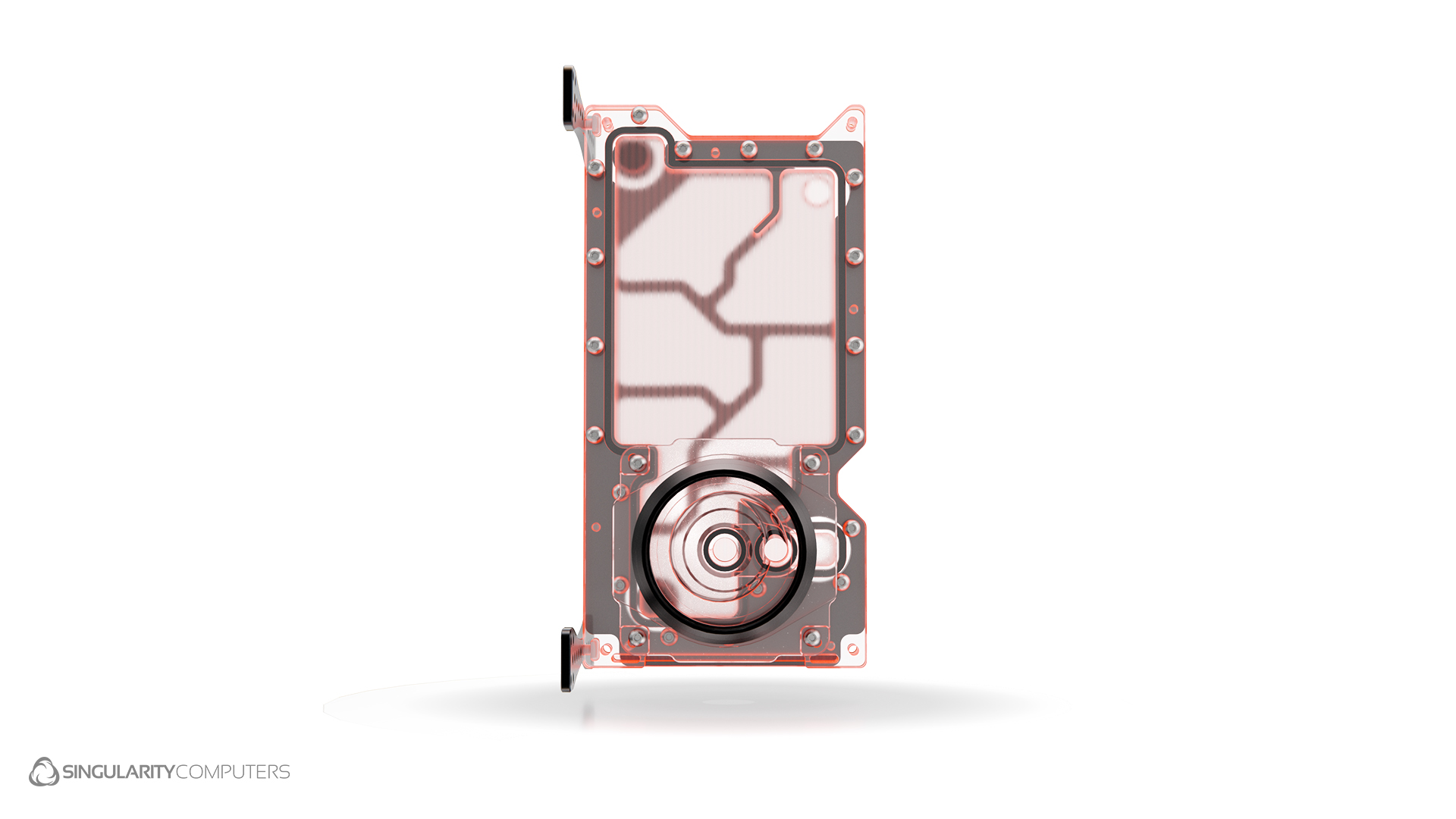

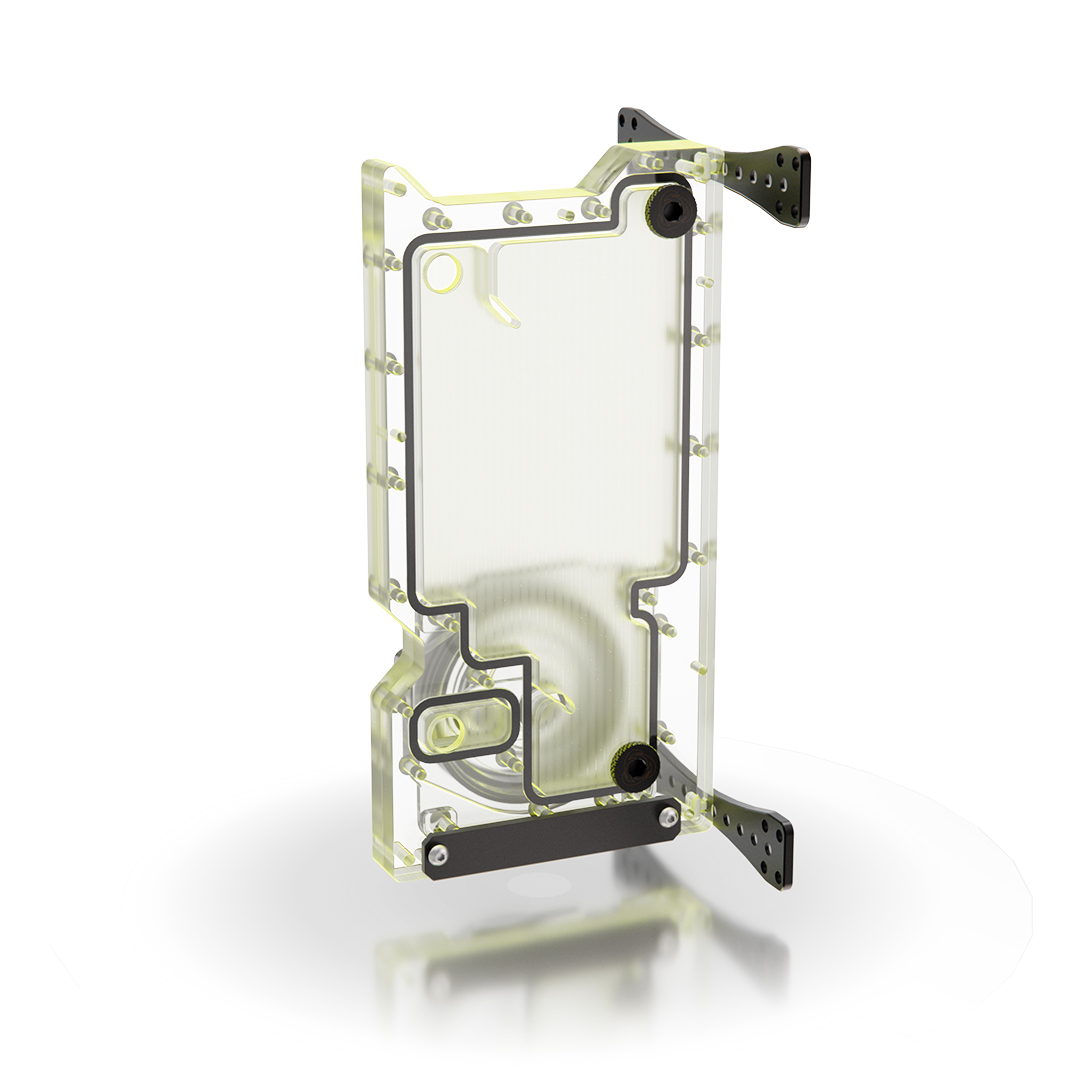

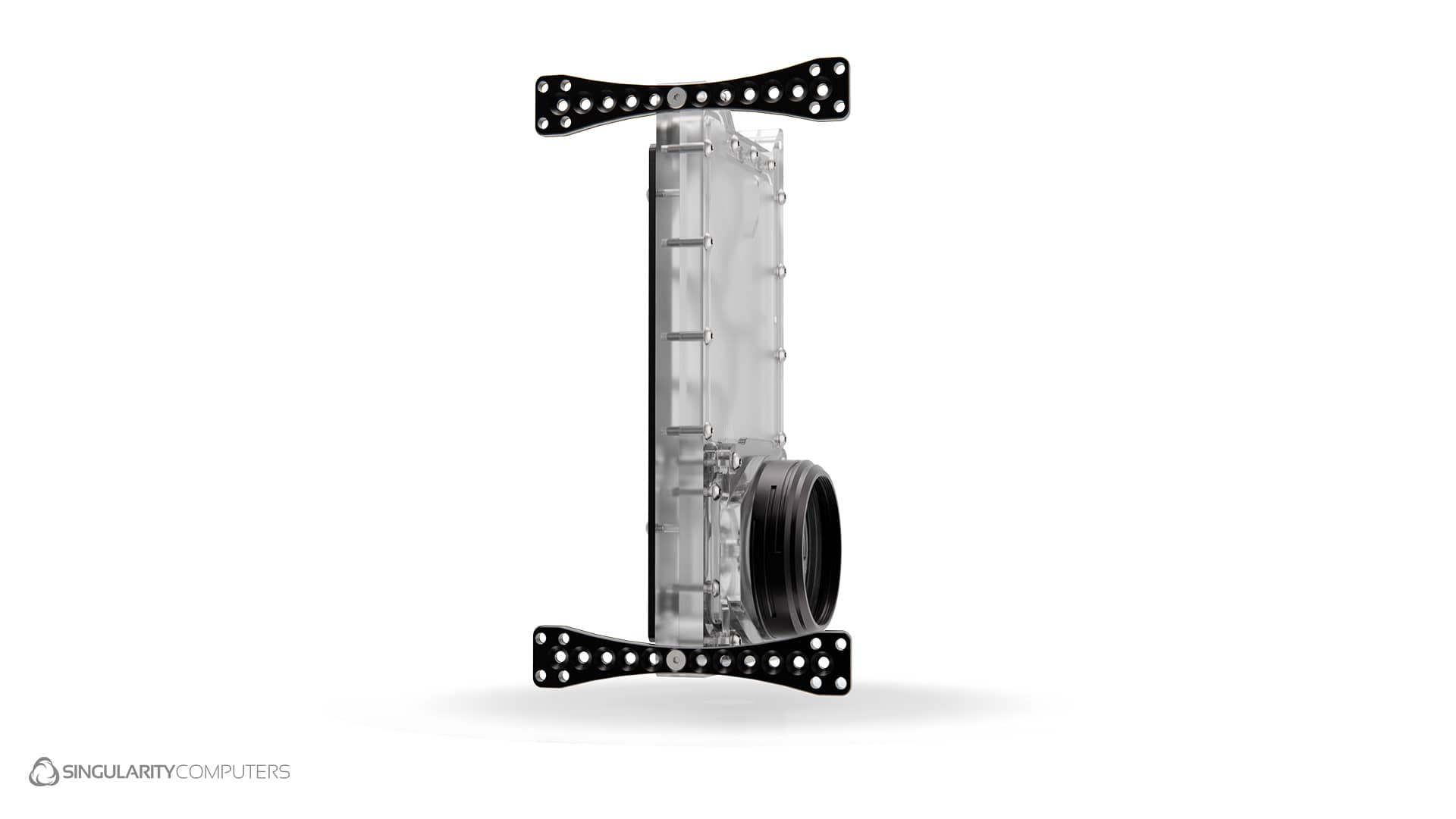

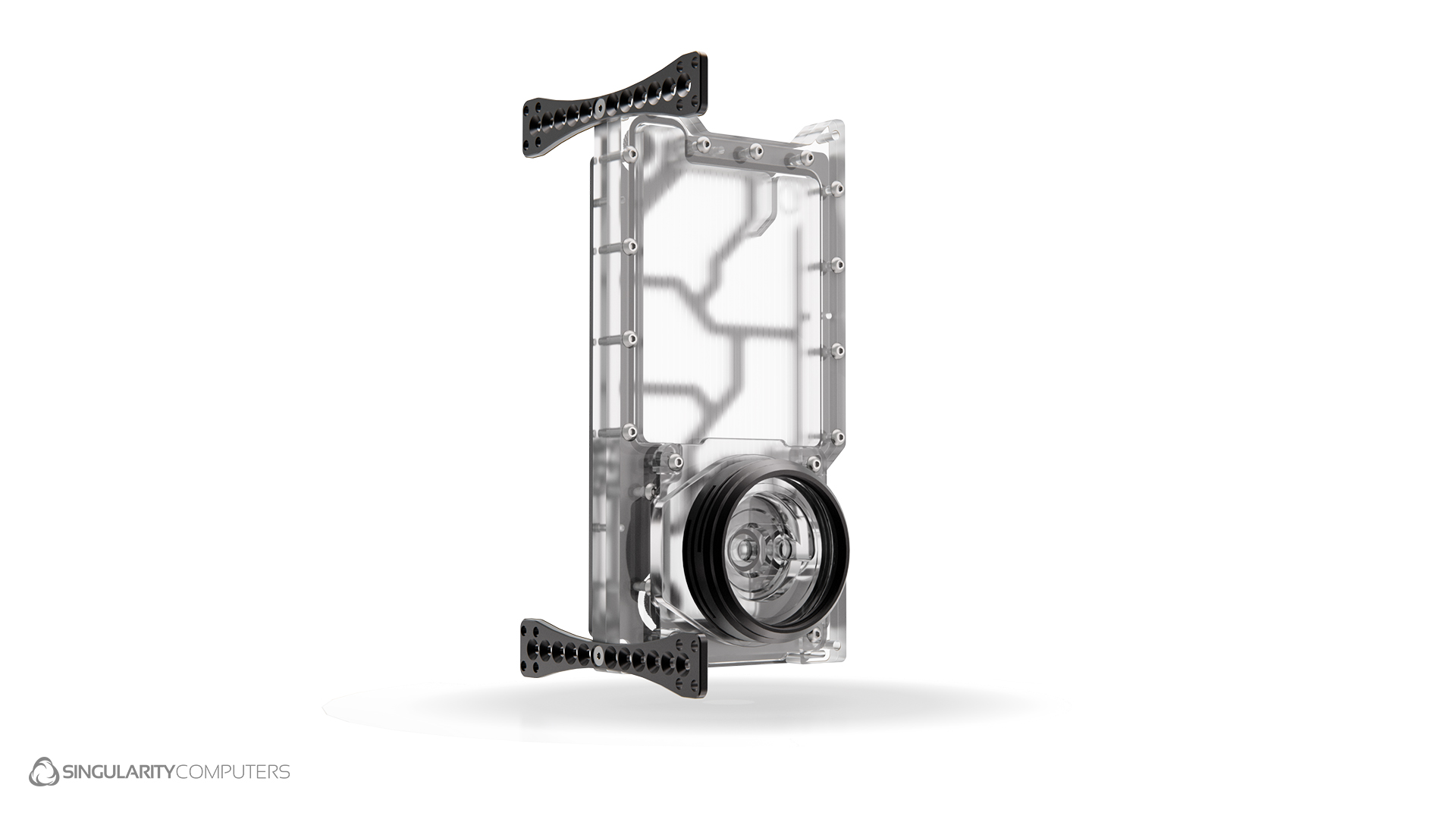

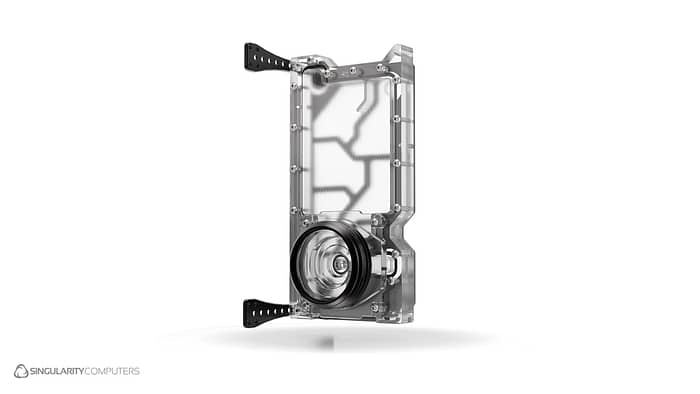

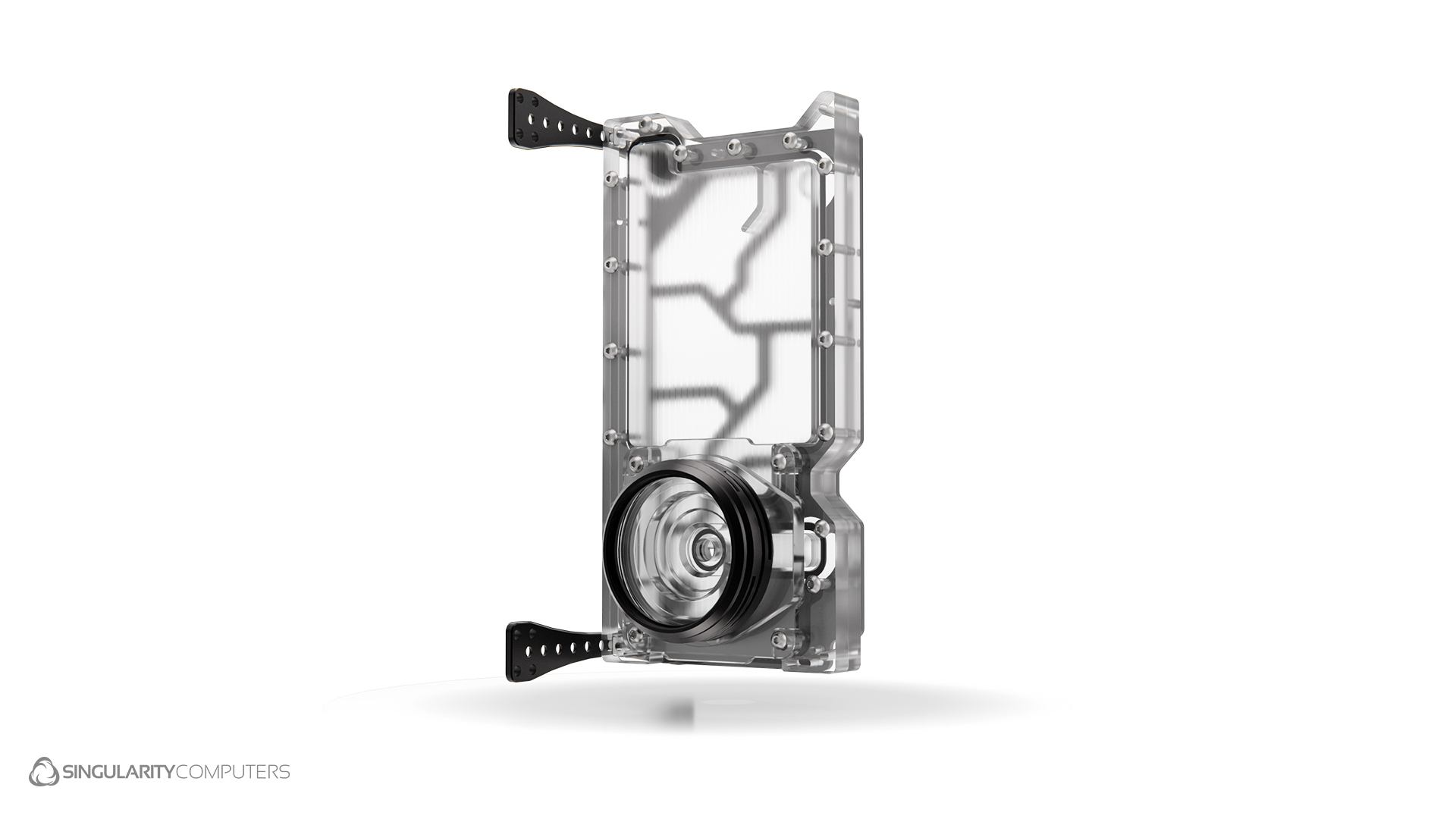

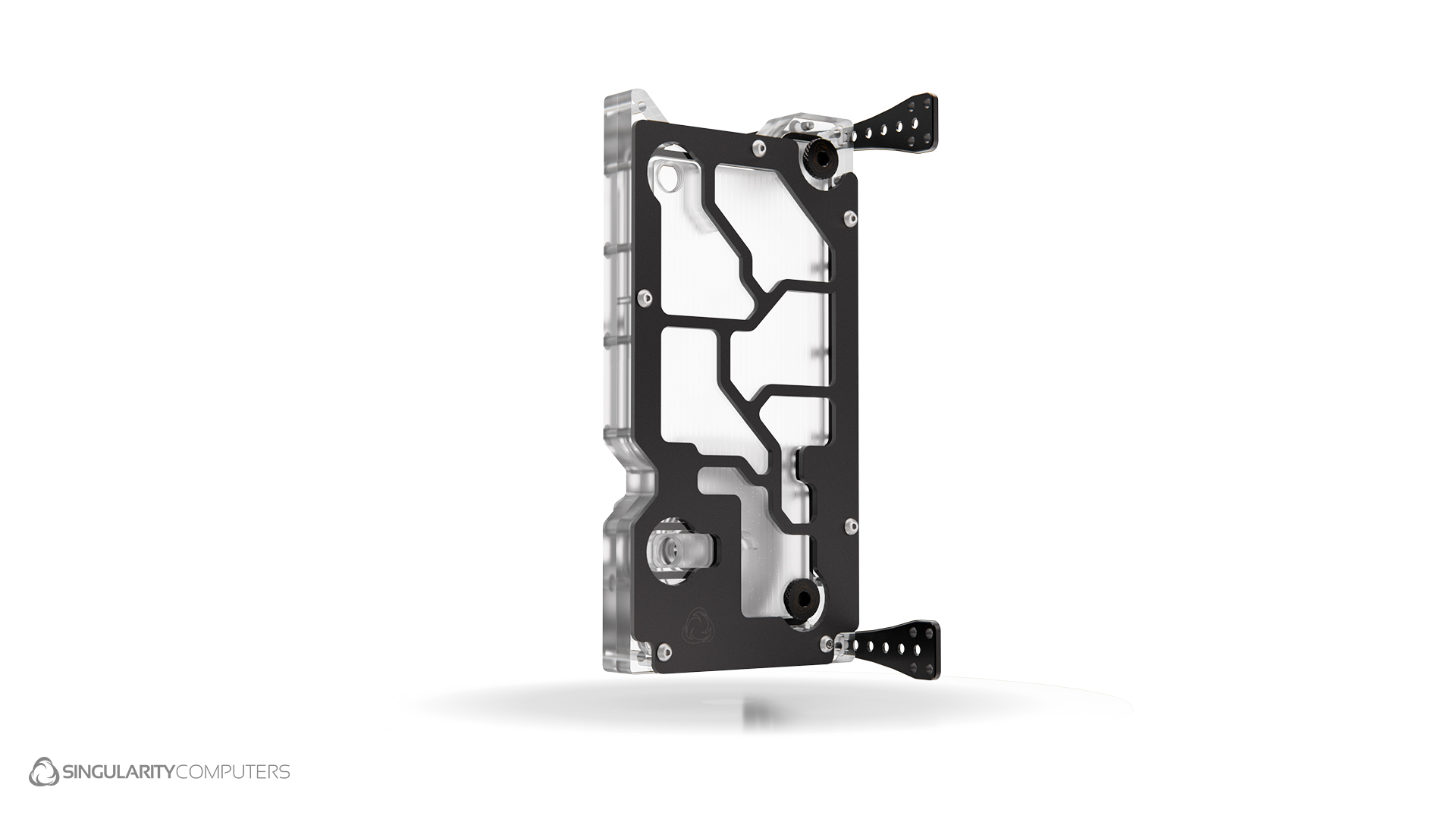

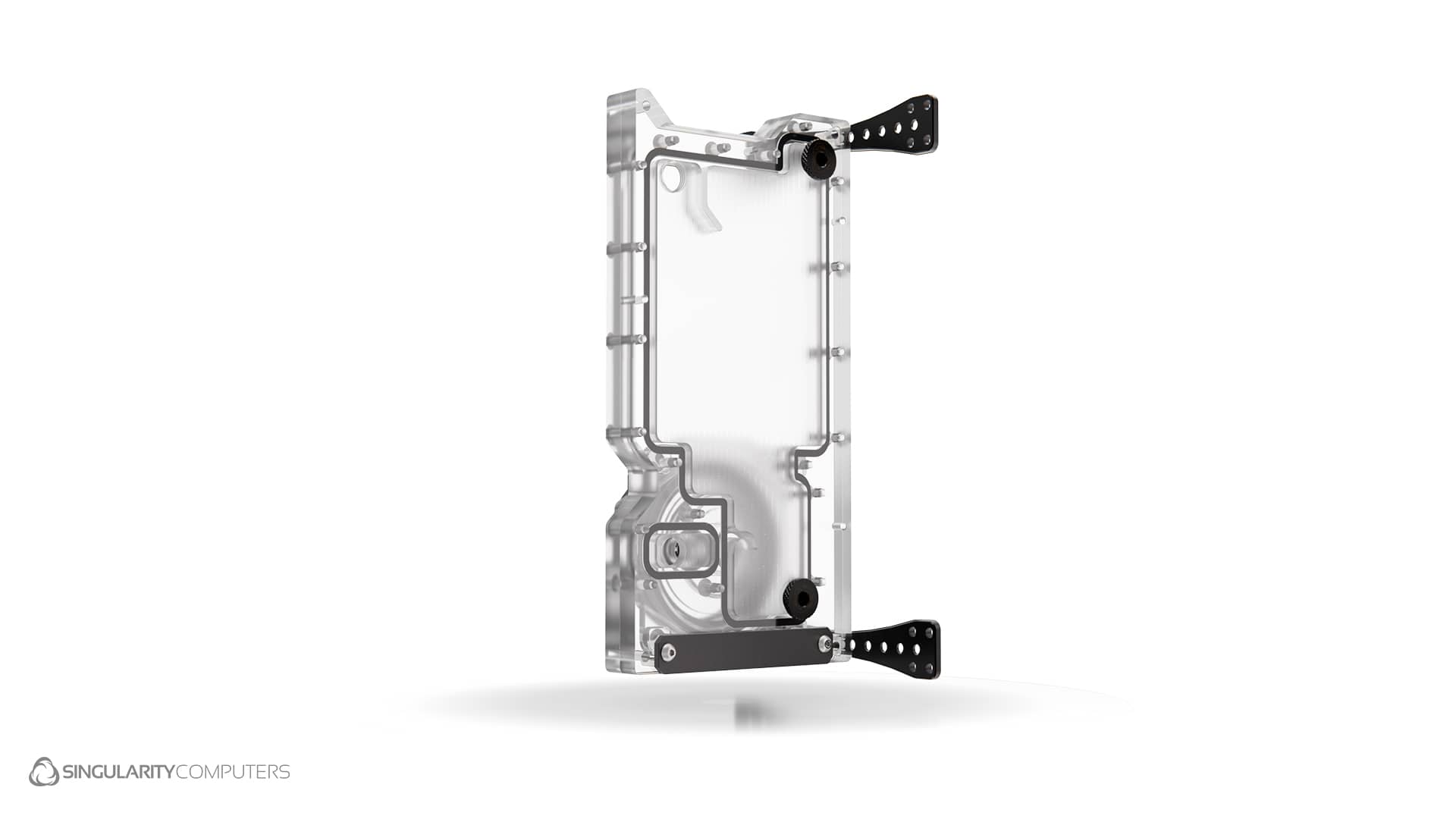

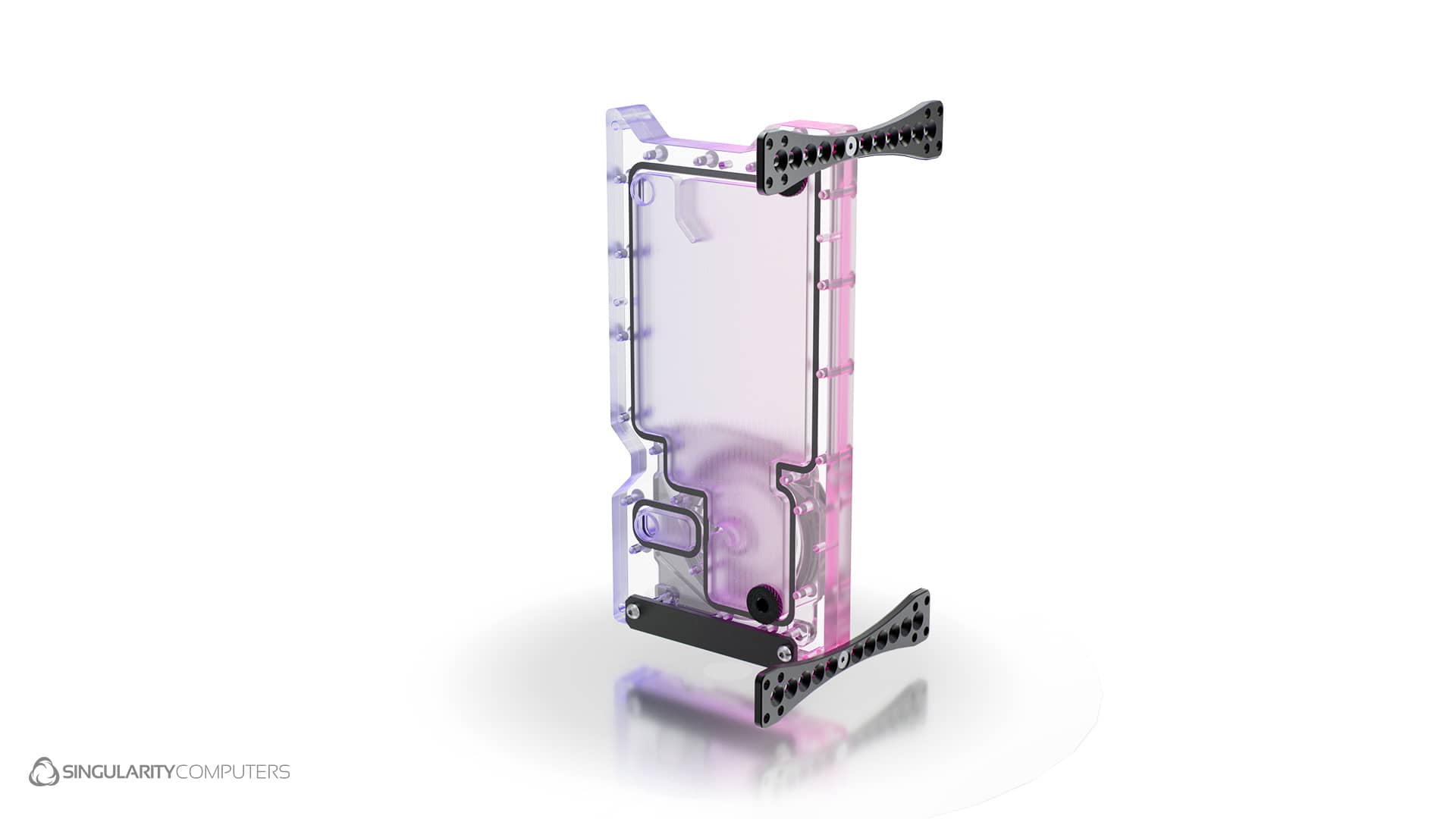

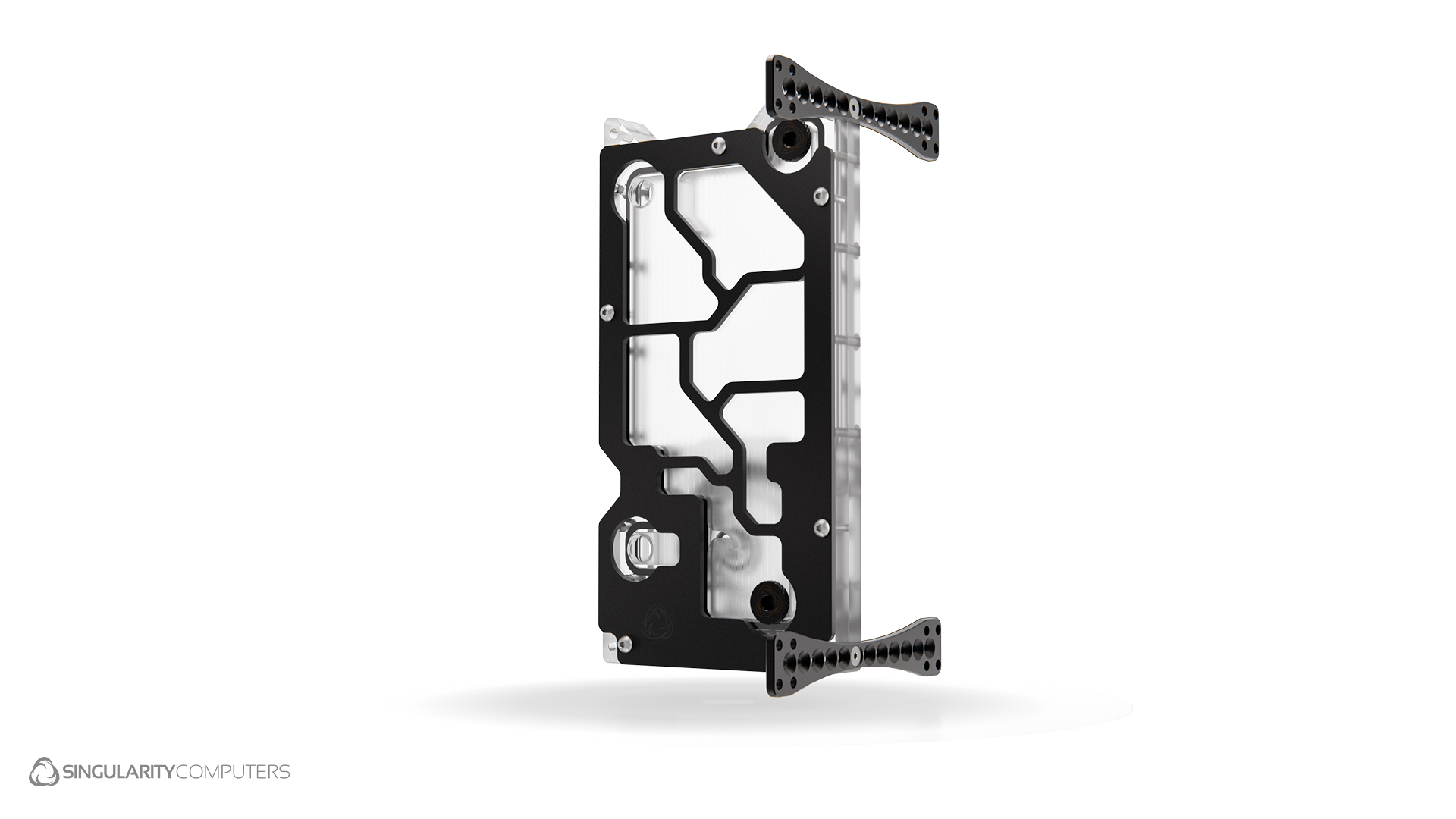

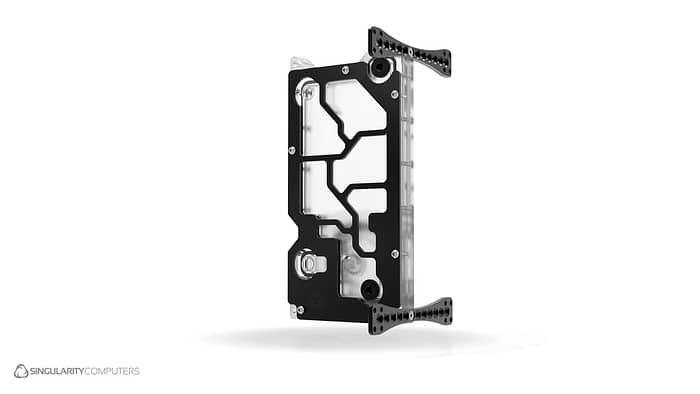

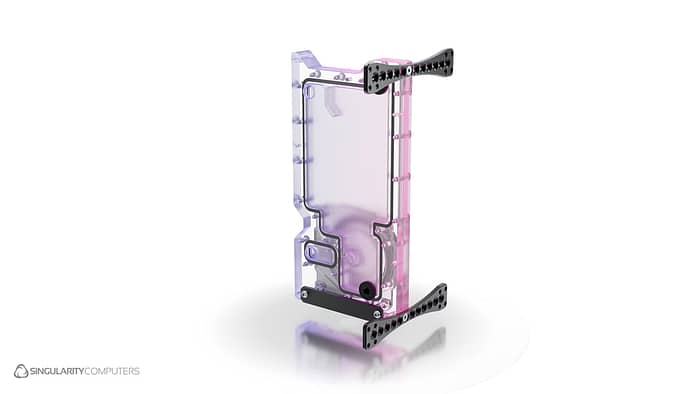

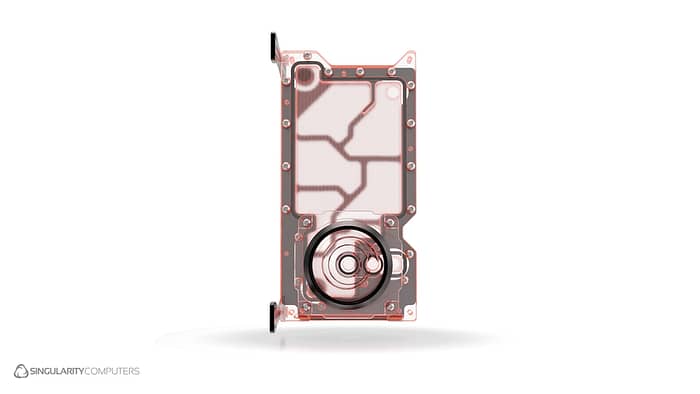

The Resonance 2.0 M ARGB D5 Reservoir Combo Distribution Plate is a pump reservoir combination distribution plate designed for medium to large water-cooling loops. It comes included with a D5 pump top and retention ring. It is 240mm in height meaning that it is designed to be mounted onto a 240mm radiator but it fits on any 120mm or 140mm wide radiator or radiator mount. It is edge mounted via the back plates but can also be flat mounted onto a 240mm radiator. It is generally designed for compact mid tower or full tower case builds. The standard mounting orientation is side mounted so that the distribution plate is in full view with the pump facing towards the back. It has a single inlet and outlet and a fill and drain port. The lighting is ARGB addressable and is compatible with any motherboard or controller which uses standard ARGB connections. The pump top and retention ring are compatible with all D5 pumps including the Aquacomputer D5 Next. The distribution plate comes with a cover which can be removed if more transparency is desired, select from the color/finish options below for the cover.

Specifications

Resonance 2.0 M ARGB D5 Reservoir Combo Distribution Plate.
Integrated Reservoir.
Integrated Pump Top D5.
Protium 3.0 ARGB D5 Retention Ring: Black. Anodized. CNC Machined.
SC Universal Backplate: Black. Anodized. CNC Machined. x2.
LED Strip: ARGB 5V Addressable. 50cm Black Cable.
O-Rings: Silicone 70 Durometer Clear D5 x1.
Fasteners: M4 x 10mm CS x2.
Dimensions: L: 240mm x W: 120mm x H: 58mm.
Weight: 0.5kg.
Packaged Dimensions: L: 290mm x W: 170mm x H: 108mm.
Packaged Weight: 0.52kg.

Installation:
Mounts onto any 120mm or 140mm wide radiator, fans or fan mounting position via the back plates. It can also be mounted flat on a 240mm radiator. Compatible with all D5 Pumps including the Aquacomputer D5 Next.
