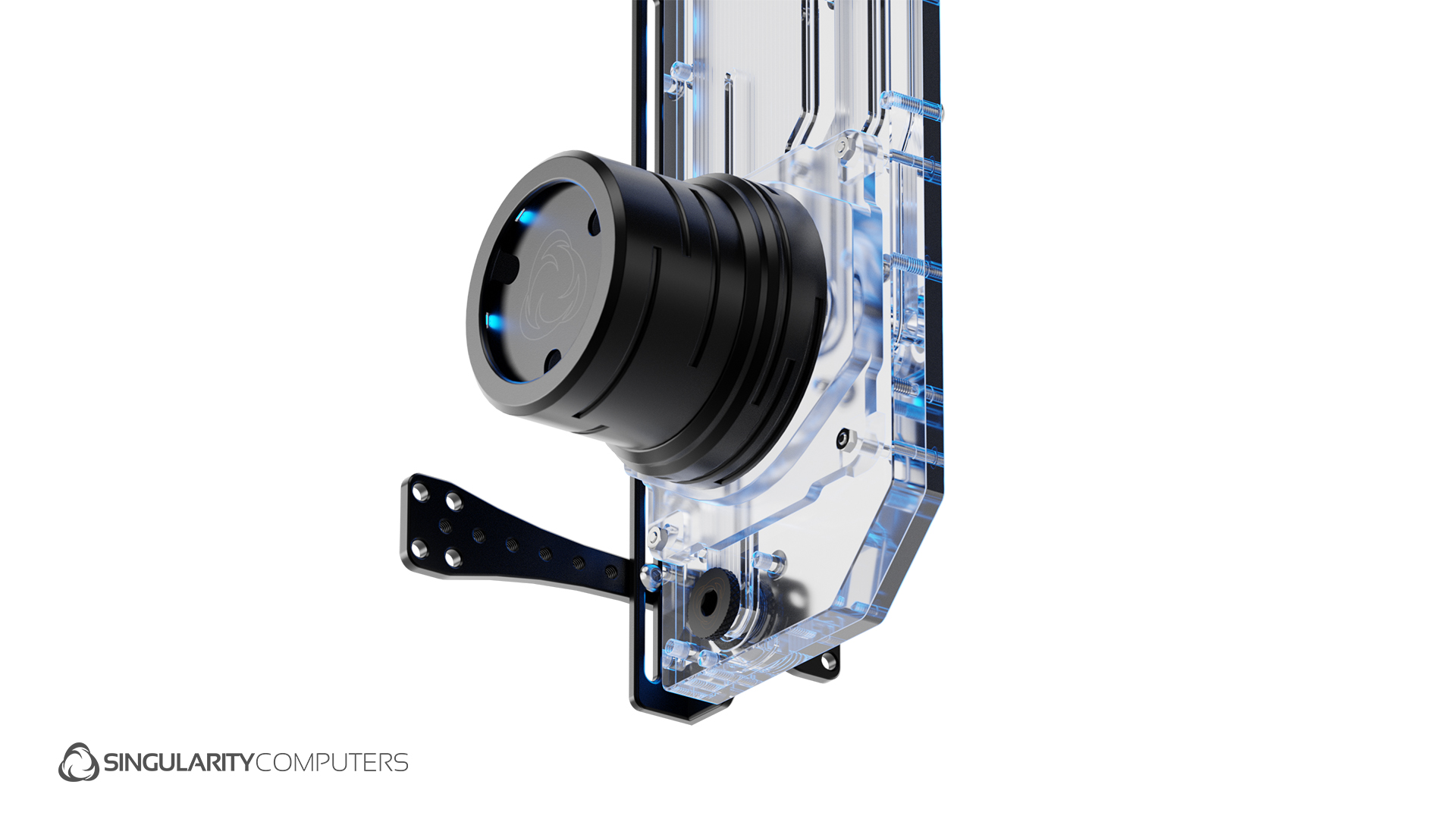

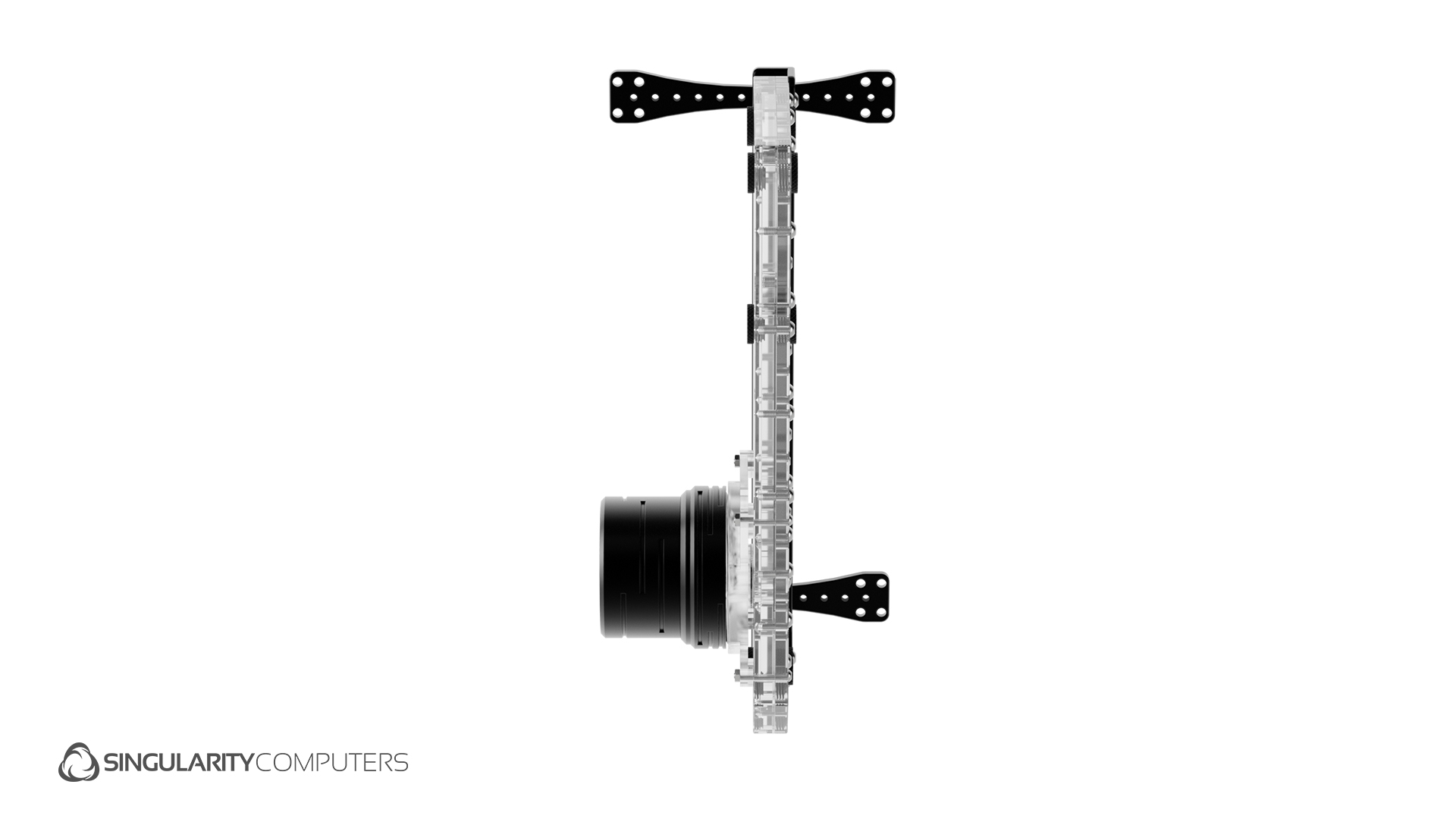

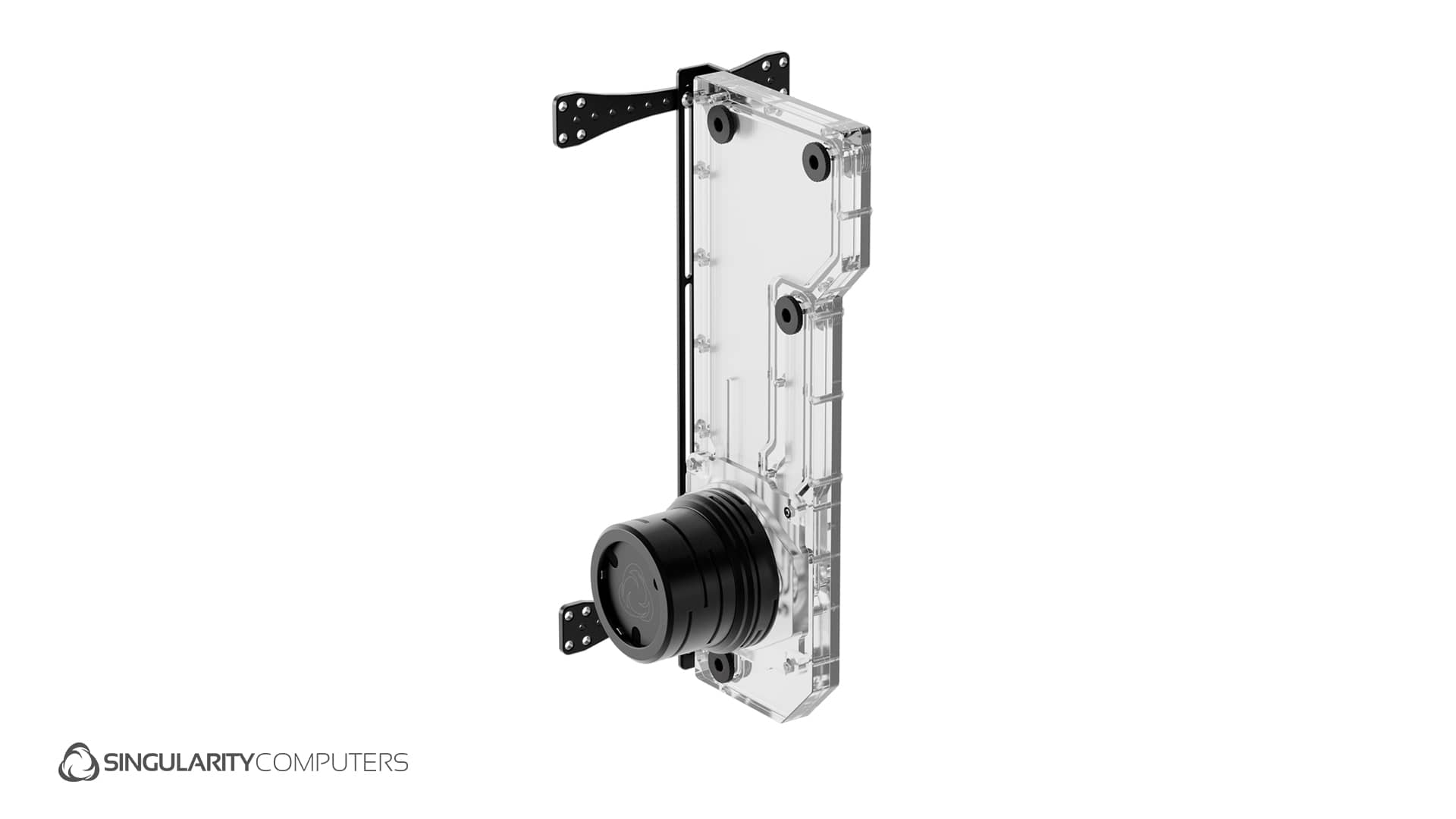

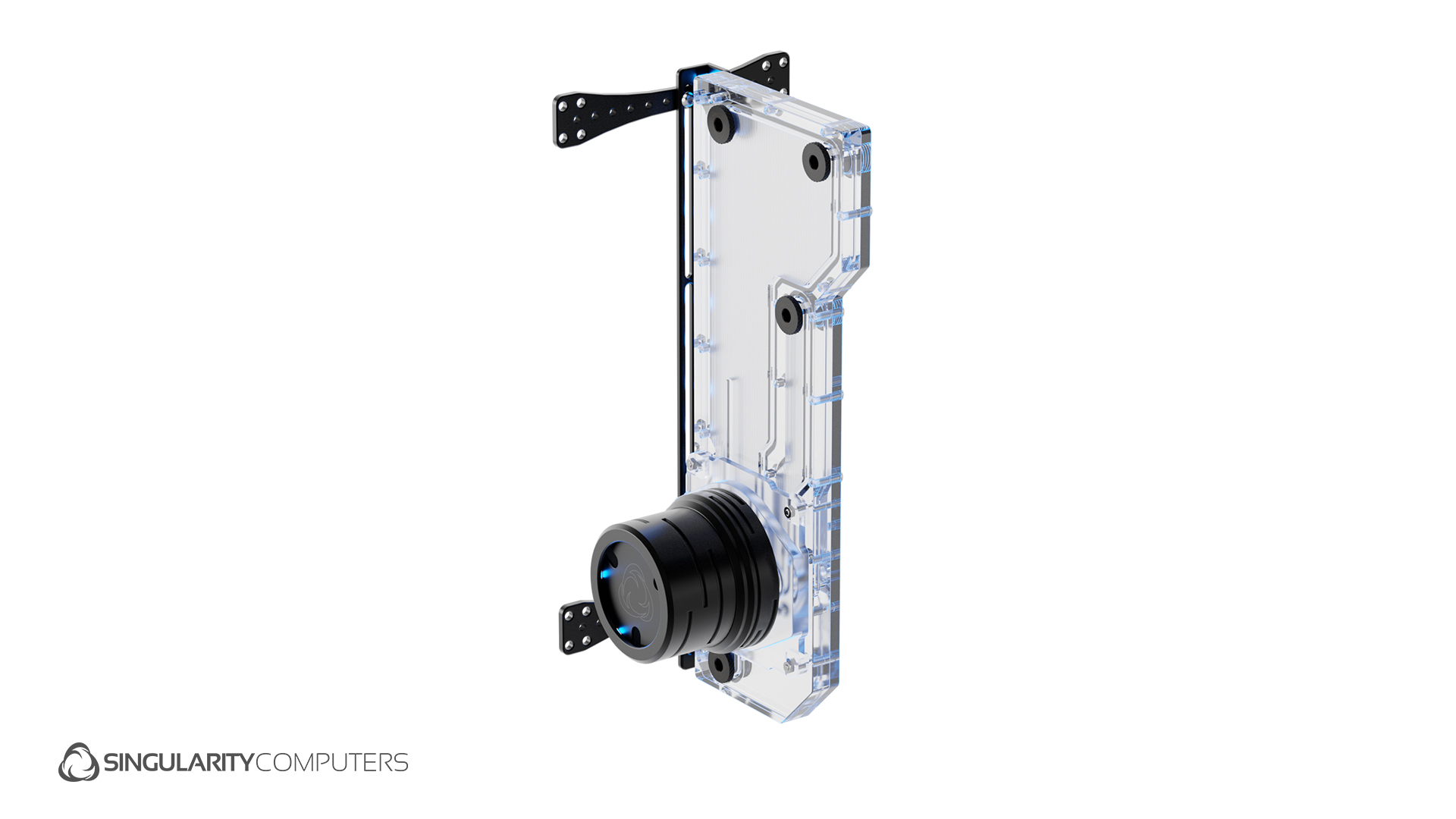

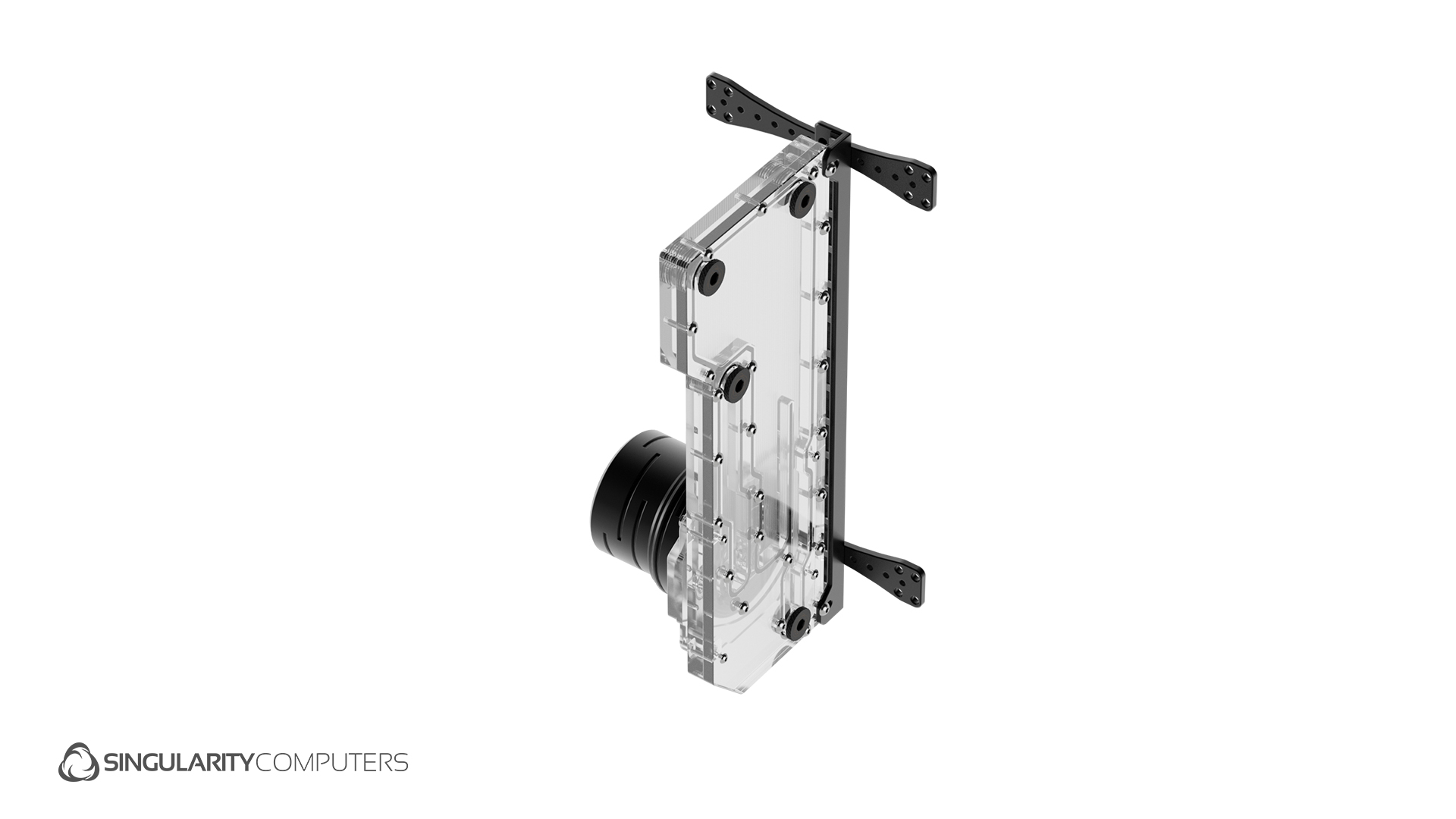

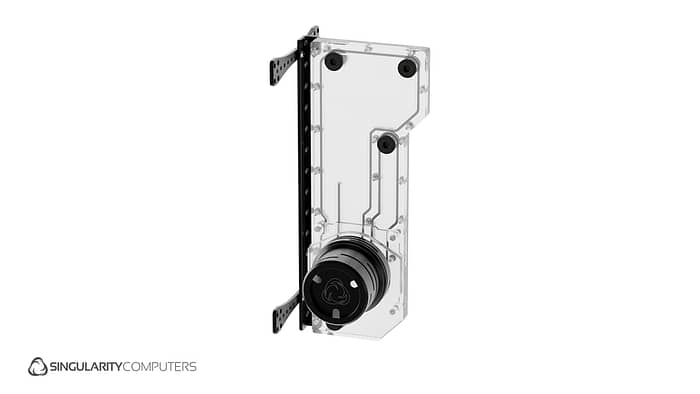

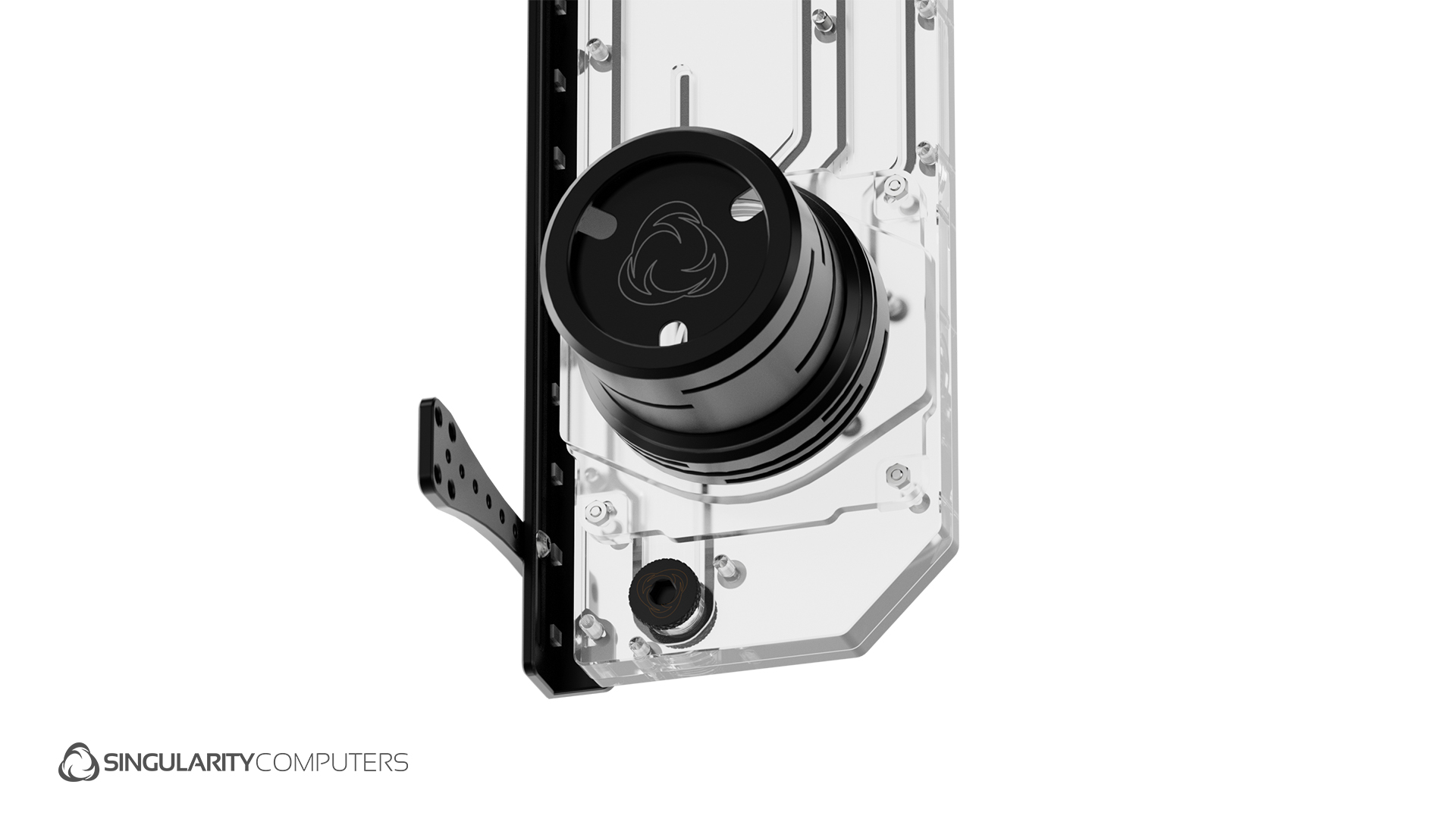

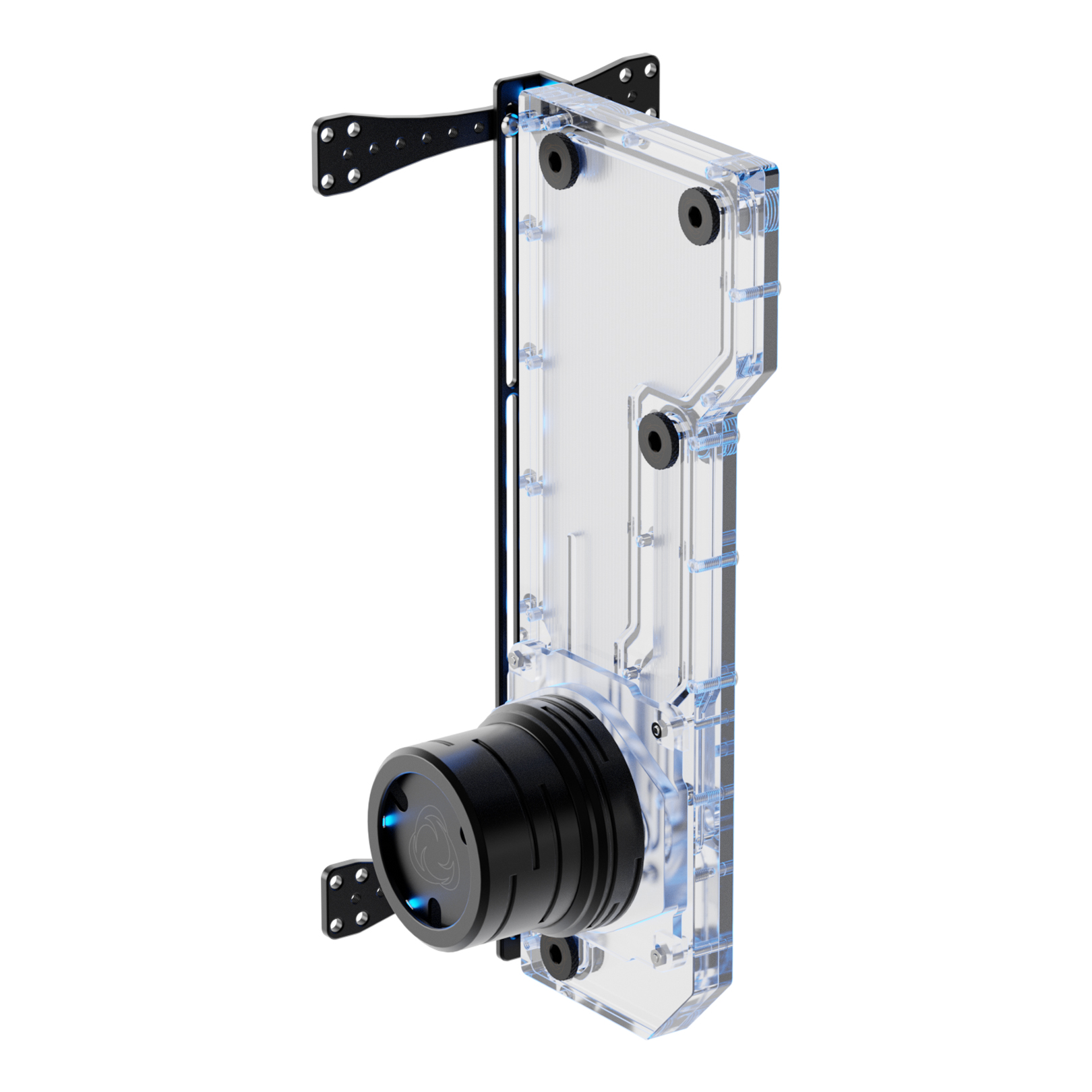

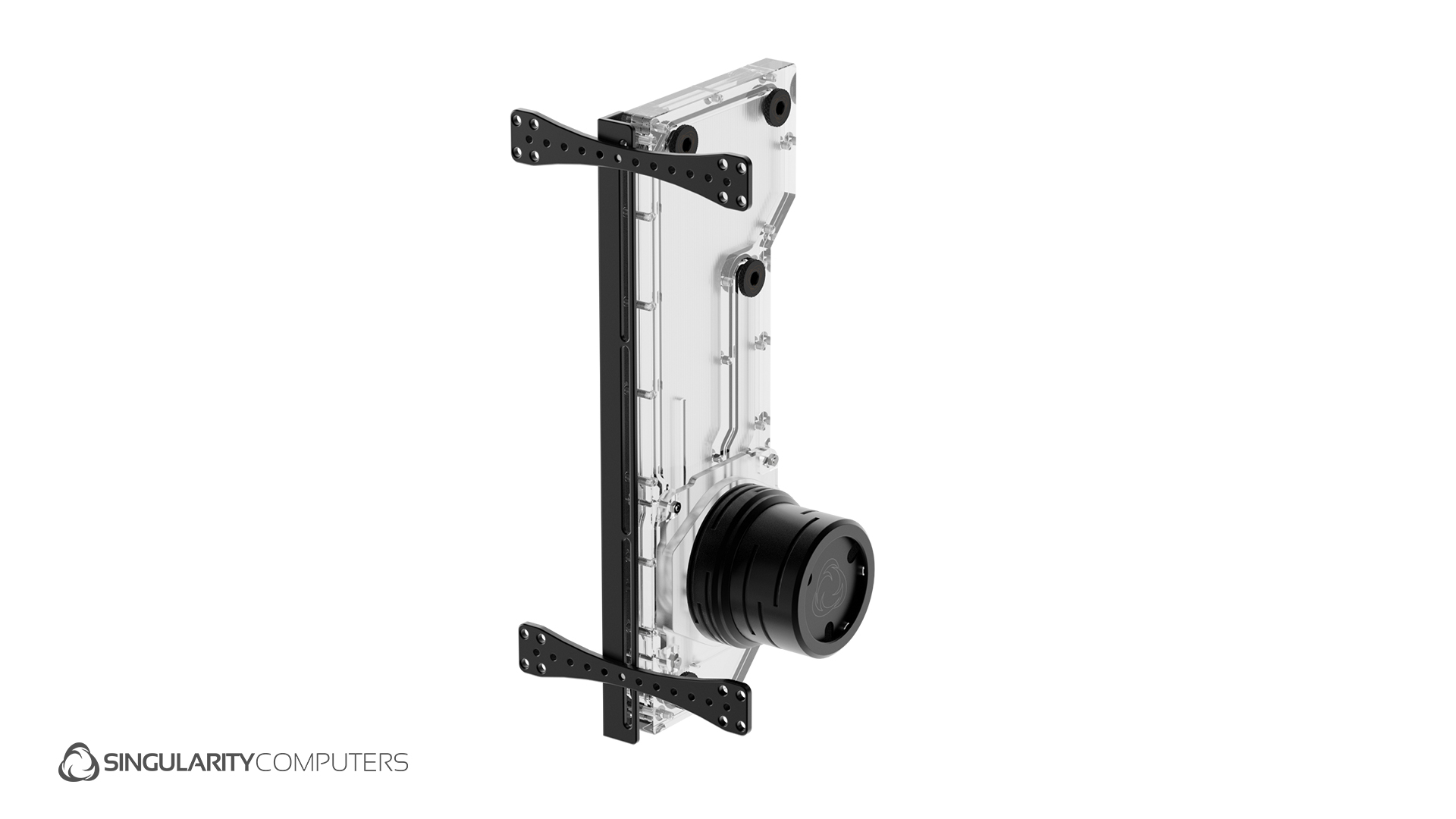

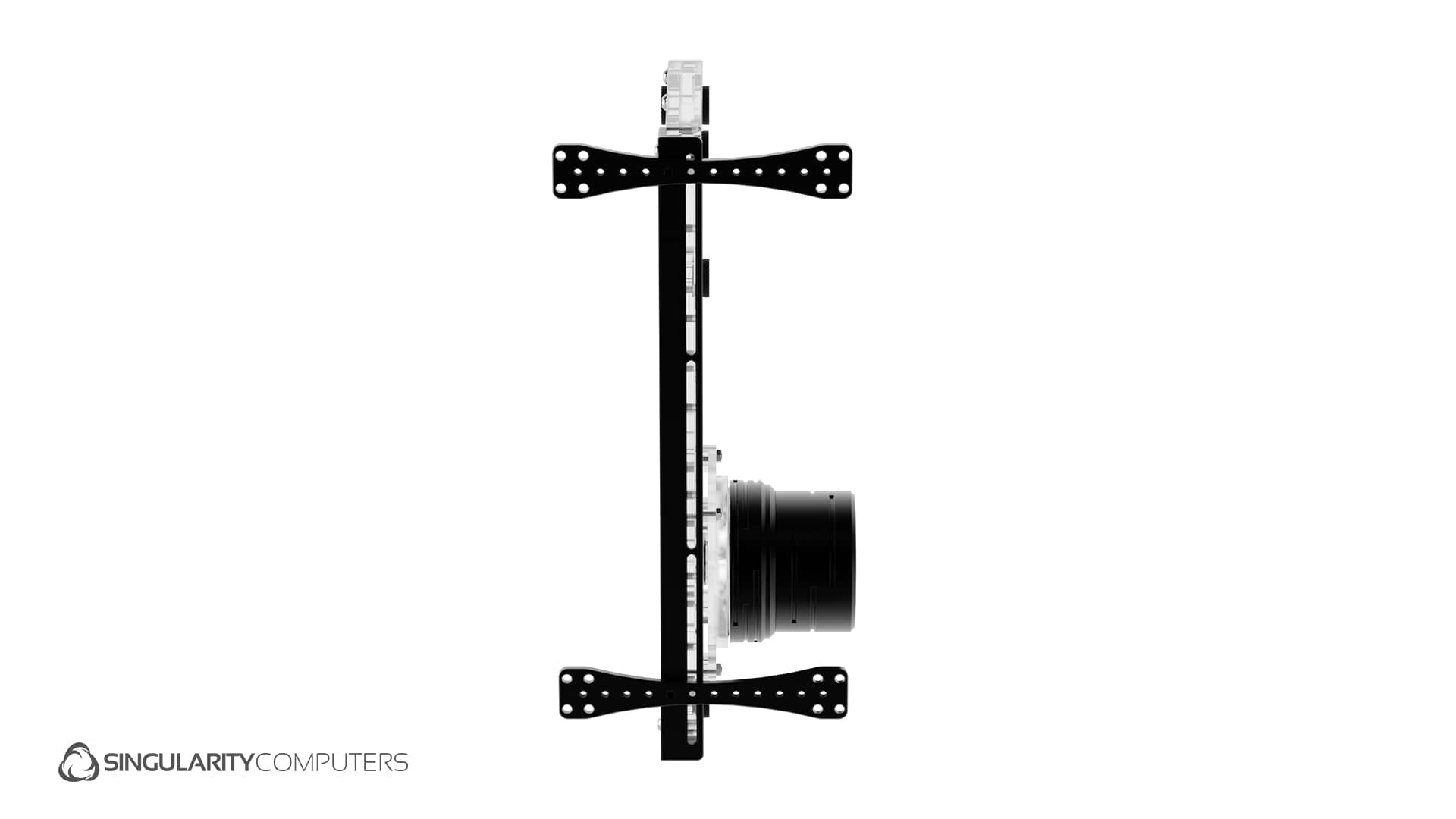

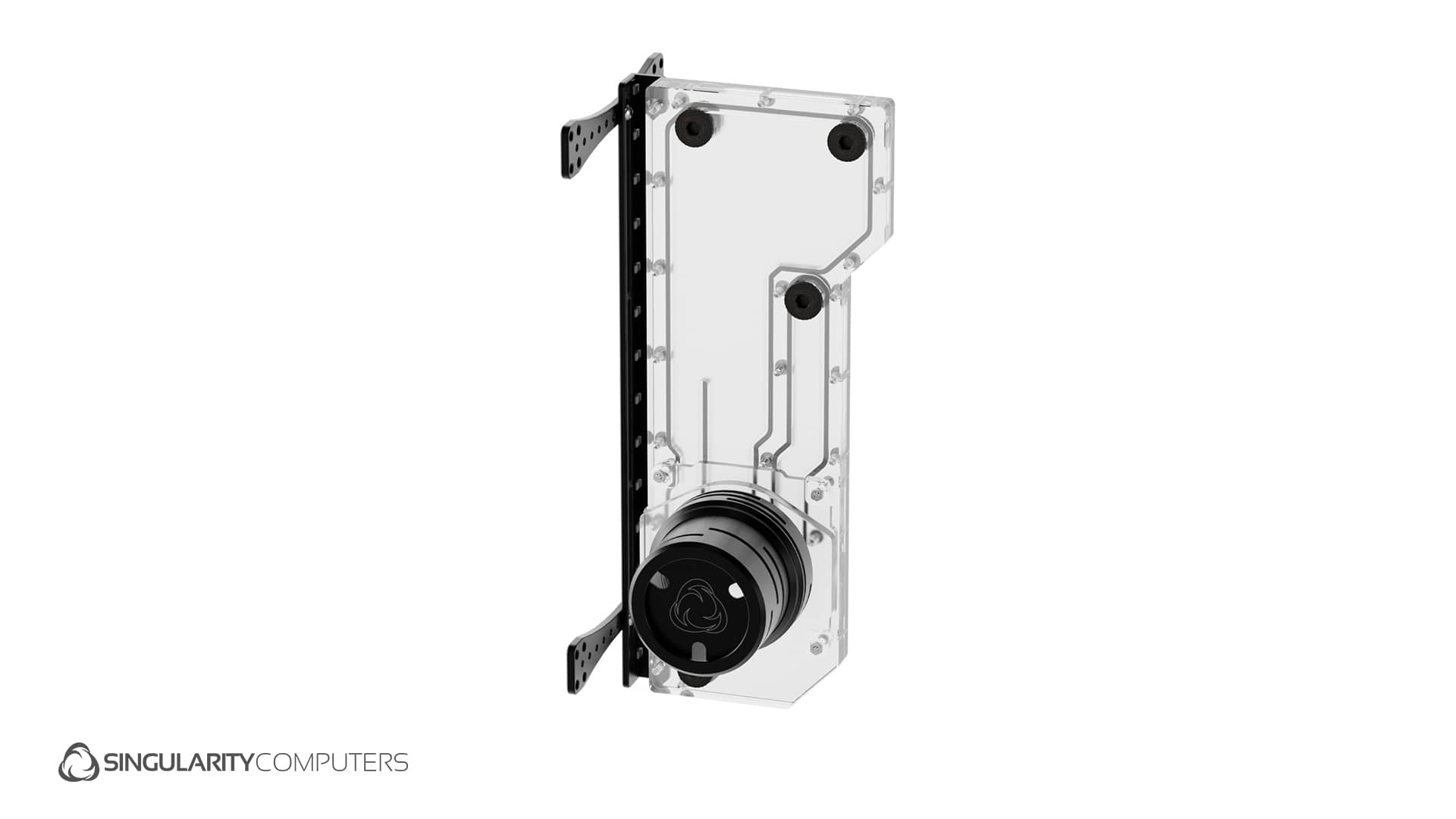

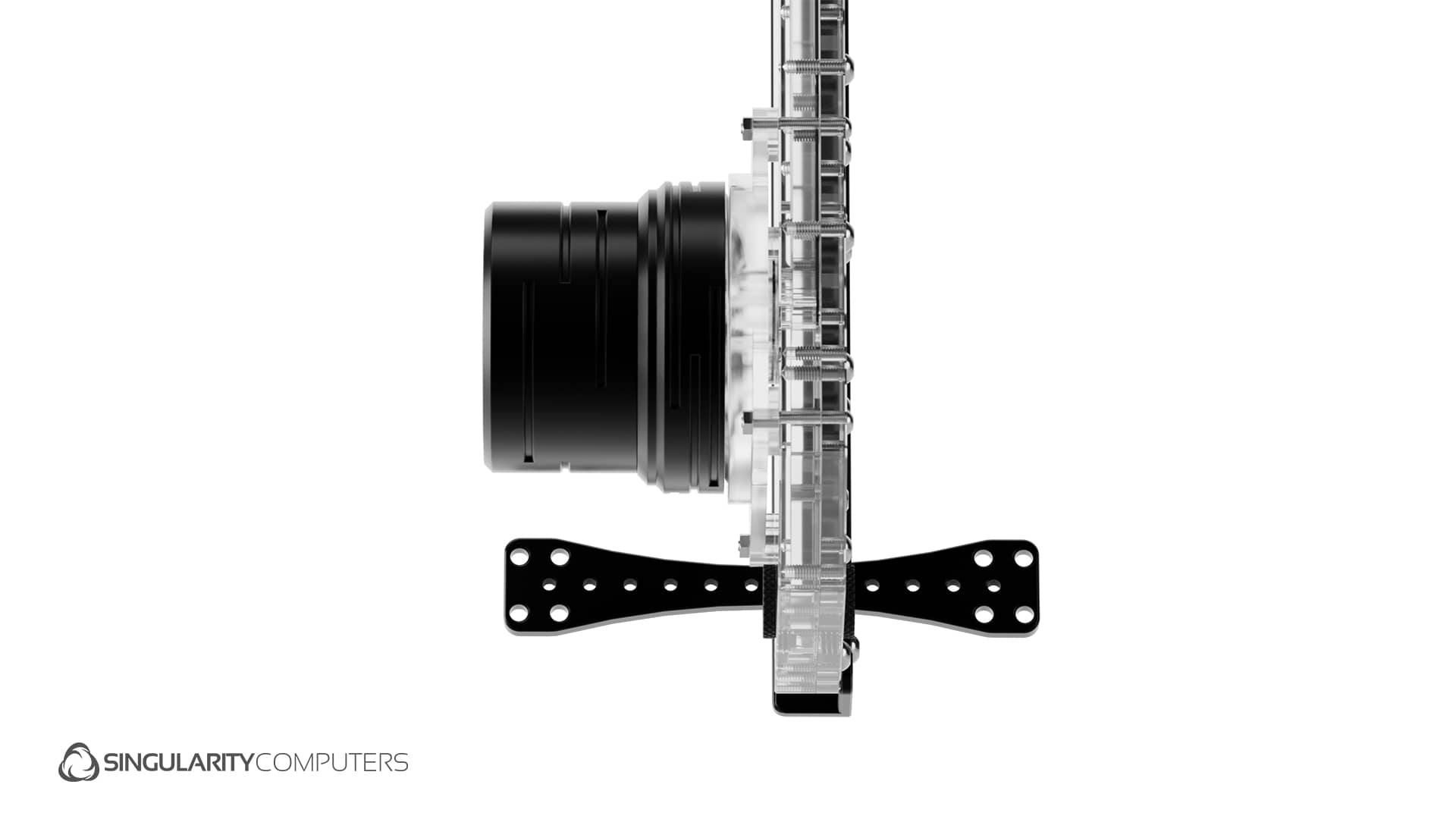

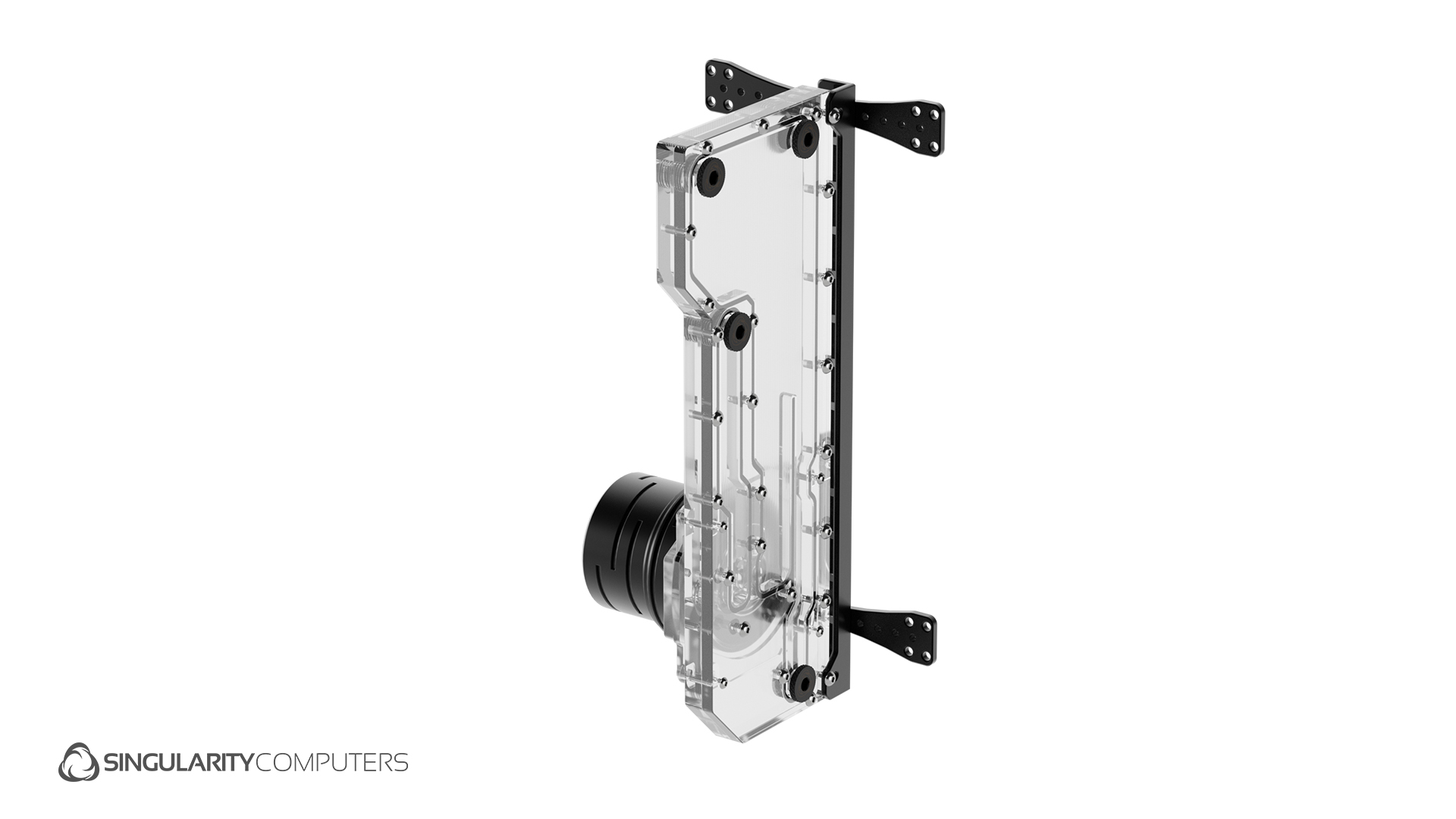

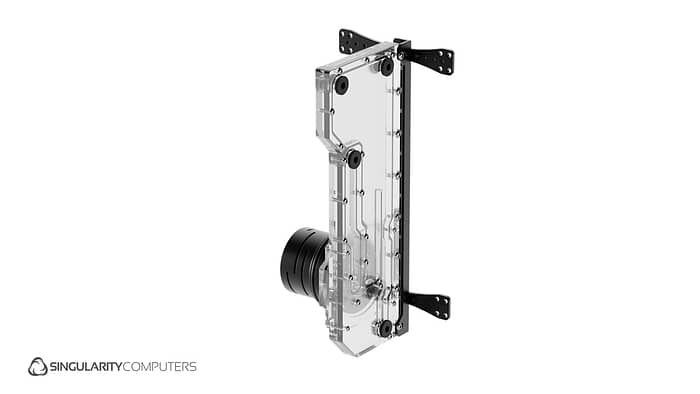

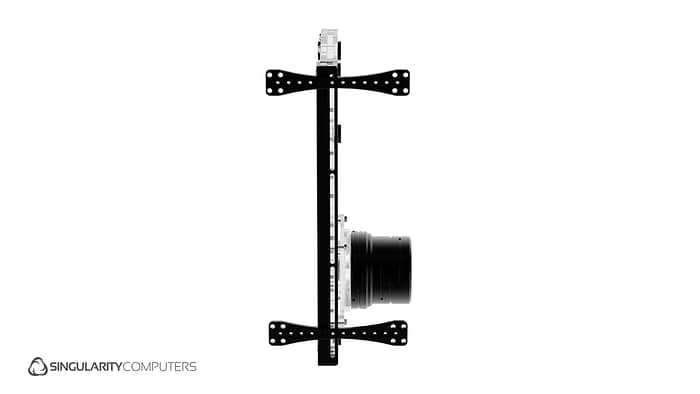

Resonance 2.0 D5 Reservoir Combo Distribution Plate

In stock

Order processing time 1-2 days.

  • Highly versatile D5 reservoir combo distribution plate
  • 8 ports with 2 outlets and 6 inlets for flexible loop routing
  • Six ports can be used for filling, draining or accessories
  • Integrated reservoir, D5 pump top and D5 pump cover
  • Integrated loop routing for cleaner system connections

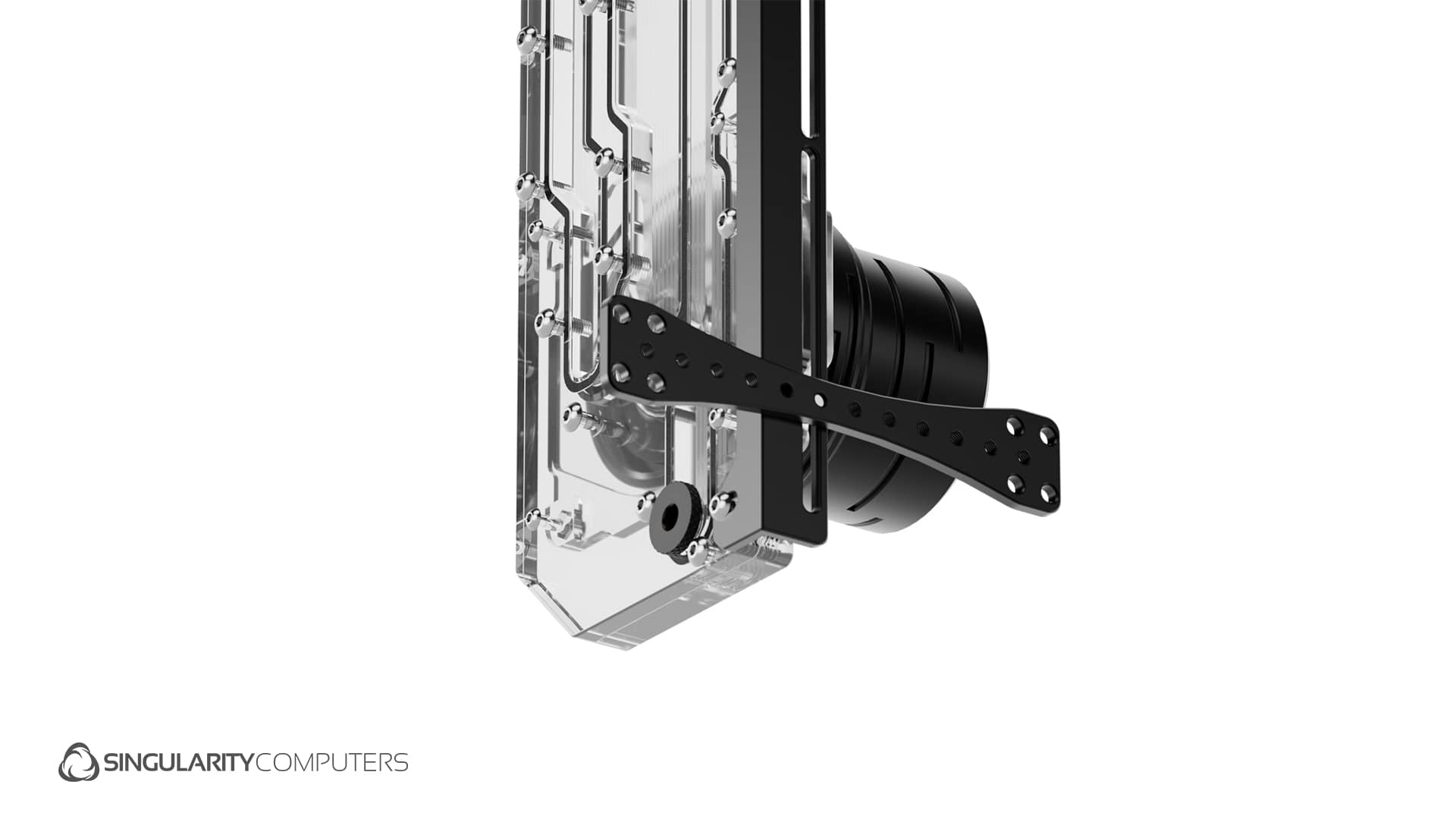

  • Three-axis adjustable mounting system for maximum compatibility
  • Universal 120mm/140mm back plate for direct radiator mounting
  • Designed for mid-tower and larger cases
  • Compact design with a height matching an ATX motherboard
  • Optimized for tight spaces compared to traditional pump/reservoir combos

Manuals

US$179.00

Select D5 Retention Ring & Mounting Colour Options (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.
Select the colour for the D5 Retention Ring and Mounting Back Plates.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x6 (optional) USD $24
None Yes +US$24.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

  • 1x Resonance 2.0 D5 Reservoir Combo Distribution Plate
    US$179.00

Subtotal excludes shipping & tax

25% off Storewide With SCHAL | All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182002551 SKU: SC-RSN-2-SGL Categories: ,

Description

Read More +Read Less − full description

A new take on the pump and reservoir combination which exponentially increases versatility compared to traditional options. Resonance 2.0 D5 Reservoir Combo Distribution Plate has 8 ports with 4 on each side meaning it is capable of a vast number of loop routing options. It has 2 outlets and 6 inlets, 6 of these ports can be used for fill, drain or accessories. The dimensions and ports were designed based on statistics from the water-cooling system layouts in many builds. Resonance 2.0 Single has an integrated Reservoir, D5 Pump Top, D5 Pump Cover, and parts of the loop. The mounting systems has 3 axis adjustment for maximum compatibility, port alignment and fitting into tight spaces. Direct to radiator mounting with a universal 120/140mm back plate. Resonance is optimized for mid tower cases and upwards, the height of Resonance is the same as an ATX motherboard, although it can fit into smaller cases being overall more compact than traditional pump/reservoir combos.

Specifications

Resonance 2.0 D5 Reservoir Combo Distribution Plate: Clear Cast Acrylic, CNC Machined. x1.
Integrated Reservoir.
Integrated Pump Top D5.
Pump Cover: D5 6061 Aluminum, CNC Machined, Anodized Black.
Resonance Mount: 6061 Aluminum, CNC Machined, Anodized Black. x1.
Resonance Universal 120/140 Back Plate: Aluminum, CNC Machined, Anodized Black. x2.
O-Rings Silicone White 70 Durometer: Protium D5 O-Ring: x1.
Spectrum 2.0 30cm DRGB LED Strip: x1.
Fasteners Stainless Steel: M4 8mm Button head. x2.
Dimensions: L: 300mm x W: 86mm x H: 131mm.
Weight: 0.75kg.
Packaged Dimensions: L: 355mm x W: 135mm x H: 110mm.
Packaged Weight: 1kg.

Installation:
Resonance 2.0 is designed to be mounted onto any 120mm or 140mm wide radiator via the universal back plate. The mounting system has 3-axis adjustment for alignment with components and ports. There are ports on both sides of Resonance for maximum loop routing options. A D5 pump will need to be installed (it is not included), make sure the included O-ring is in position. A long fill tube is recommended 20-30cm.
