Caselabs S8 Distribution Plate Set

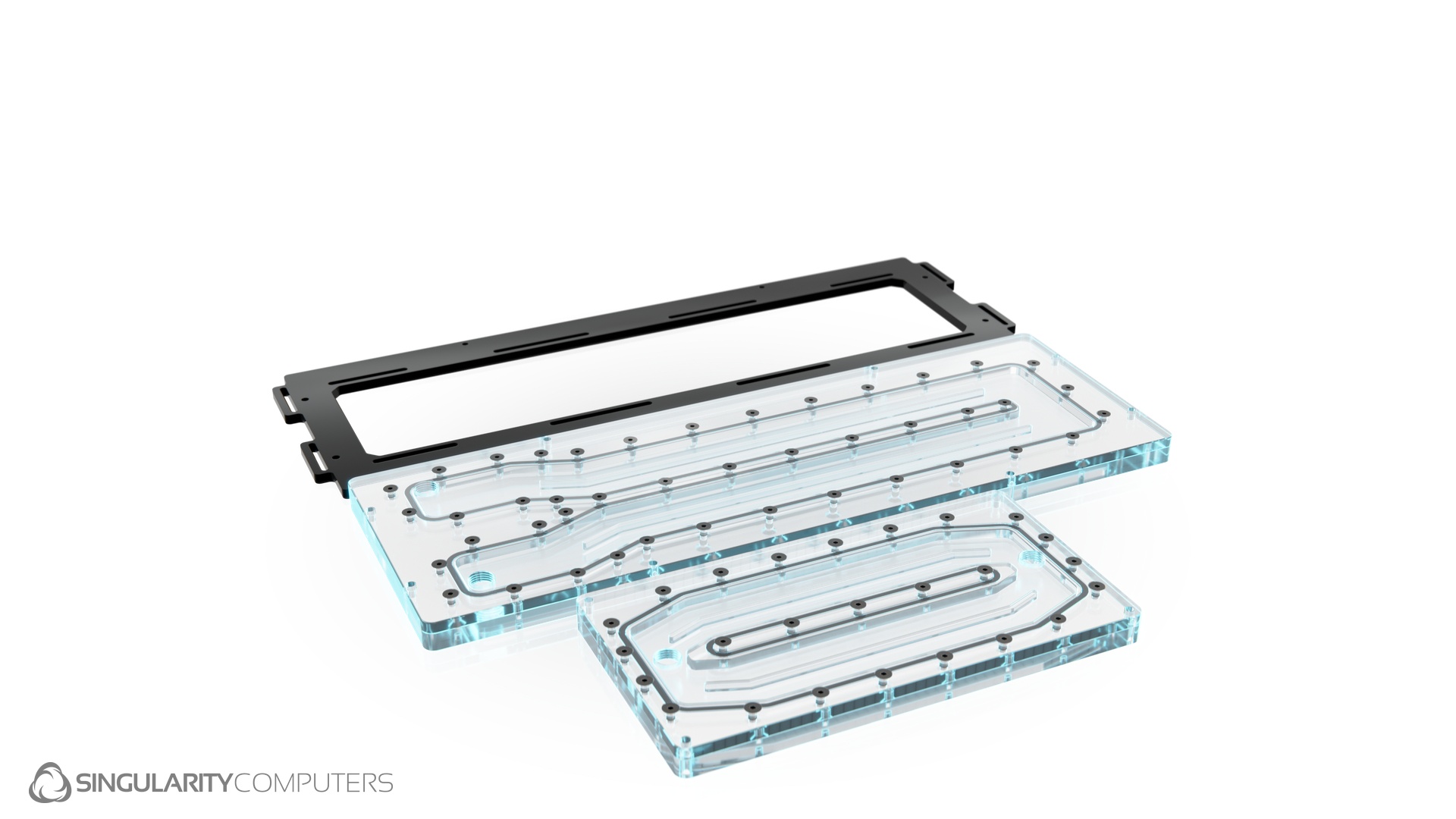

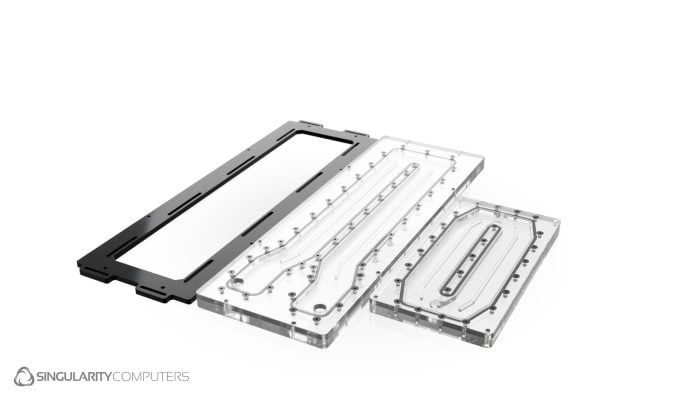

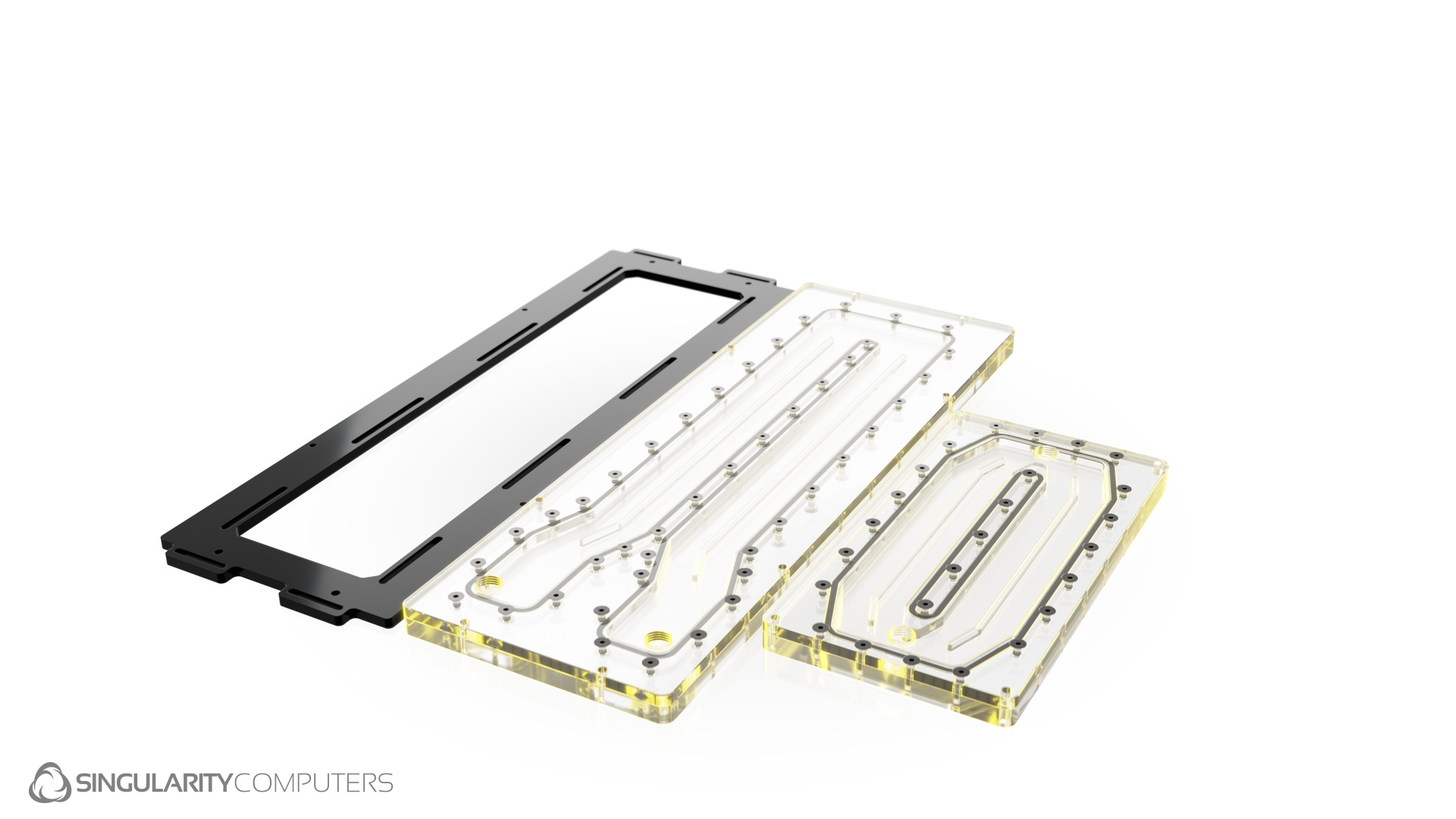

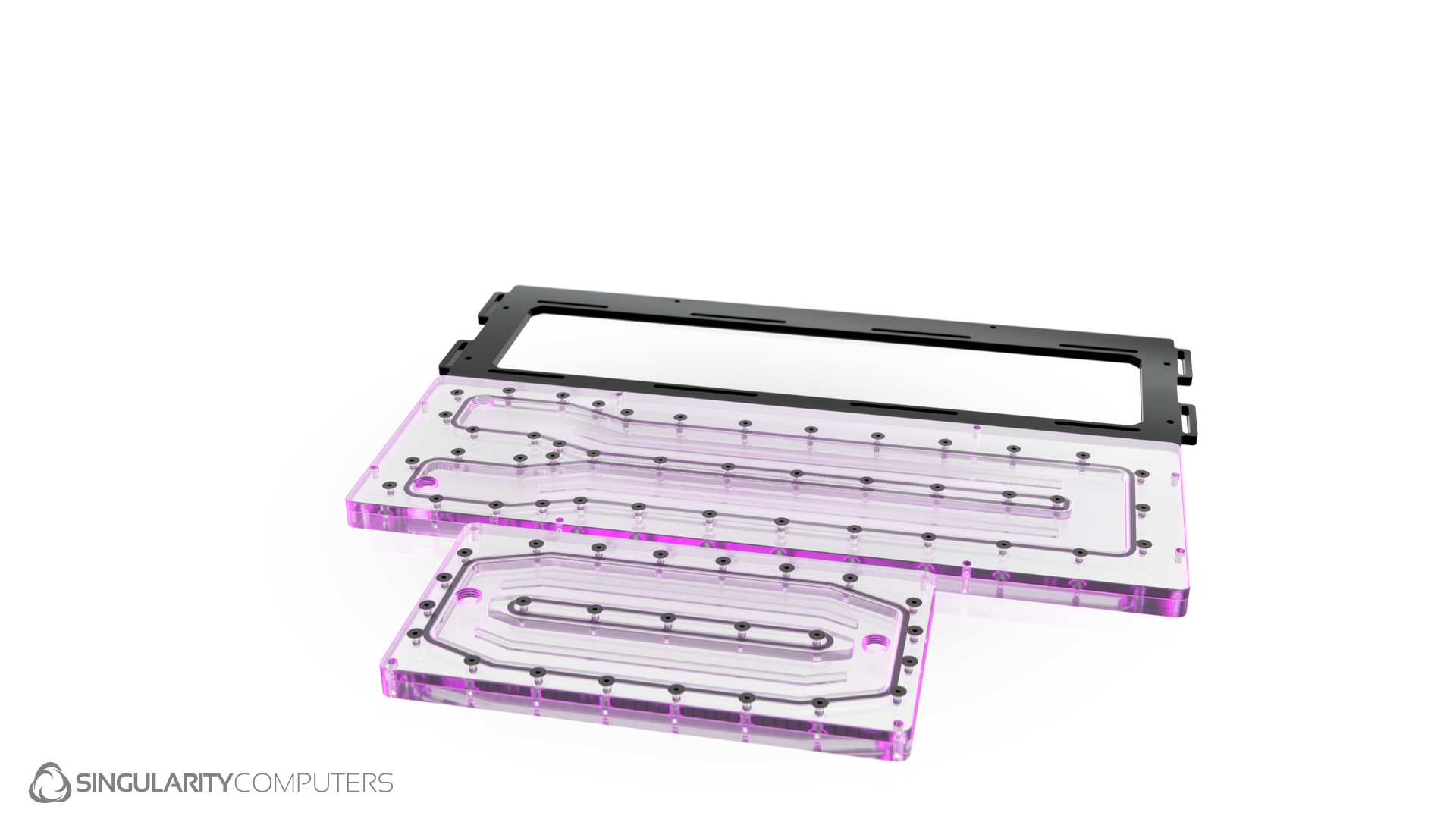

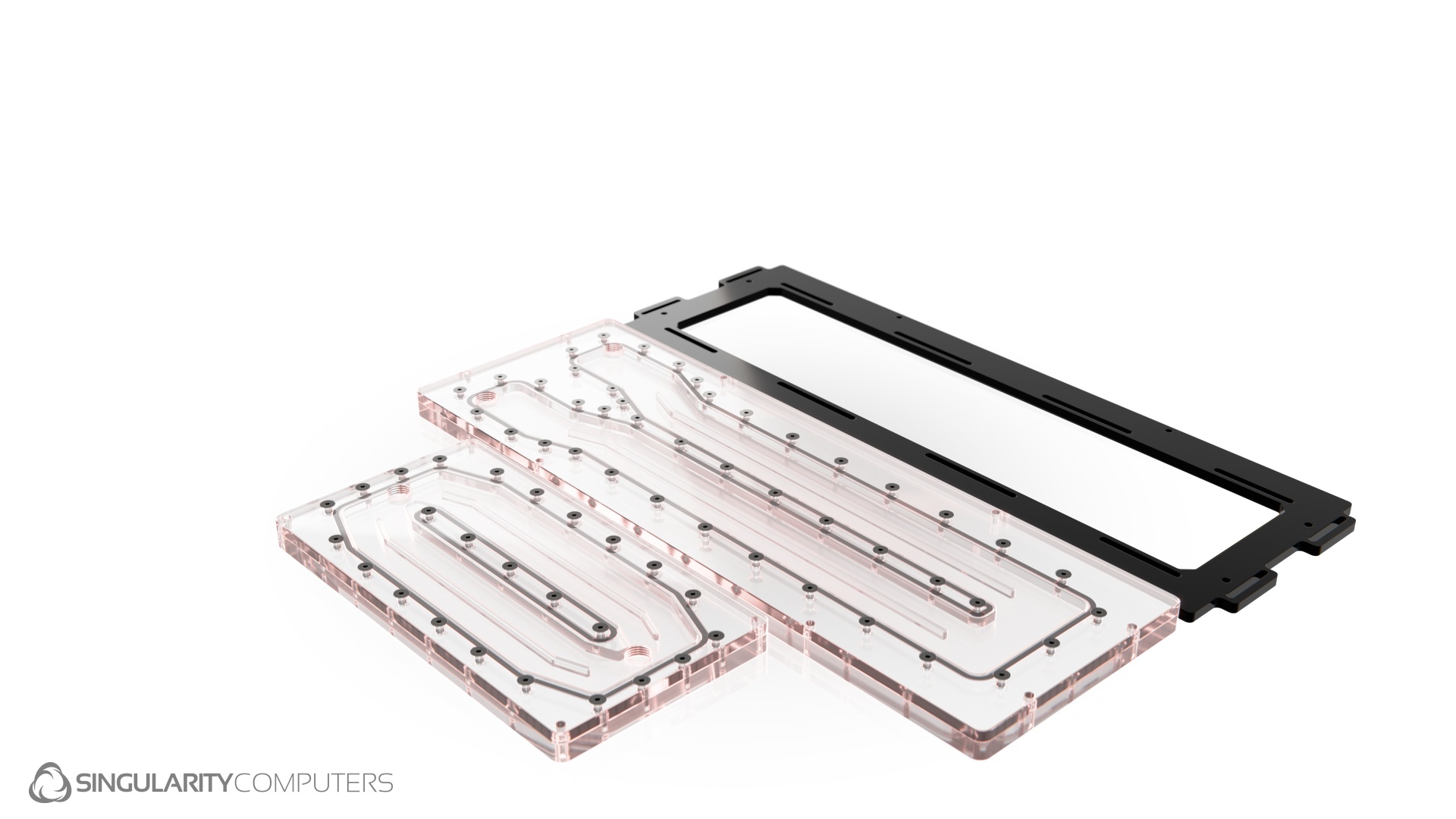

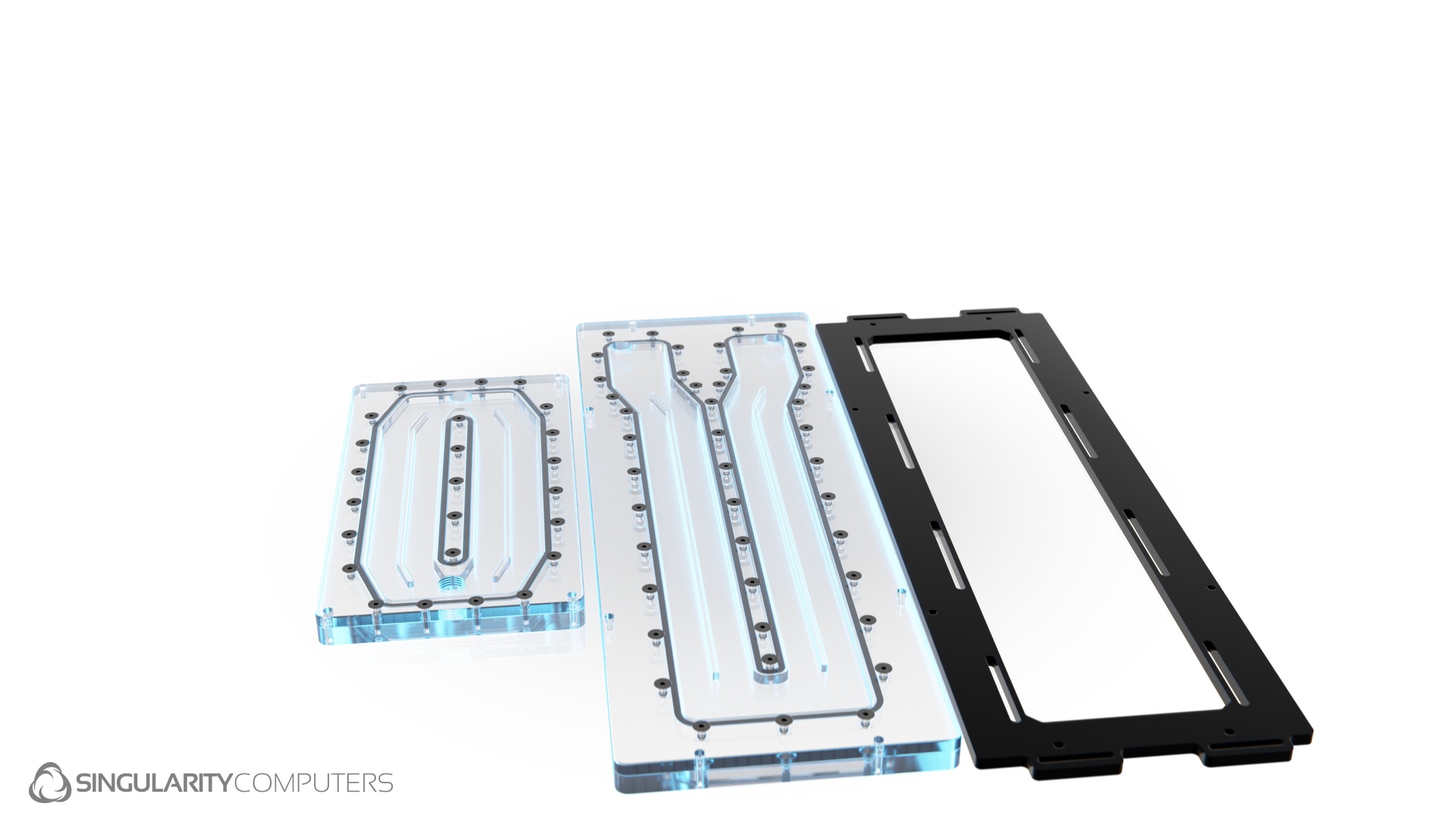

Side and Front Distribution Plate Set for the Caselabs S8. The side distribution plate is compatible with the full side panel window and mounts in the location of the side 360mm radiator. A 240mm radiator can still be used with the distribution plate. The front distribution plate is compatible with the front window version of the front panel. The distribution plates are built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. Each distribution plate comes with an LED strip.

Build Gallery

US$49.00 US$249.00Price range: US$49.00 through US$249.00

SKU: N/A Category:

Manual

Gallery

Specifications:

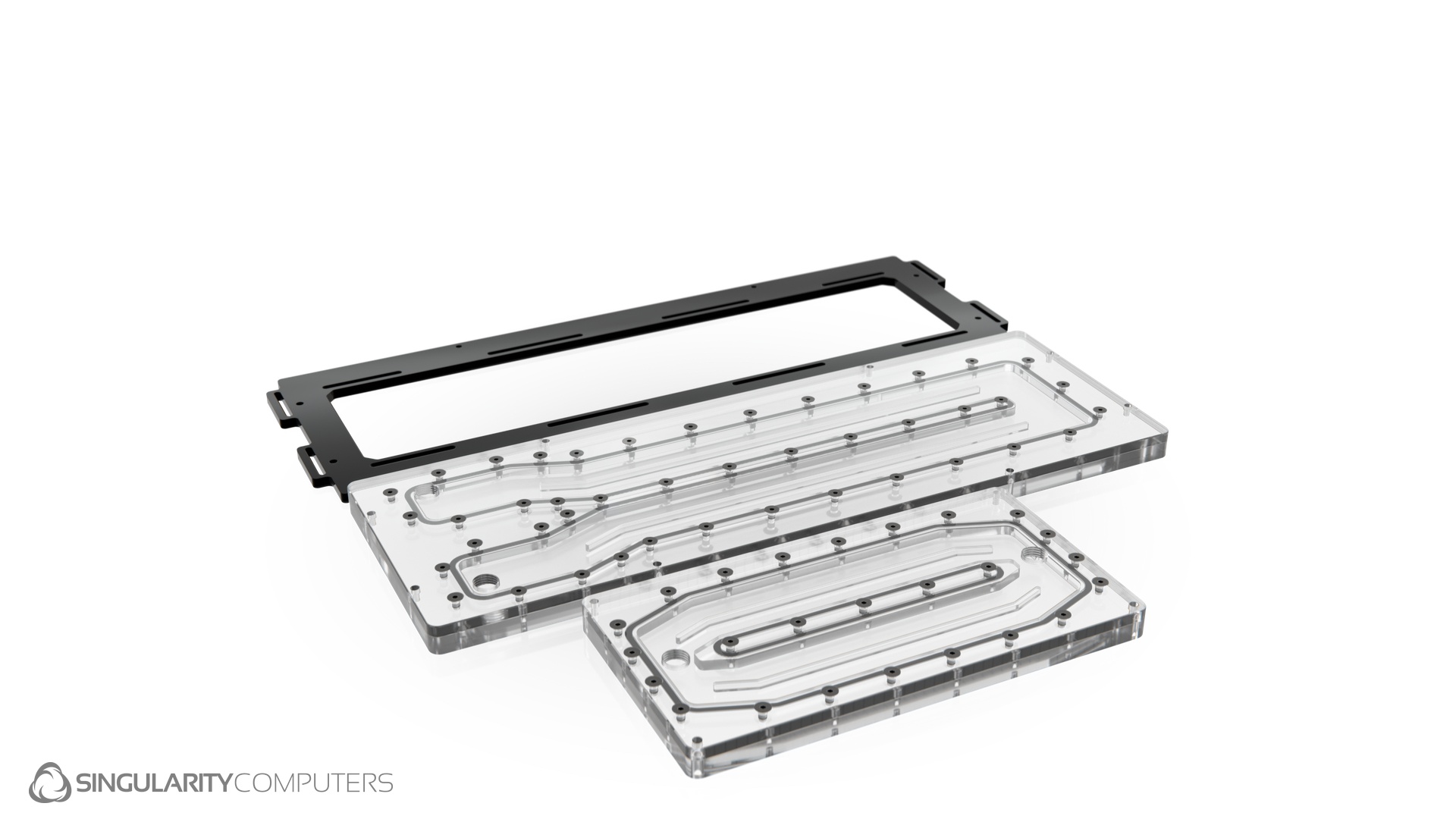

Caselabs S8 Distribution Plate Set. This set can be purchased together or separately (select above).
Caselabs S8 Side 360mm Radiator Mount.
Caselabs S8 Front Distribution Plate.
Caselabs S8 Side Distribution Plate.
Integrated LED Strip: ARGB 5V with 50cm cable x2.
Fasteners: Stainless Steel. 6-32 1” x4, 6-32 Washers x4, 6-32 Nuts x4.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Packaged Dimensions:
Caselabs Side 360mm Radiator Mount: L: 400mm x W: 150mm x H: 40mm.
Caselabs Front Distribution Plate: L: 250mm x W: 150mm x H: 40mm.
Caselabs Side Distribution Plate: L: 400mm x W: 200mm x H: 40mm.
Caselabs Distribution Plate Set: L: 400mm x W: 200mm x H: 100mm.

Installation:
The Caselabs S8 Side 360mm Radiator Mount is a direct replacement for the original Caselabs S8 Side 360mm Radiator Mount.
The Caselabs S8 Side Distribution Plate mounts to existing holes on the case using the included Caselabs S8 Side 360mm Radiator Mount. It is only visible with the Caselabs S8 Full Side Panel Window. A 240mm radiator can be used with the distribution plate but not a 360mm radiator.
The Caselabs S8 Front Distribution Plate needs holes to be drilled for mounting, the distribution plate can be used as a template to mark the holes. This Distribution Plate is only visible with the Caselabs S8 Front Window Panel but any of the front panels can be modified so that it is visible.
