Dominus

Dominus De Machinis – Lord of the machines

ETA: 31-08-25

Limited to 99 Cases.

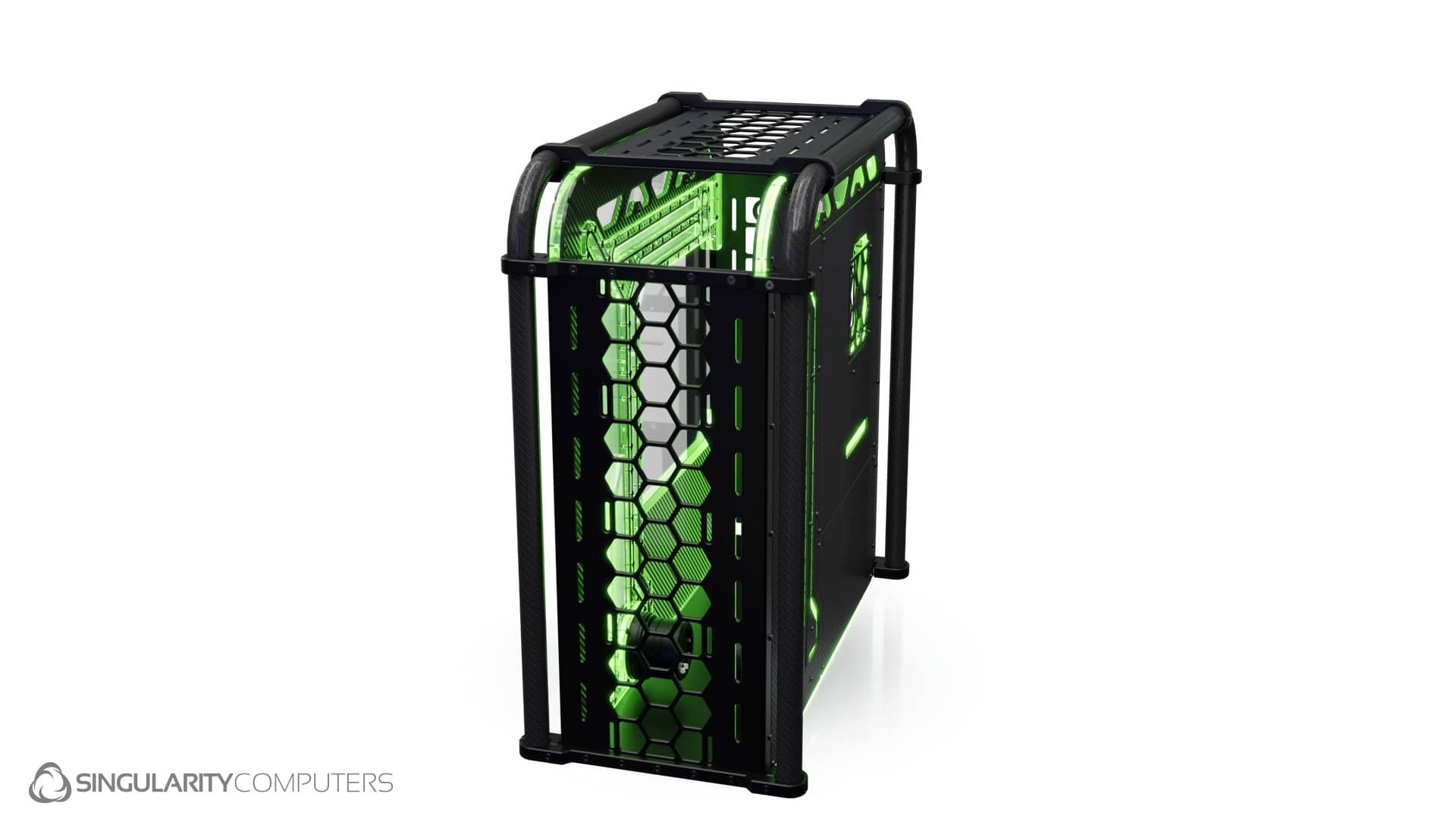

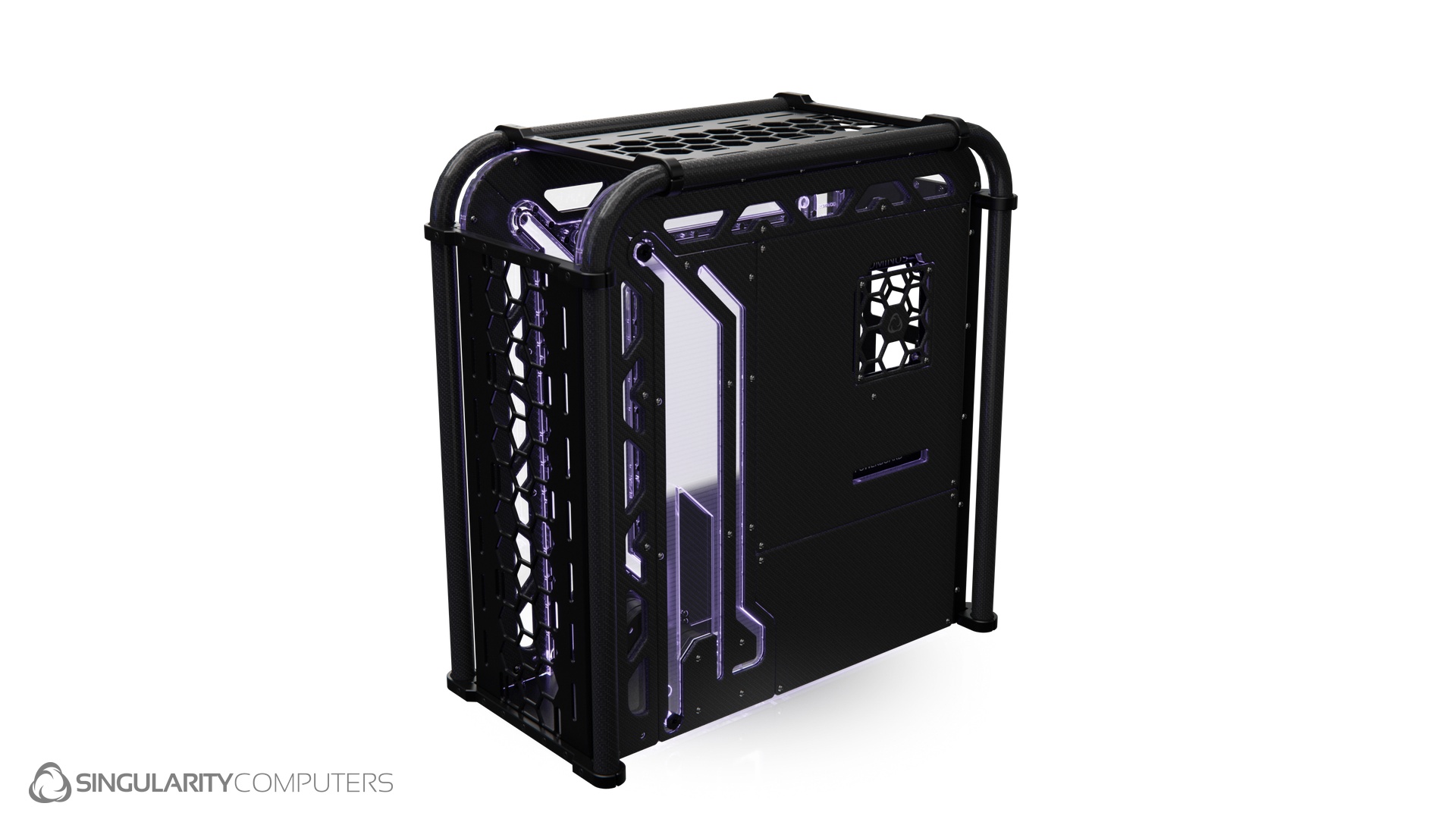

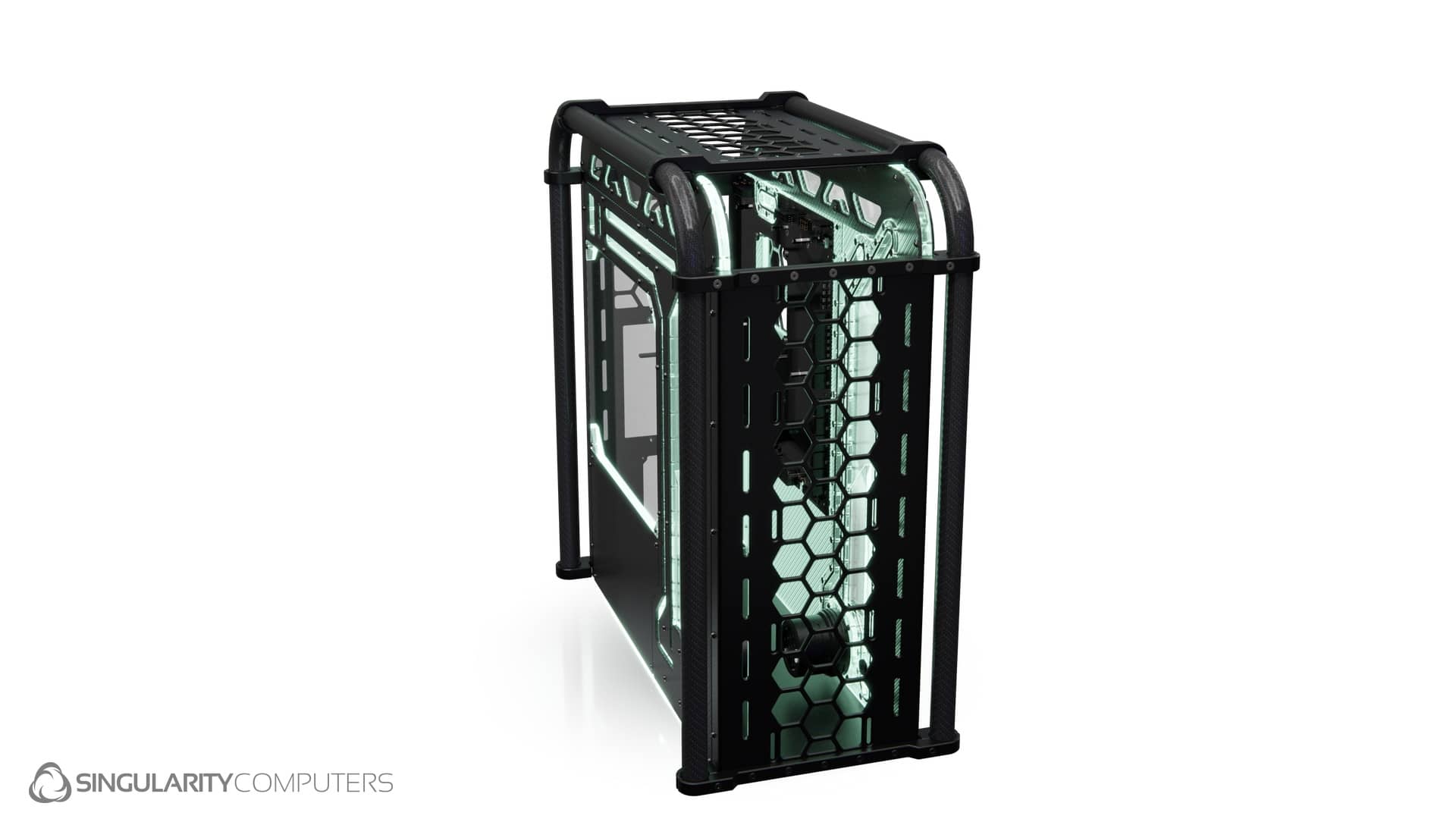

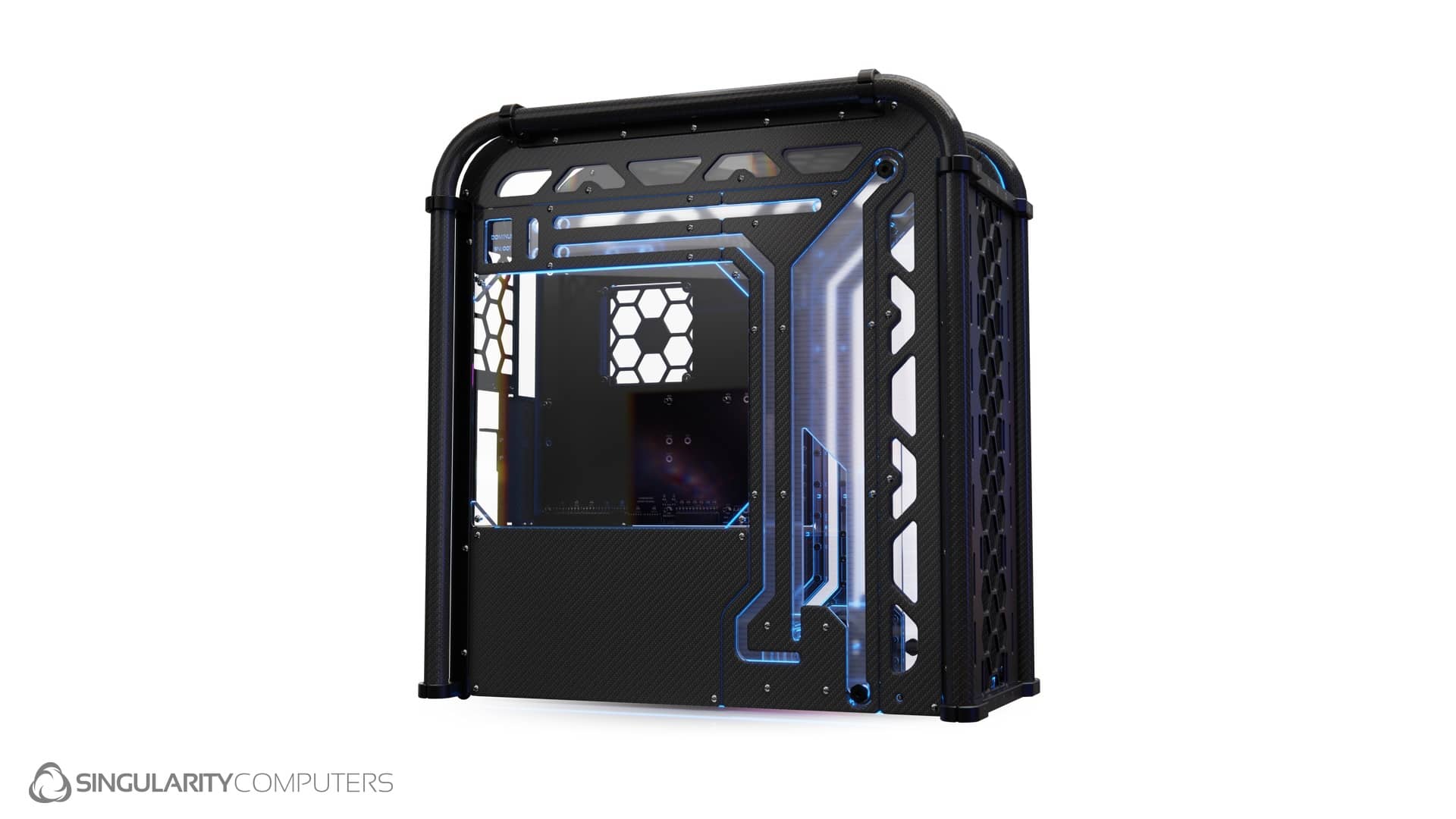

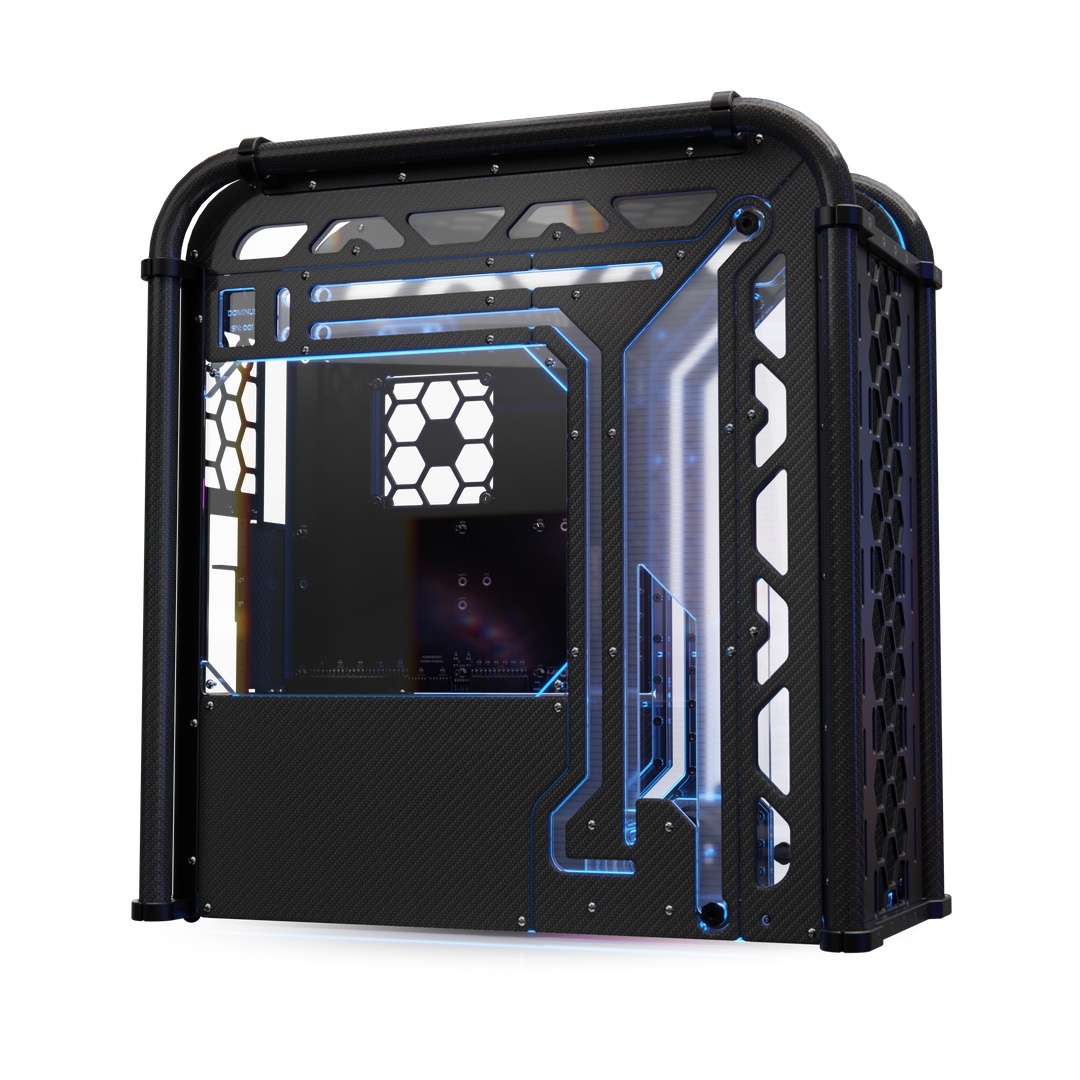

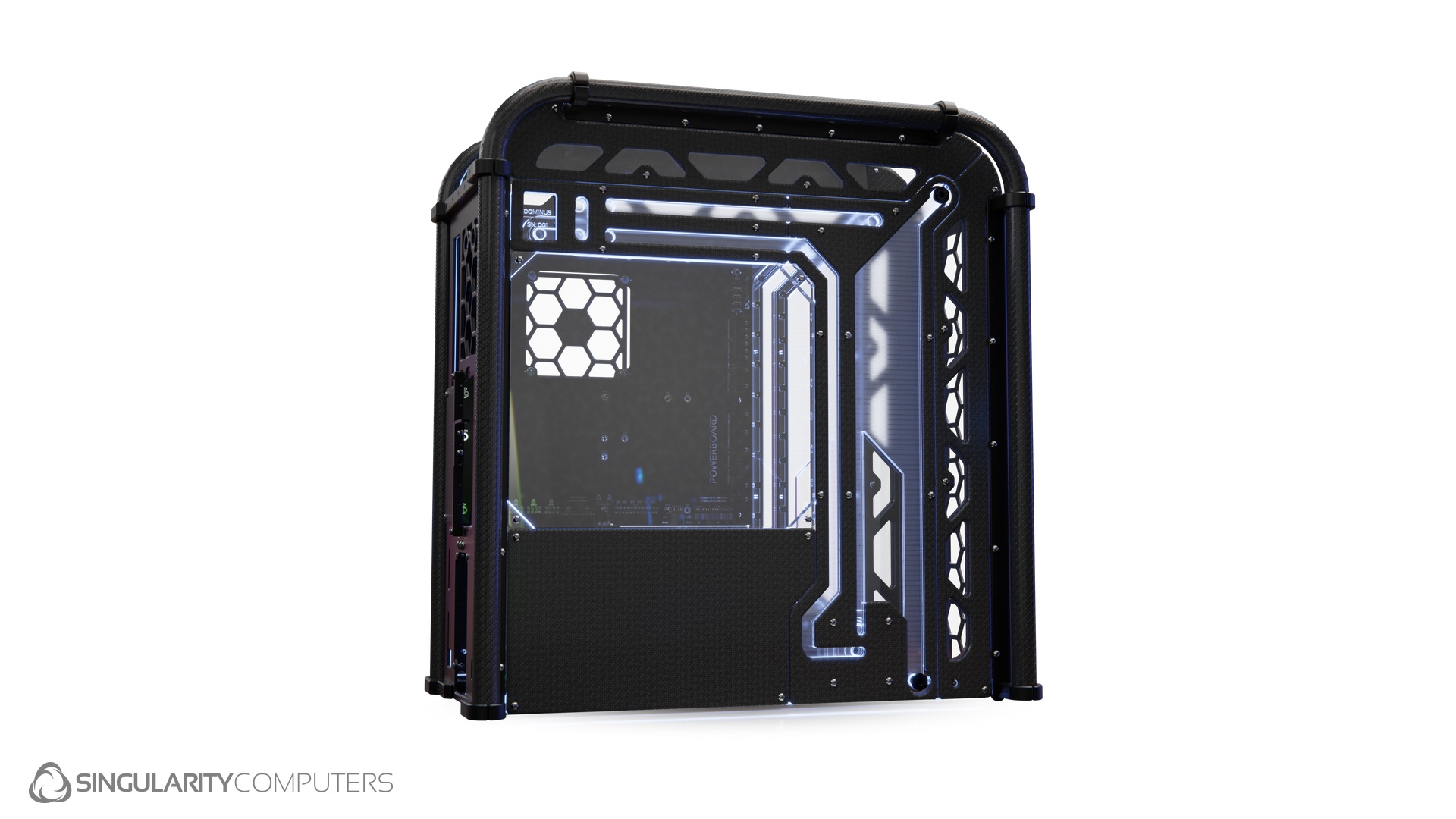

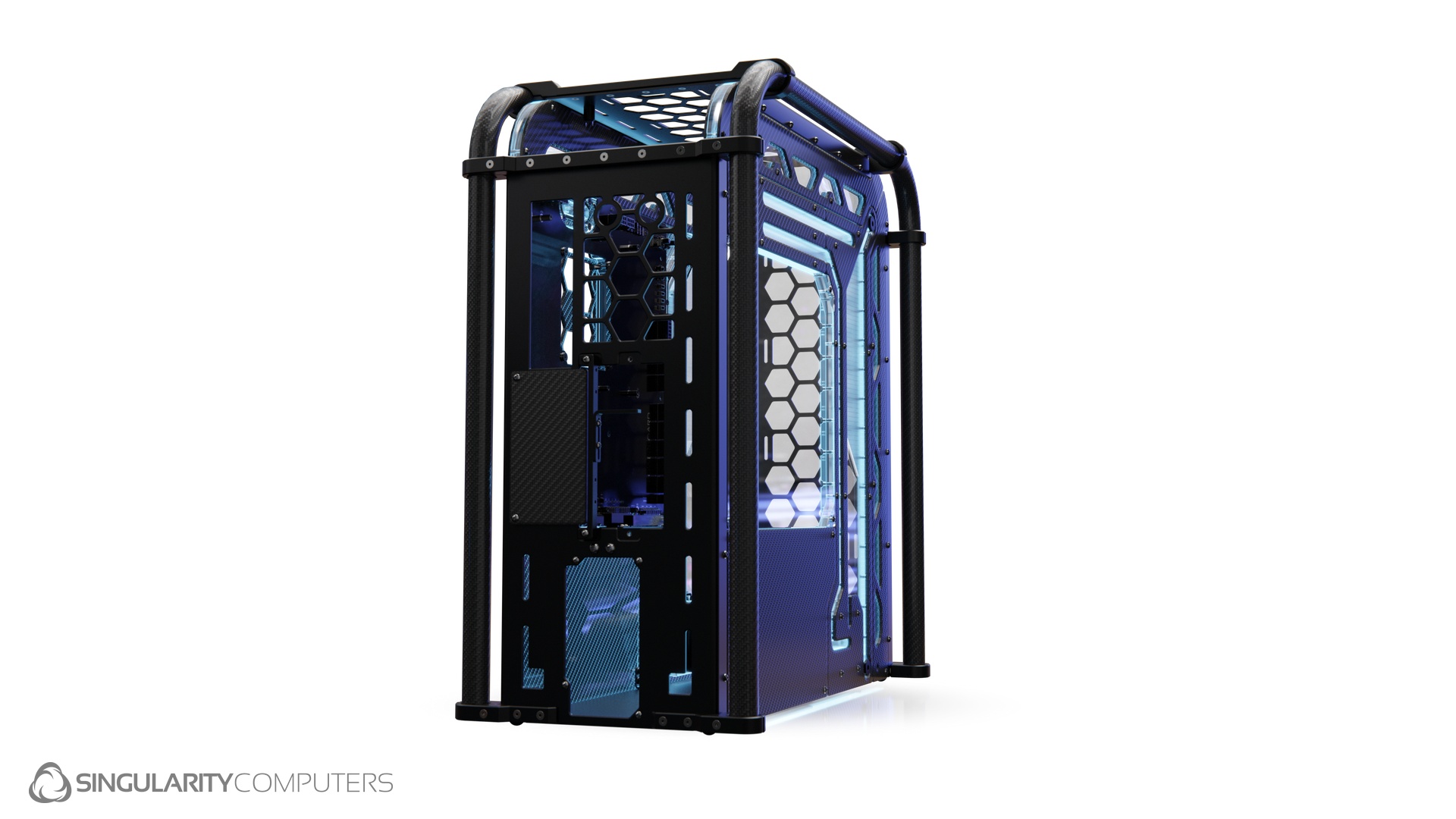

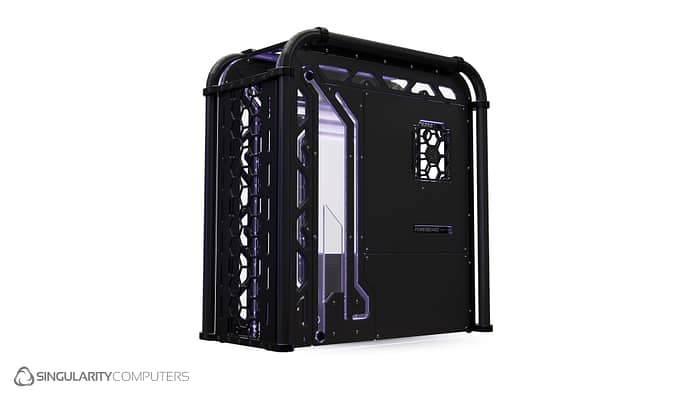

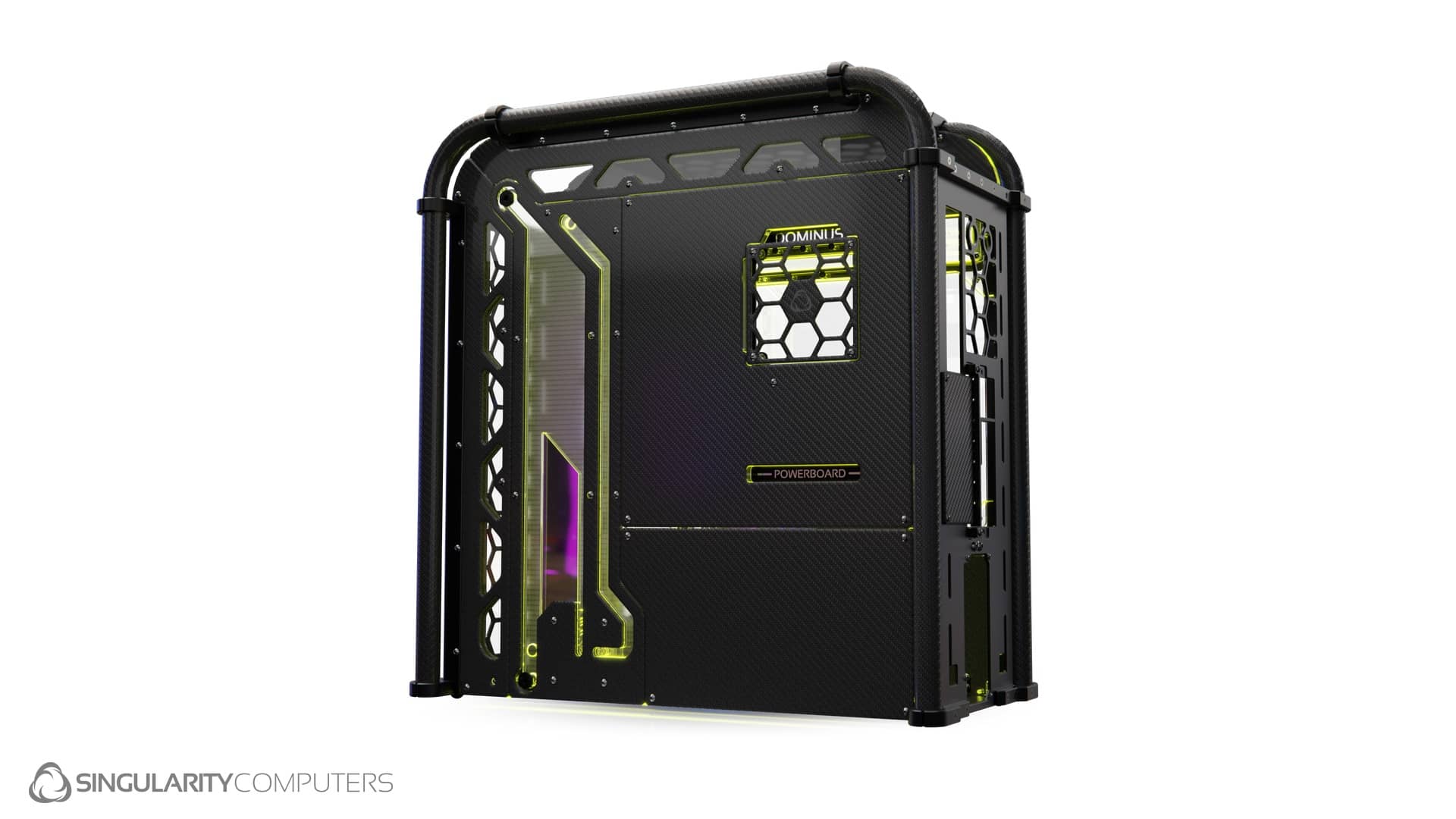

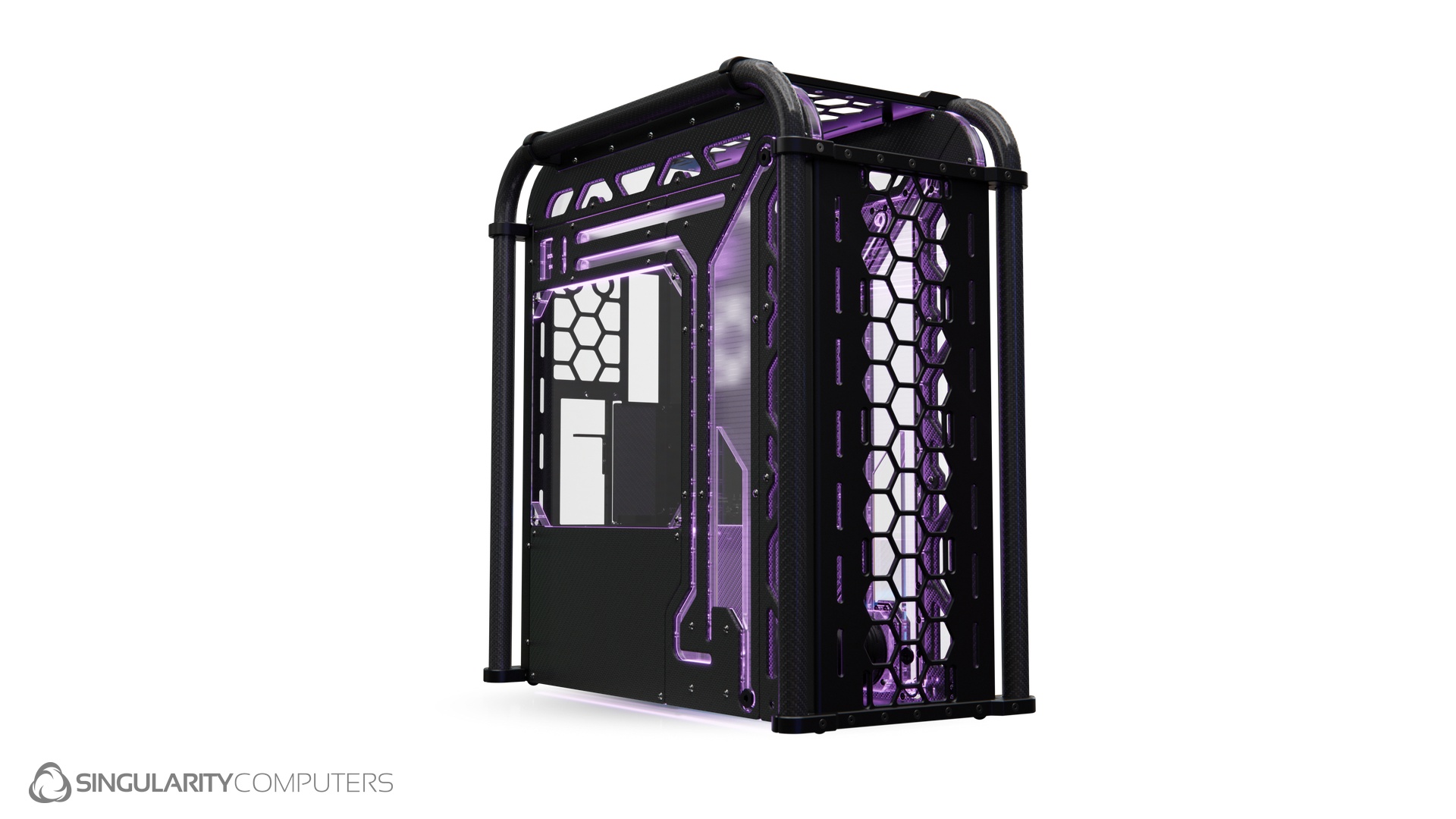

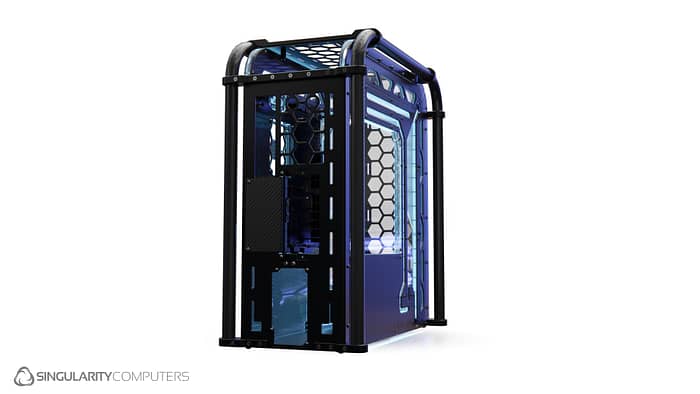

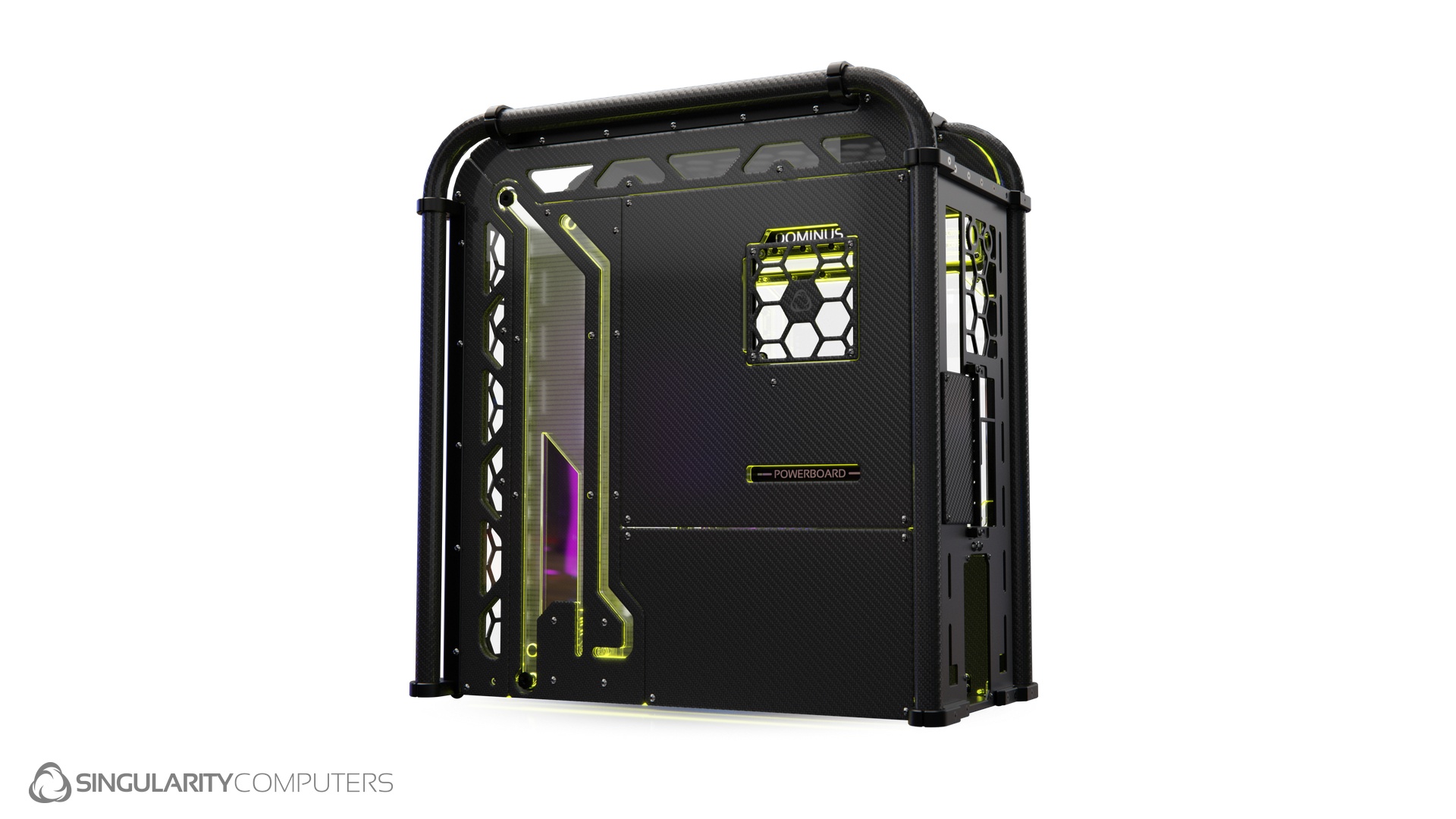

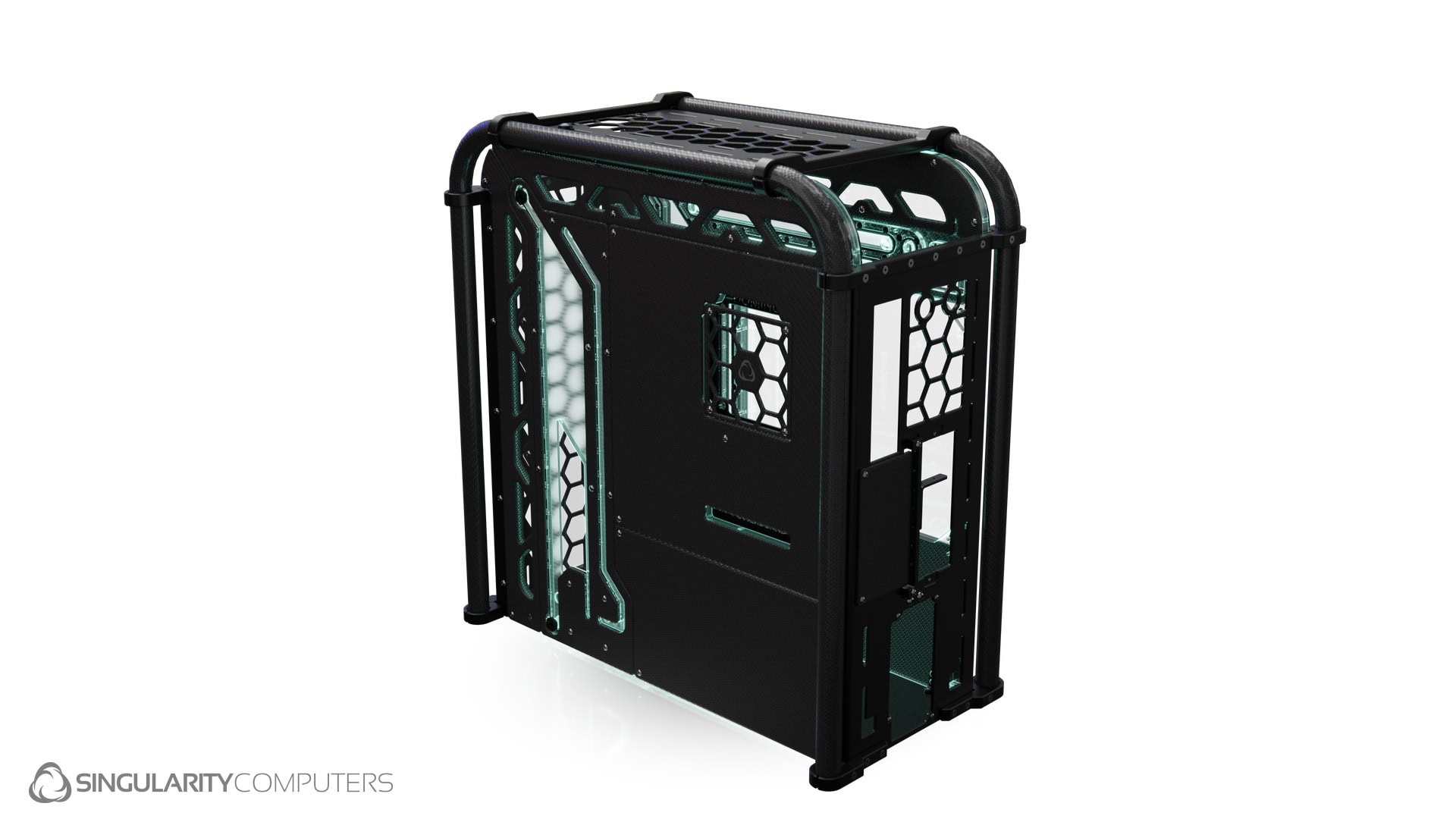

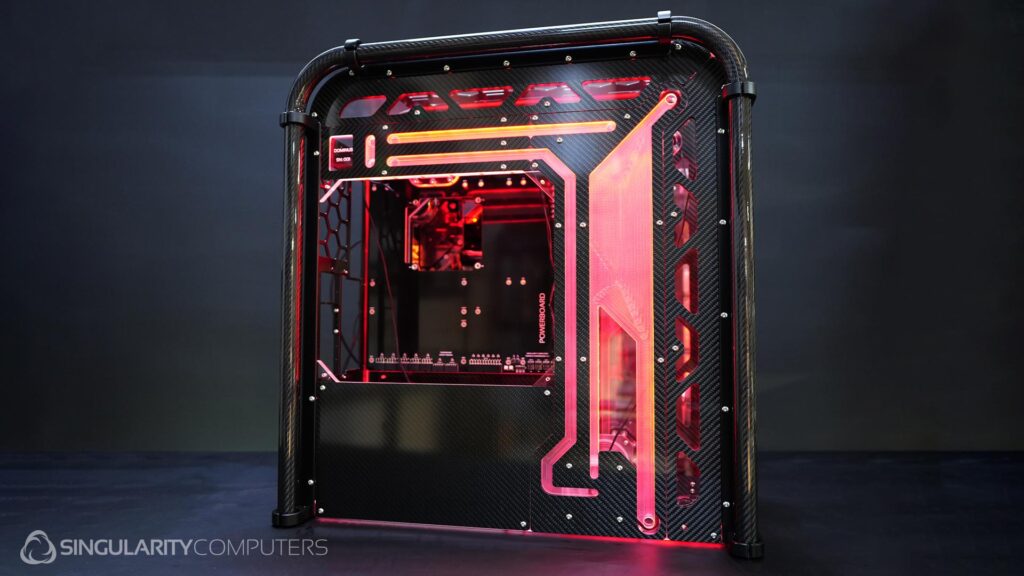

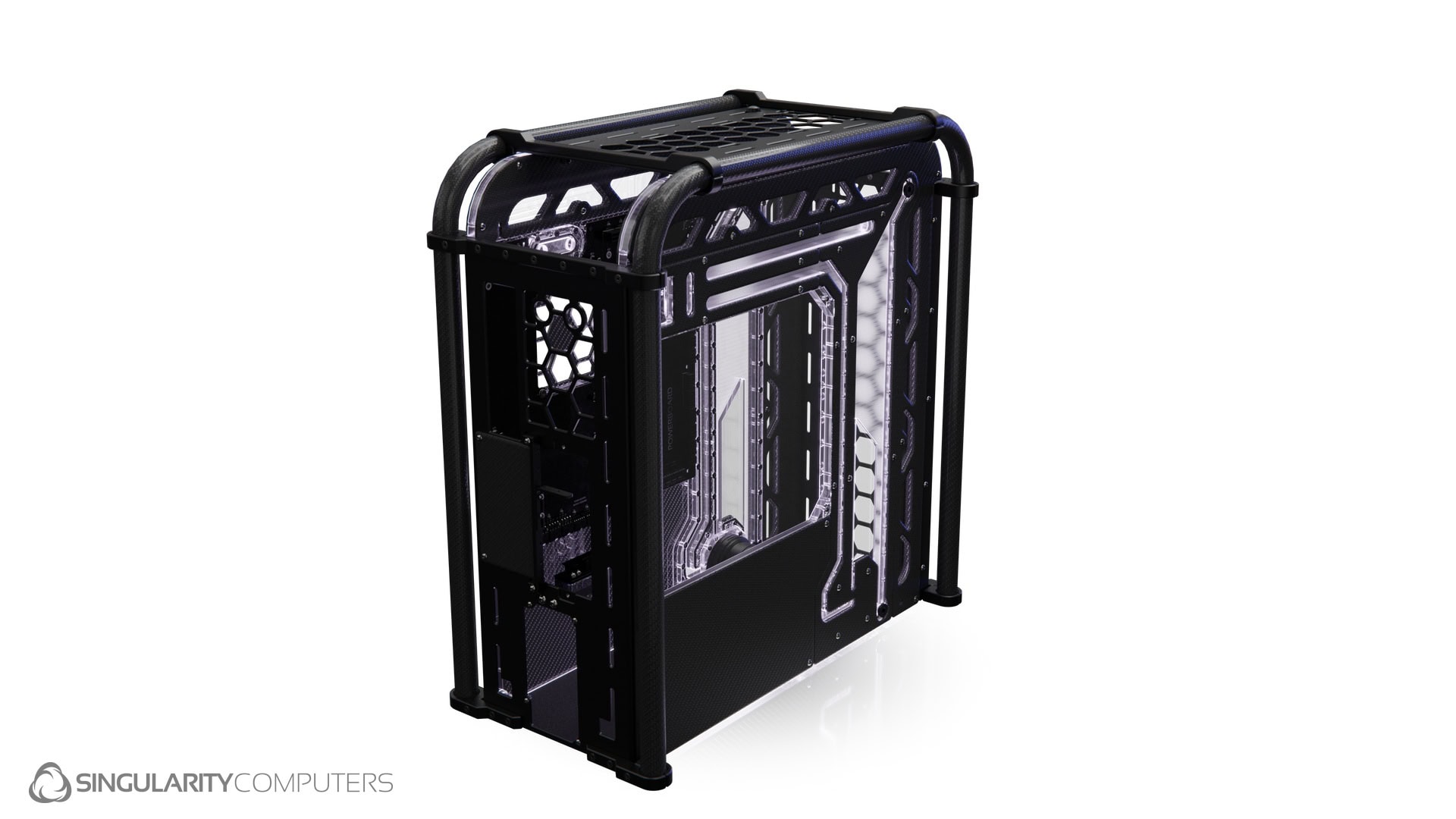

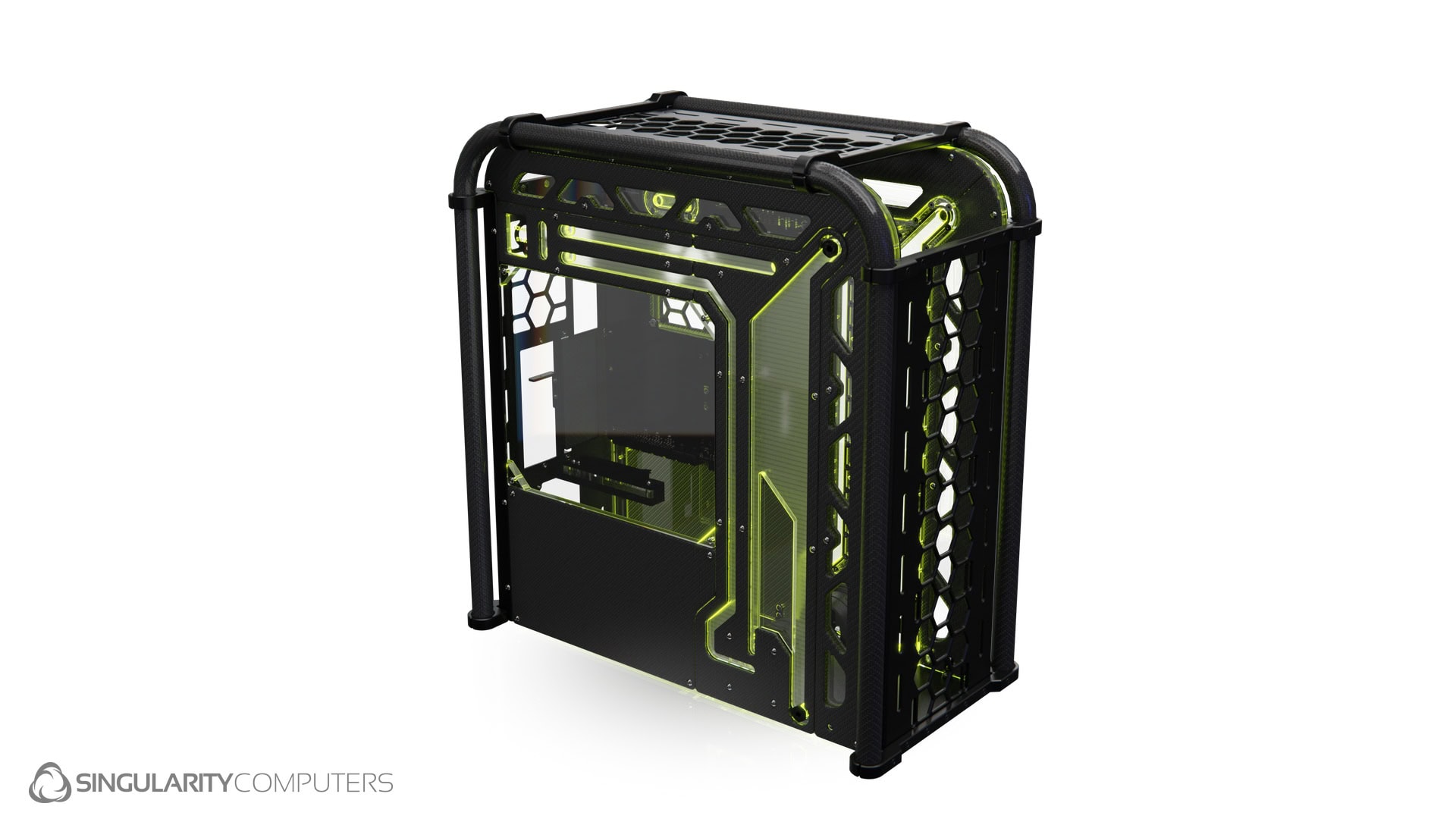

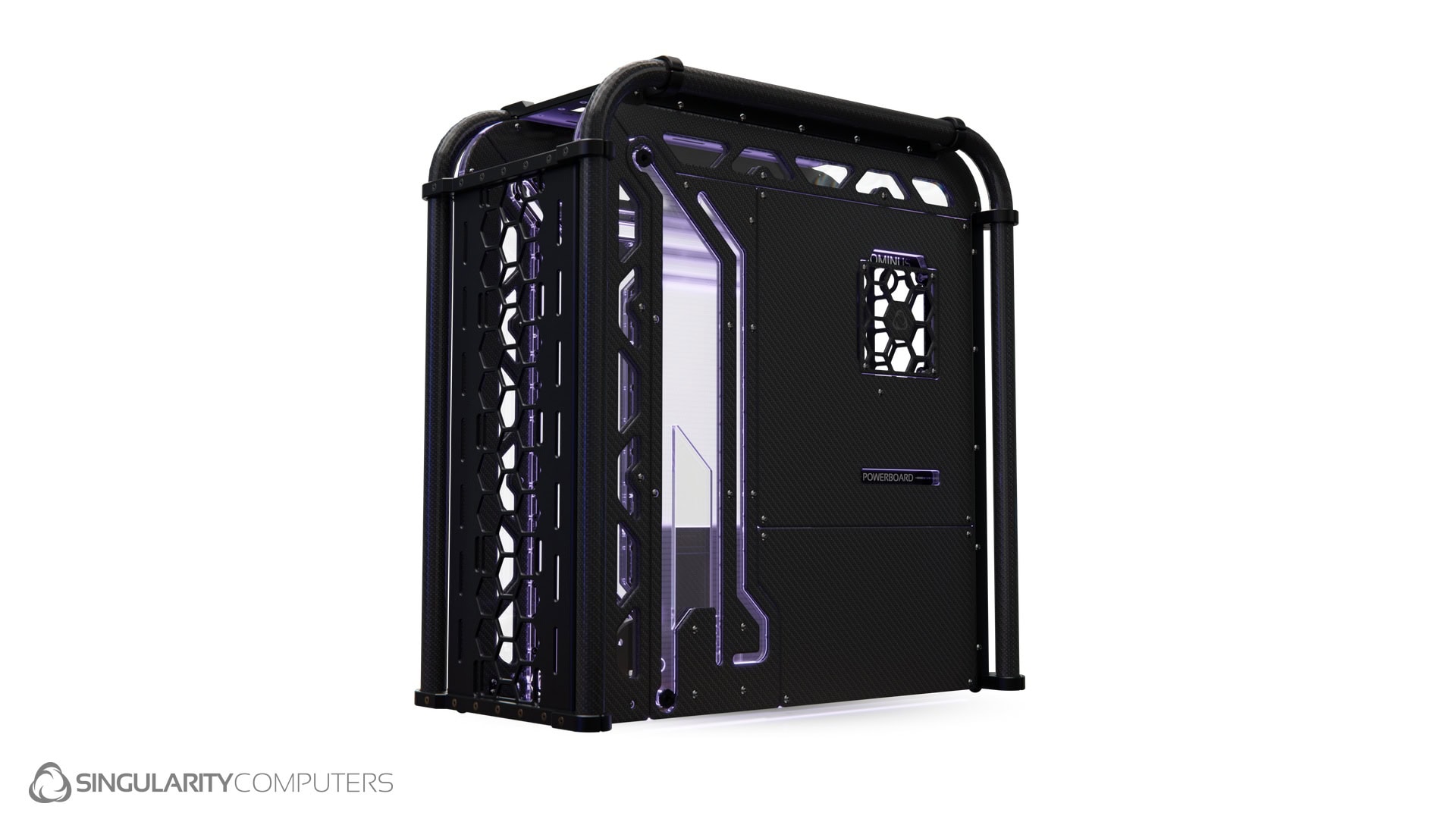

Dominus is the most high-end case we have ever created. It is an extreme water-cooling case with integrated distribution plates on both sides. It has a frame built from 26mm Carbon Fiber tubes, billet aluminum clamps and 3mm aluminum panels. It has Carbon Fiber panels over the distribution plates. The distribution plates are CNC machined from clear cast acrylic, each side contains a D5, Reservoir and Parts of the loop. The integrated water-cooling system is designed for the cleanest possible tube routes. There is an integrated Singularity Computers PowerBoard which removes the need for cable management. The PowerBoard has temperature-based RPM control with multiple PWM zones, dedicated PWM pump headers, PSU jump start for running the pumps, pump power headers, a temperature sensor input and more. Dominus fits a 360mm and 480mm radiator. It has a 120mm fan mount behind the motherboard to cool the rear of the CPU socket.

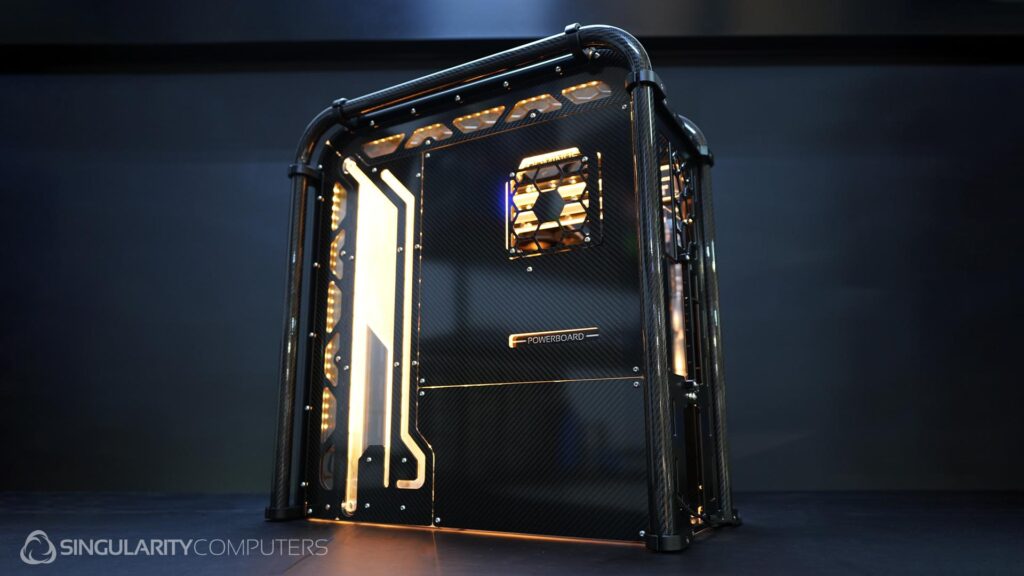

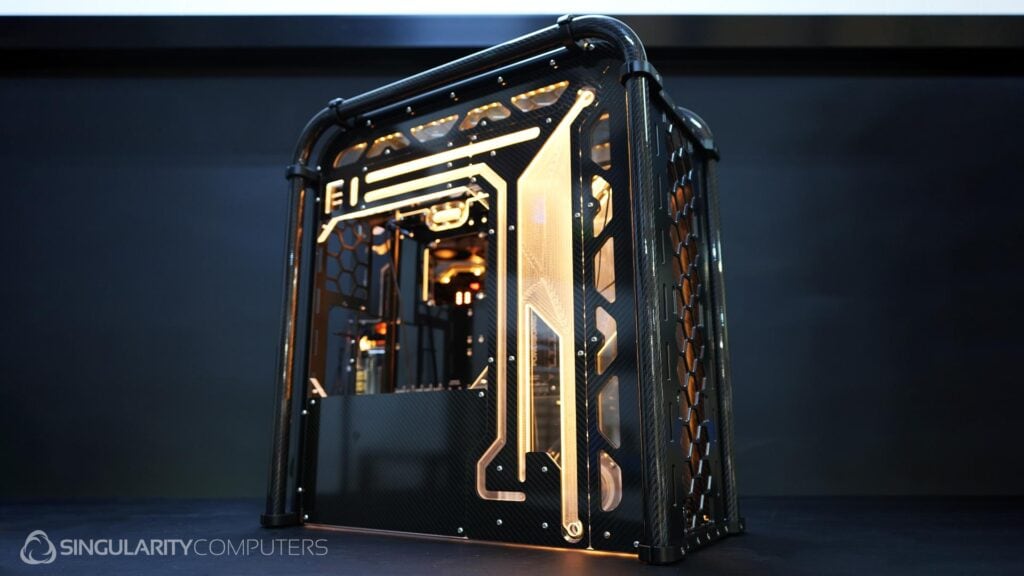

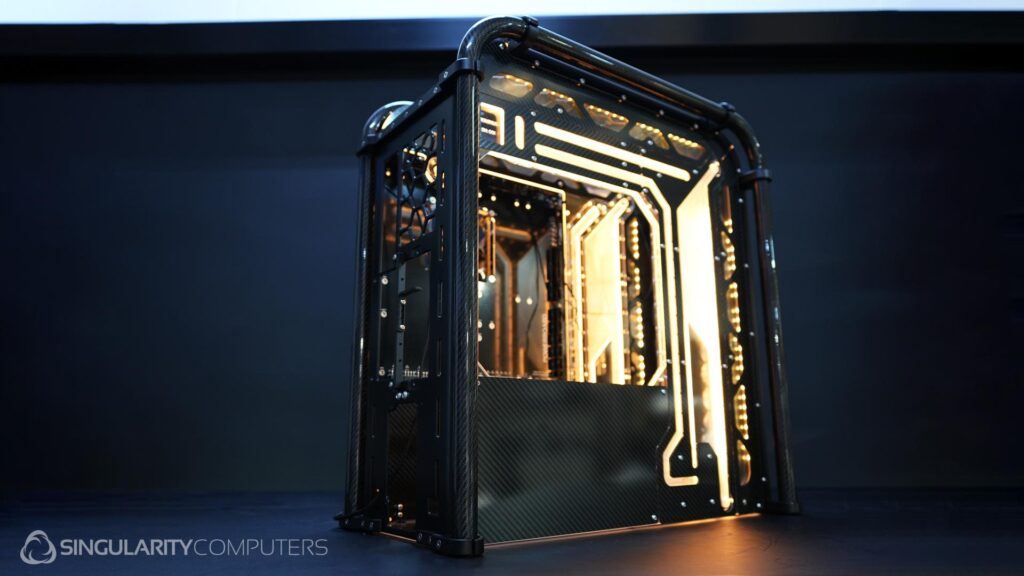

Build Gallery

US$2,499.00

Monitor RPMs, Temperatures, Voltages and control ARGB Lighting.

None Yes +US$129.00
None Yes +US$179.00

Custom black sleeved cables which connect from the PSU to the GPU.

8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

Custom black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs due to them not providing pinout information.

None Yes +US$69.00
EAN: 9362188000847 SKU: SC-DOM-C Categories: ,

Manual

Gallery

Specifications:
Water-cooling Integration:

Two distribution plates each with a Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x15 G1/4” BSPP. 2x Fill Port. 2x Drain Ports.
Pump: (Not included): Compatible with all D5 pumps.
Electronics Integration:
Connectors: 24pin x1. PCIE 8pin x3. 12V2x6 x2. 8pin EPS x4. PCIE 6pin Supplementary x1, PCIE 8pin Supplementary (Equal inputs and outputs must be used).
Hubs: PWM Fan Hub x1 with x1 input and x2 outputs (daisy-chainable fans or fansplitters needed). With coolant temperature-based RPM control or motherboard control.
PWM Pump Hub x1 with x1 input and 2x outputs. The fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 120mm fan which can be mounted behind the motherboard (controlled by the PWM fan hub).
PWM Control:
2x potentiometers to set the minimum PWM speed.
ARGB: x3 with one input.
Temperature sensor inputs: x1. Compatible with any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
LEDs: x4 ARGB 90-degree LED strips inside the distribution plates. There is a dip switch to change the source of the ARGB LEDs between motherboard and FanGuardian control.
Power and Reset Buttons with hidden touch buttons for both.
4pin ATX header to power up to two pumps with custom cables from the PowerBoard.
12pin header for future controller add-on.
PSU jump-start switch to run the pumps without booting so that you can run only the pump for filling the loop.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2X6 (select above). 18AWG Black Heatshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm x2. PowerBoard to Horten Touch Module 60cm Black x2.
LED Strips: ARGB 5V 40cm x4 (pre-installed).
Motherboard Form Factor: SSI-EEB & CEB (Without the PowerBoard). XL-ATX (Up to: 290mm Wide & 305mm High). E-ATX, ATX, M-ATX, Mini-DTX, Mini-ITX (with the PowerBoard).
Expansion Slots: x7.
Case Form Factor: Full Tower Water-cooling Case.
Case Dimensions: L: 600mm x W: 308mm x H: 630mm.
Case Weight: TBC.
Packaged Dimensions: TBC.
Packaged Weight: TBC.
Storage: None.
Radiators: 360mm top & 480mm front with maximum 60mm of thickness for radiators and maximum 30mm thickness for fans.
Maximum GPU Length: 470mm with 60mm front radiator and 30mm fans.
Maximum GPU Height: 170mm in standard orientation, 260mm in vertical orientation.
Maximum CPU Cooler Height: 150mm without a loop.
Maximum PSU Length: 220mm.
Front Panel I/O: No Front I/O.
Power Button: Tactile and Touch Activated
Vertical GPU Mount: Vertical GPU mounting bracket with PCIE 5.0 Riser Cable.
Materials: Carbon Fiber. 6061 and 5052 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
