SC FanGuardian PowerBoard Controller

In stock

Order processing time 1-2 days.

  • 3.5” touchscreen controller in a protective hard case
  • Controls ARGB lighting with multiple effects and functions
  • Temperature based lighting control option
  • Monitors Fan and pump RPMs and coolant temperatures
  • Built-in ambient temperature monitoring
  • Low RPM warning configurable for all PWM channels
  • Multiple mounting options for Singularity Computers cases and hardware
  • Various themes with colours to suit different build colour schemes
  • Updateable software and firmware for future feature additions

Manuals

Firmware

US$149.00

Optional Add-Ons

Enhance your purchase with these recommended extras

Ultra-Node Hub (optional) $69
None Yes +US$69.00

Ultra-Node Hub
A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The Ultra-Node is similar to the Mega-Node except that it has a connection for the FanGuardian PowerBoard Controller, and it has three ARGB connections. From the FanGuardian you can control ARGB lighting and you can monitor all RPMs, temperatures and voltages. Combined with the FanGuardian the Ultra-Node is a standalone management and monitoring system for a water-cooling loop, and it is an ARGB controller. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-OUT-RPM displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need of a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature-based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps.

FanGuardian Radiator 120/140mm Mount (optional) USD $29
None Yes +US$29.00

FanGuardian Radiator 120/140mm Mount Horizontal
A mount to attach the FanGuardian to a 120mm or 140mm wide radiator. It is designed to mount the FanGuardian on a horizontal or vertical radiator which could be on the top, bottom, front or back panel of the case. The mount is 3D Printed Black PLA. Fasteners are included for attachment of the FanGuardian to the mount and fasteners can be selected below to suit your radiator. A 1m cable is also included to allow for the extra distance from the FanGuardian connector.

FanGuardian PowerBoard Controller Cable 1M (optional) USD $19
None Yes +US$19.00

A 1m black cable for the FanGuardian PowerBoard Controller. This cable is for situations where the FanGuardian will be mounted further way from its connector on Singularity Computers Powerboards or the Ultra Node Hub.

  • 1x SC FanGuardian PowerBoard Controller
    US$149.00

Subtotal excludes shipping & tax

All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods

Description

Read More +Read Less − full description

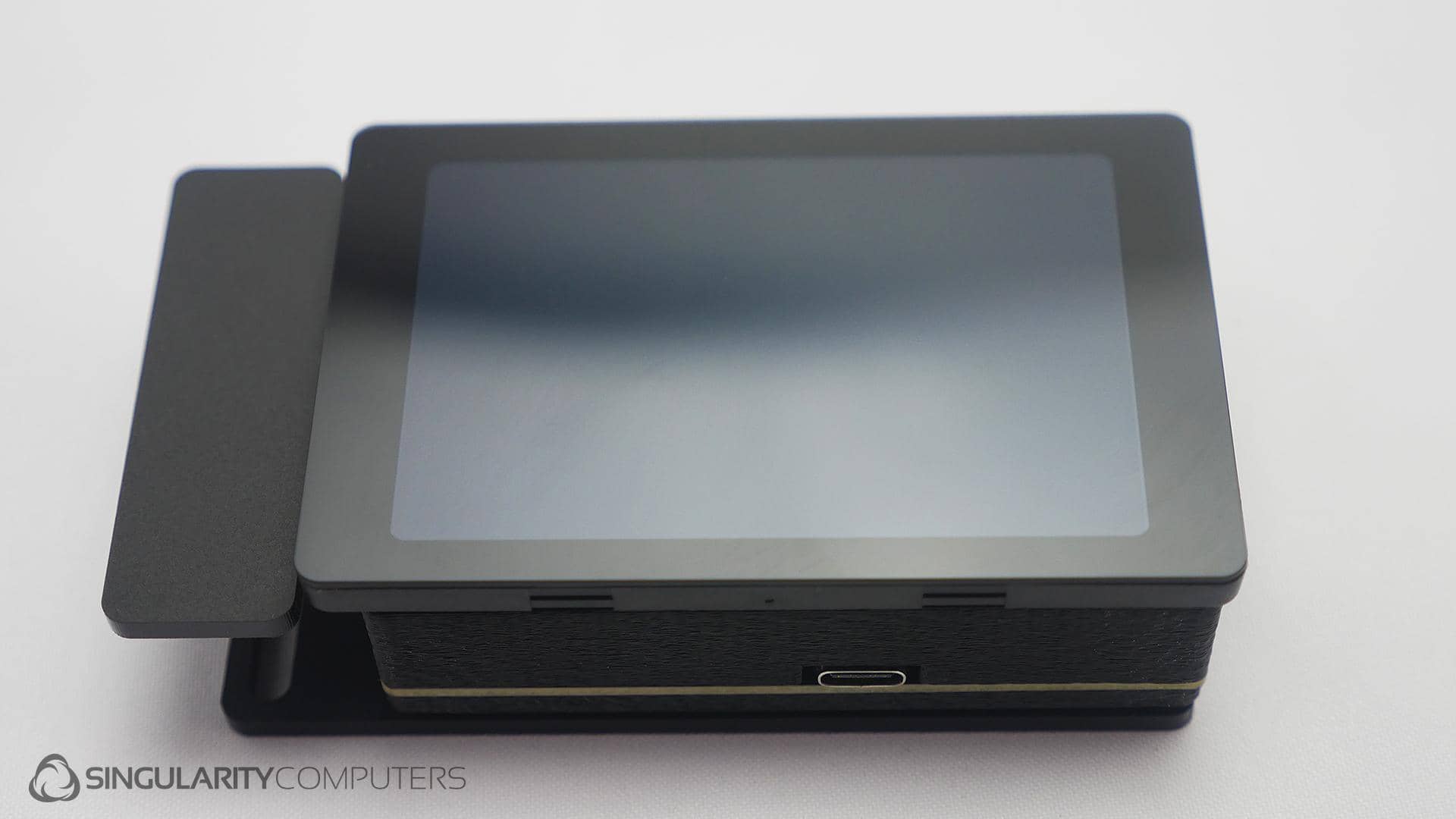

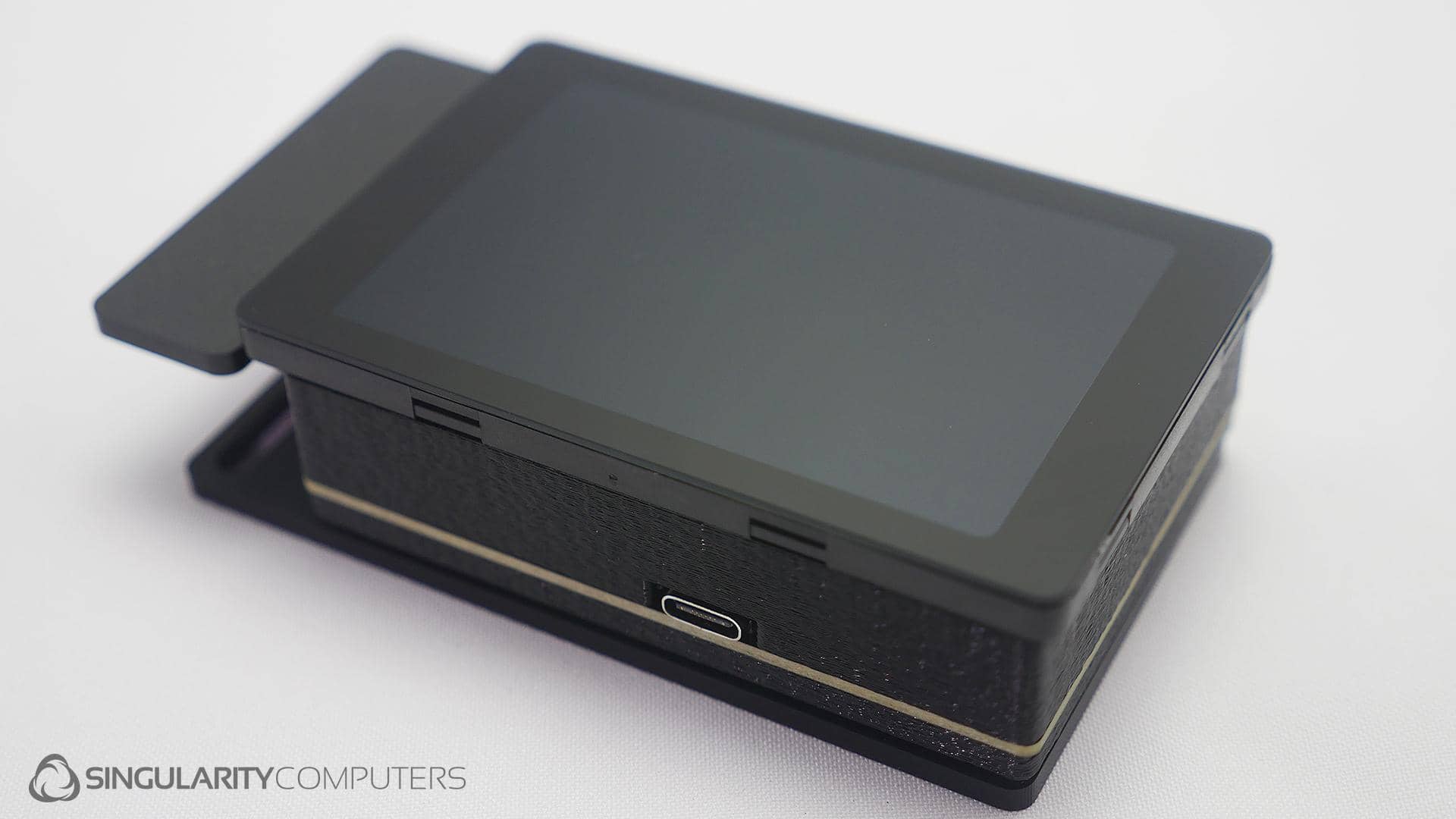

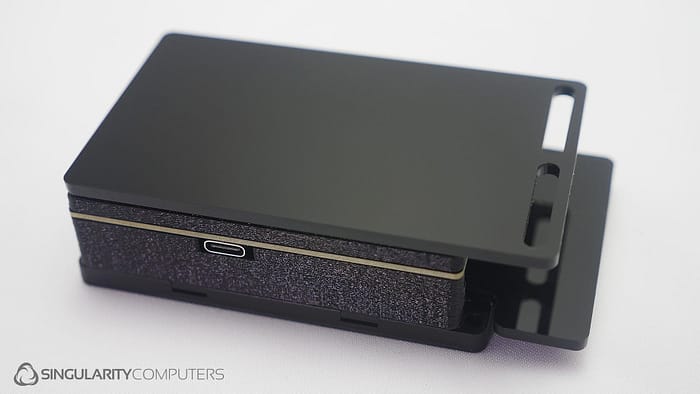

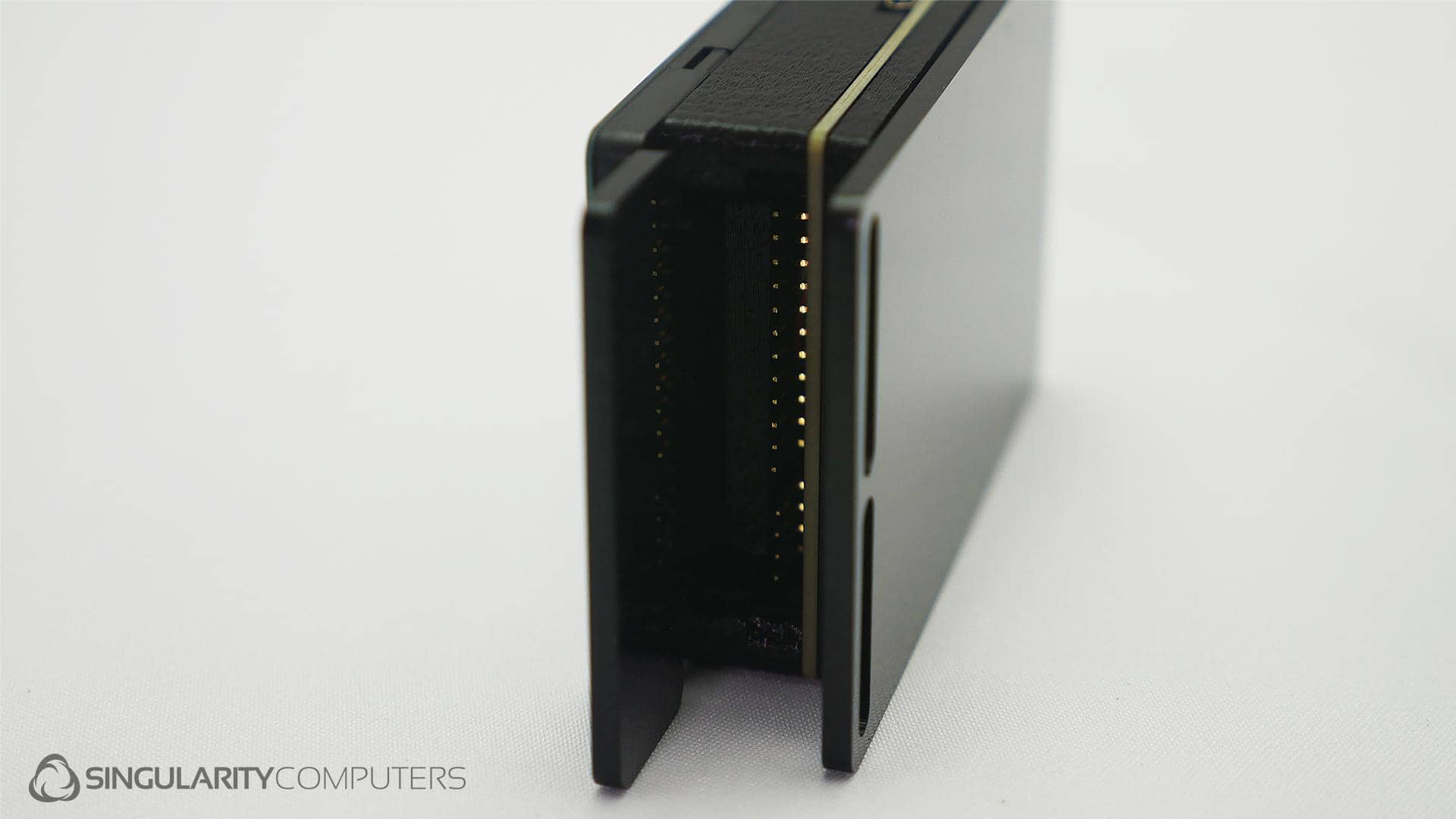

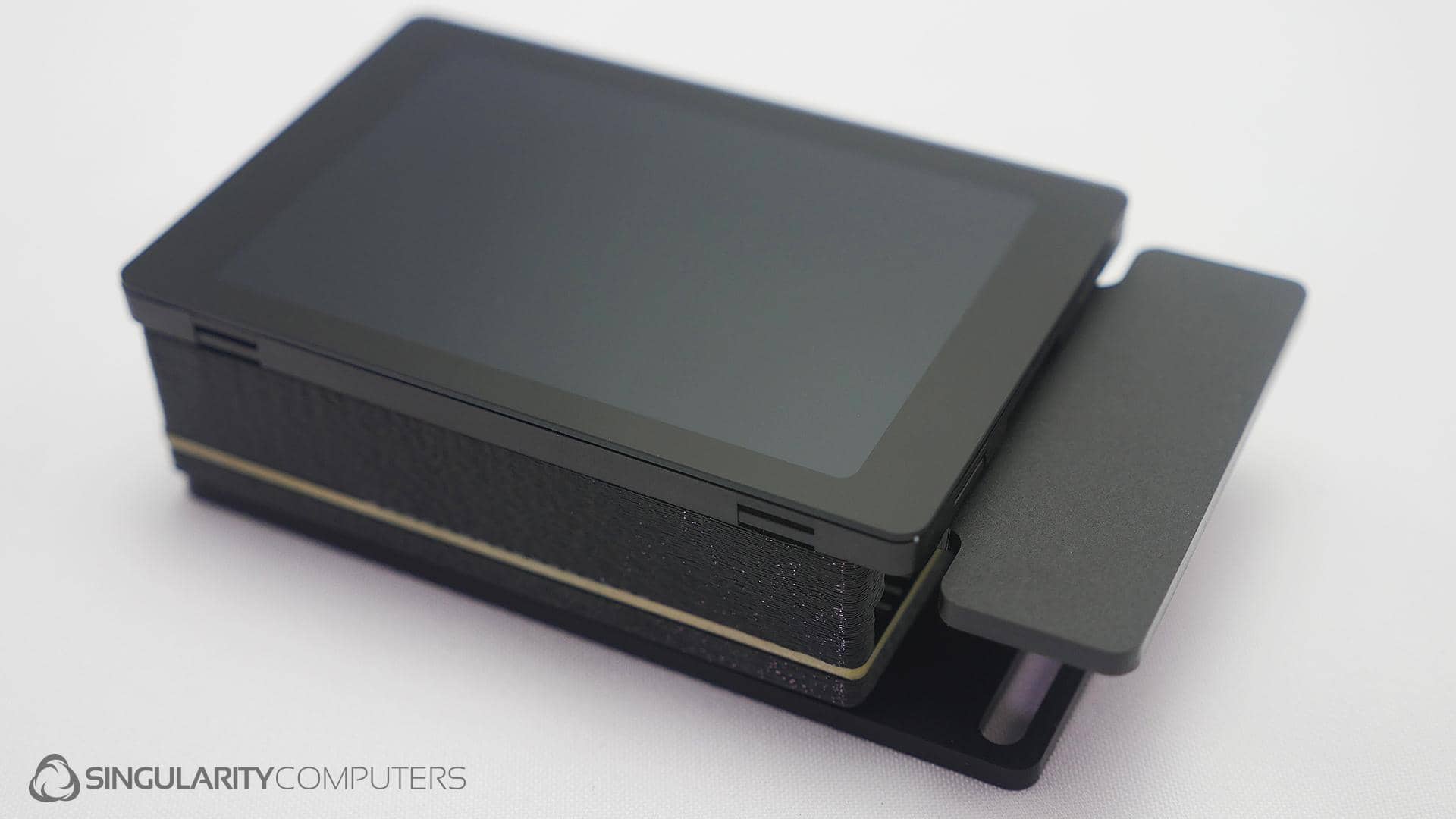

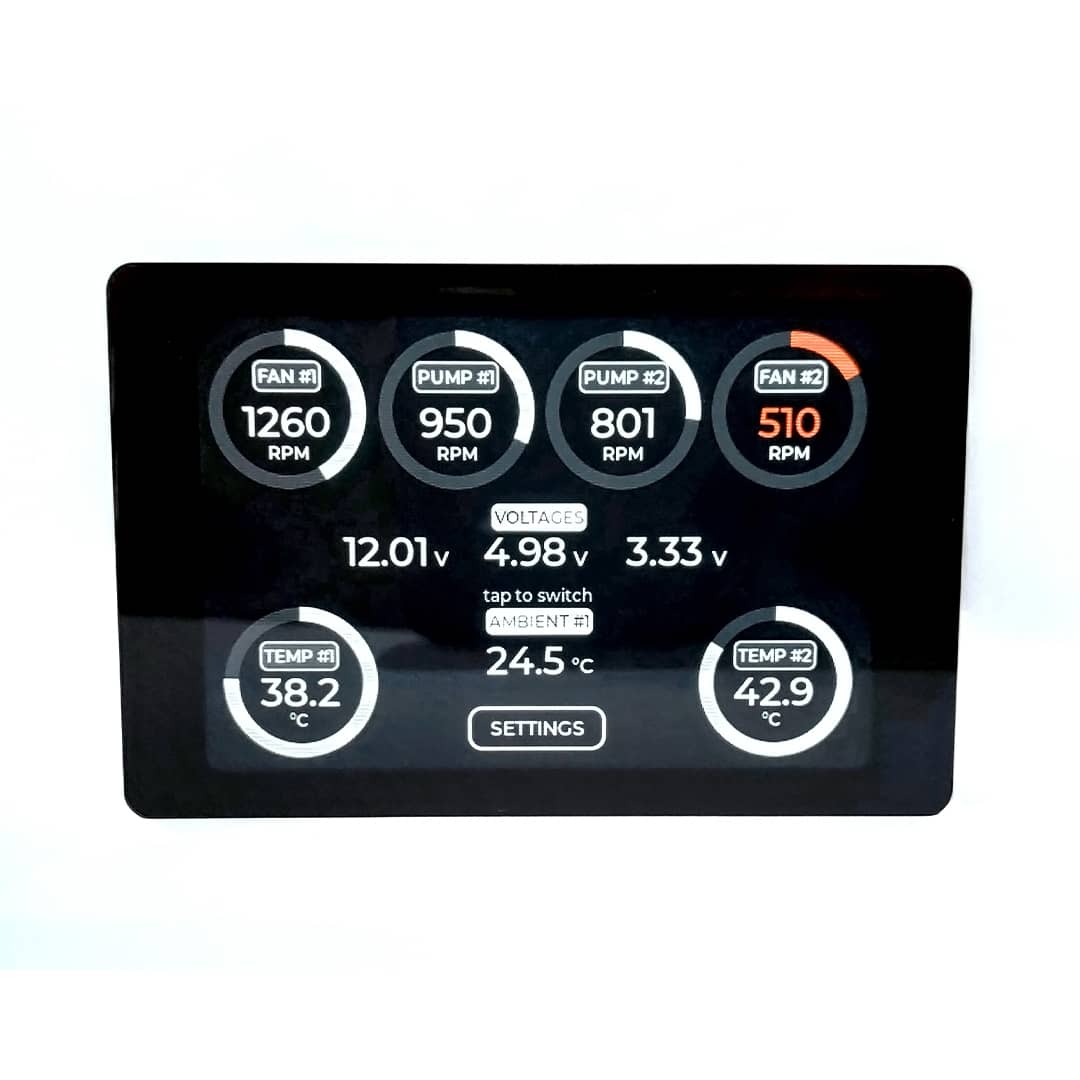

The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards and some of our Node Hubs. It is a 3.5” Capacitive Touch LCD with a resolution of 480×320 built into a hard case which can be attached via the included adhesive. It monitors fan and pump RPMs, coolant and ambient temperatures. It is designed for up to two loops monitoring a fan and pump zone per loop, for a total of four RPM zones. It monitors up to two coolant temperatures and the ambient temperature. It controls ARGB lighting and comes with many lighting effect options including temperature based colour control and alerts for all PWM channels and temperatures. There are various themes and theme colour options and the firmware is updateable with new features being added. It connects to the PowerBoard or Node Hub via the included cable.



Specifications

Fanguardian PowerBoard Controller.
3.5” Capacitive Touch LCD. Resolution 480x320. 60mmx92mmx10.8mm.

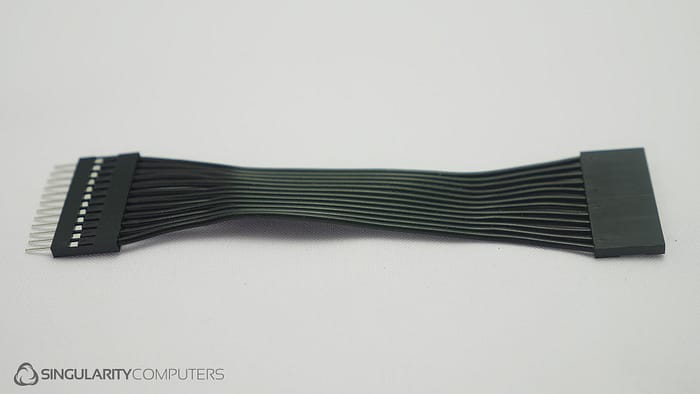

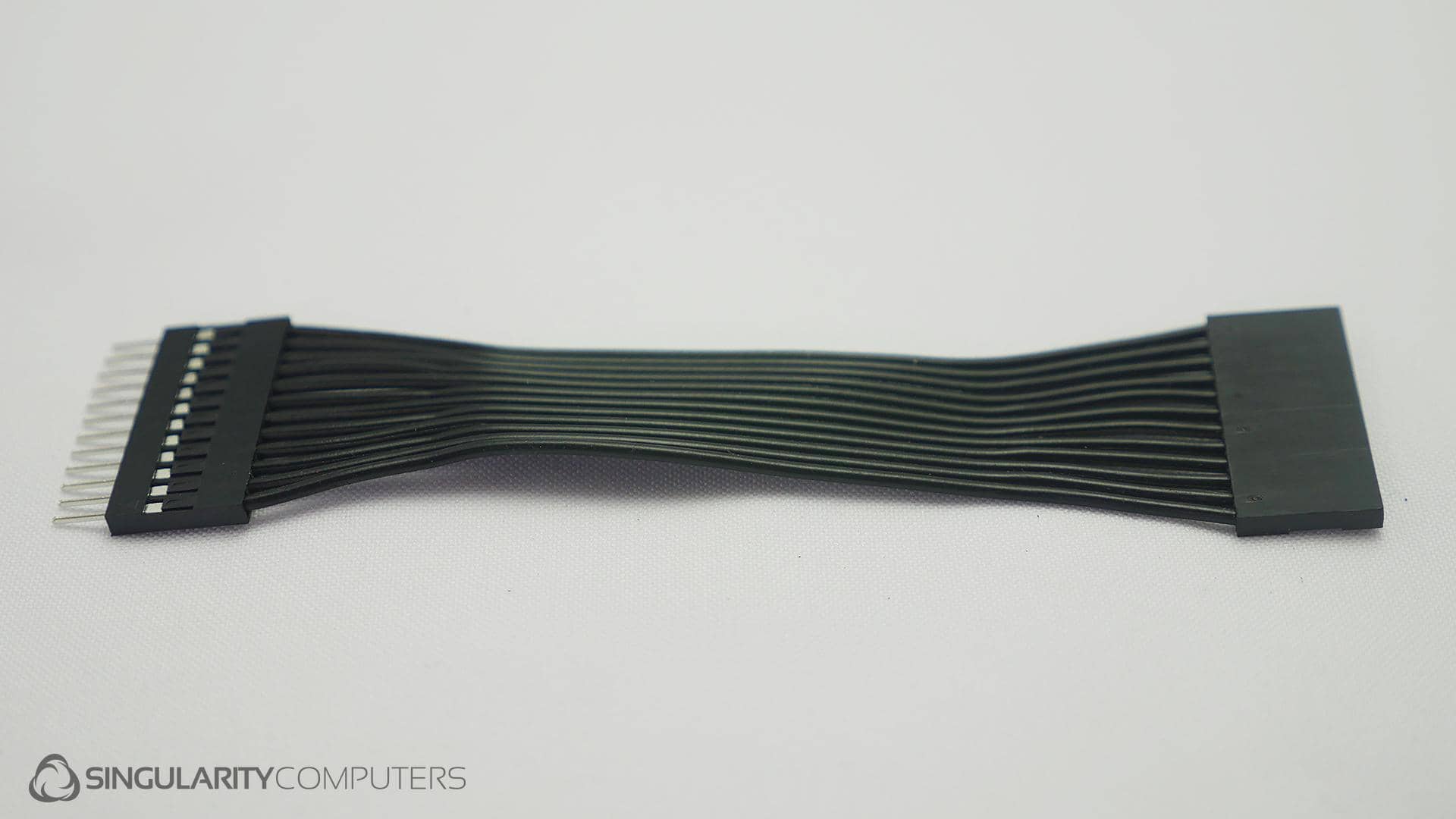

Cable: Black cable to connect Fanguardian PowerBoard Controller to the PowerBoard.
Product Dimensions: L: 70mm x W: 100mm x H: 30mm.
Product Weight: 0.2kg.
Packaged Dimensions: L: 100mm x W: 130mm x H: 50mm.
Packaged Weight: 0.3kg.

Installation:
Can be used with the following PowerBoards:
Spectre 4 Water-cooling Case (All versions).
Spectre Limited Edition Water-cooling Case.
Spectre 4 Enterprise Water-cooling Case.
Spectre 4 Quantum Water-cooling Case.
Stream-M Water-cooling Case (All versions).
SC Test Bench.
SC Enterprise 4U Rackmount Case (with PowerBoard).
PowerBoard Universal 360mm.

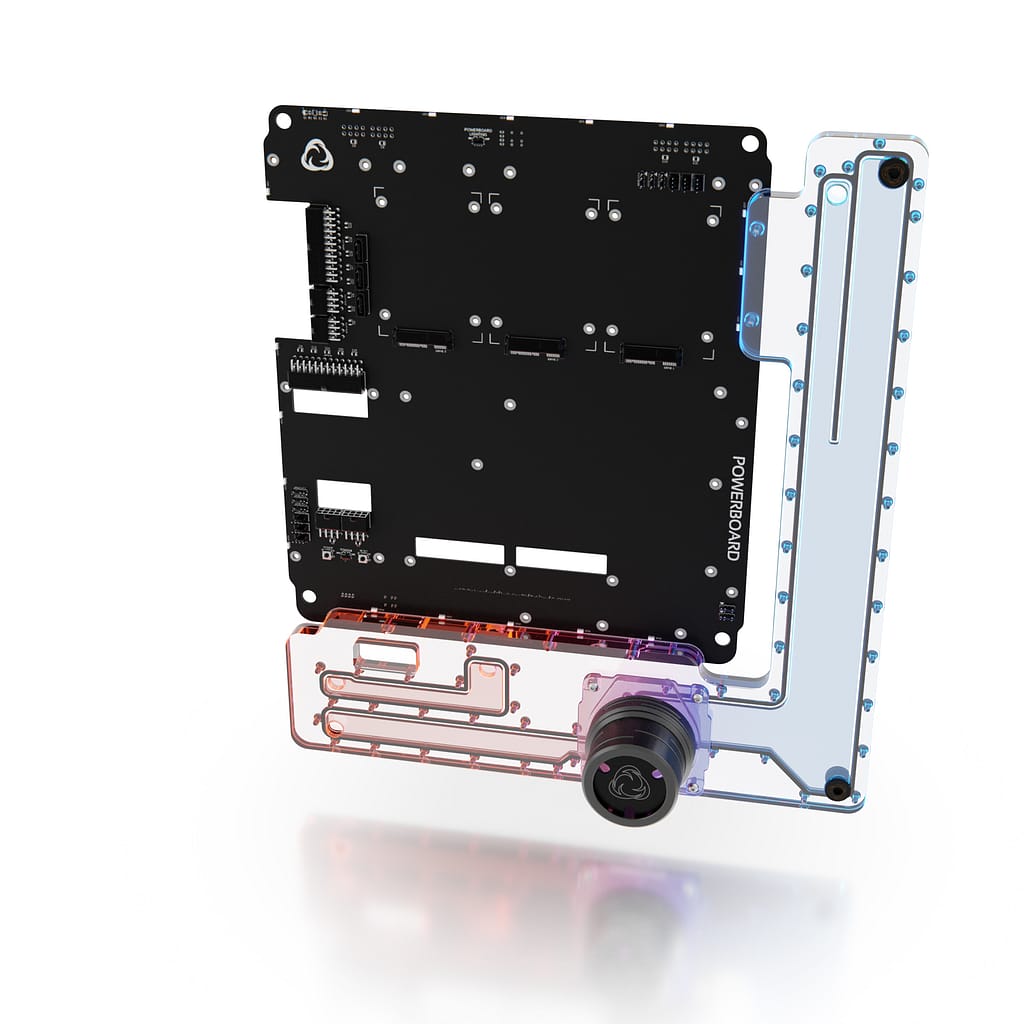

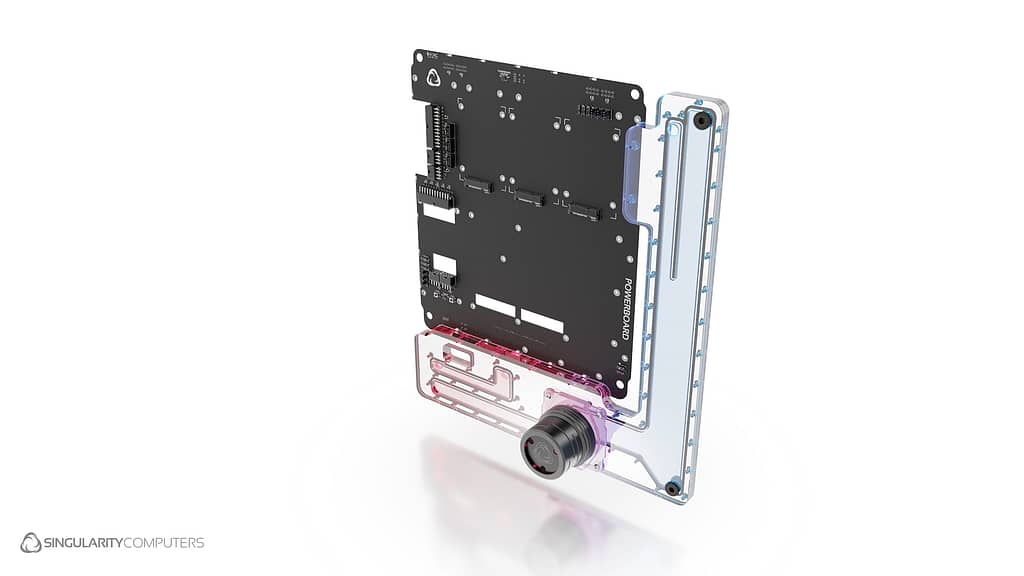

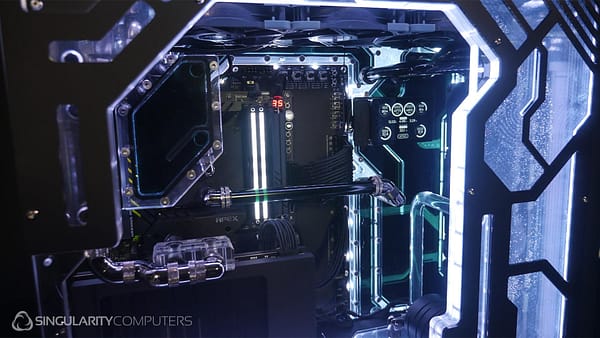

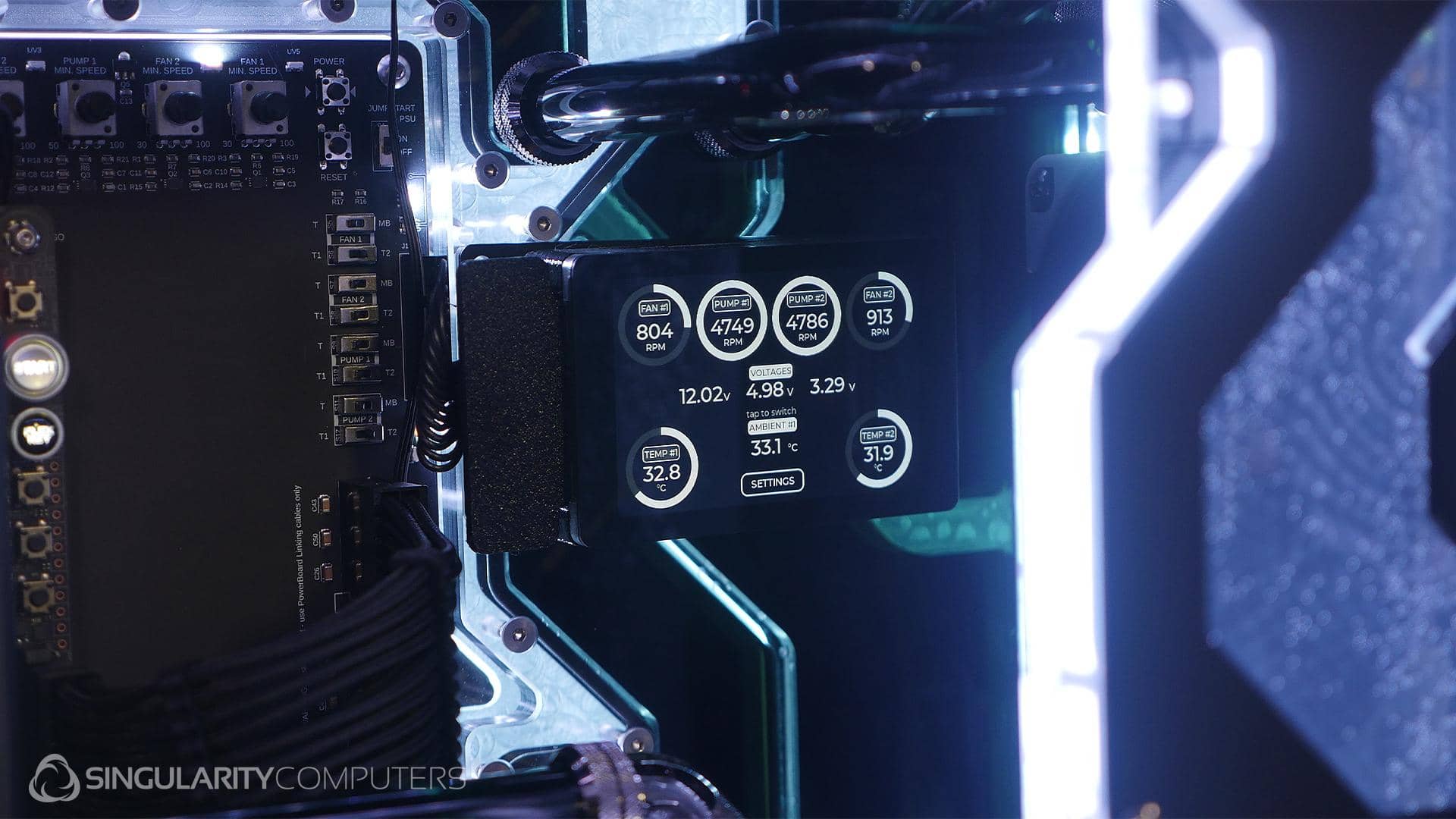

On all Spectre cases it can be mounted via two of the fasteners on the distribution plate. Make sure to tension distribution plate fasteners to 0.35nm.
See manual for more information.
