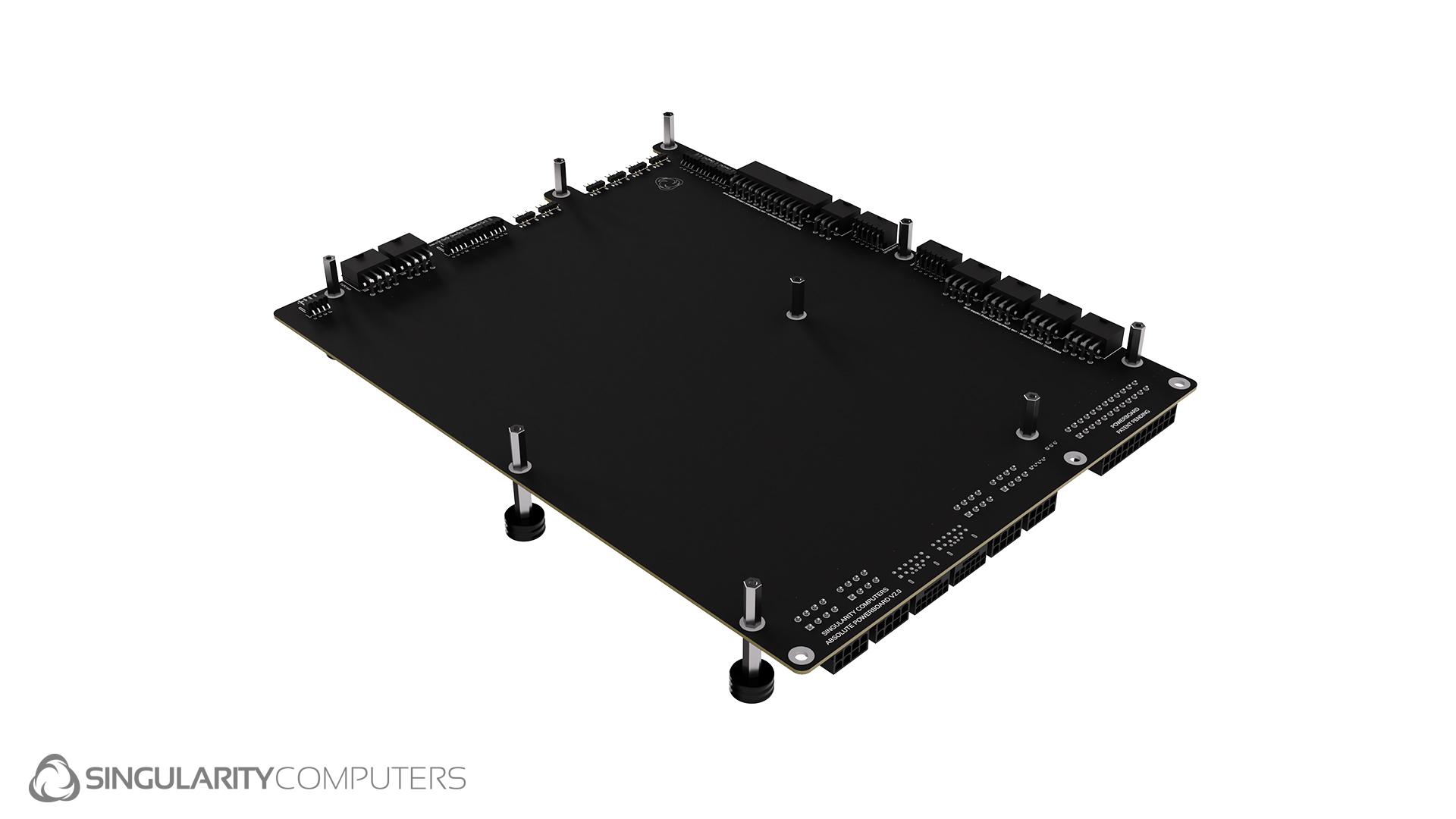

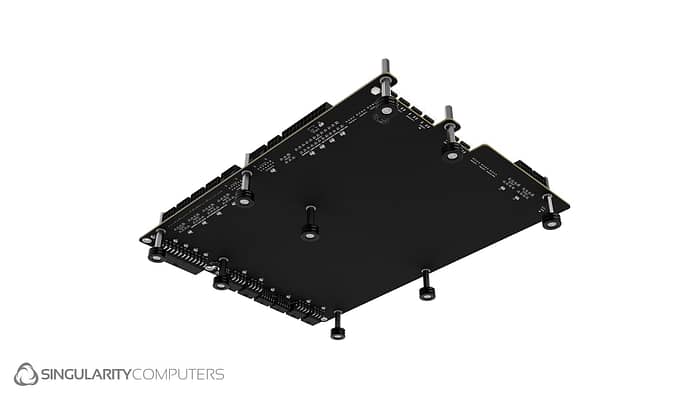

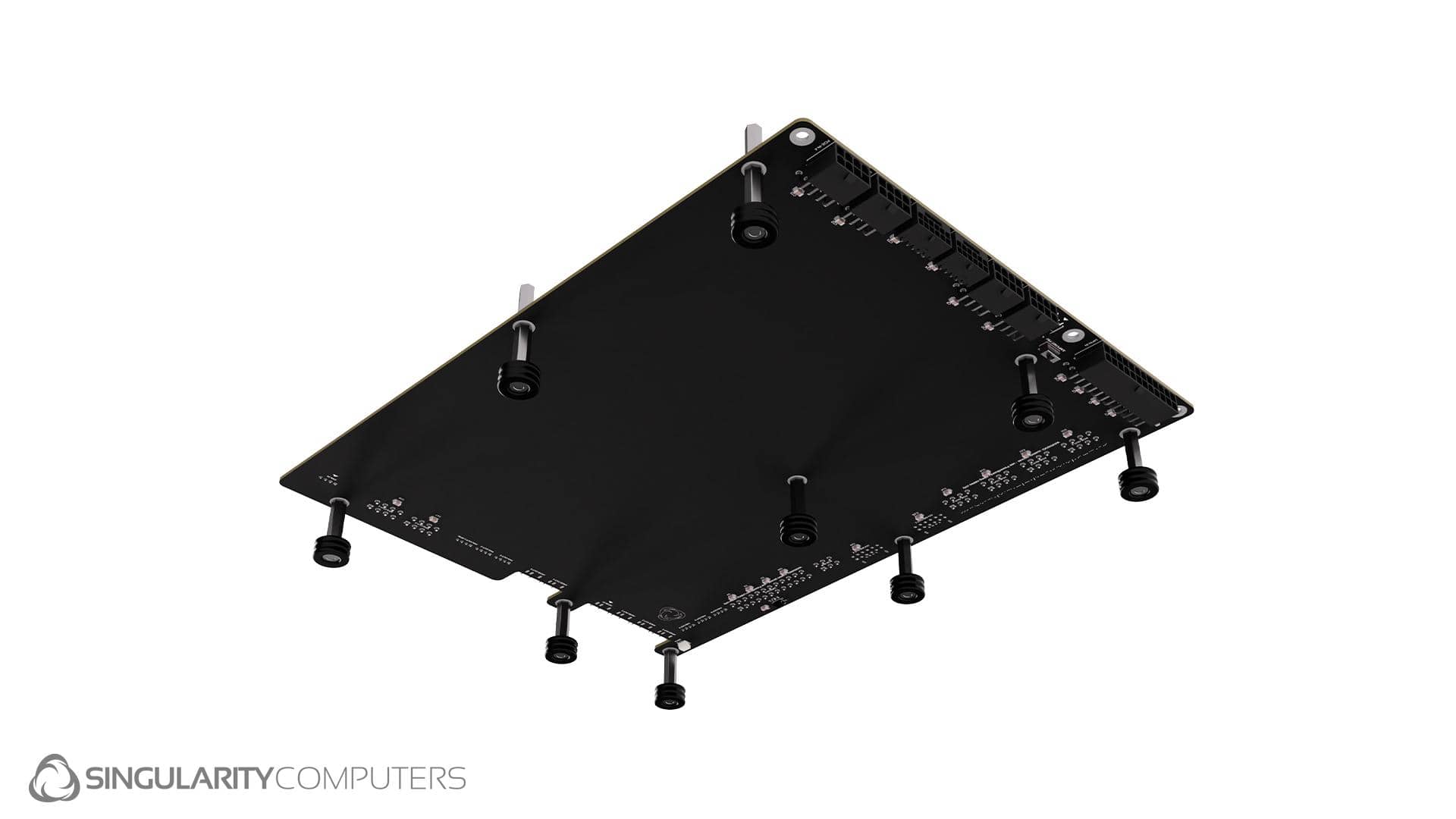

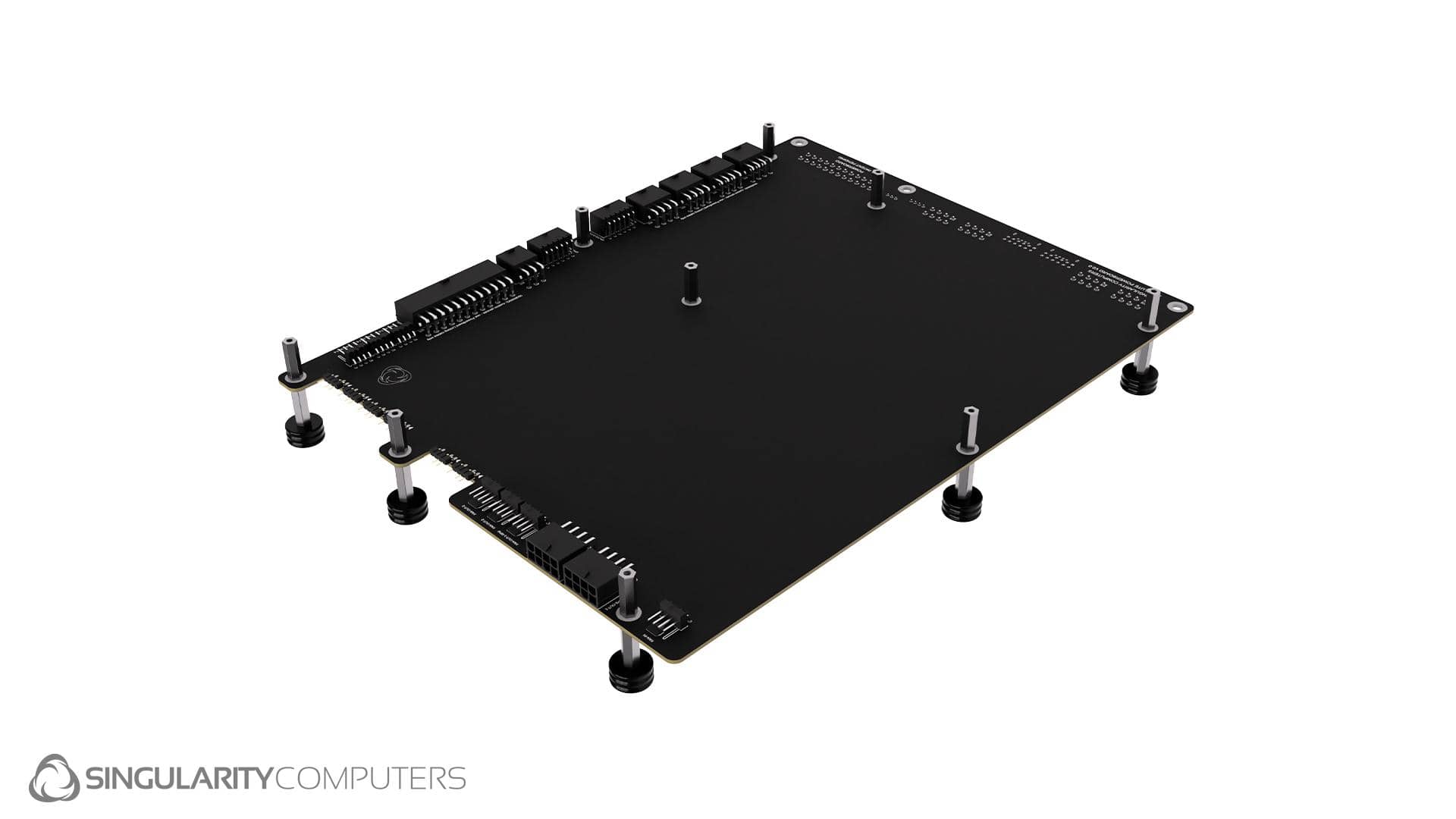

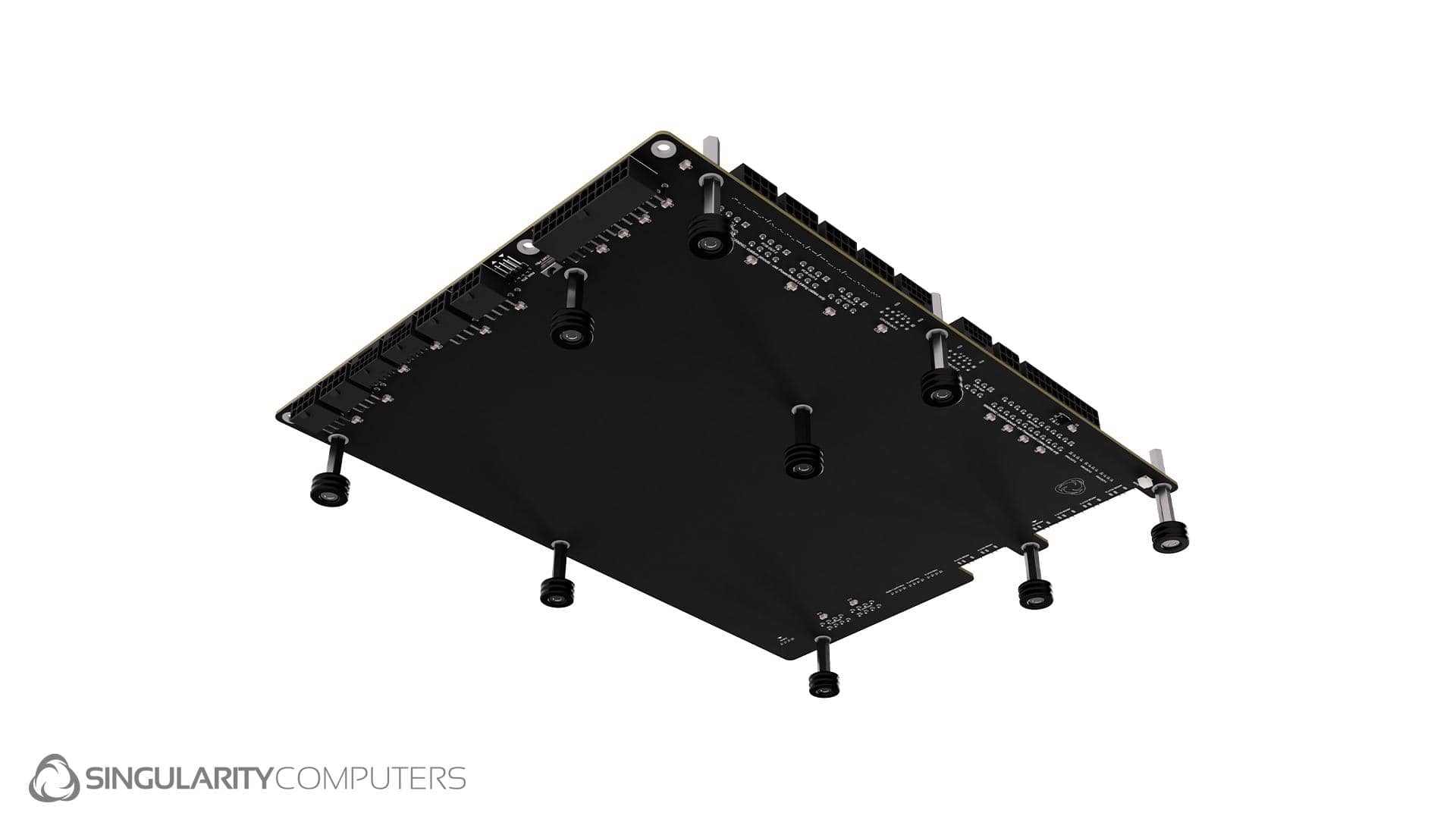

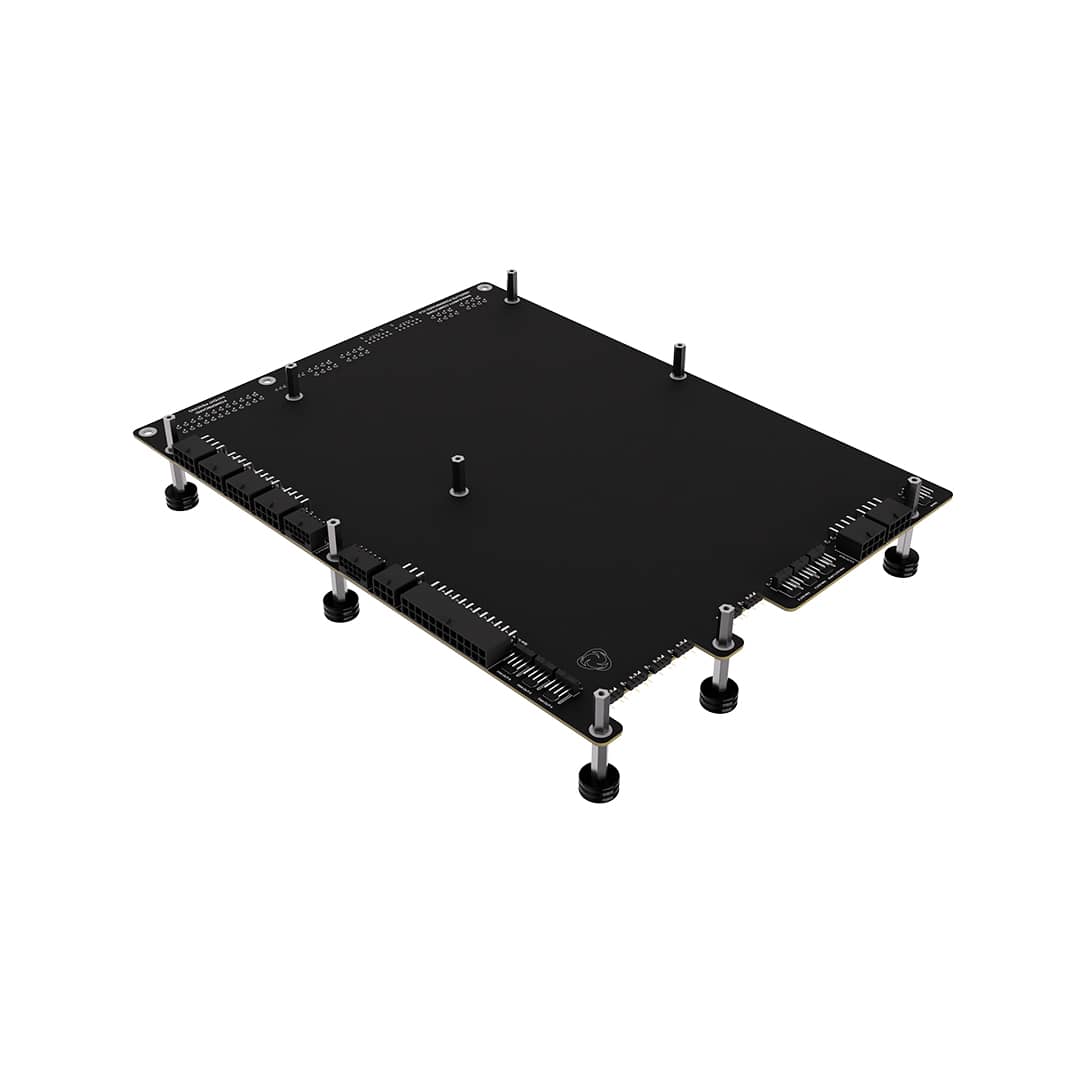

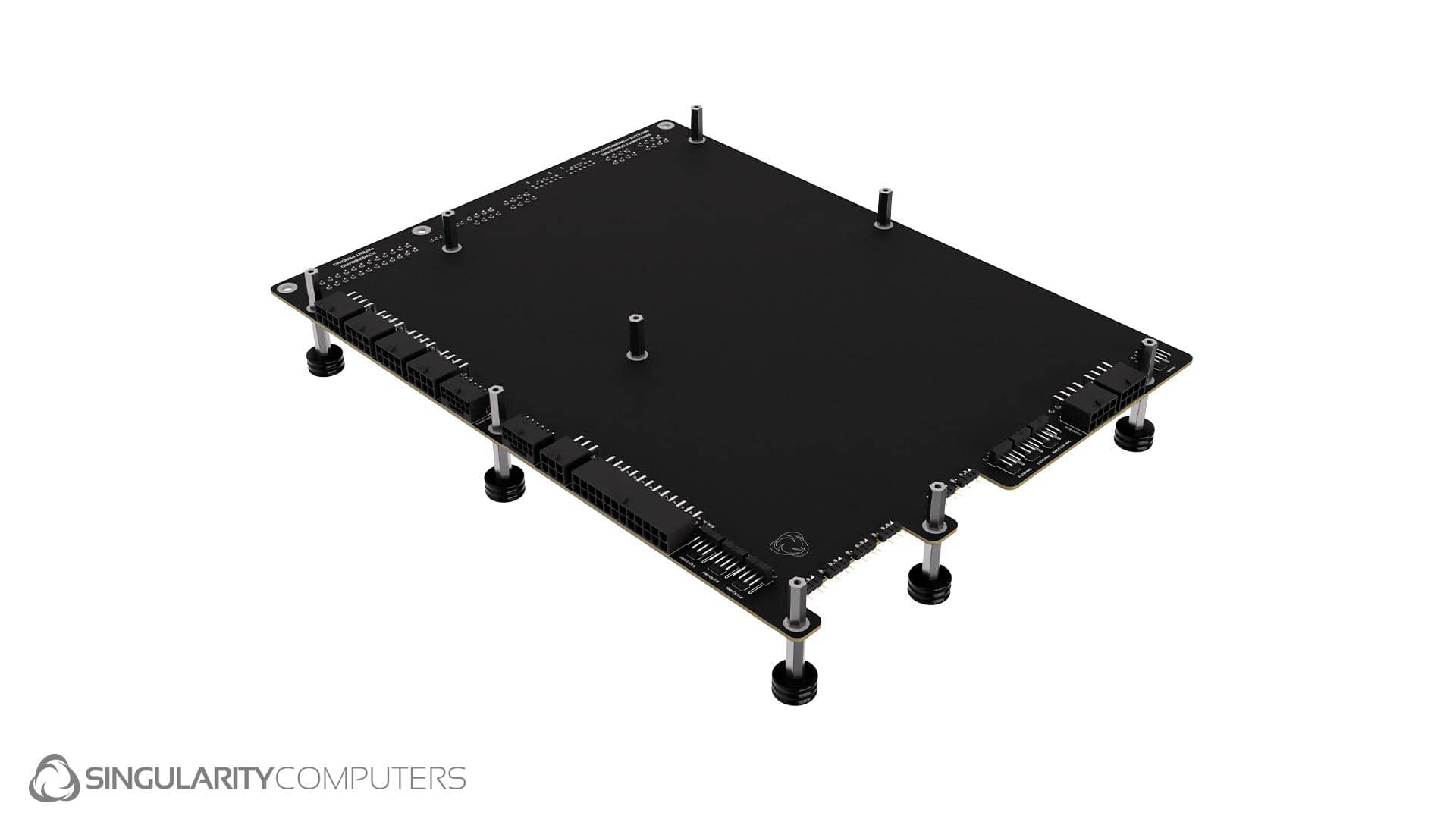

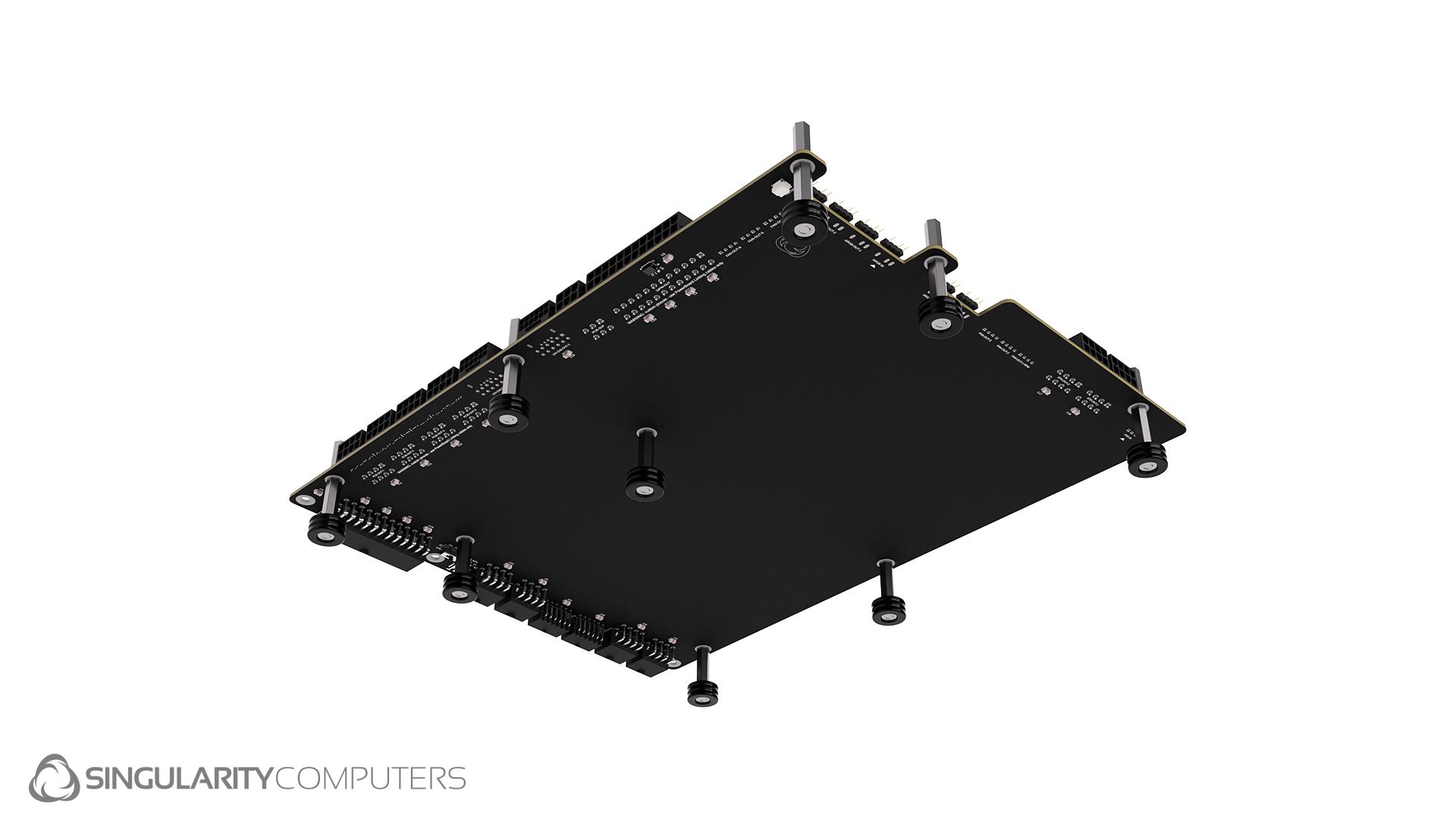

SC Test Bench Nano

In stock

Order processing time 1-2 days.

  • Patent-pending PowerBoard cable management technology
  • Integrates core component cables and hubs into a single PCB
  • Standardizes cable lengths with connectors positioned close to components
  • Test Bench Nano design with standoffs for direct component mounting
  • Includes PowerBoard Linking Cables for motherboard and GPU
  • Compatible with stock PSU cables or optional PowerBoard PSU Cable Kit
  • Ideal for component testing and open-air system builds

Manuals

US$129.00

Select GPU Cables (included)
None 8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

12V2x6/PCIE 5.1
Black sleeved cables which connect from the PowerBoard to the GPU.

Optional Add-Ons

Enhance your purchase with these recommended extras

PowerBoard

PowerBoard PSU Cable Kit (optional) USD $79
None Yes +US$79.00

PowerBoard PSU Cable Kit
Stock PSU cables will work with the PowerBoard on the input side, but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.
Black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs.

Shift Motherboard 24pin 90 Degree Adaptor (optional)
None Yes +US$24.50

Shift Motherboard 24pin 90 Degree Adaptor
The Shift 24pin 90 Degree Adaptor is for motherboards with 90 degree 24pin connections so that a clean connection can be made with the 24pin cable from the PowerBoard to the motherboard. Custom designed PCB with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling.

  • 1x SC Test Bench Nano
    US$129.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182006306 SKU: SC-TESTB-NAN Category:

Description

Read More +Read Less − full description

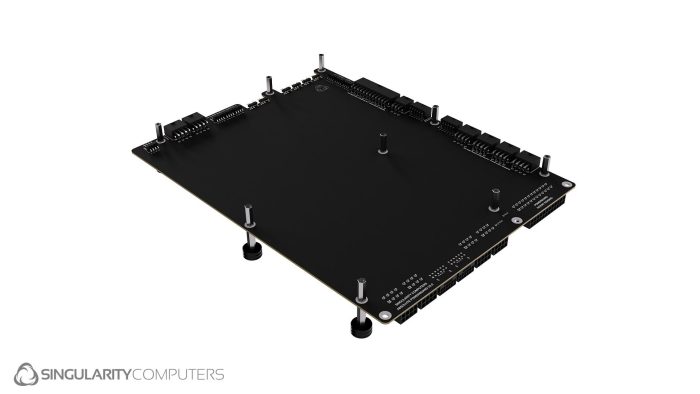

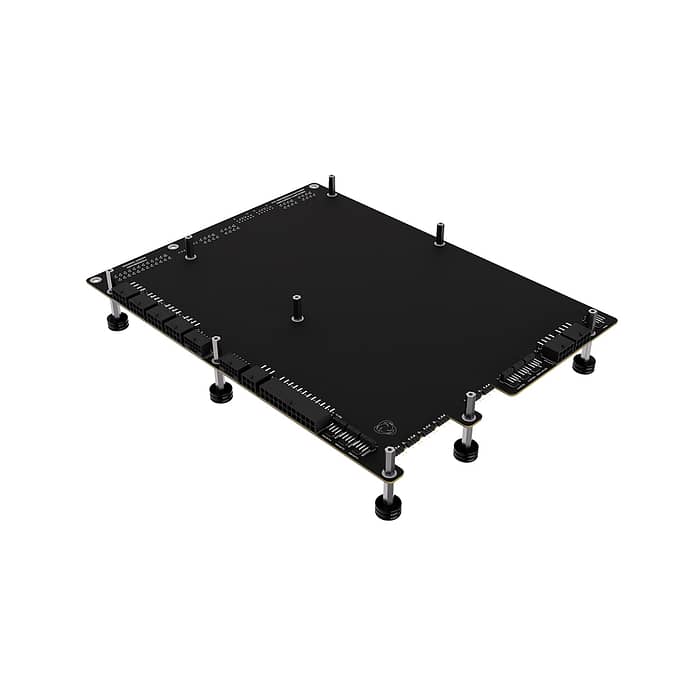

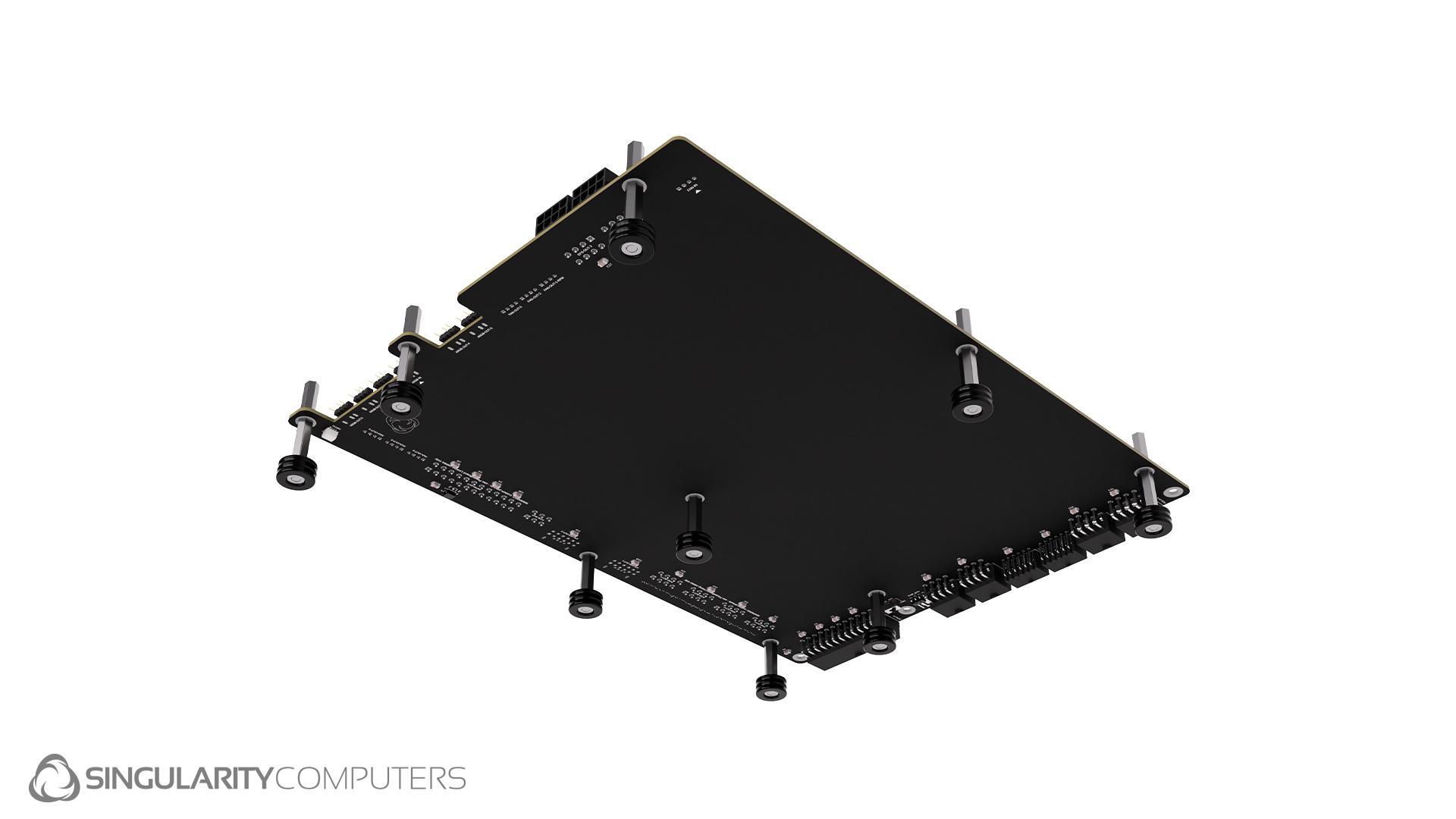

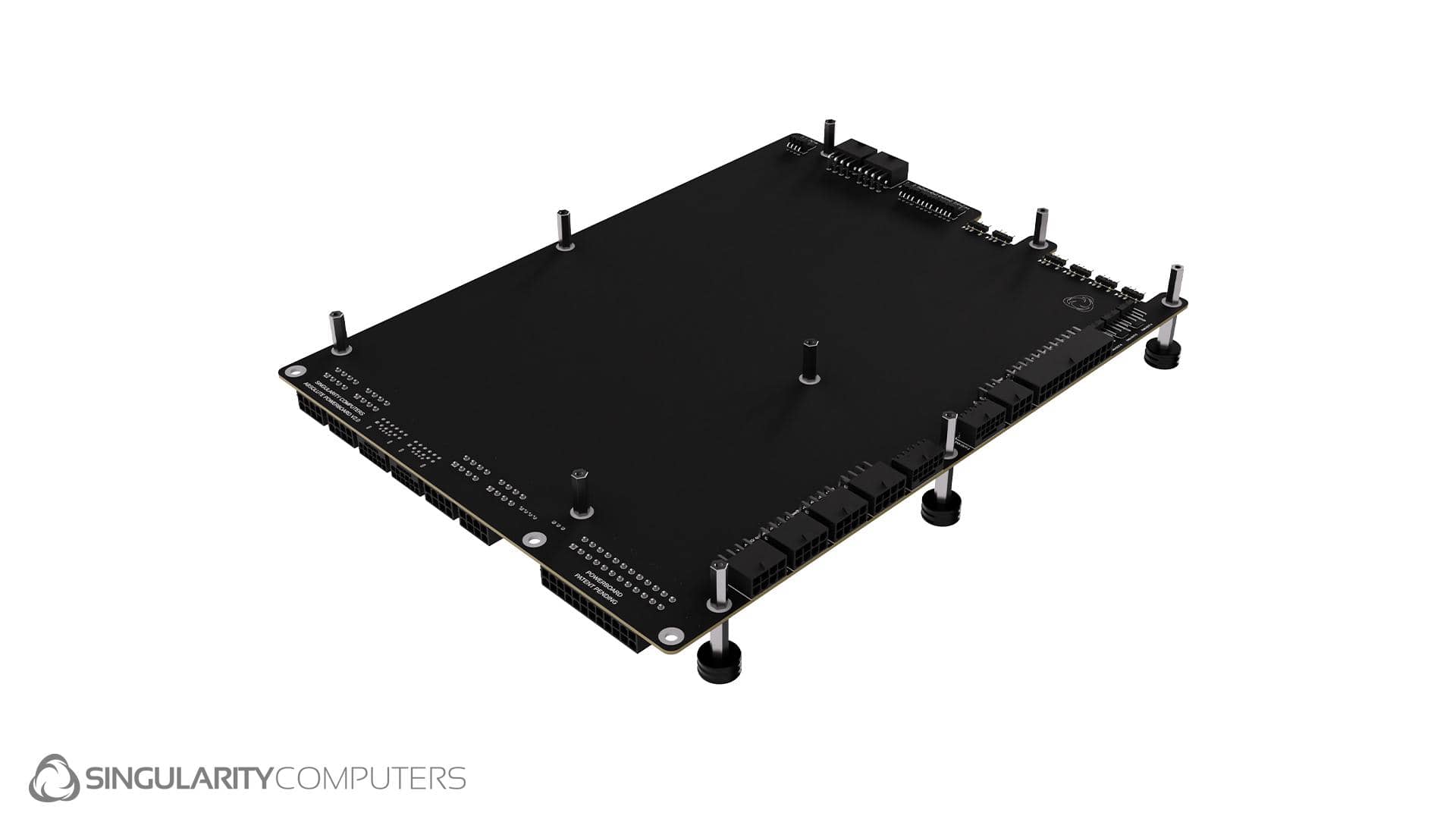

The Singularity Computers PowerBoard is a patent pending technology which completely solves the cable management problem. It is a PCB which integrates the core component cables, along with hubs and more. It is essentially a distribution plate for cables bringing the connectors close to the components allowing standardization of all cable lengths. The SC Test Bench Nano is the Absolute Case PowerBoard with stand offs, which components can be mounted directly onto for testing. It comes included with PowerBoard Linking Cables which go from the PowerBoard to the motherboard and GPU. The PSU can be connected to the PowerBoard inputs with the stock PSU Cables or a PowerBoard PSU Cable Kit which can be selected below.

Specifications

SC Test Bench Nano. PCB.
Electronics Integration:
Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x2. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hub x1 input x6 outputs. ARGB: x1 input x8 outputs.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
Fasteners: Stainless Steel.
Dimensions: H: 317.5mm x W: 240mm x H: 16mm.
Weight: 1kg.
Packaged Dimensions: L: 430mm x W: 395mm x H: 50mm.
Packaged Weight: 1.5kg.

Installation:
See manual link above.
