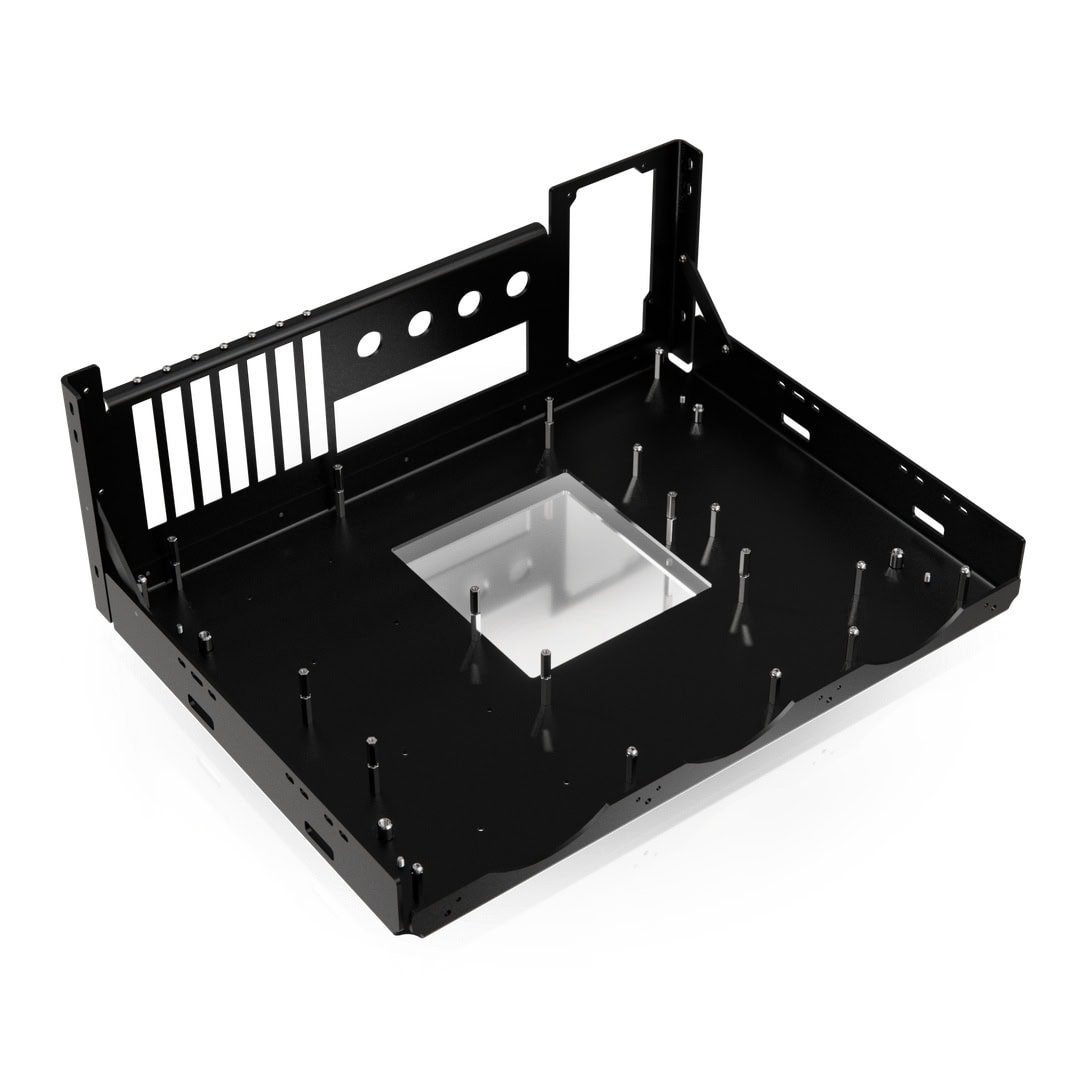

SC Test Bench M

In stock

Order processing time 1-2 days.

  • Supports radiators up to 480mm or 560mm on both sides
  • Supports up to three additional 140mm front fans
  • Optional front-mounted pump/reservoir distribution plate
  • 2mm 6061 black anodized aluminum construction
  • Supports up to E-ATX motherboards and ATX PSUs
  • Includes three 2.5” drive mounts

Manuals

US$149.00

Select D5 Retention Ring Colour (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Distribution Plates

D5 Reservoir Distribution Plate (optional) USD $199
None Yes +US$199.00

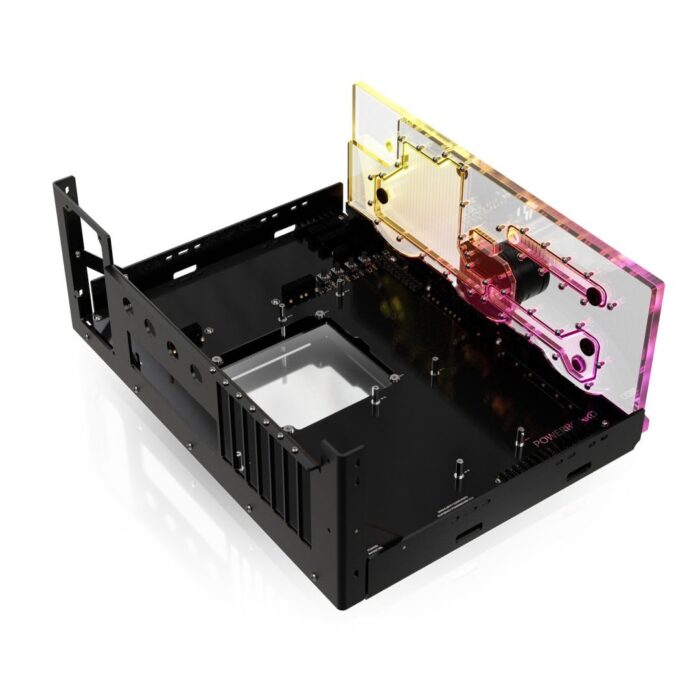

SC Test Bench D5 Reservoir Distribution Plate
The SC Test Bench D5 Reservoir Distribution Plate adds a D5 and Reservoir Combination to the SC Test Bench. A Distribution Plate is the most compact way to add a pump and reservoir which is important for a test bench to keep things out of the way for easy access to the other components. It also improves the loop routes and is a major visual feature. This distribution plate installs on one side and has a loop route for easy connections to and from the side mounted radiators. It has an integrated reservoir, D5 pump top, D5 cover and a LED strip built in so that the distribution plate glows. The distribution plate is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners.

Water Cooling

Select D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

  • 1x SC Test Bench M
    US$149.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188002995 SKU: SC-TESTB-M Category:

Description

Read More +Read Less − full description

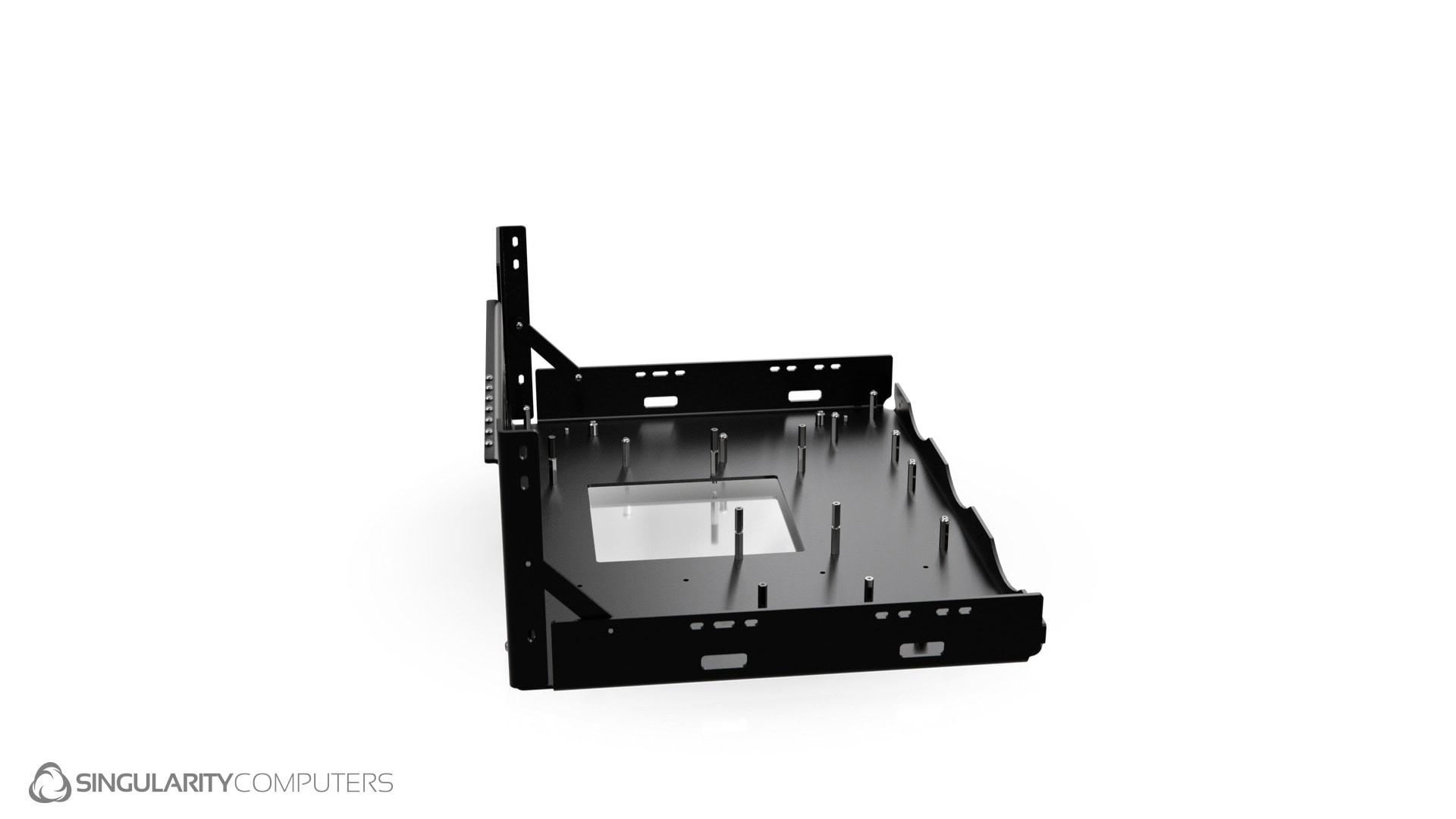

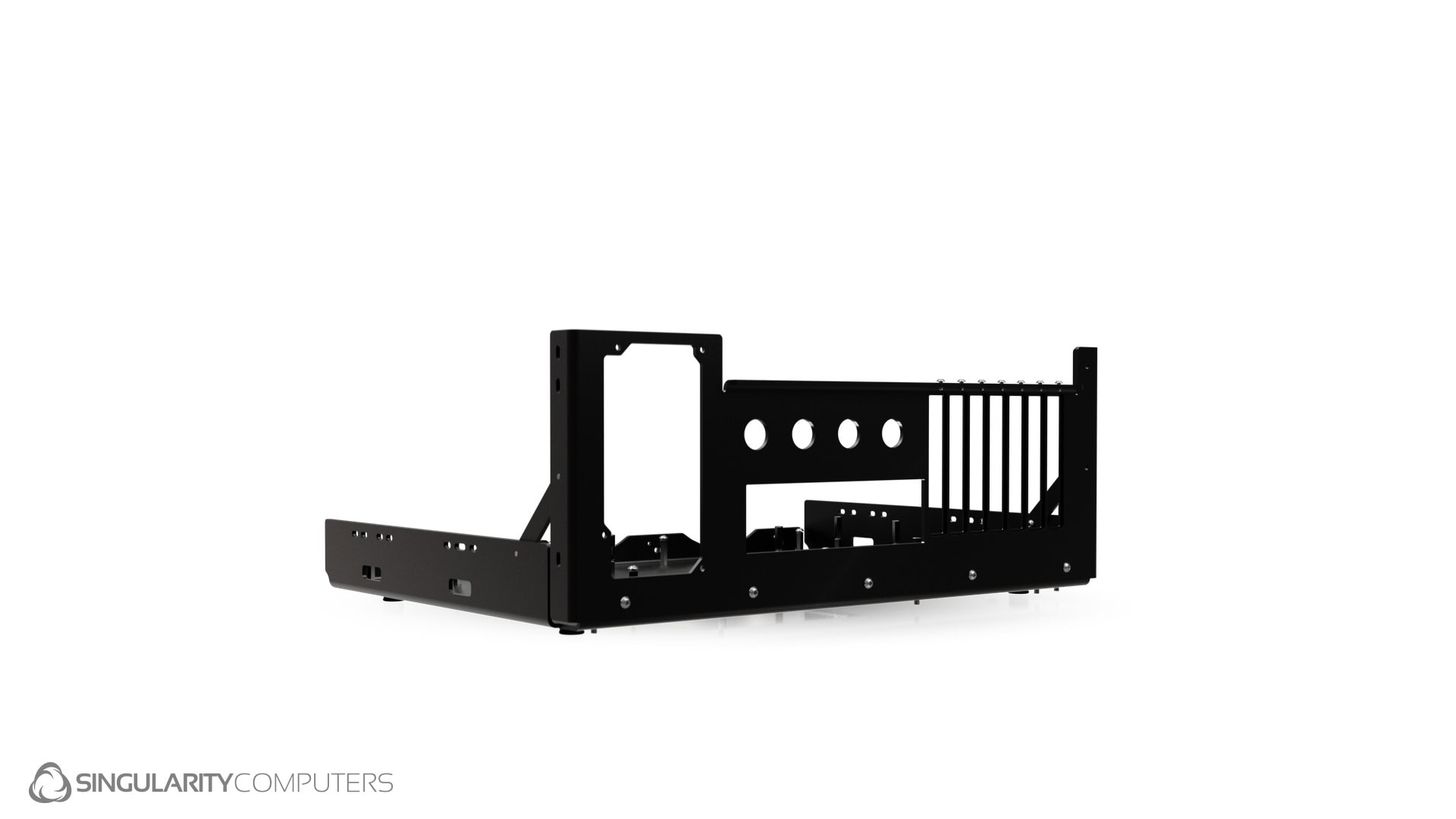

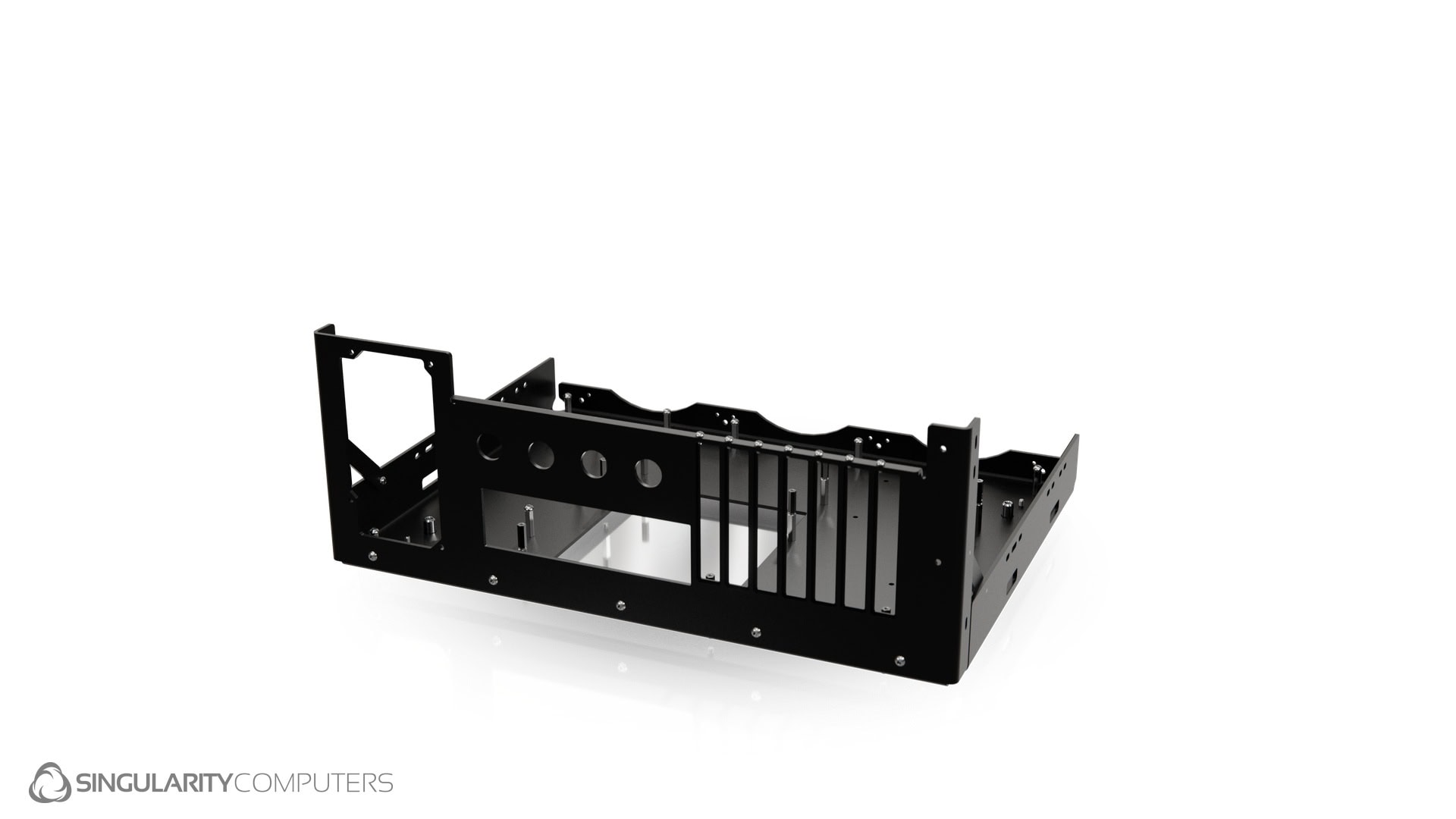

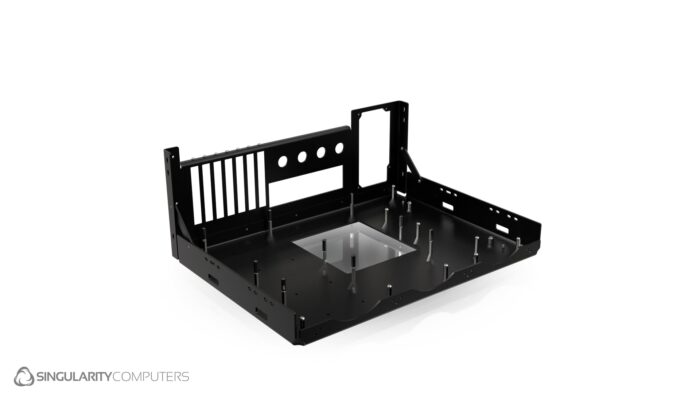

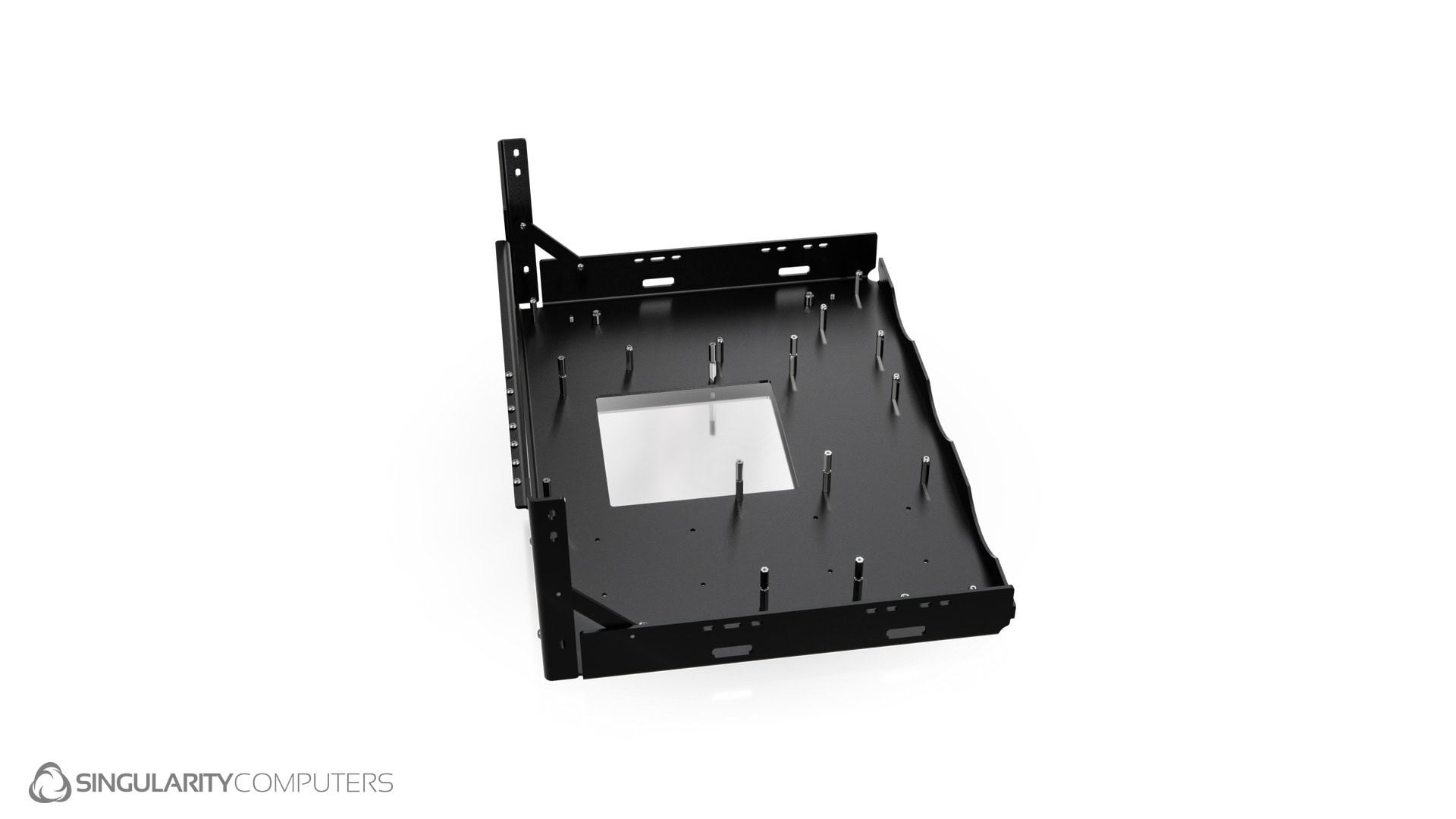

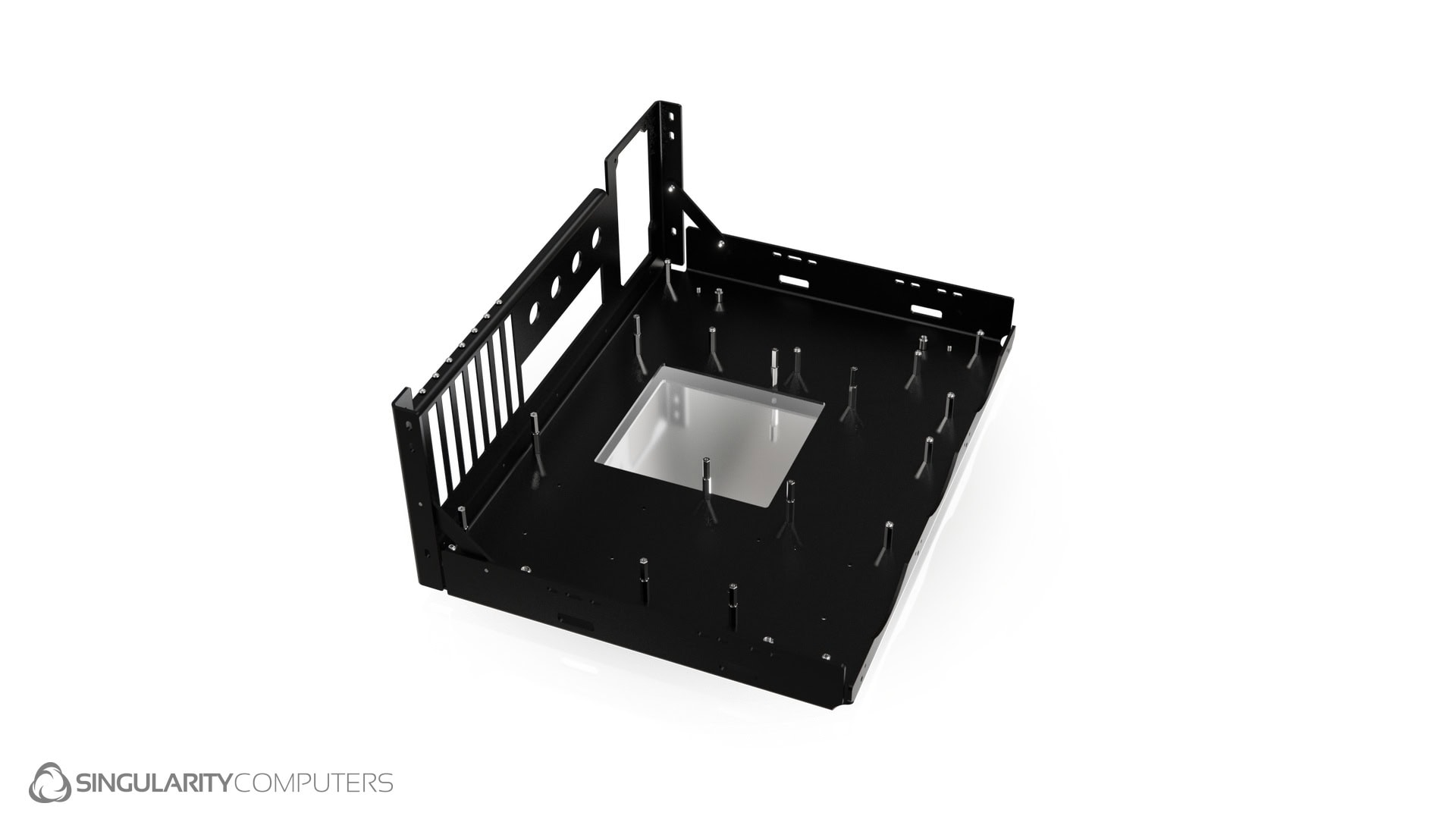

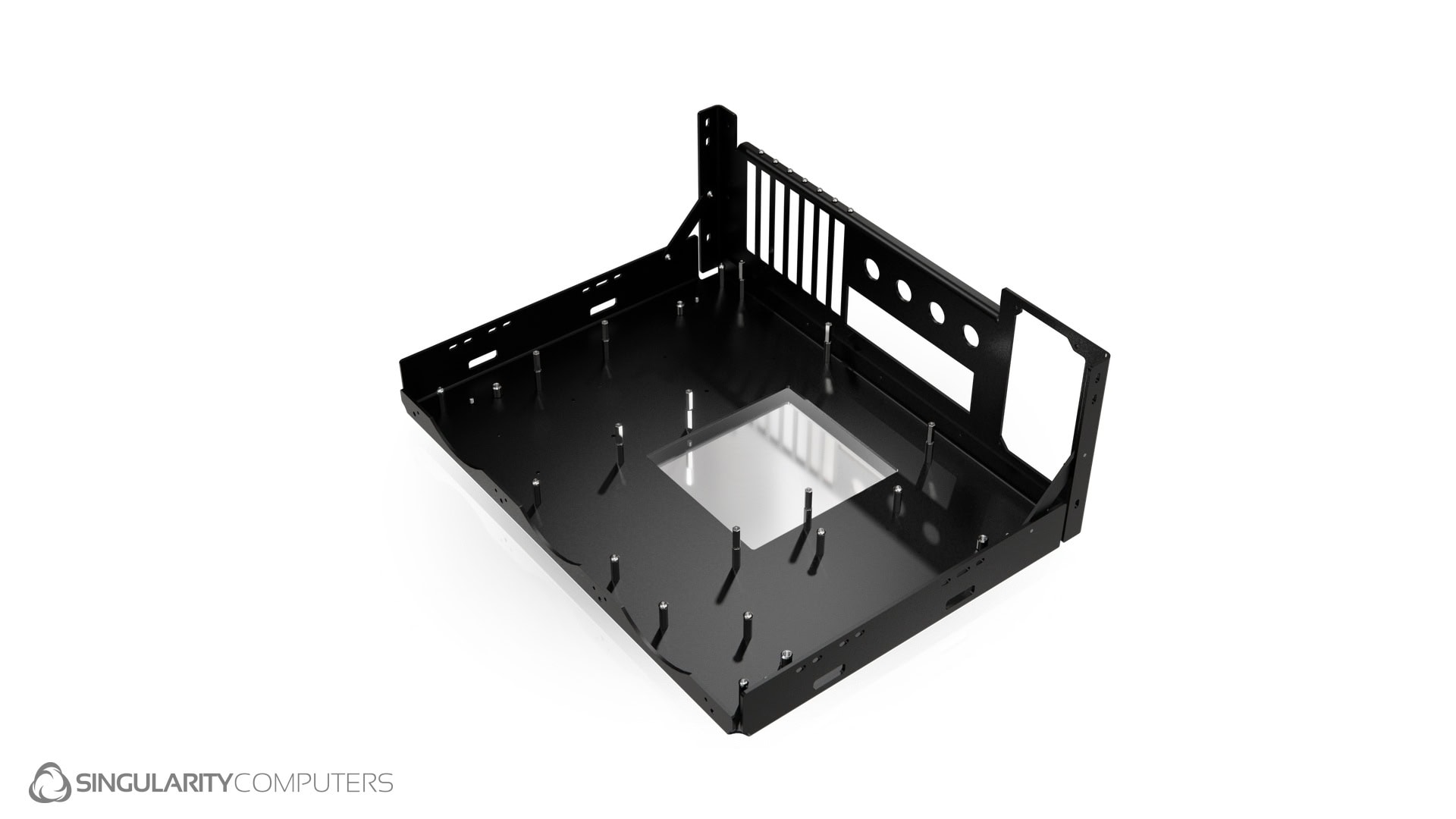

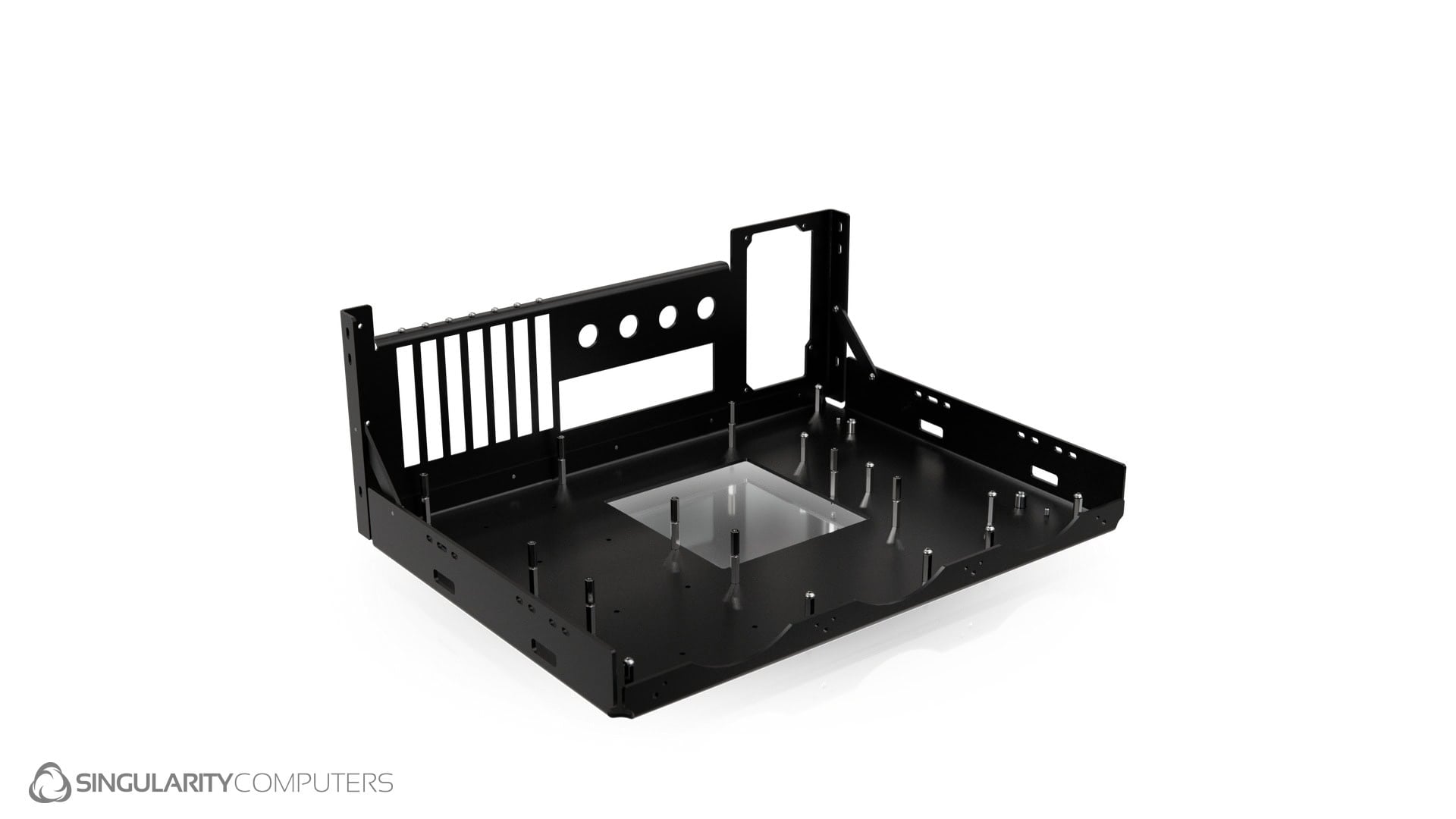

The SC Test Bench M fits radiators on both sides up to 480mm or 560mm and x3 more 140mm fans on the front. There is also a pump/reservoir distribution plate addon which can be mounted on the front (selectable below). The SC Test Bench M is built from 2mm 6061 black anodized aluminum. It fits up to E-ATX motherboards, ATX PSUs and has x3 2.5” drive mounts.

Specifications

SC Test Bench Enclosure: 6061 Aluminum. CNC Machined. Anodized.
SC Test Bench PowerBoard: PCB.
Fasteners: Stainless Steel.
Motherboard: ITX, DTX, ATX, EATX (up to 285mm wide).
PSU: ATX (up to 220mm long).
Expansion slots: x7.
Radiators: Up to 480mm or 560mm.
Fans: 140mm x3 (front). 120mm/140mm x2 per side.
Drive mounts: Total of 3x 2.5” drive mounts, 1x on the rear panel and 2x on the bottom panel.
External Water-cooling Passthroughs: x4 to connect external radiators with up to 2 separate loops.
Dimensions: L: 361.5mm x W: 476.5mm x H: 190mm.
Weight: 2kg.
Packaged Dimensions: L: 400mm x W: 500mm x H: 200mm.
Packaged Weight: 3kg.
