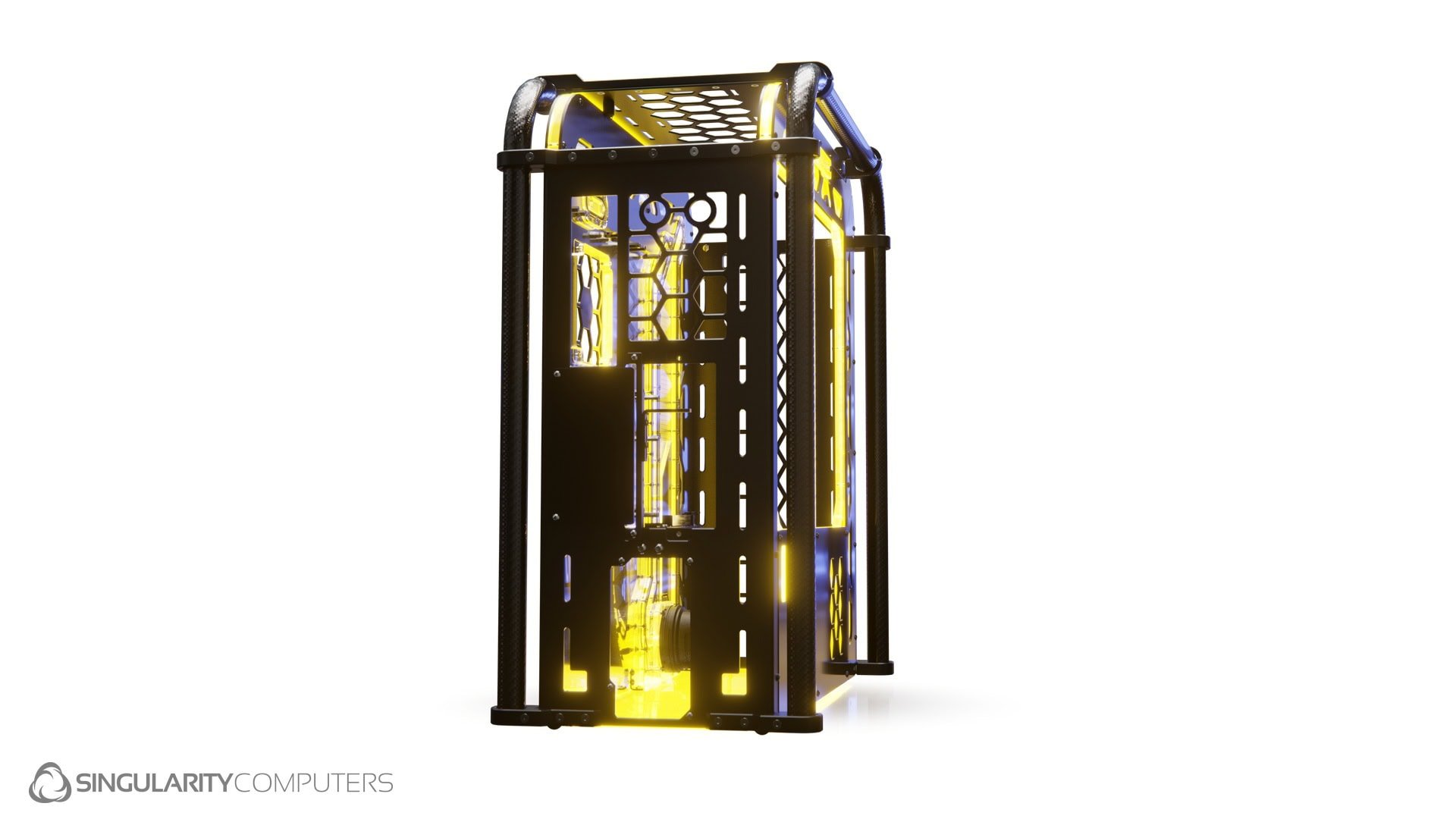

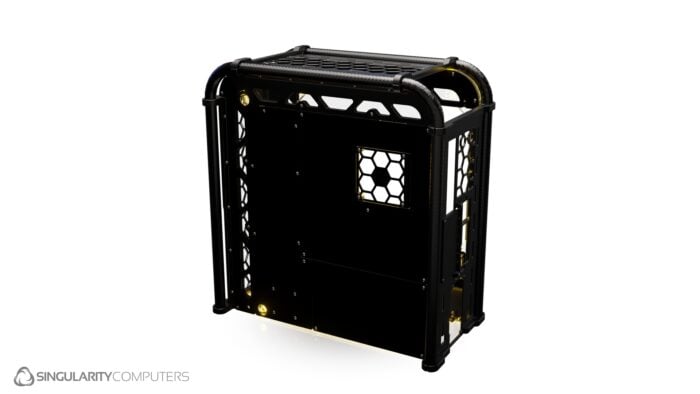

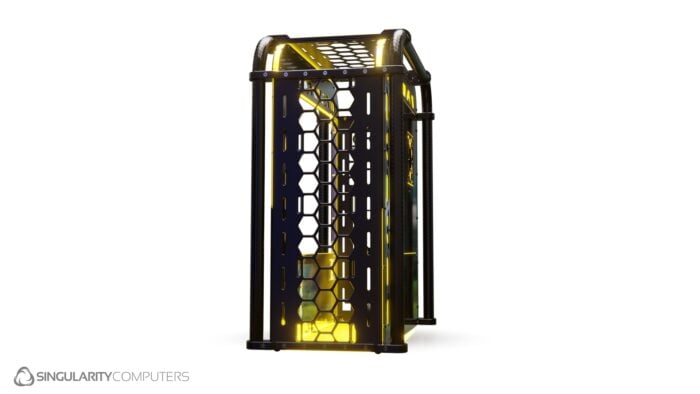

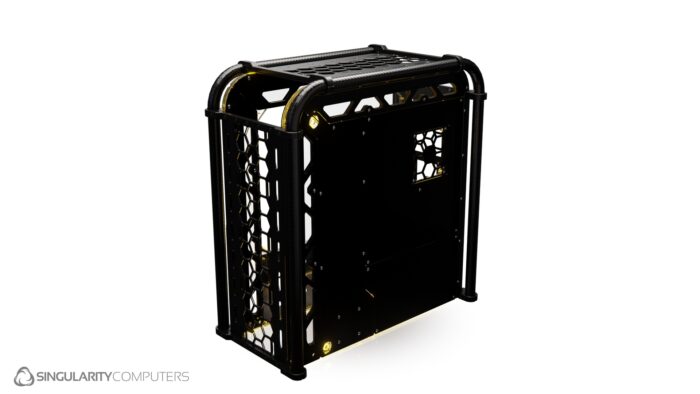

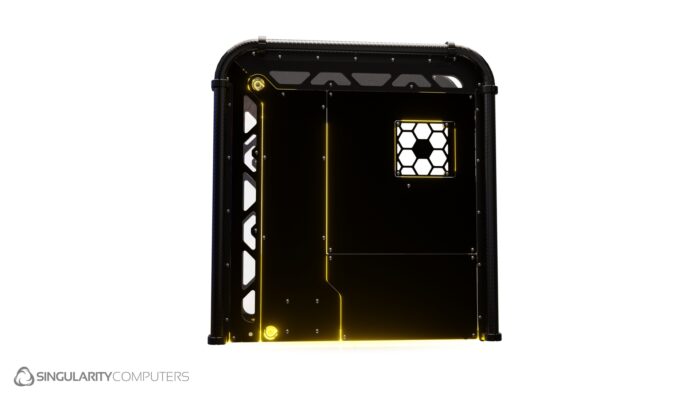

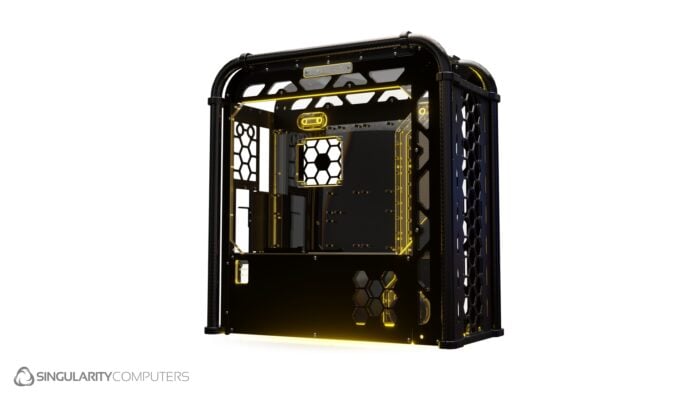

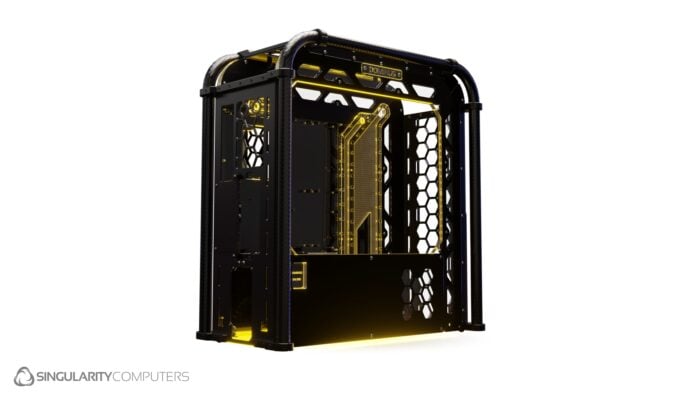

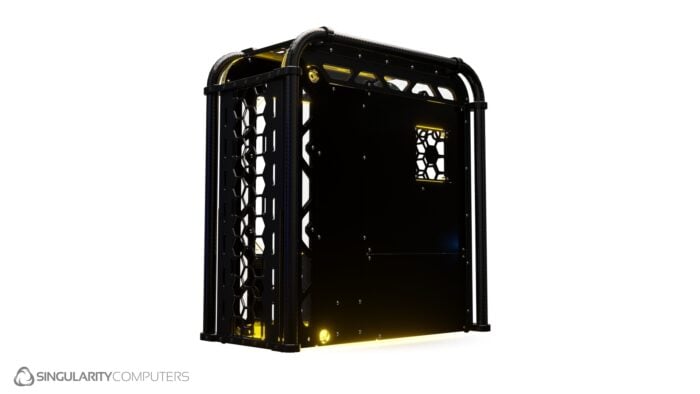

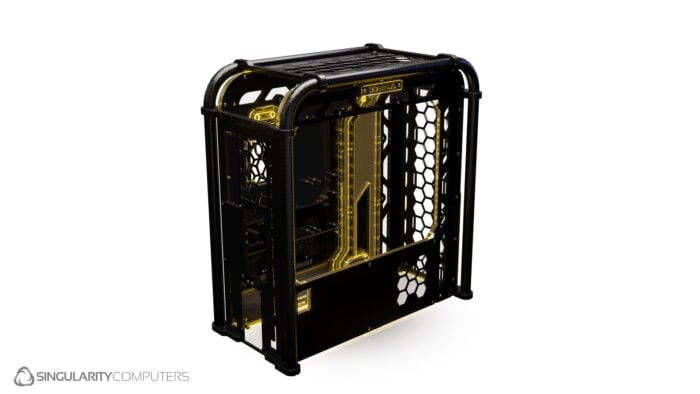

Dominus Workstation Water-cooling Case

In stock

Order processing time 1-2 days.
Dominus De Machinis – Lord of the machines

  • Extreme water-cooling case designed for SSI motherboards and up to 7 GPUs
  • 26mm carbon fiber tube frame with billet aluminum clamps and 3mm aluminum panels
  • Integrated distribution plate with D5 pump top and reservoir
  • Supports 360mm and 480mm radiators
  • Single distribution plate surrounding the motherboard
  • Larger side panel window cutout compared to the original Dominus
  • Supports SSI-CEB and SSI-EEB motherboards without the PowerBoard
  • Satin black side covers included with multiple color and finish options

Manuals

Current price is: US$1,139.40. Original price was: US$1,899.00.

Select Case Colour Options
None Black Satin Gloss Black Gloss White Carbon Mirror +US$49.00 Silver Mirror +US$49.00 Gold Mirror +US$49.00 Black Satin

Top panel and rear panel covers.
(Black Satin shown in product images, if you select none you will receive Black Satin.)

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

  • 1x Dominus Workstation Water-cooling Case
    Current price is: US$1,139.40. Original price was: US$1,899.00.

Subtotal excludes shipping & tax

Free shipping over US$2,000 | 30% Off Storewide With Coupon SCA30
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188002971 SKU: SC-DOM-WSC Categories: ,

Description

Read More +Read Less − full description

Dominus Workstation Water-cooling Case is an extreme water-cooling case designed for SSI motherboards and up to x7 GPUs. It has a frame built from 26mm Carbon Fiber tubes, billet aluminum clamps and 3mm aluminum panels. It has an integrated distribution plate with a D5 and reservoir and parts of the loop. It fits a 360mm and 480mm radiator. Compared with the original version of Dominus this version has a larger side panel window cutout and it has a single distribution plate around the motherboard. It also doesn’t include the PowerBoard to allow for SSI-CEB and EEB motherboard compatibility. It also comes with satin black covers for both sides of the case by default and various color and finish options can be selected below along with Carbon Fiber.

Specifications

Water-cooling Integration:
Distribution plate with a Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x8 G1/4” BSPP. 1x Fill Port. 1x Drain Ports.
Pump: (Not included): Compatible with all D5 pumps.
LED Strips: ARGB 5V 40cm x2 (pre-installed).
Motherboard Form Factor: SSI-EEB & CEB, XL-ATX (Up to: 290mm Wide & 305mm High). E-ATX, ATX, M-ATX, Mini-DTX, Mini-ITX (with the PowerBoard).
Expansion Slots: x7.
Case Form Factor: Full Tower Water-cooling Case.
Storage: None.
Radiators: 360mm top & 480mm front with maximum 60mm of thickness for radiators and maximum 30mm thickness for fans.
Maximum GPU Length: 470mm with 60mm front radiator and 30mm fans.
Maximum GPU Height: 170mm in standard orientation, 260mm in vertical orientation.
Maximum CPU Cooler Height: 150mm without a loop.
Maximum PSU Length: 220mm.
Front Panel I/O: No Front I/O.
Power Button: Tactile and Touch Activated.
Vertical GPU Mount: Vertical GPU mounting bracket with PCIE 5.0 Riser Cable.
Materials: Carbon Fiber. 6061 and 5052 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: L: 540mm x W: 245mm x H: 610mm.
Case Weight: 13kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm.
Packaged Weight: 16kg.
