Inwin 925 Distribution Plate Set
Order processing time 1-2 days.

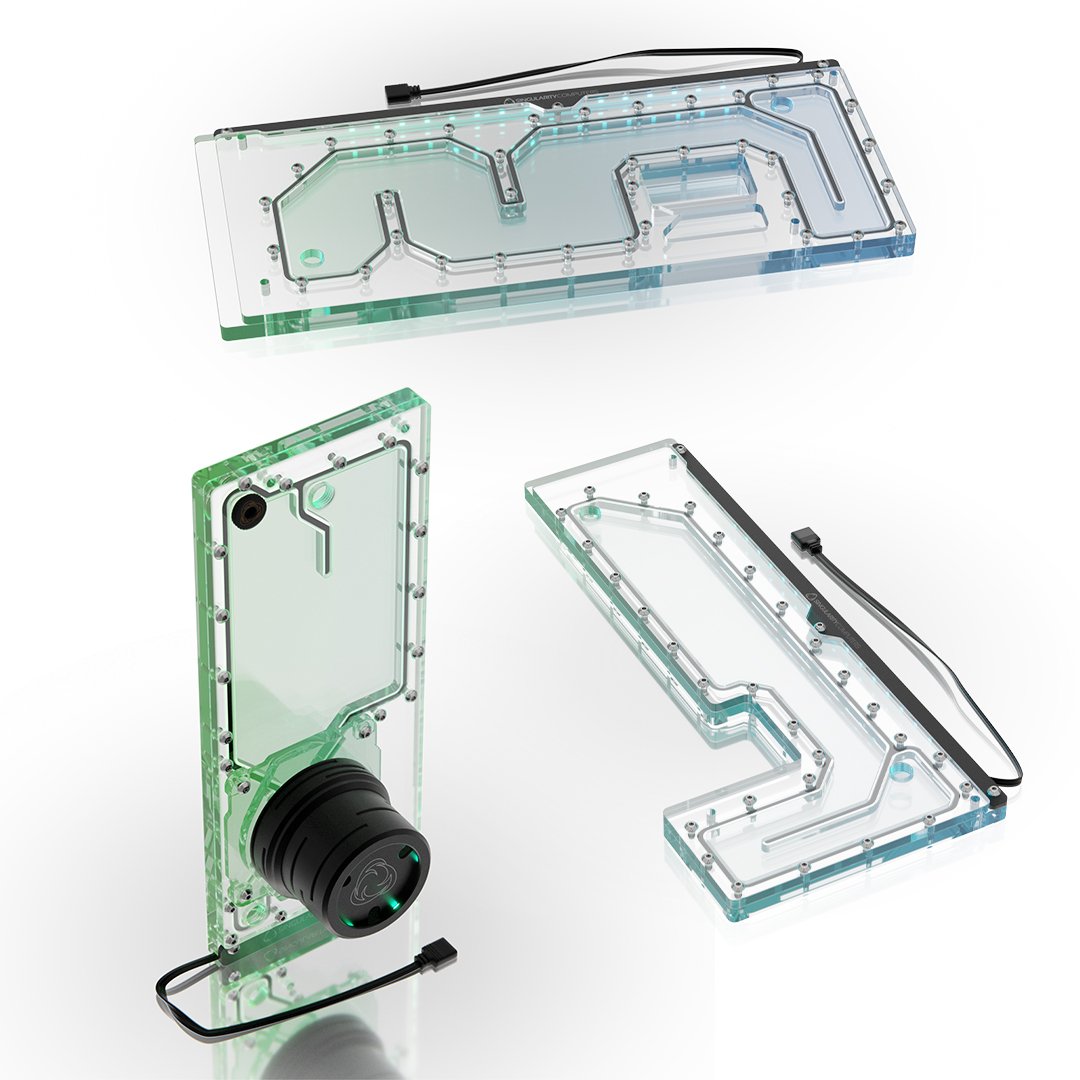

D5 Reservoir Distribution Plate which mounts vertically to the right of the motherboard. Mid Distribution Plate which mounts horizontally on the mid plate. The distribution plates are designed to be used together as a set. There are two versions of the Mid Distribution Plate, one which is compatible with Vertically Mounted GPUs and which one is not and covers more of the mid plate. The distribution plates attach to existing holes on the case, no need for modifications. The distribution plate is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings, for increased durability. Hand assembled with stainless steel fasteners. Designed for maximum reservoir volume to make filling and air removal easier. It has an integrated ARGB LED strip with a cover, there are also back plates included to cover the rear side of distribution plates, select from the colour options below for the covers.
Pump not included. Compatible with any D5 Pump.
US$169.00

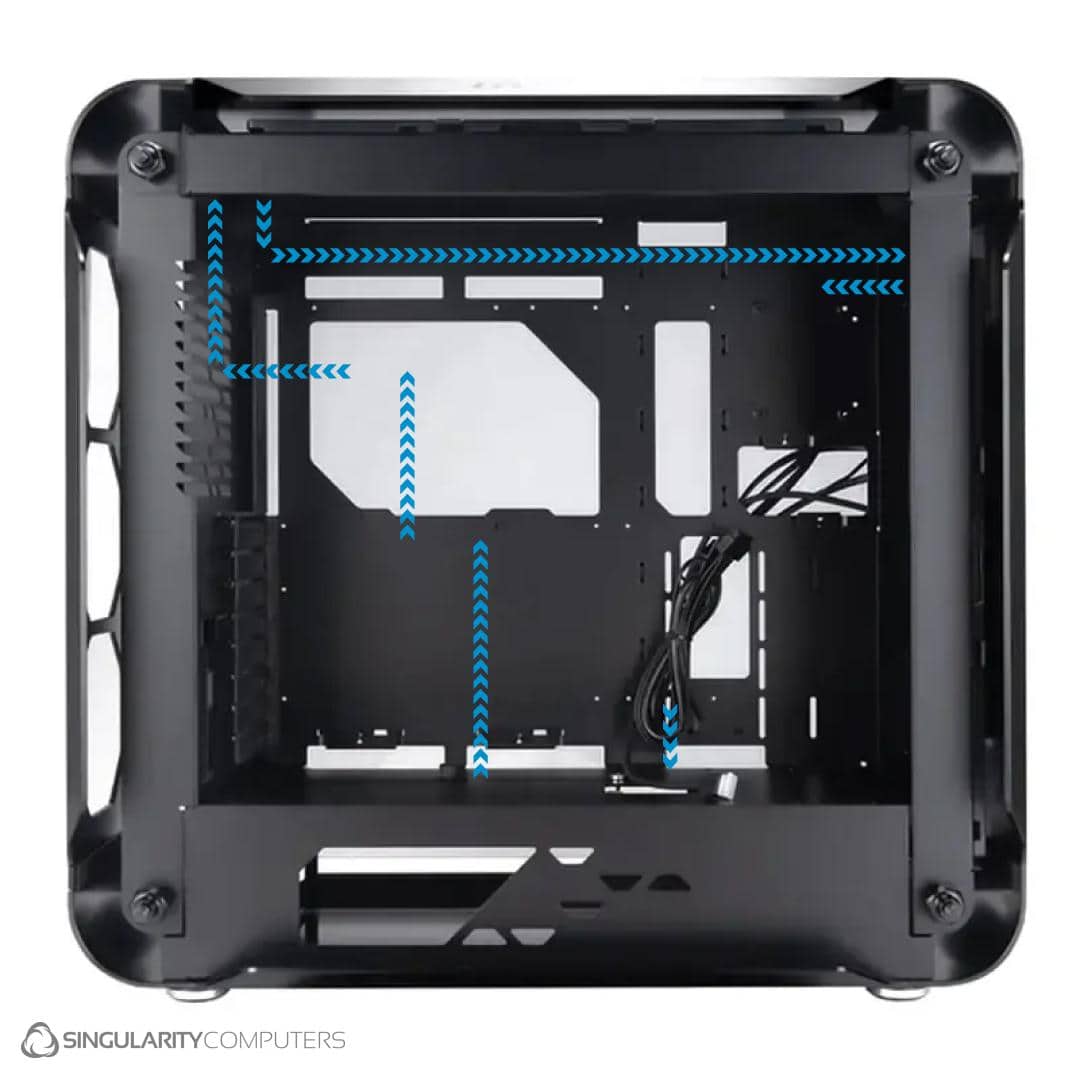

Inwin 925 Distribution Plate Set Flow Diagram

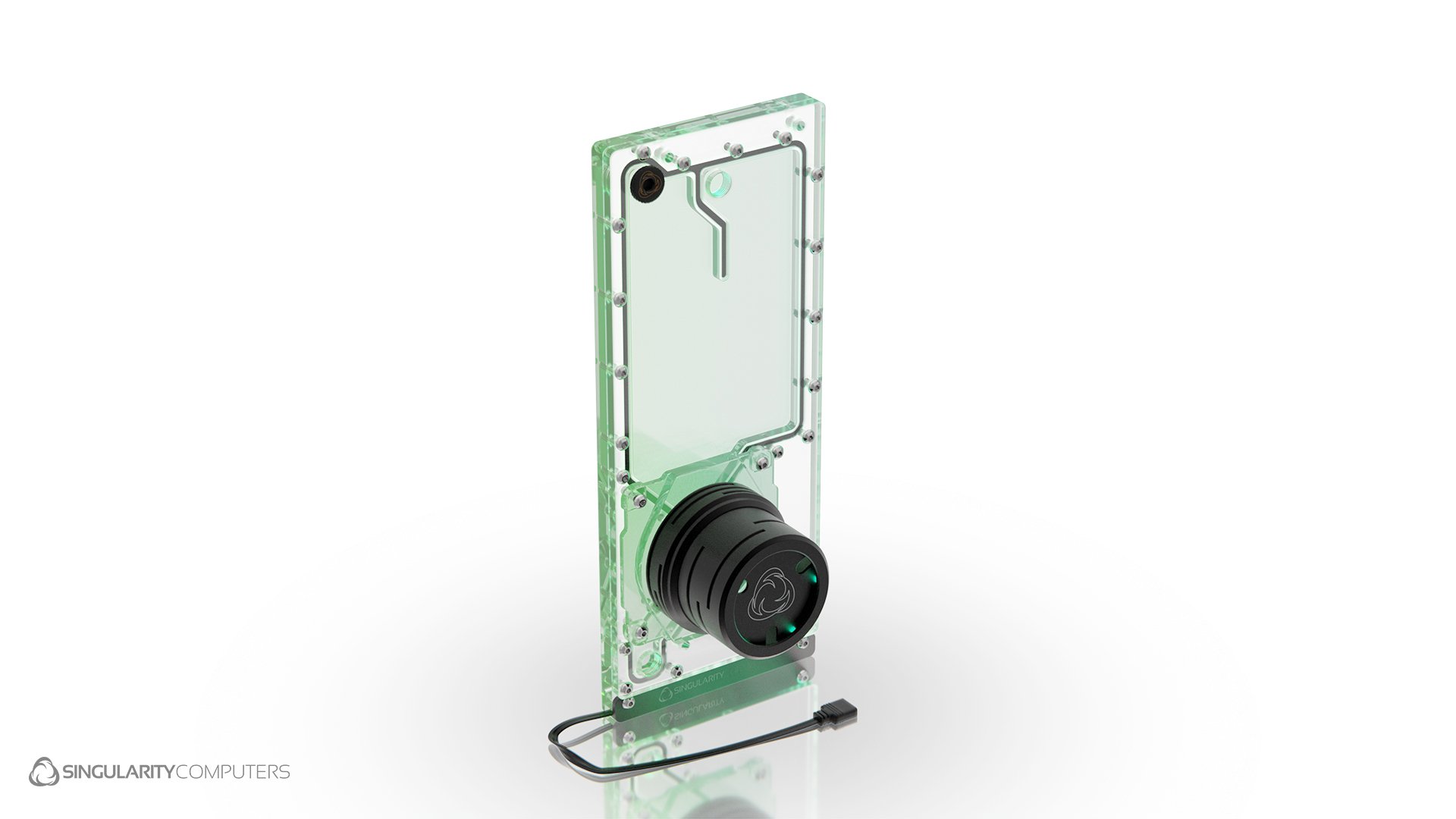

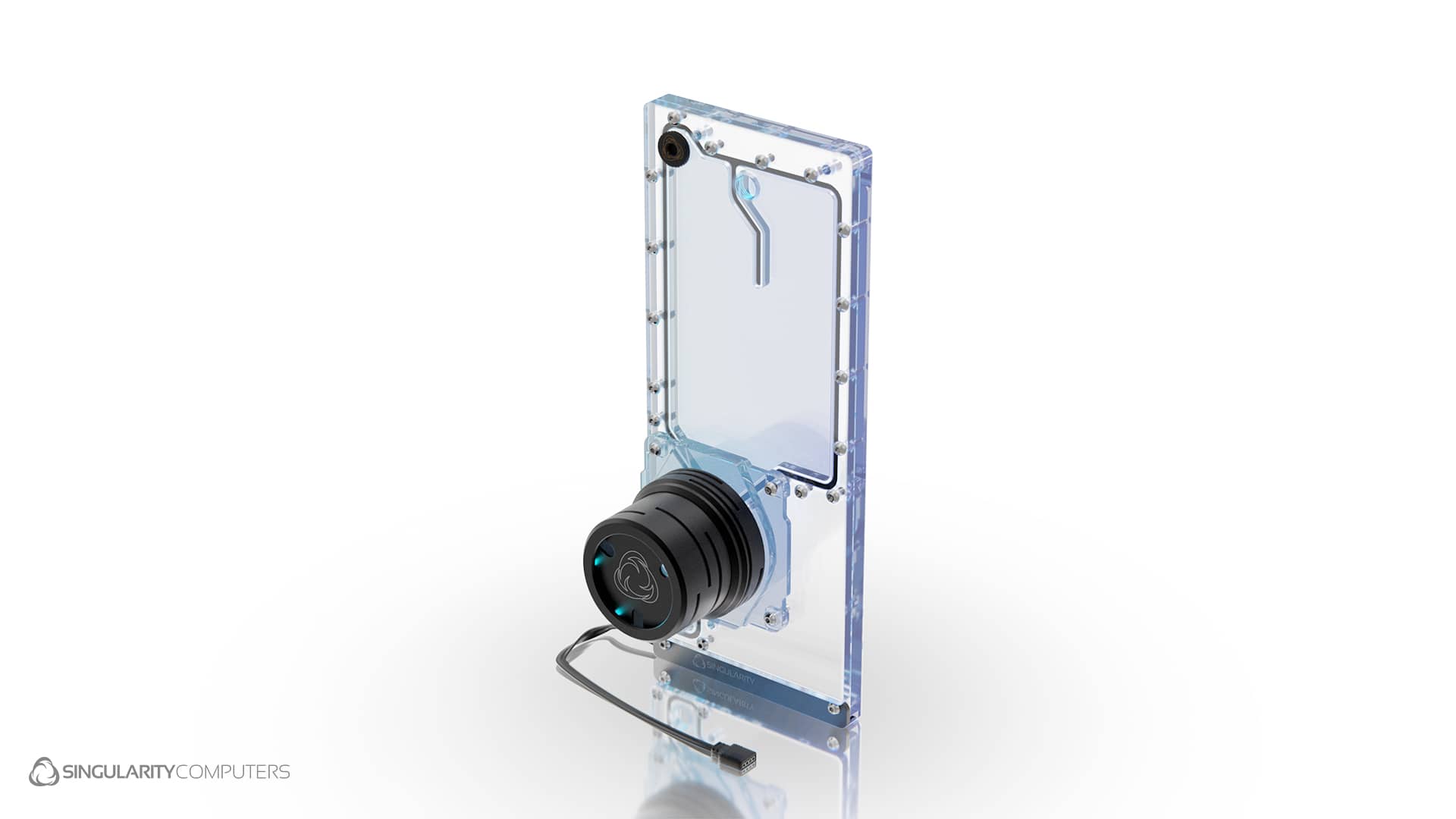

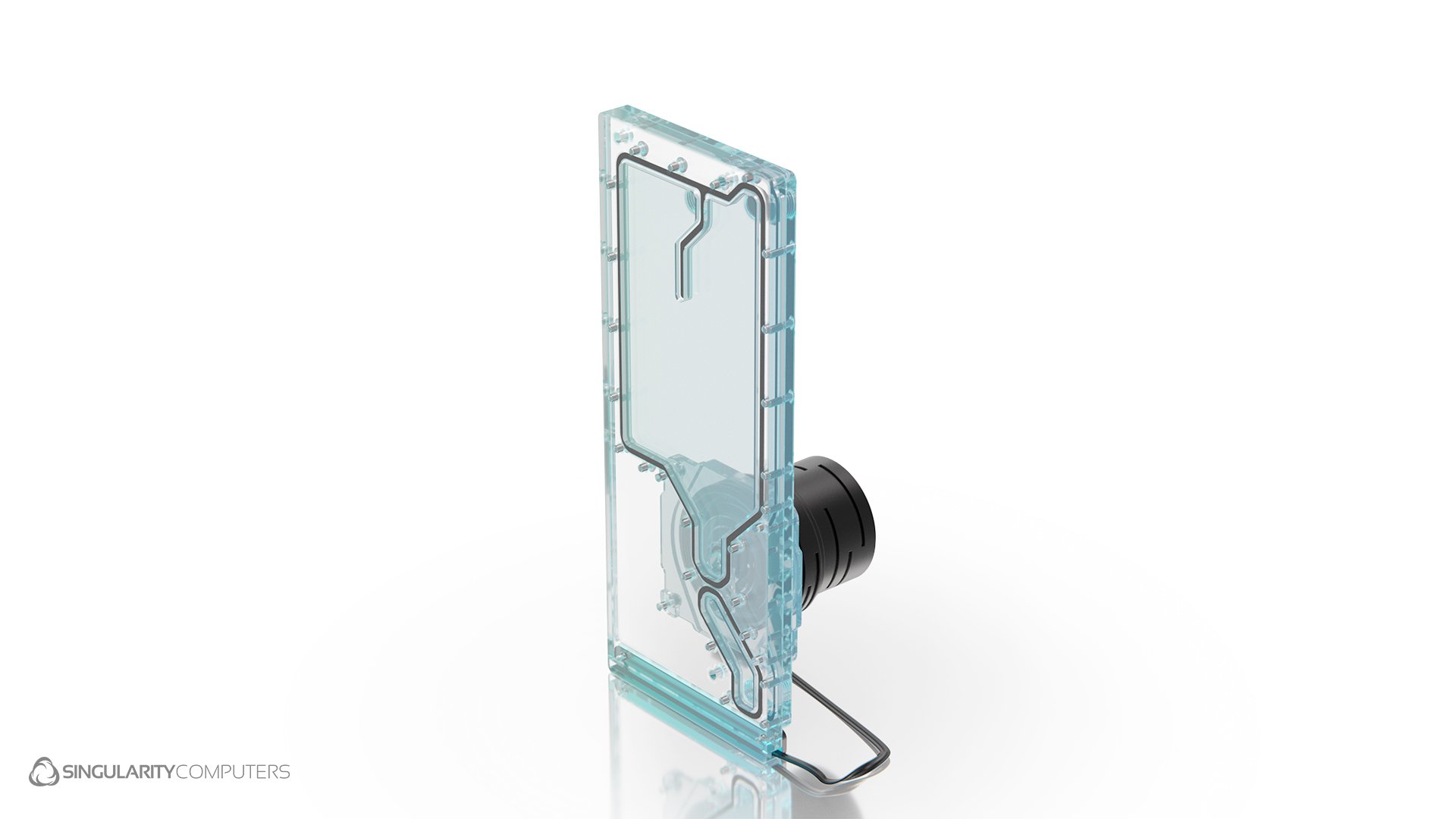

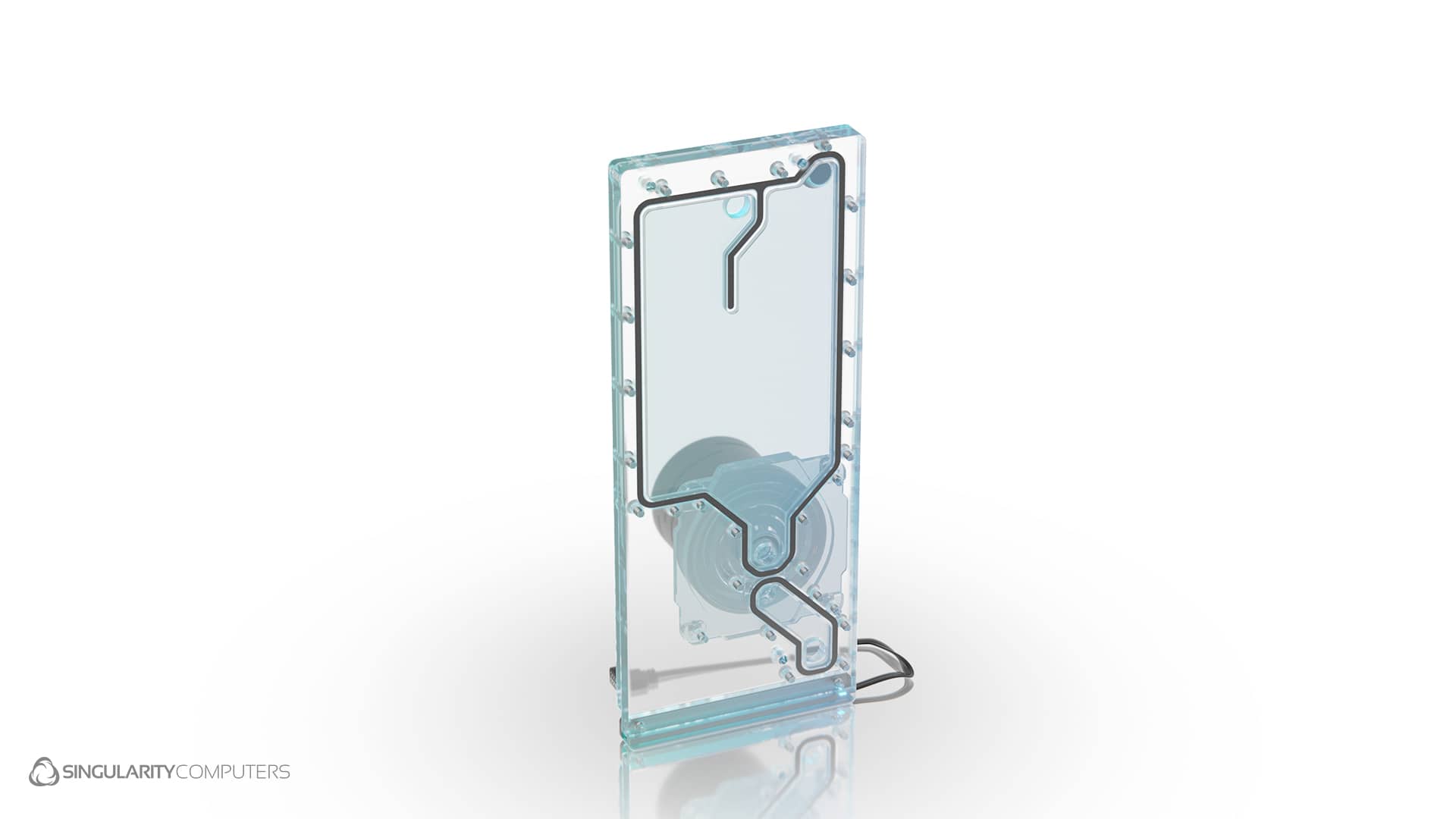

Inwin 925 D5 Reservoir Distribution Plate
Specifications:
Inwin 925 D5 Reservoir Distribution Plate.
Inwin 925 D5 Reservoir Distribution Plate Back Cover (select color/finish above).
Integrated Reservoir.
Integrated Pump Top D5.
D5 Pump Cover CNC Machined Anodized Aluminum (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 200mm x W: 120mm x H: 100mm.
Weight: 1.5kg.
Packaged Dimensions: L: 300mm x W: 120mm x H: 100mm.
Packaged Weight: 1.5kg.
Installation:
Install into the Inwin 925. Align with existing mounting holes on the case and use the included M3 x 25mm Fasteners and M3 Nuts and Washers to attach the Distribution Plate.

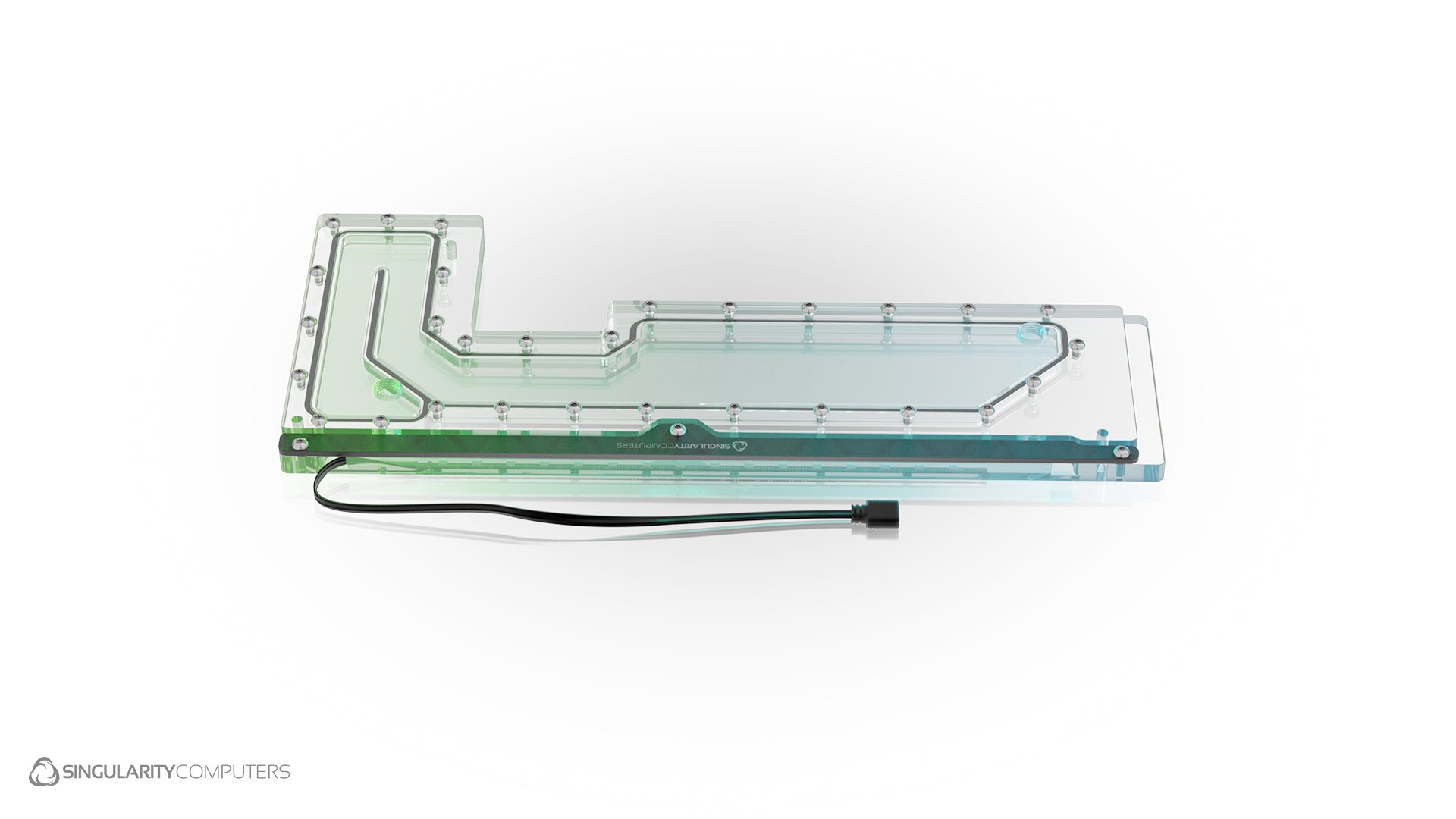

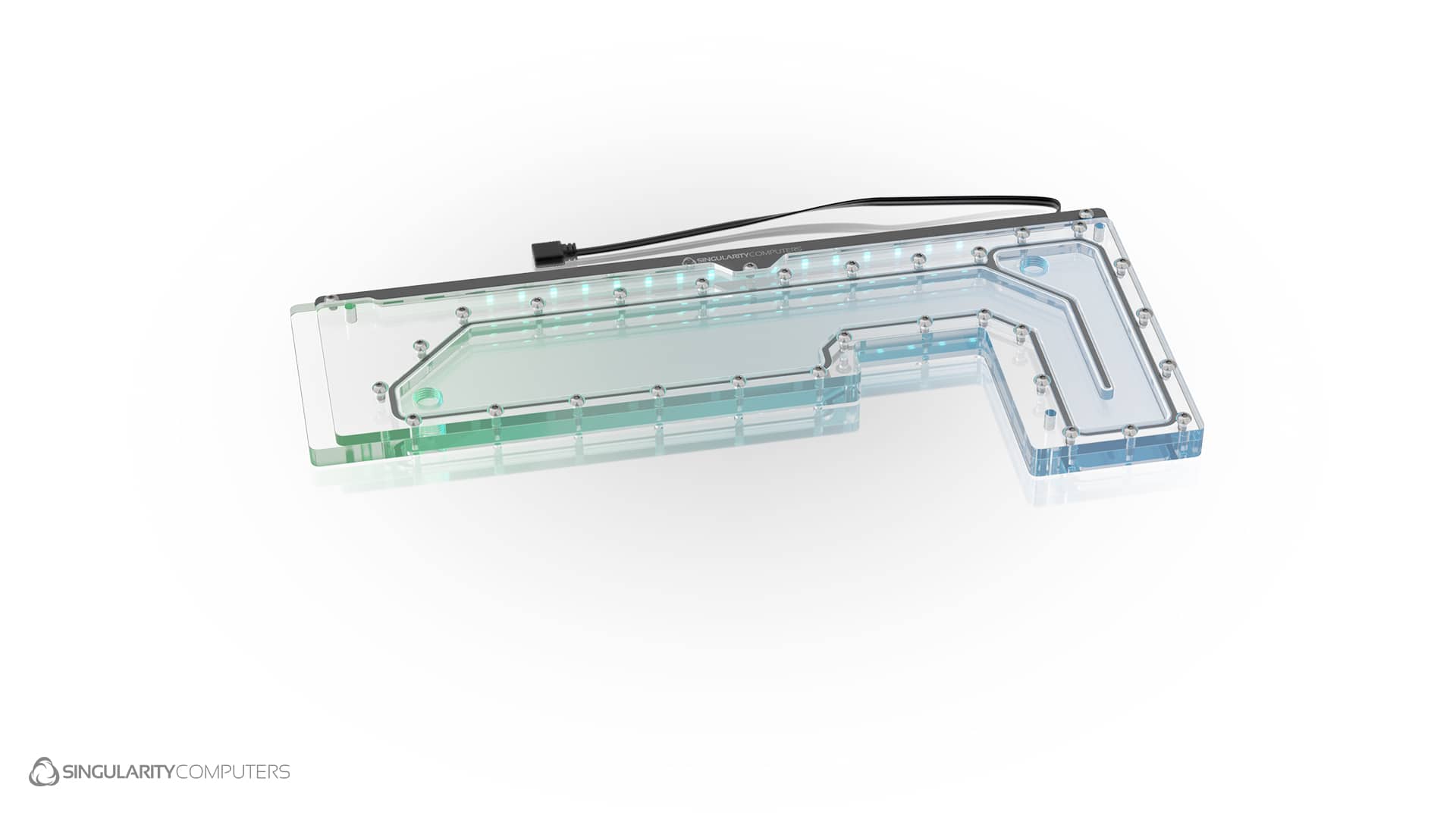

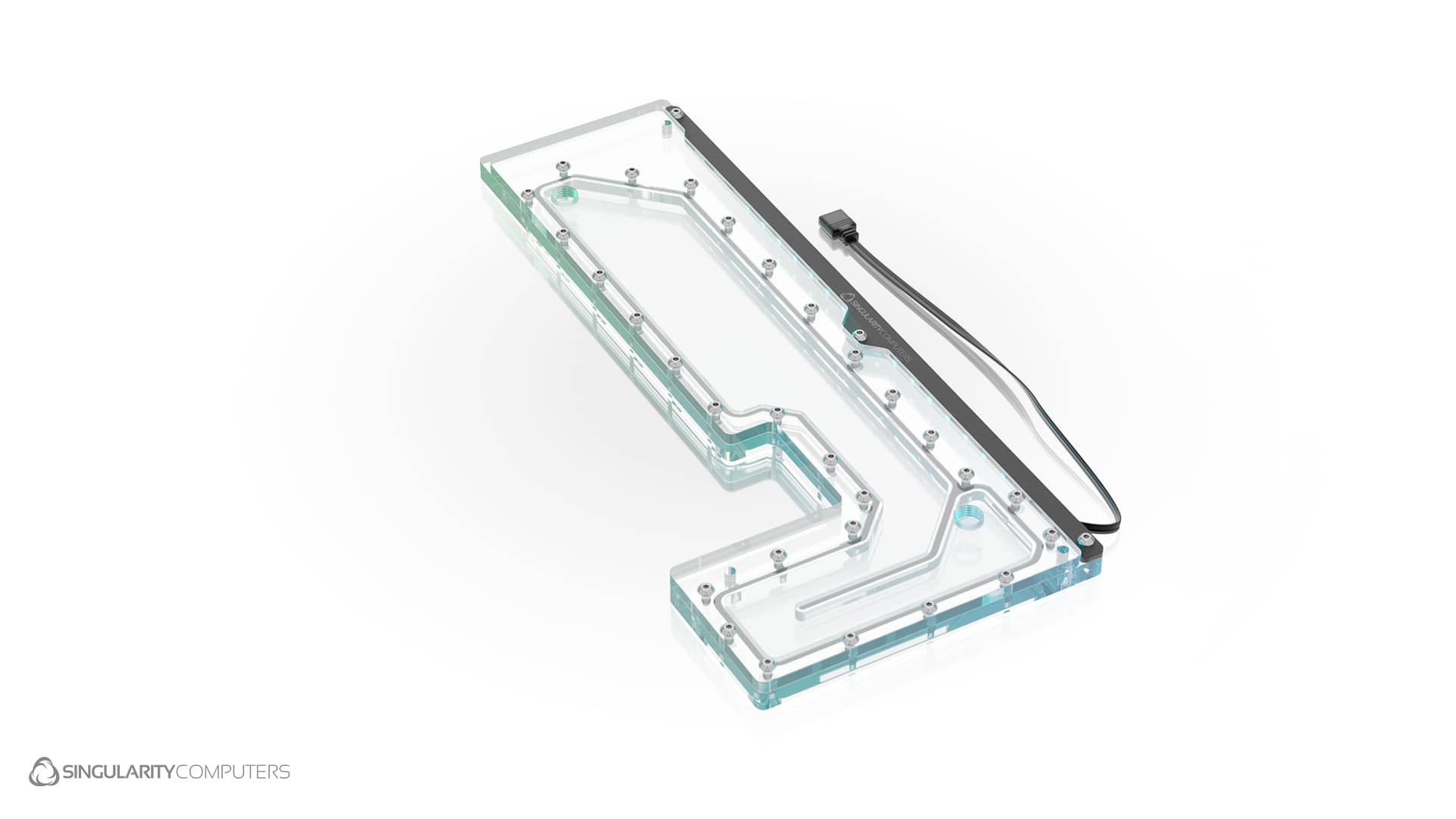

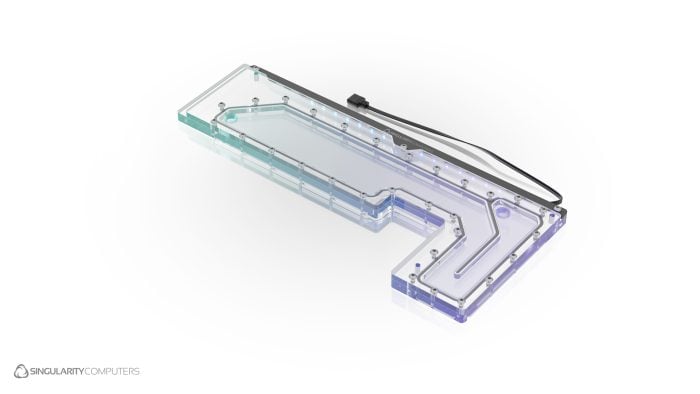

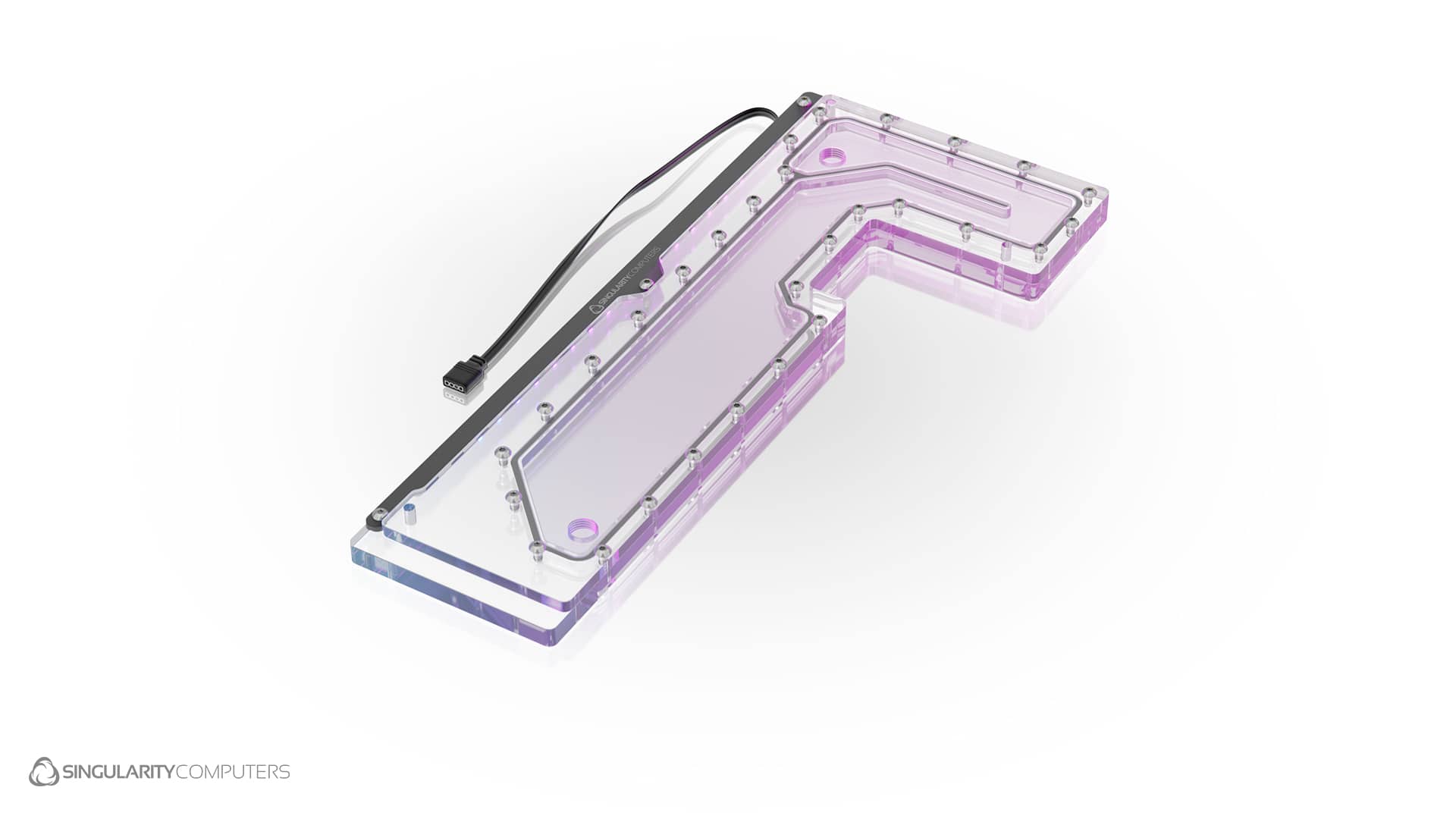

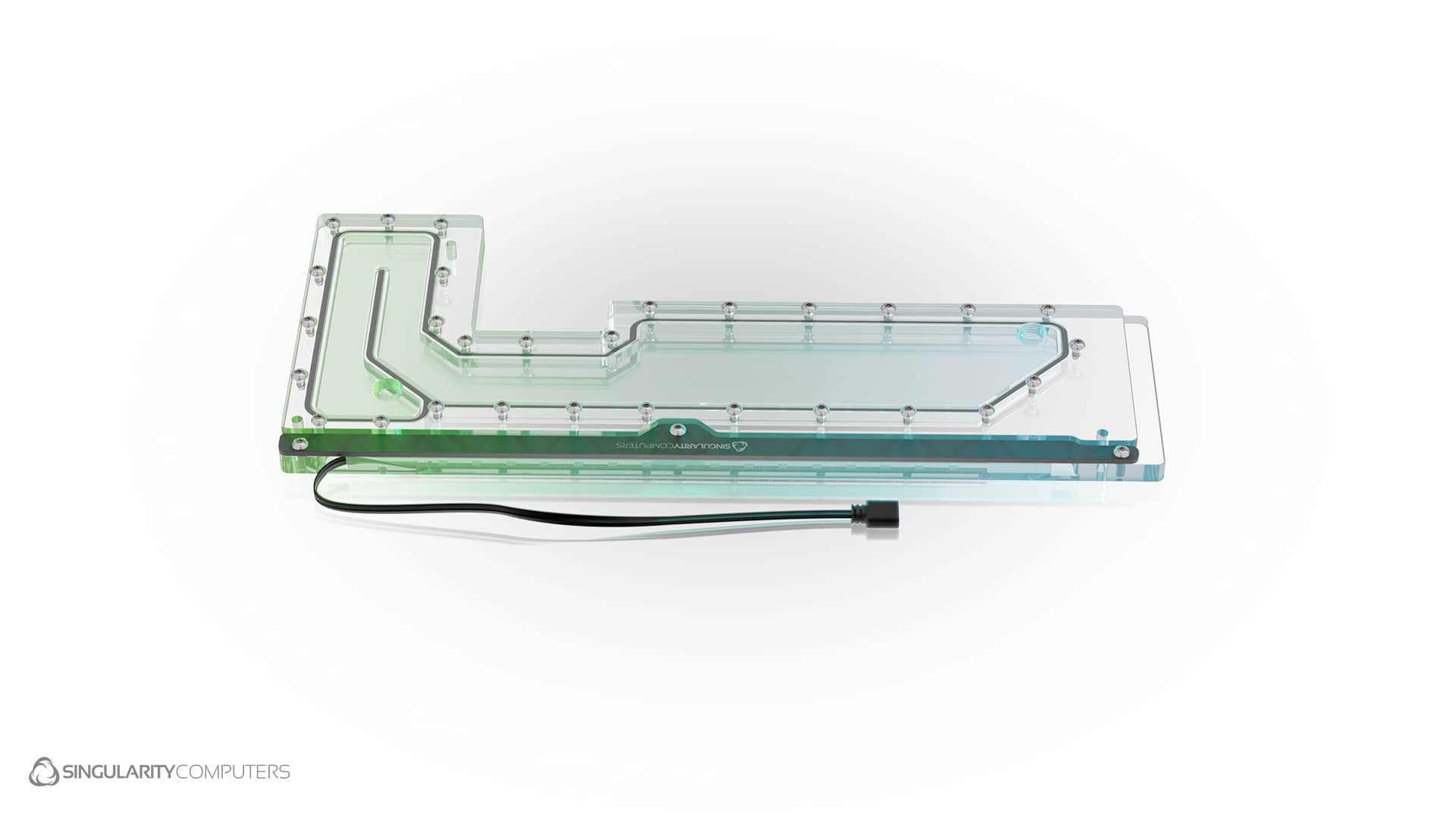

Inwin 925 Mid Distribution Plate
Specifications:
Inwin 925 Mid Distribution Plate.
Inwin 925 Mid Distribution Plate Back Cover (select color/finish above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 200mm x W: 120mm x H: 16mm.
Weight: 1kg.
Packaged Dimensions: L: 250mm x W: 150mm x H: 50mm.
Packaged Weight: 1kg.
Installation:
Install into the Inwin 925. Align with existing mounting holes on the case and use the included M3 x 25mm Fasteners and M3 Nuts and Washers to attach the Distribution Plate.

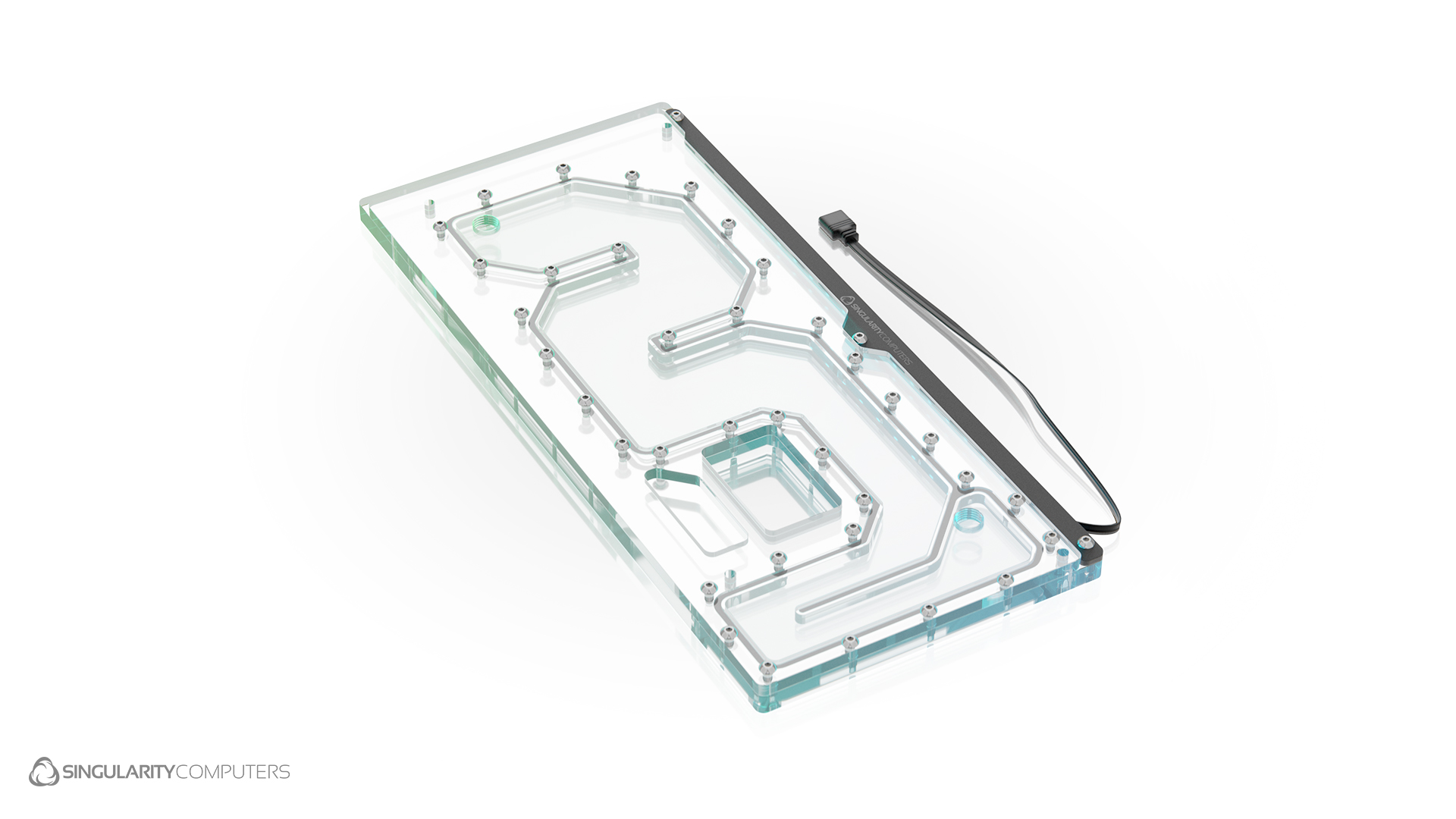

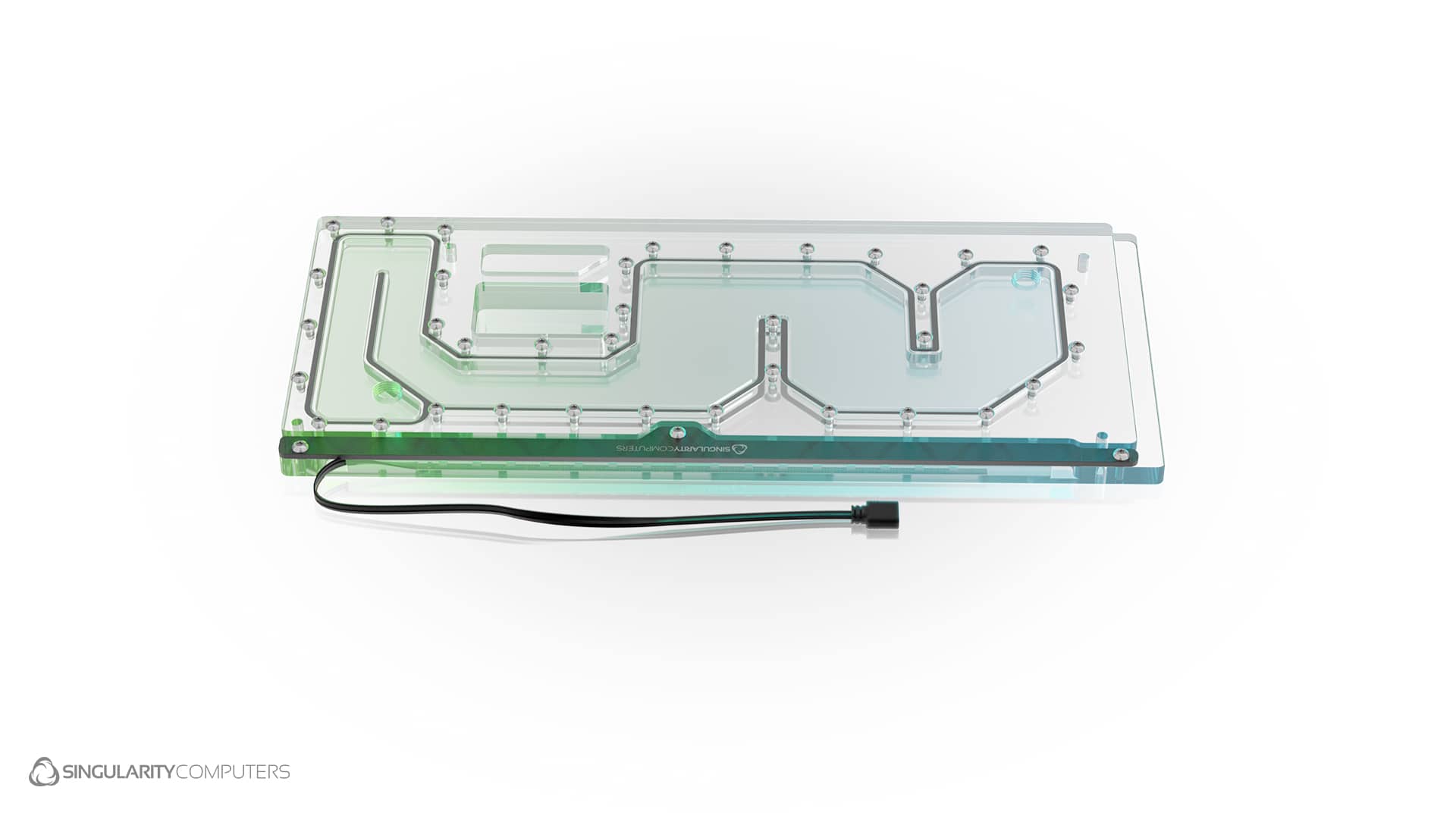

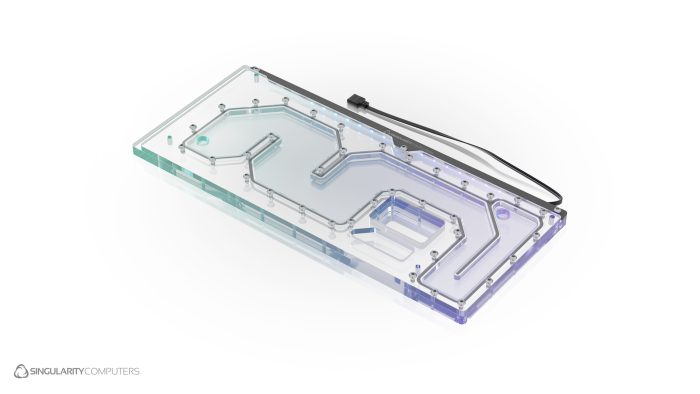

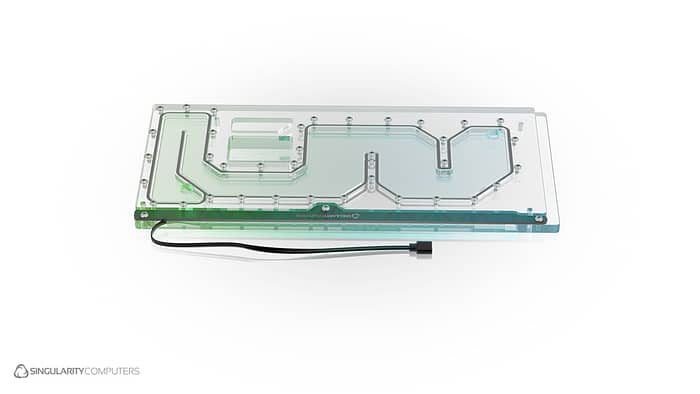

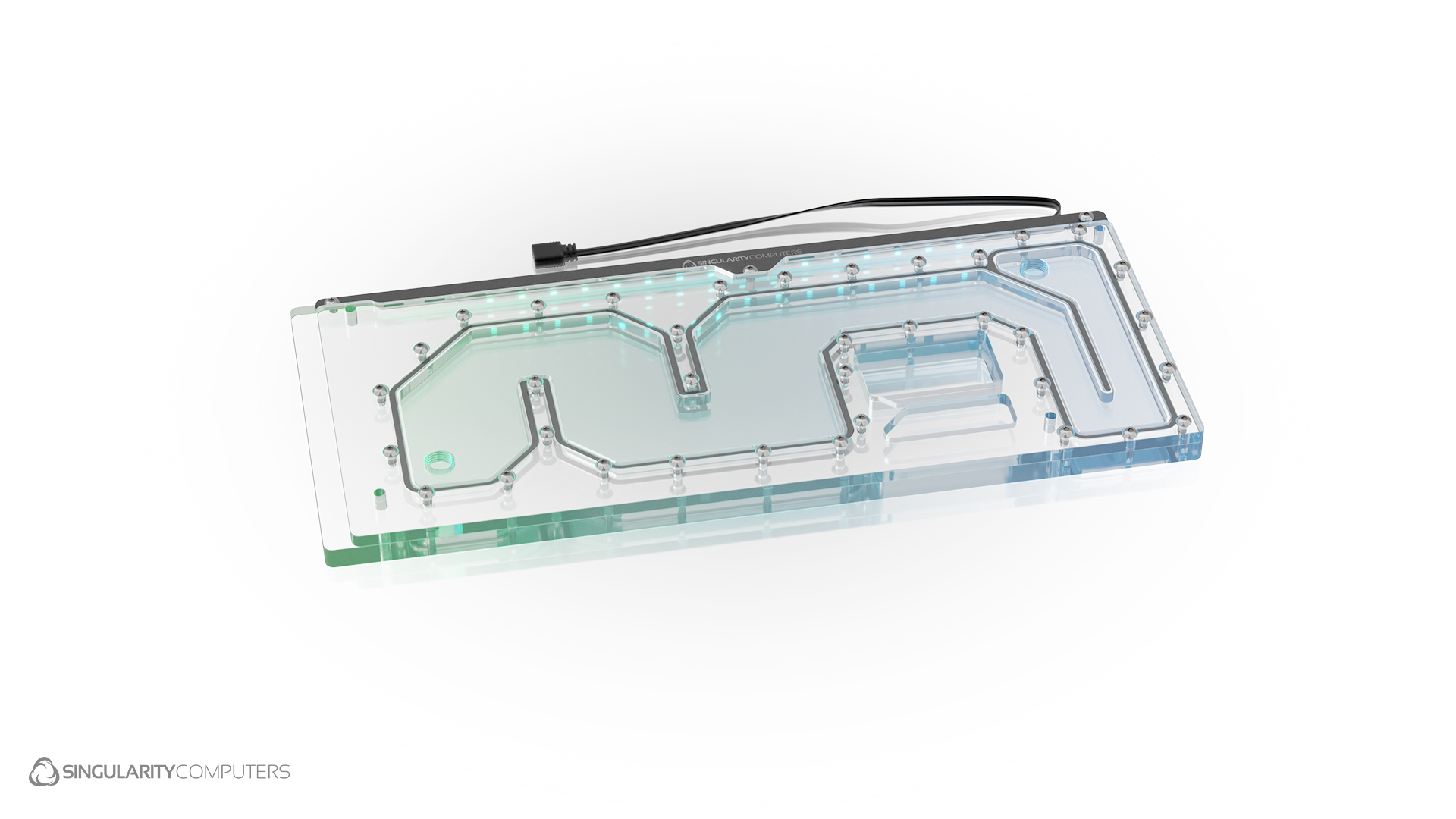

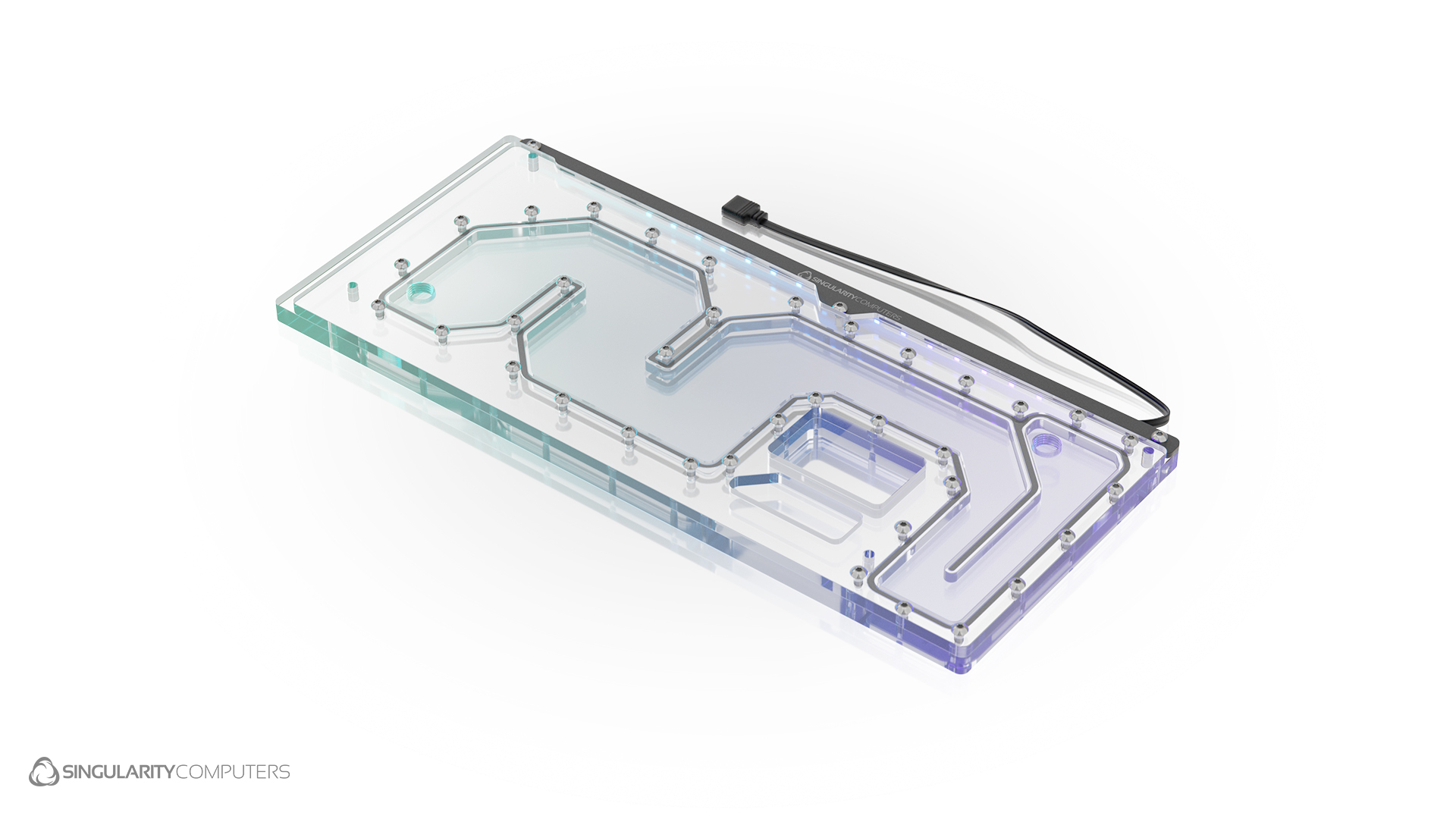

Inwin 925 Mid Distribution Plate Vertical GPU
Specifications:
Inwin 925 Mid Distribution Plate Vertical GPU.
Inwin 925 Mid Distribution Plate Vertical GPU Back Cover (select color/finish above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 200mm x W: 120mm x H: 16mm.
Weight: 1kg.
Packaged Dimensions: L: 250mm x W: 150mm x H: 50mm.
Packaged Weight: 1kg.
Installation:
Install into the Inwin 925. Align with existing mounting holes on the case and use the included M3 x 25mm Fasteners and M3 Nuts and Washers to attach the Distribution Plate.
