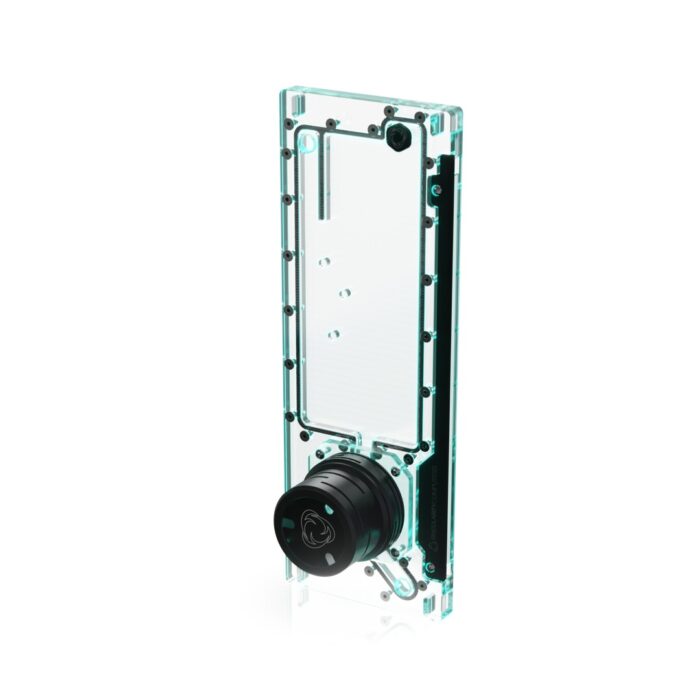

Lian Li DK07 D5 Reservoir Distribution Plate

In stock

Order processing time 1-2 days.

  • Designed for Lian Li DK07 360mm radiator mounts
  • Mirrored layout option for right-side installation
  • Single or dual distribution plates for flexible loop configurations
  • CNC-machined clear cast acrylic construction
  • Integrated ARGB lighting with customizable cover options

Manuals

US$249.00

For mounting to a radiator mount select ‘Standard mounting’. For mounting to fans select ‘Fans’. For mounting to a radiator select the fastener size your radiator uses.

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$19.92 Silver Mirror +US$19.92 Gold Mirror +US$19.92 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring Colour (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Distribution Plates

Lian Li DK07 D5 Reservoir Distribution Plate Mirrored Right Side (optional) USD $249
None Yes +US$249.00

Lian Li DK07 D5 Reservoir Distribution Plate
Mirrored layout so that the distribution plate can be mounted on the other side of the motherboard.

Water Cooling

Select D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting (optional) USD $4
None Yes +US$4.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

  • 1x Lian Li DK07 D5 Reservoir Distribution Plate
    US$249.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188003169 SKU: SC-DK07-DIST Categories: , ,

Description

Read More +Read Less − full description

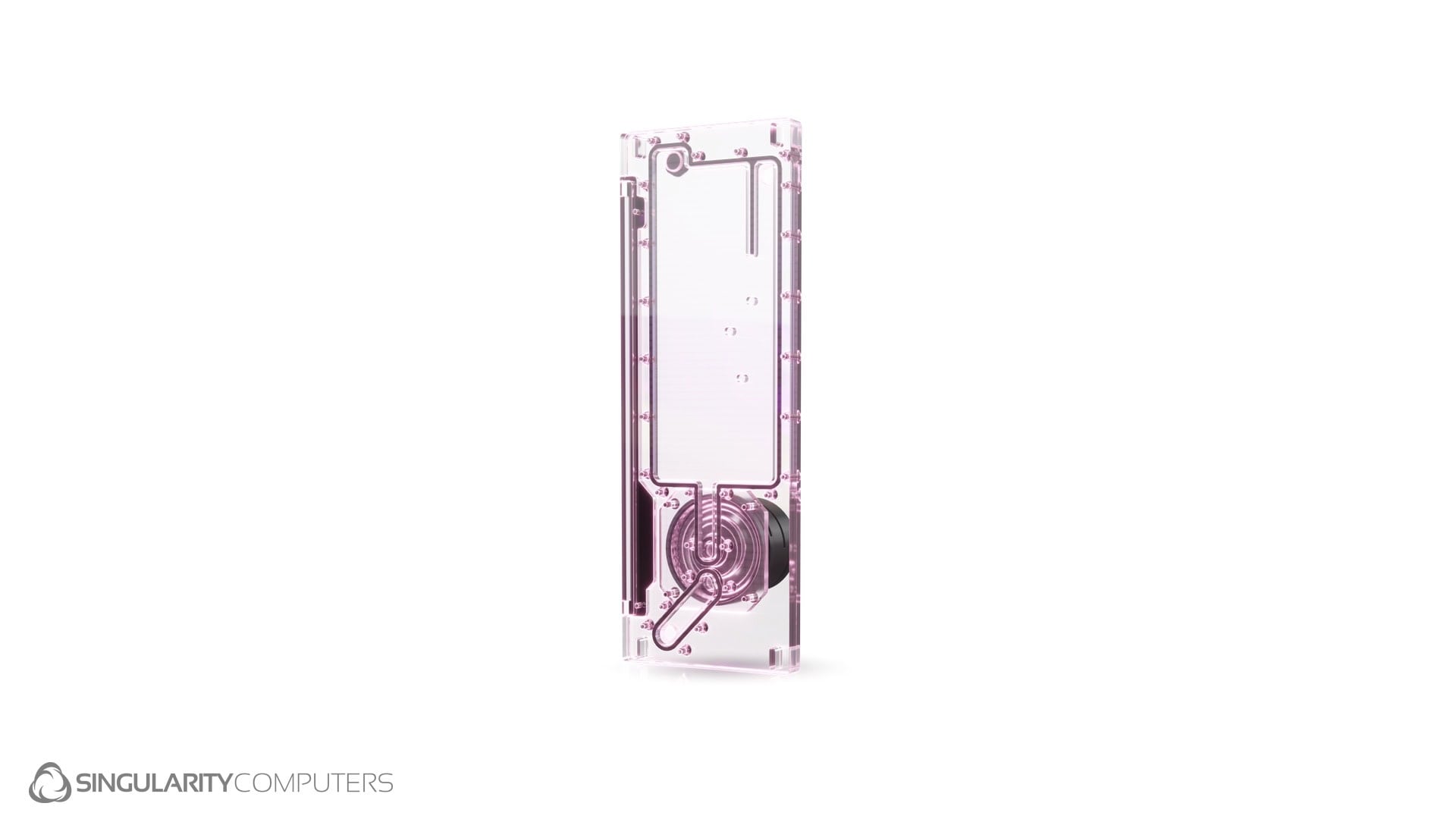

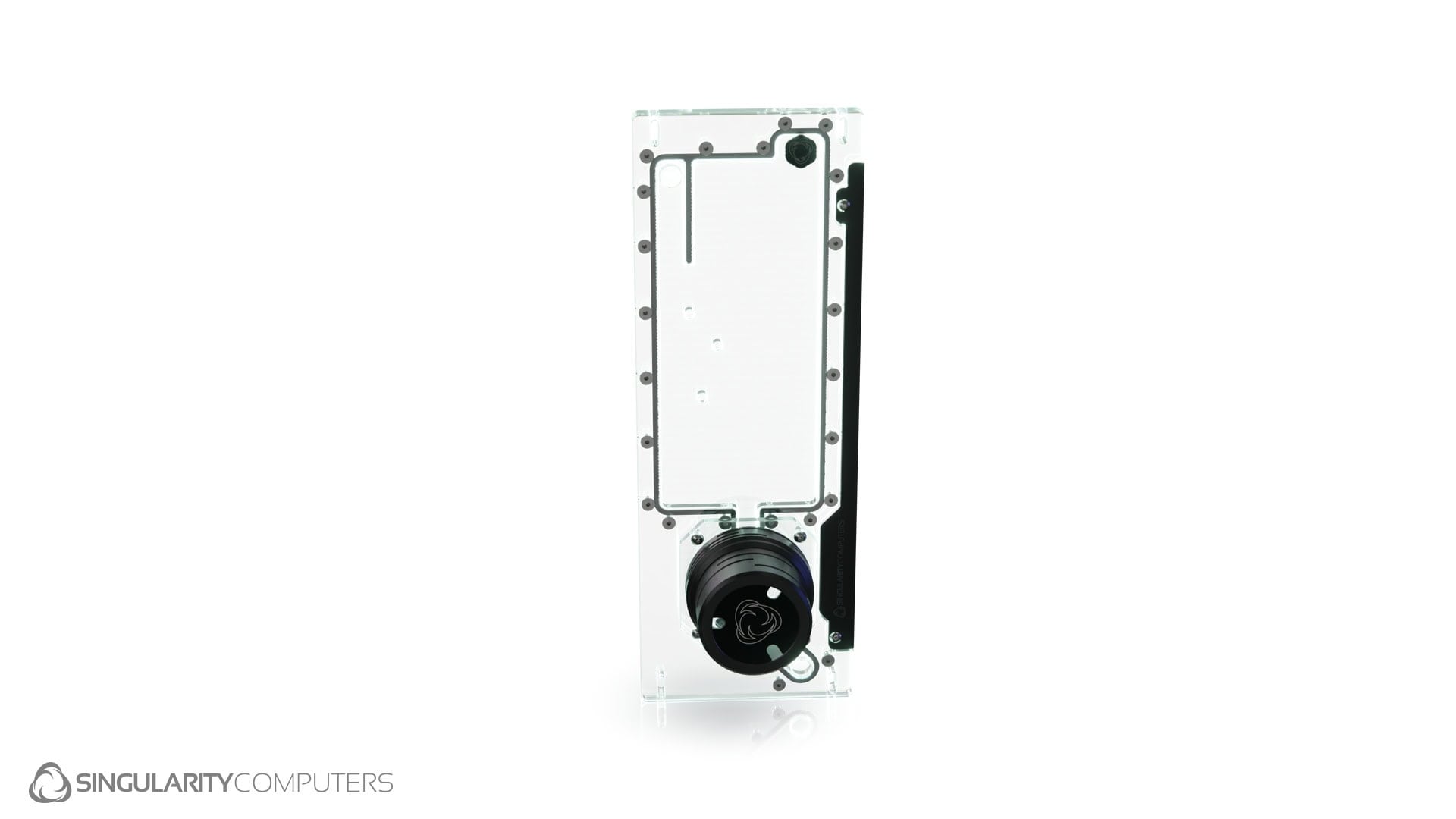

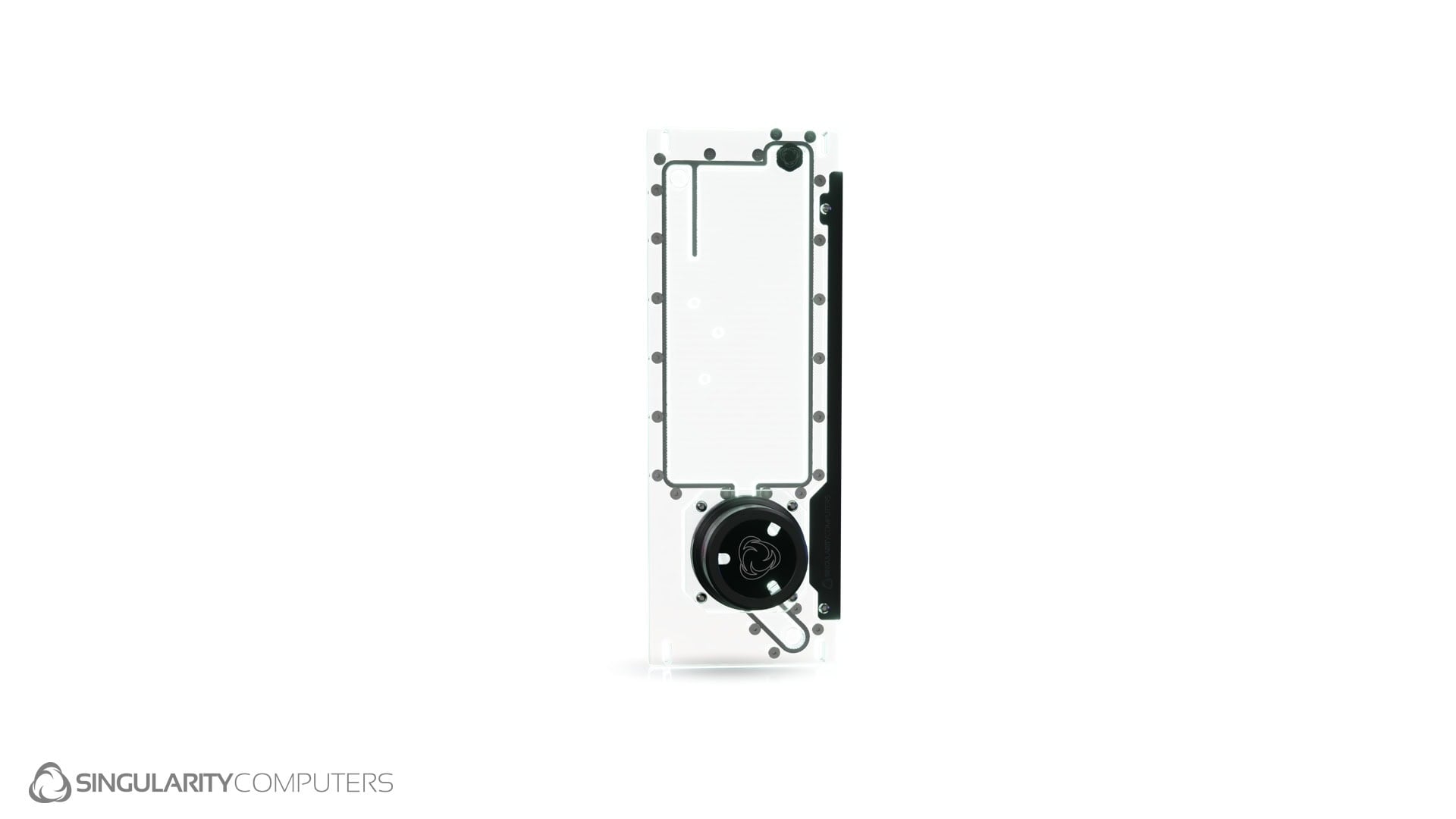

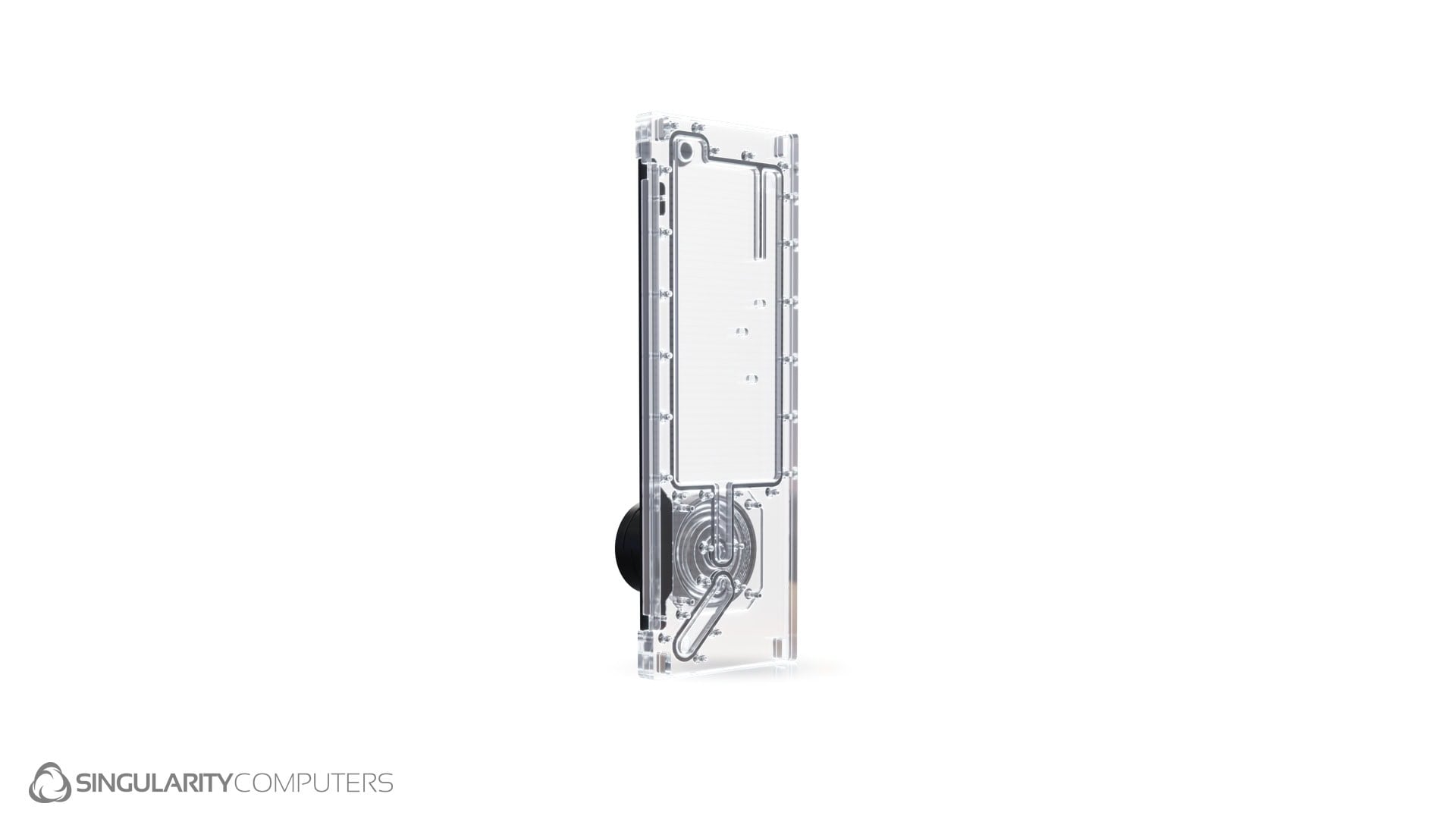

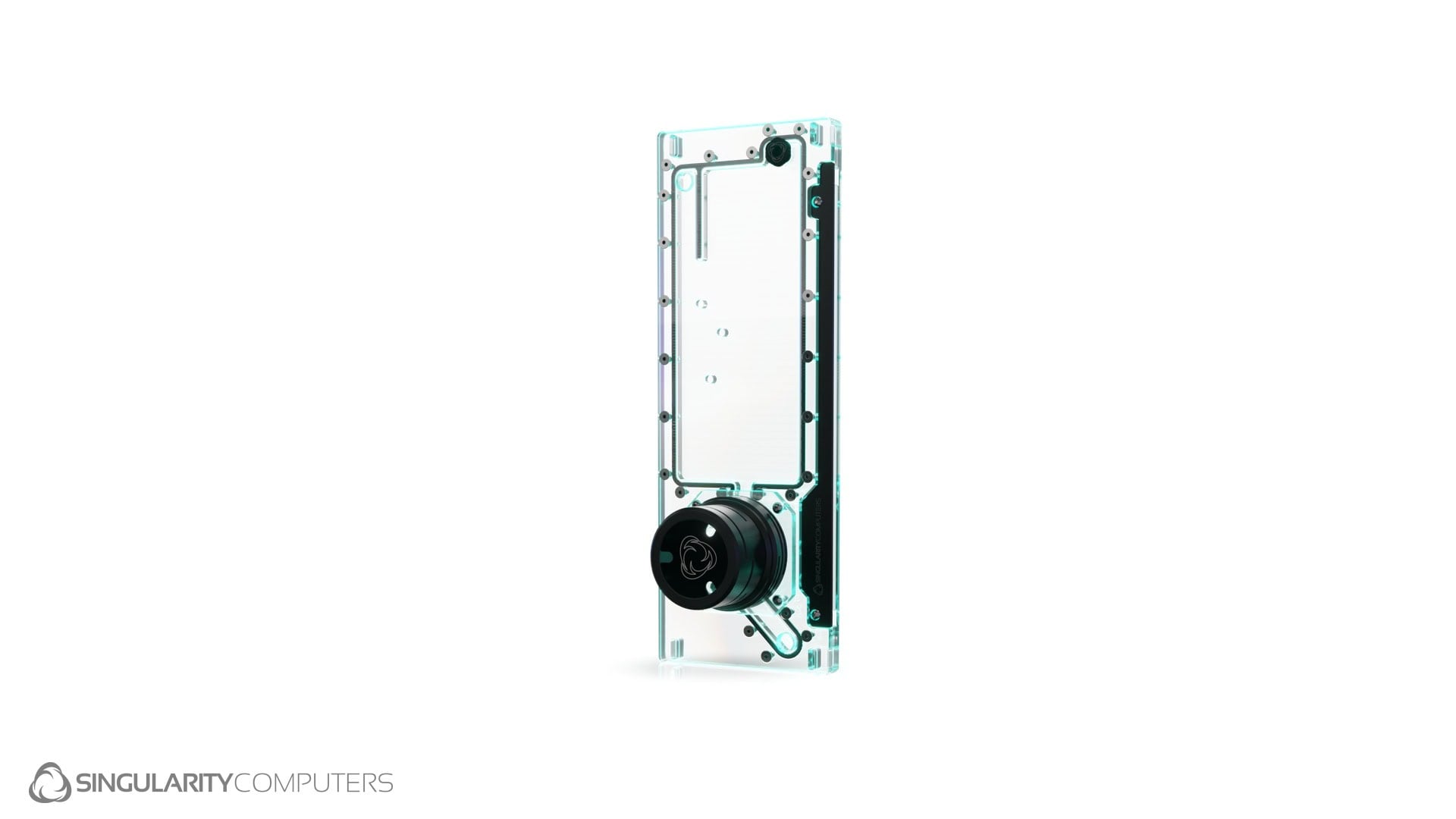

The Lian Li DK07 D5 Distribution Plate fits onto both 360mm radiator or radiator mounts on either side of the motherboard. There is a mirrored layout option which can be selected below which can be installed on the right side of the motherboard. A single distribution plate can be used for the entire system or two can be used for a single loop or for dual loops. Our distribution plates are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. They have an integrated ARGB LED strip and a cover with different color options which can be selected for this below. The mounting options can also be selected below.

Specifications

Lian Li DK07 D5 Reservoir Distribution Plate.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 360mm x W: 120mm x H: 110mm.
Weight: 1kg.
Packaged Dimensions: L: 420mm x W: 170mm x H: 150mm.
Packaged Weight: 2kg.

Installation:
Can be installed onto both 360mm radiators or radiator mounts in the Lian Li DK07 Desk.
