Lian Li V3000+ Rotated Orientation Distribution Plate Set

In stock

Order processing time 1-2 days.

  • Two-piece distribution plate set for the Lian Li V3000+ rotated motherboard orientation
  • Includes Dual D5 Reservoir Distribution Plate and rear-mounted Distribution Plate
  • Dual D5 pumps in series for single-loop operation
  • Installs using existing case mounting holes with no modifications
  • CNC-machined clear cast acrylic with durable gasket seals
  • Maximum reservoir volume for easier filling and air removal
  • Integrated ARGB LED strips with customizable covers
  • Includes Back Plates to conceal the rear of the distribution plates
  • Hand assembled with stainless steel fasteners
  • Not compatible with the Lian Li V3000+ rotated motherboard orientation Mid Distribution Plates

Manuals

US$269.00 US$399.00Price range: US$269.00 through US$399.00

Select Acrylic Cover and Back Plate Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$31.92 Silver Mirror +US$31.92 Gold Mirror +US$31.92 Satin Black

The distribution plate will remain transparent, this colour option is for the covers and back plates.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select Acrylic Cover and Back Plate Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$21.52 Silver Mirror +US$21.52 Gold Mirror +US$21.52 Satin Black

The distribution plate will remain transparent, this colour option is for the covers and back plates.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring Colour x2 (included)
None Black Silver Black

 Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

Select D5 Pump Cover Options (optional) x2 USD $78
None Black +US$78.00 Silver +US$78.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump x2 (optional) USD $208
None Yes +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x2 (optional) USD $8
None Yes +US$8.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

  • 1x Lian Li V3000+ Rotated Orientation Distribution Plate Set
    US$269.00 US$399.00Price range: US$269.00 through US$399.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
SKU: N/A Category:

Description

Read More +Read Less − full description

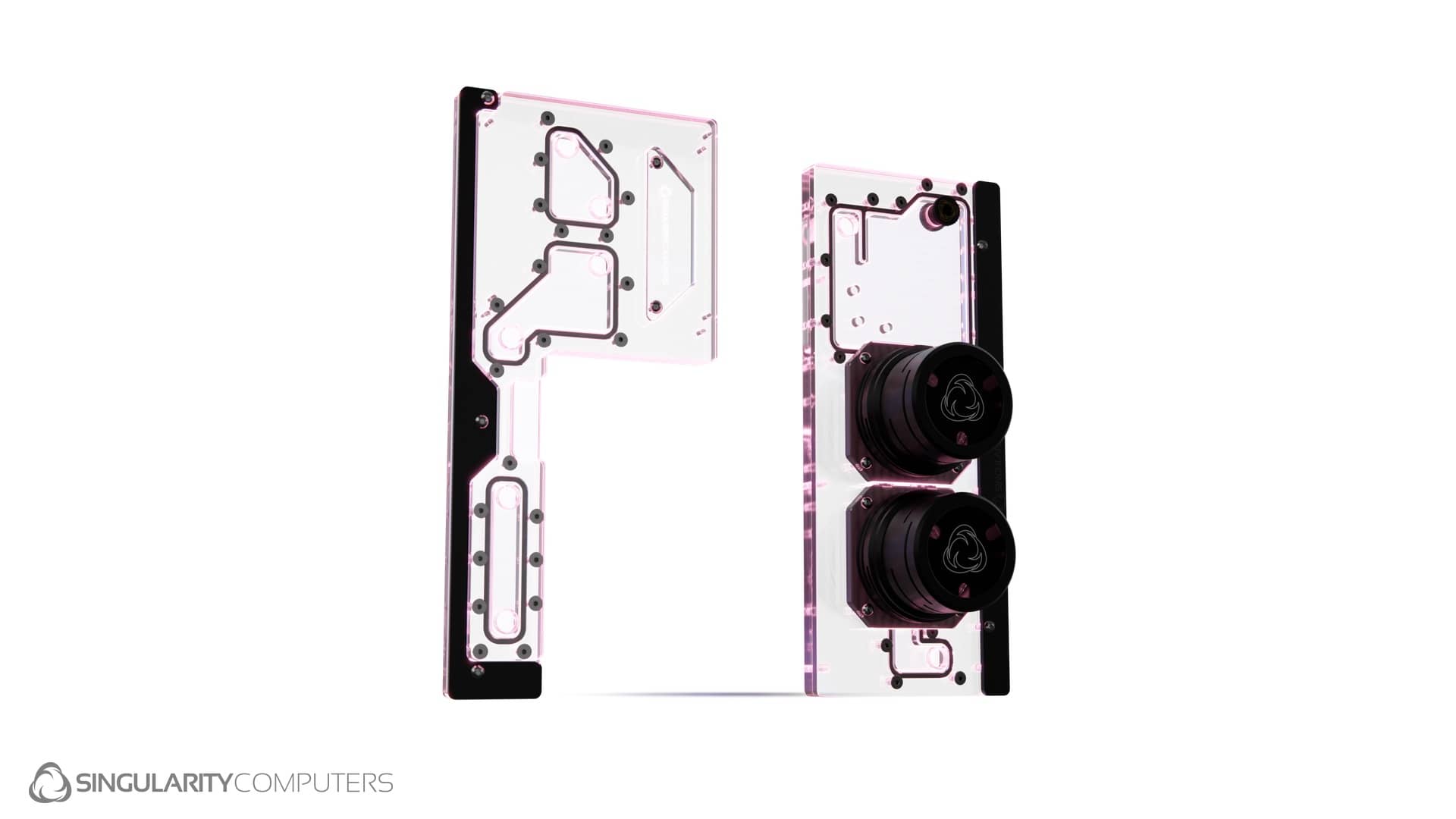

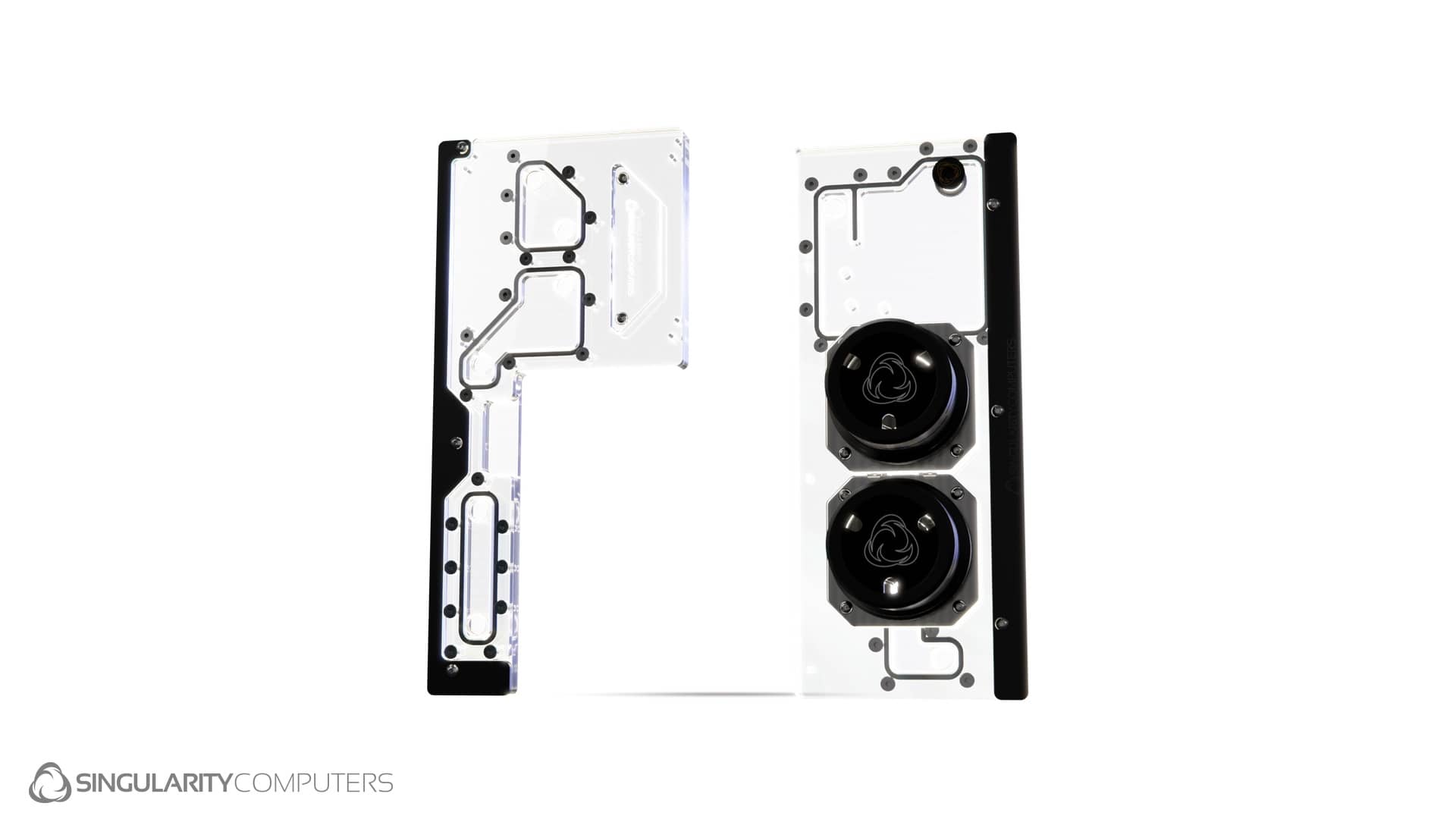

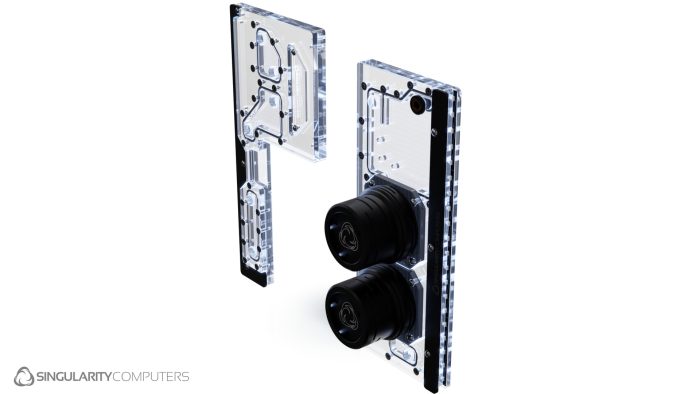

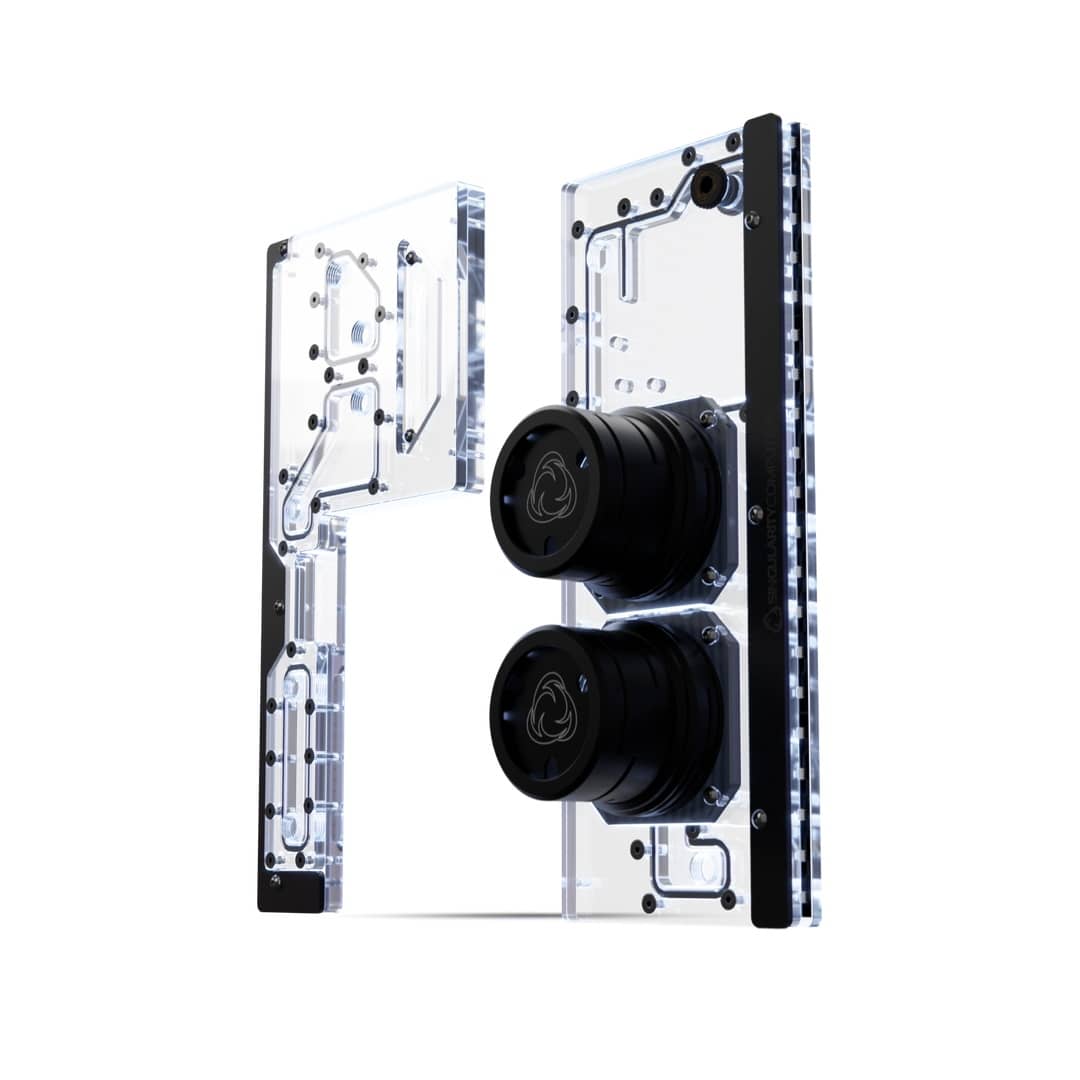

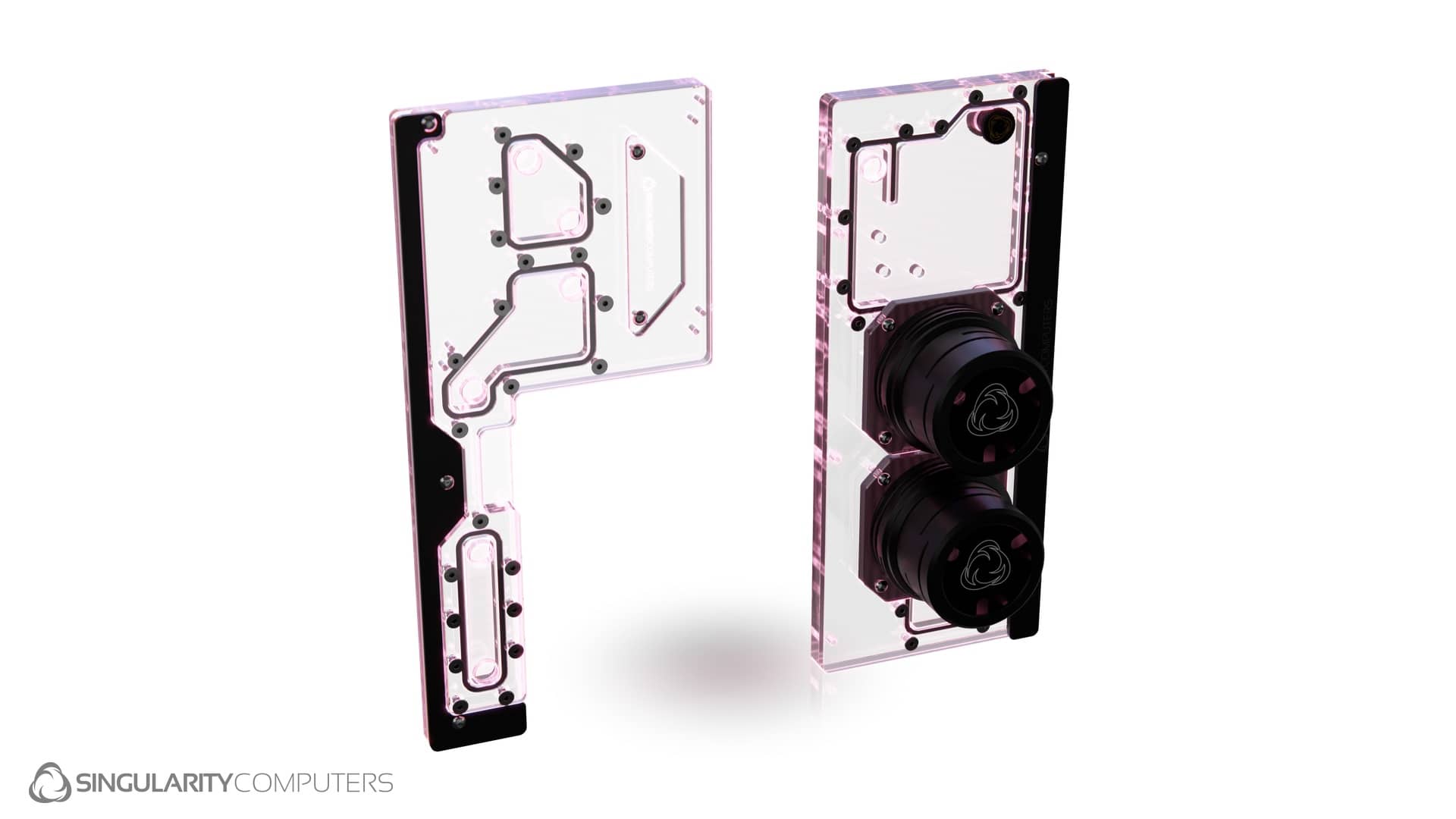

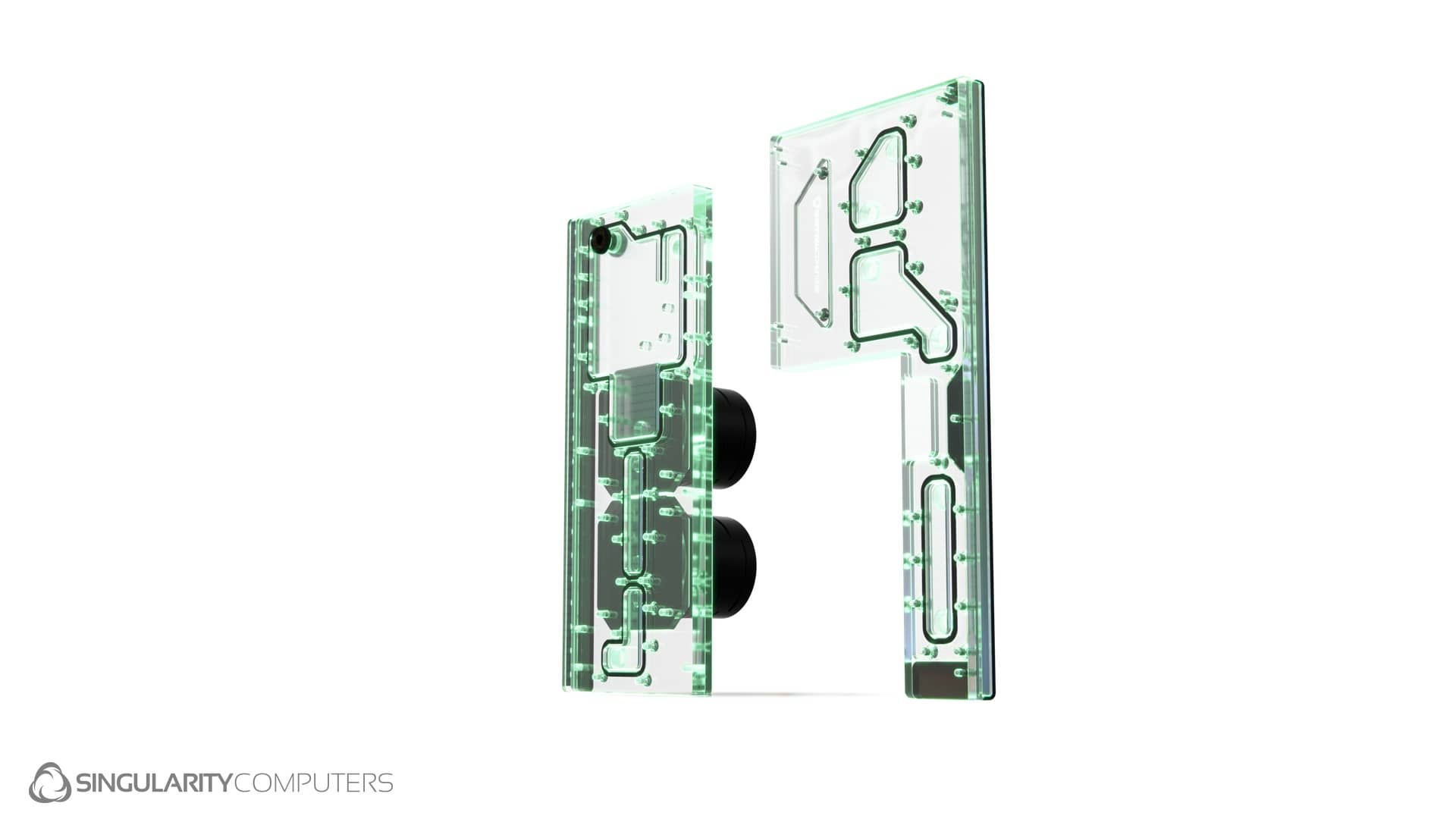

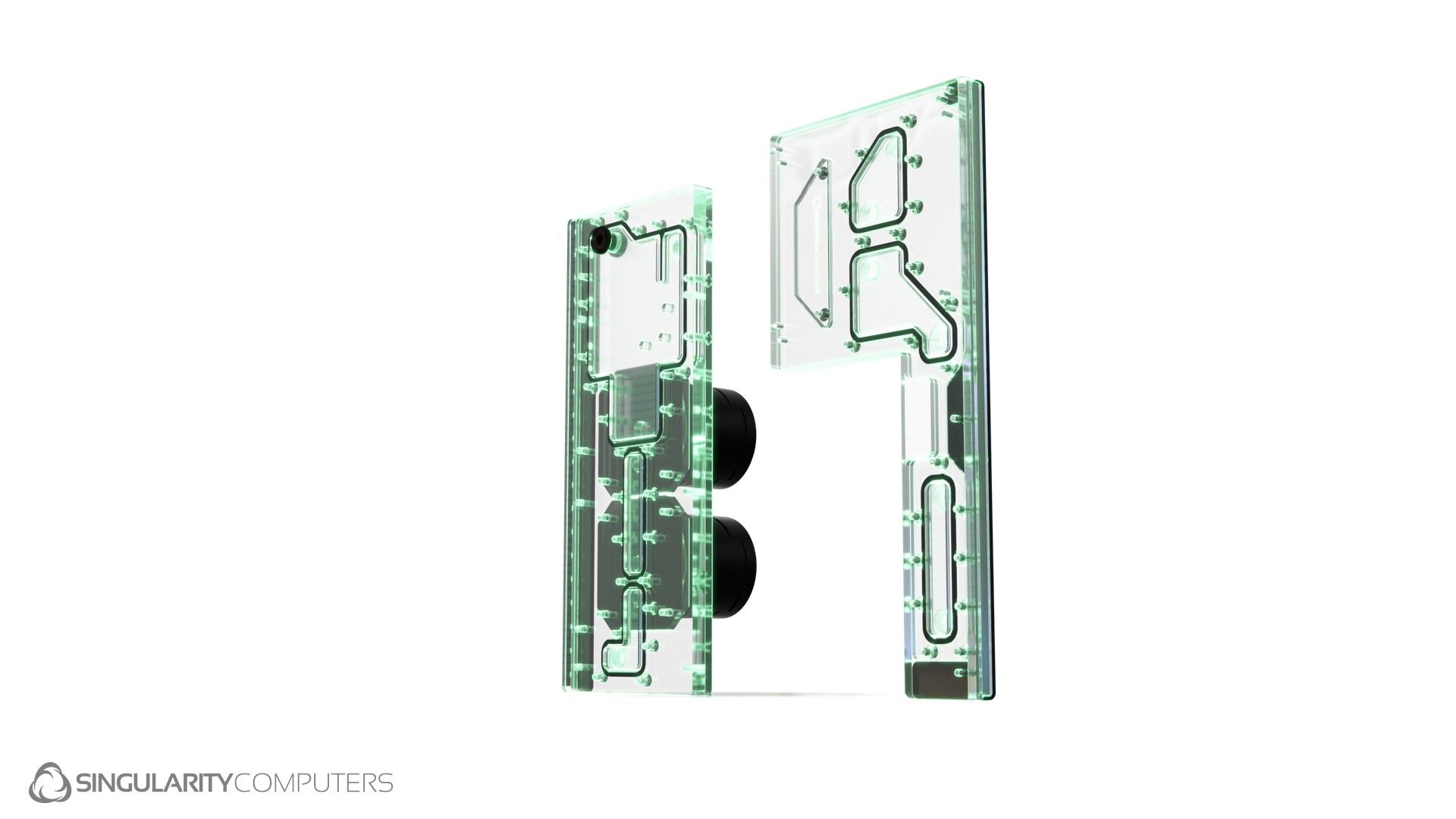

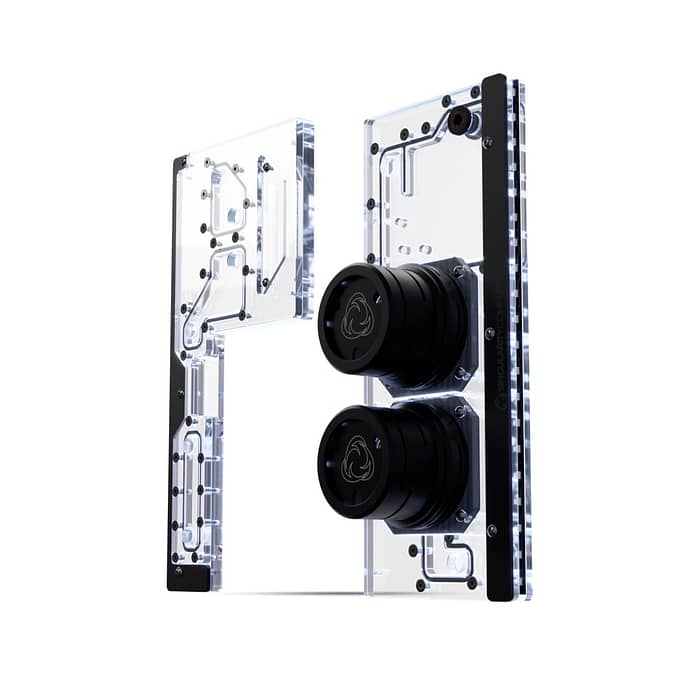

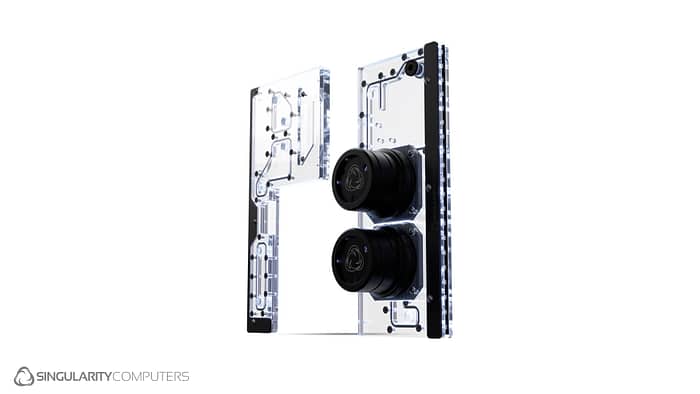

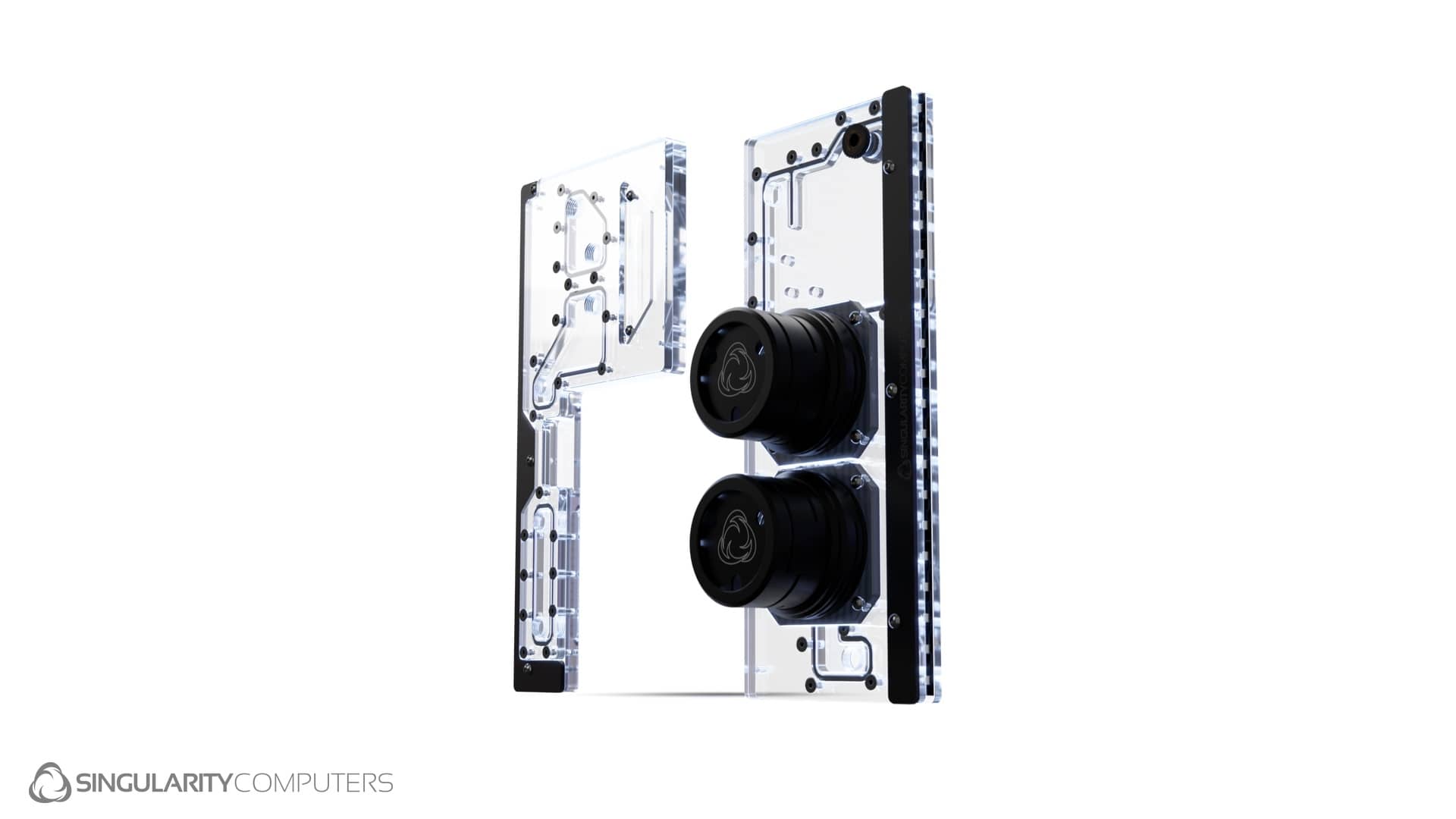

Lian Li V3000+ Rotated Orientation Distribution Plate Set comes with two distribution plates, a Dual D5 and Reservoir Distribution Plate for installation next to the motherboard and a Distribution Plate for installation on the rear panel. This distribution plate set is designed for the rotated motherboard orientation on the Lian Li V3000+. The D5 pumps are in series for a single loop configuration. Both Distribution Plates attach to existing holes on the case, there is no need for modifications. They are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. Designed for maximum reservoir volume to make filling and air removal easier. Each Distribution Plate has an integrated ARGB LED strip with a cover and there are Back Plates included to cover the rear side of the Distribution Plates, select from the different color options below for the covers.

The Lian Li V3000+ Mid Distribution Plates are not compatible with the rotated motherboard orientation.

Youtube video

Youtube video

Specifications

Lian Li V3000+ Rotated Orientation Distribution Plate Set. These Distribution Plates can be purchased together or they can be purchased separately (select above).
Lian Li V3000+ Dual D5 Reservoir Distribution Plate Rotated.
Lian Li V3000+ Dual D5 Reservoir Distribution Plate Rotated Back Cover (select color/finish above).
Lian Li V3000+ Rear Distribution Plate.
Lian Li V3000+ Rear Distribution Plate Back Cover (select color/finish above).
Integrated Reservoir.
Integrated D5 Pump Top x2.
D5 Pump Cover CNC Machined Anodized Aluminum x2 (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
D5 O-Rings: Silicone Clear x2.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Rotated Orientation Distribution Plate Set
Dimensions: L: 400mm x W: 300mm x H: 100mm.
Weight: 4kg.
Packaged Dimensions: L: 400mm x W: 500mm x H: 100mm.
Packaged Weight: 4kg.
Dual D5 Reservoir Distribution Plate Rotated
Dimensions: L: 200mm x W: 120mm x H: 40mm.
Weight: 3kg.
Packaged Dimensions: L: 300mm x W: 200mm x H: 100mm.
Packaged Weight: 3kg.

Installation:
Designed for the rotated motherboard orientation on the Lian Li V3000+. Install into the Lian Li V3000+ next to the motherboard and install the Lian Li V3000+ Rear Distribution Plate on the rear panel above the expansion slots. Align with existing mounting holes on the case and use the included M4 x 12mm Fasteners to attach the Distribution Plates.
