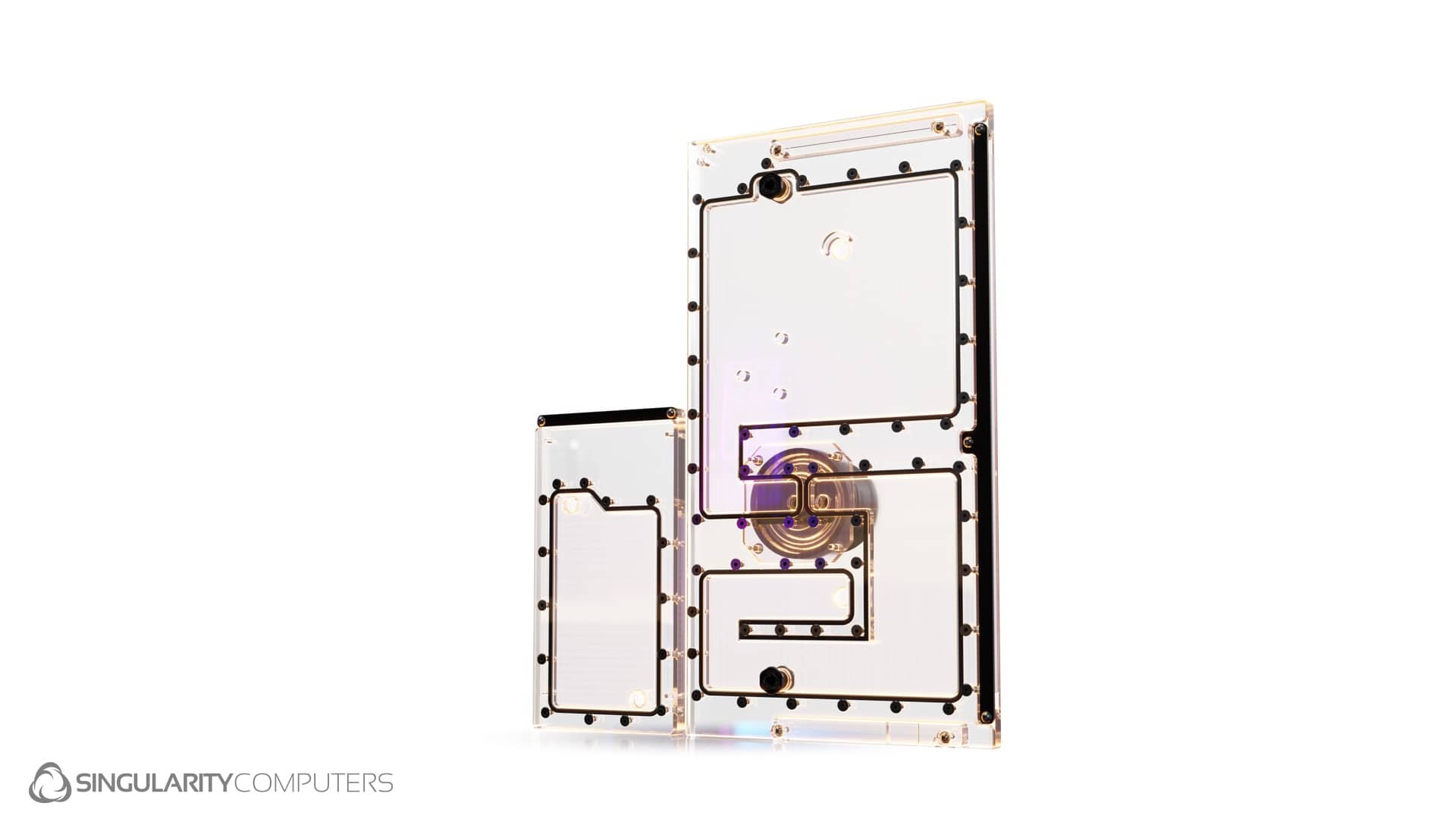

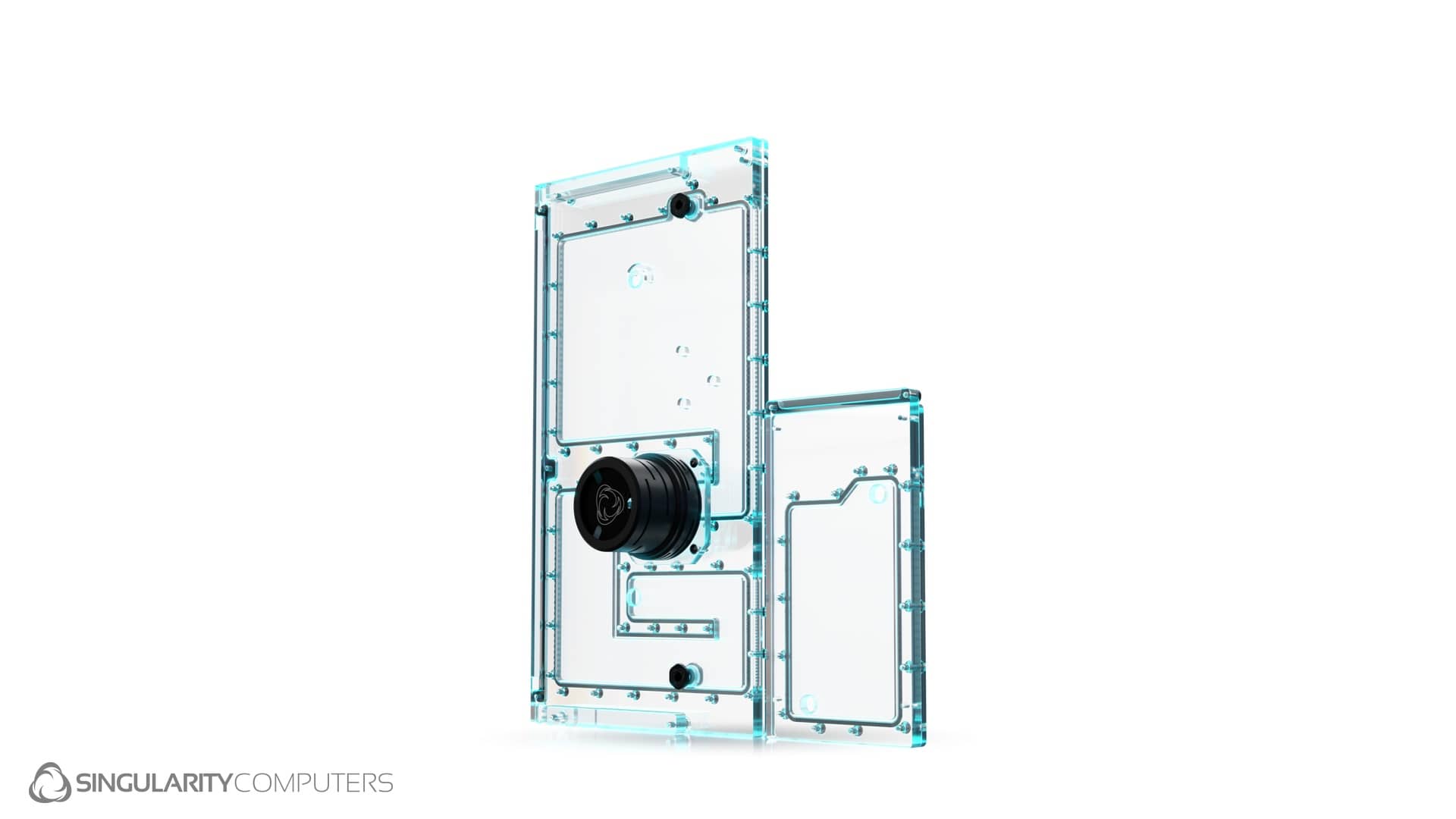

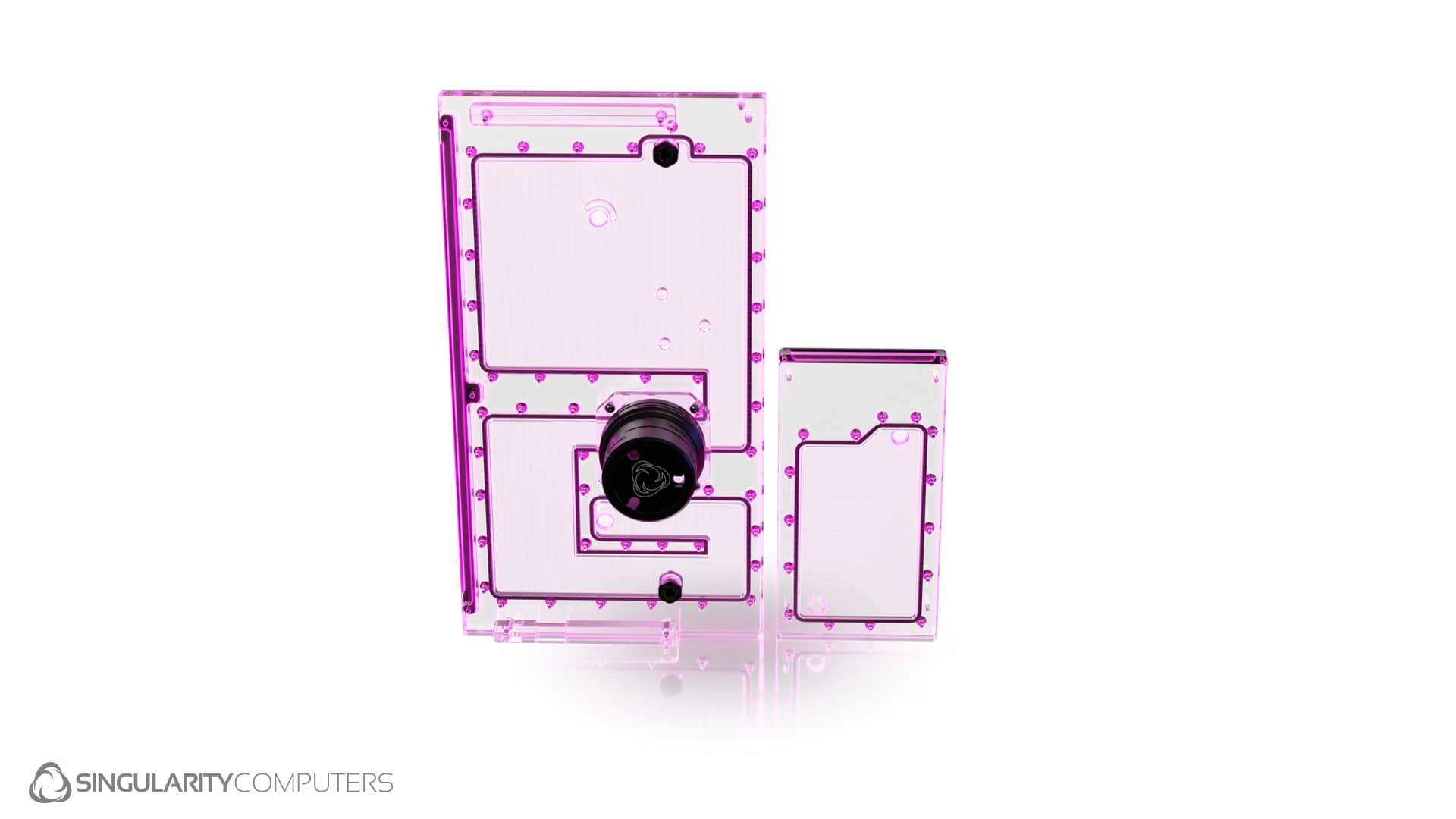

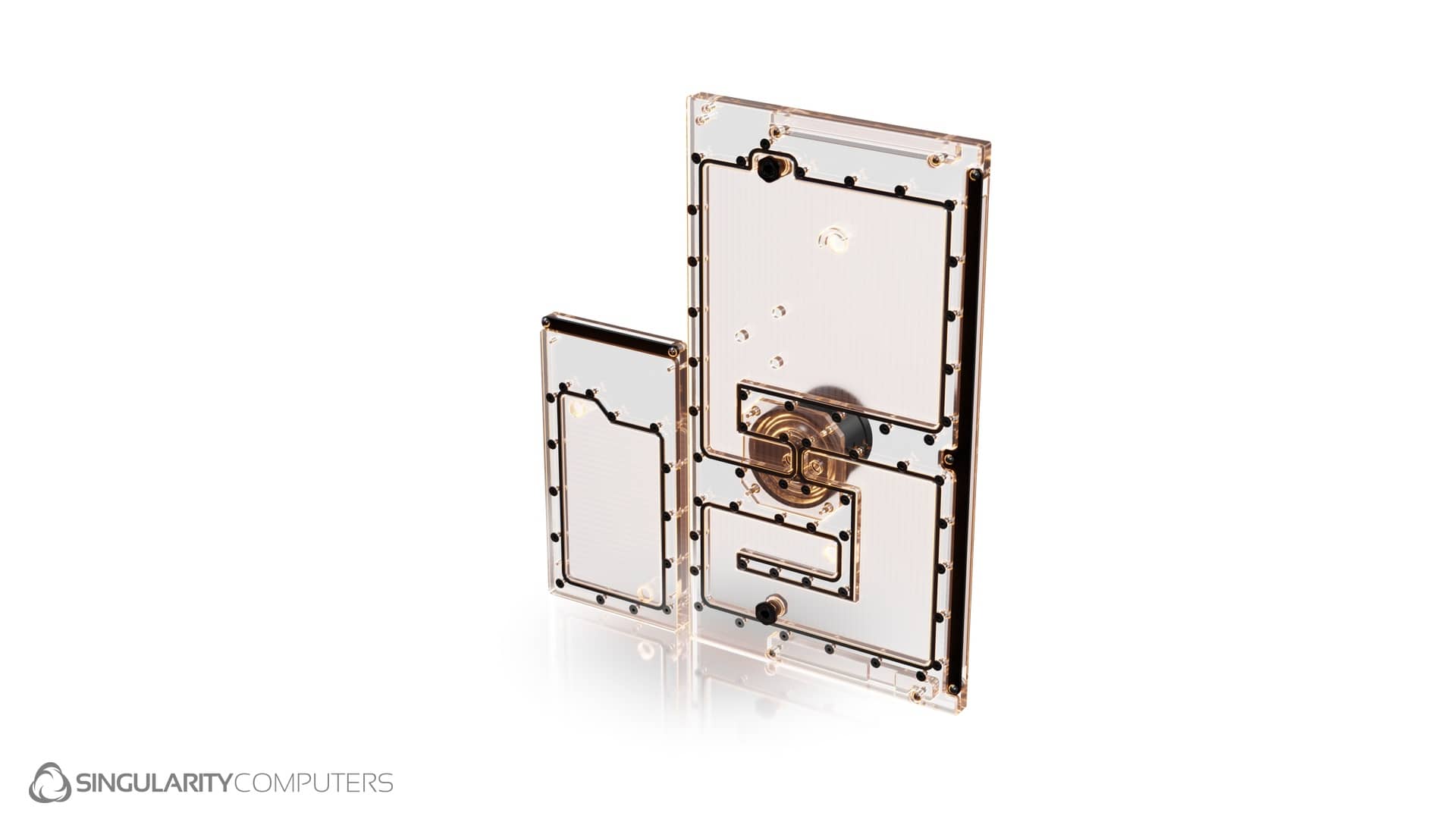

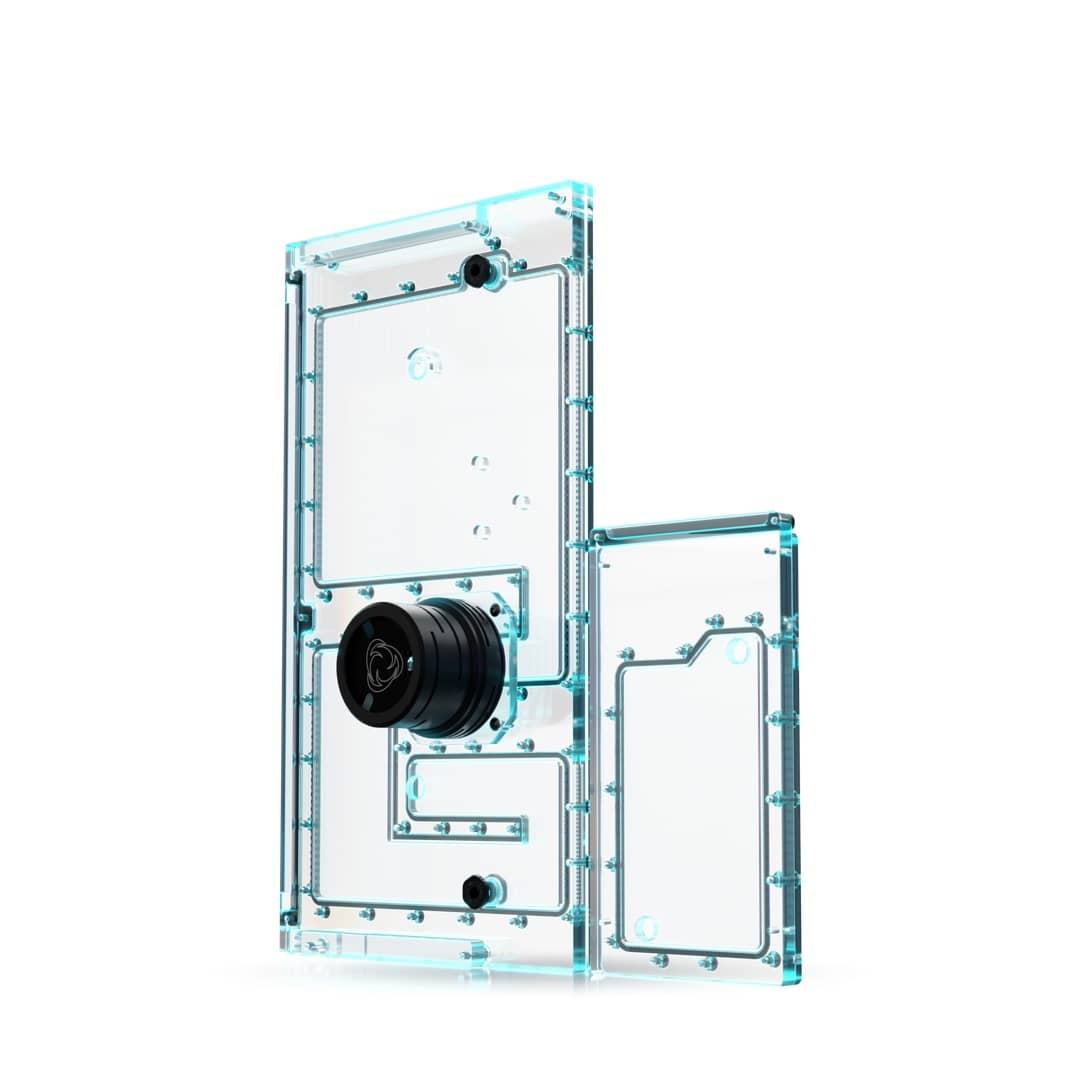

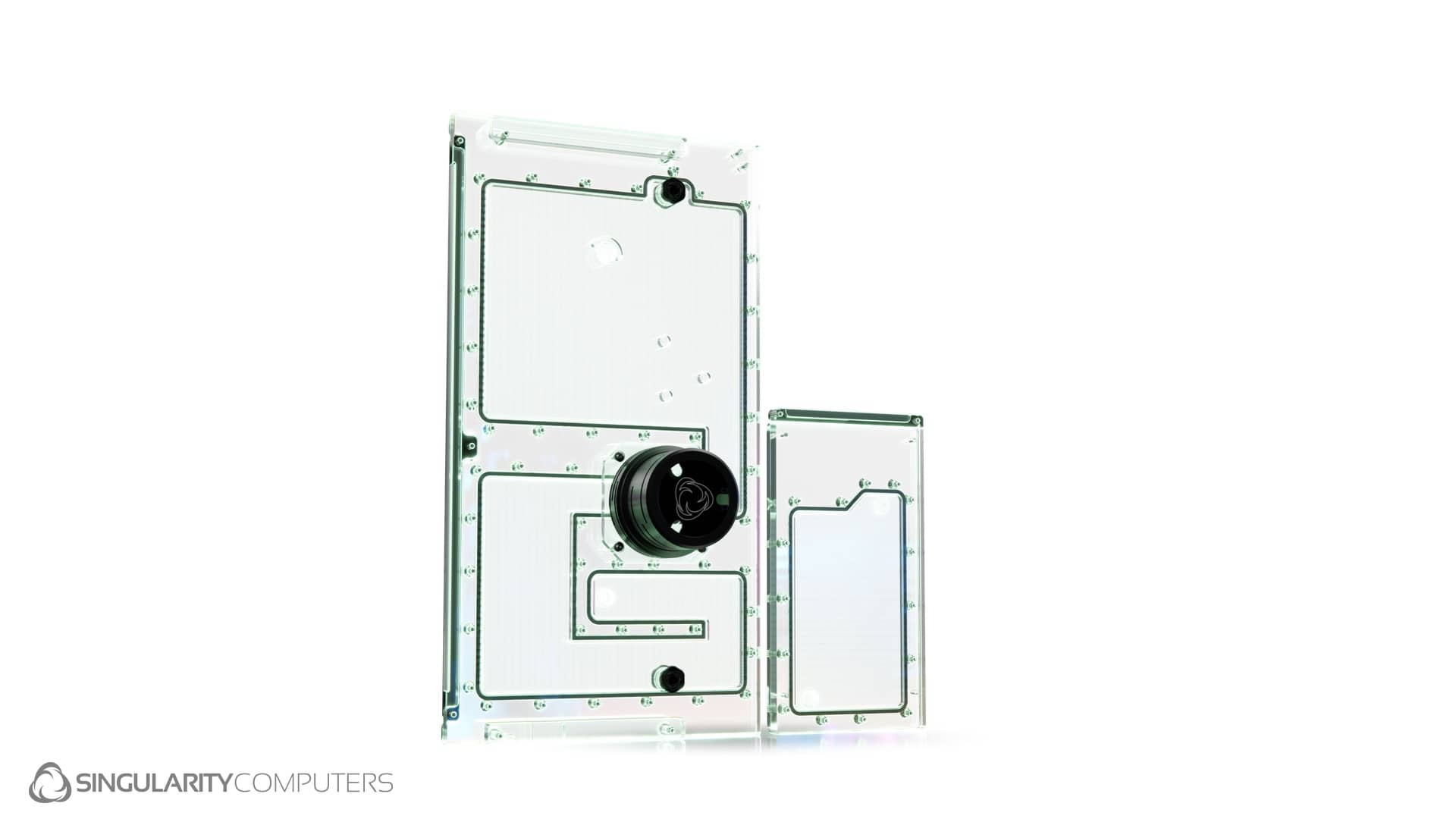

Lian Li O11 Vision Compact Distribution Plate Set

In stock

Order processing time 1-2 days.

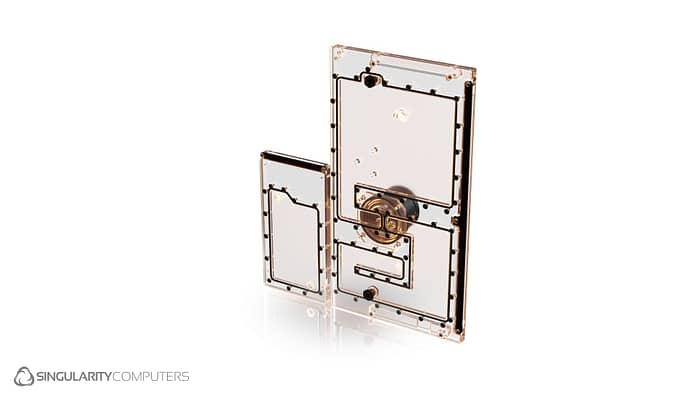

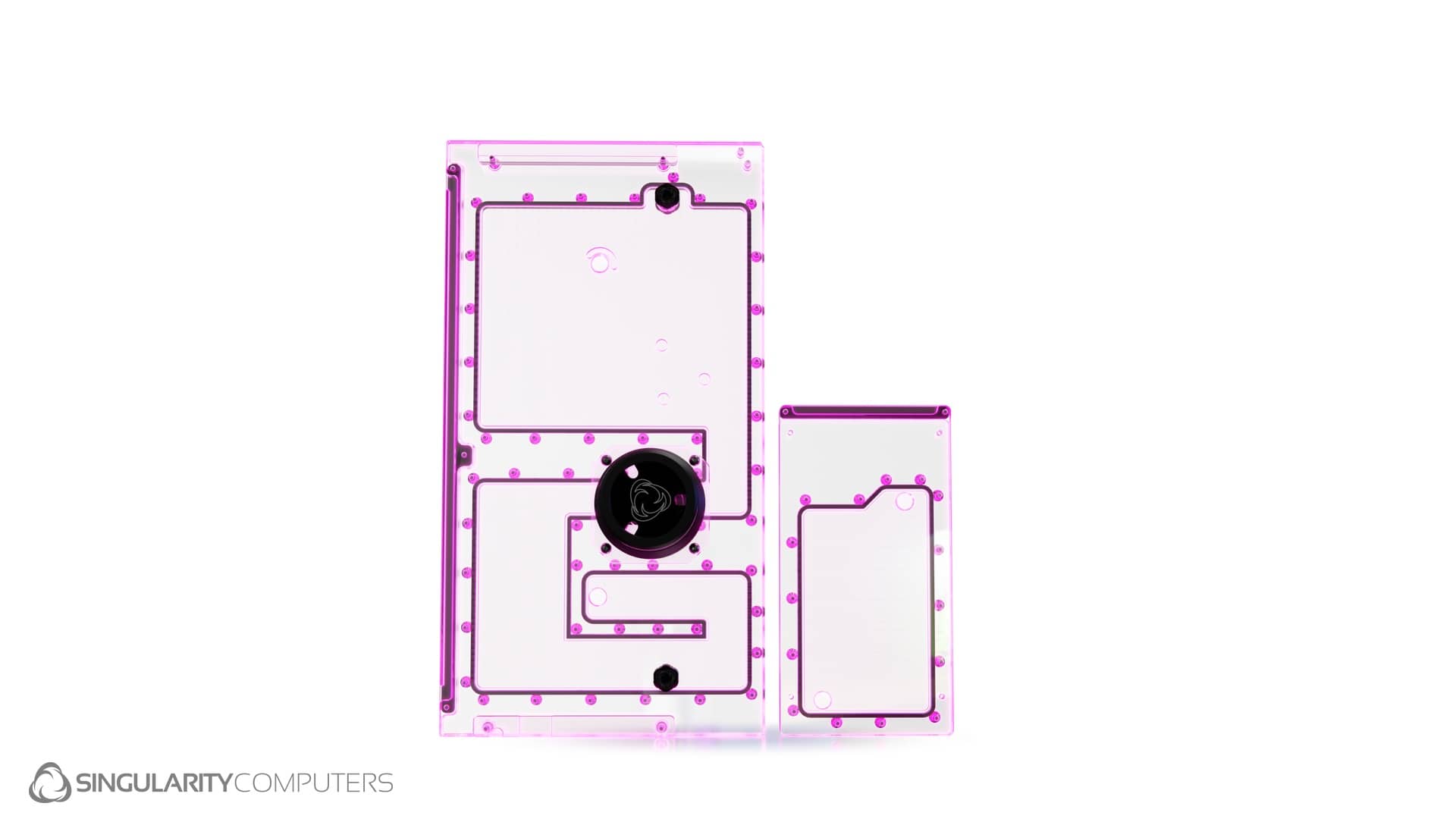

  • Two-piece distribution plate set for the Lian Li O11 Vision Compact
  • Front plate replaces the stock tempered glass panel
  • Integrated reservoir, D5 pump top and pump cover
  • Rear plate mounts above the expansion slots
  • CNC-machined clear cast acrylic with durable gasket seals
  • Integrated ARGB lighting with customizable Accent Covers
  • Includes Back Plate to conceal the rear case panel
  • Hand assembled with stainless steel fasteners

Note: Lian Li have many case versions, this distribution plate set is only compatible with the Lian Li O11 Vision Compact.

Manuals

US$49.00 US$349.00Price range: US$49.00 through US$349.00

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$27.92 Silver Mirror +US$27.92 Gold Mirror +US$27.92 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$23.92 Silver Mirror +US$23.92 Gold Mirror +US$23.92 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$3.92 Silver Mirror +US$3.92 Gold Mirror +US$3.92 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring Colour (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

Select D5 Pump Cover Options USD (optional) $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x4 (optional) USD $16
None Yes +US$16.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

  • 1x Lian Li O11 Vision Compact Distribution Plate Set
    US$49.00 US$349.00Price range: US$49.00 through US$349.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
SKU: N/A Category:

Description

Read More +Read Less − full description

The Lian Li V3000+ Dual Loop Distribution Plate Set comes with two distribution plates, a Dual D5 and Dual Reservoir Distribution Plate for installation next to the motherboard, and a Distribution Plate for installation on the rear panel. These distribution plates are designed for the standard case orientation. The D5 pumps and reservoirs are separate for a dual loop configuration with two separate loops. Both Distribution Plates Attach to existing holes on the case, there is no need for modifications. They are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. Designed for maximum reservoir volume to make filling and air removal easier. Each Distribution Plate has an integrated ARGB LED strip with a cover and there are Back Plates included to cover the rear side of the Distribution Plates, select from the different color options below for the covers.

Compatibility: The Single Loop and Dual Loop Distribution Plate Sets can be used with both Mid Distribution Plate versions and are for the standard motherboard orientation. The Rotated Orientation Distribution Plate set is not compatible with the Mid Distribution Plate Sets and is designed for the rotated motherboard orientation.





Specifications

Lian Li O11 Vision Compact Distribution Plate Set.
Integrated LED Strip: ARGB 5V with 50cm cable x3.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions & Weight:
Lian Li O11 Vision Compact Distribution Plate Set: L: 400mm x W: 300mm x H: 100mm. 6kg.
Lian Li O11 Vision Compact Front D5 Reservoir Distribution Plate: L: 400mm x W: 300mm x H: 40mm. 3kg.
Lian Li O11 Vision Compact Rear Distribution Plate: L: 170mm x W: 120mm x H: 16mm. 1kg.
Packaged Dimensions & Weight:
Lian Li O11 Vision Compact Distribution Plate Set: L: 450mm x W: 350mm x H: 100mm. 6kg.
Lian Li O11 Vision Compact Front D5 Reservoir Distribution Plate: L: 450mm x W: 350mm x H: 100mm. 3kg.
Lian Li O11 Vision Compact Rear Distribution Plate: L: 200mm x W: 100mm x H: 50mm. 1kg.

Installation:

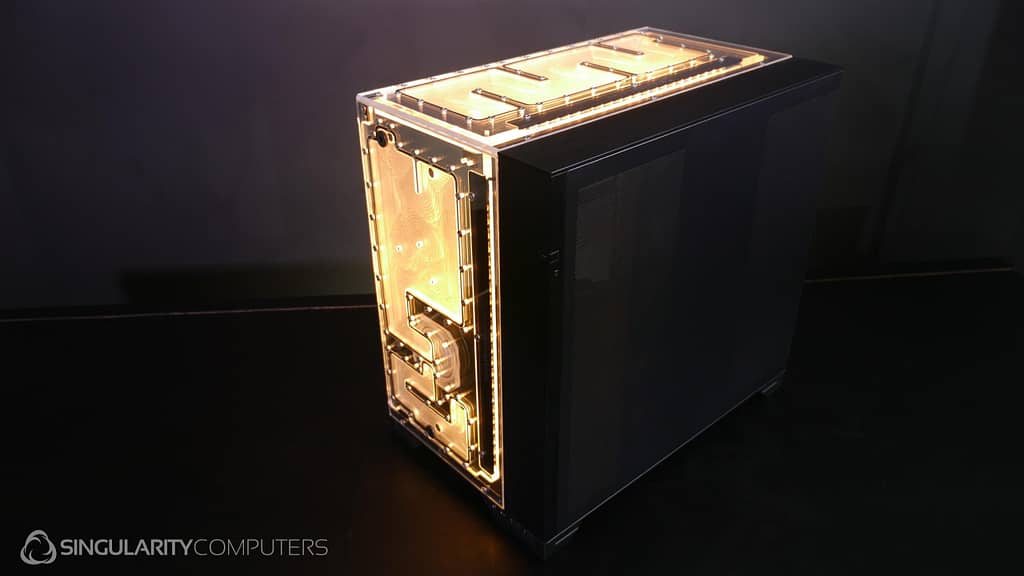

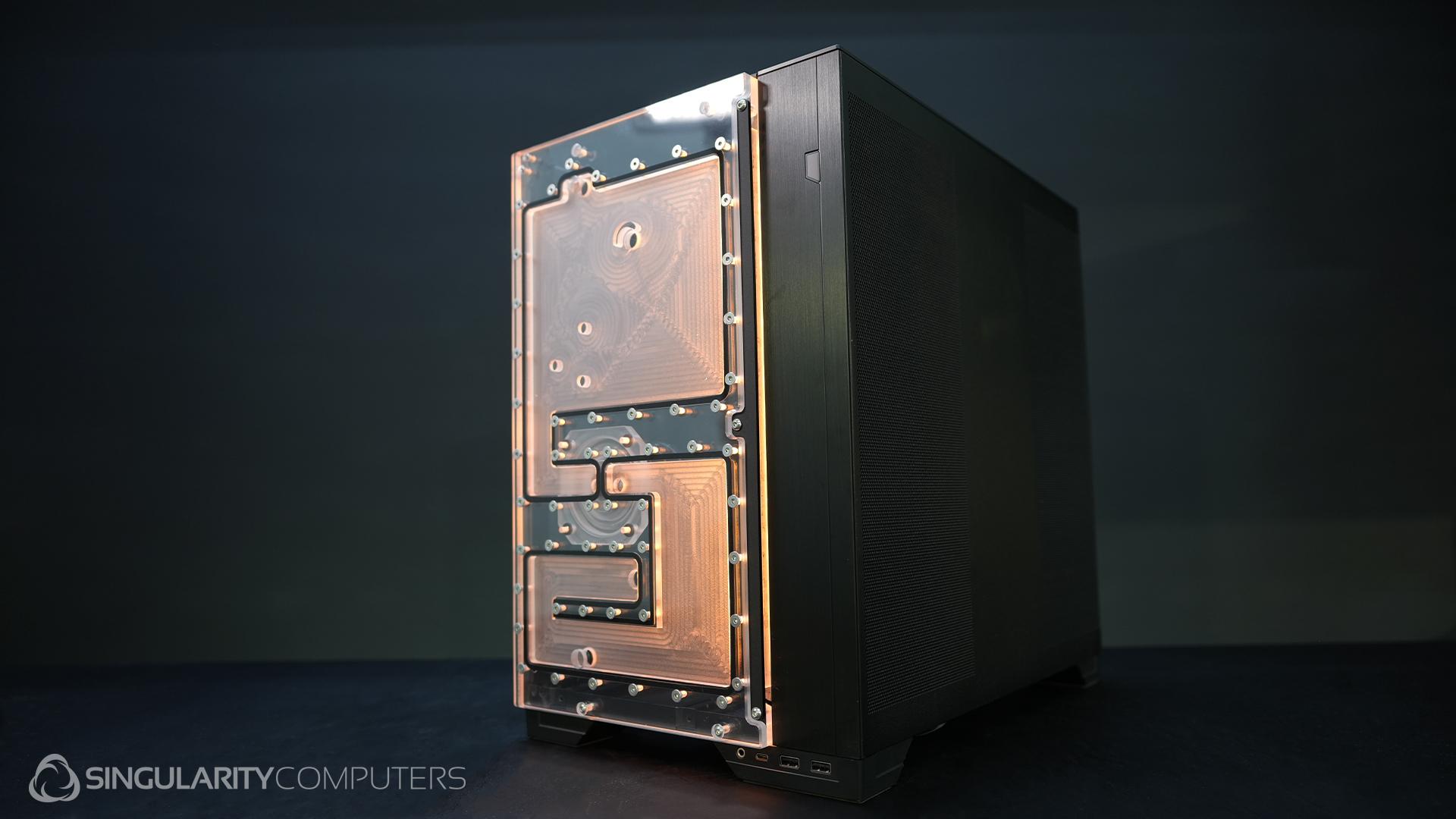

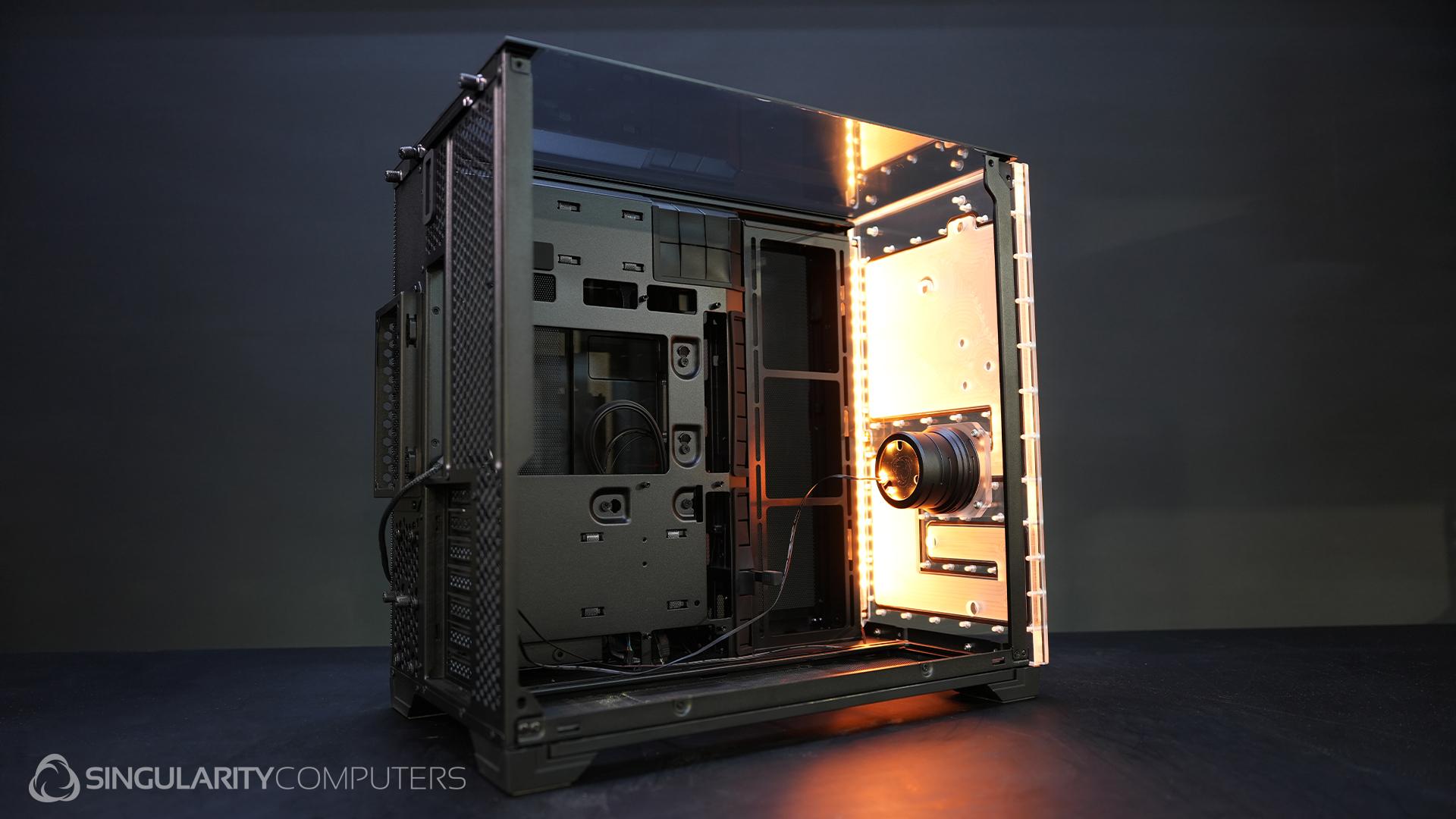

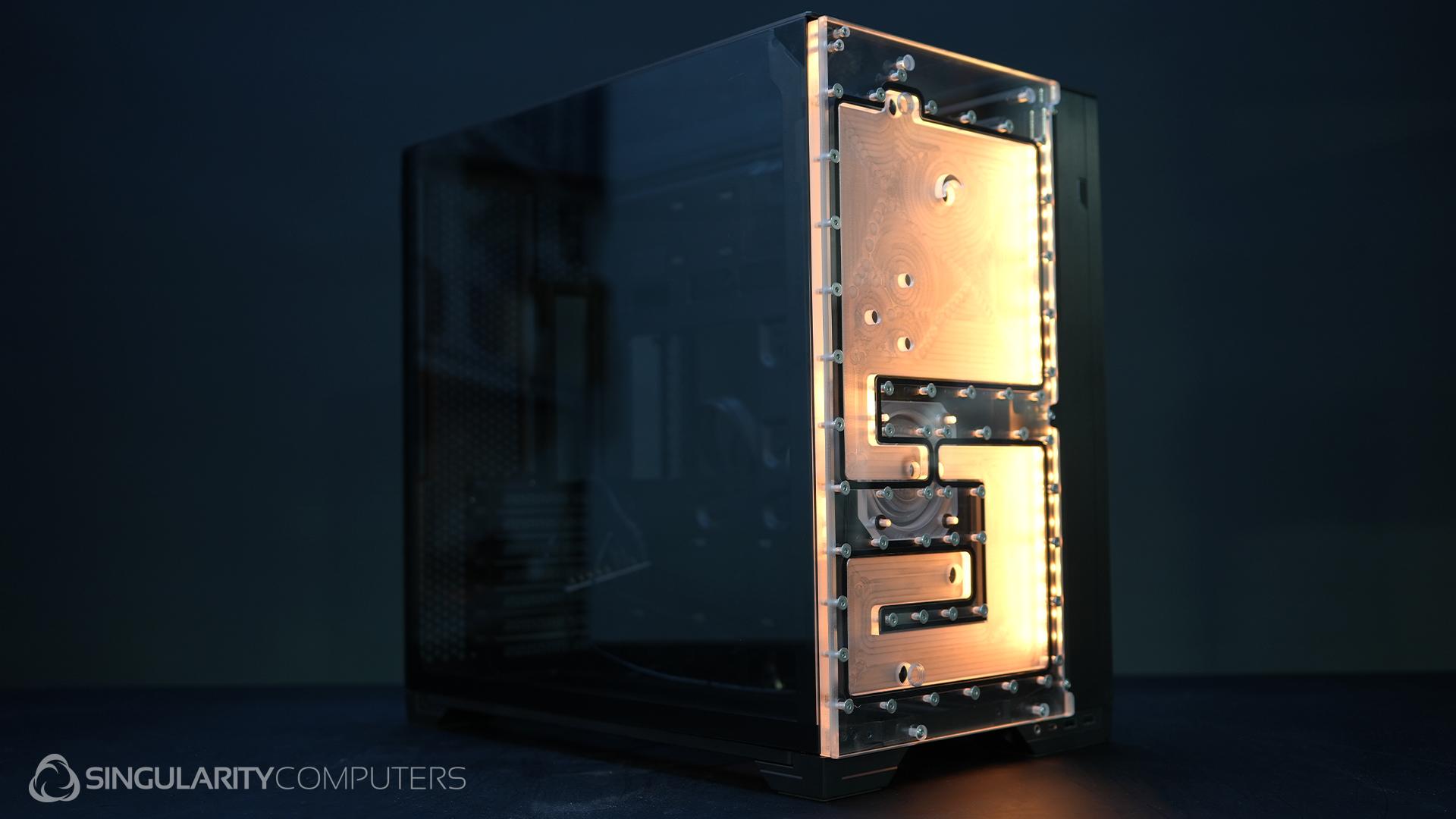

This distribution plate set includes a front and rear panel distribution plate. The front distribution plate replaces the stock tempered glass front panel. The rear distribution plate mounts on the rear fan mounting location above the expansion slots. See installation manual link above.
