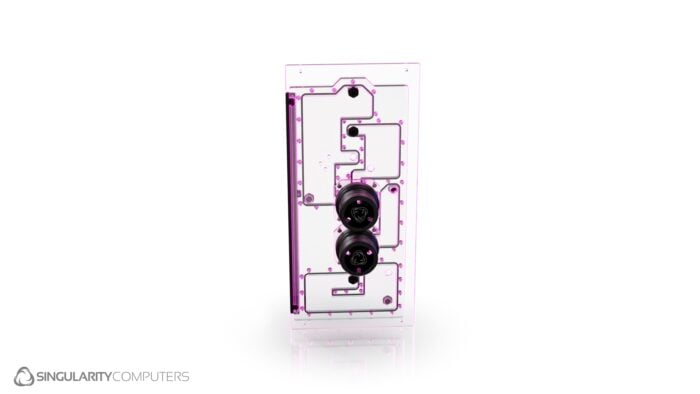

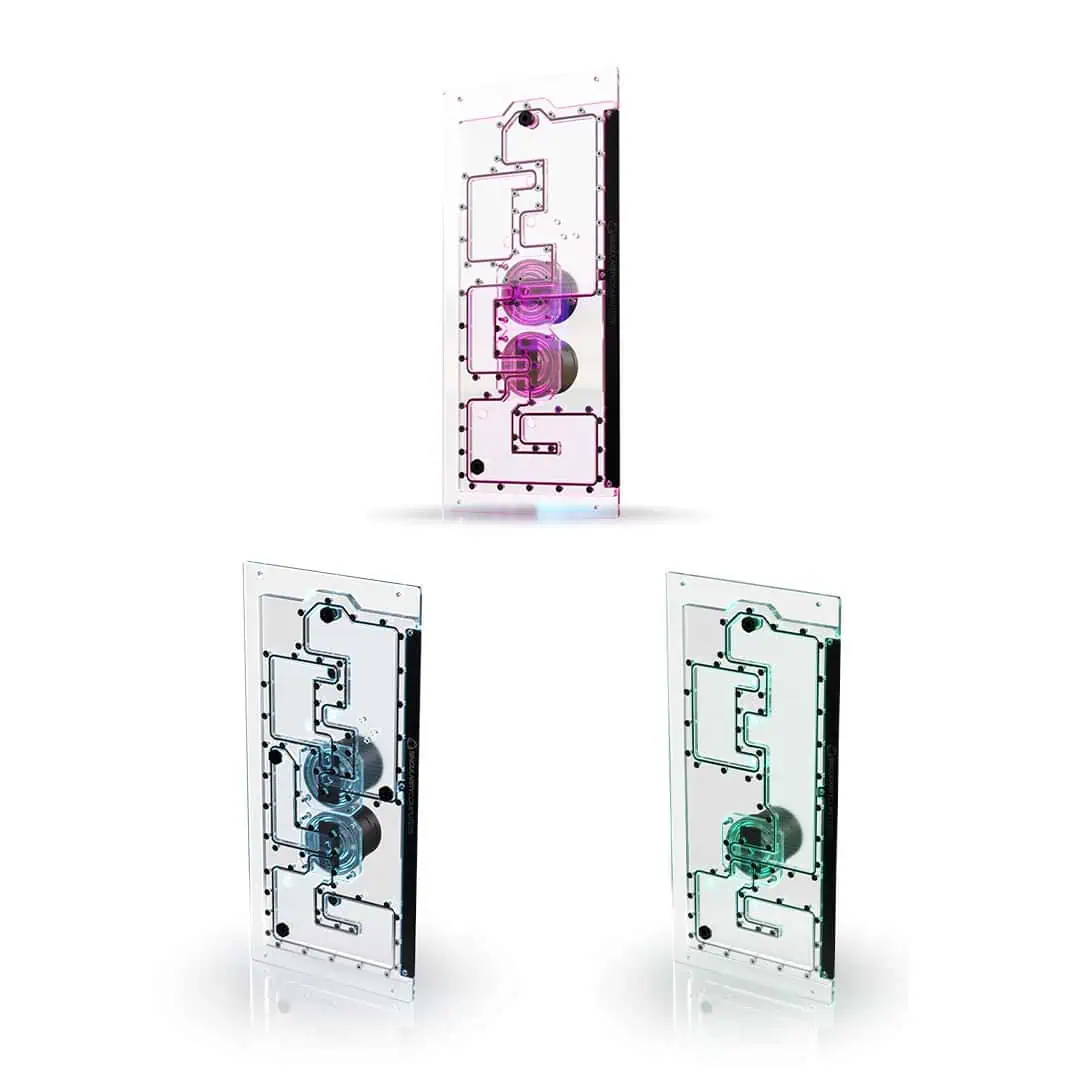

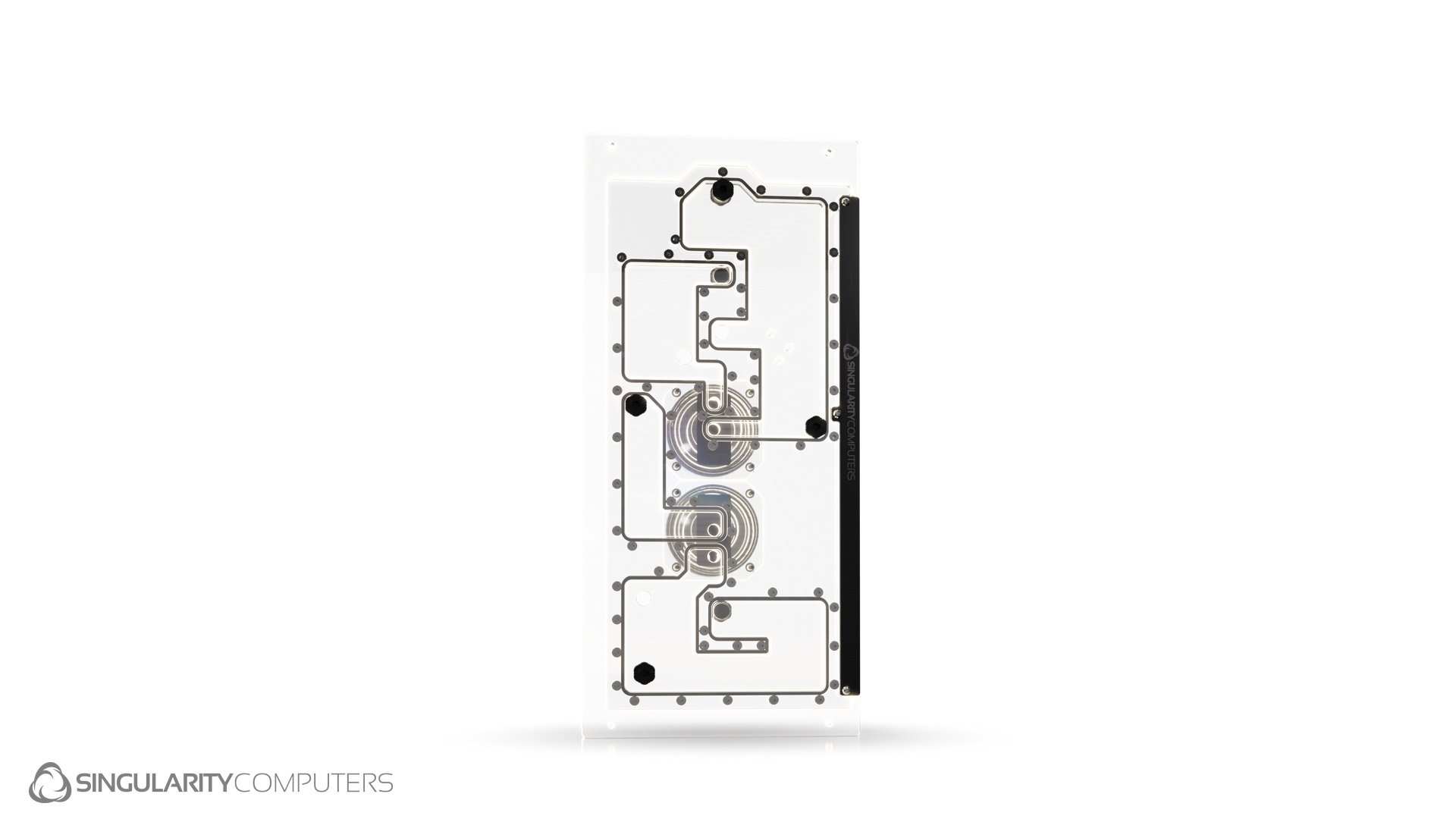

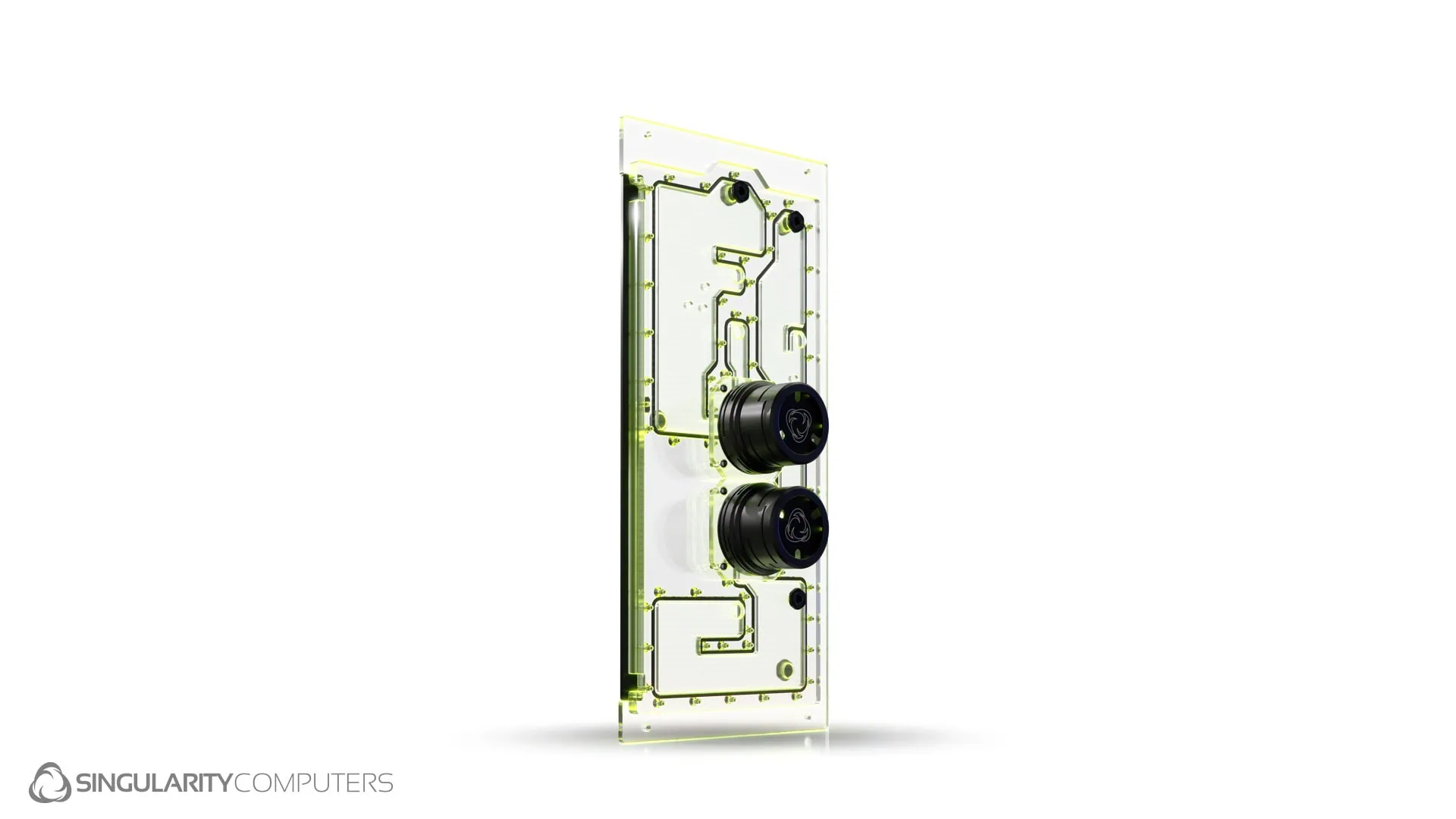

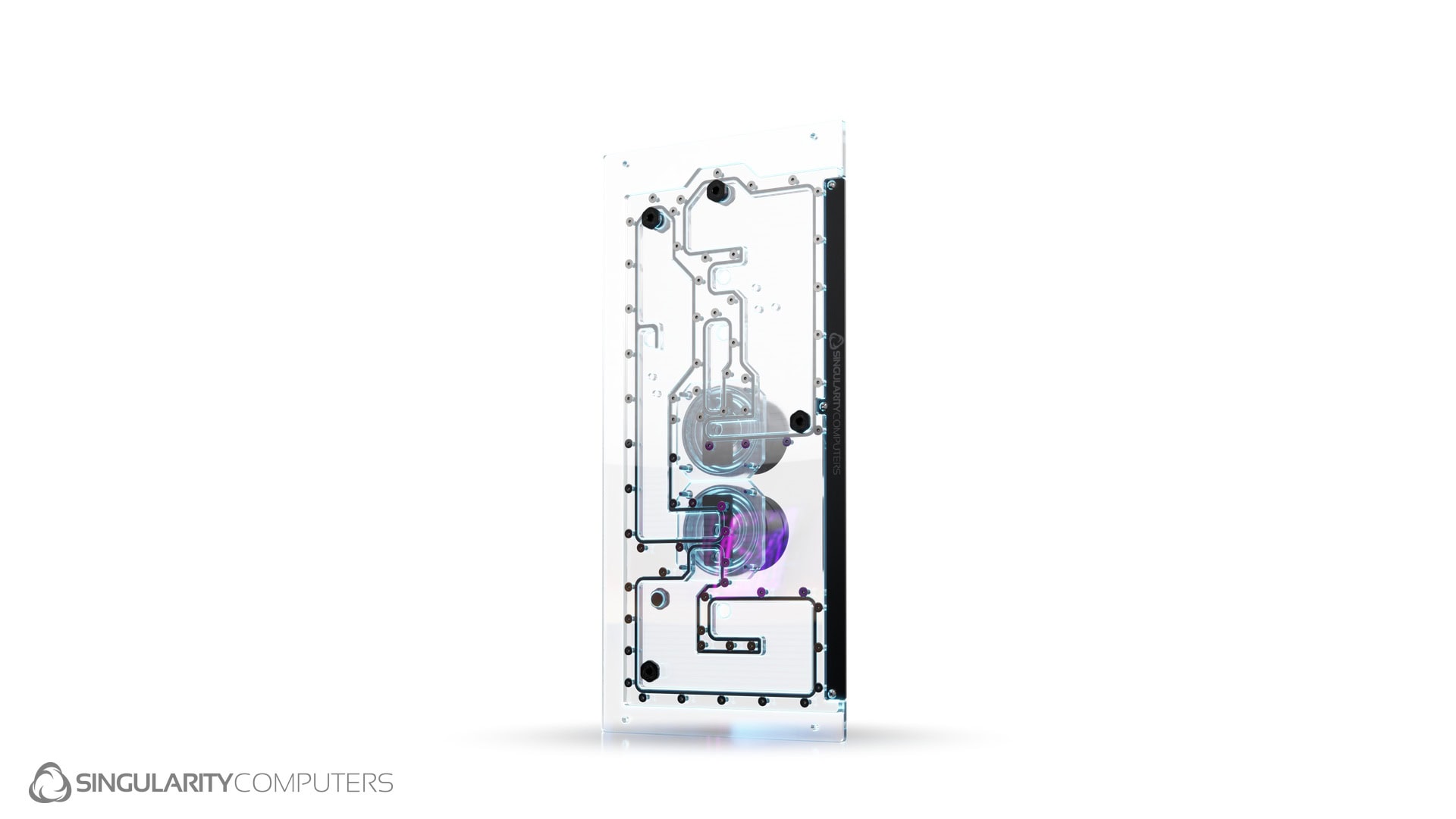

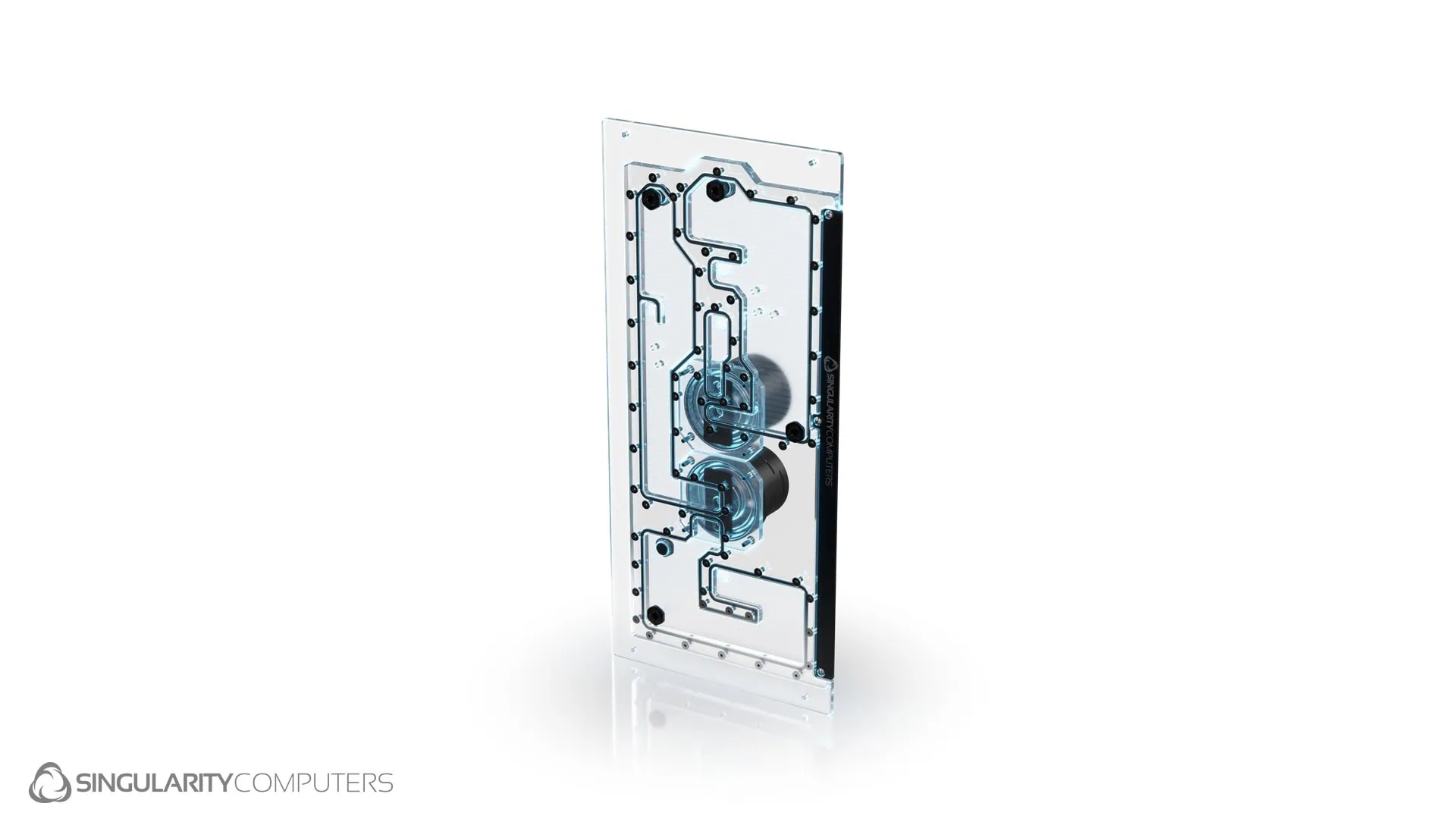

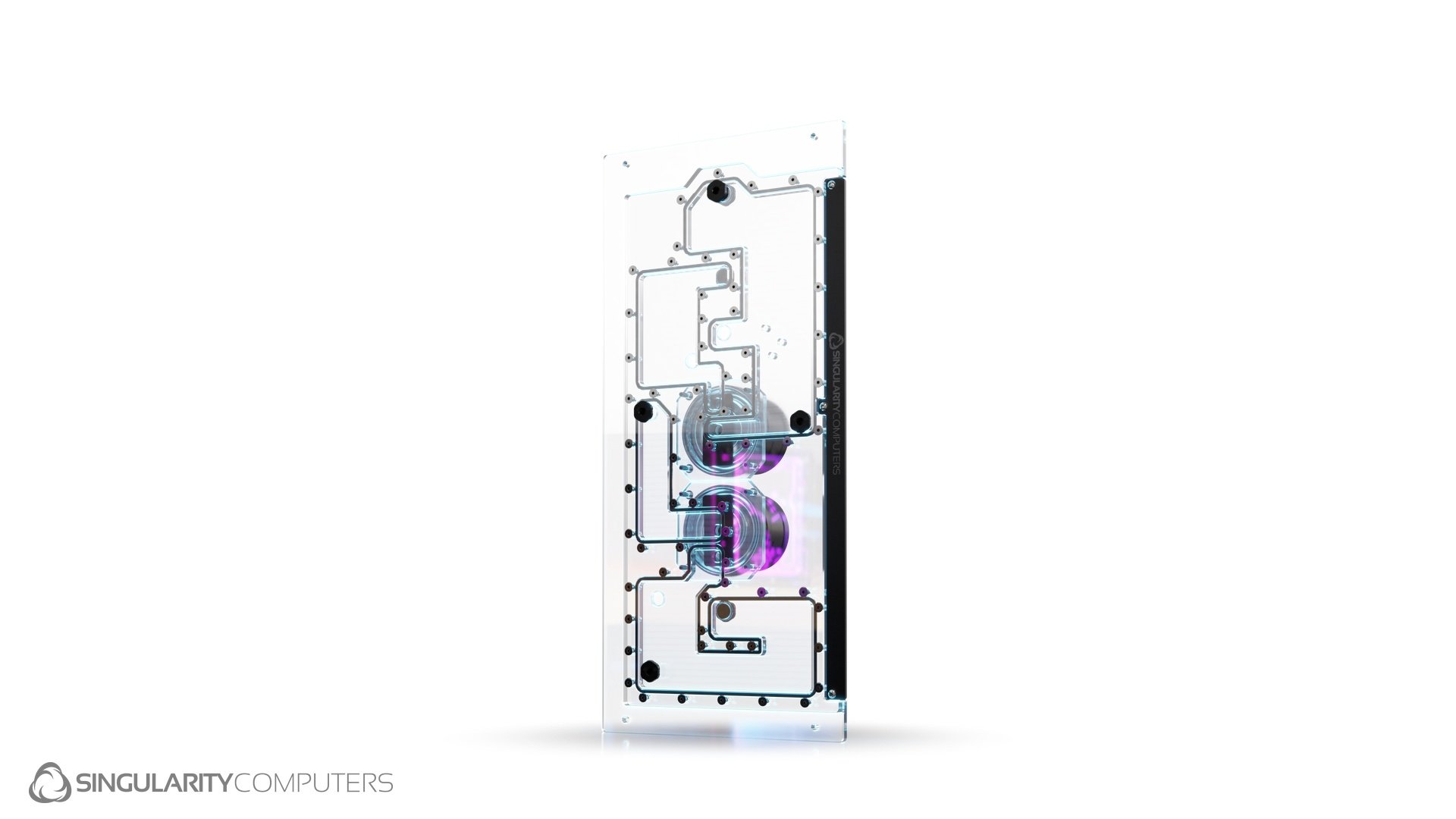

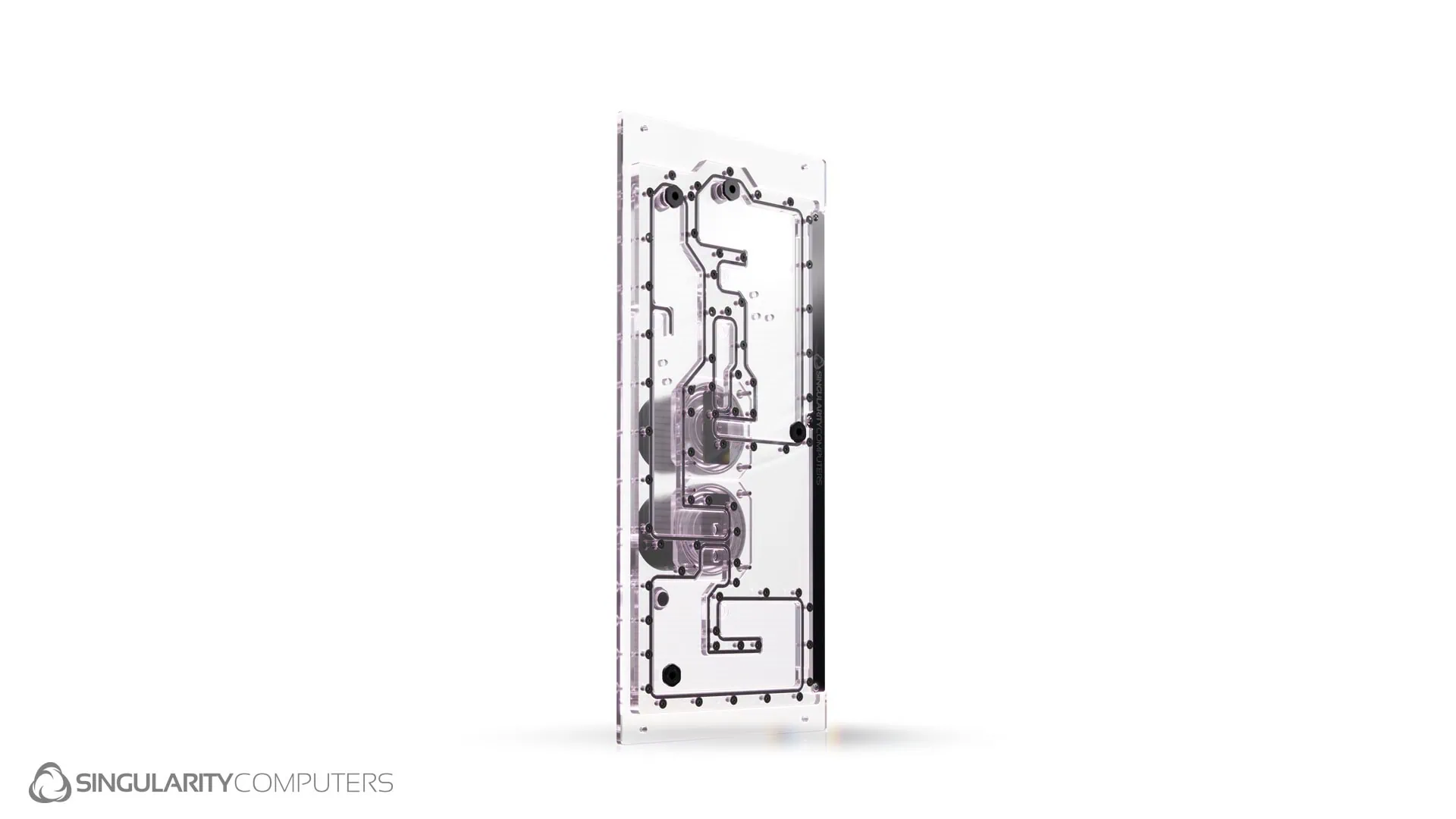

Lian Li PC O11 EVO XL Front Distribution Plate
Order processing time 1-2 days.

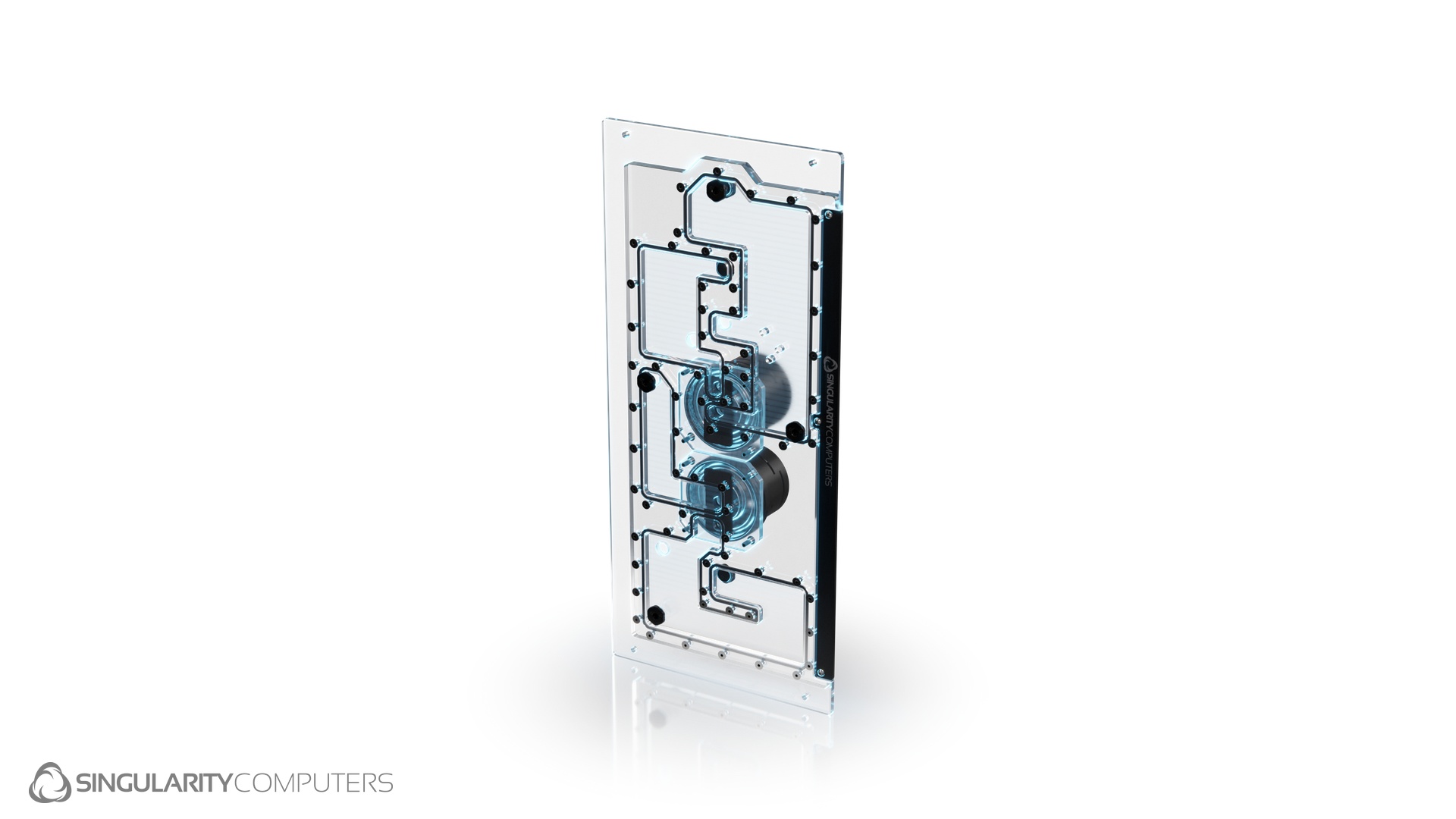

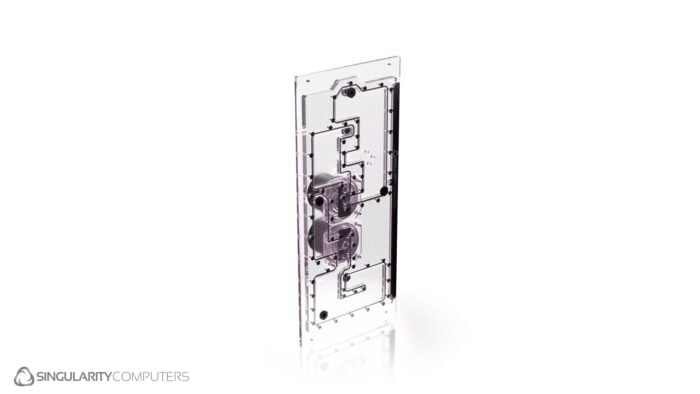

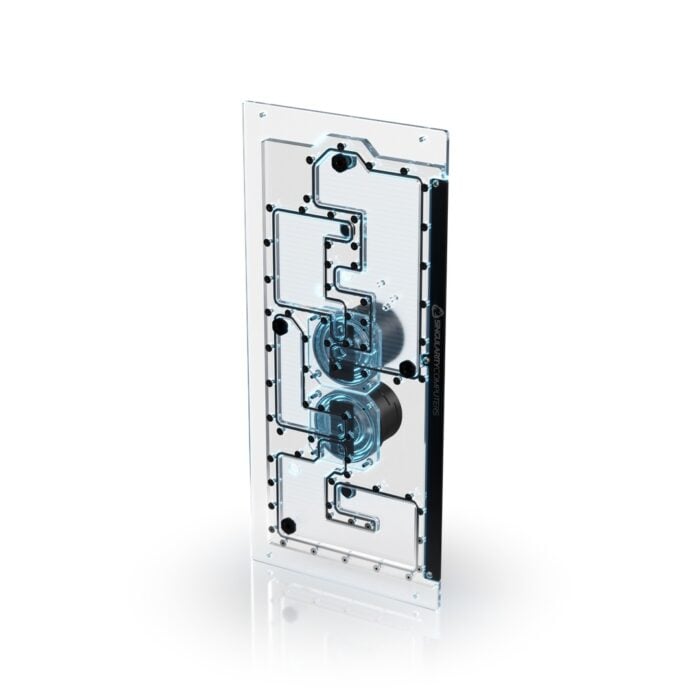

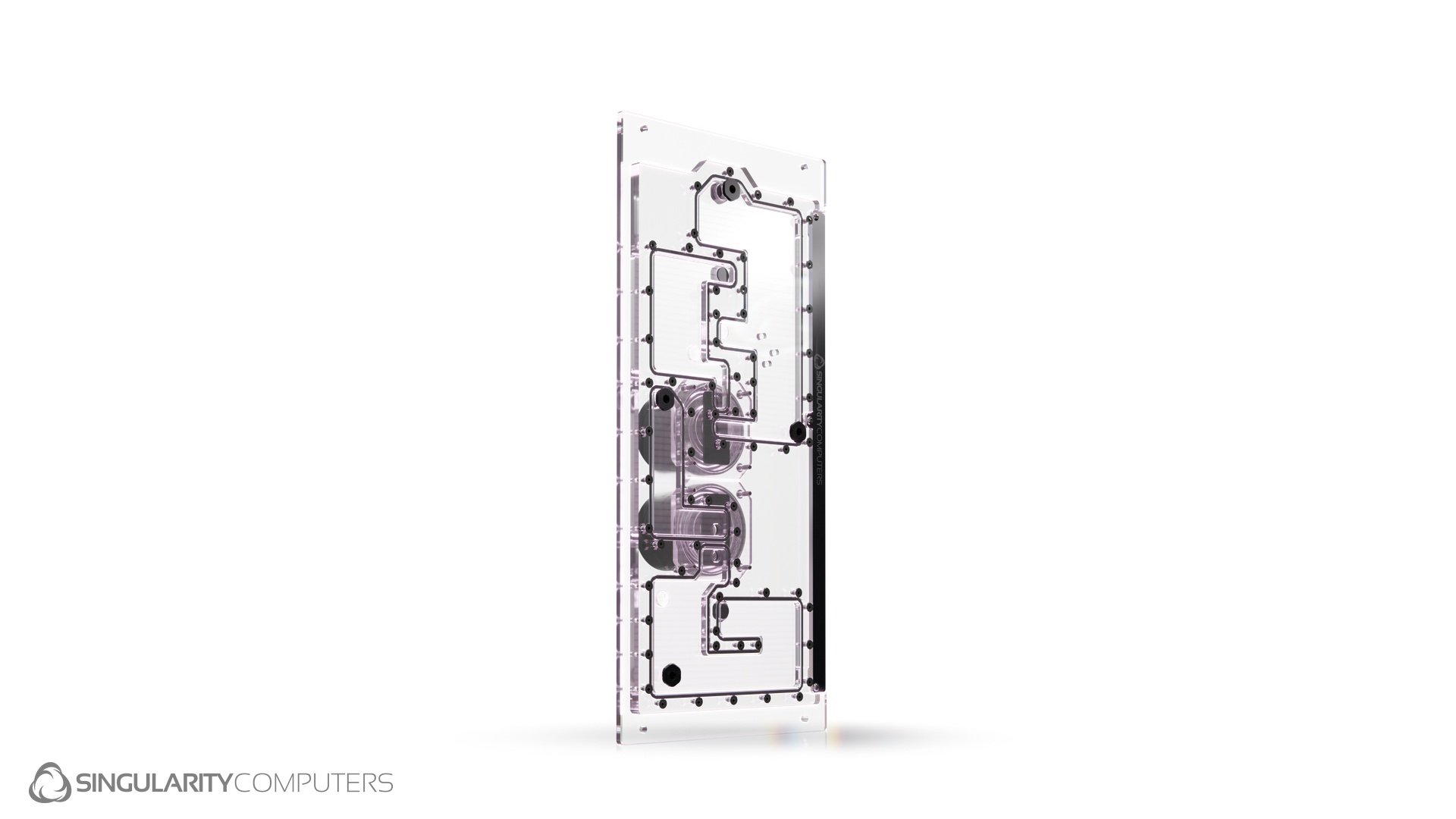

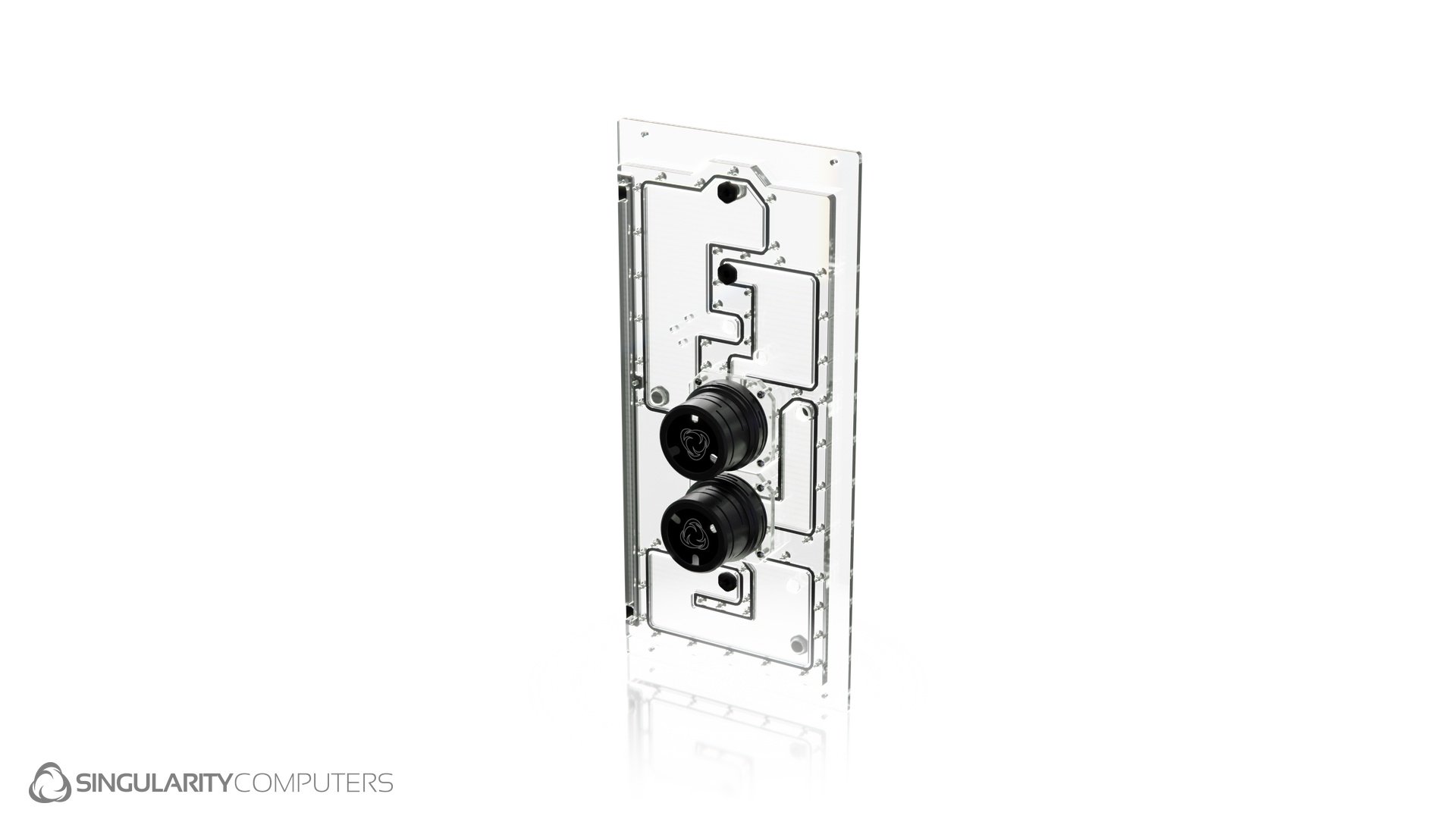

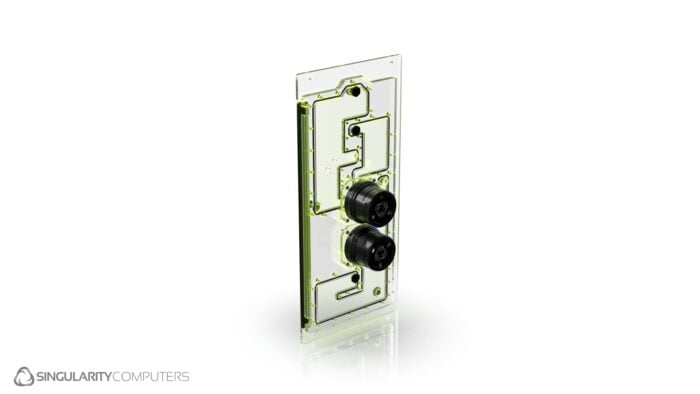

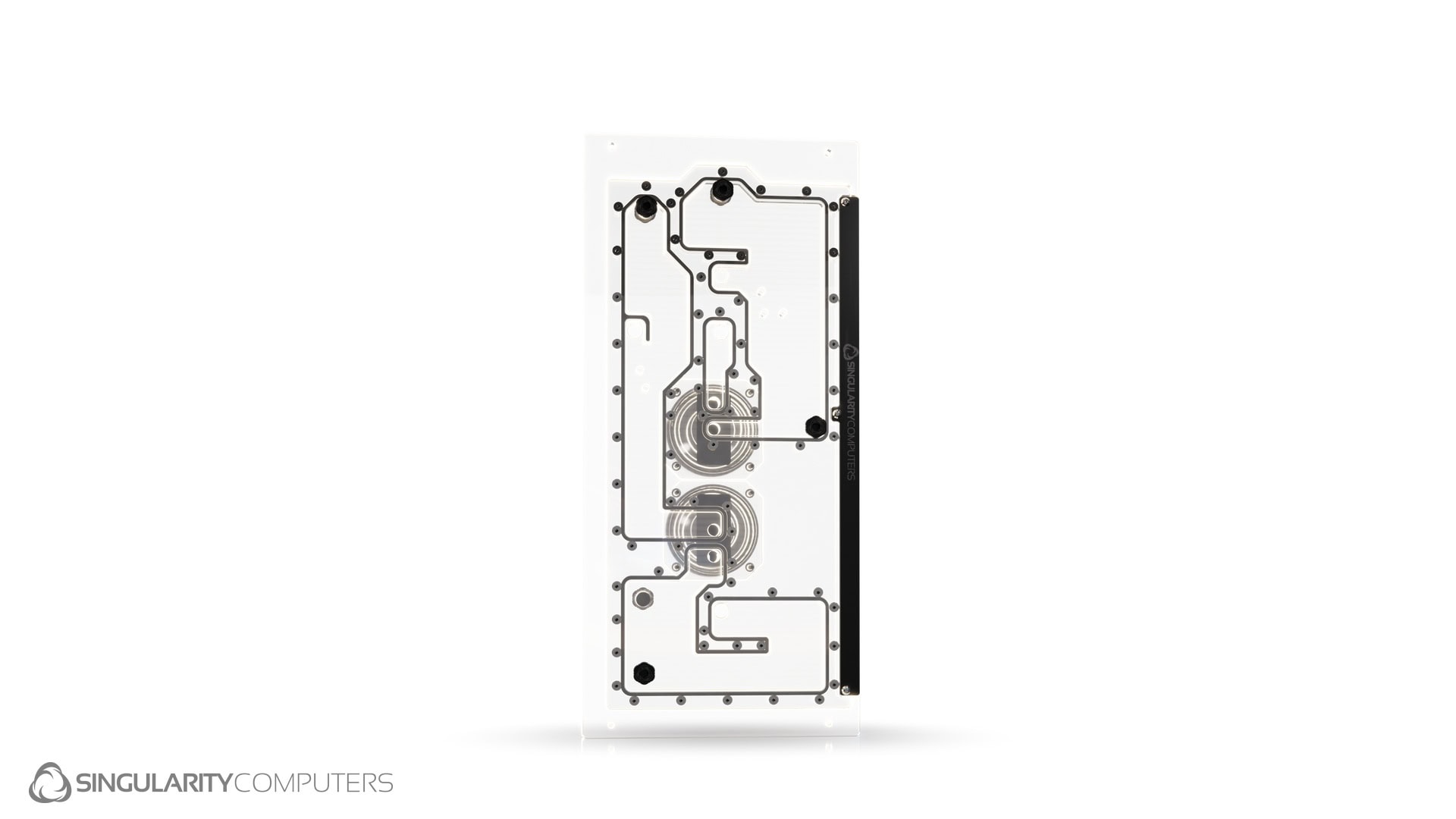

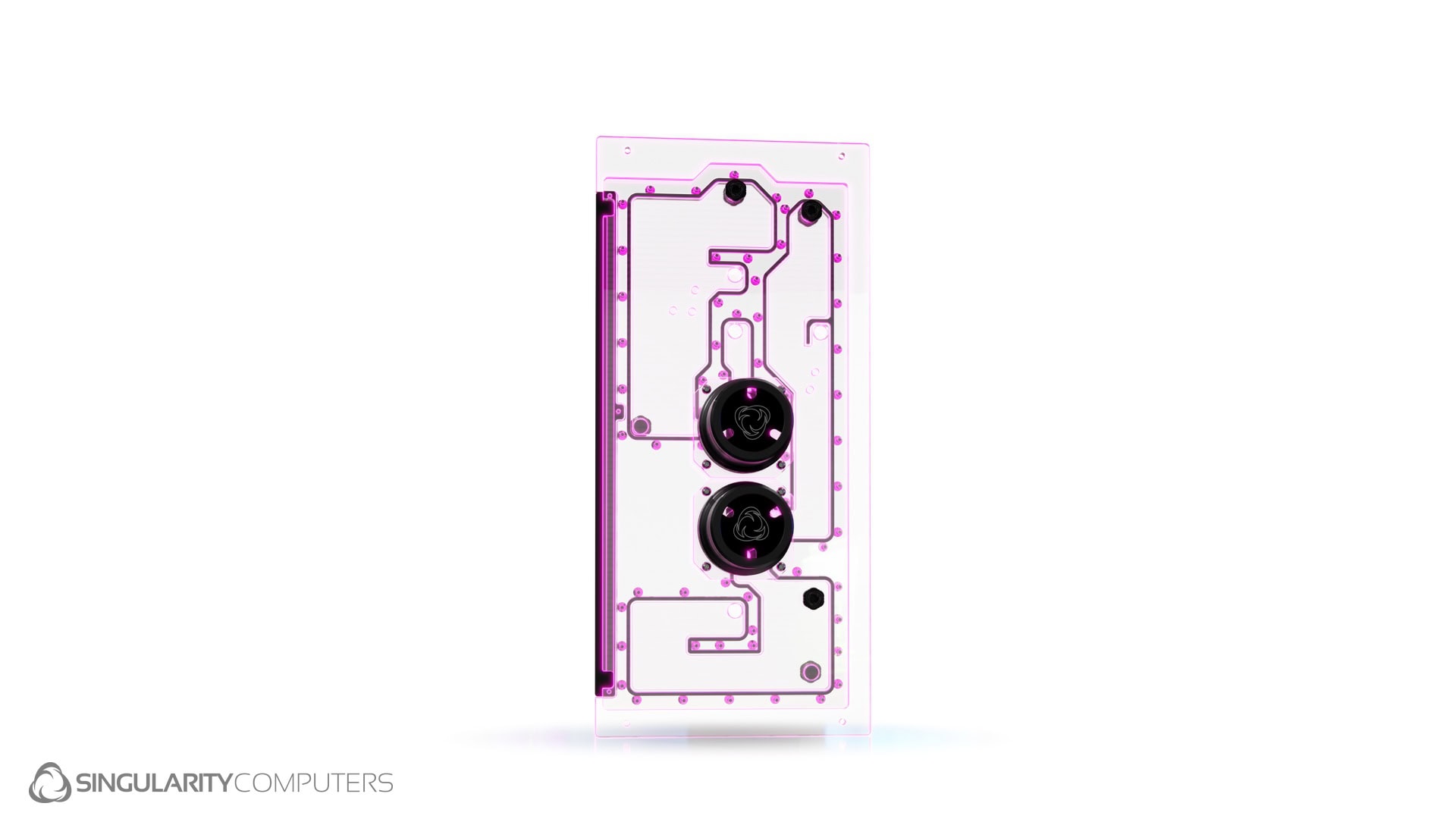

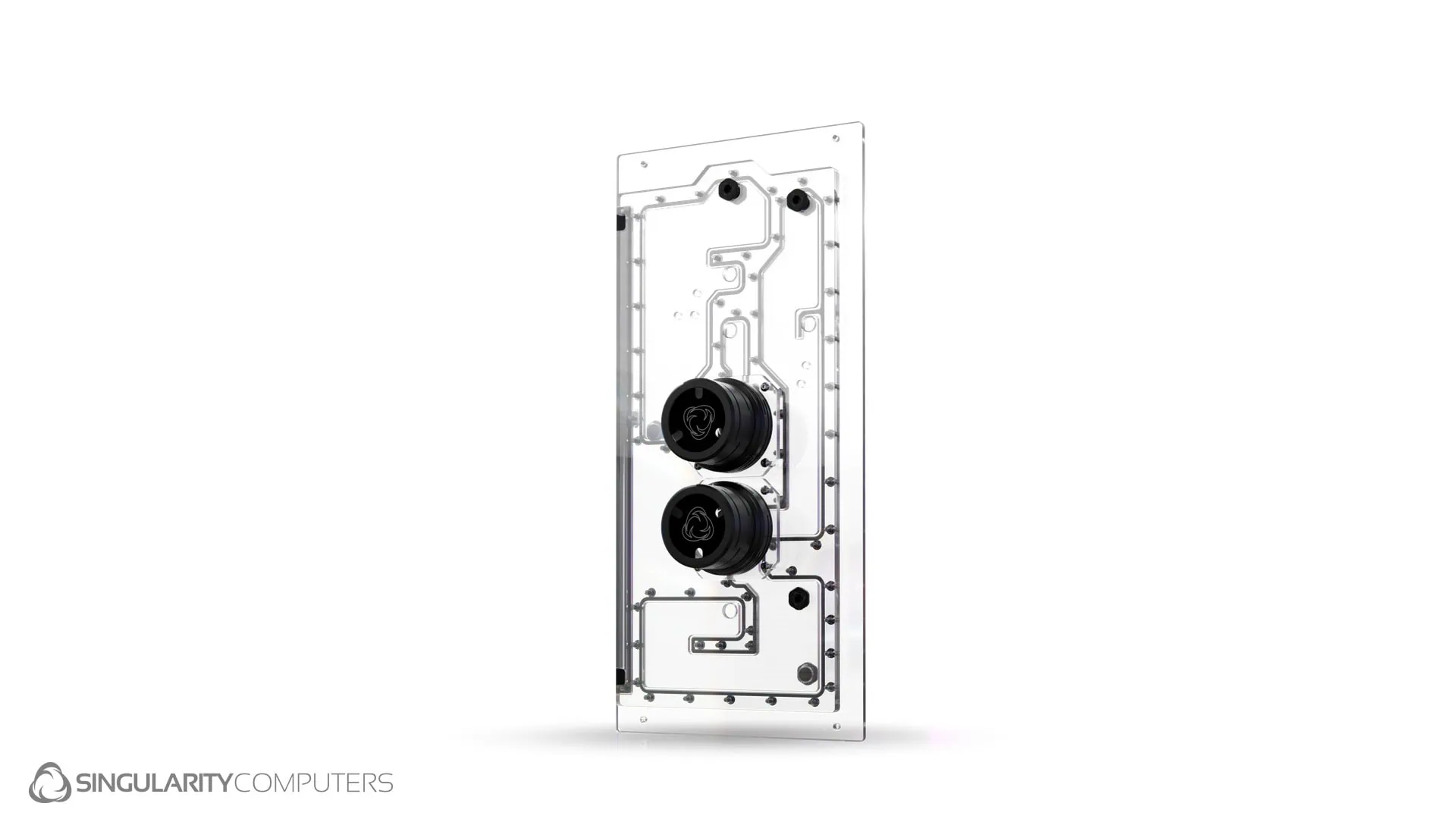

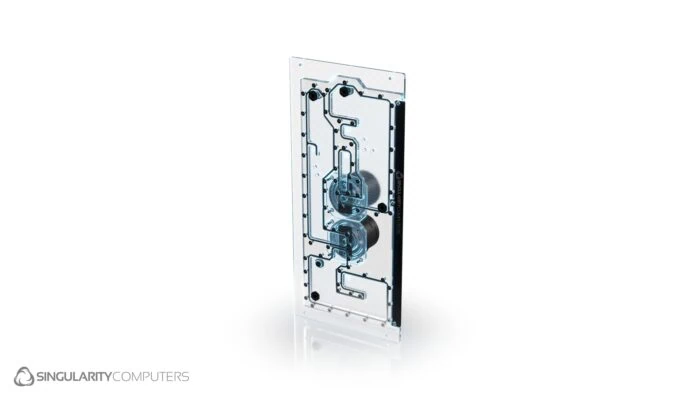

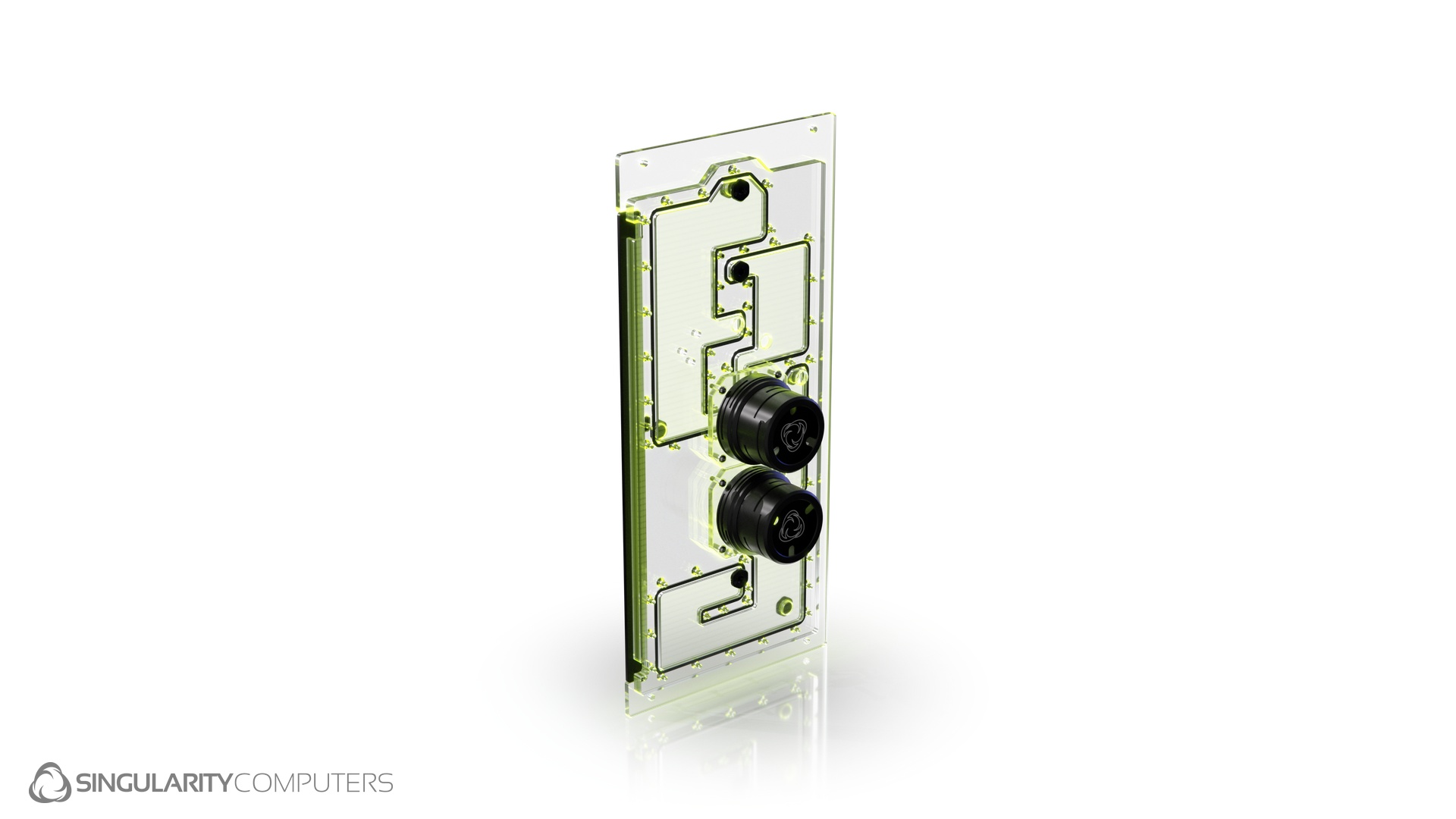

Front Panel Distribution Plate for the Lian Li-O11D XL EVO. It attaches to the front panel and replaces the original glass. It mounts to existing holes to the case so there is no need for modifications. It has an integrated reservoir/s and D5 Pump Top/s. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-rings for increased durability. Hand assembled with stainless steel fasteners. There is an integrated ARGB LED strip with an Accent Cover. Select from the different color options below for the Accent Cover.
Pump not included. Compatible with any D5 Pump.
Note: Lian Li have many case versions, this distribution plate is only compatible with the Lian Li O11 XL EVO.
Compatible with the case in reverse orientation.
US$299.00 US$349.00Price range: US$299.00 through US$349.00
Lian Li O11 EVO XL D5 Reservoir Flow Diagram
Lian Li O11 EVO XL Dual Loop D5 Reservoir Distribution Plate Flow Diagram
Specifications:
Lian Li O11D XL EVO Front Distribution Plate.
Pump Cover/s: CNC Machined Anodized 6061 Aluminum.
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel. M4 x 12mm x4.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router, CNC Lathe, Laser, PCB.
Assembly: Assembled by hand and pressure tested.
Dimensions & Weight:
Lian Li O11D XL EVO Front Dual Loop D5 Reservoir Distribution Plate: L: 400mm x W: 300mm x H: 40mm. 3kg.
Packaged: L: 450mm x W: 350mm x H: 100mm. 4kg.
Lian Li O11D XL EVO Front Dual D5 Reservoir Distribution Plate: L: 400mm x W: 300mm x H: 40mm. 3kg.
Packaged: L: 450mm x W: 350mm x H: 100mm. 4kg.
Lian Li O11D XL EVO Front D5 Reservoir Distribution Plate: L: 350mm x W: 430mm x H: 40mm. 2.5kg.
Packaged: L: 400mm x W: 300mm x H: 40mm. 2.5kg.
Installation:
Install onto the front panel of the Lian Li O11D XL EVO. Replaces the existing glass panel and attaches to existing mounting holes.
