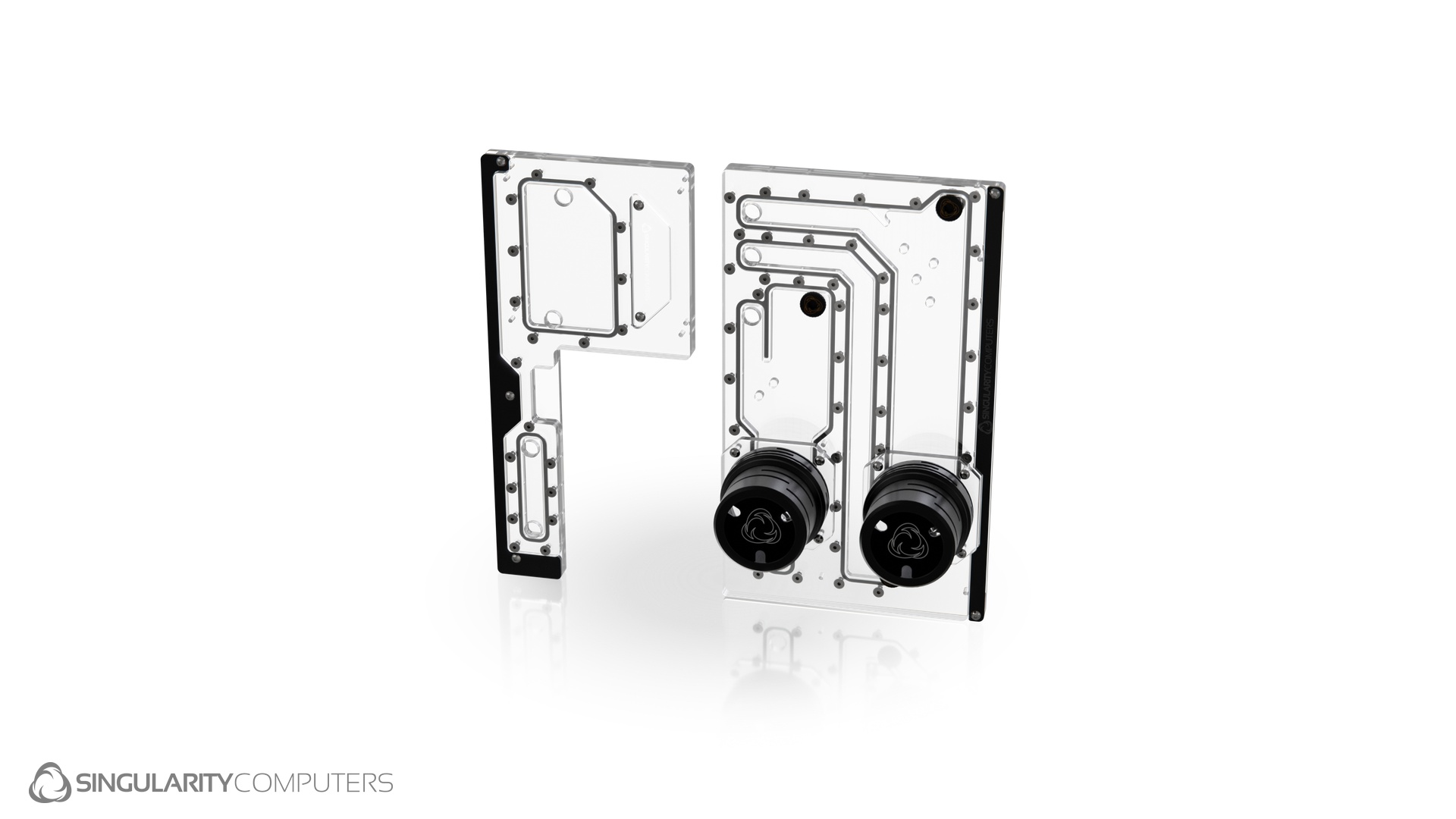

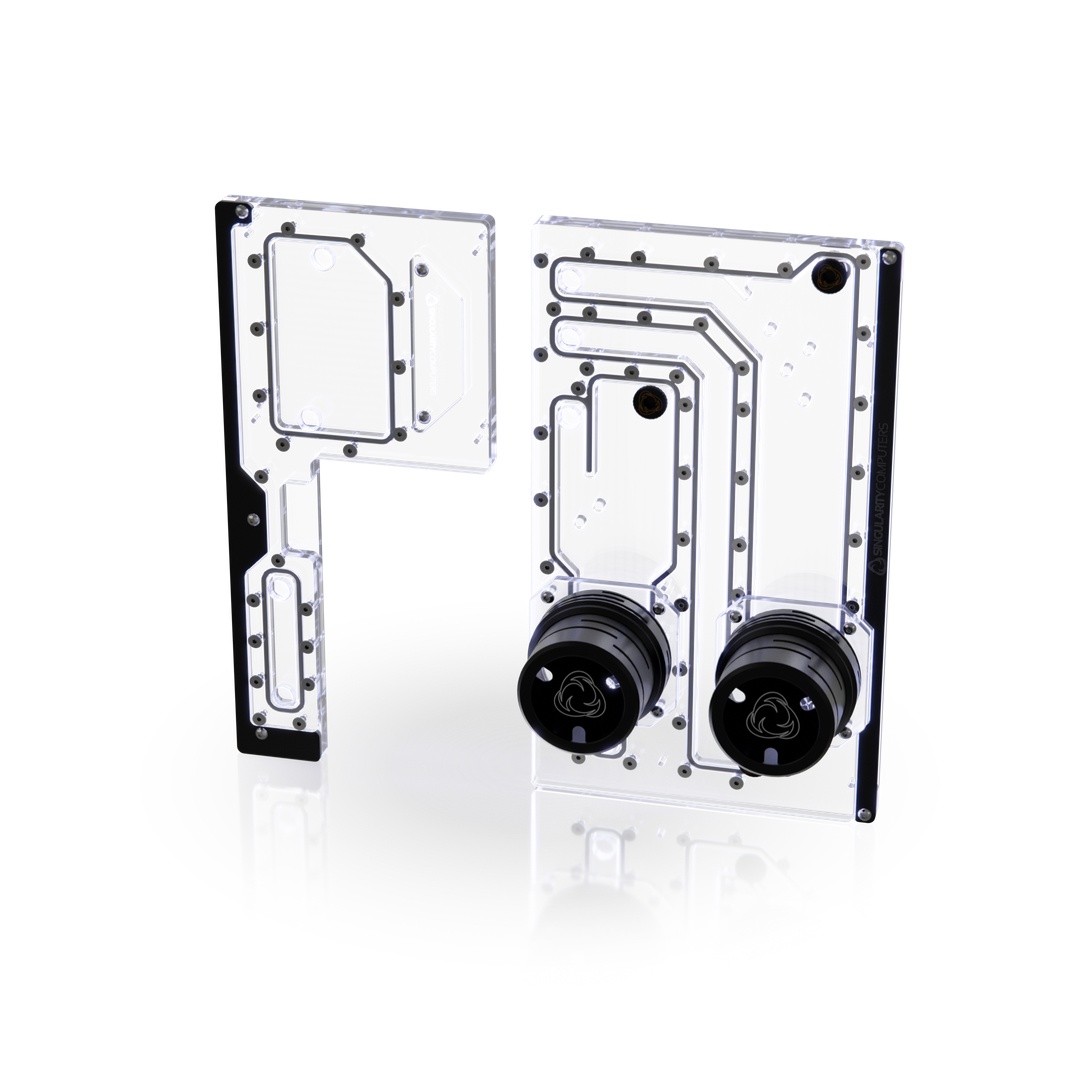

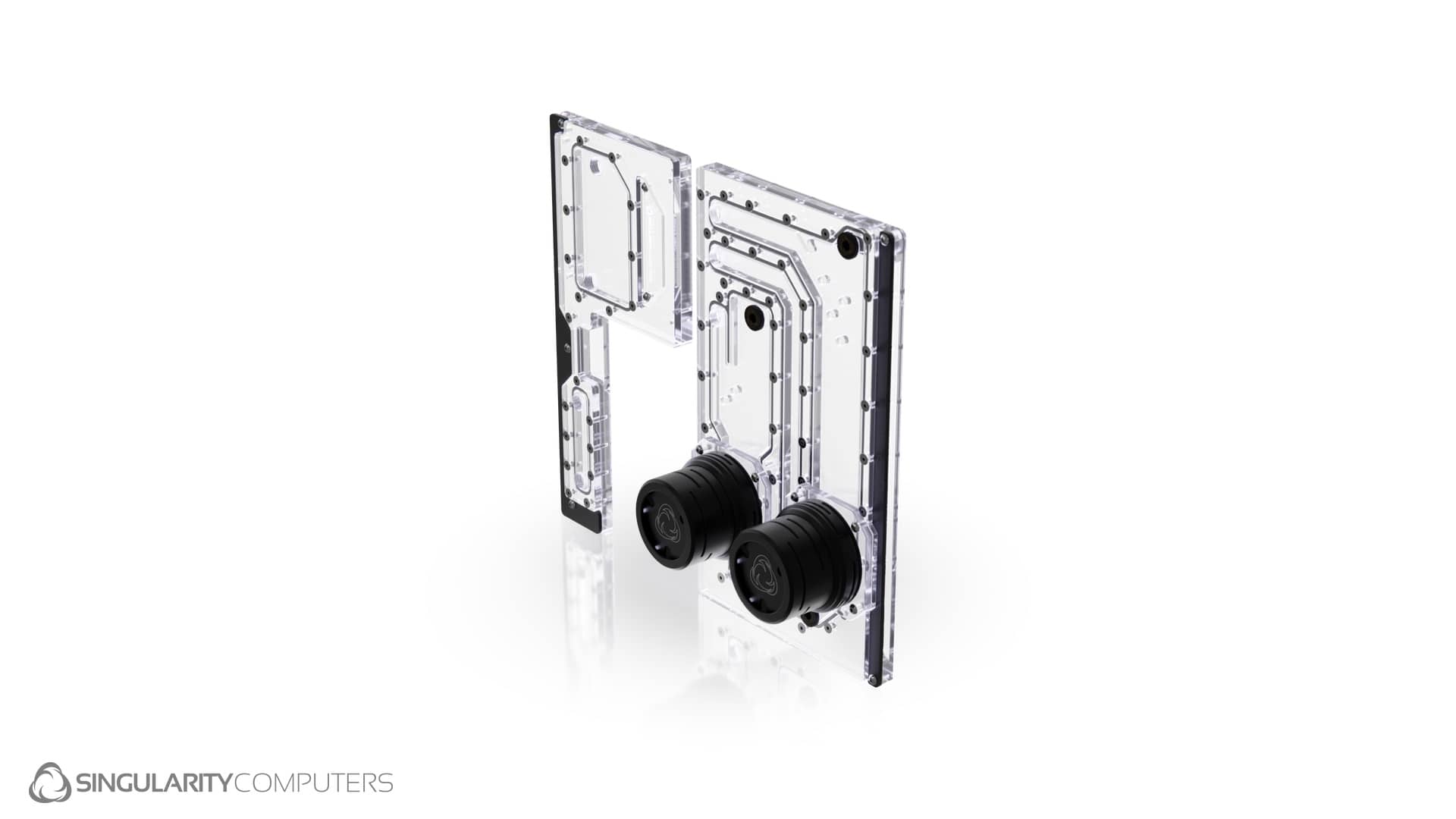

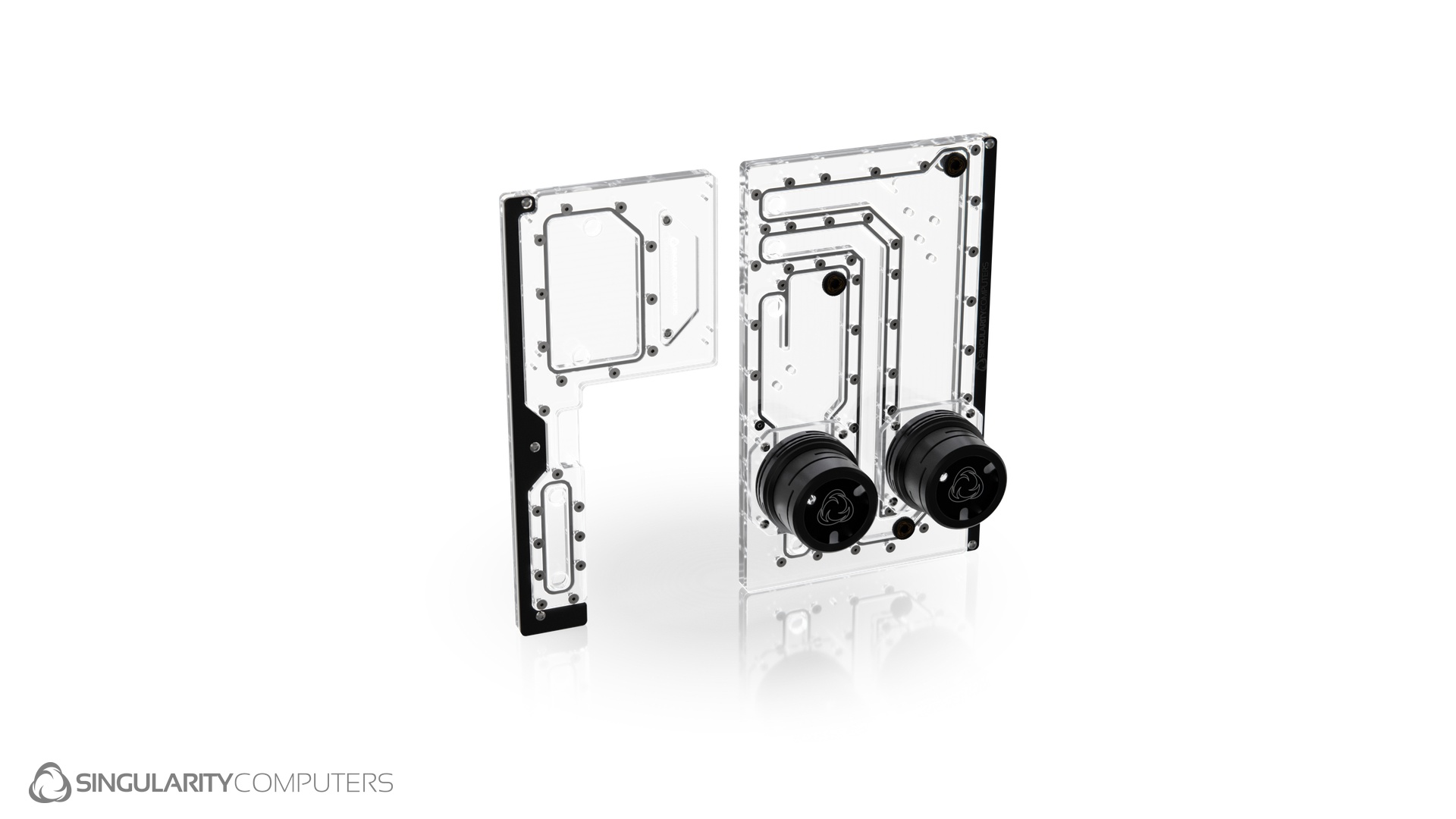

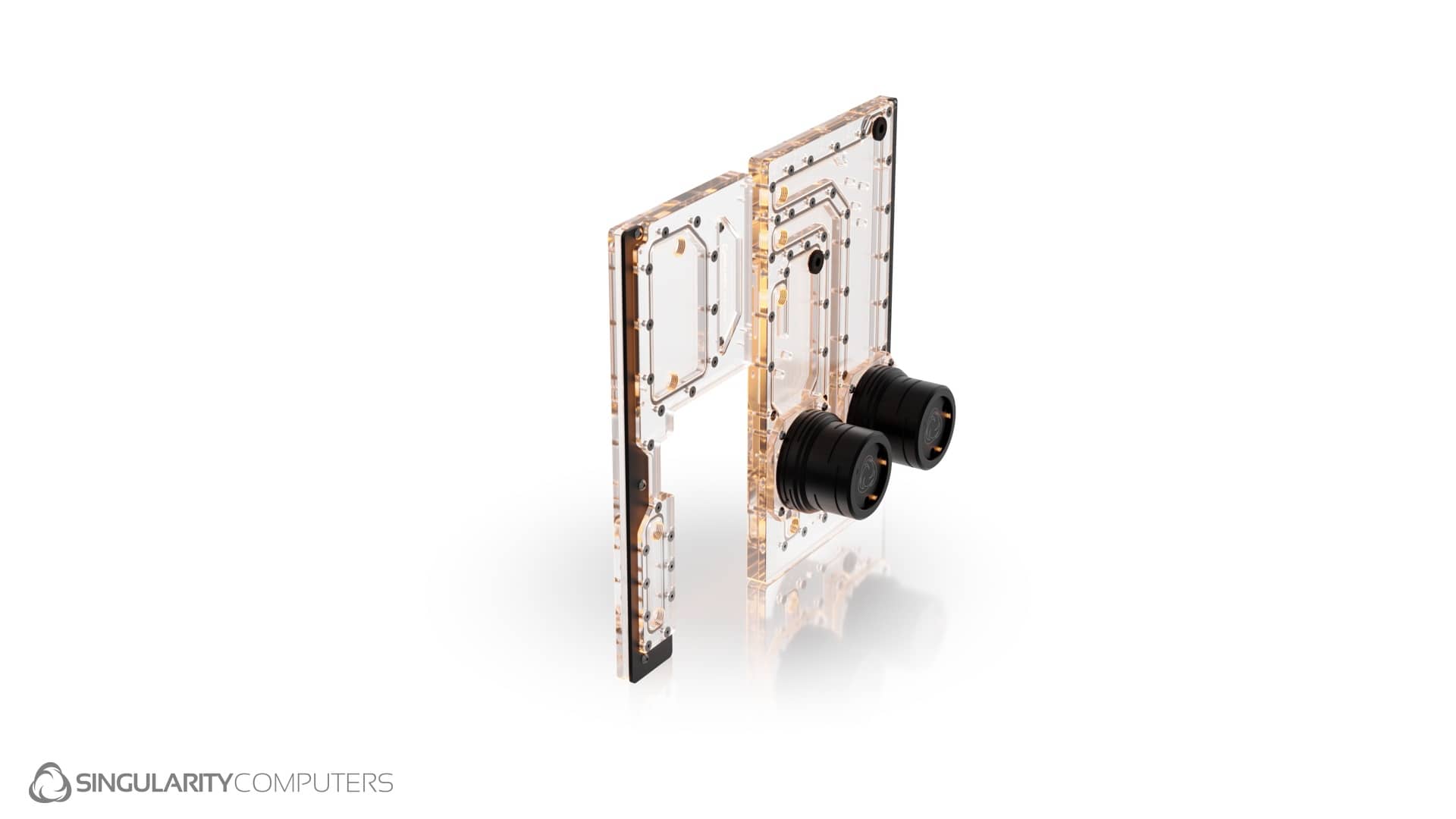

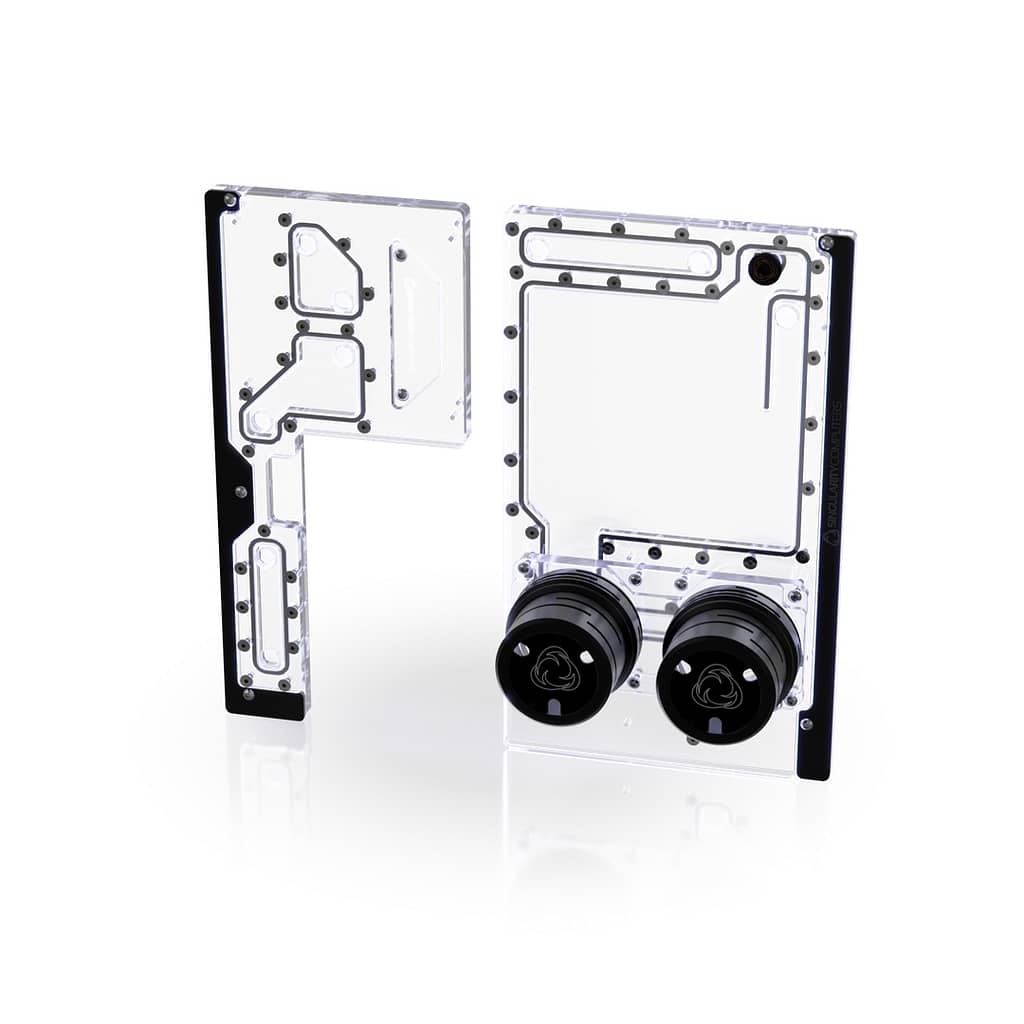

Lian Li V3000+ Dual Loop Distribution Plate Set
The Lian Li V3000+ Dual Loop Distribution Plate Set comes with two distribution plates, a Dual D5 and Dual Reservoir Distribution Plate for installation next to the motherboard, and a Distribution Plate for installation on the rear panel. These distribution plates are designed for the standard case orientation. The D5 pumps and reservoirs are separate for a dual loop configuration with two separate loops. Both Distribution Plates Attach to existing holes on the case, there is no need for modifications. They are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. Designed for maximum reservoir volume to make filling and air removal easier. Each Distribution Plate has an integrated ARGB LED strip with a cover and there are Back Plates included to cover the rear side of the Distribution Plates, select from the different color options below for the covers.
Compatibility: The Single Loop and Dual Loop Distribution Plate Sets can be used with both Mid Distribution Plate versions and are for the standard motherboard orientation. The Rotated Orientation Distribution Plate set is not compatible with the Mid Distribution Plate Sets and is designed for the rotated motherboard orientation.
Pumps not included. Compatible with any D5 Pumps.
US$129.00 – US$429.00Price range: US$129.00 through US$429.00

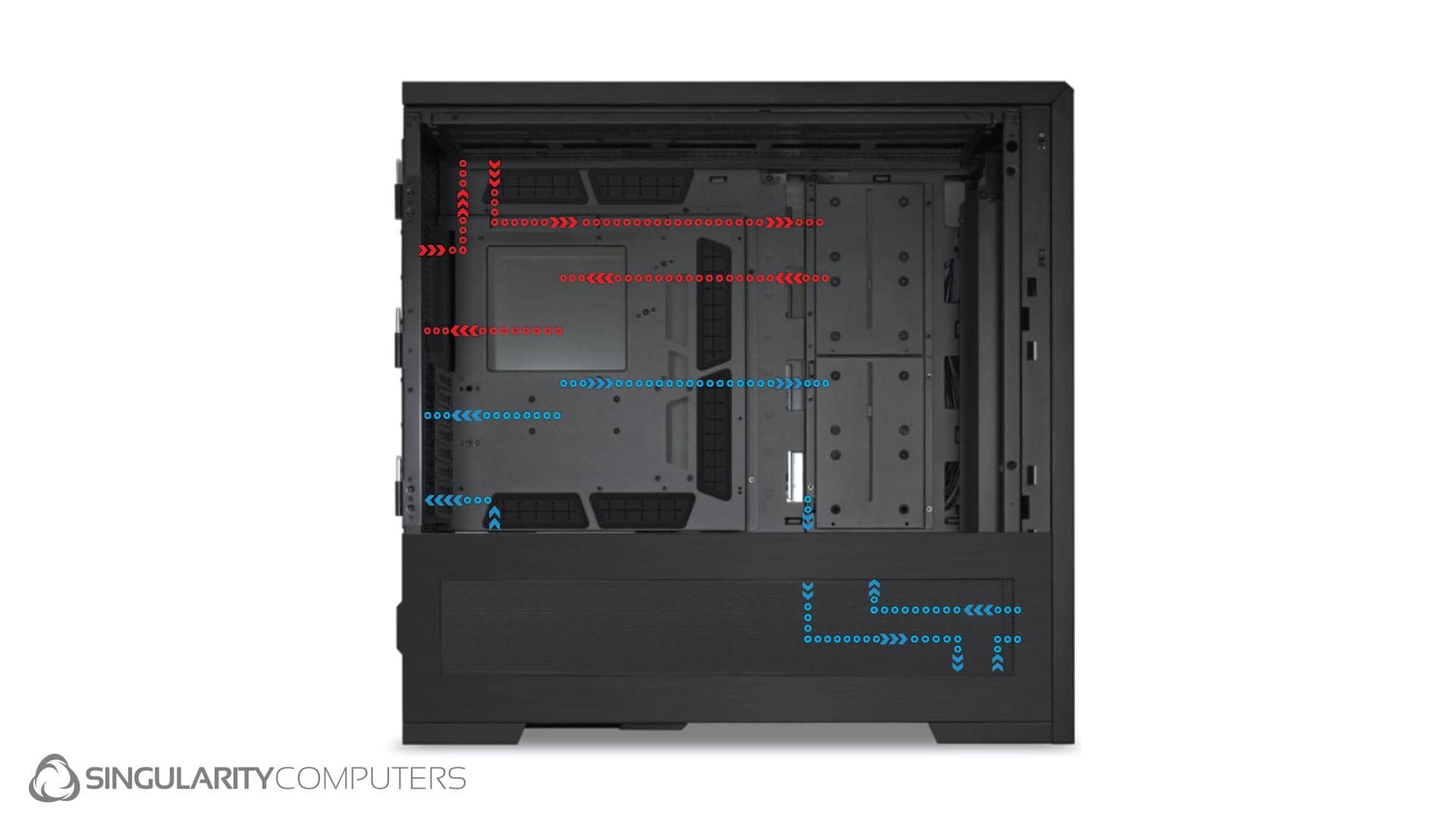

Lian Li V3000+ Dual Loop Distribution Plate Set Flow Diagram
Specifications:
Lian Li V3000+ Dual Loop Distribution Plate Set. These Distribution Plates can be purchased together or they can be purchased separately (select above).
Lian Li V3000+ Dual D5, Dual Reservoir Distribution Plate.
Lian Li V3000+ Dual D5, Dual Reservoir Distribution Plate Back Cover (select color/finish above).
Lian Li V3000+ Dual Loop Rear Distribution Plate.
Lian Li V3000+ Dual Loop Rear Distribution Plate (select color/finish above).
Integrated Reservoirs x2.
Integrated D5 Pump Top x2.
D5 Pump Cover CNC Machined Anodized Aluminum x2 (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
D5 O-Rings: Silicone Clear x2.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dual Loop Distribution Plate Set
Packaged Dimensions: L: 500mm x W: 300mm x H: 50mm.
Packaged Weight: 4kg.
Dual Loop D5 Reservoir Distribution Plate
Packaged Dimensions: L: 500mm x W: 300mm x H: 50mm.
Packaged Weight: 3kg.
Dual Loop Rear Distribution Plate
Packaged Dimensions: L: 300mm x W: 200mm x H: 50mm.
Packaged Weight: 1kg.
Installation:
Install into the Lian Li V3000+ next to the motherboard and install the Lian Li V3000+ Rear Distribution Plate on the rear panel above the expansion slots. Align with existing mounting holes on the case and use the included M4 x 12mm Fasteners to attach the Distribution Plate.

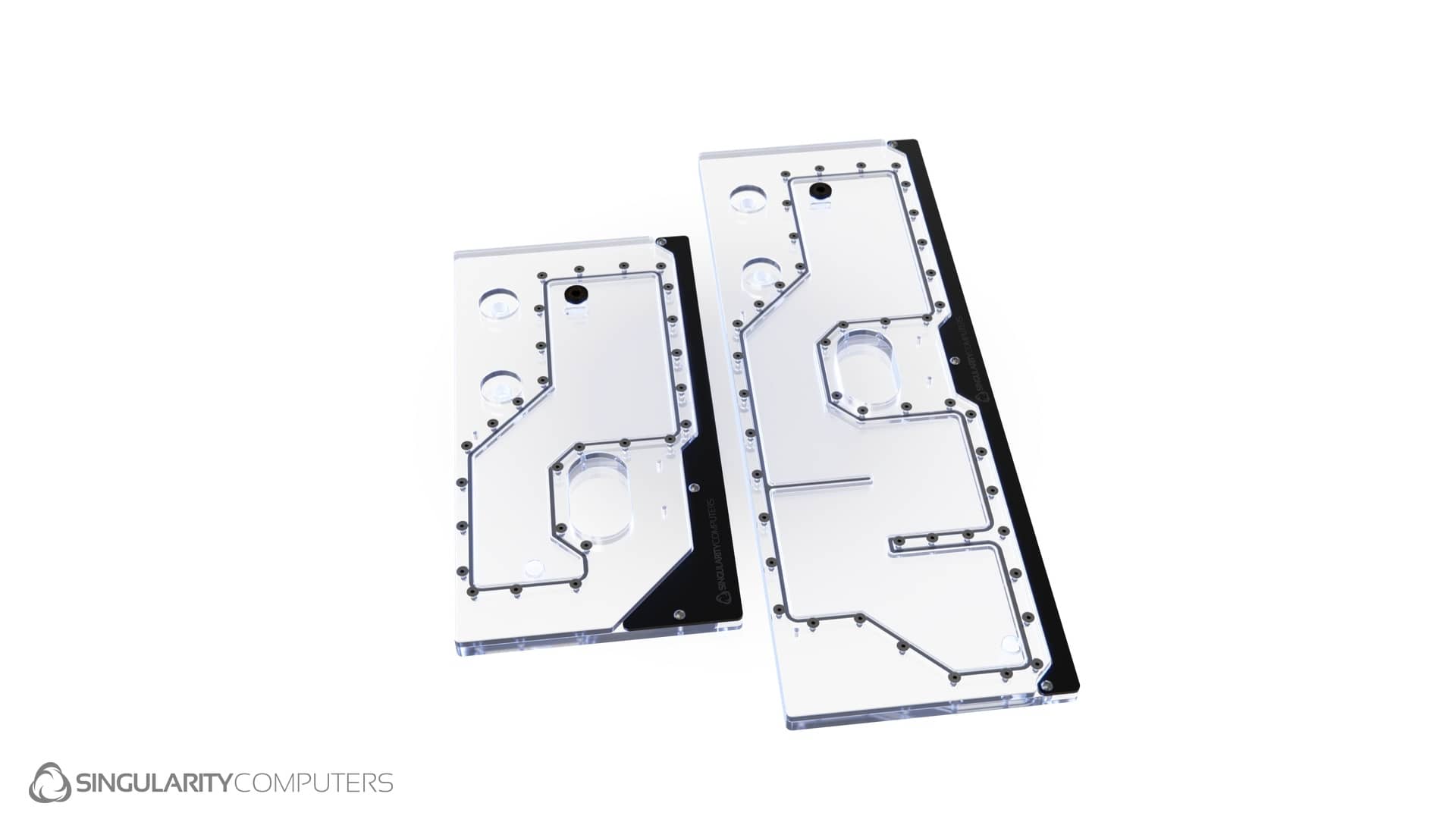

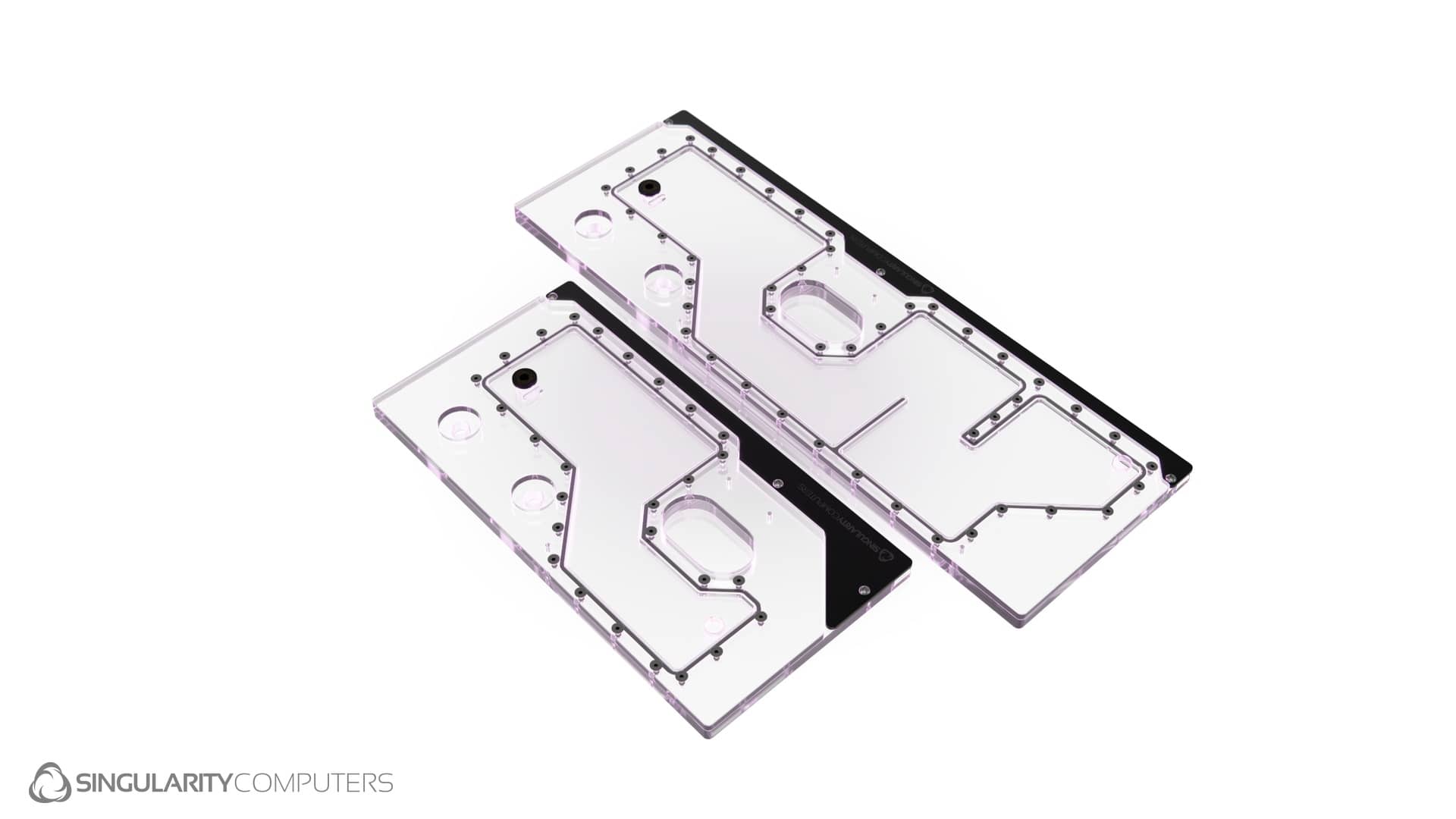

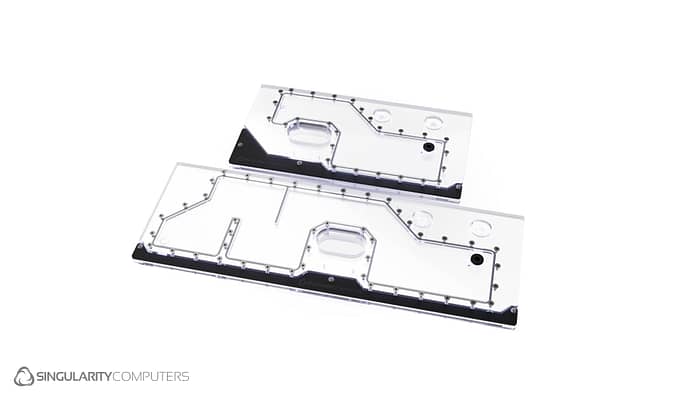

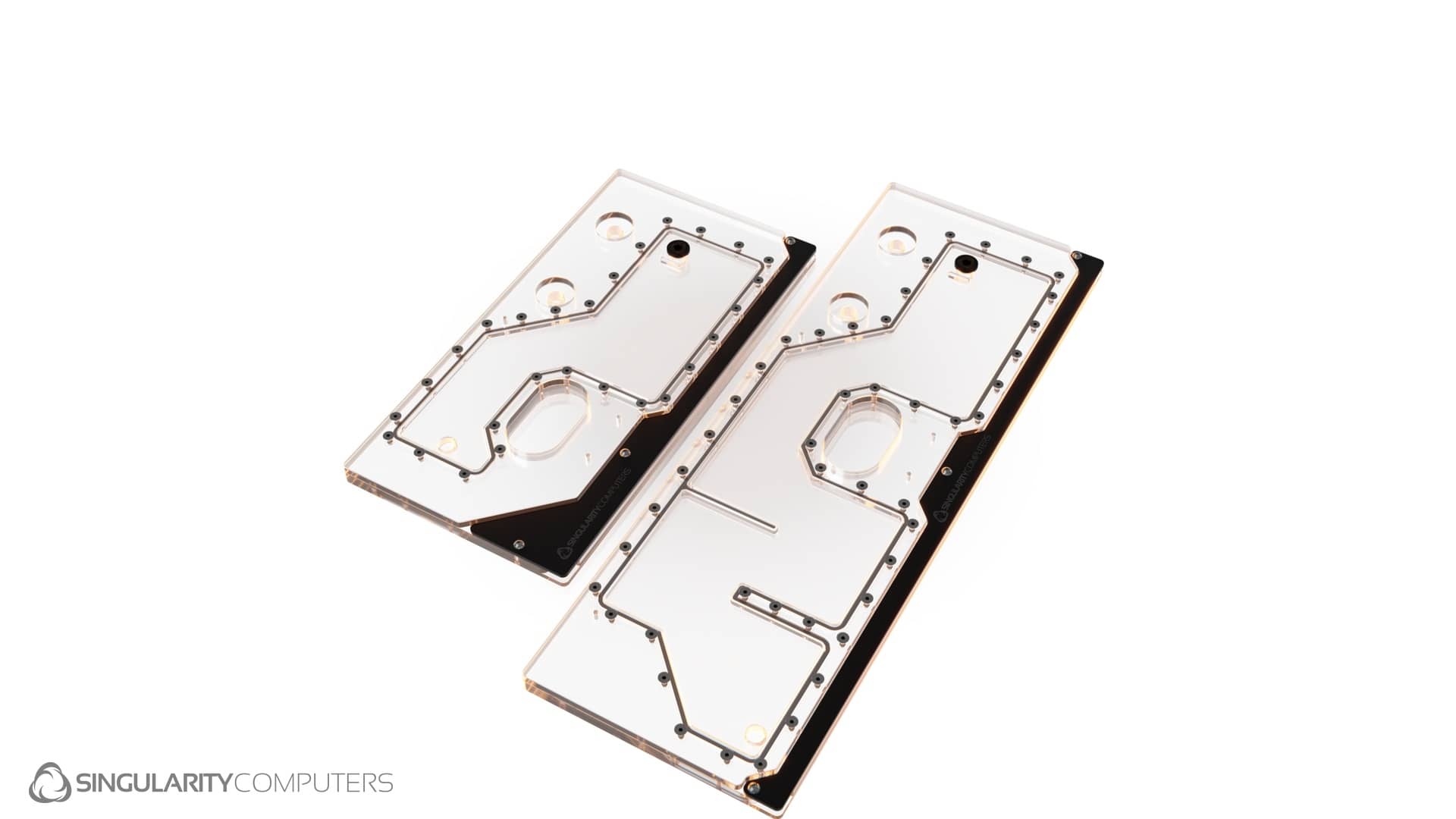

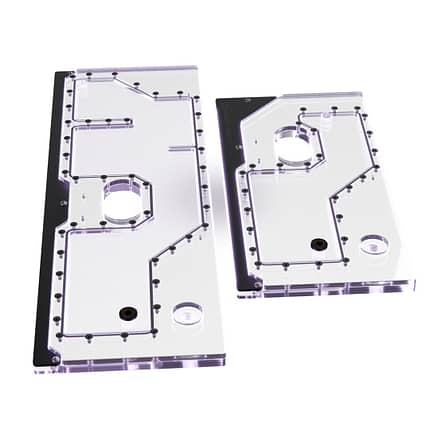

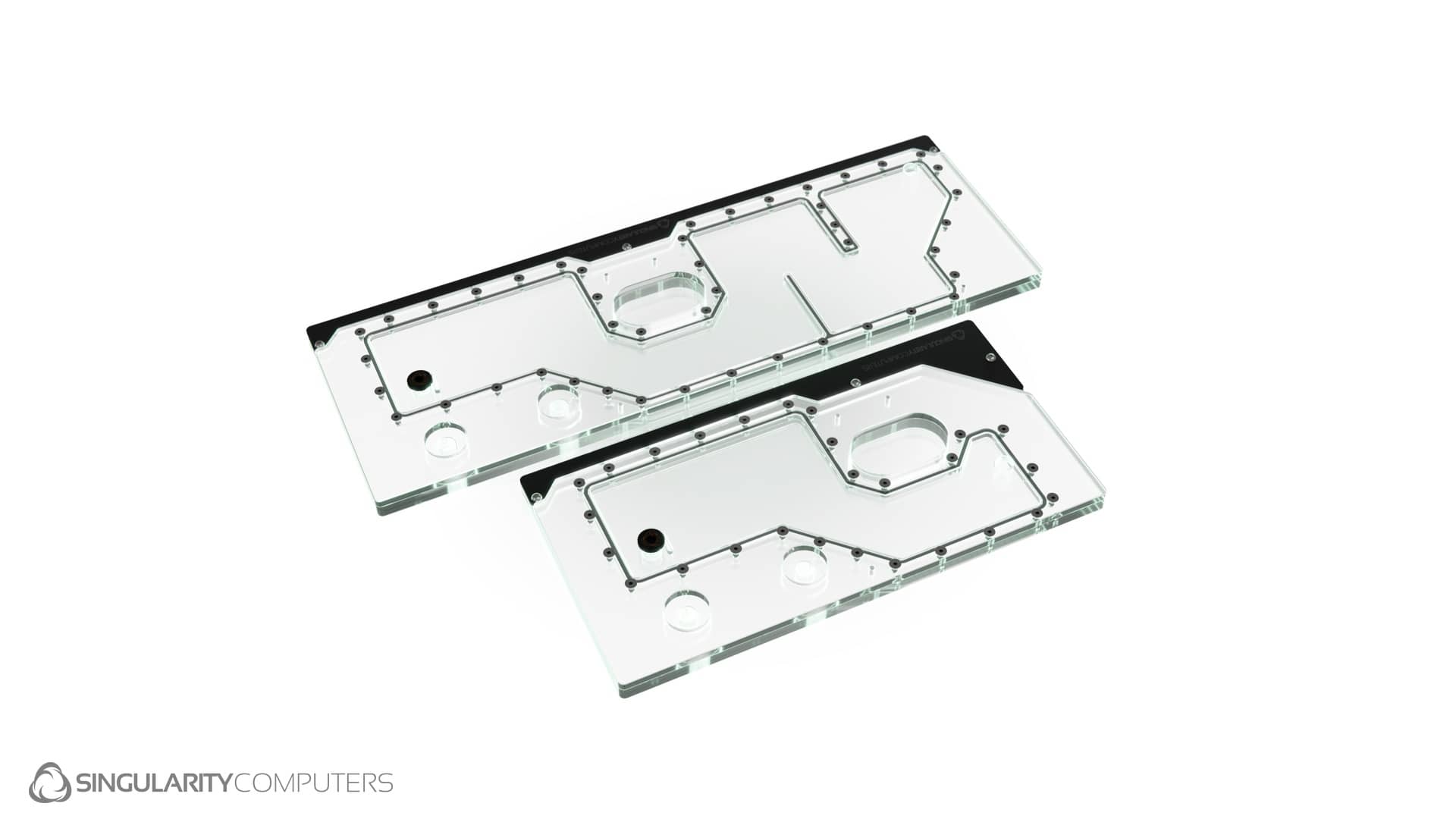

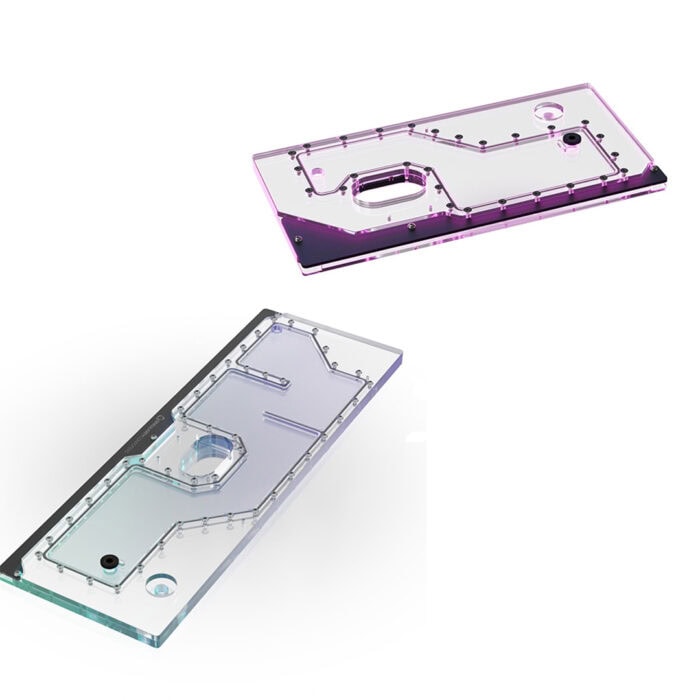

Lian Li V3000+ Mid Distribution Plate
Horizontal mid plate distribution plate for the Lian Li V3000+. Attaches to existing holes on the case, no need for modifications. The distribution plate is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. Hand assembled with stainless steel fasteners. It has an integrated ARGB LED strip with a cover, there is also a Back Plate included to cover the rear side of the Rear Distribution Plate, select from the colour options below for the covers.
Specifications:
There are two different version of this distribution plate available on this page (select above).
Lian Li V3000+ Mid Distribution Plate.
Lian Li V3000+ Mid Distribution Plate Back Cover (select color/finish above).
Lian Li V3000+ Mid Vertical GPU Distribution Plate.
Lian Li V3000+ Mid Vertical GPU Distribution Plate Back Cover (select color/finish above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Packaged Weight: 3kg.
Packaged Dimensions: H: 500mm x W: 300mm x D: 50mm.
Installation:
Install onto the mid plate of the Lian Li V3000+. Align with existing mounting holes on the case and use the included M4 x 12mm Fasteners to attach the Distribution Plate.
RELATED PRODUCTS

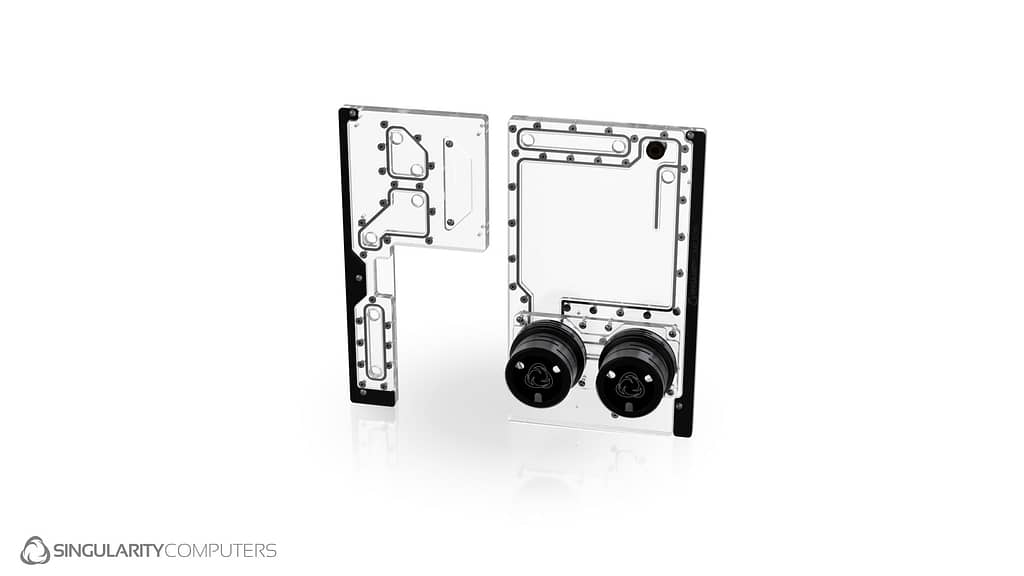

Lian Li V3000+ Single Loop Distribution Plate Set
