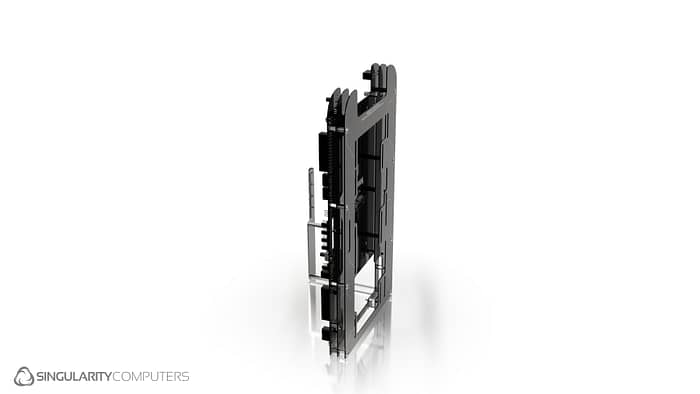

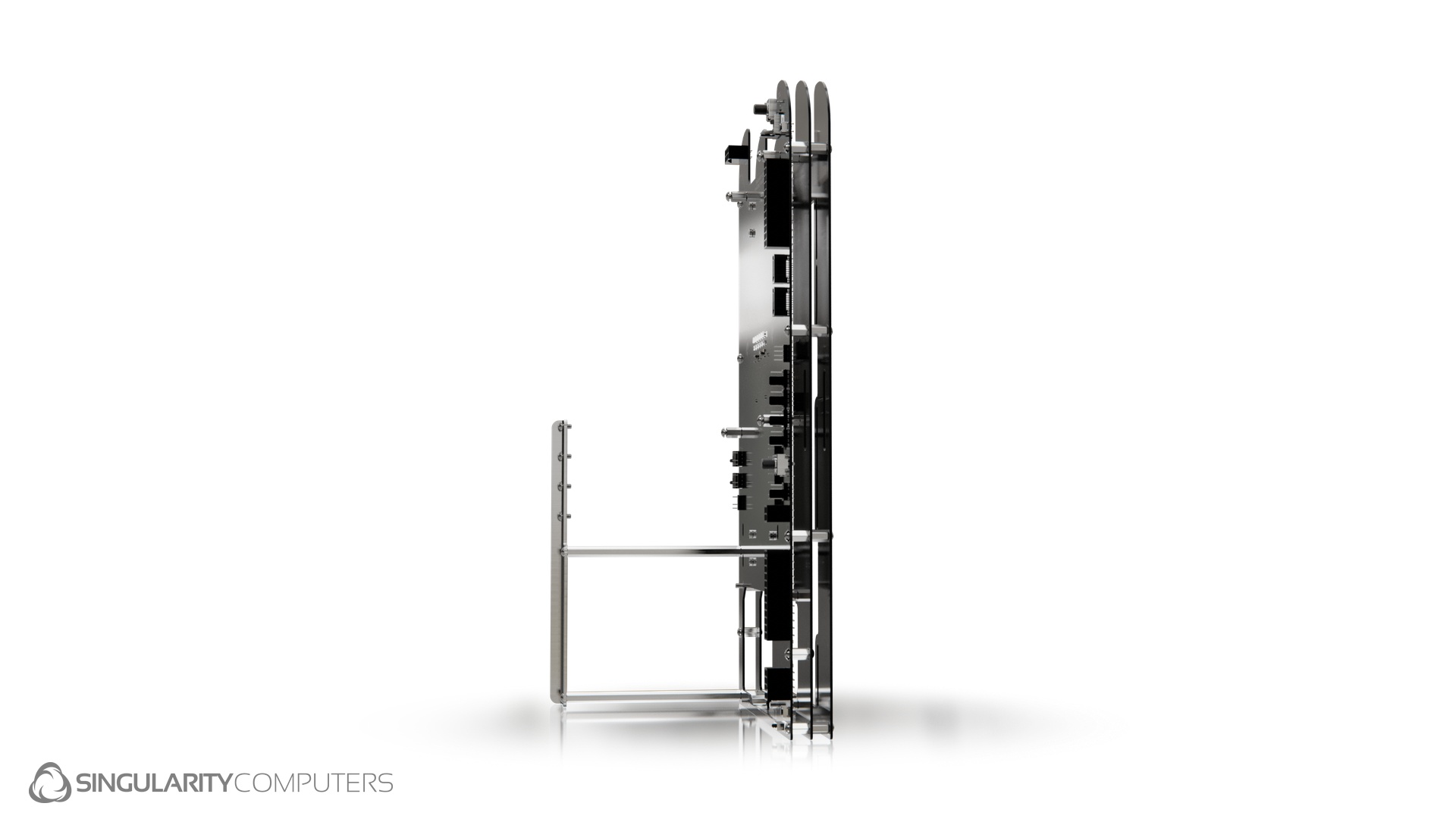

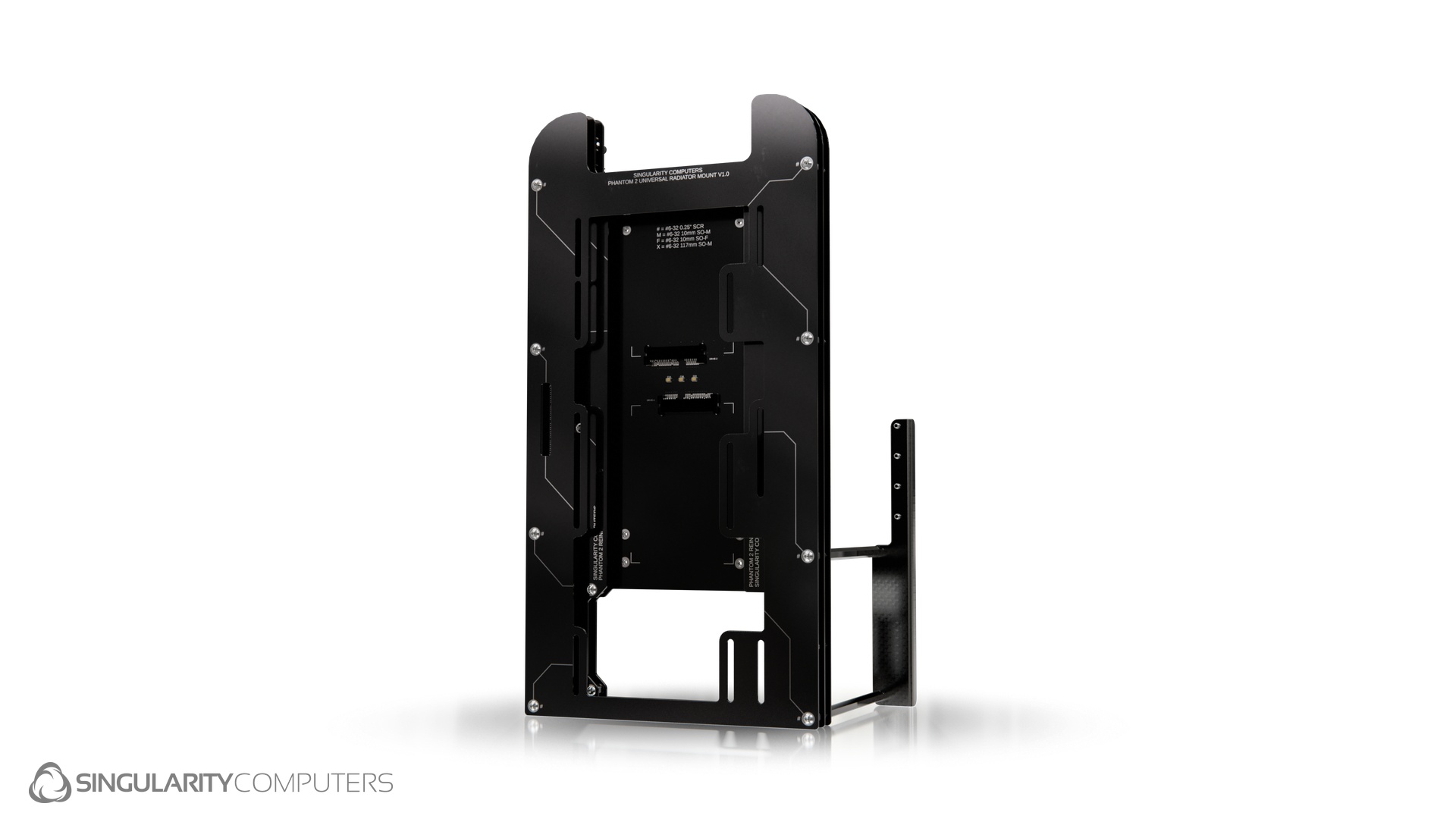

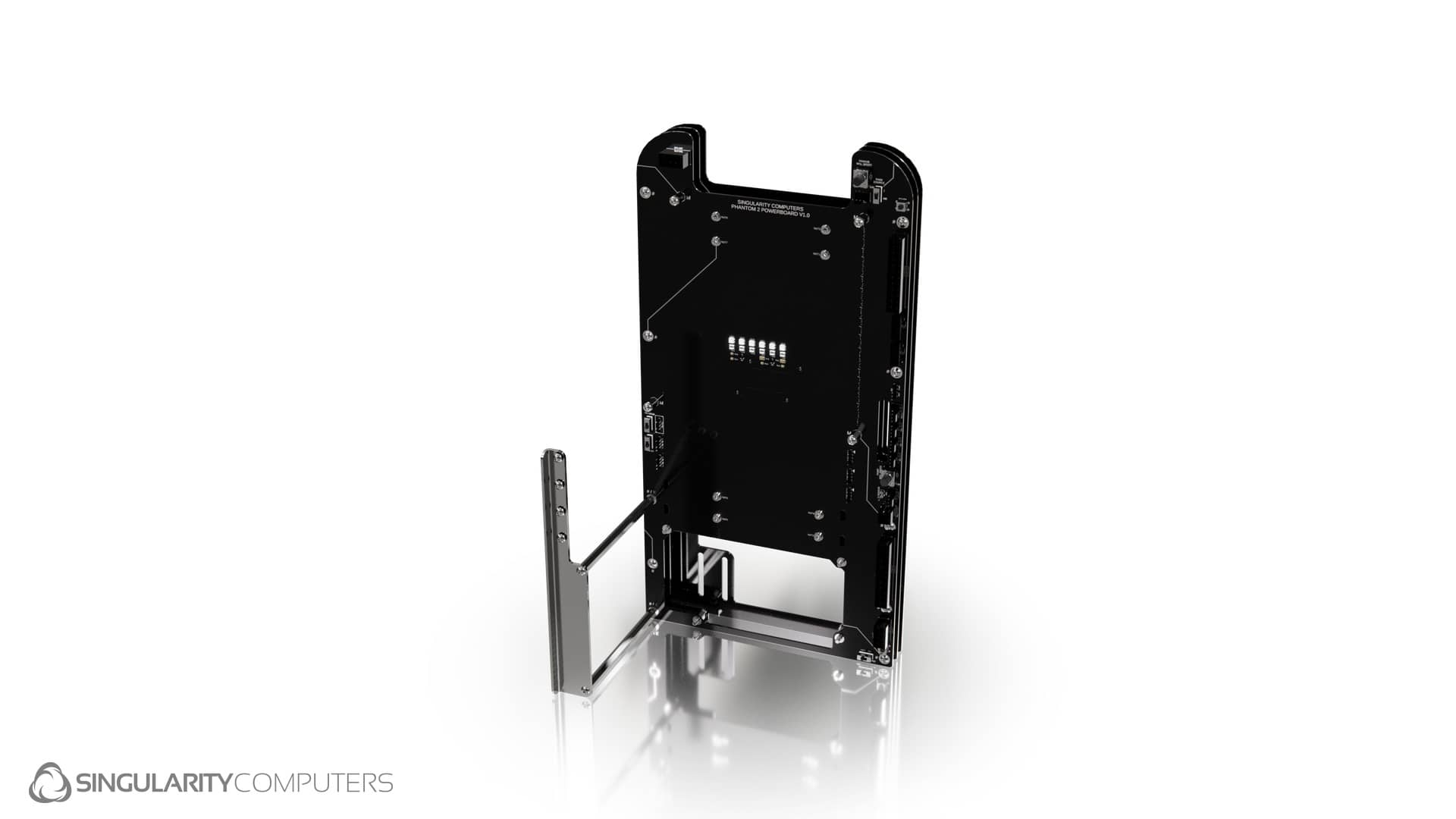

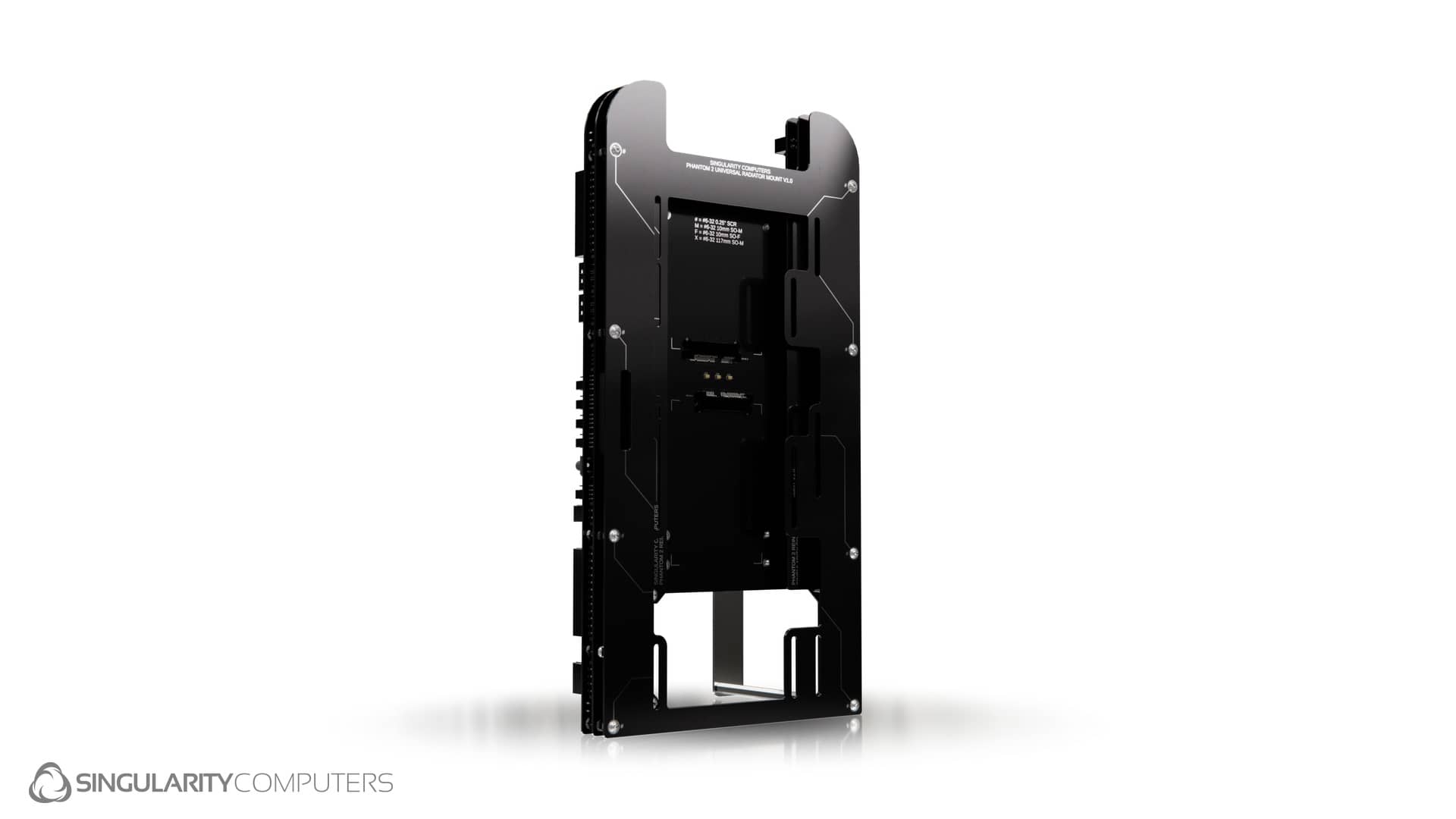

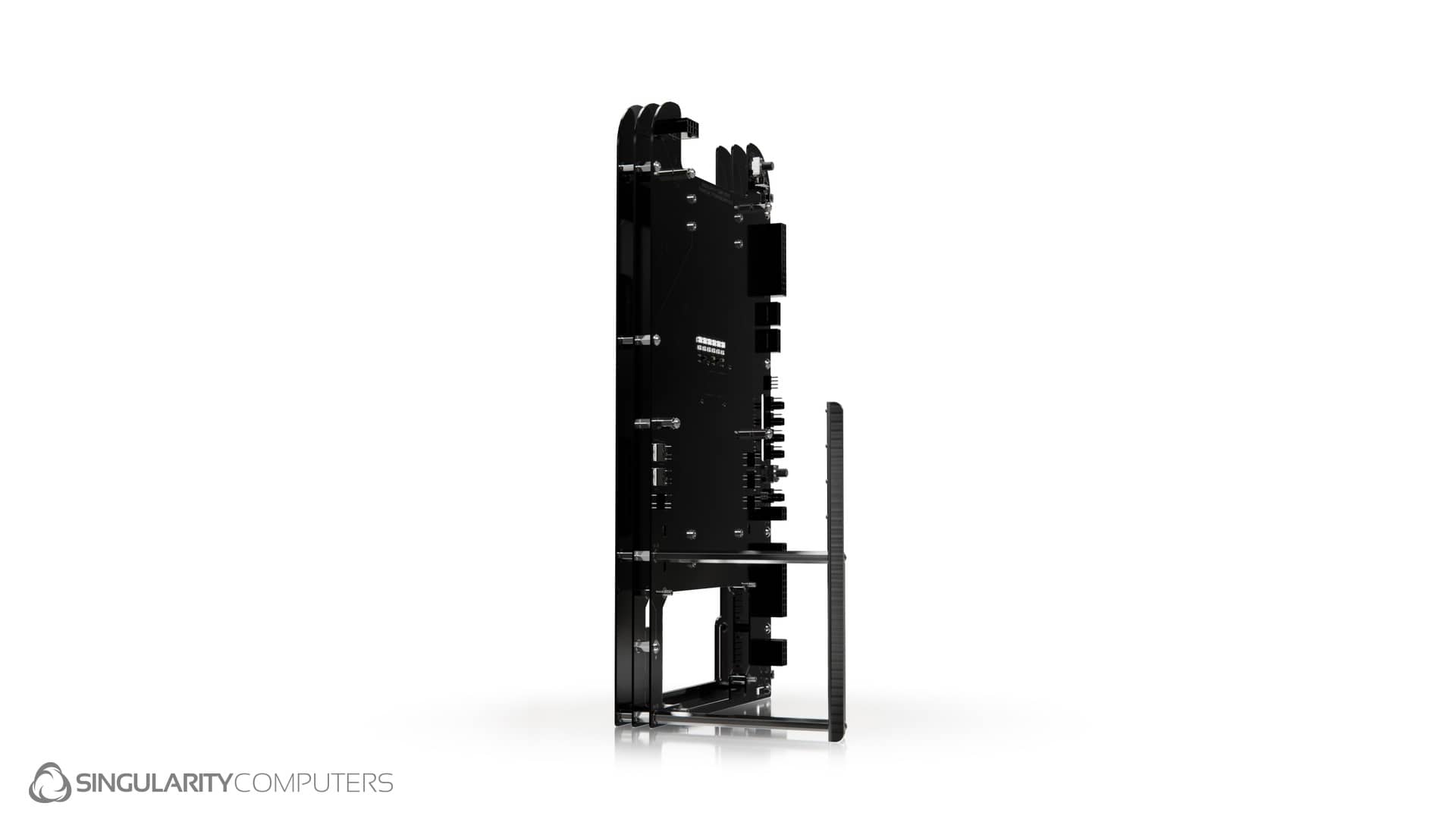

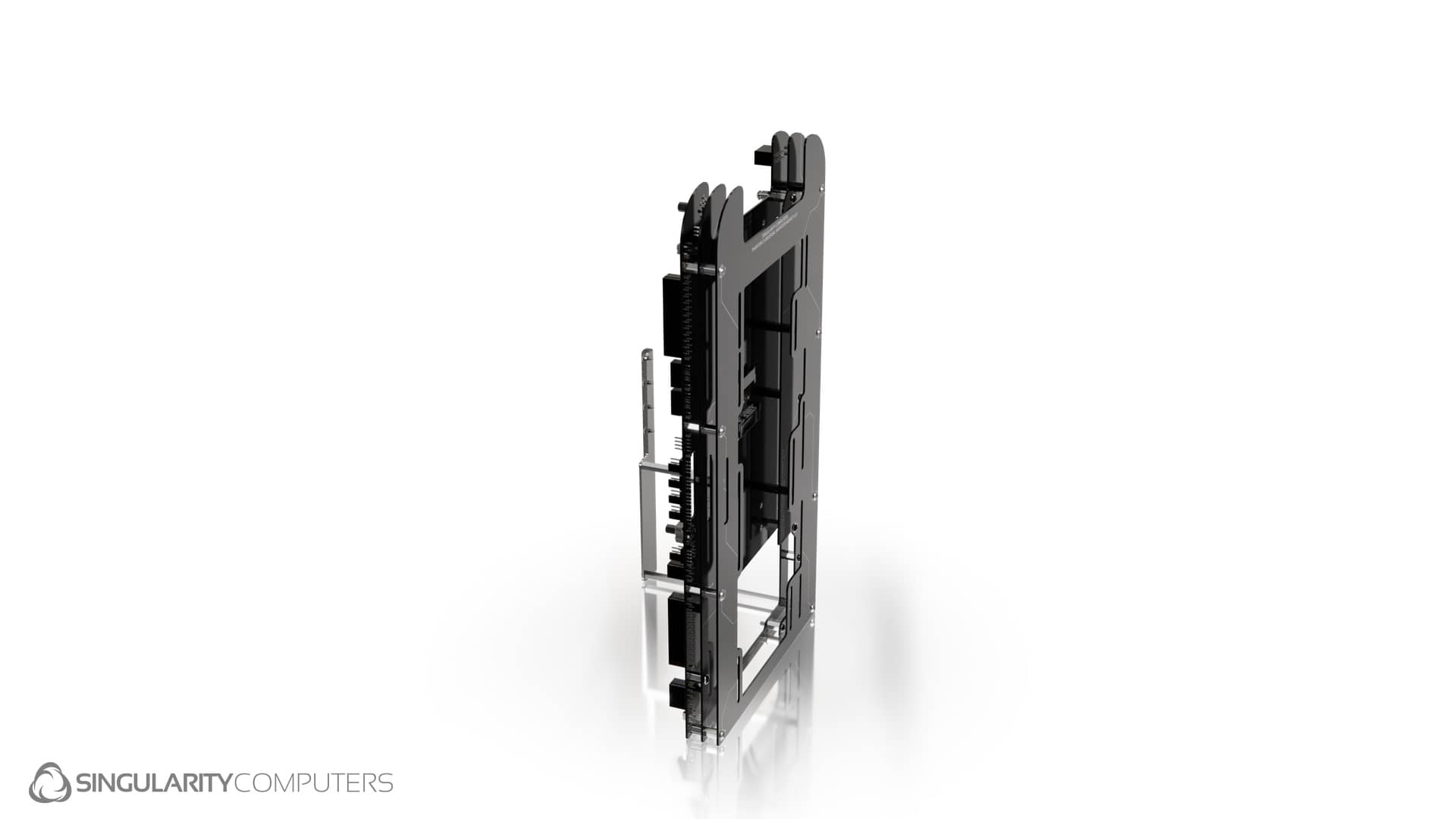

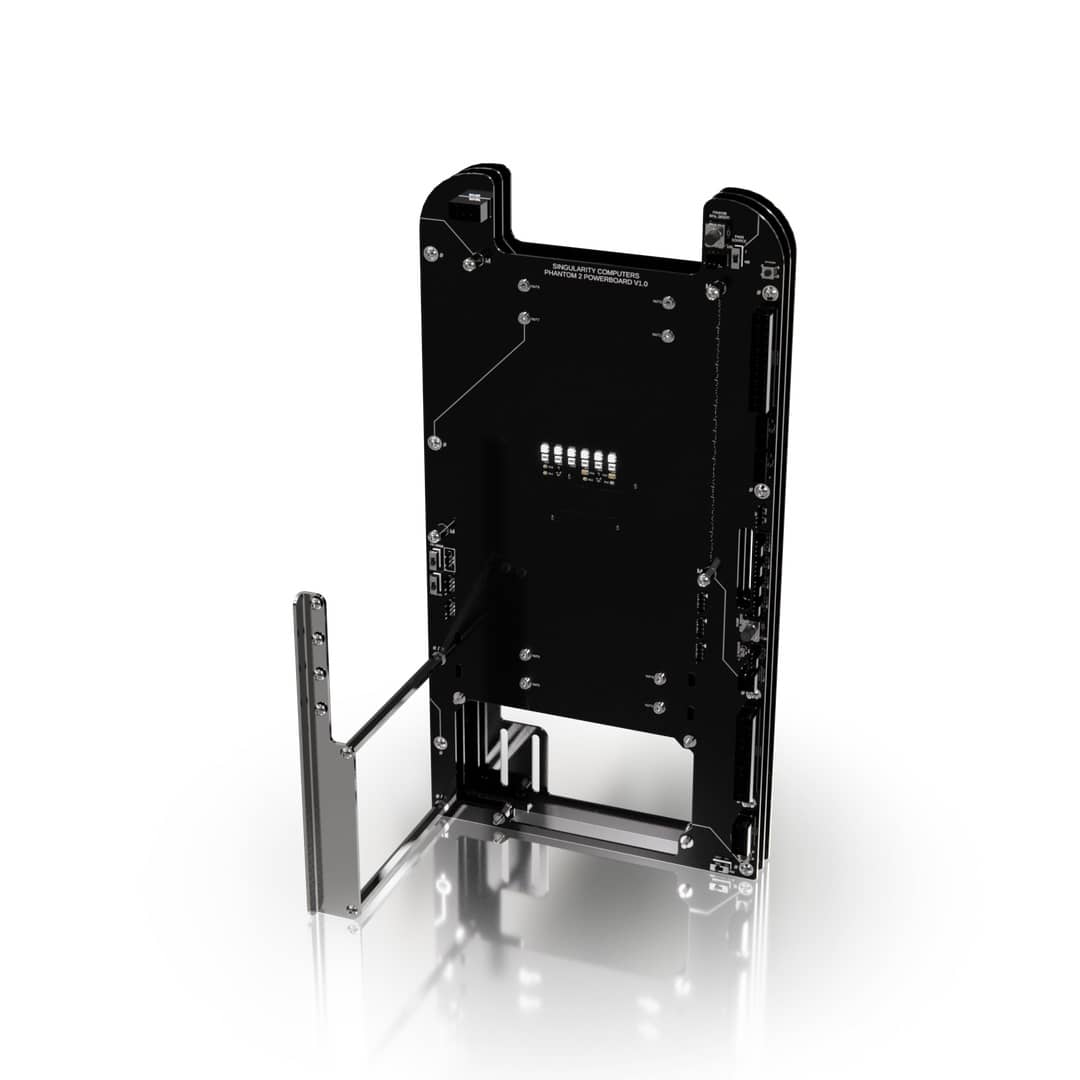

Phantom 2 ITX Case

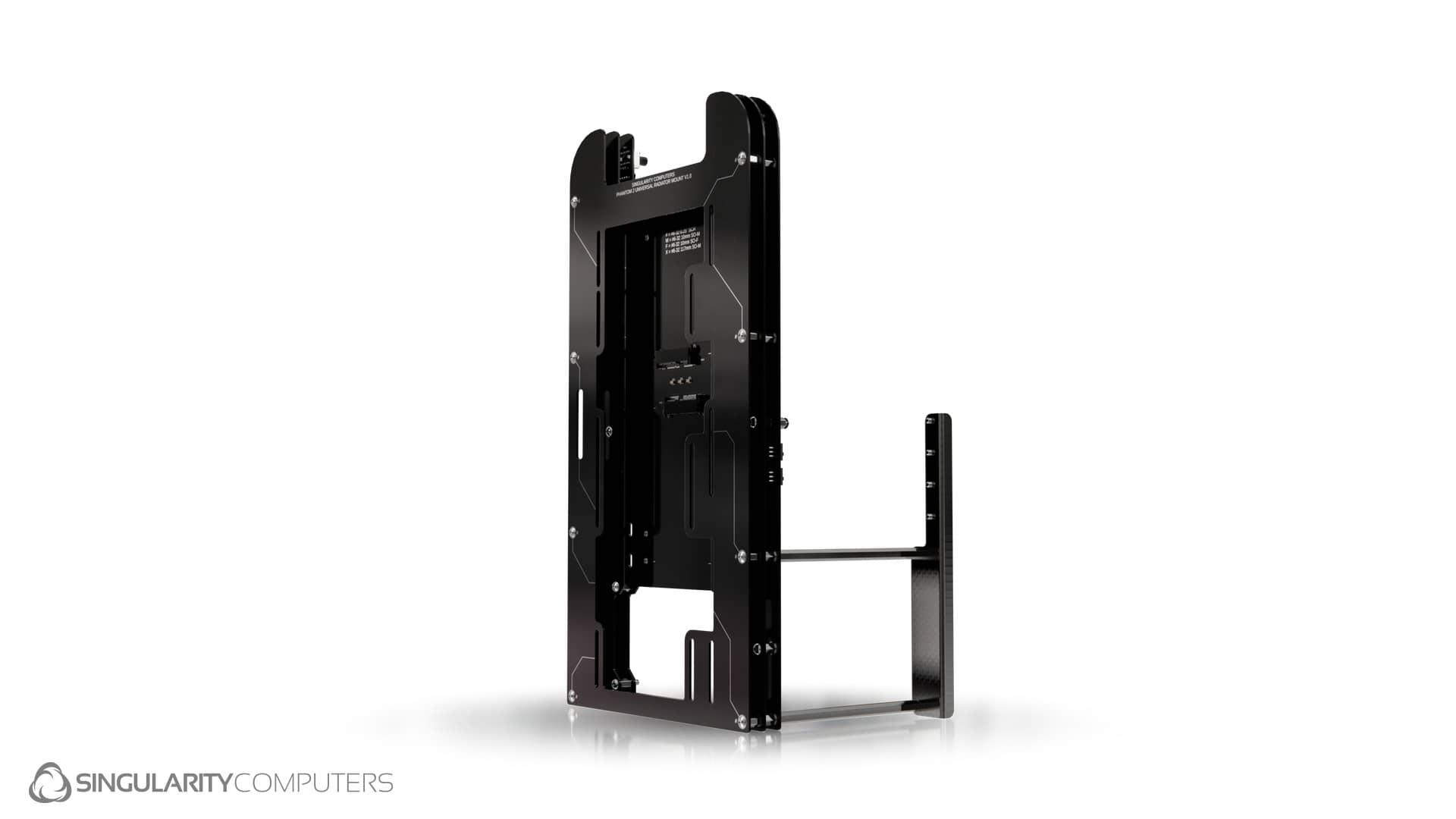

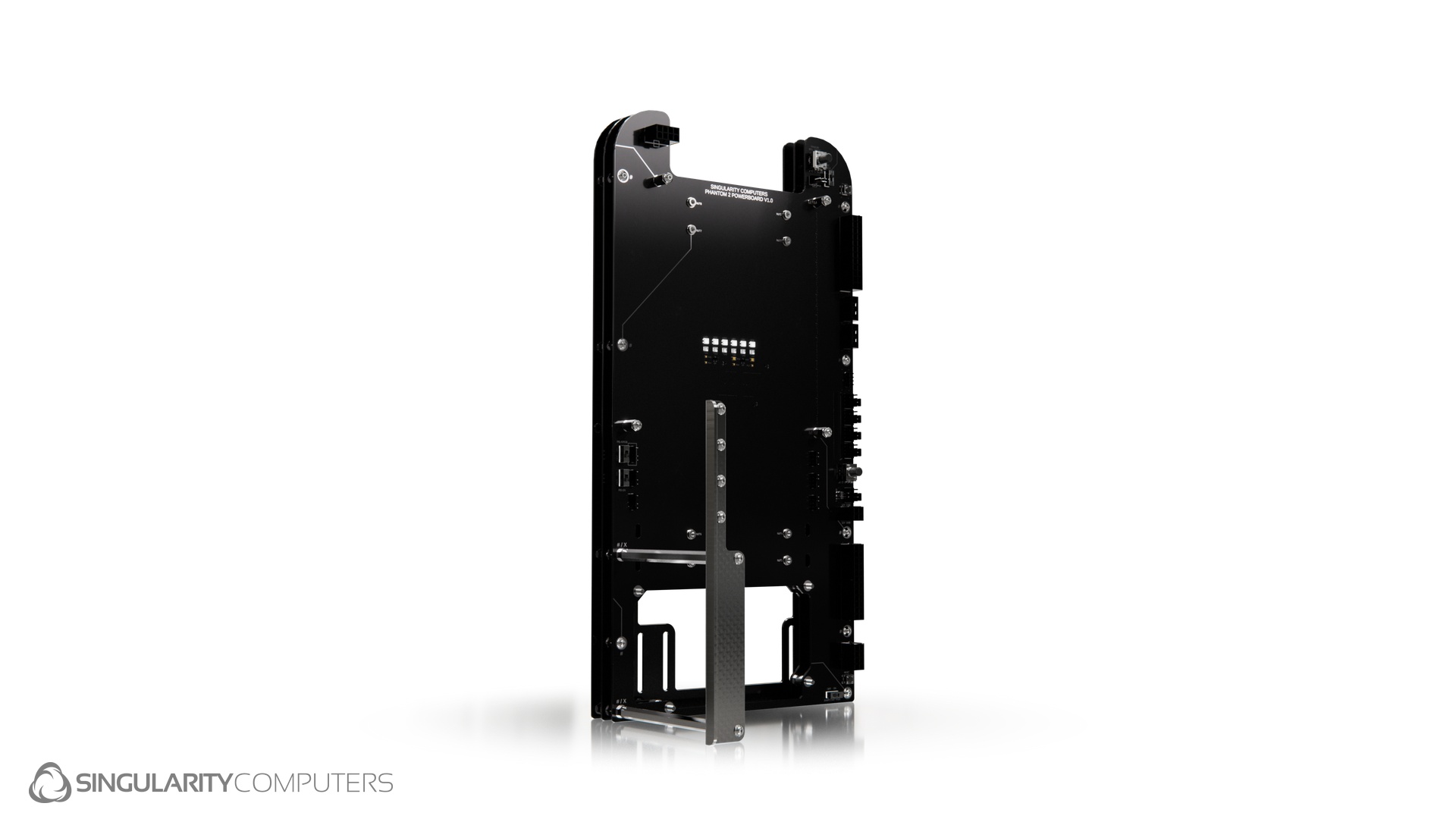

Phantom 2 turns the Singularity Computers PowerBoard into the case itself. The goal was to create the most minimalistic case using PCB components only. Phantom 2 does not aim to be the smallest Mini-ITX case, but to achieve maximum component density with unrestricted airflow. Phantom 2 disappears amongst the components mounted to it, it is completely about component selection and will show off the skill of the builder. It fits ITX motherboards, 3+ slot graphics cards, ATX power supplies and 2x 2.5” drives. Water-cooling is possible with the included universal radiator mount which fits 120mm, 140mm, 240mm, 280mm, 360mm, 420mm, 480mm and 560mm radiators, while an integrated distribution plate can be purchased separately as an addon. There is no limitation to radiator thickness and push pull fans will fit. All components are mounted directly onto the PowerBoard which acts as a rack as well as a power distribution plate. Phantom 2 has the MB 24pin and EPS power integrated into the PowerBoard, along with Power and Reset buttons, ARGB and FAN hubs. There are integrated direct connect SATA power connections to avoid the need for SATA power cables. Built-in FAN hub, PUMP power and PWM control with local and coolant temperature-based speed control. Built-in ARGB and UV lighting for the distribution plate and built-in ARGB hub. There is no rear access needed to the case for cable management, all cables can be connected from the front. Black sleeved cables are included with the case.

Build Gallery

US$249.00

Available on backorder

None Yes +US$199.00

D5 Pump 1500LPH 3.7m head pressure.

None Yes +US$94.00
None Yes +US$89.00

Custom black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs due to them not providing pinout information.

None Yes +US$69.00

Custom black sleeved cables which connect from the PSU to the GPU.

None 8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1
EAN: 9351182004937 SKU: SC-PHAN2-ITX Category:

Manual

Gallery

Singularity Computers PowerBoard:
Introducing the Singularity Computers PowerBoard (US Patent Pending #547249821) a completely new take on computer cables and cable management. The idea first came about during the development of our first case Spectre 1.0. We were looking for a far more advanced method of integrating cables and cable management. The PowerBoard is essentially a distribution plate for cables. It eliminates the need for cable management, to integrate components into a single clean unit reducing clutter, to create something different which will contribute to a unique build!

Specifications:
Case PowerBoard Components: x4 PCB total. Fasteners, stand offs and horizontal graphics card mounting hardware.
Motherboard Form Factor: Mini-ITX.
PSU Compatibility: ATX.
Expansion Slots: x4.
Case Form Factor: SFF.
Dimensions: L: 152mm x W: 215mm x H: 386mm.
Weight: 1.5kg.
Packaged Dimensions: L: 395mm x W: 430mm x H: 40mm. (Case is flat packed and requires assembly.)
Packaged Weight: 2kg.
Storage: x2 2.5”.
Radiators: 120mm, 140mm, 240mm, 280mm, 360mm, 420mm, 480mm, 560mm. No limitation on radiator thickness and push pull fans can be used.
Maximum GPU Length: Unlimited.
Maximum GPU thickness: 80mm.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: Unlimited.
Maximum PSU Length: Unlimited.
Front Panel I/O: Power and Reset buttons, PSU jumpstart switch. 2x PWM speed control potentiometers.
Vertical GPU Mount: Optional addon.
Distribution plate: Optional addon.
Materials: PCB with stainless steel fasteners, stand offs and GPU mounting hardware.
Manufacturing Process: PCB and folded stainless steel.
Assembly: Flat packed and needs to be assembled by the customer.
Accessories: Hex Key: M3 x1.

Electronics Integration:
Core Component Cables: 24 pin x1 and 8pin ES x1 linking cables. Power and Reset button wires. PWM and ARGB linking cables.
Headers: 1x Fan PWM/RPM input and 4x FAN output. 1x PUMP PWM output. 1x ARGB input and 5x ARGB outputs.
Switches: Enable/disable built-in ARGB and UV lightning for the optional distribution plate. PSU jumpstart switch. FAN hub PWM source switch.
1x temperature sensor header for a 10K NTC thermistor-based probe.
2.5” SATA 3.0 6Gb/s Direct Mount x2.
1x 4pin ATX PUMP power header.
Cables: 24pin x1. 8pin EPS x1. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
Power, Reset, Black 20cm.
Pump Power Cable 4pin ATX to SATA & Molex x2 Black.
SATA data cables x2 Black 10cm.

Addon Information

D5 Reservoir Distribution Plate & VGPU                                                                                                                                    Vertical GPU Mount

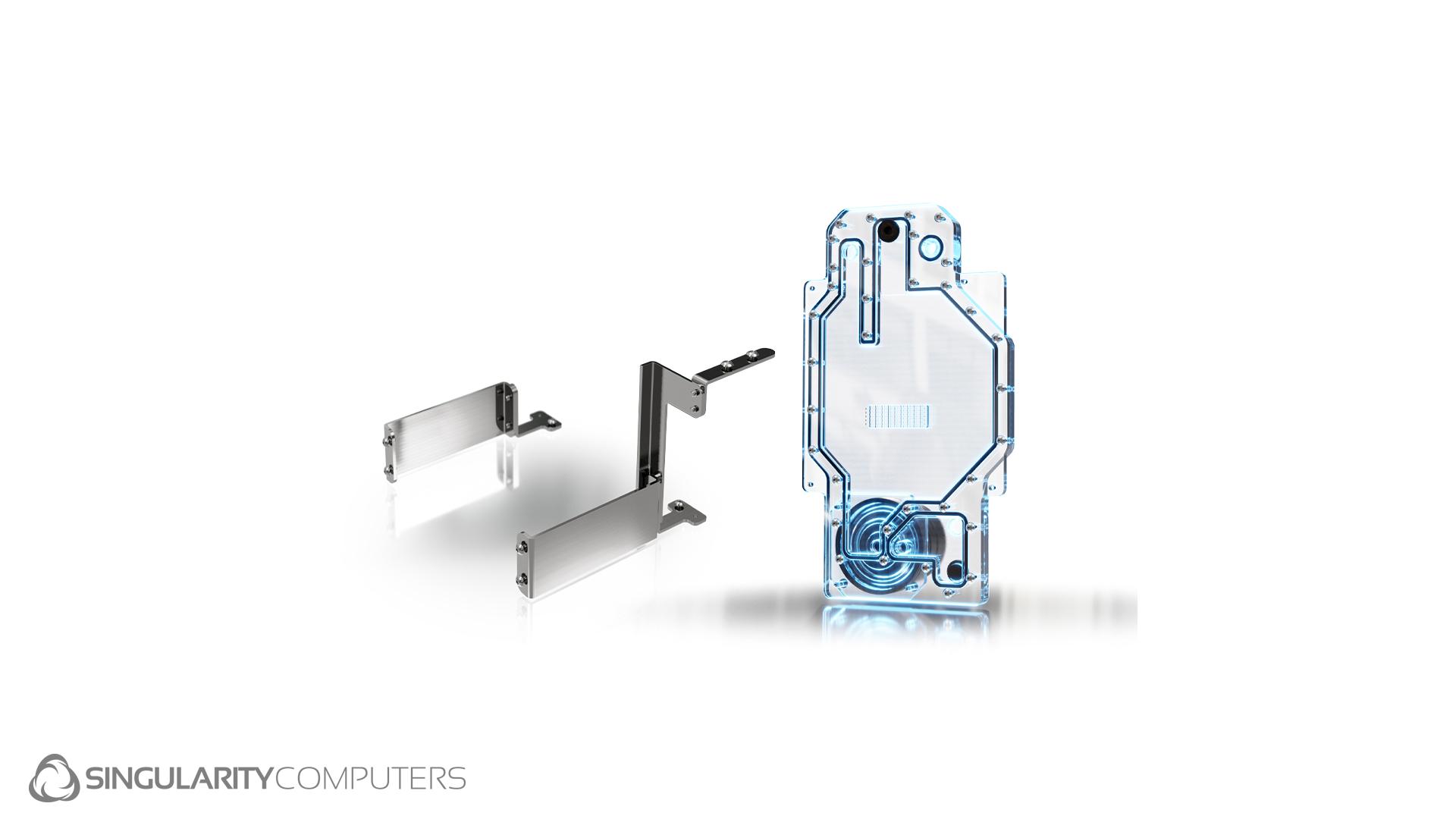

D5 Reservoir Distribution Plate & VGPU: We have created a D5 Reservoir Distribution Plate for Phantom 2 which removes all the challenges of adding a traditional Pump Reservoir Combination to the compact and open design of Phantom 2. The distribution plate integrates a Reservoir and a D5 pump in a compact and hidden location behind the motherboard. The ports are located to make easy connections to all the components on the case. Parts of the distribution plate are visible and glow from the integrated ARGB lighting to create an aesthetic feature. With this distribution plate Phantom 2 can become the basis for a compact, aesthetically clean, and powerful system.

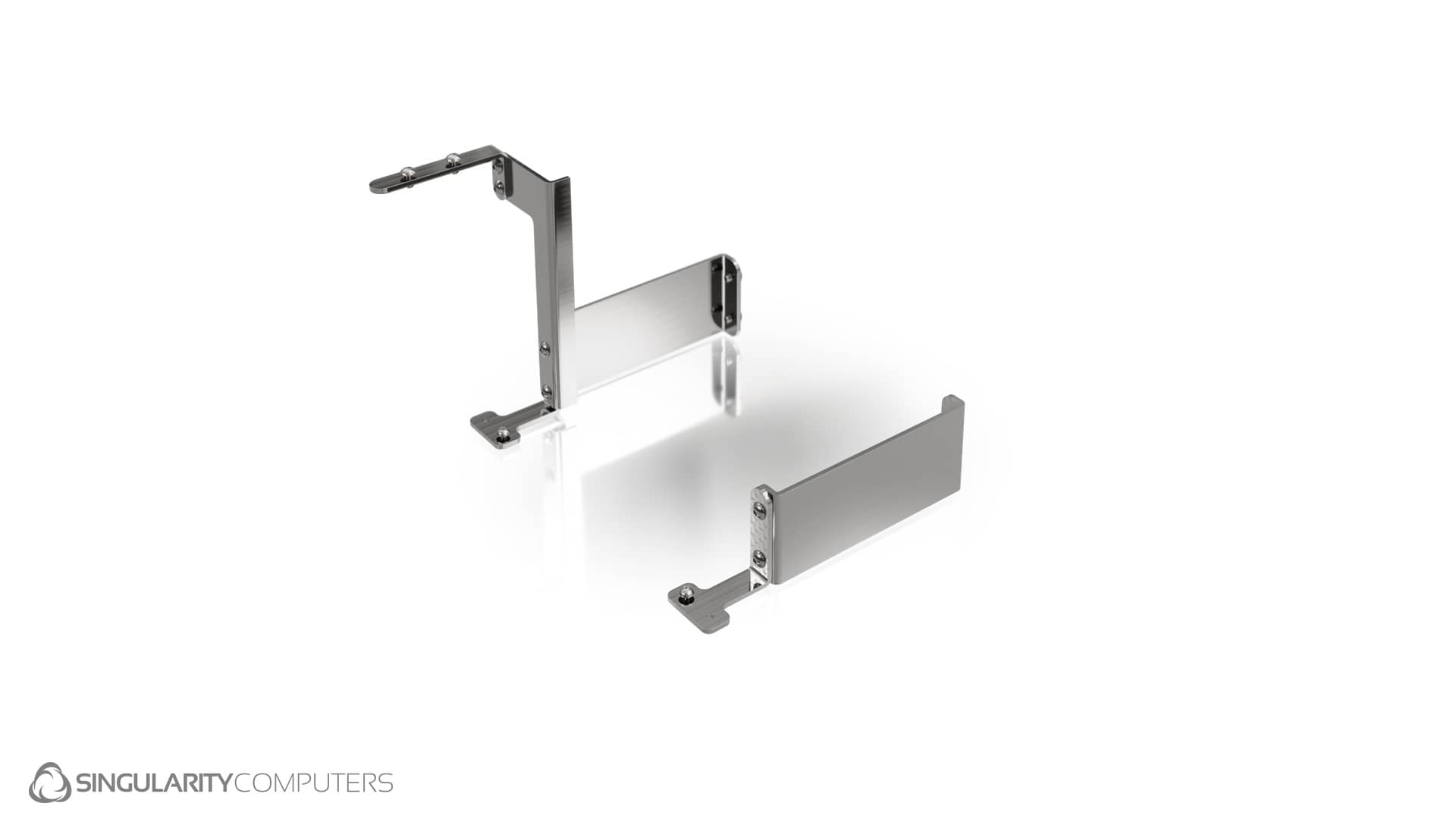

The Phantom 2 Vertical GPU mount is an important aesthetic addition and improves the layout particularly if you are water-cooling. The mounting components are built from brushed stainless steel and it comes included with a PCIE 4.0 Riser Cable. If you are using the Phantom 2 D5 Reservoir Distribution Plate, then the Phantom 2 Vertical GPU Mount is required due to the location of the integrated D5 pump.

Vertical GPU Mount: The Phantom 2 Vertical GPU mount is an important aesthetic addition and improves the layout particularly if you are water-cooling. The mounting components are built from brushed stainless steel and it comes included with a PCIE 4.0 Riser Cable. If you are using the Phantom 2 D5 Reservoir Distribution Plate, then the Phantom 2 Vertical GPU Mount is required due to the location of the integrated D5 pump.
