SC Test Bench
ETA 3 Weeks.

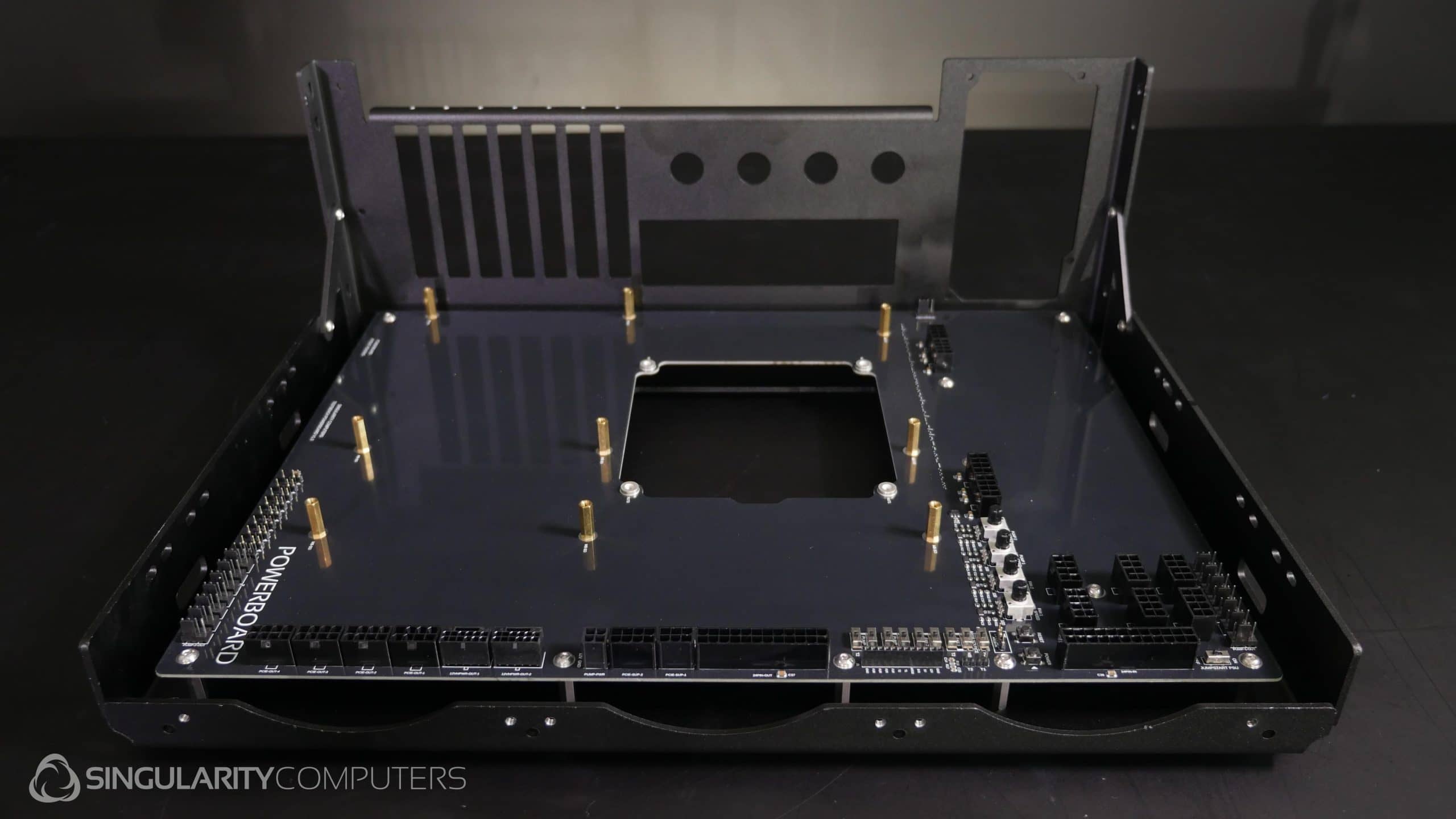

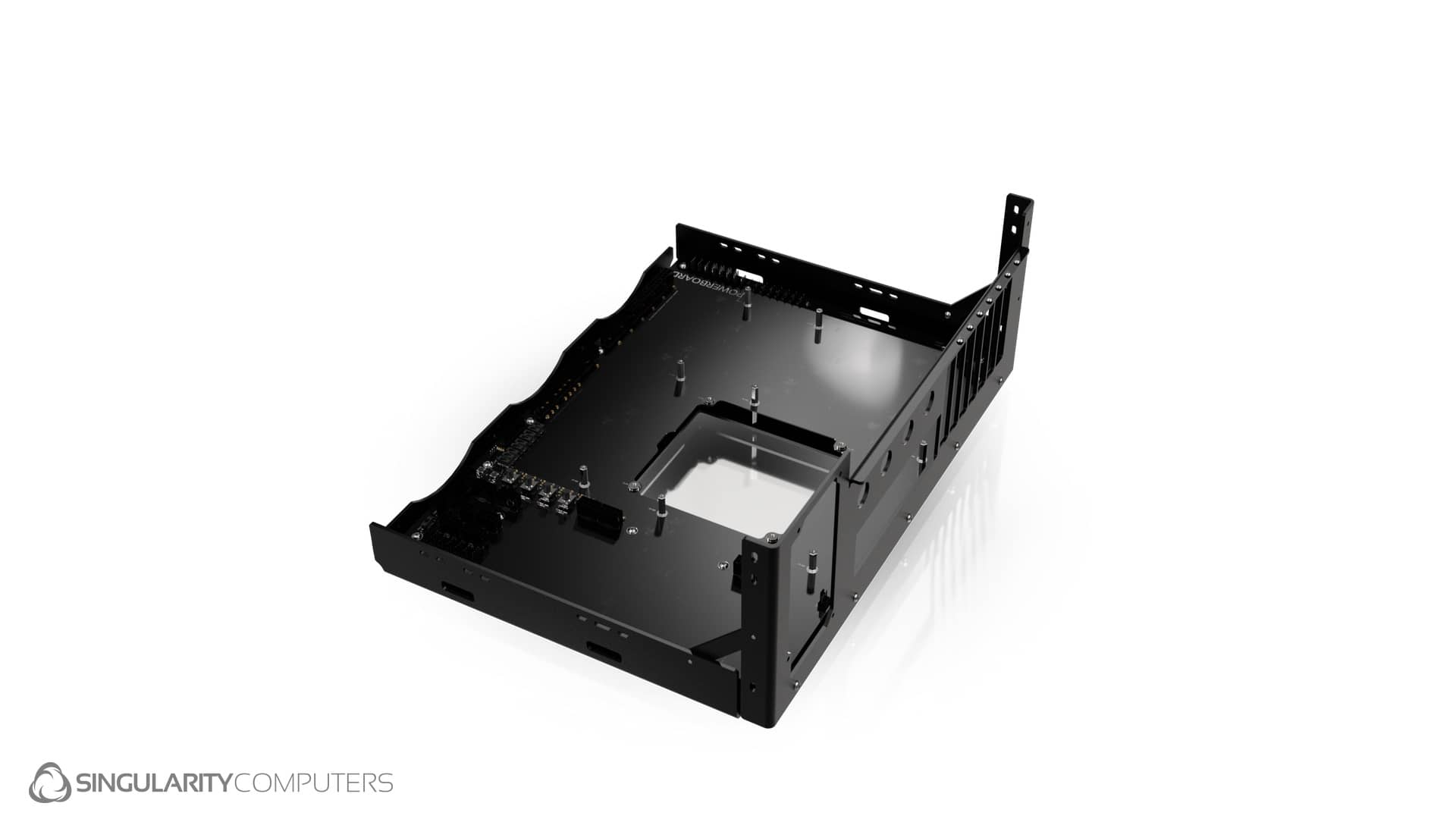

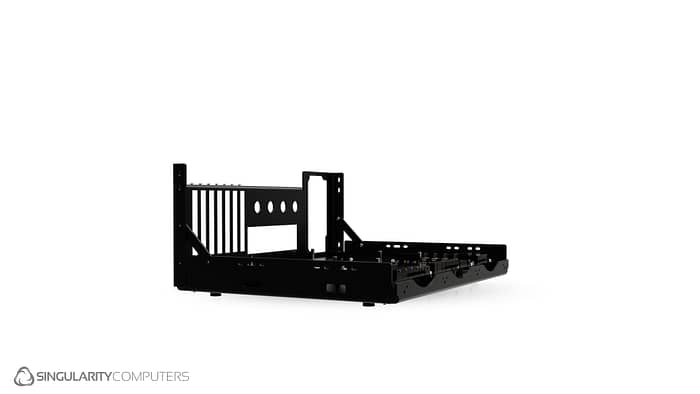

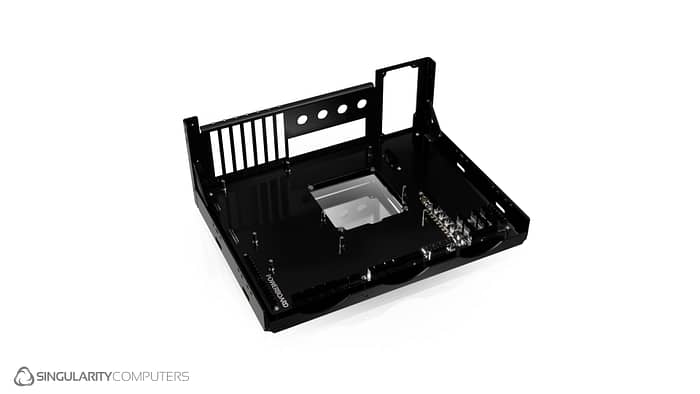

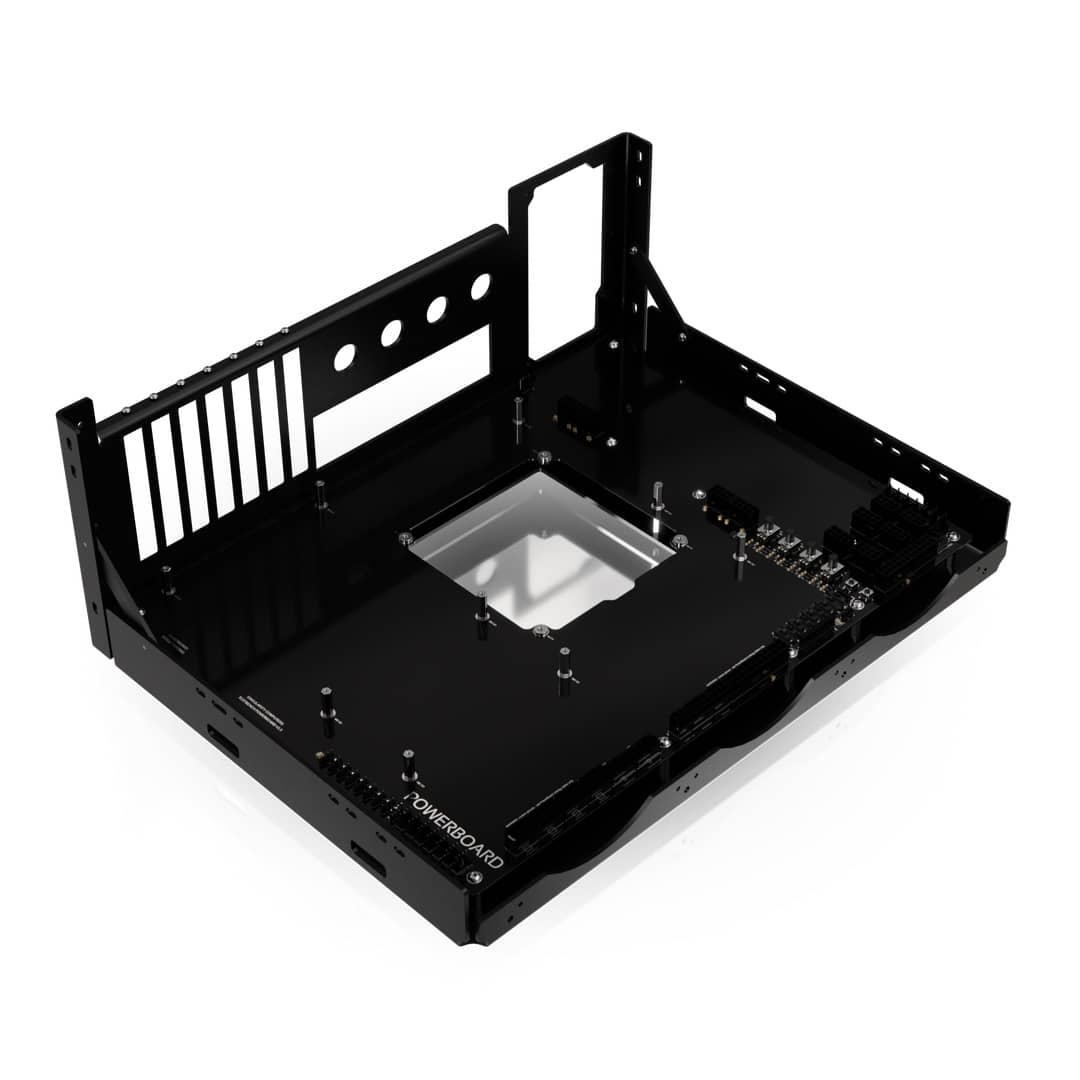

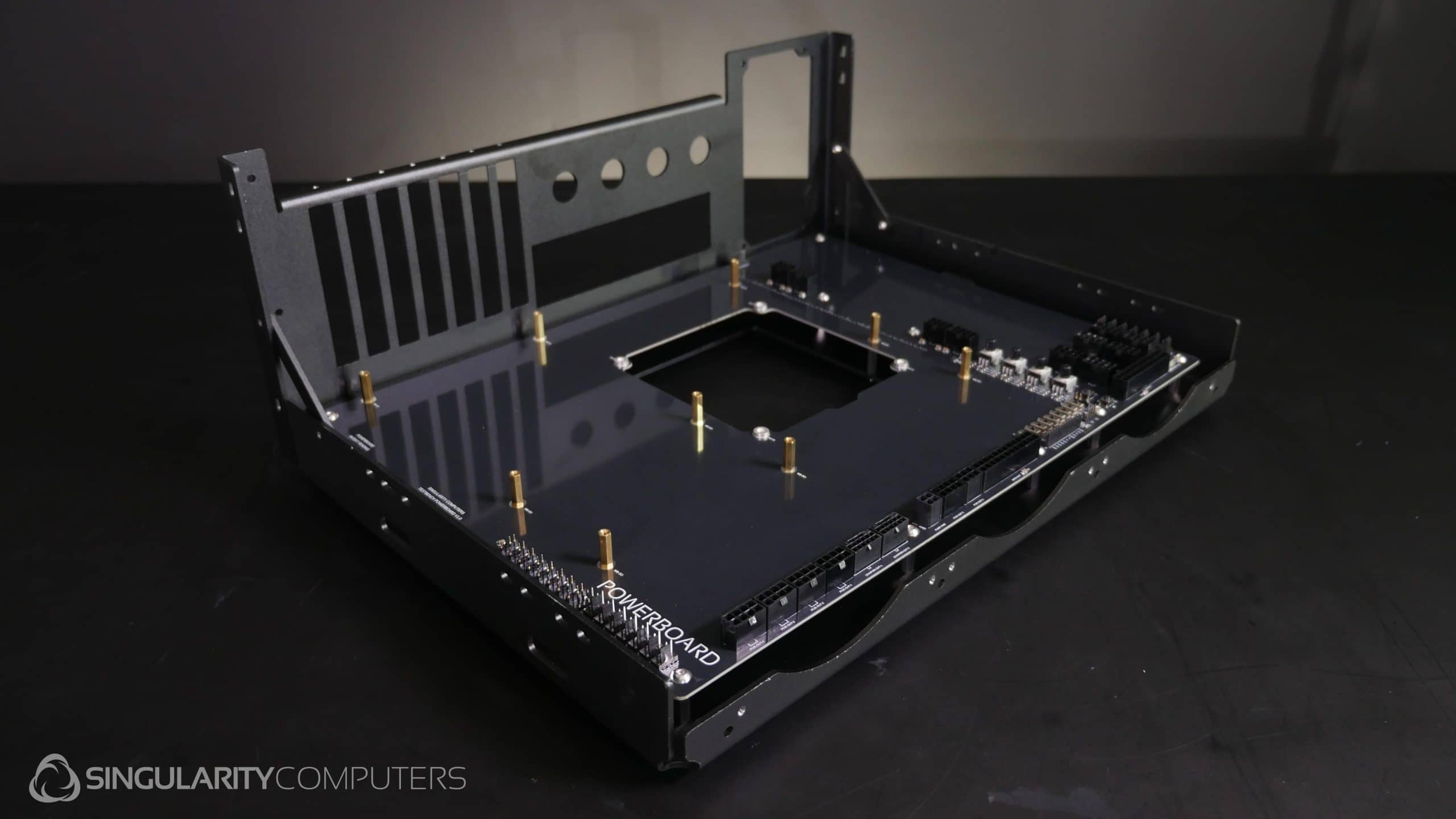

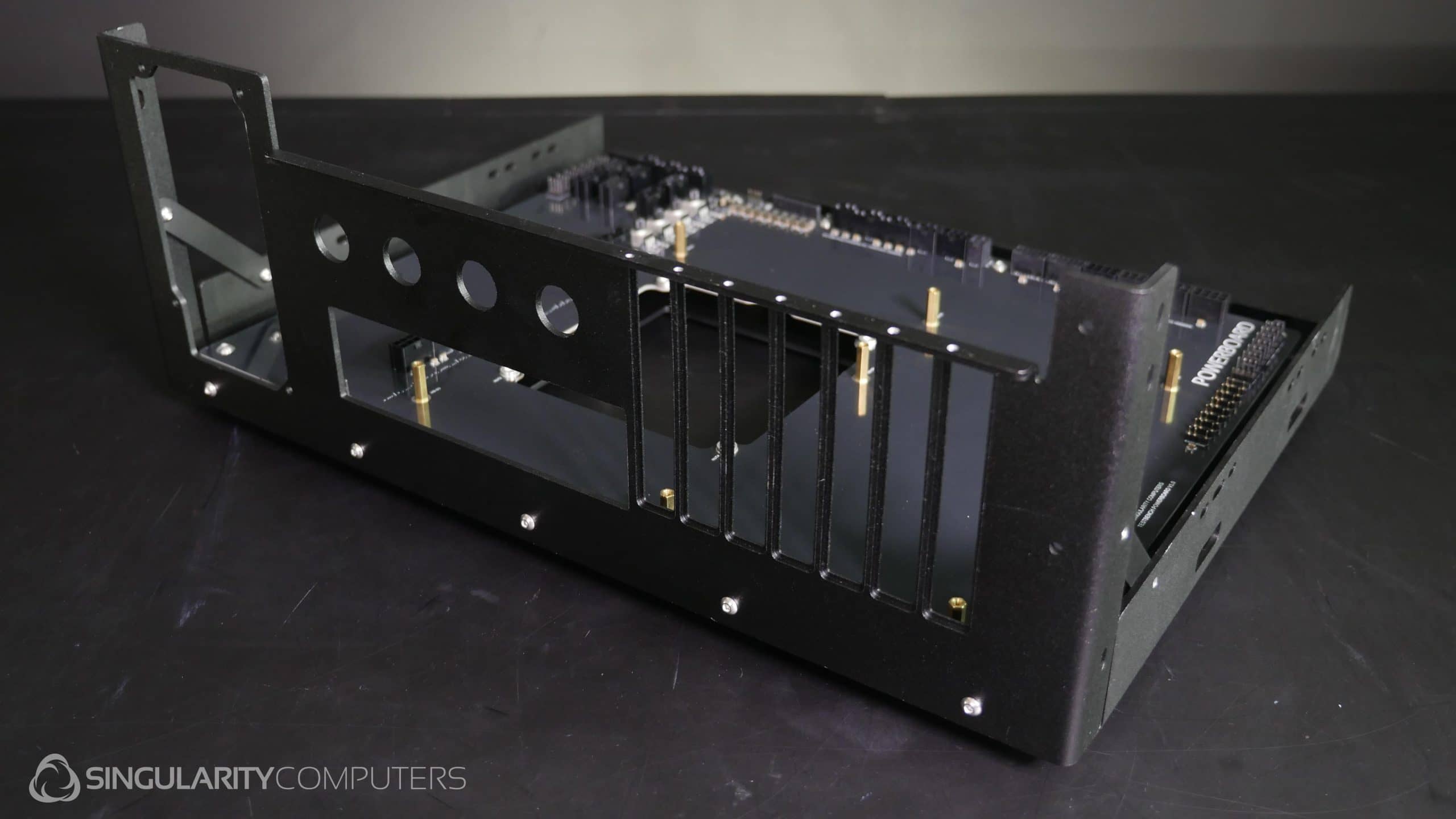

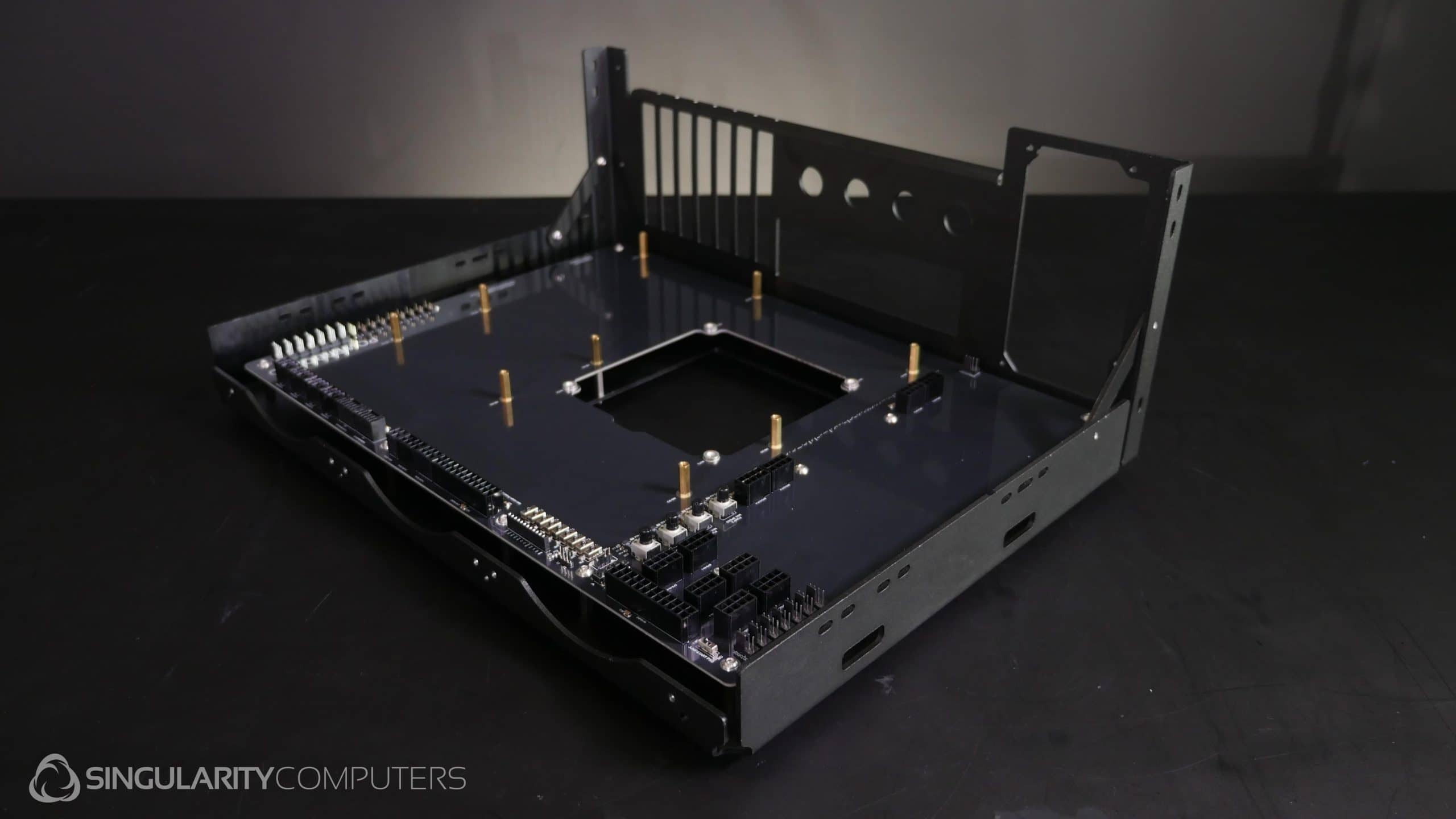

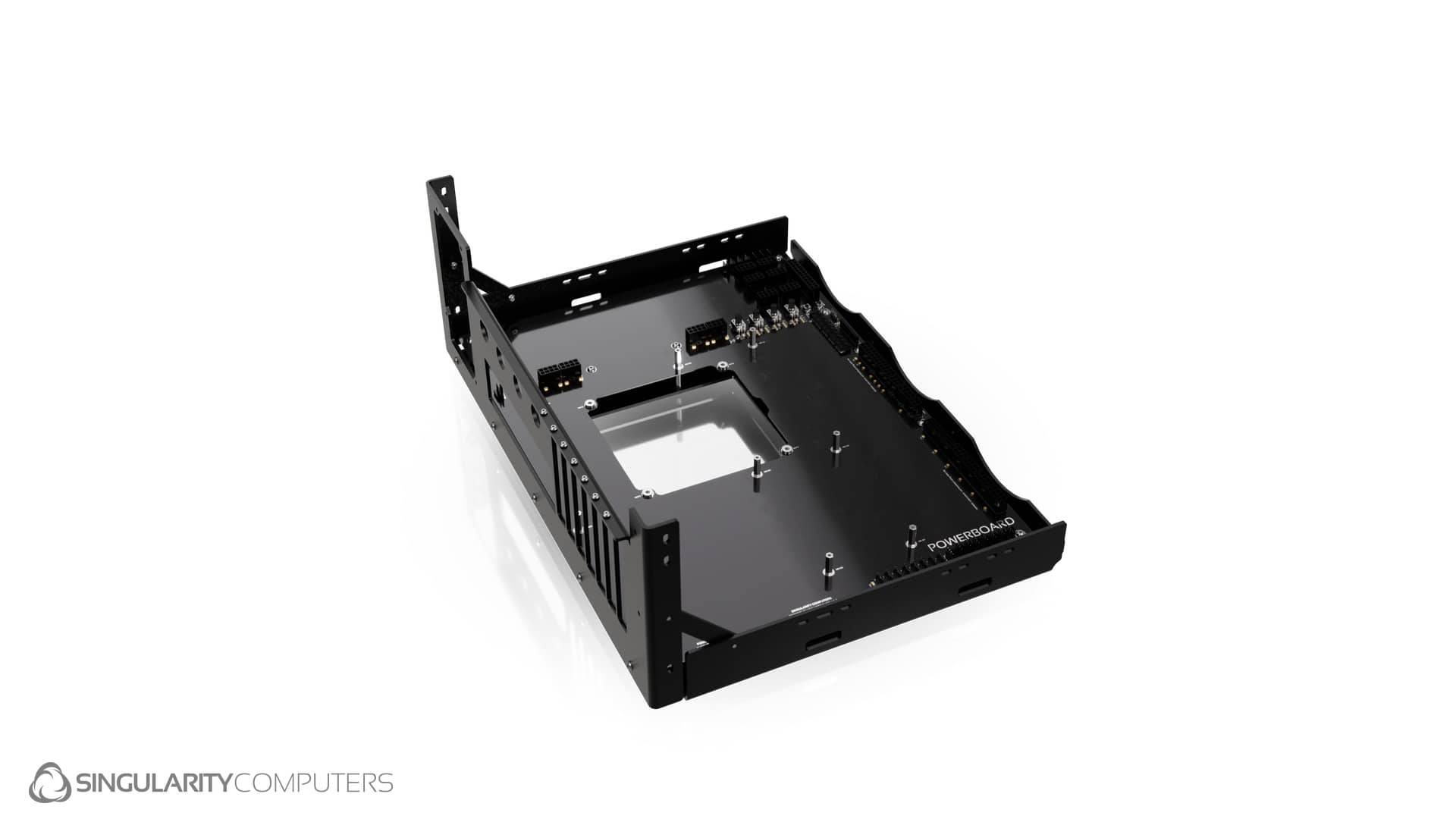

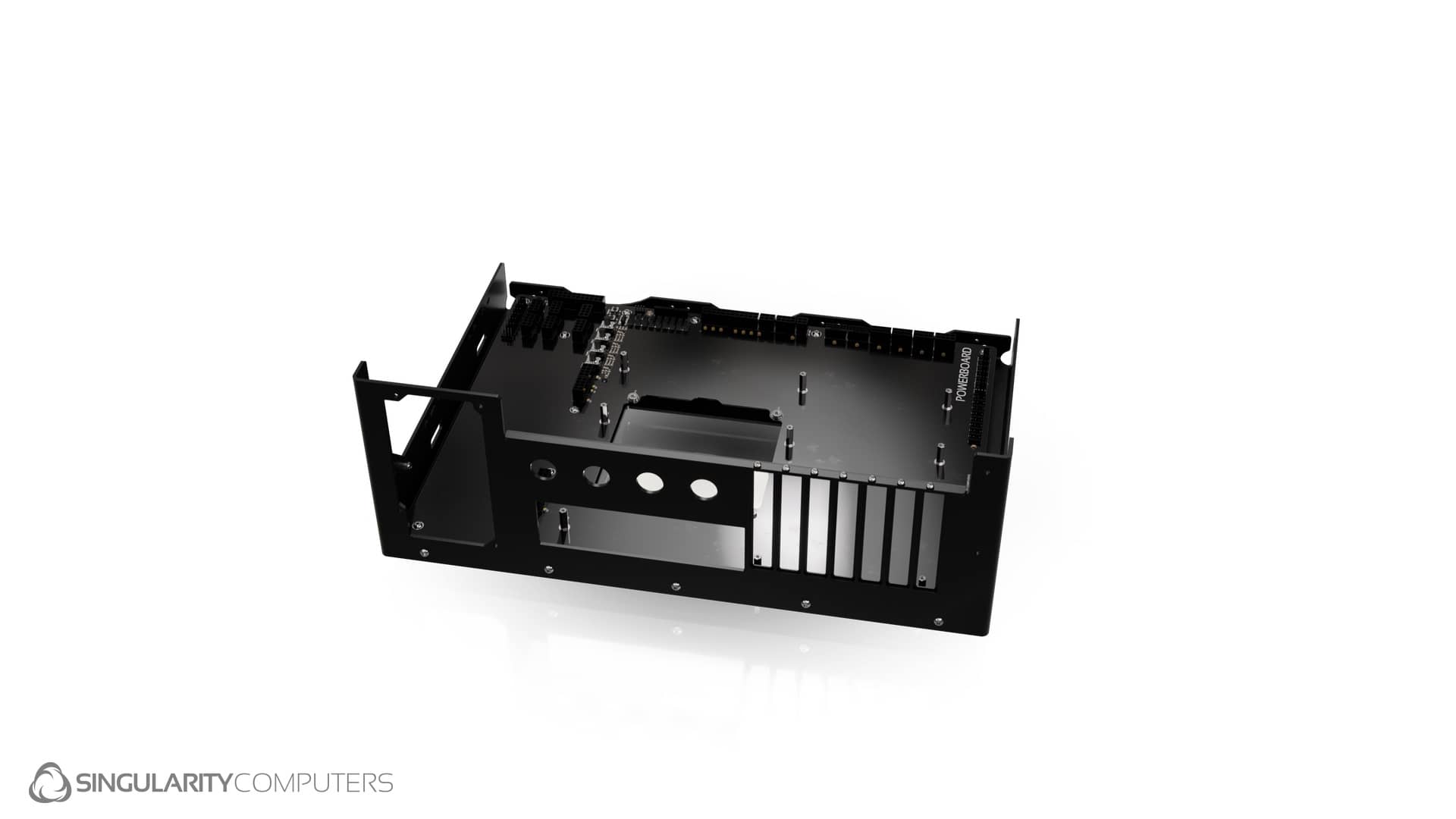

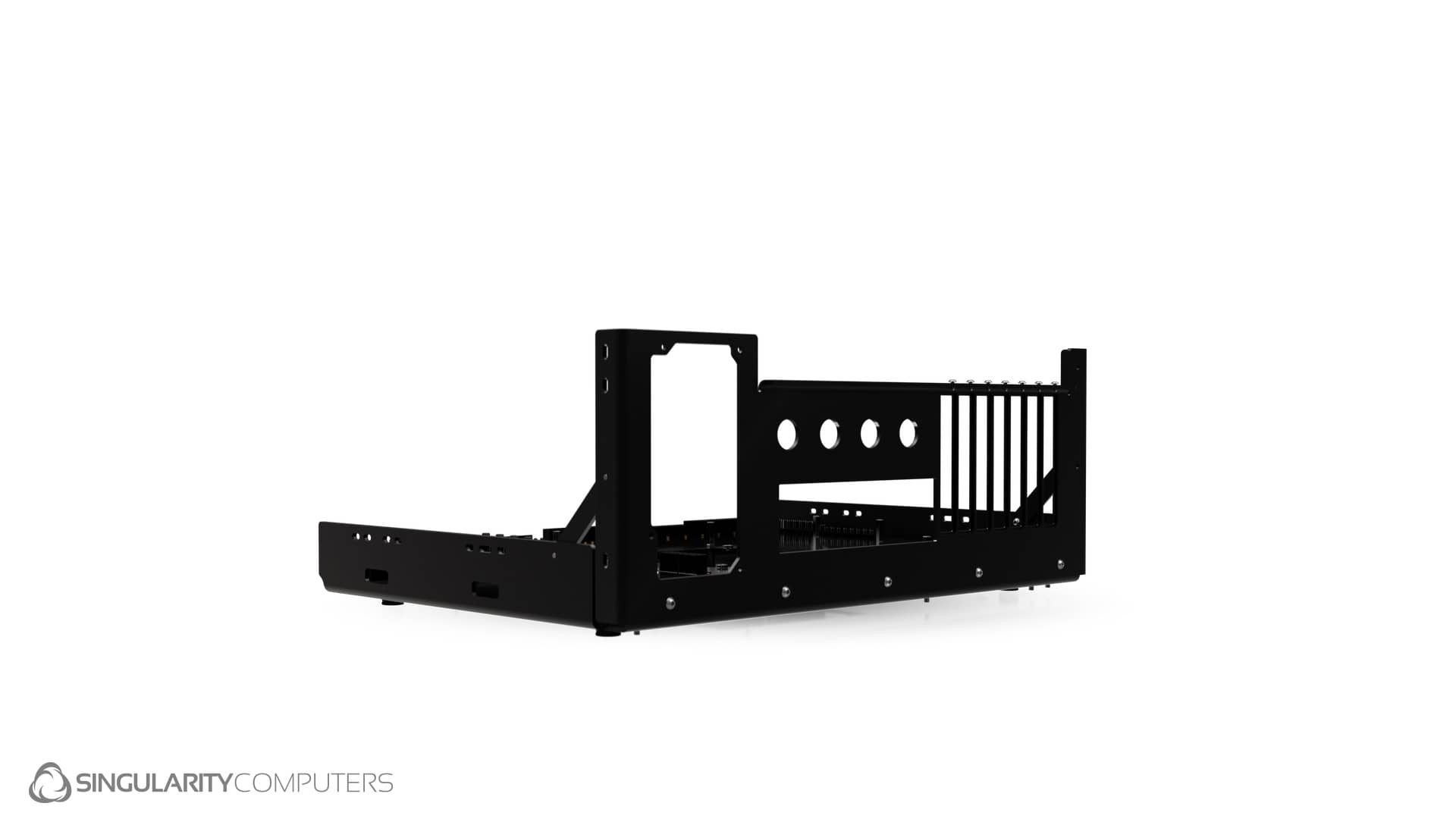

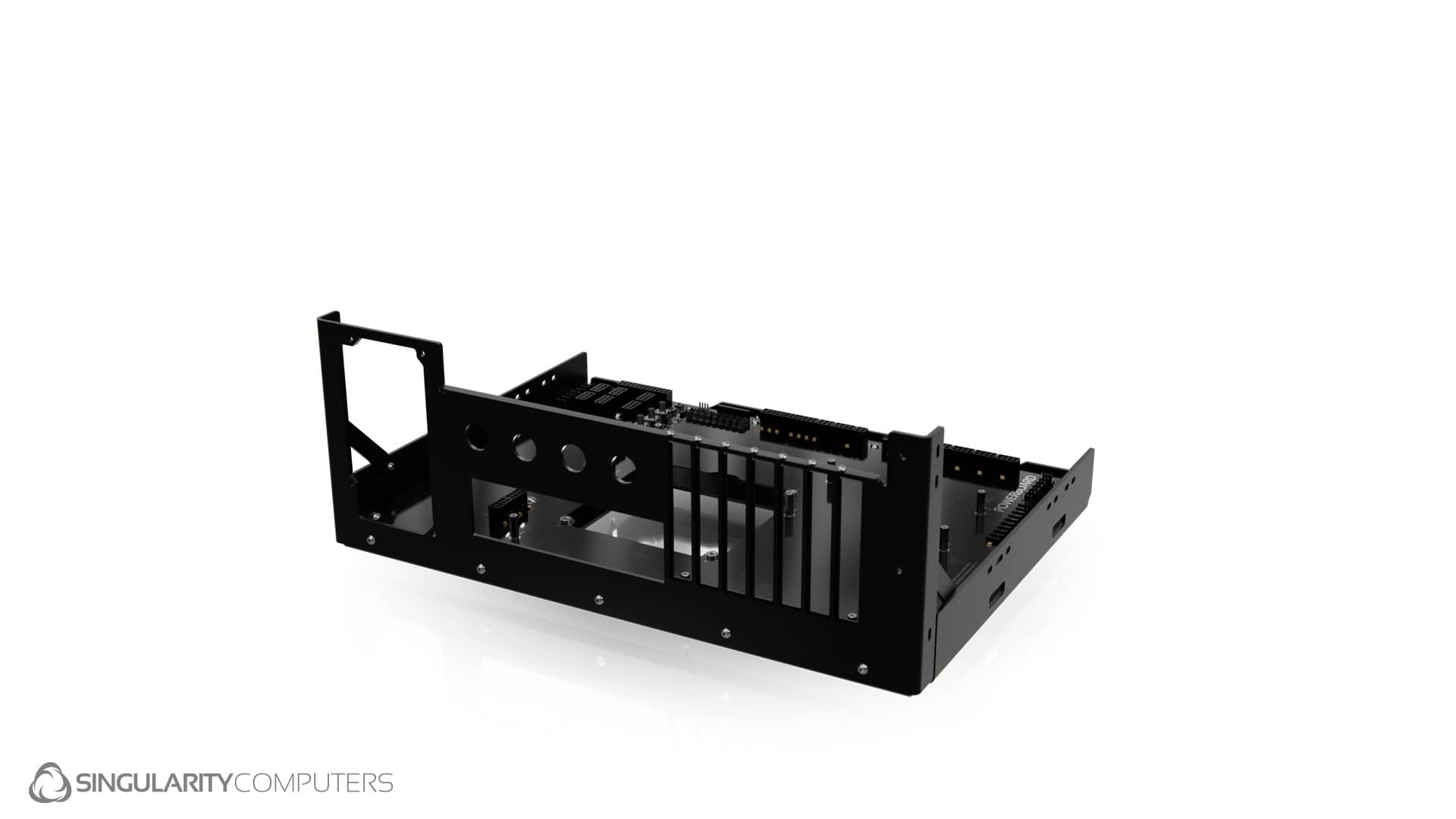

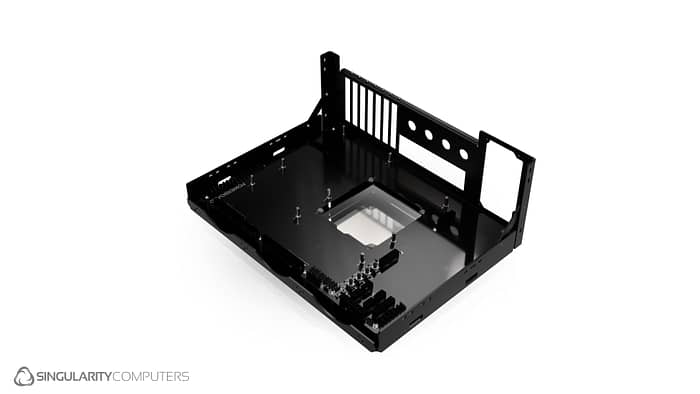

When we first came up with our patented idea of the PowerBoard we realized the potential of using it for a test bench. We have built and used many test benches and the common issue is cable management, usually on a test bench there is none. The SC Test Bench eliminates the need for cable management thanks to the PowerBoard. Built into the PowerBoard are many features which are useful to have on a test bench and in any system particularly if it is water-cooled. The SC Test Bench fits radiators on both sides up to 480mm or 560mm and x3 more 140mm fans on the front. There is also be a pump/reservoir distribution plate addon which mounts onto the front.
Contact support(at)singularitycomputers.com if you are interested in purchasing this product.
US$299.00
Specifications ▼

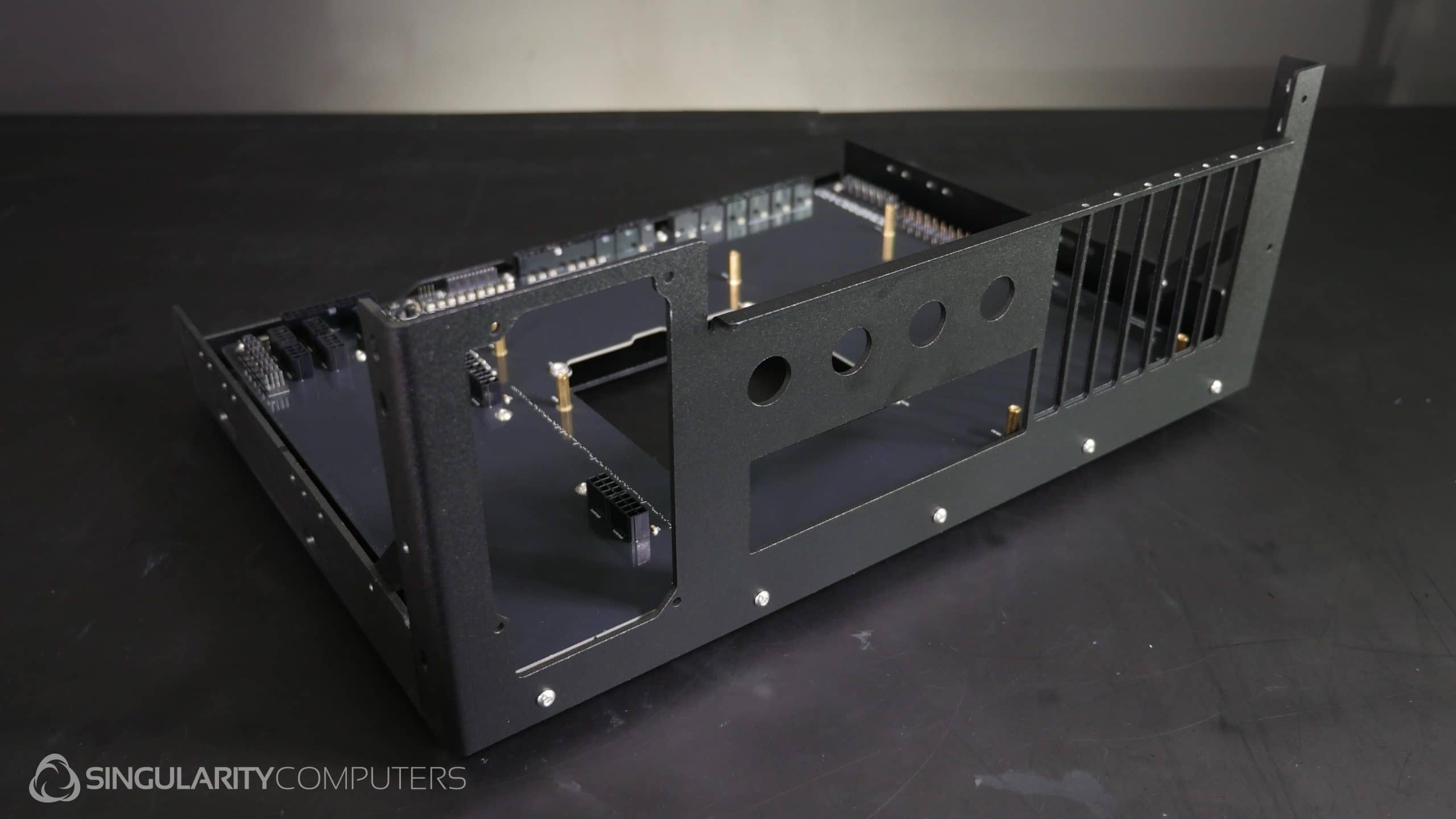

SC Test Bench Enclosure: 6061 Aluminum. CNC Machined. Anodized.

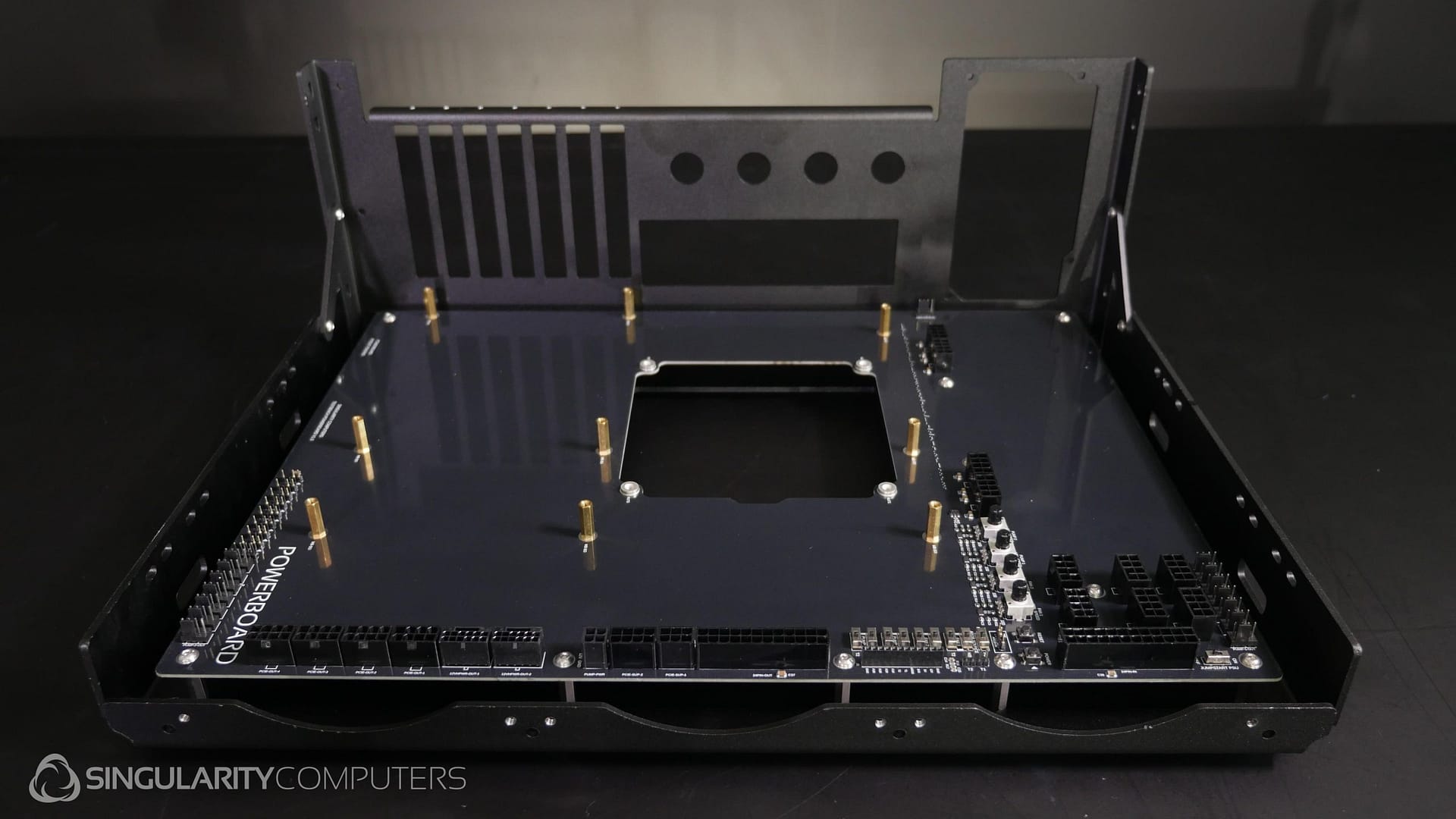

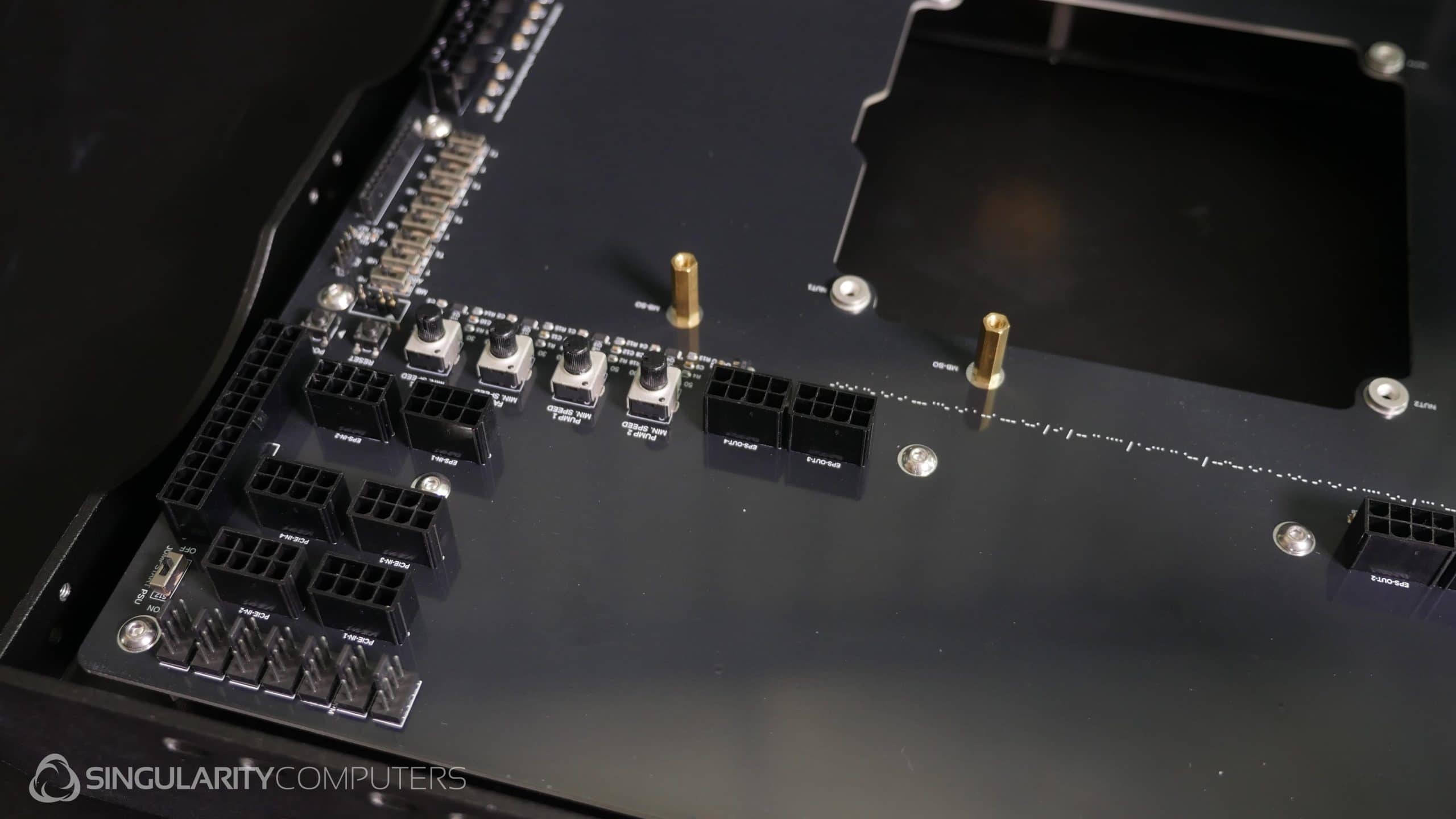

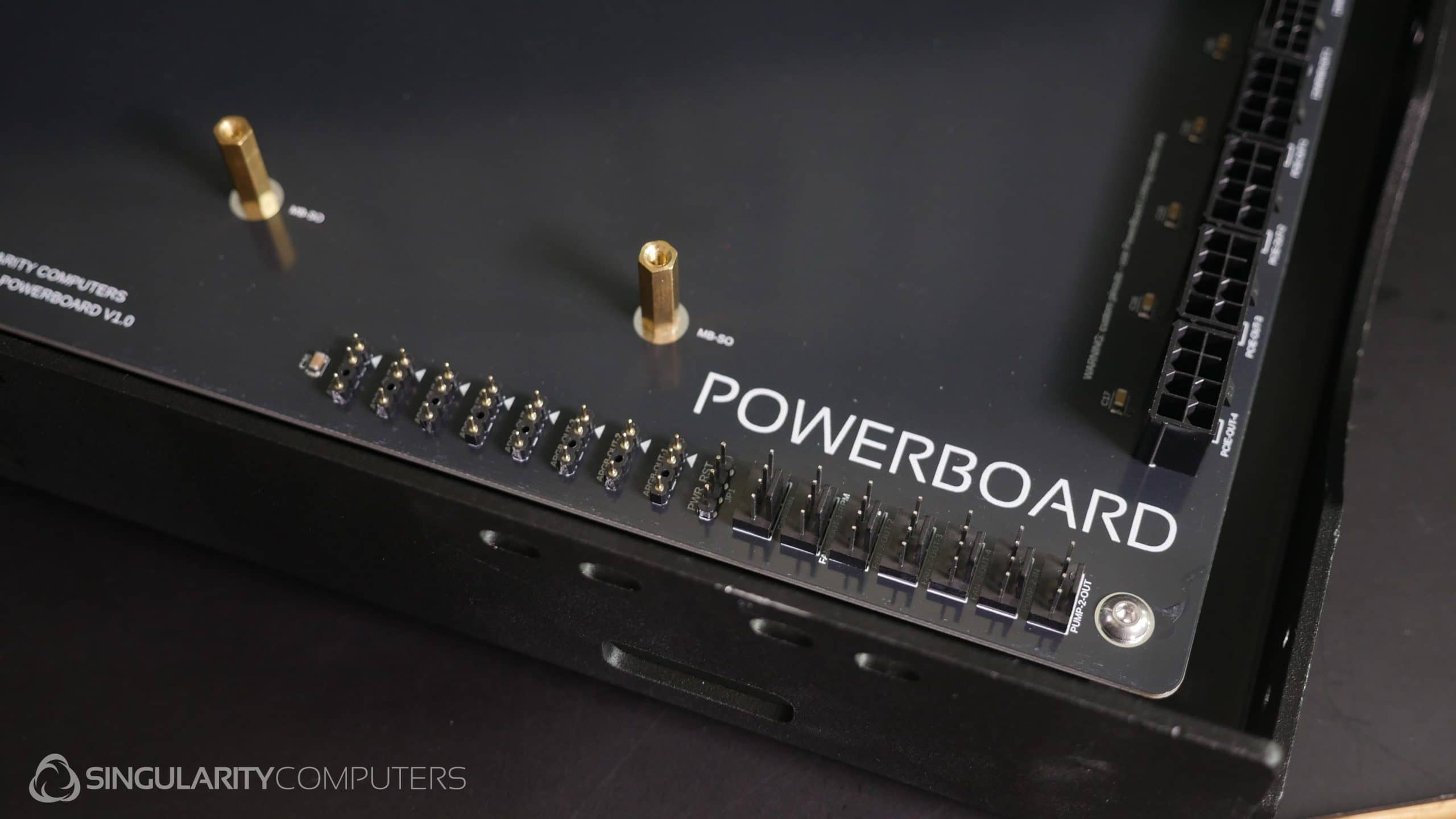

SC Test Bench PowerBoard: PCB.
Fasteners: Stainless Steel.
Motherboard: ITX, DTX, ATX, EATX (up to 285mm wide).
PSU: ATX (up to 220mm long).
Expansion slots: x7.
Radiators: Up to 480mm or 560mm.
Fans: 140mm x3 (front). 120mm/140mm x2 per side.
Drive mounts: Total of 3x 2.5” drive mounts, 1x on the rear panel and 2x on the bottom panel.
External Water-cooling Passthroughs: x4 to connect external radiators with up to 2 separate loops.
Dimensions: L: 476.5mm x W: 361.5mm x H: 190mm.
Weight: 2.65kg.
Packaged Dimensions: L: 500mm x W: 400mm x H: 200mm.
Packaged Weight: 3.5kg.

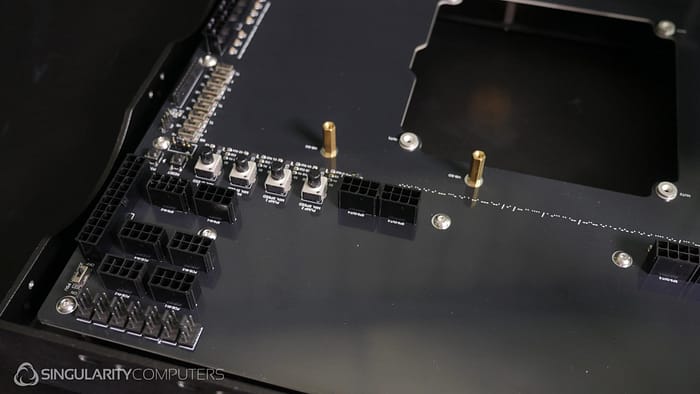

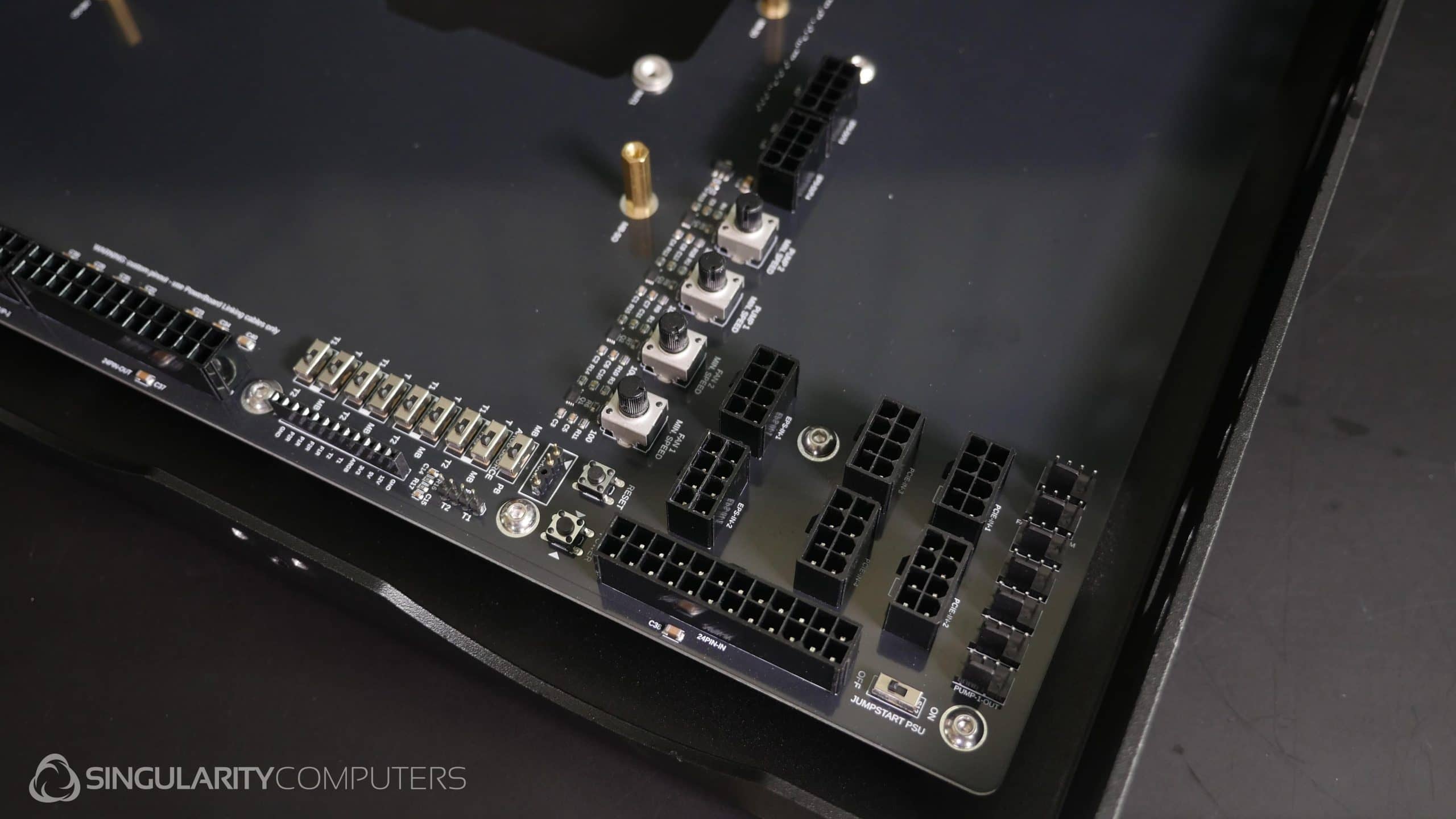

Electronics Integration ▼
Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x4. PCIE 6pin Supplementary x1. PCIE 8pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2 each with x1 input and x4 outputs. Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 140mm fan which can be mounted behind the motherboard. Controlled by PWM fan hub 1.
PWM Control: 4x potentiometers to set the minimum PWM speed.
ARGB: x8 outputs with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible with any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
Power and Reset Buttons.
4pin ATX header to power up to two pumps with custom cables from the PowerBoard.
12pin header for future controller addon.
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Cables: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x2.
ARGB Female to Female 50cm Black Sleeved x1.
Power, Reset, Black 20cm.
Pump Power Cable 4pin ATX to SATA & Molex x2.
Installation:
See installation manual at the link above.
Addon Information ▼
D5 Reservoir Distribution Plate Protium 3.0 D5 Pump
Protium 3.0 ARGB D5 Cover
FanGuardian PowerBoard Controller PowerBoard PSU Cable Kit
Shift Motherboard 24pin 90 Degree Adaptor

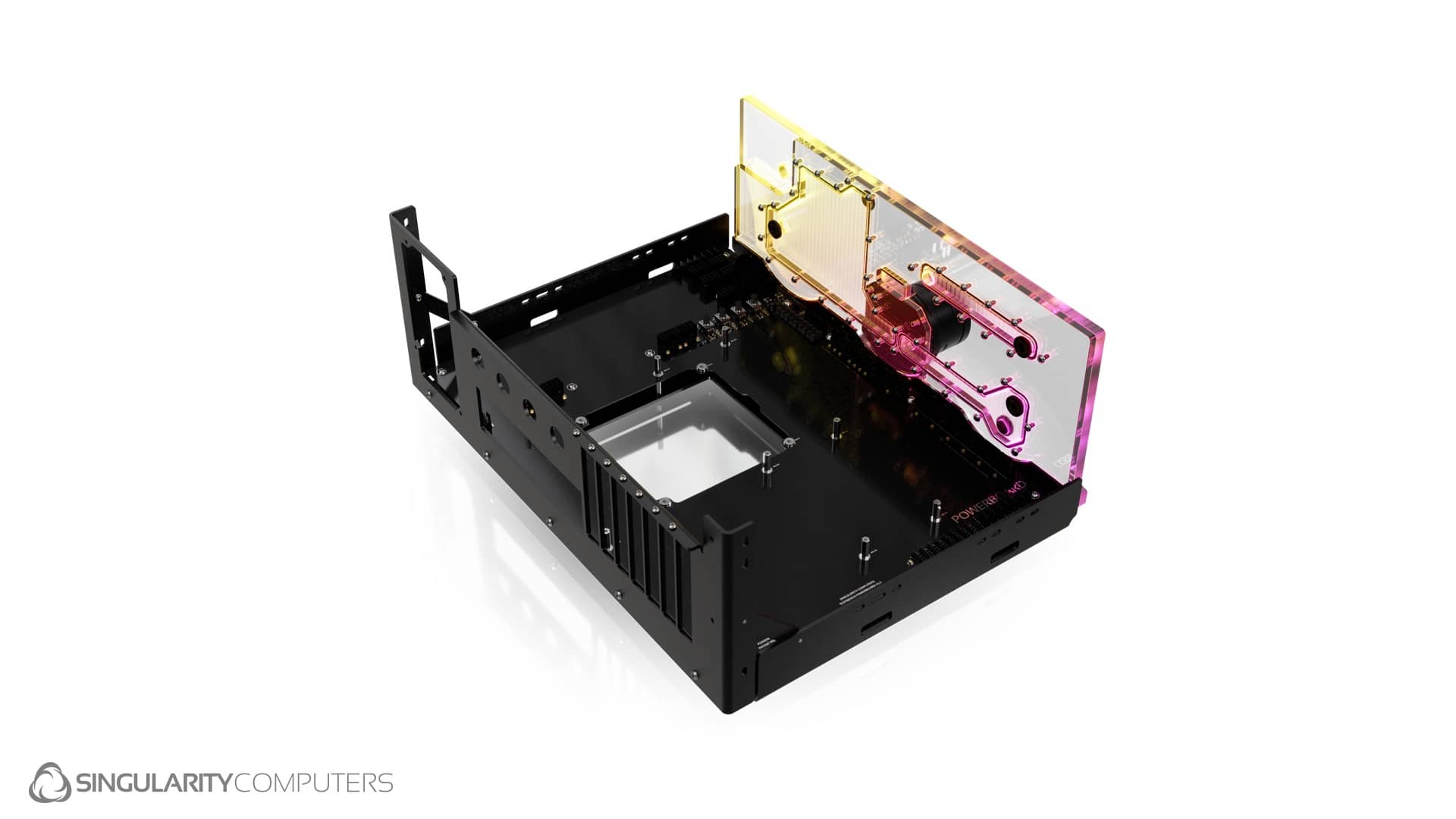

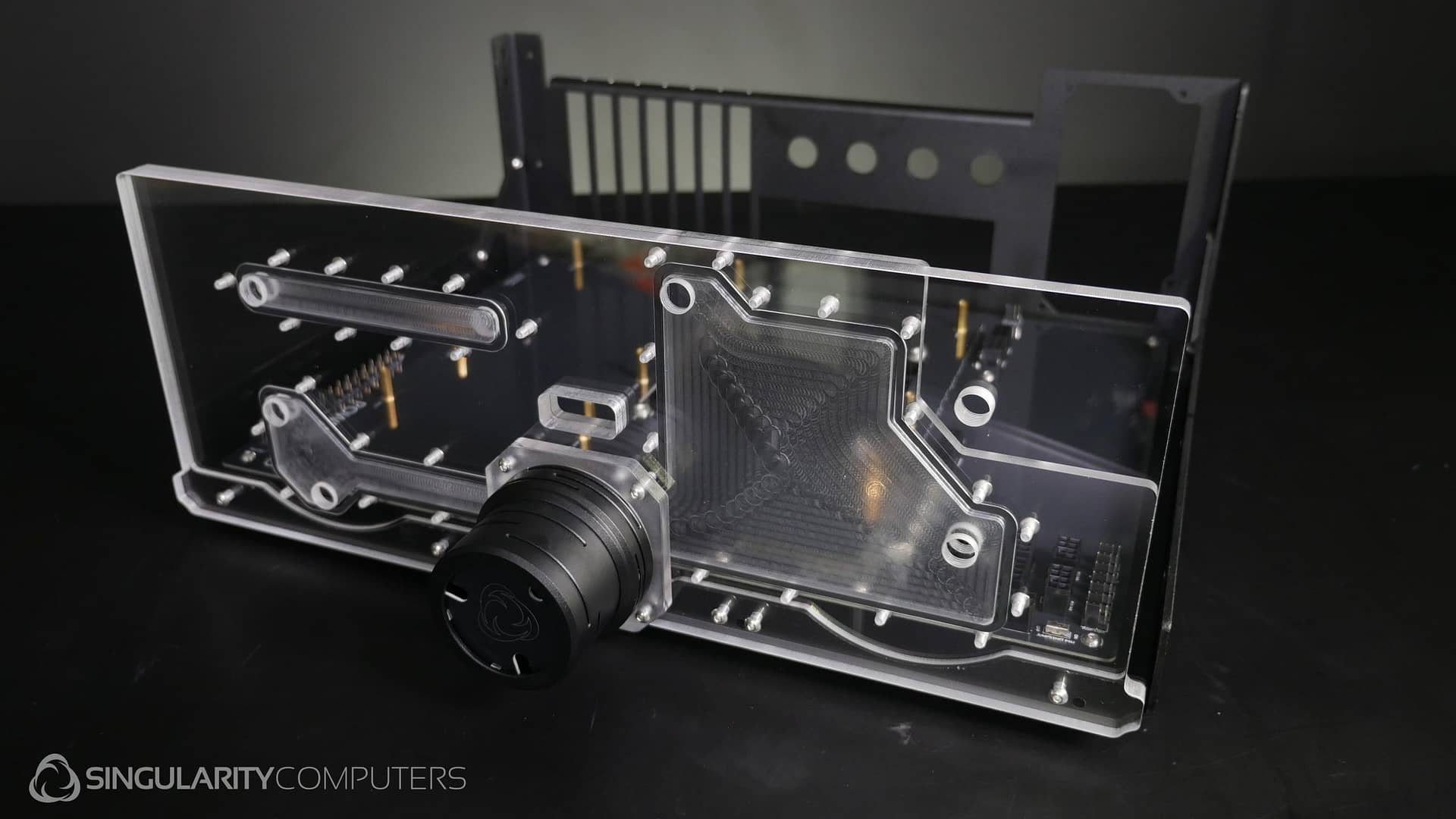

D5 Reservoir Distribution Plate: The SC Test Bench D5 Reservoir Distribution Plate adds a D5 and Reservoir Combination to the SC Test Bench. A Distribution Plate is the most compact way to add a pump and reservoir which is important for a test bench to keep things out of the way for easy access to the other components. It also improves the loop routes and is a major visual feature. This distribution plate installs on one side and has a loop route for easy connections to and from the side mounted radiators. It has an integrated reservoir, D5 pump top, D5 cover and a LED strip built in so that the distribution plate glows. The distribution plate is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners.
Protium 3.0 D5 Pump: The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.
Protium 3.0 ARGB D5 Cover: The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

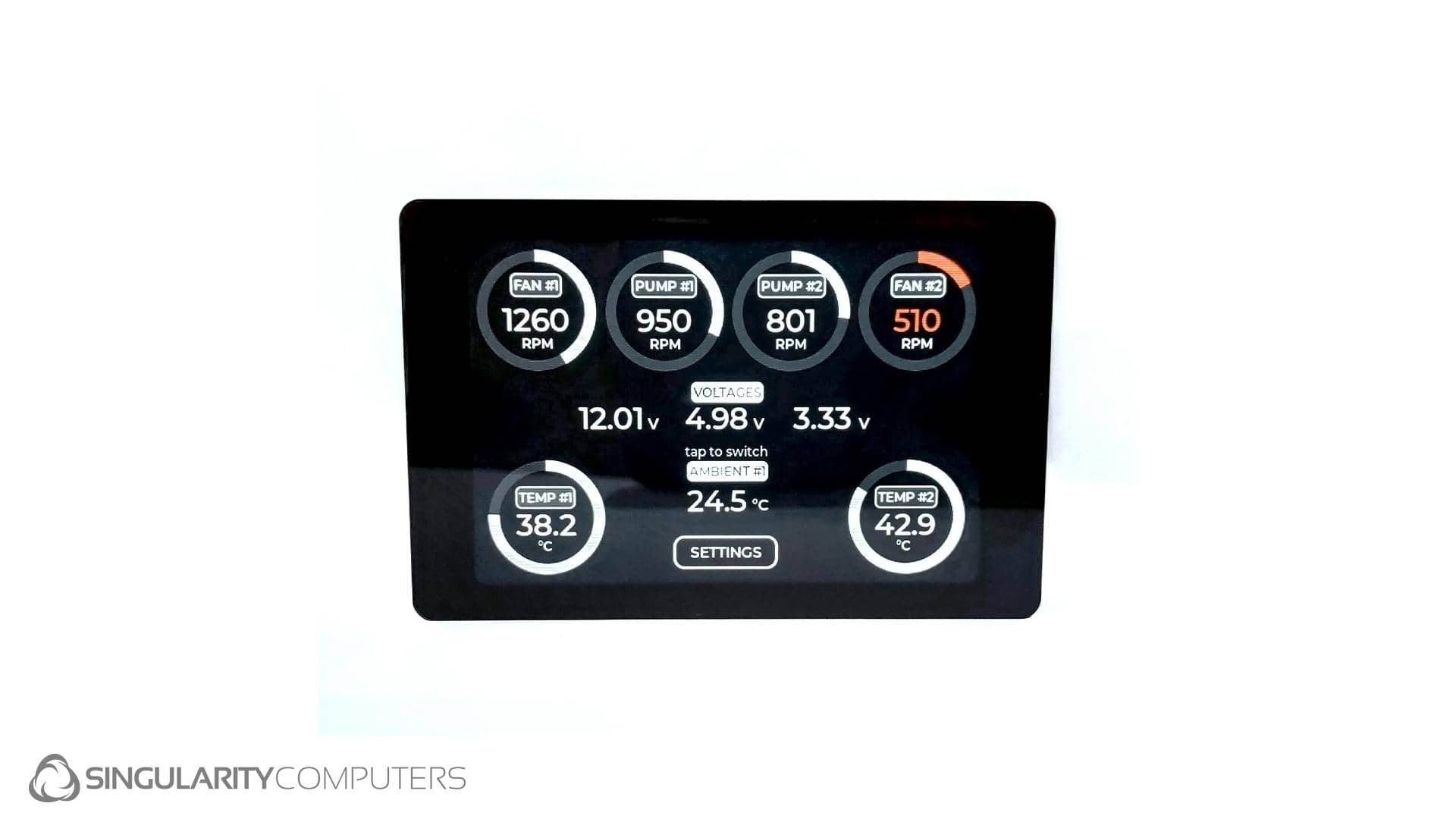

FanGuardian PowerBoard Controller: The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It can be mounted with fasteners onto Spectre 4 and Stream-M Water-cooling cases and with adhesive on the SC Test Bench, SC Rackmount Case and PowerBoard Universal 360mm. It has updateable Software/Firmware and we will continue adding features.
PowerBoard PSU Cable Kit: Stock PSU cables will work with the PowerBoard on the input side, but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.
Shift Motherboard 24pin 90 Degree Adaptor: The Shift 24pin 90 Degree Adaptor is for motherboards with 90 degree 24pin connections so that a clean connection can be made with the 24pin cable from the PowerBoard to the motherboard. Custom designed PCB with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling.
