PowerBoard Absolute & Impact Case

In stock

Order processing time 1-2 days.

  • Patent-pending PowerBoard cable management technology
  • Integrates core component cables, hubs and connectors into a single PCB
  • Brings connectors close to components for clean, standardized cable routing
  • Standardizes cable lengths to eliminate the need for custom cables
  • Essential for clean cable management in Absolute builds
  • Includes integrated PWM and ARGB hubs

Manuals

US$149.00

Select GPU Cables (included)
None 8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

12V2x6/PCIE 5.1
Black sleeved cables which connect from the PowerBoard to the GPU.

Optional Add-Ons

Enhance your purchase with these recommended extras

PowerBoard

PowerBoard PSU Cable Kit (optional) USD $79
None Yes +US$79.00

PowerBoard PSU Cable Kit
Stock PSU cables will work with the PowerBoard on the input side, but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.
Black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs.

Shift Motherboard 24pin 90 Degree Adaptor (optional) USD $24.50
None Yes +US$24.50

Shift Motherboard 24pin 90 Degree Adaptor
The Shift 24pin 90 Degree Adaptor is for motherboards with 90 degree 24pin connections so that a clean connection can be made with the 24pin cable from the PowerBoard to the motherboard. Custom designed PCB with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling.

  • 1x PowerBoard Absolute & Impact Case
    US$149.00

Subtotal excludes shipping & tax

Free shipping over US$2,000 | 30% Off Storewide With Coupon SCA30
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182005002 SKU: SC-PB-AB Categories: ,

Description

Read More +Read Less − full description

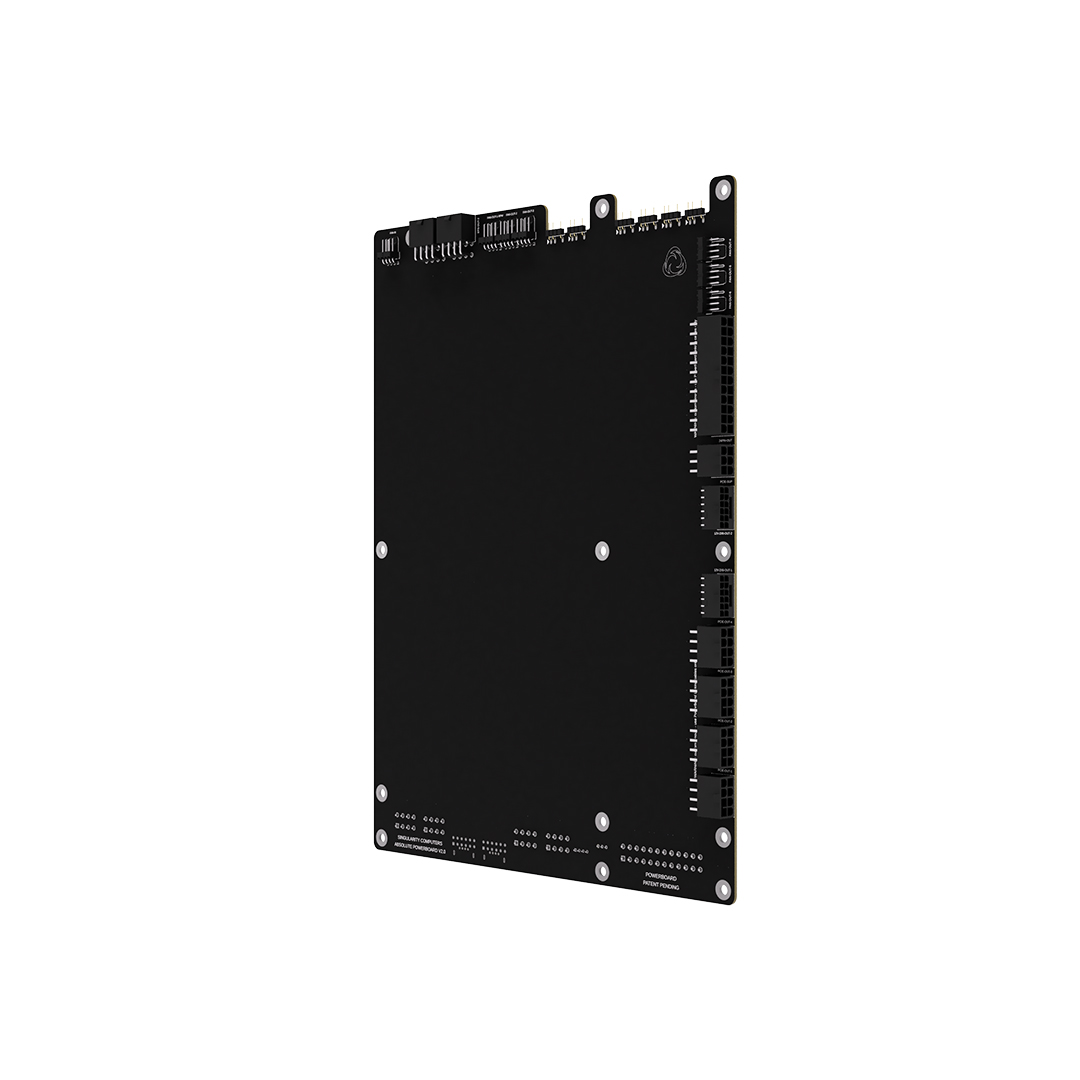

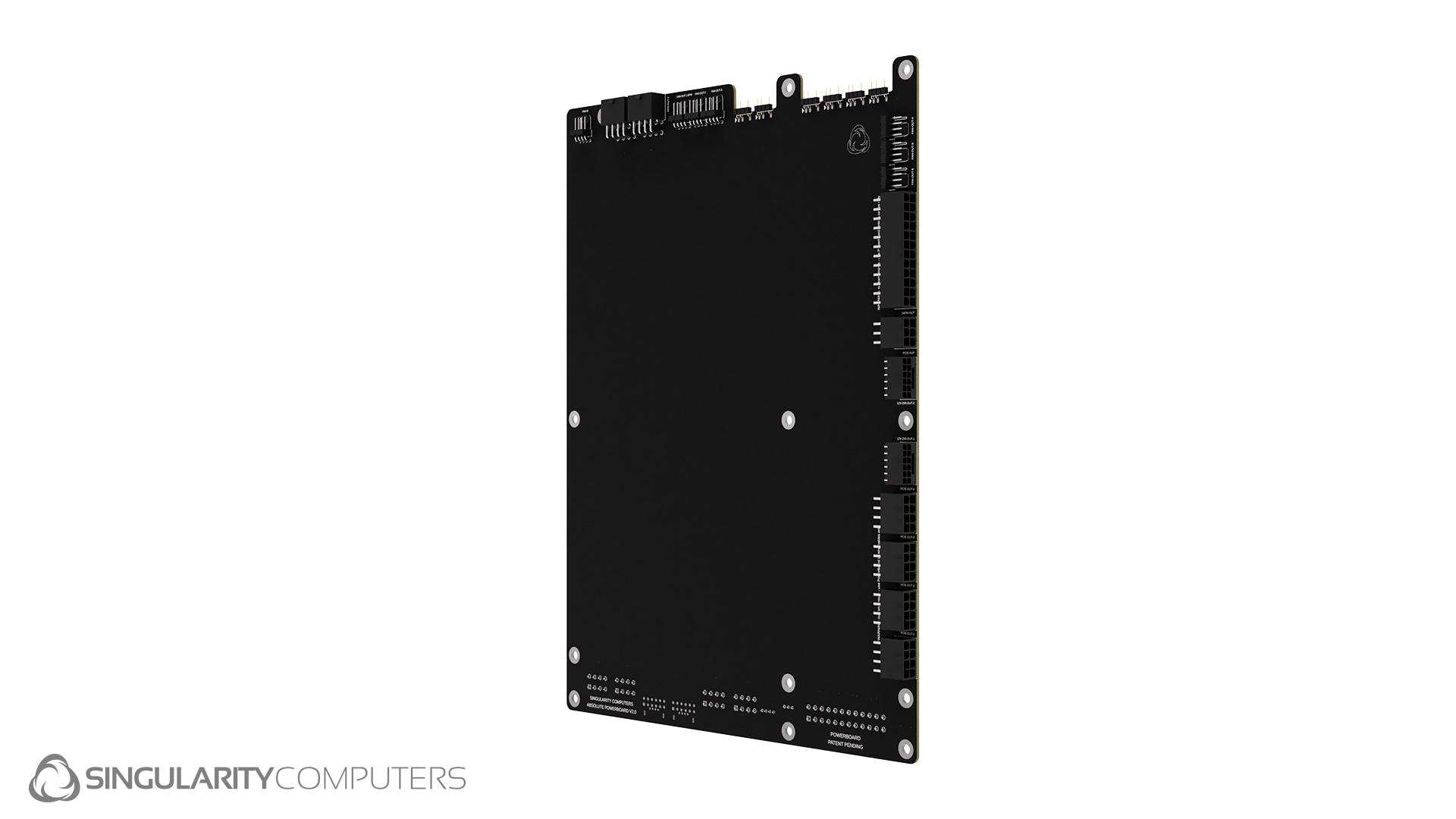

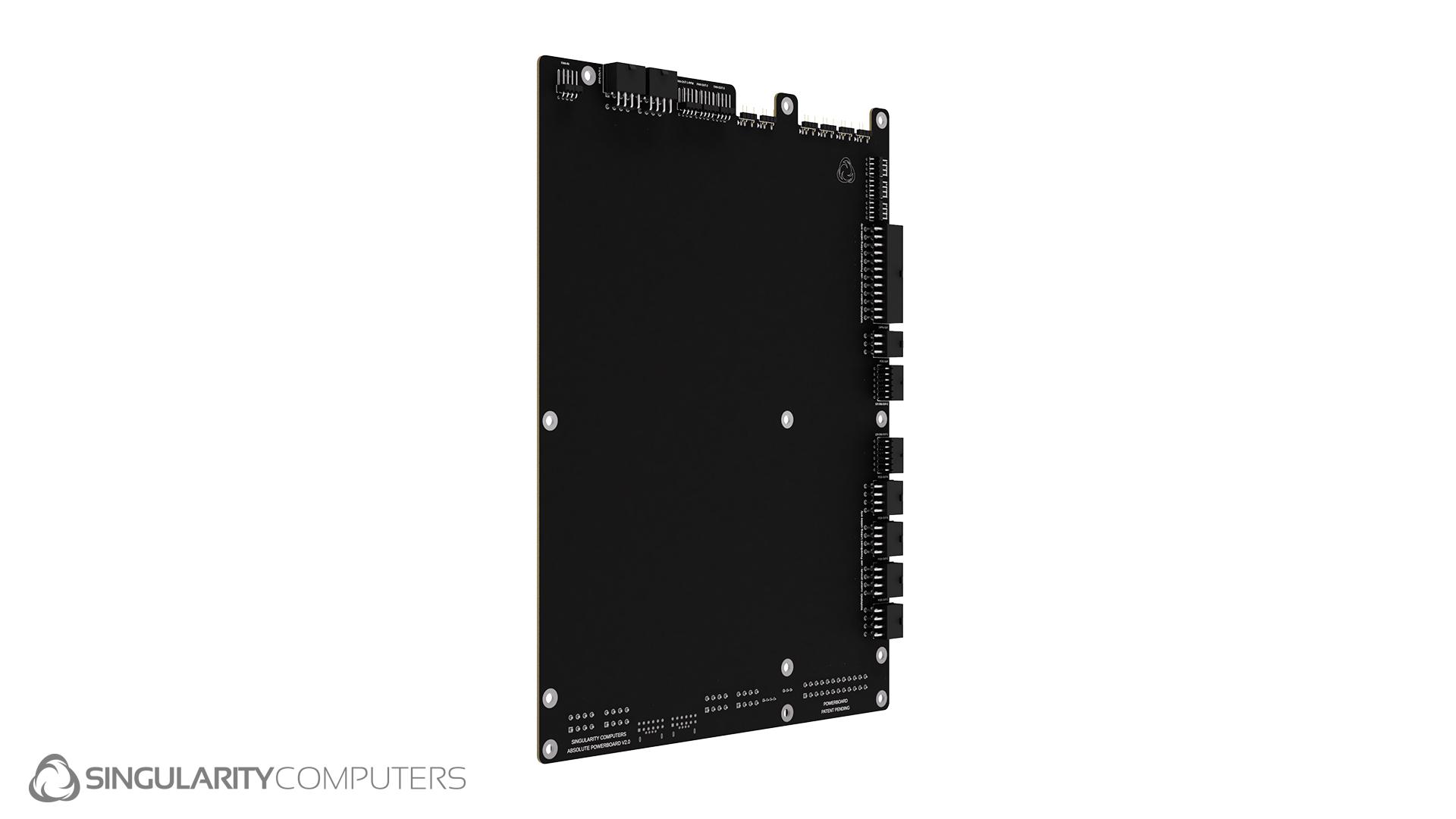

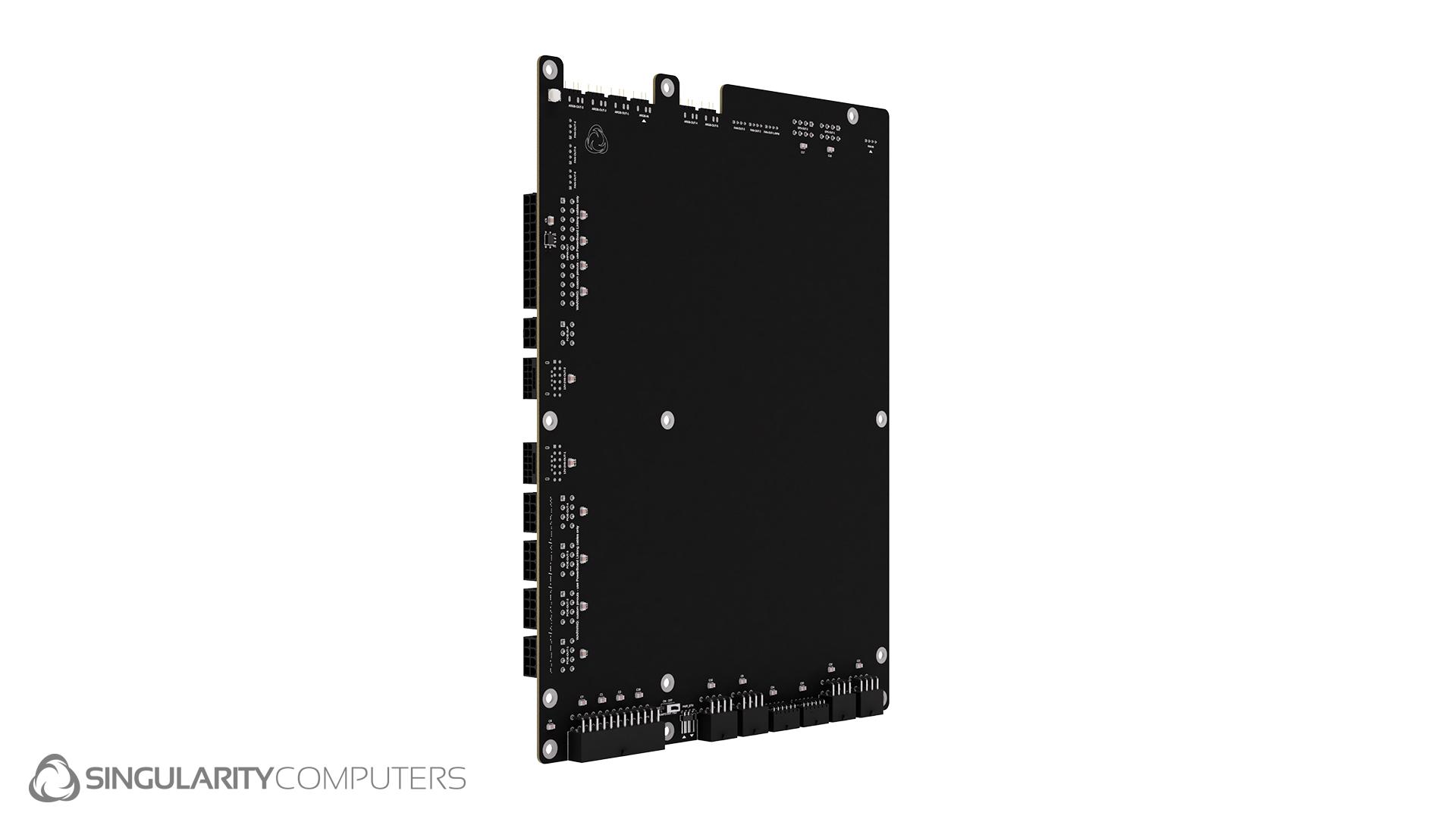

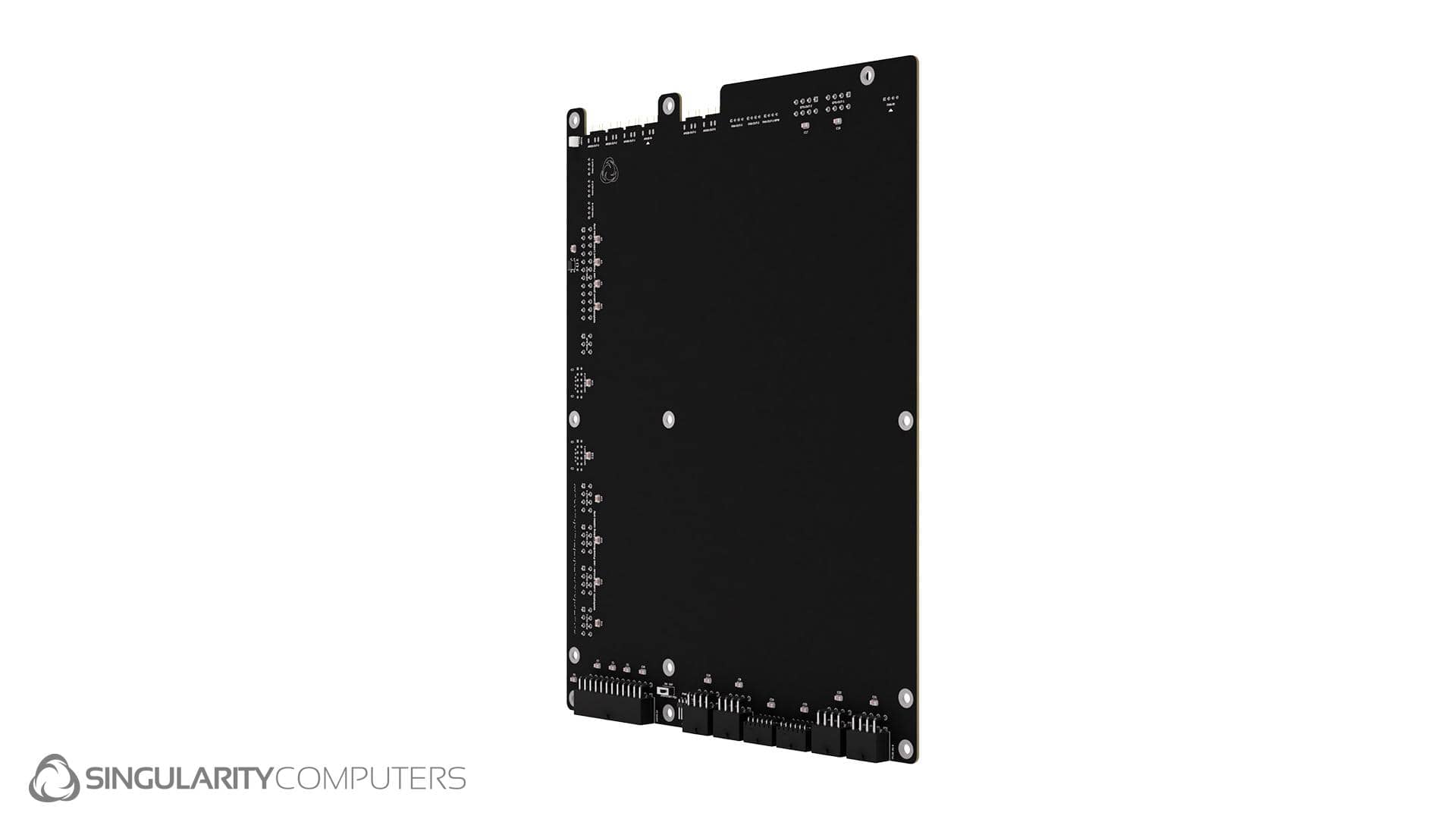

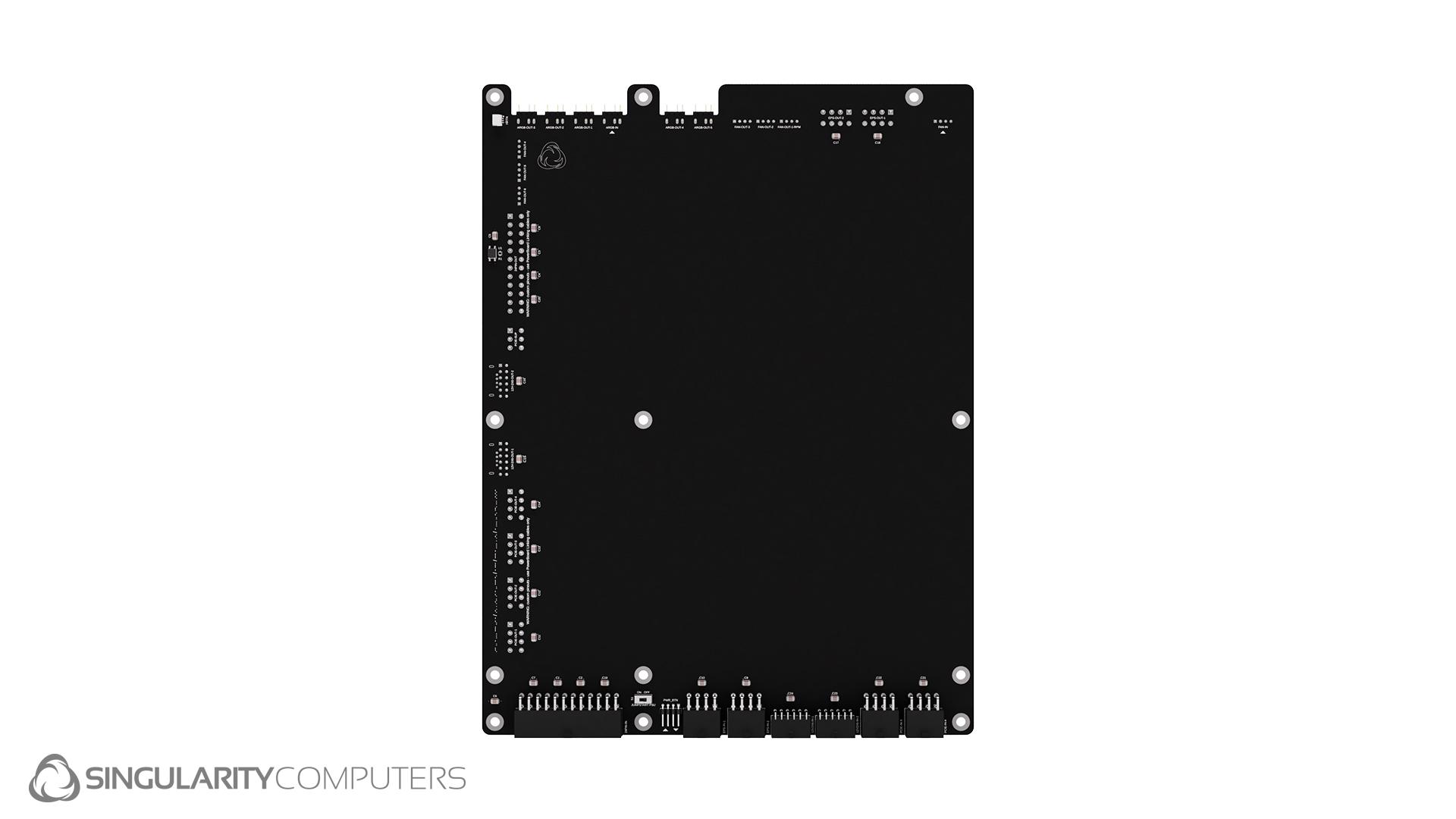

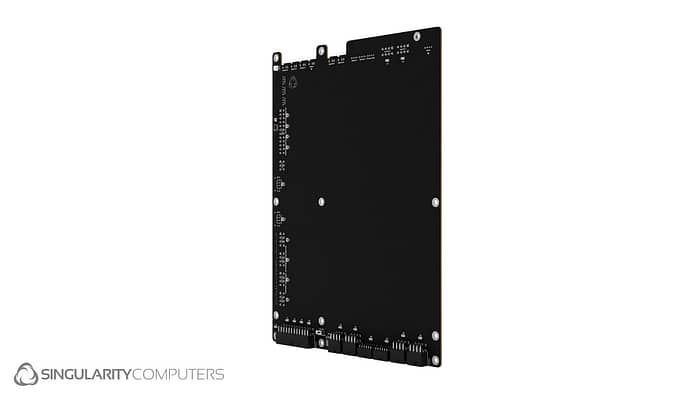

The Singularity Computers PowerBoard is a patent pending technology which completely solves the cable management problem. It is a PCB which integrates the core component cables, along with hubs and more. It is essentially a distribution plate for cables bringing the connectors close to the components allowing standardization of all cable lengths. The Absolute PowerBoard is an essential addition to create perfect cable management without the need for custom cables. It also comes included with PWM and ARGB hubs.





Specifications

PowerBoard Absolute & Impact Case: PCB.
Fasteners: Stainless Steel.
Electronics Integration:

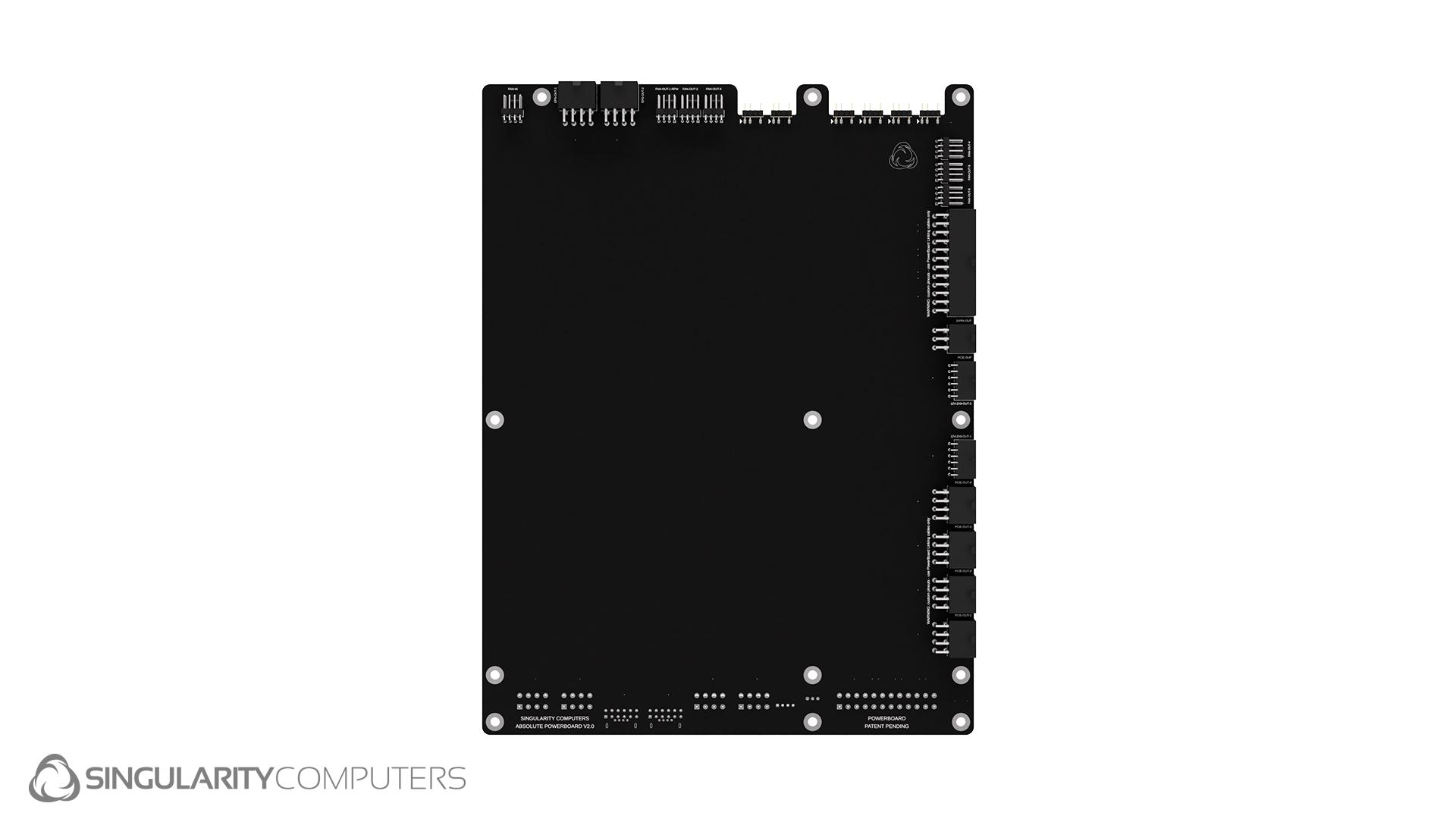

Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x2. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hub x1 input x6 outputs. ARGB: x1 input x8 outputs.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
Dimensions: L: 240mm x W: 317.5mm x H: 16mm.
Weight: 1kg.
Packaged Dimensions: L: 430mm x W: 395mm x H: 50mm.
Packaged Weight: 1.5kg.

Compatibility:

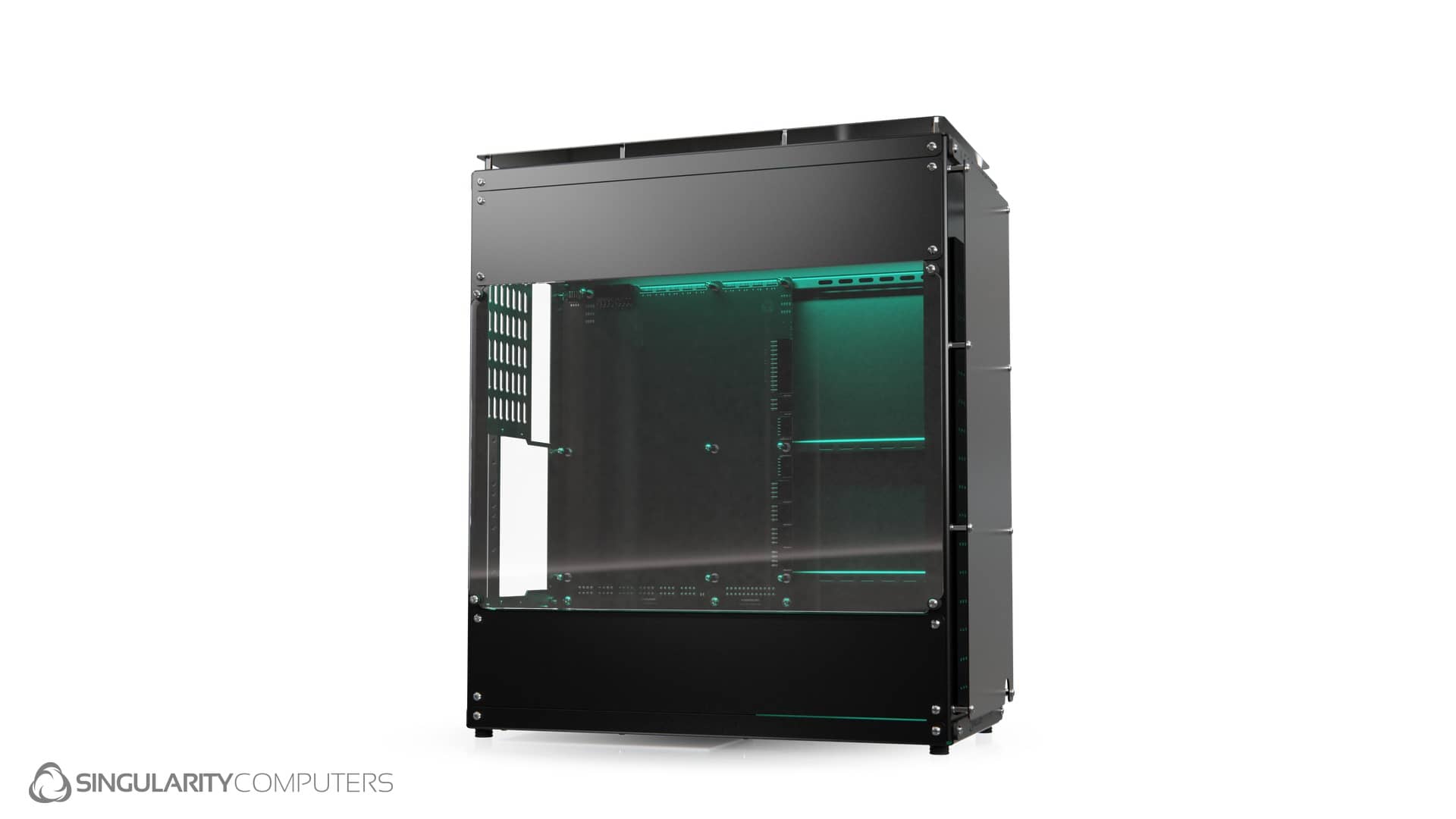

Absolute Case.
Absolute Impact Case.
Absolute Impact Water-cooling Case.

Installation:

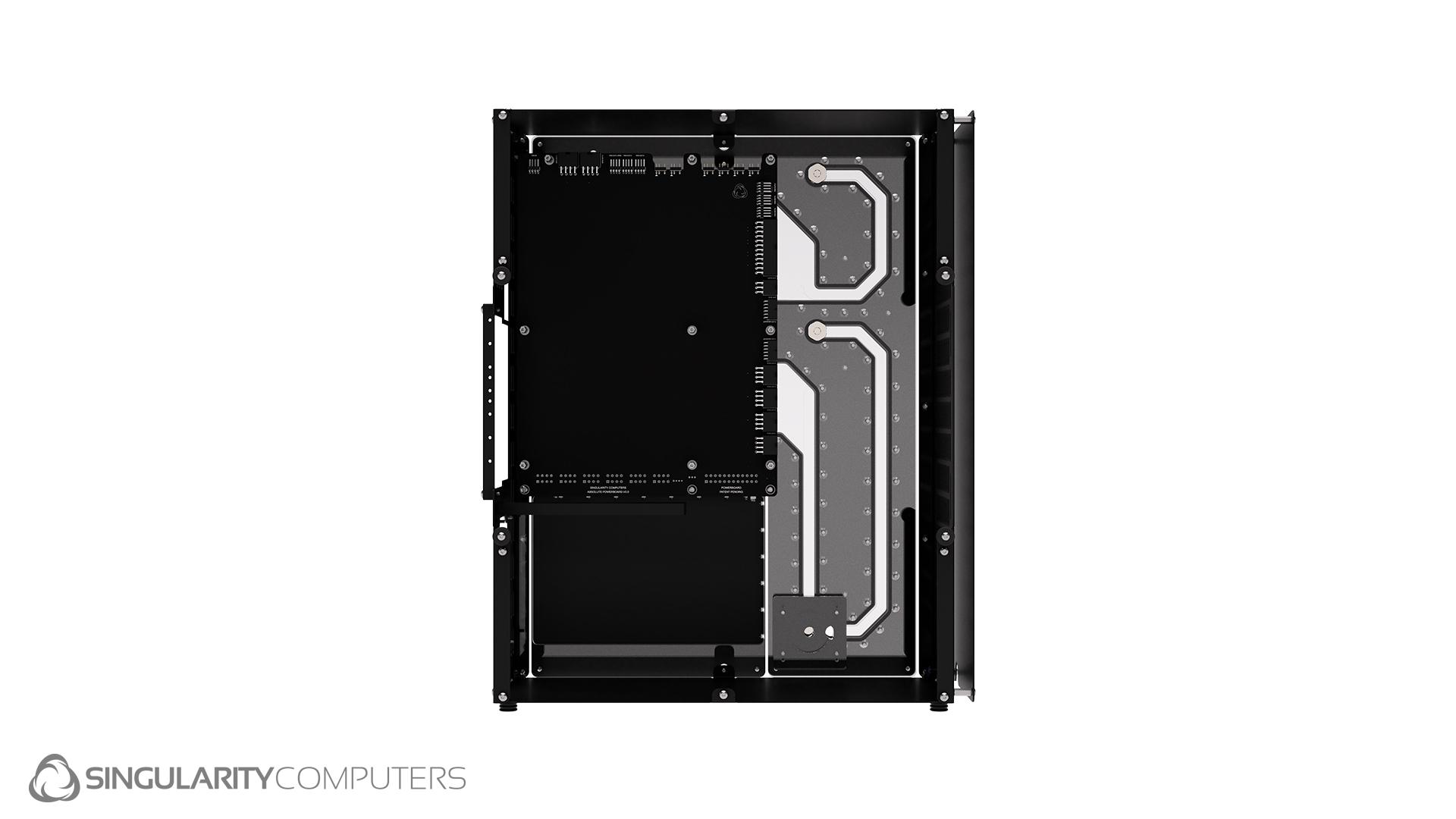

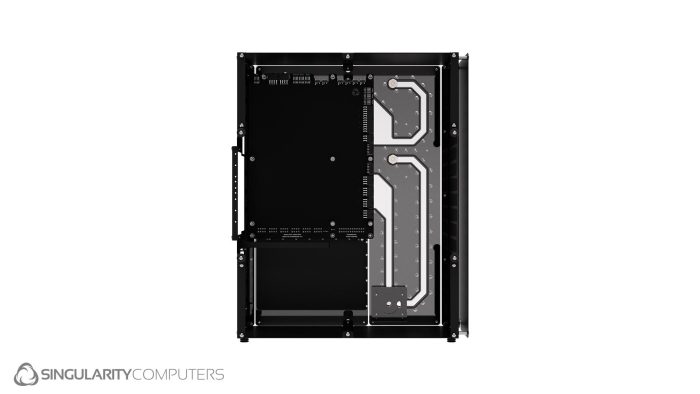

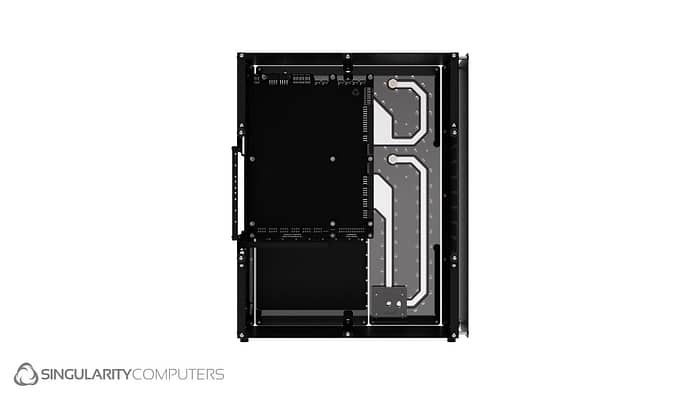

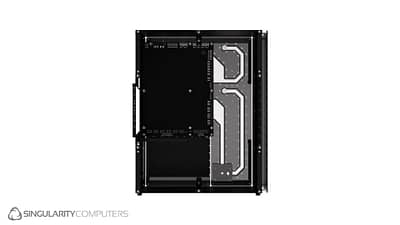

Installs onto the motherboard tray area of the Absolute Case. See manual link above.
