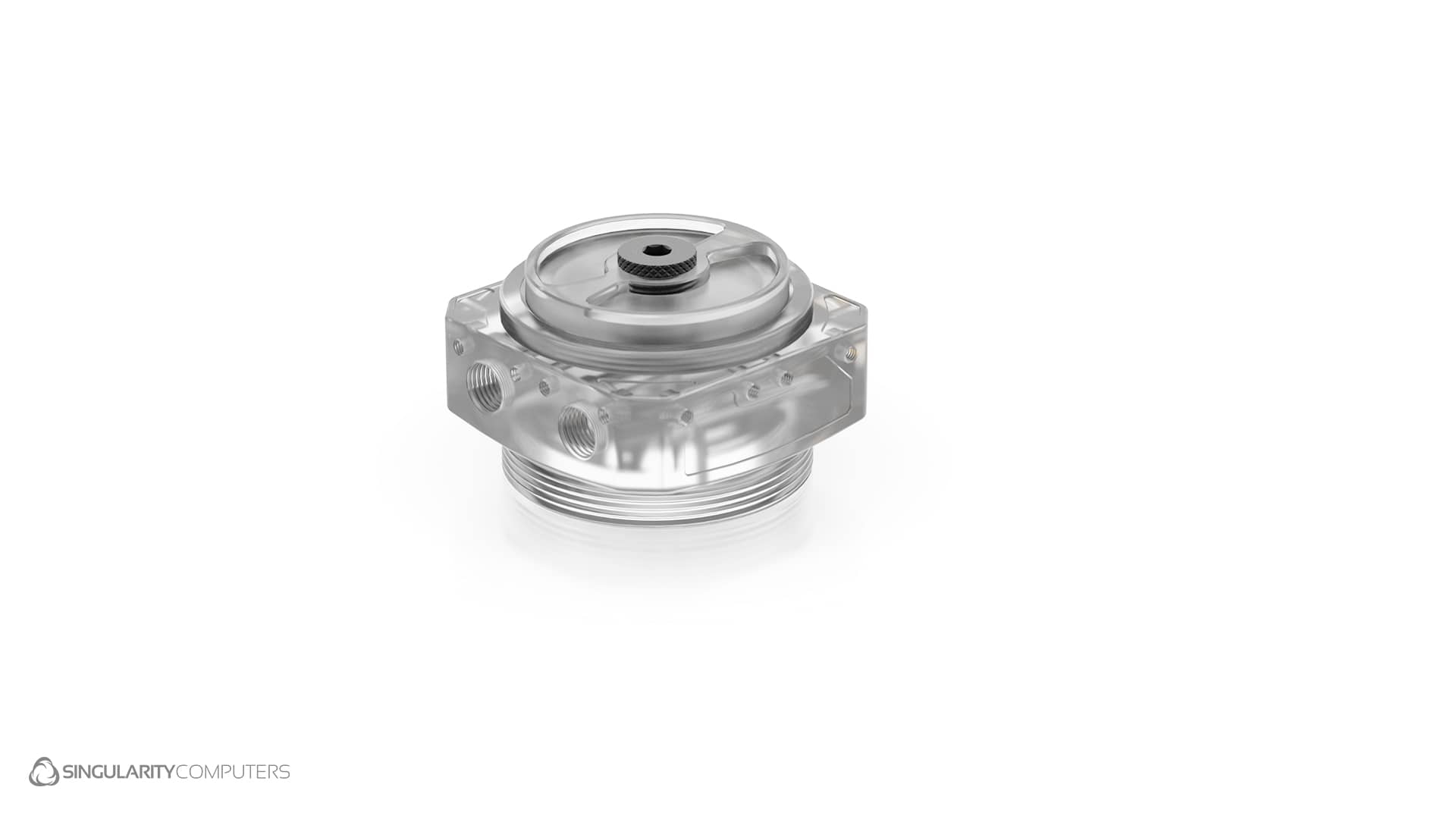

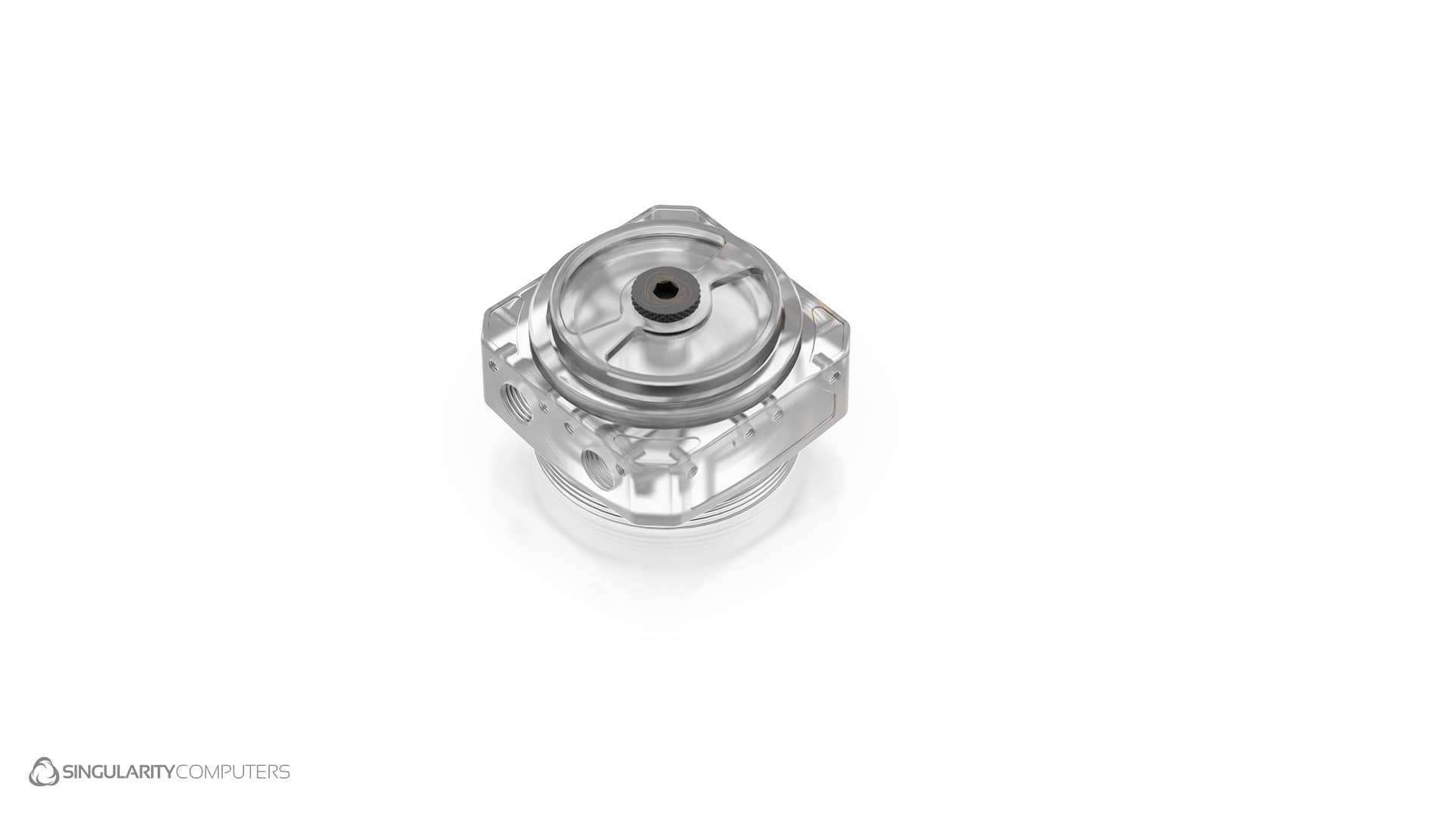

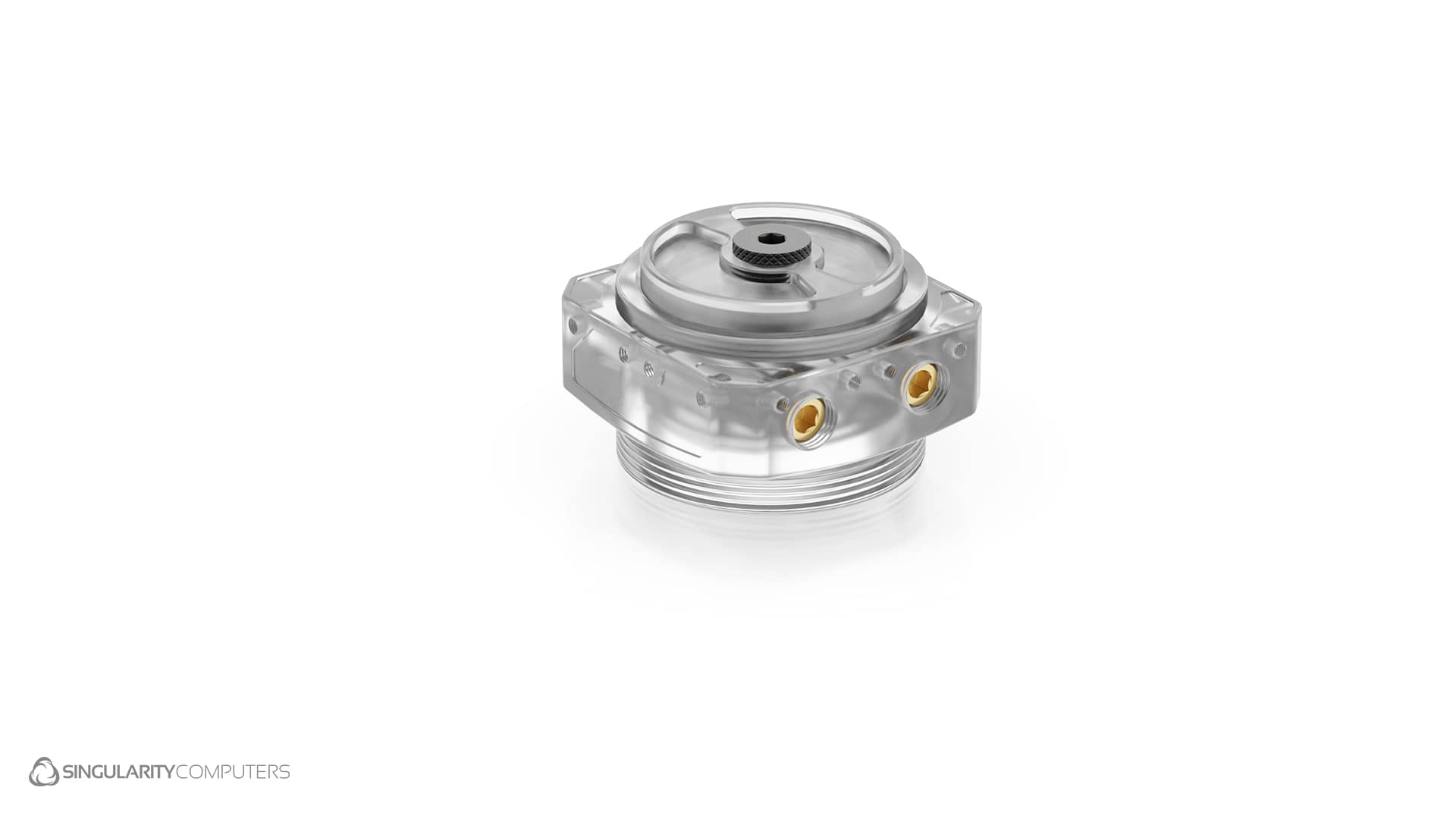

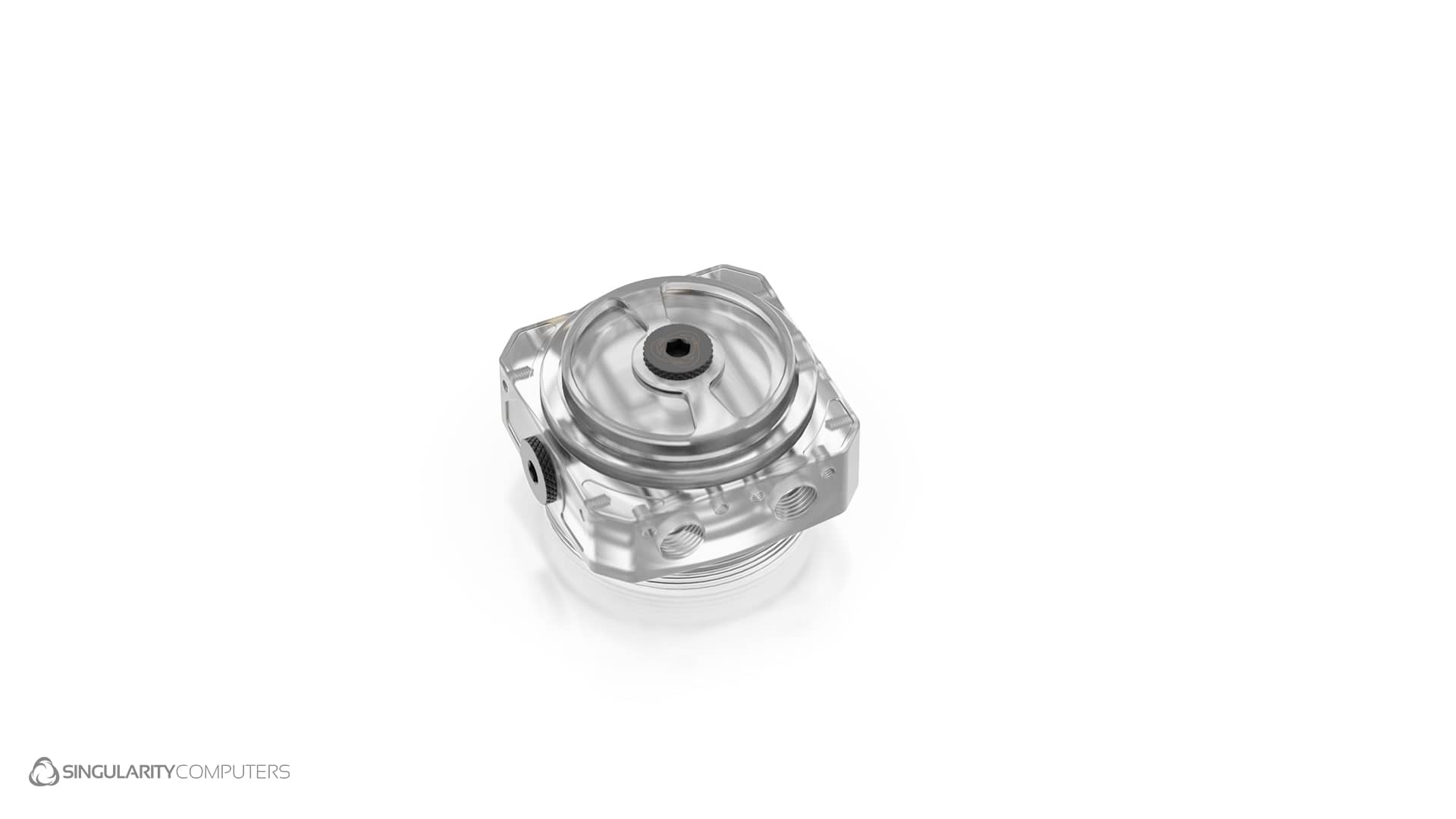

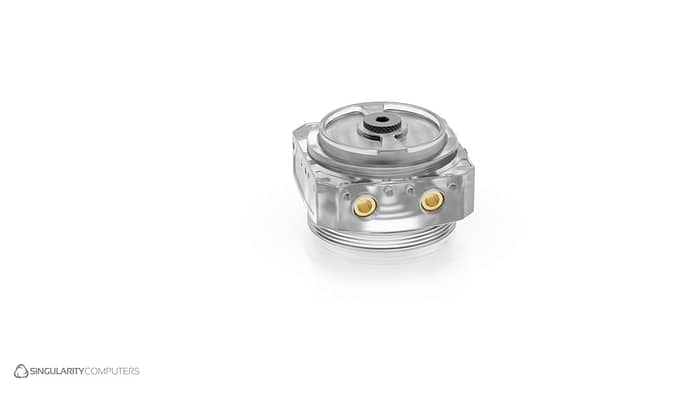

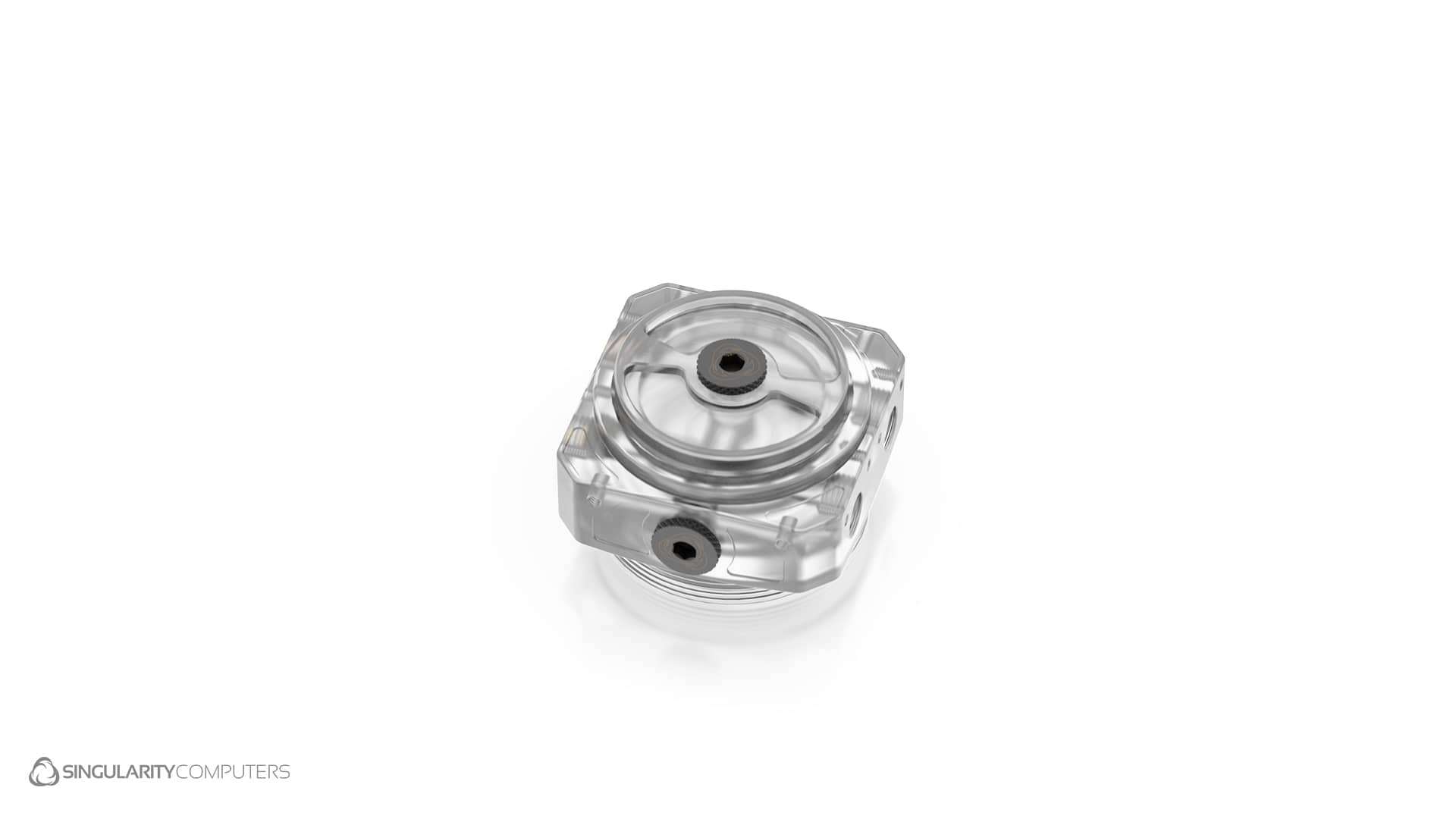

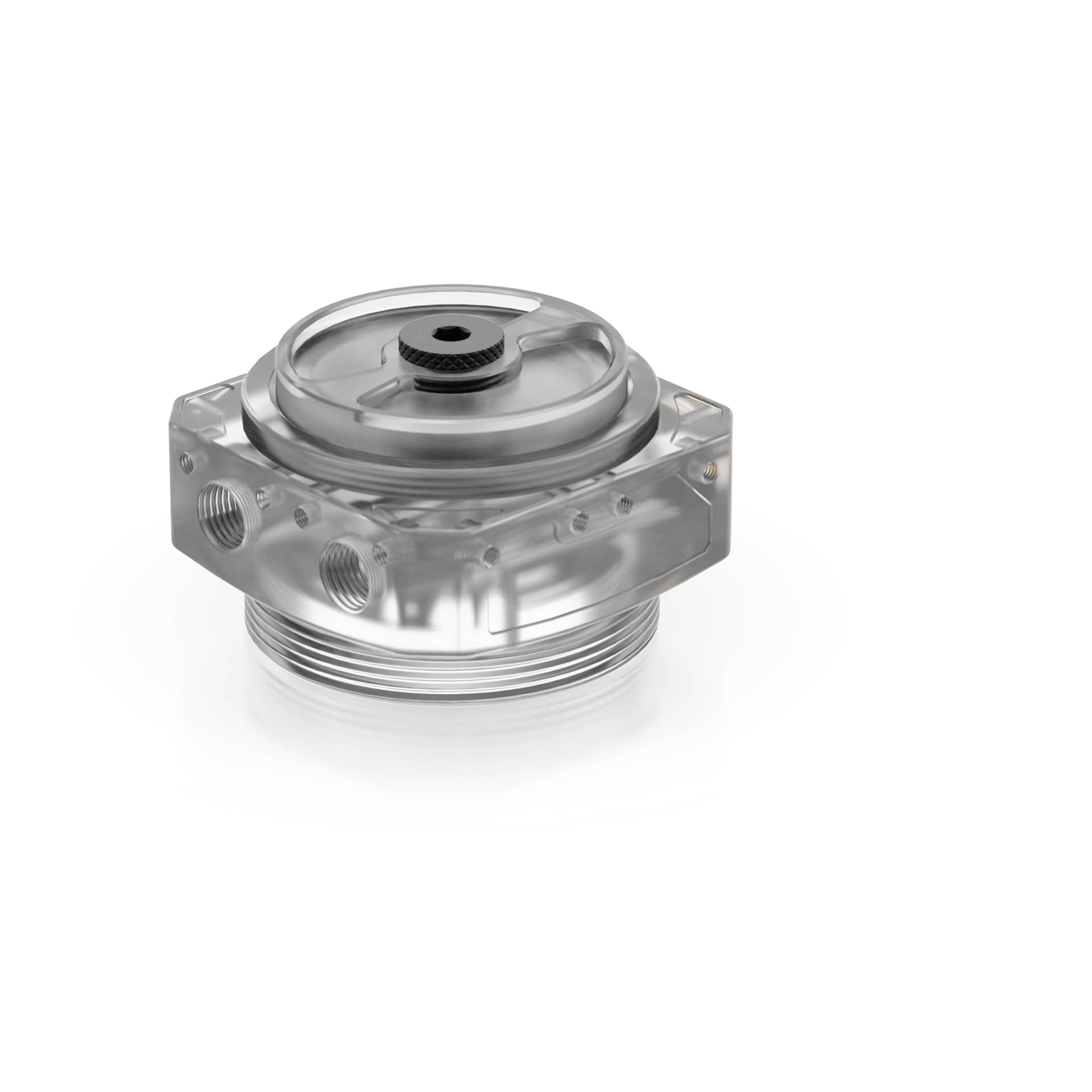

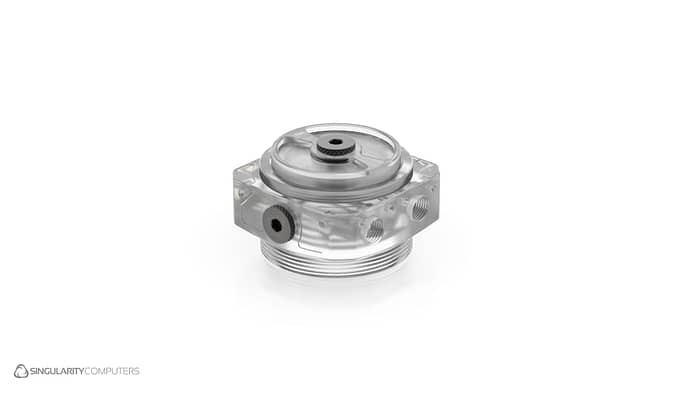

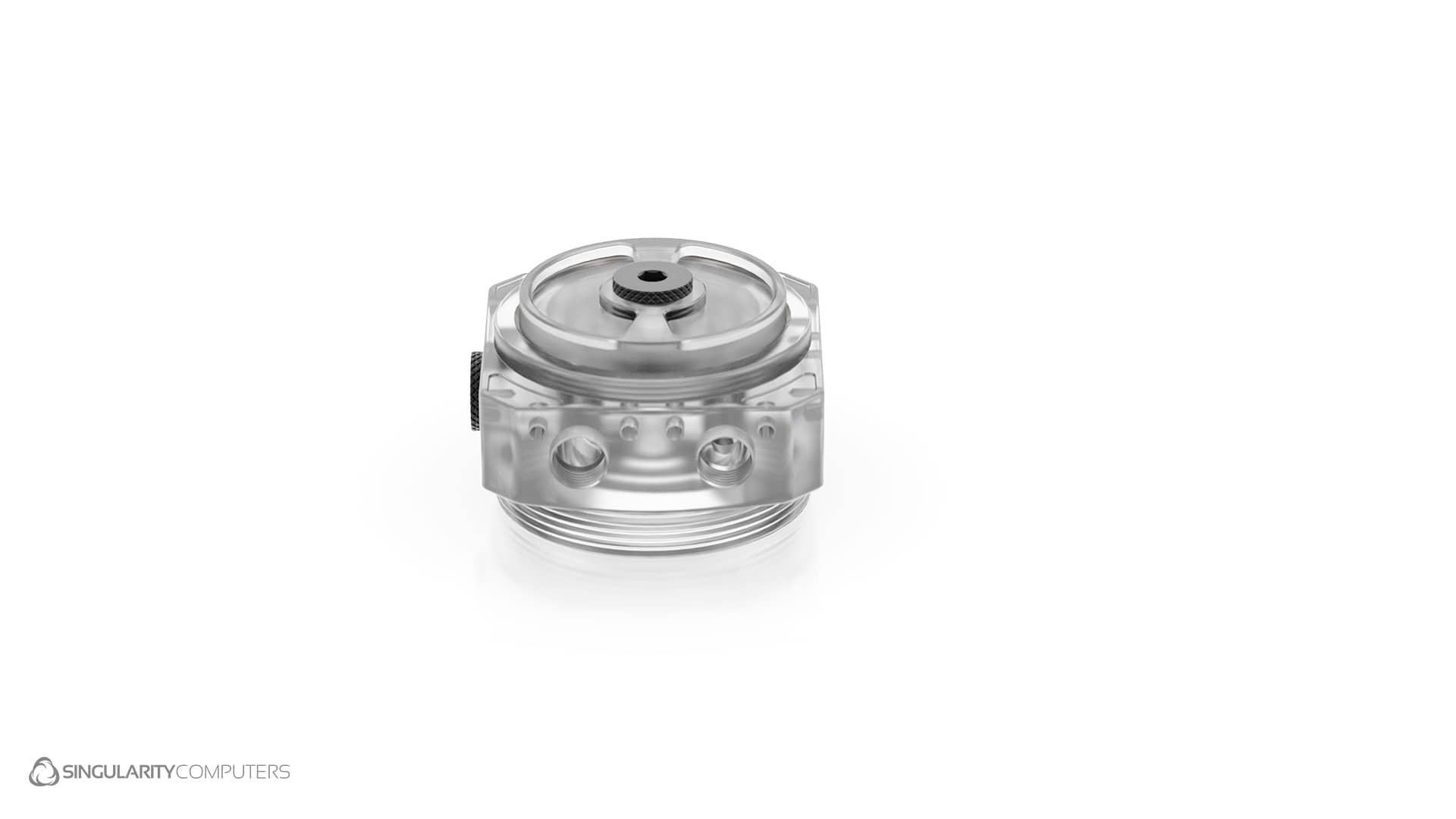

Protium 3.0 D5 Pump Top Acrylic

In stock

Order processing time 1-2 days.

  • Highly versatile D5 pump top with 3 inlet and 3 outlet ports
  • Port configuration on three sides and the top
  • Includes removable lid for standalone pump top use
  • Can be used as part of a D5 pump/reservoir combo
  • 360-degree mounting using the SC Universal Backplate
  • Mountable from four different sides

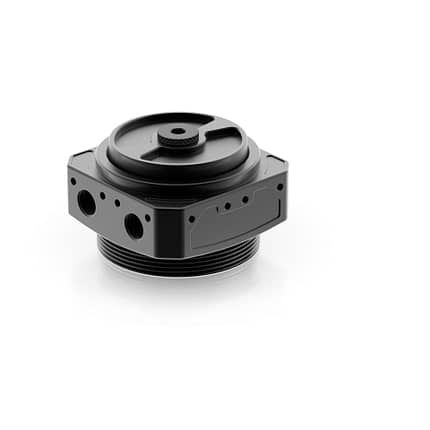

  • Available in Clear Acrylic or Black Acetal
  • Compatible with the Protium 3.0 ARGB Ring for ARGB/DRGB lighting

Note: Backwards compatible with Protium 1.0 and 2.0 components.

Manuals

US$89.00

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

  • 1x Protium 3.0 D5 Pump Top Acrylic
    US$89.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182004067 SKU: SC-P3-D5T-AC Category:

Description

Read More +Read Less − full description

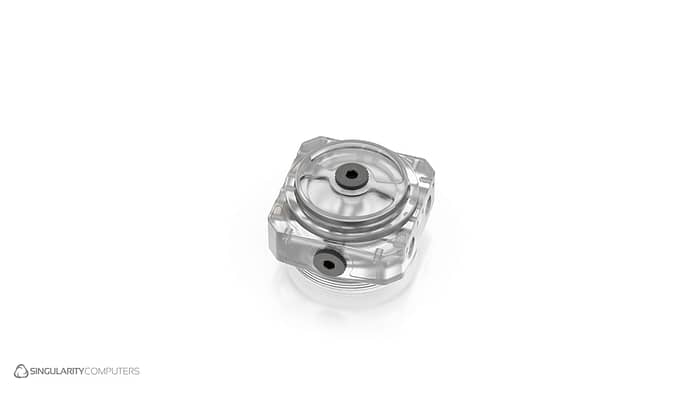

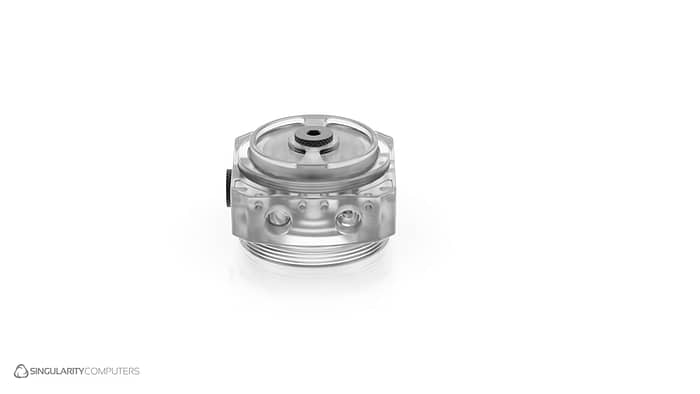

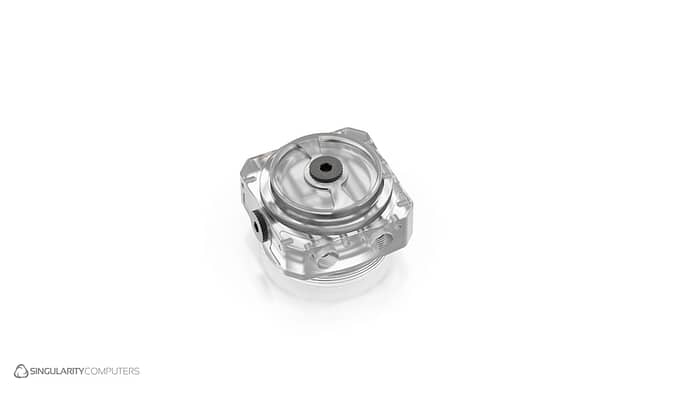

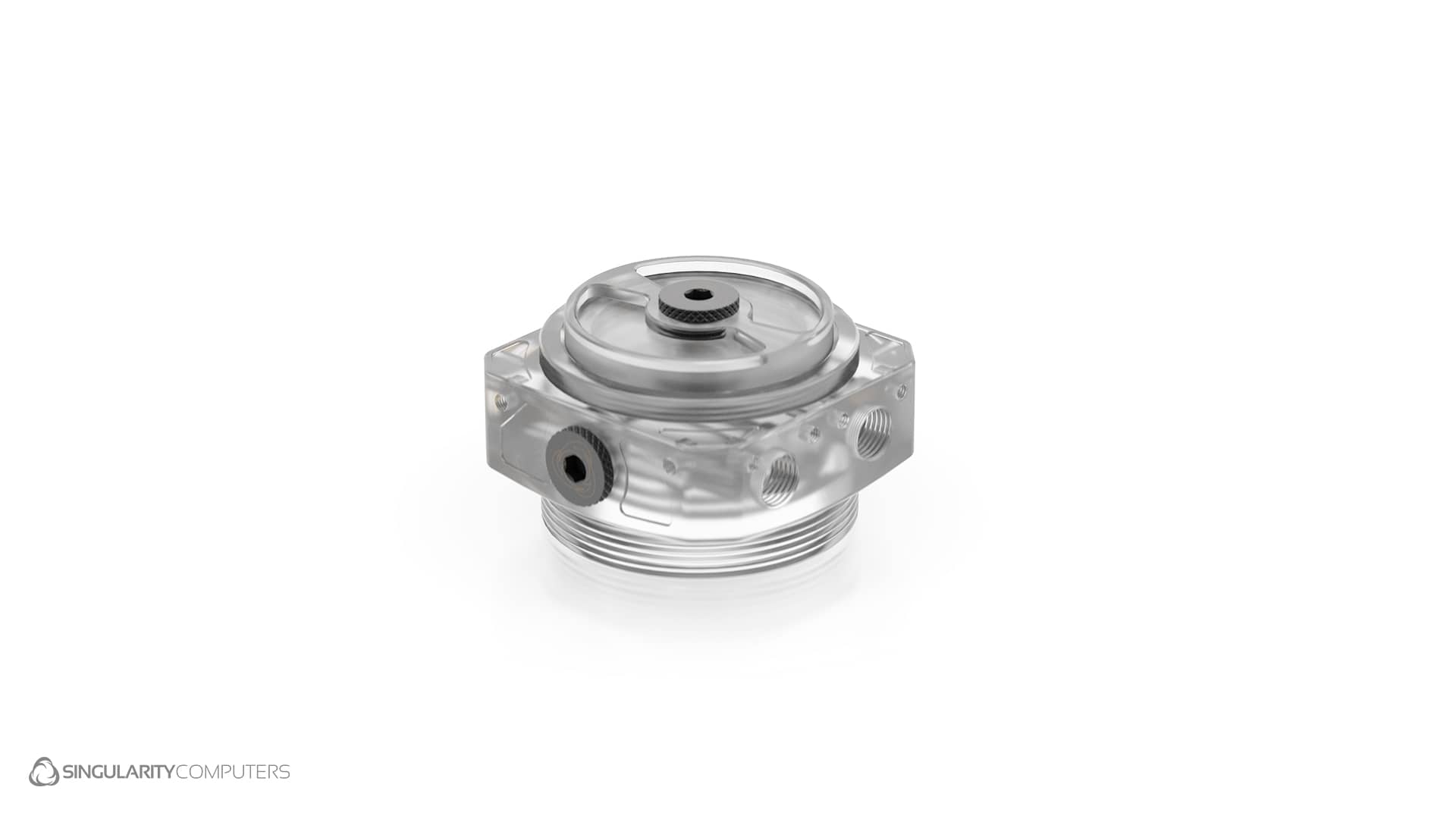

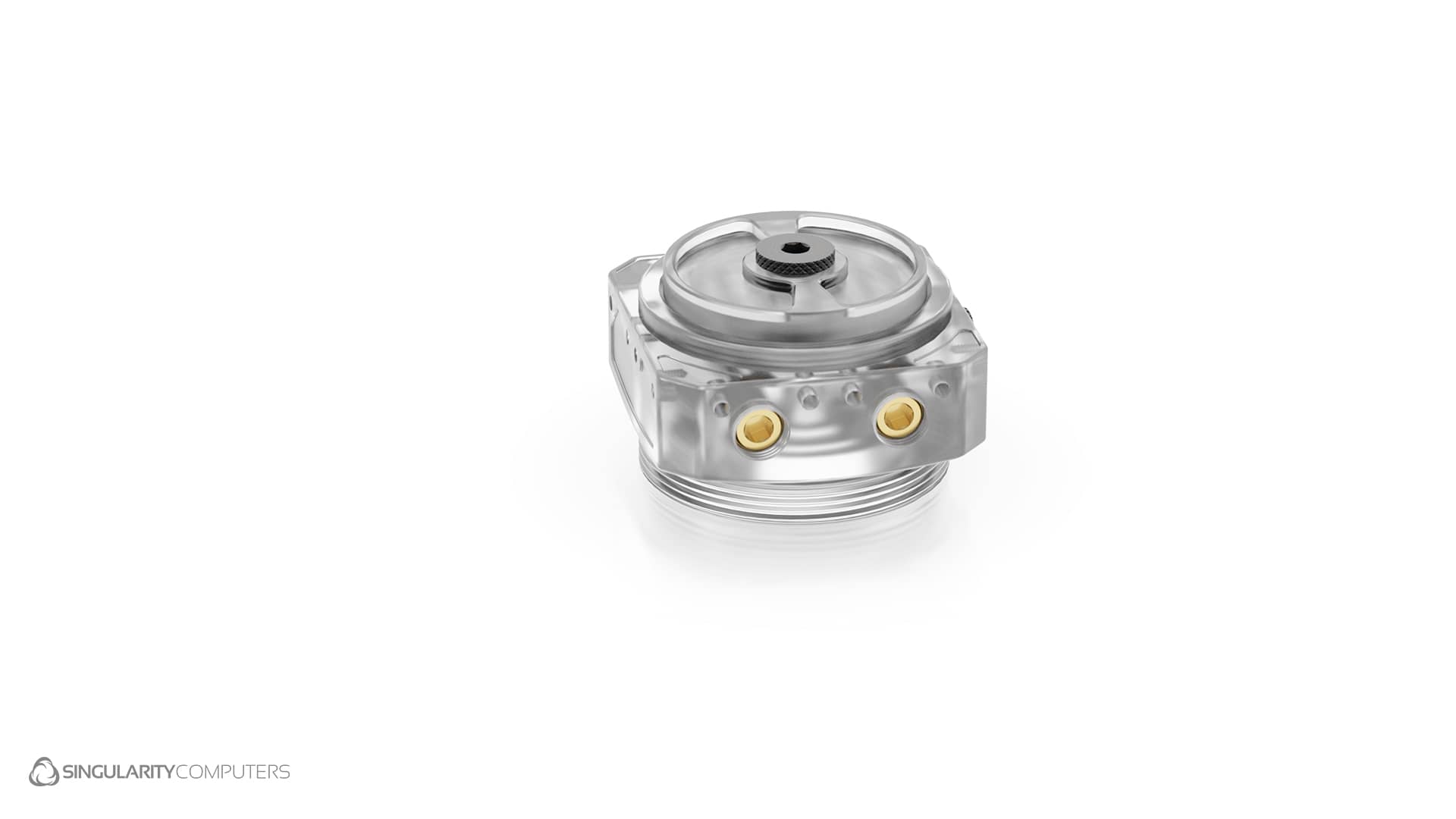

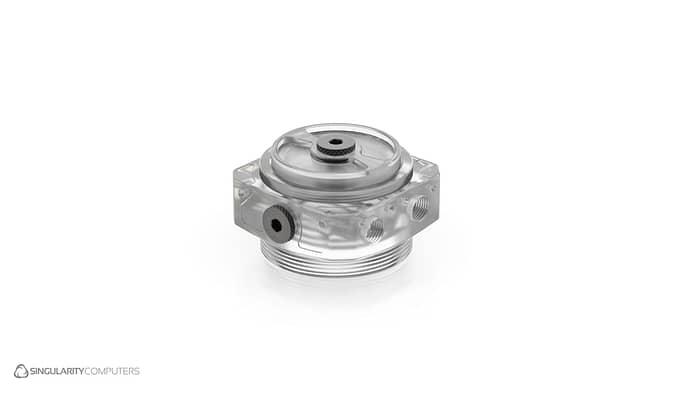

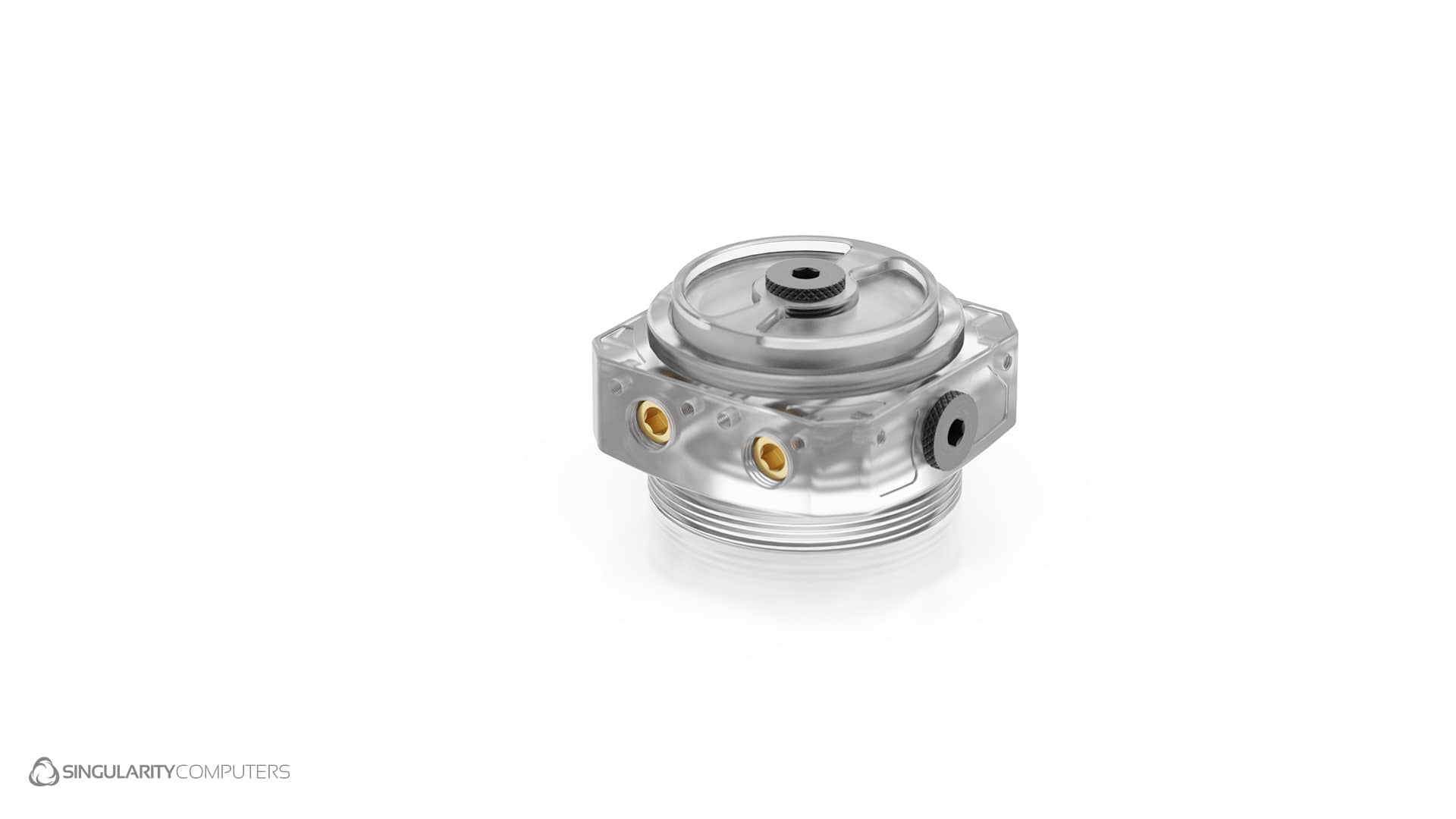

The SC Protium 3.0 D5 Pump Top achieves a whole new level of versatility and features. There are 3 outlet ports and 3 inlet ports. It has ports on three sides and on the top. It comes included with a lid for stand-alone use which can be removed so that the pump top can be used in a pump/reservoir combo. It comes in Clear Acrylic or Black Acetal. It can be mounted from 4 different sides with 360-degree mounting using the SC Universal Backplate. ARGB/DRGB lighting can be added with the Protium 3.0 ARGB Ring.

Specifications

SC Protium 3.0 Pump Top: Clear Cast Acrylic or Acetal. CNC Machined.

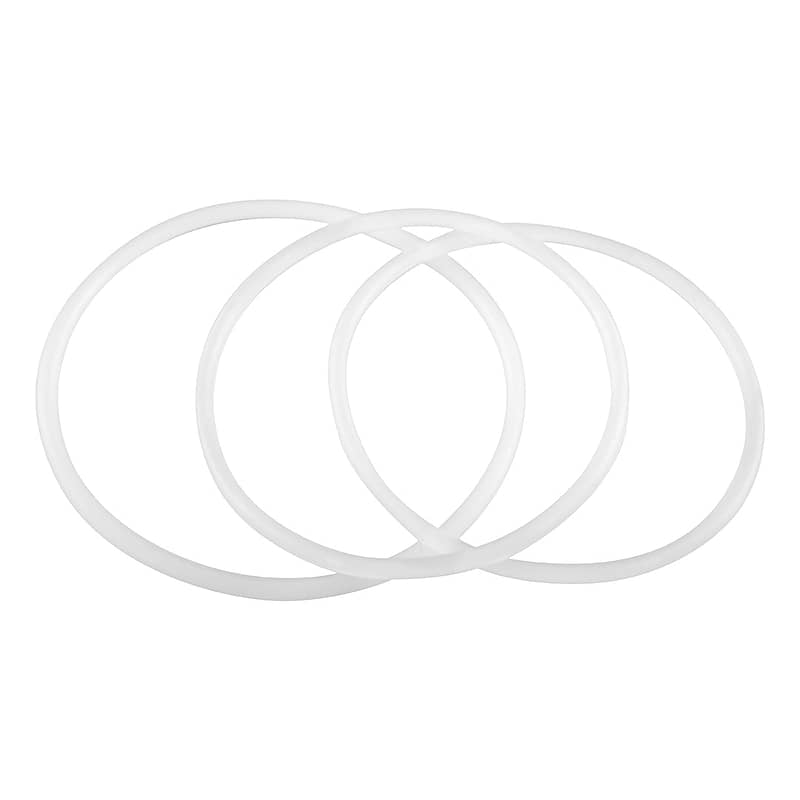

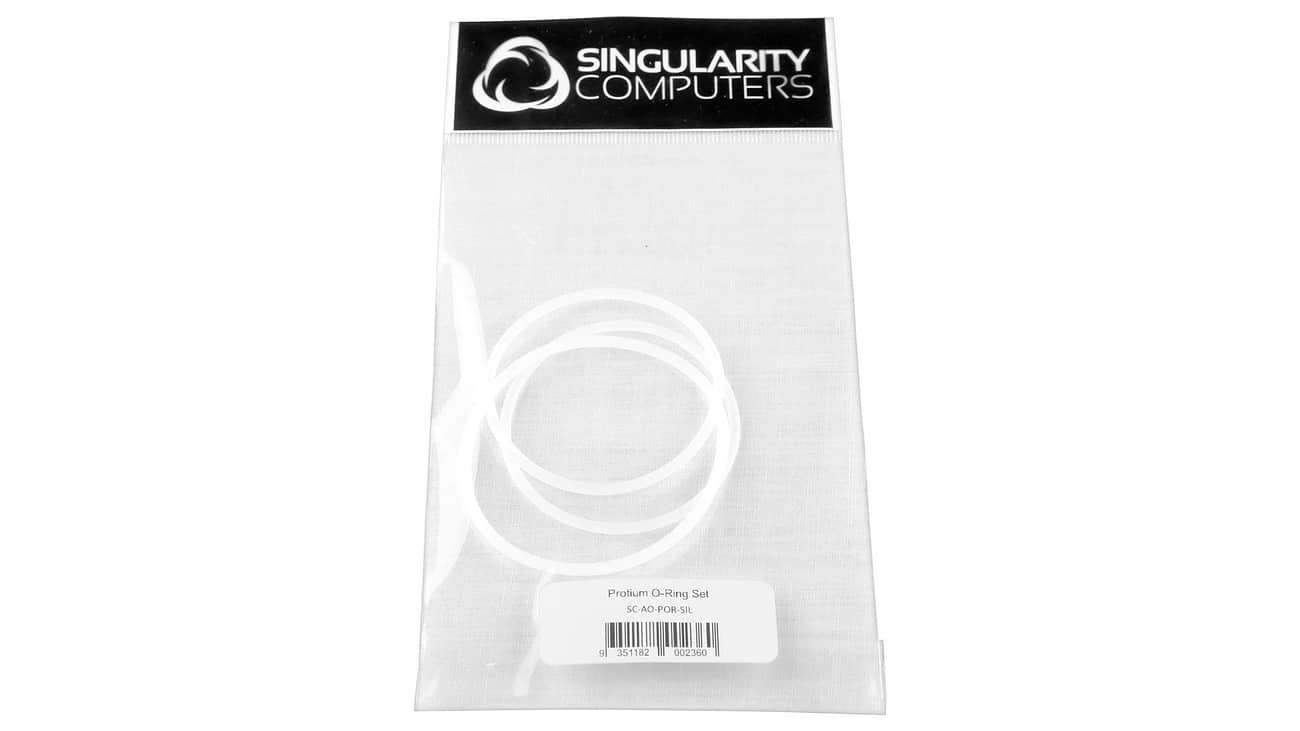

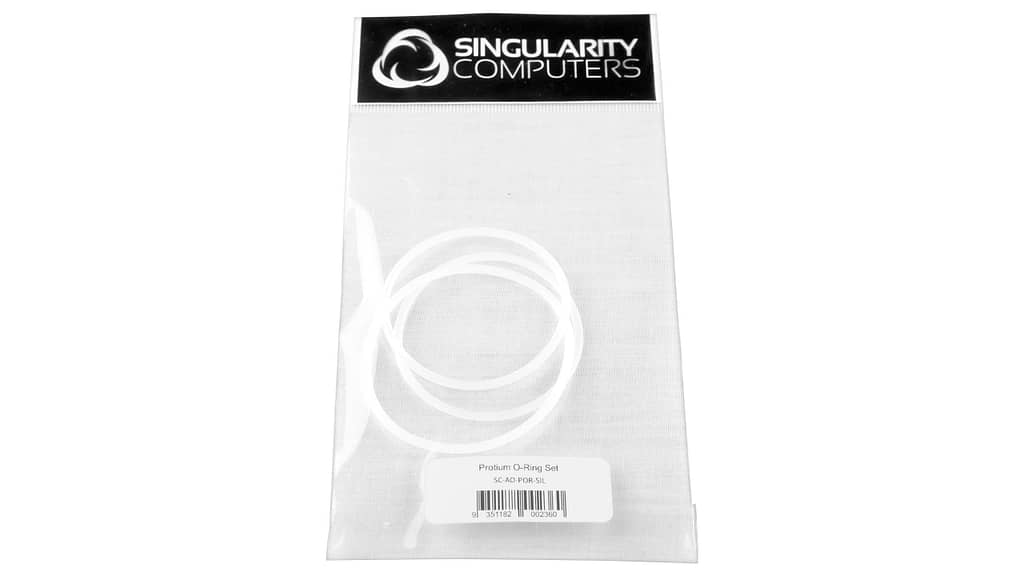

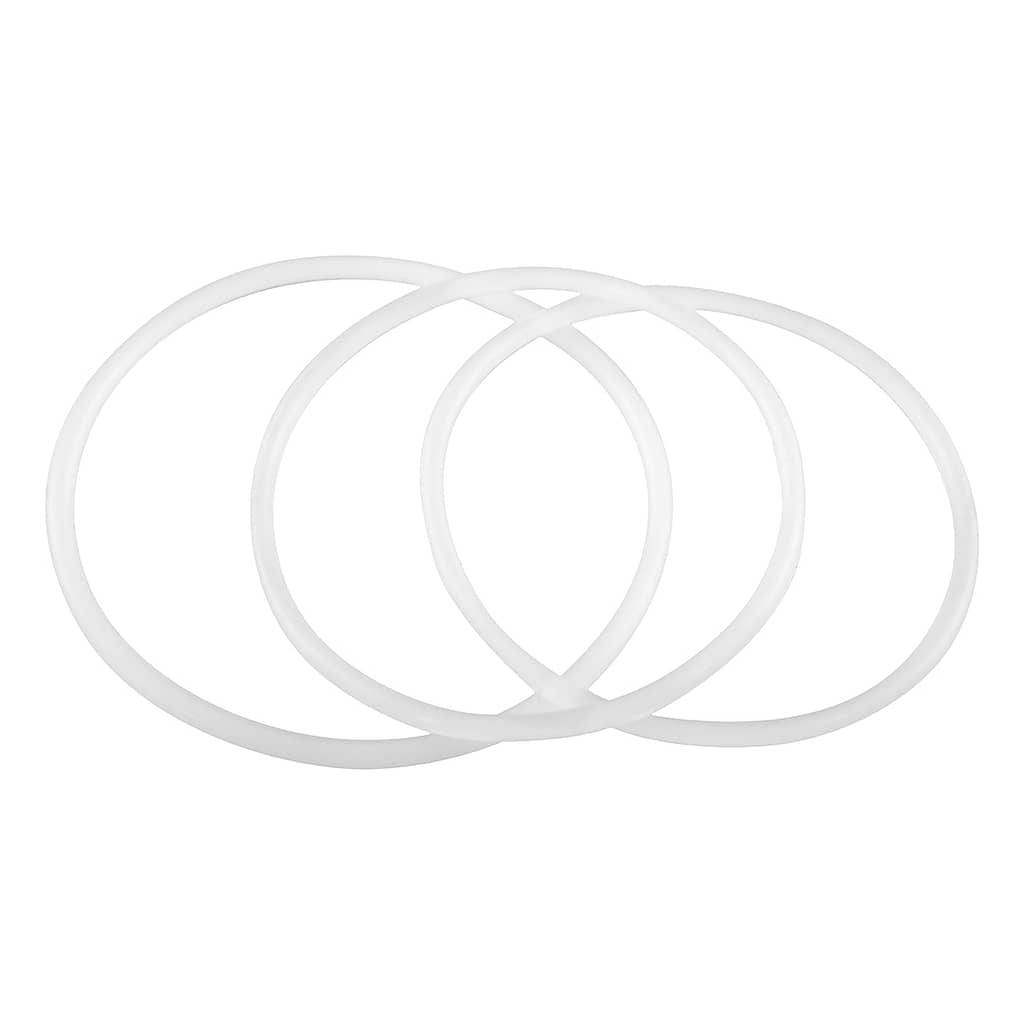

O-Rings: Silicone 70 Durometer White x2 (D5 x1. Reservoir x1). Nitrile 50 Durometer Black G1/4” x2. 8mm x2.
Stop Fittings x2: Brass. CNC Machined. Powder coated Black. Laser Etched.

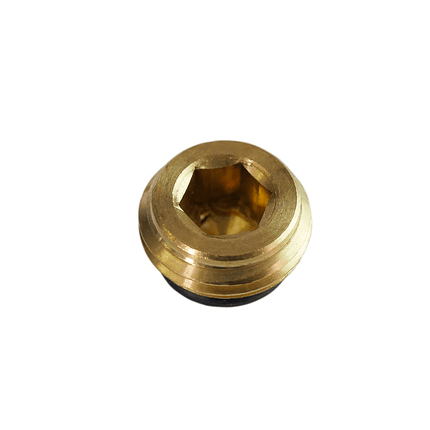

Stop Plugs: x2: Brass. CNC Machined.
Fasteners: M4 x 6mm Stand Offs Brass x2. M4 x 8mm CS x2.
Dimensions: L: 79mm x W: 76mm x H: 103mm.
Weight: 0.3kg.
Packaged Dimensions: L: 90mm x W: 85mm x H: 120mm.
Packaged Weight: 0.35kg.

Installation:
There are M4 mounting holes on 4 sides of the pump top. These mounting holes are configured for the SC Universal Backplate which is designed to mount to 120mm and 140mm wide radiators, fans or fan mounting positions.
