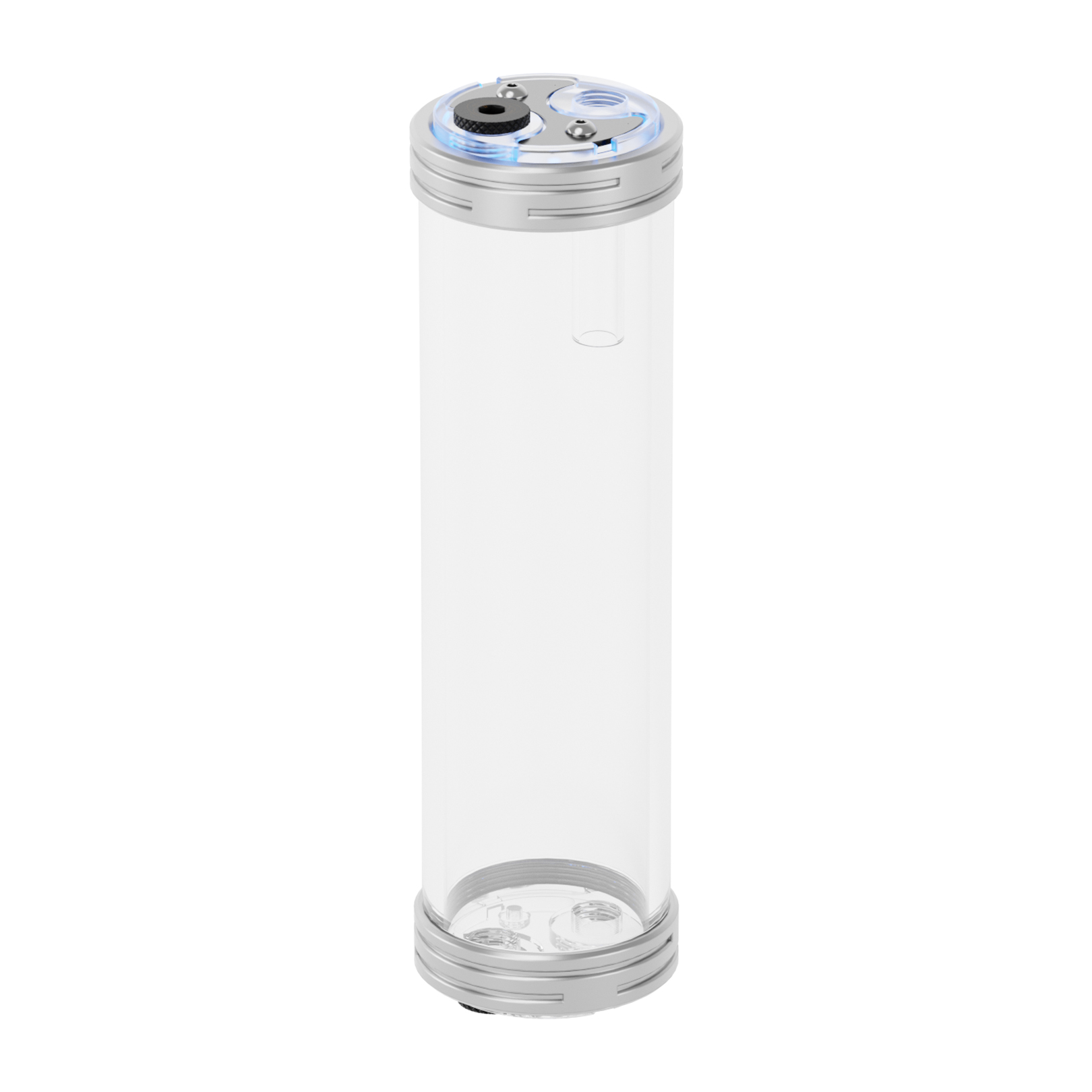

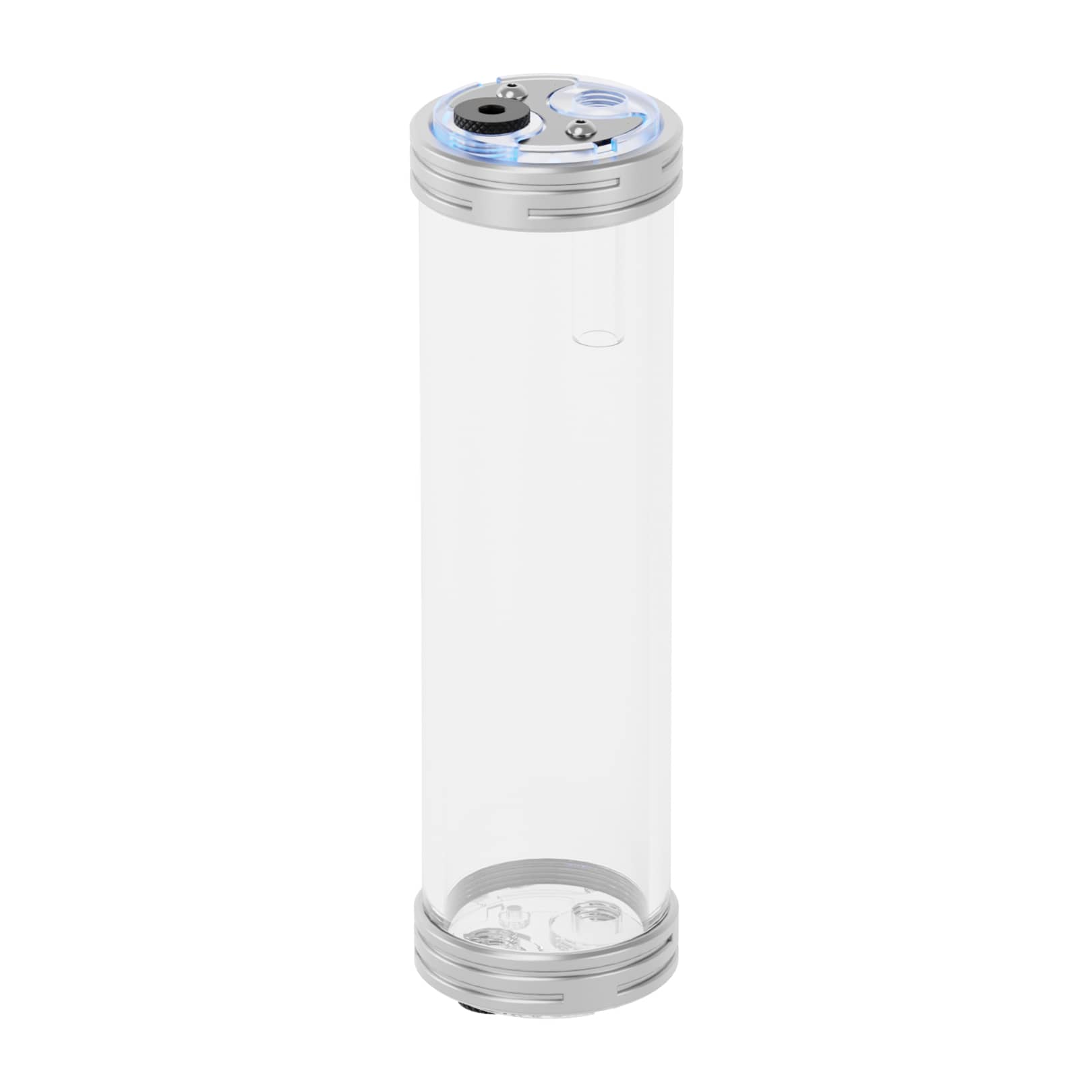

Protium 3.0 Reservoir Acrylic Silver

In stock

Order processing time 1-2 days.

  • Protium 3.0 reservoir available in 100mm, 150mm, 200mm and 250mm sizes
  • Available in Clear Acrylic with Black or Silver metal, or Black Acetal with Black metal
  • Durable retention ring design with 360-degree rotational cap adjustment
  • CNC-machined anodized aluminum retention rings that do not contact the coolant
  • Four ports with dual-port caps on each end
  • Recessed caps help catch fluid in case of overflow
  • Integrated ARGB/DRGB lighting with custom PCB for full reservoir illumination
  • Lighting illuminates both the reservoir and coolant
  • Supports an additional separately available LED PCB

Manuals

US$79.00 US$92.00Price range: US$79.00 through US$92.00

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
SKU: N/A Category:

Description

Read More +Read Less − full description

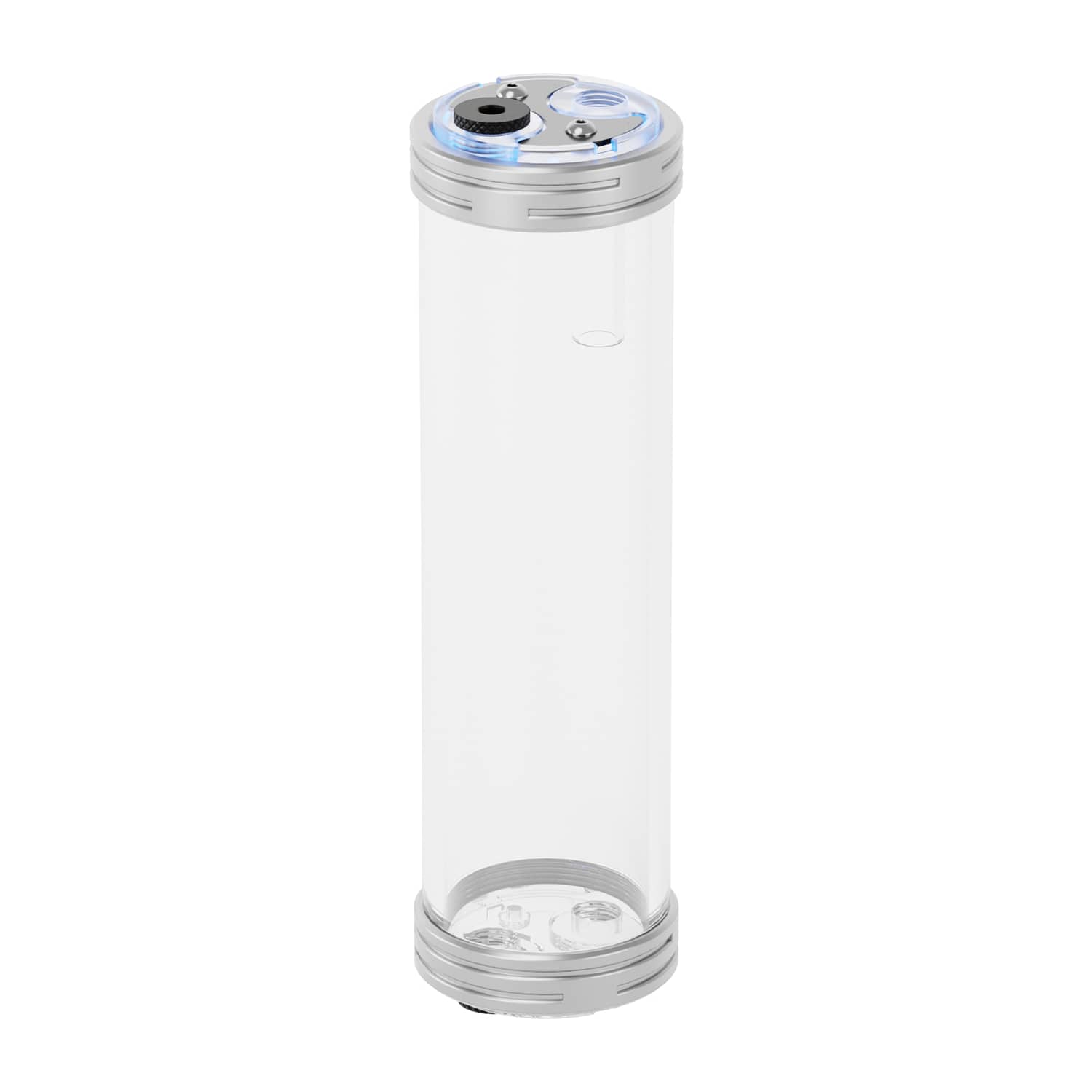

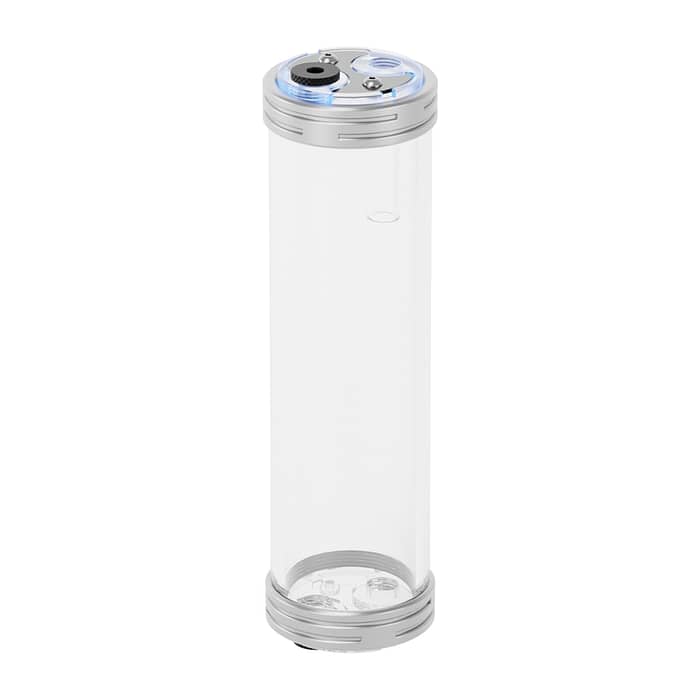

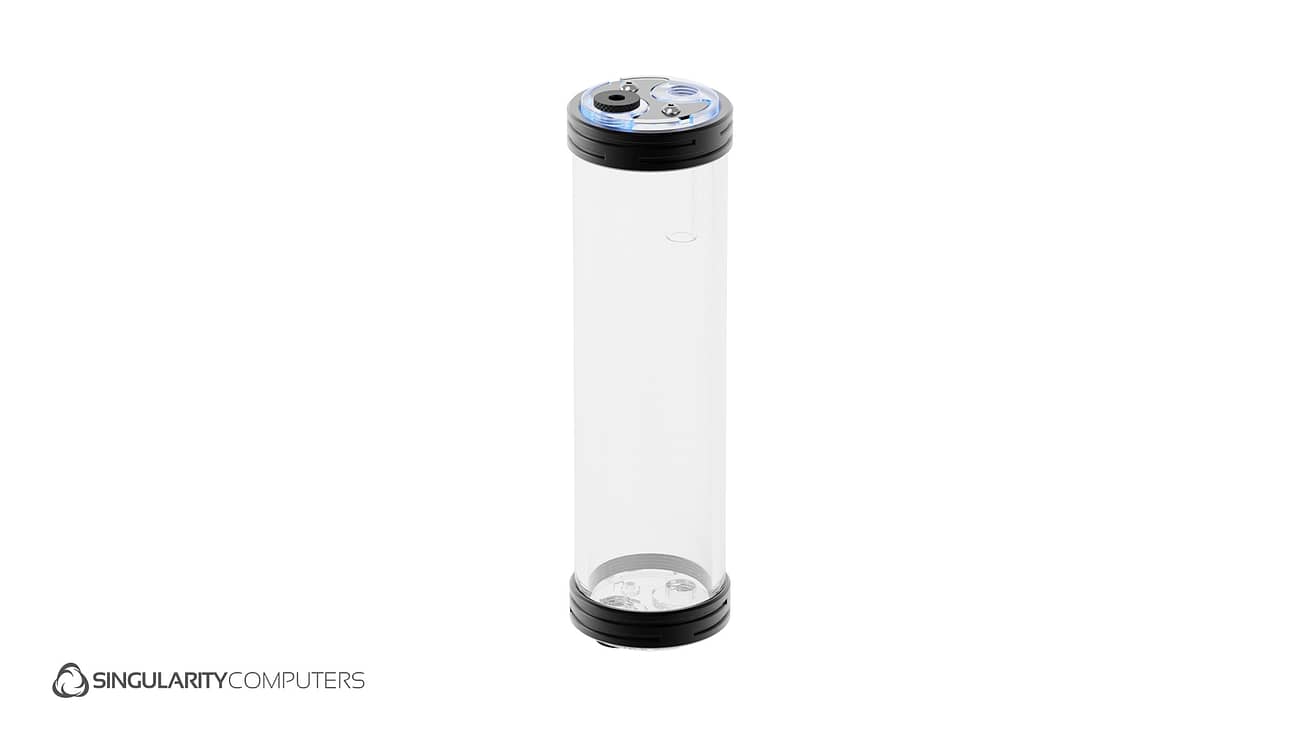

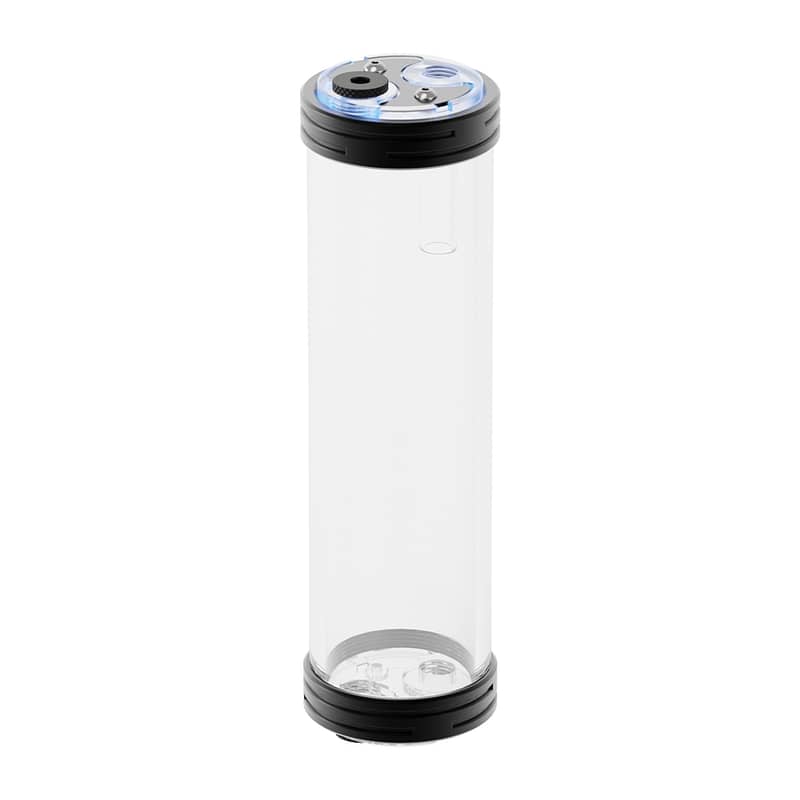

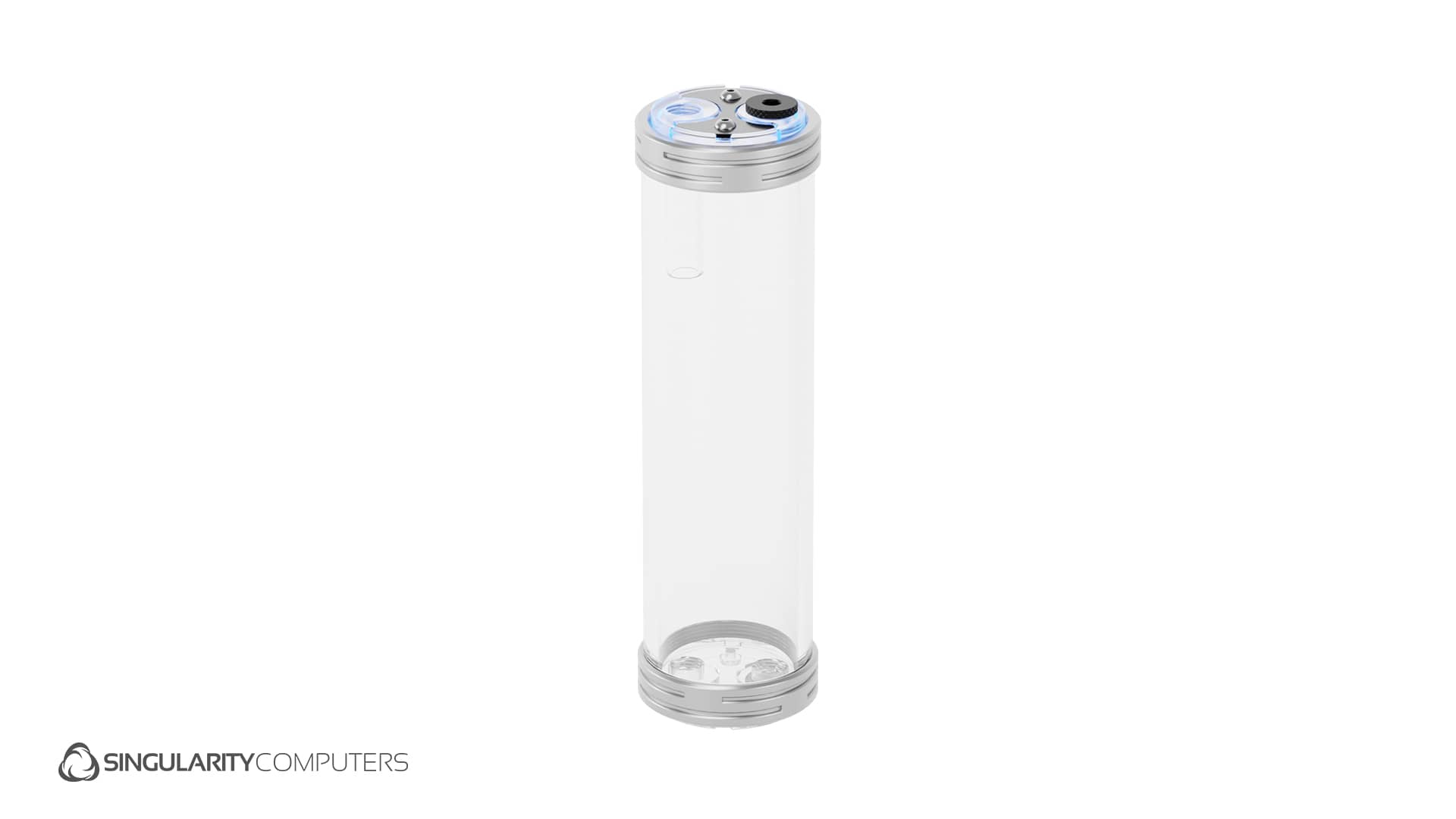

The SC Protium 3.0 Reservoir comes in four different sizes, 100mm, 150mm, 200mm, 250mm and three different colors/materials, Clear Acrylic with Black or Silver metal and Black Acetal with Black Metal. It uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. The retention rings are built from CNC machined anodized aluminum and do not contact the fluid.

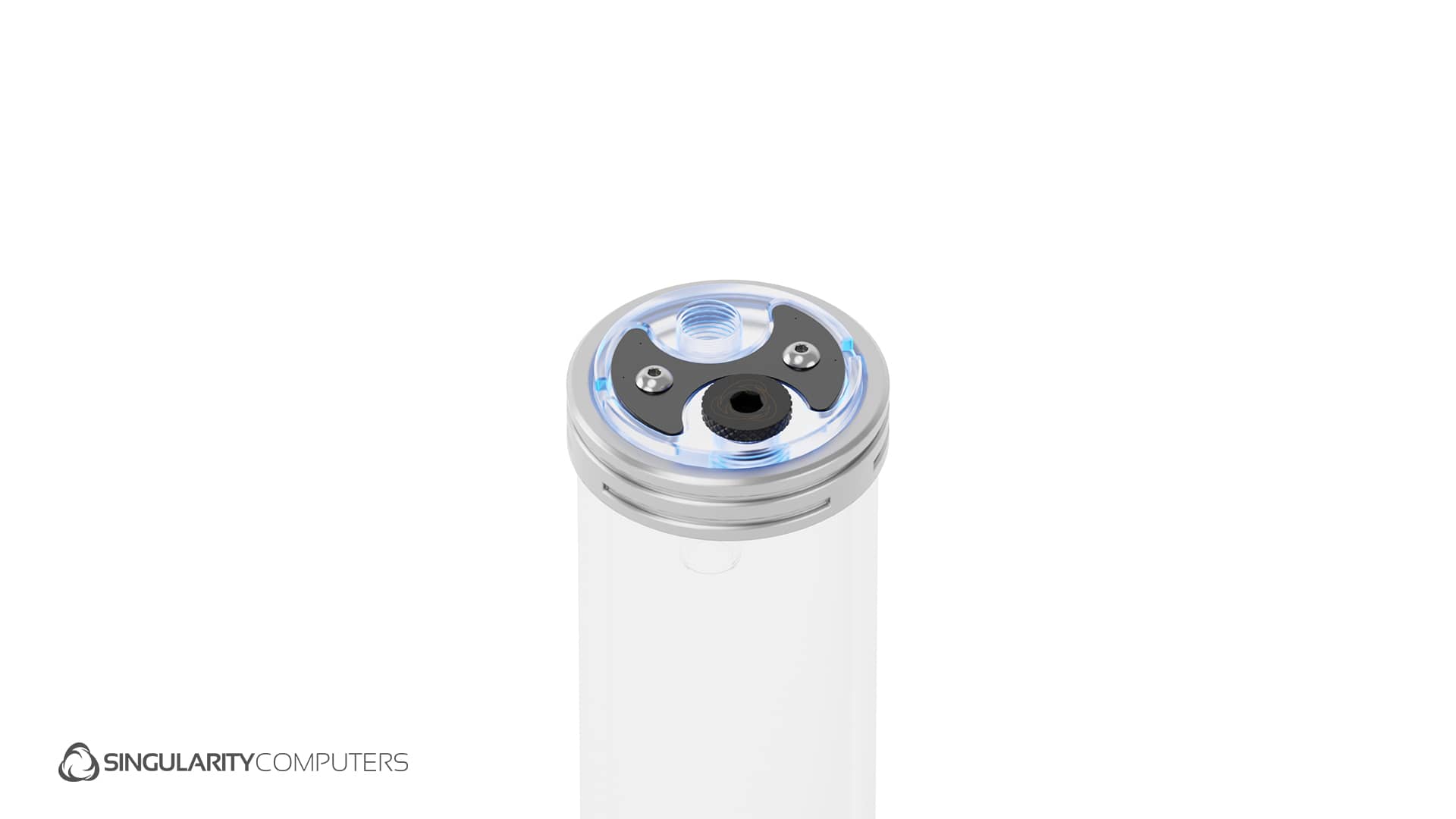

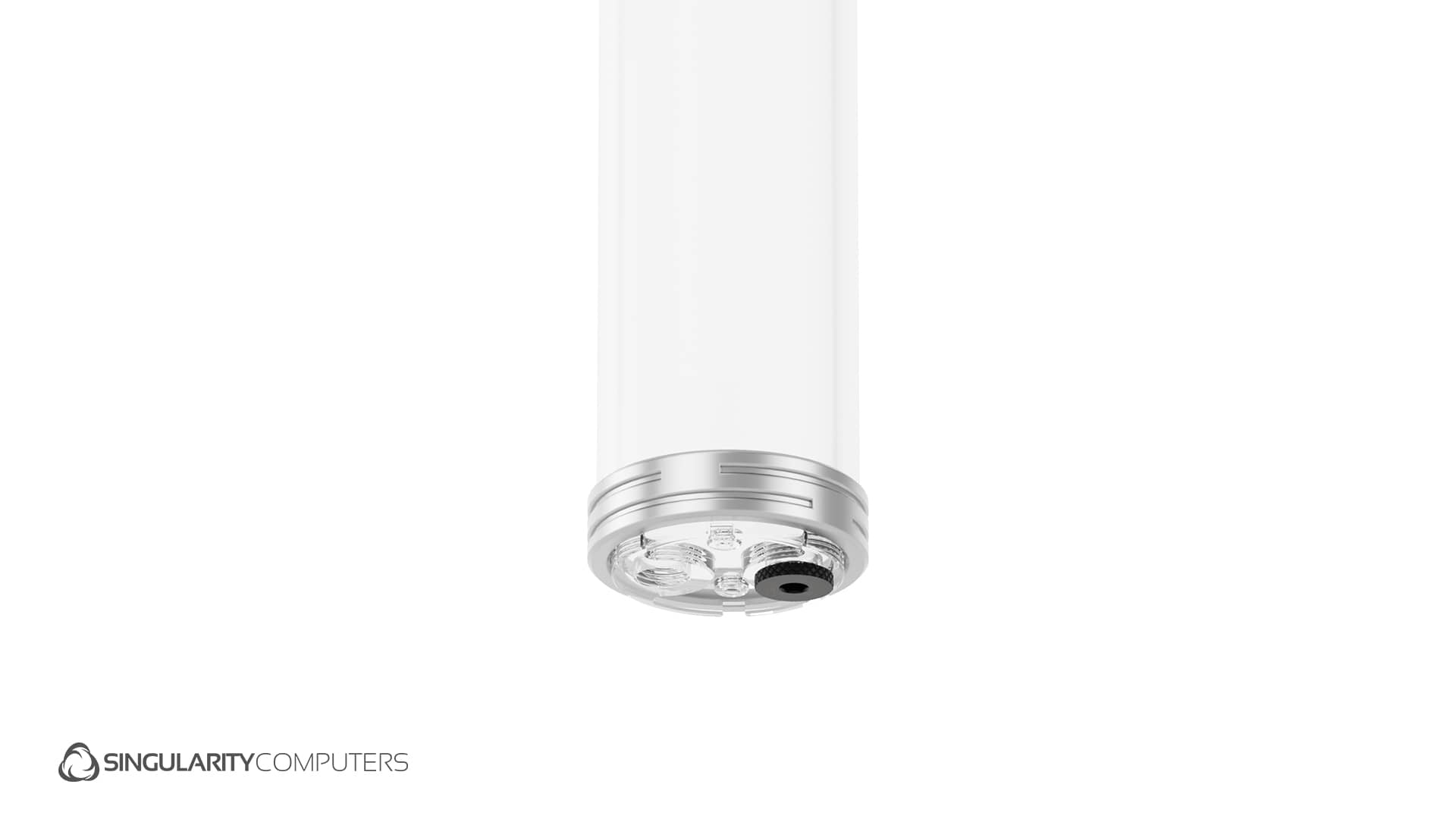

The reservoir has 4 ports with a dual port cap on each end. The caps have a recessed top to catch any fluid in the case of an overflow, and this also acts as a mounting position for the integrated ARGB/DRGB LEDs. The LEDs are on a custom PCB which positions them to make the entire reservoir glow, and the coolant inside. A second LED PCB can also be added which is available separately.

Specifications

SC Protium 3.0 Reservoir 100mm/150mm/200mm/250mm includes:
SC Protium 3.0 Reservoir Retention Rings x2: Aluminum. Black or Silver Anodized. CNC Machined.
SC Protium 3.0 Reservoir Caps x2: Clear Cast Acrylic or Black Acetal. CNC Machined.

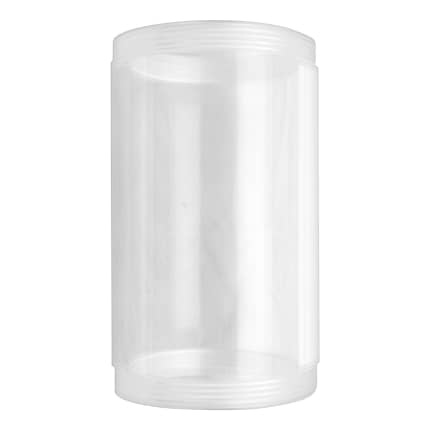

SC Protium 3.0 Reservoir Tube: Clear Cast Acrylic: Length: 200mm. Diameter: 60mm. CNC Machined.
Protium 3.0 Inlet Tube: Clear Cast Acrylic.
SC Protium 3.0 ARGB Cover: 1.6mm PCB Black: Addressable ARGB/DRGB 5V: 6 LEDs. Black 500mm Cable.
M4 x 6mm Stainless Steel Fasteners.
O-Rings: Silicone 70 Durometer White x2. Buna 50 Durometer Black G1/4” x2.
Stop Fittings x2: Brass. CNC Machined. Powder coated Black. Laser Etched.
Dimensions: L: 64mm x W: 64mm X H: 222mm.
Weight: 0.4kg.
Packaged Dimensions: L: 85mm x W: 85mm x H: 270mm.
Packaged Weight: 0.45kg.

Installation:
Install into a position above the pump. SC Ethereal Single or Ethereal Dual can be used for mounting. The included inlet tube needs to be positioned on the top inlet to prevent air re-circulation.
