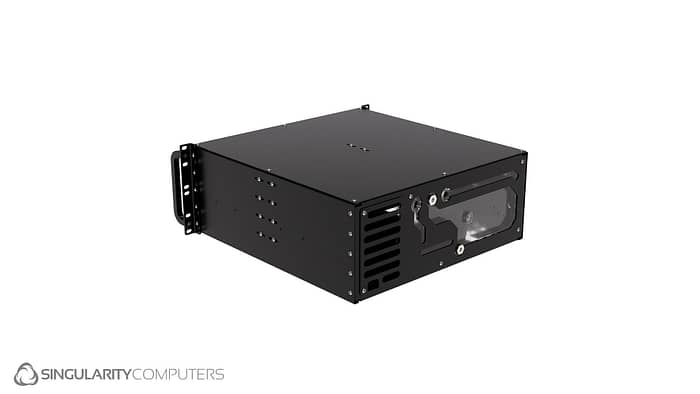

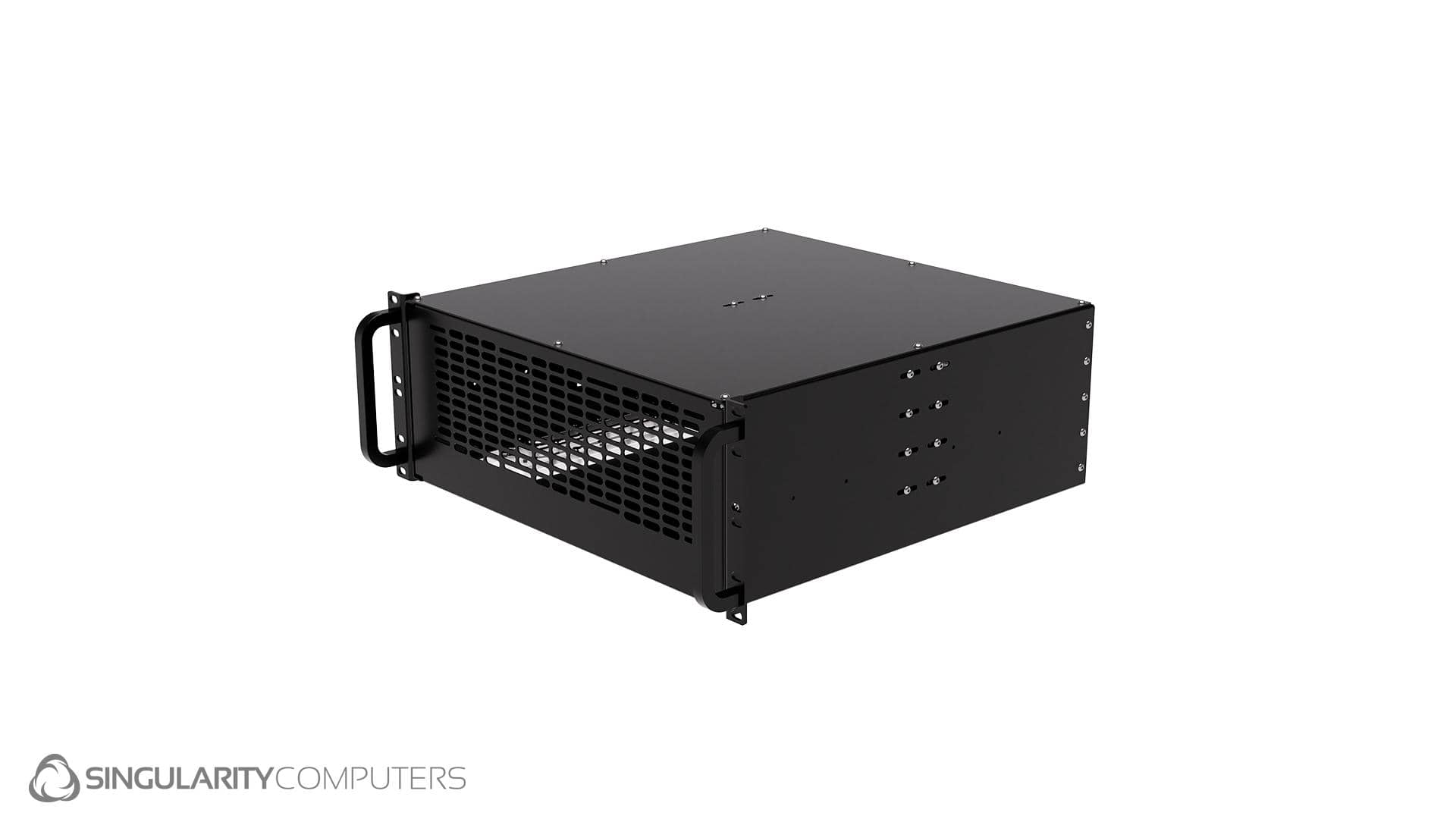

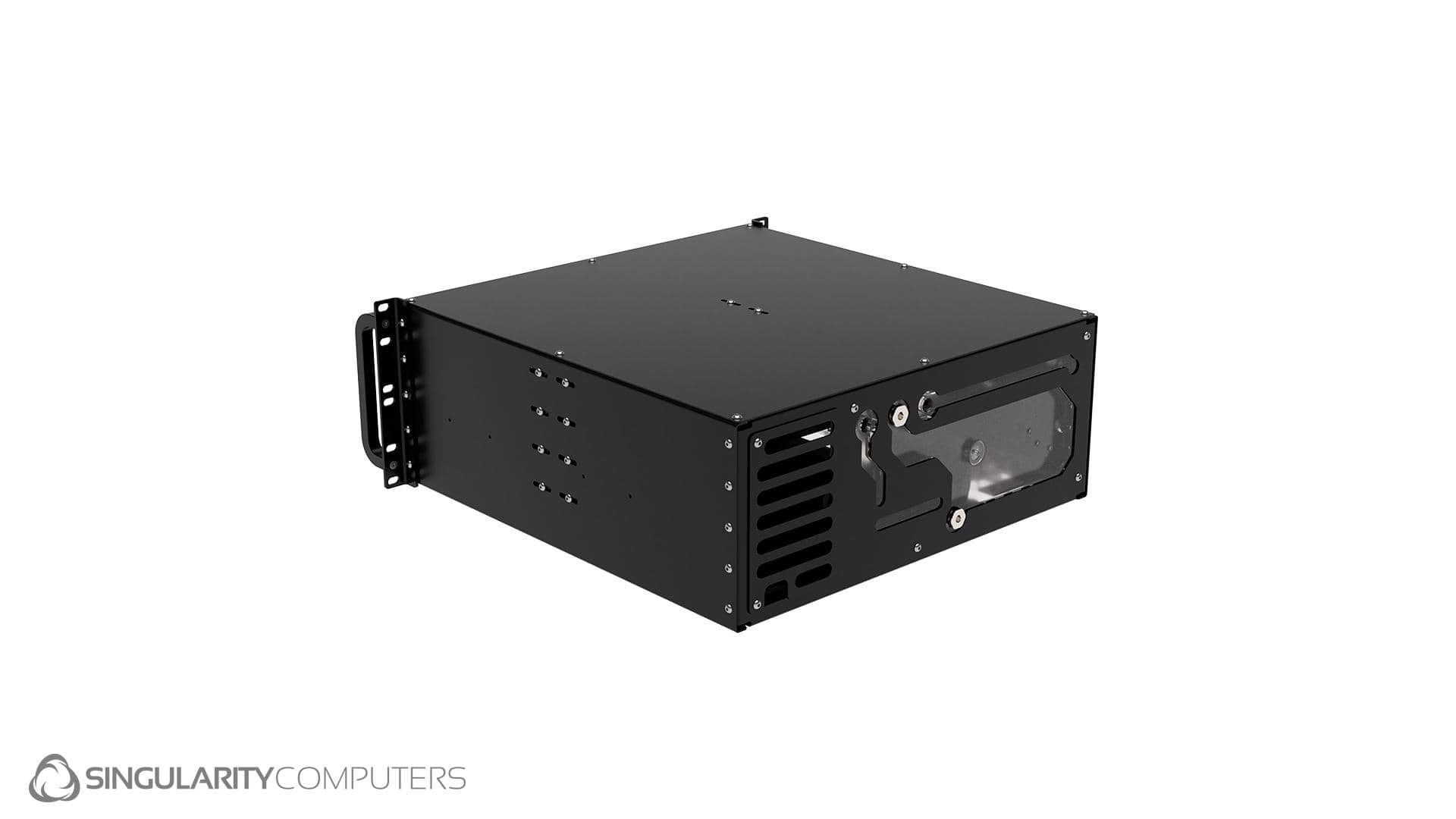

SC Enterprise 4U Rackmount Water-box

In stock

Order processing time 1-2 days.

  • 4U rack-mount water-cooling system designed for the SC Rack Case
  • Supports up to 3x 360mm radiators

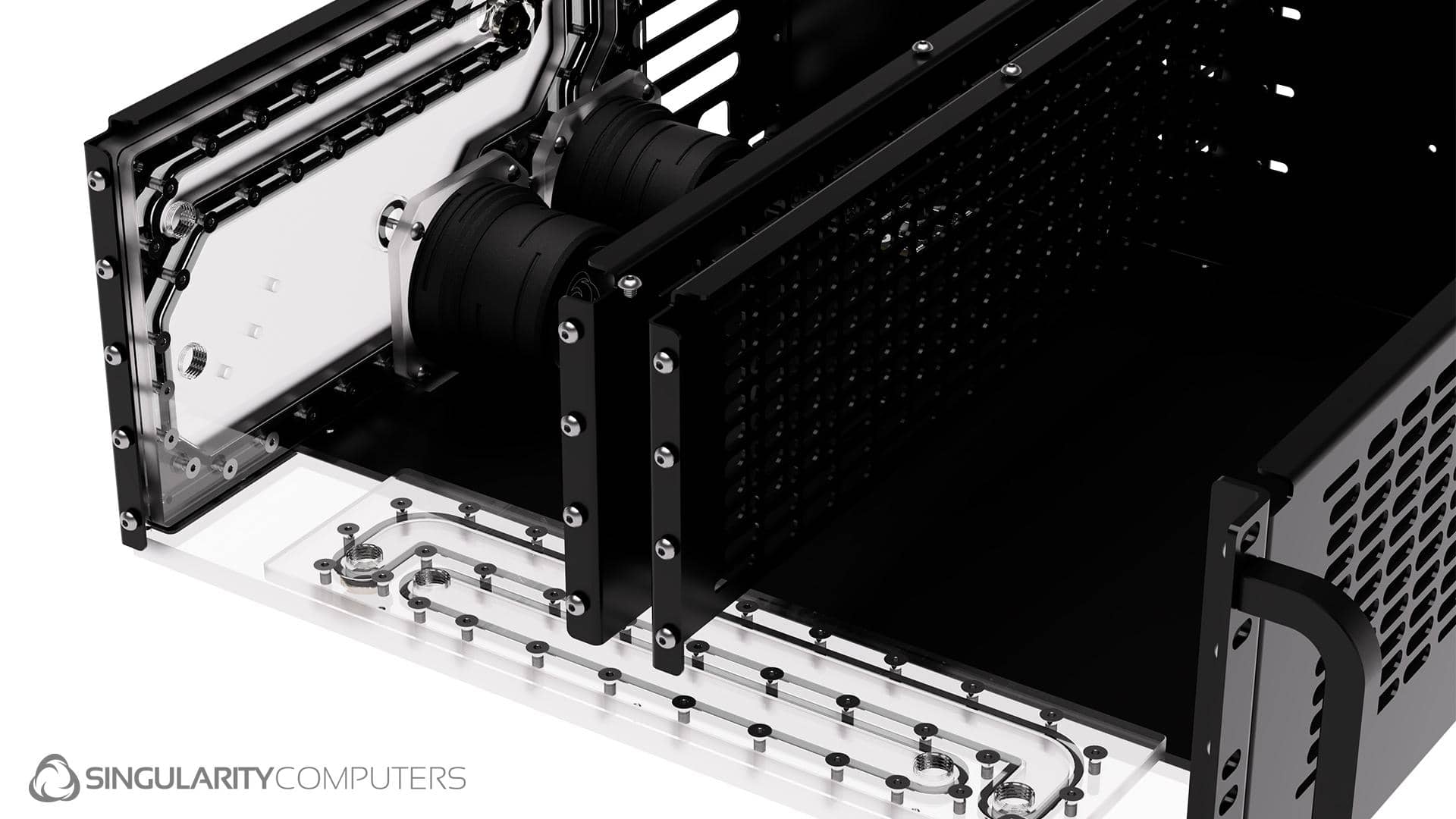

  • Integrated distribution plate to improve connections to radiators.
  • Up to 2500W of cooling.
  • Includes SFX PSU mount for independent power
  • Can be used standalone or paired with the SC Rack Case

Manuals

US$399.00

Dual D5 Reservoir Distribution Plate
None Yes +US$199.00

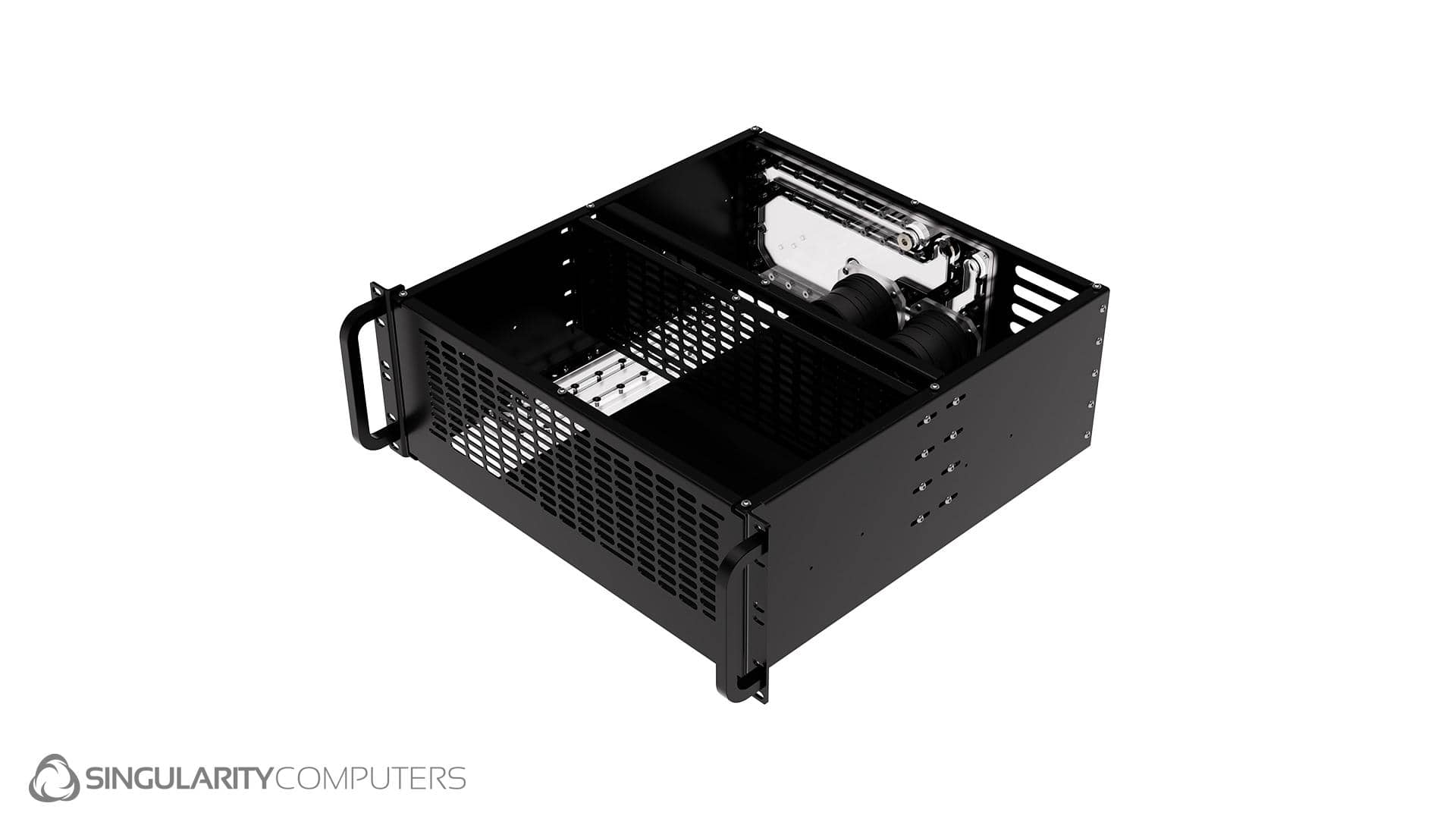

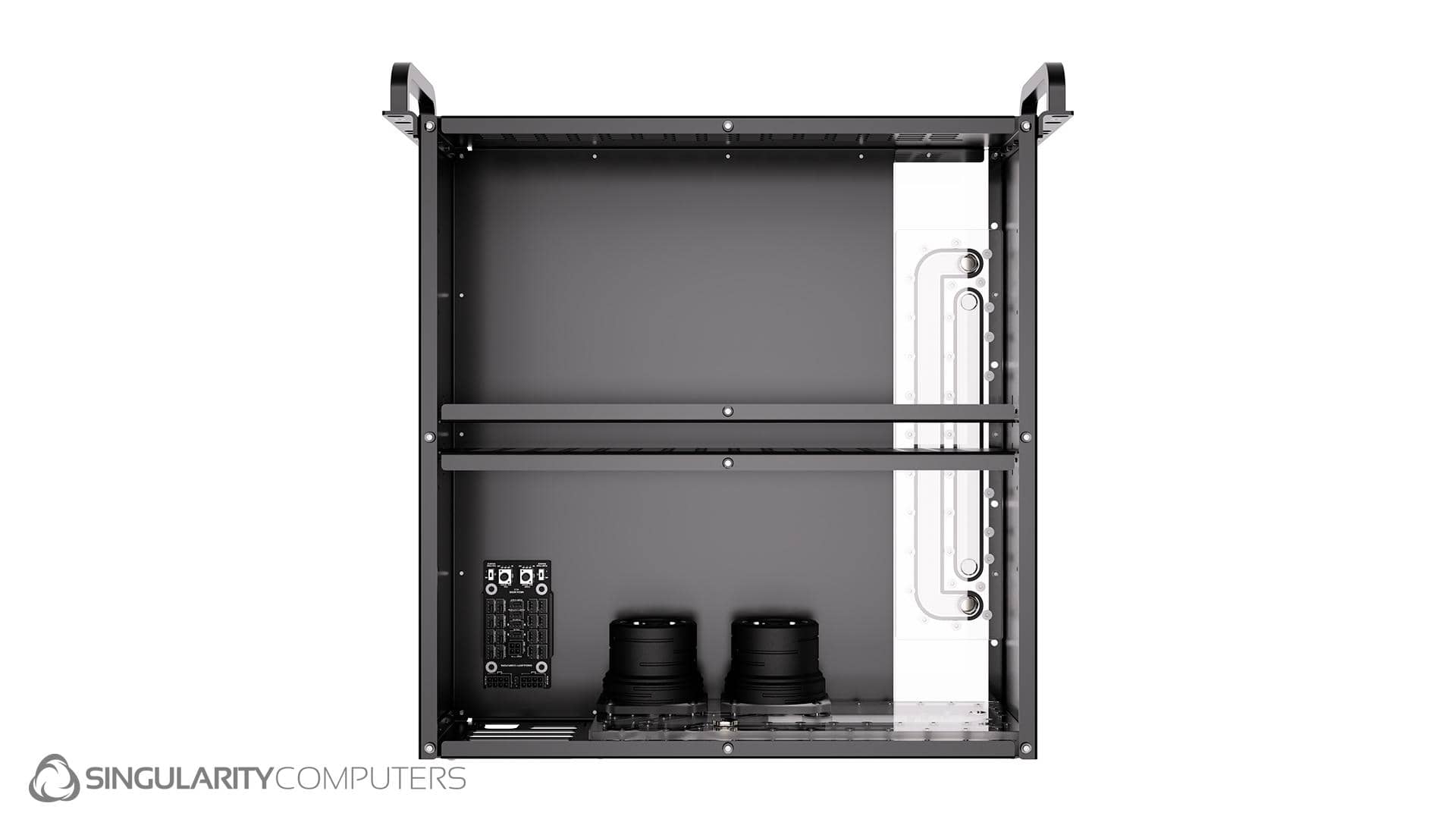

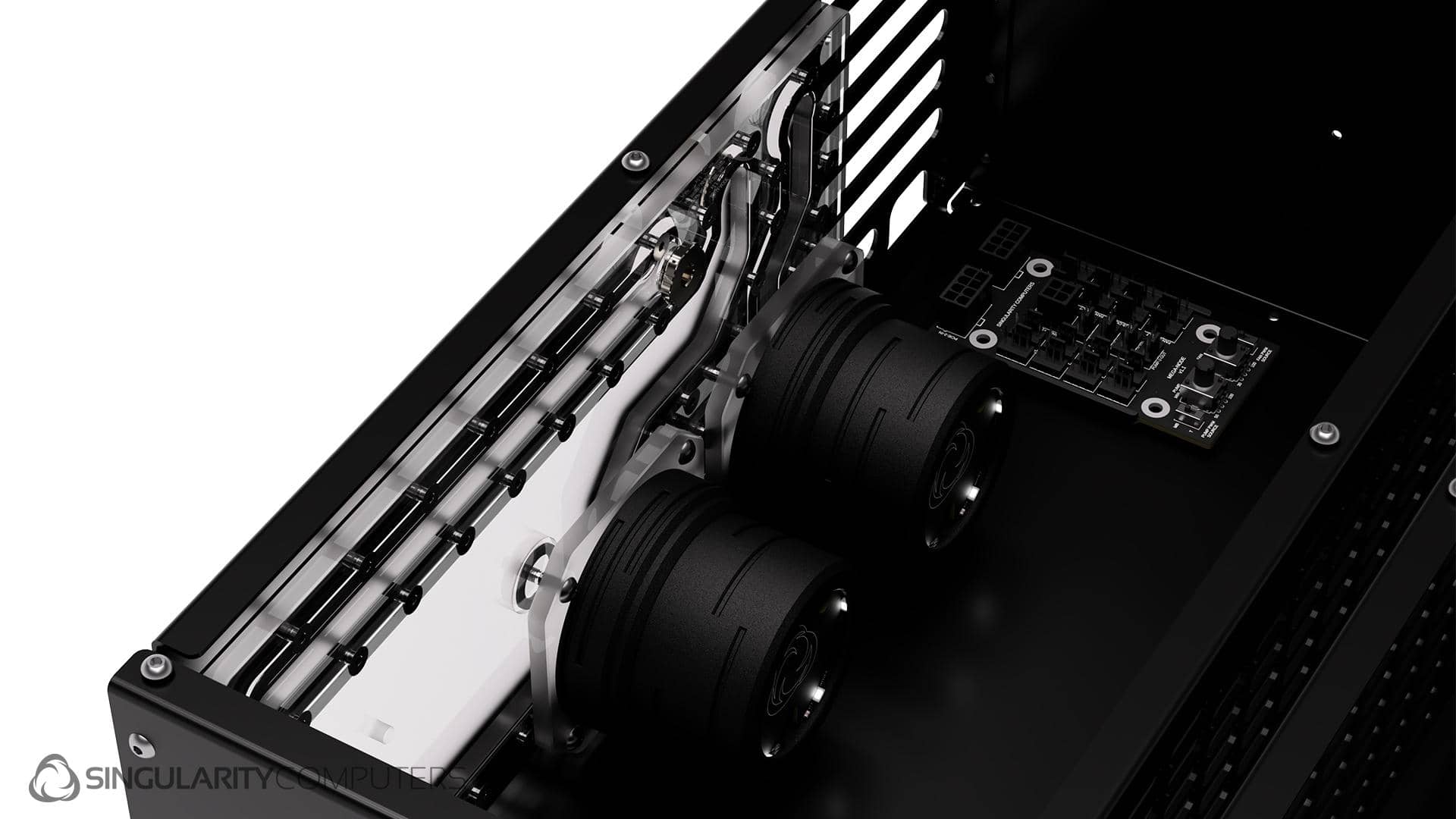

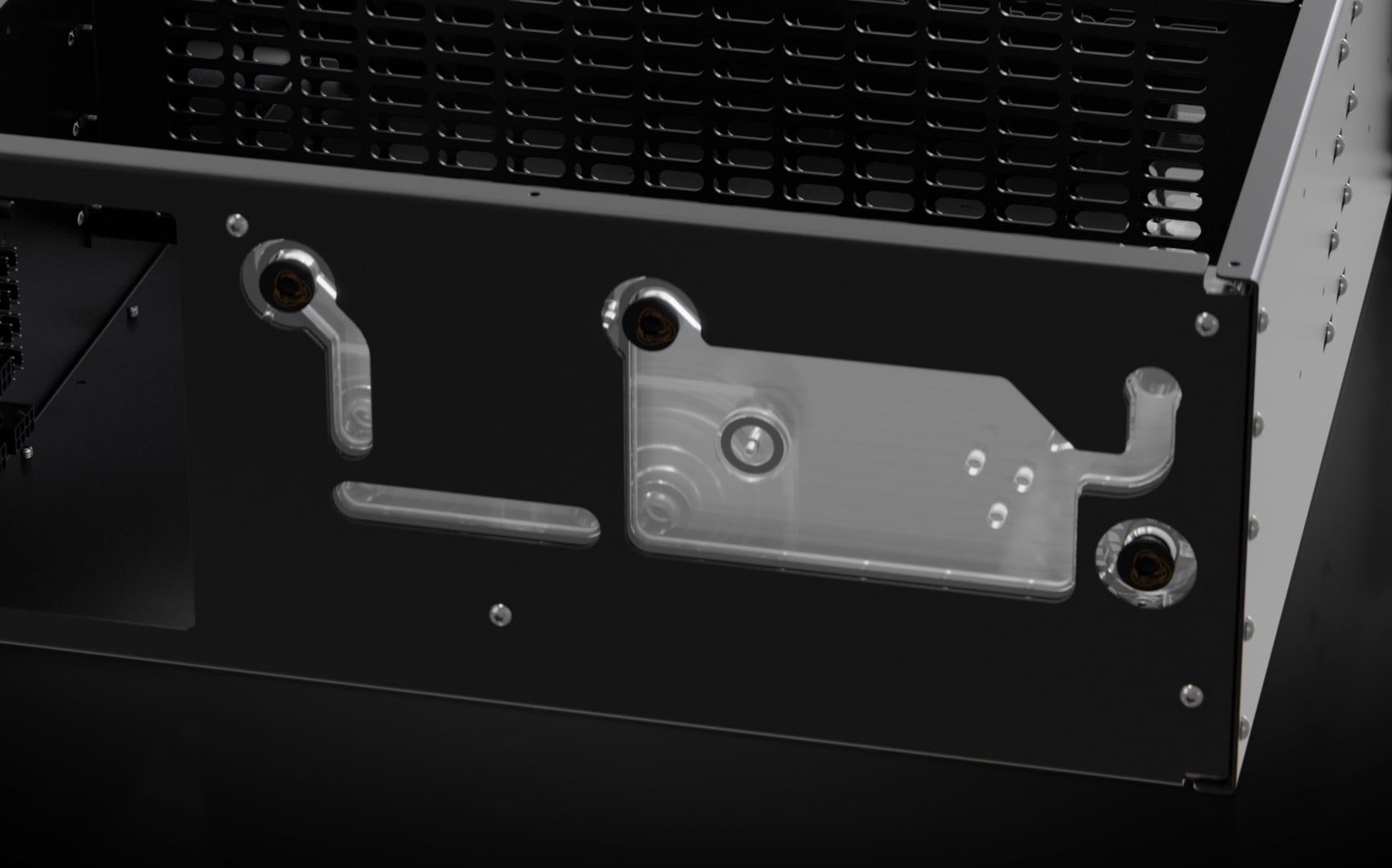

A different rear panel for the case which has a distribution plate mounted to it. The distribution plate has an integrated reservoir and two D5 pump tops.

SC Enterprise 2U Dual D5 Reservoir Distribution Plate
None Yes +US$349.00


The Rackmount 2U Dual D5 Reservoir Distribution Plate has a reservoir and two D5 pumps in series for a powerful dual loop setup with redundancy. It can be used with any rackmount water-cooling system to add a pump reservoir combo. It mounts directly to the front of a standard 19” rack. It has an inlet, outlet and fill and drain port.

SC Enterprise 2U Quad D5 Distribution Plate
None Yes +US$449.00


A 2U Rackmount distribution plate with four D5 pumps with two pairs in series for a powerful dual or single loop configuration with redundancy. It can be used with any rackmount water-cooling system to boost flow. It mounts directly to the front of a standard 19” rack. It has an inlet and outlet port for each pair of D5 pumps, and the outlet of the first pair can be connected to the inlet of the second pair for four D5 pumps in series. There is also a fill and drain port for each pair of D5 pumps on the front but this distribution plate will need to be paired with a reservoir.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump x4 (optional) USD $416
None Yes +US$416.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

D5 Pump x2 (optional) USD $208
None Pump x2 +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

D5 Pump x2 (optional) USD $208
None Pump x2 +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Case Accessories

Mini-Node Hub (optional) USD $39
None Yes +US$39.00

Mini-Node Hub
A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-OUT displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need for a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps. The Mini-Node has 8 fan outputs and 1 pump output.

  • 1x SC Enterprise 4U Rackmount Water-box
    US$399.00

Subtotal excludes shipping & tax

25% off Storewide With SCHAL | All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182005354 SKU: SC-RACK-4U-WB Categories: ,

Description

Read More +Read Less − full description

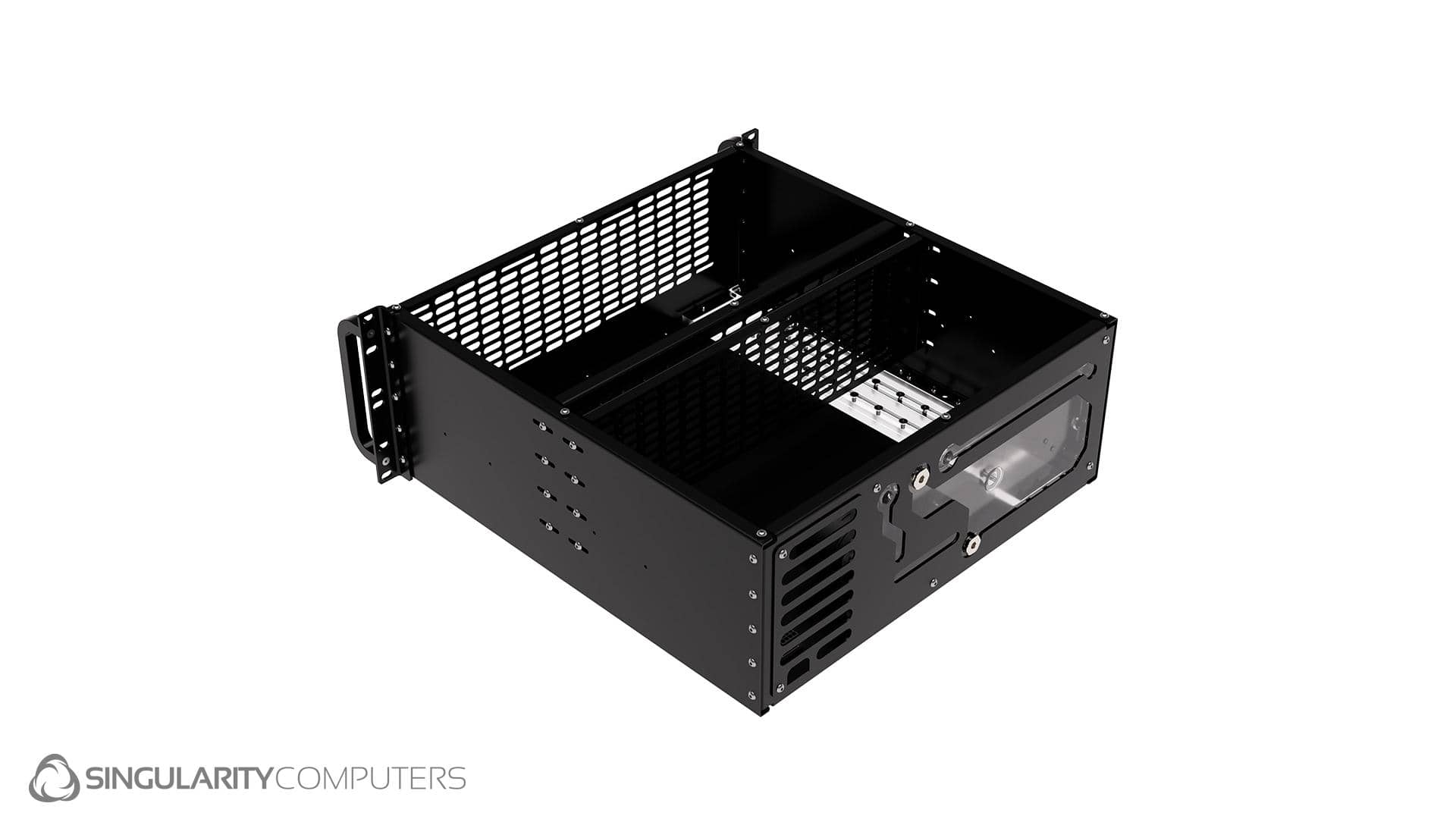

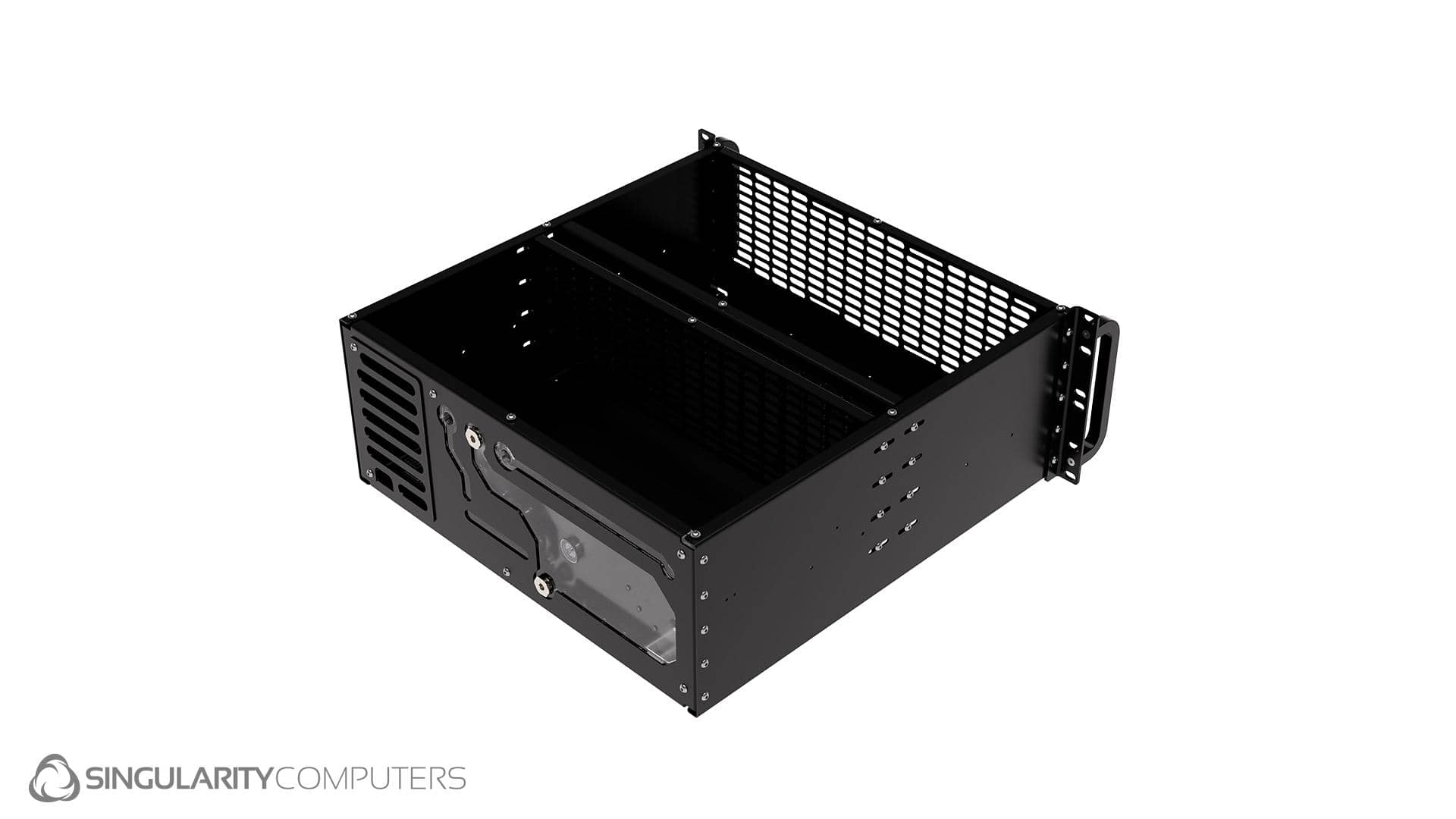

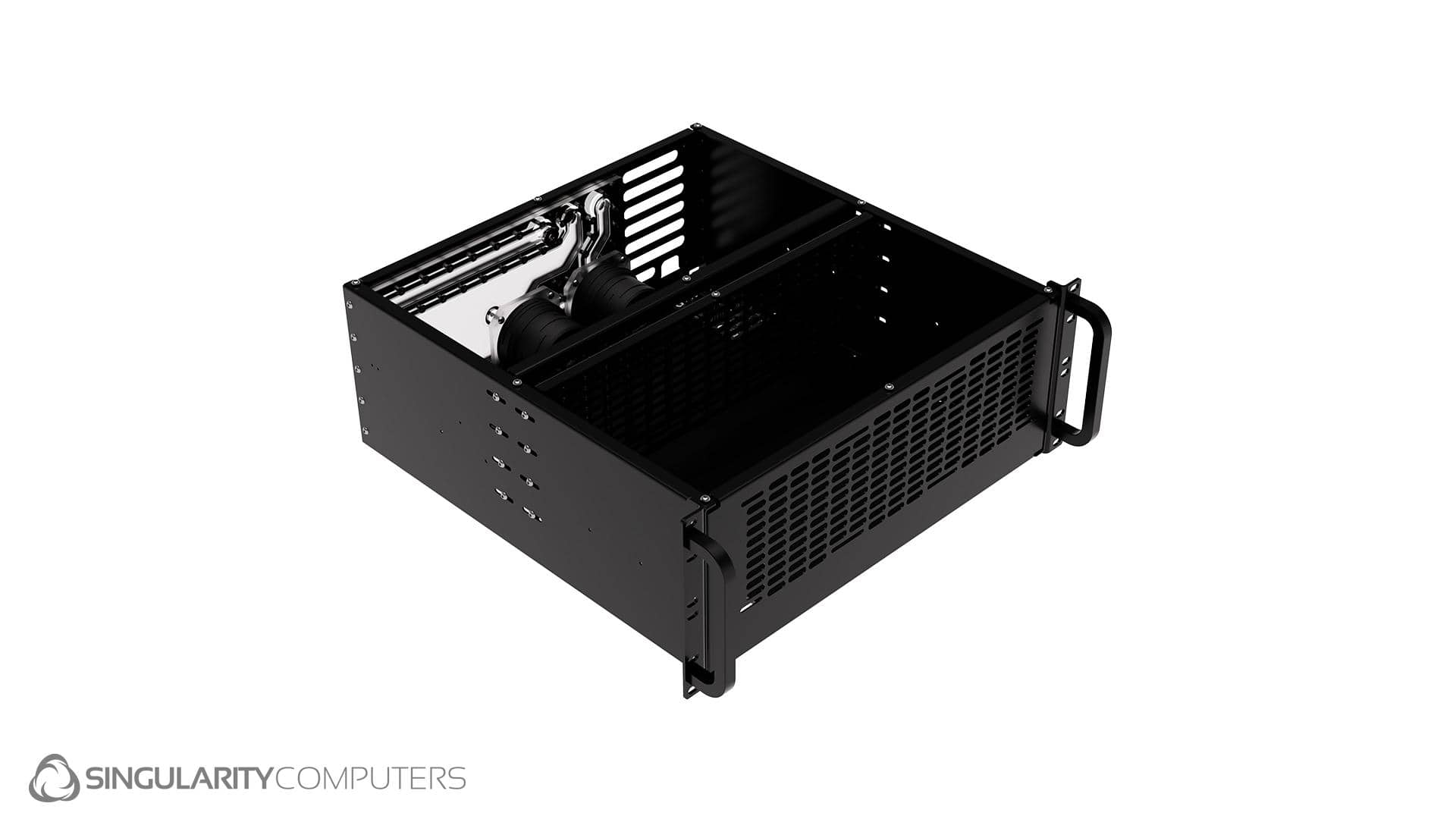

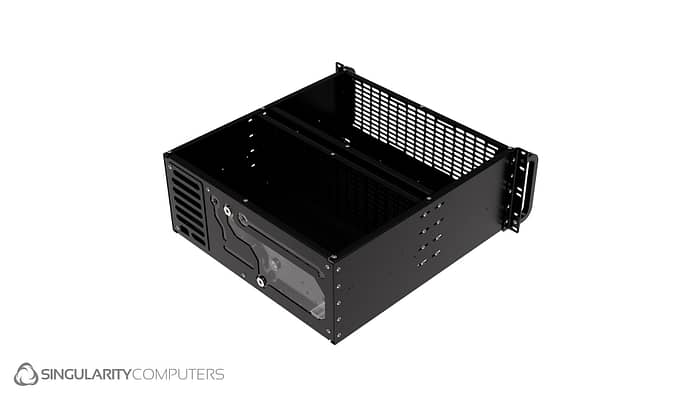

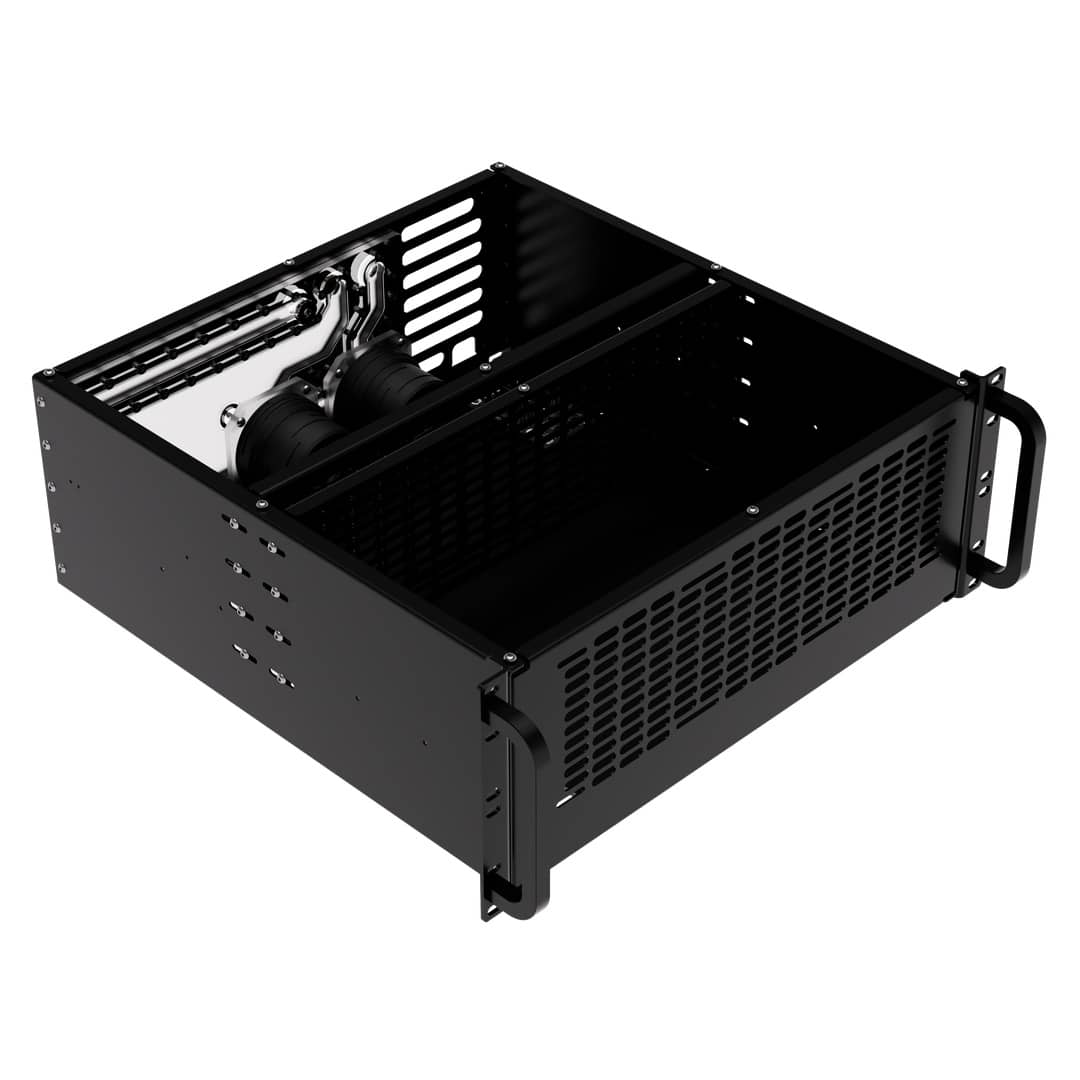

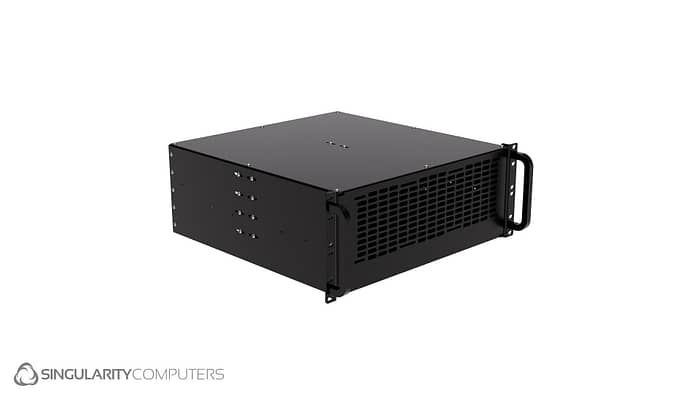

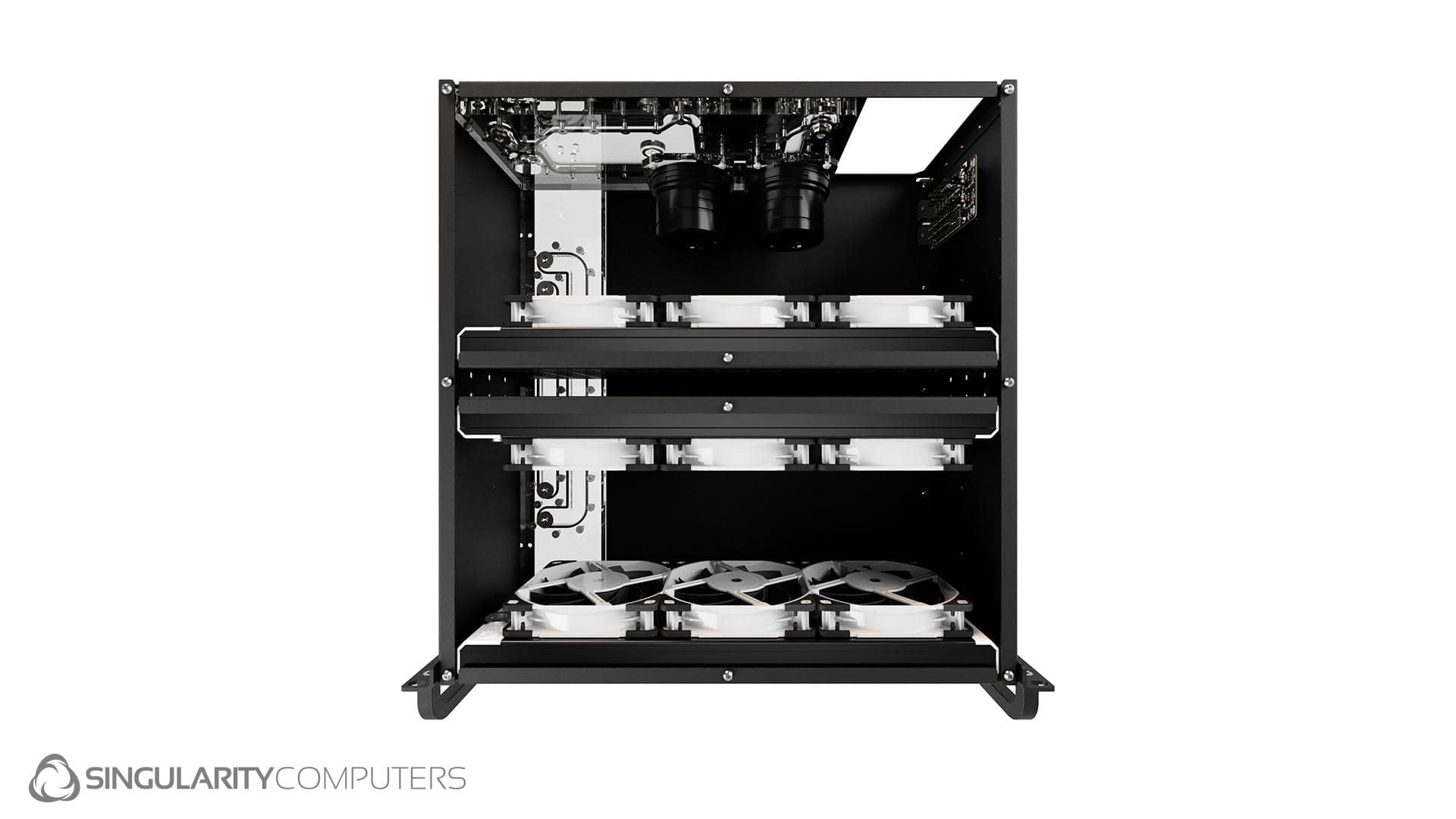

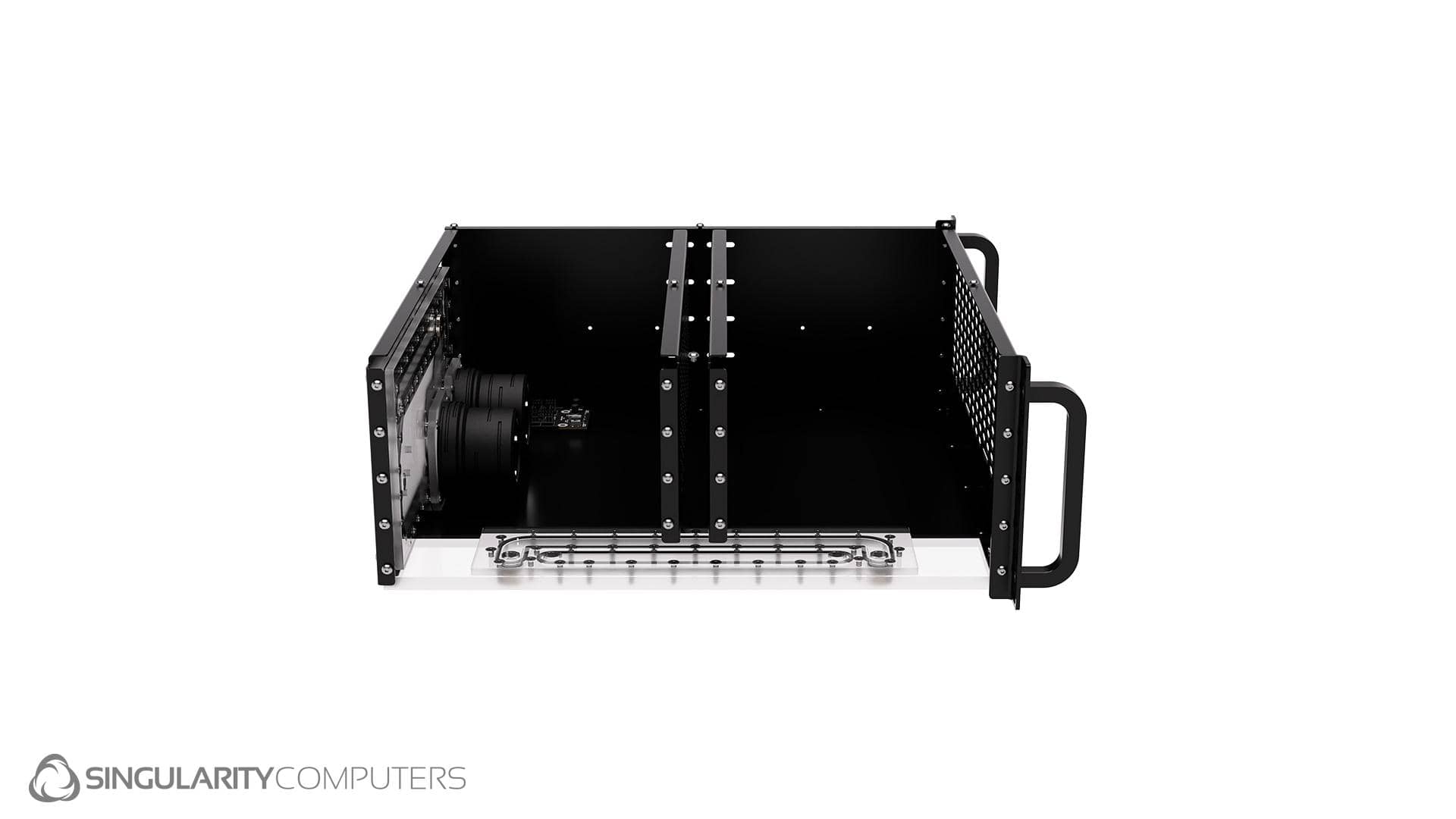

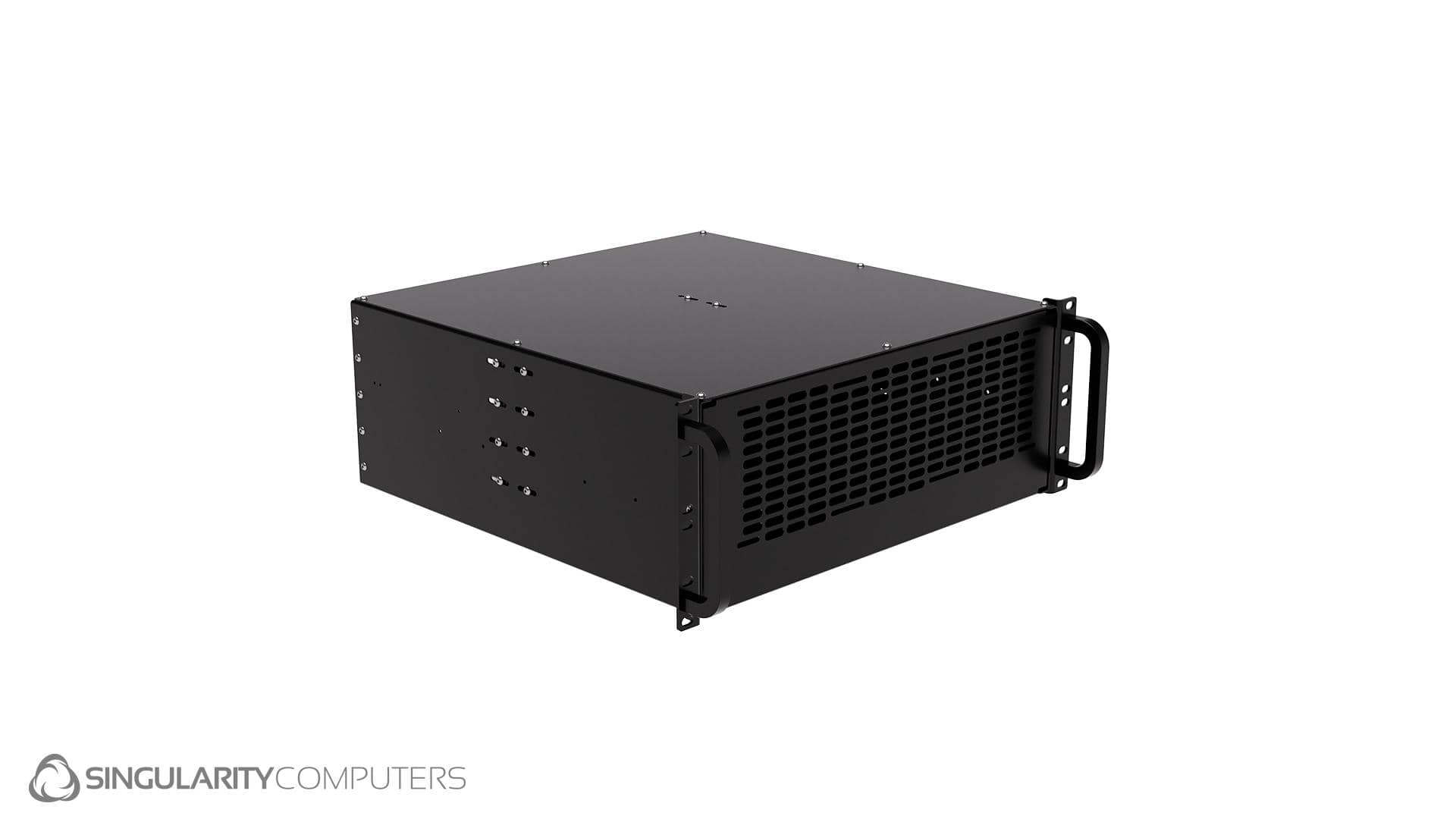

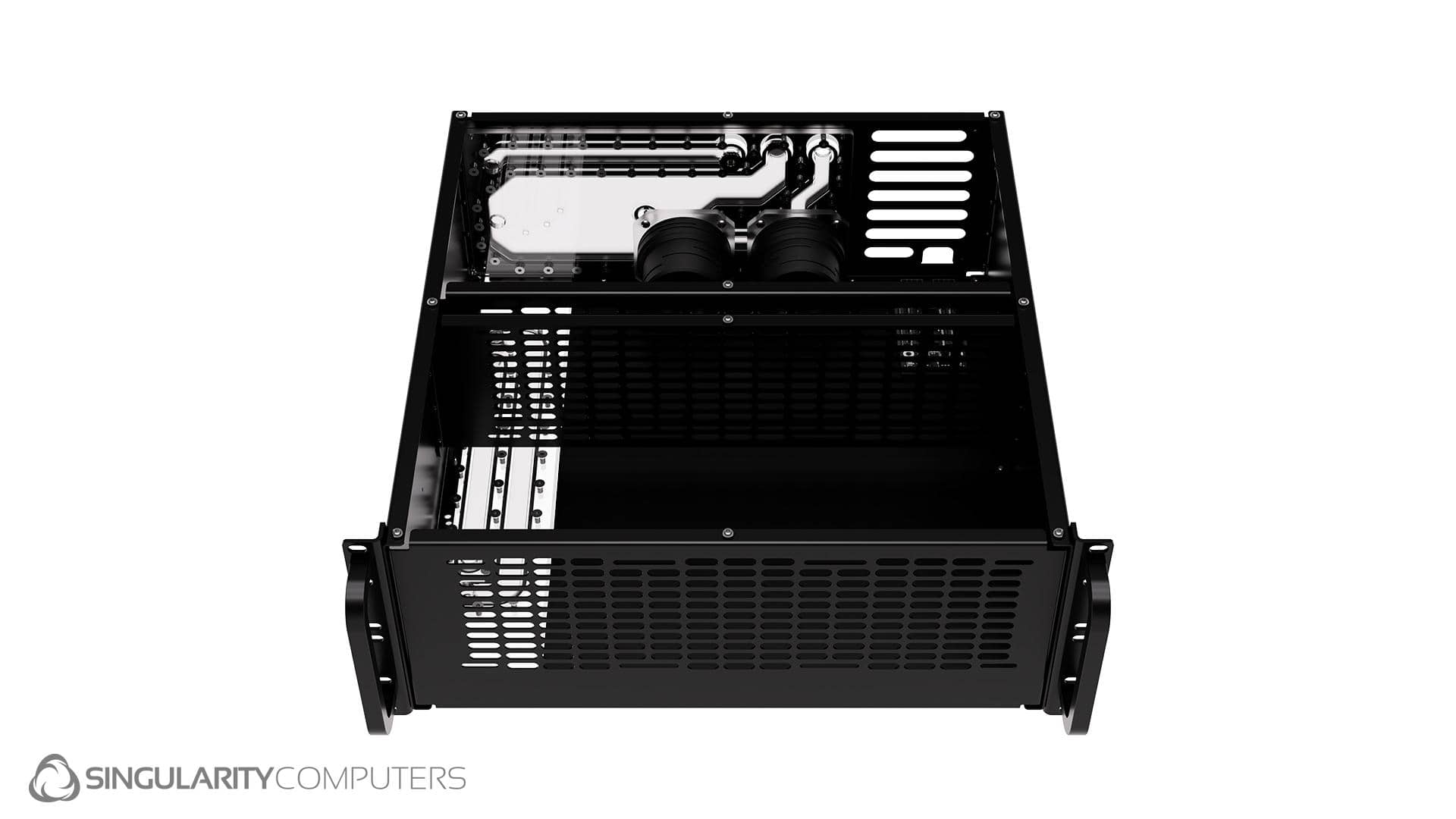

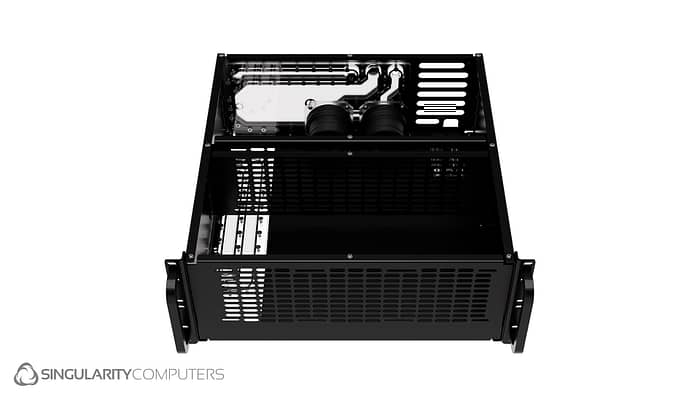

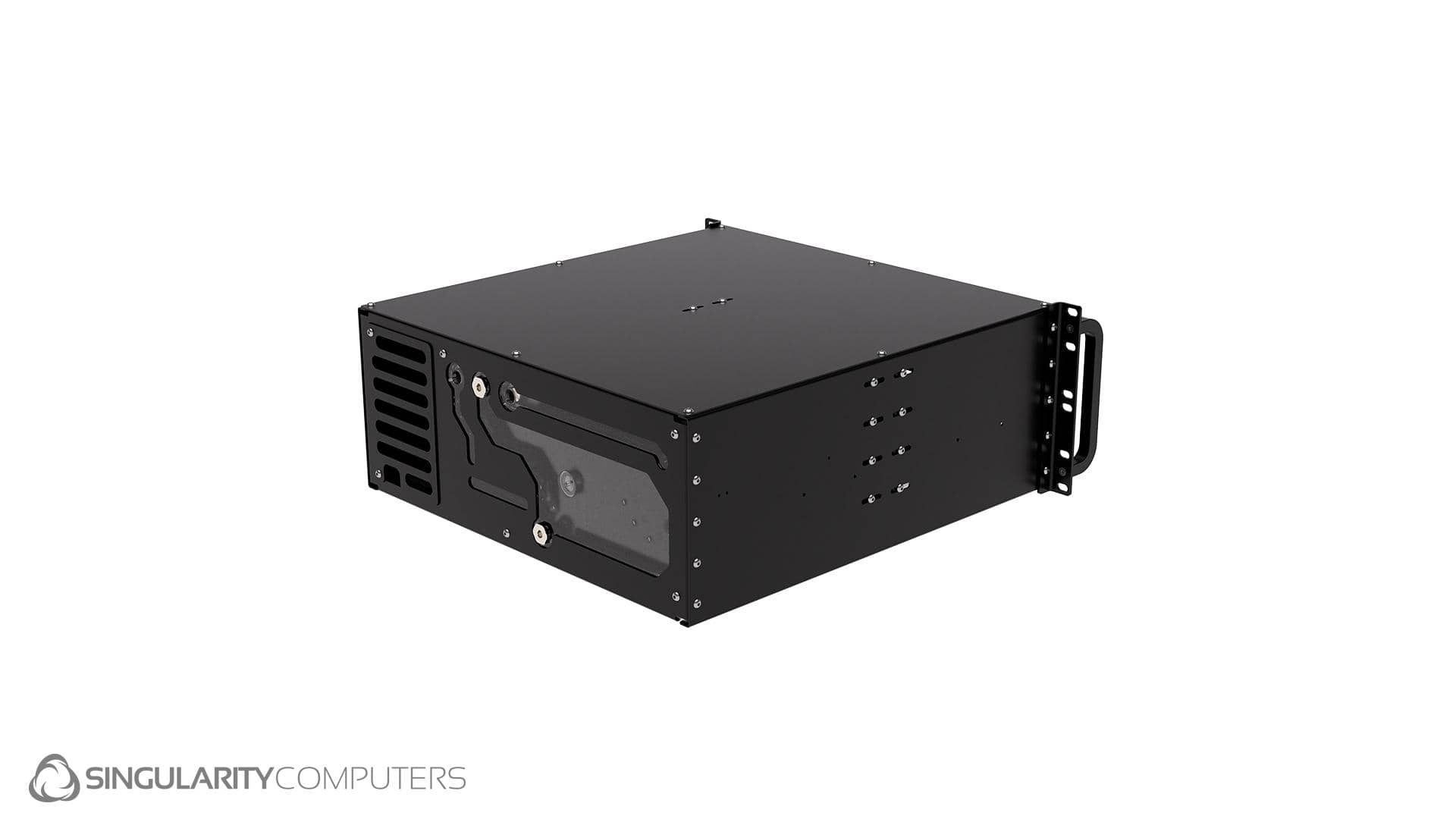

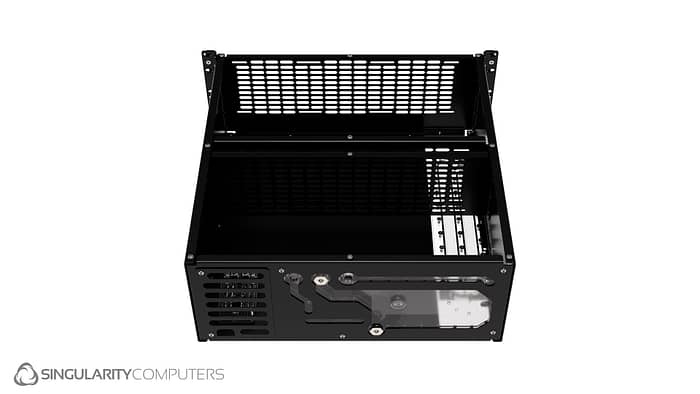

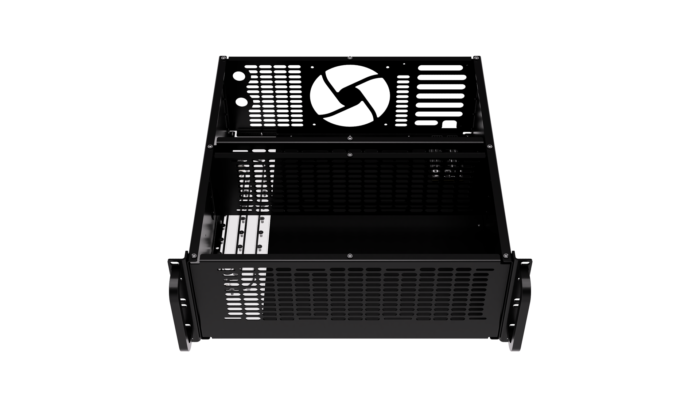

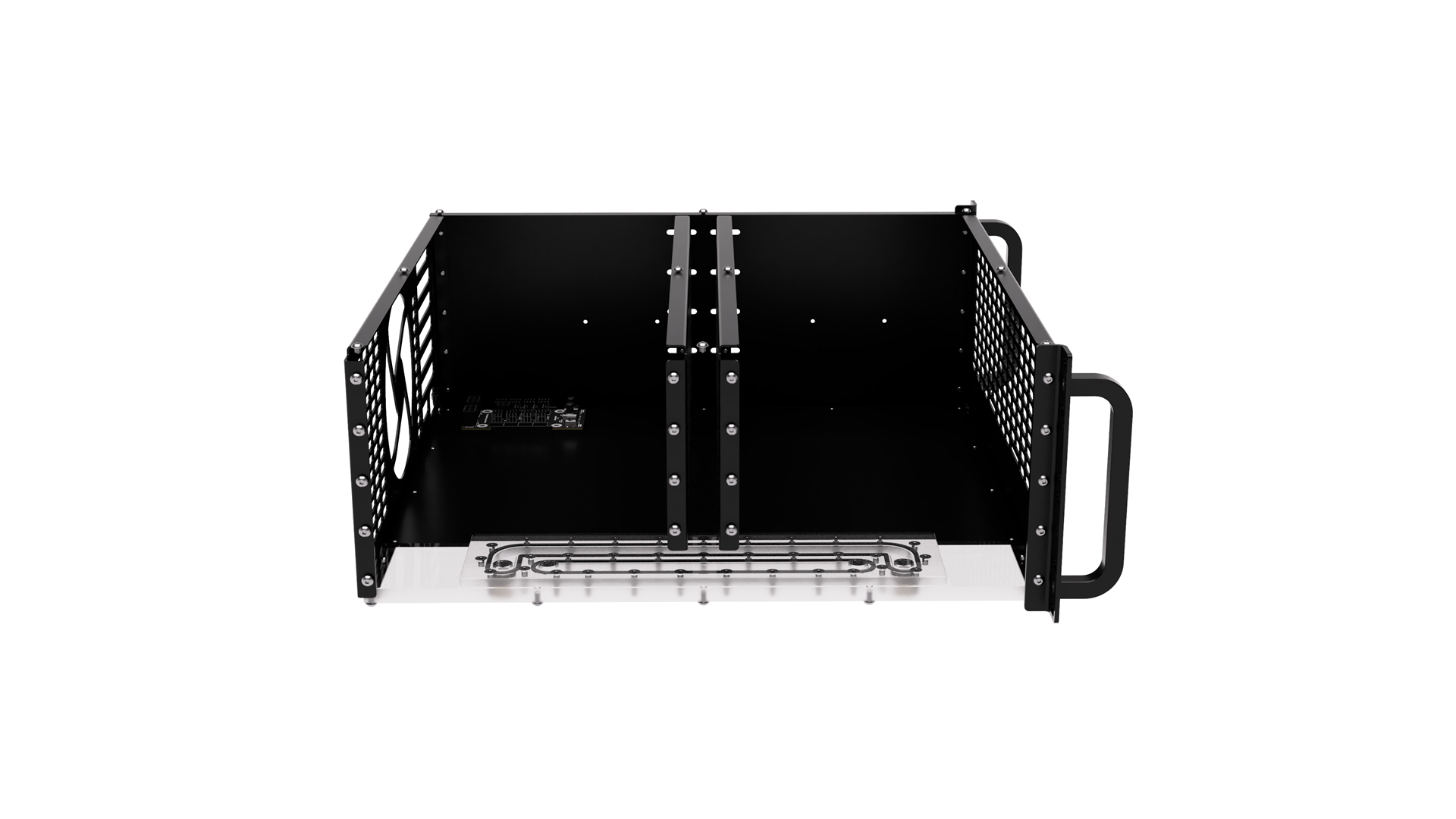

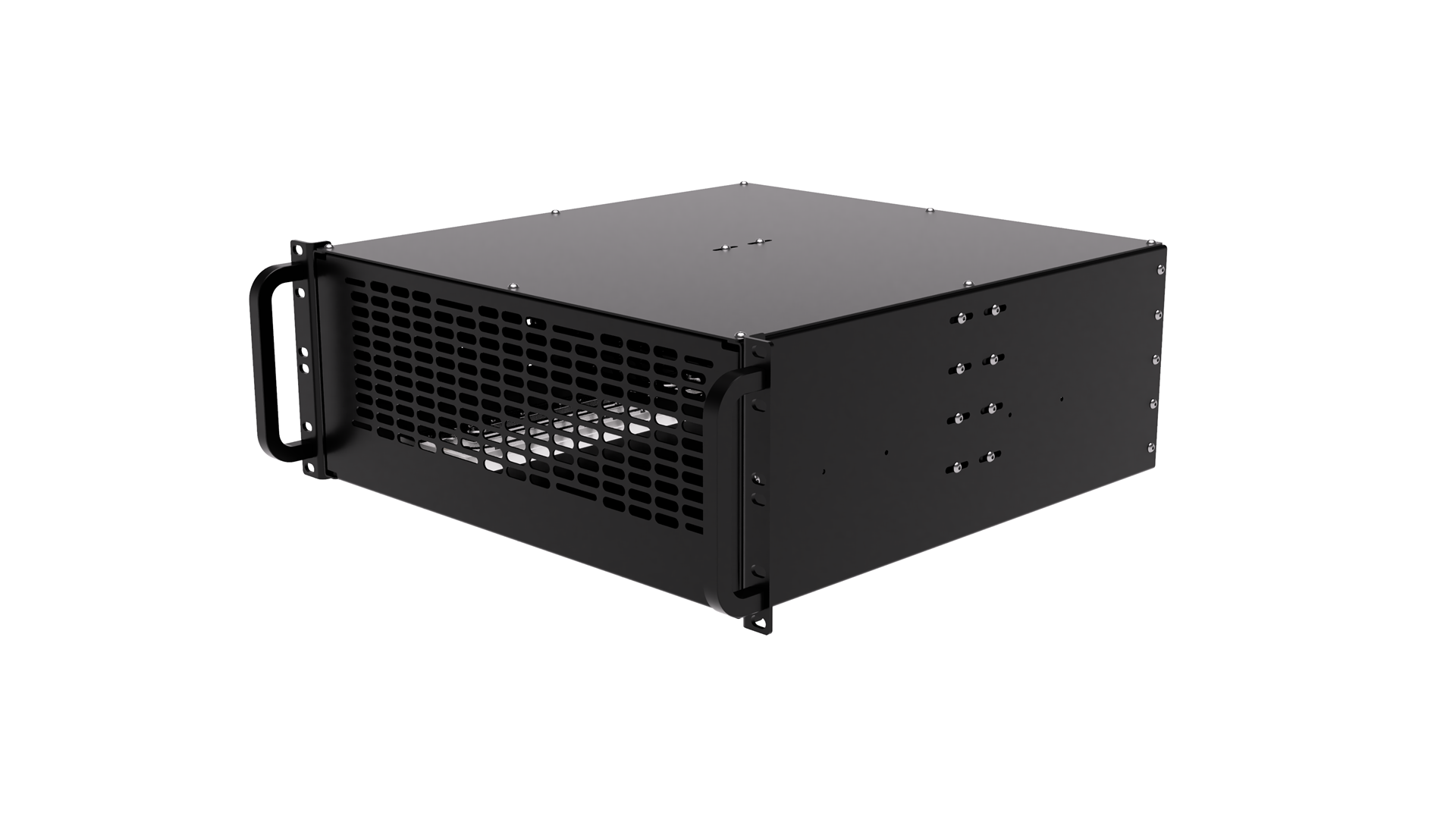

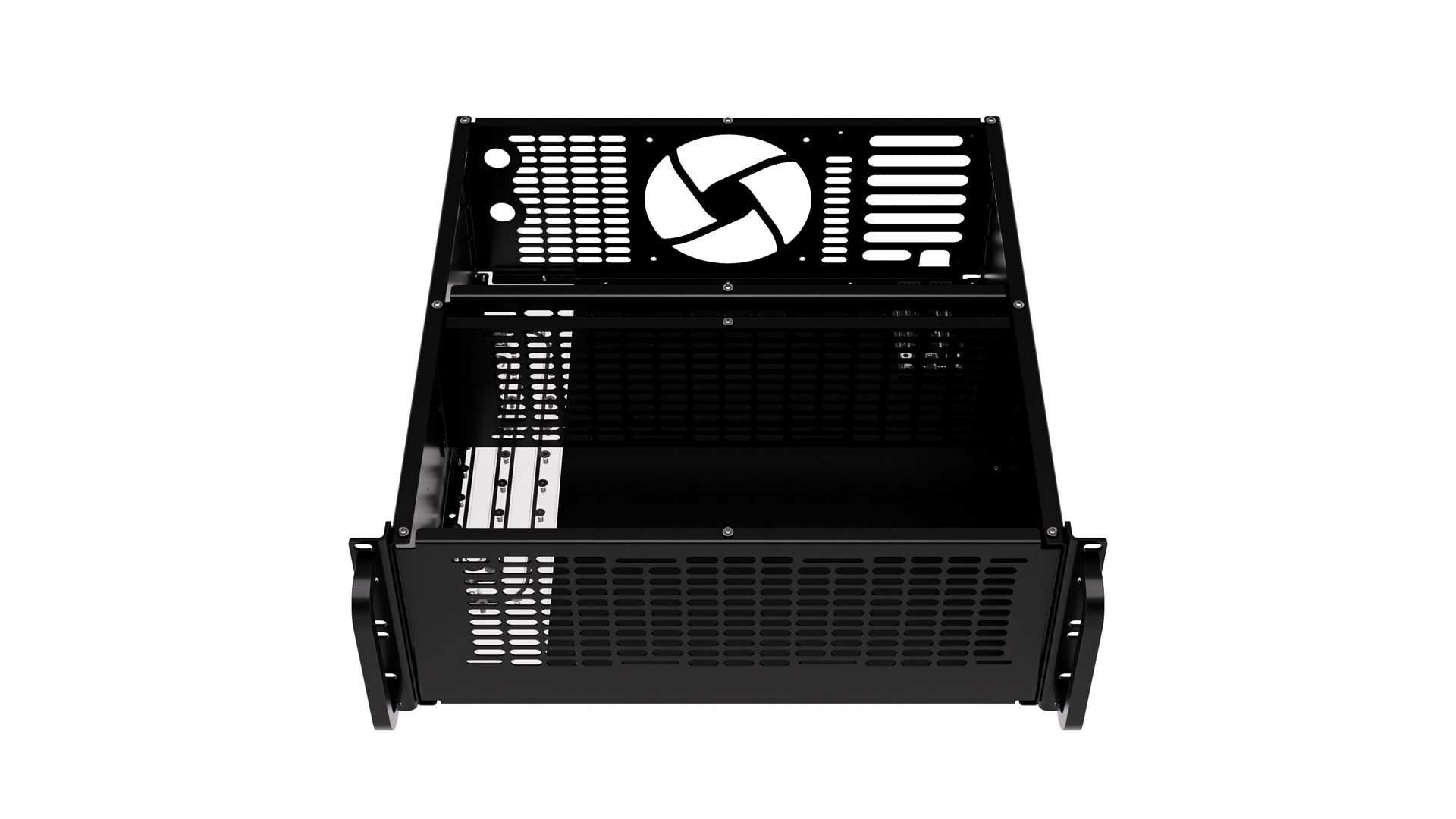

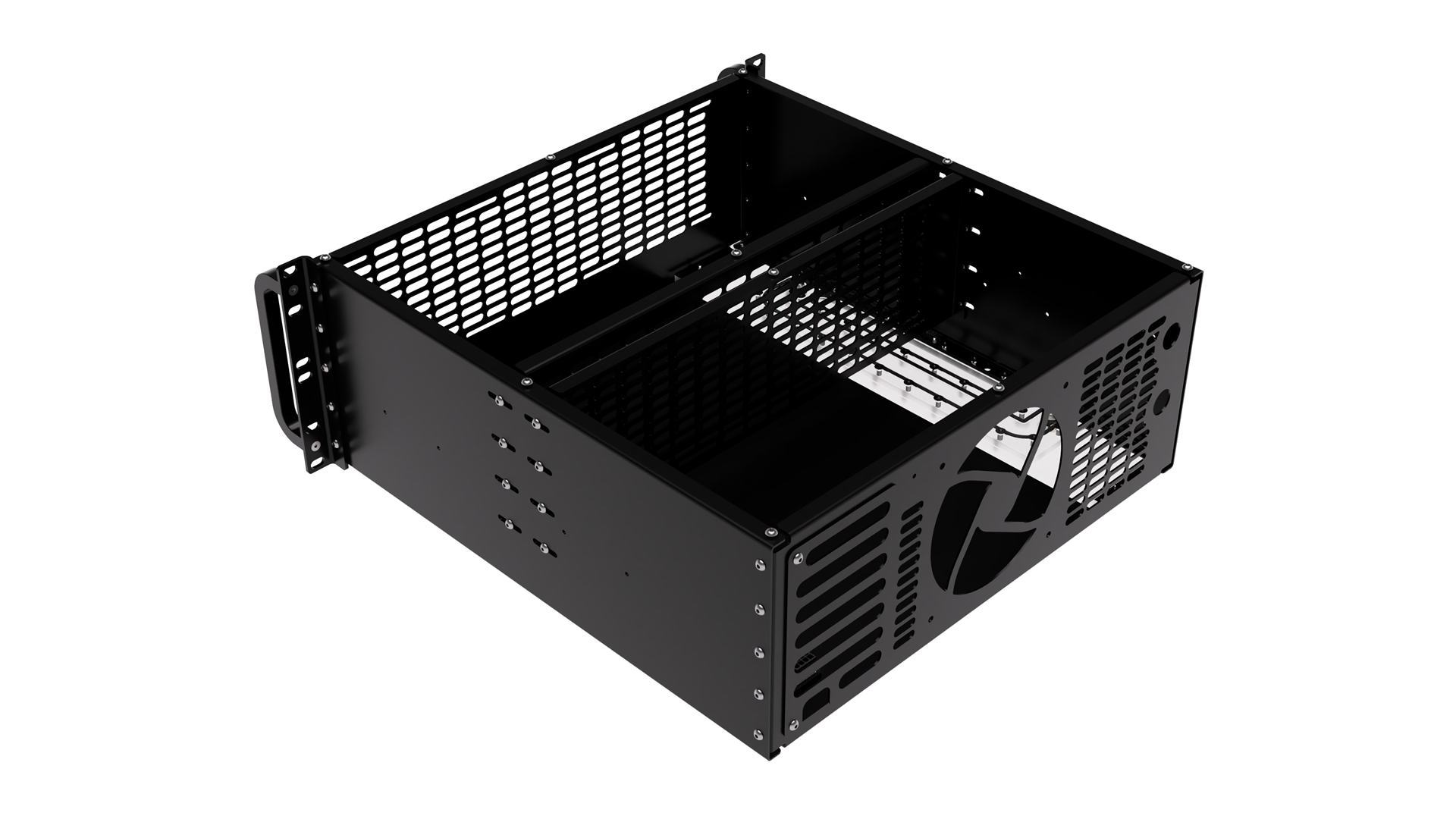

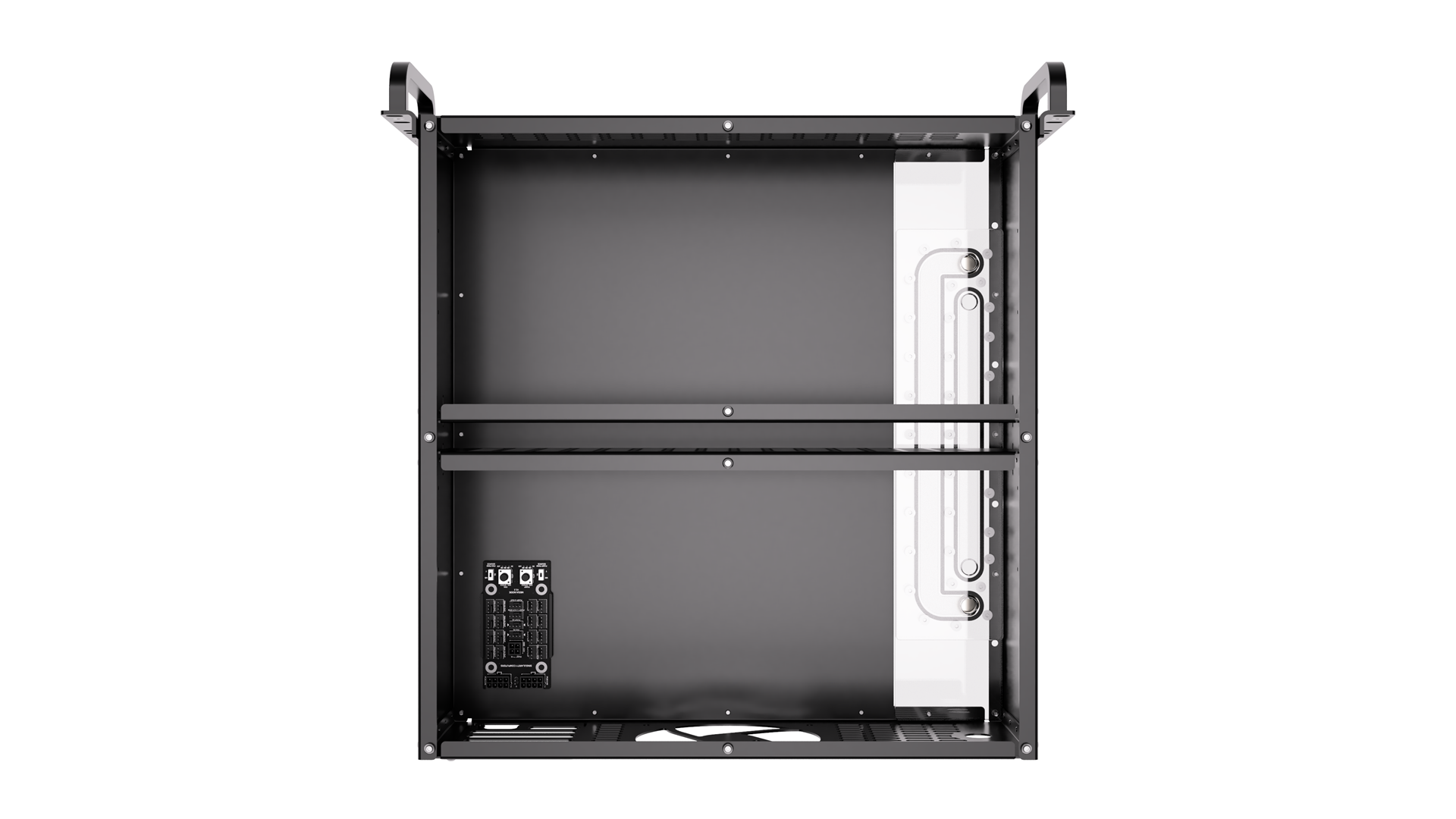

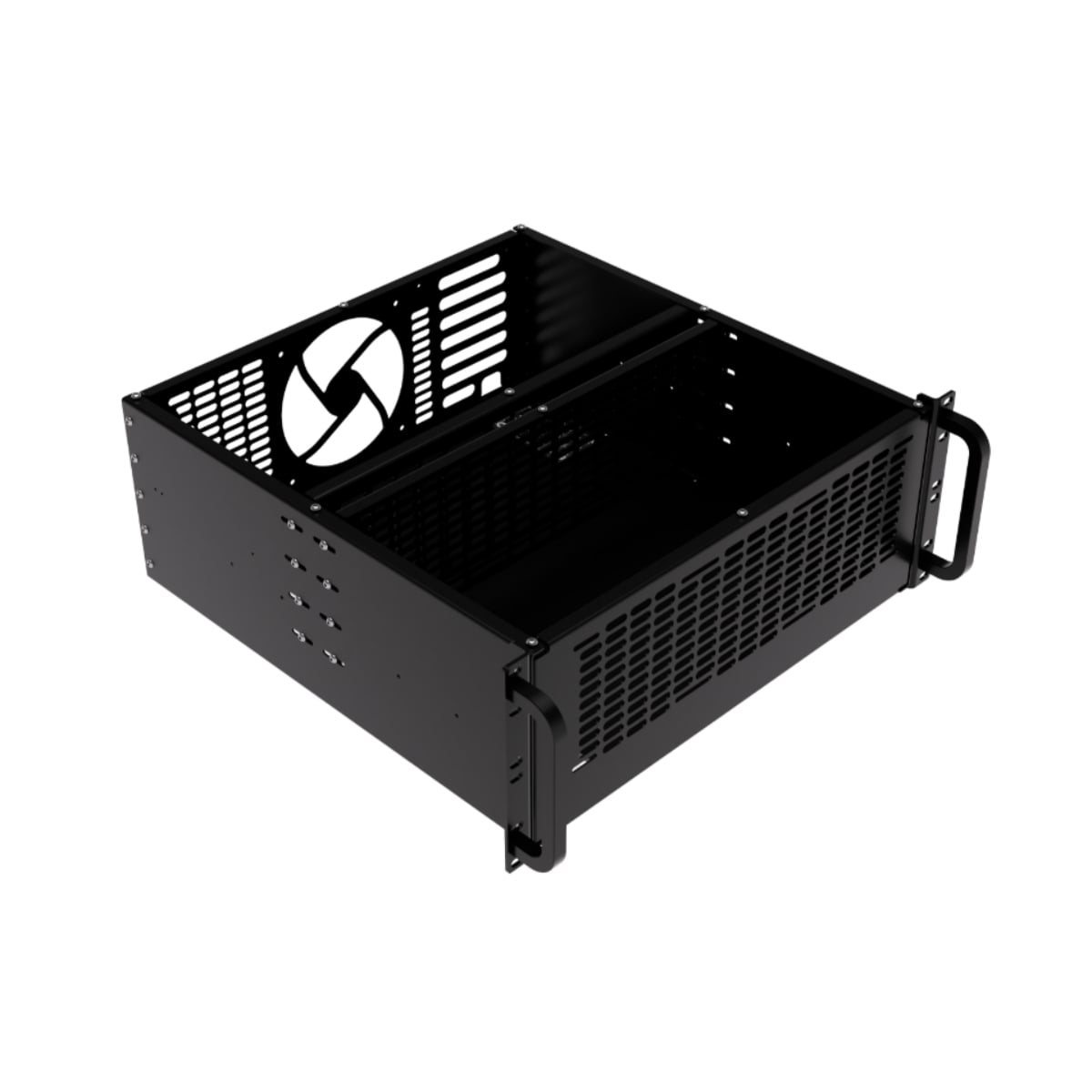

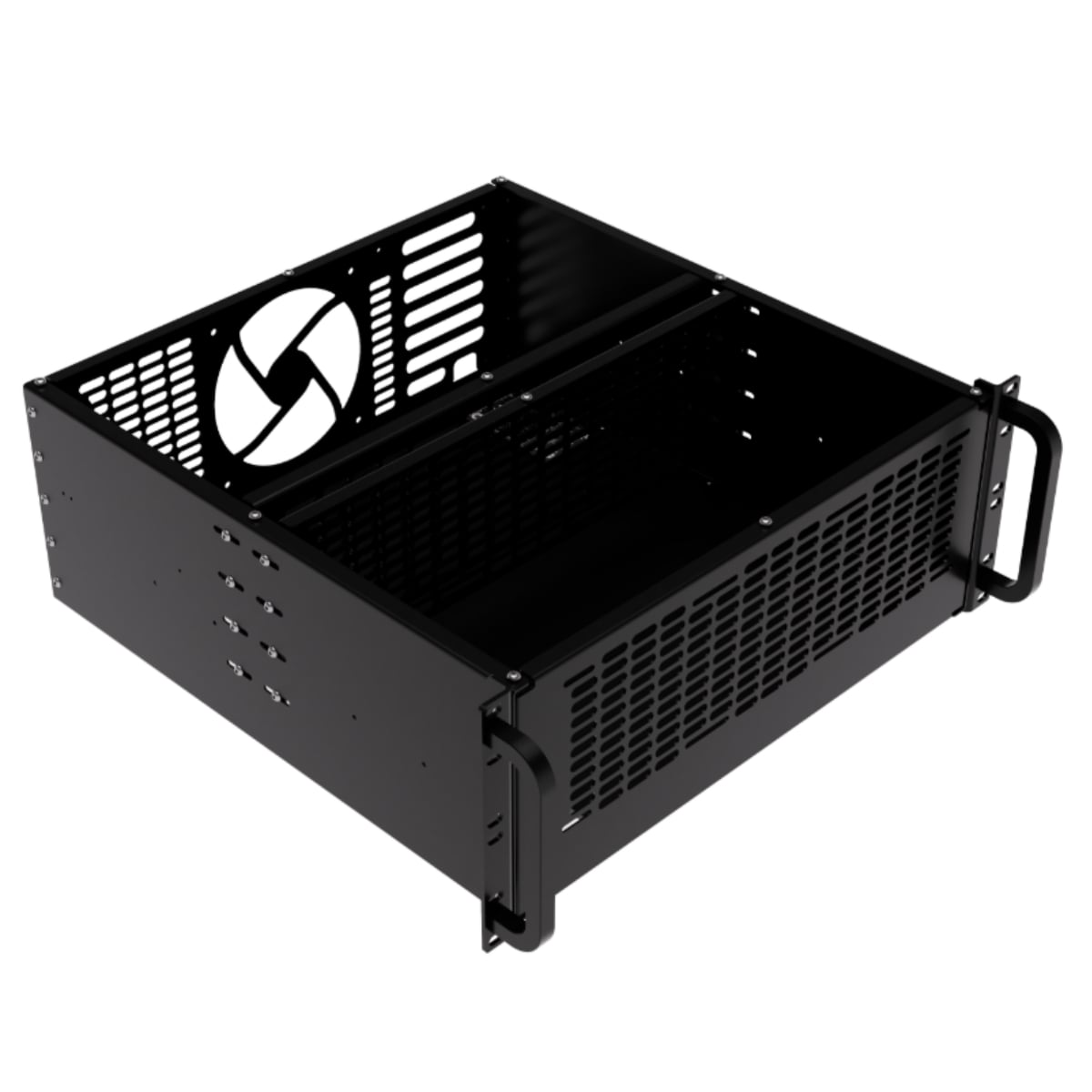

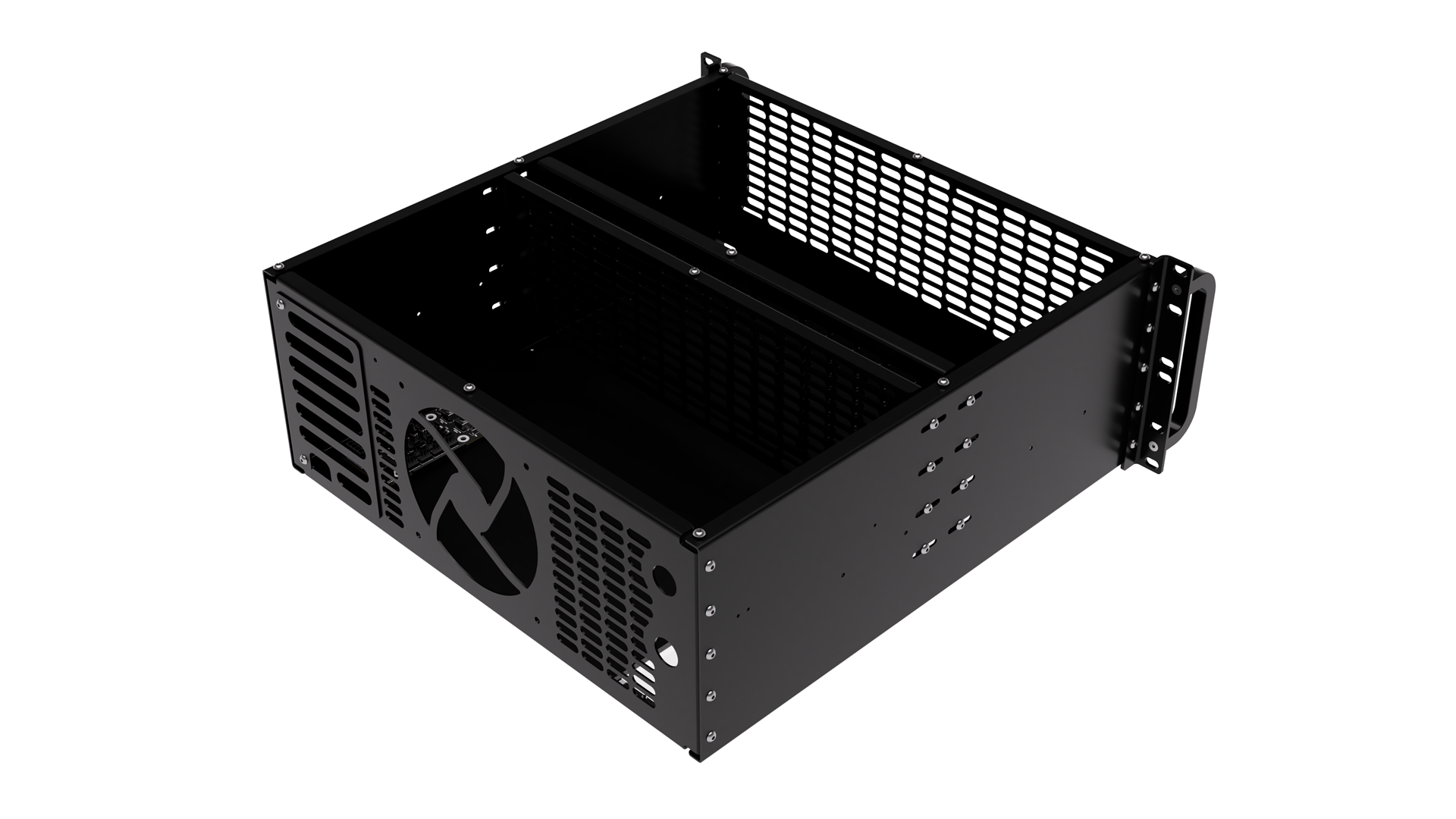

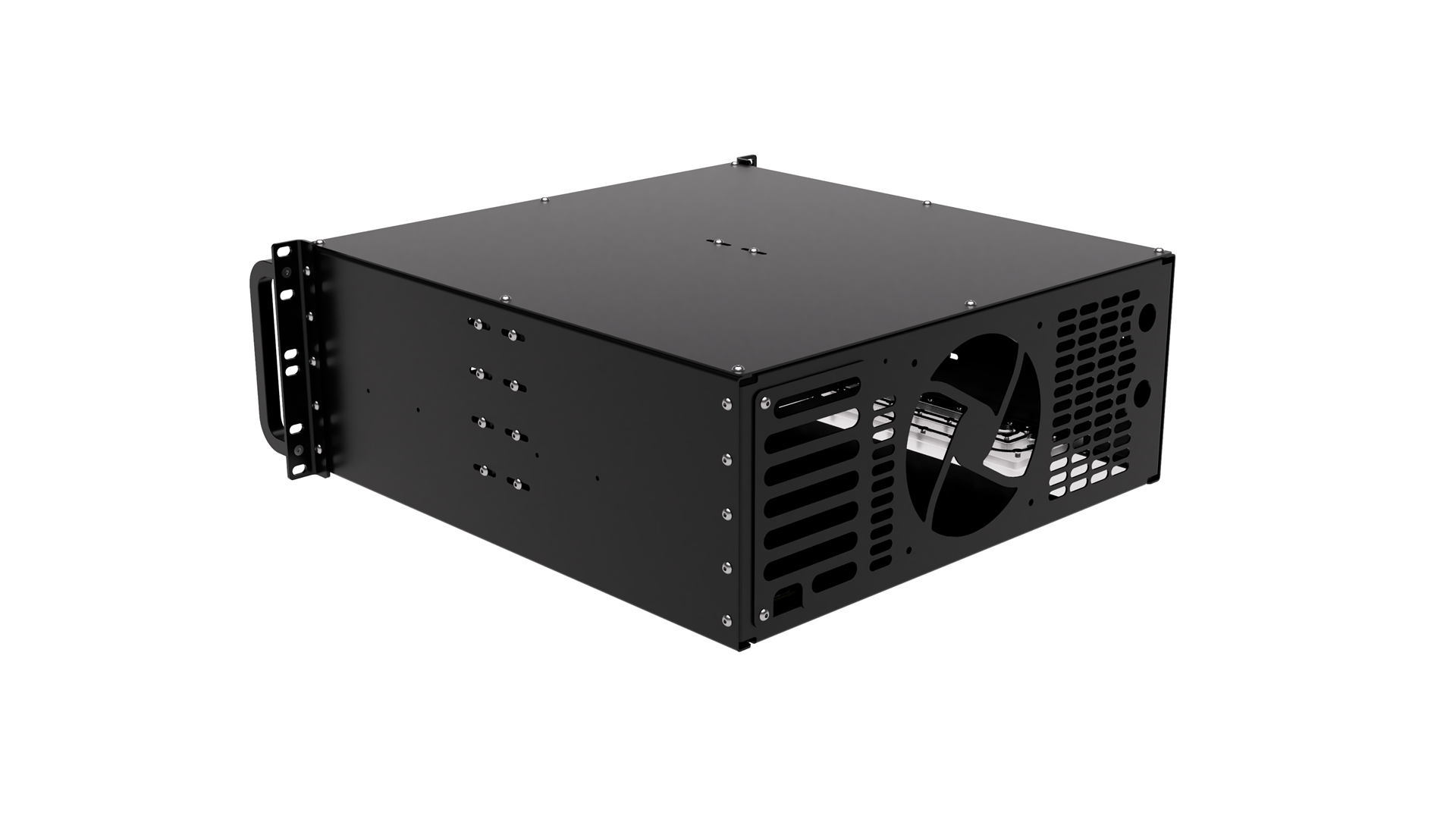

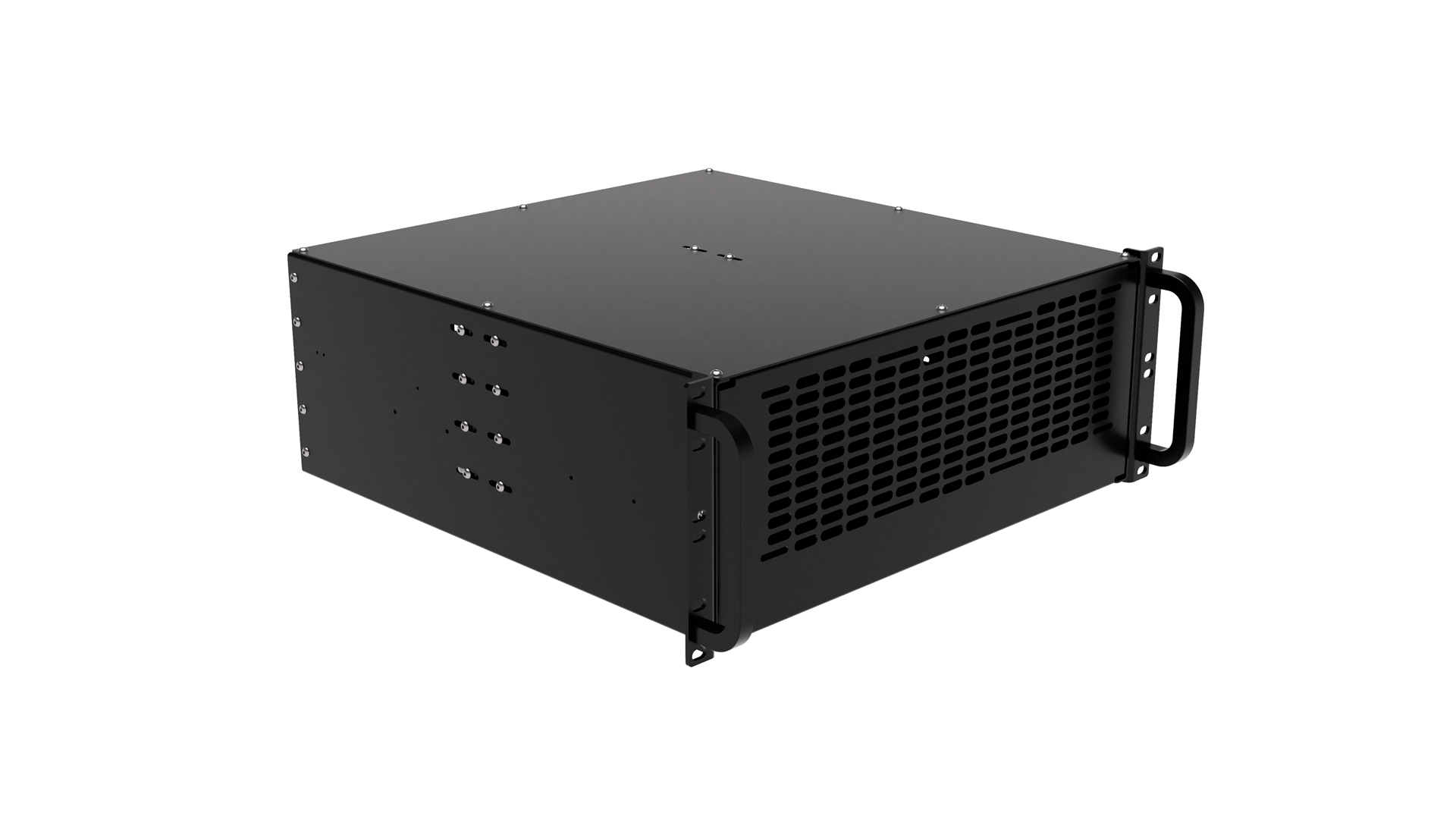

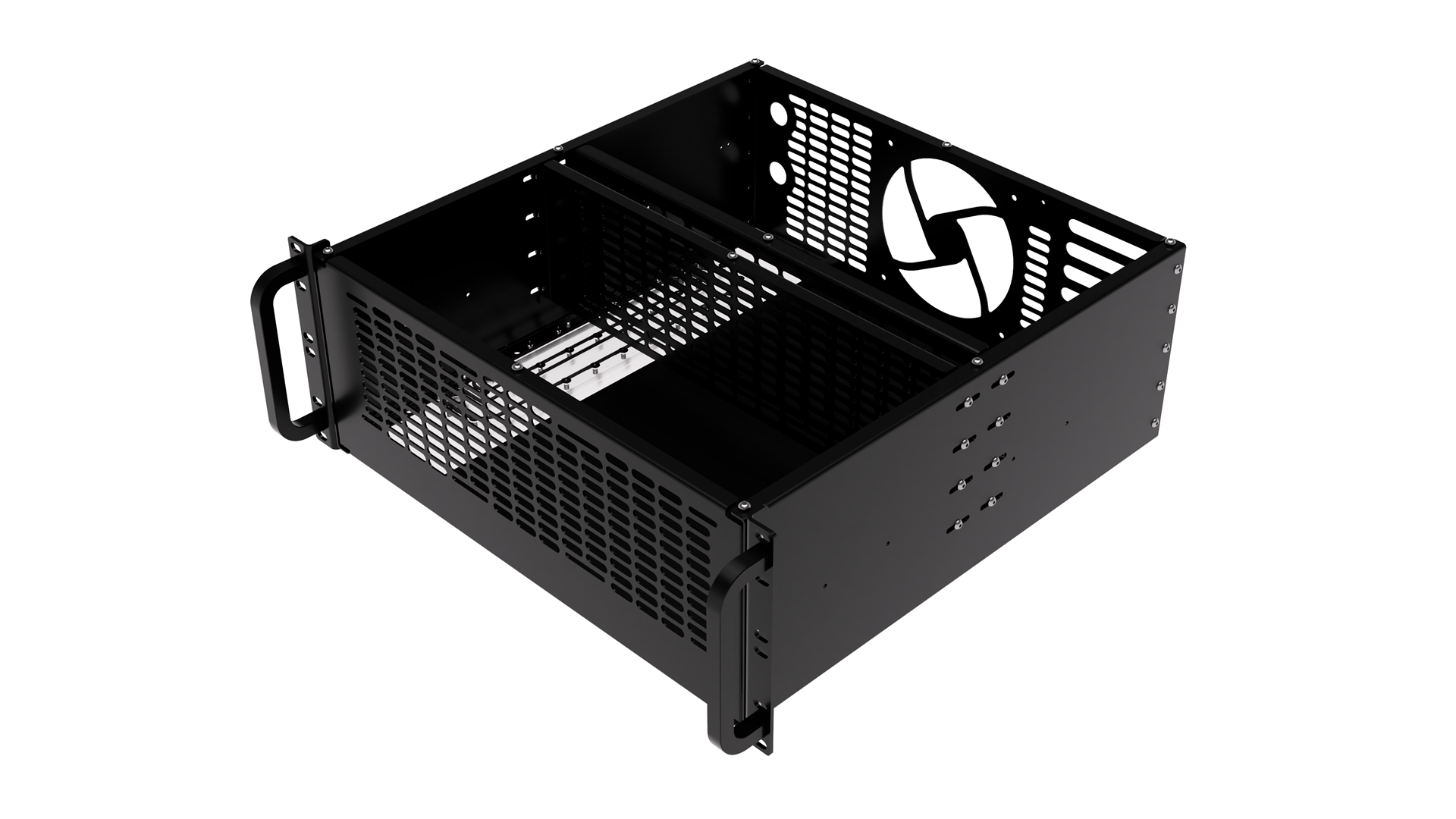

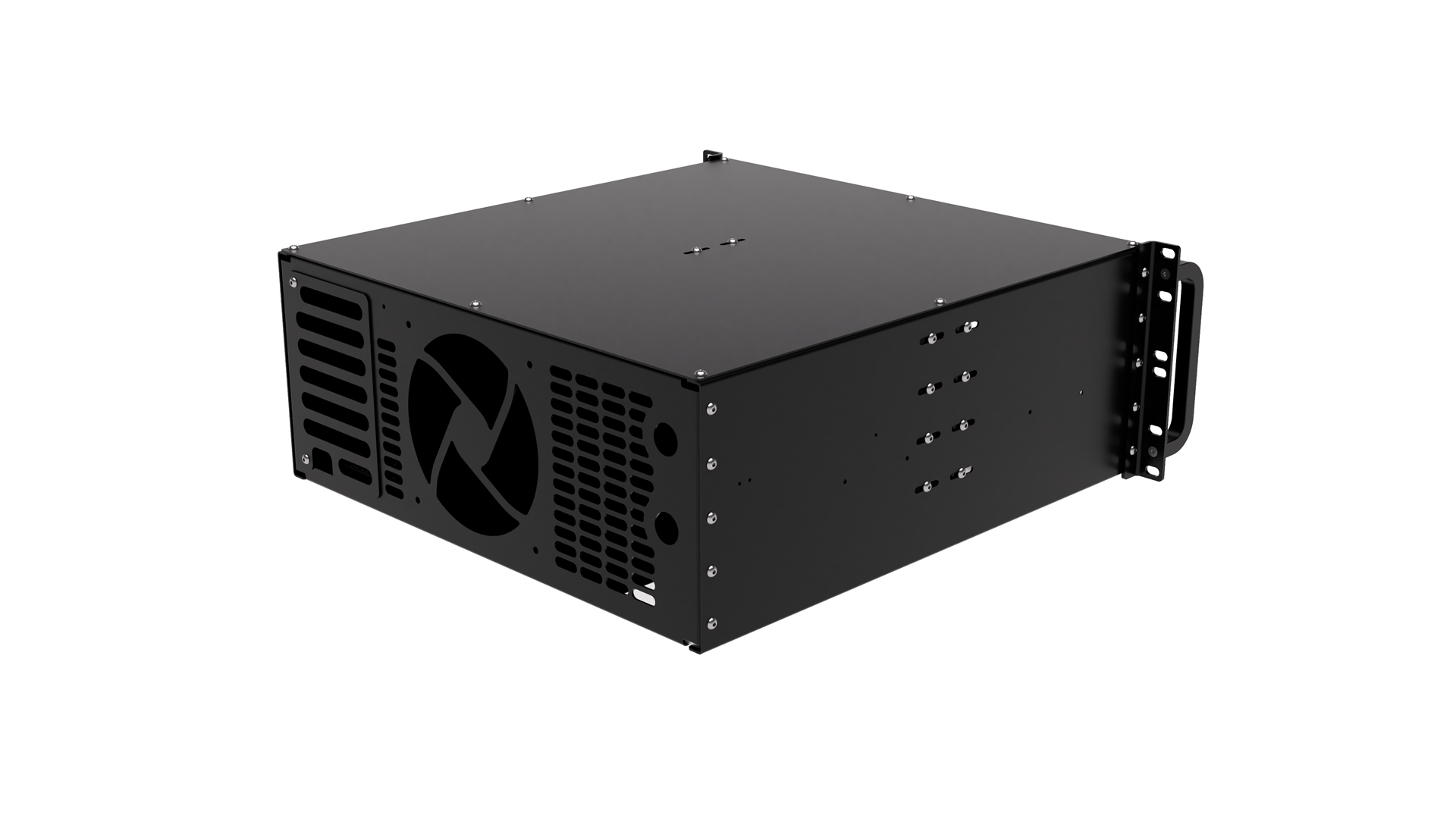

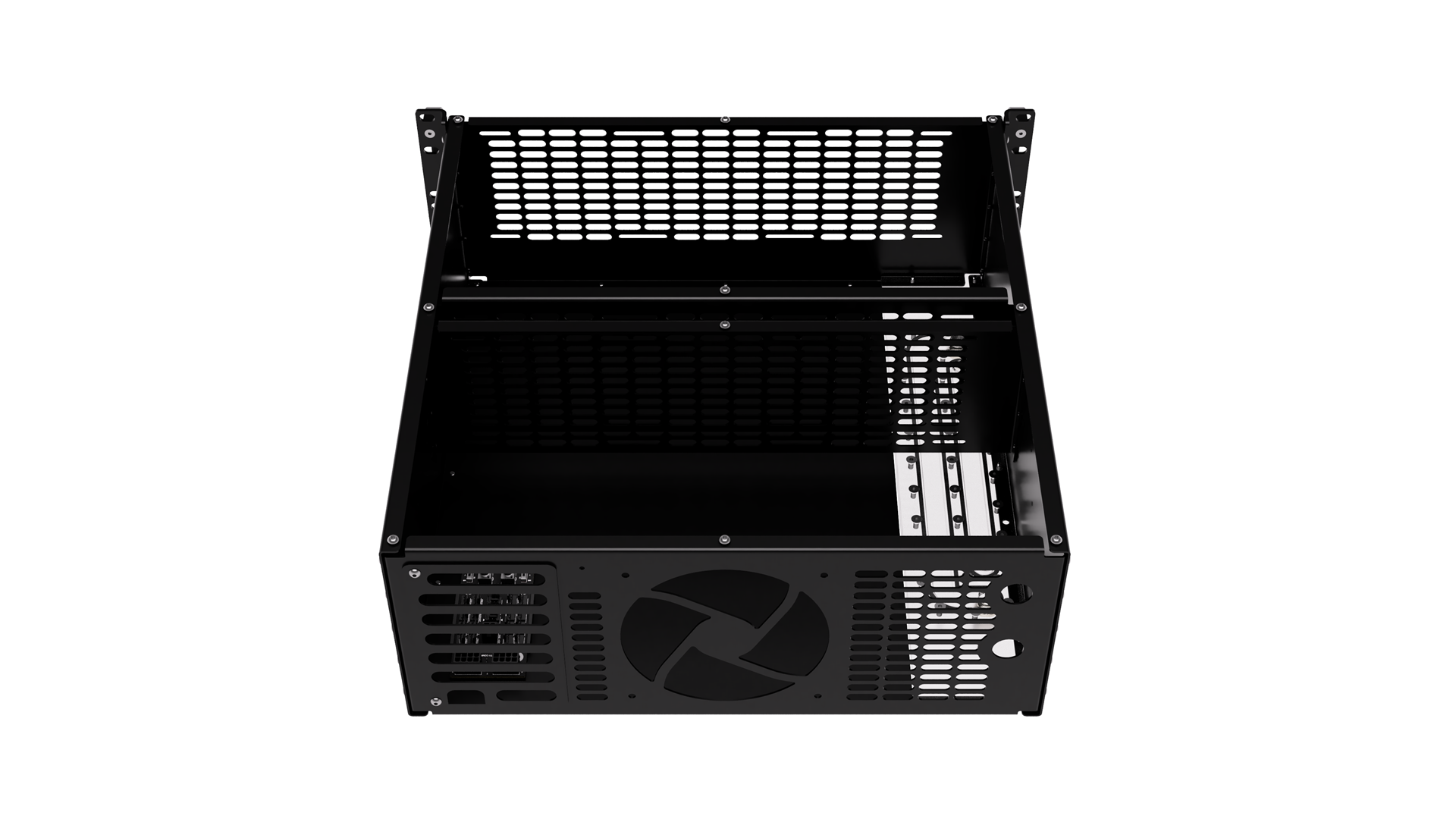

A 4U Rackmount Chassis for a water-cooling system which can fit up to 2500W of cooling. It fits up to 3x 360mm radiators and has a built-in distribution plate to allow clean and easy connections between the radiators. It comes with an SFX PSU Mount so that it can be powered independently from the main system.

Singularity Computers Enterprise:
Singularity Computers Enterprise is a product line designed for professional and enterprise use. The products are engineered to handle higher pressures and temperatures. All Singularity Computers products have a lifetime warranty but our Enterprise line goes through a far more stringent development and testing process. They have tighter tolerances and higher end manufacturing processes and materials are used.



Specifications

SC Enterprise 4U Rackmount Water-box: Steel powder coated. 5052 Aluminum. Folded. Anodized.
SC Mega-Node: 2x PCIE 8pin input, 1x FAN PWM input, 1x PUMP PWM input, 1x temperature sensor input, 16x FAN PWM outputs, 2x PUMP PWM outputs, 2x PUMP power outputs. The fan and pump output have coolant temperature-based PWM control or can be switched to motherboard PWM control. The built-in PWM control on the Mega-Node is independent of the motherboard and no software is needed. PWM Control: 2x potentiometers to set the minimum PWM speed. Temperature sensor inputs: x1. Compatible with any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor. 4pin ATX header to power up to two pumps with custom cables.
SC Pump and Reservoir distribution plate: CNC Machined Clear Cast Acrylic.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.

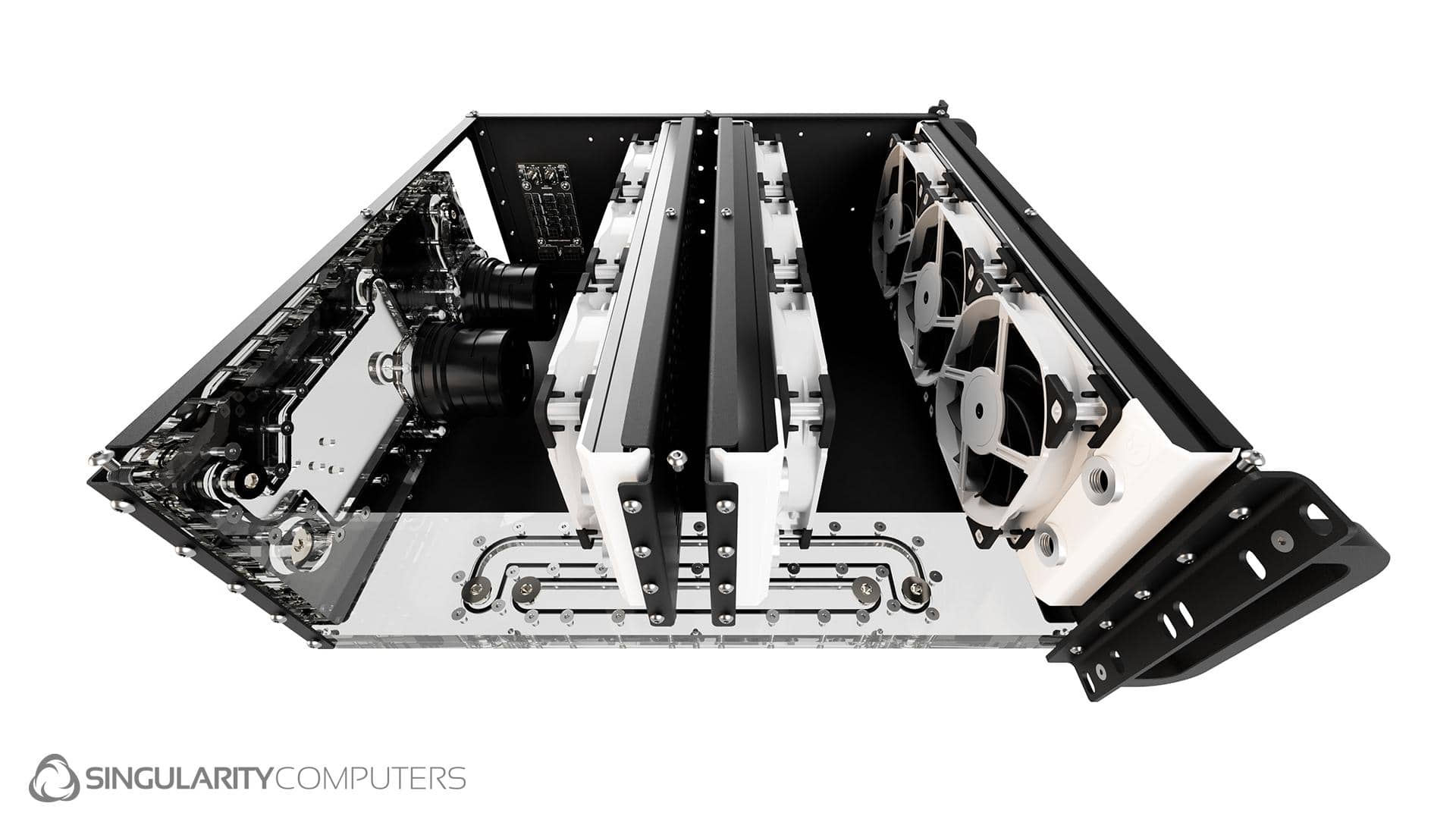

Radiators: 3x 360mm up to 60mm thickness with standard 25mm thick fans.
Fans: 9x 120mm x 25mm.
Water-cooling Passthroughs: x2 to connect a computer system.
PSU Mount: SFX.
Dimensions: L: 447.8mm x W: 430mm x H: 172.3mm.
Weight: 10kg.
Packaged Dimensions: L: 450mm x W: 450mm x H: 150mm.
Packaged Weight: 11kg.

Installation:
See installation manual at the link above.
