Rackmount 2U Quad D5 Distribution Plate

In stock

Order processing time 1-2 days.

  • Quad D5 distribution plate for high-performance rackmount water-cooling
  • Four D5 pumps configured as two pairs in series
  • Dual-loop configuration with pump redundancy
  • Compatible with rackmount water-cooling systems
  • Designed for use with the SC Rack Case and Rackmount Water-box
  • Mounts directly to a standard 19” rack
  • Separate inlet and outlet ports for each D5 pump pair
  • Can connect both pump pairs in series for four D5 pumps in a single loop
  • Dedicated drain port for each D5 pump pair

Manuals

US$299.00

Select D5 Retention Ring Colour x4 (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

Select D5 Pump Cover Options x4 (optional) USD $156
None Black +US$156.00 Silver +US$156.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump x4 (optional) USD $416
None Yes +US$416.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x2 (optional) USD $8
None Yes +US$8.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

  • 1x Rackmount 2U Quad D5 Distribution Plate
    US$299.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182005026 SKU: SC-RACK-4D5 Categories: ,

Description

Read More +Read Less − full description

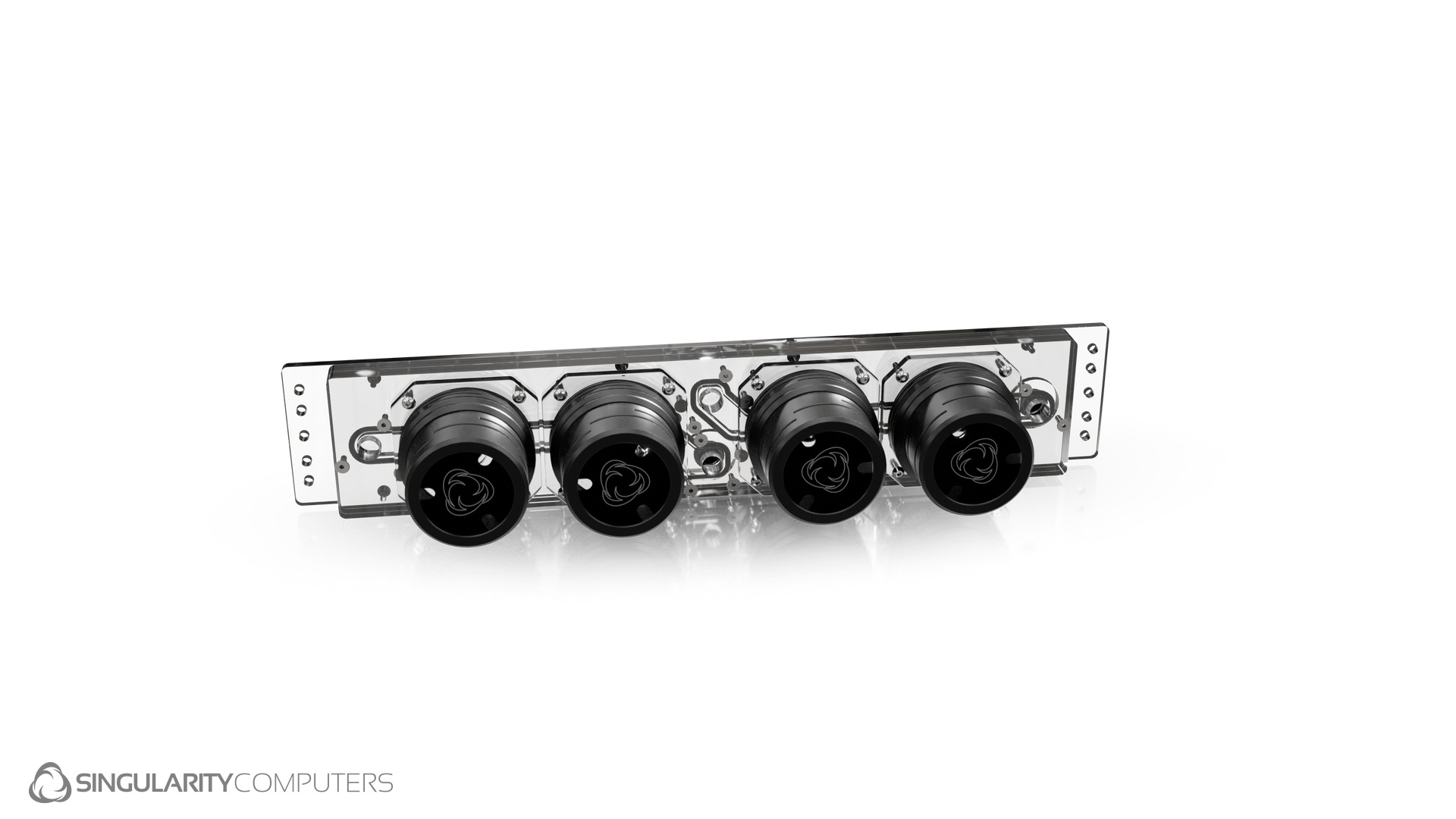

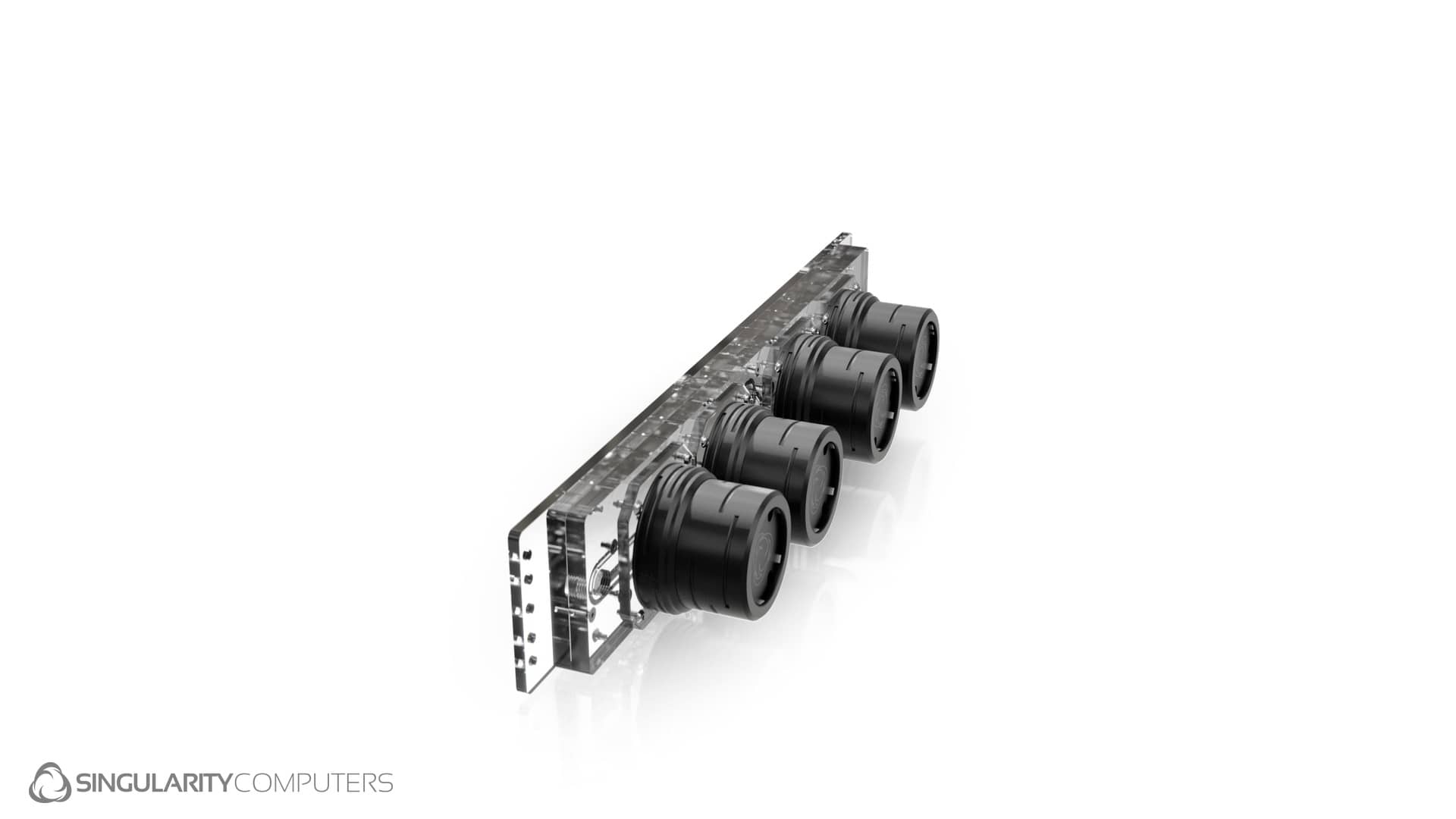

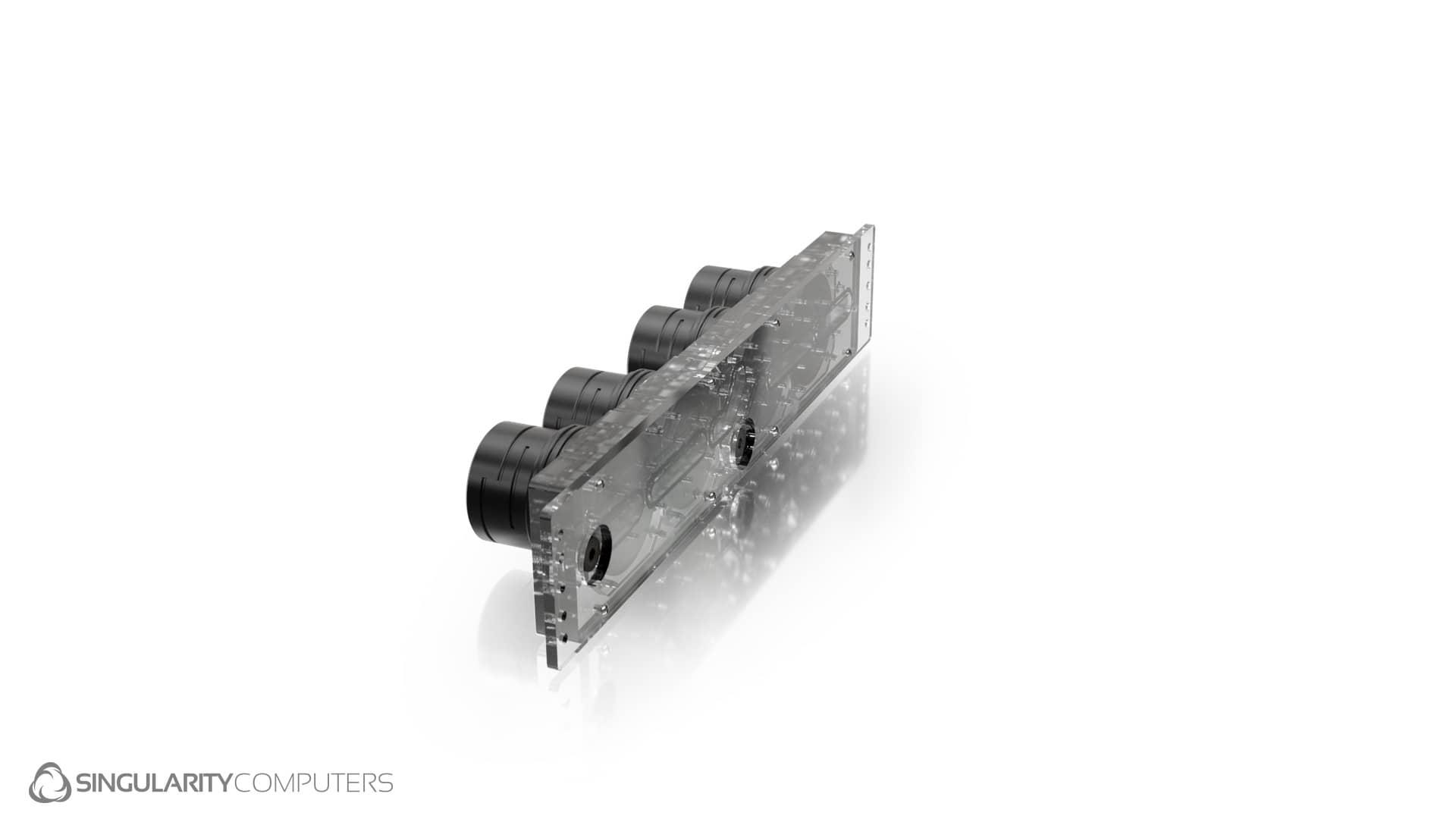

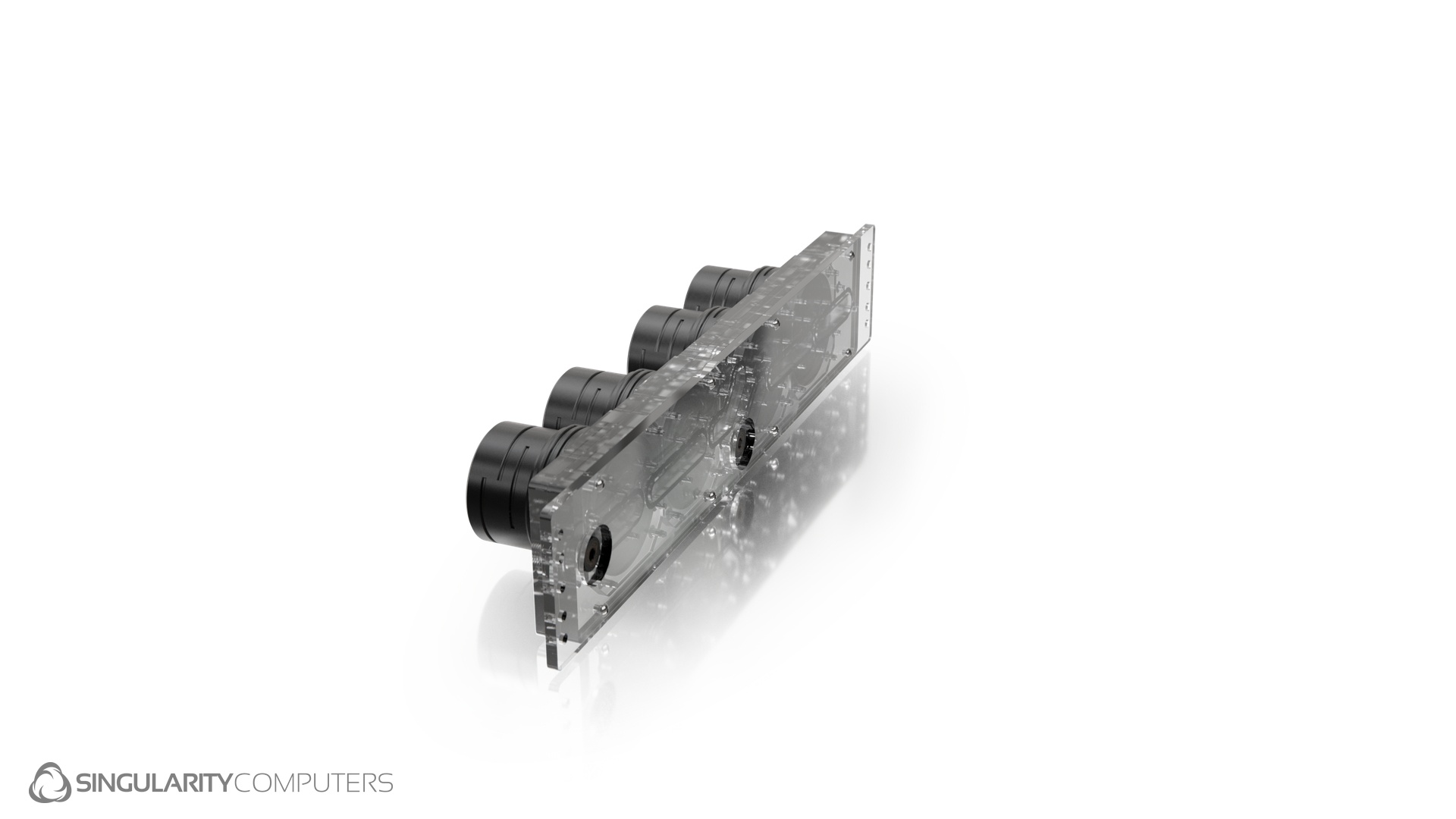

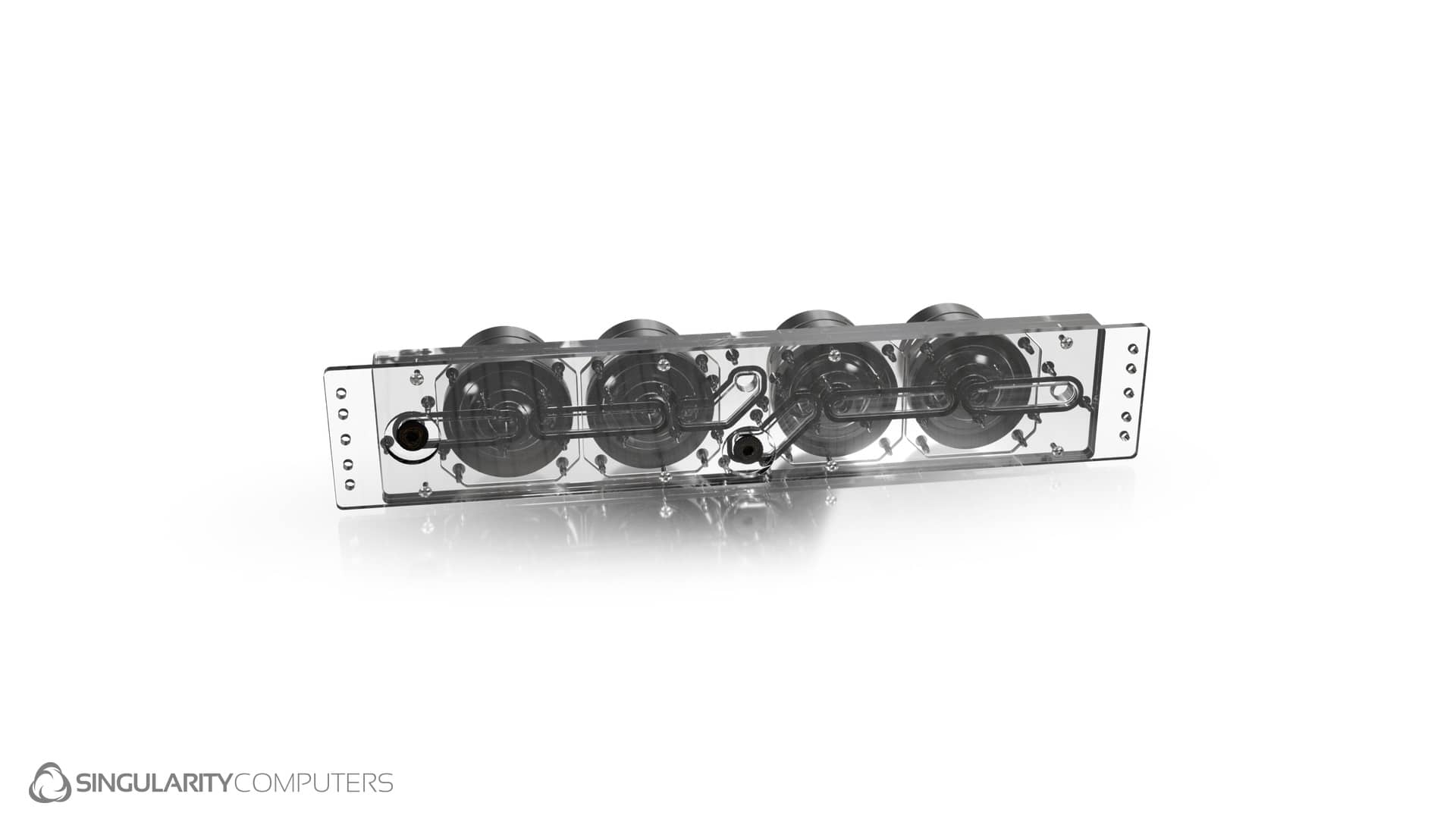

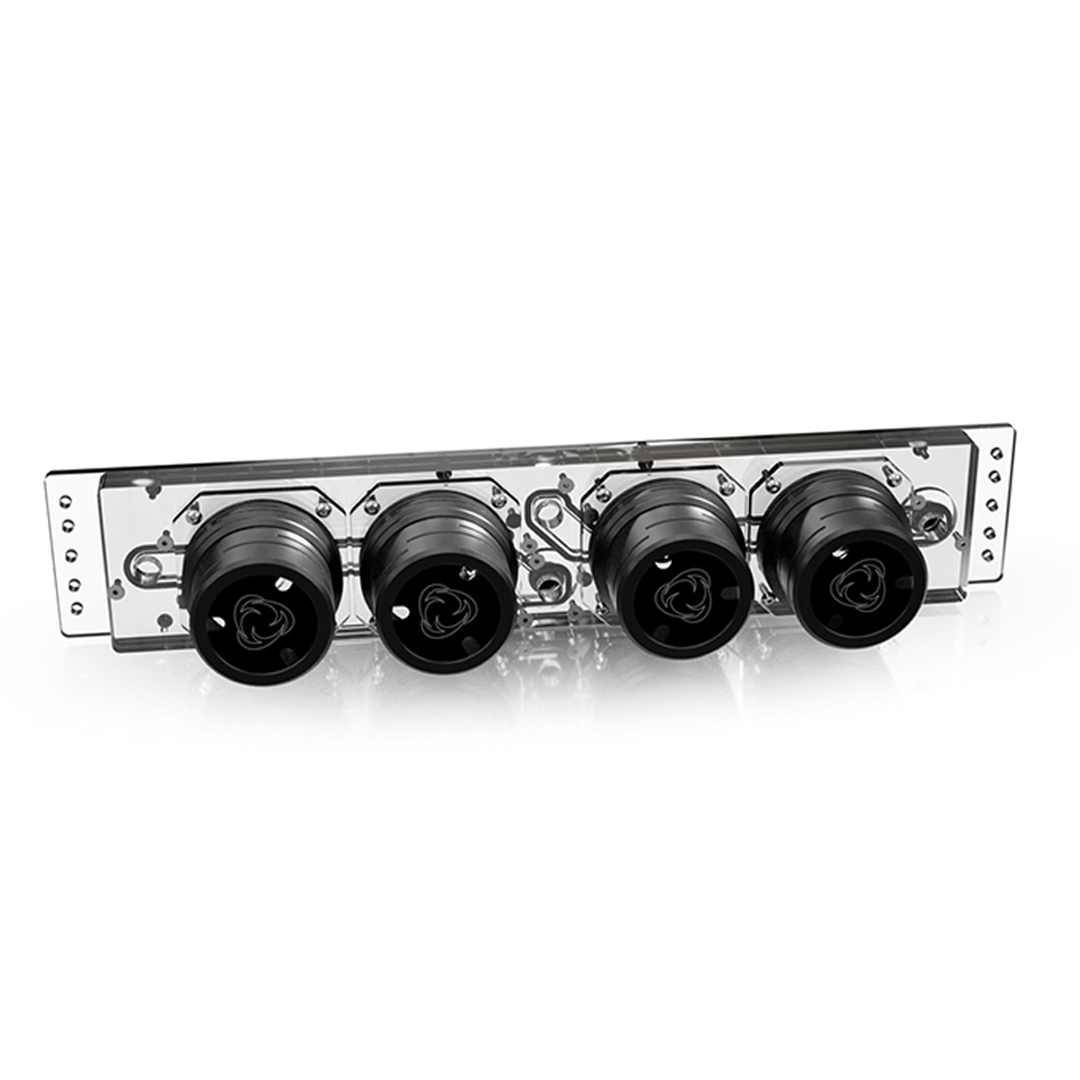

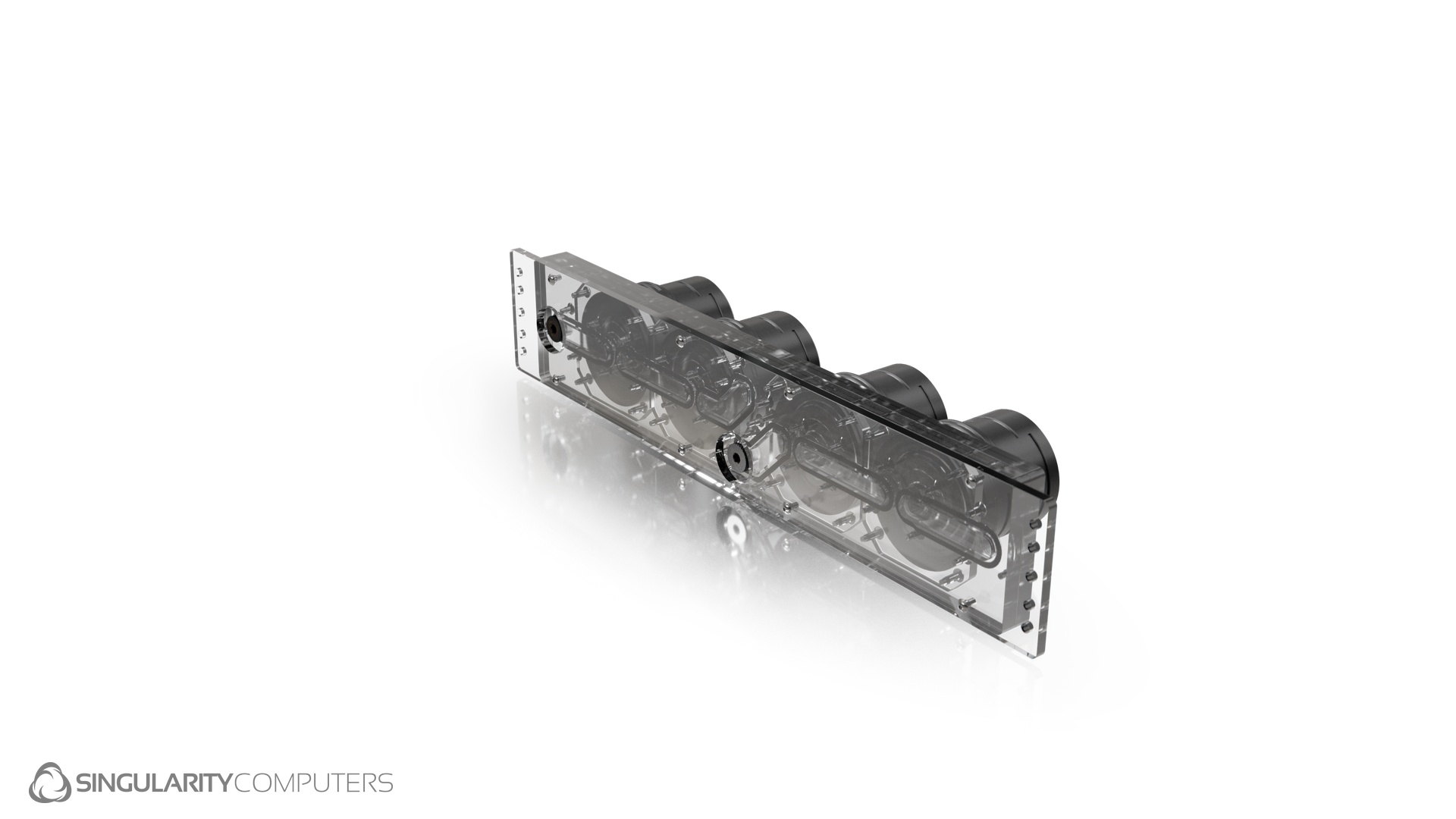

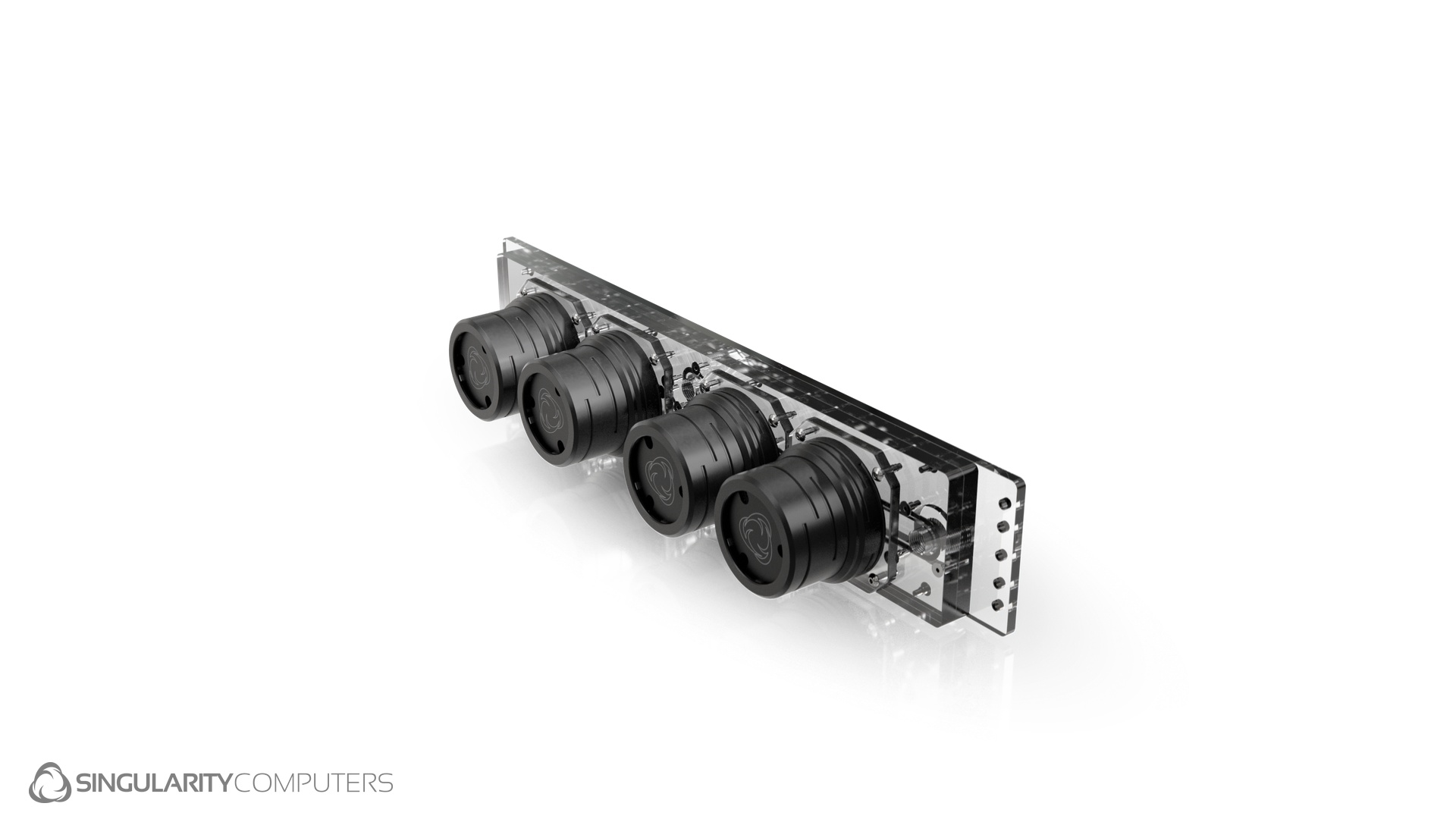

The Rackmount 2U Quad D5 Distribution Plate has four D5 pumps with two pairs in series for a powerful dual loop setup with redundancy. It can be used with any rackmount water-cooling system to increase flow and performance. It is specifically designed to be used in combination with our rackmount case and water-box. It mounts directly to the front of a standard 19” rack. It has an inlet and outlet port for each pair of D5 pumps, and the outlet of the first pair can be connected to the inlet of the second pair for four D5 pumps in series. There is also a drain port for each pair of D5 pumps on the front.

Specifications

Rackmount 2U Quad D5 Distribution Plate: Cast Acrylic, Clear, CNC Machined.
Integrated Pump Tops: D5 x4.
D5 Pump Cover CNC Machined Anodized Aluminum x4 (select color above).
Fasteners: Stainless Steel.
D5 O-Rings: Silicone Clear x4.
Gaskets: Silicone.
Dimensions: L: 100mm x W: 400mm x H: 100mm.
Weight: 2.5kg.
Packaged Dimensions: L: 150mm x W: 450mm x H: 150mm.
Packaged Weight: 3kg.

Installation:
Installs onto a standard 19” Rack. Designed to be used in combination with an existing water-cooling system which already has a reservoir and the reservoir will need to be above the Rackmount 2U Quad D5 Distribution Plate.
