Rackmount 2U Dual D5 Reservoir Combo Distribution Plate

In stock

Order processing time 1-2 days.

  • Dual D5 pump and reservoir combination
  • Two D5 pumps in series for increased performance and redundancy
  • Compatible with any rackmount water-cooling system
  • Mounts directly to a standard 19” rack
  • Integrated inlet, outlet, fill and drain ports
  • Compact rackmount solution for powerful and reliable water-cooling

Manuals

US$249.00

Select D5 Retention Ring Colour x2 (included)
None Black Silver Black

 Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

Select D5 Pump Cover Options x2 (optional) USD $78
None Black +US$78.00 Silver +US$78.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump x2 (optional) USD $208
None Yes +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x2 (optional) USD $8
None Yes +US$8.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

  • 1x Rackmount 2U Dual D5 Reservoir Combo Distribution Plate
    US$249.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182006559 SKU: SC-RACK-2D5-RES Categories: ,

Description

Read More +Read Less − full description

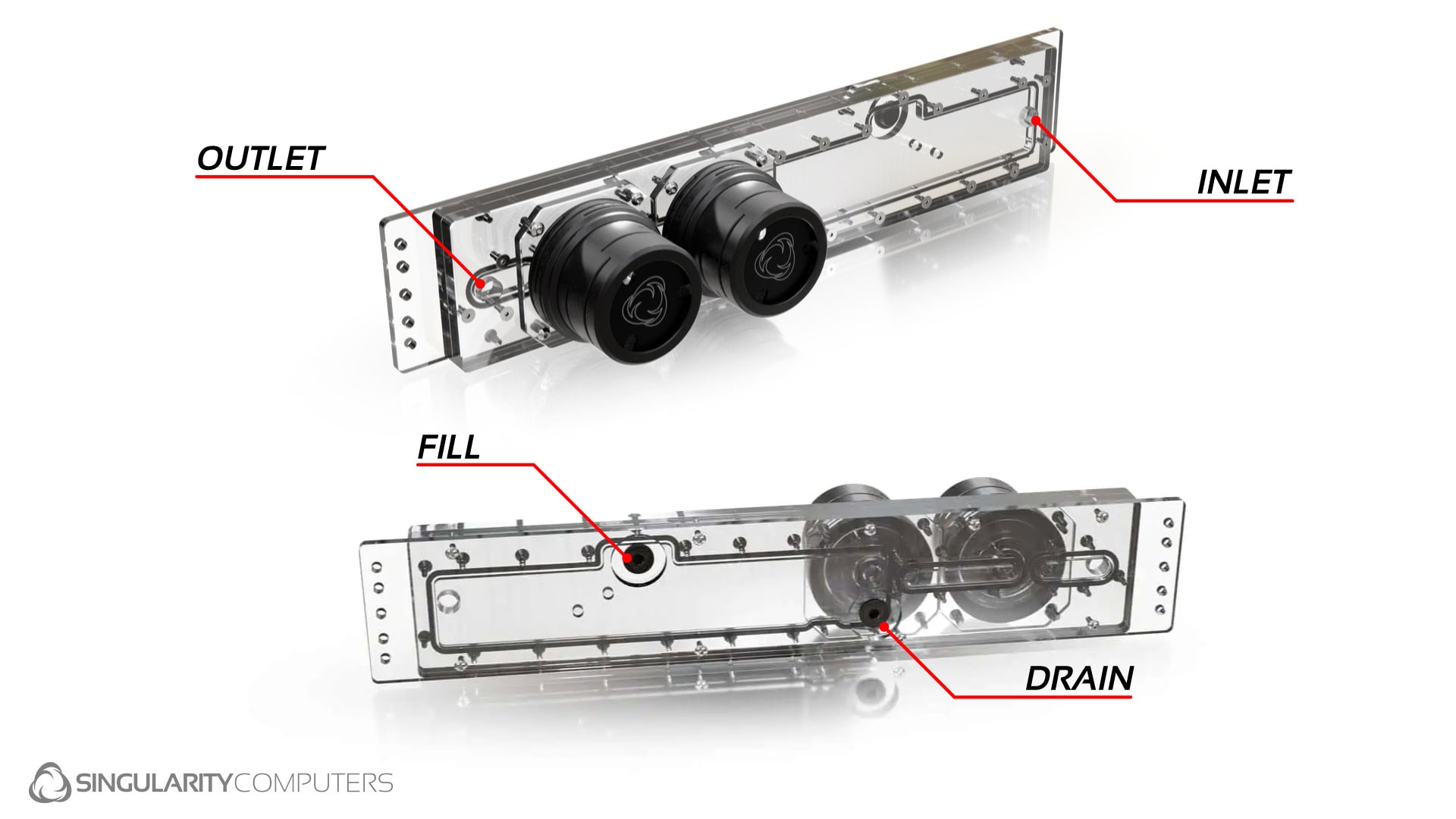

The Rackmount 2U Dual D5 Reservoir Distribution Plate has a reservoir and two D5 pumps in series for a powerful dual loop setup with redundancy. It can be used with any rackmount water-cooling system to add a pump reservoir combo. It mounts directly to the front of a standard 19” rack. It has an inlet, outlet and fill and drain port.

Specifications

Rackmount 2U Dual D5 Reservoir Combo Distribution Plate: Cast Acrylic, Clear, CNC Machined.
Fasteners: Stainless Steel.
Gaskets: Silicone.
Orings: D5, Silicone x2.
Pump Top: D5 x2.
Pump Cover: Protium 3.0 ARGB D5 Pump Cover Black or Silver (Selectable above) x2.
Reservoir x1 (single loop).
Dimensions: L: 100mm x W: 400mm x H: 100mm.
Weight: 2.5kg.
Packaged Dimensions: L: 150mm x W: 450mm x H: 150mm.
Packaged Weight: 3kg.

Installation:
Installs onto a standard 19” Rack.
