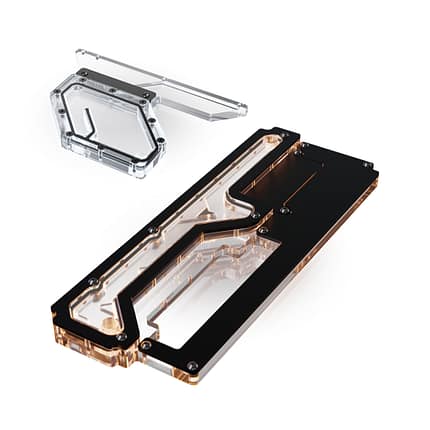

Spectre 3.0 PSU Shroud & Rear IO Distribution Plate Set
Spectre 3.0 PSU Shroud & Rear IO Distribution Plate Set US$79.50 US$239.20Price range: US$79.50 through US$239.20

Spectre 4 Aevum Chrome Elite Limited Edition Water-cooling Case

Order processing time 1 week.

Limited to 12 cases.

Aevum Meaning: Noun edit · (principally): time as a single, unified, continuous and limitless entity; infinite time, time without end; to wit: eternity, agelessness.

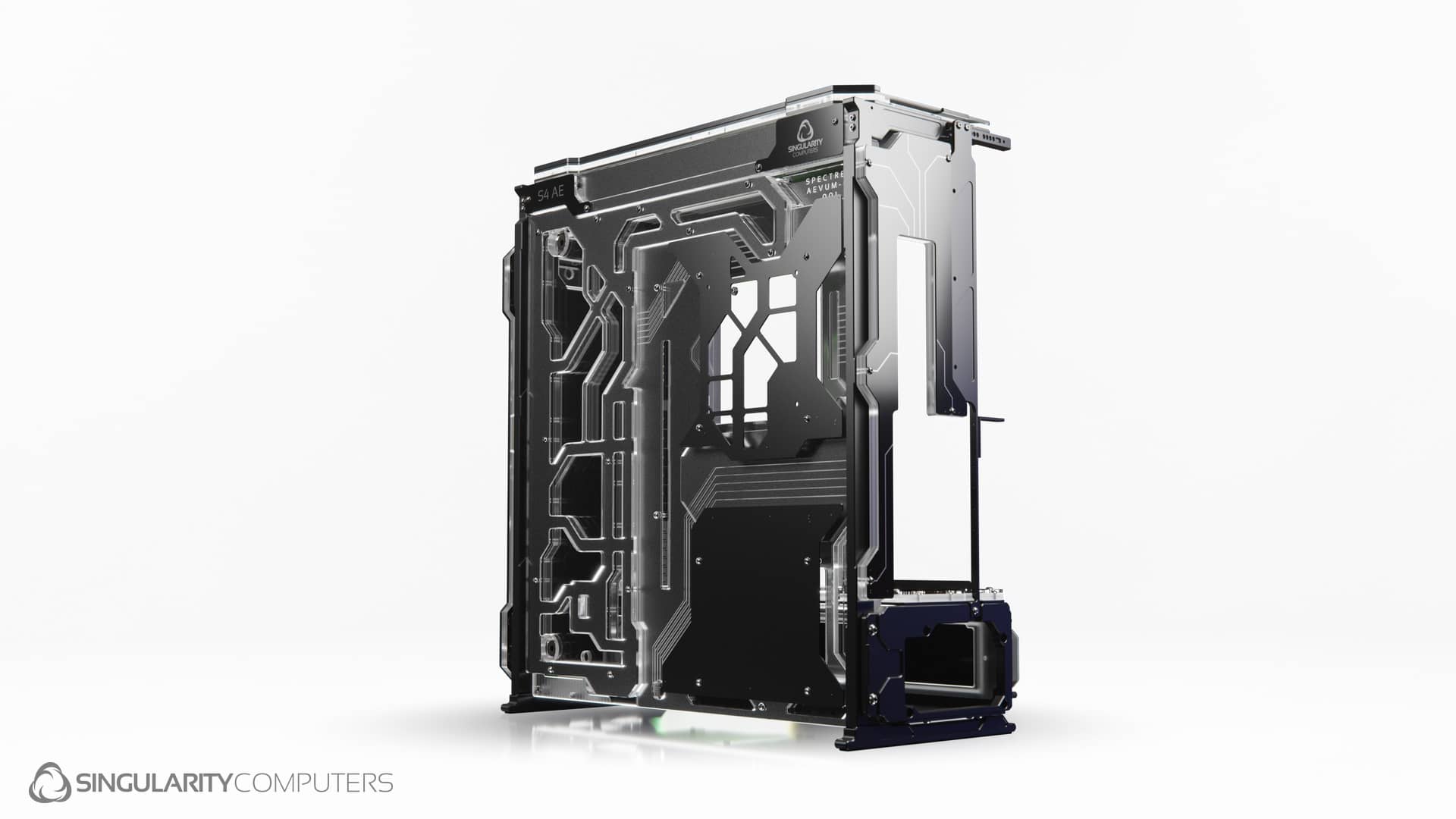

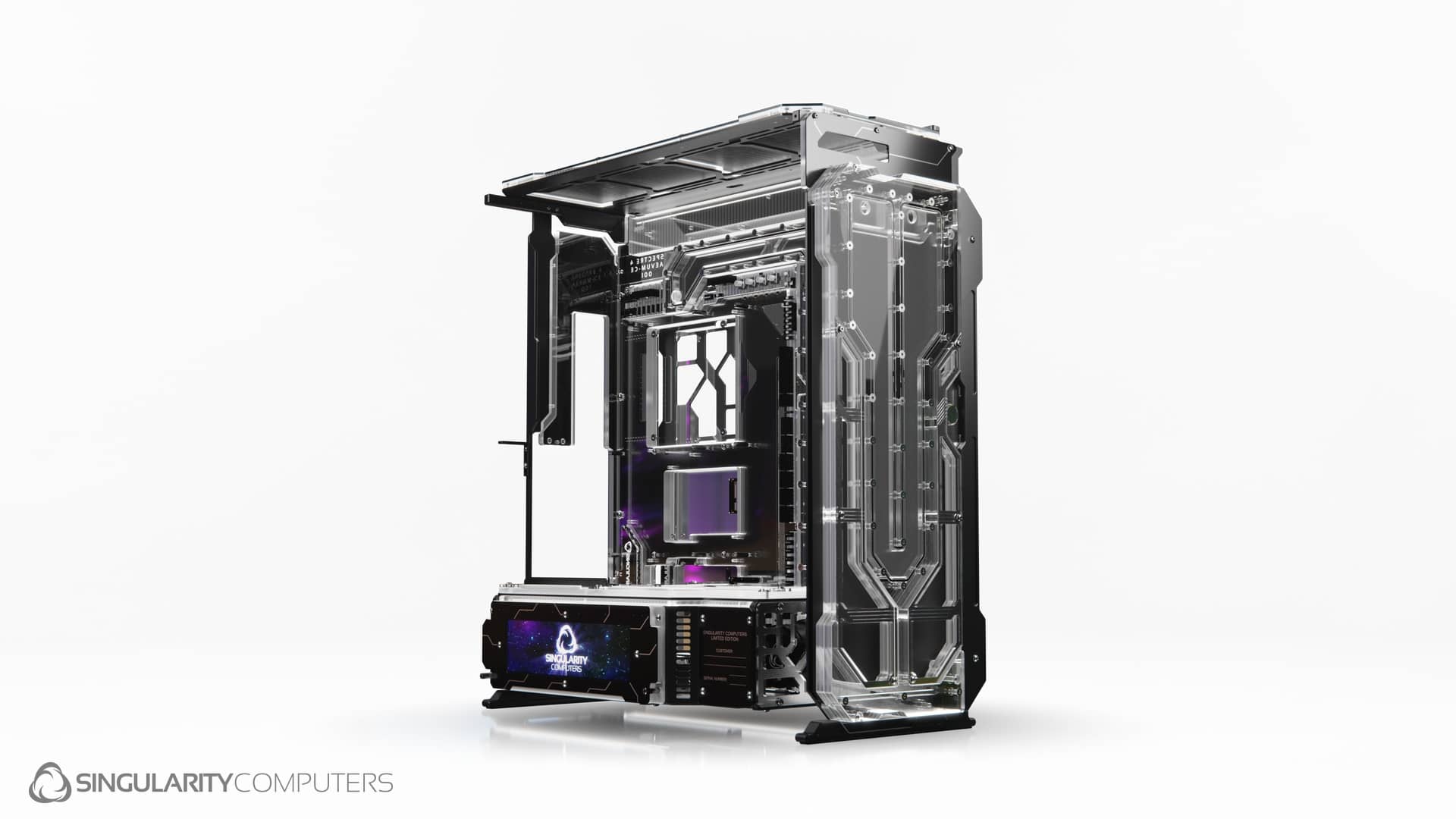

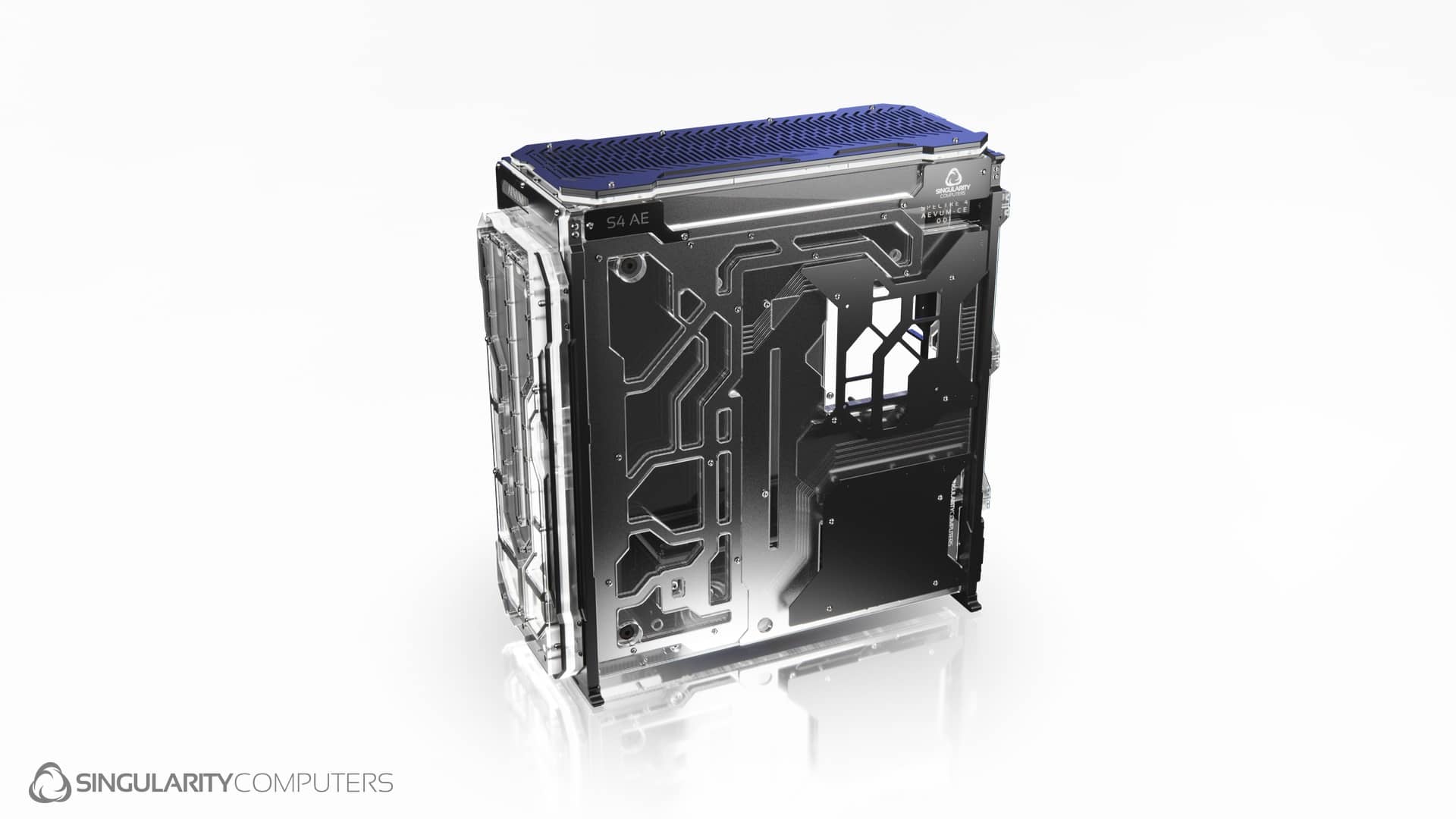

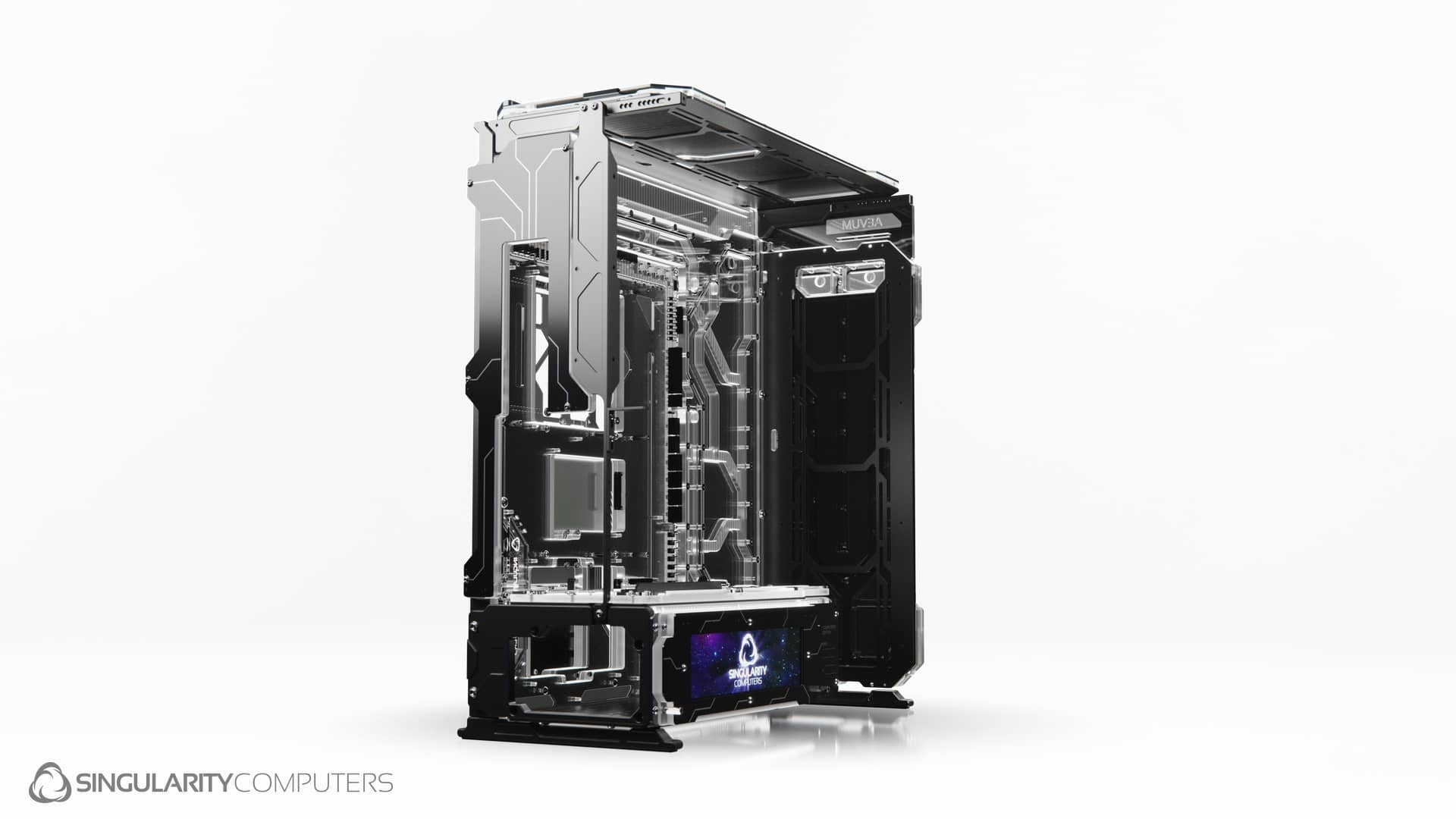

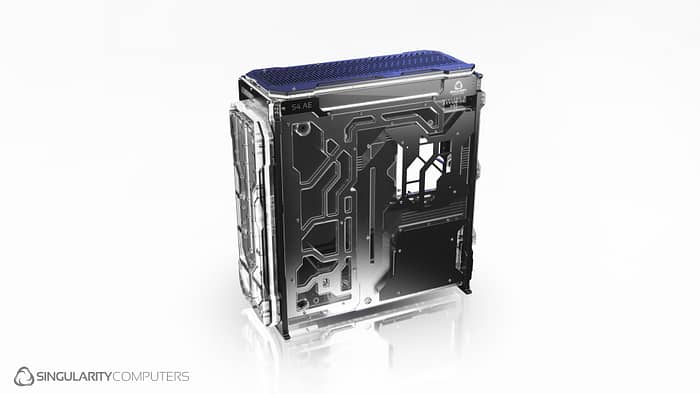

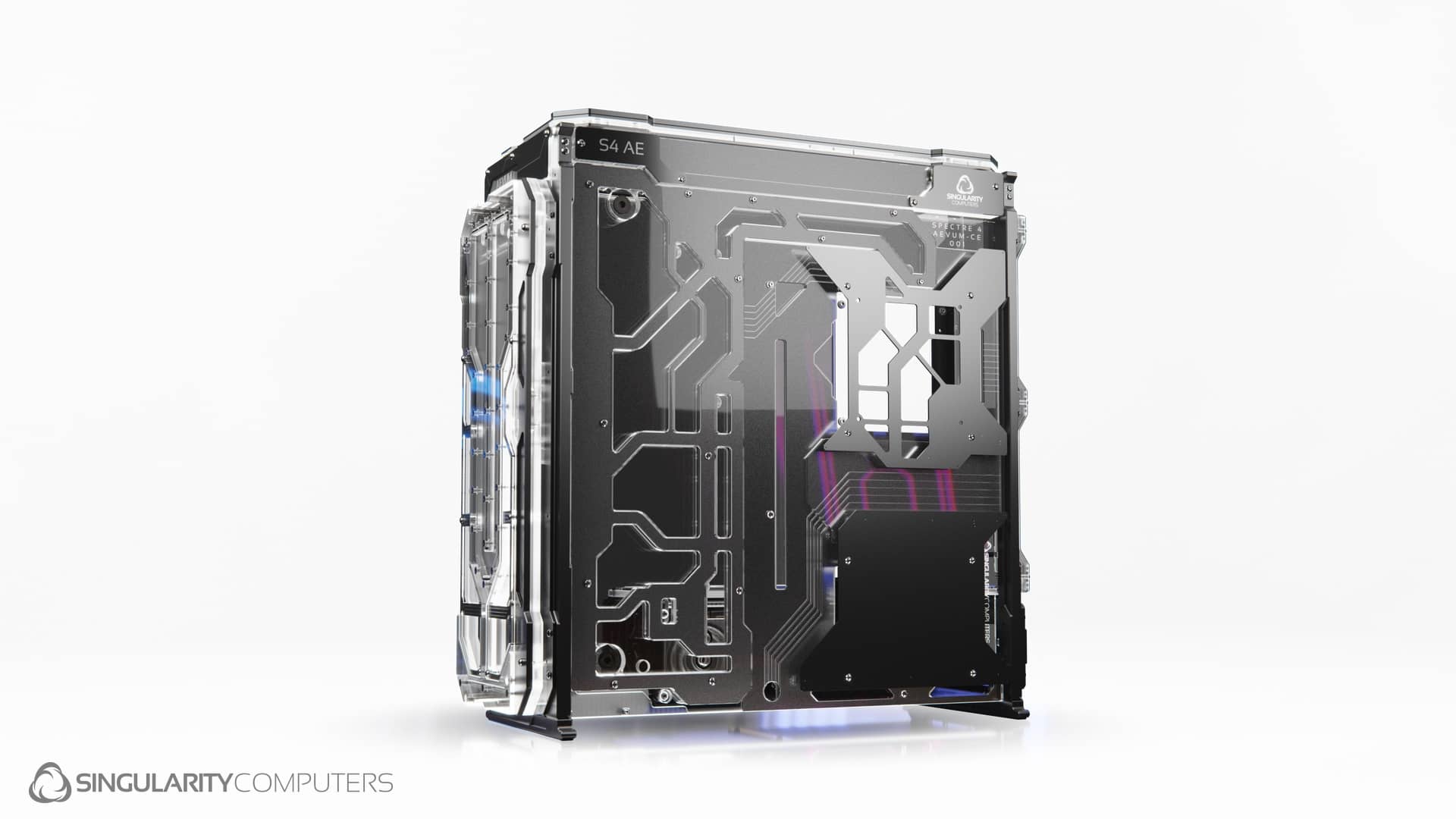

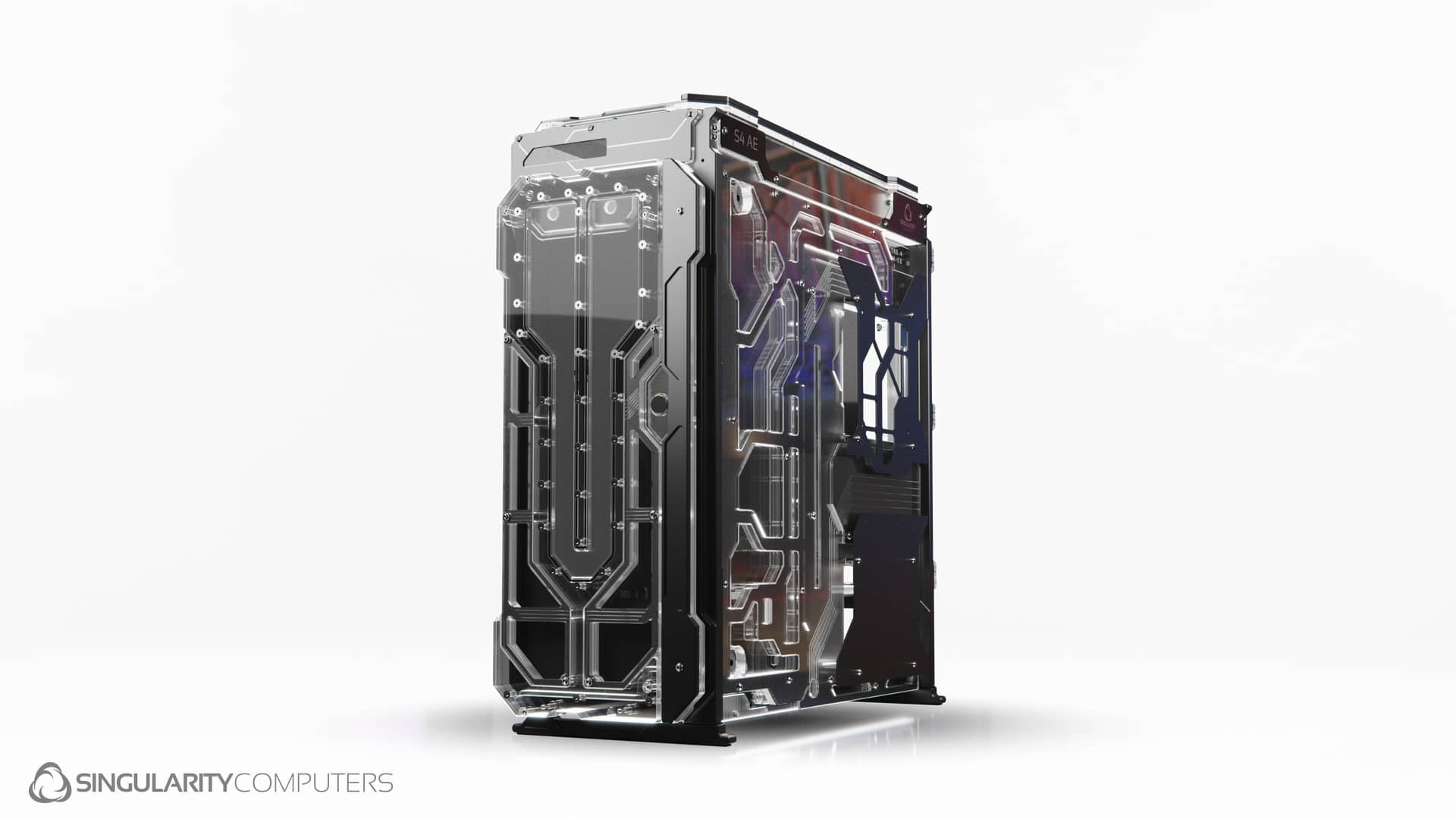

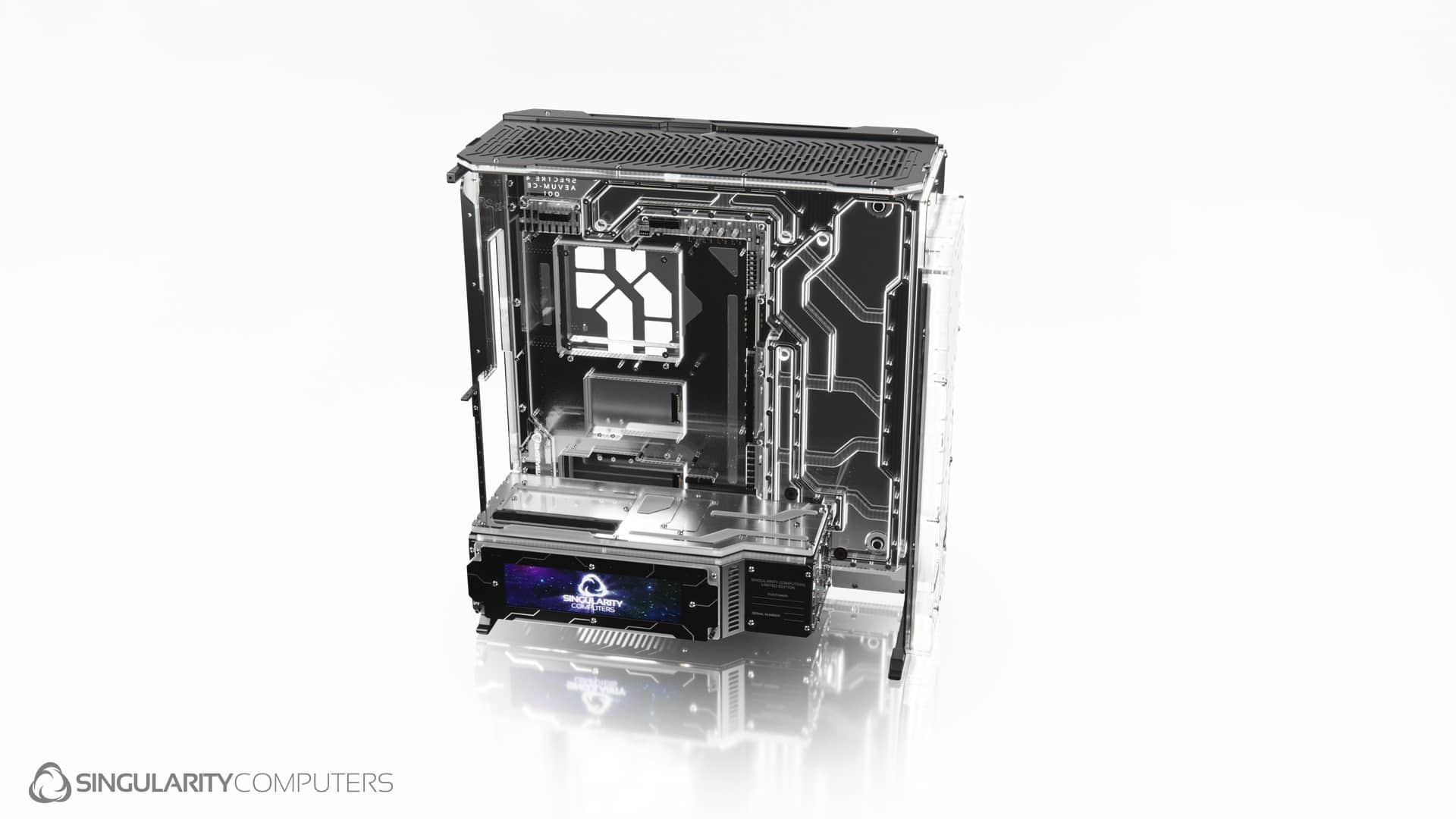

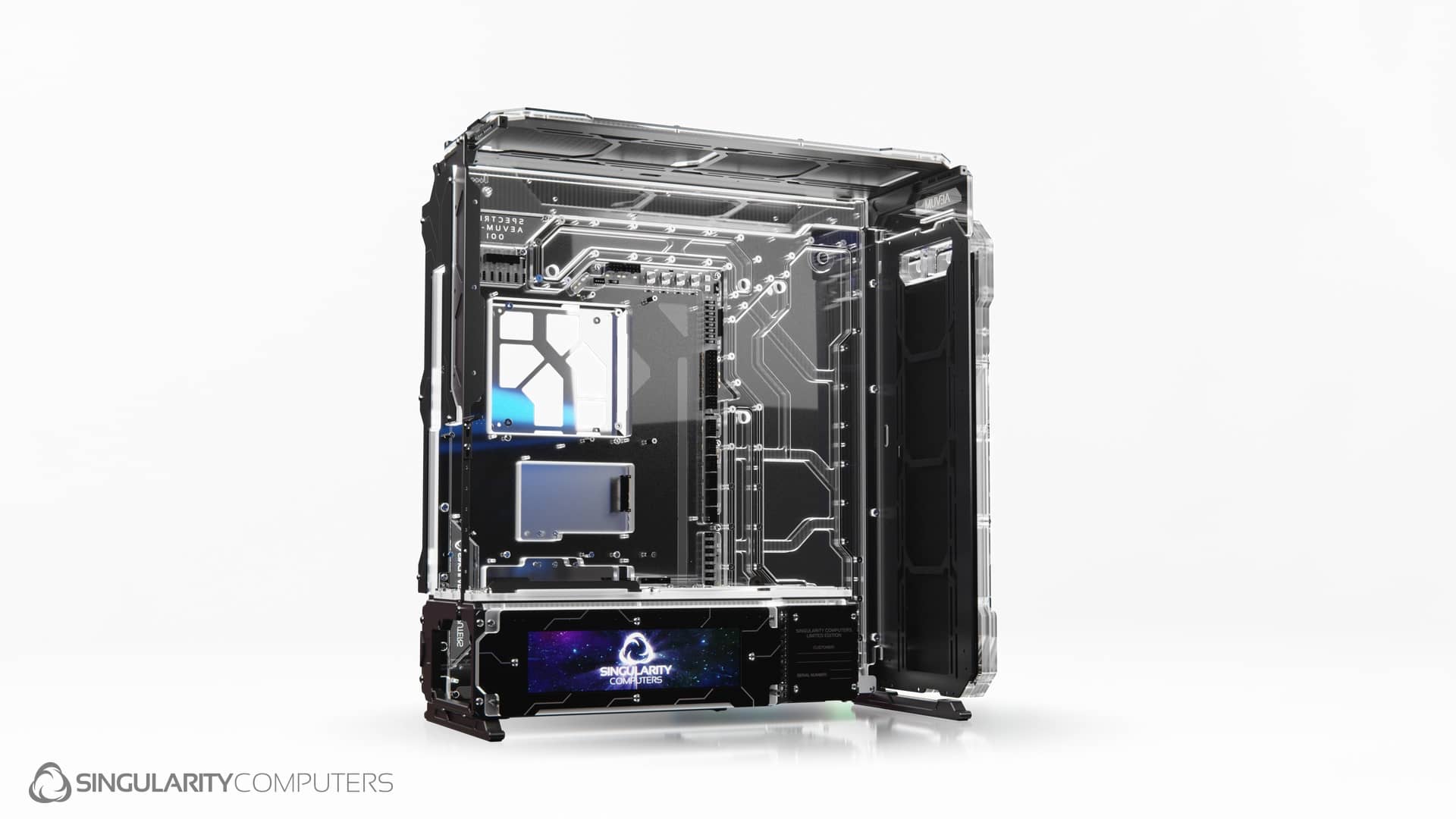

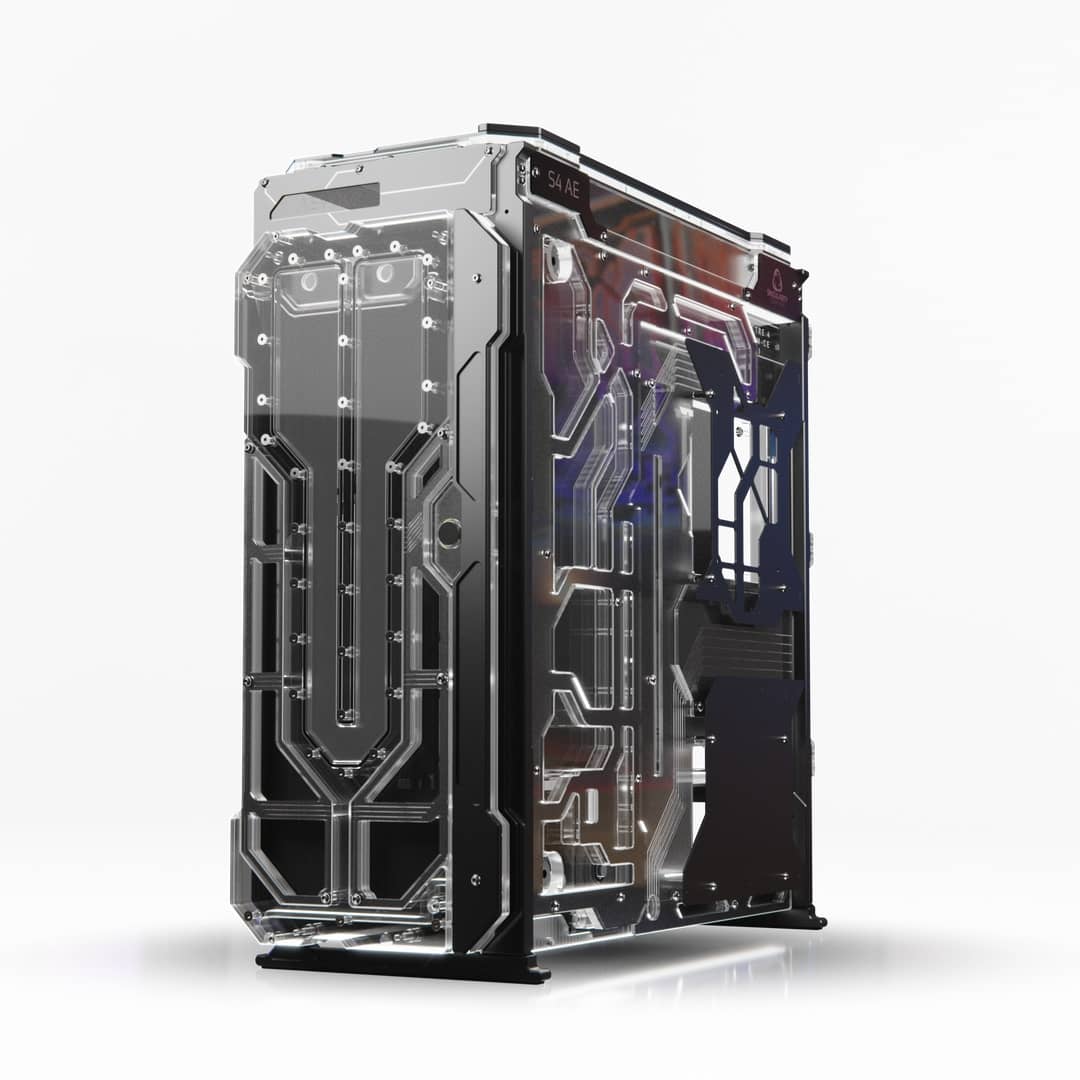

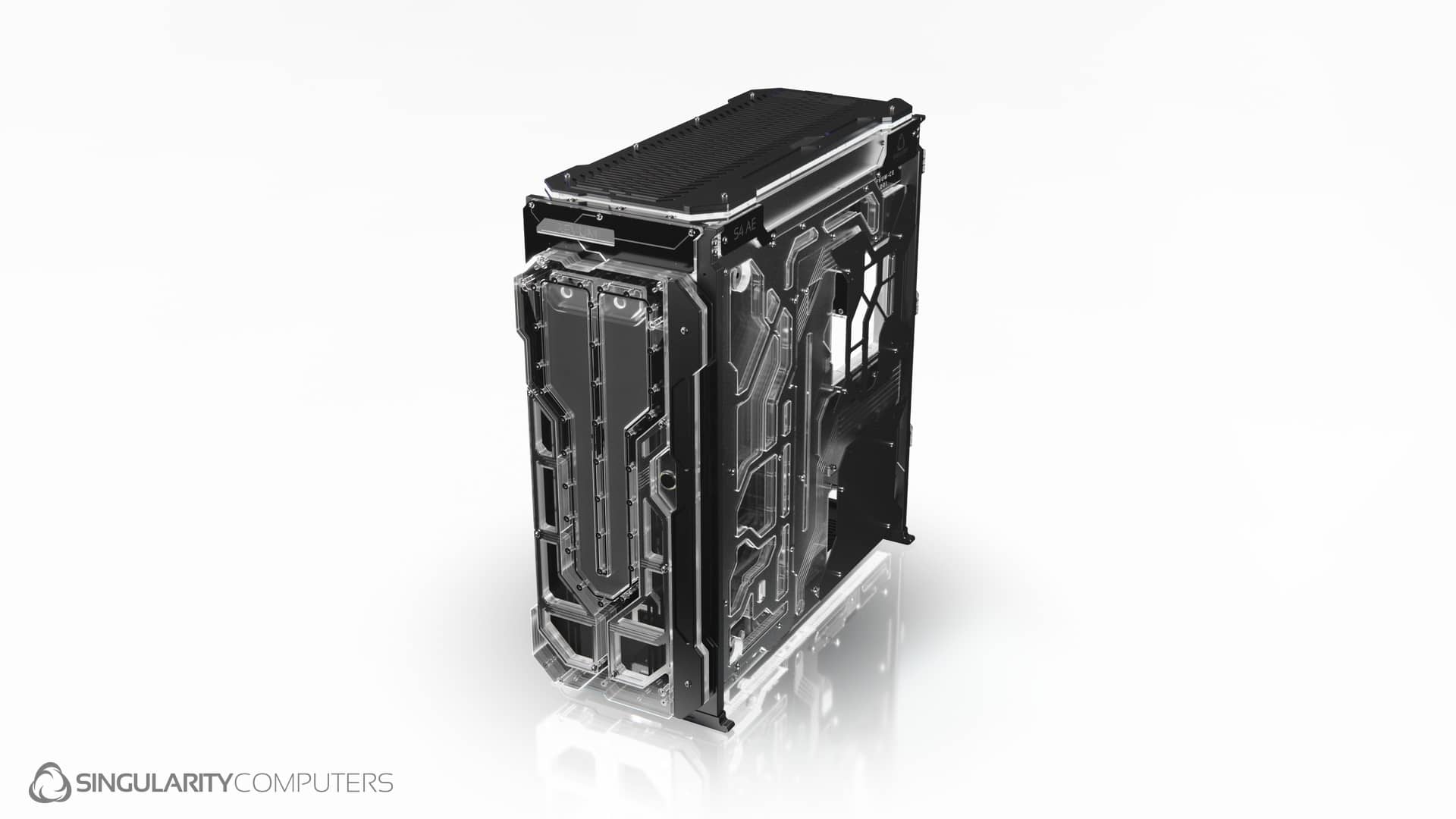

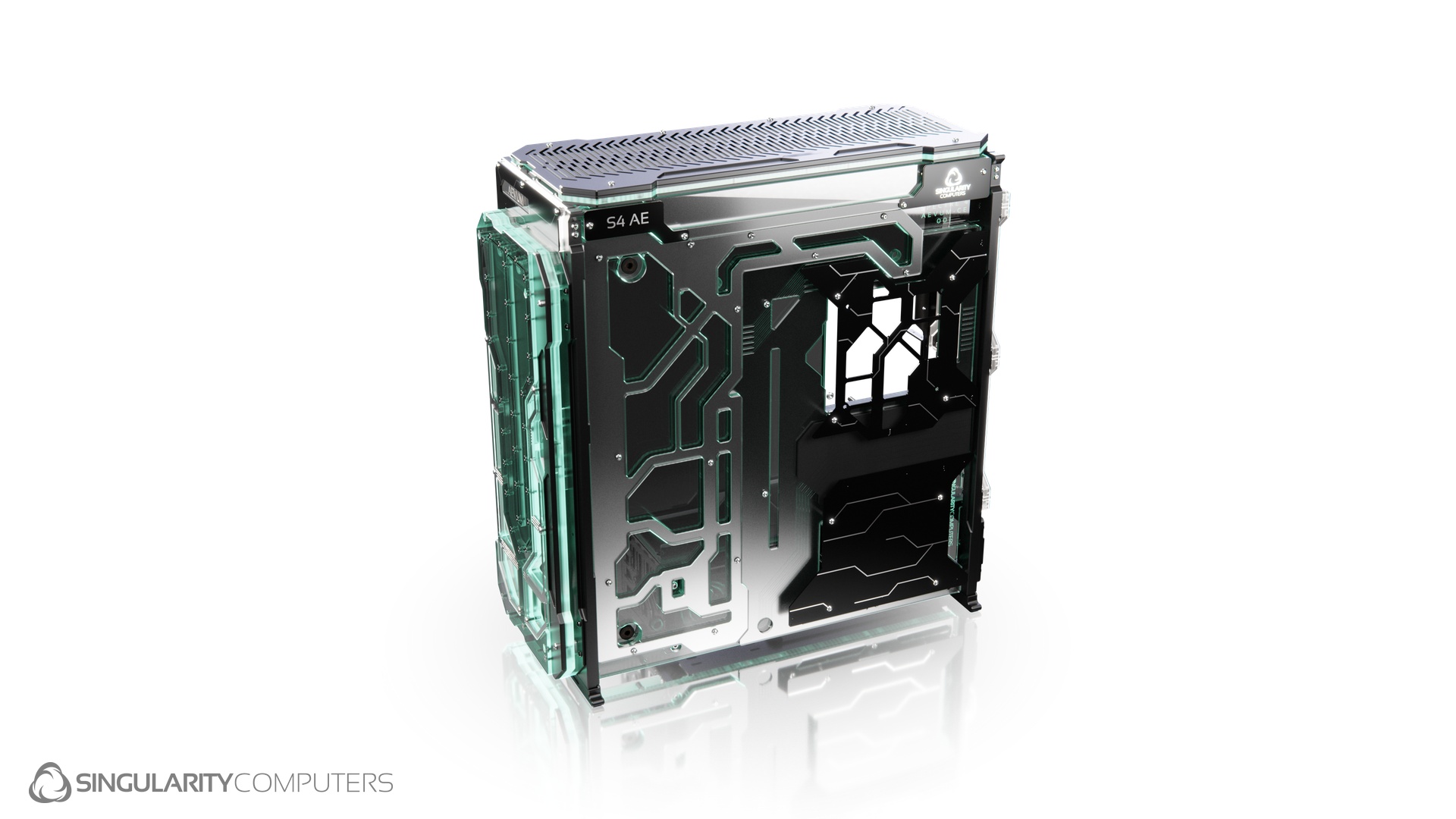

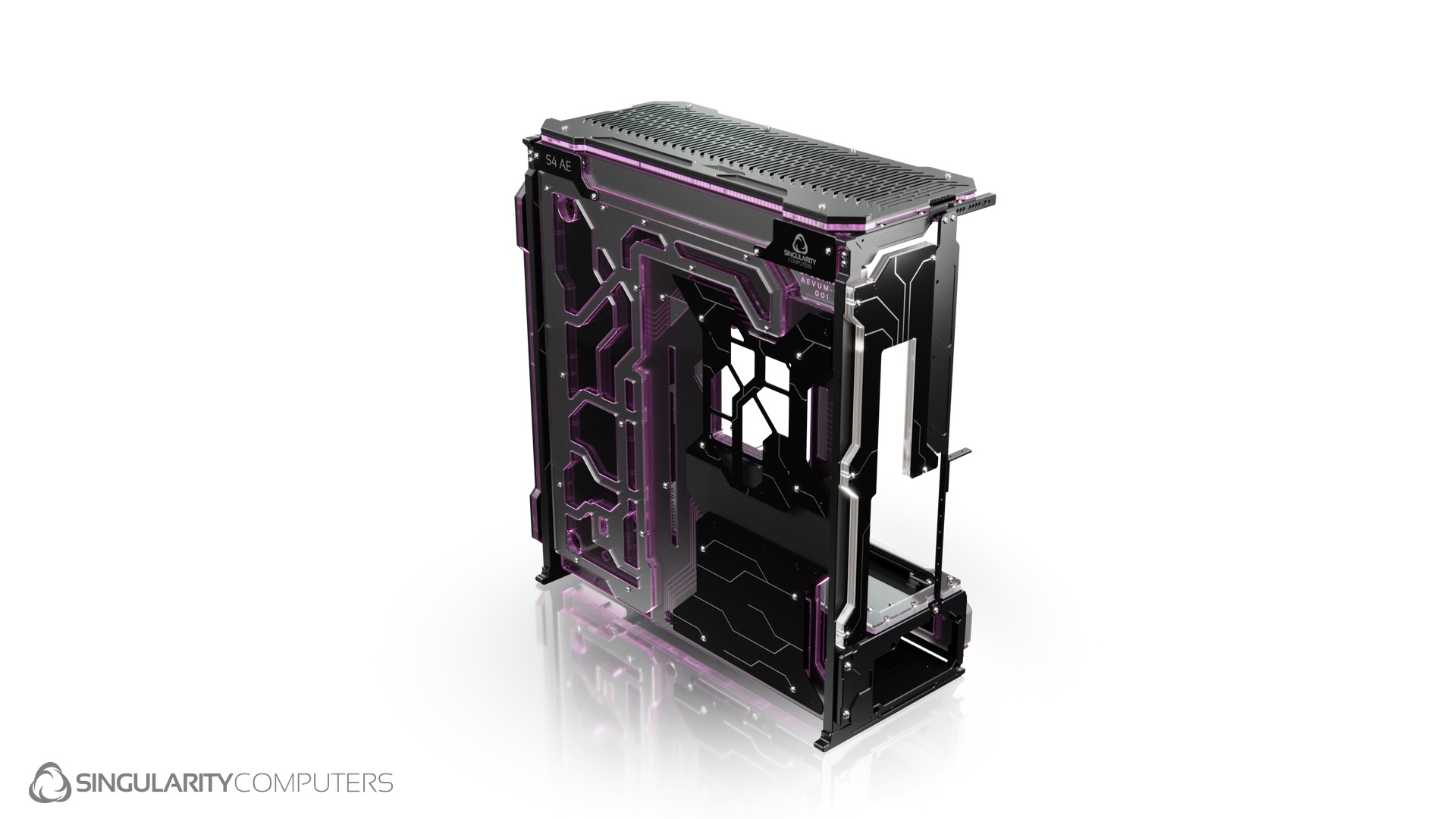

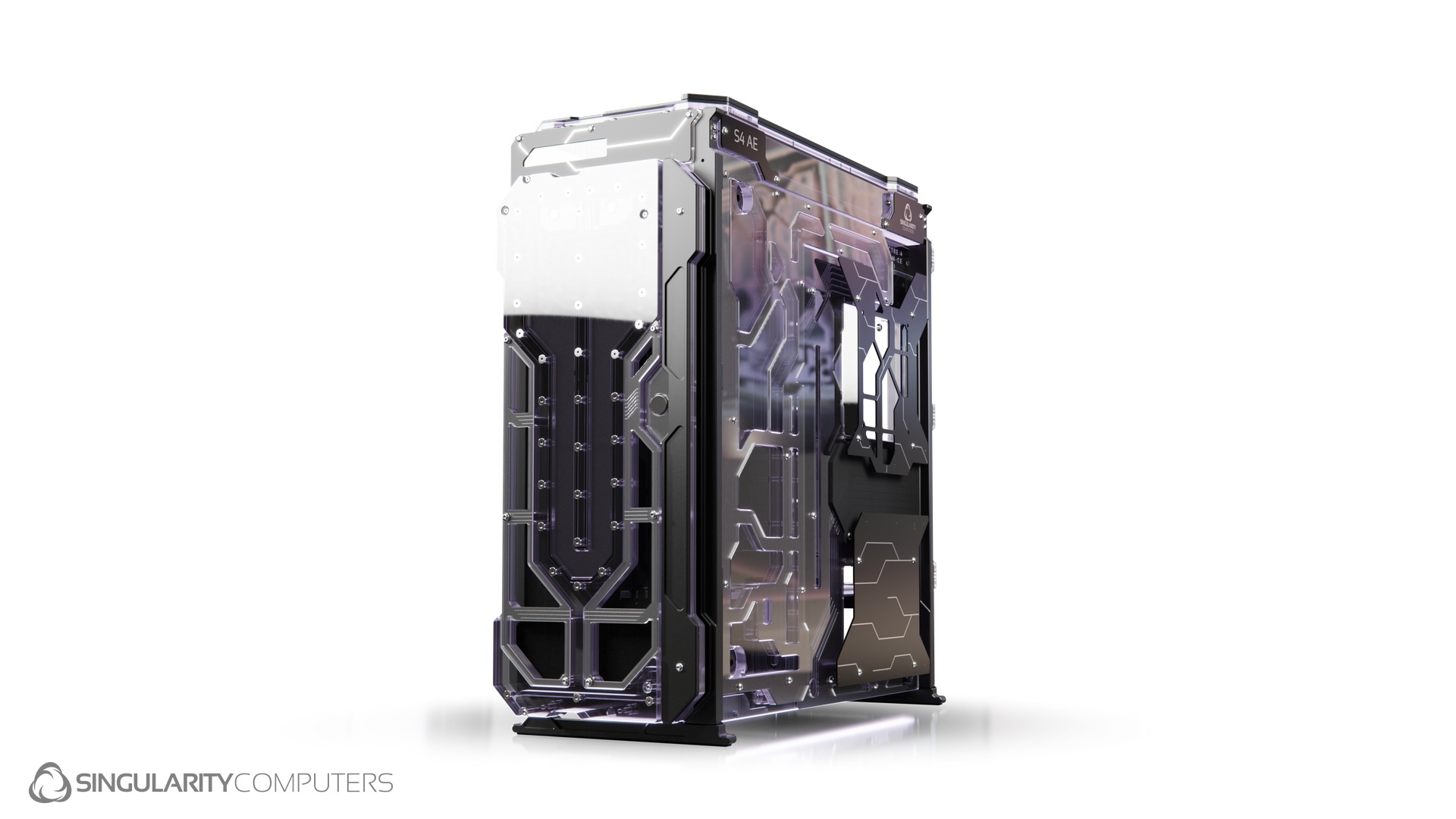

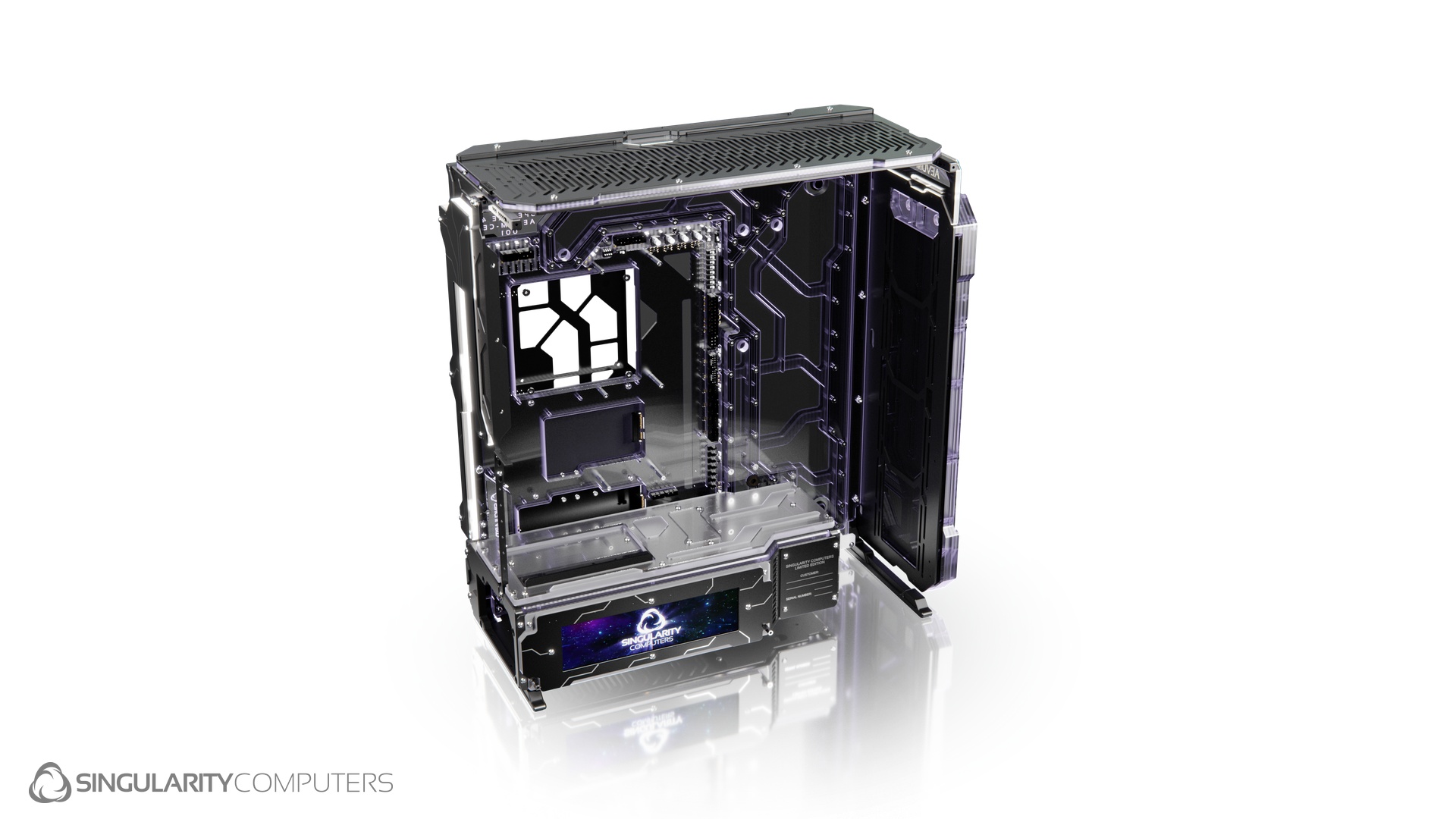

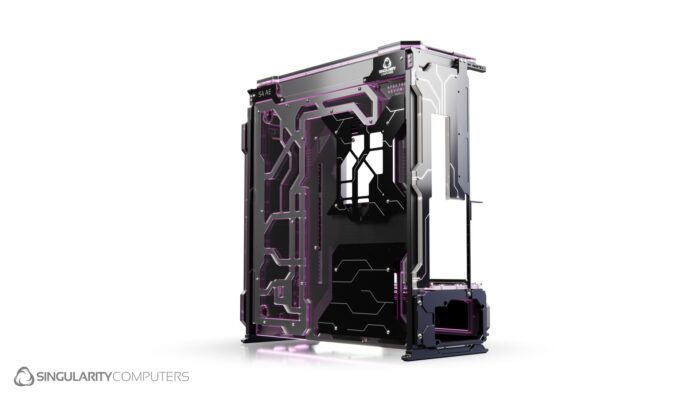

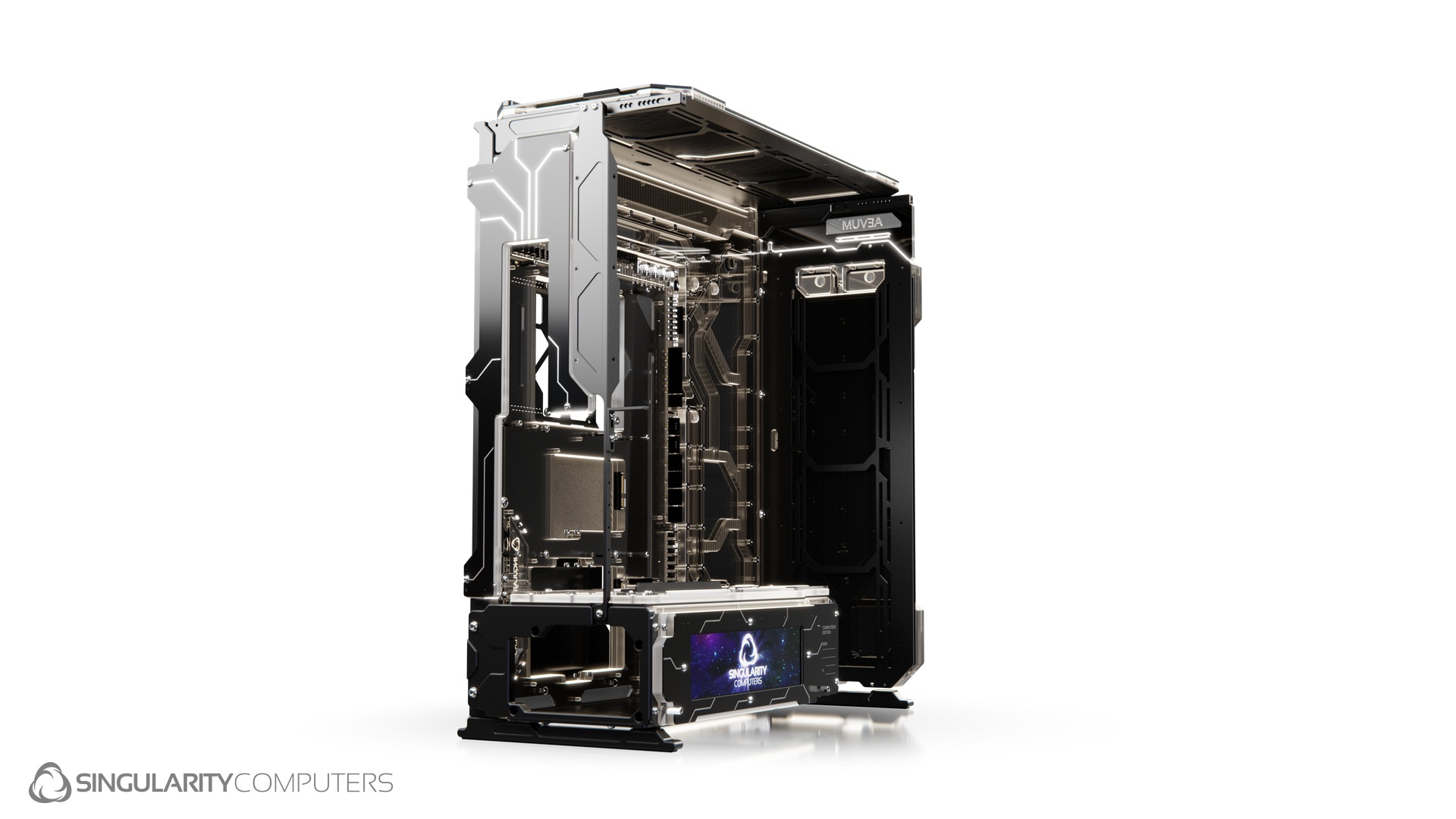

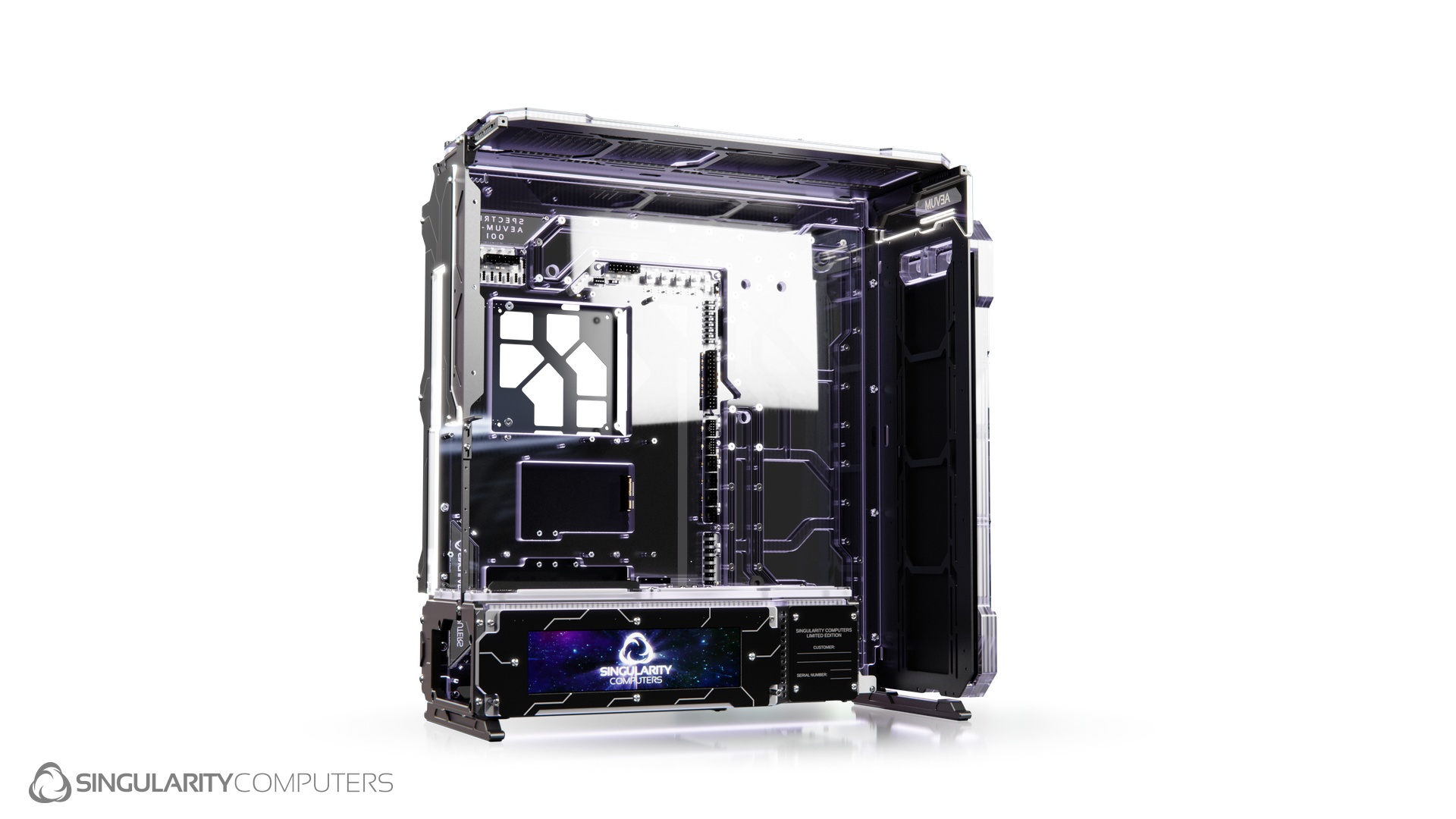

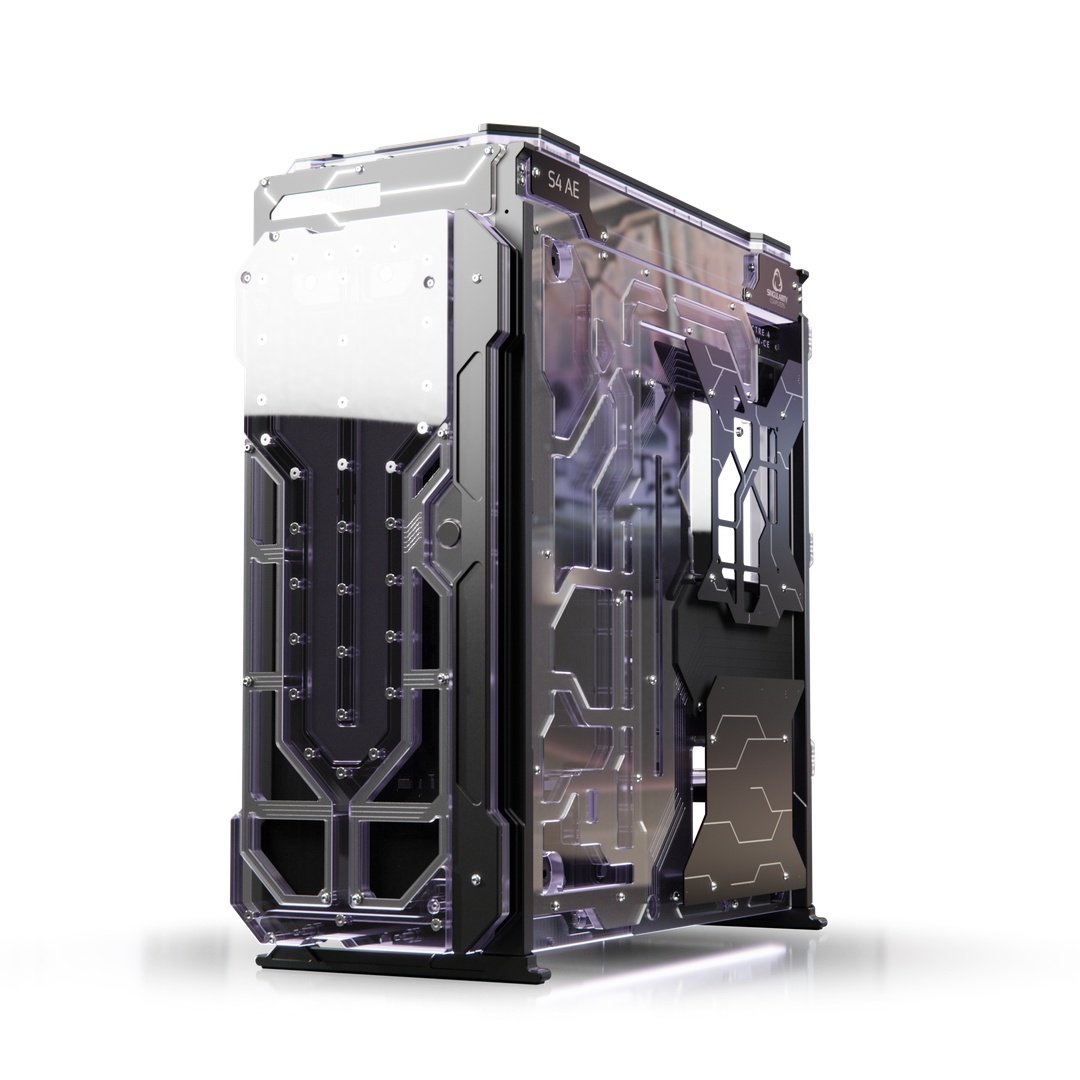

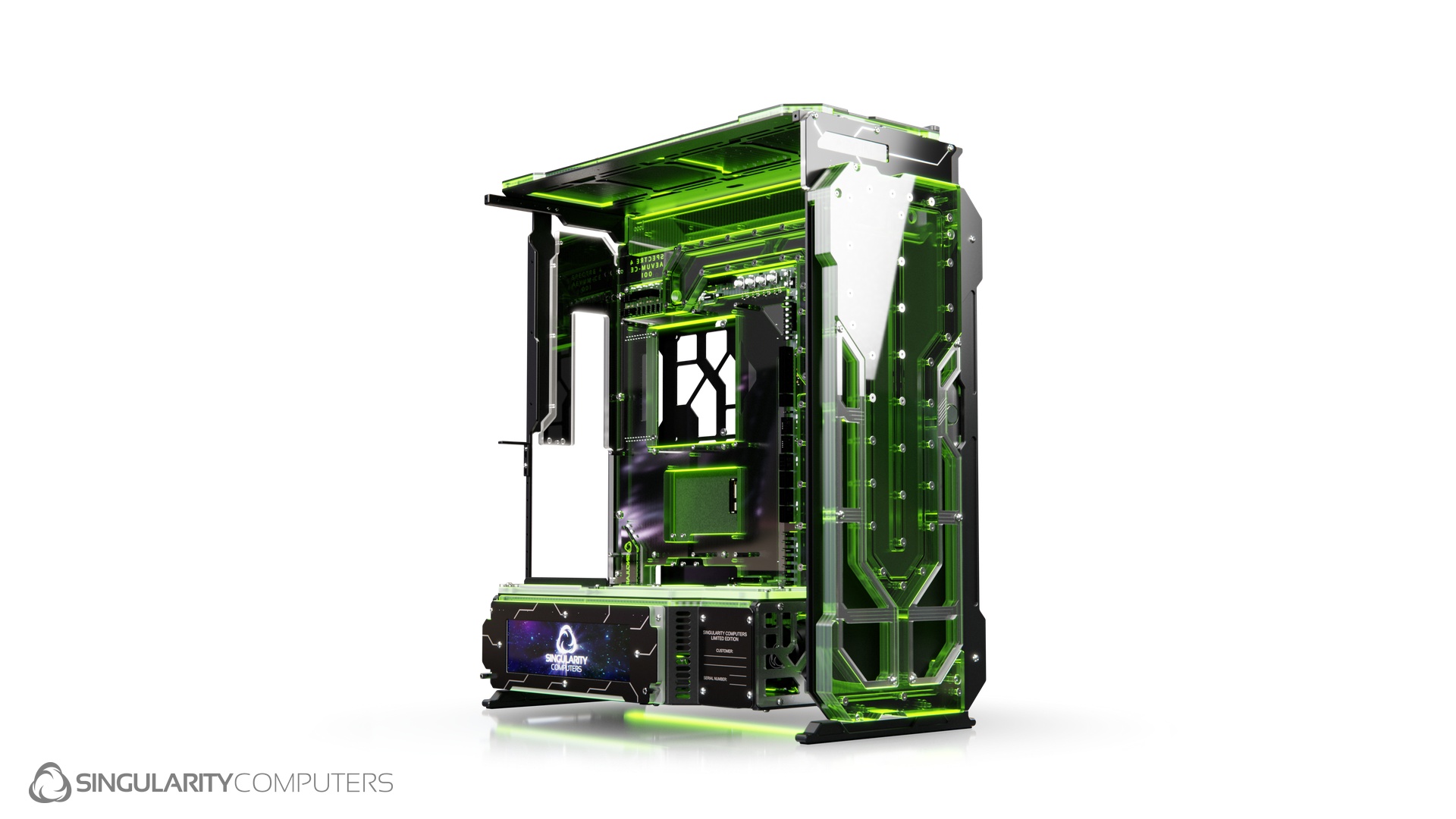

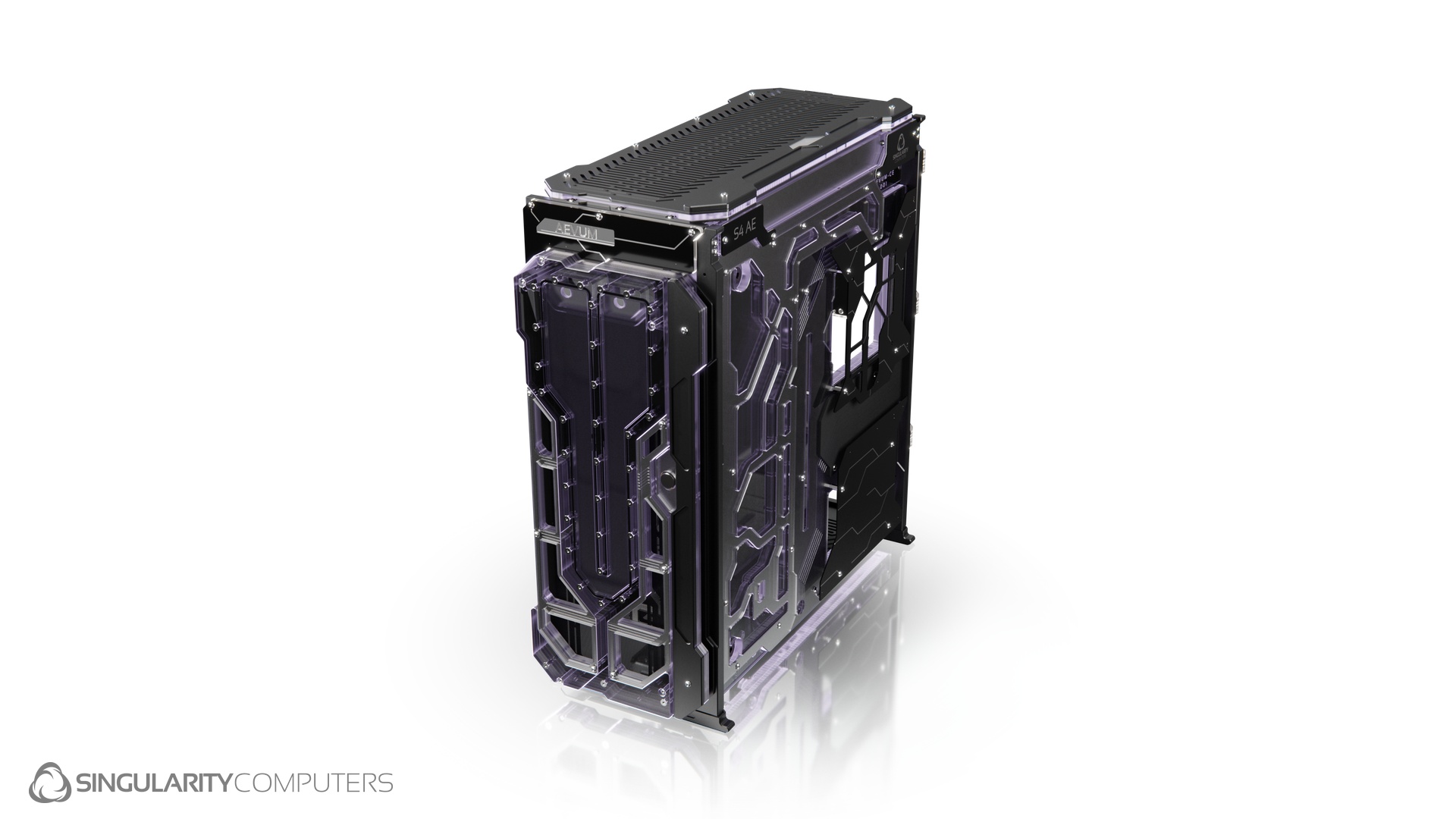

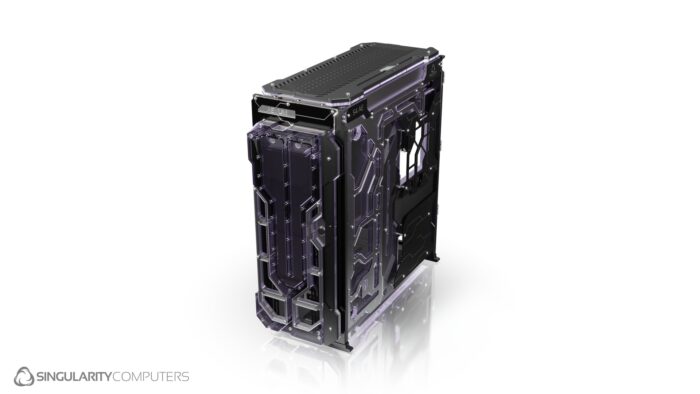

Spectre 4 Aevum Chrome Elite has a chrome plated metal frame. The distribution plates all have silver mirror covers. Aevum Chrome Elite comes with PCB covers which replace some of the acrylic covers which are on the standard Aevum. These have integrated LEDs for superior lighting without the need for LED strips. The mirrored silver panels reflect the LEDs from underneath the PCB covers on the rear of the case.

Pump not included. Compatible with any D5 Pump.

Build Gallery

US$2,799.00

Custom black sleeved cables which connect from the PowerBoard to the GPU.

8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

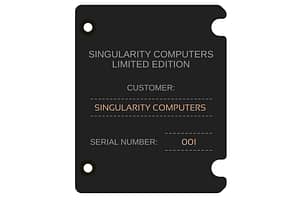

We can laser etch any text less than 30 characters onto the PSU Side Shroud PCB Cover.

Replaces the side panel window with a distribution plate which adds a second separate water-cooling loop.

Distribution Plate for the Top Panel (Front is included).

Extra Distribution Plate for the CPU Loop.

None Yes +US$99.00

Extra Distribution Plate for the GPU Loop.

None Yes +US$199.00

Monitor RPMs, Temperatures, Voltages and control ARGB Lighting.

None Yes +US$129.00

D5 Pump 1500LPH 3.7m head pressure.

None Pump x1 +US$94.00 Pump x2 +US$179.00

Custom black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs due to them not providing pinout information.

None Yes +US$69.00
EAN: 9351182006269 SKU: SC-S4-AEVCE Categories: ,

Manual

Gallery

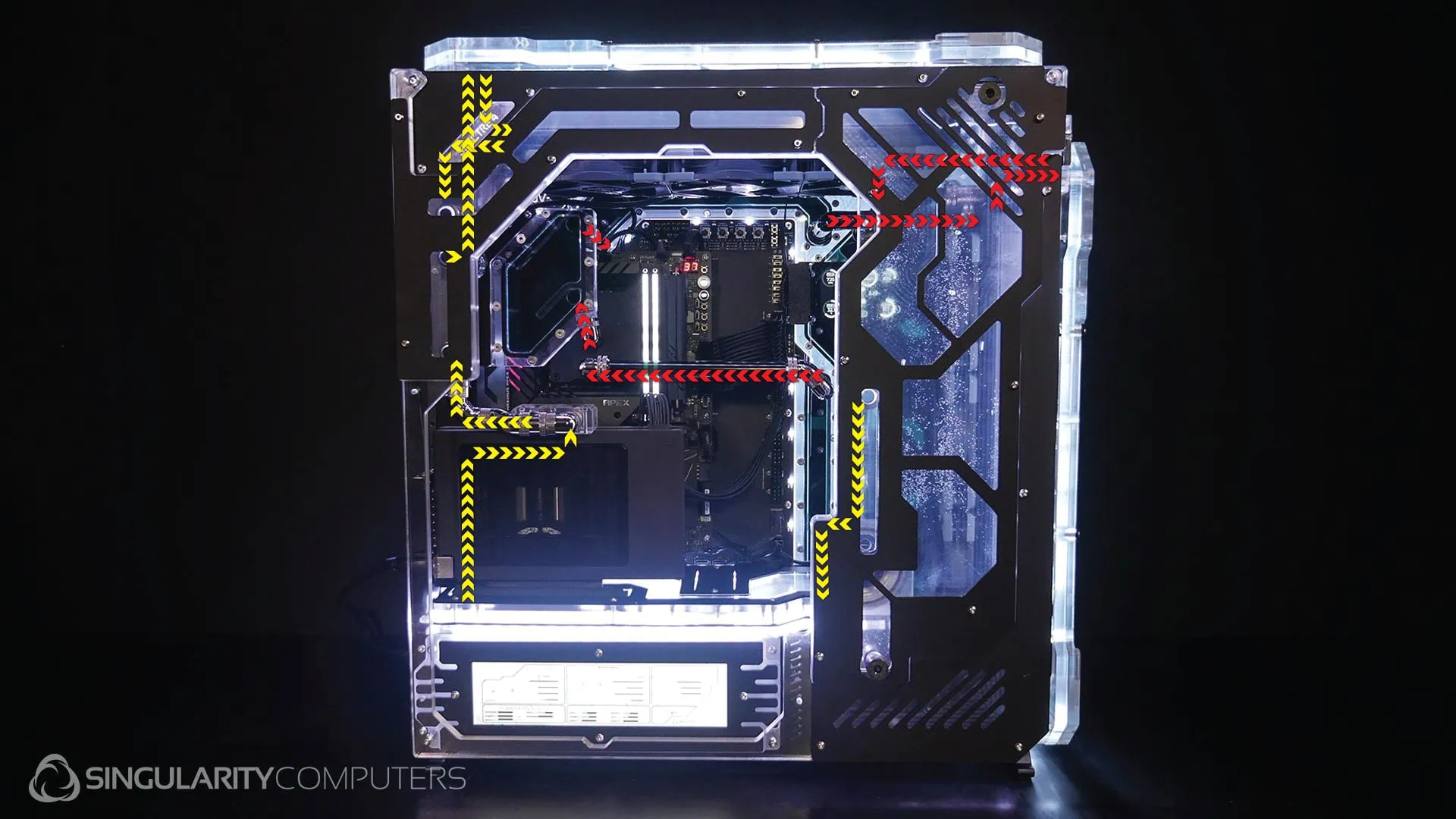

Spectre 4 Aevum (With All Addons) Flow Diagram

Personalise your PCB Cover Kit PSU Side Shroud Panel (optional)

Aevum is a Time and Space themed limited edition (time being the 4th dimension). It is a heavily upgraded version of Spectre 4 The distribution plate is far more detailed and has a completely different design with more intricate machining particularly in the reservoir area. The rear covers and PSU shroud panels also have a more detailed design with extra glowing LED sections. Additionally, it comes included with an Aevum version of the front distribution plate and a 1920×480 60Hz IPS screen mounted on the PSU Shroud.

Spectre 4 is the ultimate extreme water-cooling case with more water-cooling features than any case on the market. It continues the famous Singularity Computers water-cooling integration via a distribution plate which makes up the rear wall of the case. It has the patented Singularity Computers PowerBoard which removes the need for cable management while integrating many features.
Spectre 4 introduces a new distribution plate design with two thicker layers and countersunk fasteners which enhances durability, quality, and aesthetics. The design for the 6061 CNC machined frame is completely new with greatly improved strength and updated aesthetics.
The PowerBoard comes with a vast range of new features including improved lighting, temperature-based RPM control, separate PWM zones, dedicated PWM pump headers, PSU jump start for running the pumps, pump power headers, temperature sensor inputs and more.
Spectre 4 fits x2 360mm or 420mm radiators, it has a 140mm fan mount behind the motherboard to cool the rear of the CPU socket, two 2.5” drive mounts integrated on the PowerBoard (one is also compatible with 3.5” drives) and a touch activated power button. It also comes with dust filters on all fan’s positions.

Features new to Spectre 4

New frame design with greatly improved strength and updated aesthetics.
420mm or 360 radiators x2.
100mm thickness for radiators and fans.
Much larger PSU shroud for long PSUs and cables.
PSU shroud covers the pump and improves cable management.
New distribution plate design with two 10mm layers and countersunk bolts.
140mm fan to cool the rear of the CPU socket.
Dust filters on all fan positions.
Full glowing top and front panel layers.
Multi layered top and front panels.
Multi zone PWM hubs.
Temperature based RPM control.
RPM curve adjustment.
Dedicated pump RPM and power headers.
Temperature sensor inputs.
12pin header for addon devices.
Improved ARGB and UV lighting.
Standby lighting.
Integrated PowerBoard 2.5” mount plus a 2.5”/3.5” mount.
PSU jump-start for powering pumps only.
Temperature sensor port.
Internal drain port.
Protective covers for feet.

Specifications

Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop. Front distribution plate.
Ports: x8 G1/4” BSPP. 1x Fill Port. 2x Drain Ports.
Pump: (Not included): Compatible with all D5 pumps.
Electronics Integration:
Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x4. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2 each with x1 input and x3 outputs. With coolant temperature-based RPM control or motherboard control Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 140mm fan which can be mounted behind the motherboard (controlled by PWM fan hub 1).
PWM Control:
4x potentiometers to set the minimum PWM speed.
ARGB:
x13 with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
LEDs: x28 Integrated ARGB 90-degree LEDs and x28 UV 90-degree LEDs around the external perimeter of the PowerBoard. There are dip switches to turn the ARGB and UV LEDs on or off separately and stand-by UV lighting can be disabled.
Power and Reset Buttons.
PowerBoard direct mount 1 x 2.5” and 1 x 2.5”/3.5” SATA 3.0 6Gb/s accessible from the back of the distribution plate.
4pin ATX header to power up to two pumps with custom cables from the PowerBoard.
12pin header for future controller addon.
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Screen:
1920×480 60Hz IPS.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.
Screen cables: Black 1m Mini HDMI to HDMI, USB-A to USB Micro-B.
LED Strips: ARGB 5V 50cm x6 (pre-installed).
Motherboard Form Factor: XL-ATX (Up to: 290mm Wide & 350mm High).
E-ATX, ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x8.
Case Form Factor: Full Tower Water-cooling Case.
Case Dimensions: L: 575mm x W: 250mm x H: 615mm.
Case Weight: 19kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm (Case is flat packed).
Packaged Weight: 22.5kg.
Storage: x4 x2.5” x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x2 are on the rear side of the PowerBoard, x1 is optional 2.5” or 3.5”.
Radiators: 420mm/360mm X2 with 100mm of thickness for radiators and fans.
Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.
Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 240mm with a large amount of space for cables.
Front Panel I/O: No Front I/O.
Power Button: Touch Activated
Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 4.0 Riser Cable. 2nd Vertical GPU Mount is available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.

Spectre 4 Versions
Spectre 4 Spectre 4 Aevum Spectre 4 Aevum Chrome Spectre 4 Aevum Dark Spectre 4 Aevum Gold Spectre 4 Aevum Valhalla Spectre 4 Enterprise Spectre 4 Quantum Spectre 4-M Spectre 4-M Dark
Distribution Plates x1 x2 x2 x2 x2 x3 x1 x2 x1 x2
Distribution Plate Layers x2 x4 x4 x4 x4 x4 x2 x2 x3 x3
PowerBoard Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Motherboard Form Factor Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX, SSI-EEB, SSI-CEB Up to E-ATX, SSI-EEB, SSI-CEB Up to E-ATX Up to E-ATX
IO Slots 8 8 8 8 8 8 8 8 7 7
Radiators 2x 360mm/420mm 2x 360/420mm 2x 360/420mm 2x 360/420mm 2x 360/420mm 2x 360/420mm 2x 360mm/420mm + 3x 360mm or MO-RA3 2x 360mm/420mm + 3x 360mm or MO-RA3 2x 360mm 2x 360mm
Radiator Thickness 60mm 60mm 60mm 60mm 60mm 60mm 60mm 60mm 45mm 45mm
Pump/s D5 D5 D5 D5 D5 D5  2x D5  2x D5 D5 D5
Reservoir Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Case Dimensions 610mm x 245mm x 560mm 610mm x 245mm x 600mm 610mm x 245mm x 600mm 610mm x 245mm x 600mm 610mm x 245mm x 600mm 610mm x 245mm x 600mm 610mm x 245mm x 560mm 610mm x 245mm x 560mm 486mm x 245mm x 528mm 506mm x 245mm x 528mm
1920×480 60Hz Screen No Yes Yes Yes Yes Yes Yes Yes No Yes
Limited Edition No Yes Yes Yes Yes Yes No No No No
Individually Numbered No Yes Yes Yes Yes Yes No Yes Yes Yes
Rear CPU Socket Fan Yes Yes Yes Yes Yes Yes No No Yes Yes
Dust Filters Yes Yes Yes Yes Yes Yes Yes Yes No No
Multi Zone PWM Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dedicated Pump PWM Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dedicated Pump Power Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Temperature Based RPM Control Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
RPM Curve Adjustment Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
PSU Jump Start Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
PSUs x1 x1 x1 x1 x1 x1 x1 (2nd can be added with optional addon) x1 (2nd can be added with optional addon) x1 x1
Water-cooling Loops x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x2 x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel)
Color Black Black & Graphite Silver Mirror Black & Grey Tinted Gold White Black Black and Silver or Black and Gold Silver Black & Grey Tinted
Drives x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x2 2.5” if GPU/s not vertically mounted x2 2.5” if GPU/s not vertically mounted x2 x2.5” x2 x2.5”
PCB Covers with integrated ARGB No No Yes Yes Yes No No Yes Yes Yes
Personalised etched name and serial number No No Yes Yes Yes No No Yes No No
