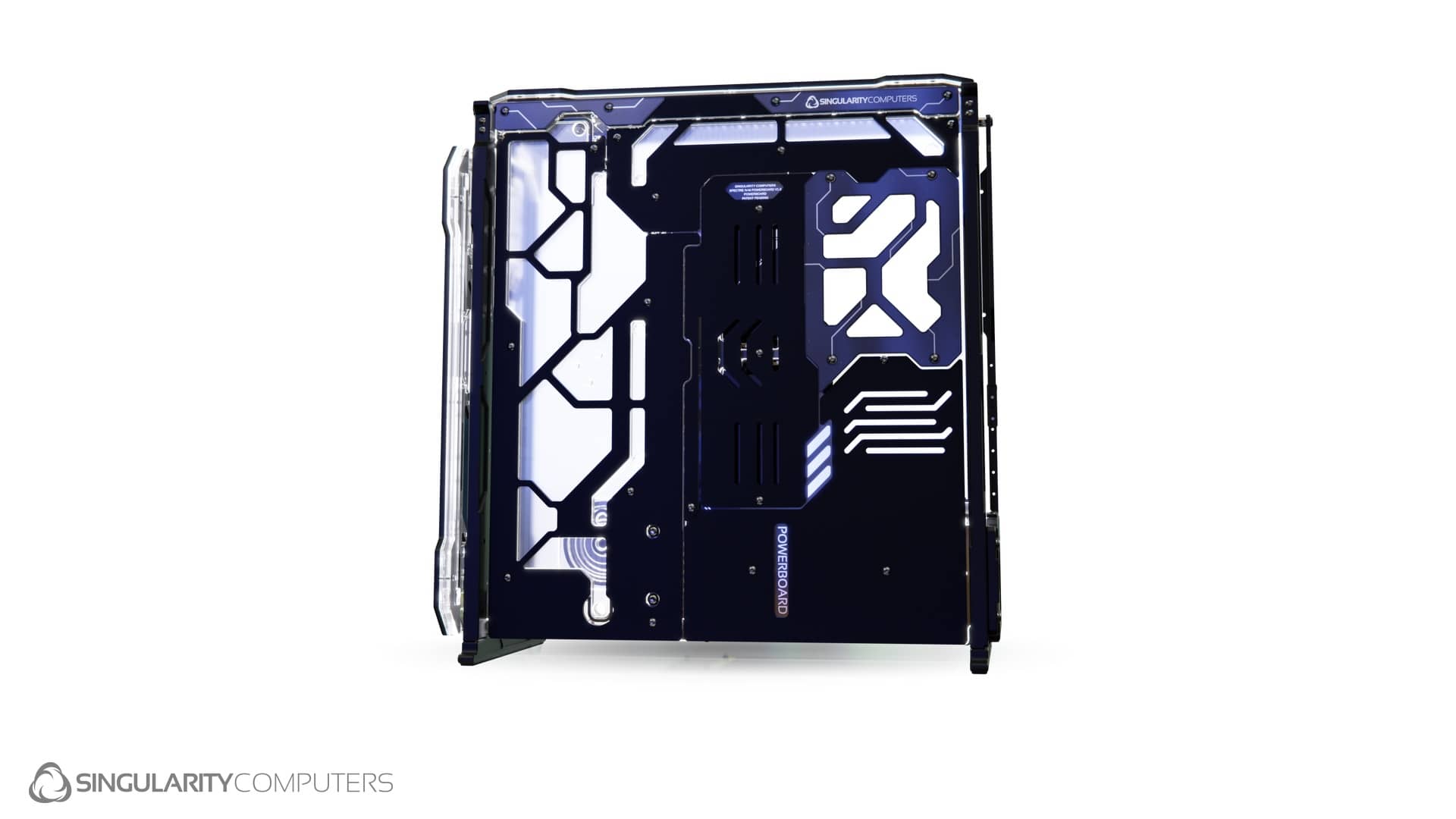

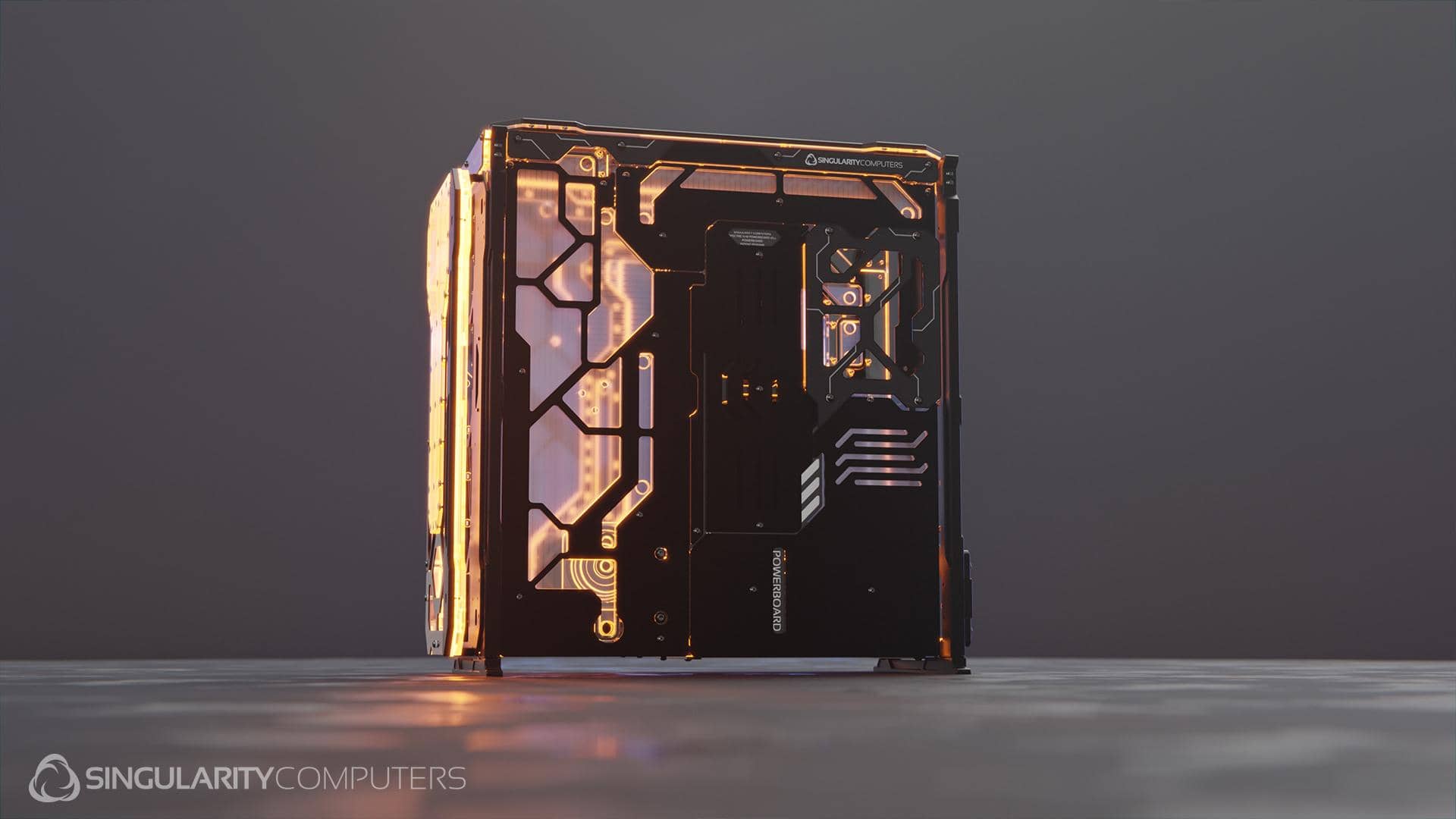

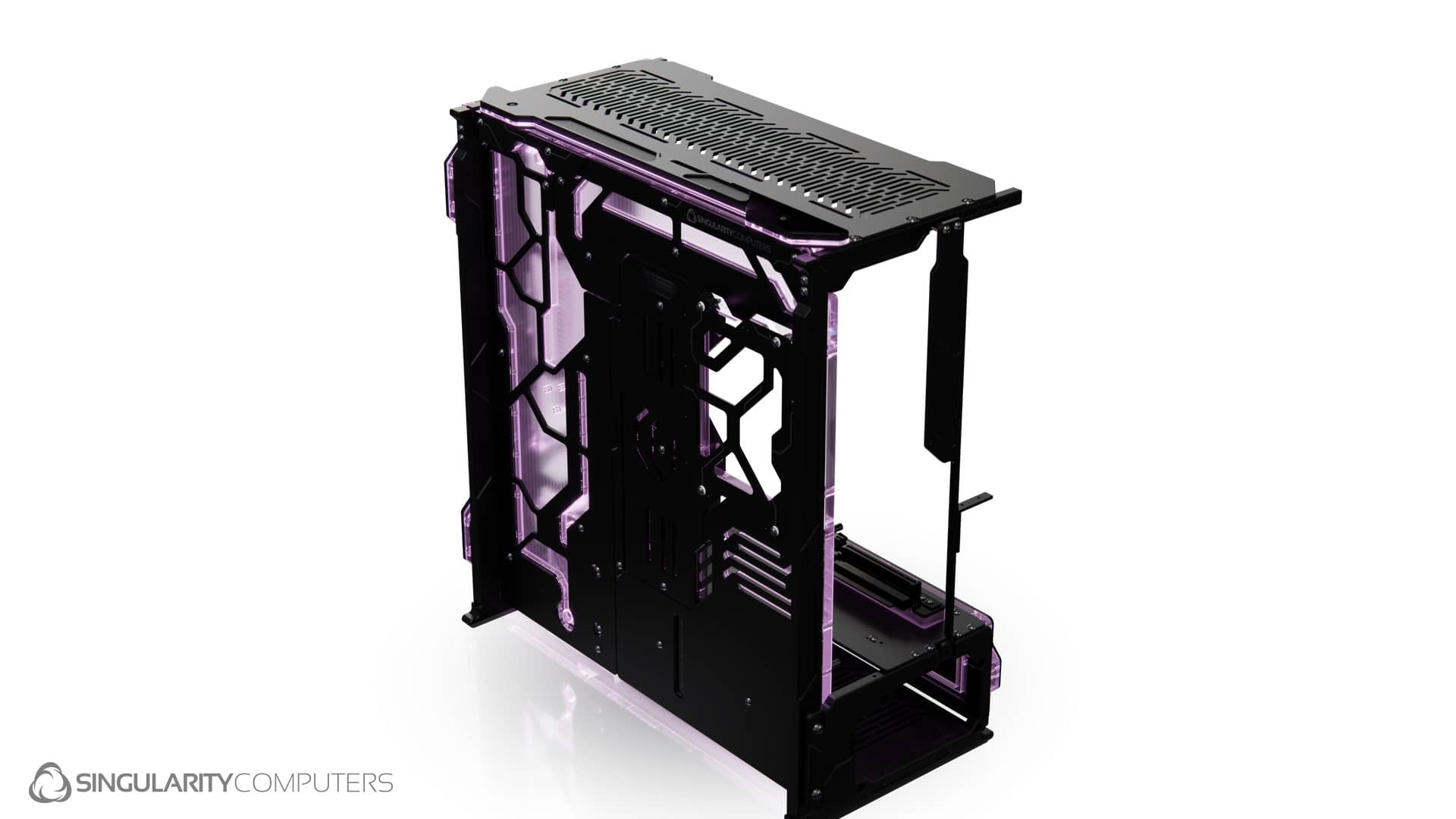

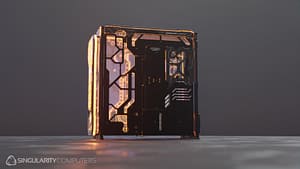

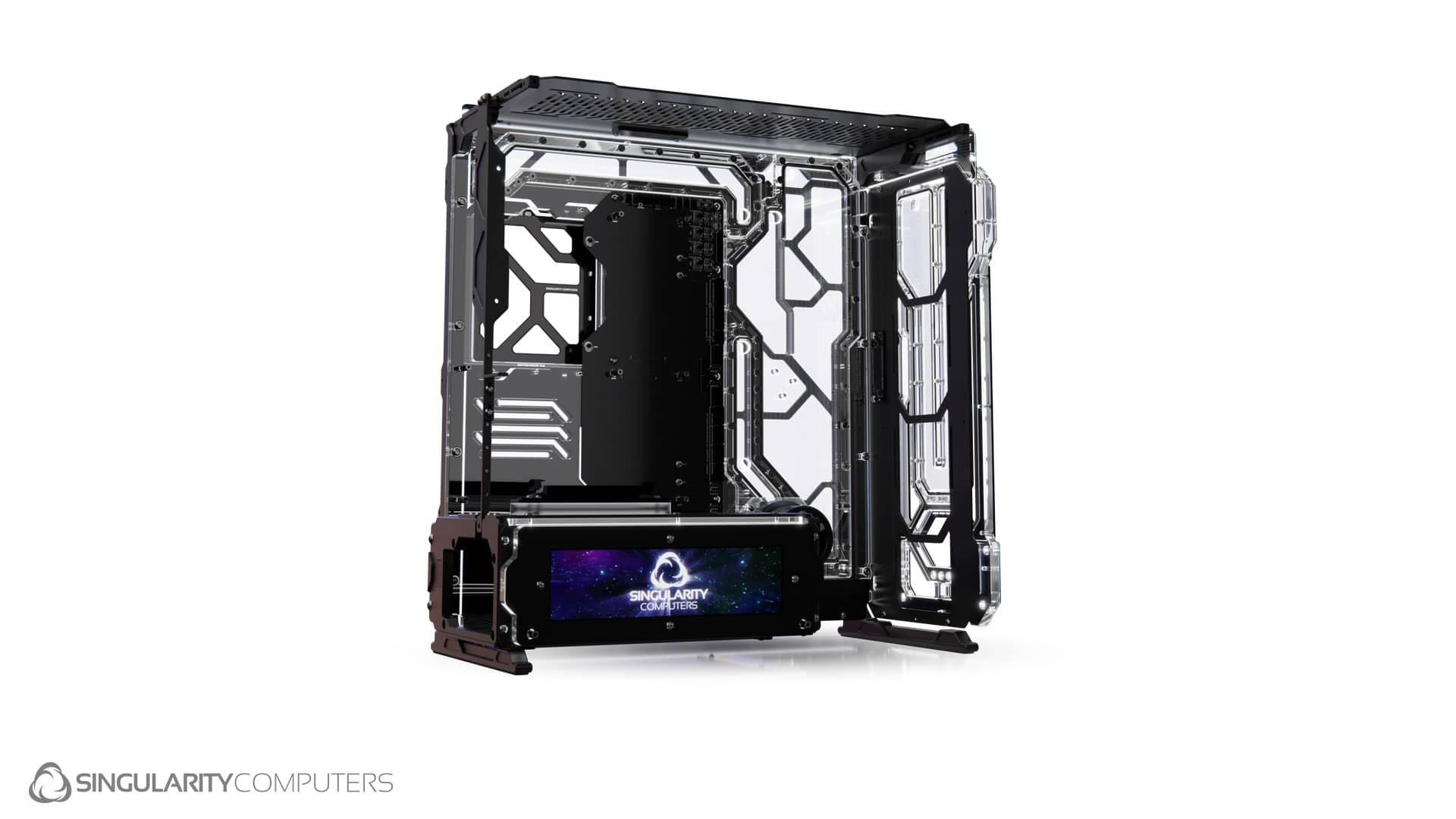

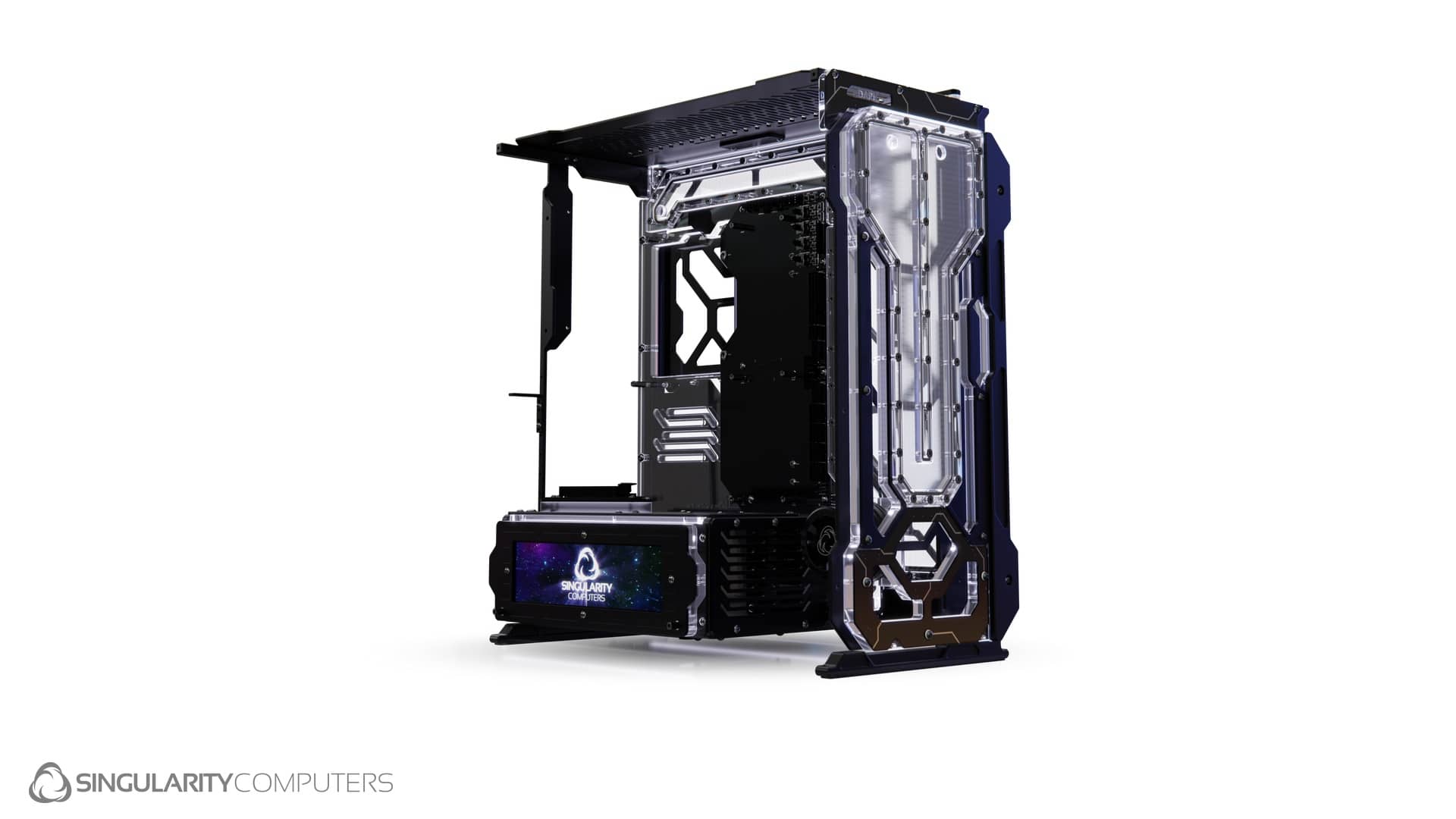

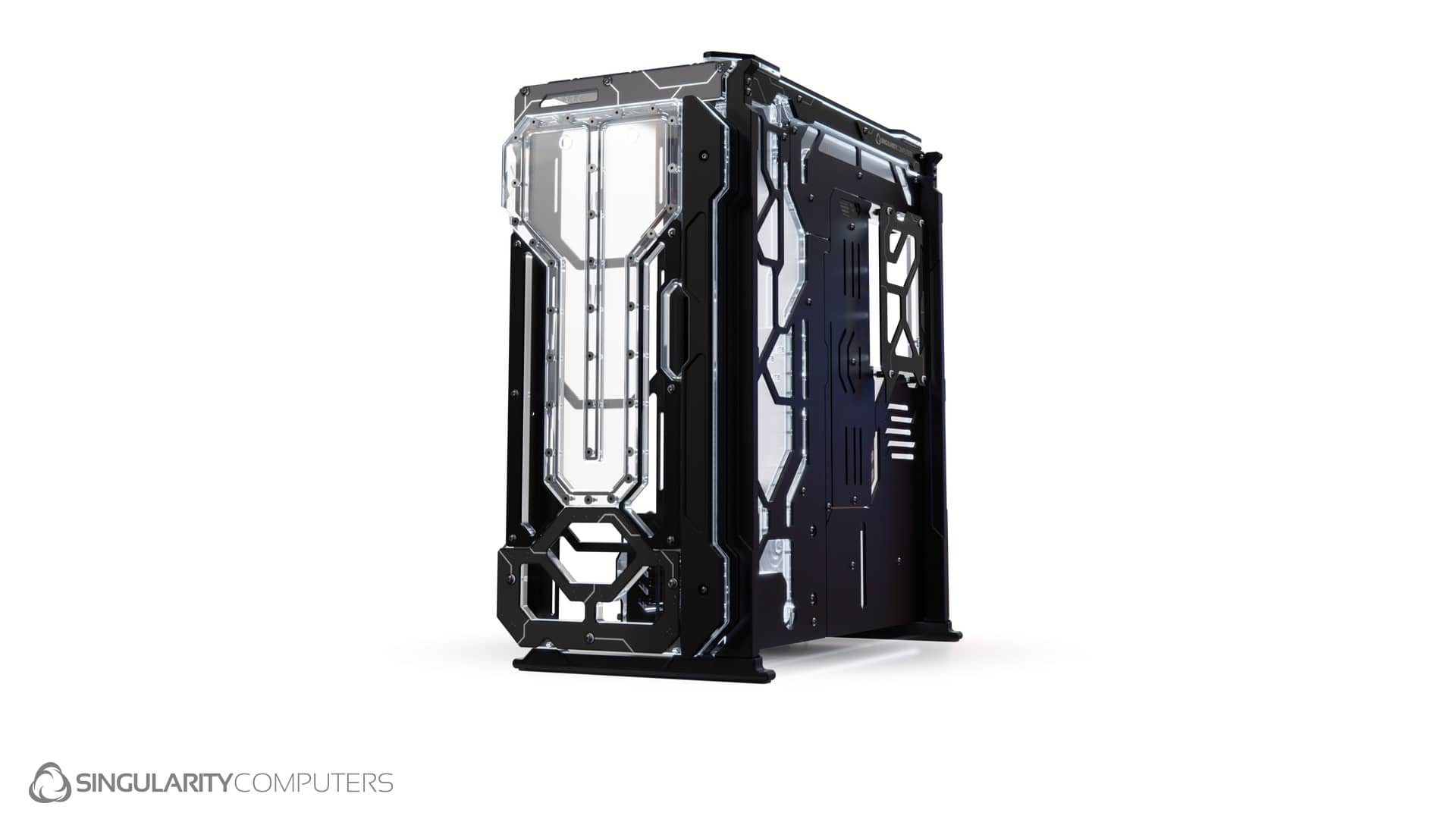

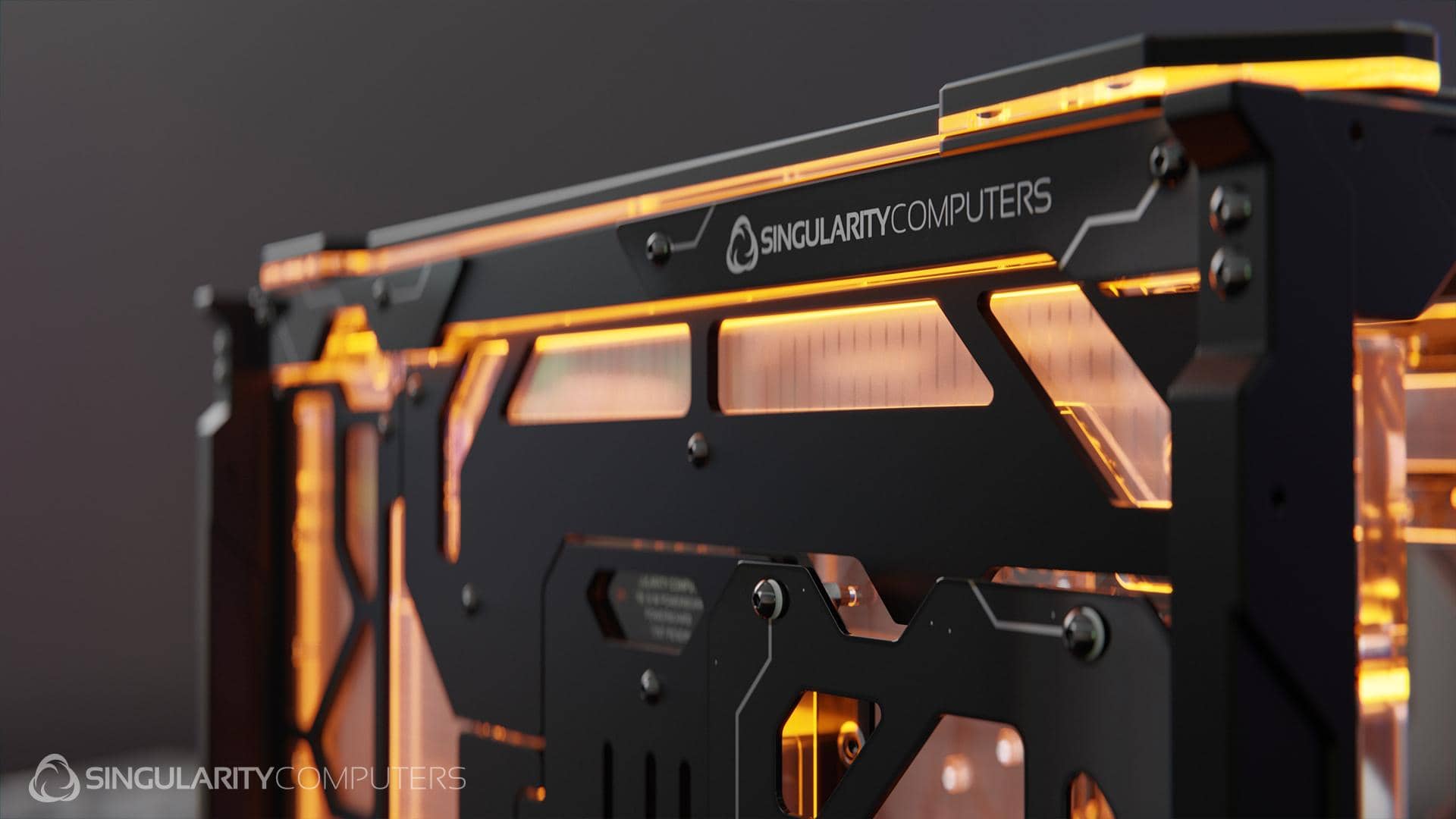

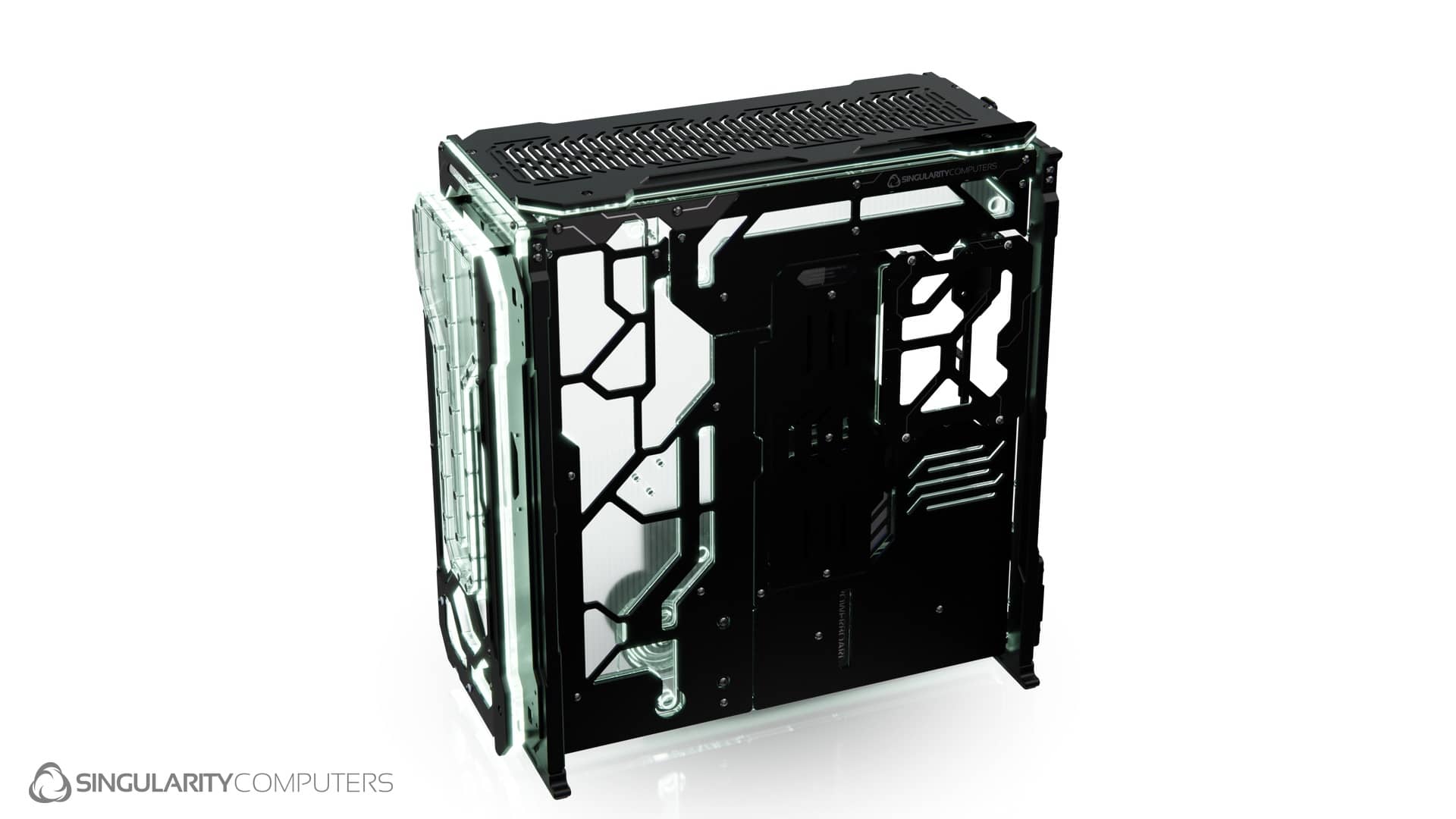

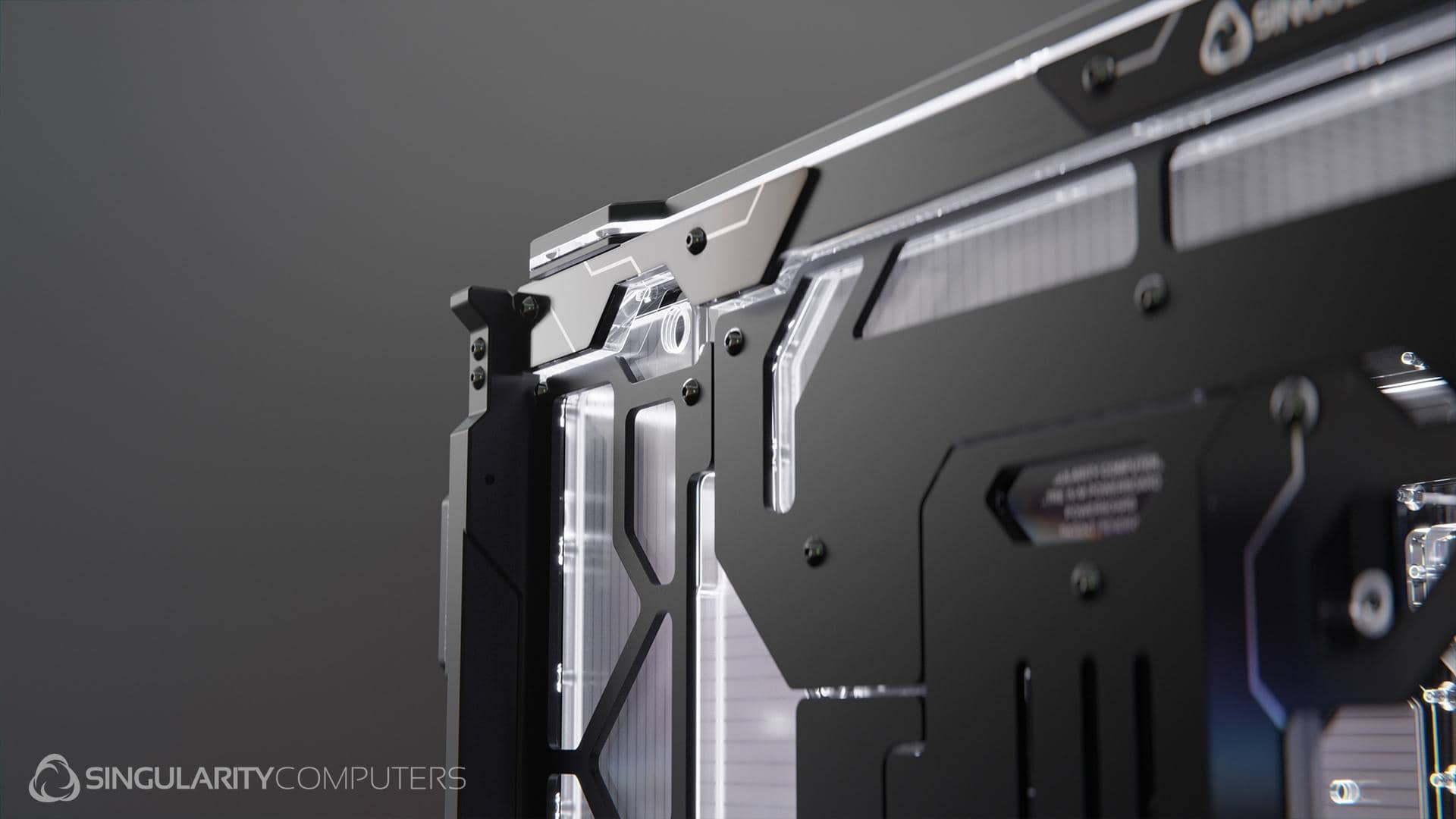

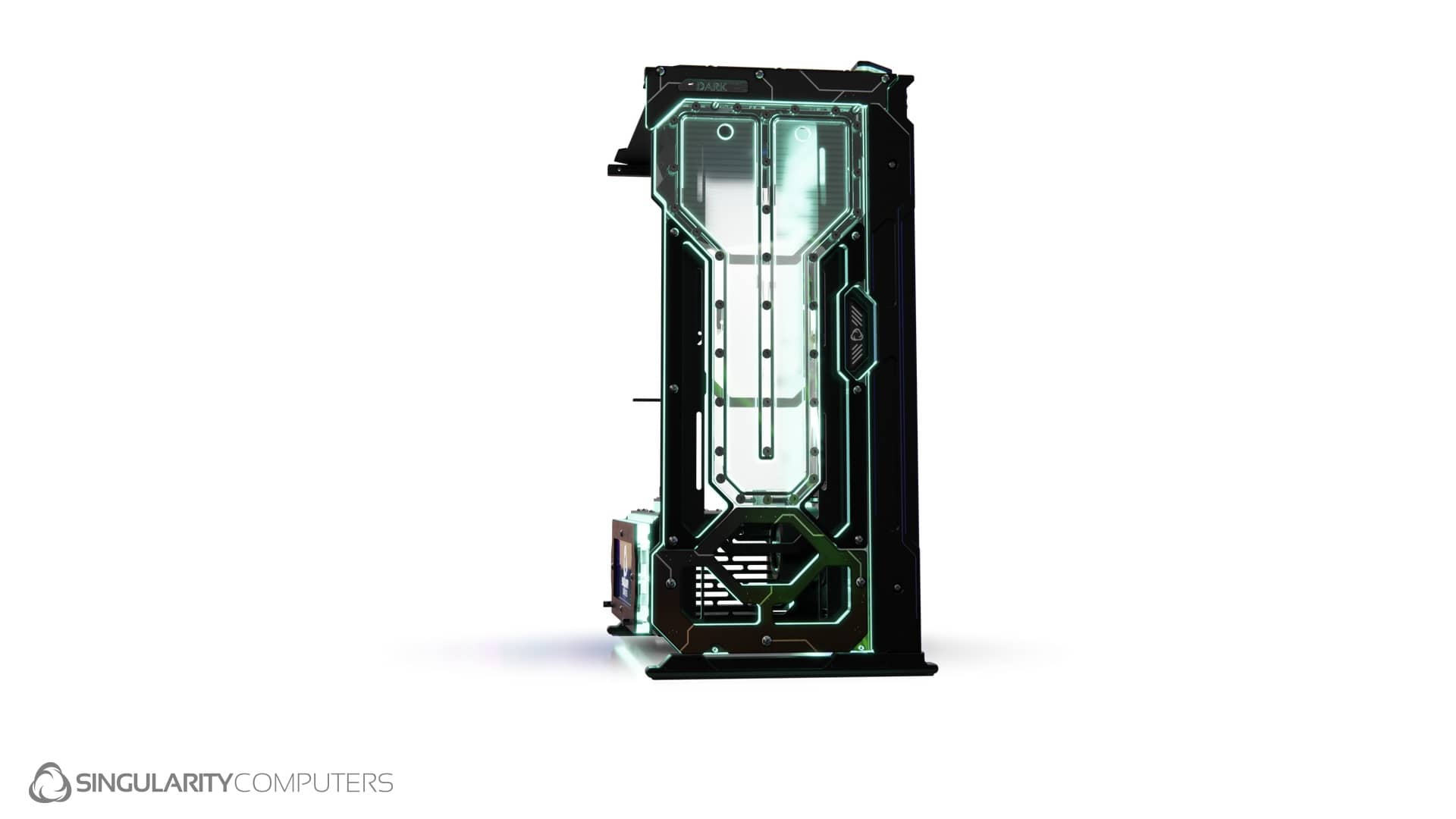

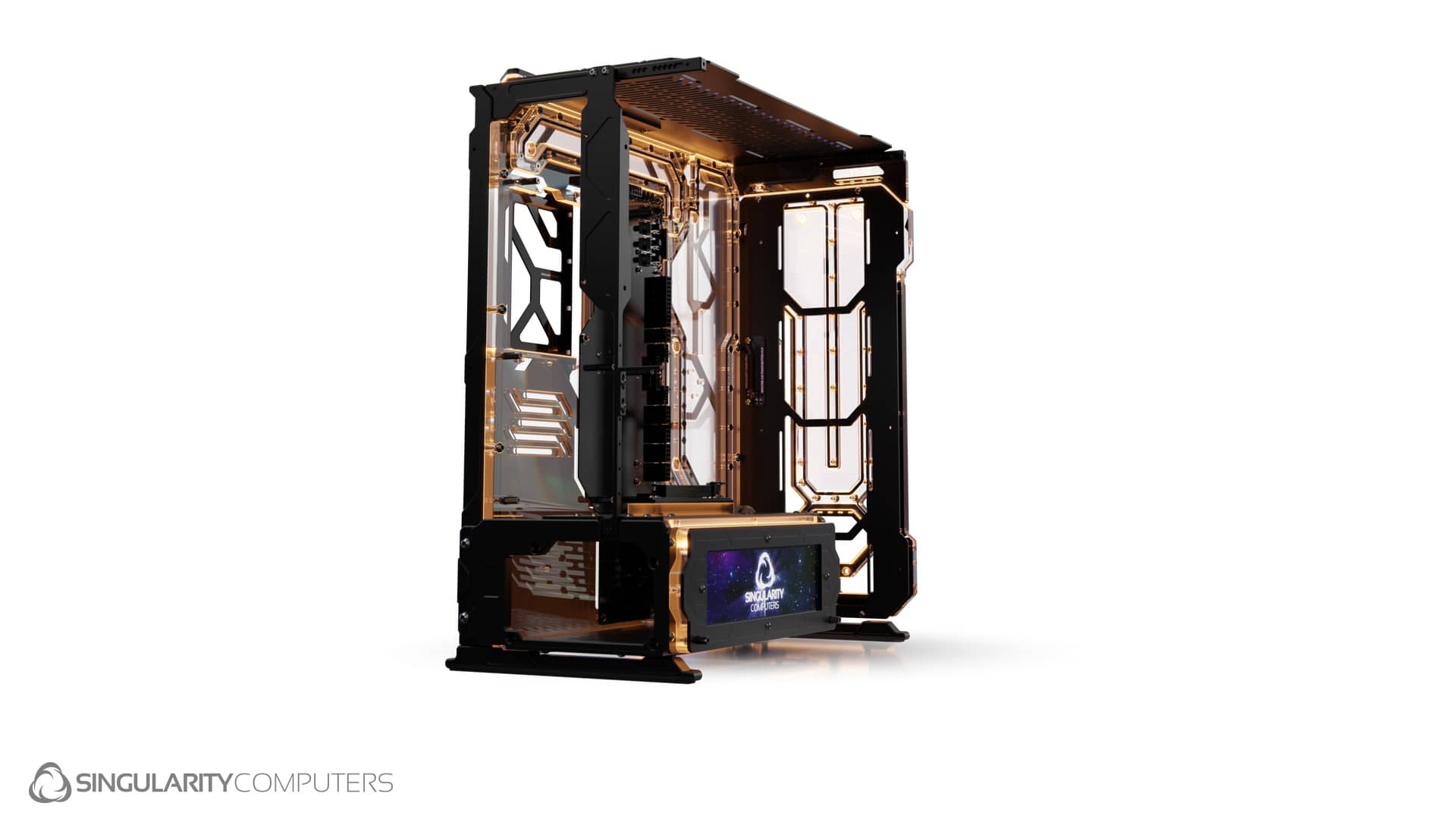

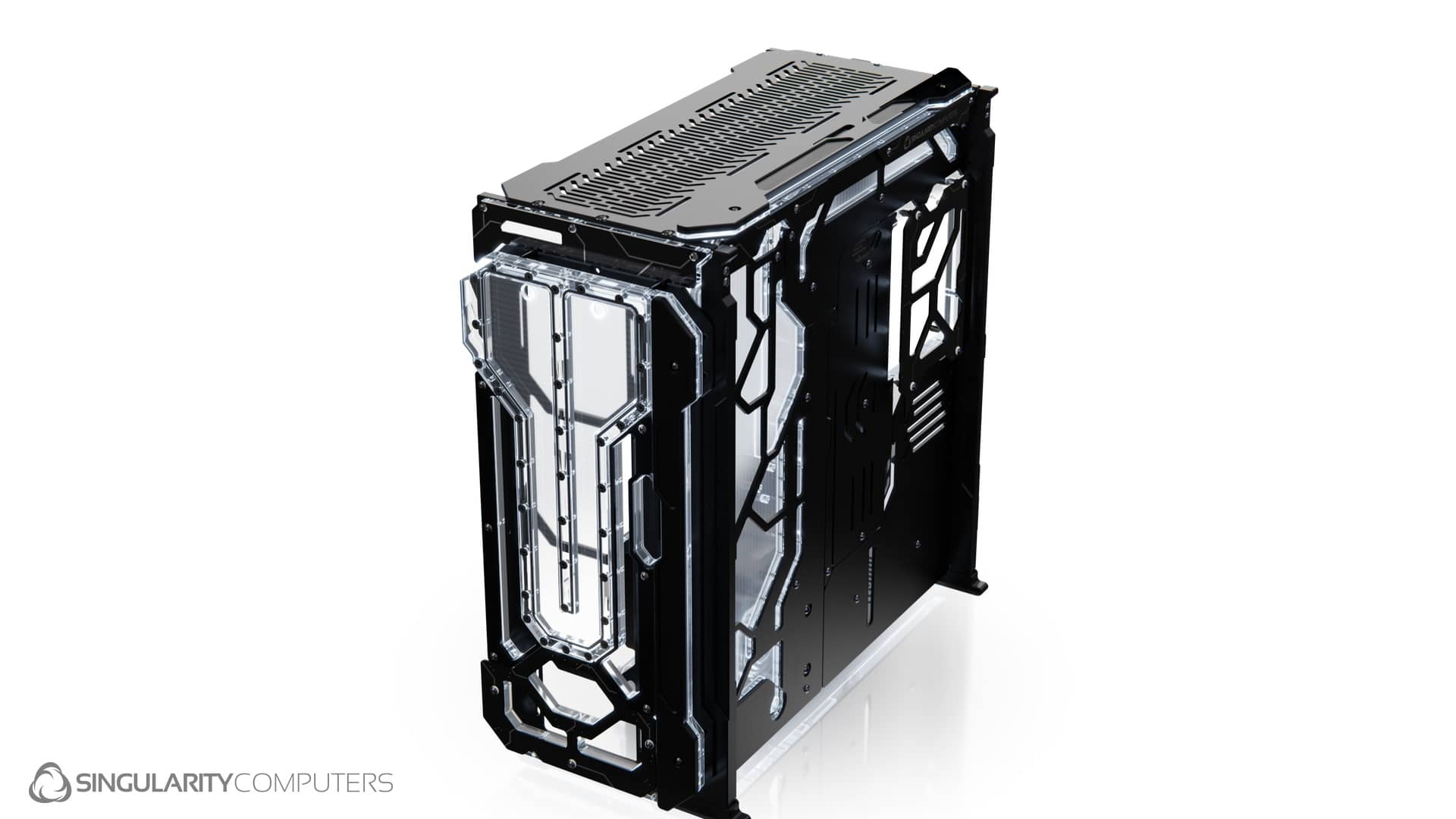

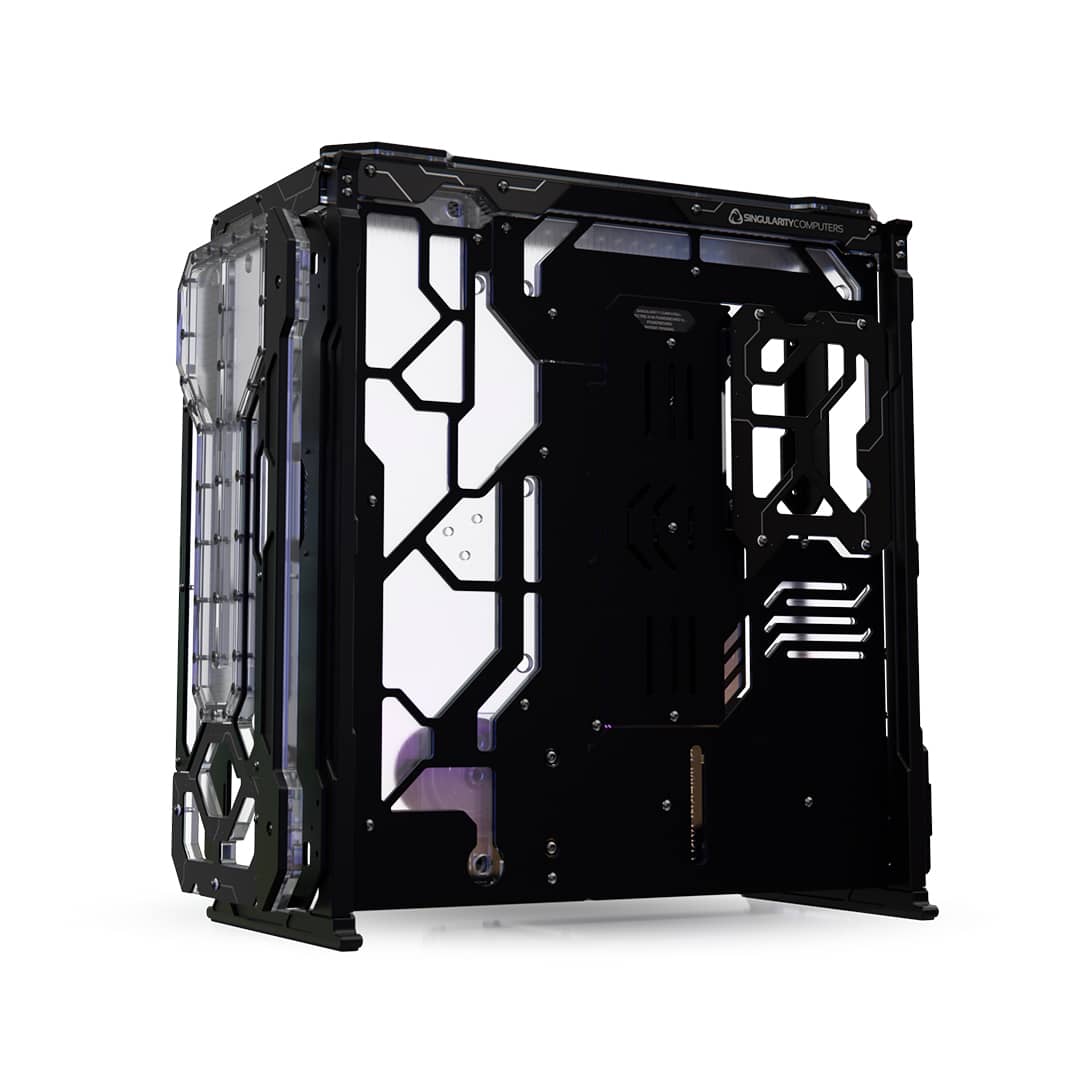

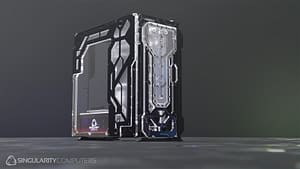

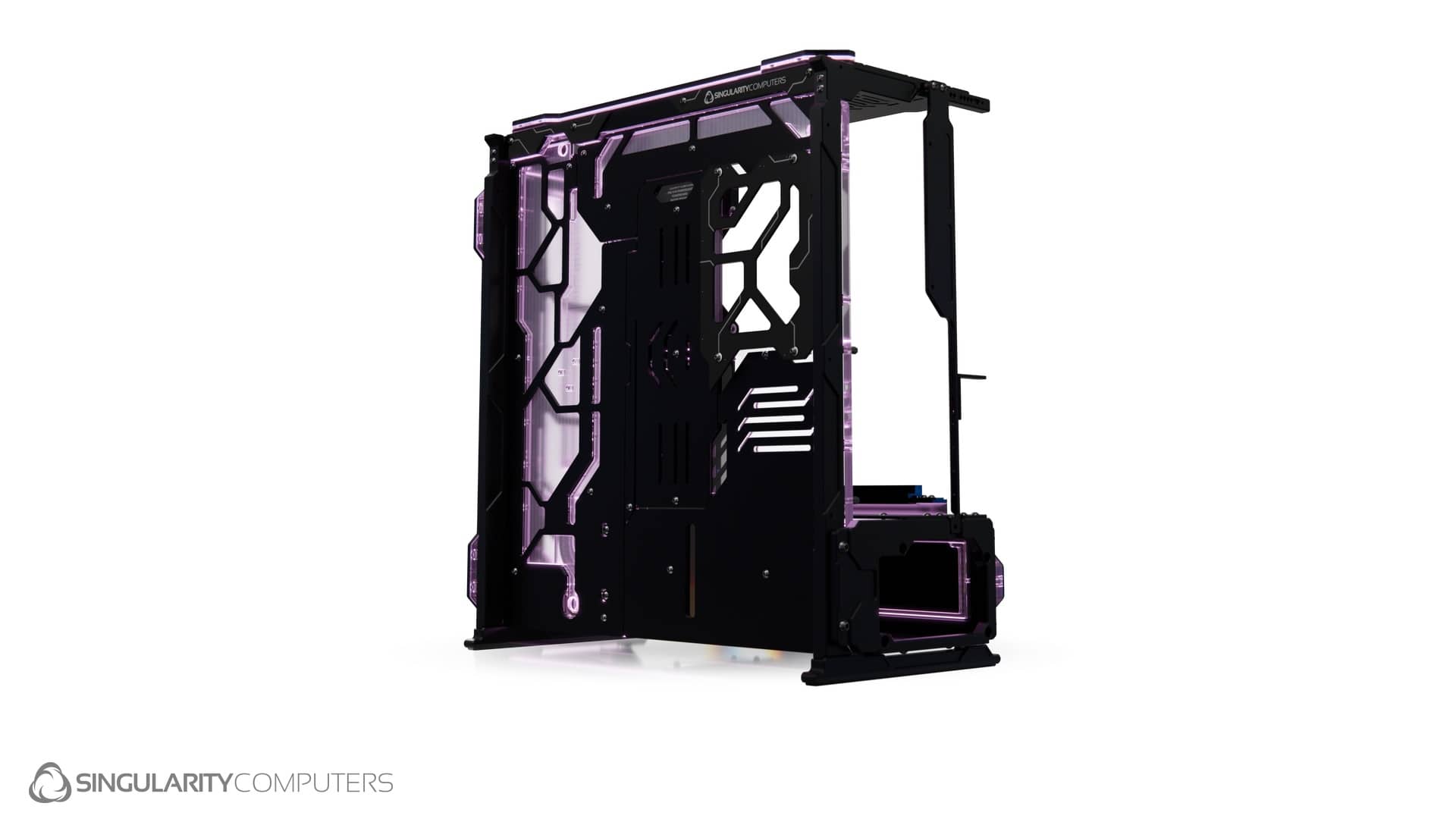

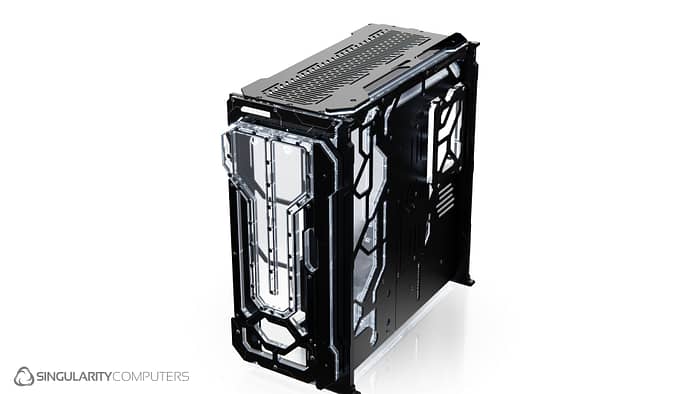

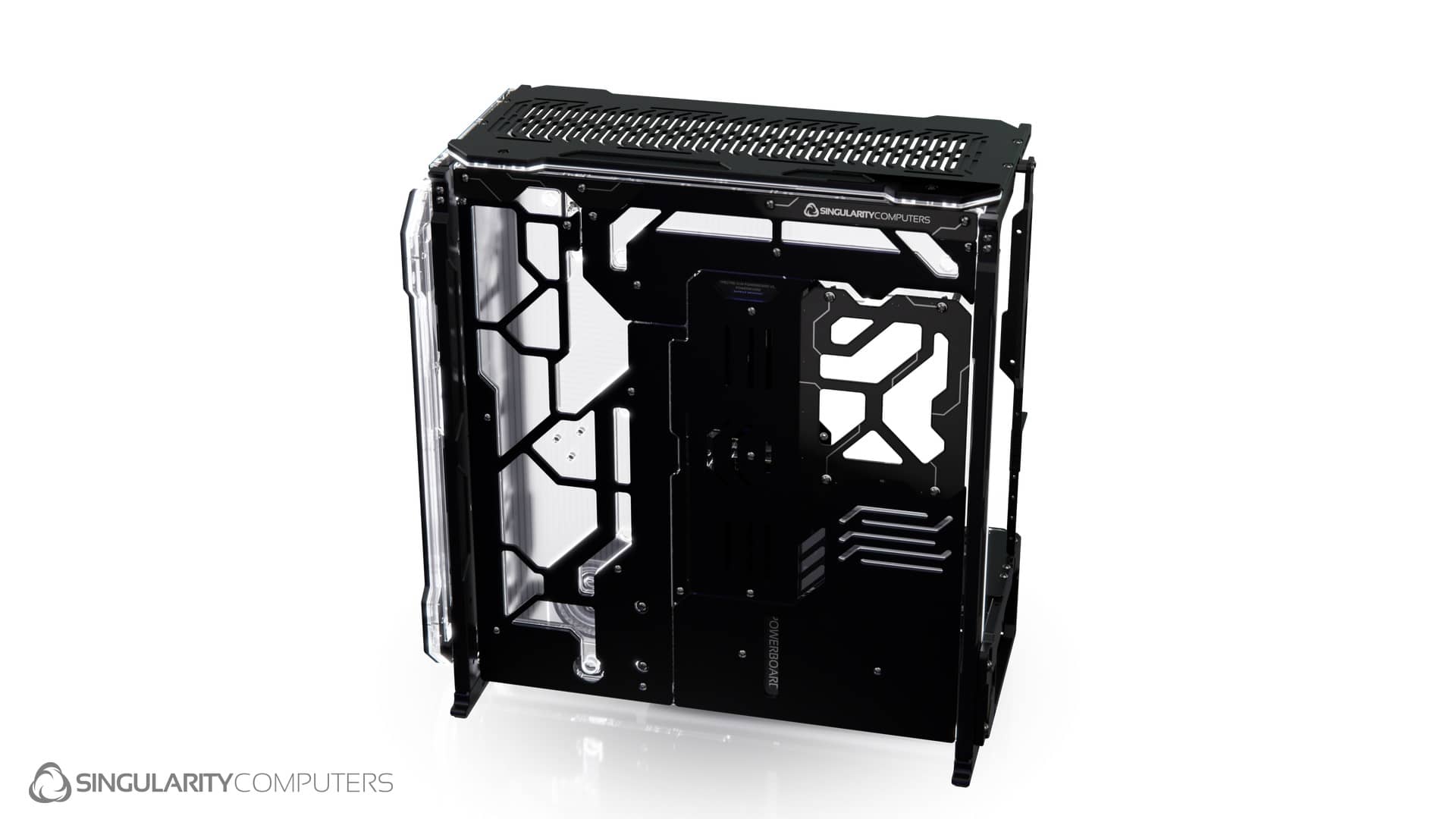

Spectre 4-M Dark Water-cooling Case

In stock
  • Compact Spectre 4 design, 30% smaller
  • Supports 2x 360mm radiators and 120mm rear CPU socket cooling fan
  • Integrated rear-wall distribution plate with advanced water-cooling integration
  • Patented PowerBoard eliminates cable management and adds advanced control features
  • Temperature-based RPM control with separate PWM zones and dedicated pump headers
  • Integrated PSU jump-start, pump power and temperature sensor inputs
  • New 6061 CNC-machined frame with improved strength and updated aesthetics
  • New distribution plate design with countersunk fasteners
  • Dark space-inspired design with smoked and satin black acrylic

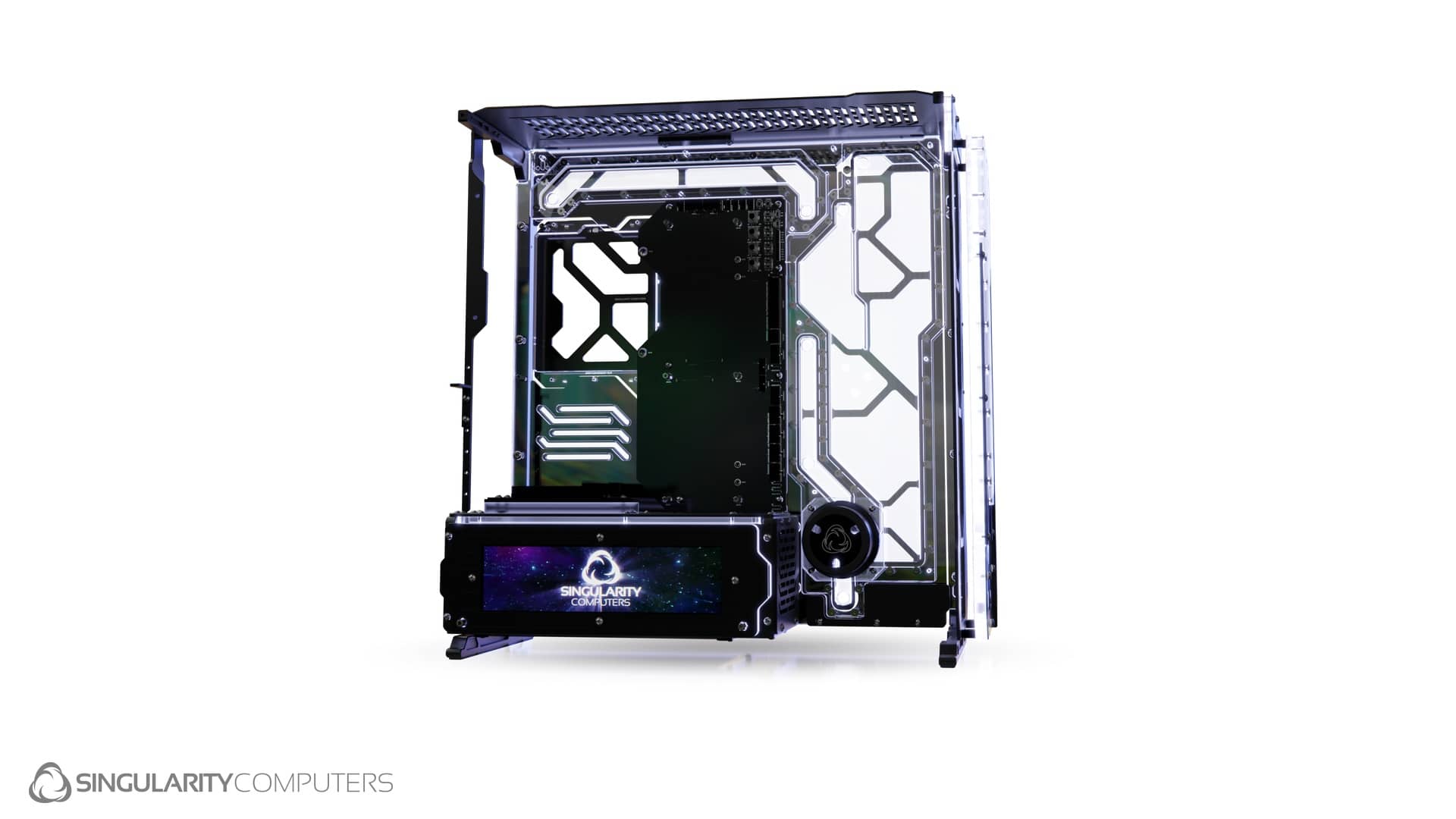

  • Includes Front Distribution Plate and 1920×1080 60Hz IPS PSU Shroud Screen
  • Individually numbered case with integrated LED PCB covers

Order processing time 1-2 days.

Manuals

US$1,299.00

Select GPU Cables (included)
None 8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

12V2x6/PCIE 5.1
Black sleeved cables which connect from the PowerBoard to the GPU.

Optional Add-Ons

Enhance your purchase with these recommended extras

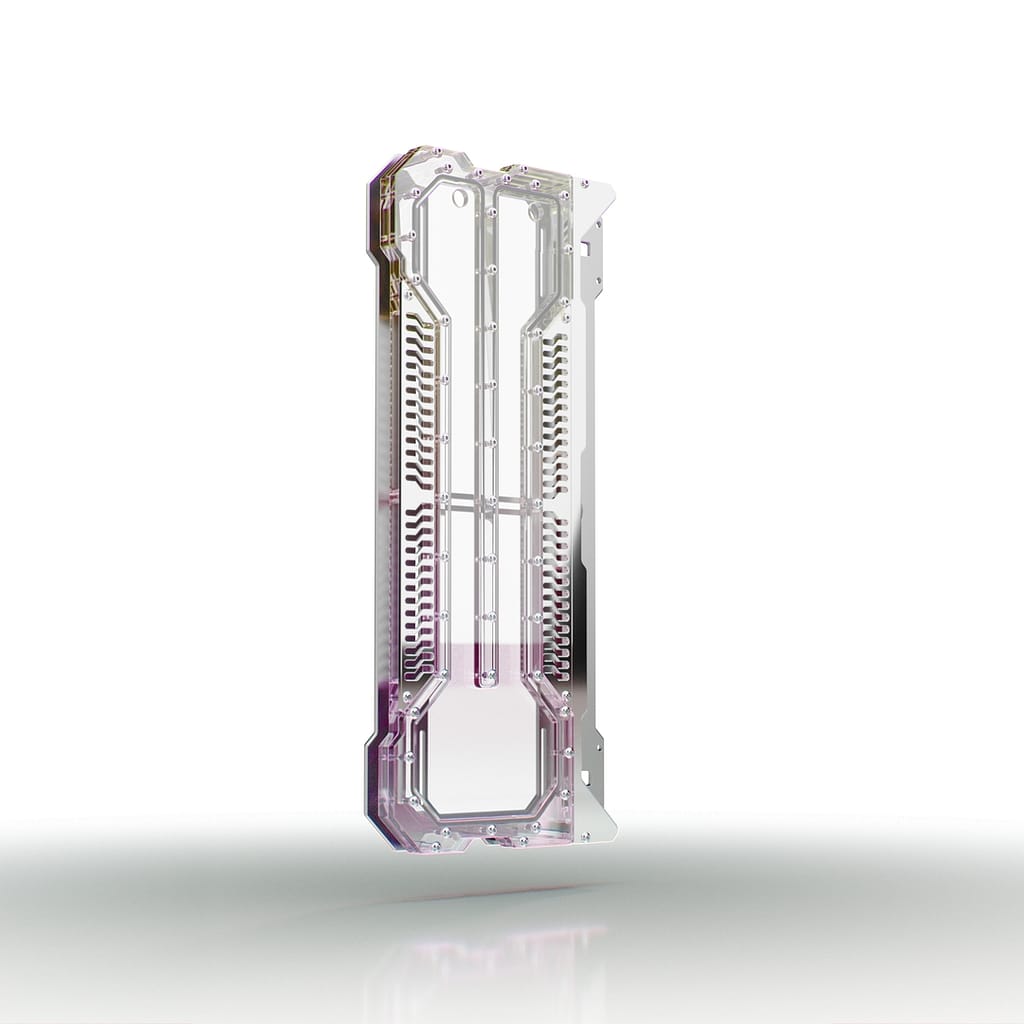

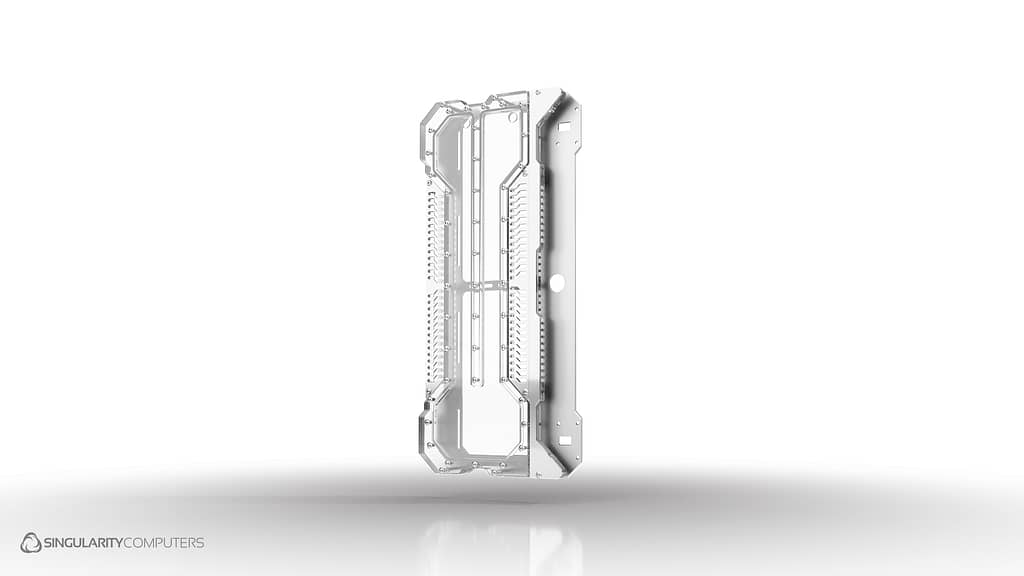

Distribution Plates

Dual Loop Side Panel Distribution Plate Dark (optional) USD $499
None Yes +US$499.00

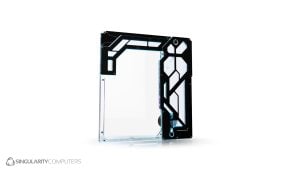

Spectre 4-M Dual Loop Side Panel Dark
The Spectre 4-M Dark Dual Loop Side Panel is an addon for the Spectre 4-M Dark Water-cooling Case. It mirrors parts of the main distribution plate, but some port locations are different so that the Dual Loop Side Panel can be used for the GPU loop and the main case distribution plate for the CPU loop. It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated D5 pump top, D5 Pump Cover and two integrated ARGB PCB covers. There are 4 ports which are positioned for the GPU loop and top radiator, and a fill and drain port. The port layout has been designed for two separate loops, but it can be used for dual loops, single loop, series or parallel. The dark version has smoked acrylic instead of clear and it has extra satin black covers.

Water Cooling

D5 Pump (optional) USD $104-208
None Pump x1 +US$104.00 Pump x2 +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

SC Fittings Package Spectre 4-M Advanced (optional) USD $308.80
None Yes +US$308.80

SC Fittings Package Spectre 4-M Advanced
Fittings needed with up to x1 Spectre 4-M Elite. Without any other addon distribution plates.
Included Fittings:
– 16mm Hardline Compression x8.
– 90 Degree Rotary: x12.
– 90 Degree Dual Rotary: x4.
– 20mm Extension: x4.
– 25mm Extension: x1.
– Telescopic Fitting Large: x2.
– Telescopic Fitting Small: x1.
– Temperature Sensor Fitting x1.
– Low Profile Drain Valve x1.

SC Cerakote Fittings Package Spectre 4 Advanced
Tough heat treated Ceramic coating available in various colours. Order processing time 1 week.

SC Fittings Package Spectre 4-M Extreme (optional) USD $512.40
None Yes +US$512.40

SC Fittings Package Spectre 4-M Extreme
Fittings needed with all addon distribution plates Spectre 4-M Elite, Spectre 4-M Dual Loop Side Panel.
Included Fittings:
– 16mm Hardline Compression x14.
– 90 Degree Rotary: x14.
– 90 Degree Dual Rotary: x6.
– 20mm Extension: x7.
– 25mm Extension: x3.
– Telescopic Fitting Large: x5.
– Telescopic Fitting Small: x4.
– Temperature Sensor Fitting x2.
– Low Profile Drain Valve x2.

SC Cerakote Fittings Package Spectre 4-M Extreme
Tough heat treated Ceramic coating available in various colours. Order processing time 1 week.

PowerBoard

FanGuardian PowerBoard Controller (optional) USD $149
None Yes +US$149.00

Fanguardian PowerBoard Controller
The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It has updateable Software/Firmware and we will continue adding features.

PowerBoard PSU Cable Kit (optional) USD $79
None Yes +US$79.00

PowerBoard PSU Cable Kit
Stock PSU cables will work with the PowerBoard on the input side, but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.
Black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs.

Shift Motherboard 24pin 90 Degree Adaptor (optional) USD $24.50
None Yes +US$24.50

Shift Motherboard 24pin 90 Degree Adaptor
The Shift 24pin 90 Degree Adaptor is for motherboards with 90 degree 24pin connections so that a clean connection can be made with the 24pin cable from the PowerBoard to the motherboard. Custom designed PCB with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling.

  • 1x Spectre 4-M Dark Water-cooling Case
    US$1,299.00

Subtotal excludes shipping & tax

Free shipping over US$2,000 | 30% Off Storewide With Coupon SCA30
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182006238 SKU: SC-S4-M-D Category:

Description

Read More +Read Less − full description

Spectre 4-M is a compact version of Spectre 4, which is 30% smaller. It fits x2 360mm radiators, a 120mm fan behind the motherboard to cool the rear of the CPU socket, two 2.5” drive mounts integrated on the PowerBoard and a touch activated power button. Spectre 4-M continues the famous Singularity Computers water-cooling integration via a distribution plate which makes up the rear wall of the case. It has the patented Singularity Computers PowerBoard which removes the need for cable management while integrating many features. The PowerBoard comes with a vast range of new features including improved lighting, temperature-based RPM control, separate PWM zones, dedicated PWM pump headers, PSU jump start for running the pumps, pump power headers, temperature sensor inputs and more.
Spectre 4-M introduces a new distribution plate design with countersunk fasteners and the 6061 CNC machined frame is new with greatly improved strength and updated aesthetics.

Spectre 4-M Dark Water-cooling Case:
Spectre Integra-M Dark has a space theme with aesthetics inspired by spacecraft and fighter aircraft. It has a clear acrylic cover and motherboard tray, the main distribution plate layer is grey tinted acrylic, the rear distribution plate layer is clear acrylic, and the rear cover is satin black acrylic. It also has PCB covers with integrated LEDs for improved lighting and aesthetics. It comes included with a front distribution plate and 1920×1080 60Hz IPS PSU Shroud Screen. Each case is individually numbered.





Specifications

Features new to Spectre 4-M:
New frame design with greatly improved strength and updated aesthetics.
New distribution plate design with countersunk bolts.
120mm fan to cool the rear of the CPU socket.
Multi zone PWM hubs.
Temperature based RPM control.
RPM curve adjustment.
Dedicated pump RPM and power headers.
Temperature sensor inputs.
12pin header for addon devices.
Improved ARGB and UV lighting.
PSU jump-start for powering pumps only.
Temperature sensor port.
Internal drain port.
Protective covers for feet.
Touch activated Power Button.
Integrated PowerBoard 2.5” Mounts x2.

Water-cooling Integration:
Main Distribution Plate: Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop. Ports: x9 G1/4” BSPP. 1x Fill Port. 2x Drain Ports.
Front Distribution Plate: Ports: x2 G1/4" BSPP.
Pump: (Not included): Compatible with all D5 pumps.
Electronics Integration:
Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x2. Supplementary power x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2, one with 3 outputs and one with 4 outputs. Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. There are two temperature sensor inputs. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
PWM Control: 4x potentiometers to set the minimum PWM speed (bottom of the RPM curve).
ARGB: x11 with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
LEDs: x15 Integrated ARGB 90-degree LEDs. LEDs can be switched on or off and their control can be switched from motherboard to PowerBoard control (PowerBoard control requires FanGuardian PowerBoard Controller).
Power and Reset Buttons.
PowerBoard direct mount 2.5” x2 accessible from the back of the distribution plate.
4pin ATX header to power up to two pumps with custom cables from the PowerBoard.
12pin header for FanGuardian PowerBoard Controller Addon (available separately).
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Screen: 1920×480 60Hz IPS.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x2.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.
Screen cables: Black 1m Mini HDMI to HDMI, USB-A to USB Micro-B.
PCB Cover Cables: HRTN to ARGB 50cm Black, HRTN to ARGB 30cm Black.
LED Strips: ARGB 5V 50cm x3 (pre-installed).
Motherboard Form Factor: ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x7.
Case Form Factor: Mid Tower Water-cooling Case.
Storage: x4 x2.5” x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x2 are on the rear side of the PowerBoard, x1 is optional 2.5” or 3.5”.
Radiators: 360mm X2 up to 45mm. 70mm of thickness for radiators and fans.
Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.
Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 240mm with a large amount of space for cables.
Front Panel I/O: No Front I/O.
Power Button: Touch Activated
Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 5.0 Riser Cable. 2nd Vertical GPU Mount is available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested, and precise fastener tension is applied.
Case Dimensions: L: 486mm x W: 245mm x H: 528mm.
Case Weight: 12kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm (Case is flat packed).
Packaged Weight: 14kg.

Spectre 4 Versions
Spectre Spectre 4 Aeternus Spectre 4 Aeternus Dark Spectre 4 Aeternus Valhalla Spectre 4 Carbon Spectre 4 Enterprise Spectre 4 Quantum Spectre 4-M Spectre 4-M Dark Spectre 4-M Valhalla
Distribution Plates x2 x1 x2 x2 x2 x1 x2 x1 x2 x2
Distribution Plate Layers x2 x4 x4 x4 x4 x2 x2 x2 x3 x3
PowerBoard Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Motherboard Form Factor Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX Up to E-ATX, SSI-EEB, SSI-CEB Up to E-ATX, SSI-EEB, SSI-CEB Up to ATX Up to ATX Up to ATX
IO Slots 8 8 8 8 8 8 8 7 7 7
Radiators 2x 360mm/420mm 2x 360mm/420mm 2x 360/420mm 2x 360/420mm 2x 360/420mm 2x 360mm/420mm + 3x 360mm or MO-RA3 2x 360mm/420mm + 3x 360mm or MO-RA3 2x 360mm 2x 360mm 2x 360mm
Radiator Thickness 60mm 60mm 60mm 60mm 60mm 60mm 60mm 45mm 45mm 45mm
Pump/s D5 D5 D5 D5 D5  2x D5  2x D5 D5 D5 D5
Reservoir Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Case Dimensions 550mm x 250mm x 615mm 610mm x 245mm x 560mm 610mm x 245mm x 600mm 610mm x 245mm x 600mm 610mm x 245mm x 600mm 610mm x 245mm x 560mm 610mm x 245mm x 560mm 486mm x 245mm x 528mm 506mm x 245mm x 528mm 506mm x 245mm x 528mm
1920×480 60Hz Screen No No Yes Yes Yes Yes Yes No Yes Yes
Limited Edition Yes Yes Yes Yes Yes No Yes No No No
Individually Numbered Yes Yes Yes Yes Yes No Yes No Yes Yes
Rear CPU Socket Fan Yes Yes Yes Yes Yes No No Yes Yes Yes
Dust Filters No Yes Yes Yes Yes Yes Yes No No No
Multi Zone PWM Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dedicated Pump PWM Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dedicated Pump Power Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Temperature Based RPM Control Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
RPM Curve Adjustment Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
PSU Jump Start Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
PSUs x1 x1 x1 x1 x1 x1 (2nd can be added with optional addon) x1 (2nd can be added with optional addon) x1 x1 x1
Water-cooling Loops x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel) x1 (2nd can be added with Dual Loop Side Panel)
Color Black with Silver Flake & Clear Black & Clear Black & Grey Tinted White & Clear Carbon Fiber, Black & Clear Black & Clear Black, Clear & Silver or Gold Black & Clear Black & Grey Tinted White & Clear
Drives x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted x2 2.5” if GPU/s not vertically mounted x2 2.5” if GPU/s not vertically mounted x2 x2.5” x2 x2.5” x2 x2.5”
Personalised etched name and serial number No No Yes Yes Yes No Yes No No No
Carbon Fiber No No No No Yes No No No No No
PCB Covers with integrated ARGB Yes Yes Yes Yes Yes No Yes No Yes No
