Spectre 4-M Elite

In stock

Order processing time 1-2 days.

  • Spectre 4-M Elite distribution plate with increased ventilation
  • Replaces the front radiator panel to enhance the transparent “Spectral” look
  • Dual thick acrylic panels with countersunk fasteners
  • Increases system fluid volume while maintaining radiator compatibility
  • Single inlet and outlet with reversible routing
  • Perimeter and front ventilation for improved airflow
  • Integrated edge-lit LED strip for enhanced aesthetics

Manuals

US$329.00

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182006283 SKU: SC-S4-M-EL Category:

Description

Read More +Read Less − full description

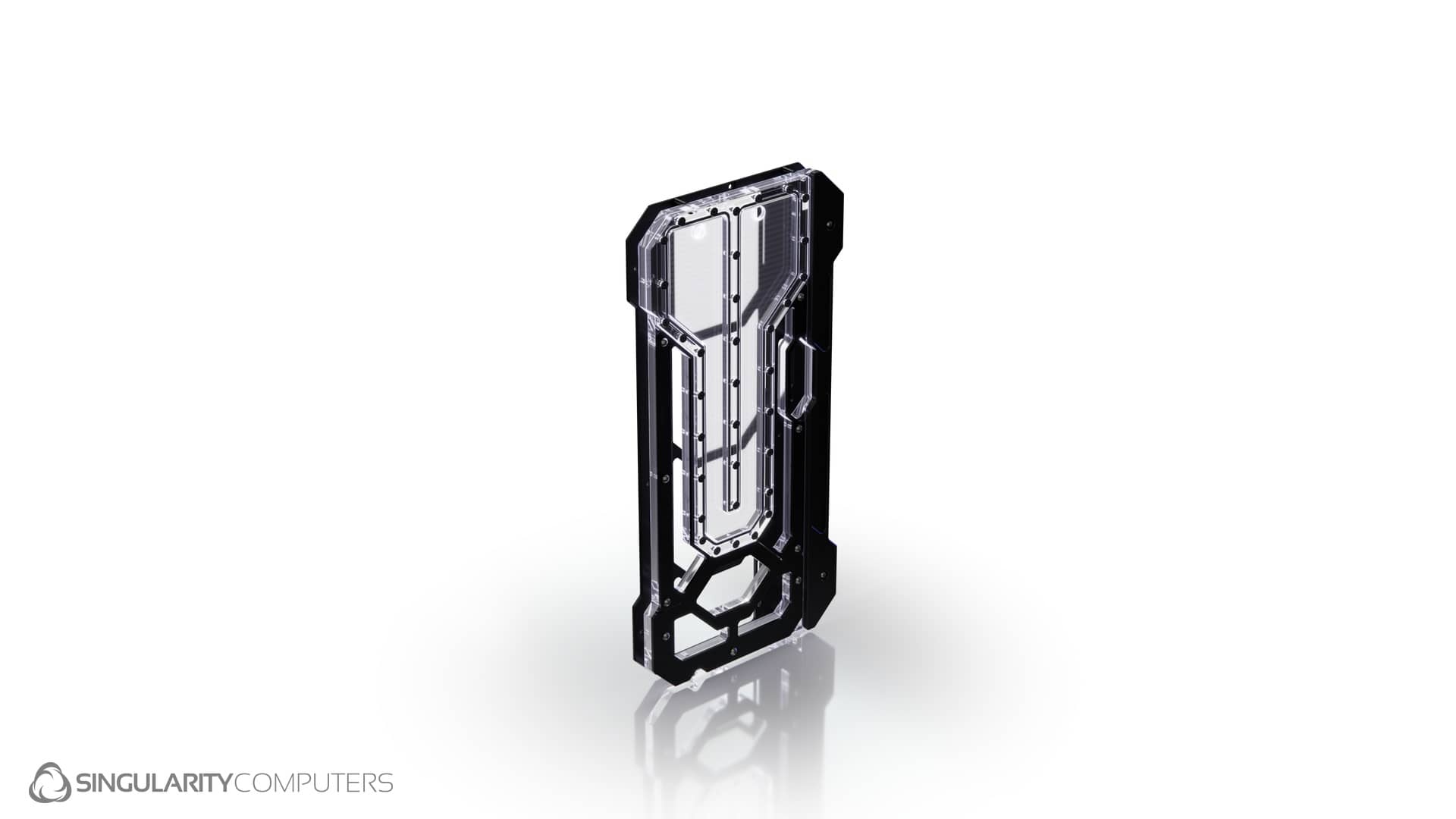

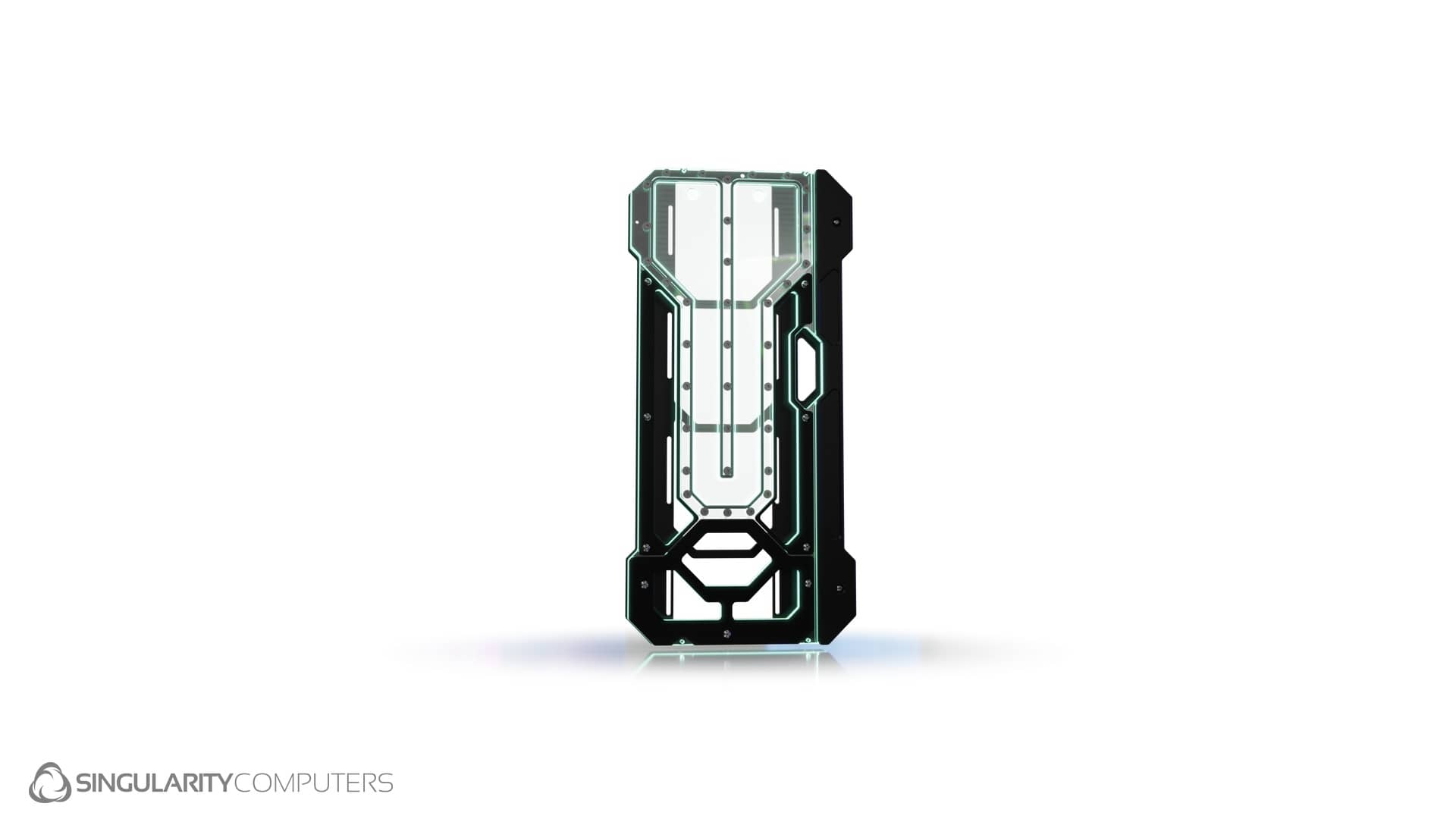

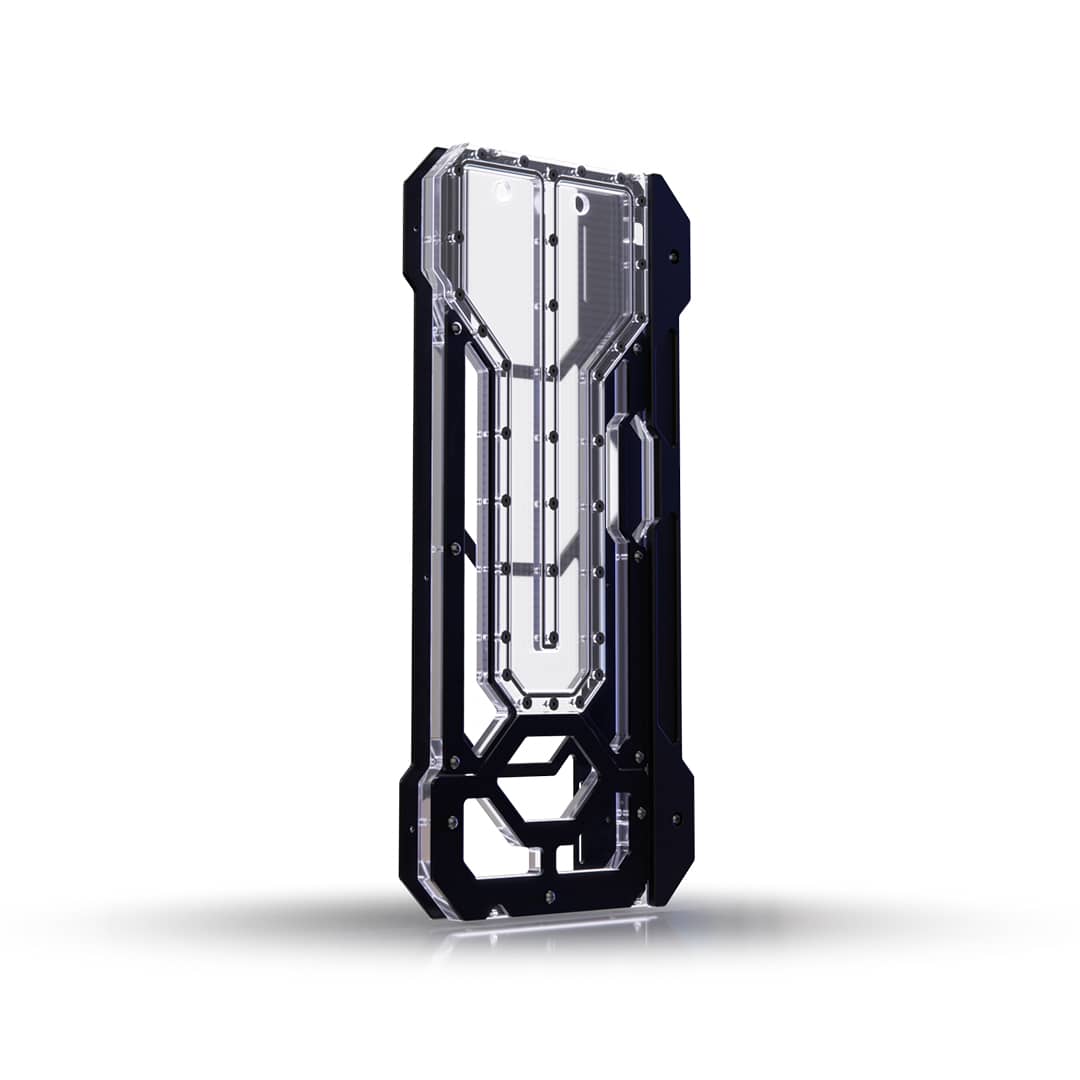

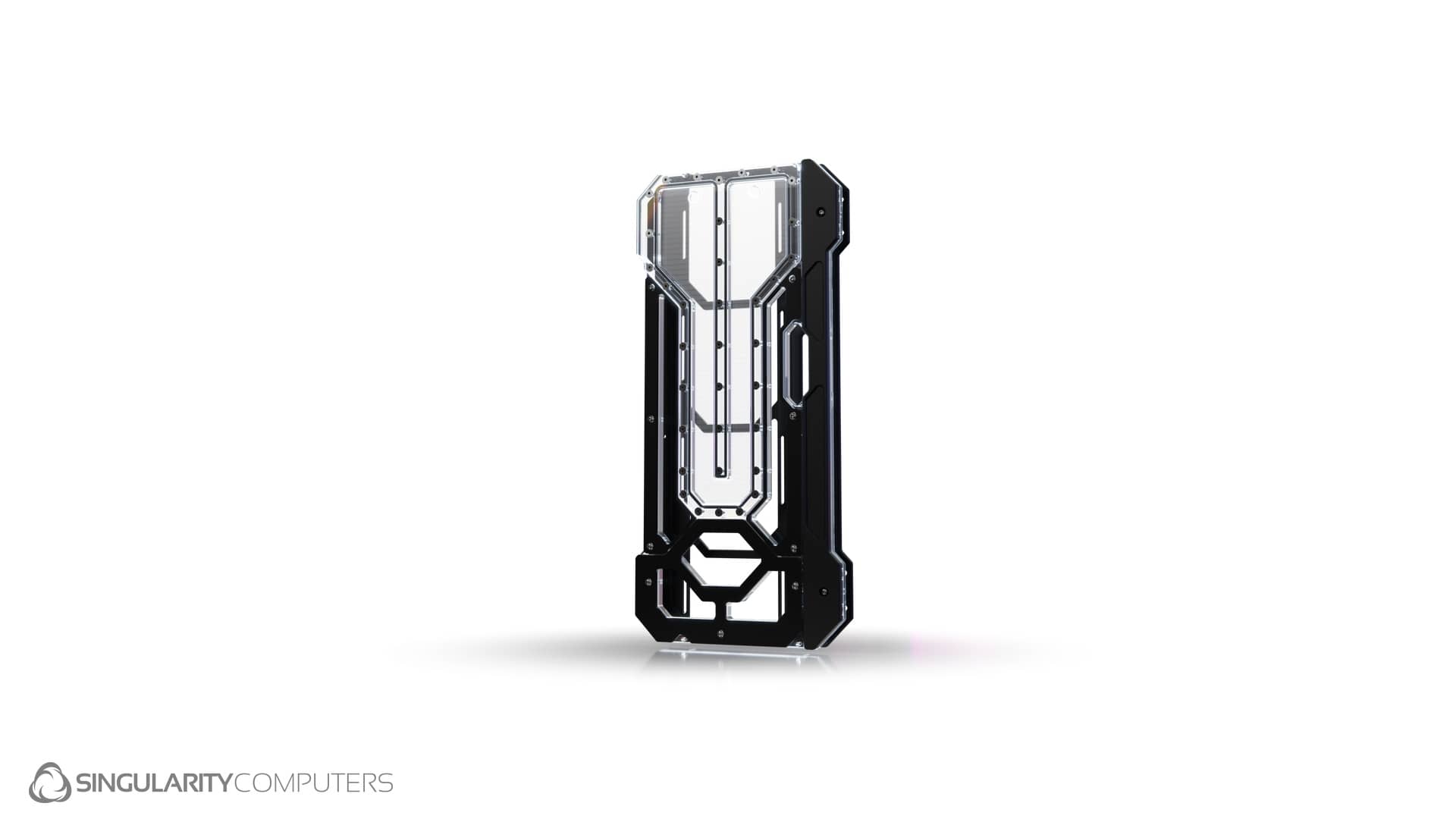

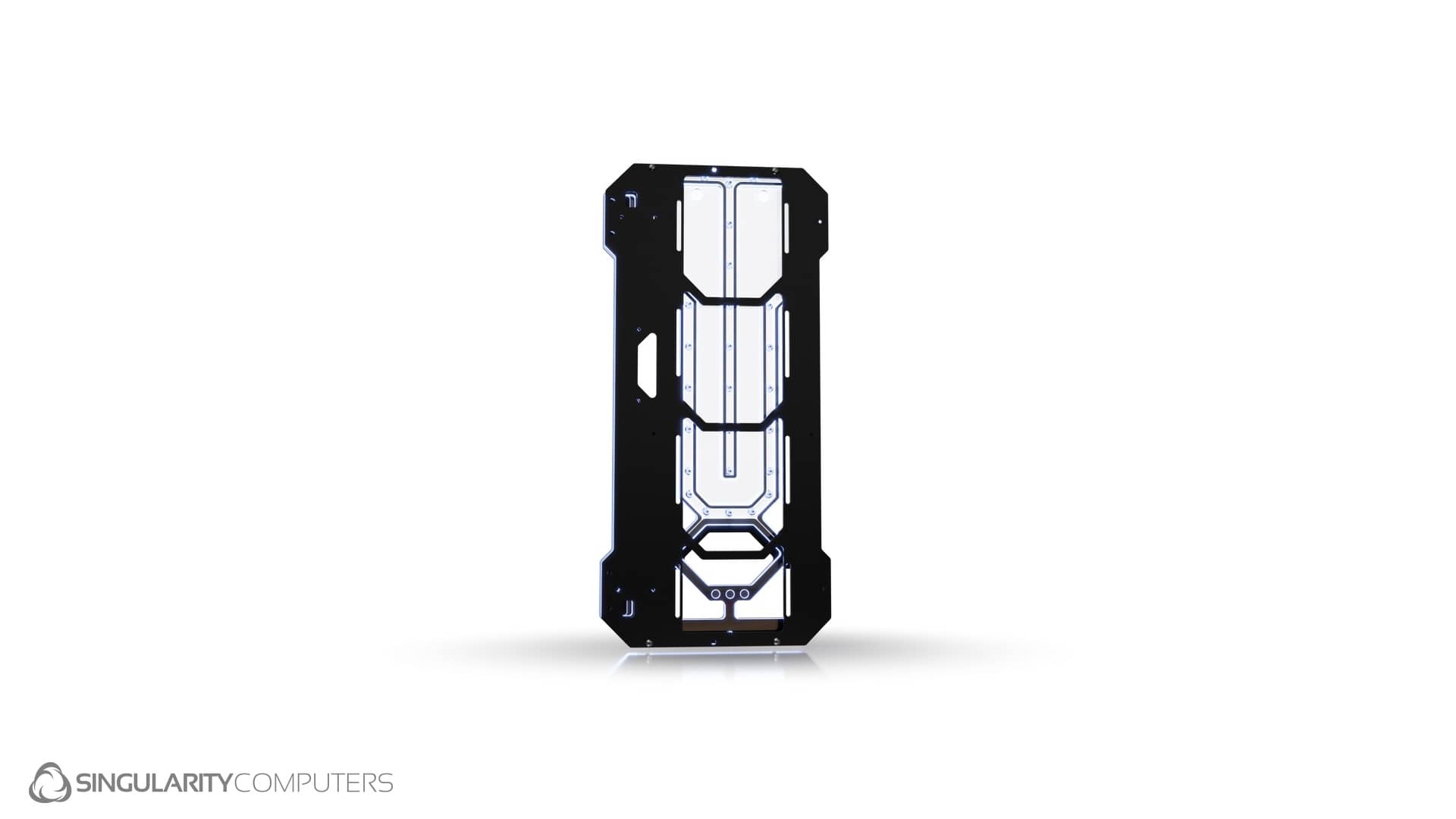

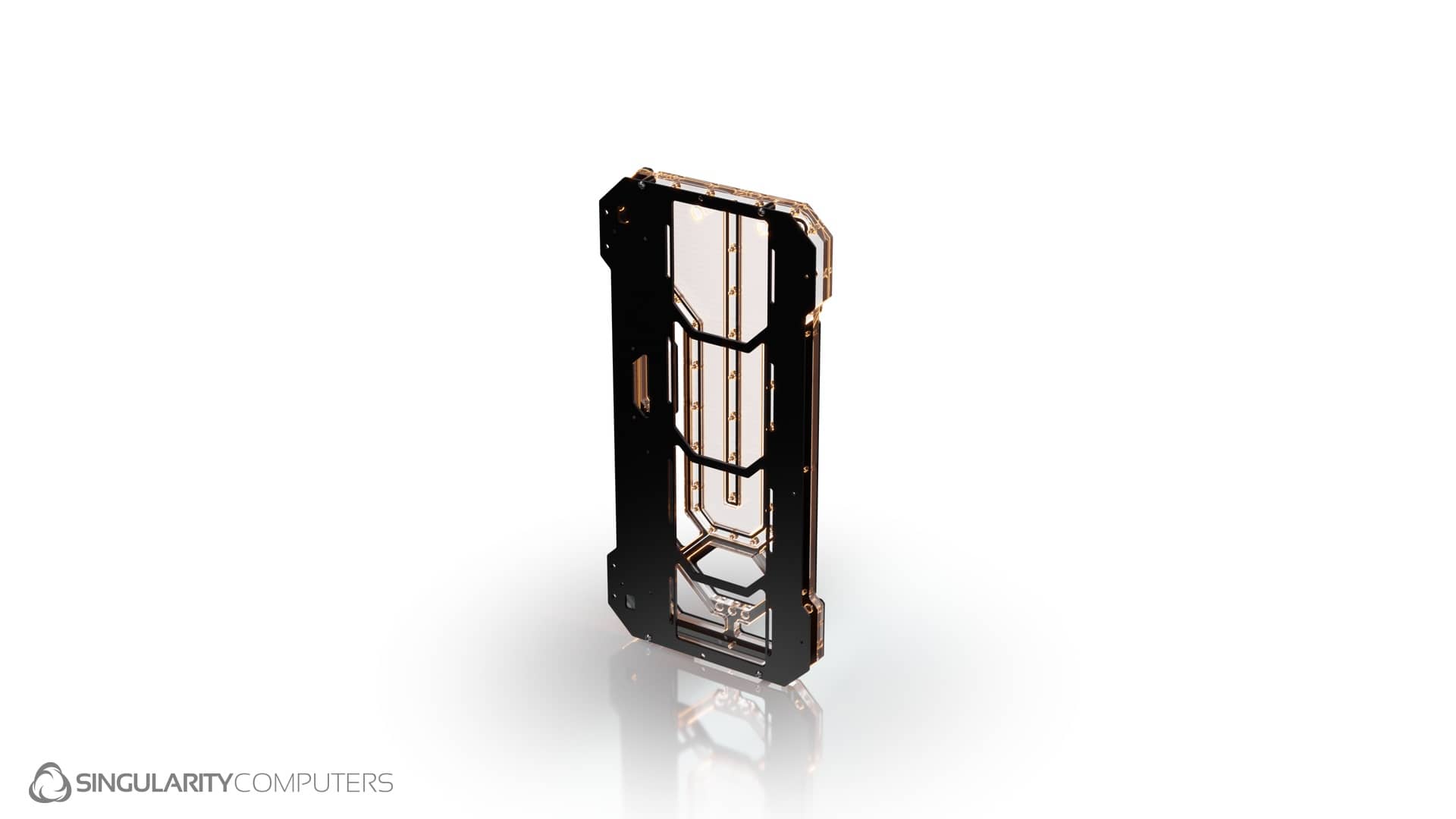

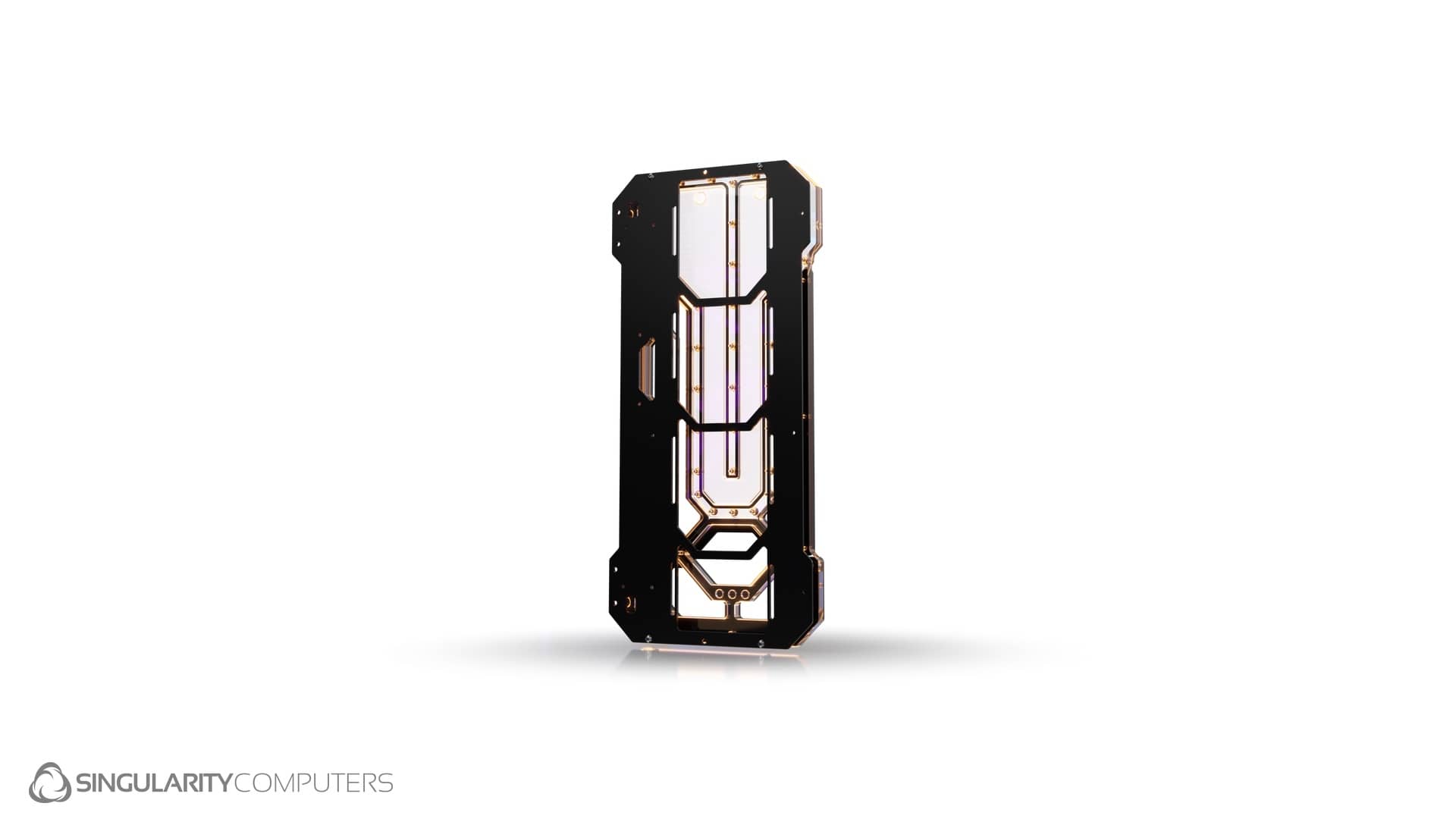

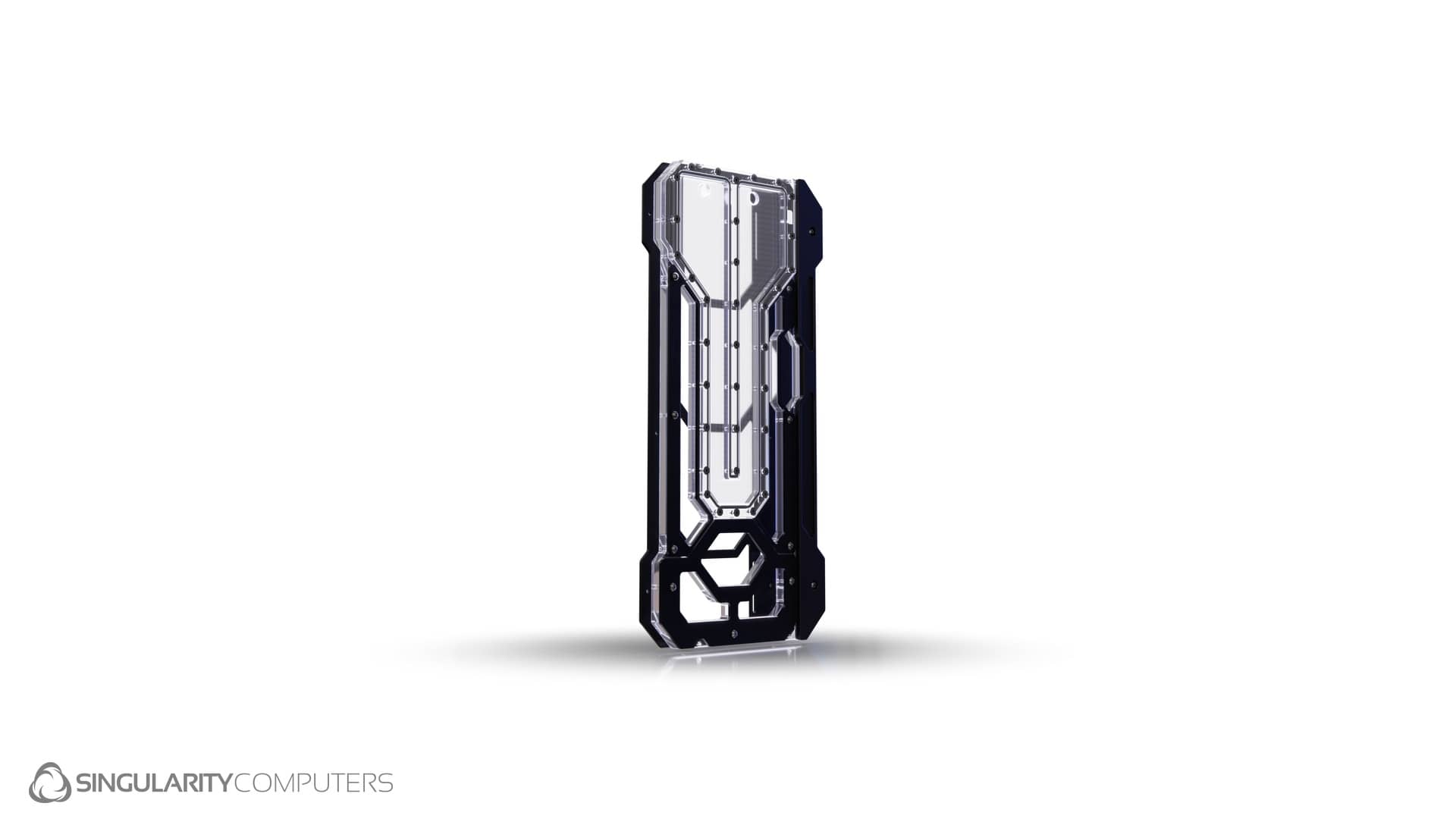

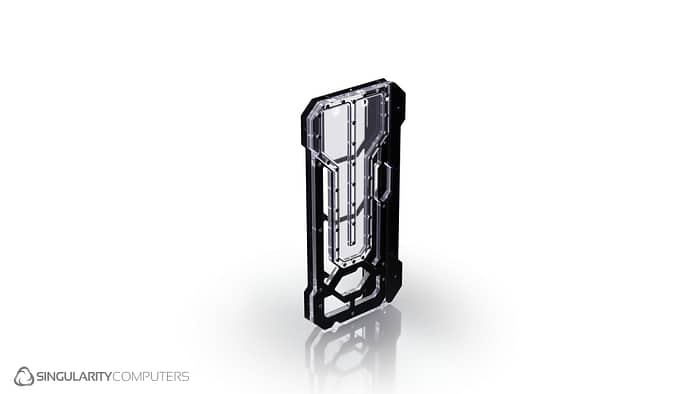

The Spectre 4-M Elite has an all-new design with increased ventilation. It has two thicker acrylic panels and countersunk fasteners to improved durability, quality, and aesthetics. It replaces the front radiator panel which enhances the transparent ‘Spectral’ look of the case, further showing off the coolant and internal components. The main purpose is an aesthetic feature, although it does increase fluid volume. It has a single inlet and outlet which can be routed in either direction. The ports are positioned on one end of the distribution plate for connection to and from the main case distribution plate and front radiator. Radiators can still be attached and there is ventilation around the perimeter of the distribution plate and through the ventilated sections on the front. There is an LED strip positioned on the edge of the distribution plate so that it glows.

Specifications

Spectre 4-M Elite Distribution Plate.
Ports: x2 G1/4” BSPP. 1x Inlet. 1x Outlet.
LED Strip: 50cm ARGB 5V with 50cm black cable.
Materials: Cast Acrylic.
Gaskets: Silicone Black.
Fasteners: Stainless Steel Silver.
Manufacturing Process: CNC Mill. CNC Router. Laser Cutter.
Assembly: Assembled by hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Dimensions: L: 528mm x W: 245mm x H: 40mm.
Weight: 3kg.
Packaged Dimensions: L: 500mm x W: 300mm x H: 80mm.
Packaged Weight: 3.5kg.

Installation:
Installs onto the front panel of Spectre 4-M instead of the stock aluminum front radiator ventilated panel. Either port can be used as the inlet or outlet.
