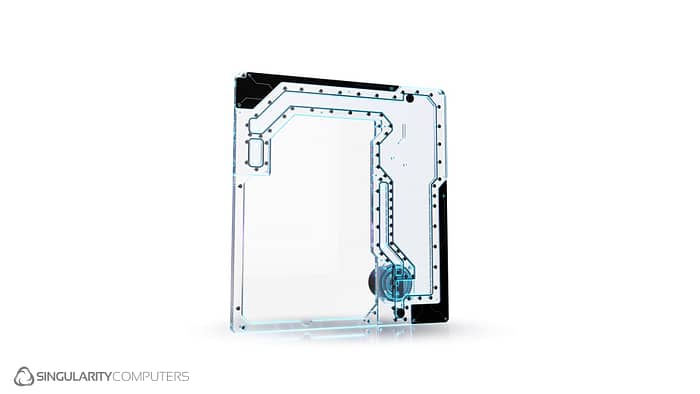

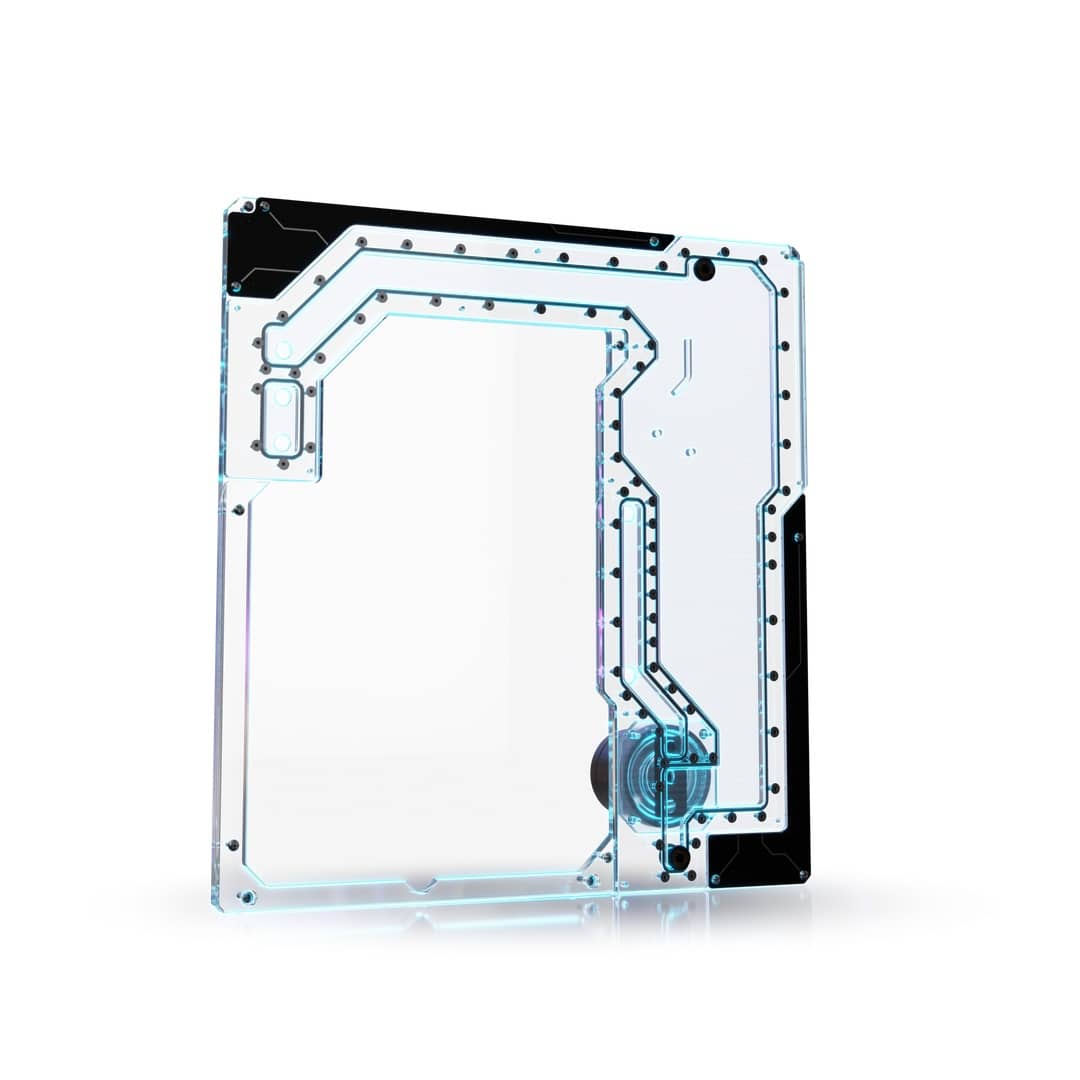

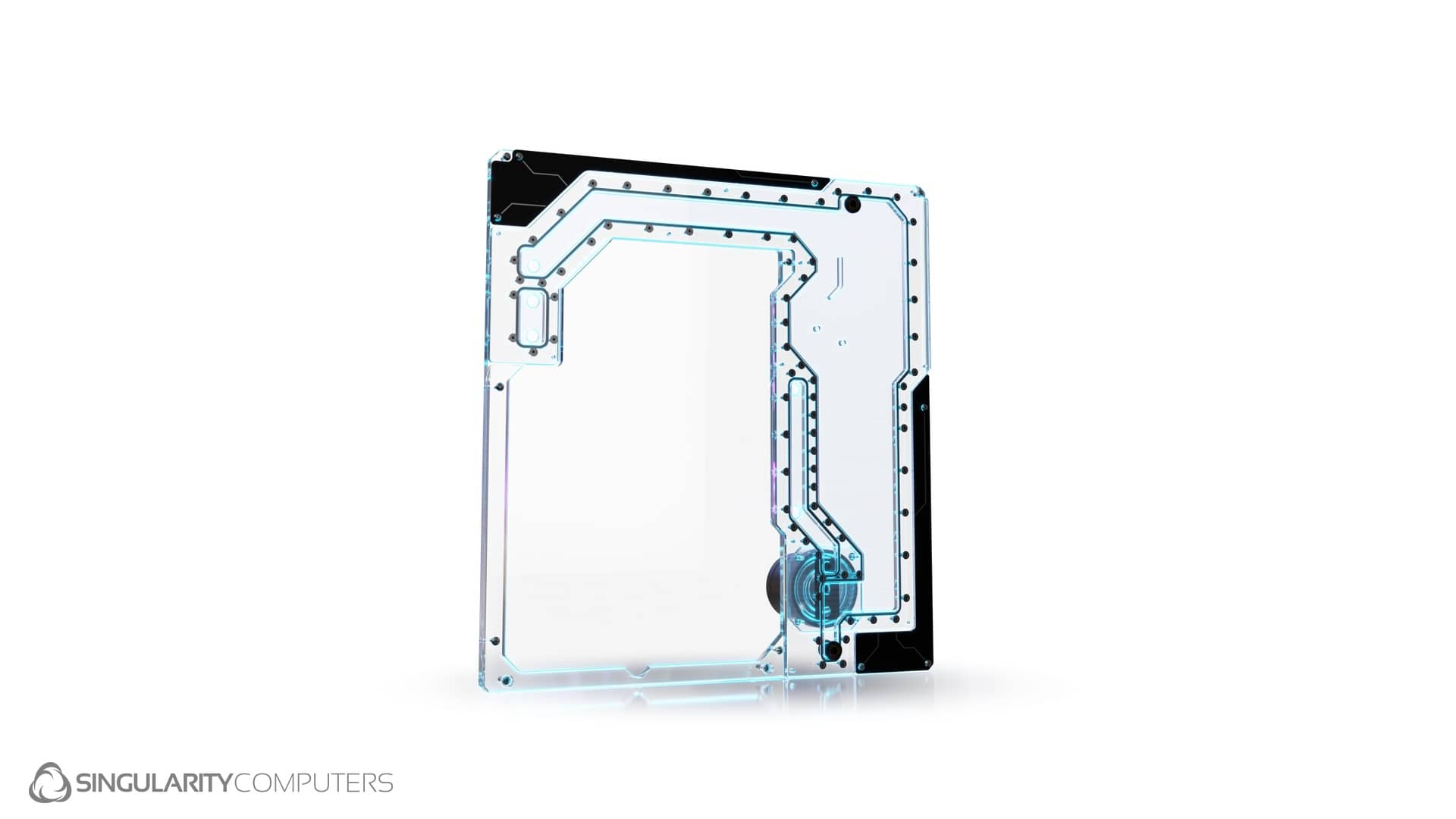

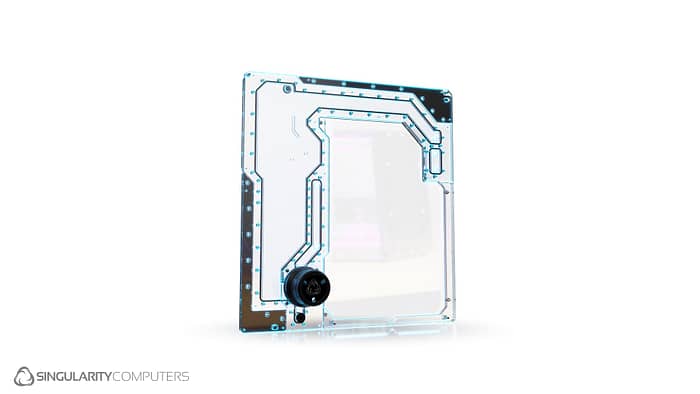

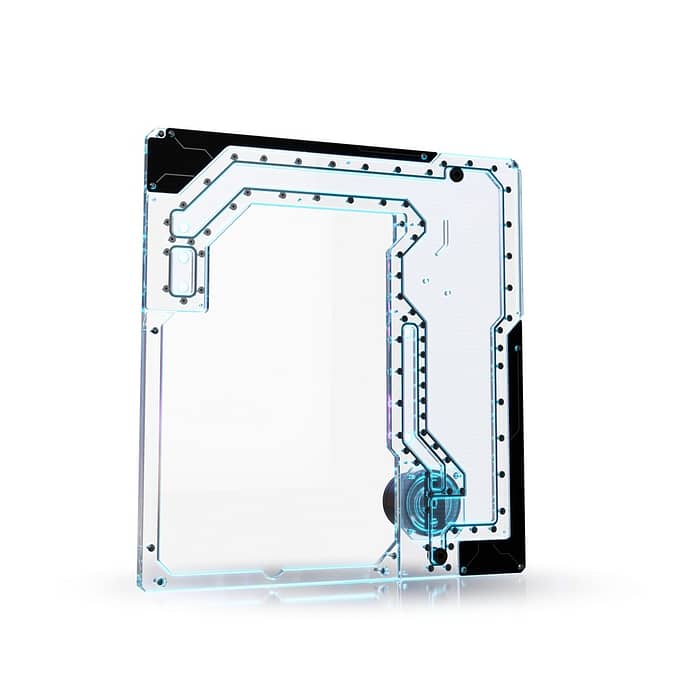

Spectre 4-M Dual Loop Side Panel

In stock

Order processing time 1-2 days.

  • Dual Loop Side Panel addon for the Spectre 4-M Water-cooling Case
  • Integrated D5 pump top and D5 Pump Cover
  • Designed for separate CPU and GPU loops
  • Removable window for easy access during system building
  • Open design maintains visibility of the internal components
  • Four dedicated ports for GPU loop and top radiator connections
  • Integrated fill and drain ports
  • Flexible port layout supports dual, single, series or parallel loop configurations
  • Two integrated ARGB PCB covers for enhanced lighting

Manuals

US$449.00

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

  • 1x Spectre 4-M Dual Loop Side Panel
    US$449.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182006405 SKU: SC-SPEC4-M-DLSP Category:

Description

Read More +Read Less − full description

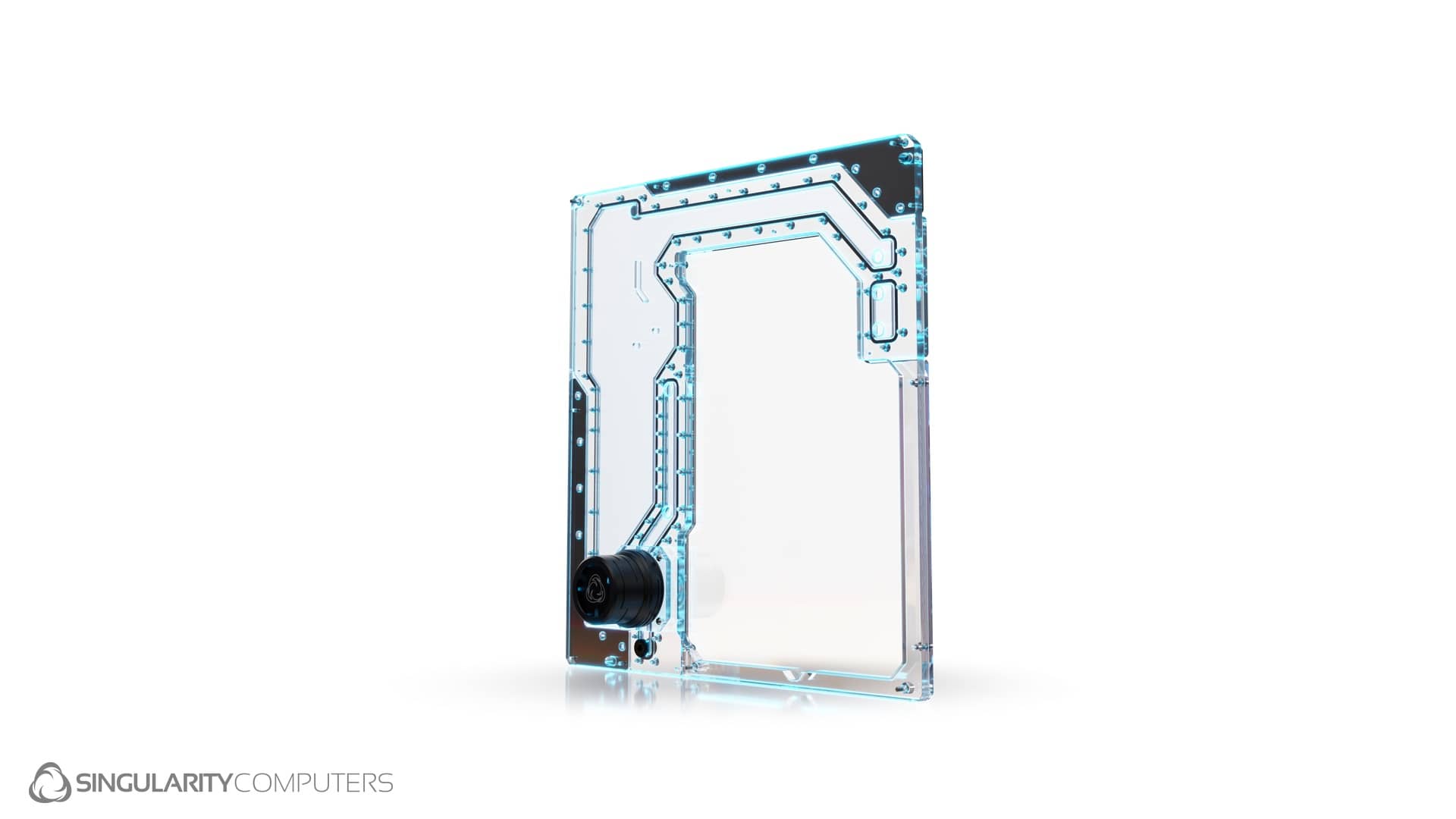

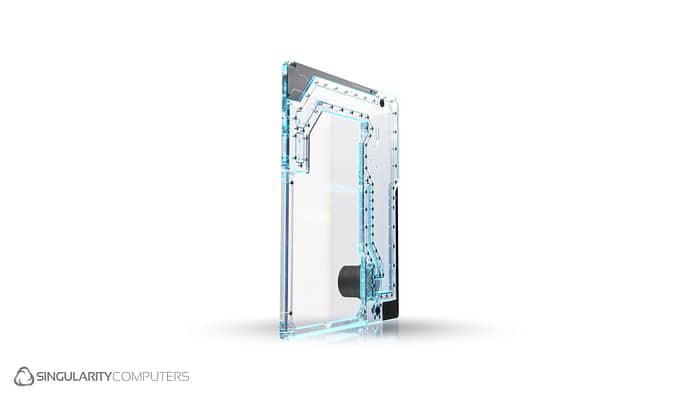

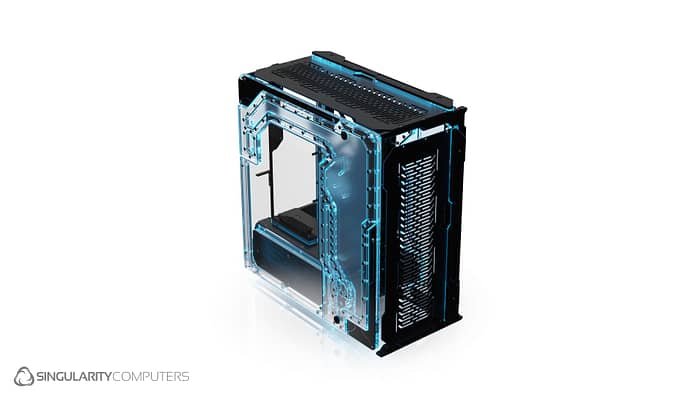

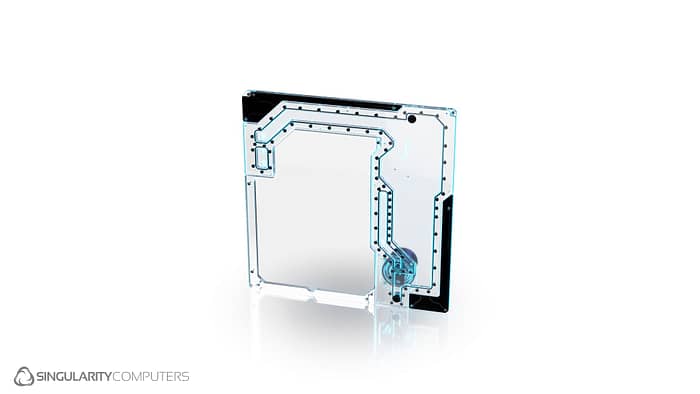

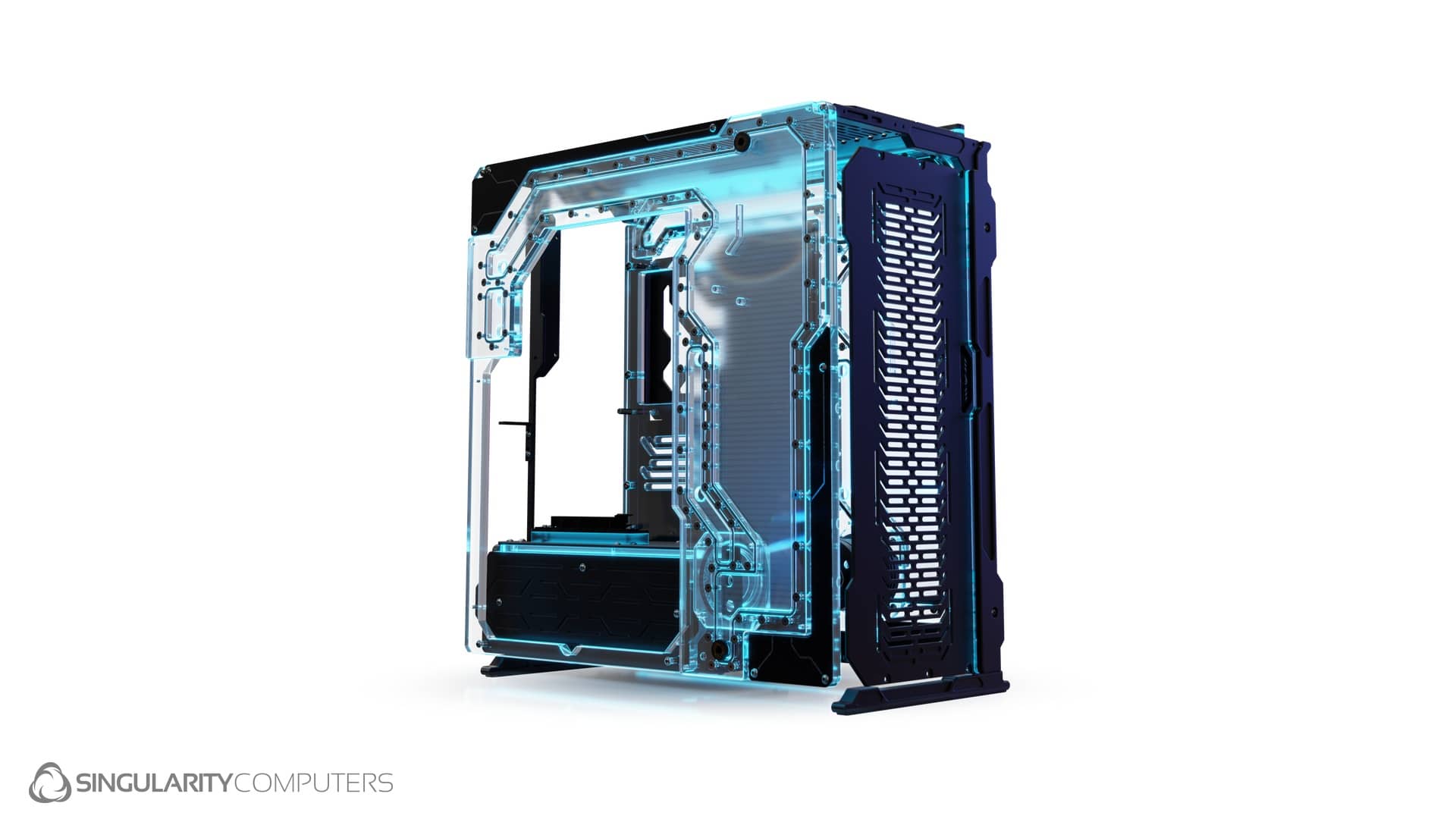

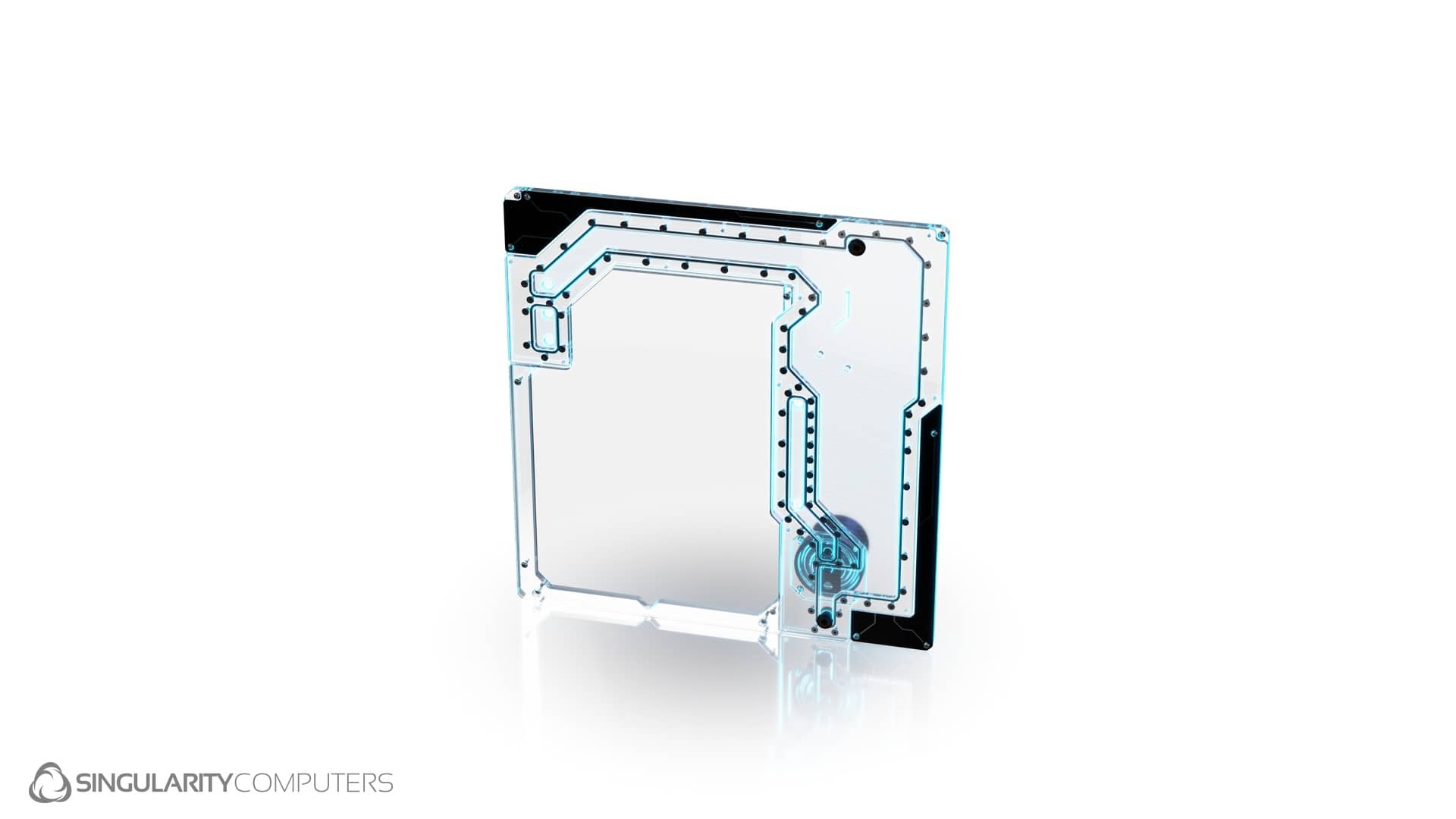

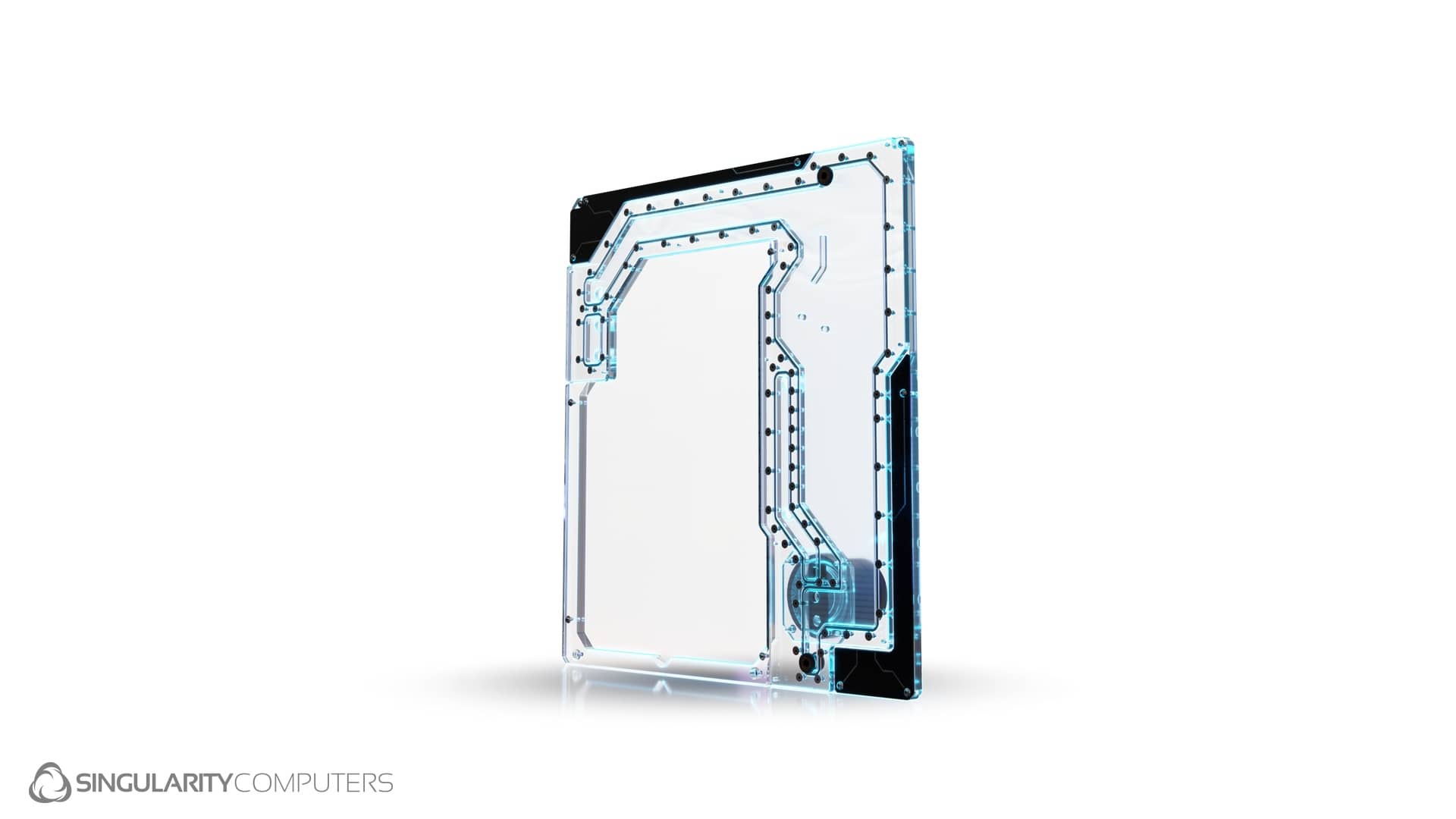

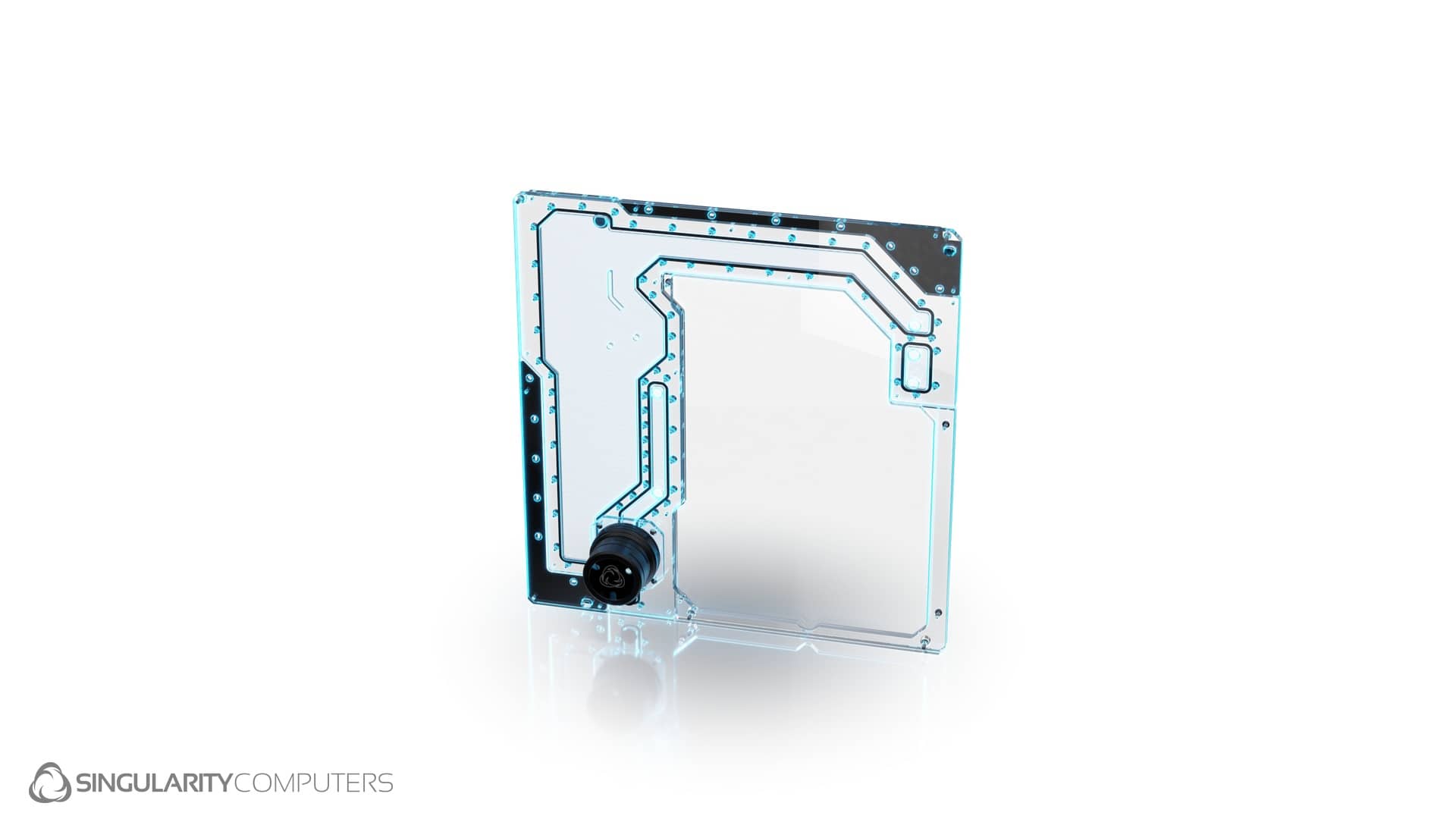

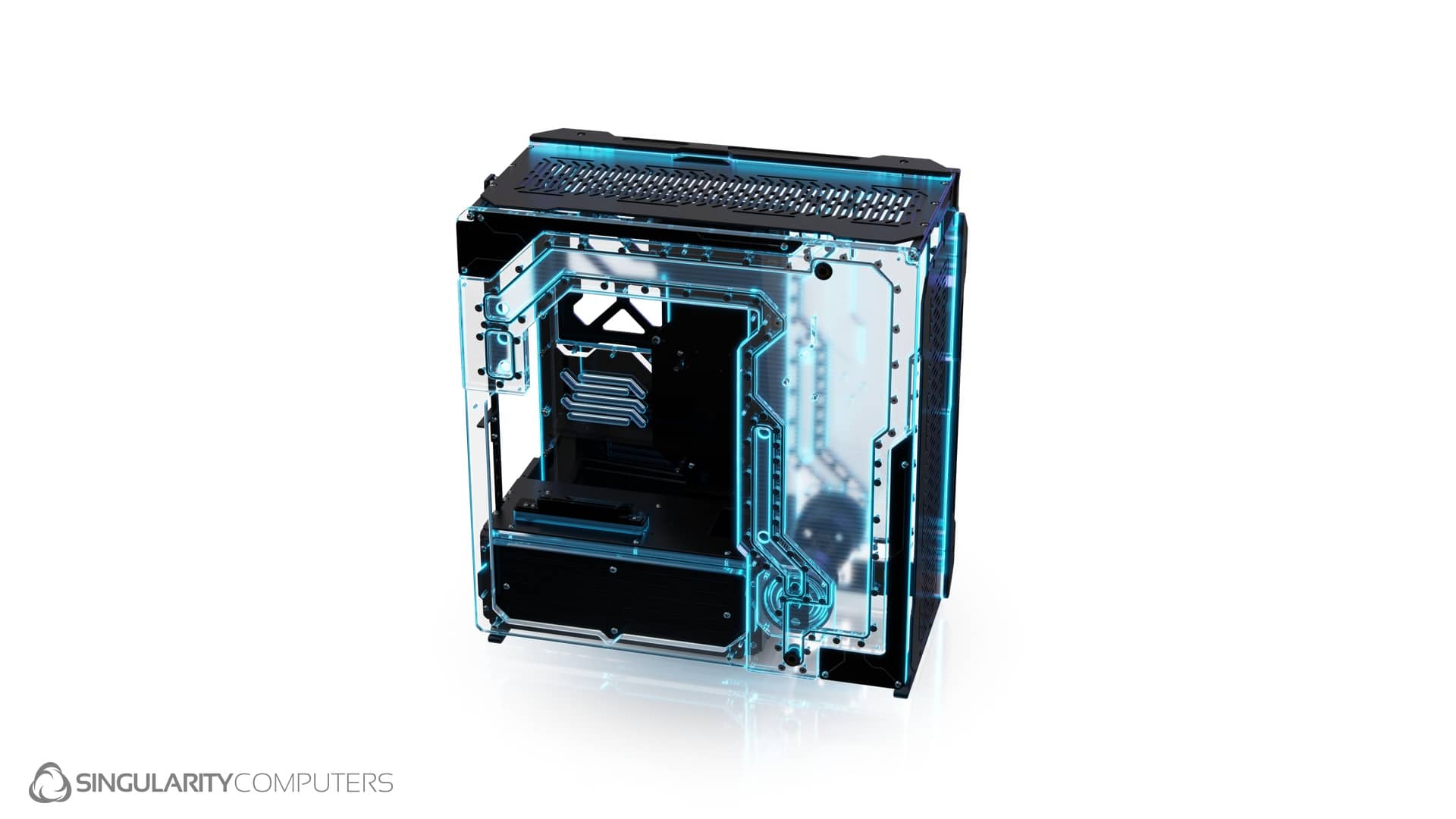

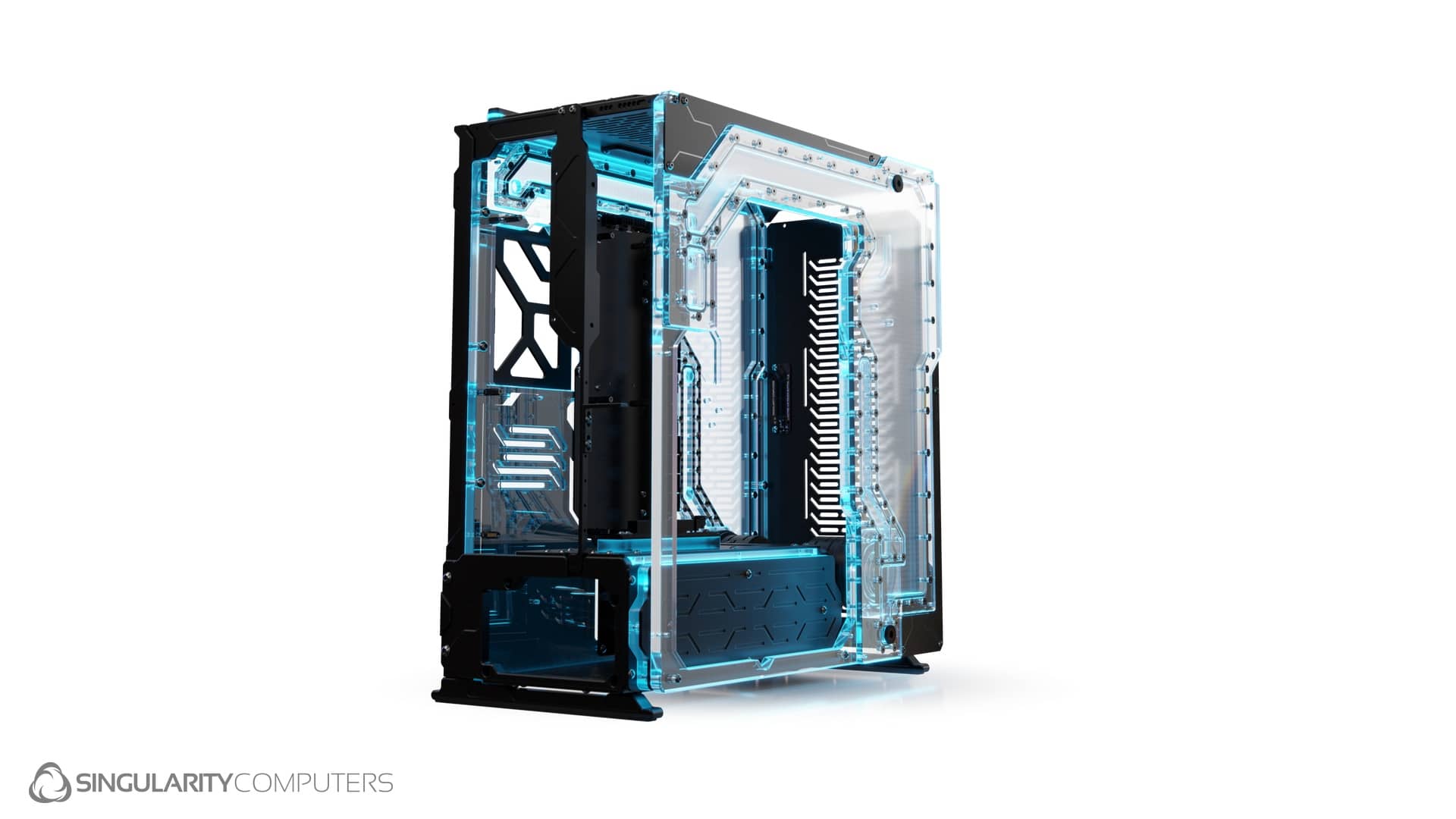

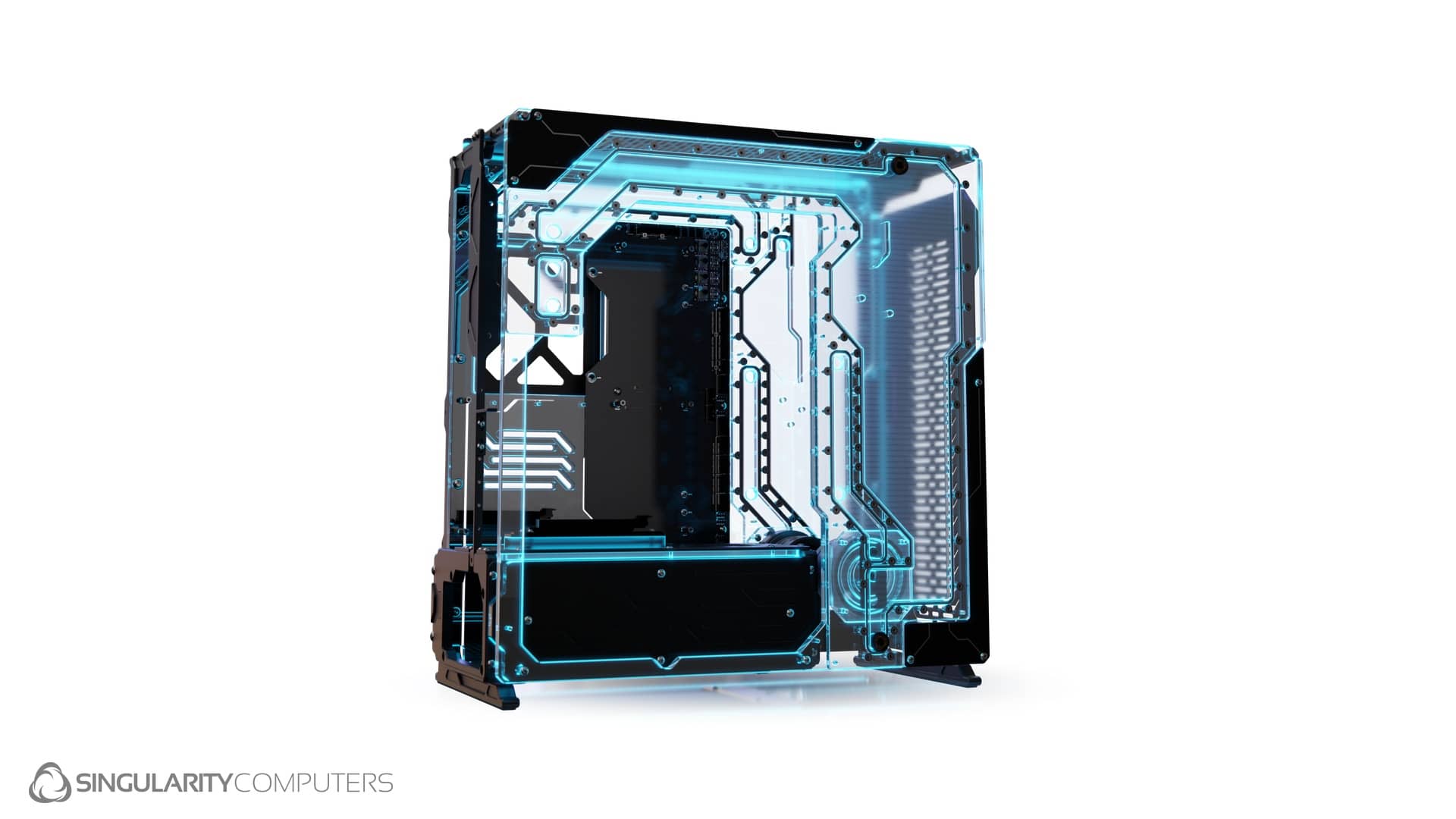

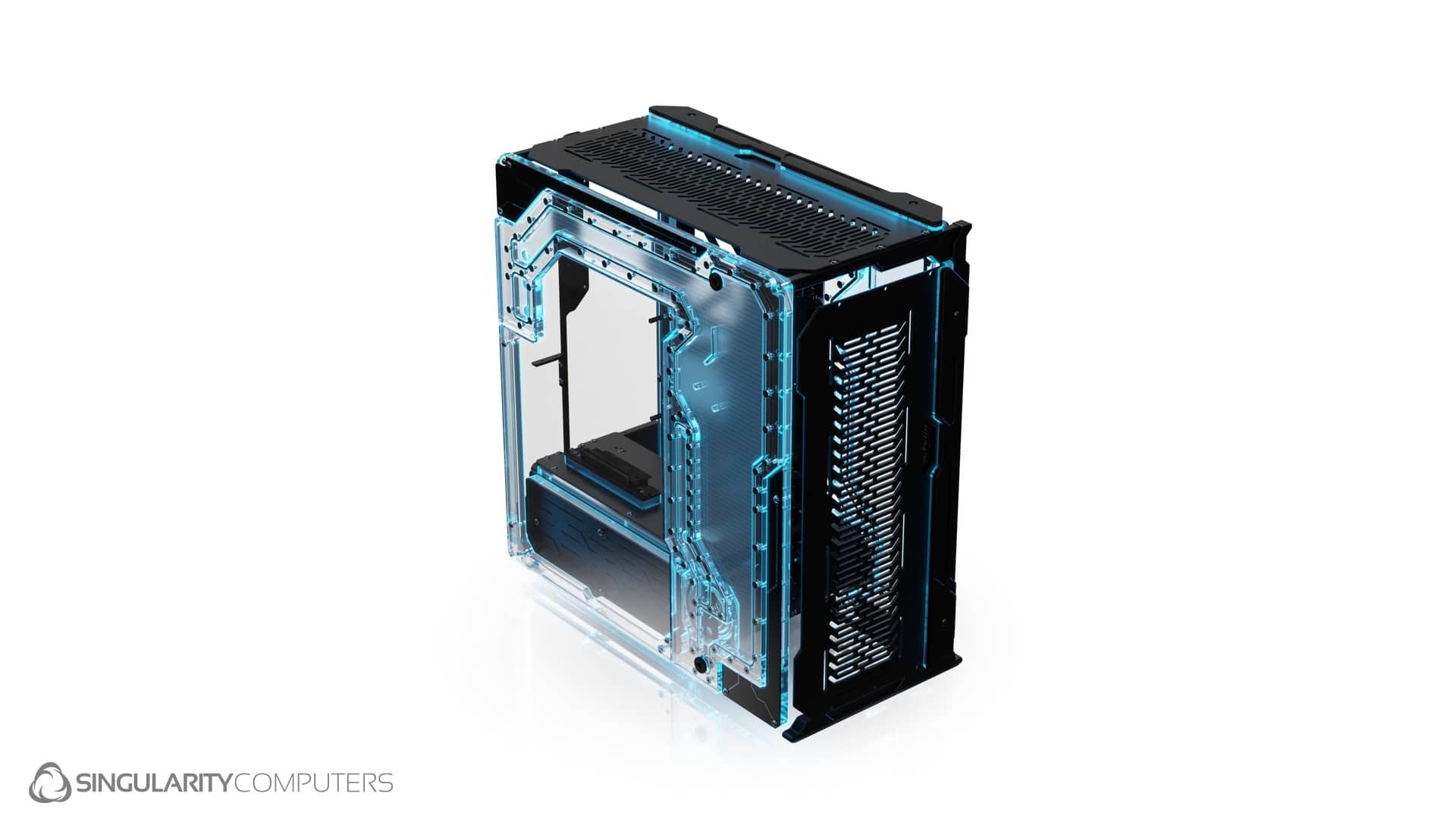

The Spectre 4-M Dual Loop Side Panel is an addon for the Spectre 4-M Water-cooling Case. It mirrors parts of the main distribution plate, but some port locations are different so that the Dual Loop Side Panel can be used for the GPU loop and the main case distribution plate for the CPU loop. It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated D5 pump top, D5 Pump Cover and two integrated ARGB PCB covers. There are 4 ports which are positioned for the GPU loop and top radiator, and a fill and drain port. The port layout has been designed for two separate loops, but it can be used for dual loops, single loop, series or parallel.

Specifications

Spectre 4-M Dual Loop Side Panel.
Protium 3.0 D5 Pump Cover.
Water-cooling Integration: Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x7 G1/4” BSPP. 1x Fill Port. 2x Drain Ports (x1 inside & x1 outside).
Pump: (Not included): Compatible with all D5 pumps.
LED Strips: x2 50cm ARGB LED Strips with 50cm cables (pre-installed).
Materials: Cast Acrylic. 6061 Aluminum. PCB.
Fasteners: Stainless Steel.
Gaskets: Silicone.
Manufacturing Process: CNC Router, CNC Lathe, CNC Mill, PCB.
Assembly: Distribution Plate Assembled by Hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Product Dimensions: L: 486mm x W: 80mm x H: 528mm.
Product Weight: 2.5kg.
Packaged Dimensions: L: 536mm x W: 130mm x H: 578mm.
Packaged Weight: 3kg.

Installation:
Installs in the location of the stock side panel window.
