Spectre 4 Dual Loop Side Panel FanGuardian Mount

In stock

Order processing time 1-2 days.

  • Designed for the Spectre 4 Dual Loop Side Panel
  • Front-mounted FanGuardian PowerBoard Controller
  • Positions FanGuardian for easy touch screen access
  • Mounts beneath the pump for a clean installation
  • Includes extended cable for PowerBoard connection

Manuals

US$79.00

Select Color Options
None Satin Black Gloss White Satin Black

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Optional Add-Ons

Enhance your purchase with these recommended extras

PowerBoard

FanGuardian PowerBoard Controller (optional) USD $149
None Yes +US$149.00

Fanguardian PowerBoard Controller
The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It has updateable Software/Firmware and we will continue adding features.

  • 1x Spectre 4 Dual Loop Side Panel FanGuardian Mount
    US$79.00

Subtotal excludes shipping & tax

All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods

Description

Read More +Read Less − full description

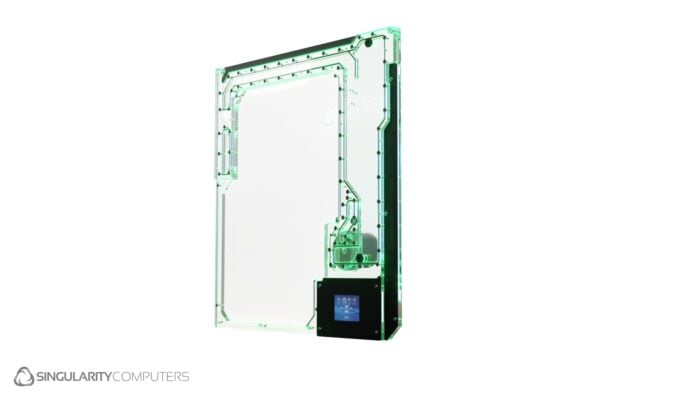

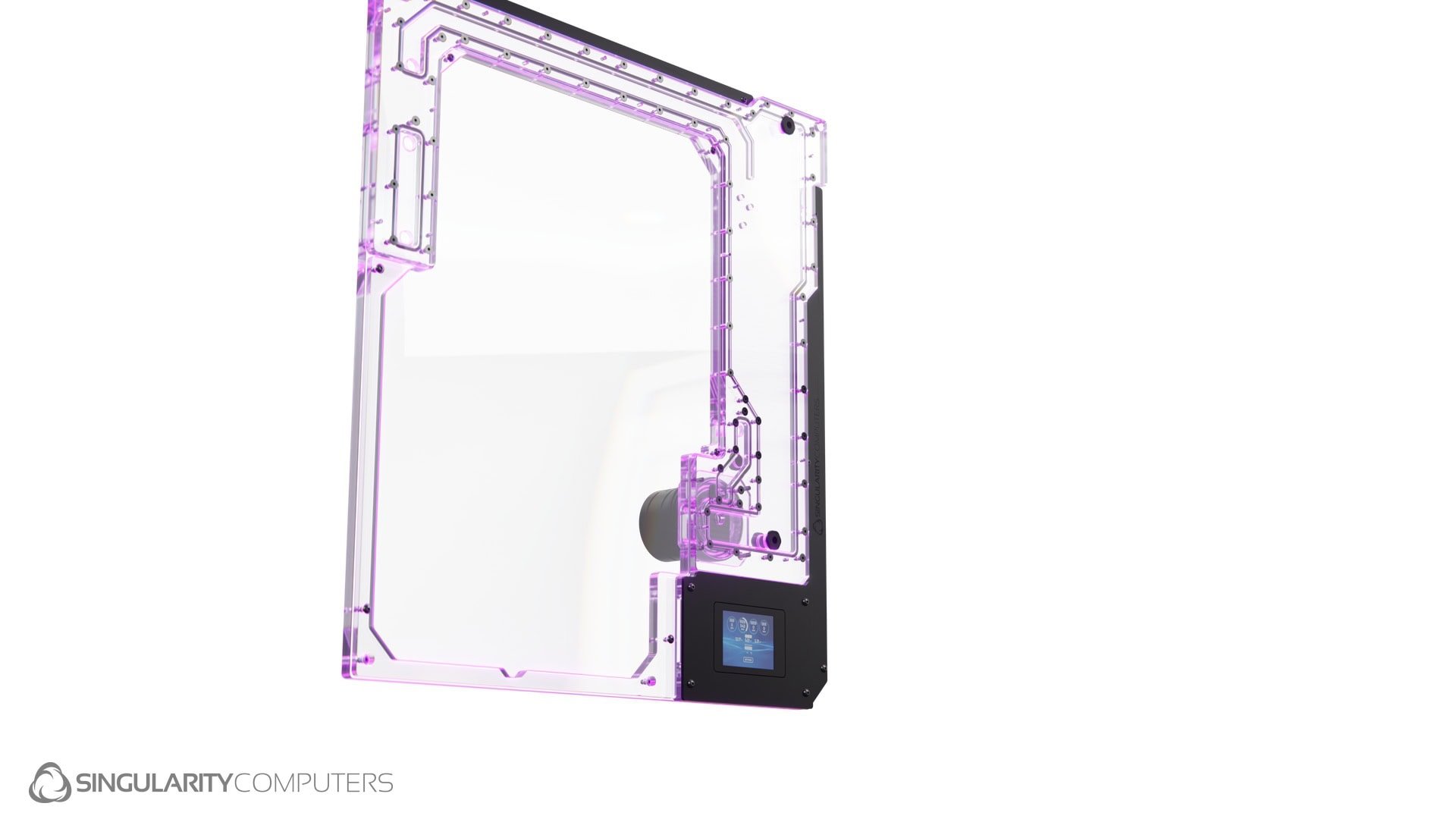

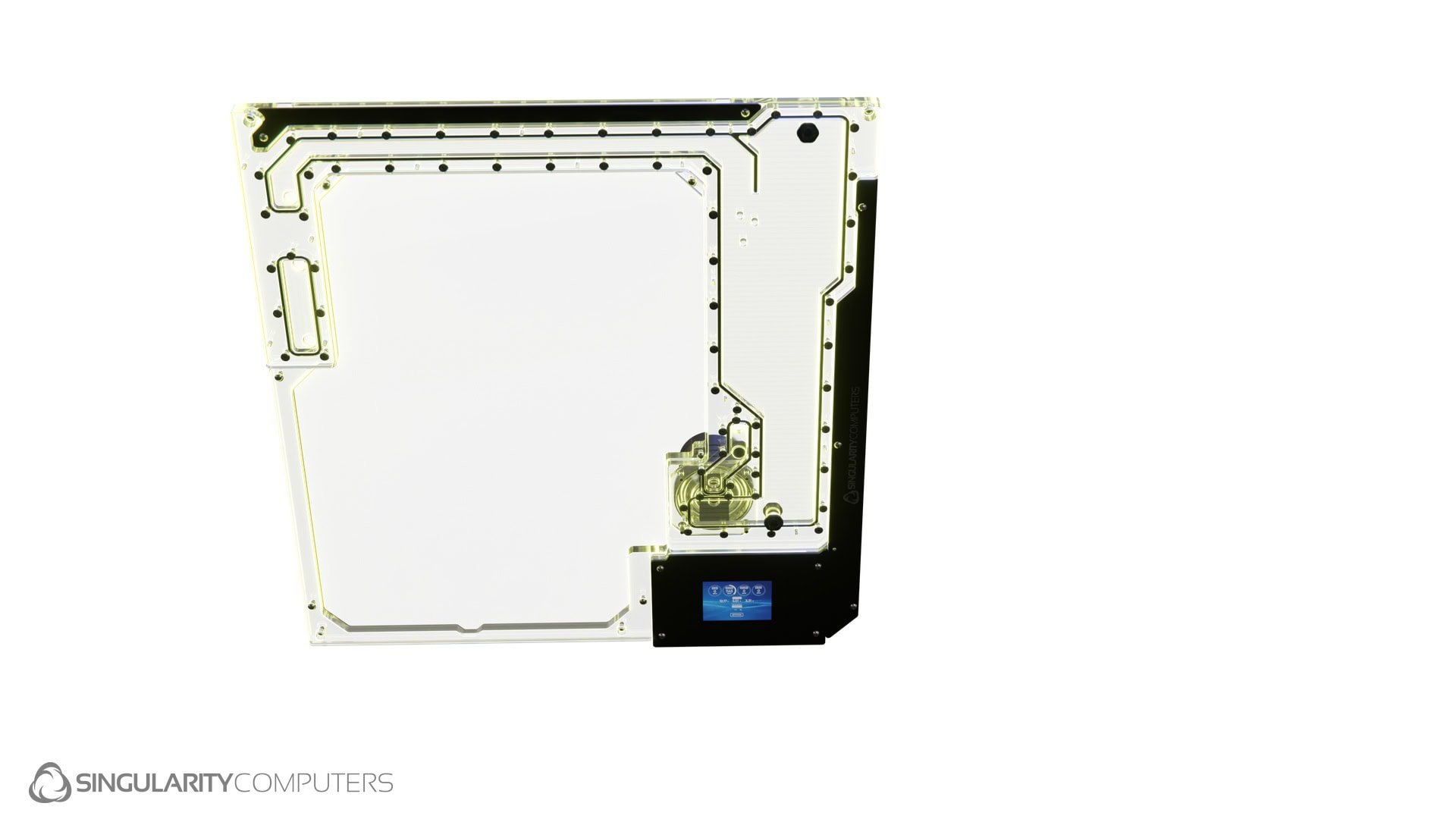

The Spectre 4 Dual Loop Side Panel FanGuardian Mount is an addon for the latest version of the Spectre 4 Dual Loop Side Panel. It mounts the FanGuardian PowerBoard Controller in the front bottom corner of the Dual Loop Side Panel under the pump. This puts it on the outside of the case in a far more visible location where the touch screen can easily be accesses. There is a longer cable included for the FanGuardian to connect it to the PowerBoard.

Specifications

Spectre 4 Dual Loop Side Panel FanGuardian Mount.
CNC Machined 10mm Clear Acrylic Mount.
Lasercut 3mm Black Satin hold down cover.
FanGuardian Cable 1M Black.
Materials: Cast Acrylic.
Fasteners: Stainless Steel.
Manufacturing Process: CNC Router, Laser.
Product Dimensions: L: 400mm x W: 120mm x H: 13mm.
Product Weight: 0.4kg.
Packaged Dimensions: L: 450mm x W: 150mm x H: 100mm.
Packaged Weight: 0.6kg.

Installation:
Installs in the front bottom corner of the latest version of the Spectre 4 Dual Loop Side Panel. Remove the stock cover panel and replace with the FanGuardian Mount. Connect the included cable from the FanGuardian to the PowerBoard, it can be routed through the PSU Shroud and up behind the motherboard.

Compatibility:
Spectre 4 Aeternus (all versions).Spectre 4 Carbon.Spectre 4 Enterprise.Spectre 4 Quantum.Spectre Limited Edition Water-cooling Case.
