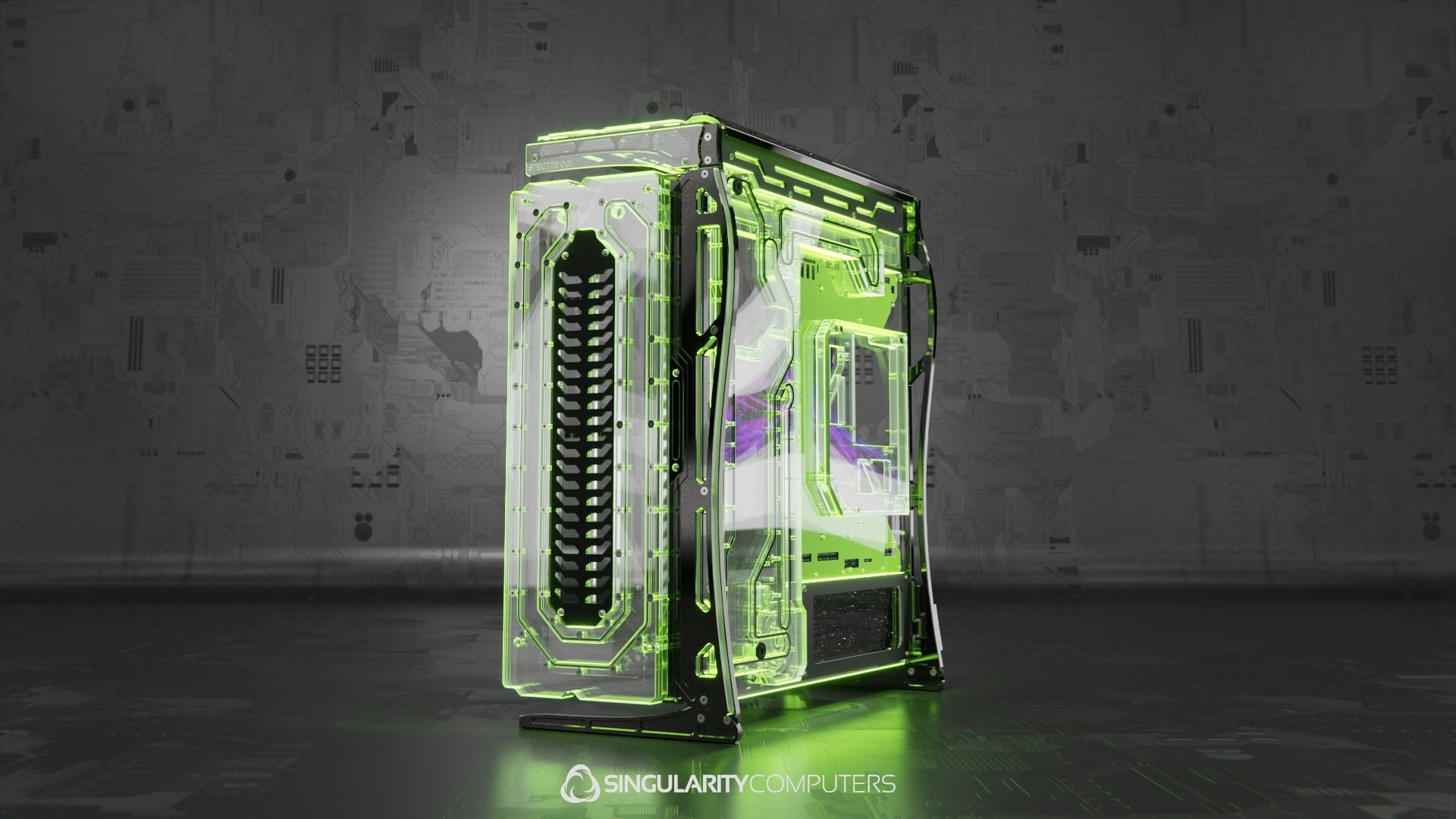

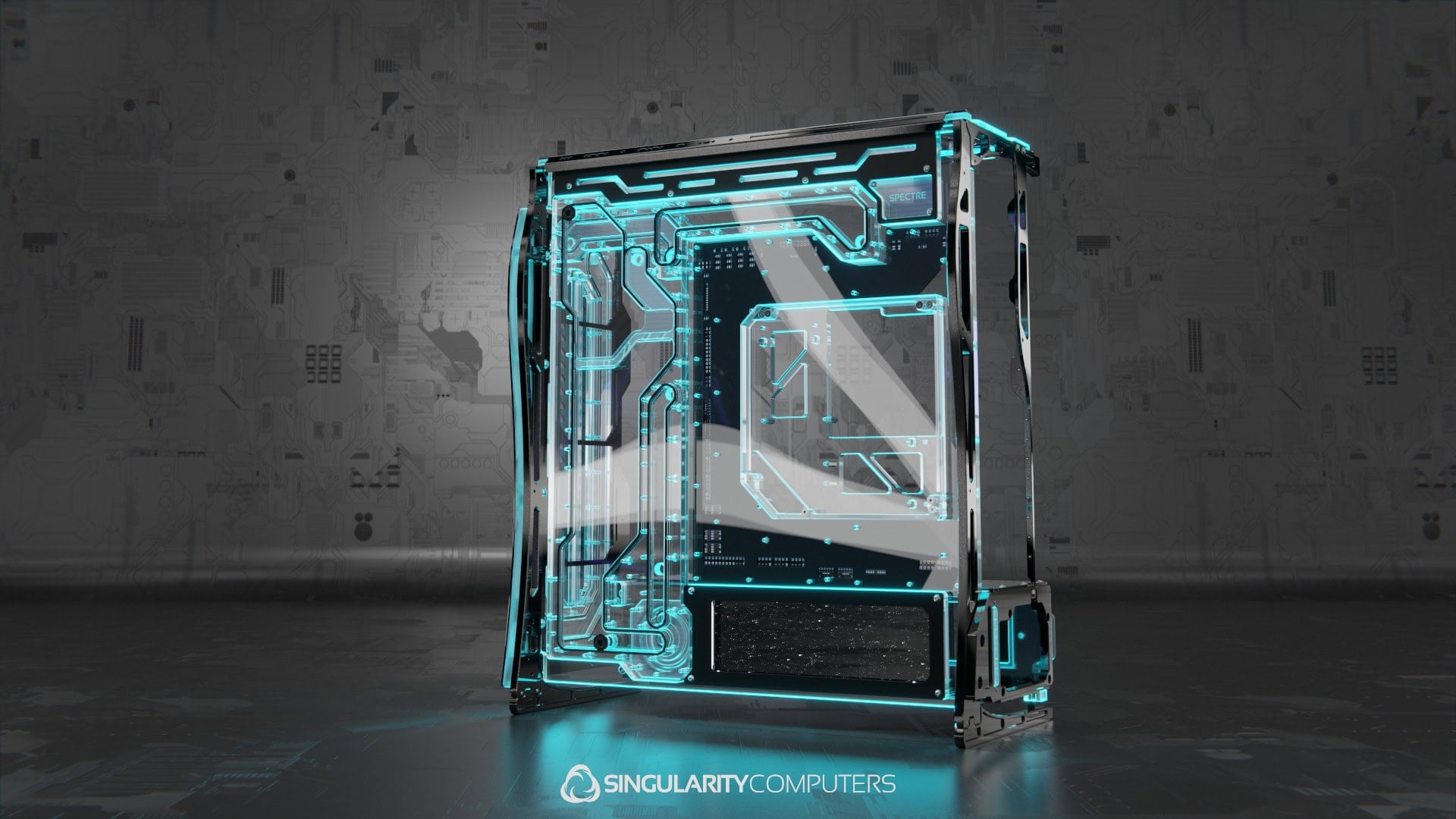

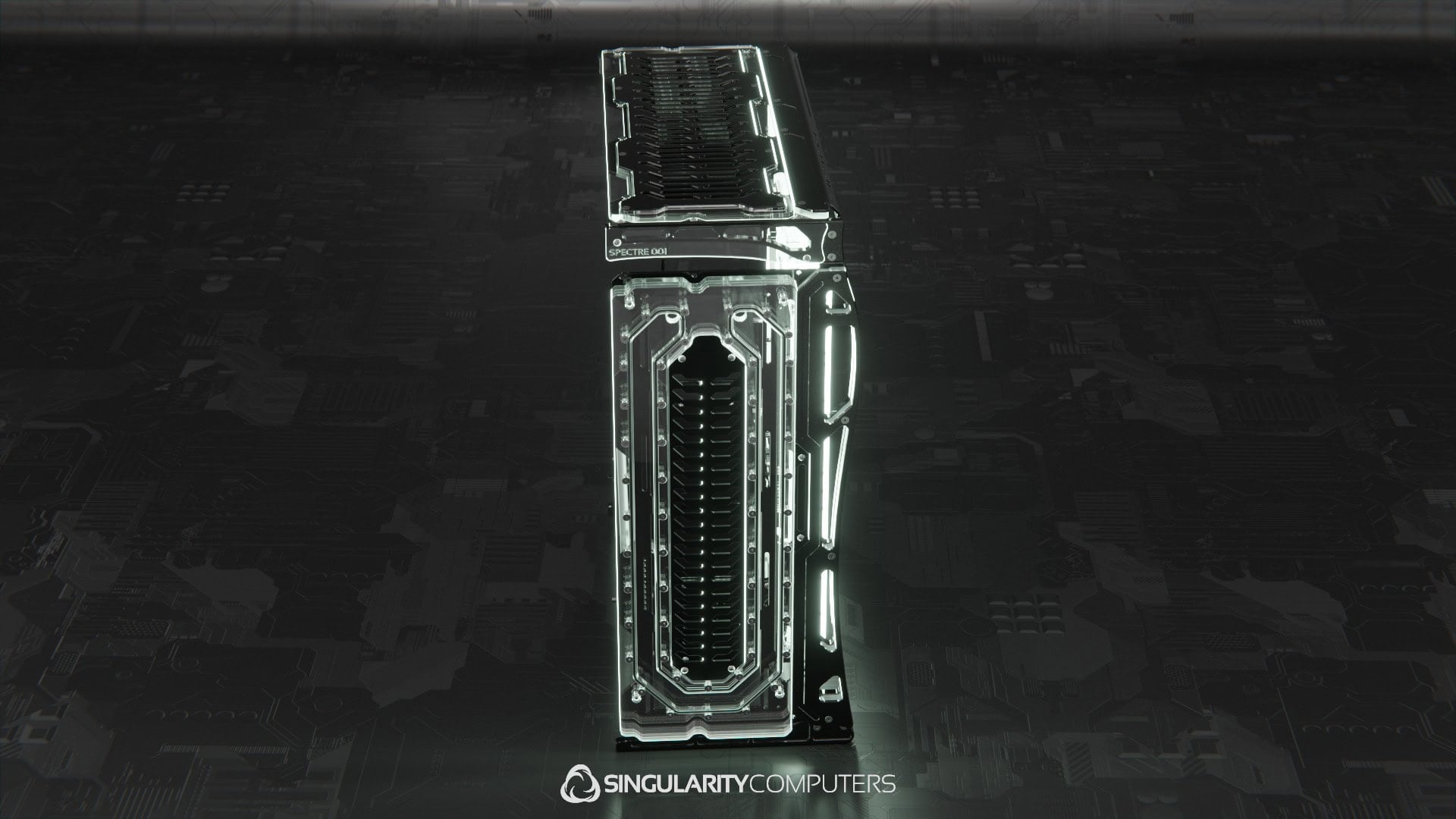

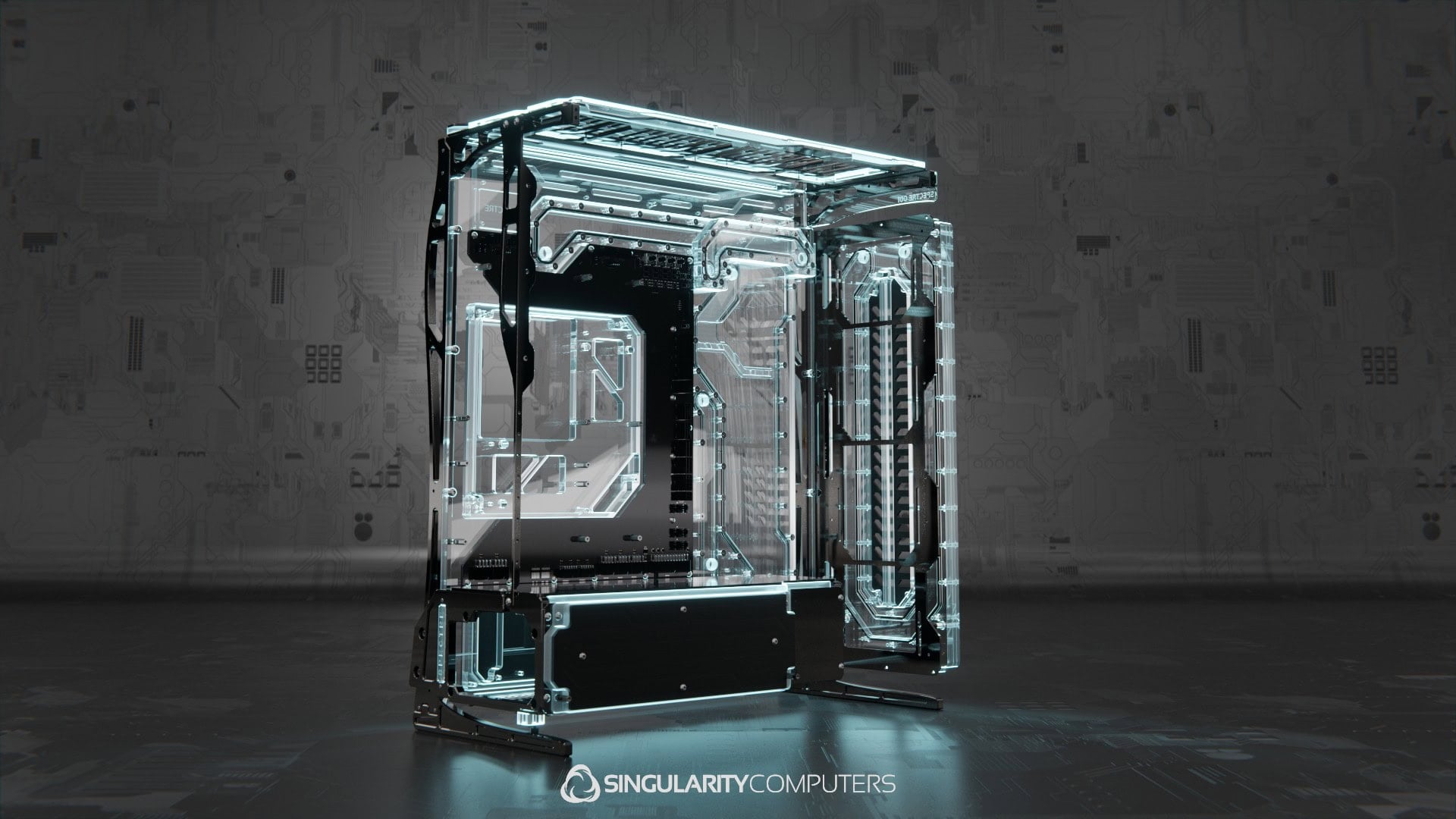

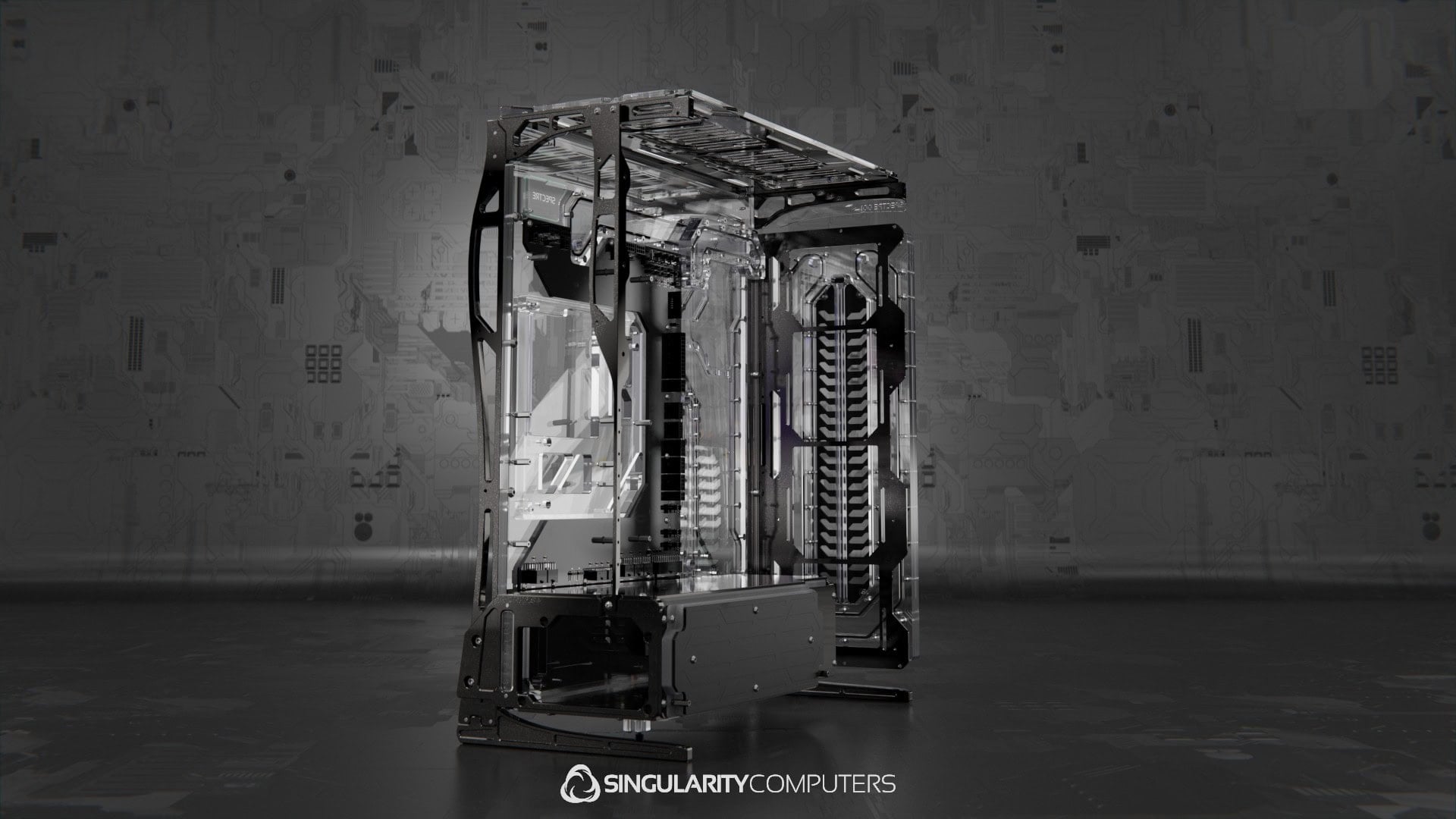

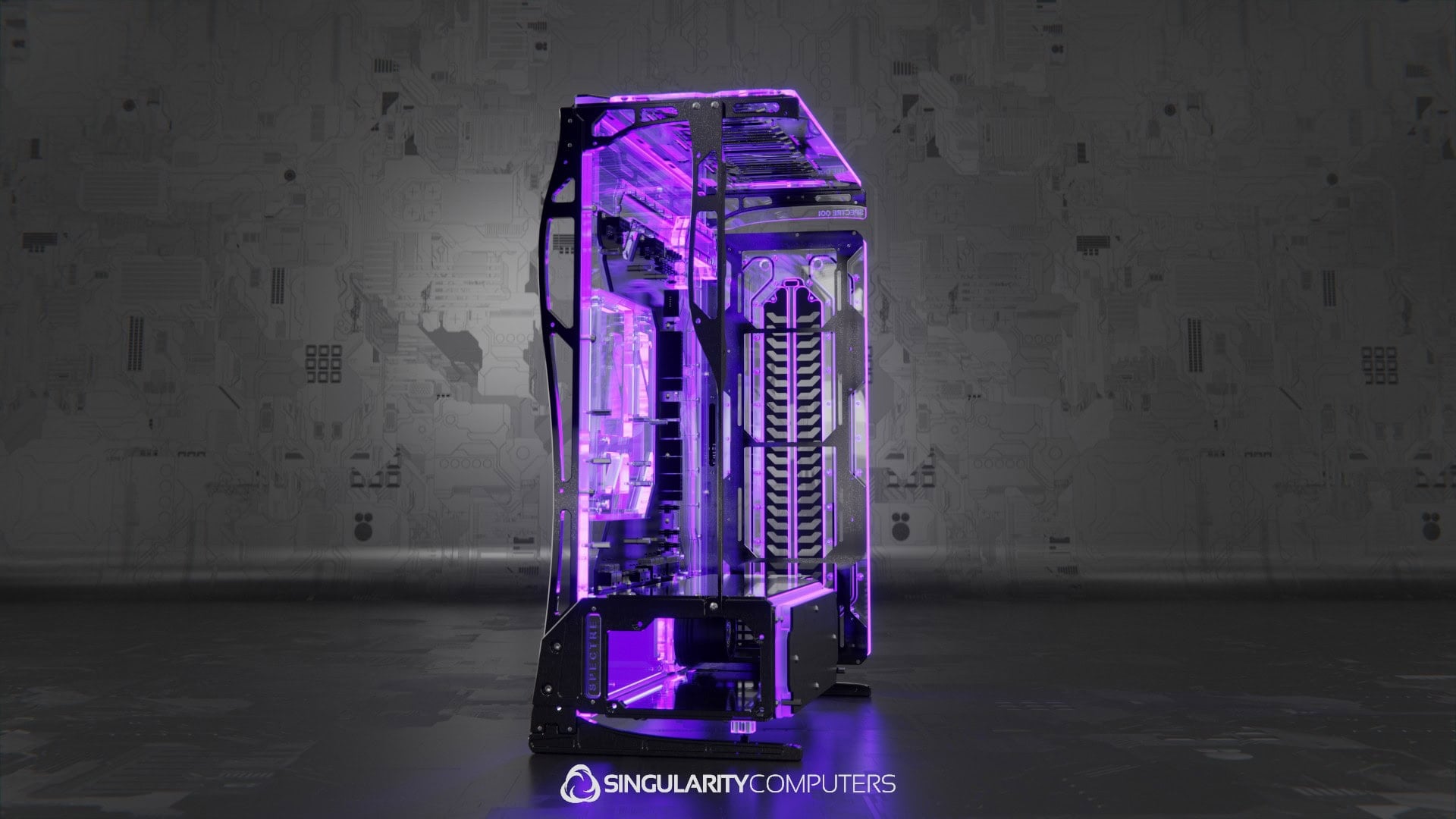

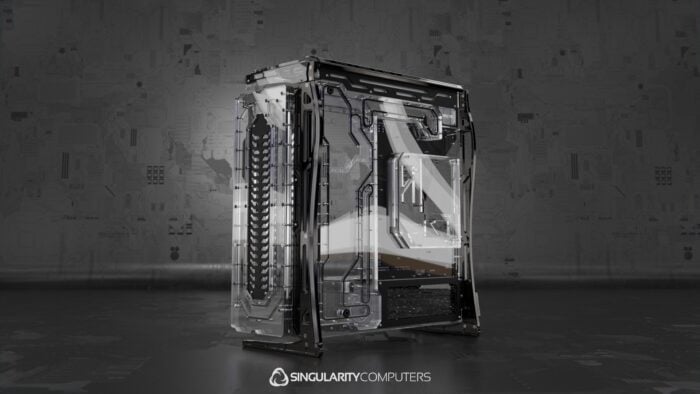

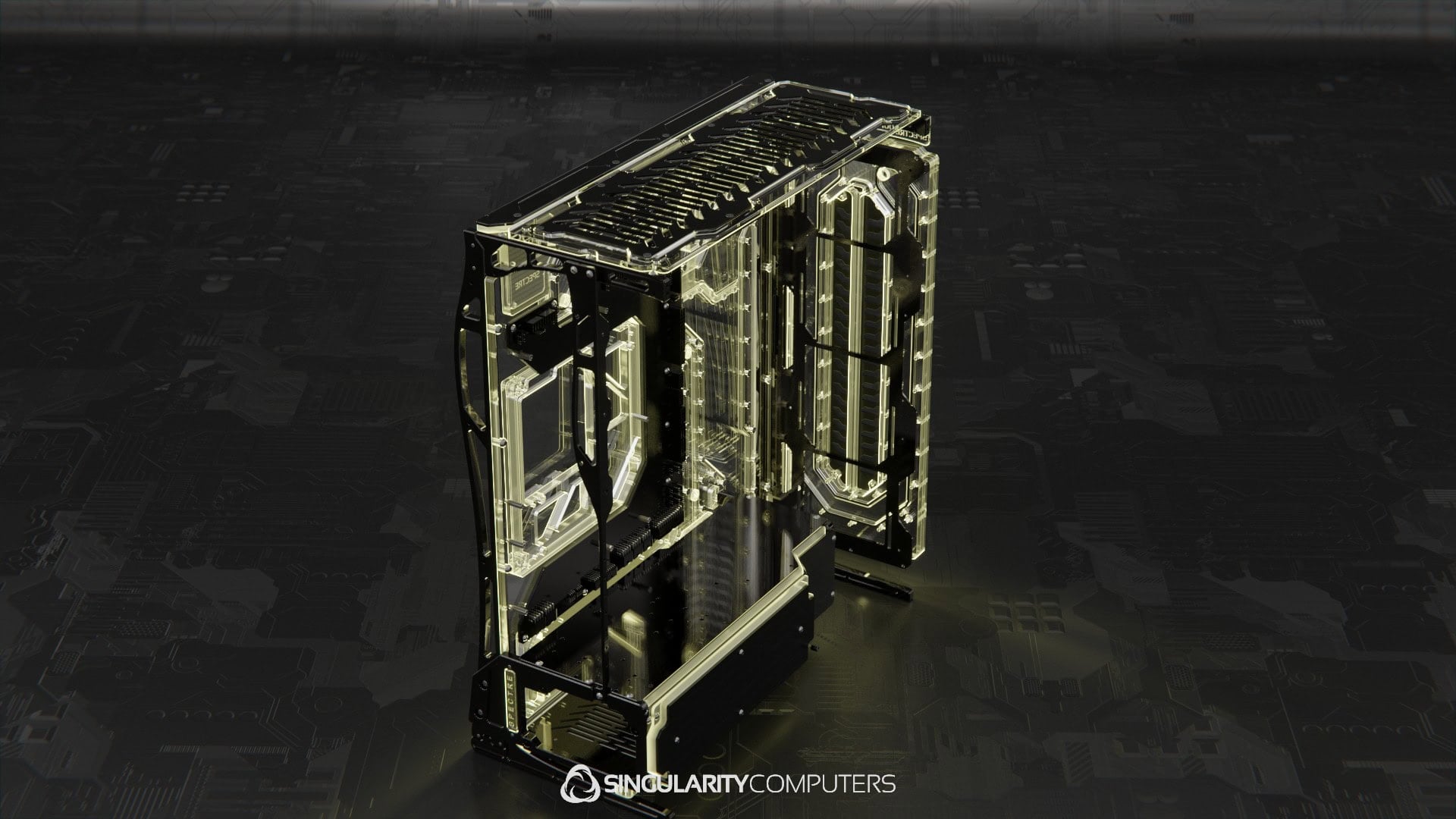

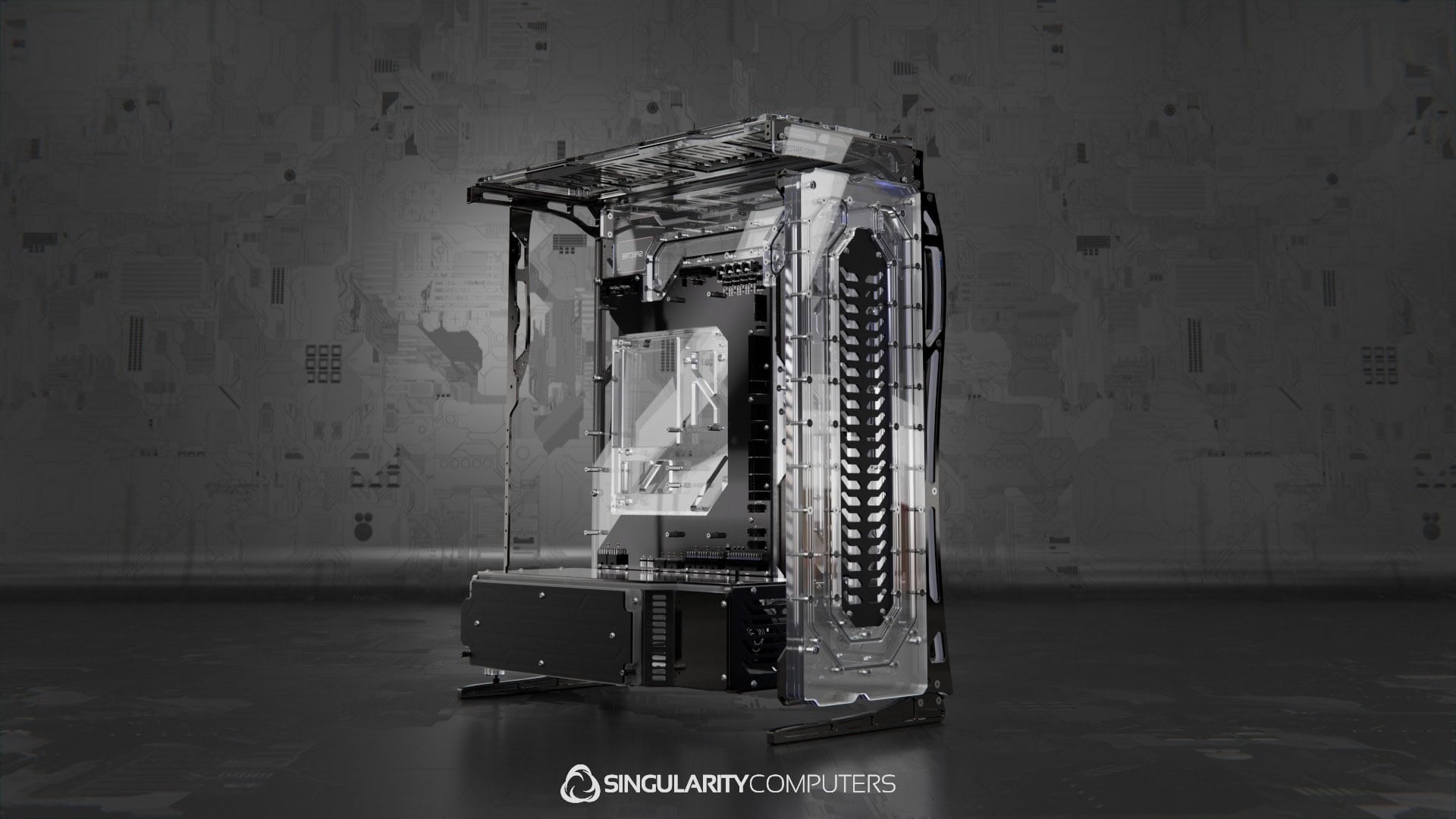

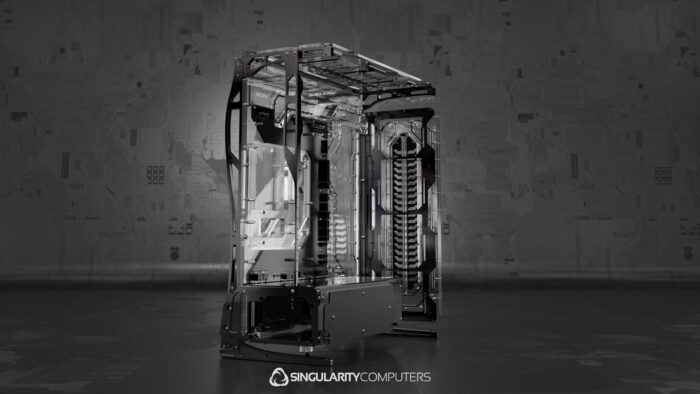

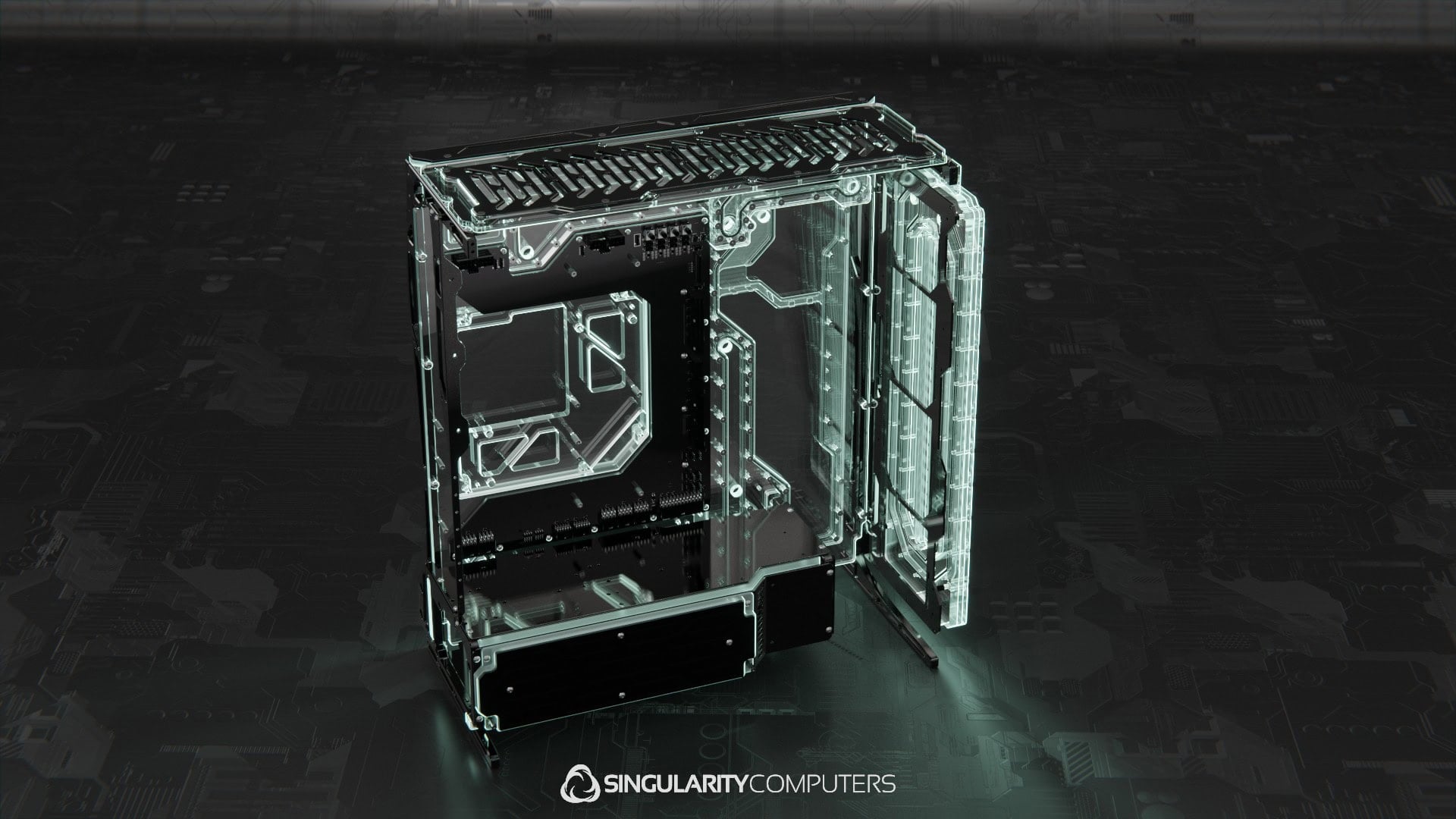

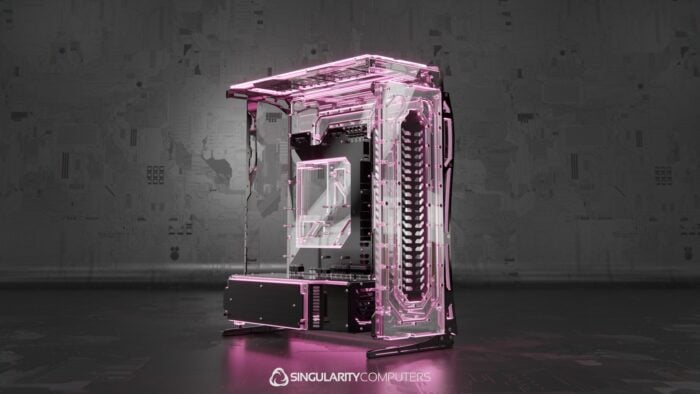

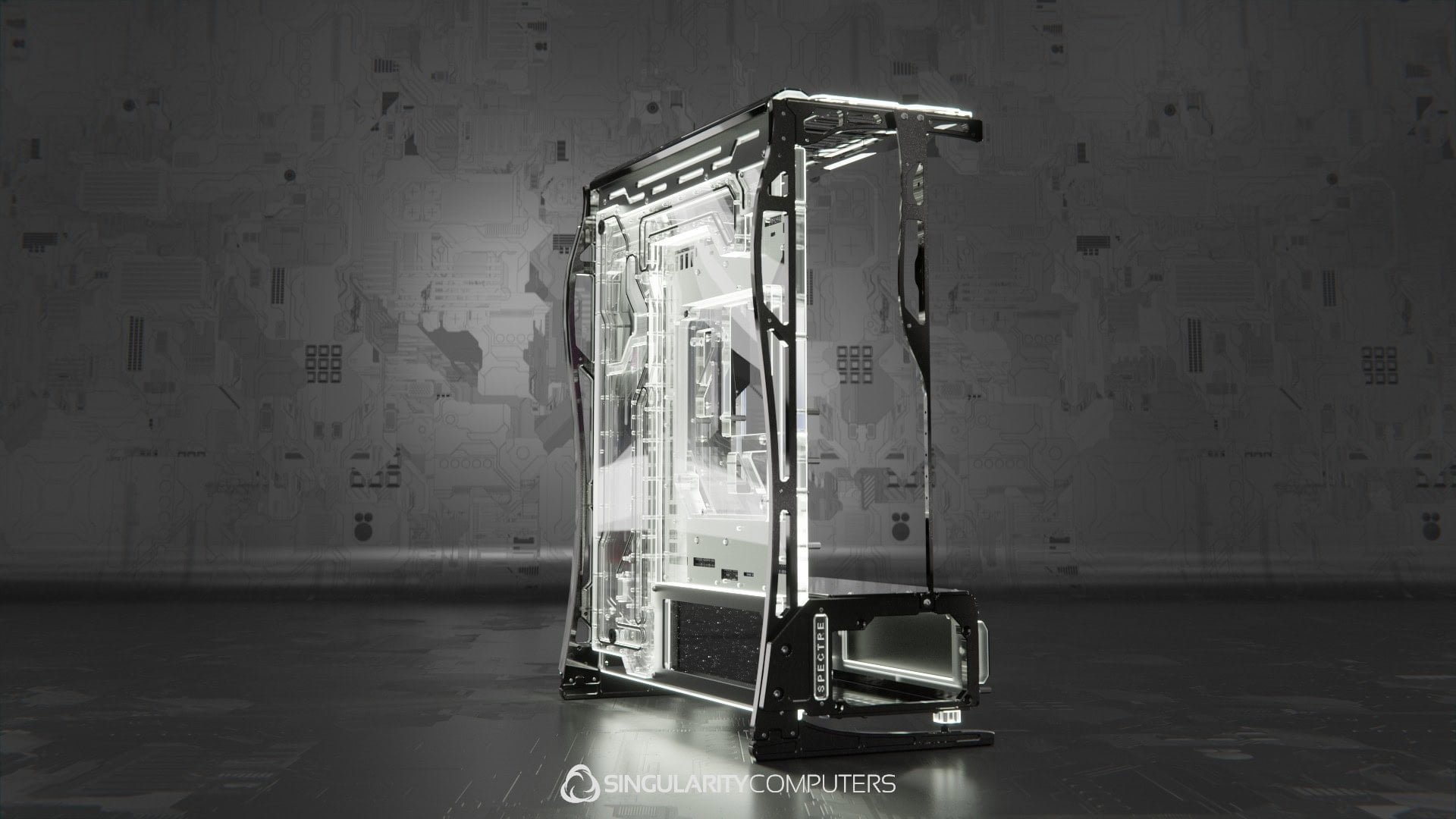

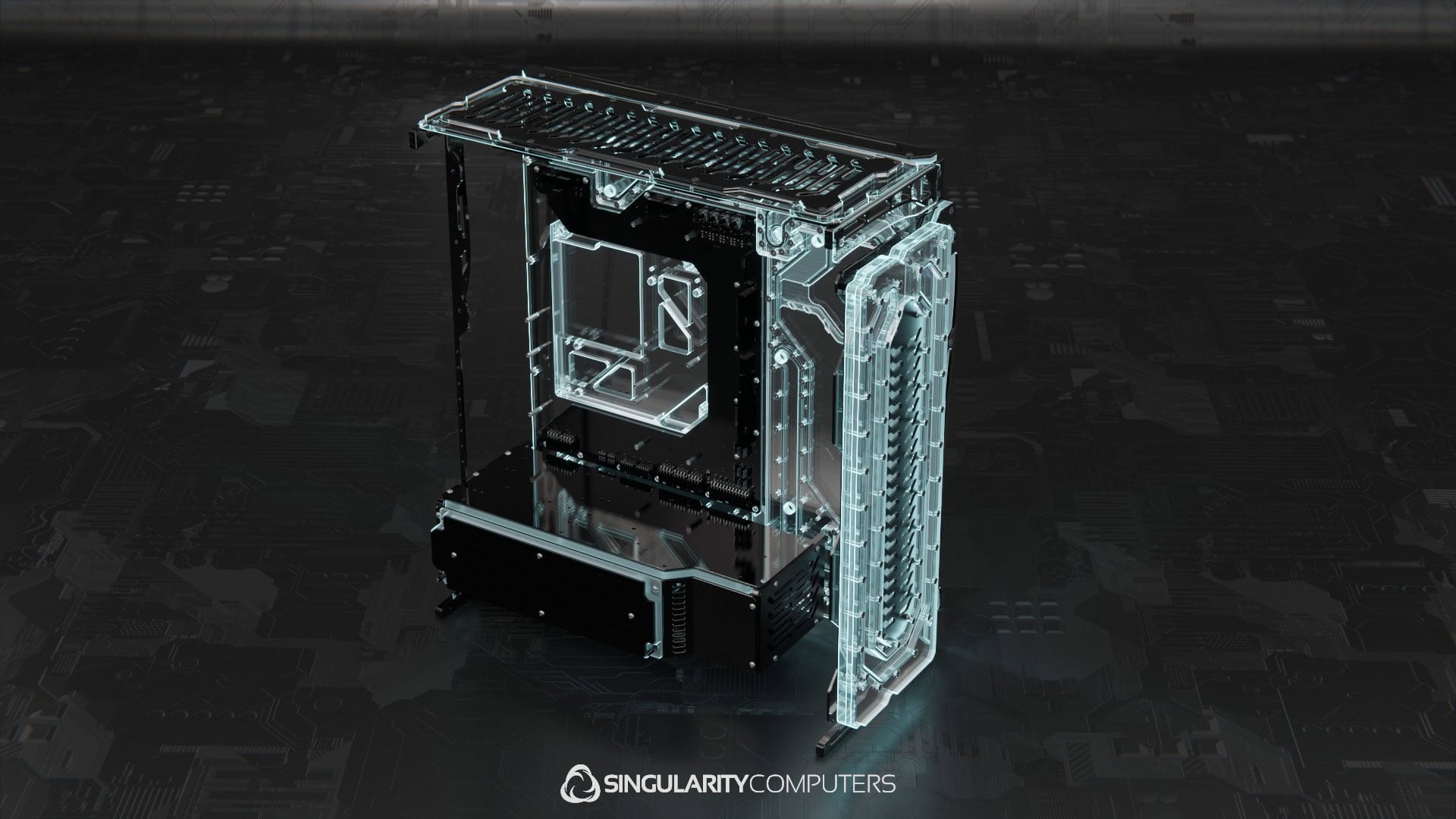

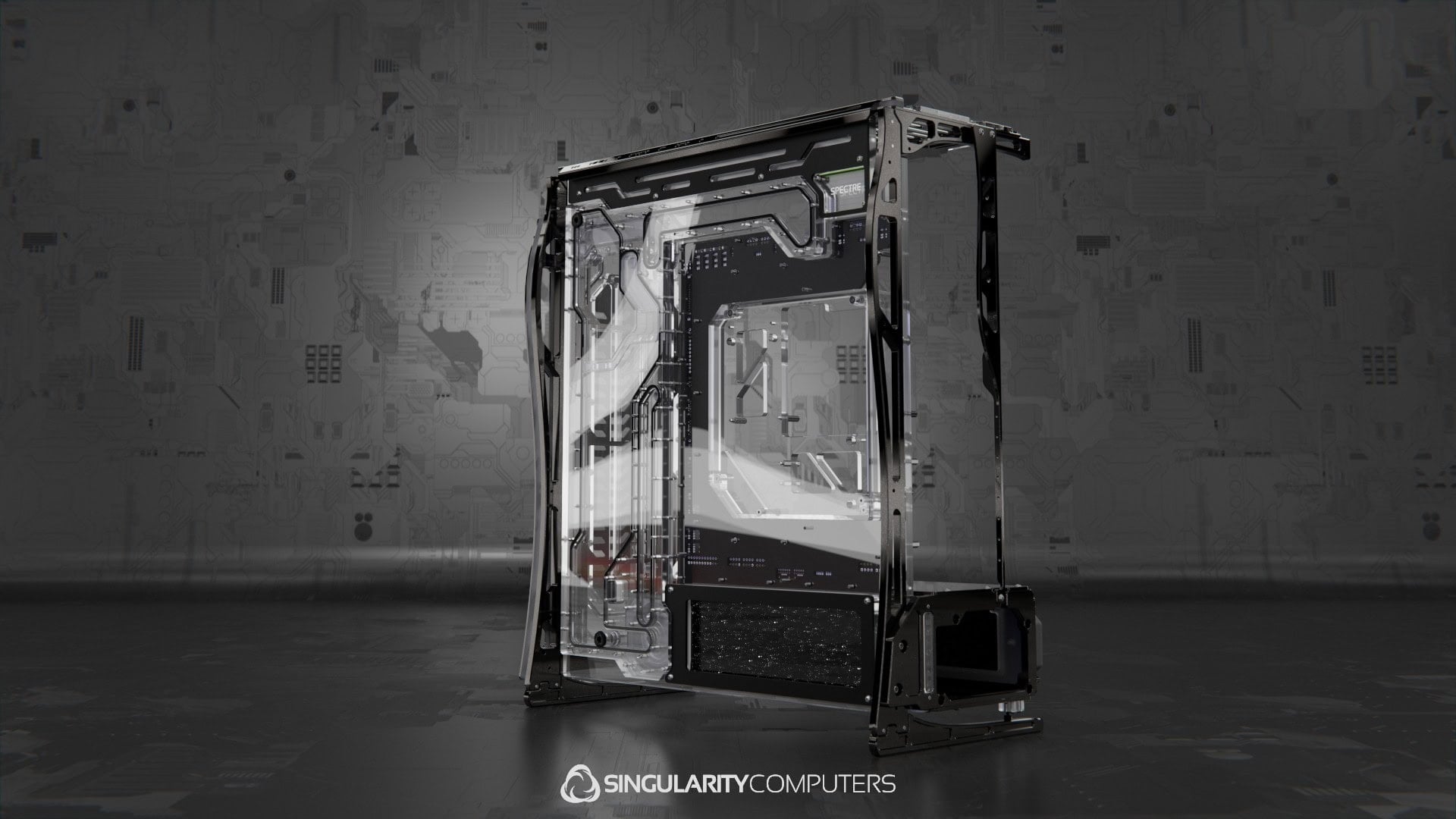

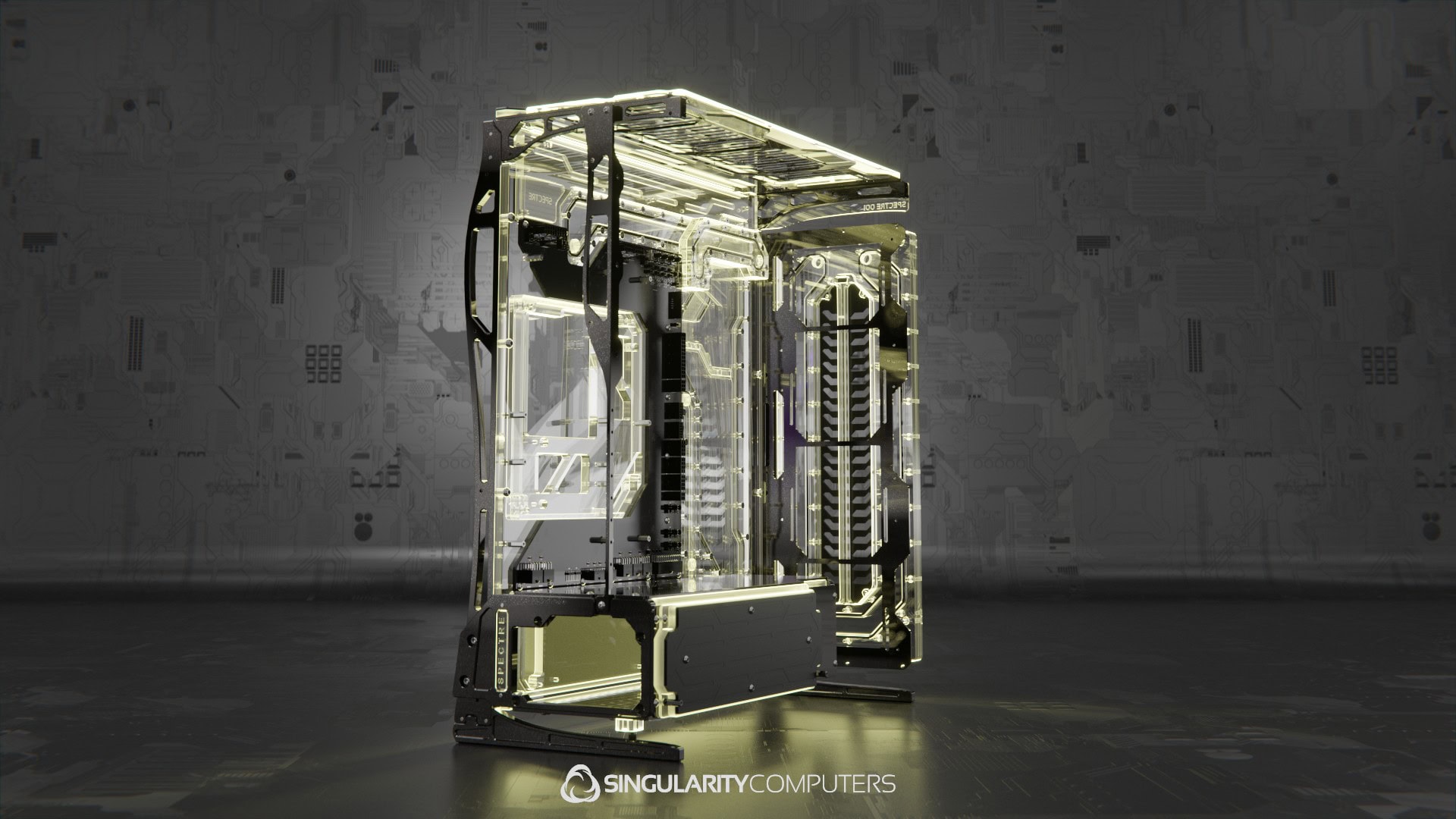

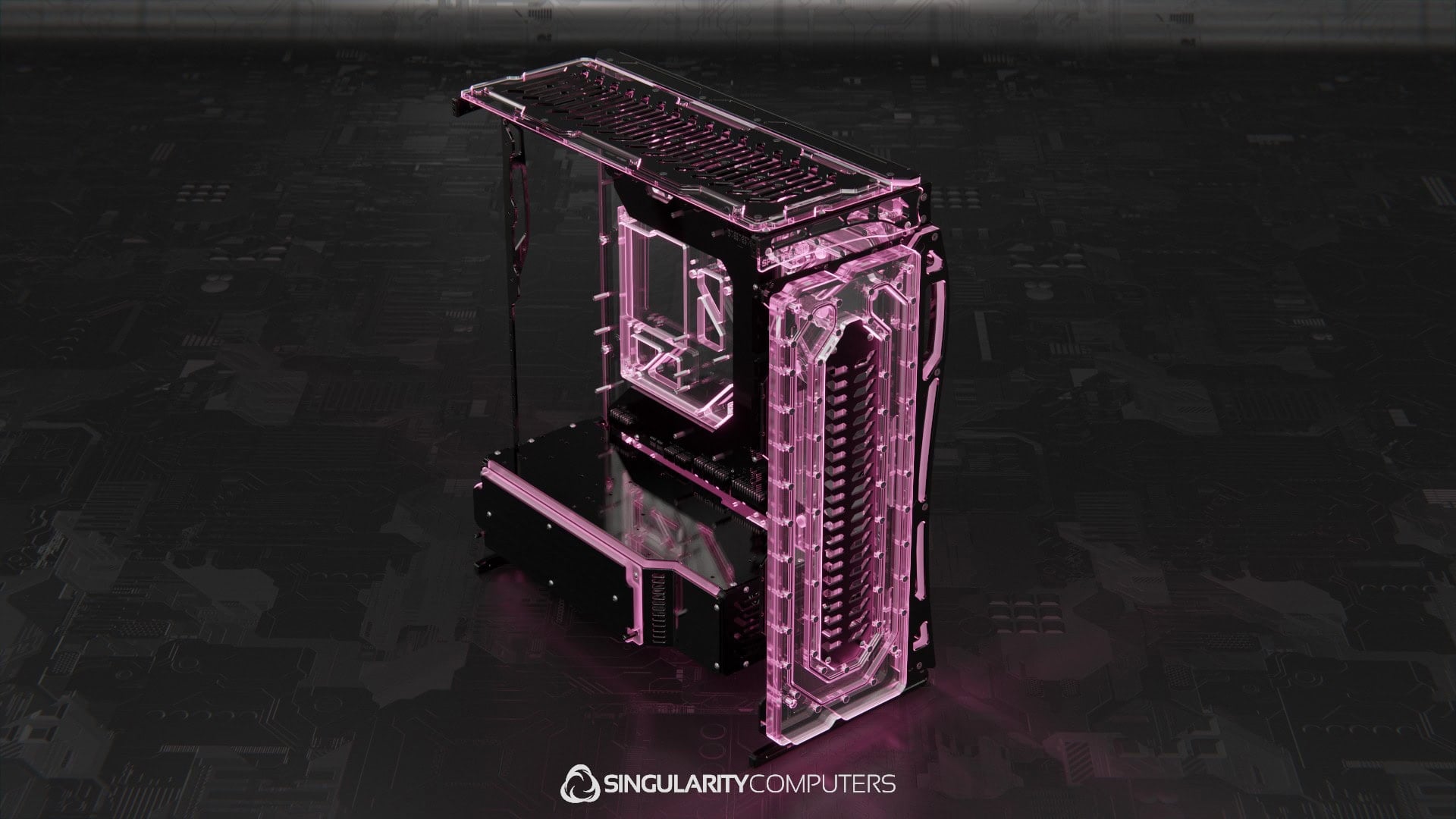

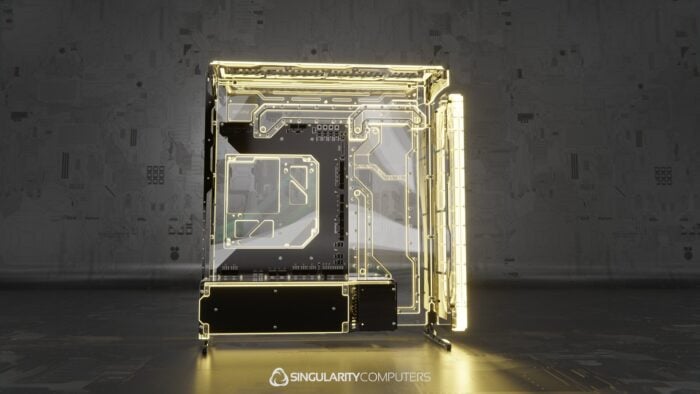

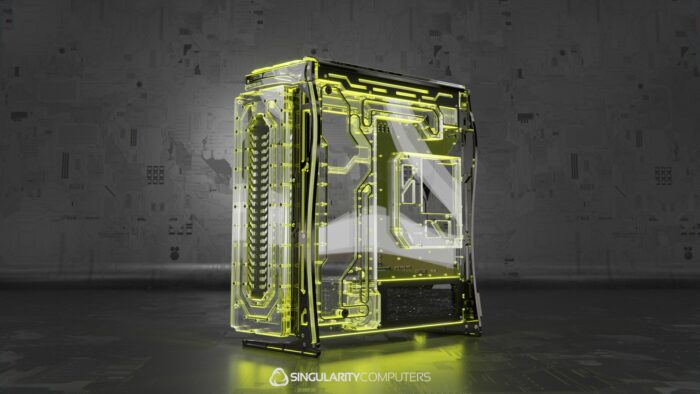

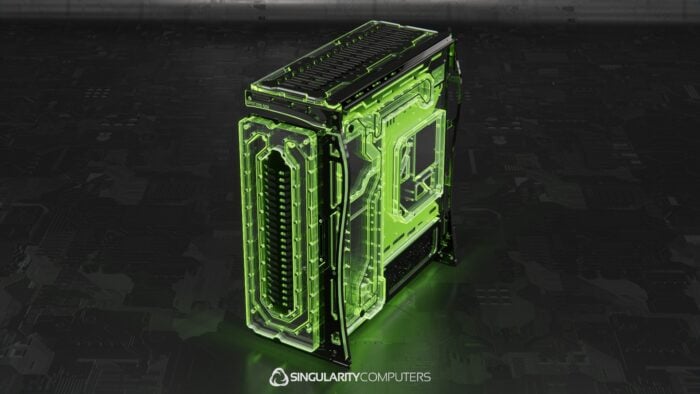

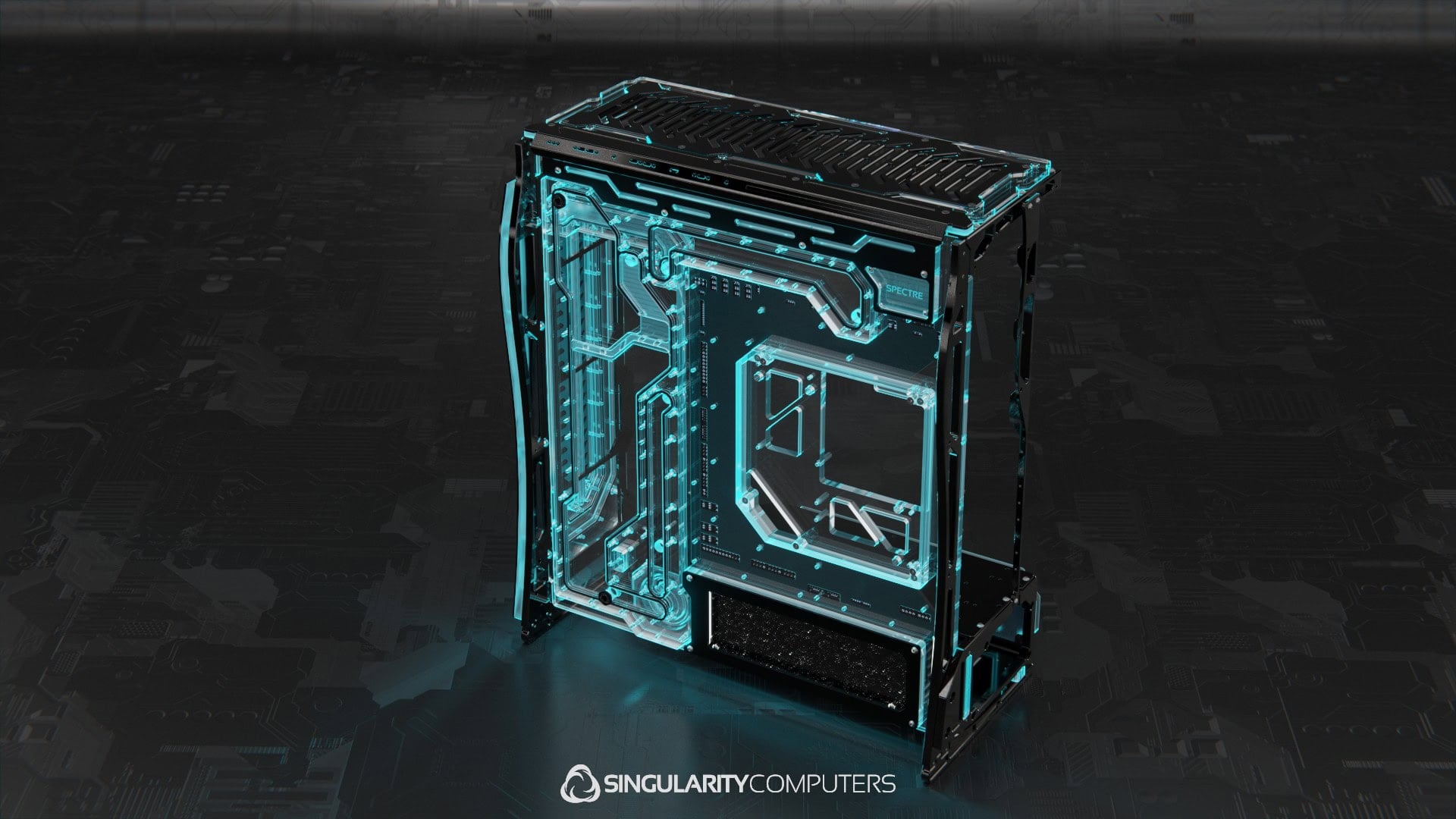

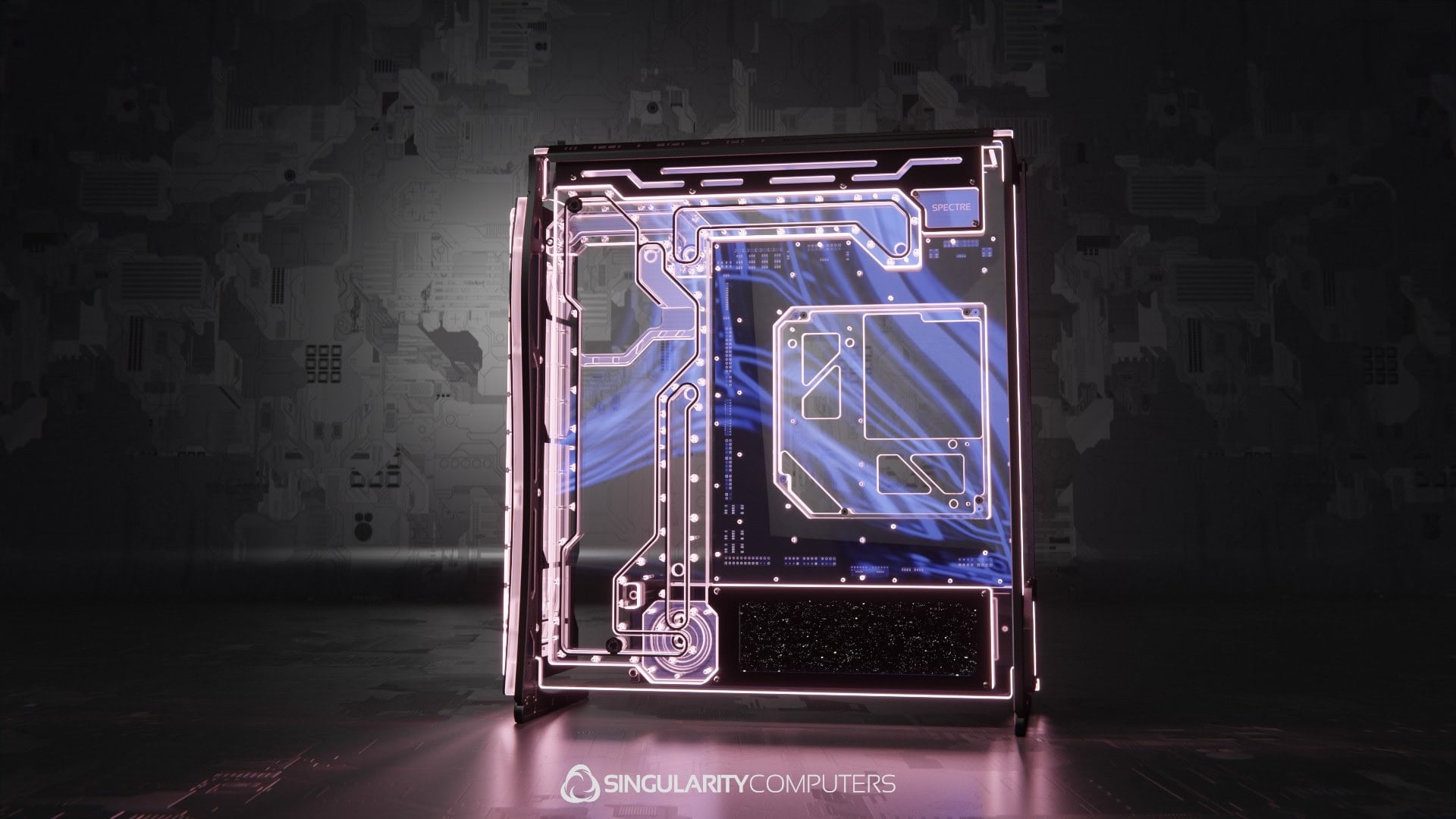

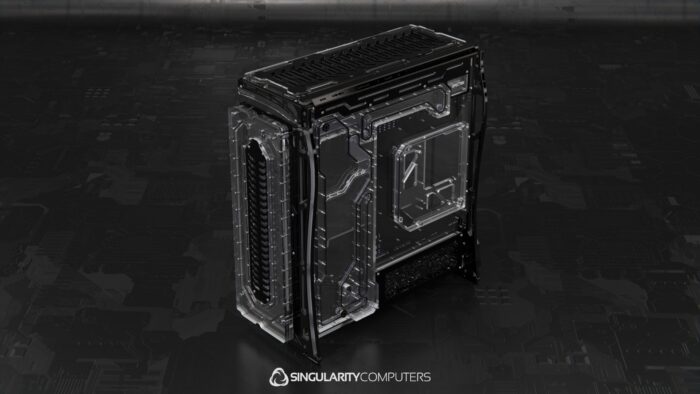

Spectre Limited Edition Water-cooling Case
ETA 3 weeks.
Limited to 49 Cases.

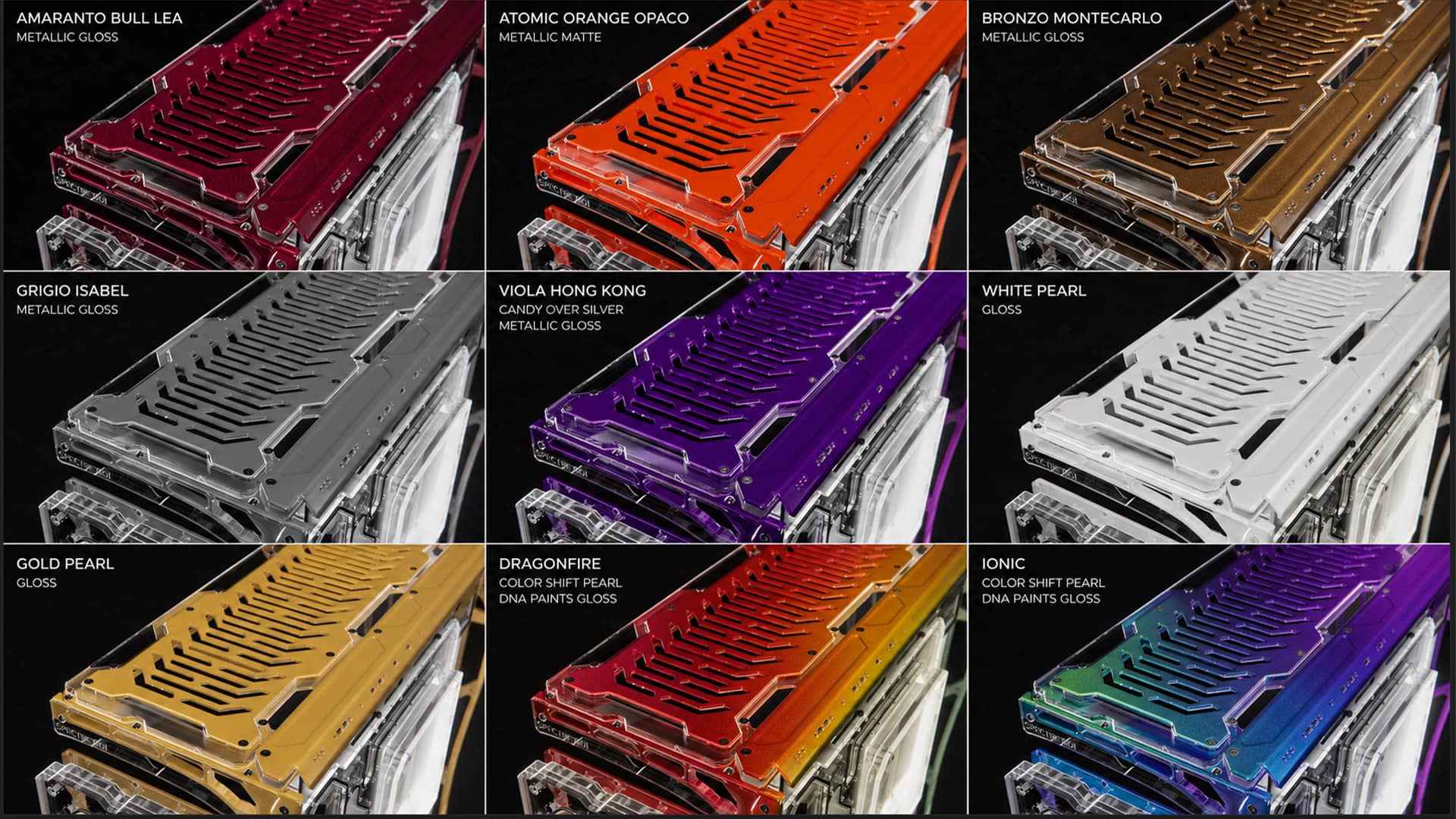

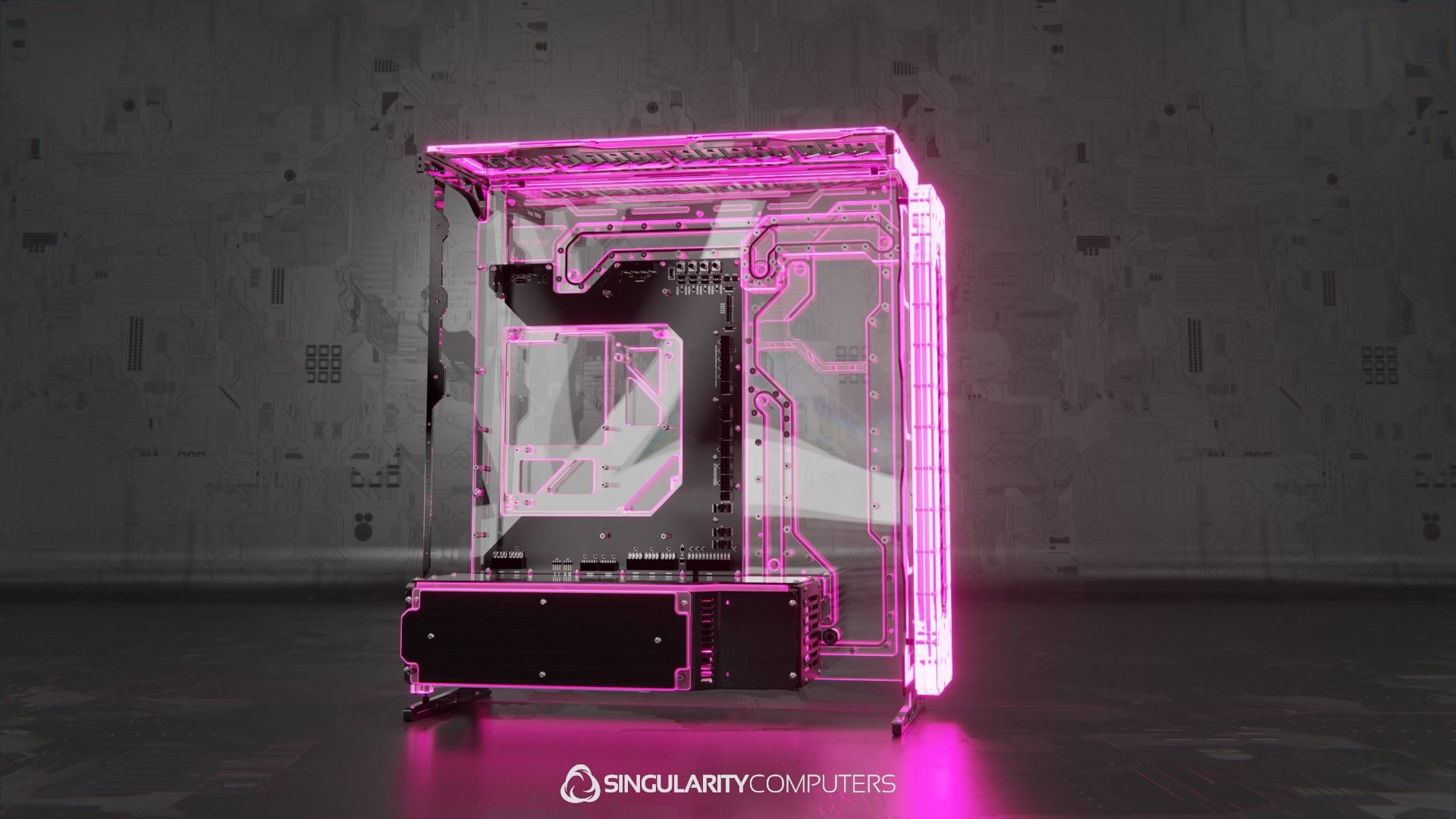

Spectre introduced the first commercial distribution plate. It introduced the idea of integrating parts of the water-cooling system into the structure of the case. Later we introduced the Patent Pending Powerboard which does something similar with the cables, connections and hubs making them part of the case structure. Spectre was originally named due to its transparency and its floating appearance which gave it a ghostly look. The early designs focused on this and had a high level of transparency. This version of Spectre is a homage to the original designs hence also going back to the original name. It has a different aesthetic with curves on the 6061 CNC machined aluminum frame. The curves enhance the paint special effect which we have named ‘Event Horizon’, it is a gloss black with fine silver flakes which looks like stars in space. Other custom paints are also available below. Spectre has an area on the rear side of the main distribution plate where you can select a glowing constellation which will be laser etched.
Spectre comes with the latest versions of all our technology including the PowerBoard which comes with a vast range of features including temperature-based RPM control, separate PWM zones, dedicated PWM pump headers, PSU jump start for running the pumps, pump power headers, temperature sensor inputs and more. Spectre fits x2 360mm or 420mm radiators, a 140mm fan can be mounted behind the motherboard to cool the rear of the CPU socket. It comes included with a front panel distribution plate along with the main rear distribution plate.
Pump not included. Compatible with any D5 Pump.
US$1,999.00
Specifications ▼
Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop. Front distribution plate.
Ports: x8 G1/4” BSPP. 1x Fill Port. 2x Drain Ports.
Pump: (Not included): Compatible with all D5 pumps.
Electronics Integration:
Connectors: 24pin x1. PCIE 8pin x4. 12VHPWR x2. 8pin EPS x4. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: Fan PWM 2 channels each with x1 input and x1 output, Pump PWM 2 channels each with x1 input and x1 output. Each fan and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 140mm fan which can be mounted behind the motherboard (controlled by PWM fan hub 1).
PWM Control: 4x potentiometers to set the minimum PWM speed.
ARGB Connectors: x8 with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
Power and Reset Buttons.
4pin ATX header to power up to two pumps with custom cables from the PowerBoard.
12pin header for FanGuardian PowerBoard Controller.
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12VHPWR (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.
LED Strips: ARGB 5V 50cm x4 (pre-installed).
Motherboard Form Factor: XL-ATX (Up to: 290mm Wide & 350mm High).
E-ATX, ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x8.
Case Form Factor: Full Tower Water-cooling Case.
Case Dimensions: L: 550mm x W: 250mm x H: 615mm.
Case Weight: 12kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm (Case is flat packed).
Packaged Weight: 15kg.
Storage: x2.5” x2.
Radiators: 420mm/360mm X2 with 100mm of thickness for radiators and fans.
Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.
Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 240mm with a large amount of space for cables.
Front Panel I/O: No Front I/O.
Power Button: Touch Activated
Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 5.0 Riser Cable. 2nd Vertical GPU Mount is available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Addon Information ▼
Dual Loop Side Panel Distribution Plate Dual Loop Side Panel FanGuardian Mount
Elite Top and/or Front Distribution Plate PSU Shroud & Rear IO Distribution Plate
Spectre 4 PSU Shroud Screen FanGuardian PowerBoard Controller
Protium 3.0 D5 Pump PowerBoard PSU Cable Kit
Shift Motherboard 24pin 90 Degree Adaptor
Dual Loop Side Panel Distribution Plate: The Spectre 4 Dual Loop Side Panel is an addon for all Spectre 4 cases. It adds another D5 Pump Top and Reservoir to the case which can be used for dual loops, or to add a second pump and reservoir for a single loop. It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated reservoir, D5 pump top, D5 Pump Cover and two ARGB LED strips. There are 7 ports which are positioned for connections to the GPU loop and top radiator. It also has a fill, drain and temperature sensor port.
Spectre 4 Dual Loop Side Panel FanGuardian Mount: The Spectre 4 Dual Loop Side Panel FanGuardian Mount is an addon for the latest version of the Spectre 4 Dual Loop Side Panel. It mounts the FanGuardian PowerBoard Controller in the front bottom corner of the Dual Loop Side Panel under the pump. This puts it on the outside of the case in a far more visible location where the touch screen can easily be accesses. There is a longer cable included for the FanGuardian to connect it to the PowerBoard.

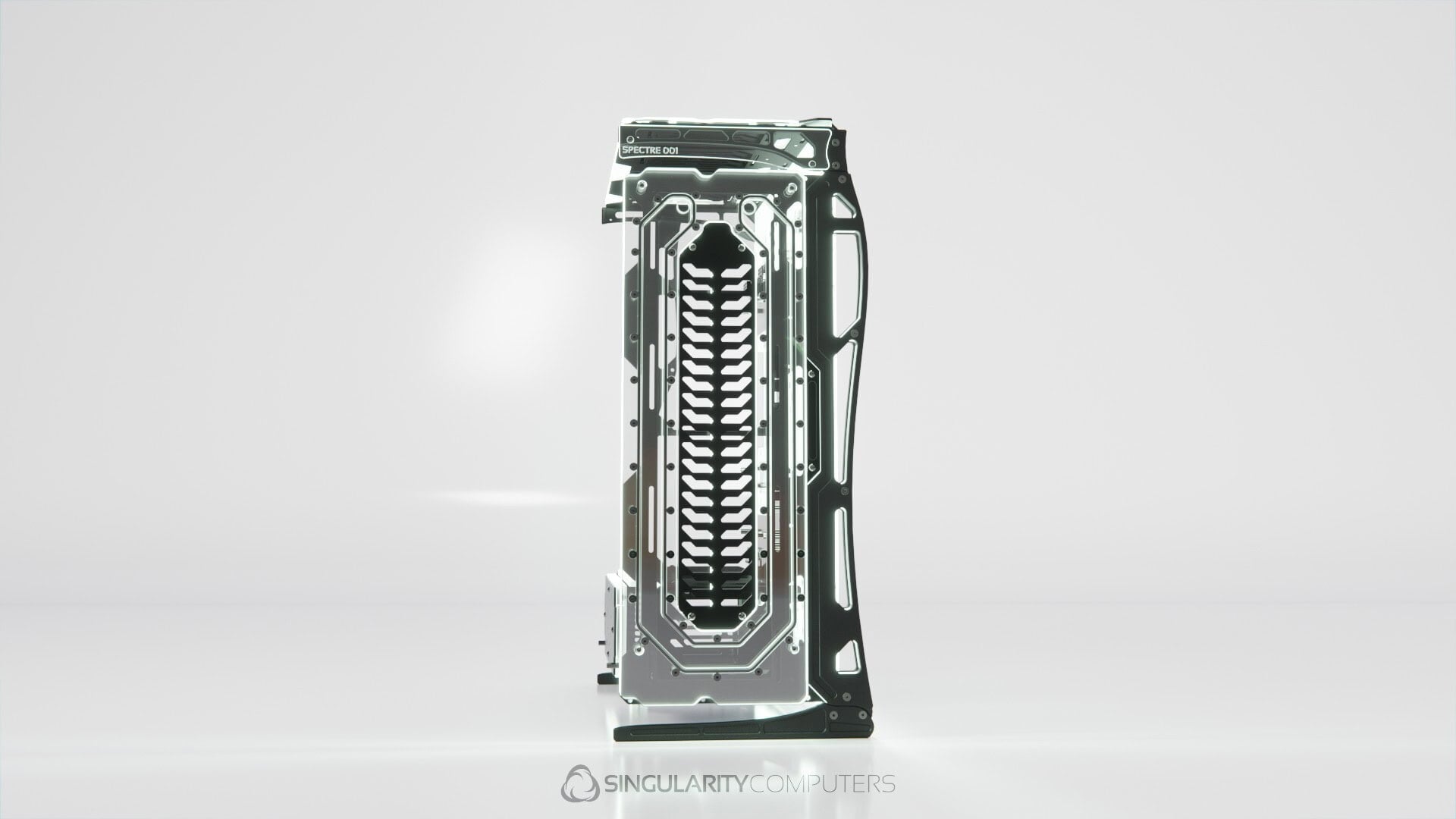

Elite Top and/or Front Distribution Plate: Spectre 4 Elite is a distribution plate for the front or top panels of Spectre 4 cases. This distribution plate is an aesthetic addon which replaces the front radiator panel enhancing the transparent ‘Spectral’ look of the case, further showing off the coolant and internal components. It has a single inlet and outlet which can be routed in either direction. The ports are positioned on one end of the distribution plate for connection to and from the main case distribution plate and front radiator. Radiators can still be attached. There is an LED strip positioned on the edge of the distribution plate so that it glows.
PSU Shroud & Rear IO Distribution Plate: The Spectre 4 PSU Shroud & Rear IO Distribution Plates are designed for all Spectre 4 Cases and are compatible with all addons (The PSU Shroud Distribution Plate does not fit on Spectre 4 Enterprise or Spectre 4 Quantum). They can be used in single or dual loop mode, with or without the Spectre 4 Loop Side Panel. They can also be used independently of each other. The Rear IO Distribution Plate attaches to the Rear IO Panel above the GPU, it has pass throughs for the Dual loop Side panel with a cover which can be attached to cover up the pass throughs if the Dual Loop Side panel is not being used. The PSU Shroud Distribution Plate can be used with horizontal or vertically mounted GPUs. It sits on top of the PSU shroud and works well with GPU water-blocks which have ports on the end. Similar to the Spectre Elite Front and Top Panel Distribution Plates, these Distribution Plates are primarily designed to improve aesthetics although they can improve the loop layout in some scenarios.
Spectre 4 PSU Shroud Screen: 1920×480 60Hz IPS Display mounted into a CNC machined black cast acrylic panel. Fits onto the front of the PSU Shroud of Spectre 4. It is fully visible through the Spectre side panel window, and it is compatible with the Spectre 4 Dual Loop Side Panel. The screen is powered by an included black 0.9m USB-A cable and the signal is from an included black 1m HDMI cable.
FanGuardian PowerBoard Controller: The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It has updateable Software/Firmware and we will continue adding features.
Protium 3.0 D5 Pump: The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.
PowerBoard PSU Cable Kit: Stock PSU cables will work with the PowerBoard on the input side, but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.
Shift Motherboard 24pin 90 Degree Adaptor: The Shift 24pin 90 Degree Adaptor is for motherboards with 90 degree 24pin connections so that a clean connection can be made with the 24pin cable from the PowerBoard to the motherboard. Custom designed PCB with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling.
SC Fittings Packages ▼
SC Fittings Package Spectre 4 Advanced
Included Fittings:
16mm Hardline Compression x8.
90 Degree Rotary: x12.
90 Degree Dual Rotary: x4.
20mm Extension: x4.
25mm Extension: x1.
Telescopic Fitting Large: x2.
Telescopic Fitting Small: x1.
Temperature Sensor Fitting x1.
Low Profile Drain Valve x1.
SC Fittings Package Spectre 4 Extreme
Included Fittings:
16mm Hardline Compression x14.
90 Degree Rotary: x16.
90 Degree Dual Rotary: x7.
20mm Extension: x7.
25mm Extension: x3.
Telescopic Fitting Large: x5.
Telescopic Fitting Small: x4.
Temperature Sensor Fitting x2.
Low Profile Drain Valve x2.
