Portal Workstation Water-cooling Case

In stock

Order processing time 1-2 days.

  • Open display case designed for workstation systems
  • Supports SSI motherboards with 7 PCIe slots and 4-slot spacing
  • Supports up to 4 PSUs and three 560mm radiators
  • Integrated distribution plate with dual D5 pump tops and reservoir
  • Integrated loop routing for short, clean tubing runs
  • CNC-machined 6061 aluminum legs, feet and handles

Manuals

US$1,699.00

Select Case Colour Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$99.00 Silver Mirror +US$99.00 Gold Mirror +US$99.00 Satin Black

Rear, Top and Front Panel Covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

PCIE 5.0 Riser Cable 60cm
Right side enter and left side exit, black sleeved cable.
Portal Workstation Case Fits up to x7 GPUs and each GPU requires a Riser Cable.

Black Powdercoated 2mm Steel PSU Mounts x2 Per Set.

Select D5 Retention Ring Colour x2 (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Distribution Plates

Edge Mounted Radiator Distribution Plate 560mm (optional) USD$69
None Yes +US$69.00

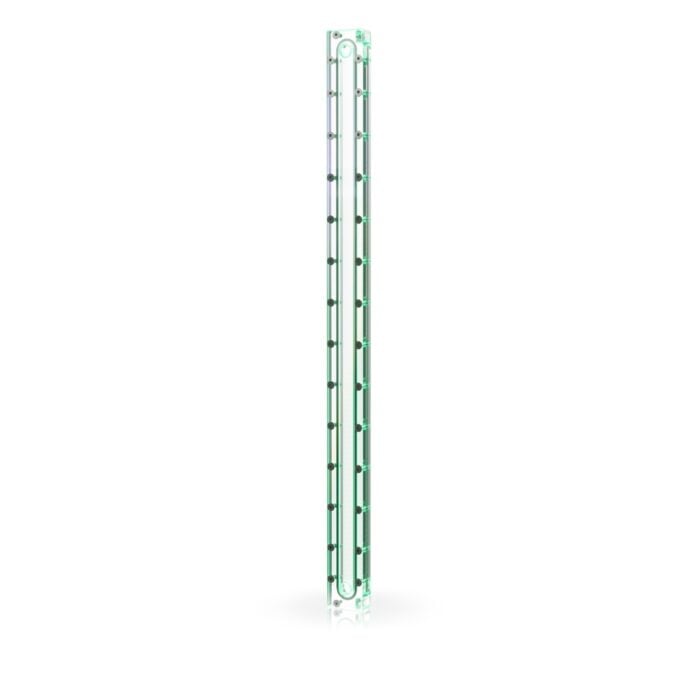

Edge Mounted Radiator Distribution Plate 560mm
Edge mounted 560mm radiator distribution plate.

Water Cooling

D5 Pump Cover Options x2 (optional) USD $78
None Black +US$78.00 Silver +US$78.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump x2 (optional) USD $208
None Yes +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Case Accessories

PSU Penta-Node Hub (optional) USD $69
None Yes +US$69.00

PSU Penta-Node Hub
A custom designed Singularity Computers hub with high quality components and a dual layer PCB. The PCB and connectors are black with white logos and labelling. This hub is for switching on 5 PSUs (via a PWM cable) from the main PSU connected to the system. It has a main switch which switches between Auto Mode which turns on the PSUs when the system is turned on, and On Mode which turns on the PSUs regardless of the main system being on. There is also a switch for each PSU to enable or disable it so that you can run 1, 2, 3, 4 or 5 PSUs along with the main PSU. There are operating LEDs to show if each PSU is on and stand by LEDs to show if the connected PSUs are in standby mode (powered by mains but turned off).

Ultra-Node Hub (optional) USD $69
None Yes +US$69.00

Ultra-Node Hub
A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The Ultra-Node is similar to the Mega-Node except that it has a connection for the FanGuardian PowerBoard Controller, and it has three ARGB connections. From the FanGuardian you can control ARGB lighting and you can monitor all RPMs, temperatures and voltages. Combined with the FanGuardian the Ultra-Node is a standalone management and monitoring system for a water-cooling loop, and it is an ARGB controller. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-OUT-RPM displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need of a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature-based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps.

FanGuardian PowerBoard Controller (optional) USD $149
None Yes +US$149.00

Fanguardian PowerBoard Controller
The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It has updateable Software/Firmware and we will continue adding features.

FanGuardian Radiator 120/140mm Mount Horizontal (optional) USD $29
None Yes +US$29.00

FanGuardian Radiator 120/140mm Mount Horizontal
A mount to attach the FanGuardian to a 120mm or 140mm wide radiator. It is designed to mount the FanGuardian on a horizontal radiator which could be the top or bottom radiator in the case. The mount is 3D Printed Black PLA.

  • 1x Portal Workstation Water-cooling Case
    US$1,699.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188002964 SKU: SC-PORT-WSN Categories: ,

Description

Read More +Read Less − full description

Portal Workstation Water-cooling Case is an open display case designed for workstation systems. On one side it can fit up to SSI motherboards and on the other it has 7 PCIE slots with risers so that the motherboard and GPUs can be easily accessed. The PCIE slots have a 4-slot spacing. It fits up to 4 PSUs and 3x 560mm radiators. It has an integrated distribution plate with two D5 pump tops and a reservoir, and parts of the loop are also integrated for short and clean loop routing. The case has 6061 CNC machined aluminum legs, feet and handles.

Specifications

Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x30 G1/4” BSPP. 1x Fill Port. 2x Drain Ports.
Motherboard Form Factor: SSI-CEB, SSI-EEB, E-ATX, ATX, Mini-DTX, Mini-ITX.
Radiators: 560mm x3 with unlimited thickness for radiators and fans.
Maximum GPU Length: 380mm.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: Unlimited.
Maximum PSU Length: 200mm.
Front Panel I/O: No Front I/O. Push Buttons 12mm Power & Reset.
GPU Mounts: Up to x7.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, Folding Steel, PCB.
Assembly: Distribution Plate Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: L: 737mm x W: 396mm x H: 668mm. (Without rads.)
Case Weight: 10kg.
Packaged Dimensions: L: 850mm x W: 100mm x H: 750mm. (Case is flat packed and requires partial assembly.)
Packaged Weight: 12kg.
