Spectre 4 Dual Loop Side Panel

In stock

Order processing time 1-2 days.

  • Dual Loop Side Panel addon for all Spectre 4 cases
  • Larger removable window for improved build access and visibility
  • Integrated D5 pump top, reservoir and pump cover
  • Supports dual loops or dual-pump single-loop configurations
  • Two integrated ARGB LED strips
  • Seven loop connection ports plus fill, drain and temperature sensor ports
  • Open design preserves visibility of the internal components

Manuals

US$649.00

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

PowerBoard

FanGuardian PowerBoard Controller (optional) USD $149
None Yes +US$149.00

Fanguardian PowerBoard Controller
The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It has updateable Software/Firmware and we will continue adding features.

Spectre 4 Dual Loop Side Panel FanGuardian Mount (optional) USD $79
None Yes +US$79.00

Spectre 4 Dual Loop Side Panel FanGuardian Mount
The Spectre 4 Dual Loop Side Panel FanGuardian Mount is an addon for the latest version of the Spectre 4 Dual Loop Side Panel. It mounts the FanGuardian PowerBoard Controller in the front bottom corner of the Dual Loop Side Panel under the pump. This puts it on the outside of the case in a far more visible location where the touch screen can easily be accesses. There is a longer cable included for the FanGuardian to connect it to the PowerBoard.

  • 1x Spectre 4 Dual Loop Side Panel
    US$649.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods

Description

Read More +Read Less − full description

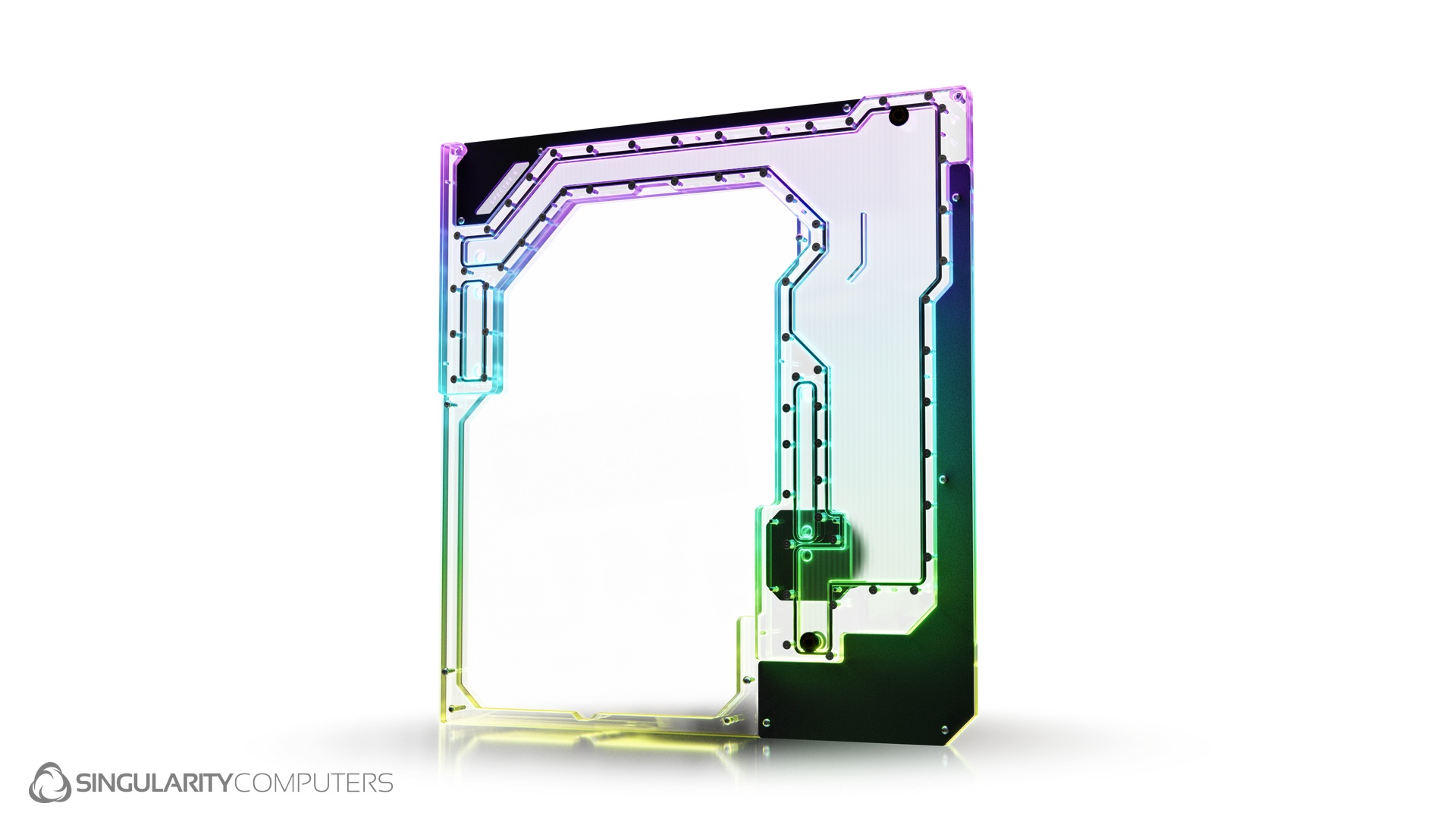

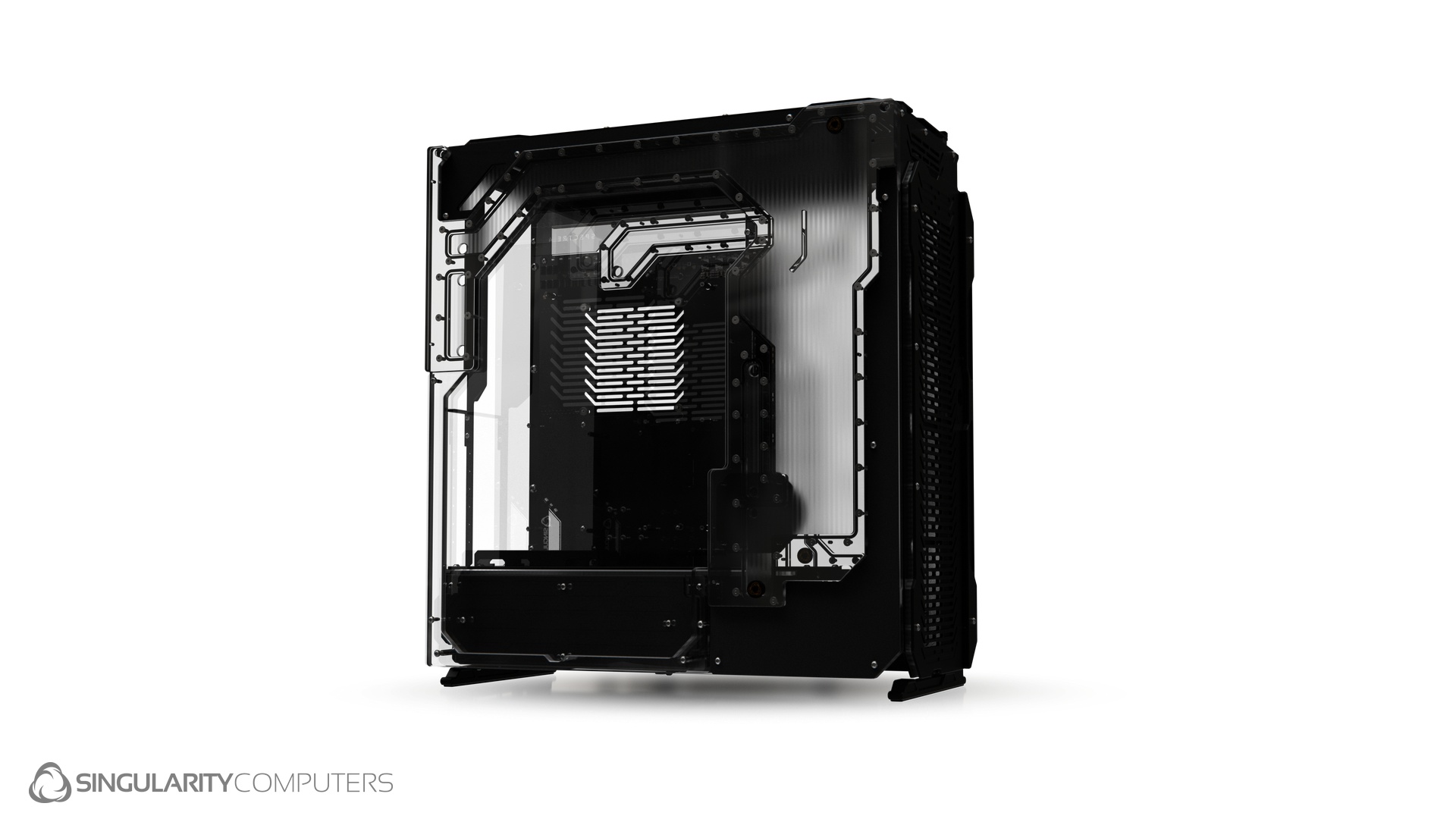

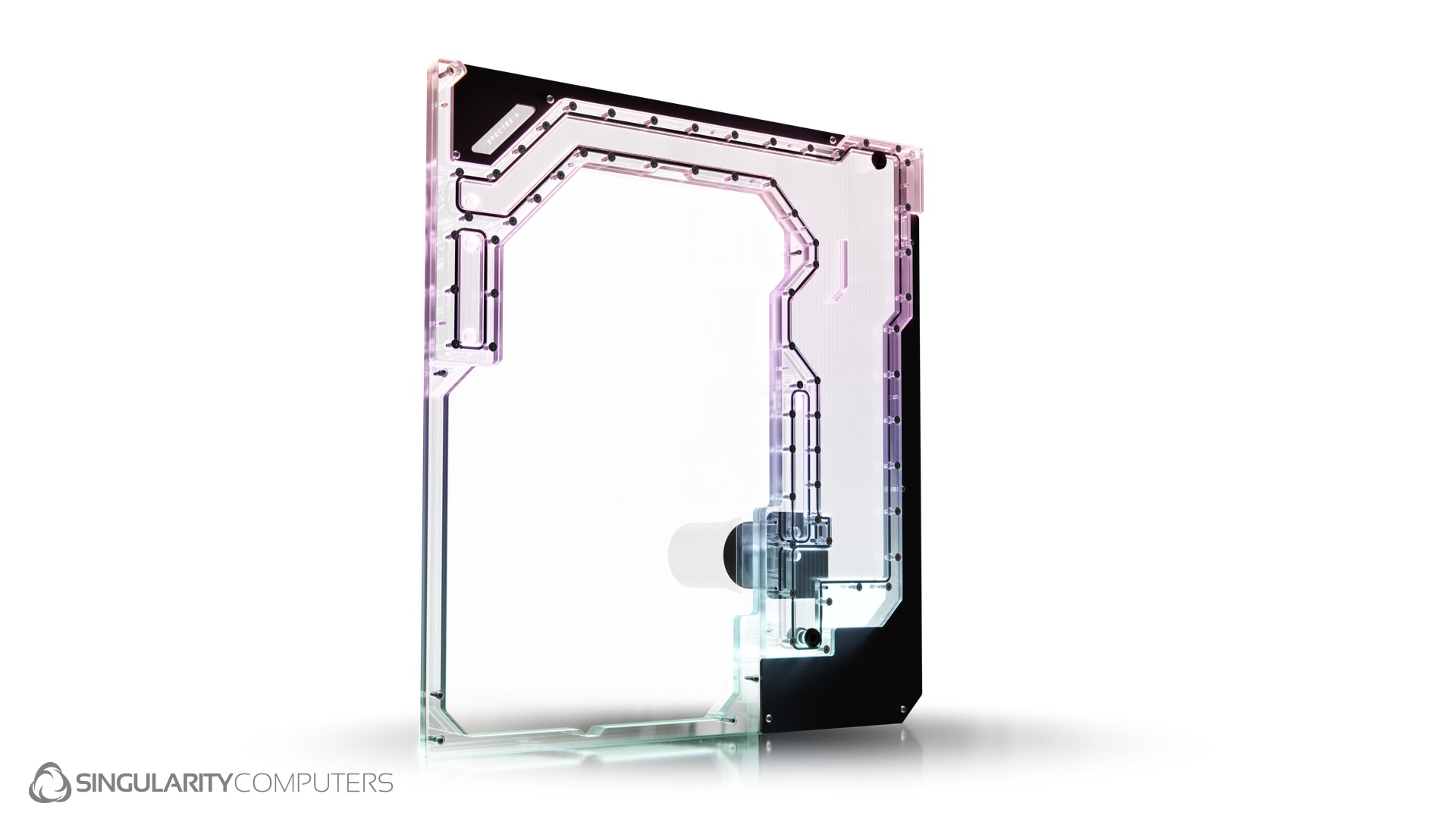

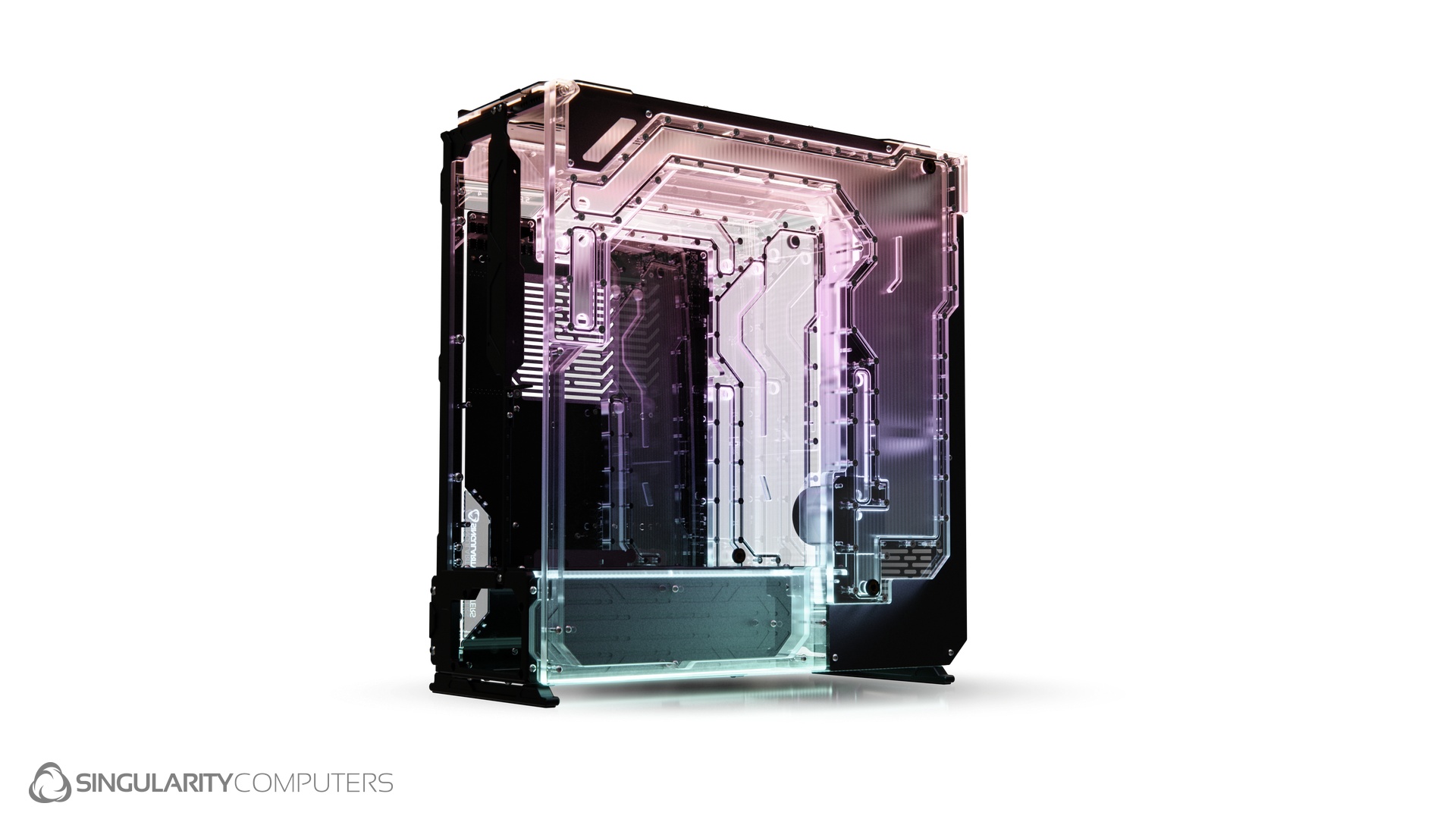

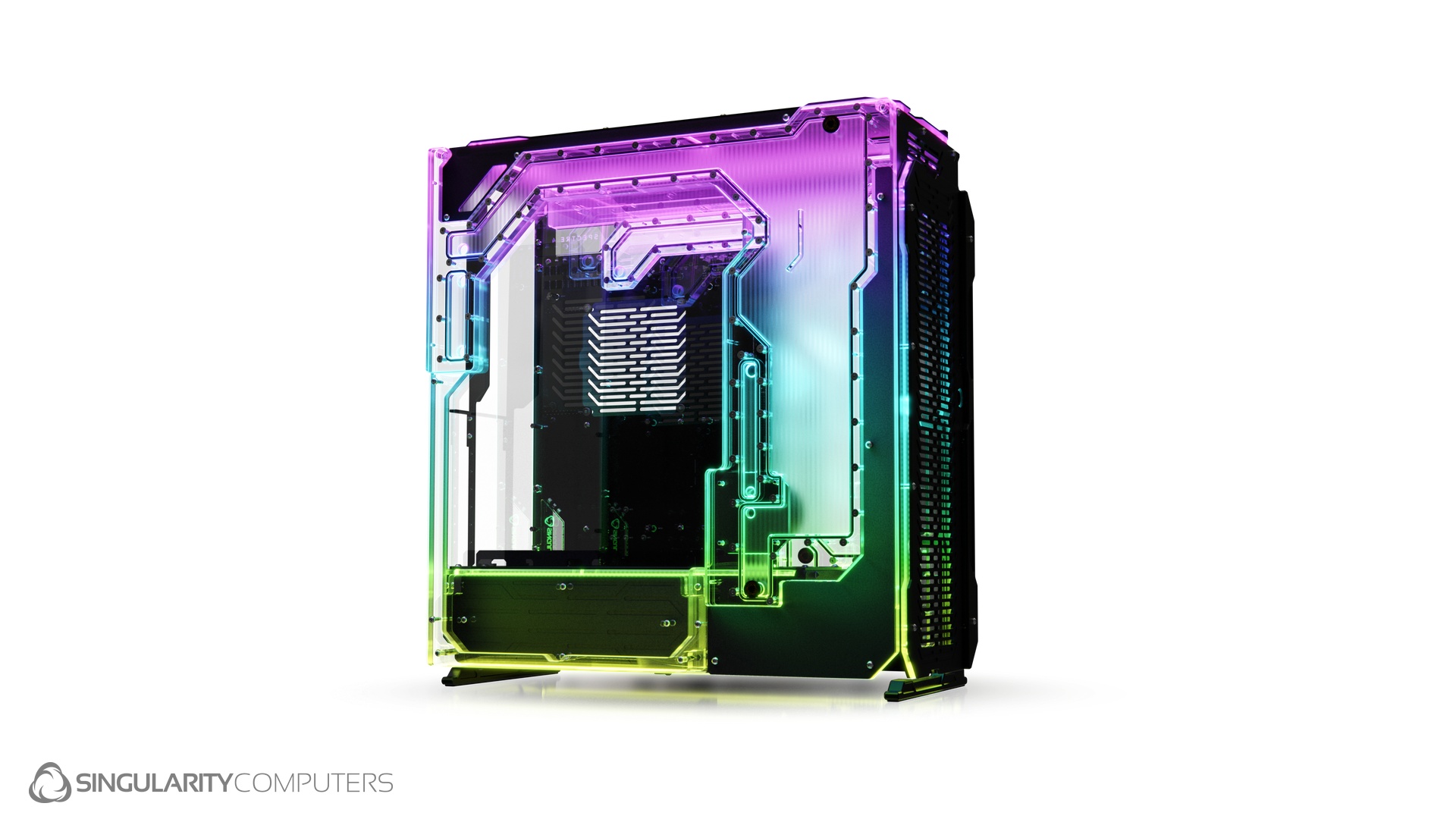

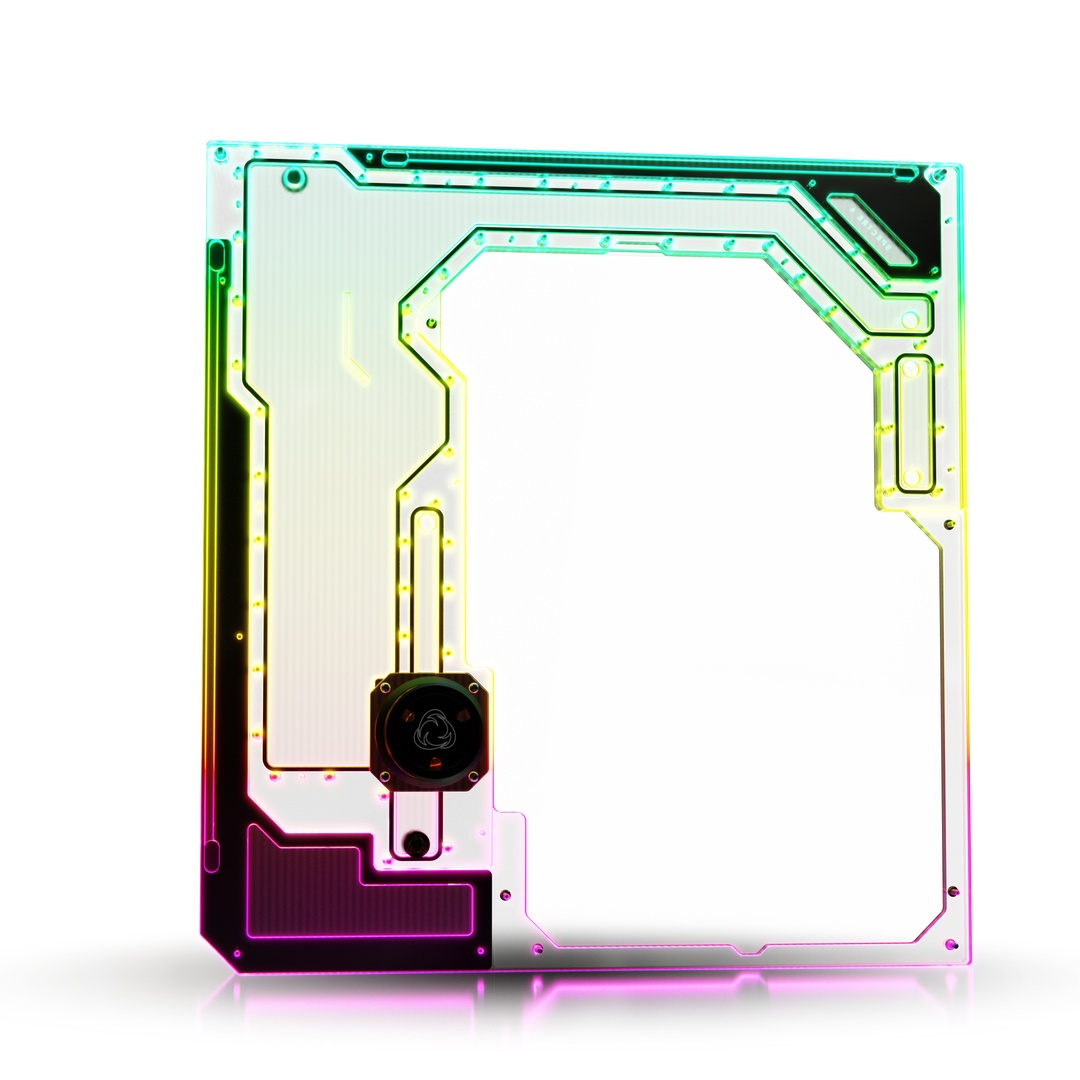

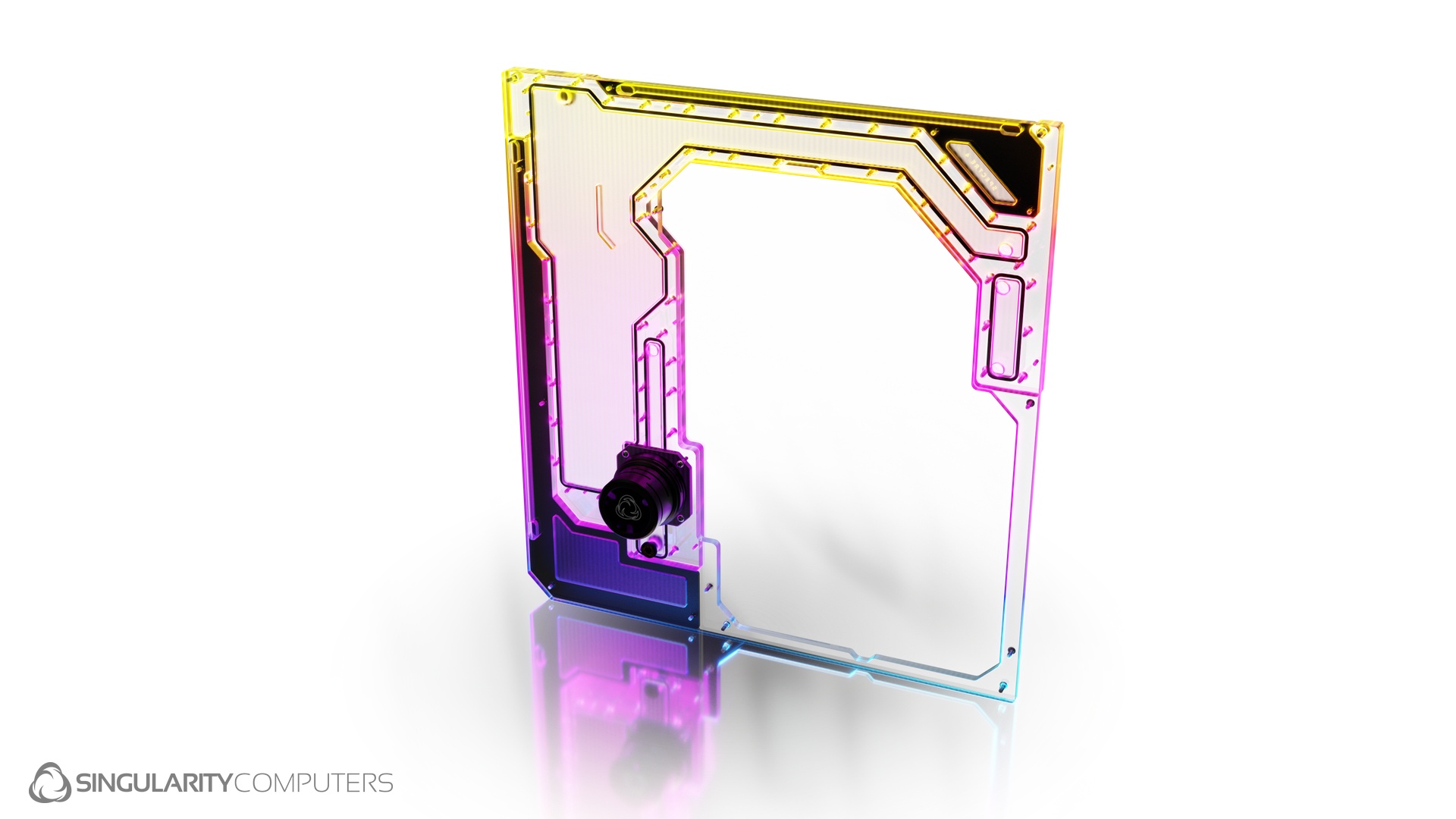

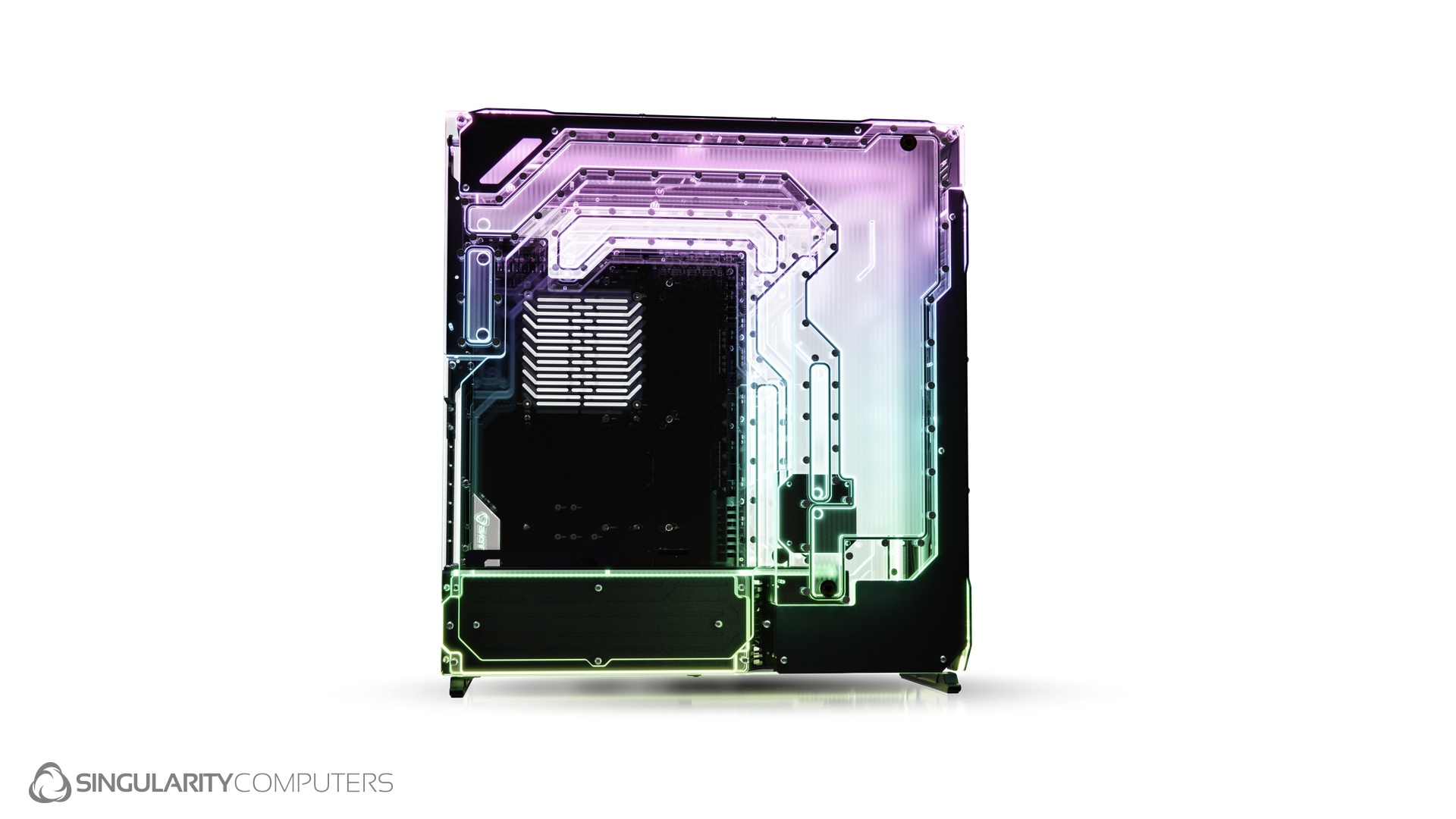

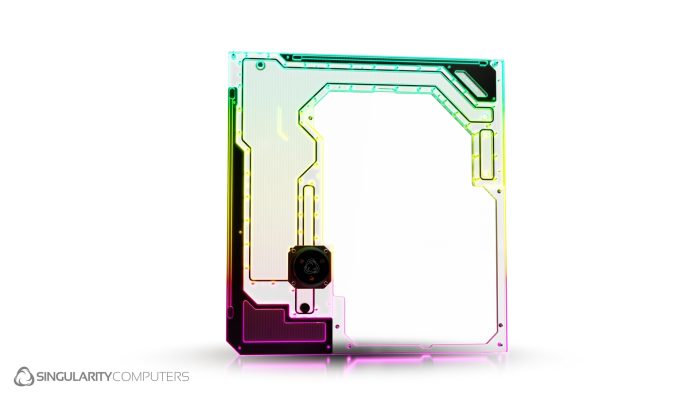

The Spectre 4 Dual Loop Side Panel is an addon for all Spectre 4 cases. It has an all-new design with a larger window increasing view to the build and allowing more space to work on the build through the window area. It adds another D5 Pump Top and Reservoir to the case which can be used for dual loops, or to add a second pump and reservoir for a single loop. It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated reservoir, D5 pump top, D5 Pump Cover and two ARGB LED strips. There are 7 ports which are positioned for connections to the GPU loop and top radiator. It also has a fill, drain and temperature sensor port.

Specifications

Spectre 4 Dual Loop Side Panel.
Protium 3.0 D5 Pump Cover.
Water-cooling Integration: Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Temperature sensor port, Parts of water-cooling loop.
Ports: x7 G1/4” BSPP. 1x Fill Port. 1x Drain Port. 1x Temperature Sensor Port.
Pump: (Not included): Compatible with all D5 pumps.
LED Strips: x2 50cm ARGB LED Strips with 50cm cables (pre-installed).
Materials: Cast Acrylic. 6061 Aluminum. PCB.
Fasteners: Stainless Steel.
Gaskets: Silicone.
Manufacturing Process: CNC Router, CNC Lathe, CNC Mill, PCB.
Assembly: Distribution Plate Assembled by Hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Product Dimensions: L: 540mm x H: 615mm x W: 23mm.
Product Weight: 5kg.
Packaged Dimensions: L: 600mm x H: 600mm x W: 130mm.
Packaged Weight: 5.5kg.

Installation:
Compatible with all Spectre 4 Cases and Spectre Limited Edition Water-cooling Case. Installs in the location of the stock side panel window.

Compatibility:
Spectre 4 Aeternus (all versions).Spectre 4 Carbon.Spectre 4 Enterprise.Spectre 4 Quantum.Spectre Limited Edition Water-cooling Case.
