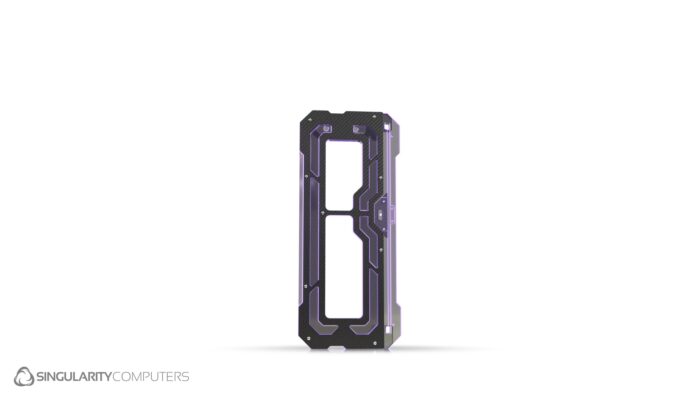

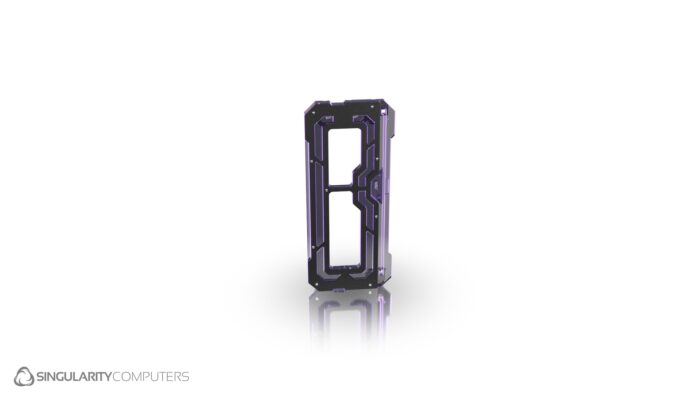

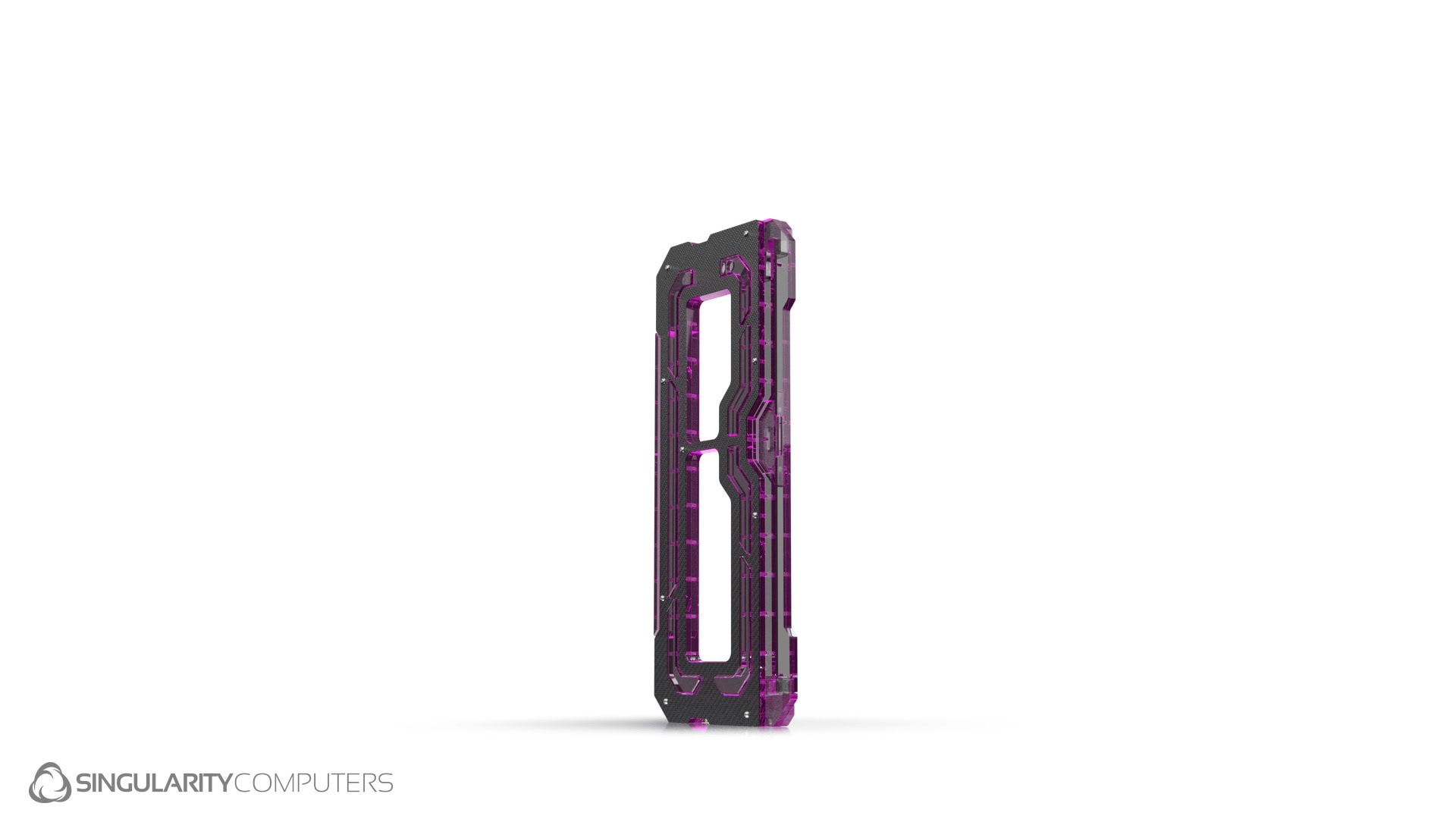

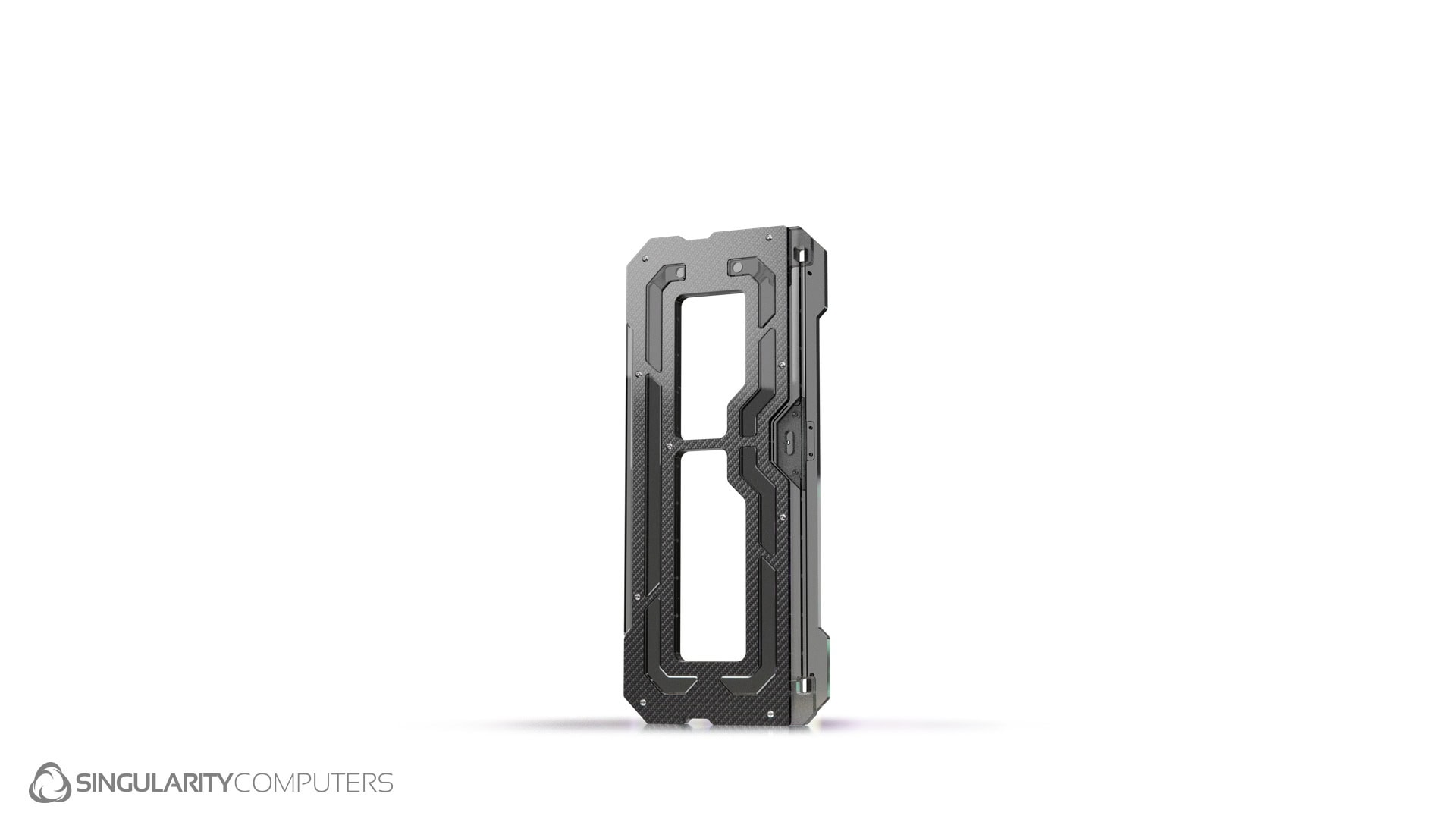

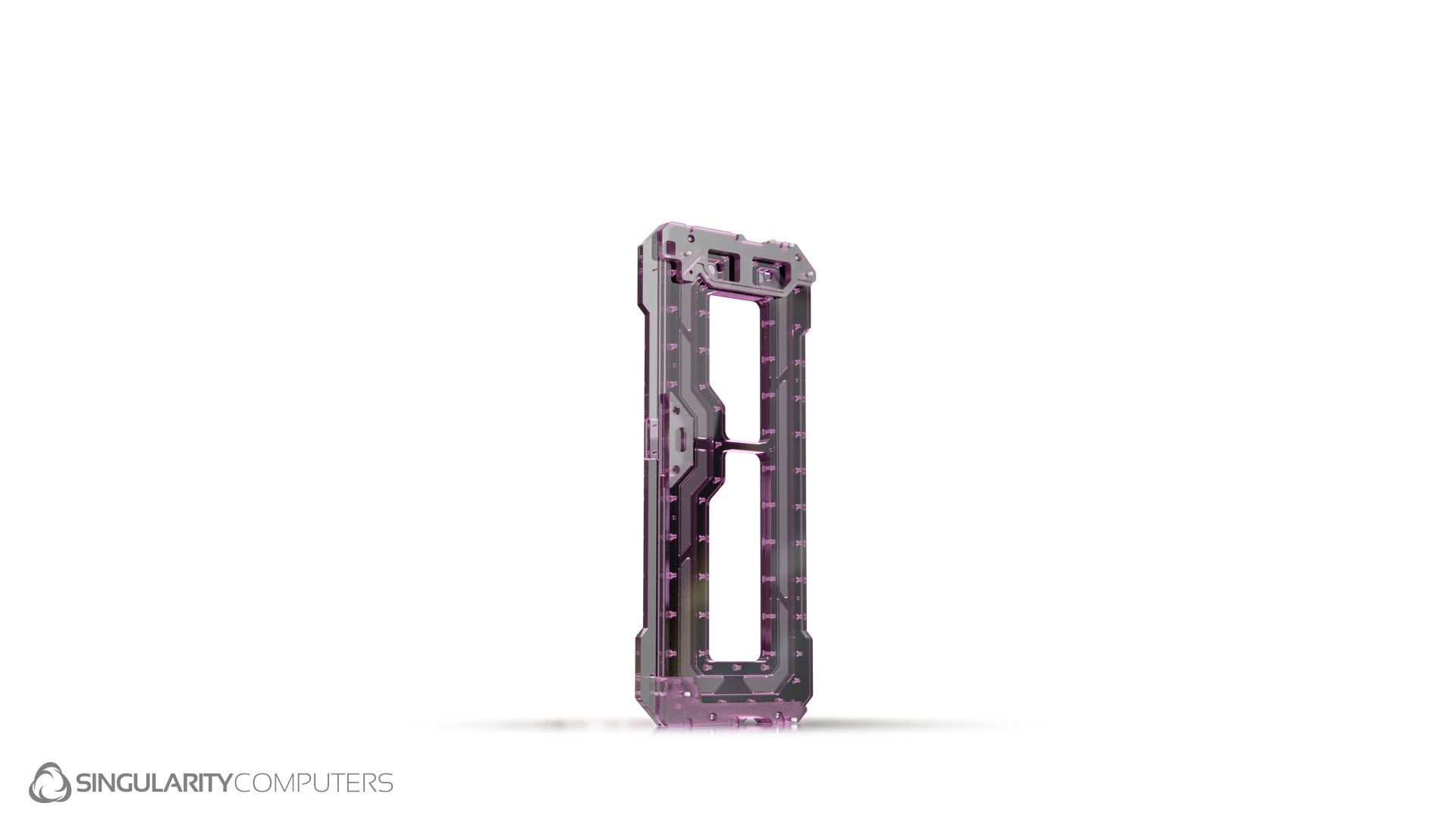

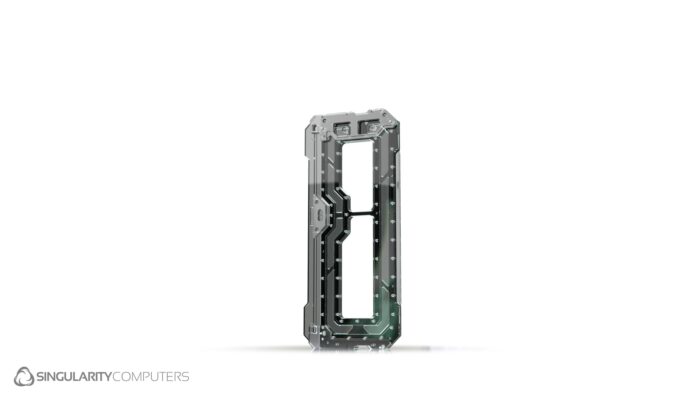

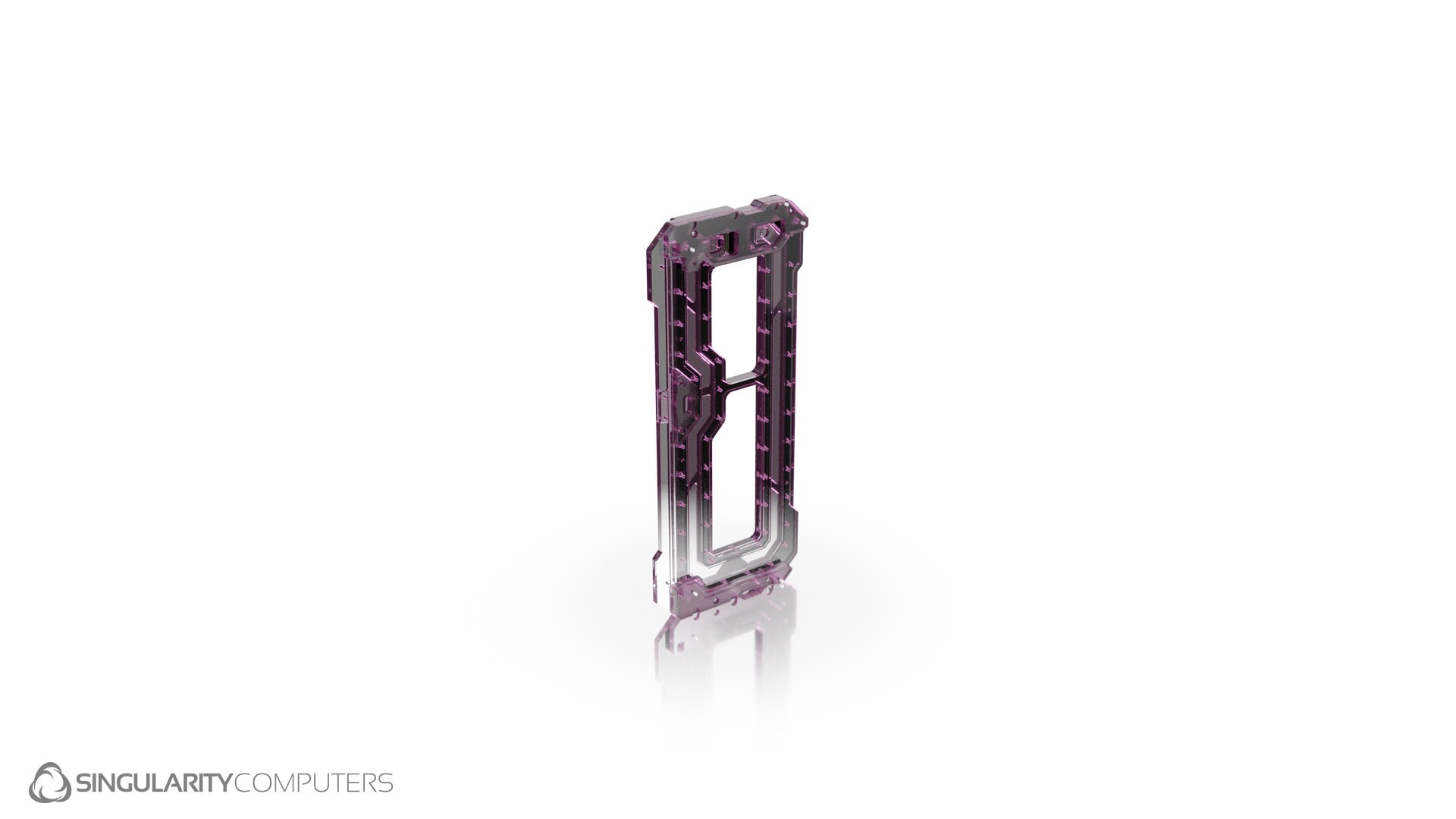

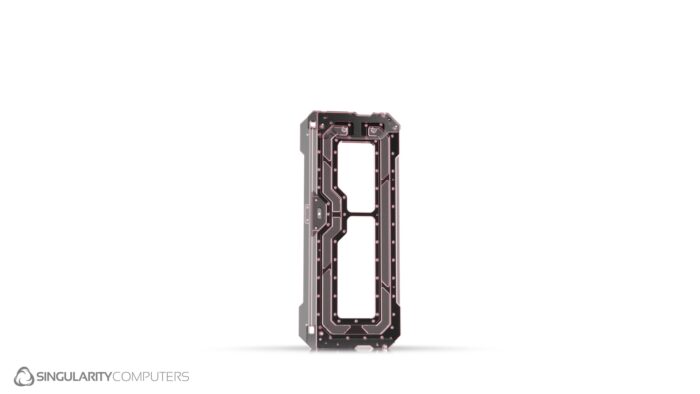

Spectre 4 Carbon Elite

In stock

Order processing time 1-2 days.

  • Spectre 4 Elite distribution plate for front or top panels
  • Version 2 design with greatly increased ventilation
  • Carbon Fiber cover on the Elite Carbon version
  • Enhances the transparent “Spectral” look of Spectre 4
  • Single inlet and outlet with reversible routing
  • Radiator-compatible with perimeter and central ventilation
  • Integrated edge-lit LED strip

Manuals

US$499.00

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188001967 SKU: SC-SPEC4-EL-CARB Category:

Description

Read More +Read Less − full description

Spectre 4 Elite is a distribution plate for the front or top panels of Spectre 4 cases. This distribution plate is an aesthetic addon which replaces the front radiator panel enhancing the transparent ‘Spectral’ look of the case, further showing off the coolant and internal components. This is Spectre 4 Elite Version 2, and it has an all-new design which greatly increases ventilation with large cutouts through the middle and perimeter ventilation. The Spectre 4 Elite Carbon has a Carbon Fiber cover. It has a single inlet and outlet which can be routed in either direction. The ports are positioned on one end of the distribution plate for connection to and from the main case distribution plate and front radiator. Radiators can still be attached. There is an LED strip positioned on the edge of the distribution plate so that it glows.

Specifications

Spectre 4 Elite Carbon Distribution Plate.
Ports: x2 G1/4” BSPP. 1x Inlet. 1x Outlet.
LED Strip: 50cm ARGB 5V with 50cm black cable.
Materials: Cast Acrylic, Carbon Fiber.
Gaskets: Silicone Black.
Fasteners: Stainless Steel Silver.
Manufacturing Process: CNC Mill. CNC Router. Laser Cutter.
Assembly: Assembled by hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Dimensions: L: 550mm x W: 220mm x H: 40mm.
Weight: 4kg.
Packaged Dimensions: L: 600mm x W: 300mm x H: 80mm.
Packaged Weight: 4.5kg.

Installation:
Installs onto the front panel of Spectre 4 instead of the stock aluminum front radiator ventilated panel. Either port can be used as the inlet or outlet.
