Spectre 4 Quantum Water-cooling Case
Limited to 49 cases.
Spectre 4 Quantum is an extreme water-cooling case designed for workstations. It continues the famous Singularity Computers water-cooling integration via a distribution plate which makes up the rear wall of the case. It has the patented Singularity Computers PowerBoard which removes the need for cable management while integrating many features. Spectre 4 Quantum fits large motherboards including E-ATX, SSI-EEB and CEB. It has large cooling capacity fitting up to 2x 420mm or 360mm radiators internally, and 3x 360mm radiators or a MO-RA3 externally. It has a second ATX PSU mount and a 1920×1080 60Hz IPS Screen mounted on the PSU Shroud. Spectre 4 Quantum is our first case with PCB covers instead of acrylic covers like our other cases. It includes x8 PCB covers on the outside of the case, x5 of which have integrated LEDs. These PCBs are daisy chained so that there is no RGB cable mess or cable management. Select below from Silver or Gold PCB options. The case can be personalised with your name or text of your choosing laser etched onto the PSU Shroud (enter the text you would like below), each case is also individually numbered.
Pumps not included. Compatible with any D5 Pumps.
Note: The default included cables will not work for all SSI-EEB and CEB configurations, contact support(at)singularitycomputers.com with any questions.
US$2,299.00
Spectre 4 Quantum Single Loop Flow Diagram
Personalise your PCB Cover Kit PSU Side Shroud Panel (optional)
Specifications
Water-cooling Integration: Reservoir, Pump Tops, Pump Covers, Fill Port, Drain Ports, Parts of water-cooling loop.
Ports: x8 G1/4” BSPP. 1x Fill Port. 2x Drain Ports.
Pumps: (Not included): Compatible with all D5 pumps.
Electronics Integration:
PowerBoard and x8 other PCB Covers x5 of which have integrated LEDs. Options for Gold and Silver (select above).
Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x4. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2 each with x1 input and x3 outputs, with coolant temperature-based RPM control or motherboard control. Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 140mm fan which can be mounted behind the motherboard (controlled by PWM fan hub 1).
PWM Control: 4x potentiometers to set the minimum PWM speed.
ARGB Headers: x13 with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
LEDs: x20 Integrated ARGB 90-degree LEDs around the external perimeter of the PowerBoard.
Power and Reset Buttons.
4pin ATX header x2 to power up to 4 pumps with custom cables from the PowerBoard.
12pin header for future controller addon.
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Screen: 1920×480 60Hz IPS.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x2.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.
Pump Power Cable 4pin ATX to SATA & Molex x2.
Screen cables: Black 1m Mini HDMI to HDMI, USB-A to USB Micro-B.
Motherboard Form Factor: SSI-EEB, SSI-CEB, XL-ATX (Up to: 305mm Wide & 350mm High). E-ATX, ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x8.
Case Form Factor: Full Tower Water-cooling Case.
Storage: x2.5” x2 (can only be used with horizontally mounted GPU/s).
Radiators: Internal: 420mm/360mm X2 with 100mm of thickness for radiators and fans. External: 360mm x3 or MO-RA3 120 with no thickness limitations for radiators or fans. (Front radiator cannot be used with second PSU).
Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.
Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
PSU: ATX PSU Mount supports up to 240mm long PSUs with a large amount of space for cables. (Second ATX PSU Mount available see above add on option).
Front Panel I/O: No Front I/O.
Power Button: Touch Activated.
Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 5.0 Riser Cable. 2nd Vertical GPU Mount is available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: L: 550mm x W: 250mm x H: 615mm.
Case Weight: 14kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm (Case is flat packed).
Packaged Weight: 16kg.
Spectre 4 Versions
| Spectre 4 | Spectre 4 Aevum | Spectre 4 Aevum Chrome | Spectre 4 Aevum Dark | Spectre 4 Aevum Gold | Spectre 4 Aevum Valhalla | Spectre 4 Enterprise | Spectre 4 Quantum | Spectre 4-M | Spectre 4-M Dark | |
| Distribution Plates | x1 | x2 | x2 | x2 | x2 | x3 | x1 | x2 | x1 | x2 |
| Distribution Plate Layers | x2 | x4 | x4 | x4 | x4 | x4 | x2 | x2 | x3 | x3 |
| PowerBoard | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Motherboard Form Factor | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX | Up to E-ATX, SSI-EEB, SSI-CEB | Up to E-ATX, SSI-EEB, SSI-CEB | Up to E-ATX | Up to E-ATX |
| IO Slots | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 7 | 7 |
| Radiators | 2x 360mm/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360/420mm | 2x 360mm/420mm + 3x 360mm or MO-RA3 | 2x 360mm/420mm + 3x 360mm or MO-RA3 | 2x 360mm | 2x 360mm |
| Radiator Thickness | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | 45mm | 45mm |
| Pump/s | D5 | D5 | D5 | D5 | D5 | D5 | 2x D5 | 2x D5 | D5 | D5 |
| Reservoir | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Case Dimensions | 610mm x 245mm x 560mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 600mm | 610mm x 245mm x 560mm | 610mm x 245mm x 560mm | 486mm x 245mm x 528mm | 506mm x 245mm x 528mm |
| 1920×480 60Hz Screen | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | Yes |
| Limited Edition | No | Yes | Yes | Yes | Yes | Yes | No | No | No | No |
| Individually Numbered | No | Yes | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes |
| Rear CPU Socket Fan | Yes | Yes | Yes | Yes | Yes | Yes | No | No | Yes | Yes |
| Dust Filters | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| Multi Zone PWM | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Dedicated Pump PWM | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Dedicated Pump Power | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Temperature Based RPM Control | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| RPM Curve Adjustment | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PSU Jump Start | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PSUs | x1 | x1 | x1 | x1 | x1 | x1 | x1 (2nd can be added with optional addon) | x1 (2nd can be added with optional addon) | x1 | x1 |
| Water-cooling Loops | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x2 | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) | x1 (2nd can be added with Dual Loop Side Panel) |
| Color | Black | Black & Graphite | Silver Mirror | Black & Grey Tinted | Gold | White | Black | Black and Silver or Black and Gold | Silver | Black & Grey Tinted |
| Drives | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mounted | x2 2.5” if GPU/s not vertically mounted | x2 2.5” if GPU/s not vertically mounted | x2 x2.5” | x2 x2.5” |
| PCB Covers with integrated ARGB | No | No | Yes | Yes | Yes | No | No | Yes | Yes | Yes |
| Personalised etched name and serial number | No | No | Yes | Yes | Yes | No | No | Yes | No | No |
Addon Information
Dual Loop Side Panel Distribution Plate Elite Top and/or Front Distribution Plate
Rear IO Distribution Plate FanGuardian PowerBoard Controller
Dual Loop Side Panel Distribution Plate: The Spectre 4 Dual Loop Side Panel is an addon for the Spectre 4 Water-cooling Case. It mirrors parts of the main distribution plate, but some port locations are different so that the Dual Loop Side Panel can be used for the GPU loop and the main case distribution plate for the CPU loop. It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated D5 pump top, D5 Pump Cover and two ARGB LED strips which come pre-installed. There are 4 ports which are positioned for the GPU loop and top radiator, and a fill and drain port. The port layout has been designed for two separate loops, but it can be used for dual loops, single loop, series or parallel.

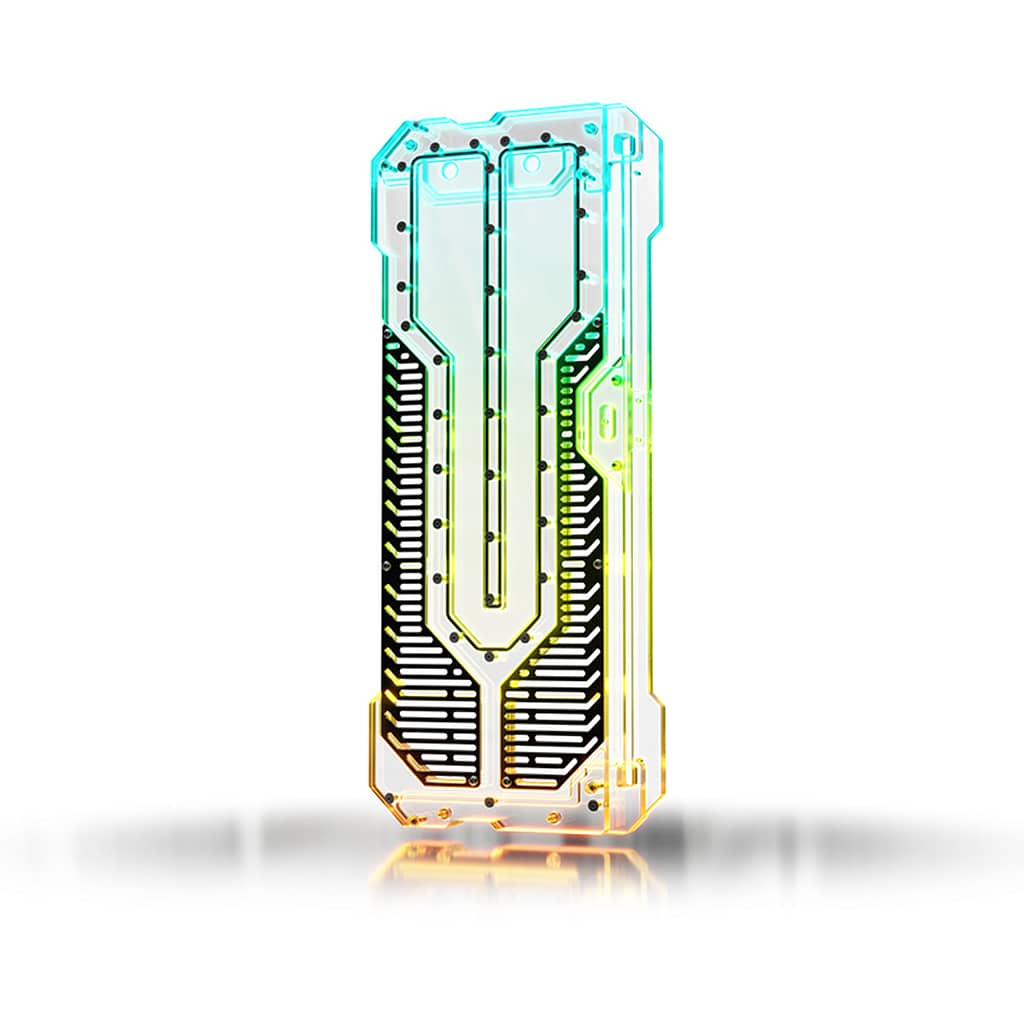

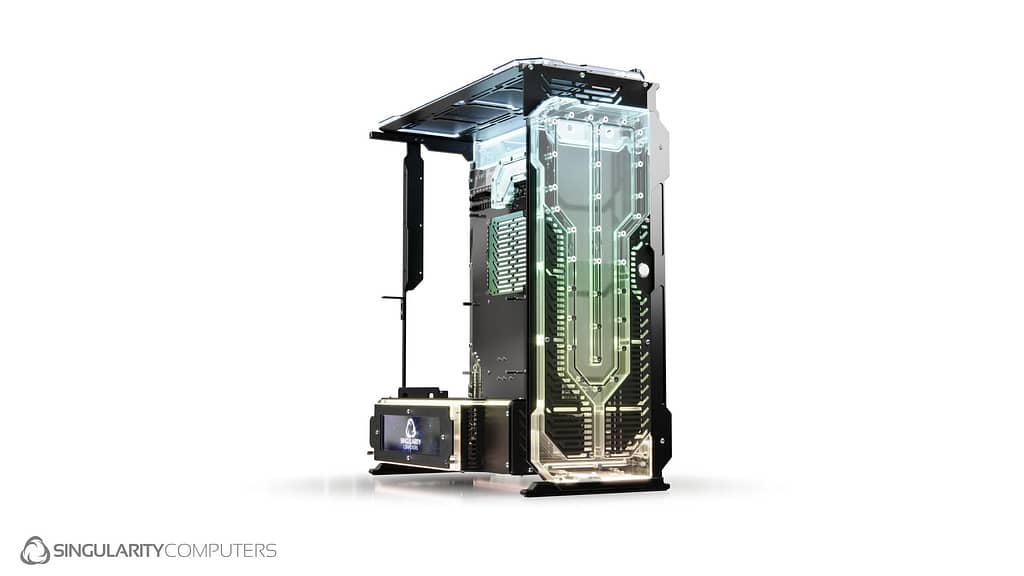

Elite Top and/or Front Distribution Plate: The Spectre 4 Elite has an all-new design with greatly increased ventilation, and it is larger to fit onto the 420mm radiator panels of Spectre 4. It has two thicker acrylic panels and countersunk fasteners to improved durability, quality, and aesthetics. It replaces the front radiator panel which enhances the transparent ‘Spectral’ look of the case, further showing off the coolant and internal components. The main purpose is an aesthetic feature, although it does increase fluid volume. It has a single inlet and outlet which can be routed in either direction. The ports are positioned on one end of the distribution plate for connection to and from the main case distribution plate and front radiator. Radiators can still be attached and there is ventilation around the perimeter of the distribution plate and through the ventilated sections on the front. There is an LED strip positioned on the edge of the distribution plate so that it glows.
Rear IO Distribution Plate: The Spectre 4 Rear IO Distribution Plate is designed for both Spectre 4 & Spectre 4 Aevum Water-cooling Cases and is compatible with all addons. It can be used in single or dual loop mode, with or without the Spectre 4 & Spectre 4 Aevum Dual Loop Side Panel. The Rear IO Distribution Plate attaches to the Rear IO Panel above the GPU, it has pass throughs for the Dual loop Side panel with a cover which can be attached to cover up the pass throughs if the Dual Loop Side panel is not being used. Similar to the Spectre Elite Front and Top Panel Distribution Plates, this Distribution Plate is primarily designed to improve aesthetics although it can improve the loop layout in some scenarios.
FanGuardian PowerBoard Controller: The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It can be mounted with fasteners onto Spectre 4 and Stream-M Water-cooling cases and with adhesive on the SC Test Bench, SC Rackmount Case and PowerBoard Universal 360mm. It has updateable Software/Firmware and we will continue adding features.
