Stream-M Dual Loop Water-cooling Case
Order processing time 1-2 days.
Stream-M Dual Loop is a high end water-cooling focused case which fits E-ATX motherboards and two 360mm or 420mm radiators up to 60mm thick. It has a closed design with dust filters on all intakes. It has two separate distribution plates built in, each with a reservoir, D5 pump top, D5 pump cover and parts of the loop. It has the patented Singularity Computers PowerBoard which removes the need for cable management and comes with a vast range of features including integrated lighting, temperature-based RPM control, separate PWM zones, dedicated PWM pump headers, PSU jump start for running the pumps, pump power headers, temperature sensor inputs and more. It also comes with cables. Stream-M has a 140mm fan mount behind the motherboard to cool the rear of the CPU socket, three 2.5”, one 3.5” and one 2.5”/3.5” drive mount. The case construction is extremely high end with all CNC machined components and 3mm anodized aluminum panels.
Pump not included. Compatible with any D5 Pump.
Original price was: US$1,299.00.US$1,039.00Current price is: US$1,039.00.
Specifications ▼
Water-cooling Integration:
Reservoir x2, Pump Top x2, Pump Cover x2, Fill Port x2, Drain Port x3, Parts of two separate water-cooling loops. Front & Rear Distribution Plate.
Ports: x9 G1/4” BSPP. 2x Fill Ports. 3x Drain Ports.
Pump: (Not included): Compatible with all D5 pumps.
Electronics Integration:
Connectors: 24pin x1. PCIE 8pin x4. 12V2x6/PCIE 5.1 x2. 8pin EPS x4. PCIE 6pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2 each with x1 input and x3 outputs. With coolant temperature-based RPM control or motherboard control Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 140mm fan which can be mounted behind the motherboard (controlled by PWM fan hub 1).
PWM Control: 4x potentiometers to set the minimum PWM speed.
ARGB: x13 with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
LEDs: x28 Integrated ARGB 90-degree LEDs and x28 UV 90-degree LEDs around the external perimeter of the PowerBoard. There are dip switches to turn the ARGB and UV LEDs on or off separately and stand-by UV lighting can be disabled.
Power and Reset Buttons.
PowerBoard direct mount 1 x 2.5” and 1 x 2.5”/3.5” SATA 3.0 6Gb/s accessible from the back of the distribution plate.
4pin ATX header to power up to two pumps with custom cables from the PowerBoard.
12pin header for future controller addon.
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3 or 12V2x6/PCIE 5.1 (select above). 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, Black 20cm. PowerBoard to Horten Touch Module 60cm Black.
Pump Power Cable 4pin ATX to SATA & Molex x2
LED Strips: ARGB 5V 50cm x2 (pre-installed).
Motherboard Form Factor: XL-ATX (Up to: 290mm Wide & 350mm High).
E-ATX, ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x7.
Case Form Factor: Full Tower Water-cooling Case.
Storage: x4 x2.5” x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x2 are on the rear side of the PowerBoard, x1 is optional 2.5” or 3.5”.
Radiators: 420mm/360mm X2 with 85mm of thickness for radiators and fans.
Maximum GPU Length: 445mm with 60mm front radiator and 25mm fans.
Maximum GPU Height: 170mm in standard orientation, unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 240mm with a large amount of space for cables.
Front Panel I/O: No Front I/O.
Power Button: Touch Activated
Vertical GPU Mount: Vertical GPU mounting brackets with PCIE 5.0 Riser Cable. 2nd Vertical GPU Mount is available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. The case is flat packed, and the metal components need to be assembled by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: L: 518mm x W: 592mm x H: 218mm.
Case Weight: 14kg.
Packaged Dimensions: L: 640mm x W: 620mm x H: 110mm.
Packaged Weight: 15kg.
Addon Information ▼
Stream-M Screen FanGuardian PowerBoard Controller
Protium 3.0 D5 Pump PowerBoard PSU Cable Kit
Shift Motherboard 24pin 90 Degree Adaptor
Stream-M Screen: 1920×480 60Hz IPS Display mounted into a CNC machined black cast acrylic panel. It fits onto the front of Stream-M on the mid-plate. It is fully visible through the Stream-M side panel window, and its compatible with both versions of Stream-M. The screen is powered by an included black 0.9m USB-A cable and the signal is from an included black 1m HDMI cable.
FanGuardian PowerBoard Controller: The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It has updateable Software/Firmware and we will continue adding features.
Protium 3.0 D5 Pump: The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built, and we have never seen one fail in any of our systems. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It is controlled via PWM so you can connect it to your motherboard to manage the RPM.
PowerBoard PSU Cable Kit: Designed to be connected from the PSU to the PowerBoard. Stock PSU cables will work with the PowerBoard on the input side but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.
Shift Motherboard 24pin 90 Degree Adaptor: Singularity Computers Shift adaptors are designed for use with the PowerBoard, but can be used with any components or cables. The PCBs are custom designed with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling. SC Shift Adaptors provide a range of options for cleanly routing your cables. Shift 180 Degree PCIE adaptors are designed to be used on your GPU to achieve cleaner cable runs. Shift 90 Degree adaptors are designed to be used with the PowerBoard and motherboards with 90-degree 24pin, 8pin EPS and 6pin PCIE connections. They solve the problem of the connectors being too close together to make a clean connection with sleeved cables, and the problem of the 180-degree flipped pin out.

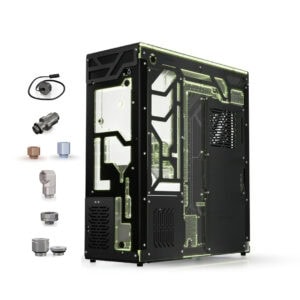

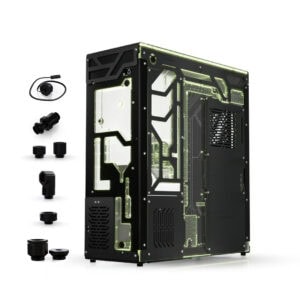

SC Fittings Package Stream-M Dual Loop ▼
Included Fittings:
16mm Hardline Compression x10.
90 Degree Rotary: x10.
15mm Extension x1.
10mm Extension x1.
Telescopic Fitting Small x1.
Temperature Sensor: x2.
Low Profile Drain Valve x2.
Stream-M PowerBoard ▼
