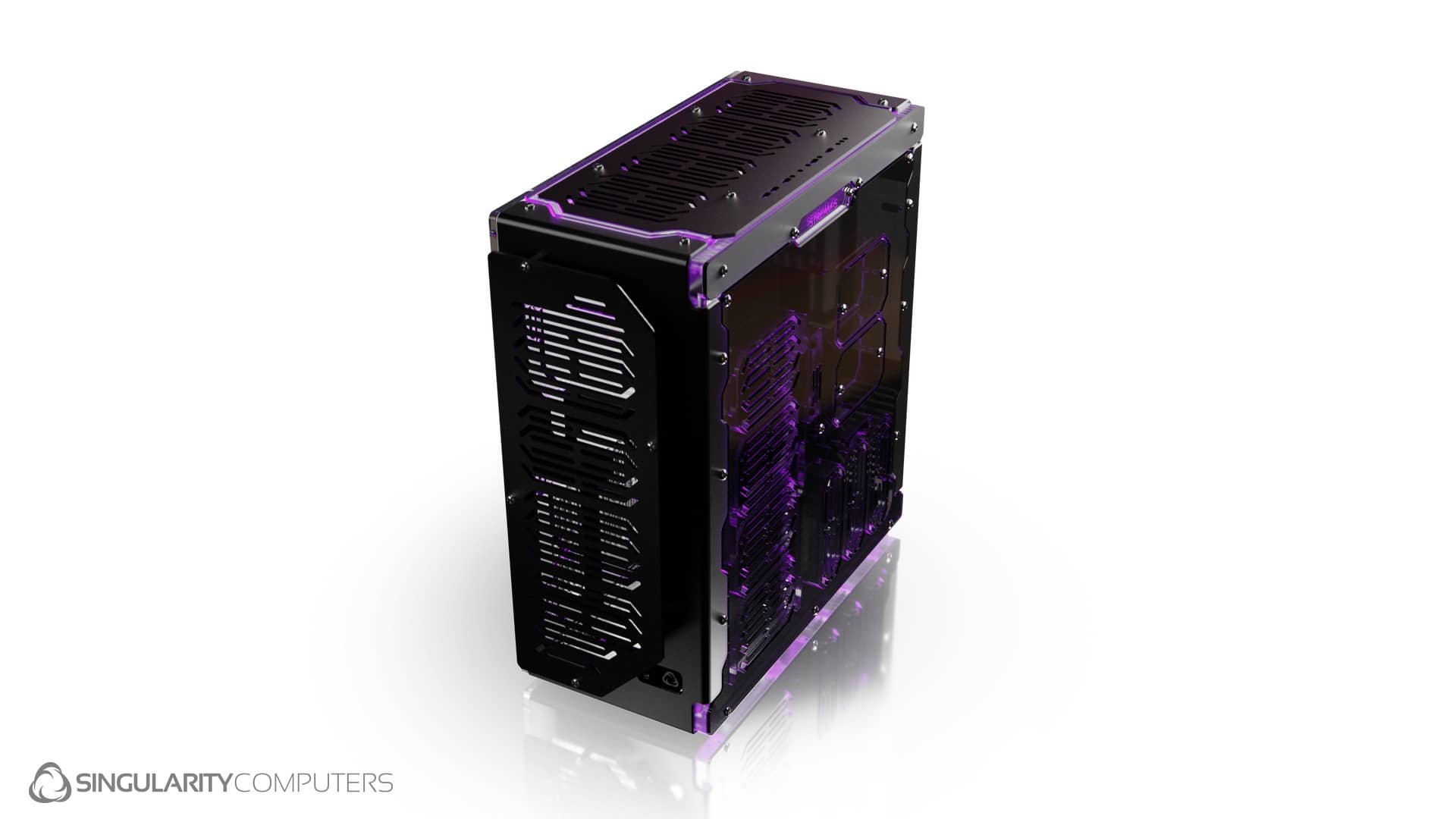

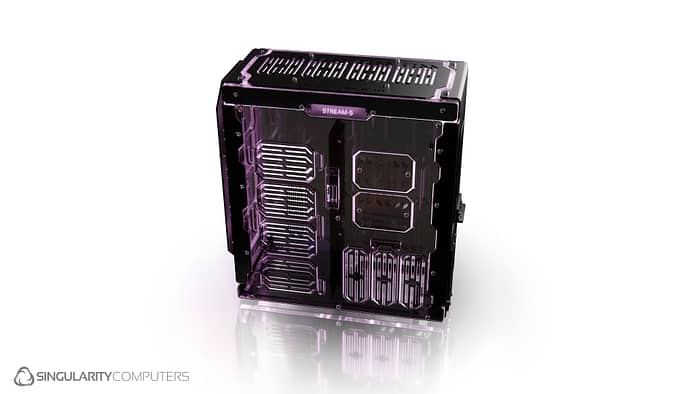

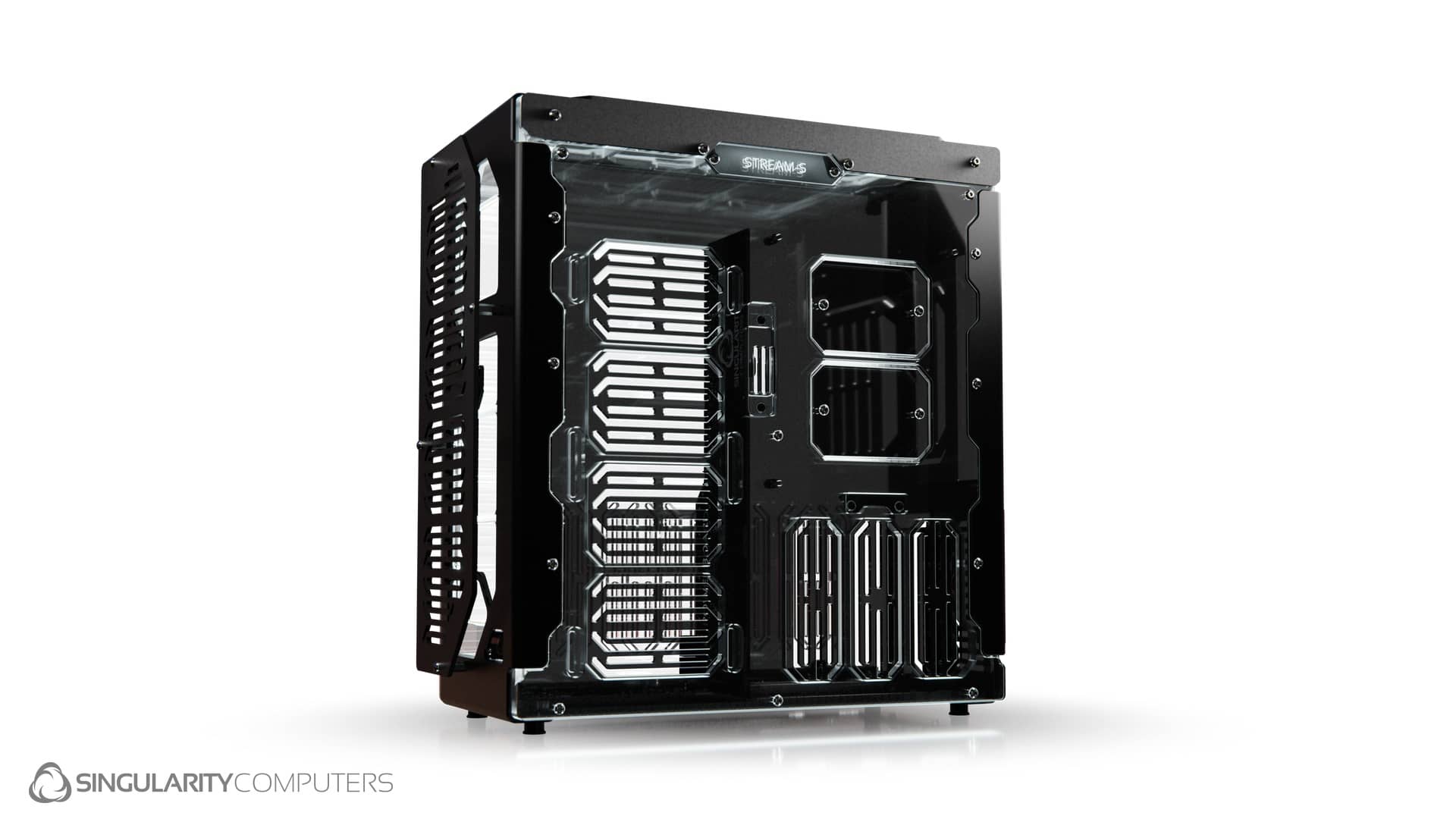

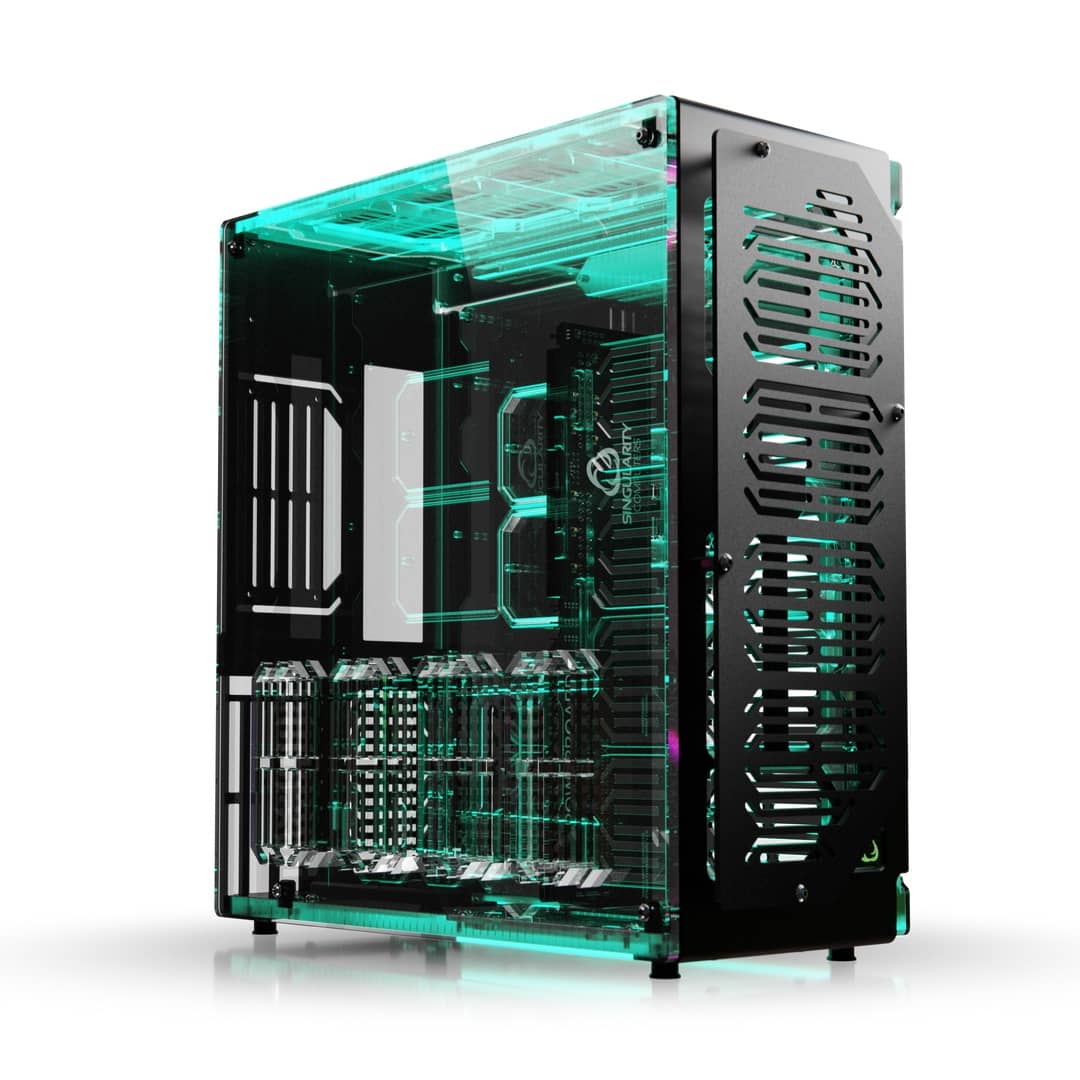

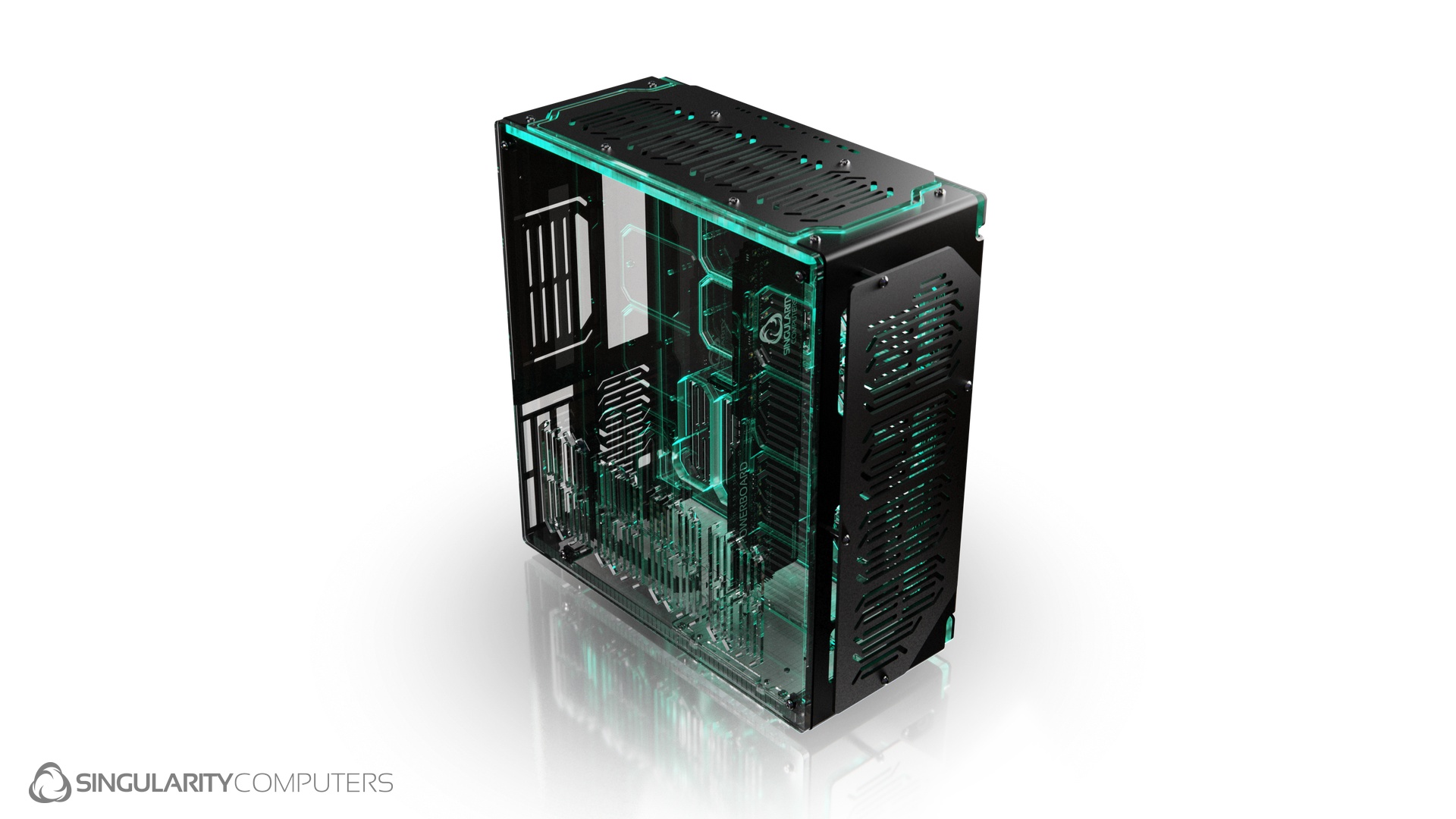

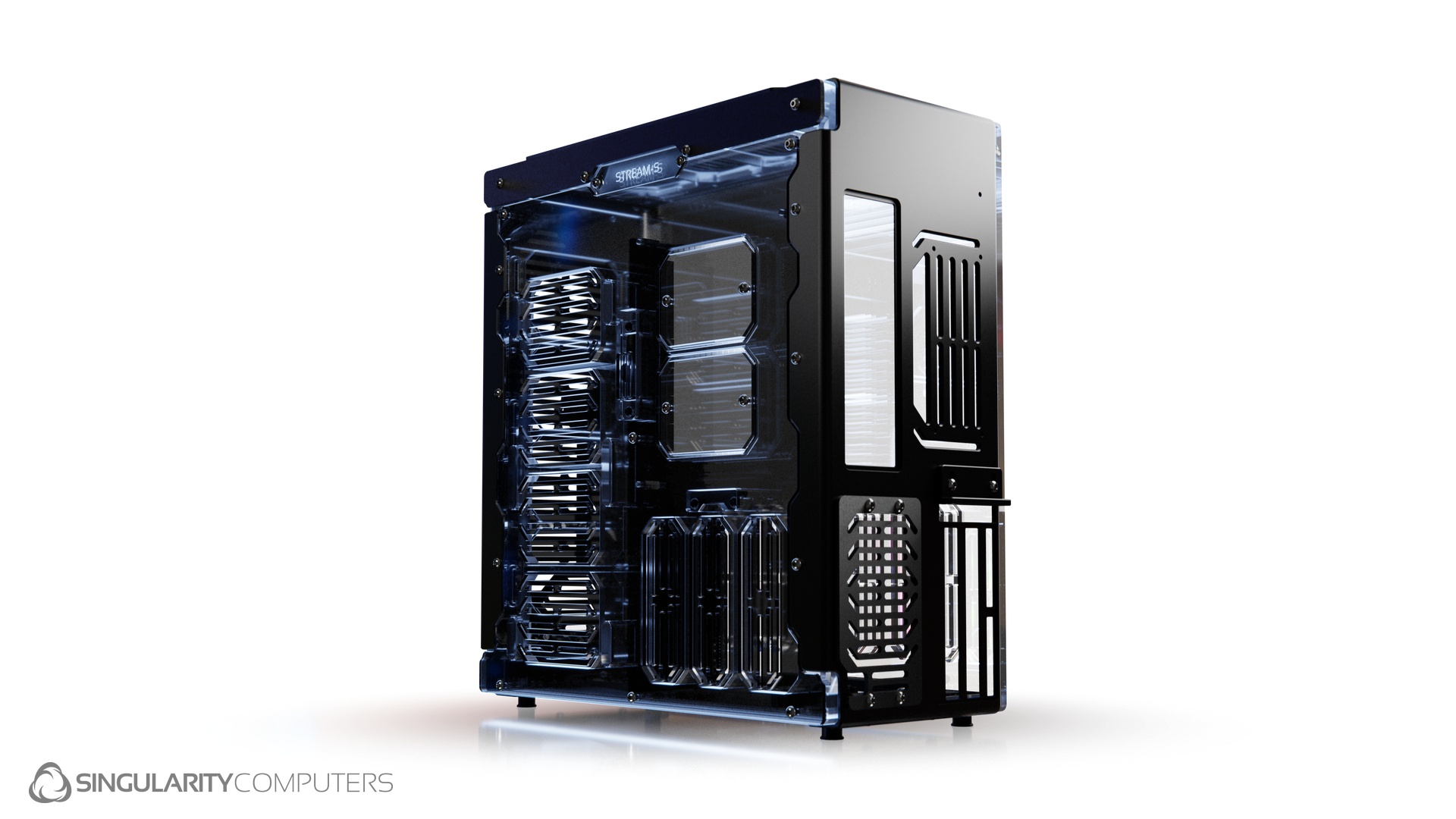

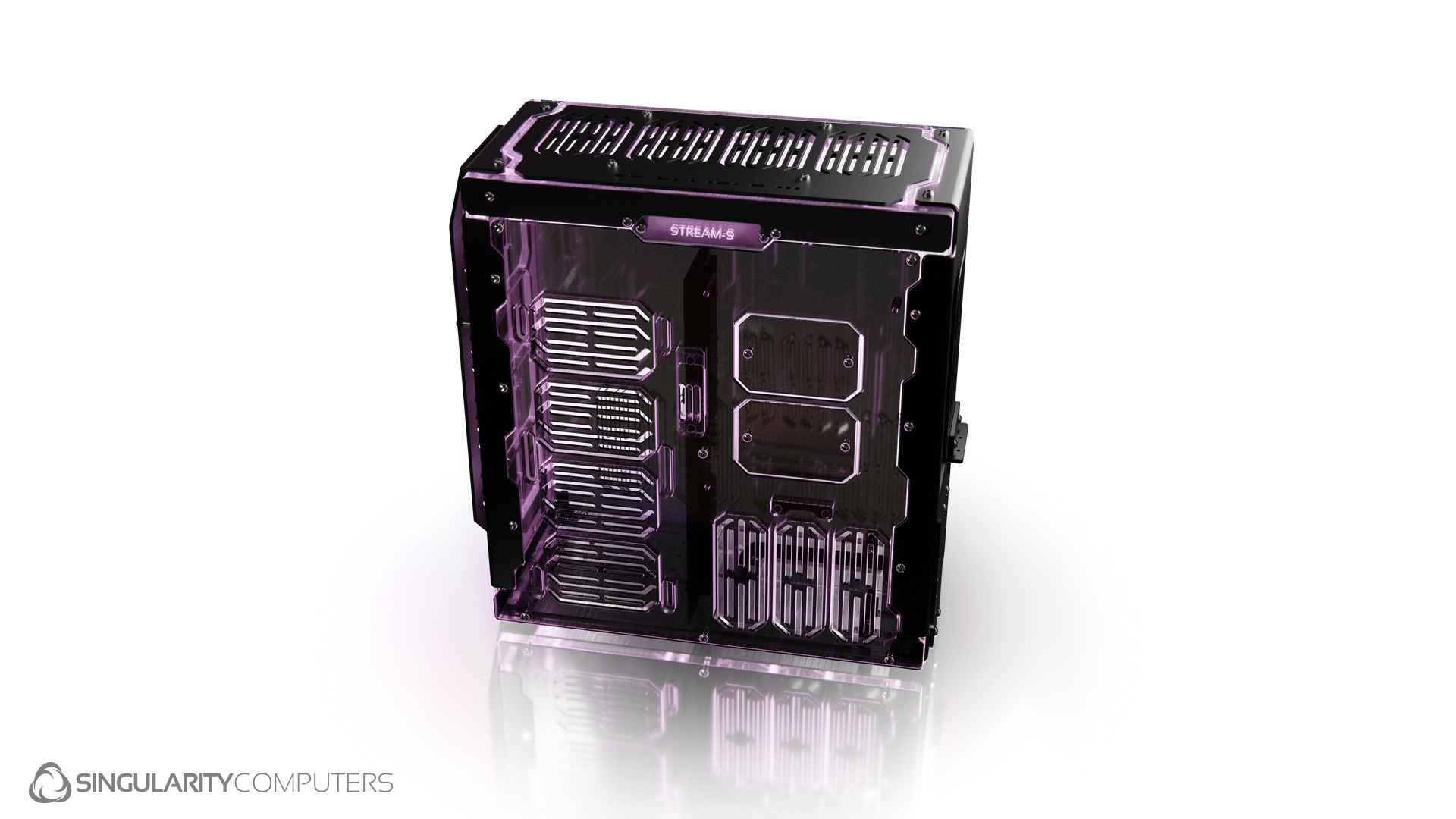

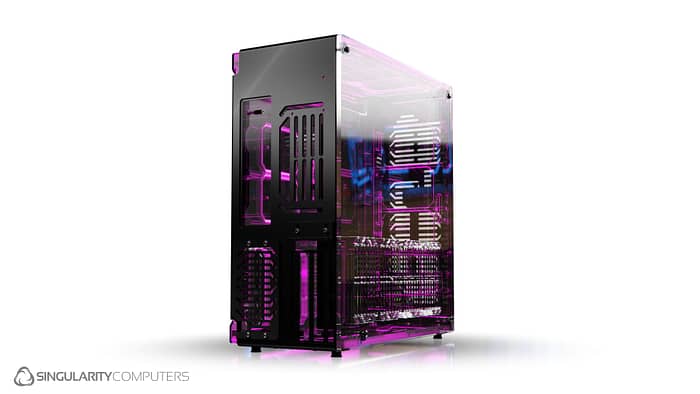

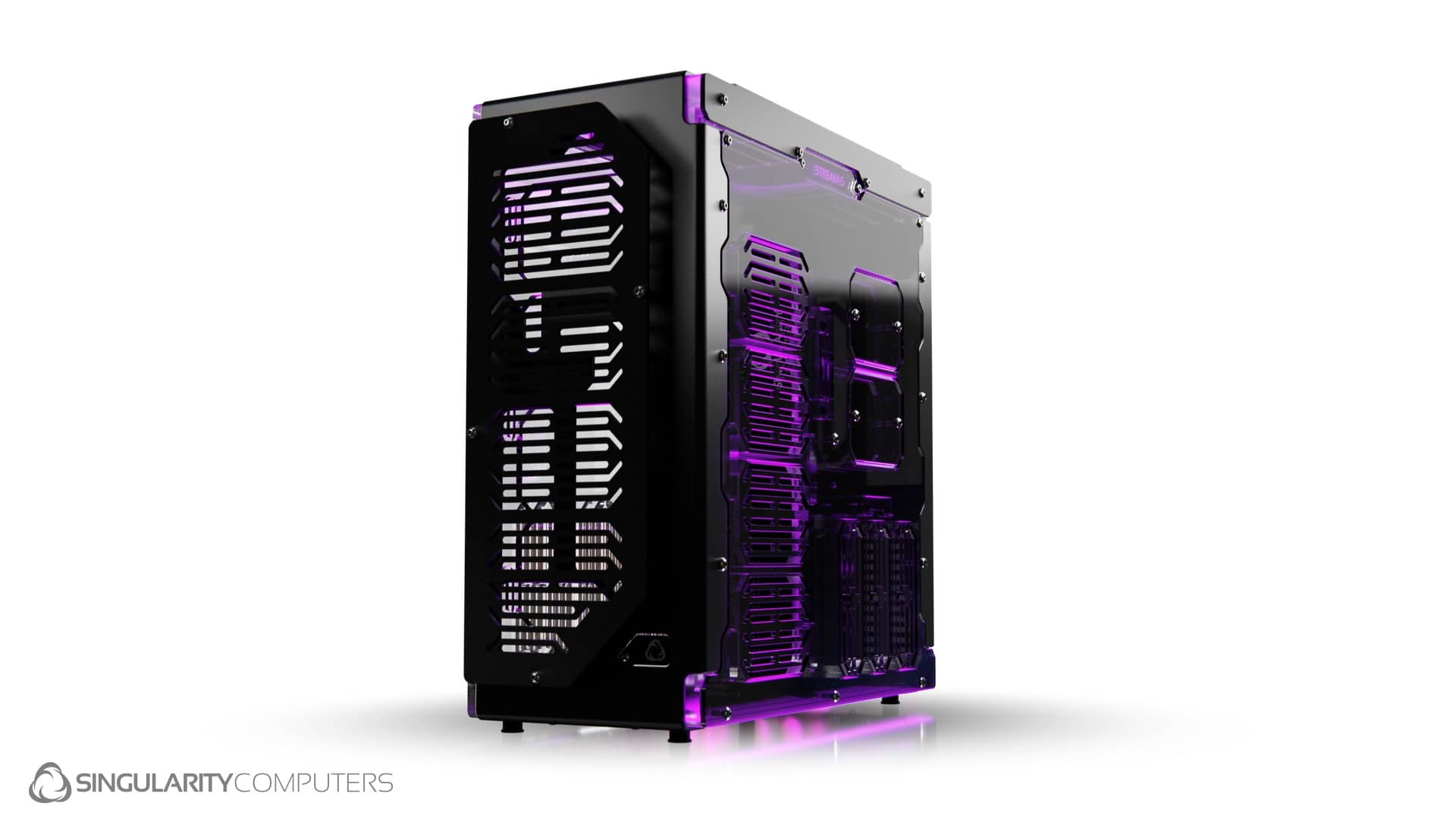

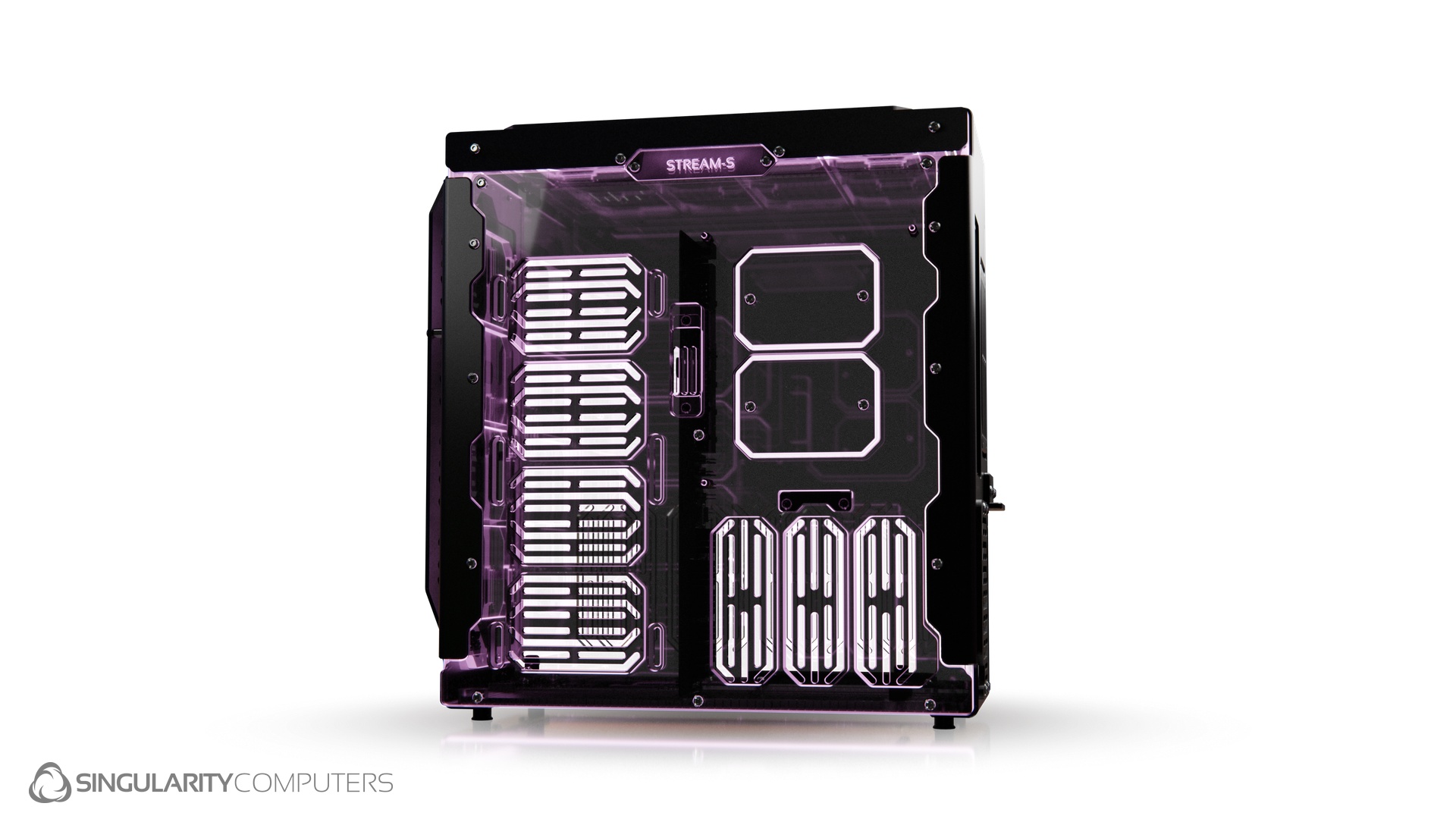

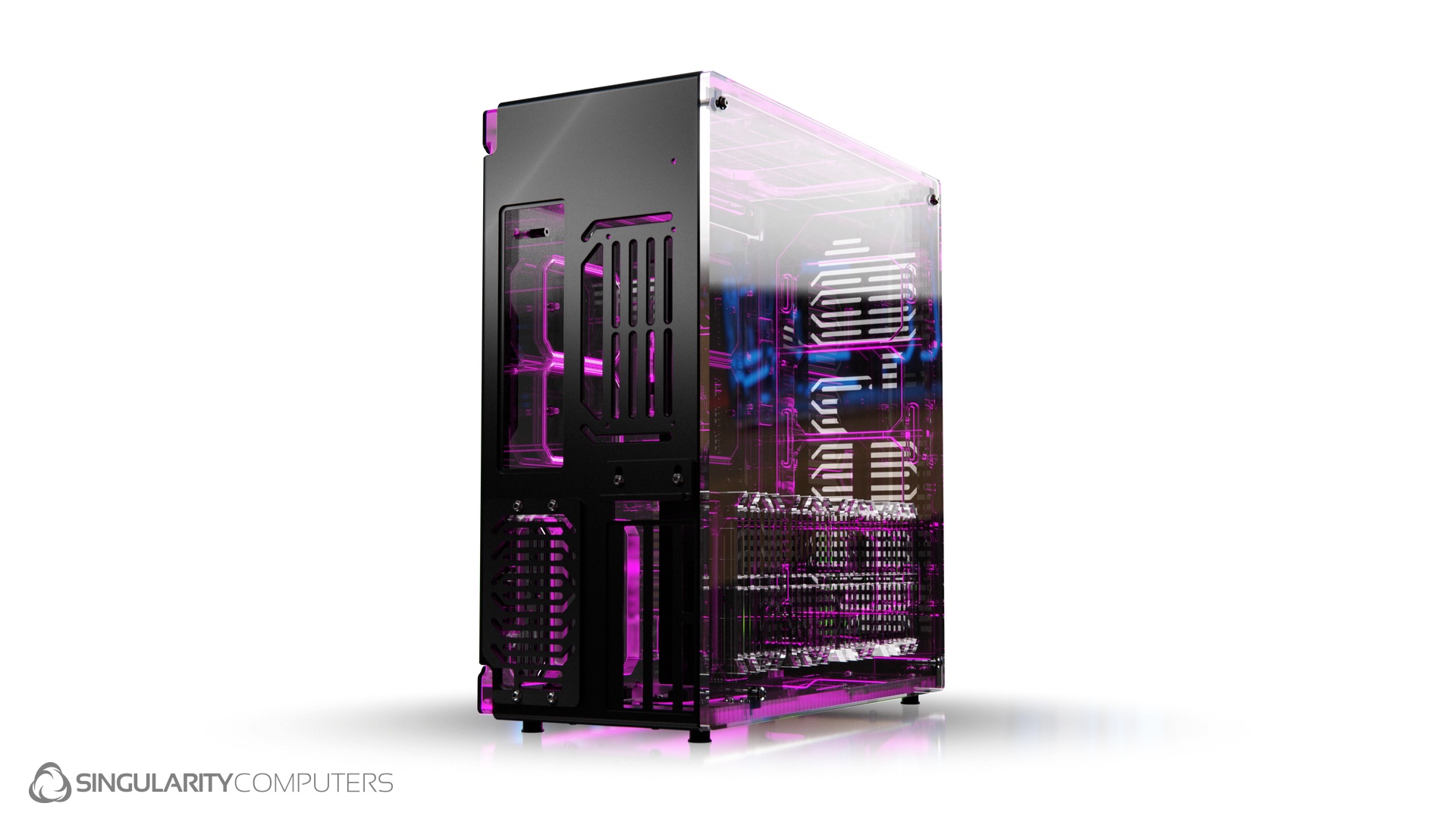

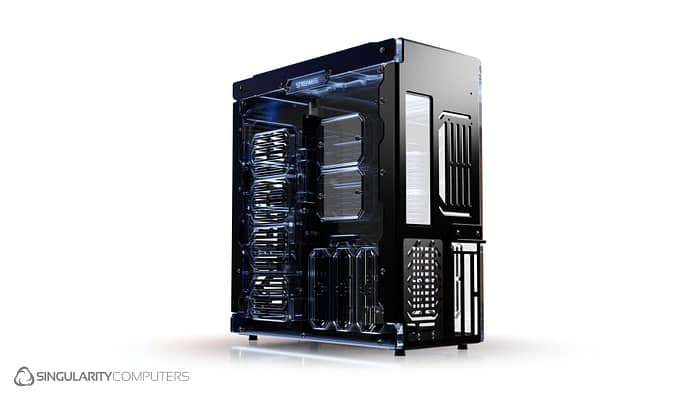

Stream-SA ITX Case

Stream-SA is an SFF case designed for high end water-cooling. It has a distribution plate on the front panel which integrates a pump and reservoir. It fits x2 240mm radiators, full sized GPUs and 4x 2.4” drives. Stream-SA is the first case which does not need wires for the main cables. It has a PowerBoard which connects directly to the PSU and includes flexible PCBs which connect the PowerBoard to the motherboard and GPU. The PowerBoard and flexible PCBs remove the need for cable management and make the cables extremely clean and compact which is particularly important for an SFF case.

Stream-SA has the front distribution removed and in its place is a fan mount for 2x 120mm fans. This is so that the case can be used for an air-cooled build, AIO/s, or a separate pump/reservoir combination can be installed. The side panel is also ventilated for GPU cooling.

Build Gallery

US$399.00

Top panel and rear panel covers (see image below).

Stock Black Satin+Smoked Black Satin Gloss Black Gloss White Carbon Mirror +US$49.00 Silver Mirror +US$49.00 Gold Mirror +US$49.00 Stock Black Satin+Smoked

Custom black sleeved cables which connect from the PowerBoard to the GPU.

8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1
EAN: 9351182006108 SKU: SC-STREAM-SA Category:

Manual

Gallery

Specifications

Electronics Integration: Core Component Cables: 24pin x1. 8pin EPS x1. PCIE 8pin x3. 12V2x6/PCIE 5.1 x1. 6pin PSU.
Hubs: PWM: x4. ARGB: x5 (Single input for all).
Extra Power and Reset Buttons.
Cables: PowerBoard Linking FPC Cables: 24pin x1. 8pin EPS x1. Select either 8pin PCIE x3 or 12V2x6/PCIE 5.1 Cable.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
LED Strips: x3 Installed on Distribution Plate, Motherboard Tray, and Top Panel.
Motherboard Form Factor: Mini-ITX.
Expansion Slots: x2.
Case Form Factor: SFF.
Case Dimensions: L: 346mm x W: 165mm x H: 381mm.
Case Weight: 6kg.
Packaged Dimensions: L: 406mm x W: 225mm x H: 441mm. (Case comes fully assembled).
Packaged Weight: 6.5kg.
Storage: 4x 2.5”.
Radiators: 240mm x 30mm with x1 set of standard 25mm fans.
Maximum GPU Length: 323mm.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: 138mm.
Maximum PSU Length: Compatible only with the Asus ROG Loki series.
Front Panel I/O: No Front I/O. Touch activated button.
Vertical GPU Mount: x1, 2 slot. PCIe 4.0 Vertical GPU Riser Cable 20cm.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Assembled by Hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
