SC Ultra-Node Now Available

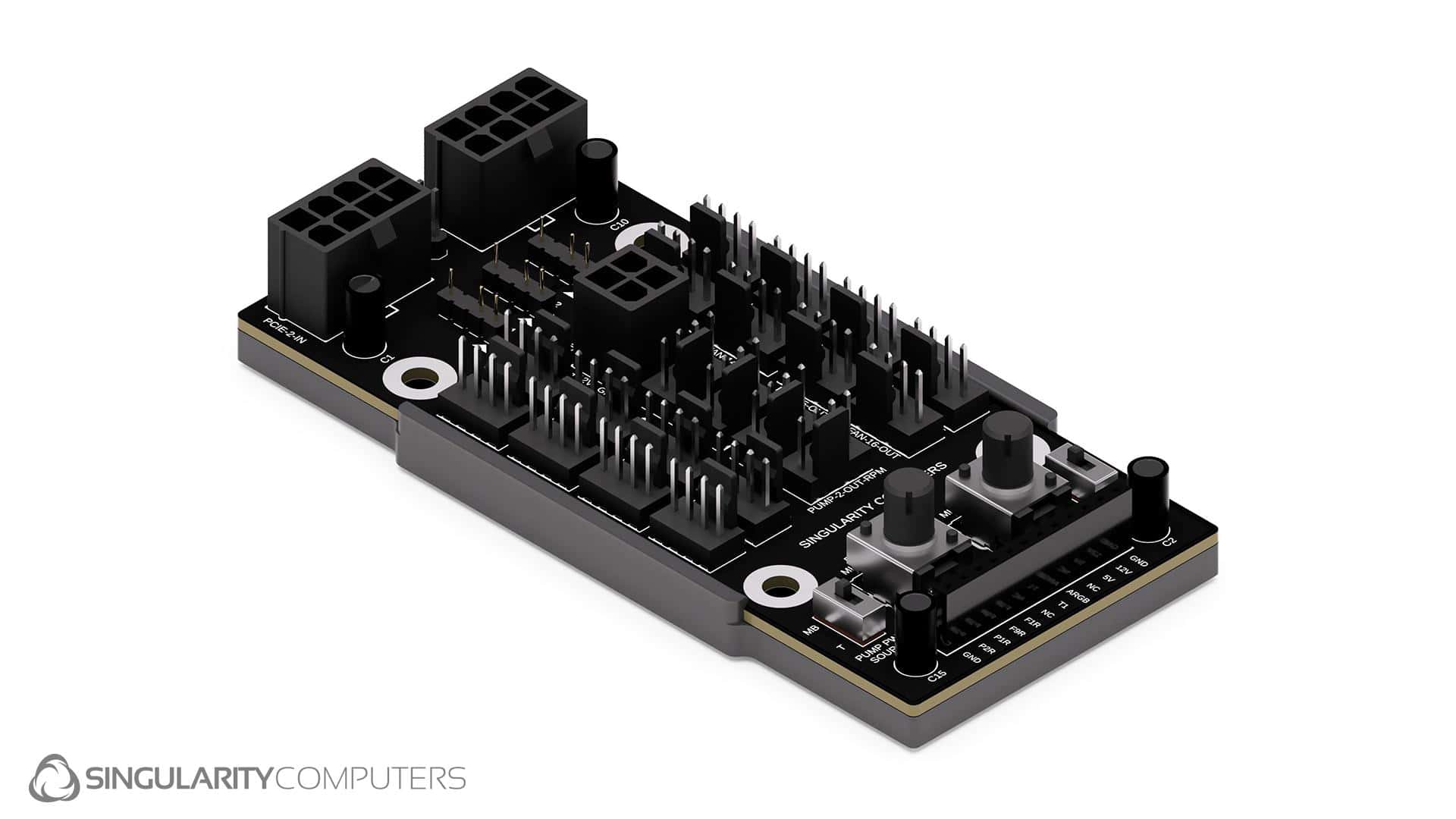

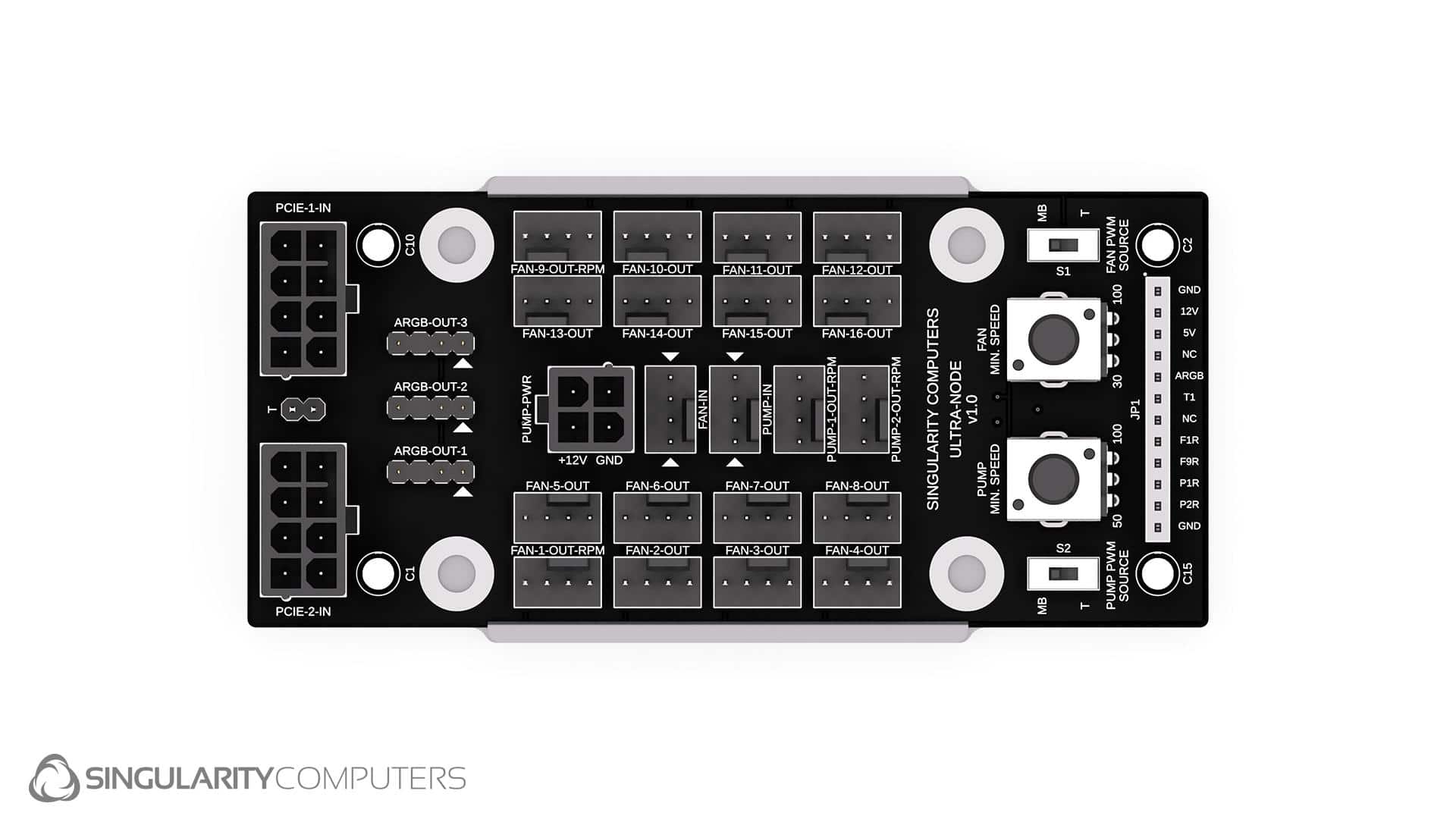

A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The Ultra-Node is similar to the Mega-Node except that it has a connection for the FanGuardian PowerBoard Controller, and it has three ARGB connections. From the FanGuardian you can control ARGB lighting and you can monitor all RPMs, temperatures and voltages. Combined with the FanGuardian the Ultra-Node is a standalone management and monitoring system for a water-cooling loop, and it is an ARGB controller. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-OUT-RPM displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need of a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature-based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps.
