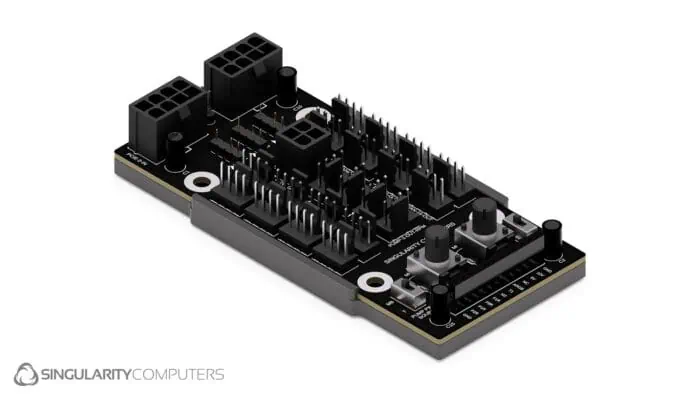

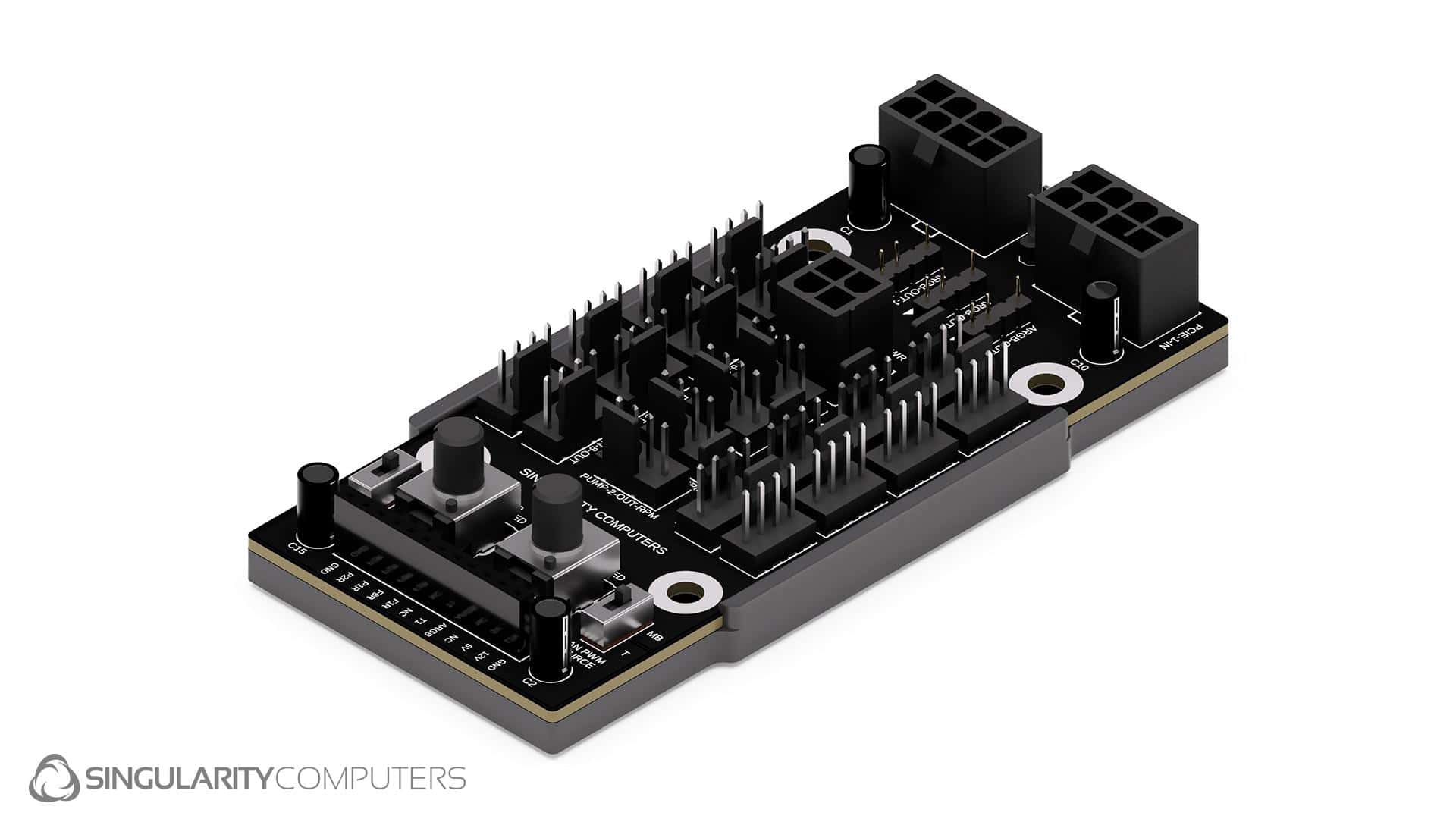

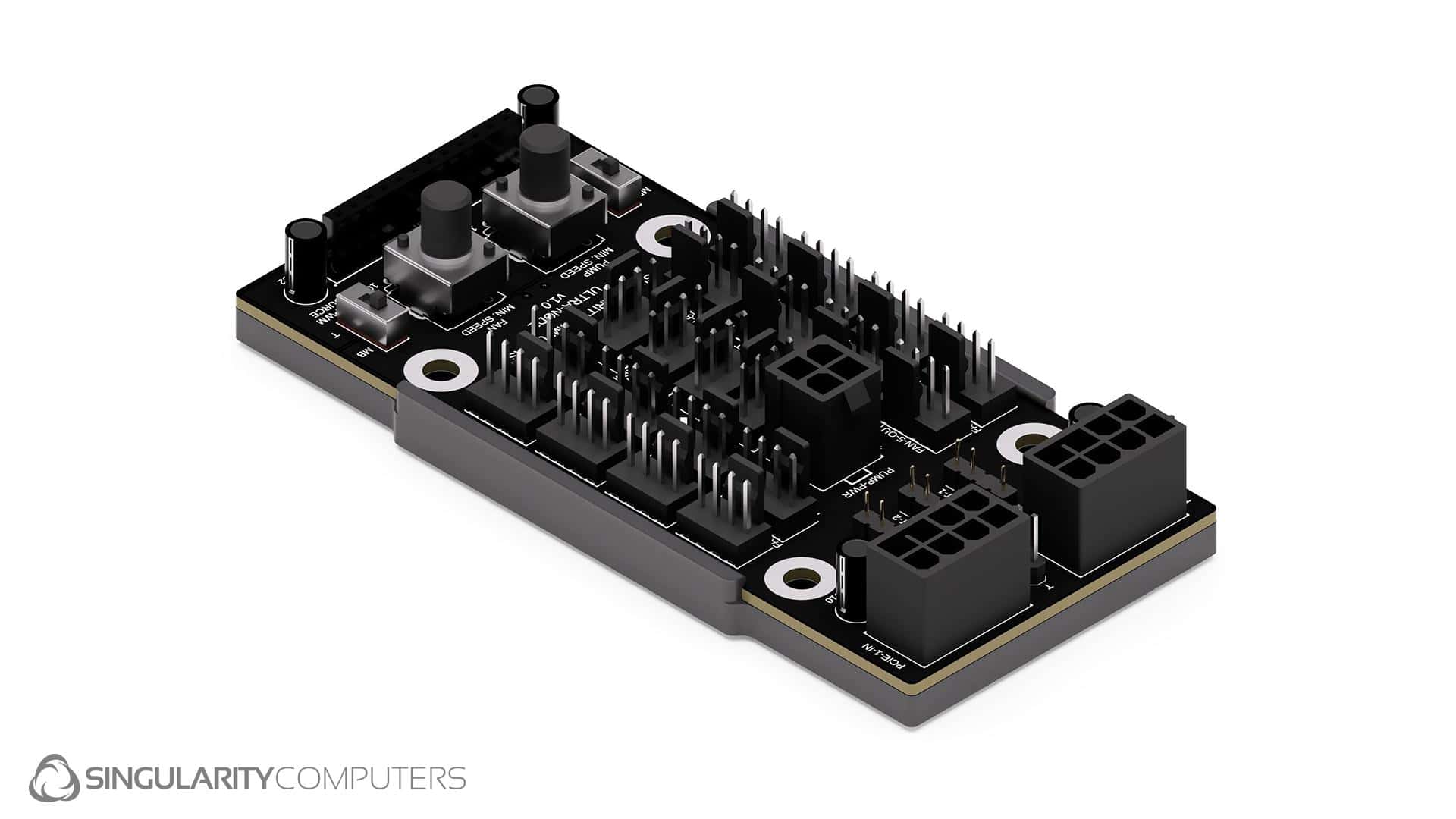

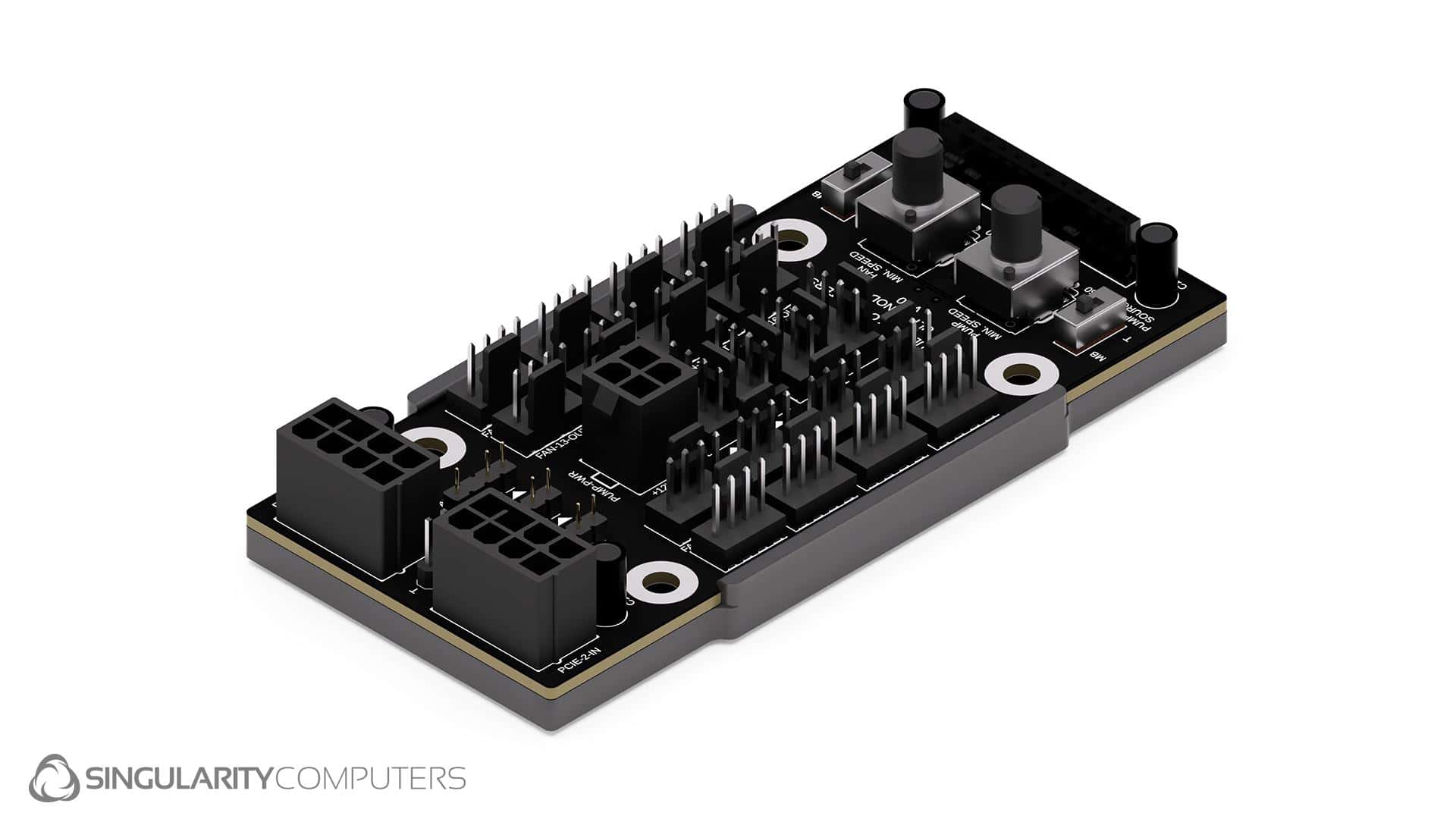

SC Ultra-Node Hub

In stock

Order processing time 1-2 days.

  • Active-powered PWM hub with 4-layer PCB for up to 300W of total power
  • High-quality components with black PCB and connectors
  • Supports PWM control for up to x16 fans and x2 pumps
  • Two independent temperature-based PWM control circuits
  • Controls fan and pump speeds based on coolant temperature with or without a motherboard
  • Adjustable PWM temperature response via onboard potentiometers
  • Switchable motherboard or onboard temperature-based PWM control
  • Dedicated 4-pin ATX power connector supports up to 2x pumps
  • FanGuardian support with 3 ARGB outputs.

Manuals

US$69.00

Optional Add-Ons

Enhance your purchase with these recommended extras

PowerBoard

FanGuardian PowerBoard Controller (optional) USD $149
None Yes +US$149.00

Fanguardian PowerBoard Controller
The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It has updateable Software/Firmware and we will continue adding features.

FanGuardian Radiator 120/140mm Mount Horizontal (optional) USD $29
None Yes +US$29.00

FanGuardian Radiator 120/140mm Mount Horizontal
A mount to attach the FanGuardian to a 120mm or 140mm wide radiator. It is designed to mount the FanGuardian on a horizontal or vertical radiator which could be on the top, bottom, front or back panel of the case. The mount is 3D Printed Black PLA. Fasteners are included for attachment of the FanGuardian to the mount and fasteners can be selected below to suit your radiator. A 1m cable is also included to allow for the extra distance from the FanGuardian connector.

  • 1x SC Ultra-Node Hub
    US$69.00

Subtotal excludes shipping & tax

All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188001905 SKU: SC-ULTRA-N Categories: ,

Description

Read More +Read Less − full description

An active powered hub with unique temperature based RPM control achieved through hardware only for standalone use. No software, firmware or connection to an operating system or BIOS is needed. The Ultra-Node Hub has two PWM zones, one for up to x16 fans and another for up to x2 pumps, both controlled by the same temperature sensor input. For the fans the RPM range is 30-100% and for pumps 50-100% and the minimum RPM can be adjusted within this range via the potentiometers. Both PWM zones can be switched between the onboard temperature based RPM control and the usual motherboard RPM control via switches, and there are input cables for the fans and x2 pumps so that the RPM can be controlled and/or read via the motherboard or another controller. It has an adaptor cable which plugs in via a 4pin ATX connector which has x2 SATA and x2 Molex for powering D5 pumps. There are two 8pin PCIE input connections for up to 300W of total power, only one needs to be connected for function depending on the amount of components connected. There are 3 ARGB output connections which can optionally be controlled via the FanGuardian PowerBoard controller (available separately). There is also an input connection for the FanGuardian.

Singularity Computers Enterprise:
Singularity Computers Enterprise is a product line designed for professional and enterprise use. All Singularity Computers products have a lifetime warranty but our Enterprise line goes through a far more stringent development and testing process. They use higher end materials and manufacturing processes for tighter tolerances and a higher pressure and temperature resistance.

Specifications

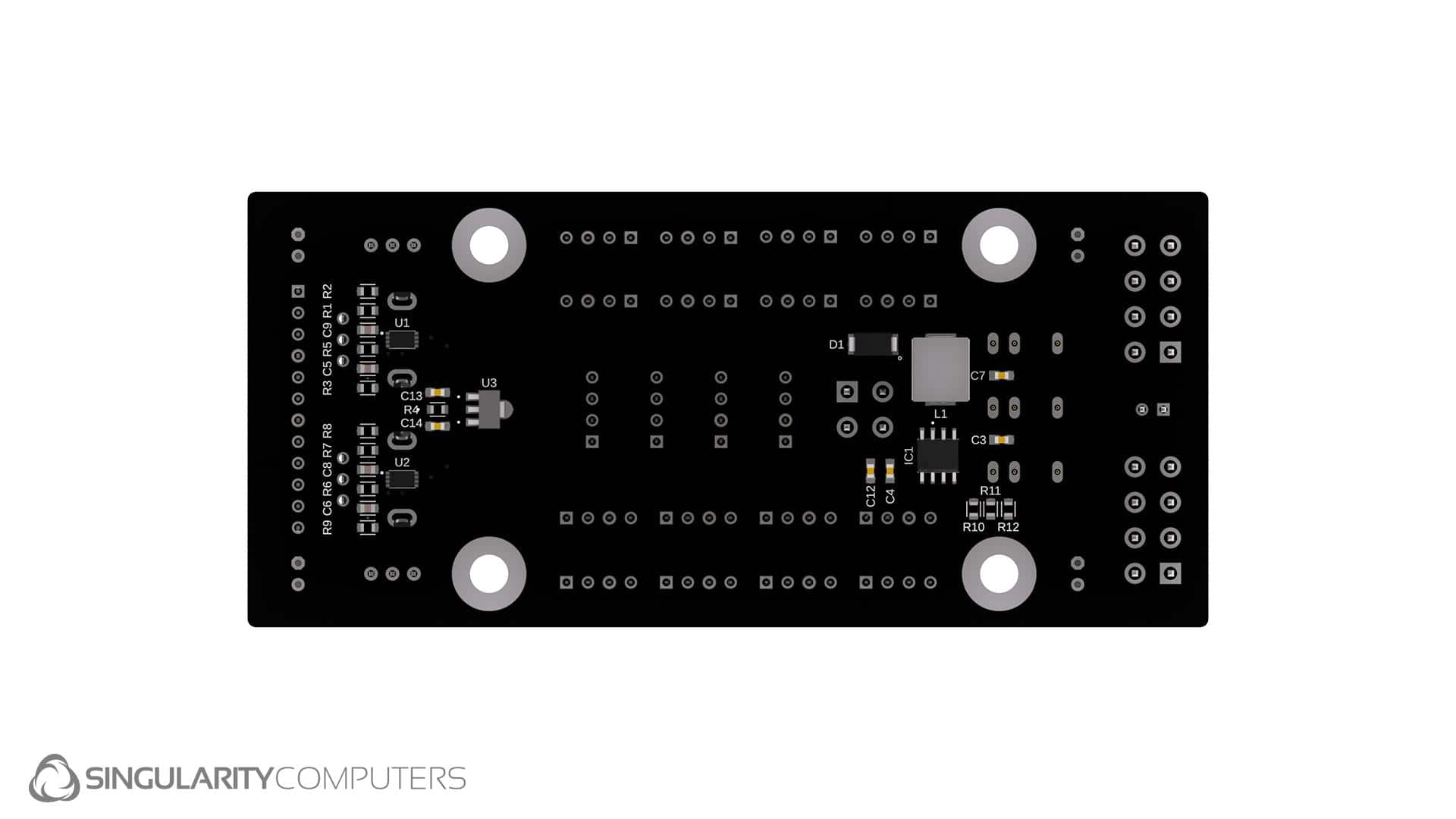

Ultra-Node Hub. Black 4 Layer PCB.
Plastic tray with adhesive for attachment.

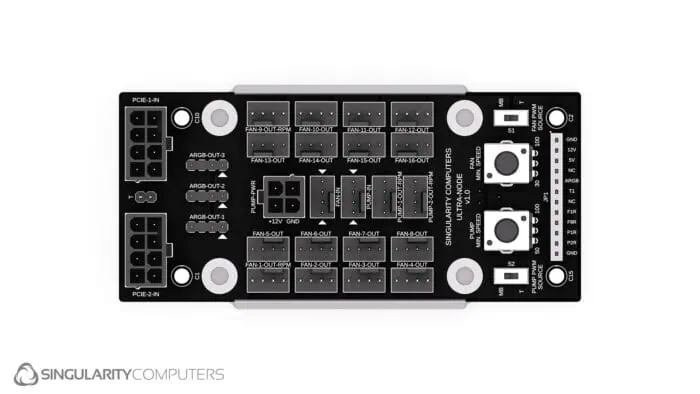

Inputs: PWM x2 (1x FAN 1x PUMP). PCIE 8pin x2. T-sensor (10K NTC thermistor). FanGuardian PowerBoard Controller 12pin Connector.
Outputs: PWM x18 (16x FAN 2x PUMP). 4Pin ATX. ARGB x3.
The maximum output per PWM header is 3A.
Cables: PWM 500mm Black Sleeved x2. Pump Power Cable 4pin ATX to 2x SATA & Molex.
A PCIE 8pin power connector can supply up to 150W of power to the fans and pumps, total power limit is 300W with both inputs used.
PCB Dimensions: L: 98.7mm x W: 51.6mm x H: 26.2mm.
Weight: 0.1kg.
Packaged Dimensions: L: 100mm x W: 20mm x H: 40mm.
Packaged Weight: 0.1kg.

Installation:
Connect the PWM inputs to your motherboard (optional) or another compatible device using the included cables. This will allow you to read and/or control the RPMs. Connect a 10K Thermistor temperature sensor to the “T” header. Connect your fans and pumps to the hub. There are switches for each PWM zone to switch between onboard temperature based RPM control and motherboard control. The hub will function with x1 8pin PCIE input connected for up to 150W and 2 connected for up to 300W of total power. Pumps can be connected via the adaptor cable which has 2x Molex and SATA connectors. Optionally connect the FanGuardian PowerBoard Controller for monitoring temperatures, RPMs and voltages, setting RPM and temperature warnings and controlling ARGB lighting.

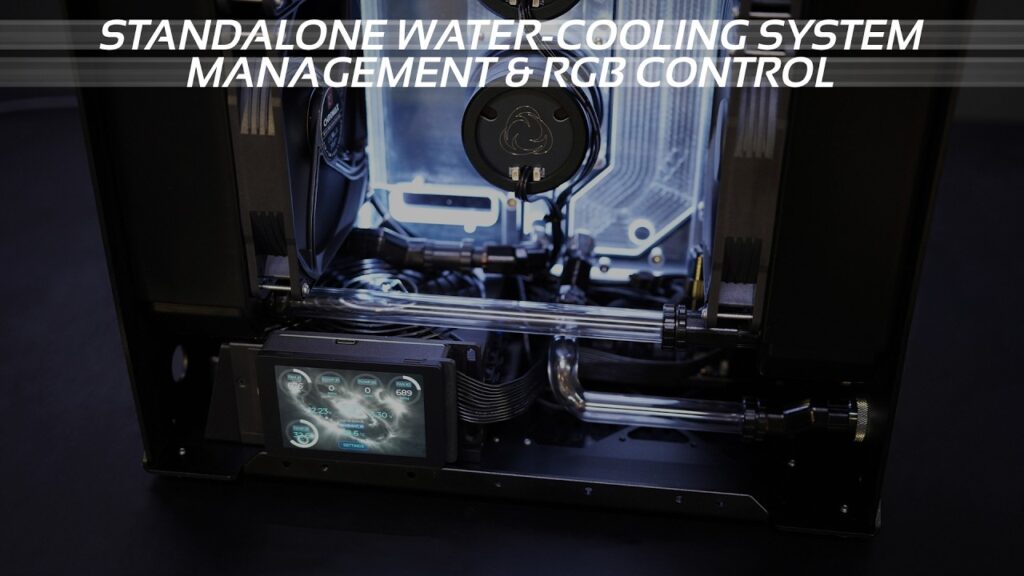

Video
