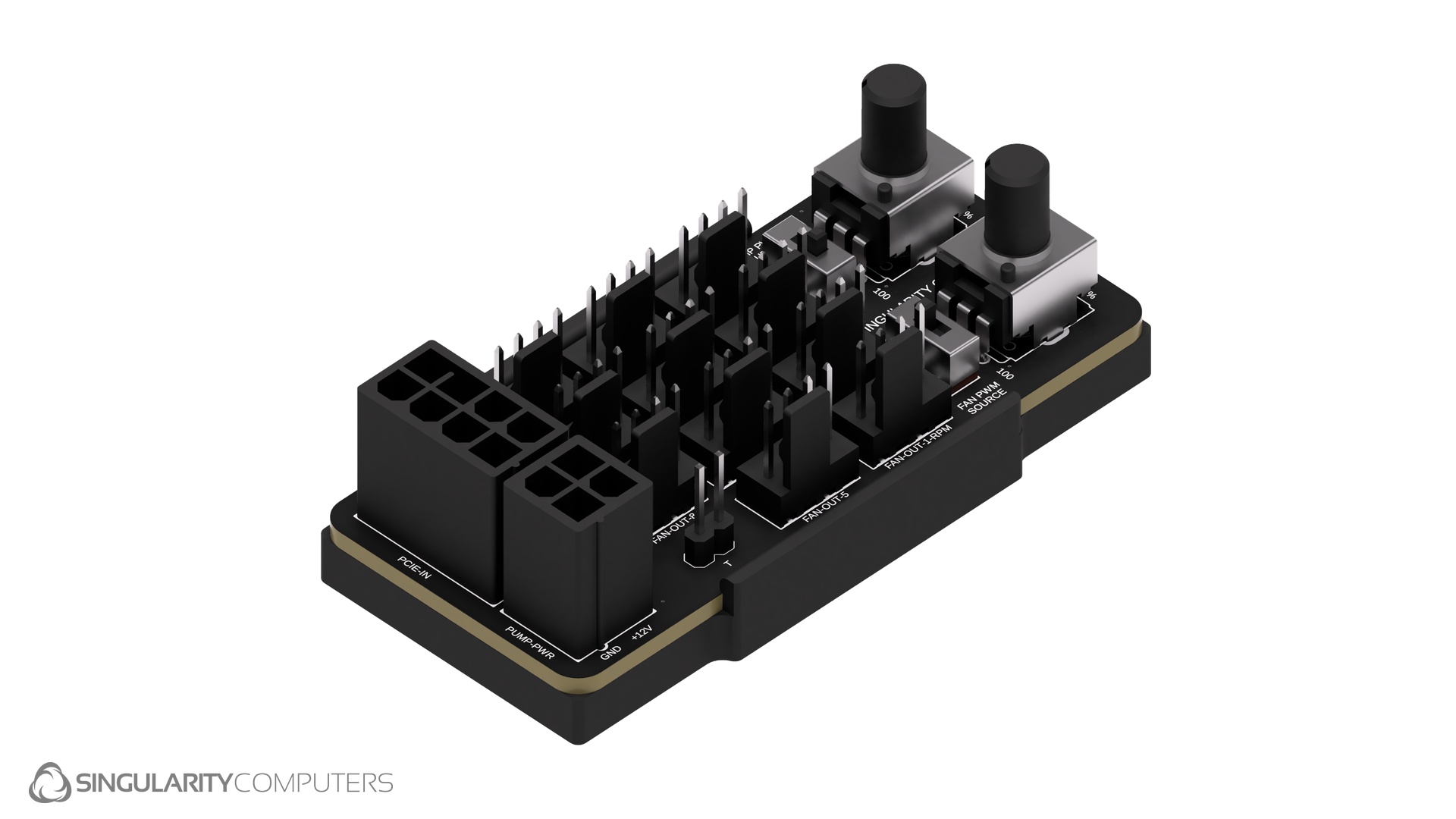

SC Mini-Node Hub

In stock

Order processing time 1-2 days.

  • Active-powered PWM hub with 4-layer PCB for up to 150W of total power
  • High-quality components with black PCB and connectors
  • Supports PWM control for up to x8 fans and a pump
  • Two independent temperature-based PWM control circuits
  • Controls fan and pump speeds based on coolant temperature with or without a motherboard
  • Adjustable PWM temperature response via onboard potentiometers
  • Switchable motherboard or onboard temperature-based PWM control
  • Dedicated 4-pin ATX power connector supports up to 2x pumps

Manuals

US$39.00

All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182005439 SKU: SC-MINI-N Categories: ,

Description

Read More +Read Less − full description

An active powered hub with unique temperature based RPM control achieved through hardware only for standalone use. No software, firmware or connection to an operating system or BIOS is needed. The Mini-Node Hub has two PWM zones, one for up to x8 fans and another for x1 pump, both controlled by the same temperature sensor input. For the fans the RPM range is 30-100% and for pumps 50-100% and the minimum RPM can be adjusted within this range via the potentiometers. Both PWM zones can be switched between the onboard temperature based RPM control and the usual motherboard RPM control via switches, and there are input cables for the fans and pump so that the RPM can be controlled and/or read via the motherboard or another controller. It has an adaptor cable which plugs in via a 4pin ATX connector which has x2 SATA and x2 Molex for powering D5 pumps. There is an 8pin PCIE input connection for up to 150W of total power.

Singularity Computers Enterprise:
Singularity Computers Enterprise is a product line designed for professional and enterprise use. All Singularity Computers products have a lifetime warranty but our Enterprise line goes through a far more stringent development and testing process. They use higher end materials and manufacturing processes for tighter tolerances, higher pressure and temperature resistance.

Youtube video

Youtube video

Specifications

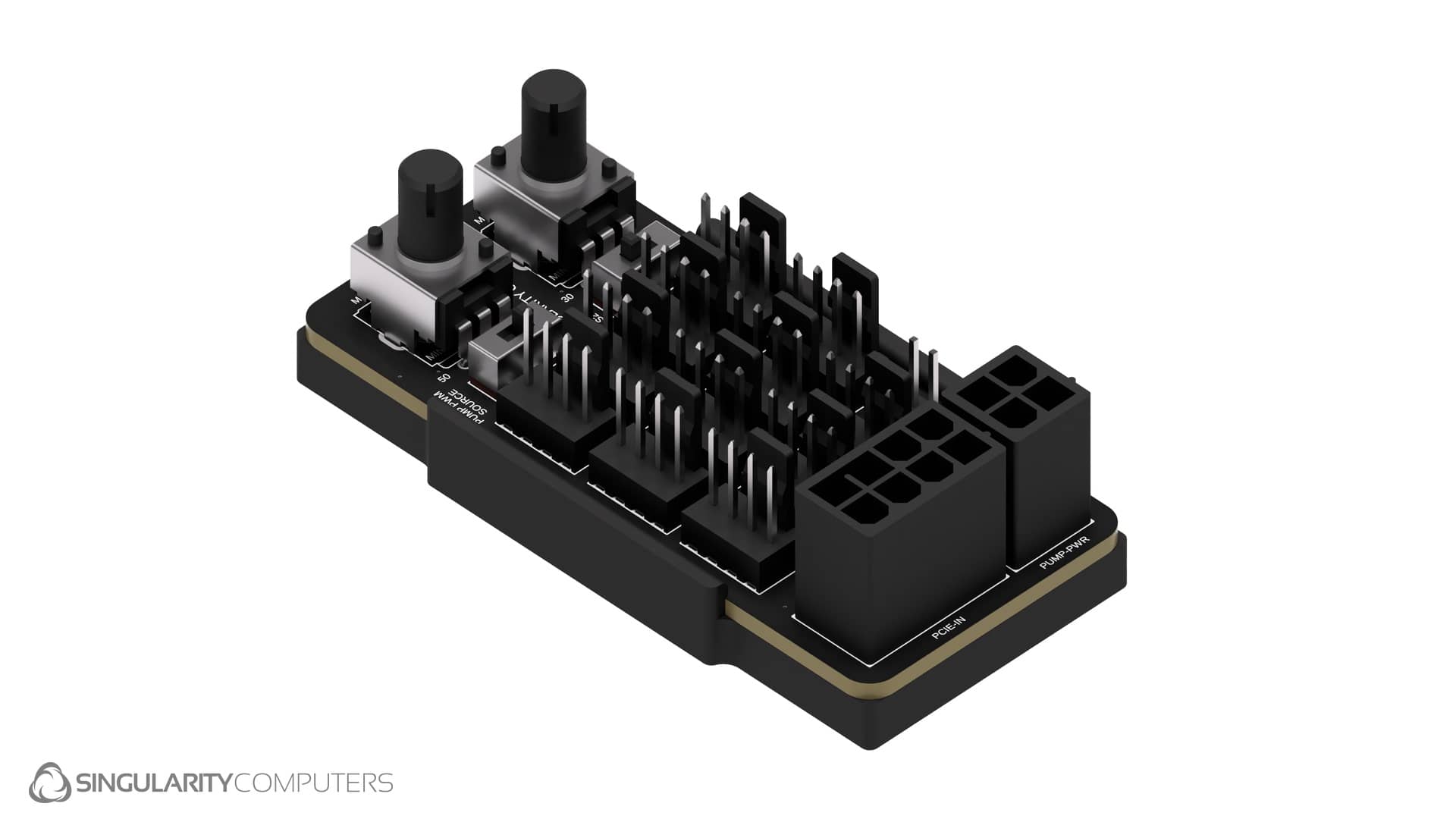

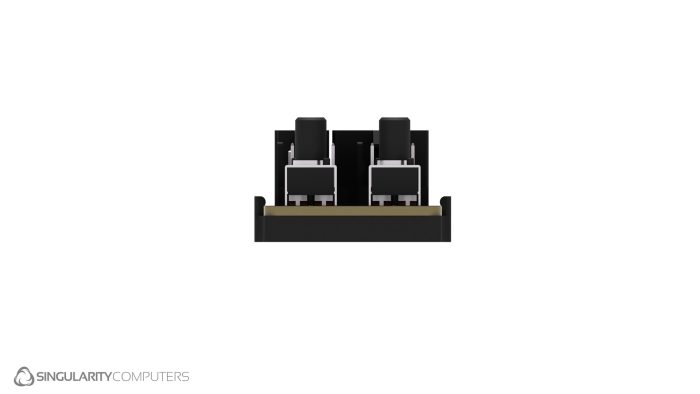

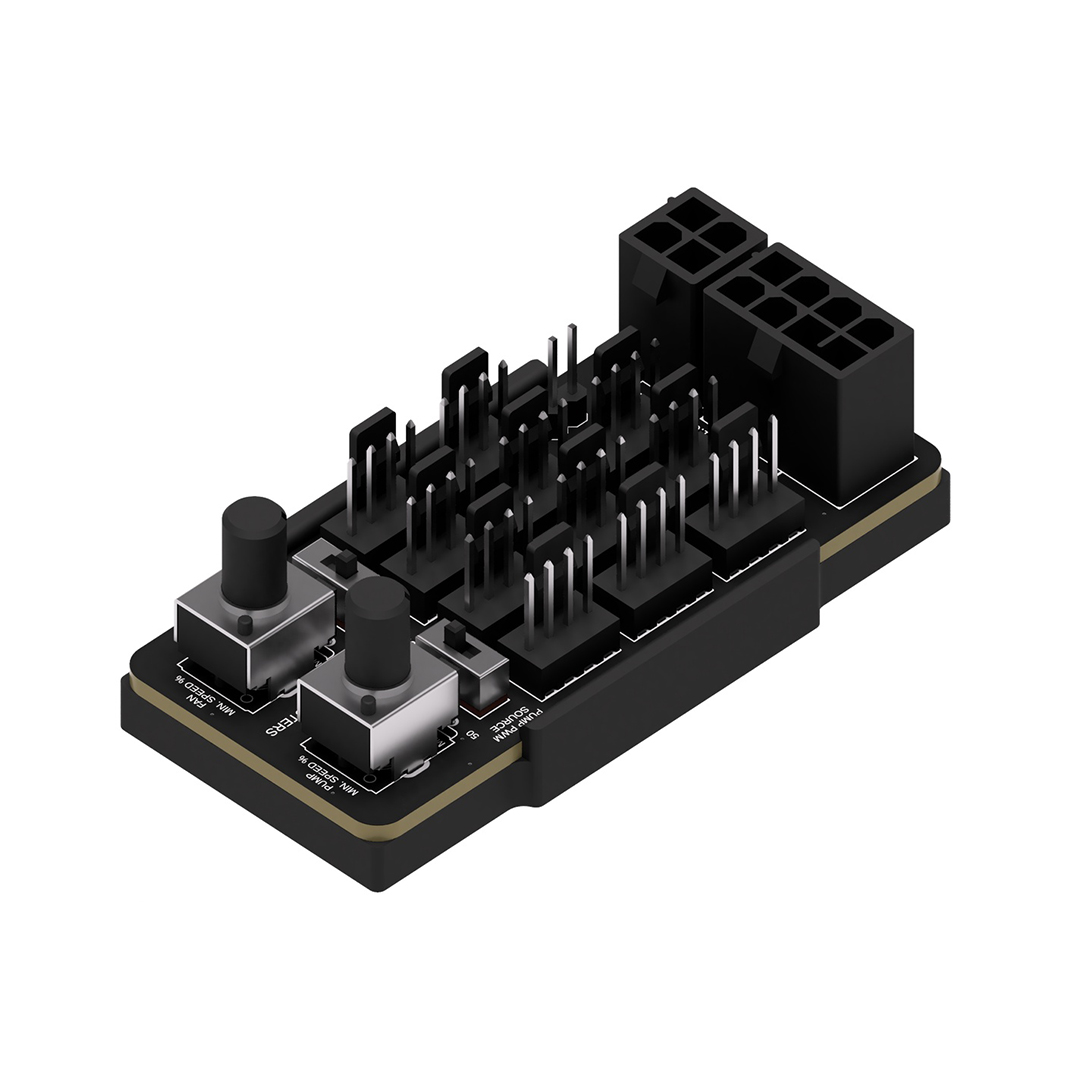

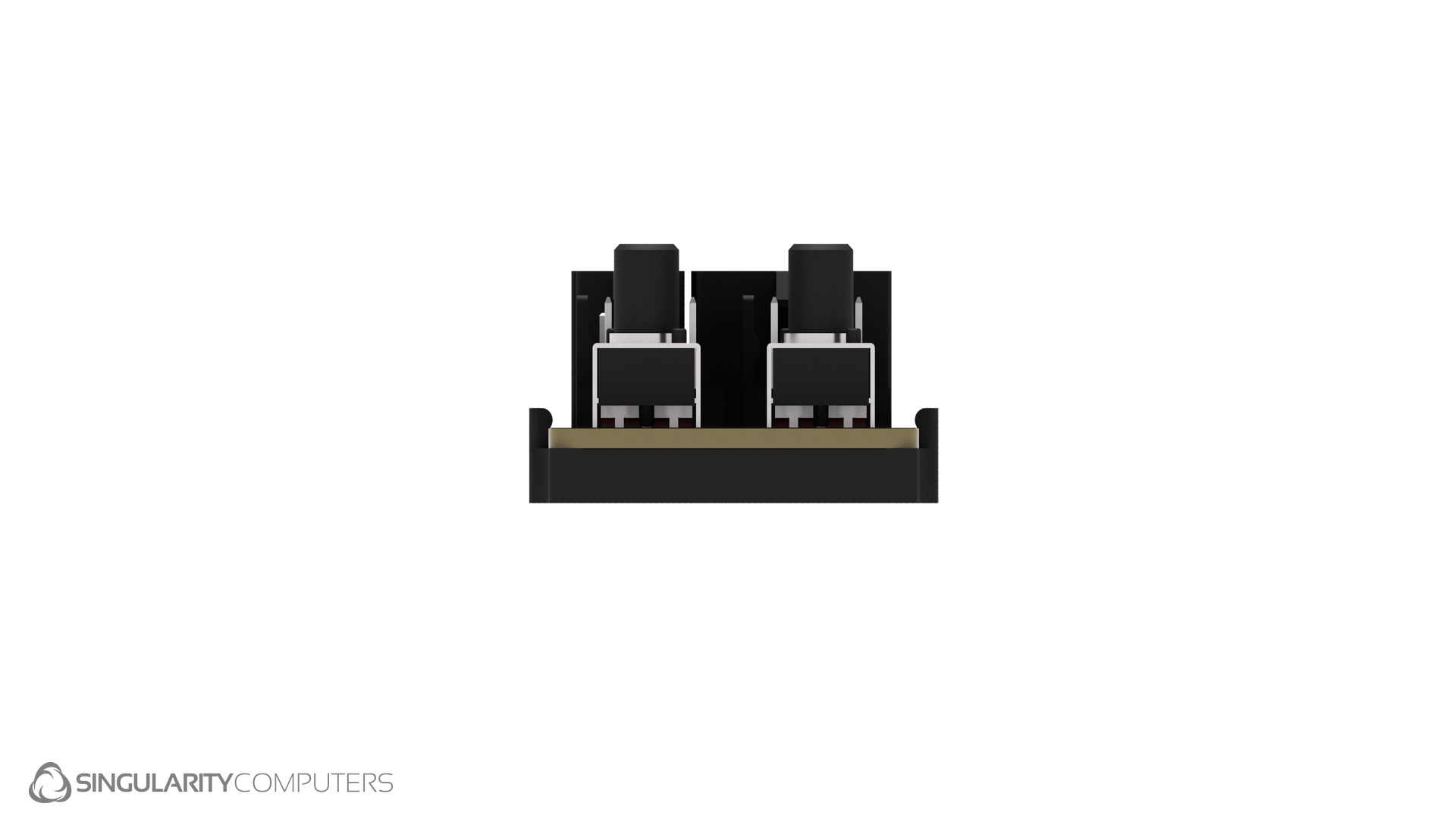

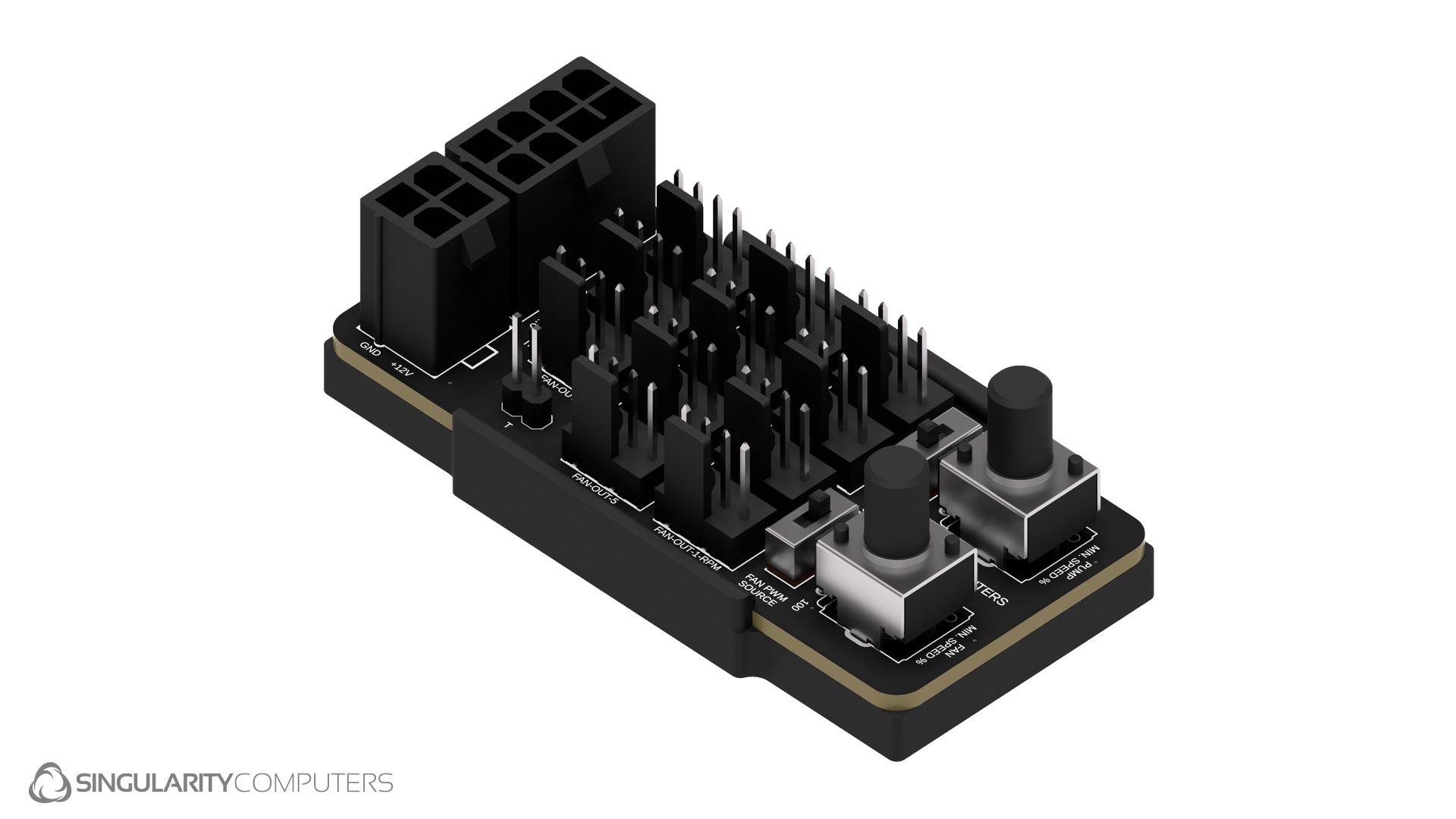

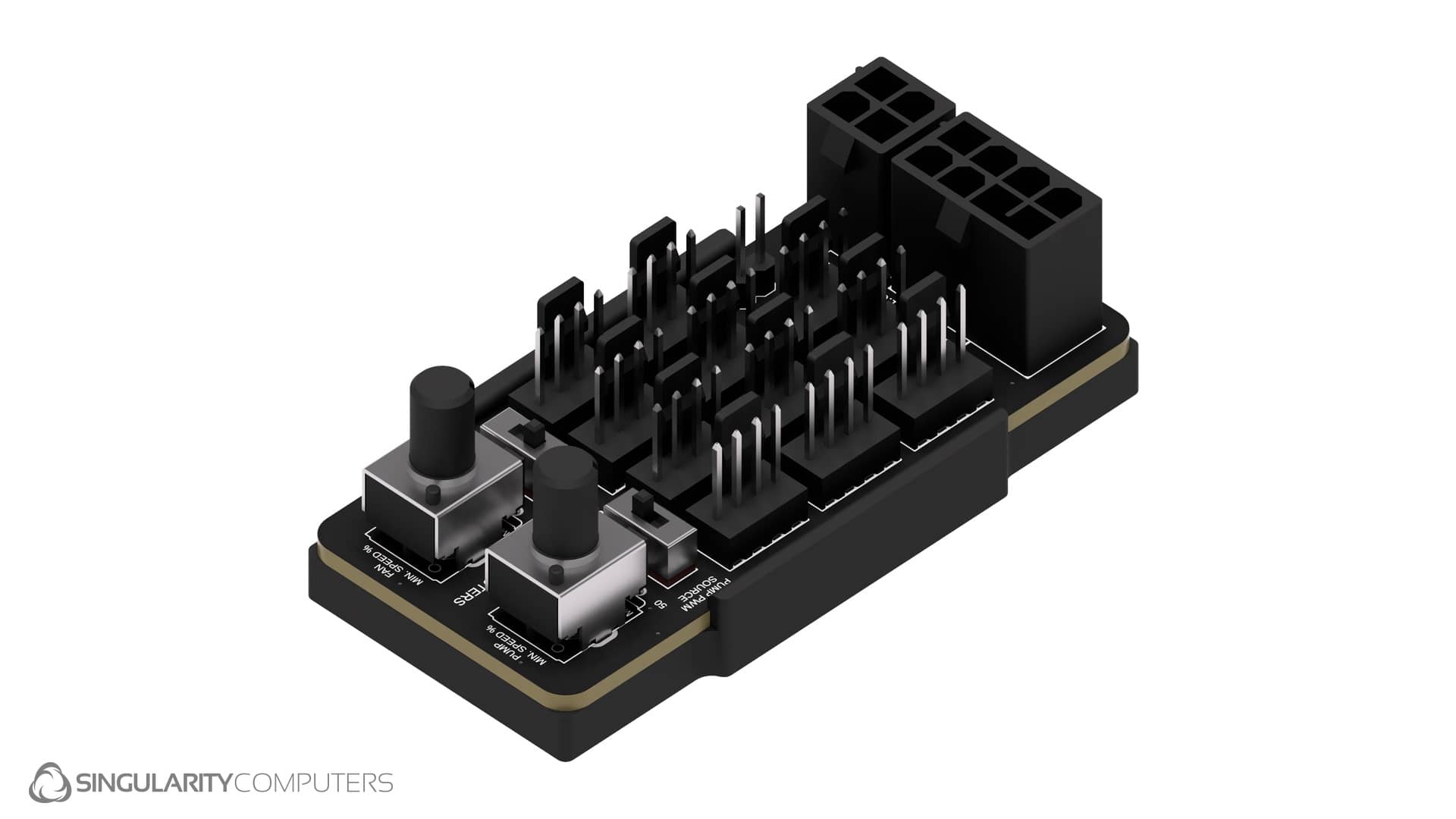

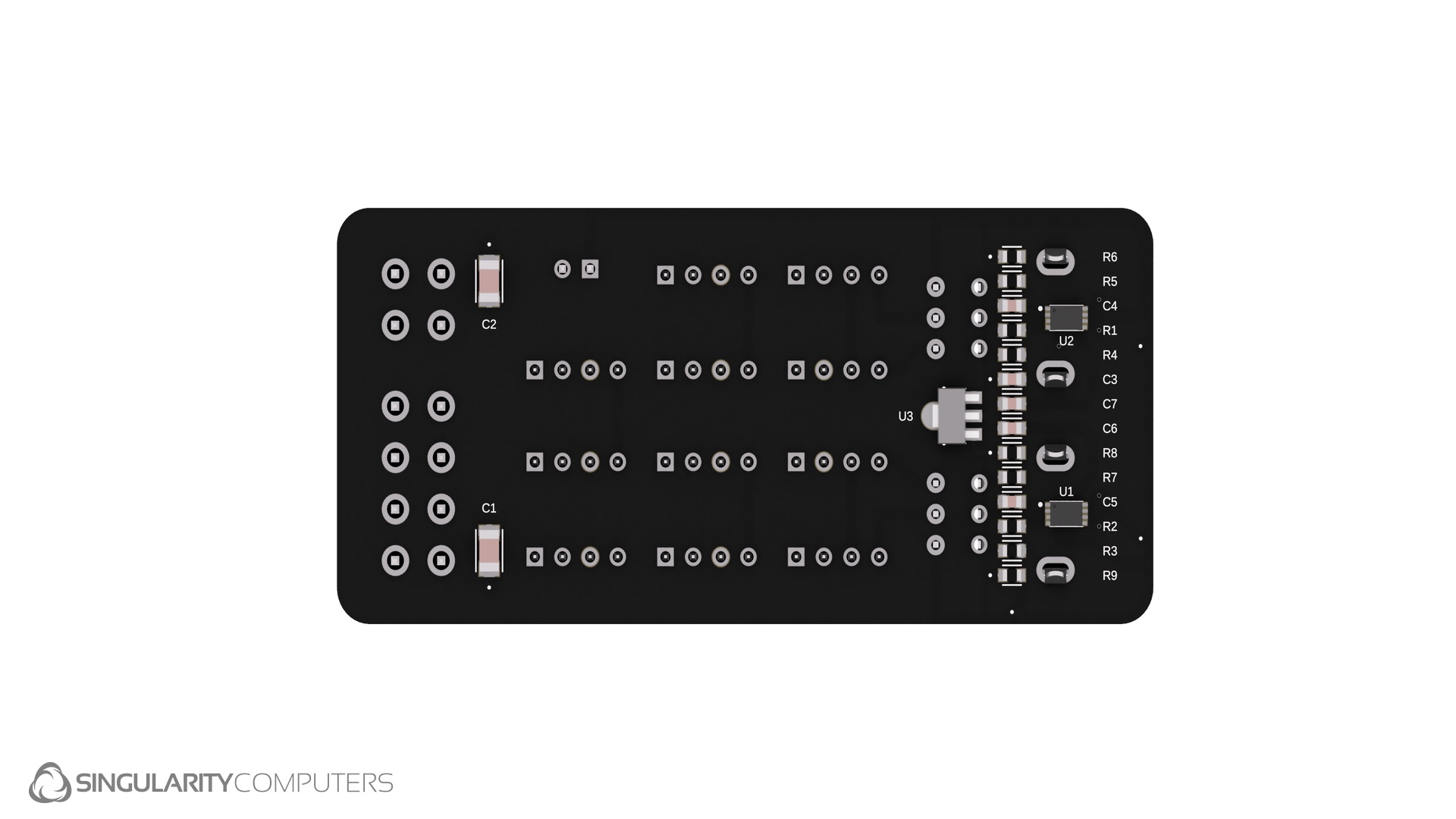

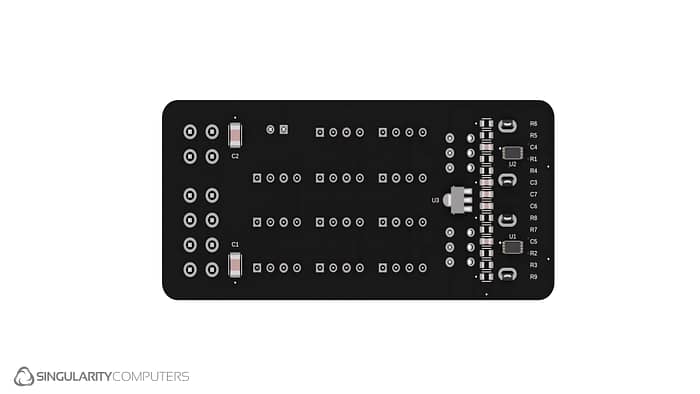

Mini-Node Hub. Black 4 Layer PCB.
Plastic tray with adhesive for attachment.

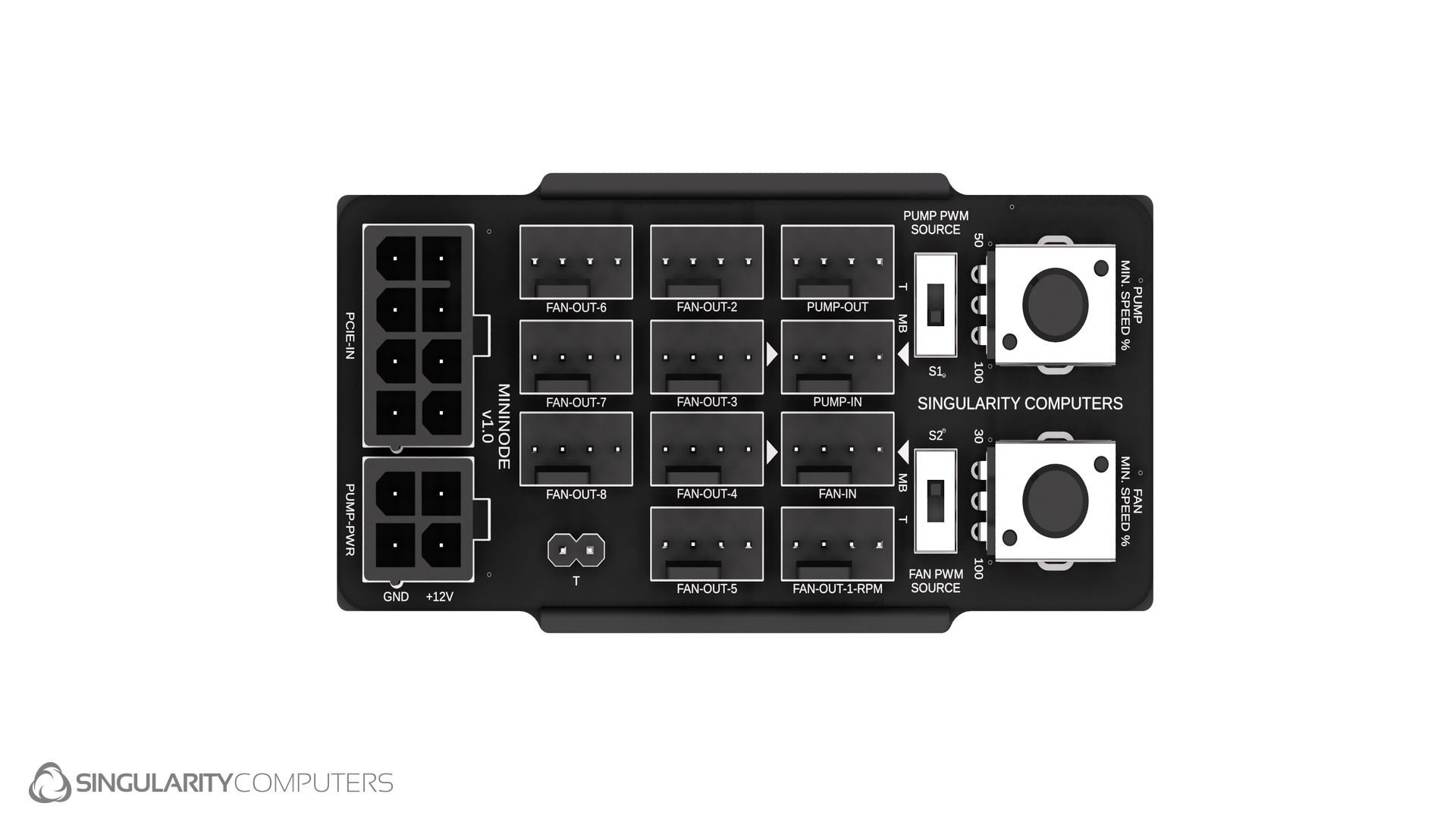

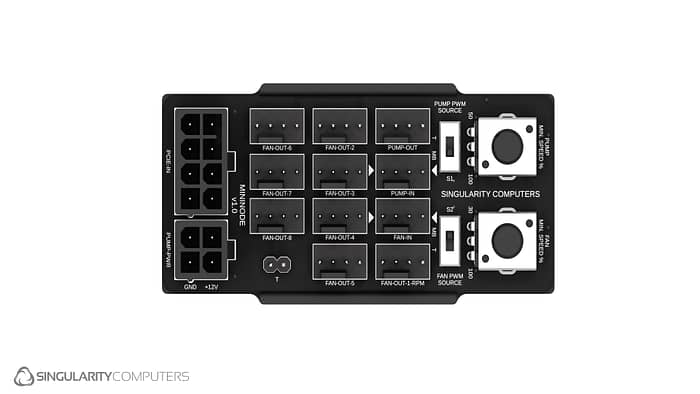

Inputs: PWM x2 (1x FAN 1x PUMP). PCIE 8pin x1. T-sensor (10K NTC thermistor).
Outputs: PWM x9 (8x FAN 1x PUMP). 4Pin ATX.
The maximum output per PWM header is 3A.
Cables: PWM 500mm Black Sleeved x2. Pump Power Cable 4pin ATX to 2x SATA & Molex.
A PCIE 8pin power connector can supply up to 150W of total power.

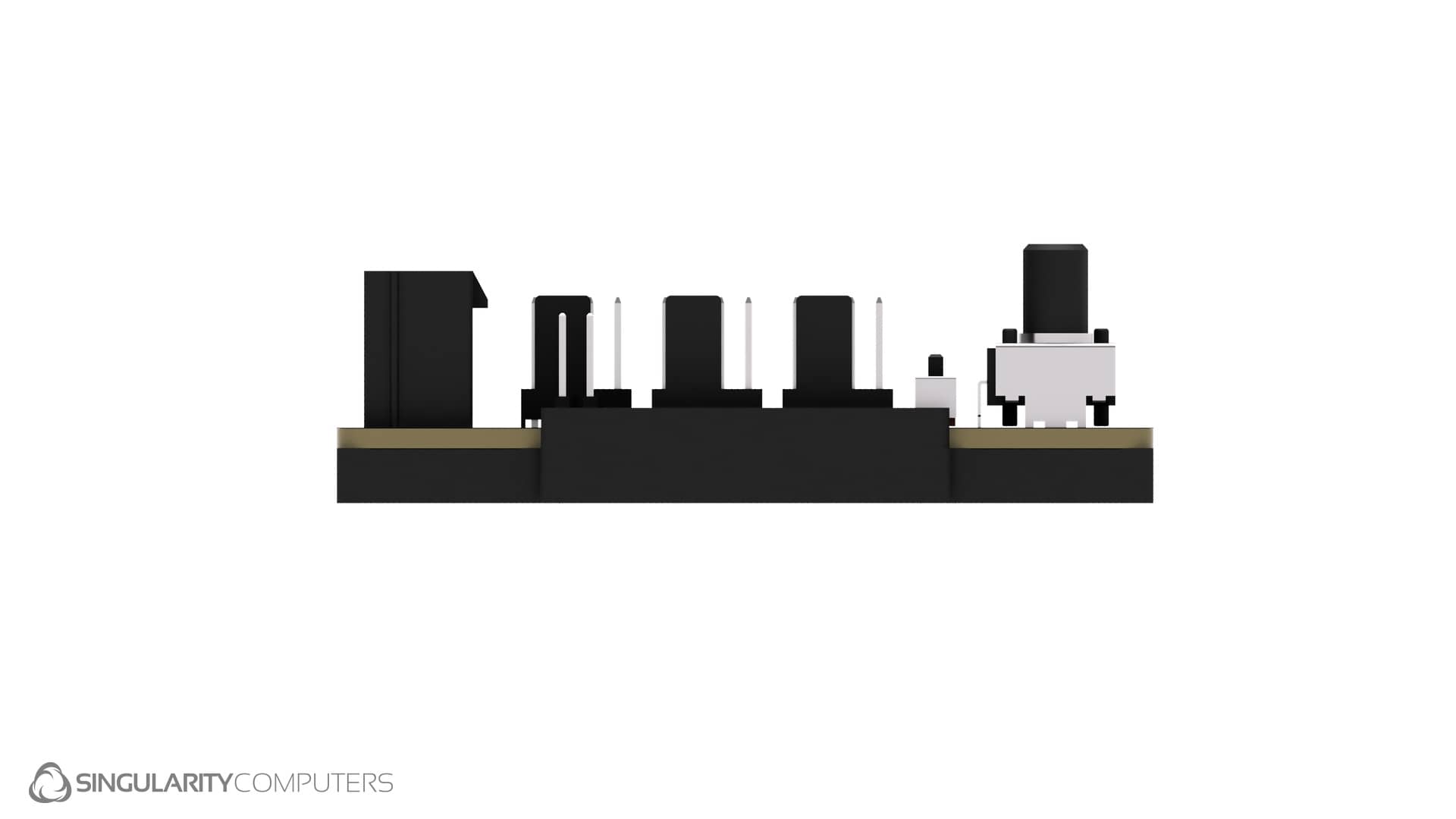

PCB Dimensions: L: 98.7mm x W: 51.6mm x H: 26.2mm.
Weight: 0.1kg.
Packaged Dimensions: L: 100mm x W: 20mm x H: 40mm.
Packaged Weight: 0.1kg.

Installation:
Connect the PWM inputs to your motherboard (optional) or another compatible device using the included cables. This will allow you to read and/or control the RPMs. Connect a 10K Thermistor temperature sensor to the “T” header. Connect your fans and pumps to the hub. There are switches for each PWM zone to switch between onboard temperature based RPM control and motherboard control. Connect the 8pin PCIE input for up to 150W of total power. Pumps can be connected via the adaptor cable which has 2x Molex and SATA connectors.
