SC PSU Penta-Node Hub

In stock

Order processing time 1-2 days.

  • Custom-designed Singularity Computers PSU hub
  • 4-layer PCB with high-quality components
  • Controls up to 5 PSUs from the main PSU
  • Auto Mode and On Mode for flexible PSU control
  • Individual switches to enable or disable each PSU
  • Supports running 1–5 PSUs
  • Operating and standby LEDs for each connected PSU

Manuals

US$69.00

All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188002711 SKU: SC-PSU-P-N Categories: ,

Description

Read More +Read Less − full description

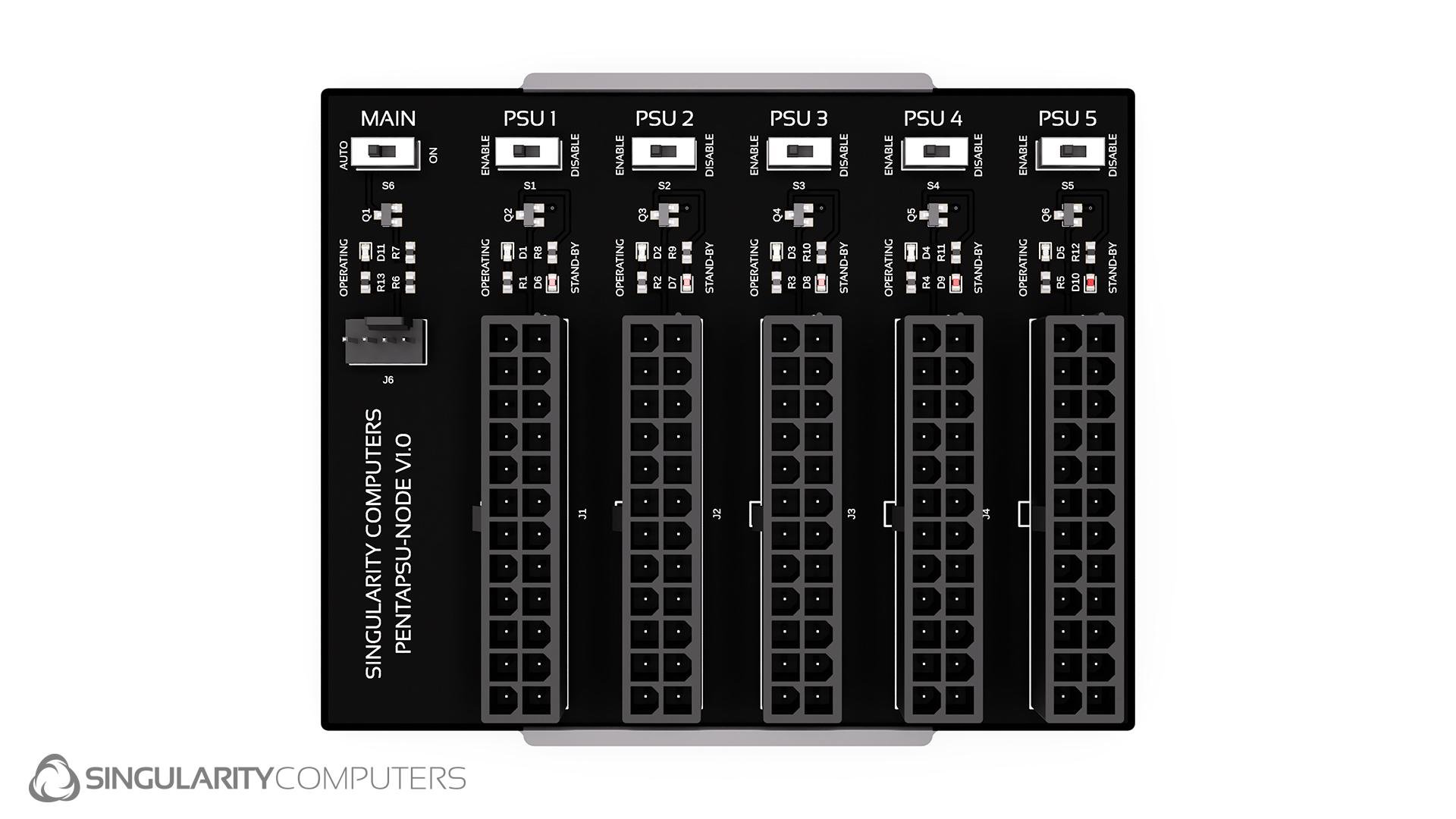

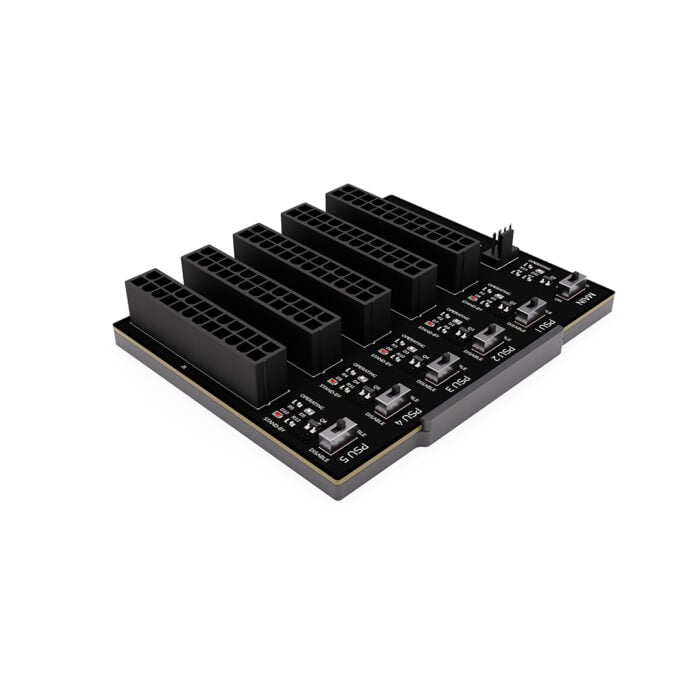

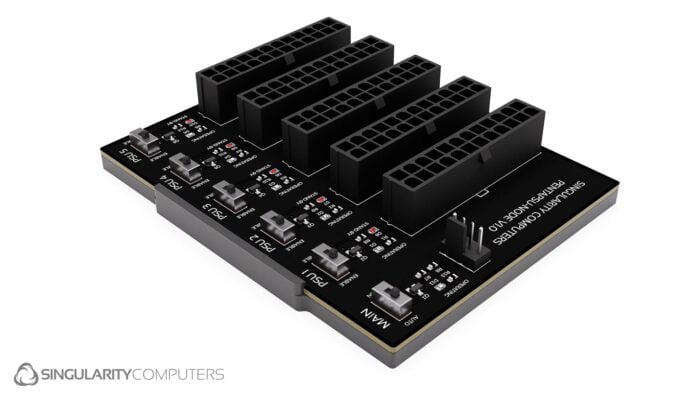

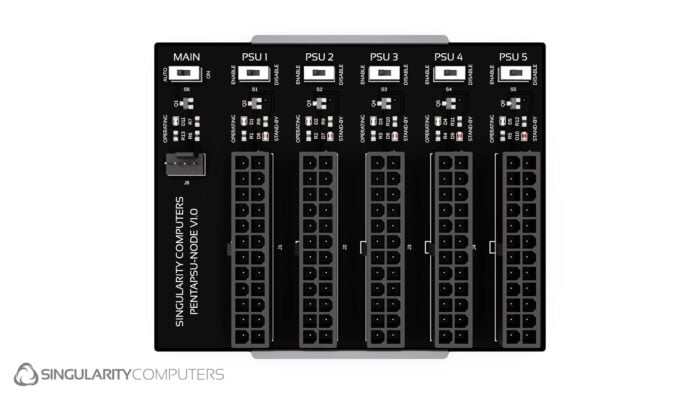

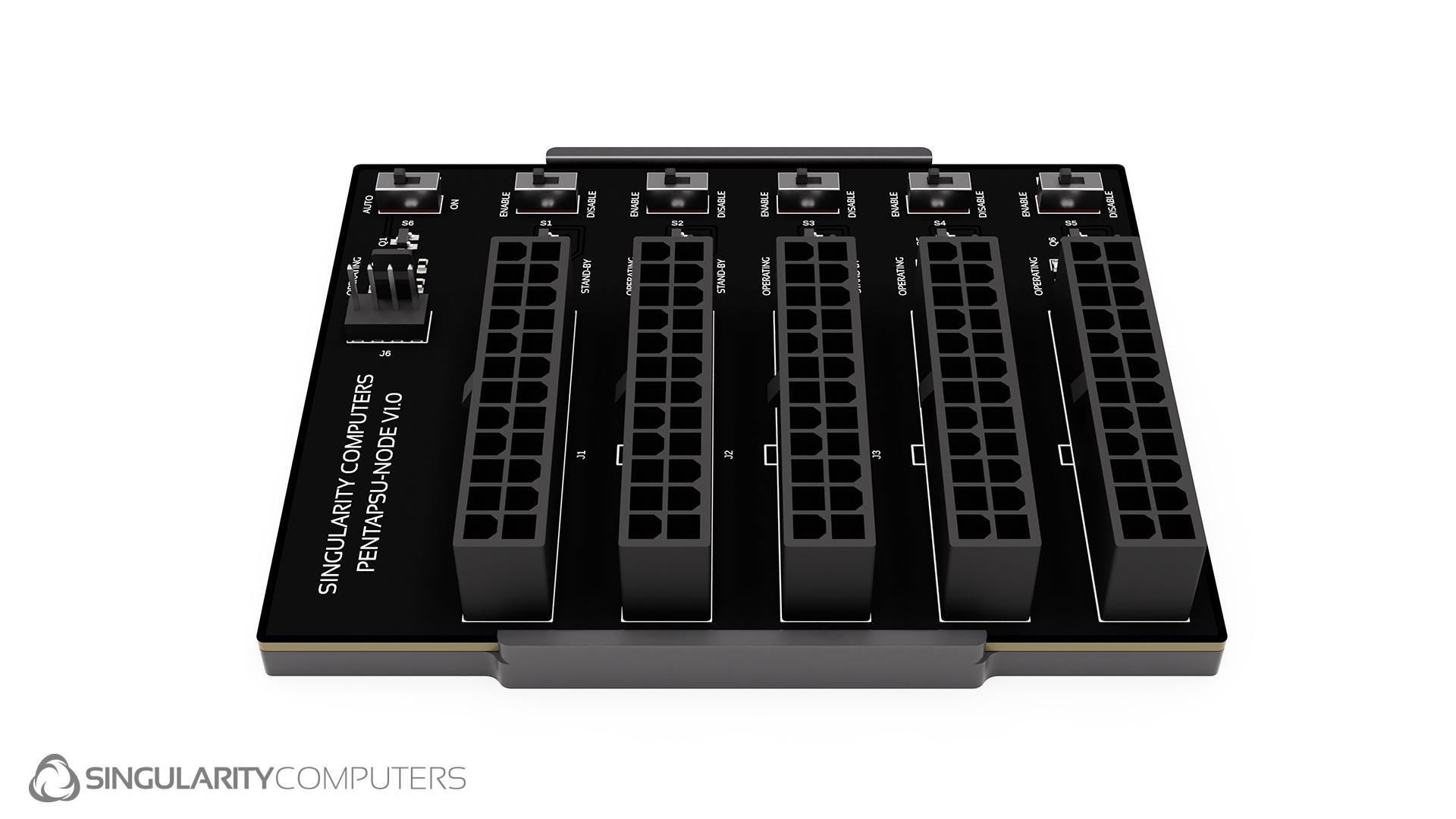

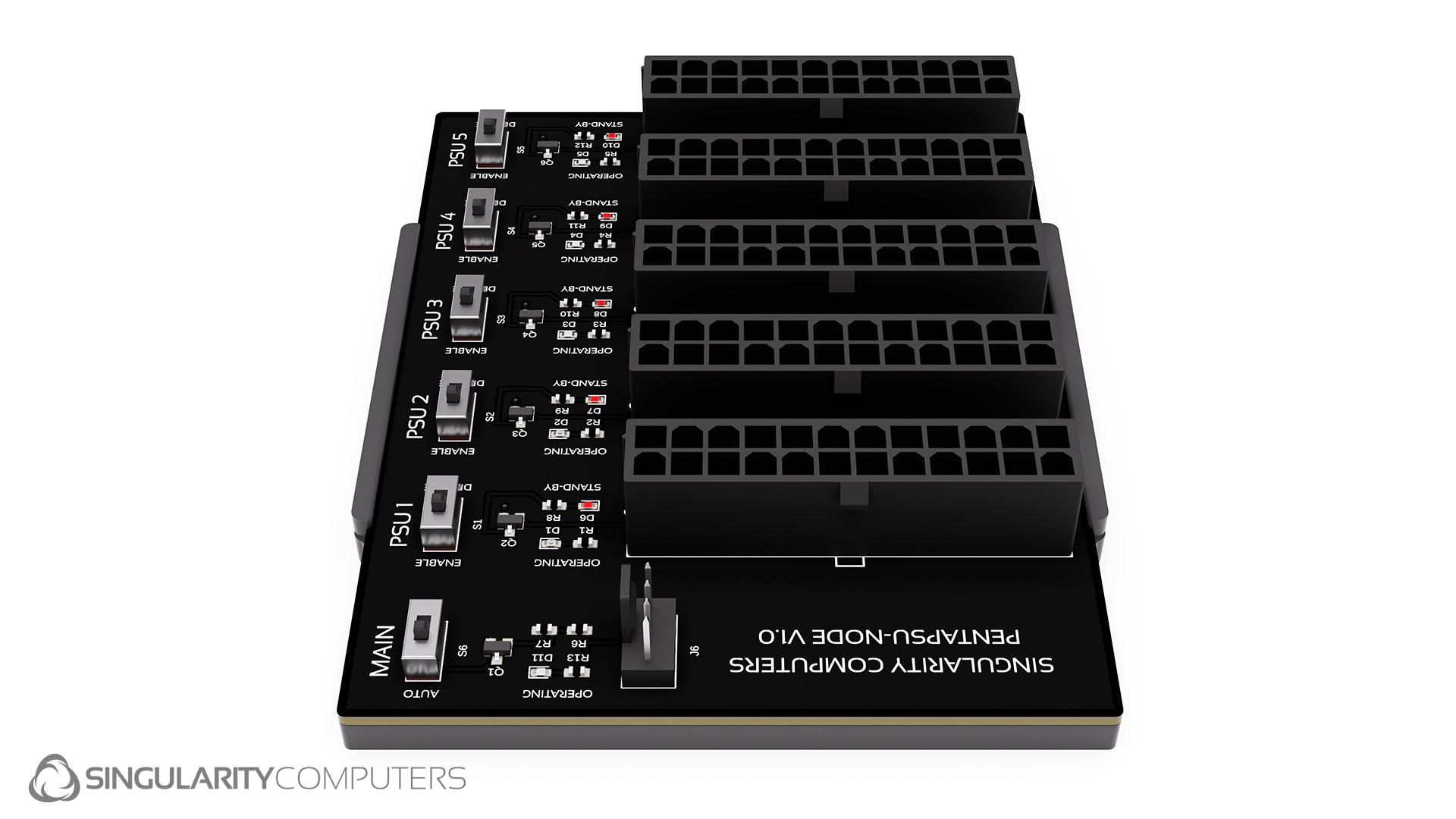

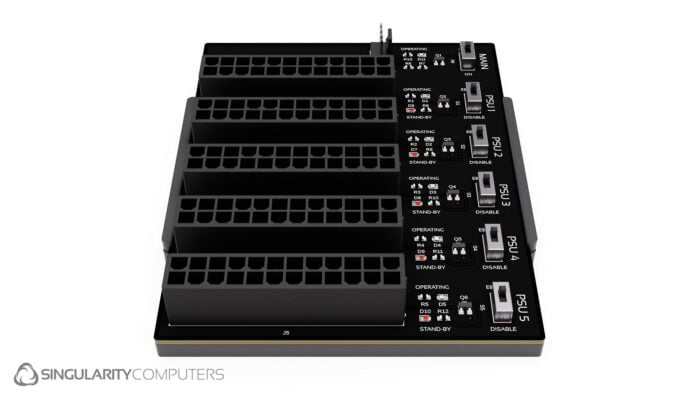

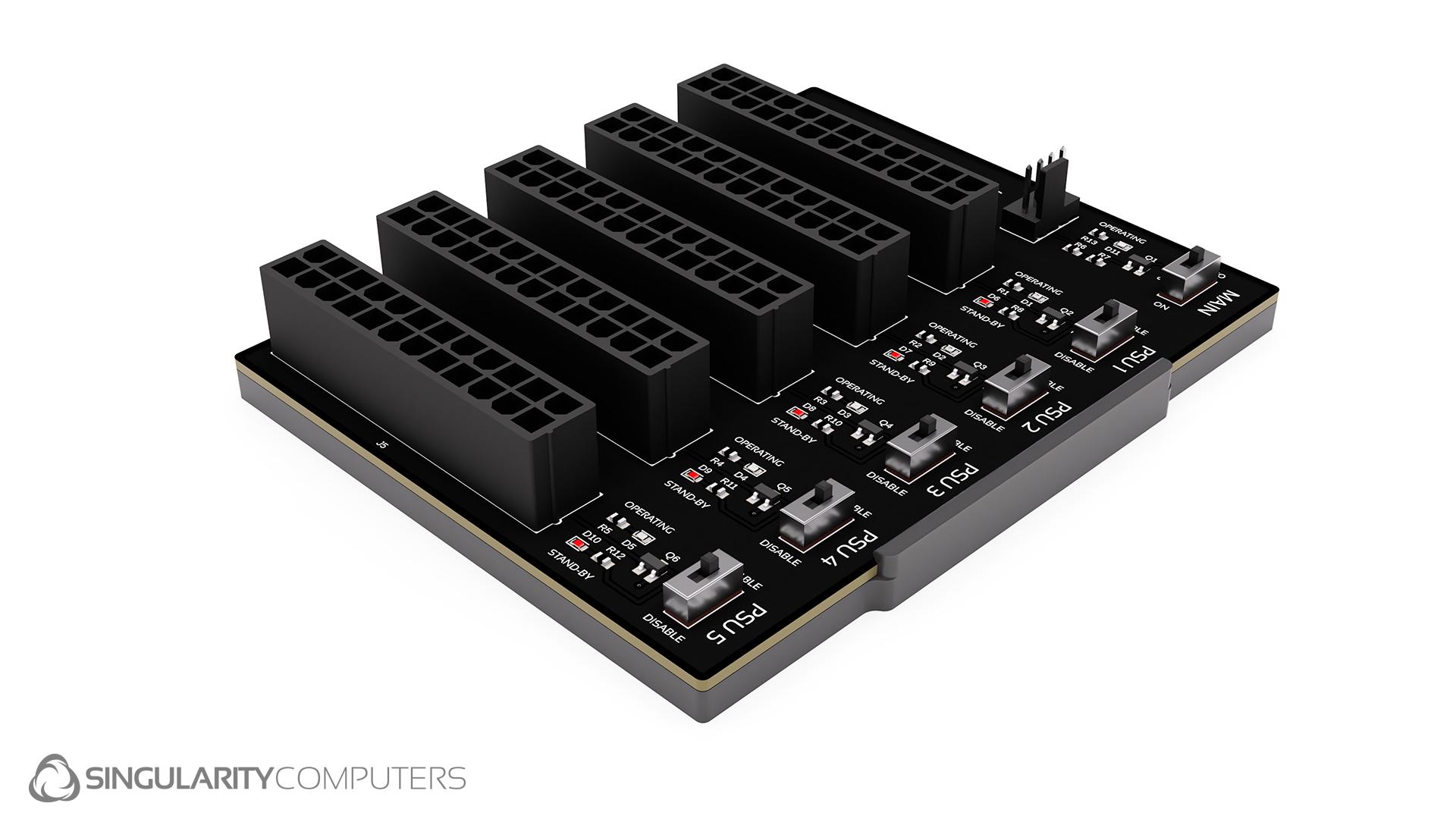

A custom designed Singularity Computers hub with high quality components and a 4 layer PCB. The PCB and connectors are black with white logos and labelling. This hub is for switching on 5 PSUs (via a PWM cable) from the main PSU connected to the system. It has a main switch which switches between Auto Mode which turns on the PSUs when the system is turned on, and On Mode which turns on the PSUs regardless of the main system being on. There is also a switch for each PSU to enable or disable it so that you can run 1, 2, 3, 4 or 5 PSUs along with the main PSU. There are operating LEDs to show if each PSU is on and stand by LEDs to show if the connected PSUs are in standby mode (powered by mains but turned off).

Singularity Computers Enterprise:
Singularity Computers Enterprise is a product line designed for professional and enterprise use. All Singularity Computers products have a lifetime warranty but our Enterprise line goes through a far more stringent development and testing process. They use higher end materials and manufacturing processes for tighter tolerances and a higher pressure and temperature resistance.

Specifications

PSU Penta-Node Hub. Black 4 Layer PCB.
Connectors: 24pin x5. 4pin PWM x1.
Cable: Black PWM 500mm.
PCB Dimensions: L: 80mm x W: 60mm x H: 12mm.
Packaged Dimensions & Weight: L: 150mm x W: 100mm x H: 20mm.
Packaged Weight: 0.1kg.

Installation:
Plug in up to 5 PSUs which can be started together by the main PSU via a PWM cable. Each PSU has a switch and can be enabled or disabled. The PSUs can also be turned on and off for testing purposes even if the main system is not turned on.
