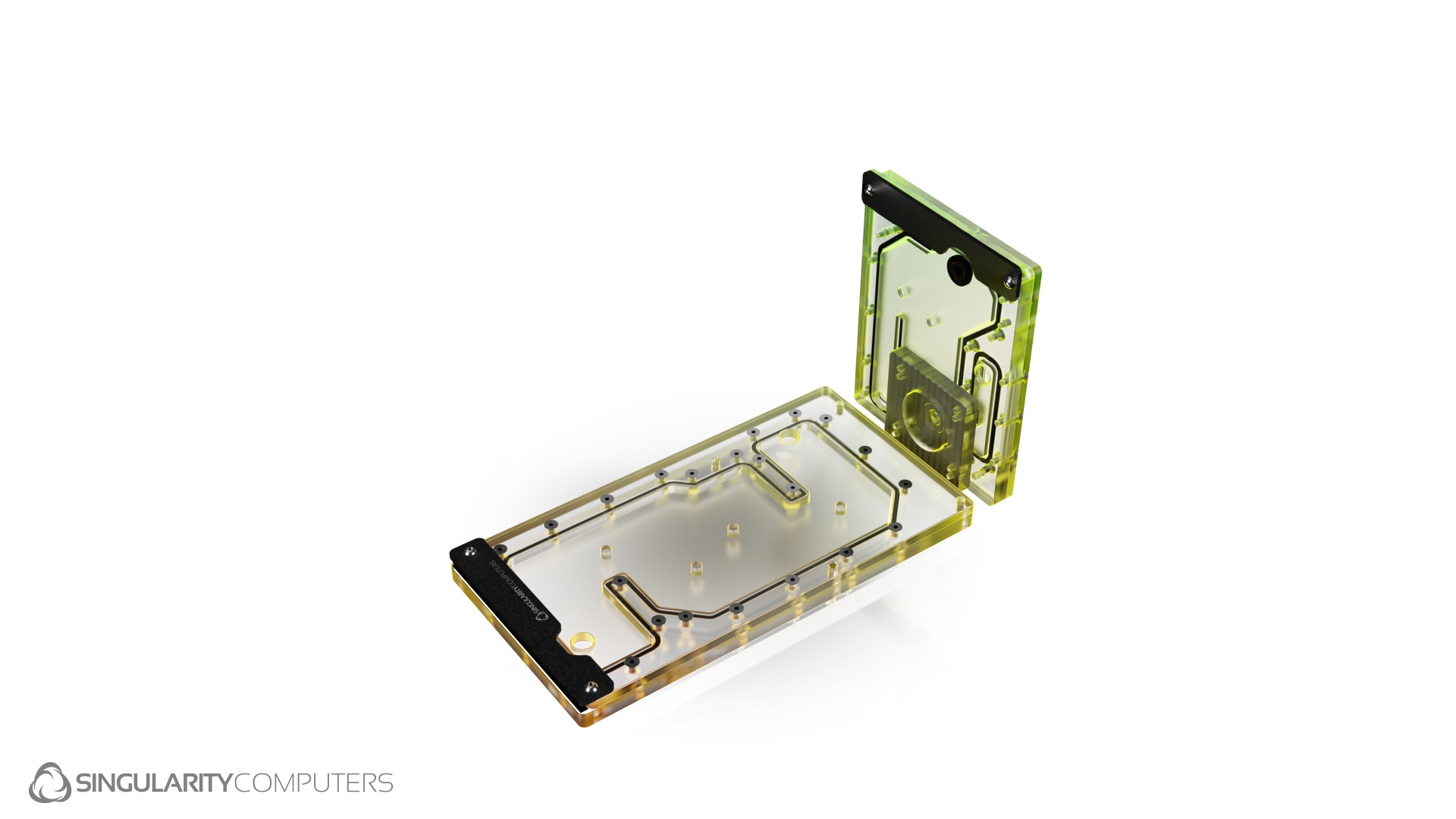

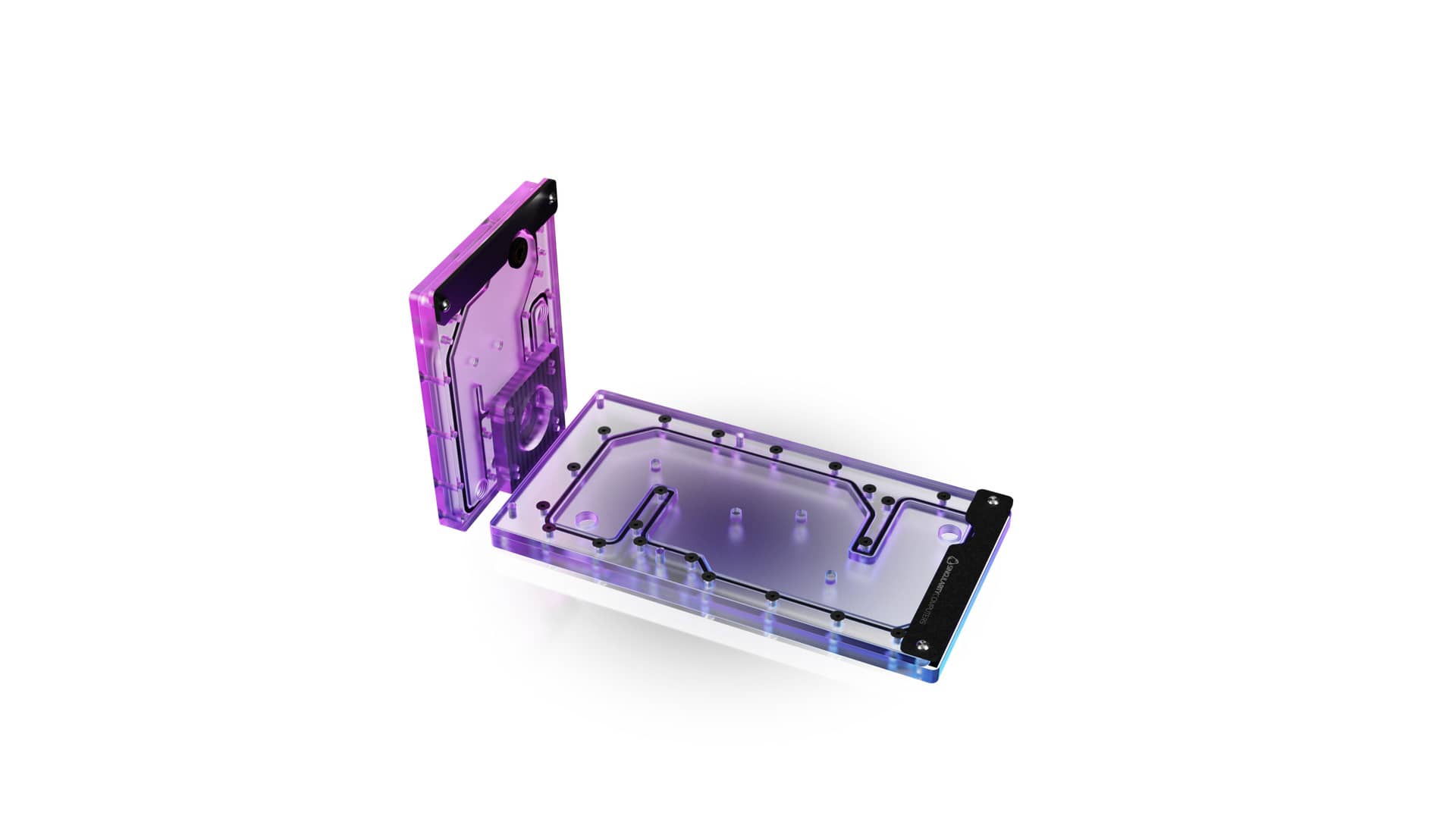

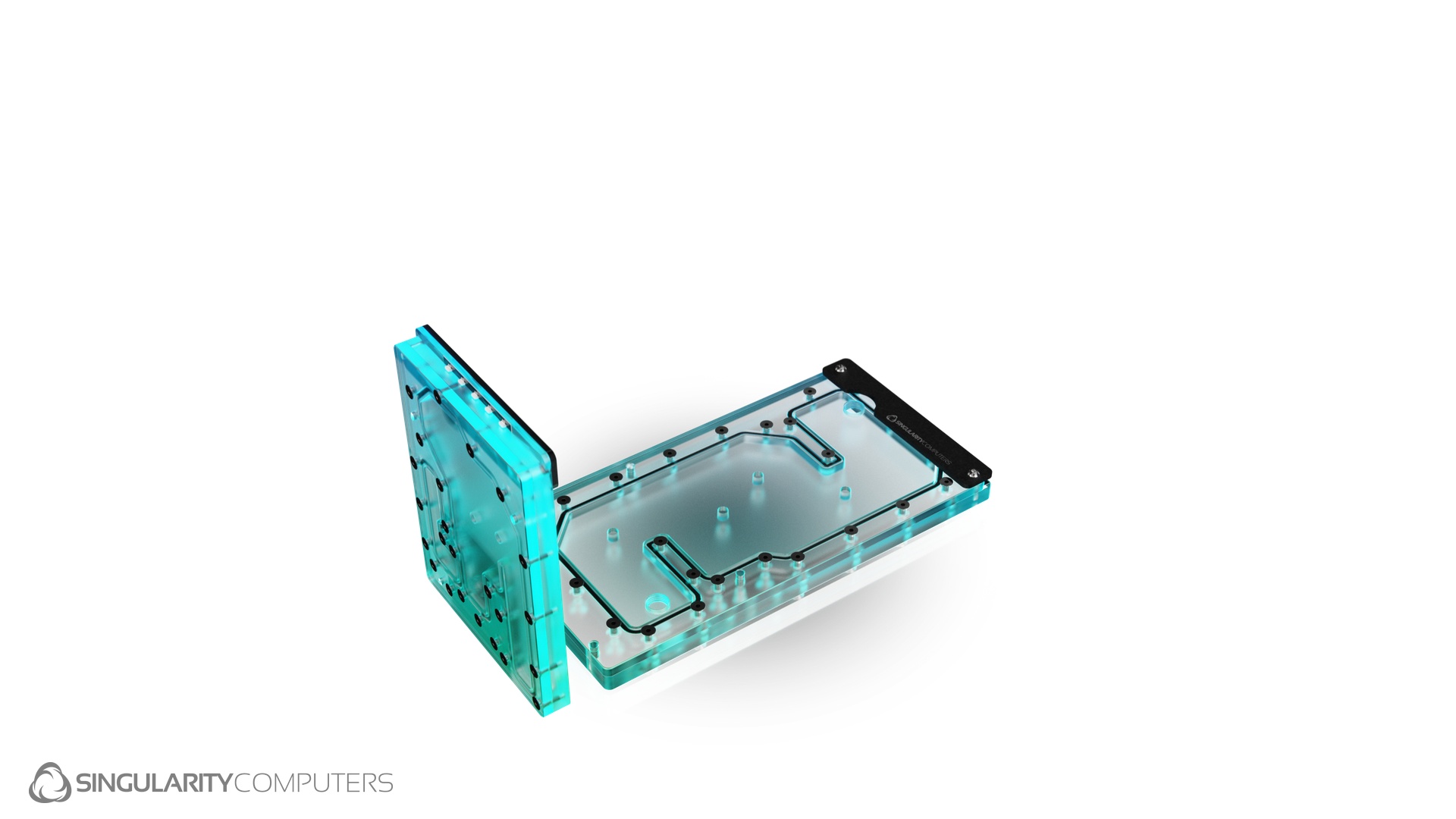

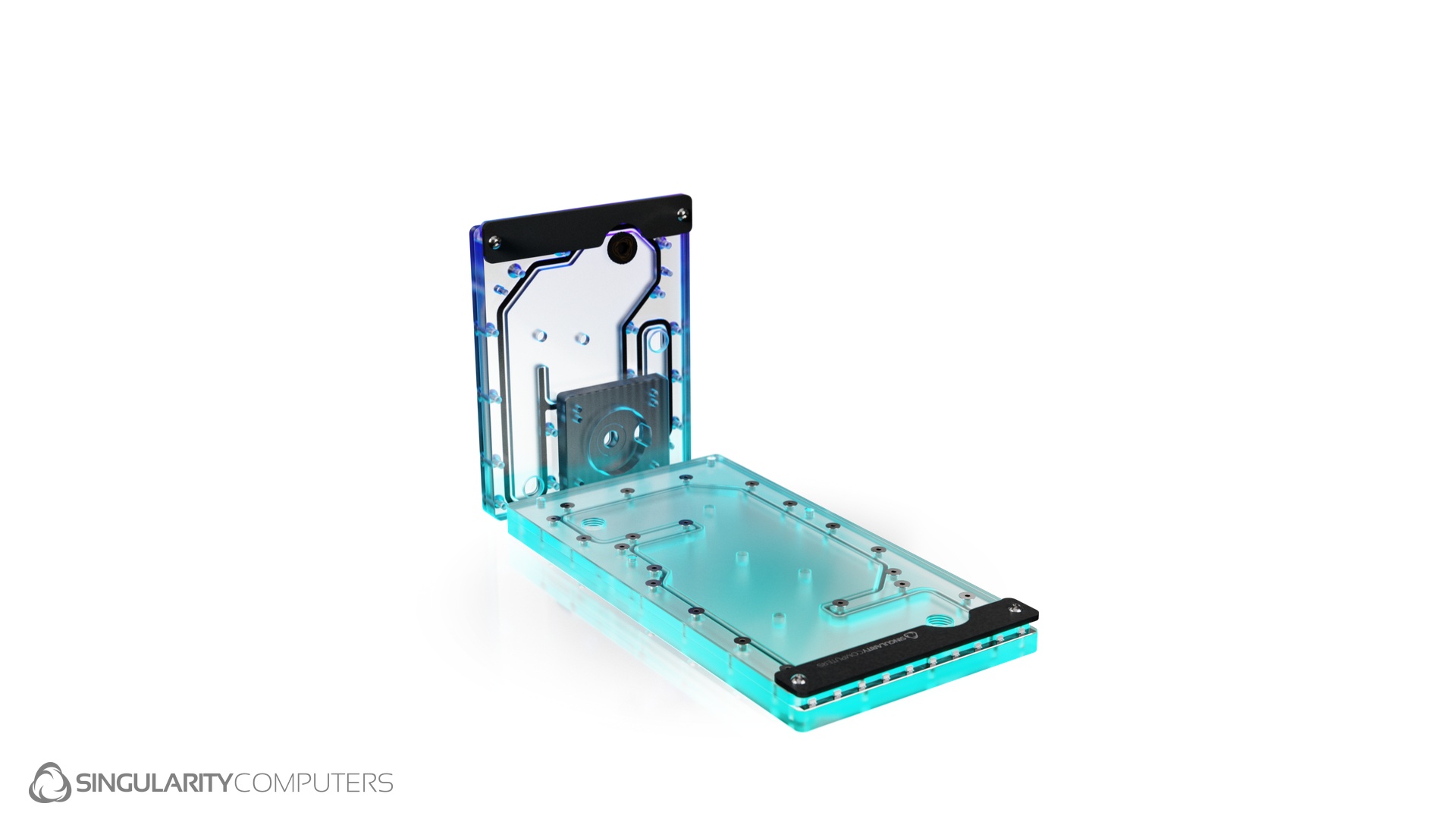

Horizontal and Vertical Distribution Plate Set for the Fractal North. The Vertical Distribution Plate mounts onto the rear panel above the expansion slot and next to the motherboard IO, it has an integrated DDC pump top and a reservoir. The Horizontal Distribution Plate mounts below the motherboard on top of the PSU shroud. The distribution plates are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. There are two integrated ARGB LED strips with Accent Covers. There are also Back Plates included to cover the rear side of the Distribution Plates, so that you can’t see the case panels behind them. Select from the different color options for the Accent Covers and Back Plates.
Specifications & Included Items:
Fractal North Distribution Plate Set.
Fractal North Mid Distribution Plate.
Fractal North Mid Distribution Plate Cover.
Fractal North Rear DDC Reservoir Distribution Plate.
Fractal North Rear DDC Reservoir Distribution Plate Cover.
Integrated Pump Top: DDC.
Integrated Reservoir.
Ports Horizontal Distribution Plate: x2.
Ports Vertical Distribution Plate: x2. Fill port.
Integrated LED Strip: ARGB 5V with 50cm cable x2.
Fasteners: Stainless Steel. M4 x 25mm x8. M4 Washers x8. M4 Nut x8.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
