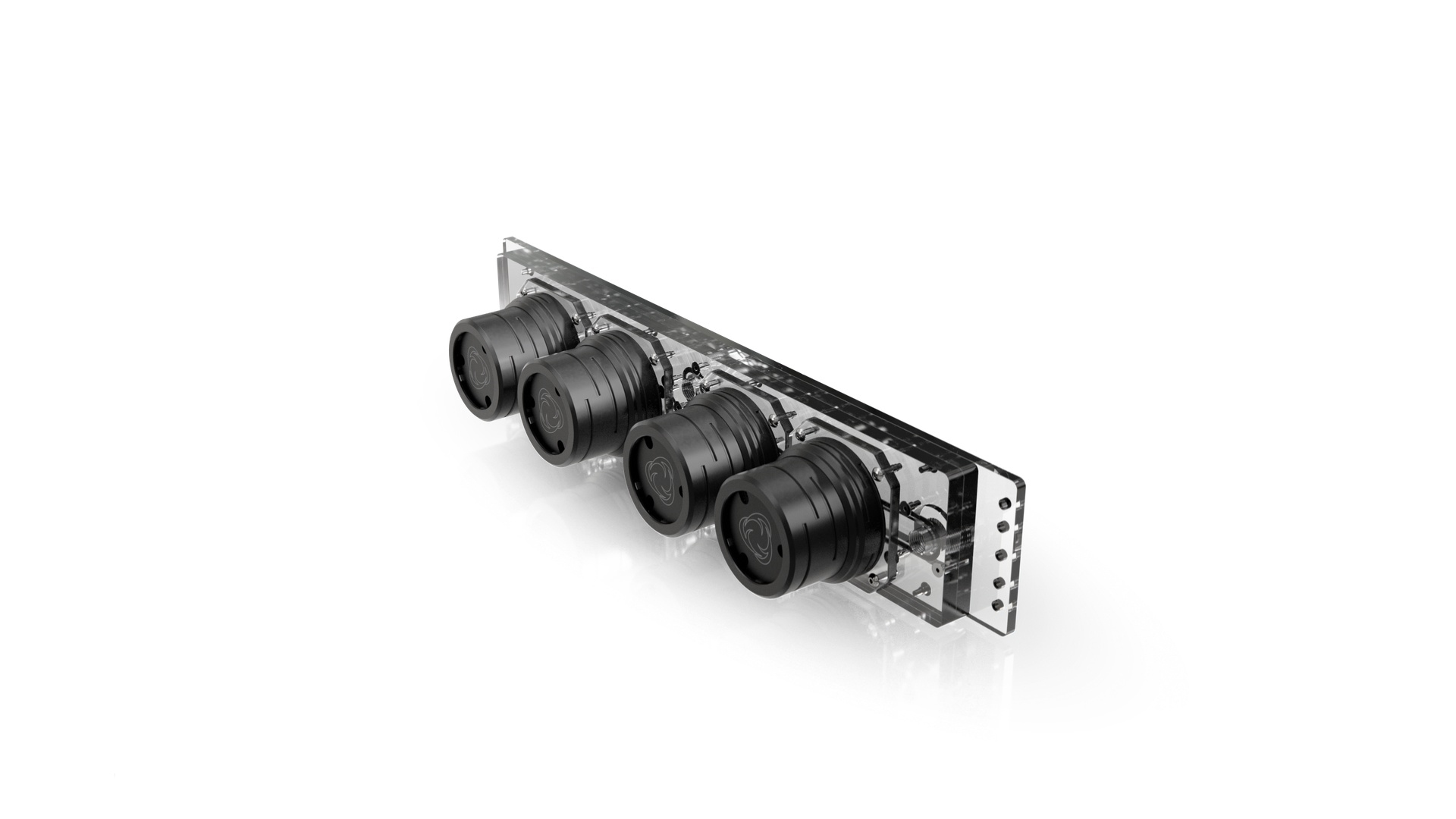

Introducing Rackmount Quad D5 Distribution Plate

The Rackmount Quad D5 Distribution Plate has four D5 pumps with two pairs in series for a powerful dual loop setup with redundancy. It can be used with any rackmount water-cooling system to increase flow and performance. It is specifically designed to be used in combination with our upcoming rackmount case/water-box. It mounts directly to the front of a standard 19” rack. It has an inlet and outlet port for each pair of D5 pumps, and the outlet of the first pair can be connected to the inlet of the second pair for four D5 pumps in series. There is also a drain port for each pair of D5 pumps on the front. Specifications & Included Items:
Rackmount Quad D5 Distribution Plate: Cast Acrylic, Clear, CNC Machined.
Fasteners: Stainless Steel.
Gaskets: Silicone.
Orings: D5, Silicone x4.
Pump Top: D5 x4.
Pump Cover: Protium 3.0 ARGB D5 Pump Cover Black or Silver (Selectable above) x4.
Dimensions: W: 400mm x H: 100mm x D: 100mm.
Packaged Dimensions: W: 450mm x H: 150mm x D: 150mm.
Weight: 2.5kg.
Packaged Weight: 3kg.

Installation:
Installs onto a standard 19” Rack. Designed to be used in combination with an existing water-cooling system which already has a reservoir, and the reservoir will need to be above the Rackmount Quad D5 Distribution Plate.
