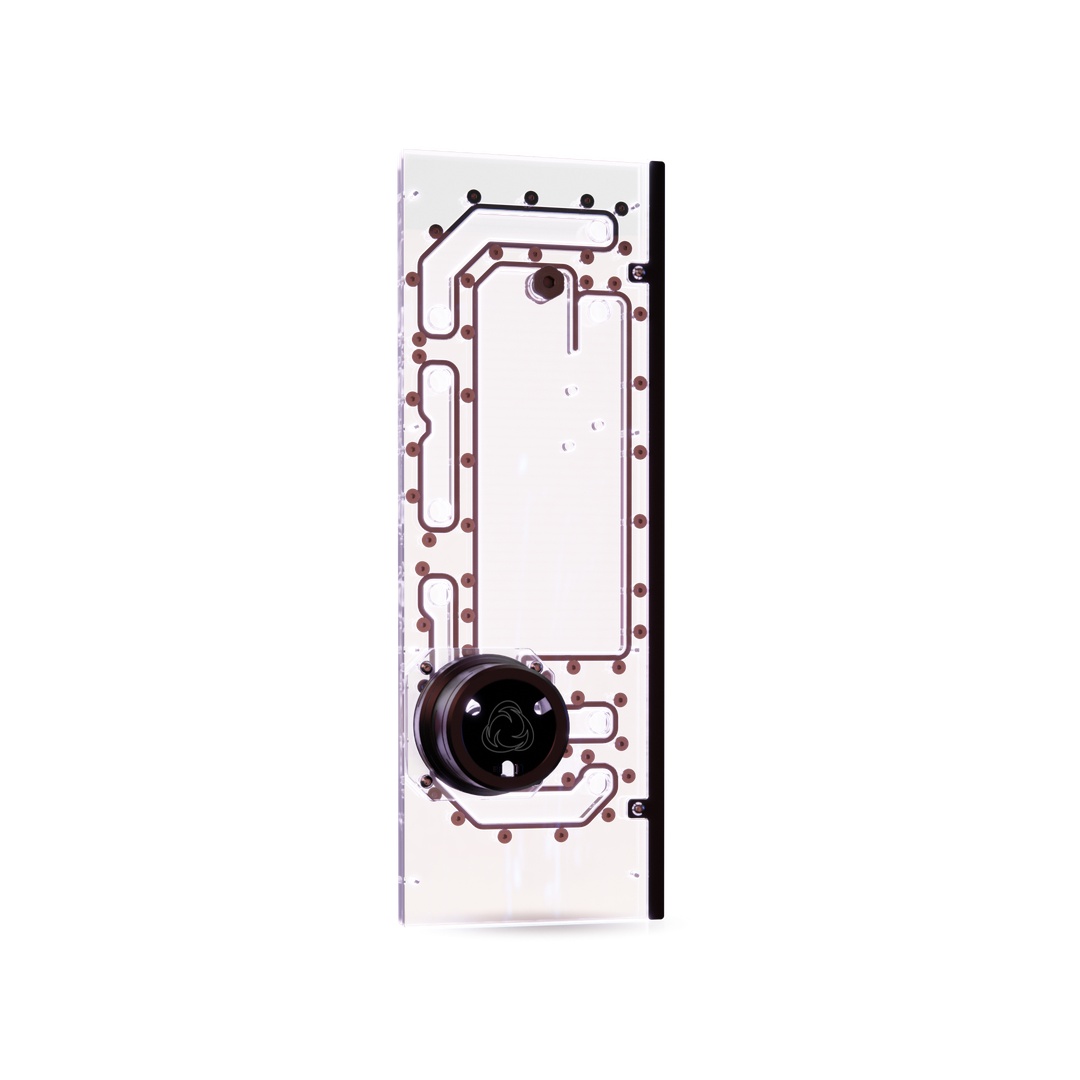

420mm D5 Reservoir Combo Distribution Plate Advanced

Name: 420mm D5 Reservoir Combo Distribution Plate Advanced
Brand: Singularity Computers
SKU: SC-420-SL-DIST-AD
Price: 299.00 USD
Availability: InStock

Order processing time 1-2 days.

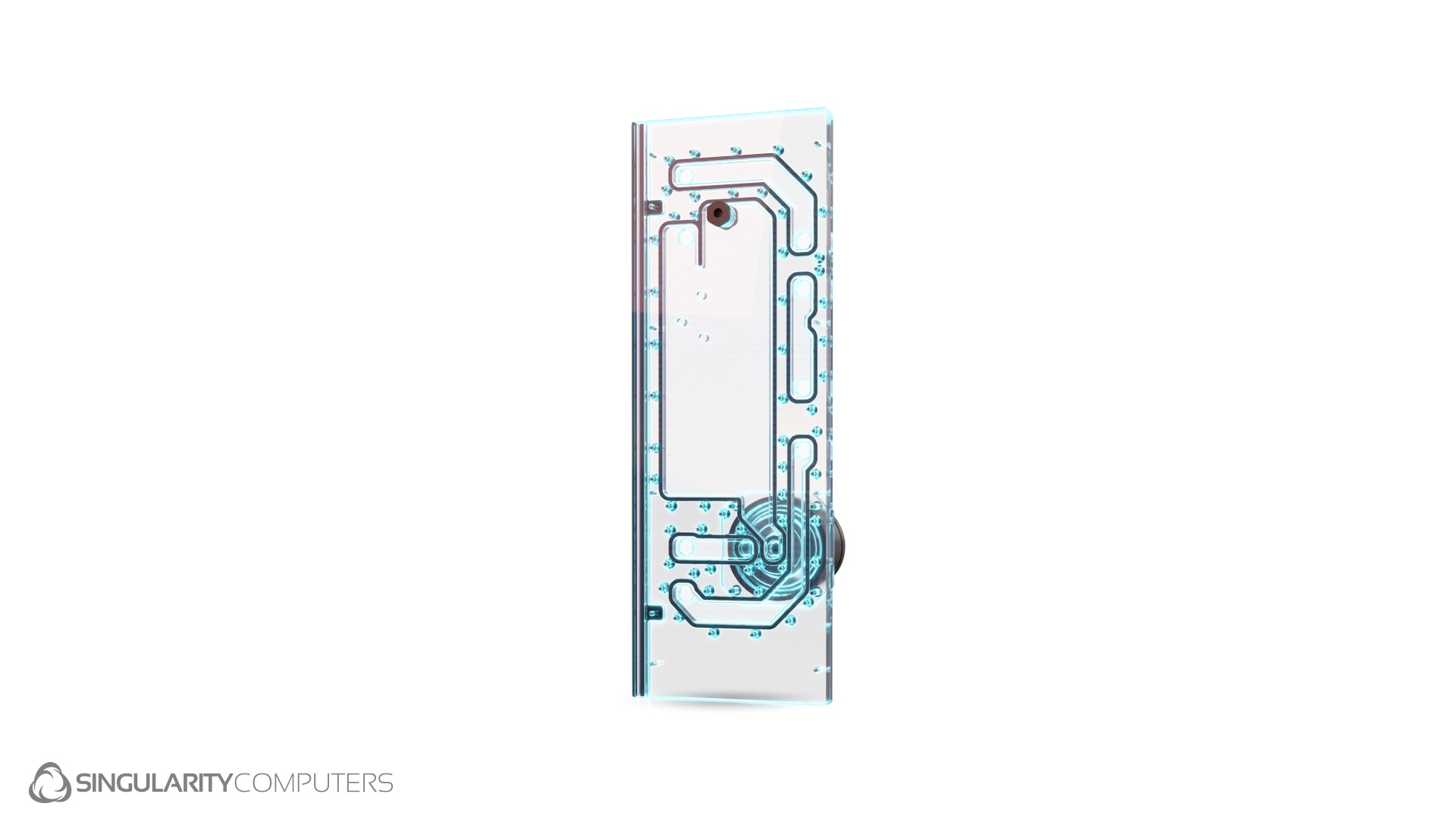

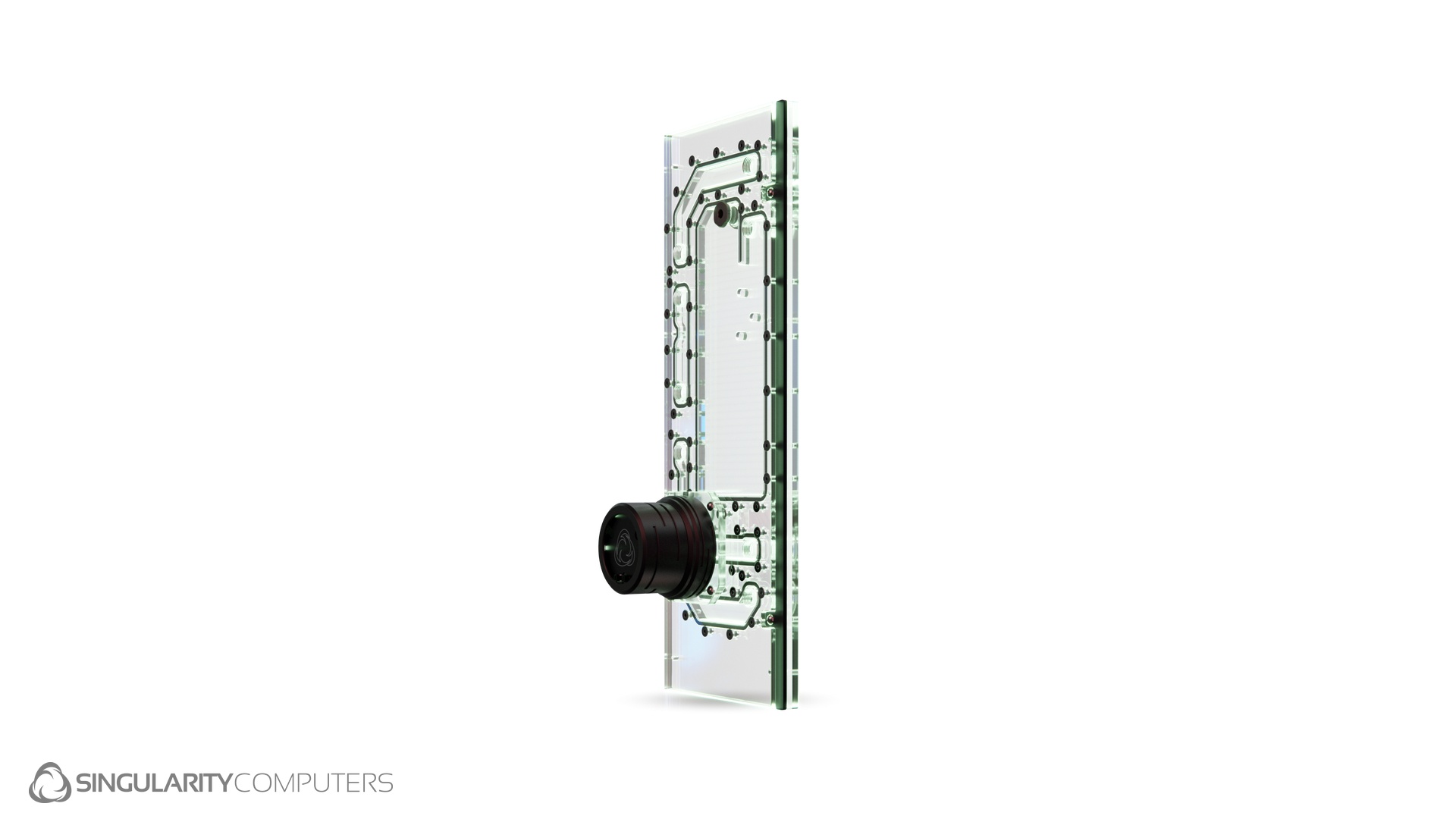

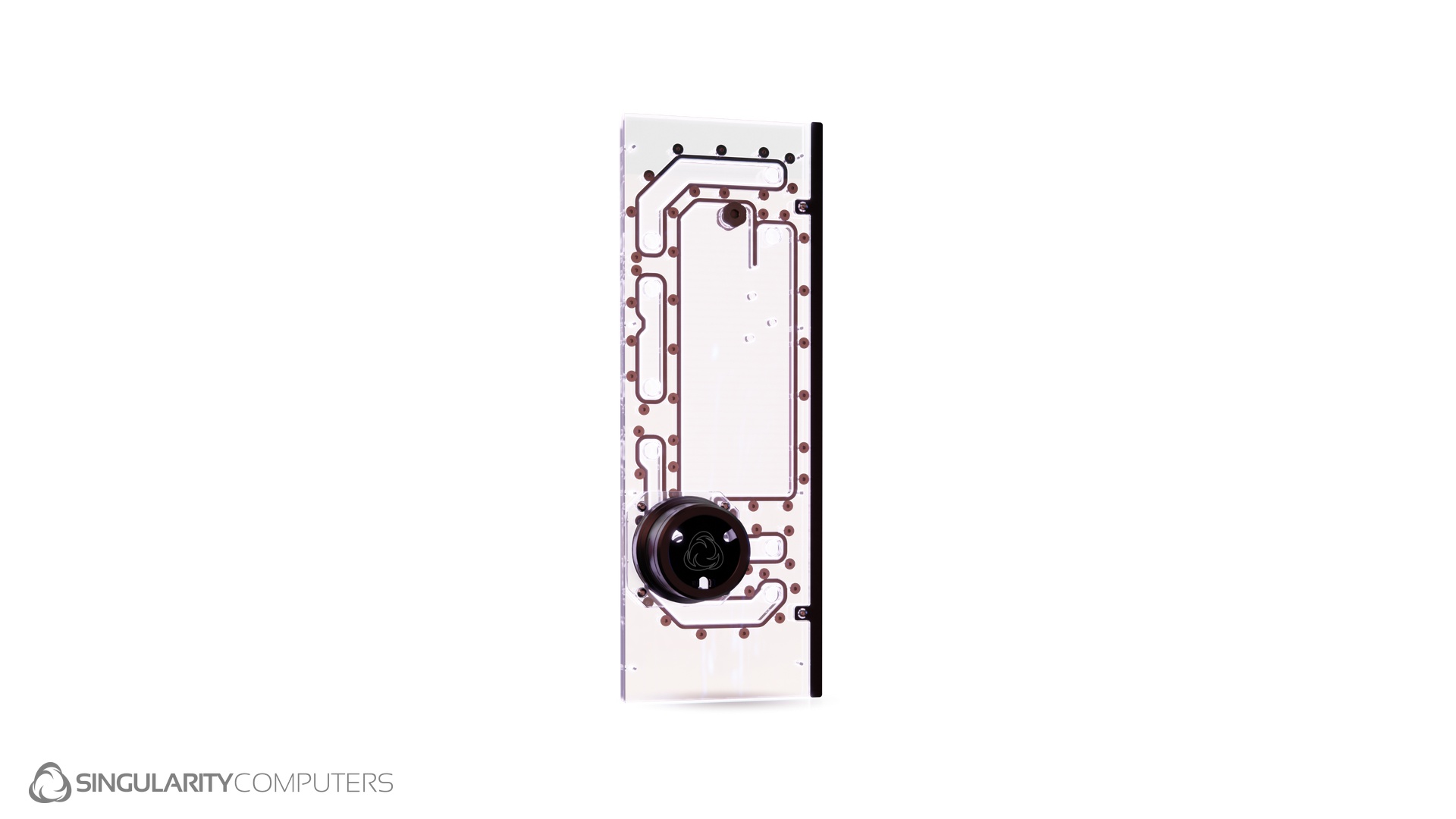

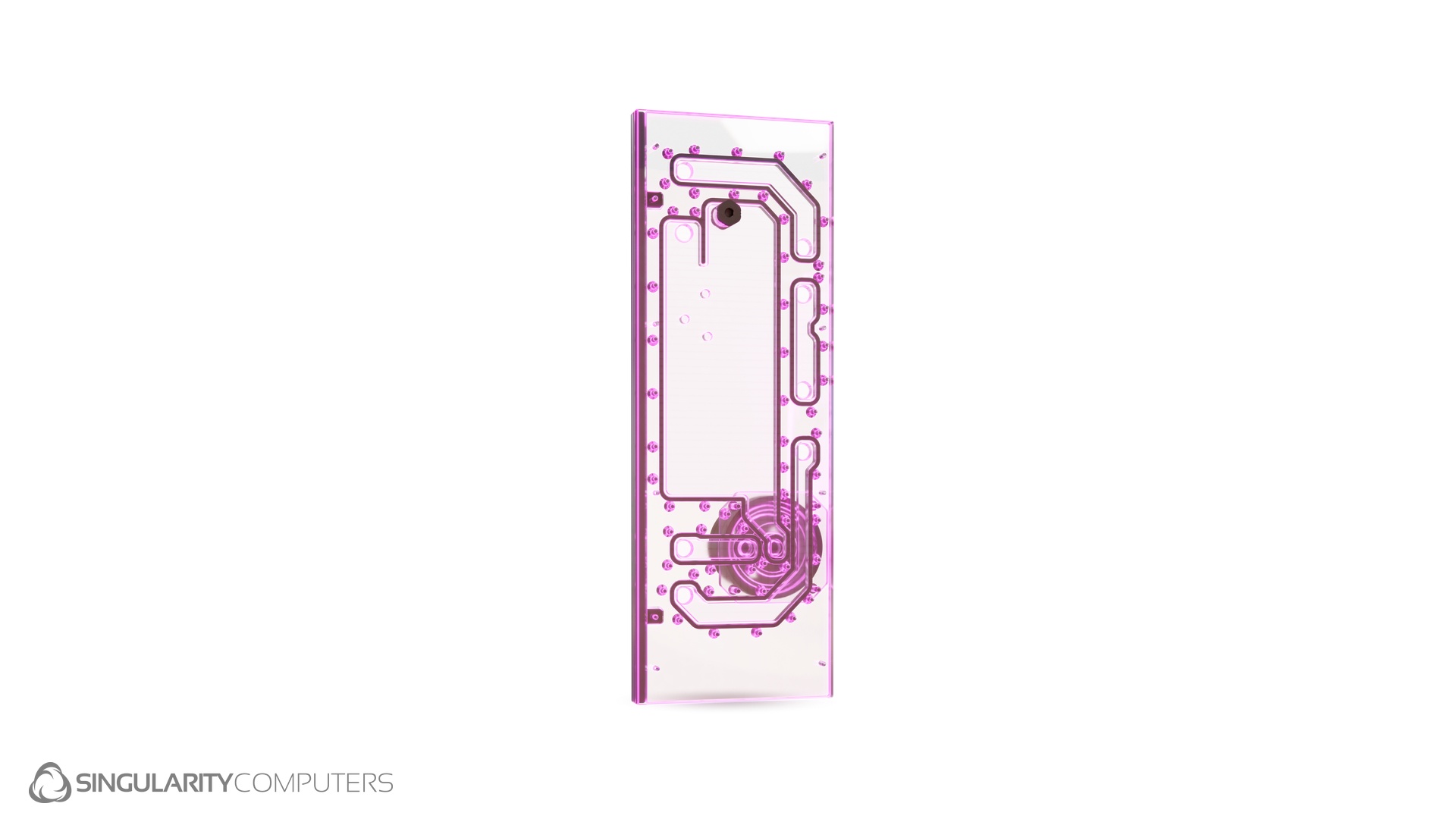

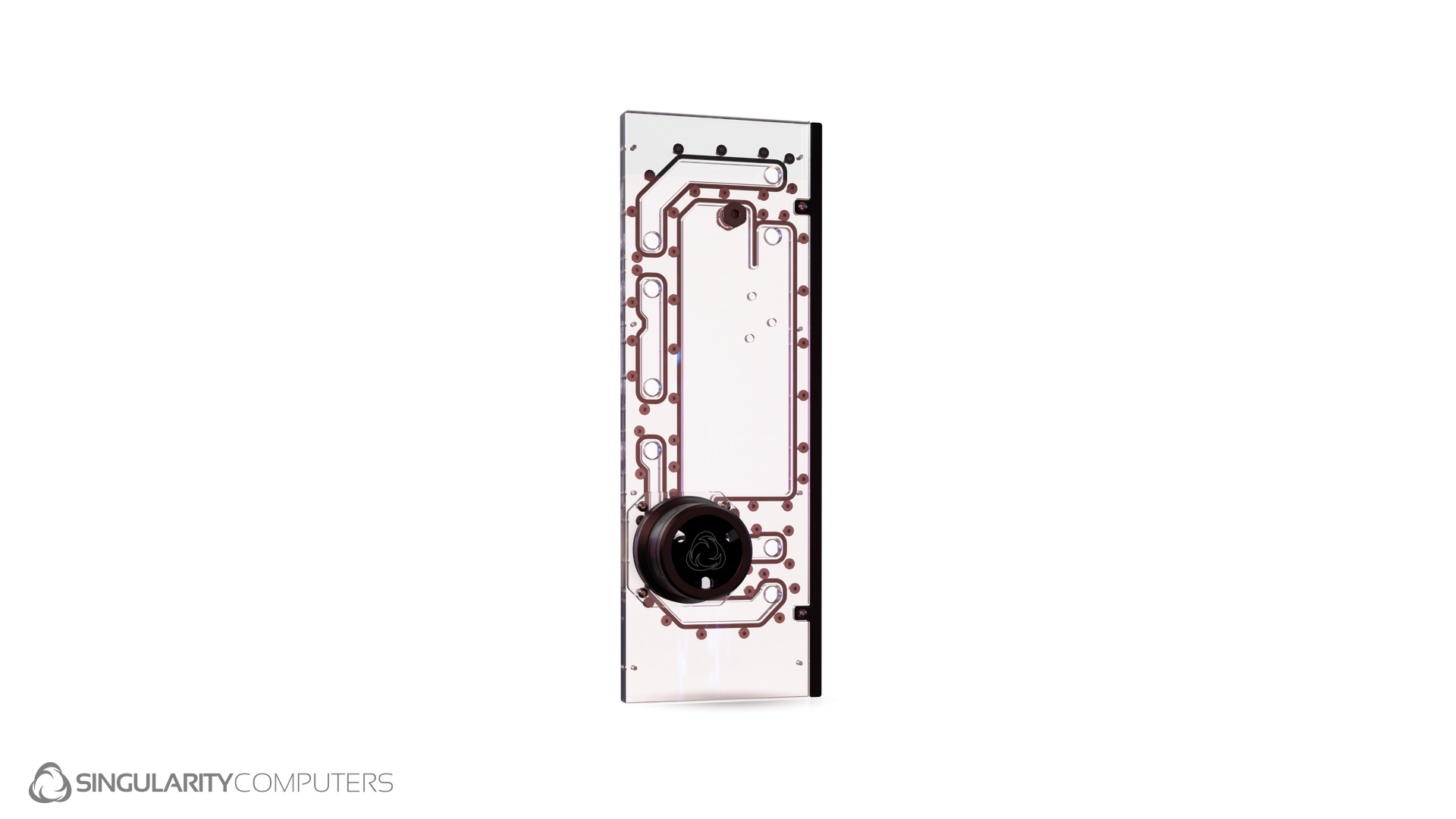

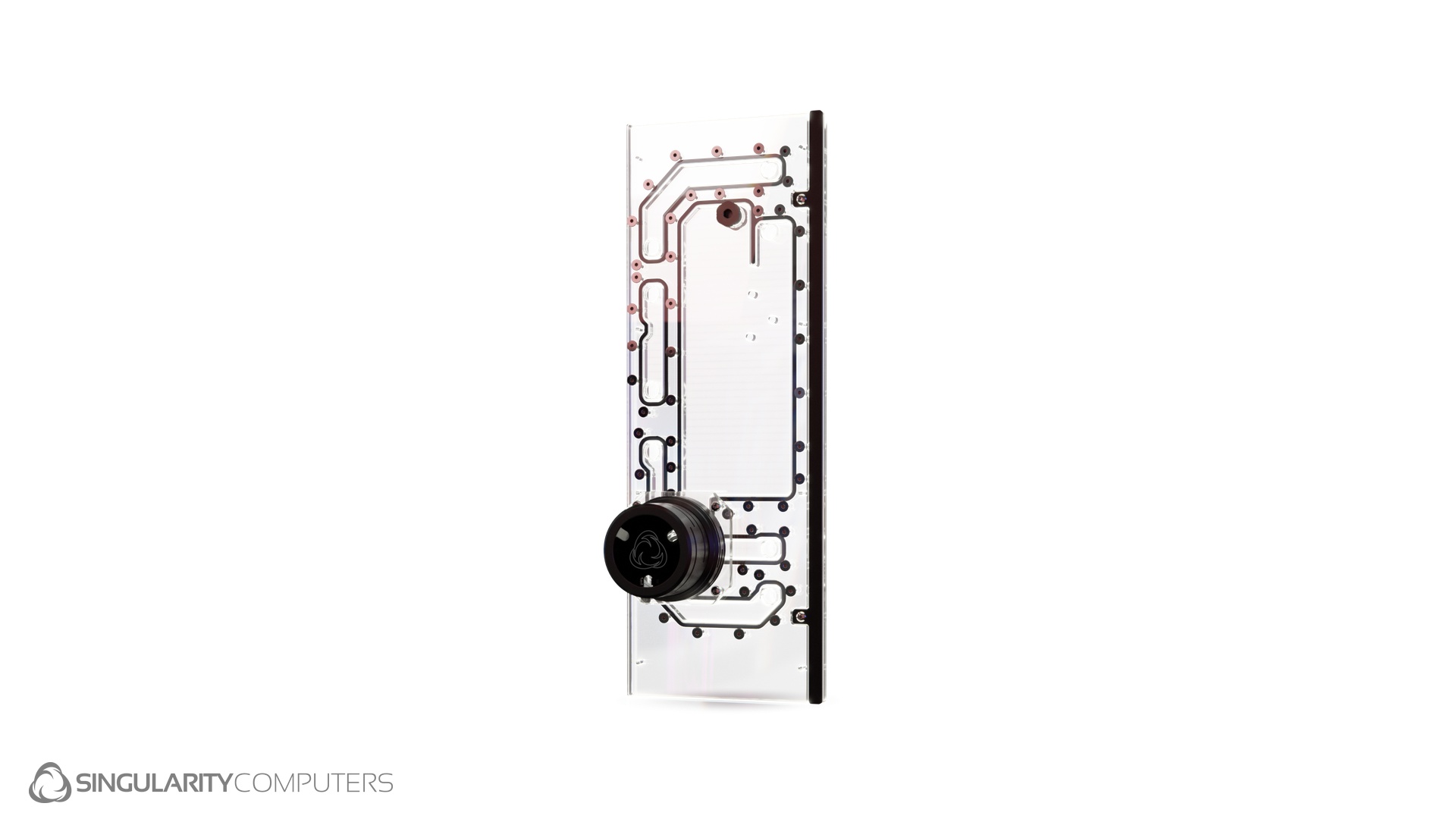

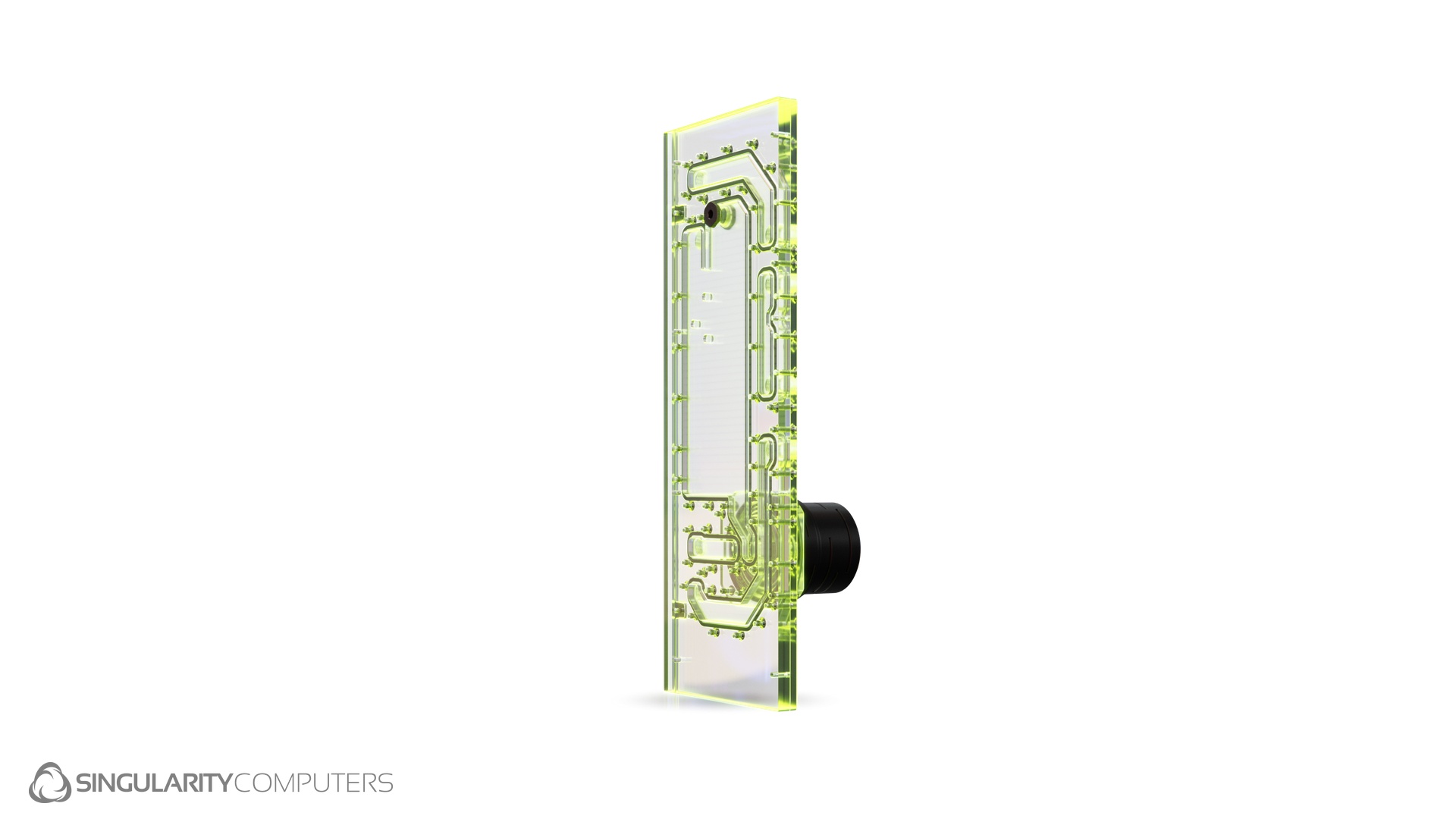

The 420mm D5 Reservoir Distribution Plate Advanced fits onto any 420mm radiator mount or radiator. It has an integrated reservoir, D5 pump top, D5 Pump Cover, Fill and Drain Ports. The advanced version of this distribution plate has ports for every component, both radiators, CPU and GPU. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners. It has an integrated ARGB LED strip with an Accent Cover. There is also an optional Back Plate included to cover the rear side of the Rear Distribution Plate, so that you can’t see the case panel behind it. Select from the different color options below for the Accent Covers and Back Plates.

Pump not included. Compatible with any D5 Pump.

Manuals

US$299.00

Select Mounting (included)

For mounting to a radiator mount select ‘Standard mounting’. For mounting to fans select ‘Fans’. For mounting to a radiator select the fastener size your radiator uses.

Select Acrylic Cover Color/Finish Options

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Satin Black

Personalised Laser Etching (optional) (+US$45.00)

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

Select D5 Retention Ring Colour (included)

CNC milled anodized retention ring.

Black

Select D5 Pump Cover Options (optional) USD $39

CNC milled anodised pump cover with ARGB lights and Singularity Computers Logo.

D5 Pump (optional) USD $104

D5 Pump 1500LPH 3.7m head pressure.

Add to wishlist

EAN: 9351182006542 SKU: SC-420-SL-DIST-AD Categories: Pump Reservoir Combos, Universal Distribution Plates

Description

Build Gallery

Product Gallery

Specifications:
420mm D5 Reservoir Distribution Plate Advanced.
Protium 3.0 ARGB D5 Pump Cover (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 420mm x W: 140mm x H: 110mm.
Weight: 2.2kg.
Packaged Dimensions: L: 500mm x W: 200mm x H: 150mm.
Packaged Weight: 2.8kg

Installation:
Installs onto any 420mm radiator or radiator mount.

Addon Information ▼

Protium 3.0 ARGB D5 Cover

Protium 3.0 D5 Pump

Protium 3.0 ARGB D5 Cover: The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

Protium 3.0 D5 Pump: The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built, and we have never seen one fail in any of our systems. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It is controlled via PWM so you can connect it to your motherboard to manage the RPM.
