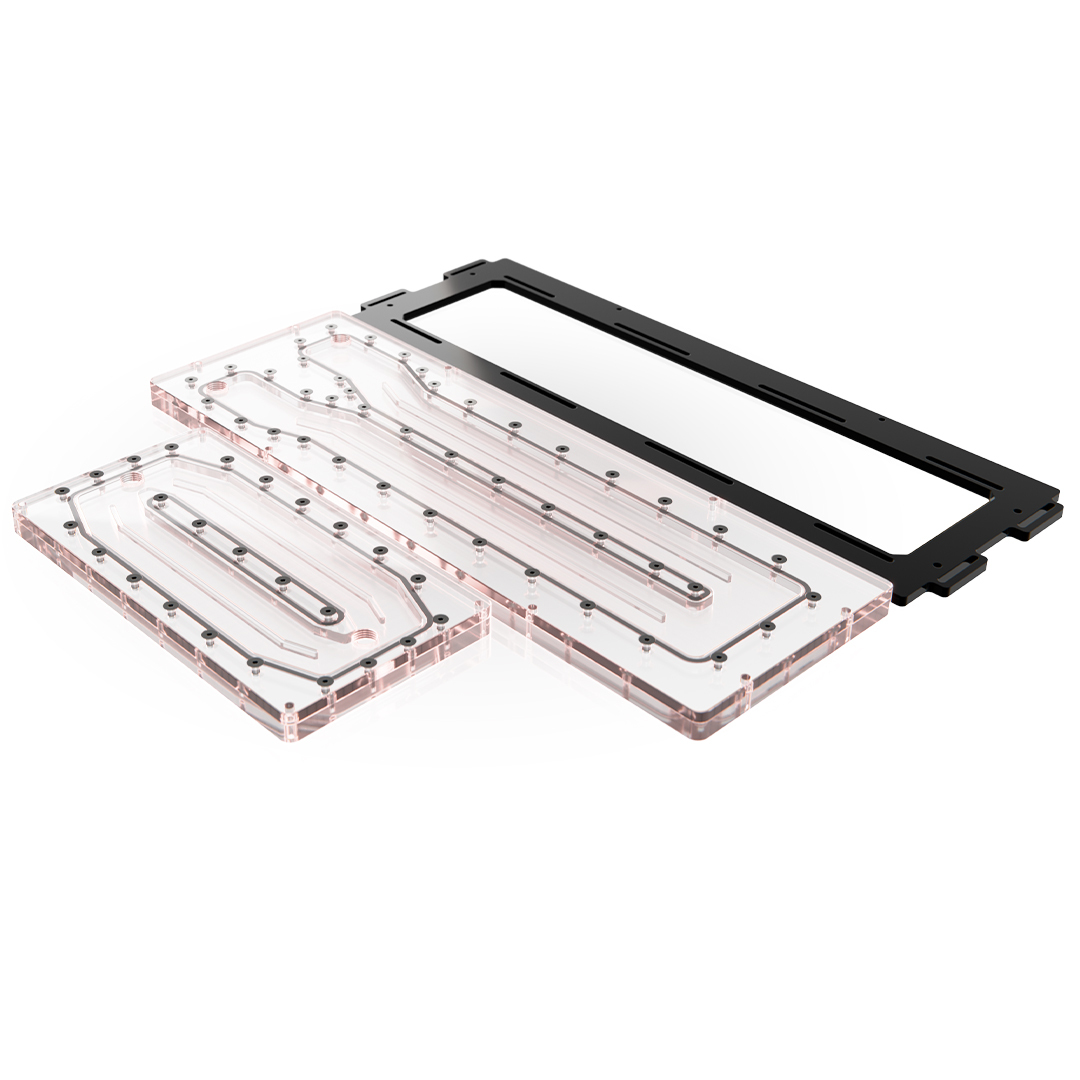

Caselabs S8 Distribution Plate Set
Caselabs S8 Distribution Plate Set US$49.00 US$249.00Price range: US$49.00 through US$249.00
Back to products

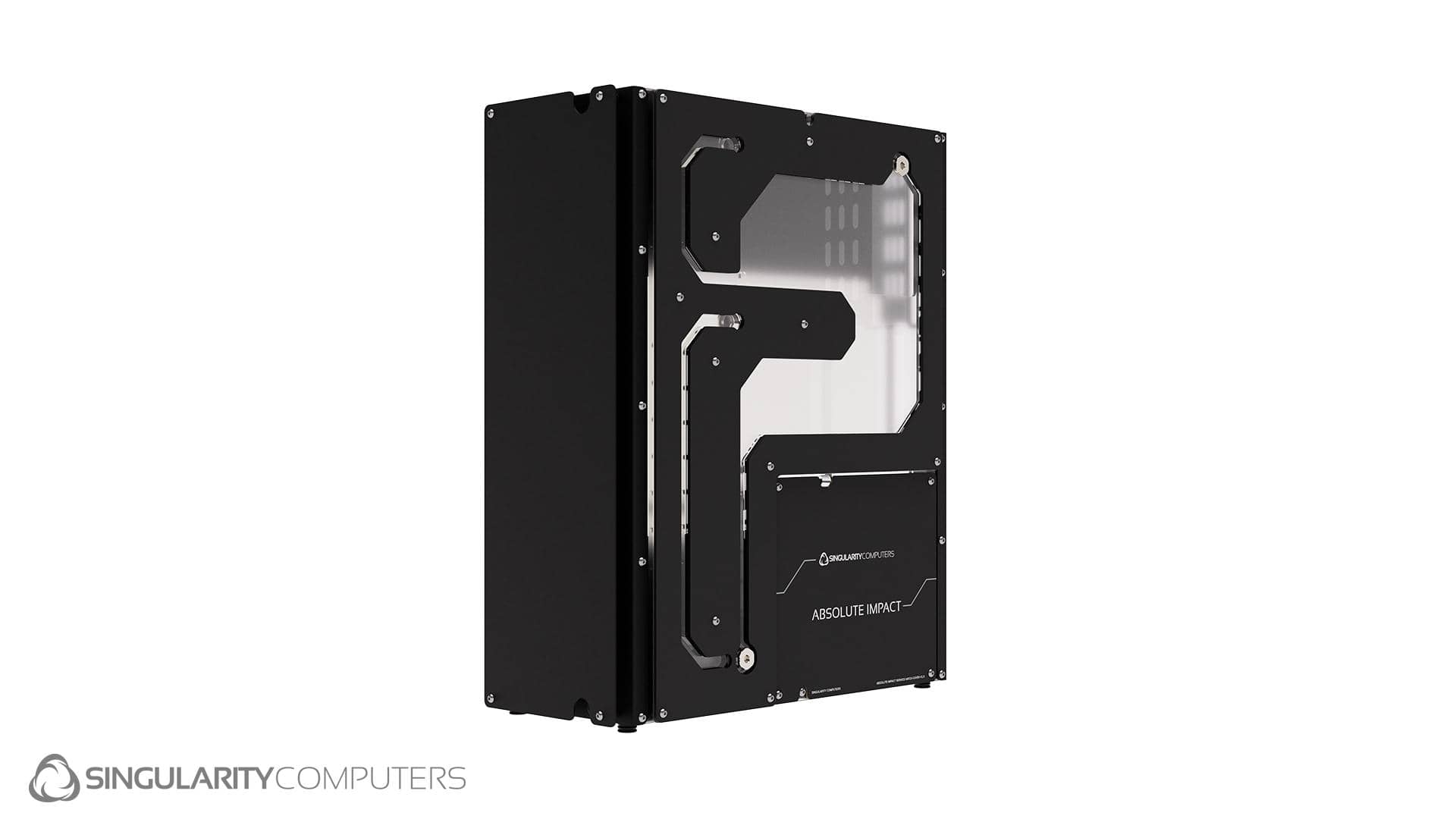

Absolute Impact Case

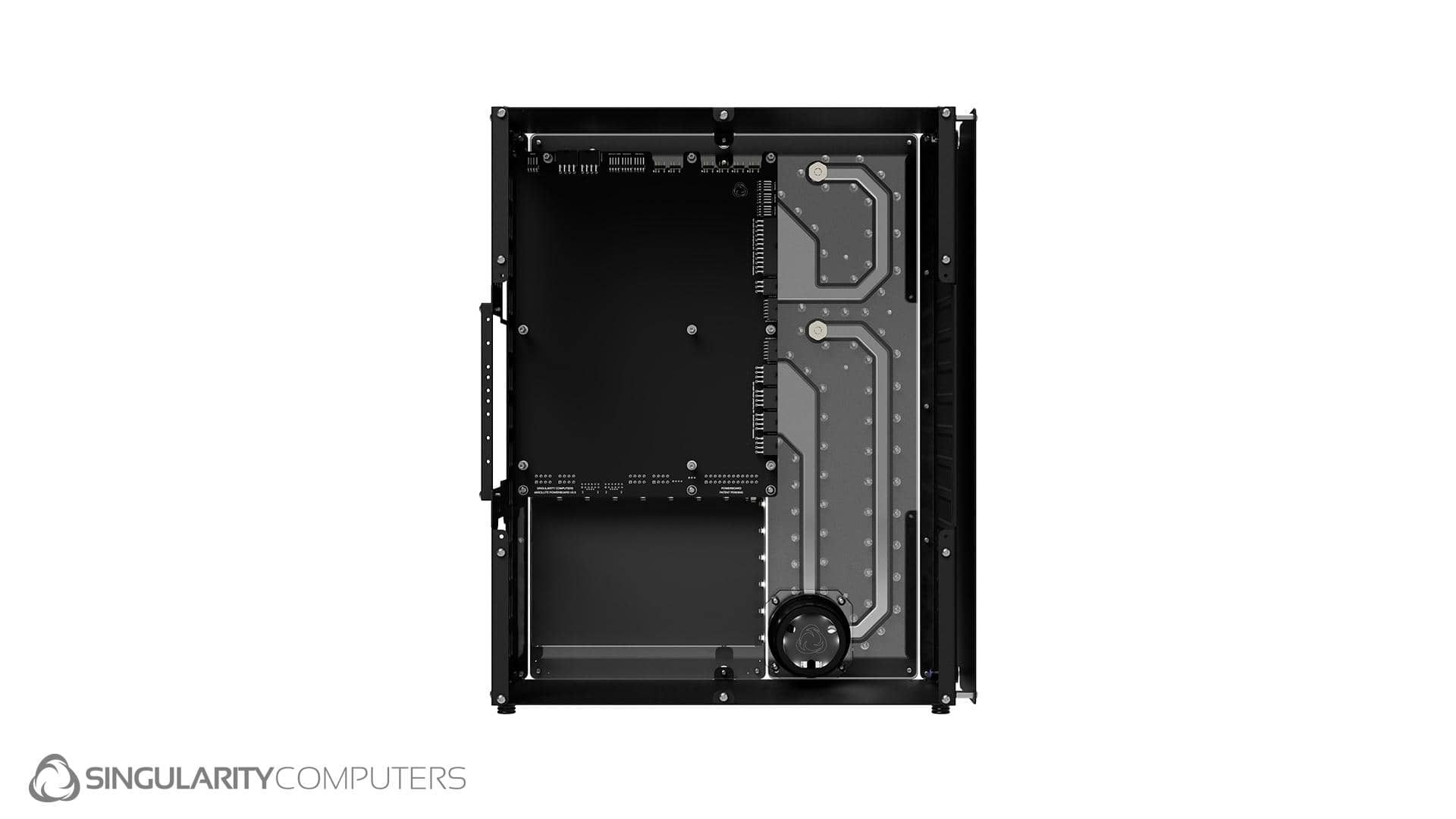

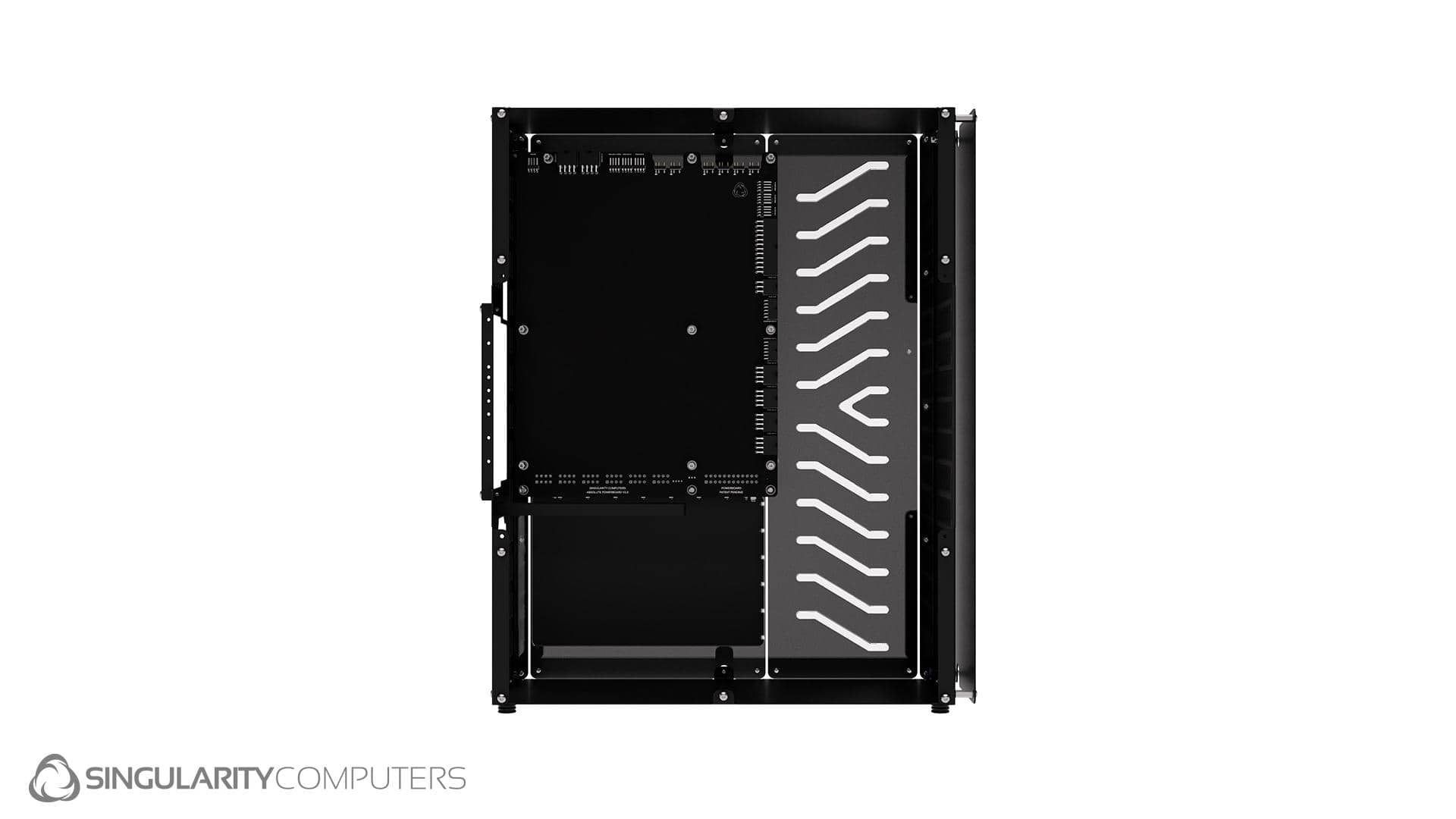

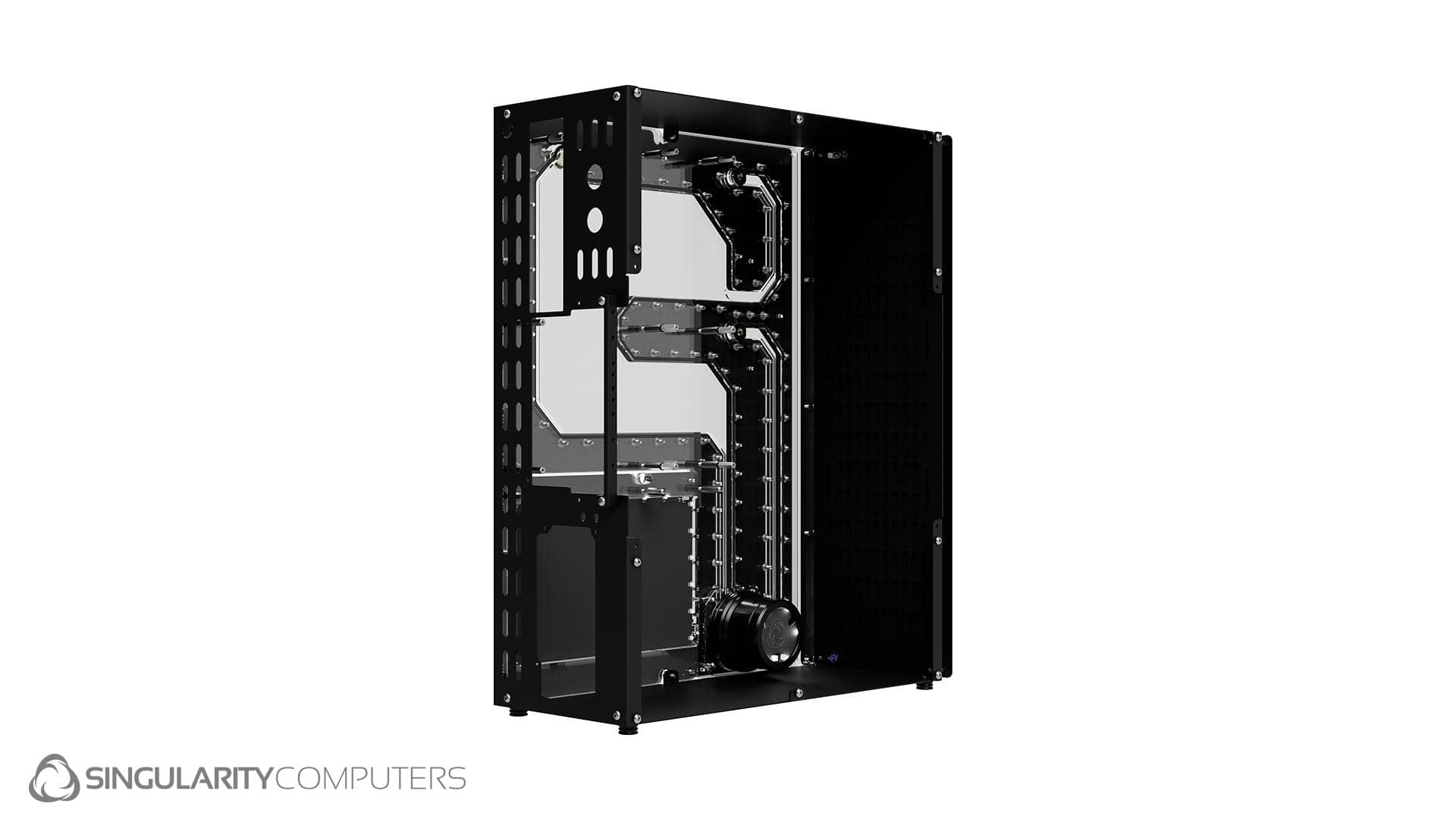

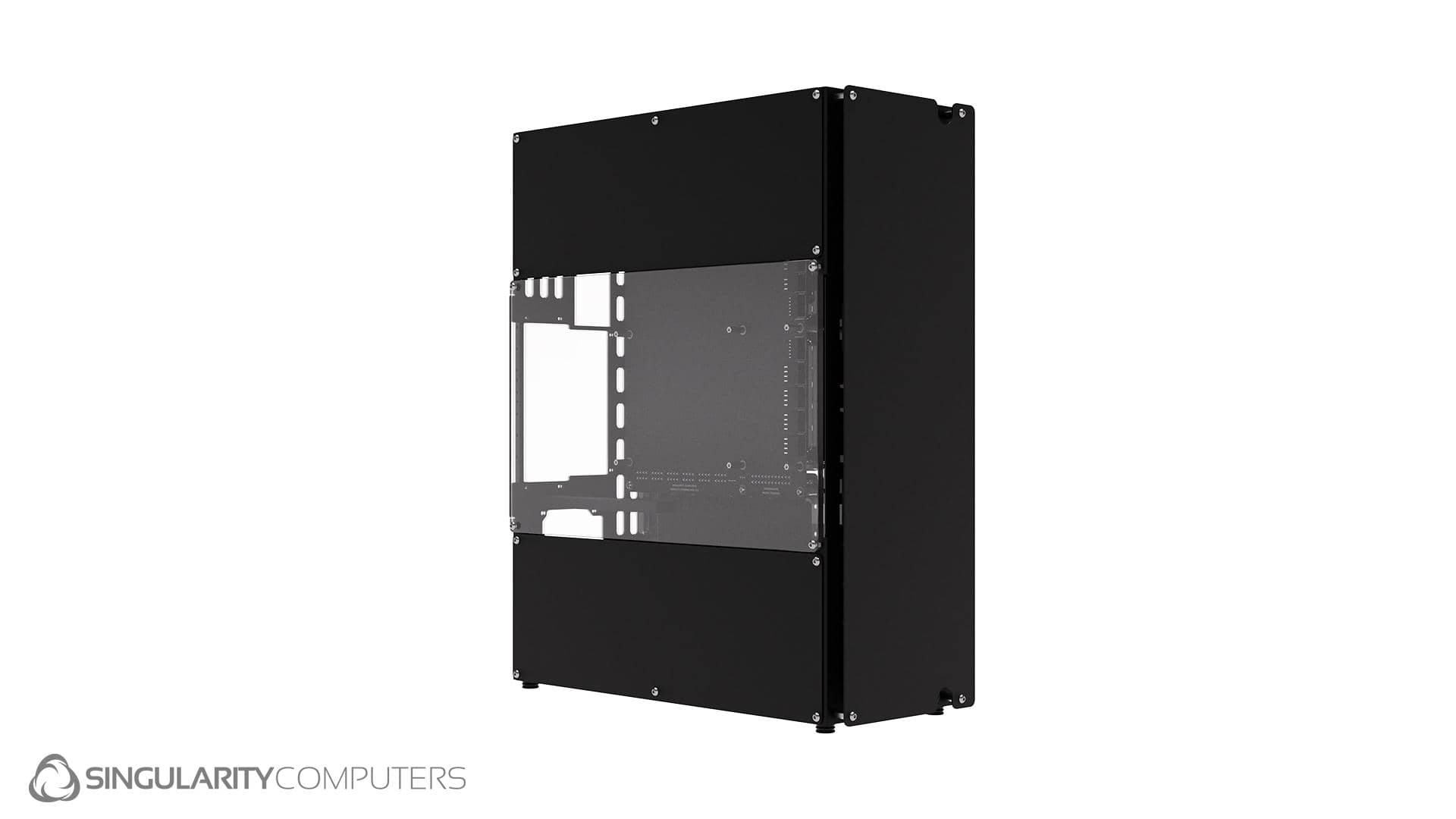

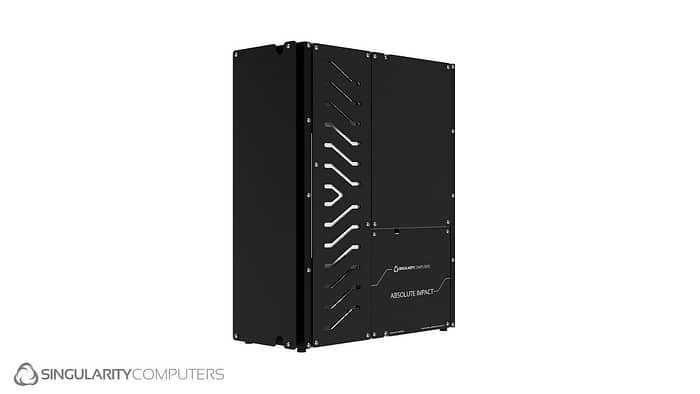

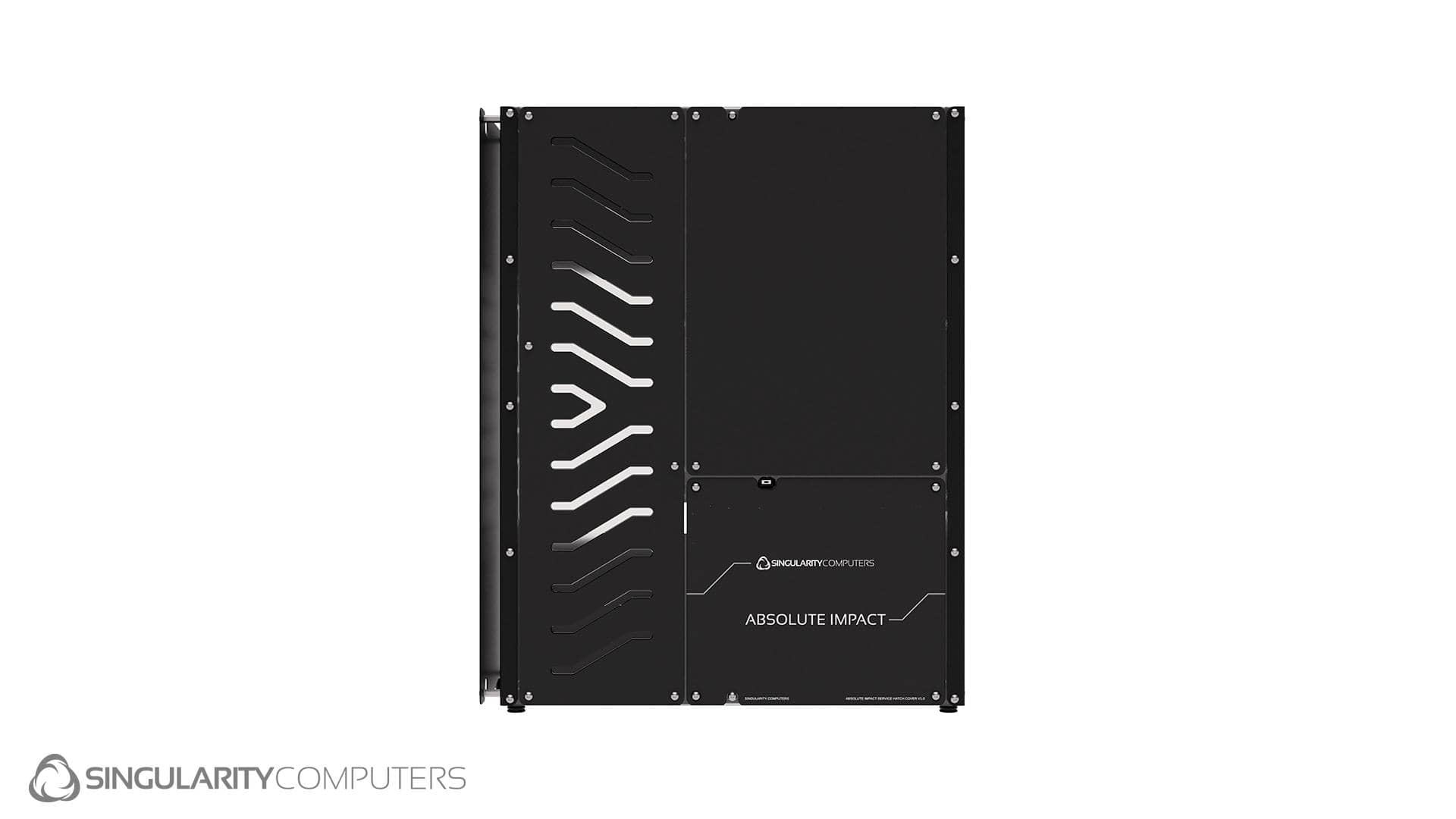

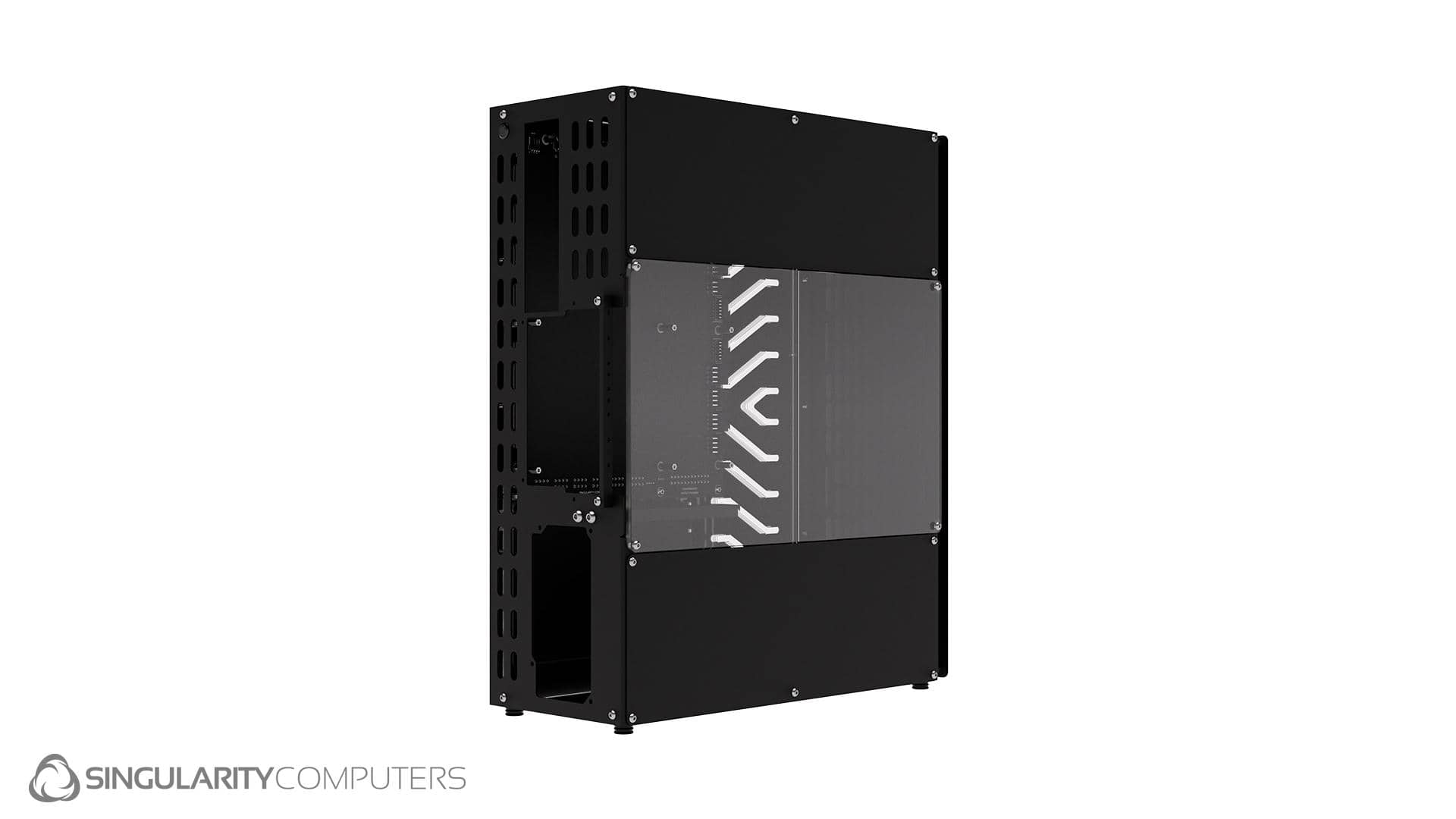

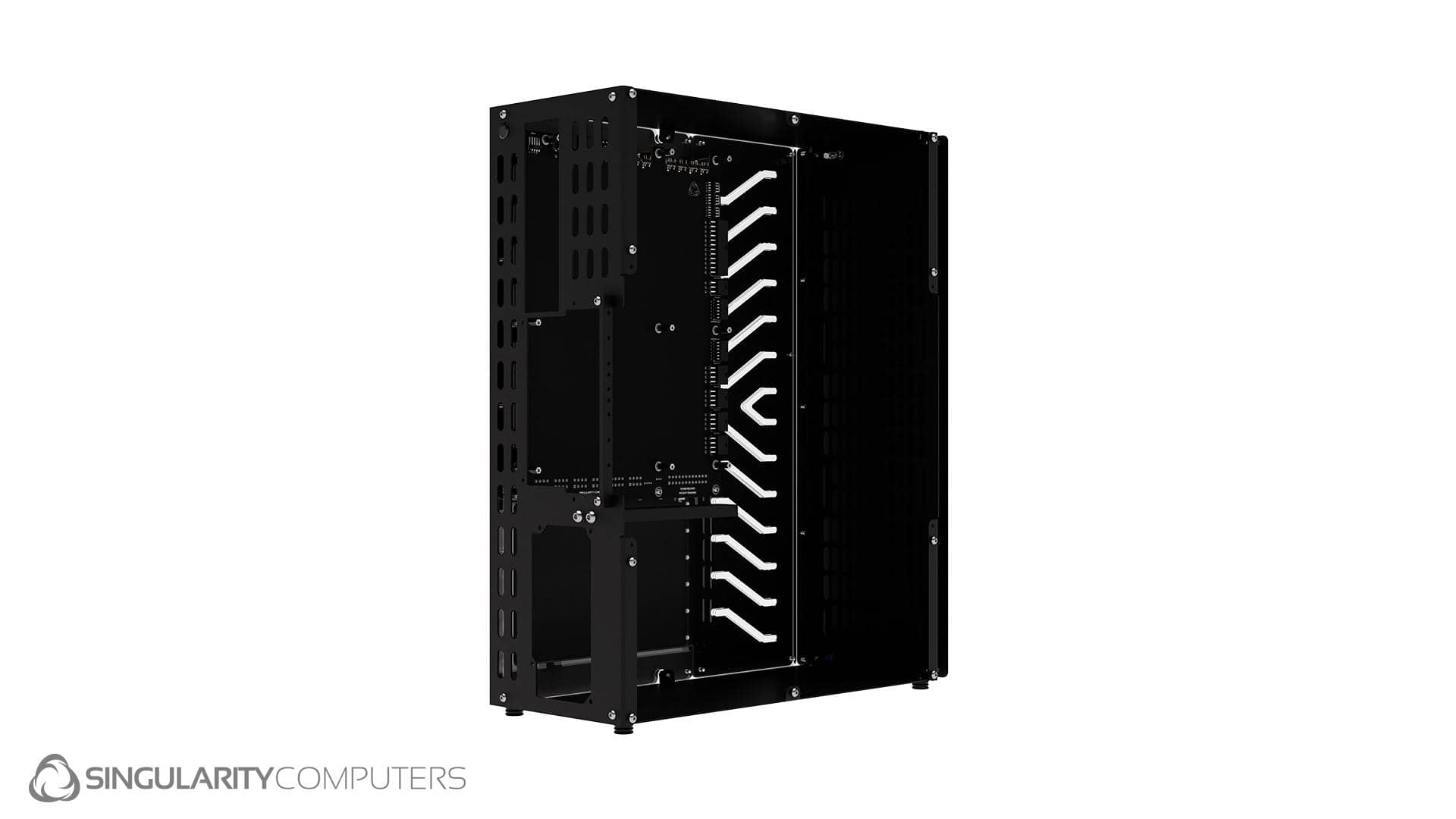

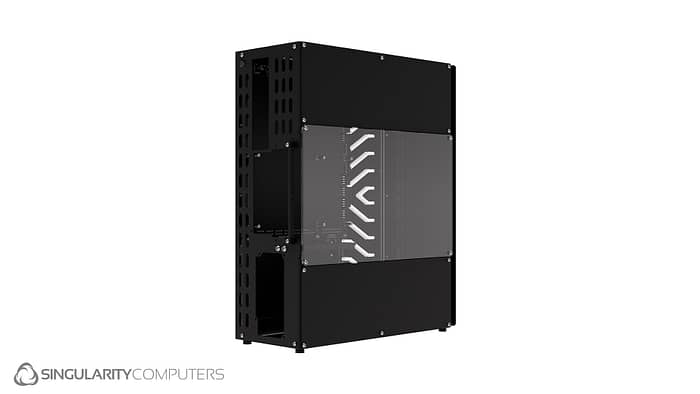

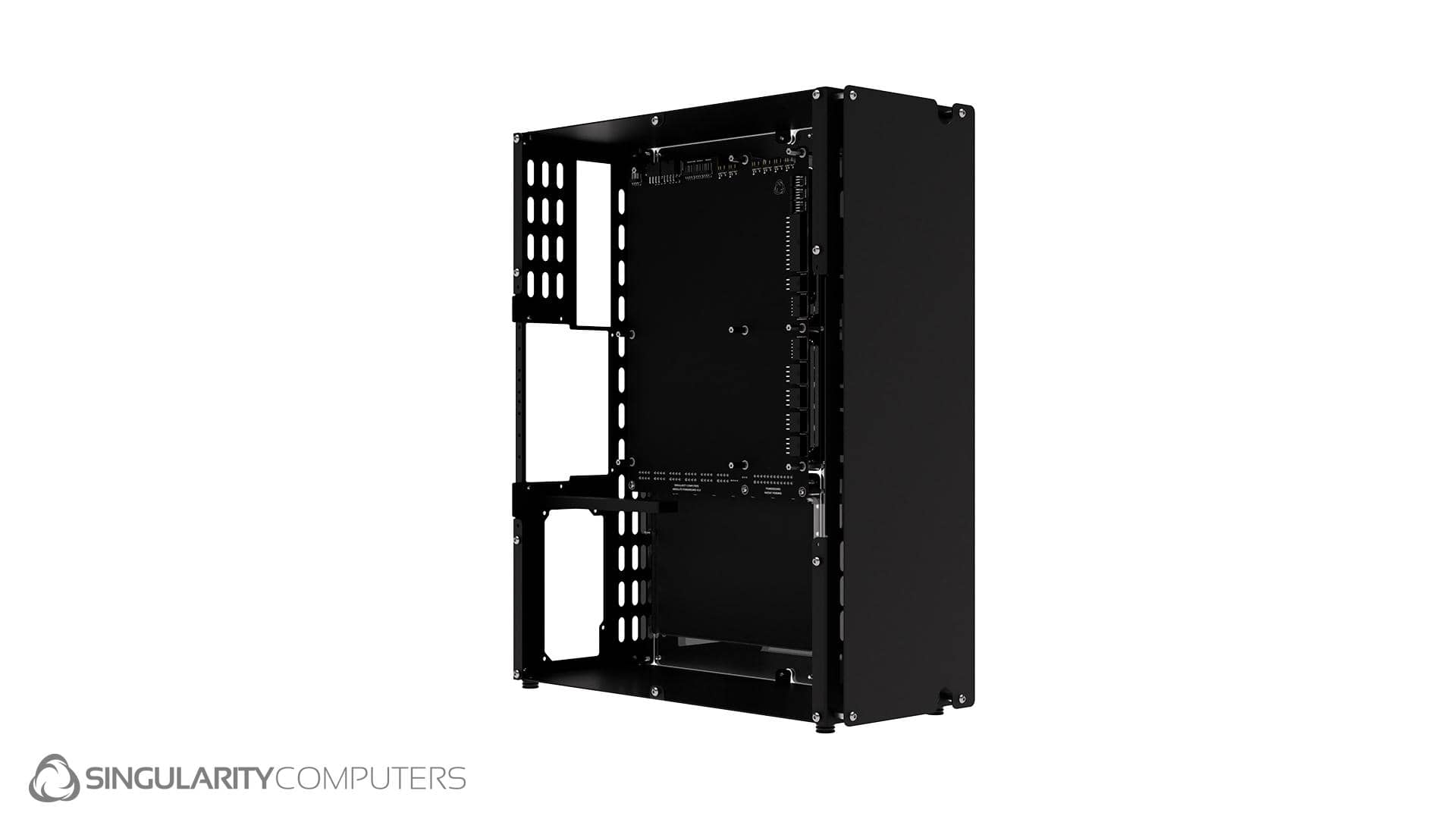

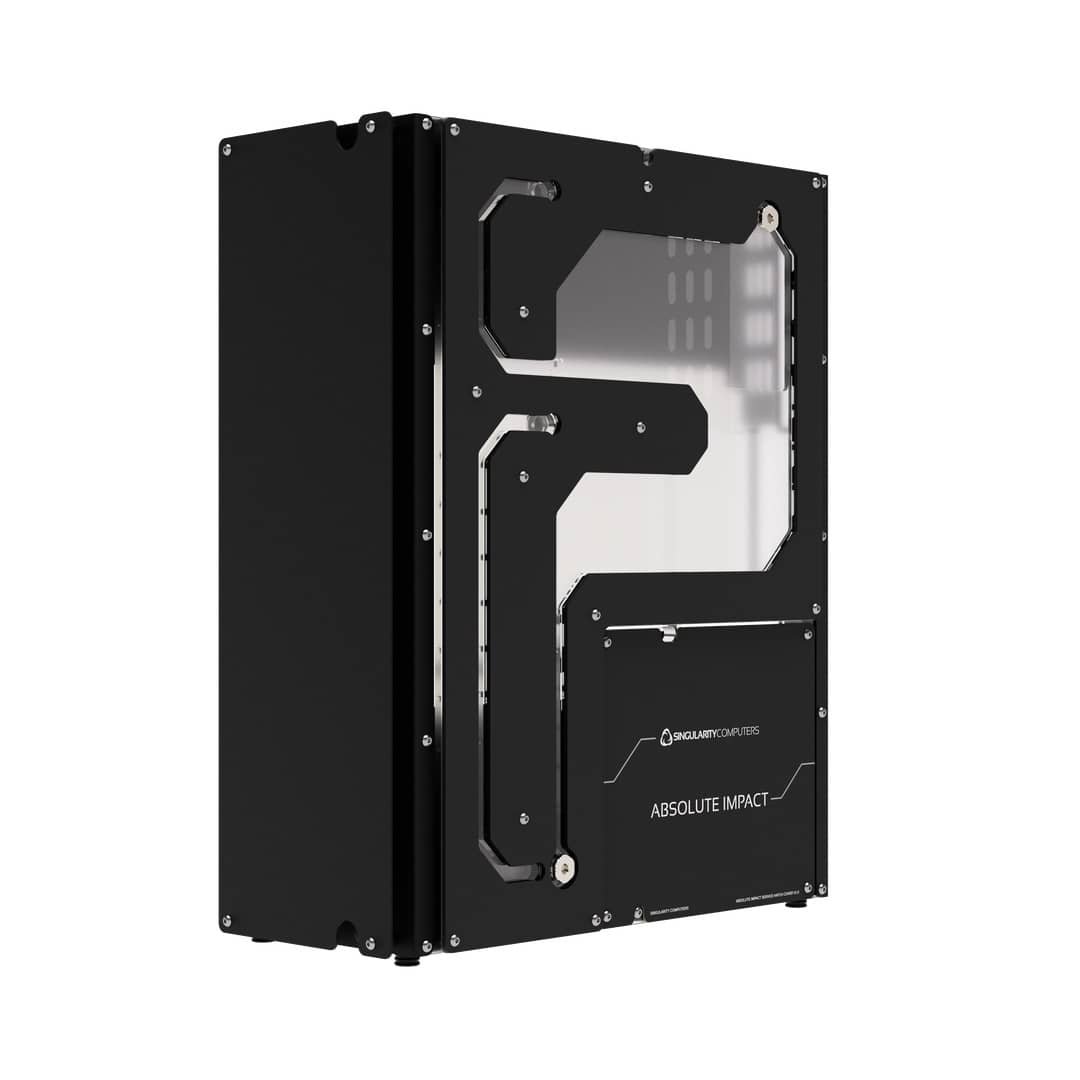

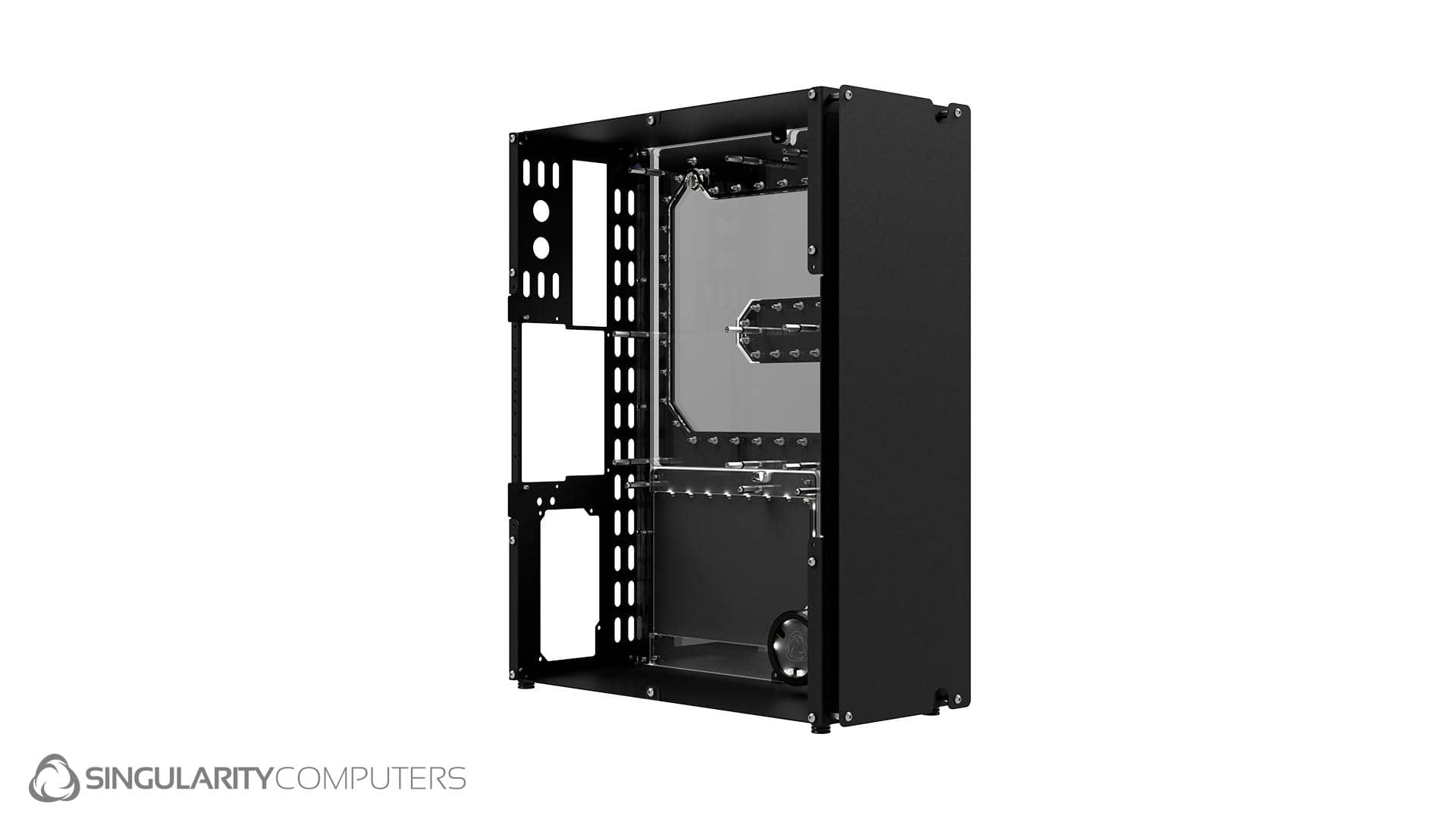

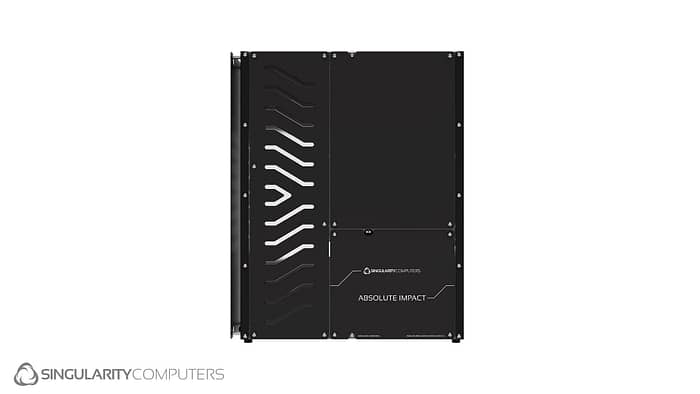

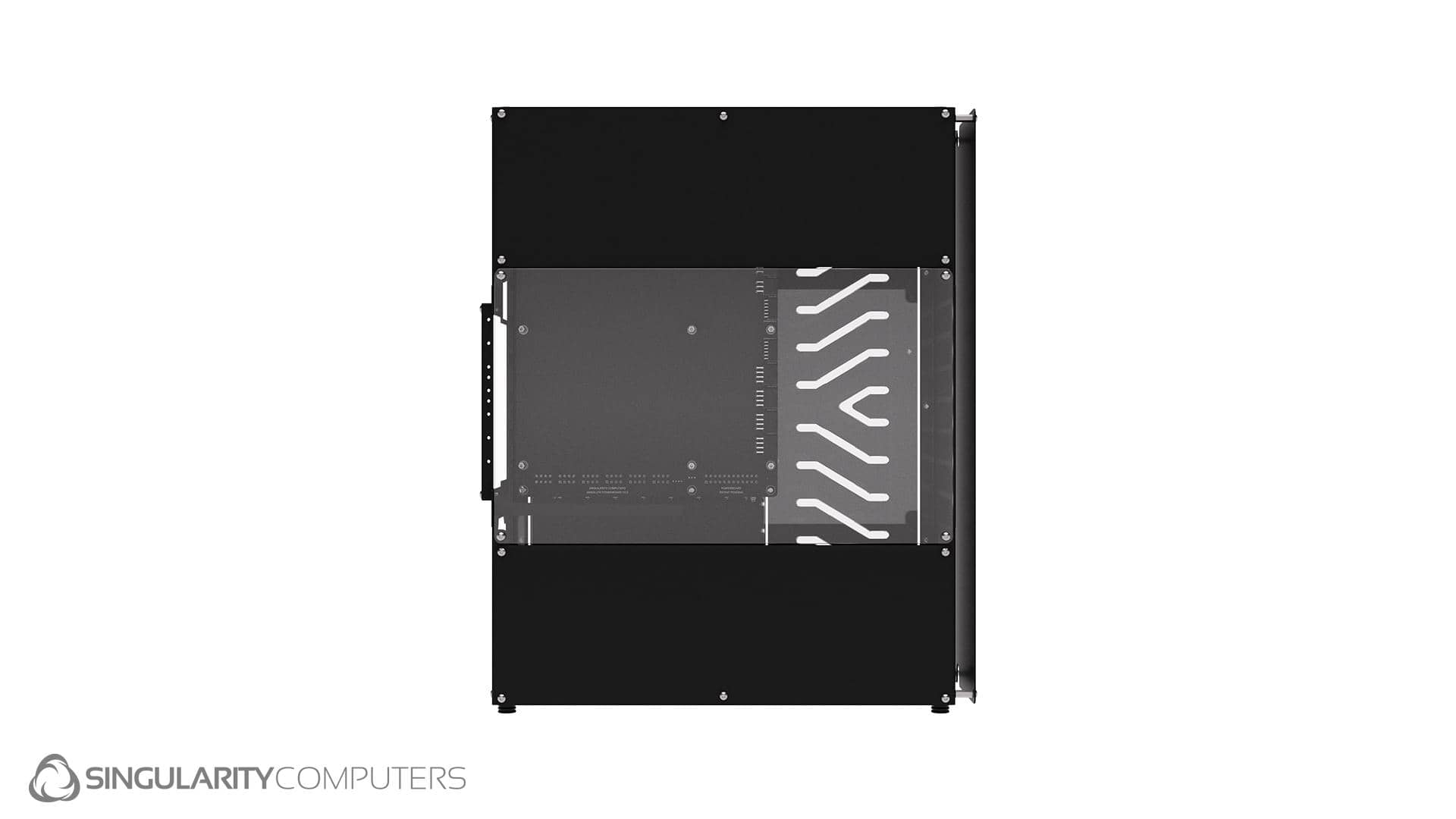

Absolute Impact fits a 1x 420mm radiator in the front up to 45mm thick and has been properly designed for water-cooling with ample space for tube runs, radiator and fan clearances etc. It comes in a standard and a Water-cooling version which includes a distribution plate which has a D5 or DDC (select below) & Reservoir combination. The standard version is also water-cooling compatible but does not include a distribution plate. The case has no rivets so it can be broken down to the individual pieces and easily re-assembled afterwards. It is constructed from 1.5mm black power coated steel, 5052 black anodized aluminum and CNC machined acrylic. There are many add-ons available for Absolute.

See Add-on images below.

Build Gallery

US$181.30 US$258.30Price range: US$181.30 through US$258.30

The distribution plate will remain transparent, this colour is only for the case and distribution plate cover panels.

Satin Black Gloss Black Gloss White Carbon Mirror Silver Mirror Gold Mirror Satin Black

Select D5 or DDC for the integrated Pump Top with Pump Cover (only for Absolute Impact Water-cooling Case).

D5 DDC D5

CNC milled black anodised pump cover with ARGB lights and Singularity Computers Logo.

None Black Silver

D5 Pump 1500LPH 3.7m head pressure.

None Yes +US$94.00

CNC milled black anodised pump cover and heatsink for the DDC Pump with laser etched Singularity Computers logo.

None Yes

2x billet handles for the top of the case.

None Yes +US$29.00

Secret touch activated power button.

None Yes +US$29.00

Ventilated panels for the side and front.

None Yes +US$29.00

PCIE 5.0 Riser Cable & Vertical GPU Mount.

None Yes +US$79.00

Singularity Computers patented PowerBoard integration. See details in the specifications below.

None Yes +US$149.00

Custom black sleeved cables which connect from the PowerBoard to the GPU.

None 8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

Custom black sleeved cables which connect from the PSU to the PowerBoard.
We are unable to build cables for Thermaltake PSUs due to them not providing pinout information.

None Yes +US$69.00
SKU: N/A Categories: ,

Manual

Gallery

Absolute Impact Flow Diagram

Specifications

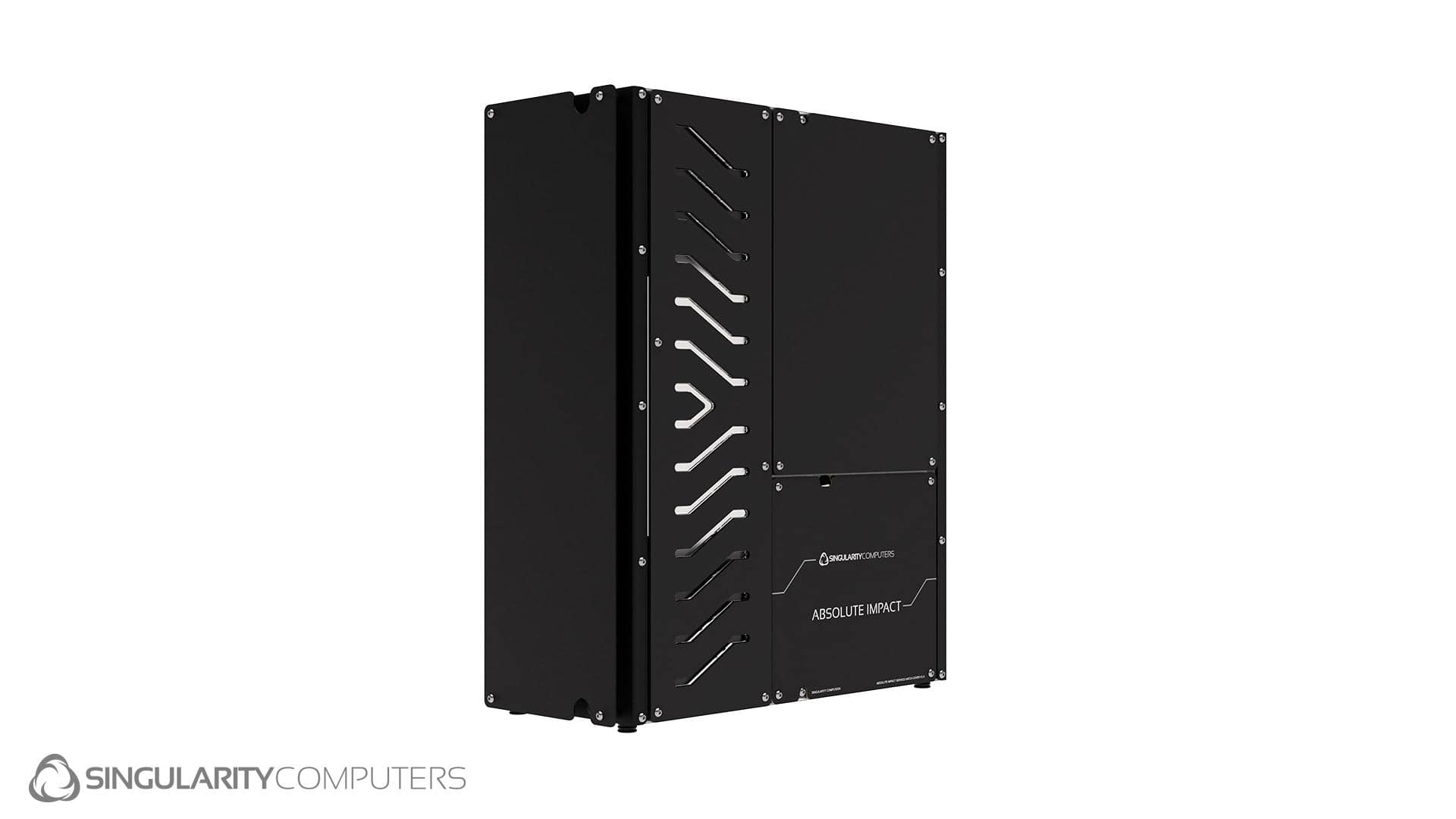

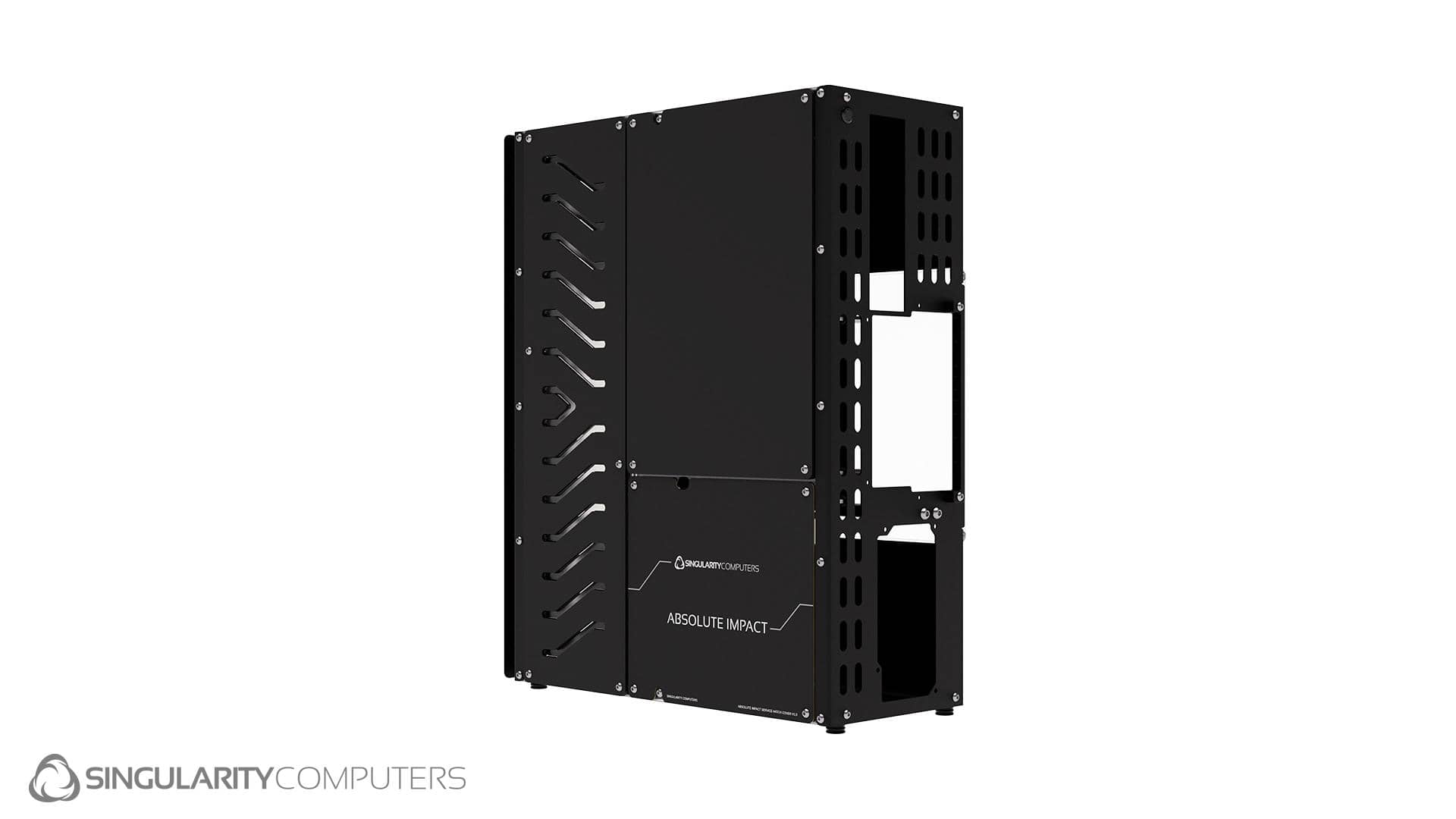

Absolute Impact Case: 1.5mm Black Powder Coated Steel and 5052 machined Aluminum. CNC Machined Cast Acrylic.

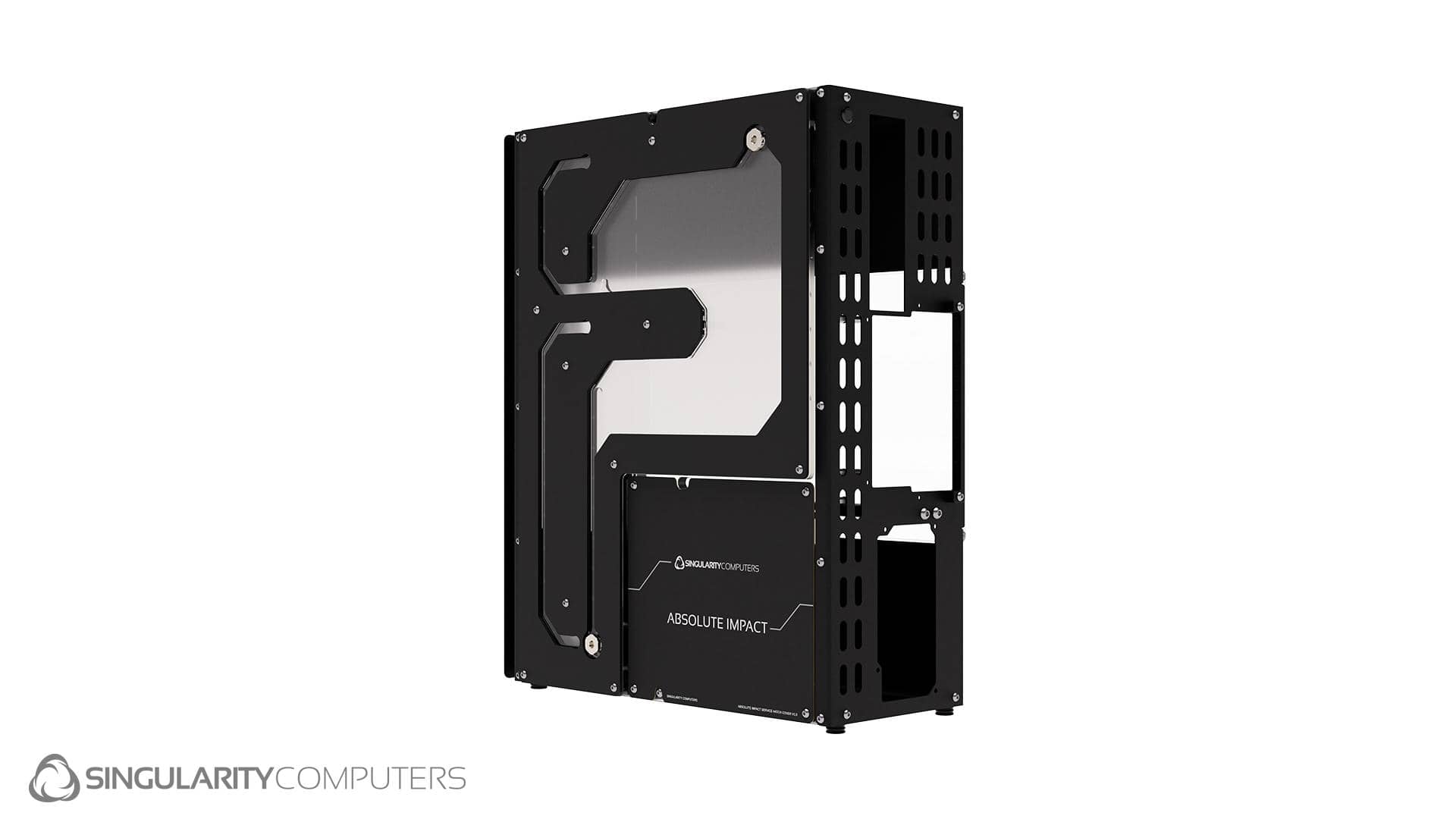

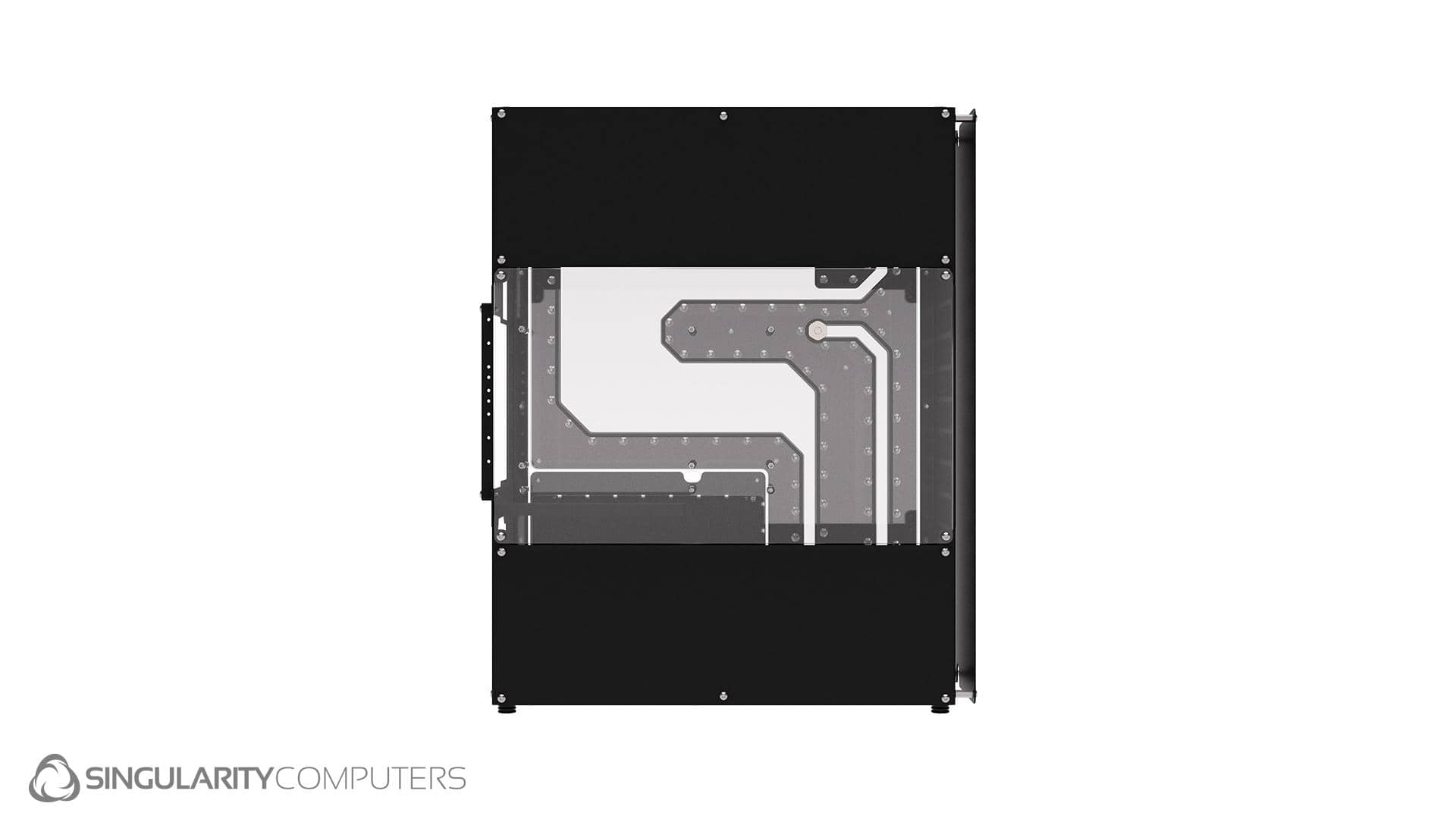

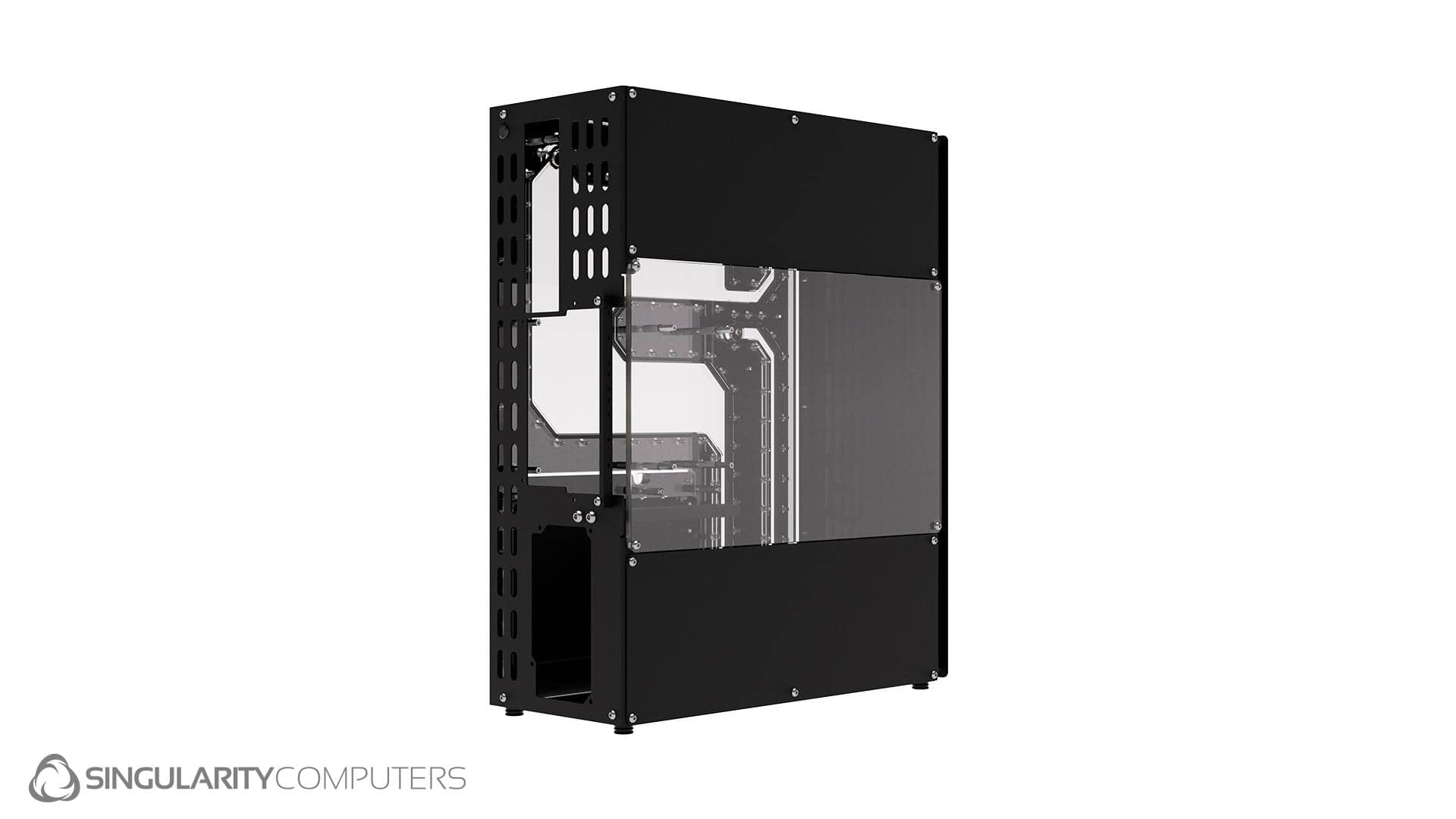

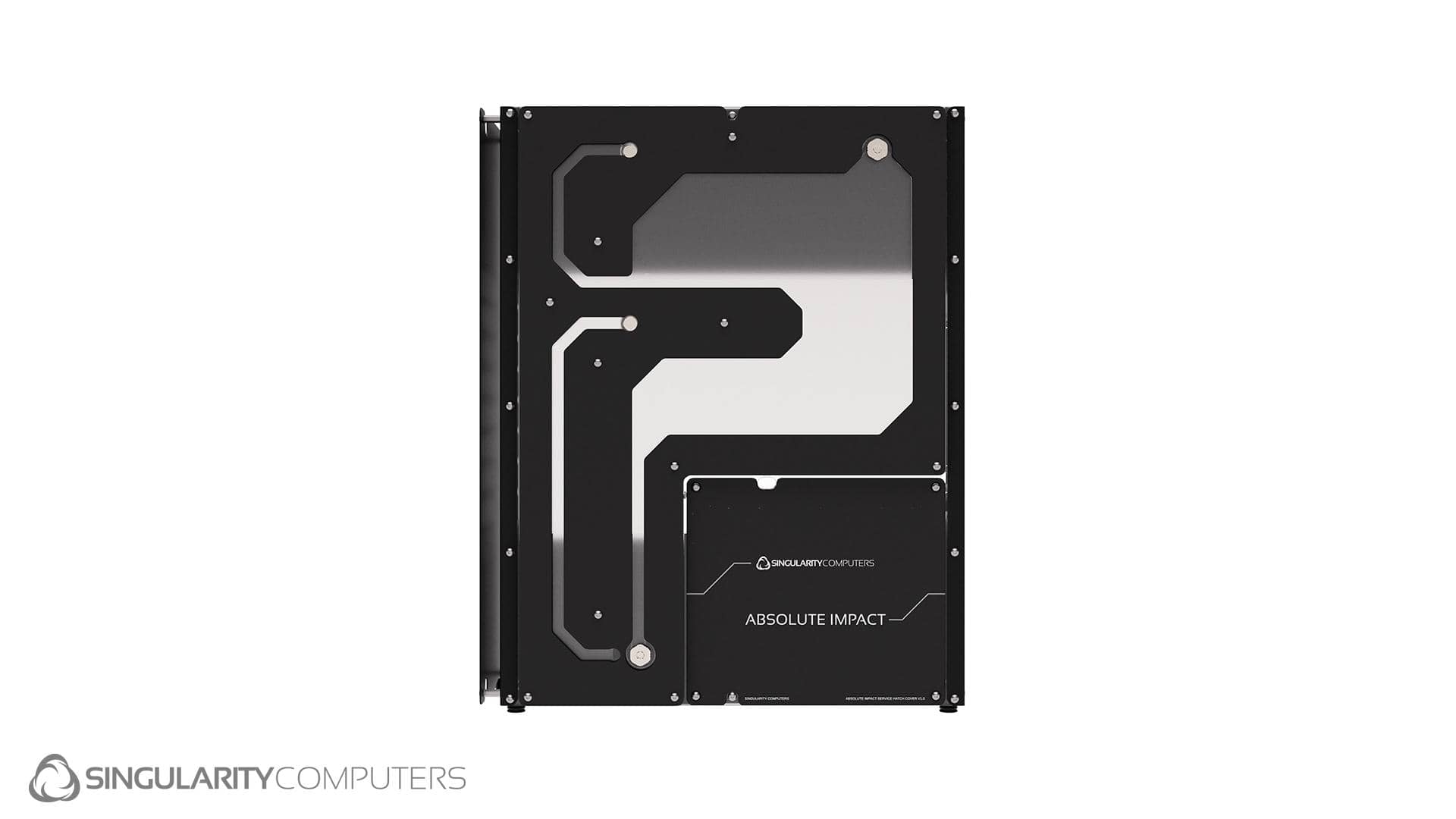

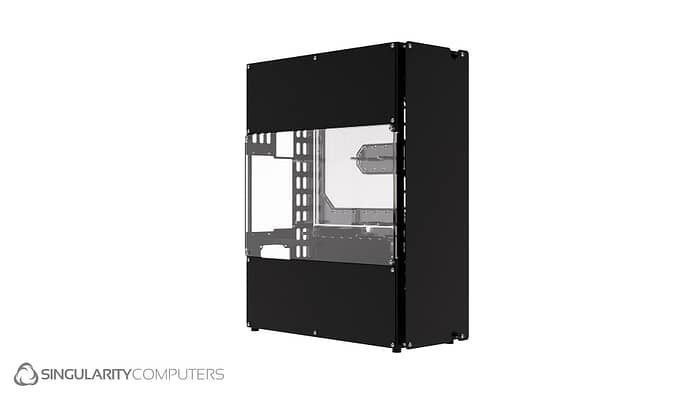

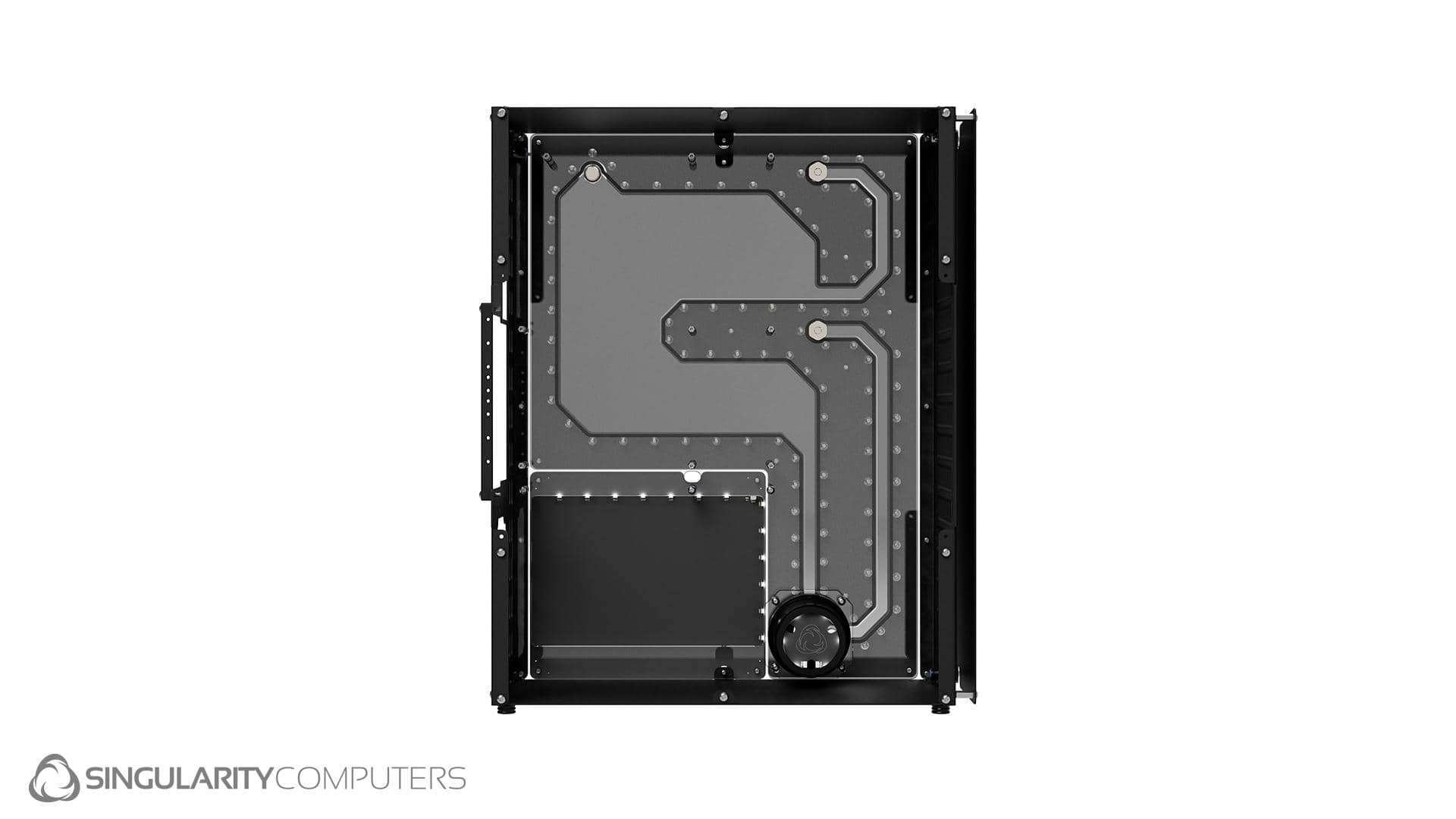

Absolute Impact Water-cooling Case: 1.5mm Black Powder Coated Steel and 5052 machined Aluminum. CNC Machined Cast Acrylic. Integrated D5 & Reservoir Distribution Plate (CNC Machined Black Anodised Aluminium D5 Pump Cover Included).
Fasteners: Stainless Steel.
Motherboard: ITX, DTX, ATX, EATX (E-ATX is compatible with Absolute Impact Case, not Absolute Impact Water-cooling Case and only fits without the PowerBoard).
PSU: ATX (up to 200mm long).
Expansion slots: x7.
Radiators: 420mm up to 45mm thick x1 with up to 30mm thick fans.
Fans: 140mm up to 30mm thick x3.
Drive mounts: None.
Absolute Impact Case:
Dimensions: L: 410mm x W: 175mm x H: 520mm.
Weight: 8kg.
Packaged Dimensions: L: 500mm x W: 150mm x H: 600mm.
Packaged Weight: 8.5kg.
Absolute Impact Water-cooling Case:
Dimensions: L: 410mm x W: 175mm x H: 520mm.
Weight: 8kg.
Packaged Dimensions: L: 500mm x W: 150mm x H: 600mm.
Packaged Weight: 8.5kg.

Installation:
See manual link above.

Addon Information

Billet Case Handles                                                                                                                                                                                    Vertical GPU Mount



Ventilated Panels



PowerBoard



DDC Pump Cover

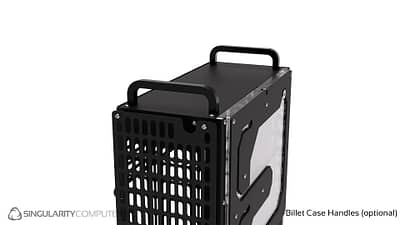

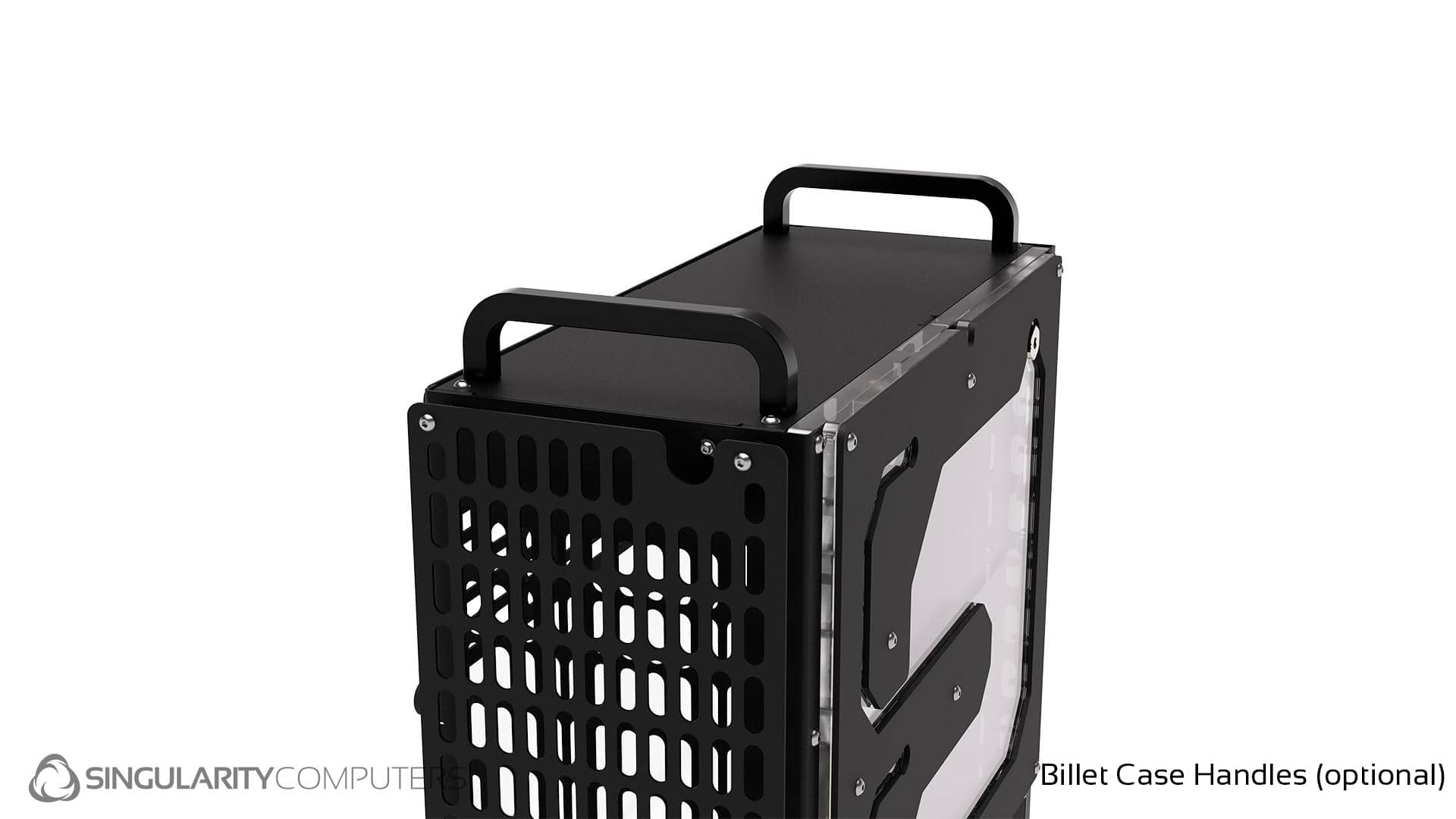

Billet Case Handles: 2x billet handles for the top of the case.

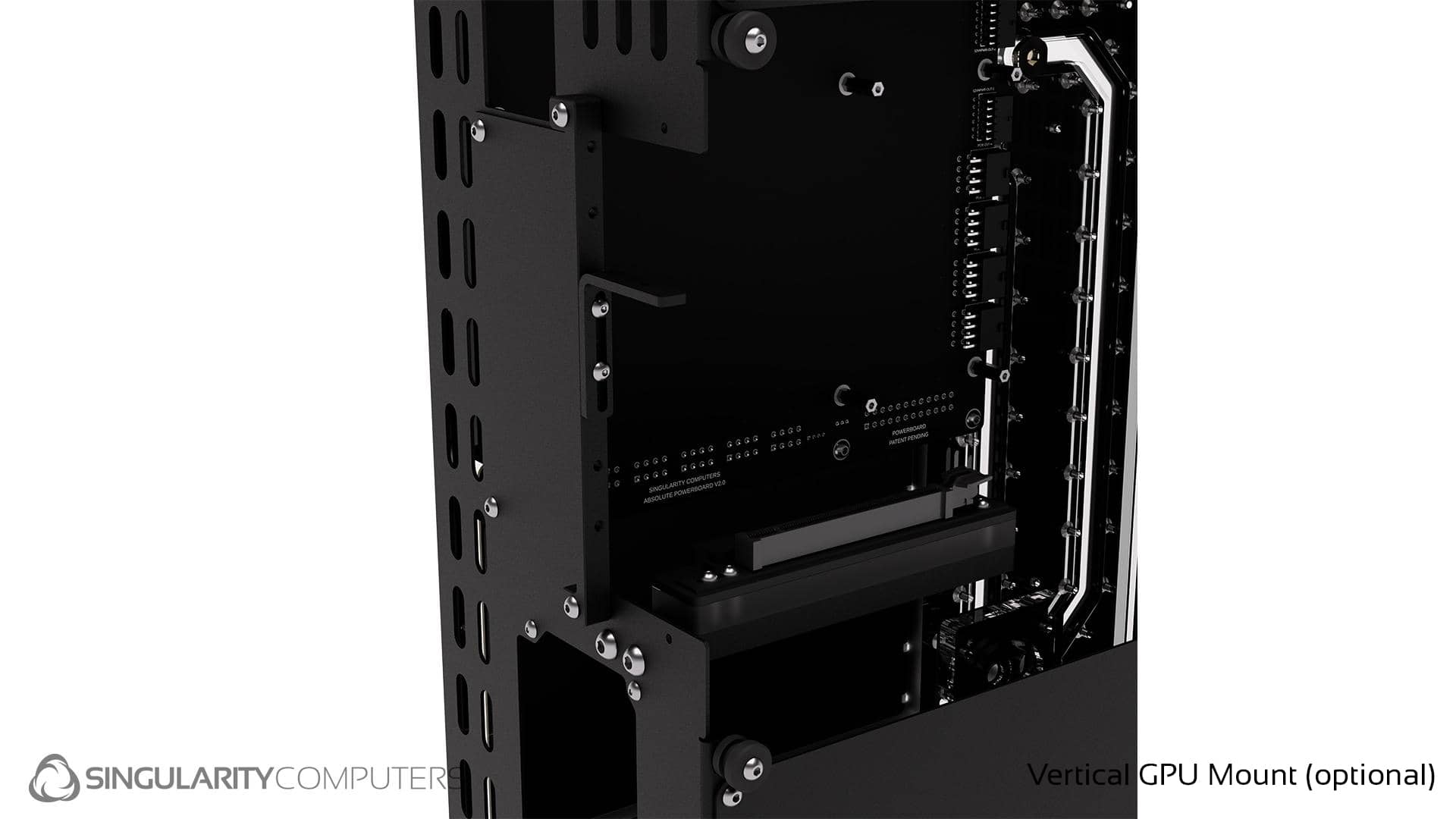

Vertical GPU Mount: The Absolute Case Vertical GPU Mount is an important aesthetic addition and improves the layout particularly if you are water-cooling. The mounting components are built from 1.5mm Black Powder Coated Steel and it comes included with a PCIE 4.0 Riser Cable.

Touch Power Button: The Absolute & Impact Case Touch Power Button comes included with many of our cases. For Absolute and Absolute Impact Cases it is an addon which also needs the the PowerBoard & Impact to work. It connects to the PowerBoard via the included cable and mounts to top of the front panel. It turns one of the fasteners into a secret power button, all you have to do is touch it for 1 second and the system will turn off or on.

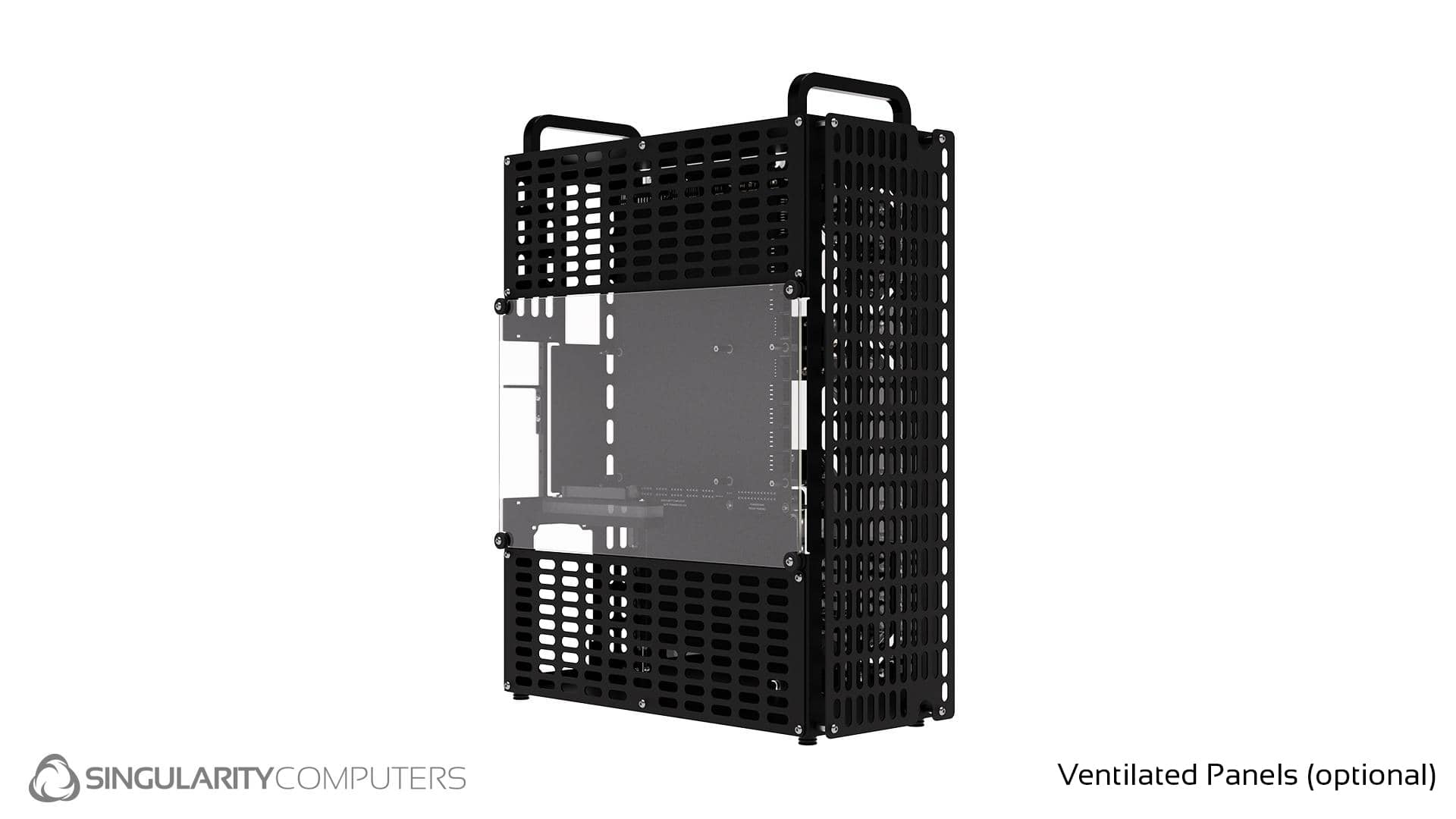

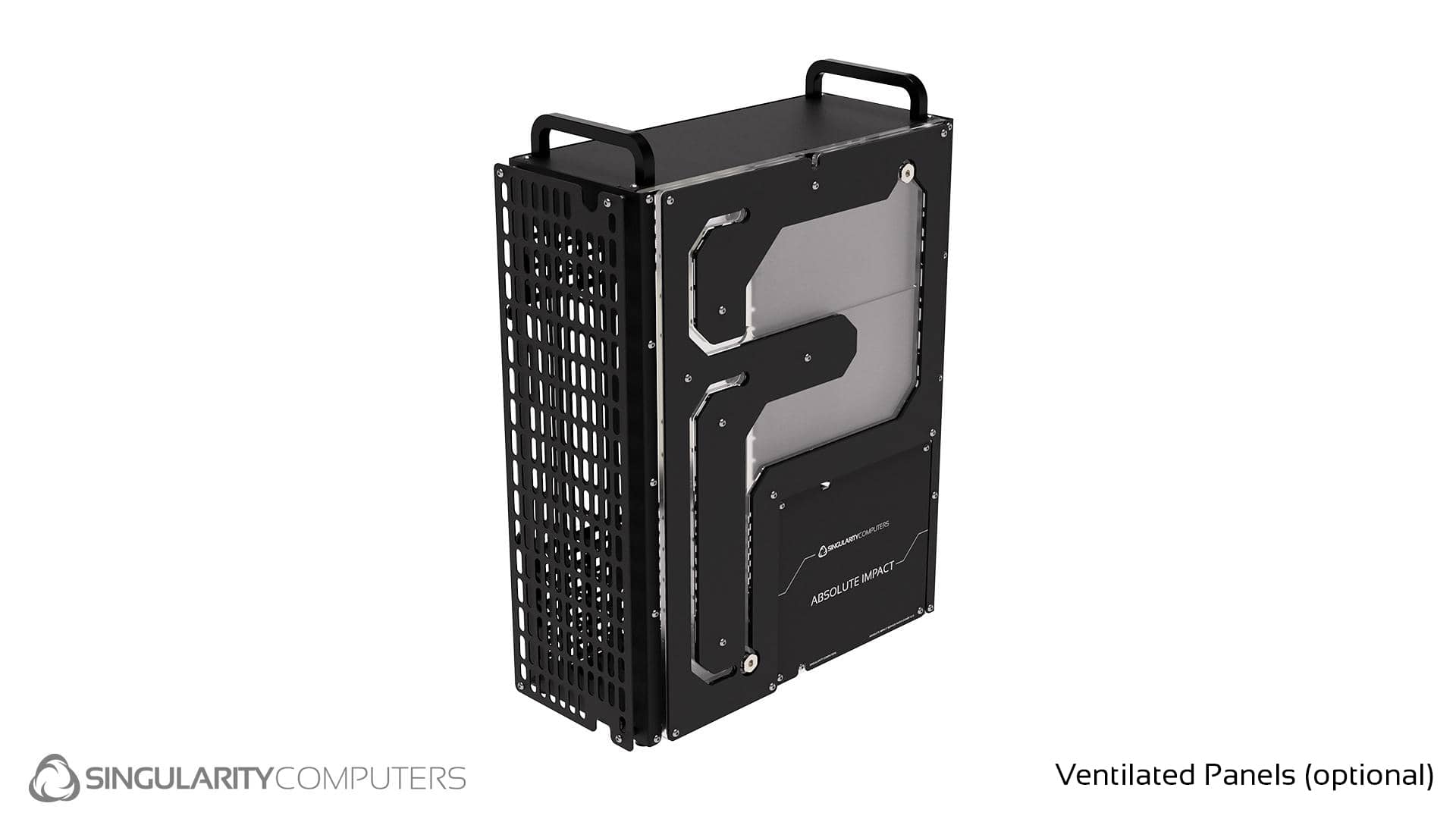

Ventilated Panels: Ventilated panels for the side and front.

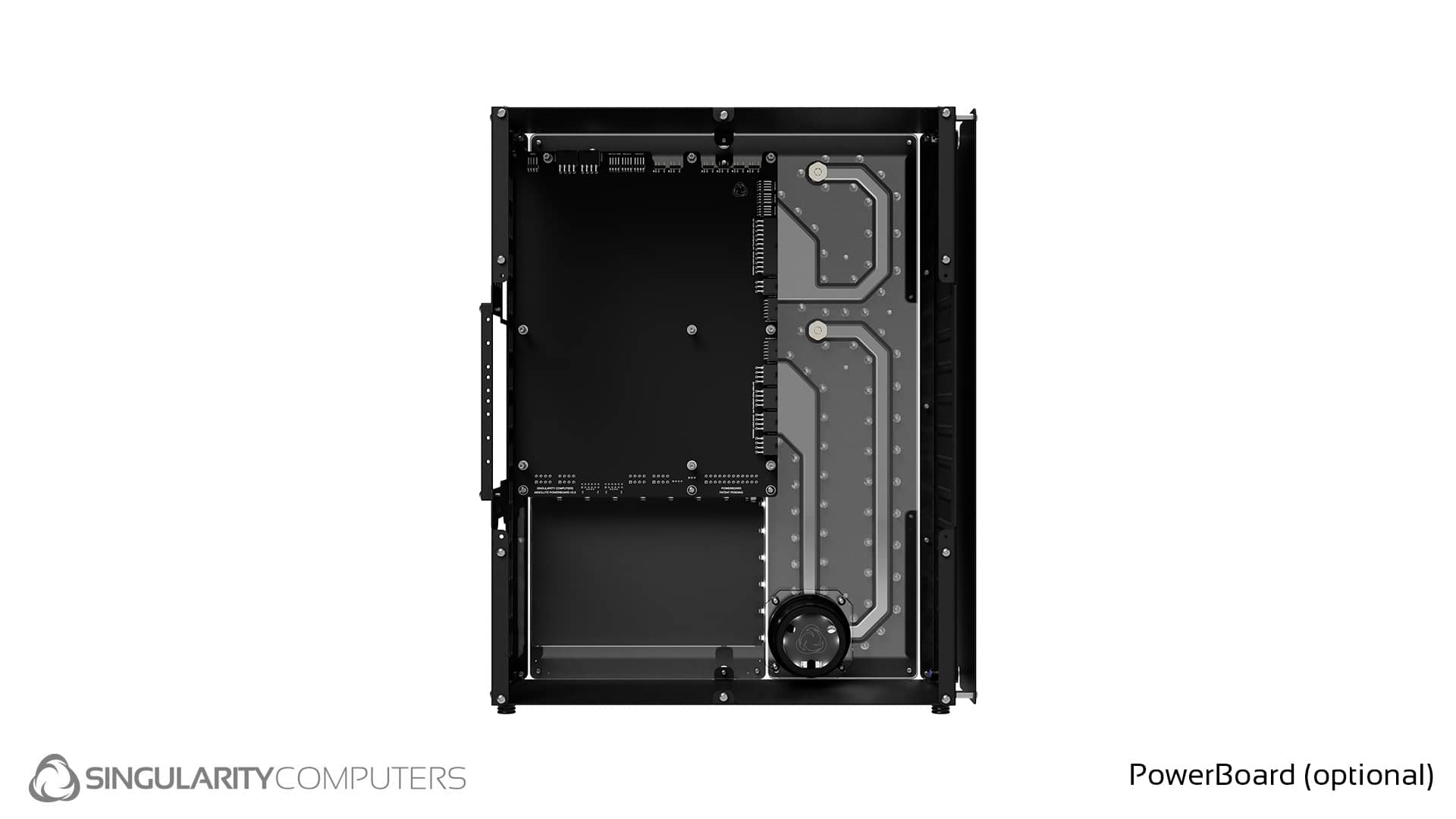

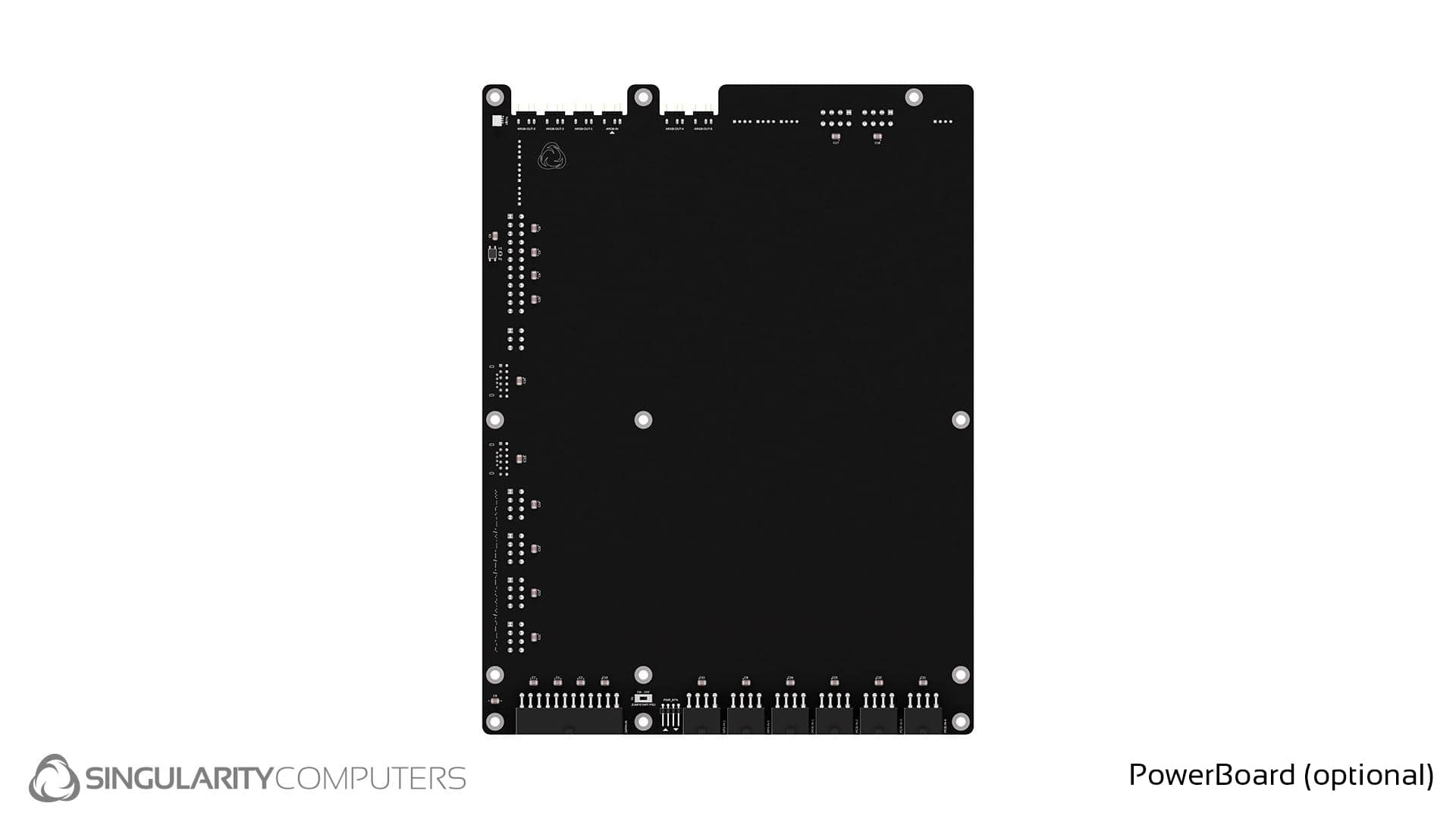

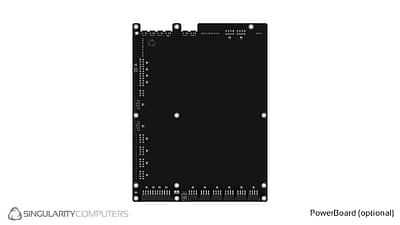

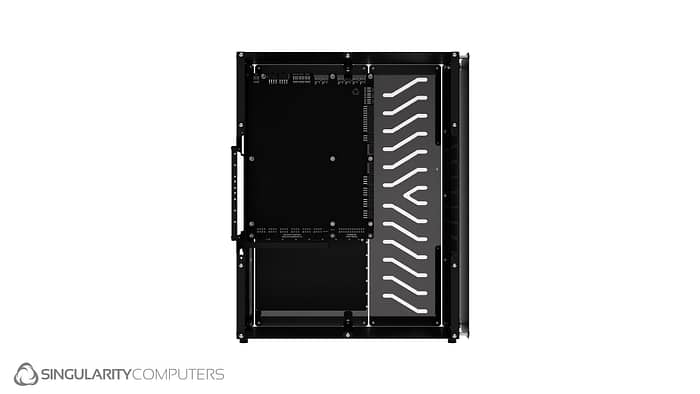

PowerBoard: The Singularity Computers PowerBoard is a patent pending technology which completely solves the cable management problem. It is a PCB which integrates the core component cables, along with hubs and more. It is essentially a distribution plate for cables bringing the connectors close to the components allowing standardization of all cable lengths. The Absolute PowerBoard is an essential addition to create perfect cable management without the need for custom cables. It also comes included with PWM and ARGB hubs.

DDC Pump Cover: The Singularity Computers DDC Pump Cover is built from CNC machined anodized aluminum. It covers the DDC to improve aesthetics, but it also has a built in heatsink for extra cooling of the pump motor which is known to run hot and is not cooled by the coolant. The DDC Pump Cover has a Singularity Computers logo on the base. It is compatible with all DDC Pumps and Pump Tops.
