D5 Radiator Distribution Plate 120/140mm

In stock

Order processing time 1-2 days.

  • Universal mounting for radiators and fan locations
  • Compatible with 120mm and 140mm wide mounts
  • Designed for adding an extra D5 pump
  • Increases water-cooling flow and performance
  • Airflow-optimised distribution plate design

Manuals

US$99.00

For mounting to a radiator mount select ‘Standard mounting’. For mounting to fans select ‘Fans’. For mounting to a radiator select the fastener size your radiator uses.

Select D5 Retention Ring Colour (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

Select D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

  • 1x D5 Radiator Distribution Plate 120/140mm
    US$99.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188003091 SKU: SC-D5-RADP Category:

Description

Read More +Read Less − full description

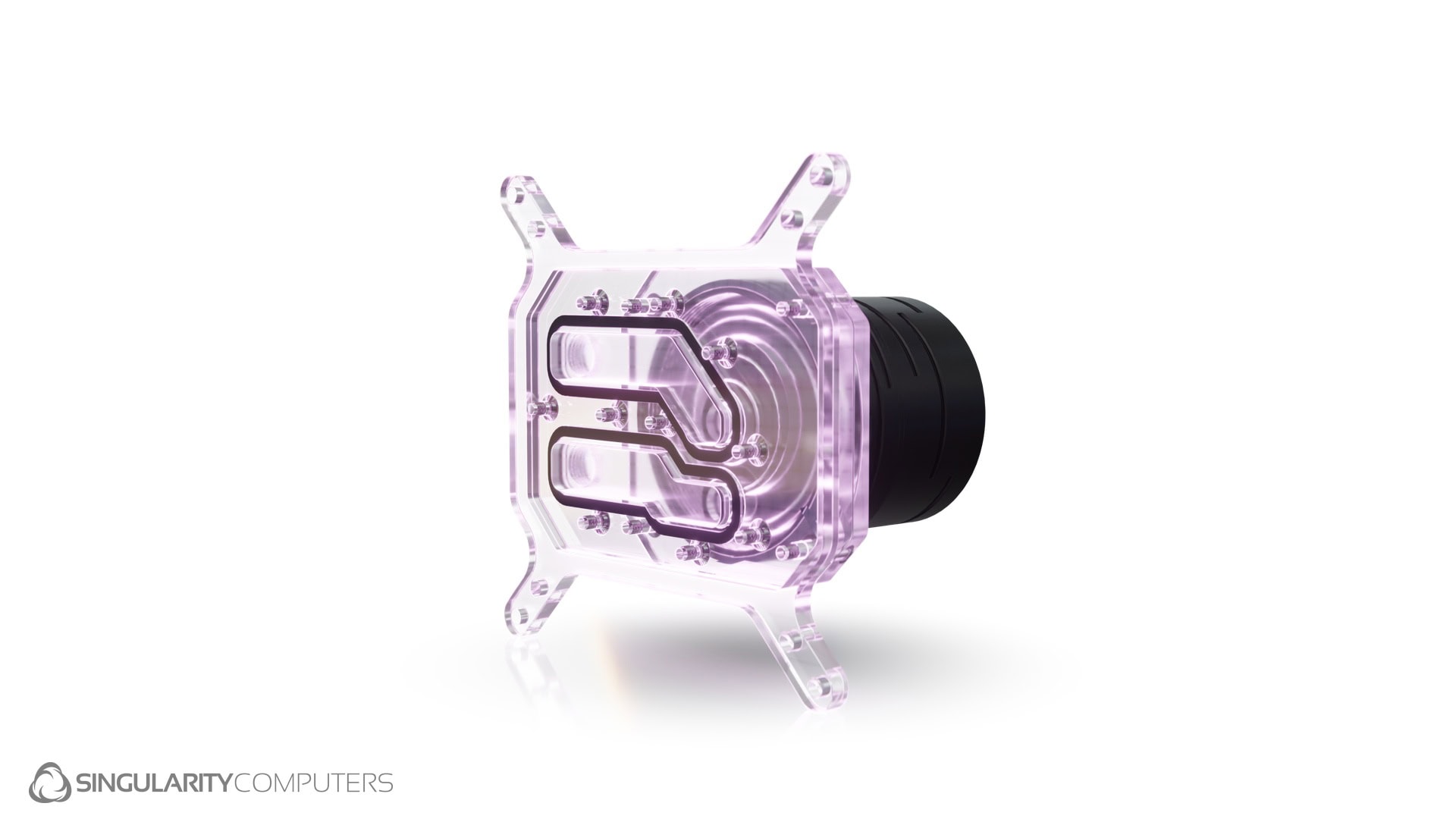

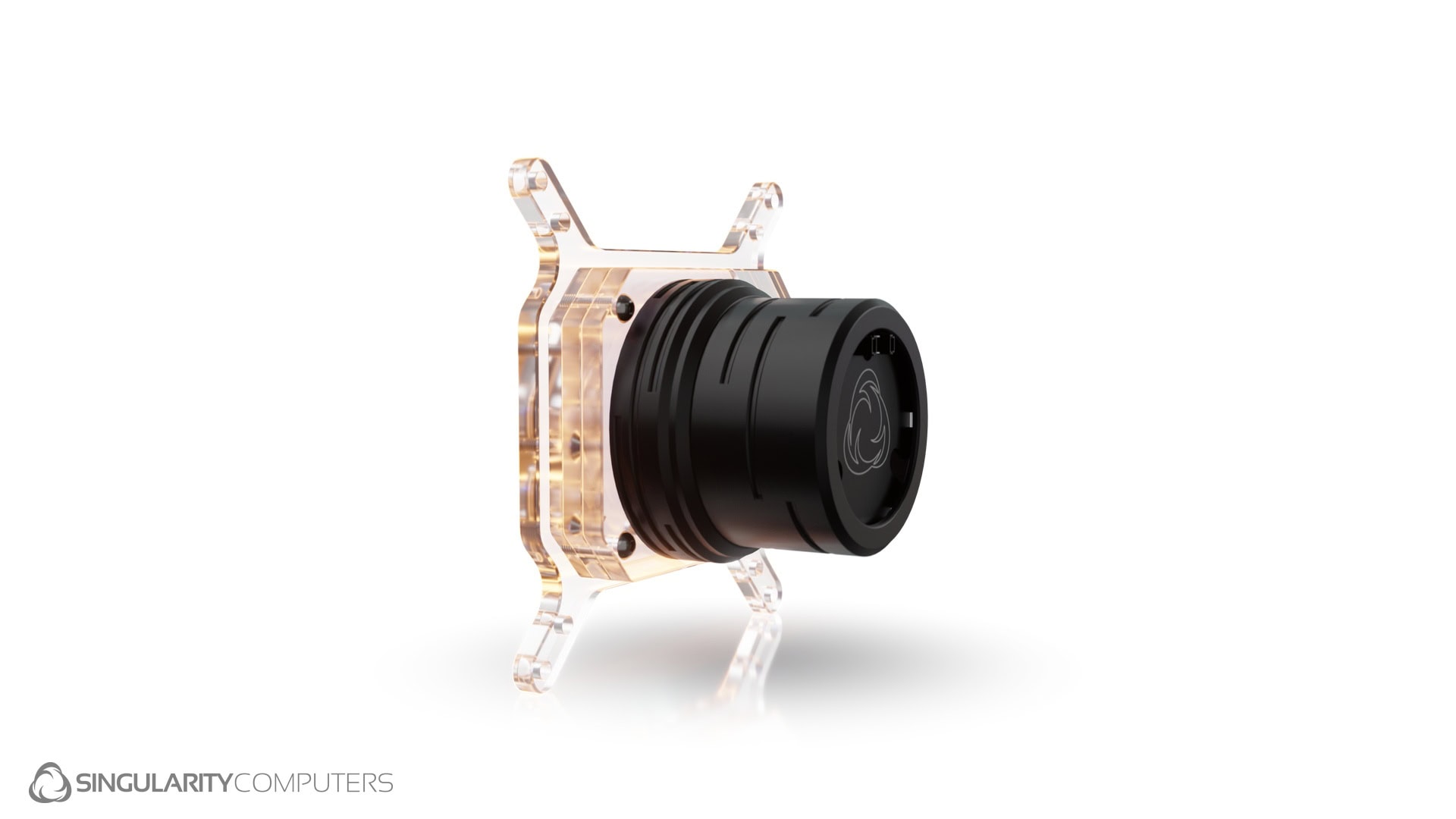

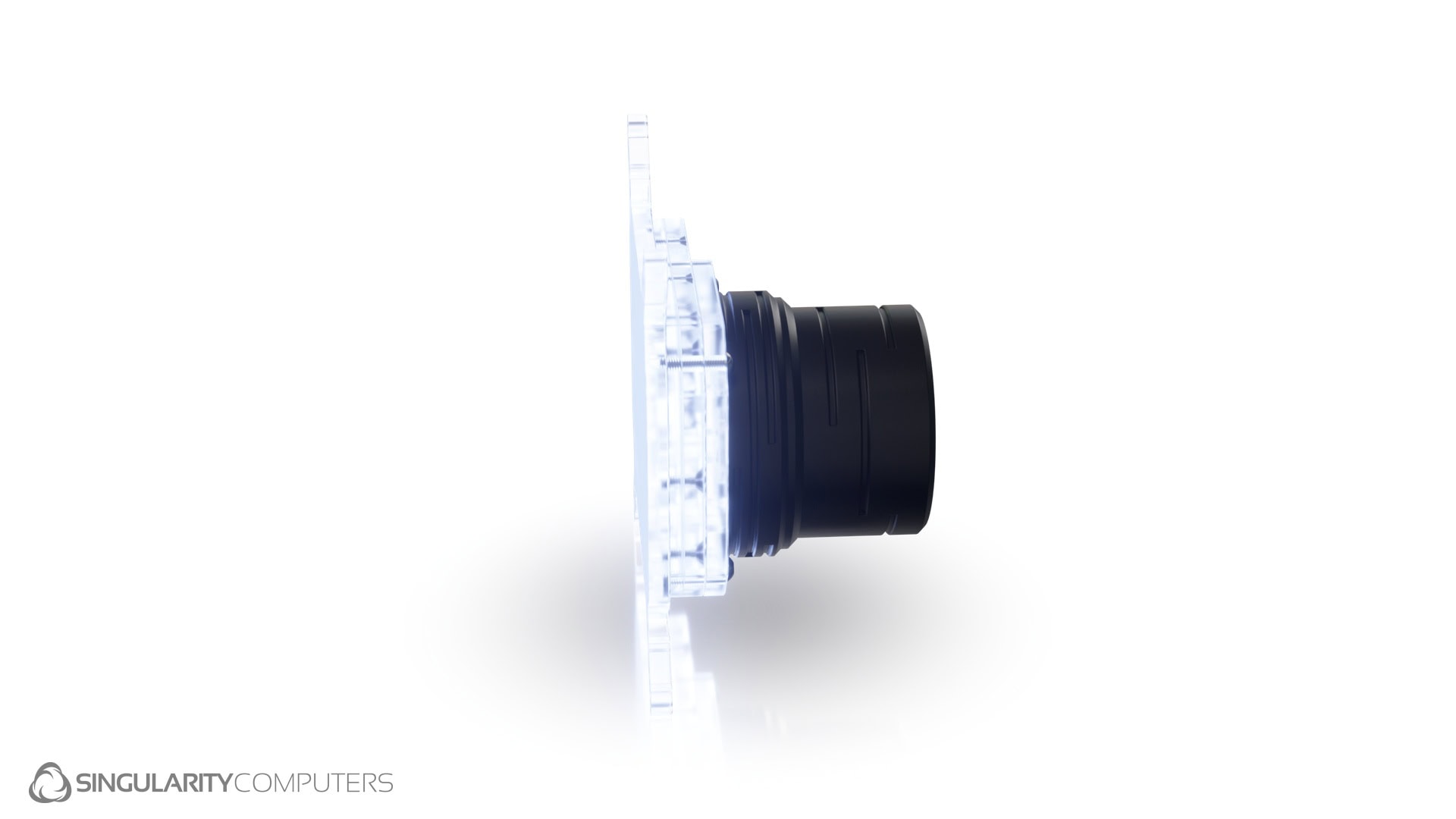

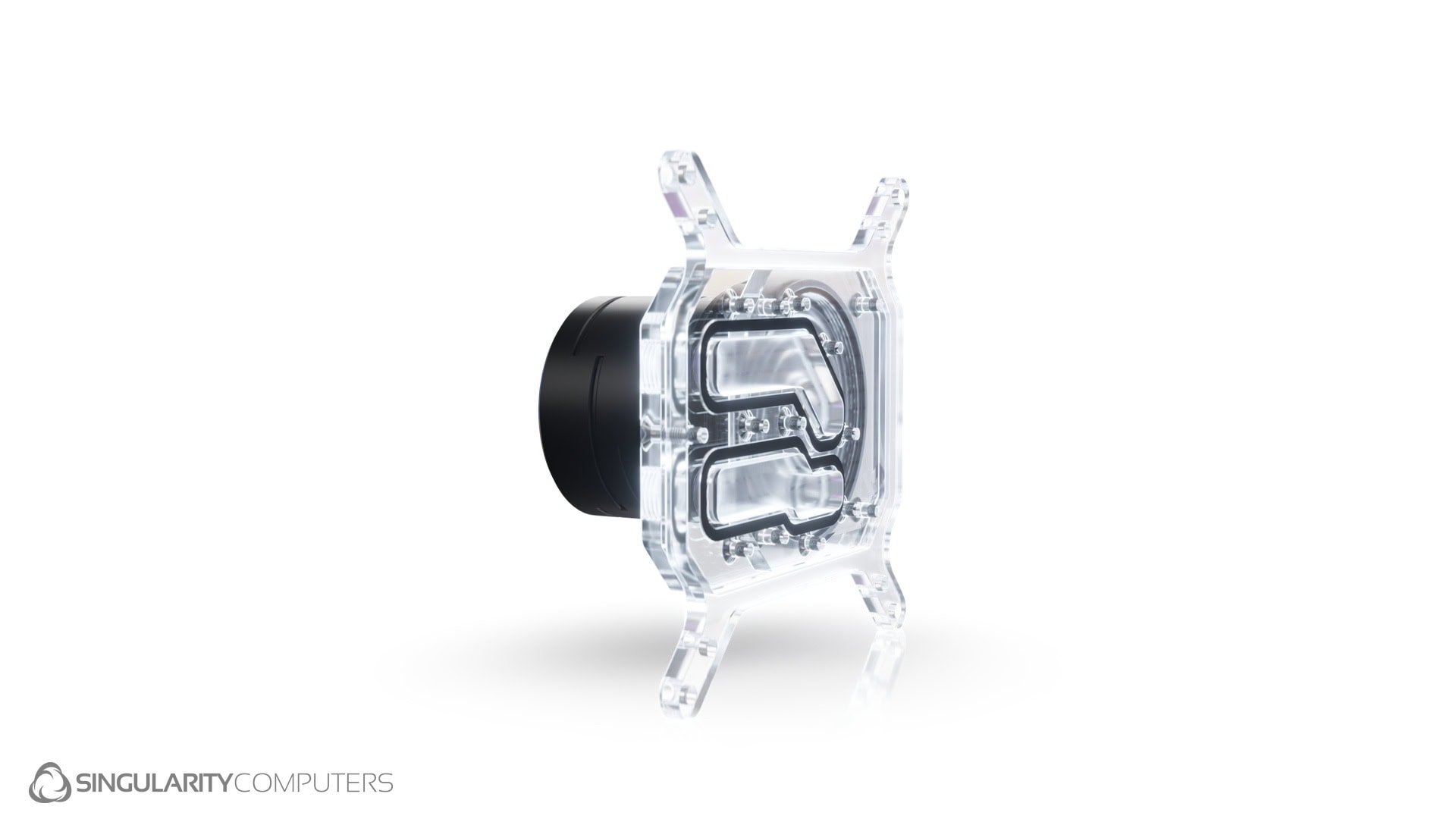

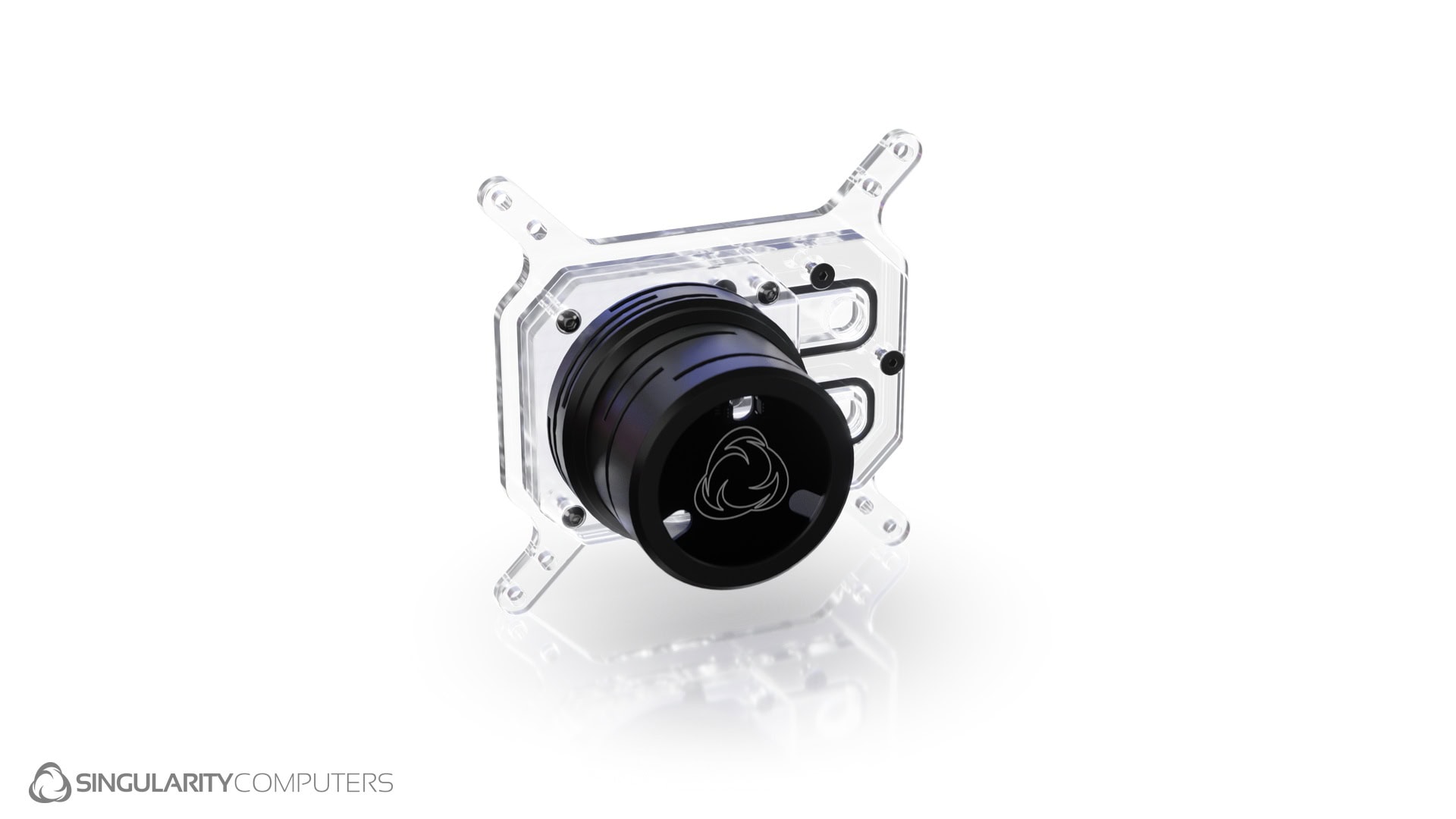

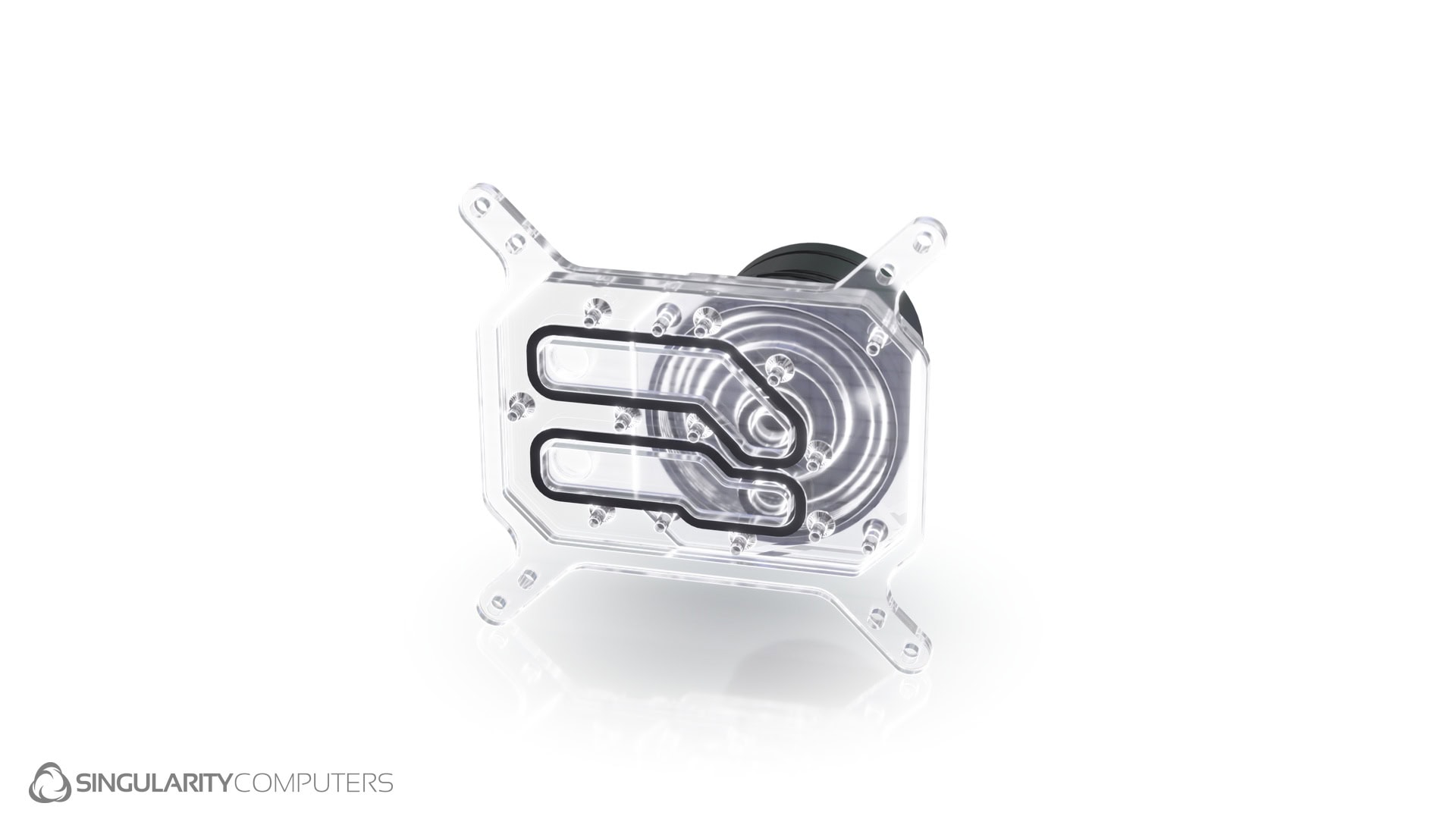

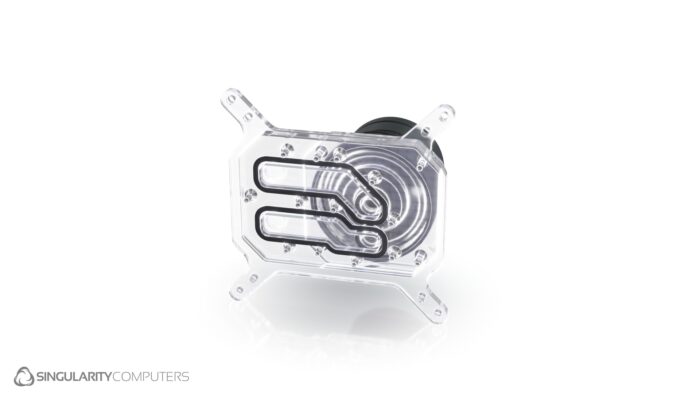

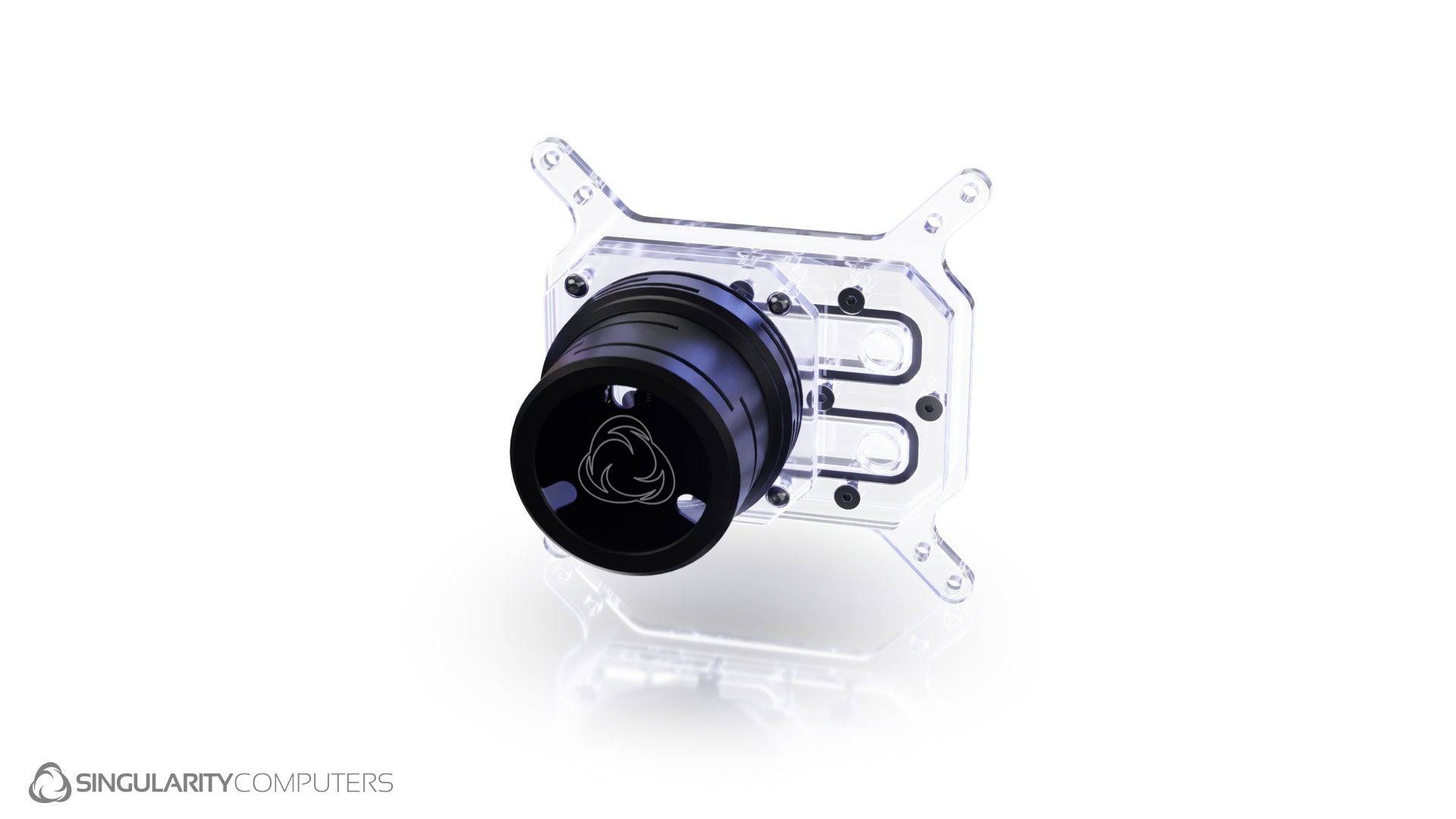

The D5 Radiator Pump Top can be mounted to any radiator or fan mounting location. The distribution plate is designed for maximum airflow which cutouts around the outside. The mounting back plate is universal and fits on 120mm or 140mm wide radiators or fan mounting locations. The D5 Radiator Pump top is designed to add an extra D5 Pump to a water-cooled build for more flow and performance.

Specifications

D5 Radiator Distribution Plate 120/140mm: Cast Acrylic, Clear, CNC Machined.
Fasteners: Stainless Steel.
Gaskets: Silicone.
O-rings: D5, Silicone x2.
Pump Top: D5.
Pump Cover: Protium 3.0 ARGB D5 Pump Cover Black or Silver (Selectable above).
Dimensions: L: 90mm x W: 150mm x H: 150mm.
Packaged Dimensions: L: 120mm x W: 200mm x H: 200mm.
Weight: 0.8kg.
Packaged Weight: 1.2kg.

Installation:
Installs onto any radiator or radiator mount which is 120mm or 140mm.
