Fractal North Distribution Plate Set

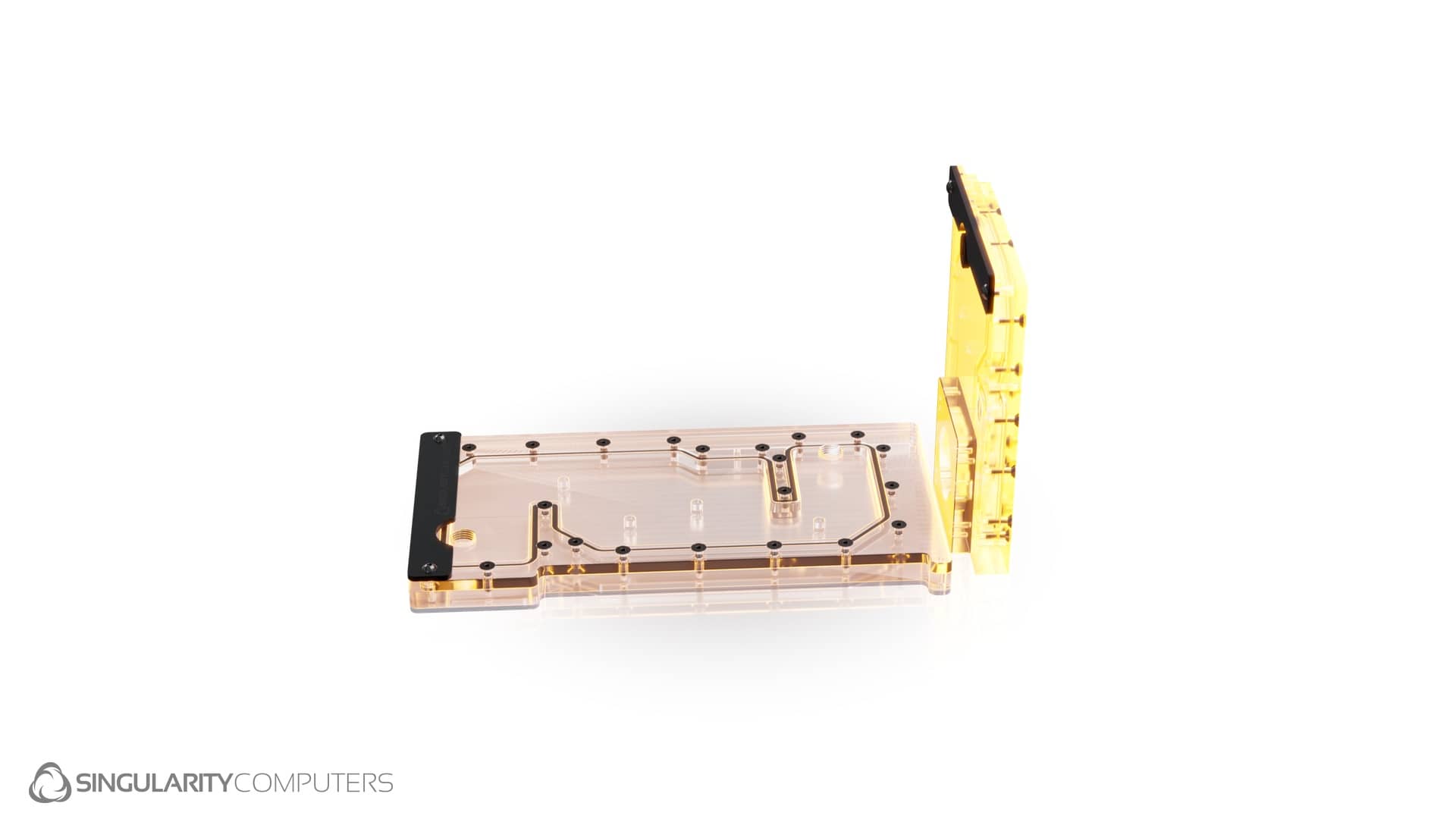

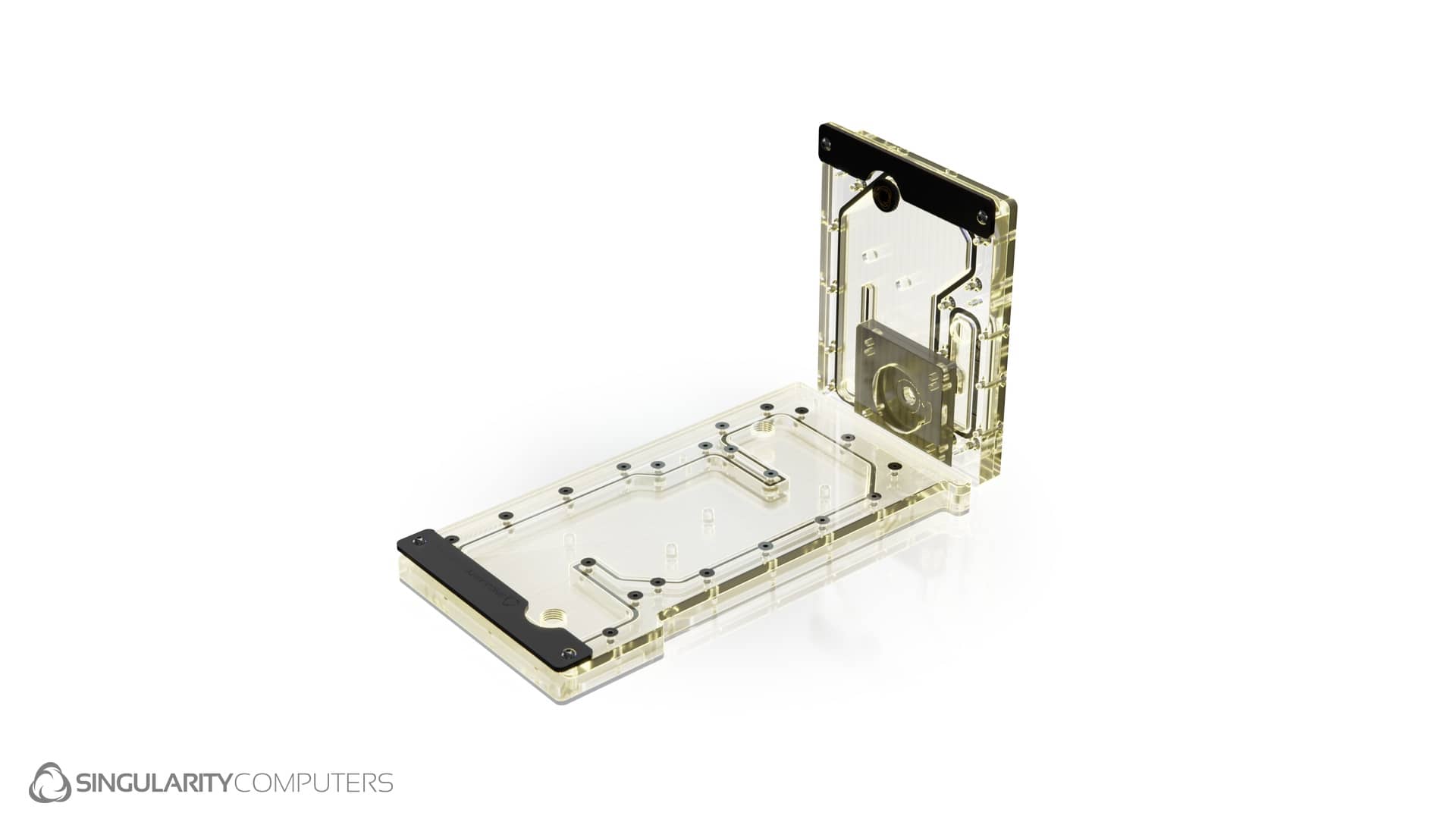

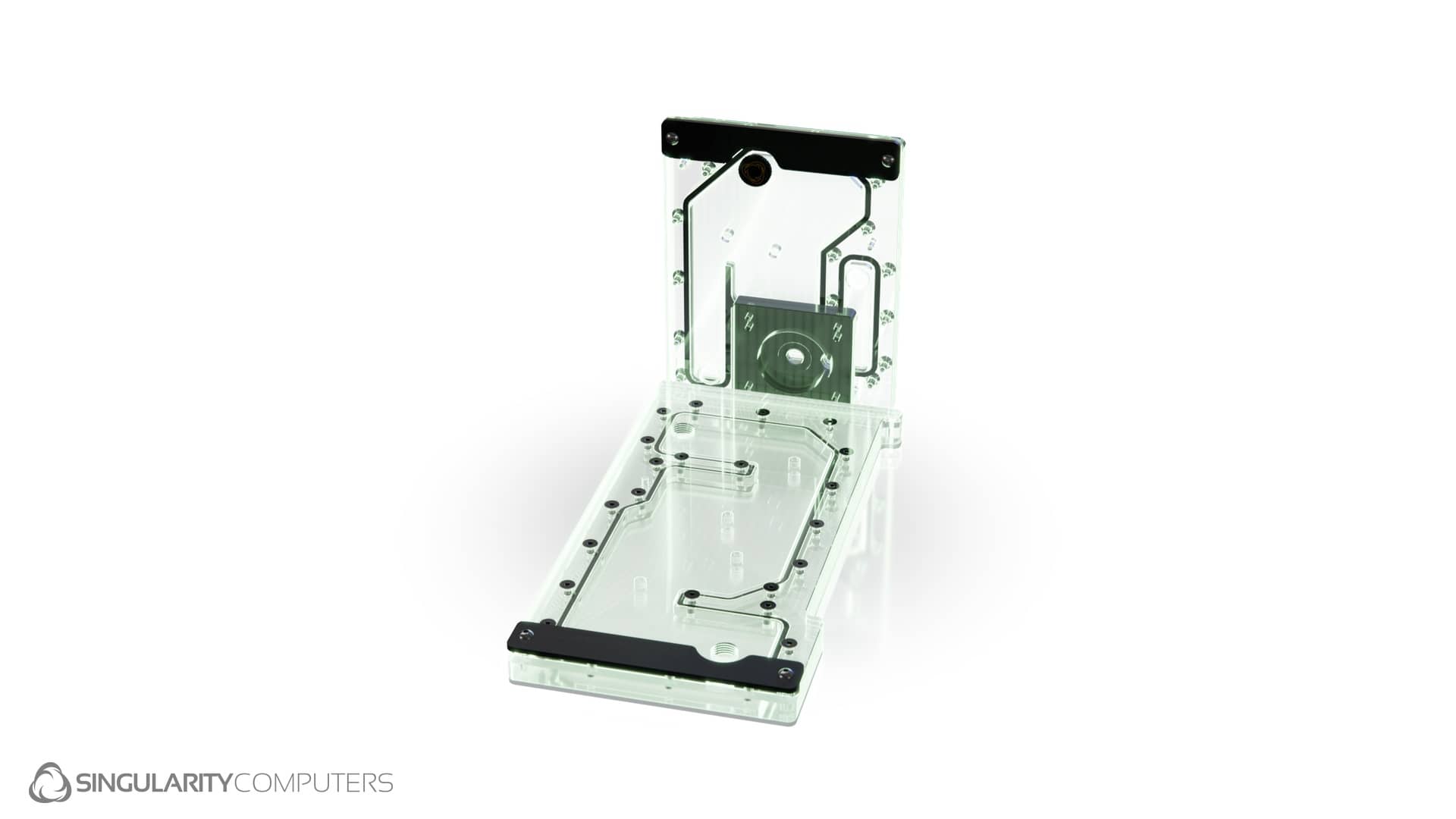

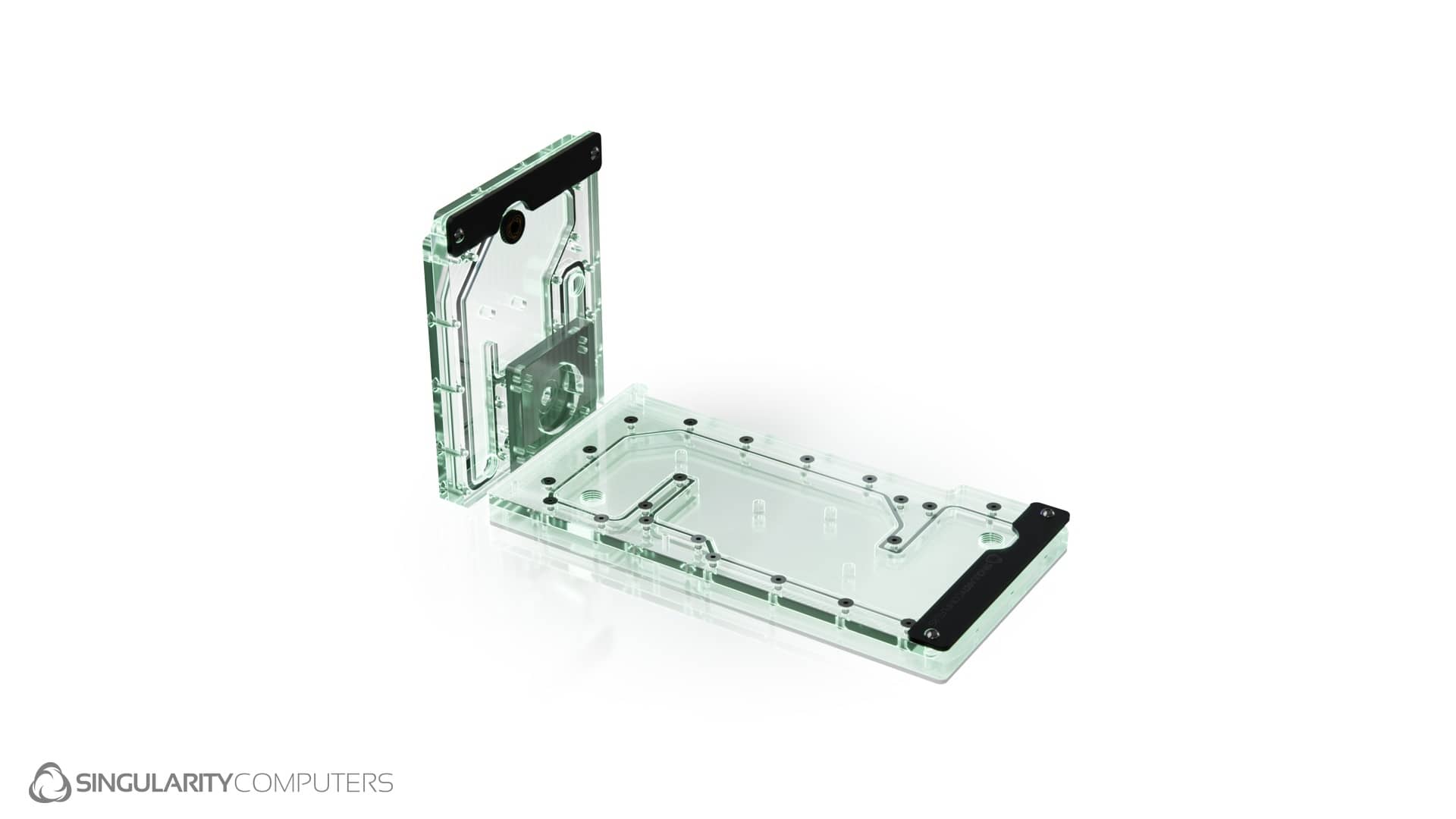

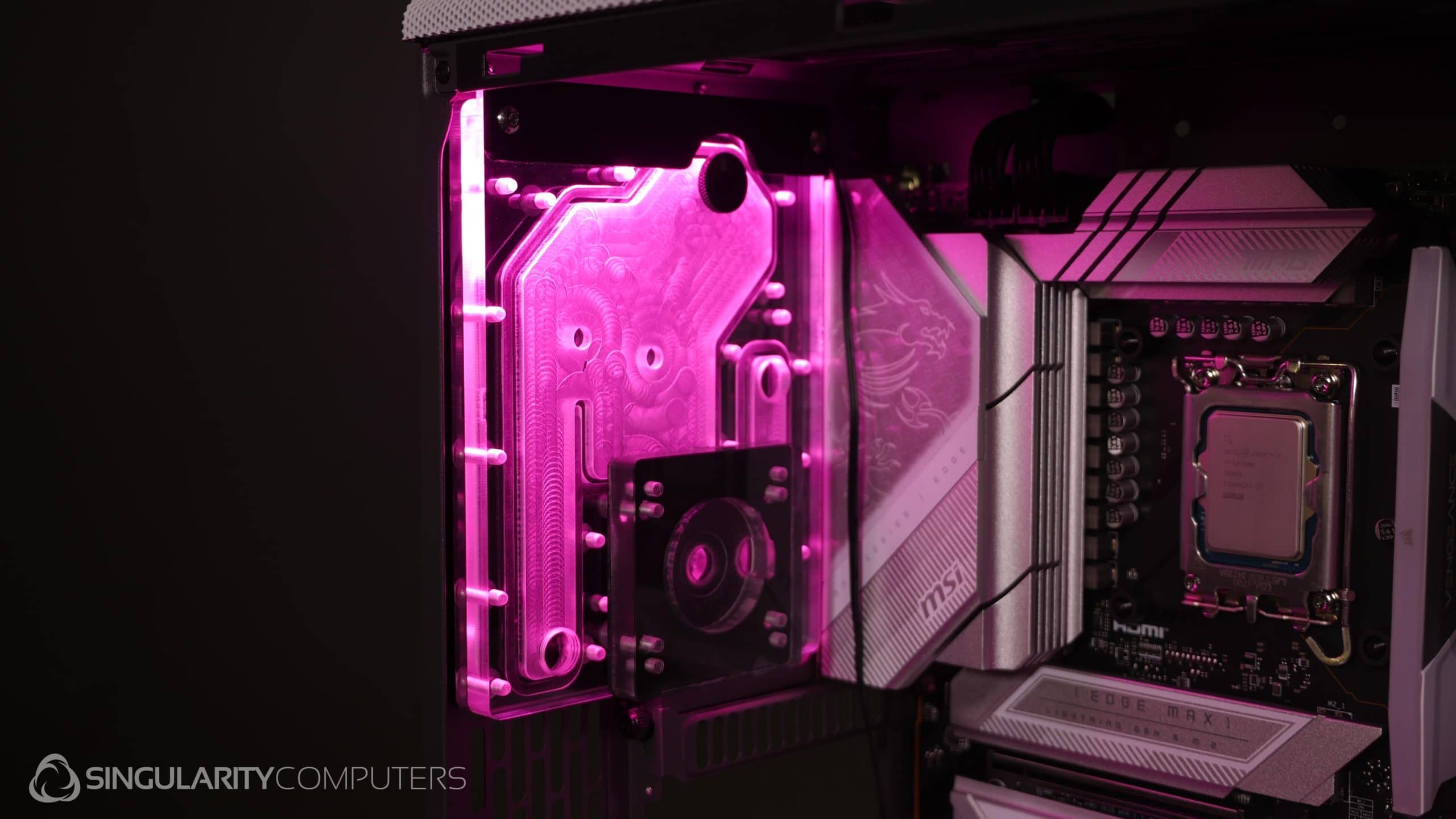

Horizontal and Vertical Distribution Plate Set for the Fractal North and Fractal North XL. The Vertical Distribution Plate mounts onto the rear panel above the expansion slot and next to the motherboard IO, it has an integrated DDC pump top and a reservoir. The Horizontal Distribution Plate mounts below the motherboard on top of the PSU shroud. The distribution plates are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. There are two integrated ARGB LED strips with covers, there are also Back Plates included to cover the rear side of the Rear Distribution Plates, select from the colour options below for the covers.
Pump not included. Compatible with any DDC Pump.
US$89.00 US$189.00Price range: US$89.00 through US$189.00
Fractal North Distribution Plate Set Flow Diagram
Specifications:
Fractal North Distribution Plate Set. The set can be purchased together or they can be purchased separately (select above).

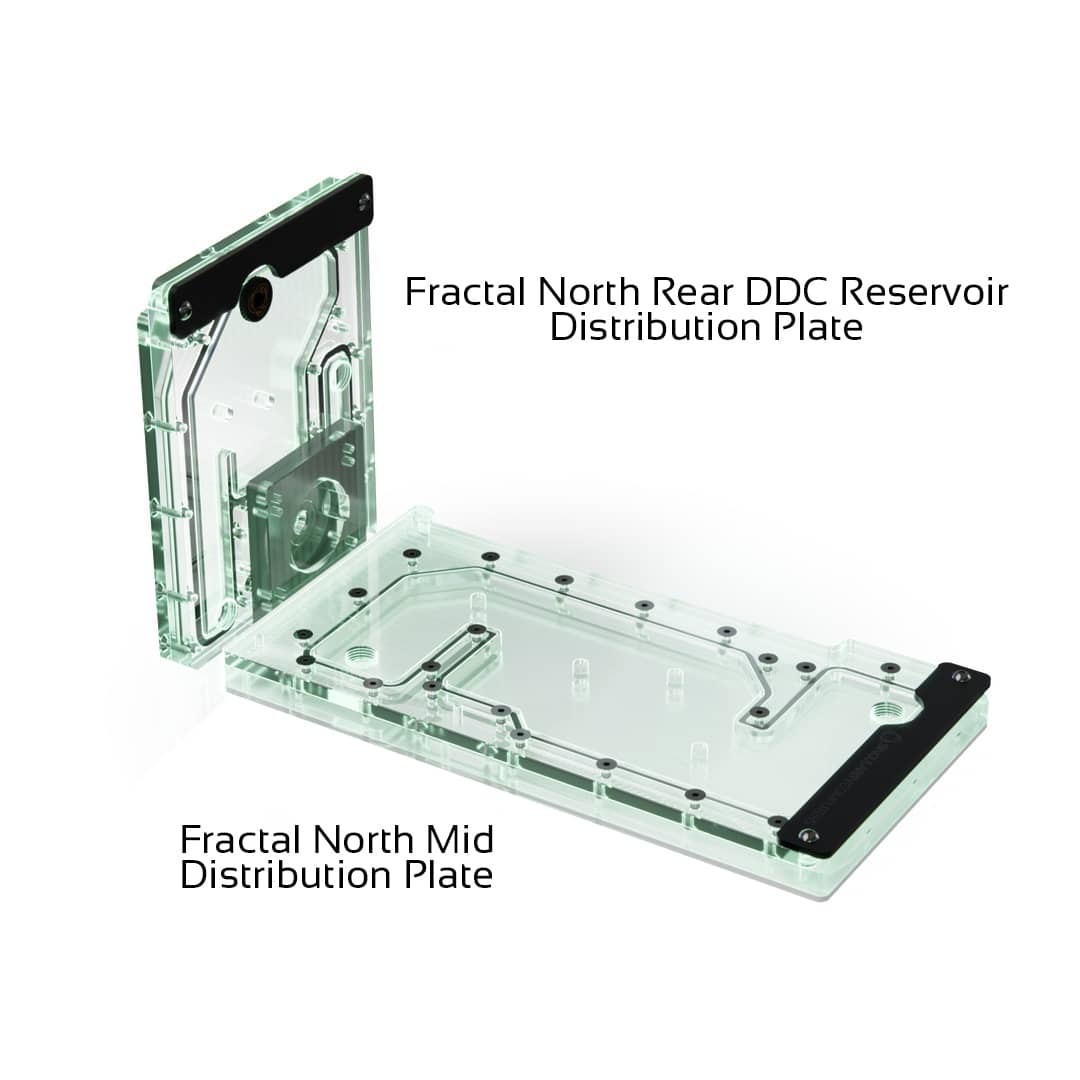

Fractal North Mid Distribution Plate.
Fractal North Mid Distribution Plate Cover.
Fractal North Rear DDC Reservoir Distribution Plate.
Fractal North Rear DDC Reservoir Distribution Plate Cover.
Integrated Pump Top: DDC.
Integrated Reservoir.
Integrated LED Strip: ARGB 5V with 50cm cable x2.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Packaged Dimensions & Weight:
Fractal North Distribution Plate Set: L: 500mm x W: 400mm x H: 100mm. 4kg.
Fractal North Mid Distribution Plate: L: 300mm x W: 200mm x H: 50mm. 2kg.
Fractal North DDC Reservoir Distribution Plate: L: 300mm x W: 200mm x H: 50mm. 2kg.
Installation:

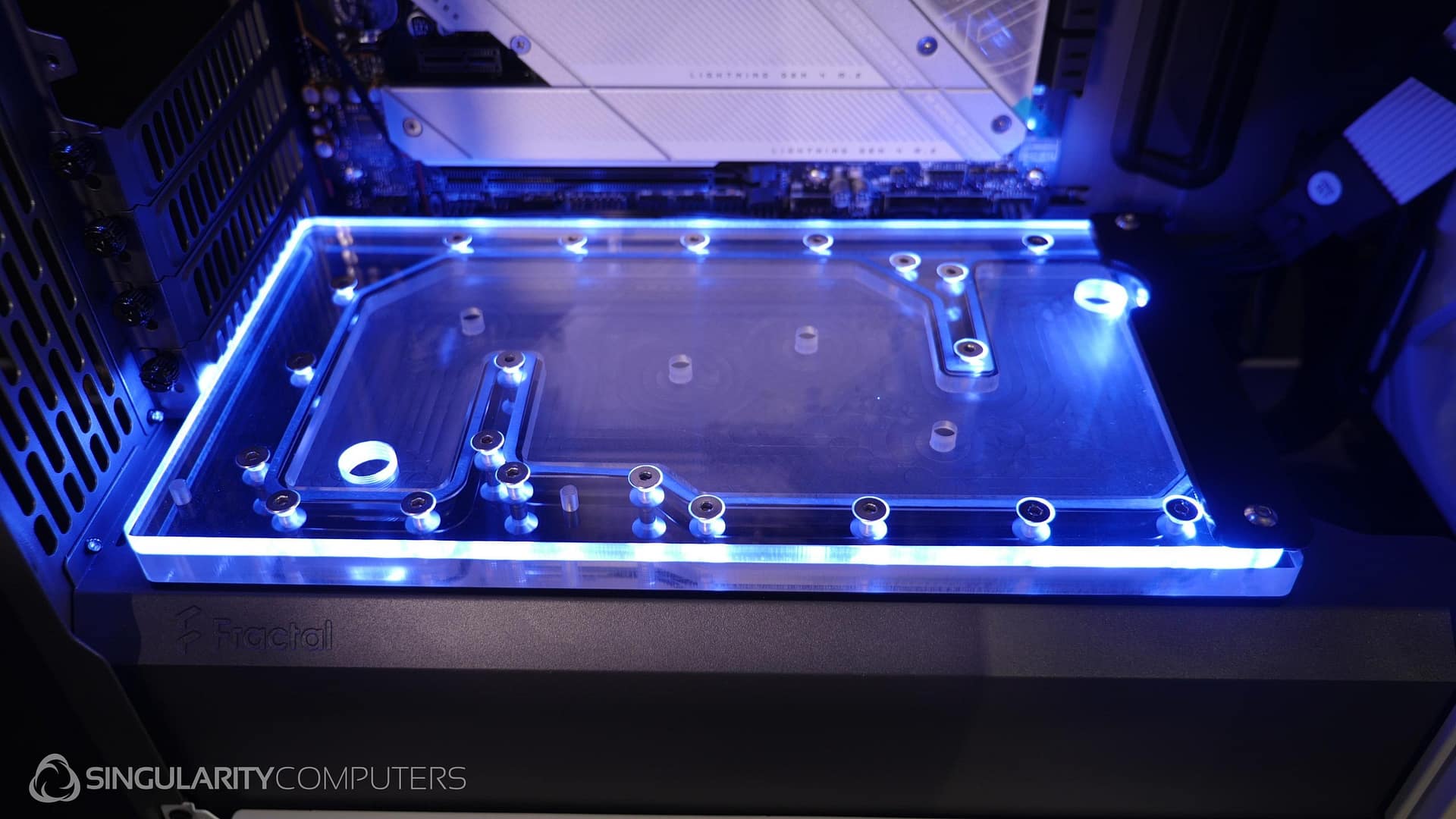

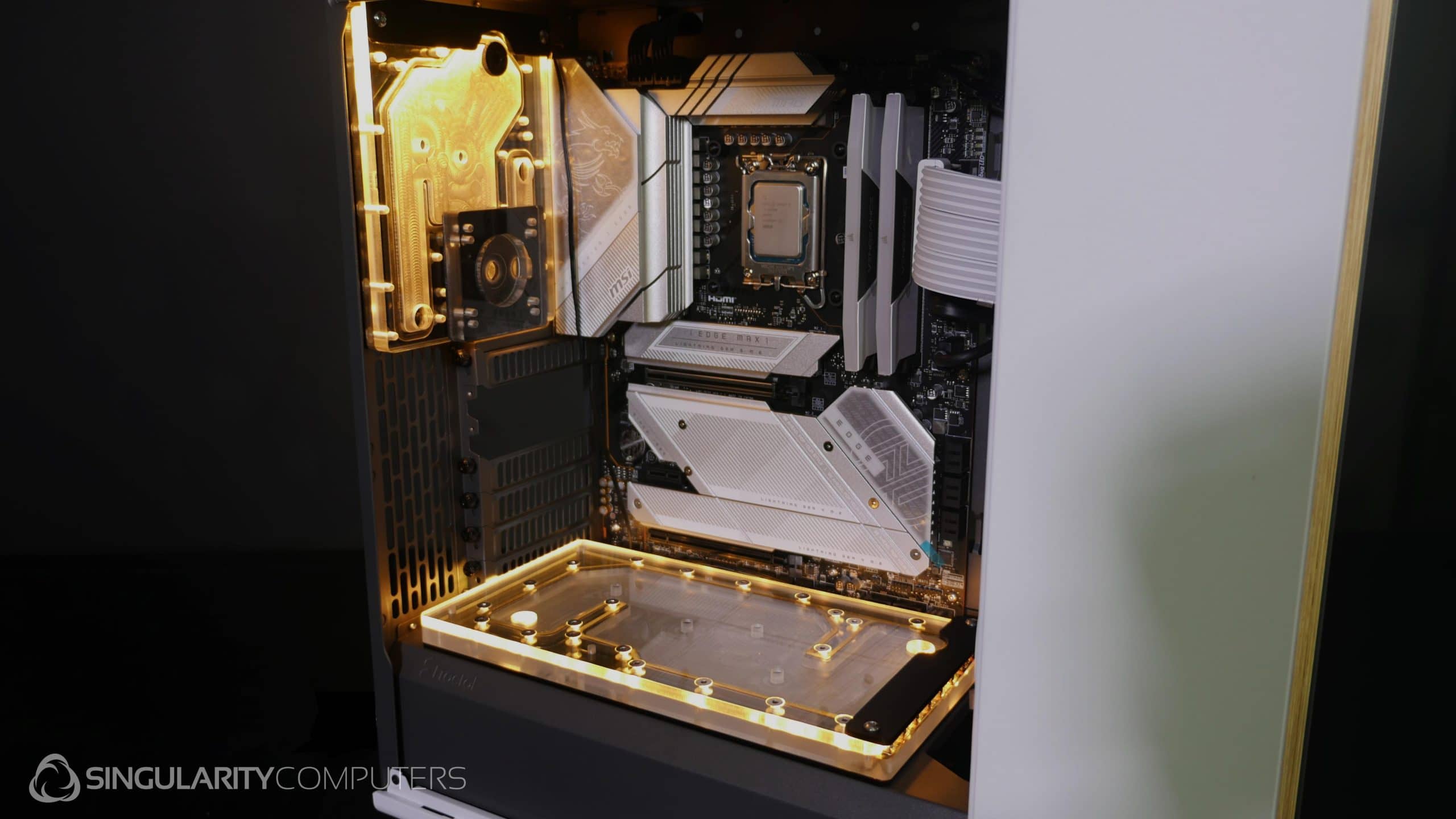

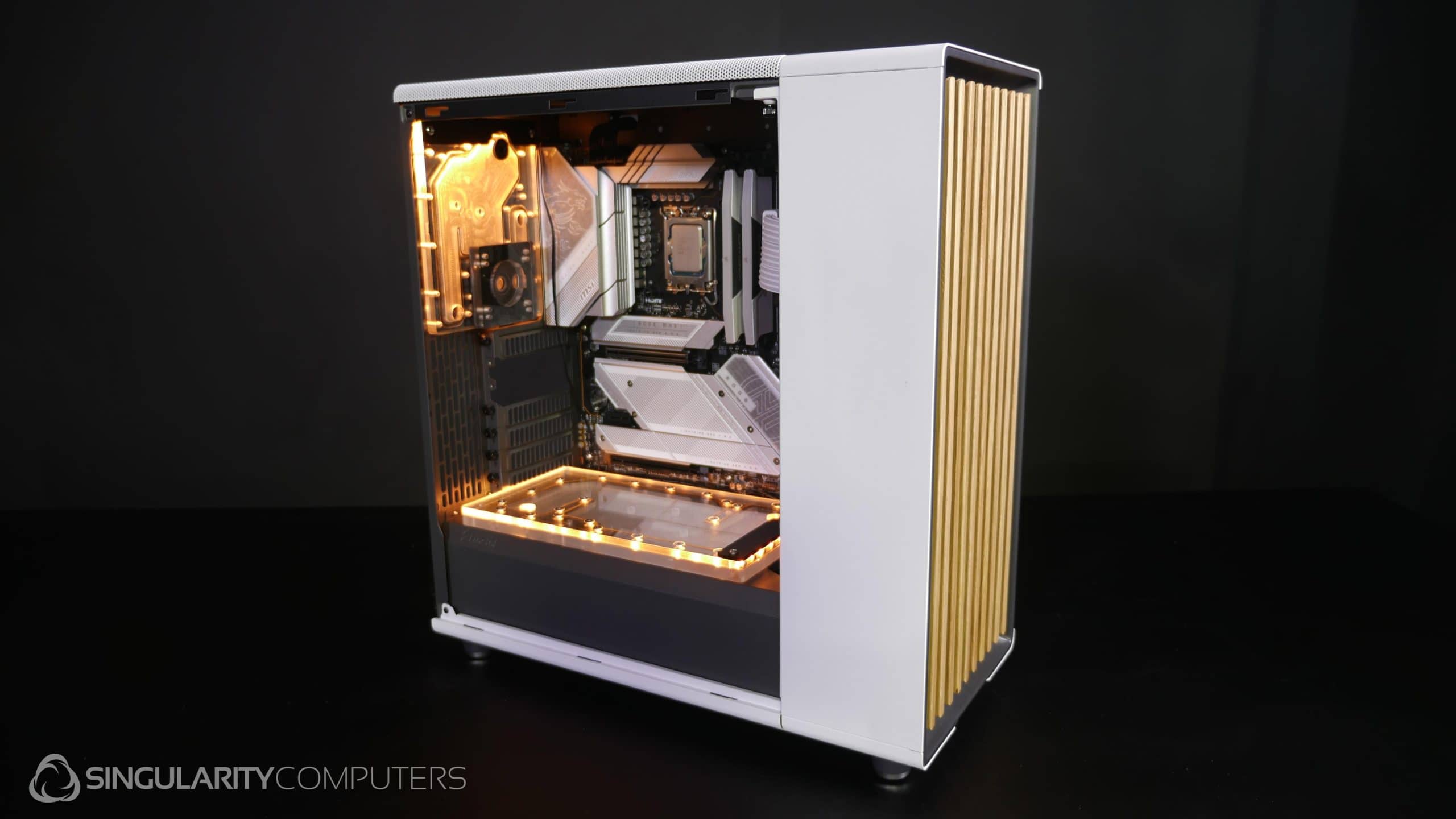

Compatible with the Fractal North and Fractal North XL. This distribution plate set includes a horizontal distribution plate which installs onto the top of the PSU shroud, and a vertical distribution plate which installs onto the rear panel above the expansion slots.
Addon Information
DDC Pump Cover: The Singularity Computers DDC Pump Cover is built from CNC machined anodized aluminum. It covers the DDC to improve aesthetics, but it also has a built in heatsink for extra cooling of the pump motor which is known to run hot and is not cooled by the coolant. The DDC Pump Cover has a Singularity Computers logo on the base. It is compatible with all DDC Pumps and Pump Tops.
