Phanteks NV9 D5 Reservoir Distribution Plate

Name: Phanteks NV9 D5 Reservoir Distribution Plate
Brand: Singularity Computers
SKU: SC-PHANT-NV9-D5-DIST
Availability: InStock

Order processing time 1-2 days.

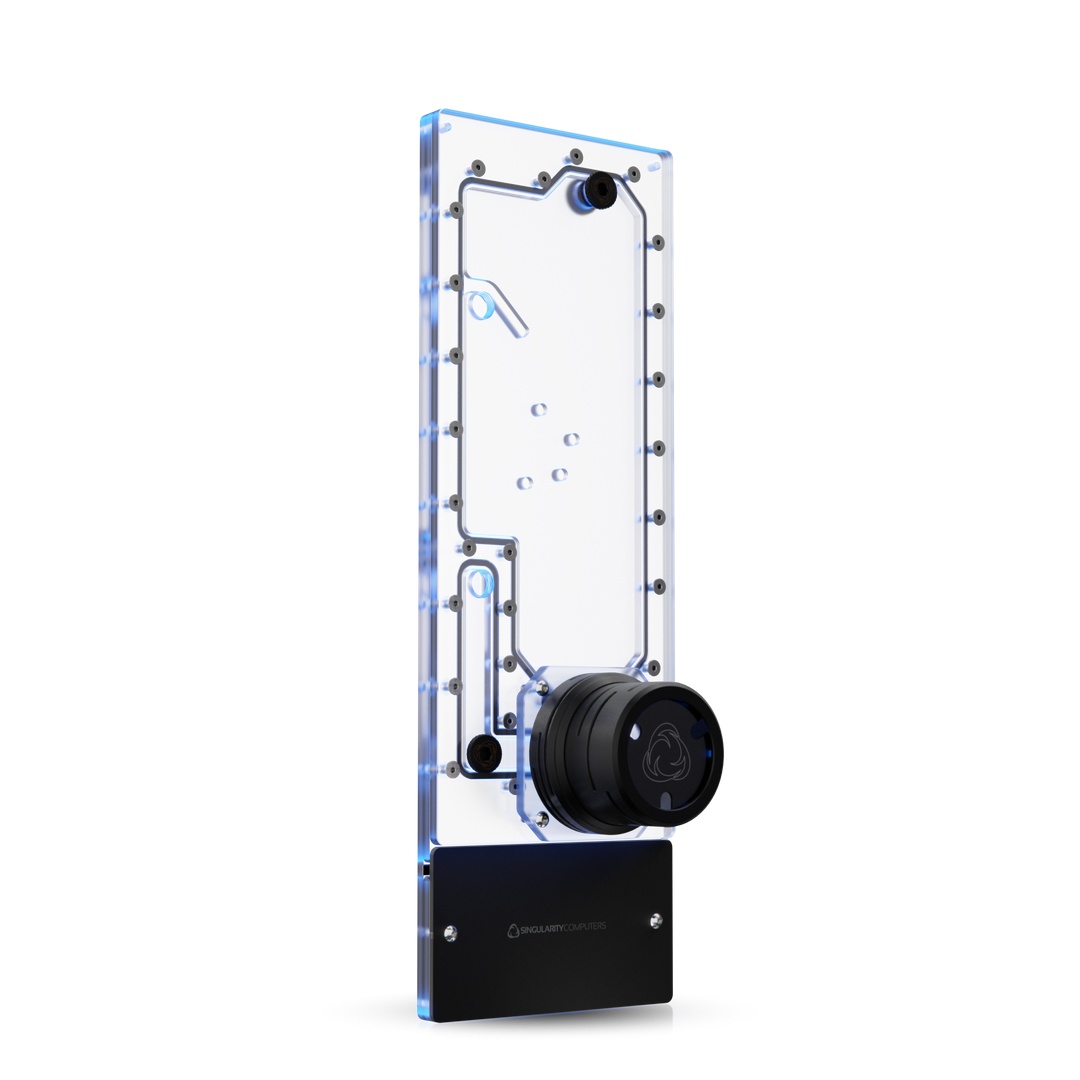

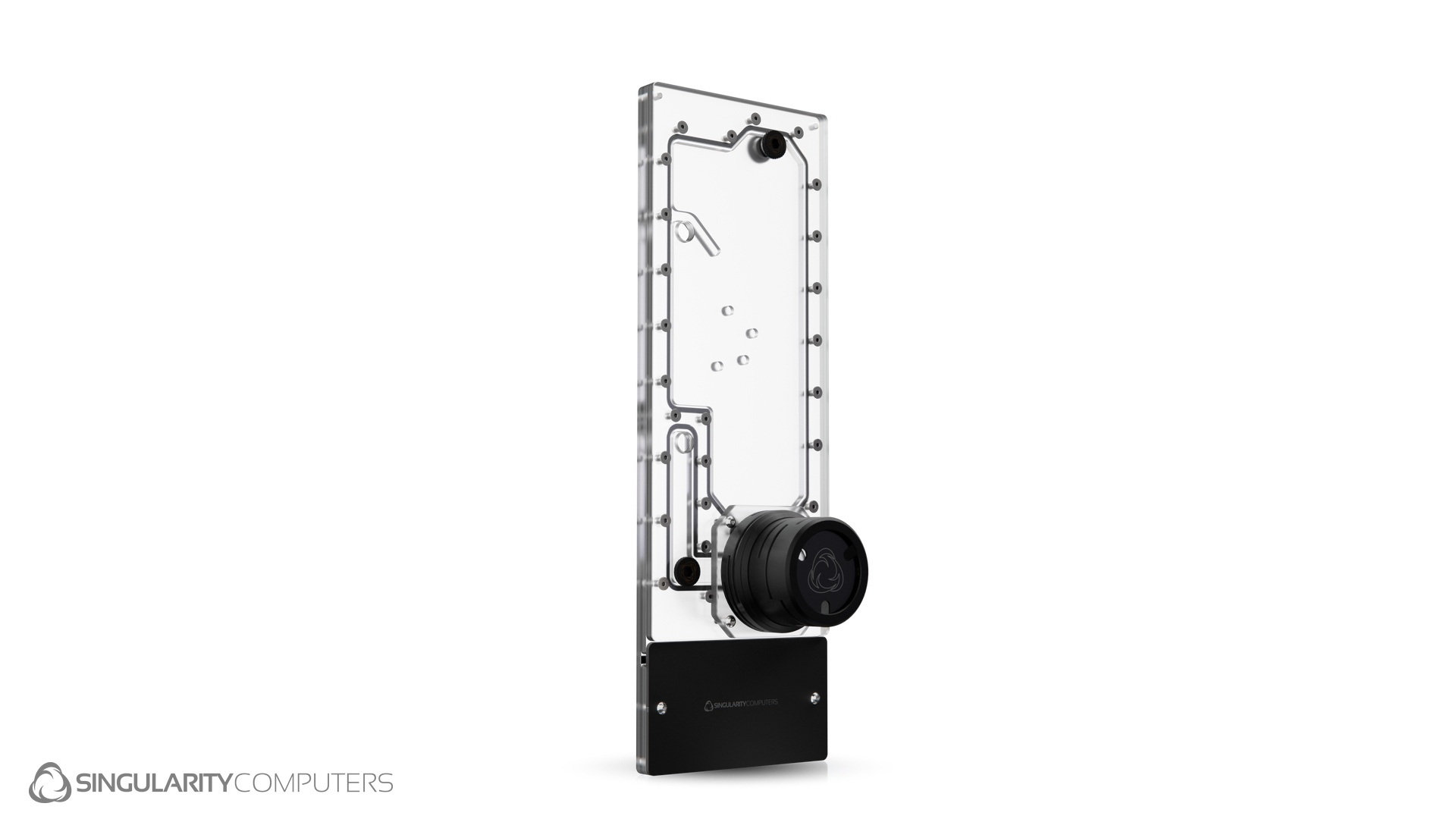

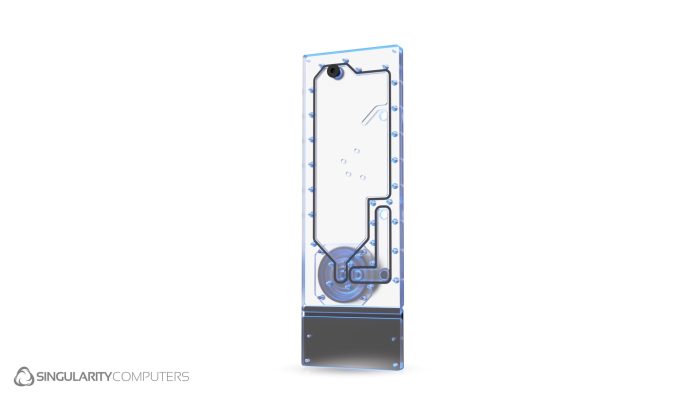

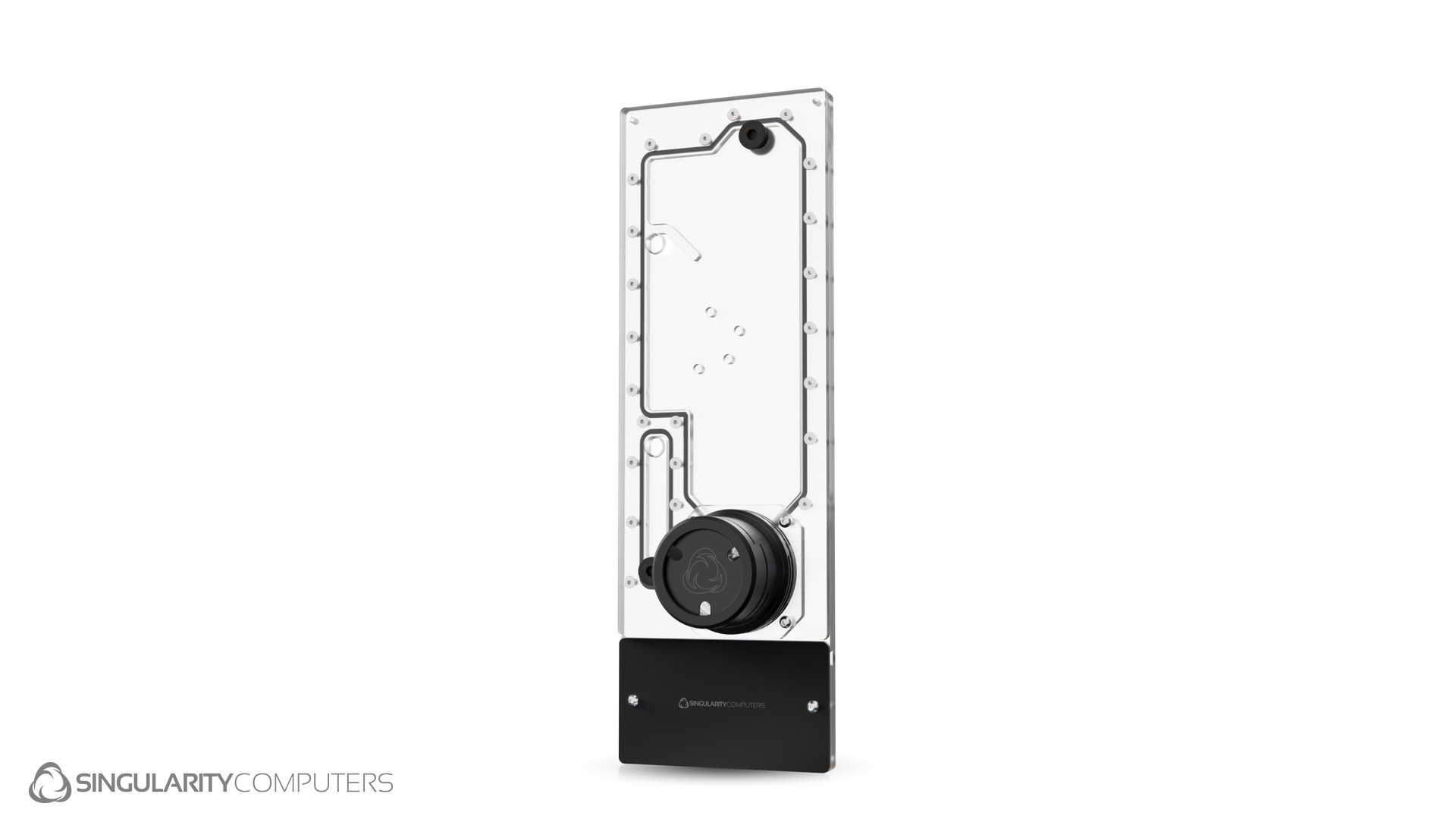

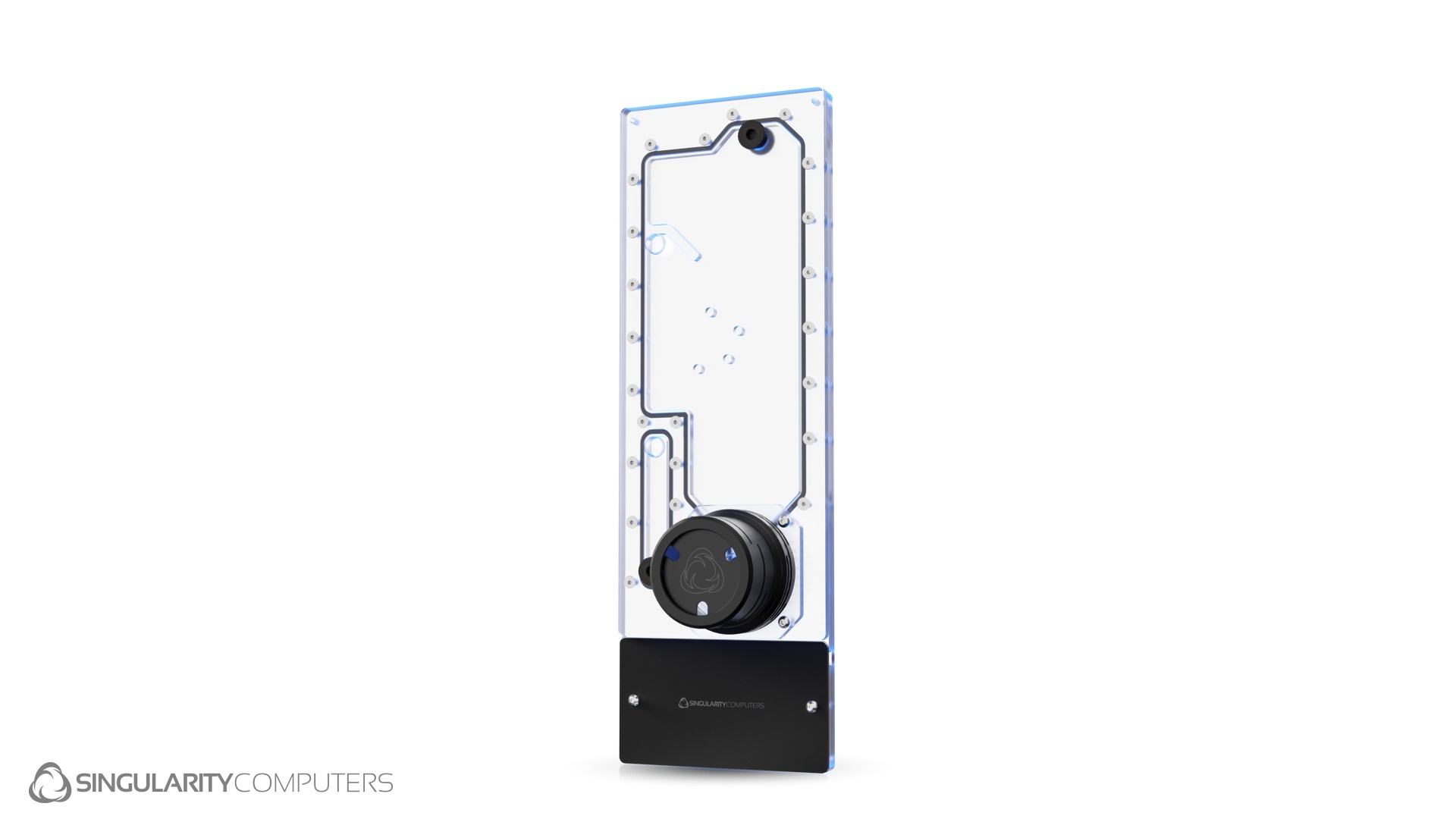

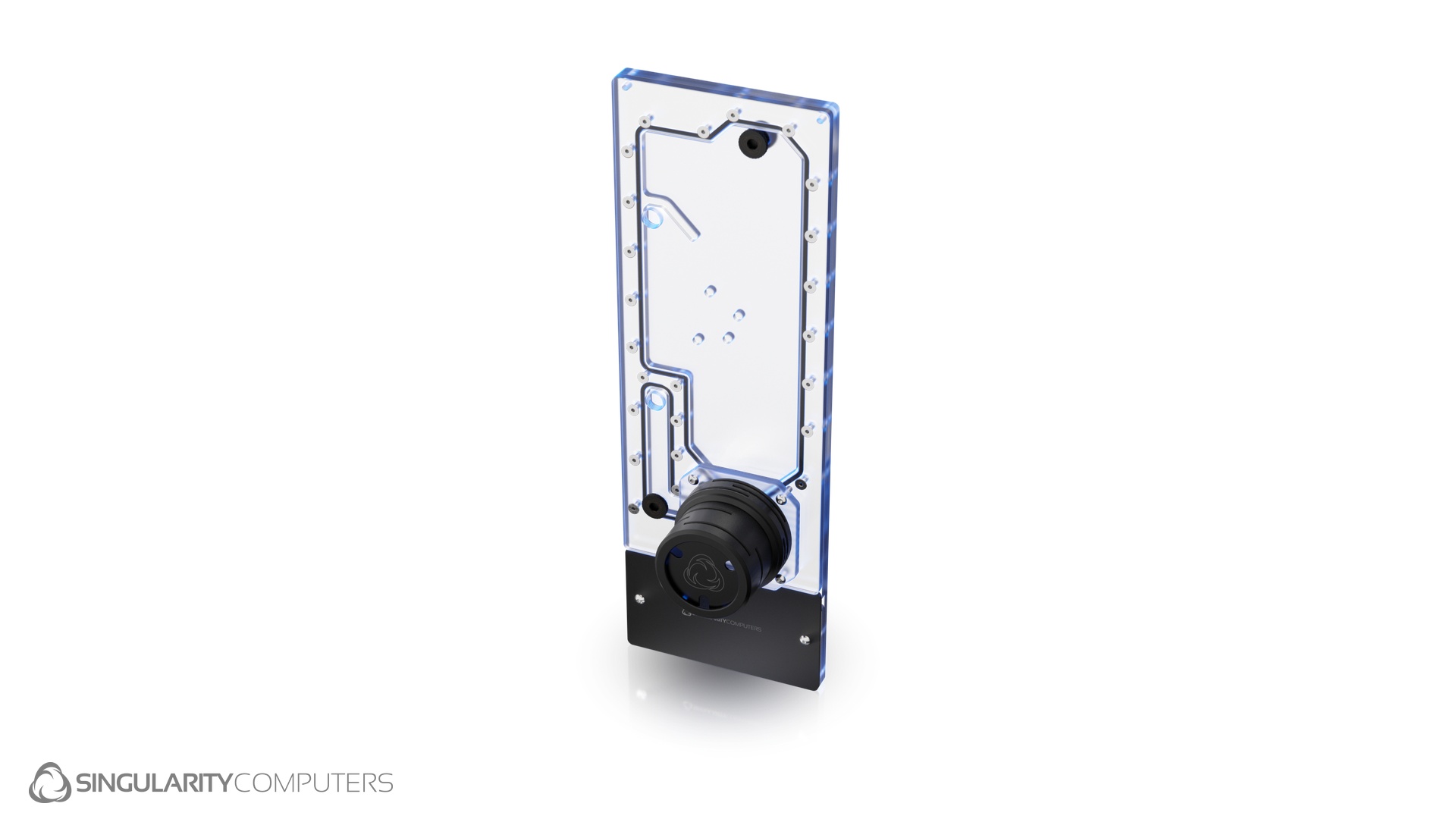

The Phanteks NV9 D5 Reservoir Distribution Plate fits onto any 420mm radiator or radiator mount, but is specifically designed to mount in the Phanteks NV9 on the 420mm radiator mount next to the motherboard. It mounts without modifications to the case. It has an integrated reservoir and D5 pump top. This distribution plate can be used on its own, it does not require other distribution plates. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. Hand assembled with stainless steel fasteners. There is an integrated ARGB LED strip. Select from the color options below for the logo cover which fits at the bottom of the Distribution Plate.

Pump not included. Compatible with any D5 Pump.

Manuals

Build Gallery

Product Gallery

US$269.00

Select Mounting (included)

For mounting to a radiator mount select ‘Standard mounting’. For mounting to a radiator select the fastener size your radiator uses.

Select Acrylic Cover Color/Finish Options

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Satin Black

Personalised Laser Etching (optional) (+US$45.00)

Enter text you would like laser etched onto the coloured distribution plate cover you have selected

Select D5 Retention Ring Colour (included)

CNC milled anodized retention ring.

Black

Select D5 Pump Cover Options (optional) USD $39

CNC milled anodised pump cover with ARGB lights and Singularity Computers Logo.

D5 Pump (optional) USD $104

D5 Pump 1500LPH 3.7m head pressure.

Add to wishlist

EAN: 9351182005071 SKU: SC-PHANT-NV9-D5-DIST Category: Phanteks

Description

Specifications:
Phanteks NV9 D5 Reservoir Distribution Plate.
D5 Pump Cover CNC Machined Anodized Aluminum (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 420mm x W: 140mm x H: 110mm.
Weight: 2.2kg.
Packaged Dimensions: L: 500mm x W: 200mm x H: 150mm.
Packaged Weight: 2.8kg

Installation:

Can be installed onto any 420mm radiator or radiator mount but is specifically designed to be installed into the Phanteks NV9 on the vertical radiator mount next to the motherboard.
