Phanteks Evolv X2 Distribution Plate Set

In stock

Order processing time 1-2 days.

  • Two-piece distribution plate set for the Phanteks Evolv X2
  • Front plate with integrated reservoir and D5 pump top
  • Designed for 360mm top radiators up to 60mm thick
  • Supports 240mm mid-plate radiators up to 45mm thick
  • 90° mounting showcases the distribution plates from multiple angles
  • CNC-machined clear cast acrylic with durable gasket seals
  • Integrated ARGB LED strips with customizable Accent Covers
  • Hand assembled with stainless steel fasteners

Manuals

US$299.00

Select Acrylic Cover and Back Plate Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$23.92 Silver Mirror +US$23.92 Gold Mirror +US$23.92 Satin Black

The distribution plate will remain transparent, this colour option is for the covers and back plates.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring Colour (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump Cover Options USD (optional) $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x2 (optional) USD $8
None Yes +US$8.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected

  • 1x Phanteks Evolv X2 Distribution Plate Set
    US$299.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182006566 SKU: SC-PHAN-EX2-DISTS Category:

Description

Read More +Read Less − full description

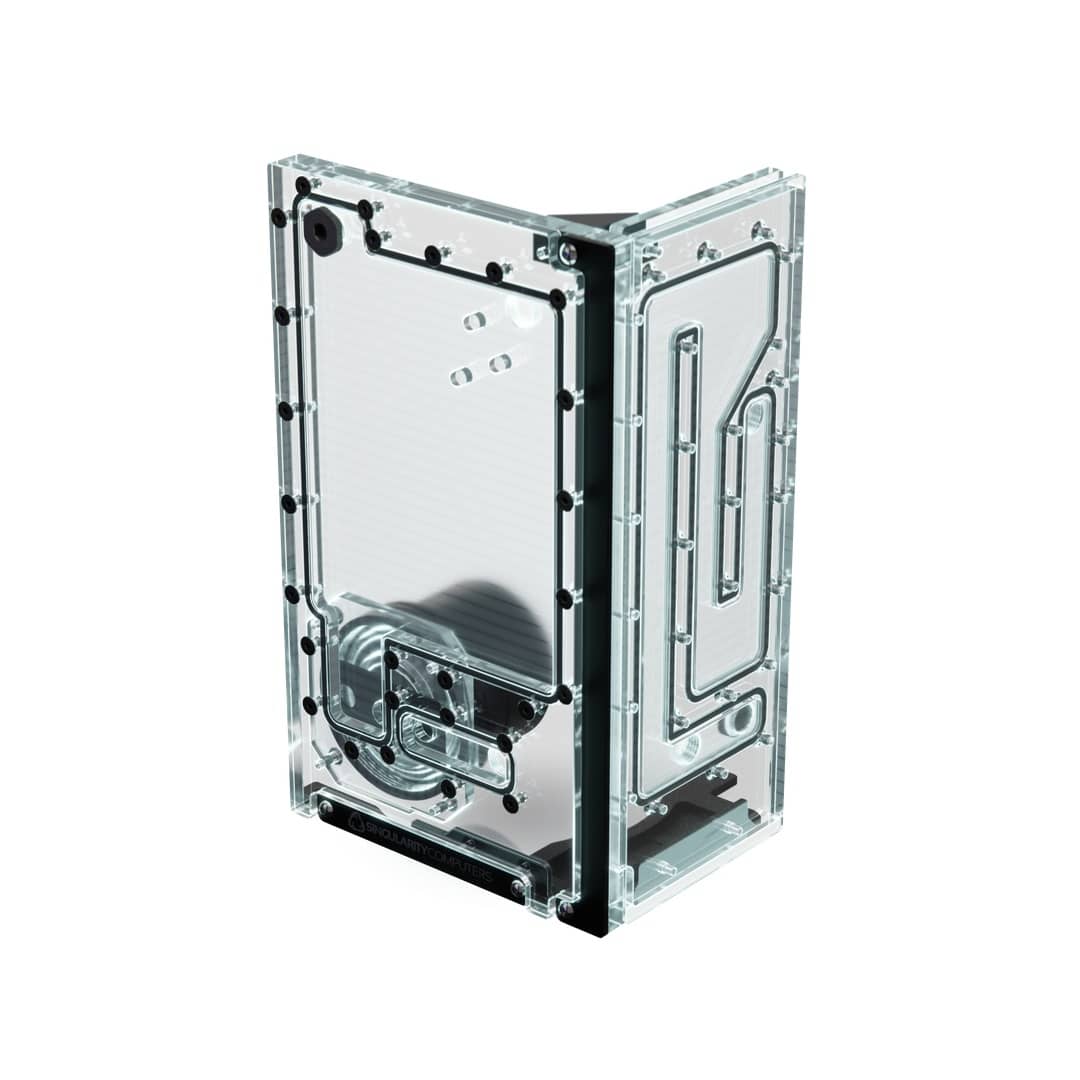

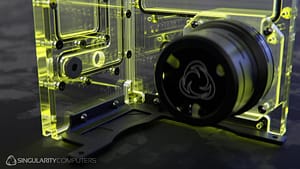

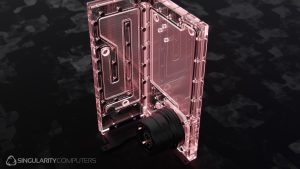

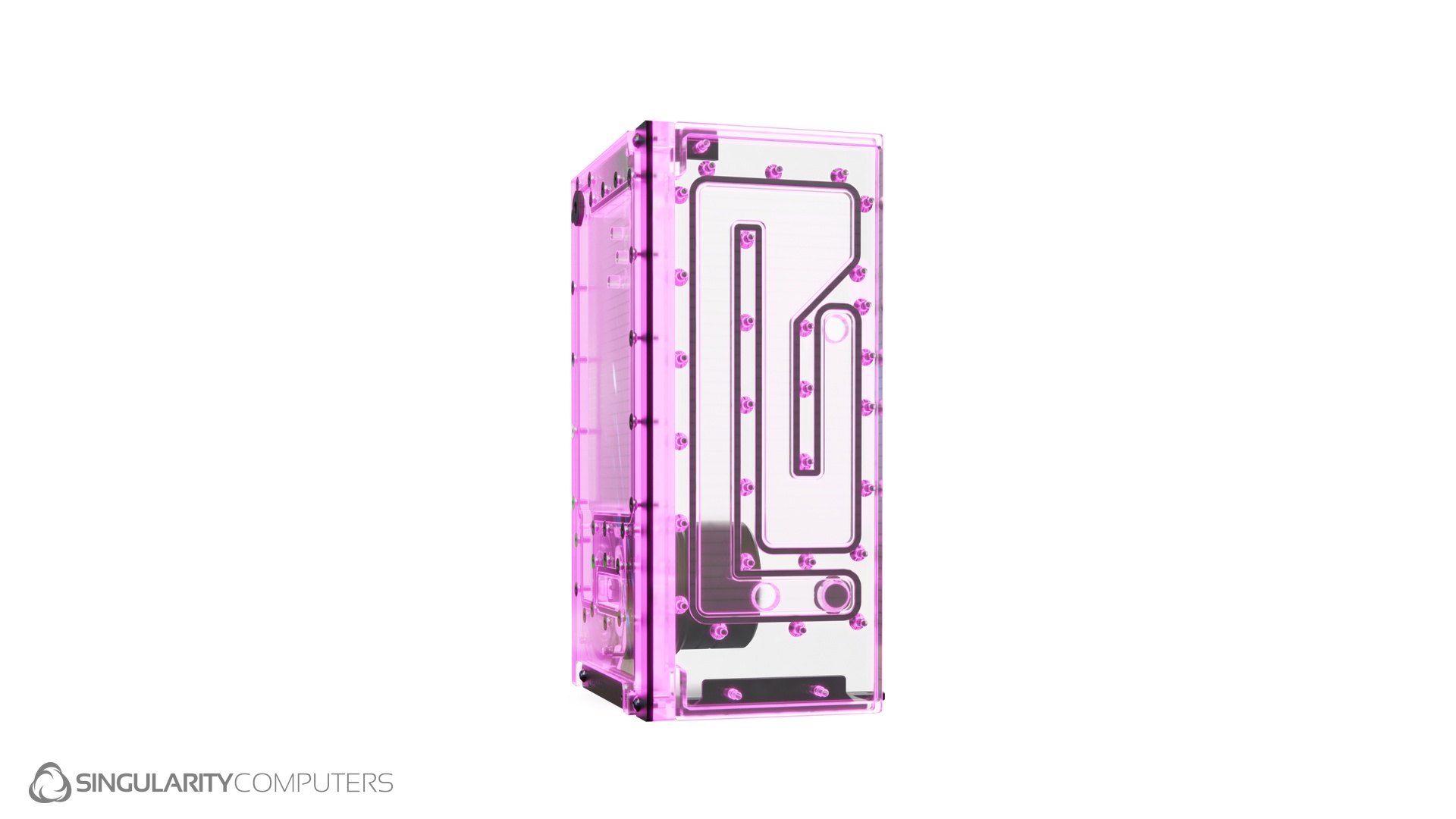

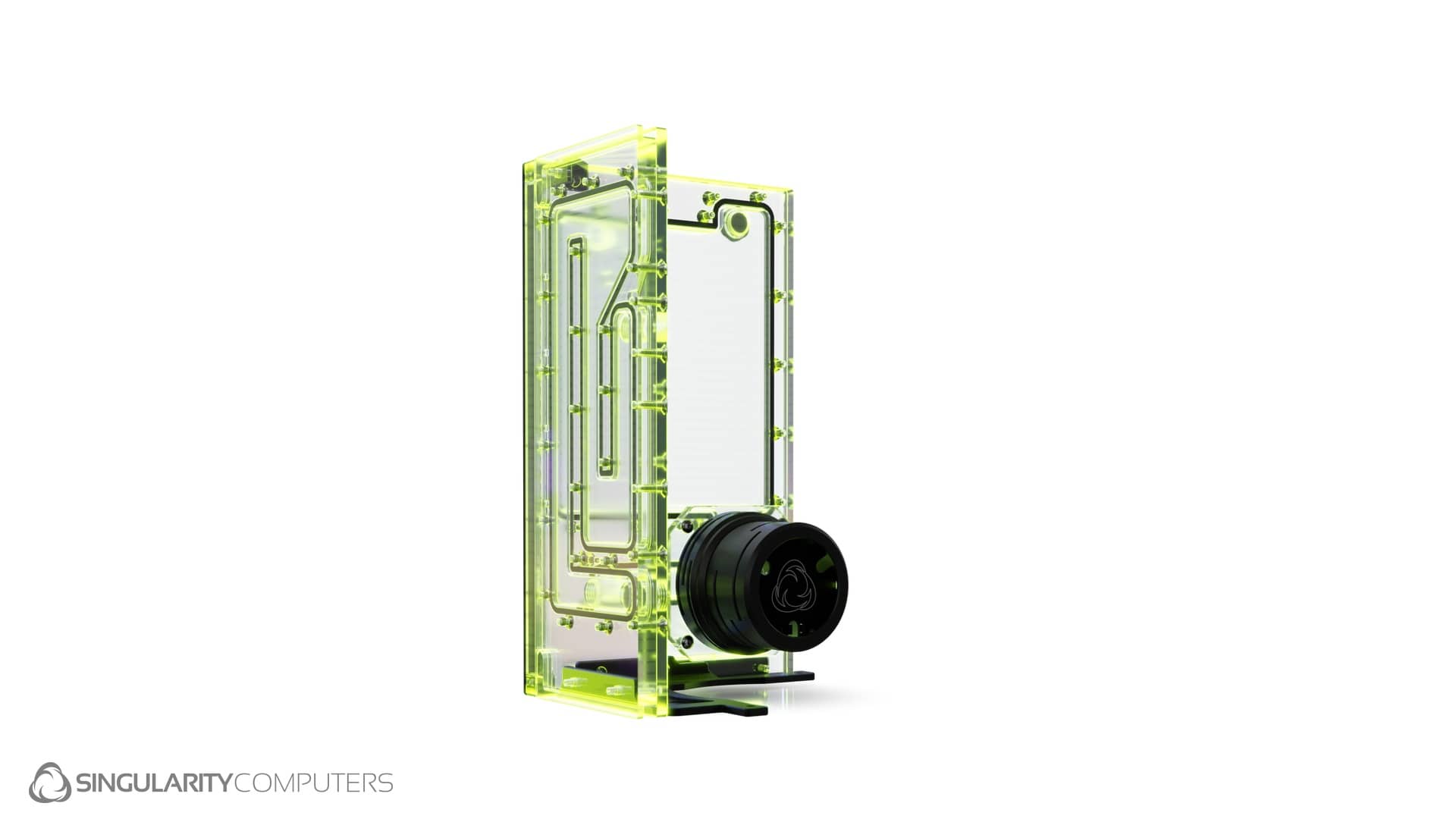

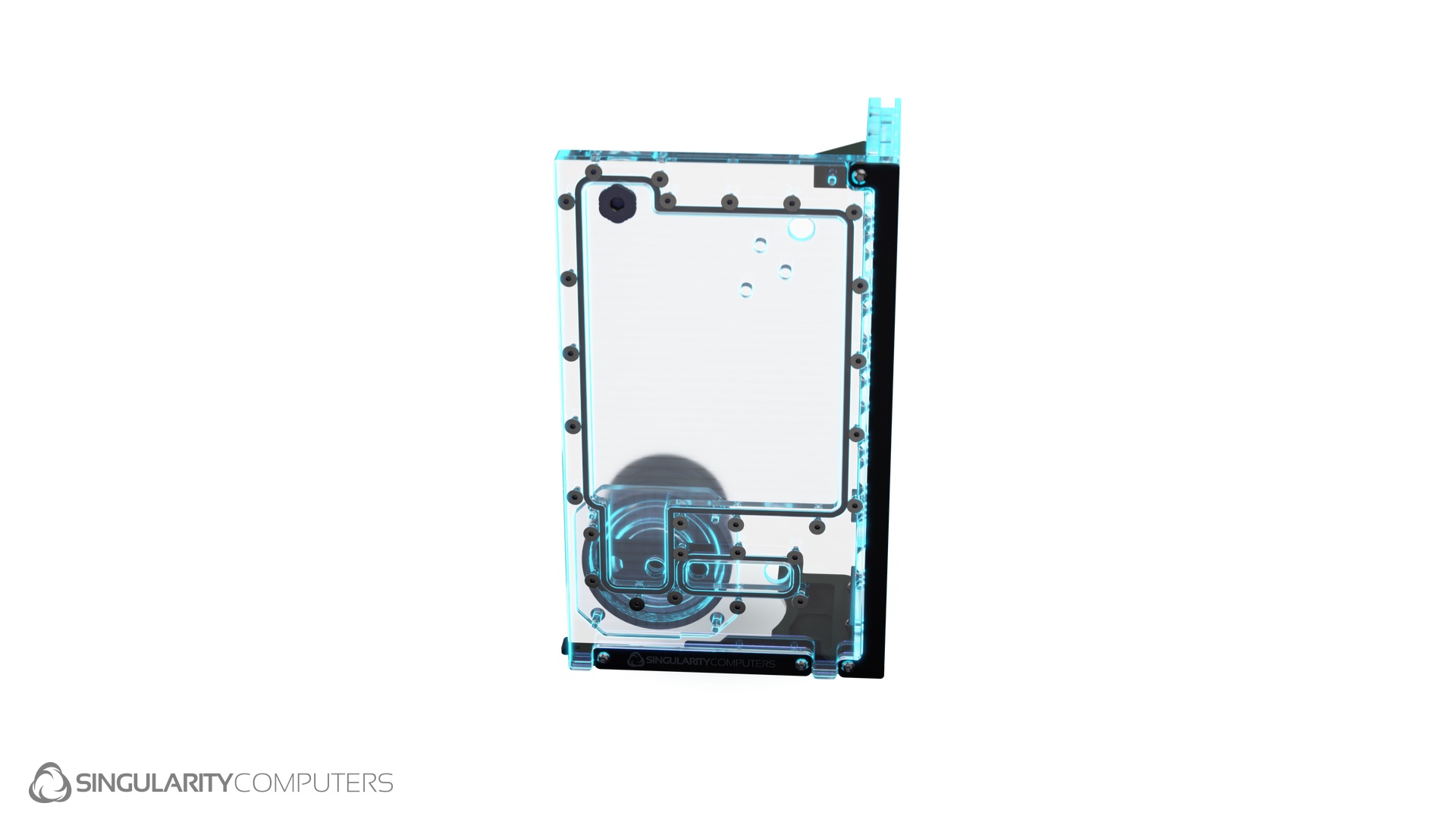

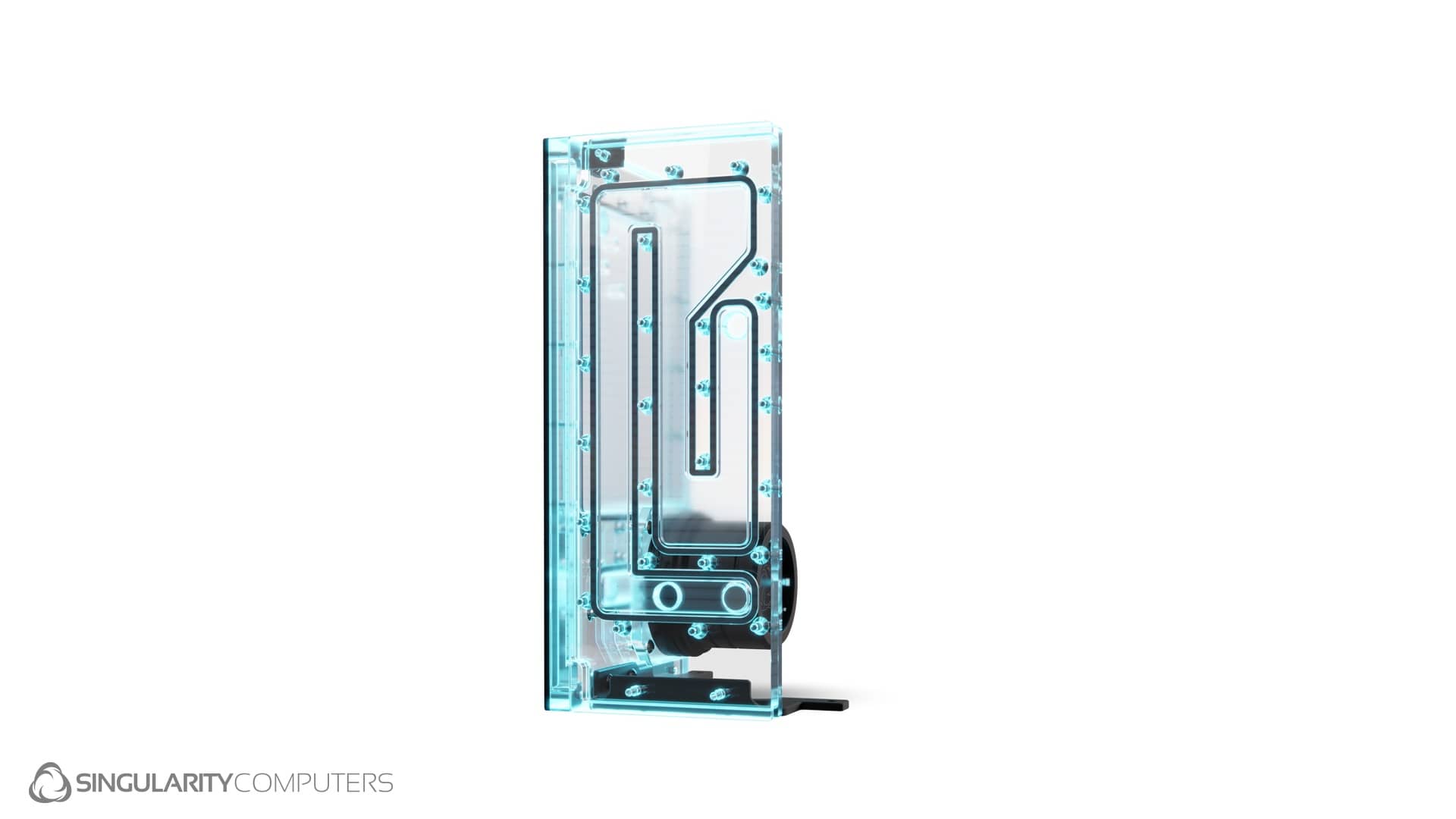

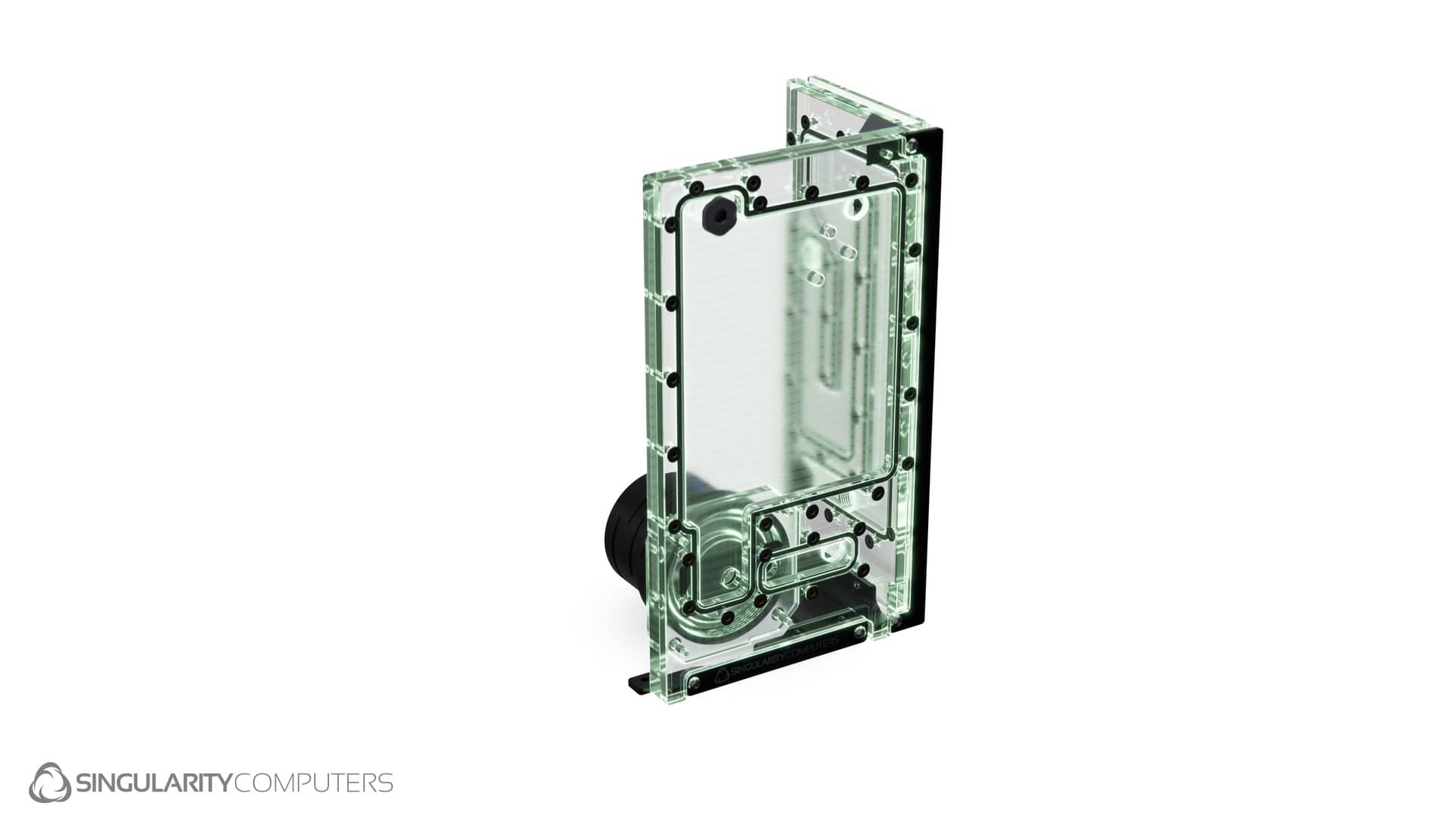

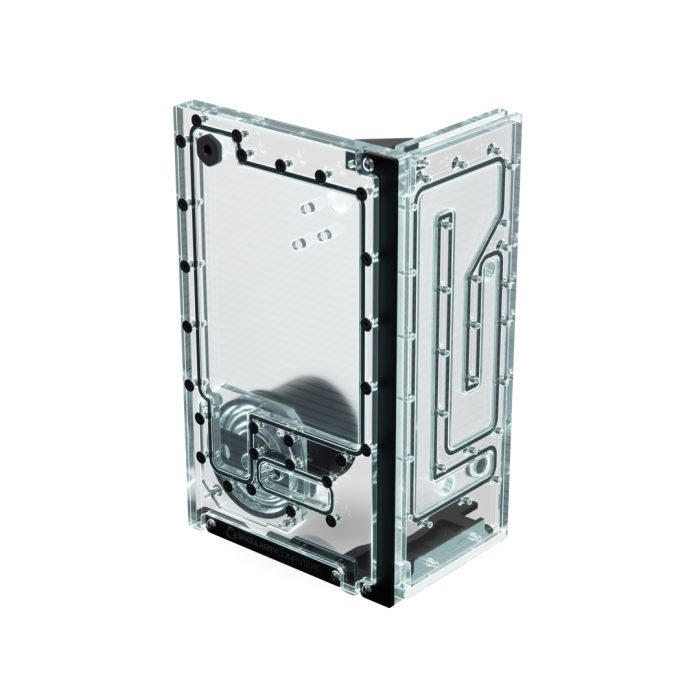

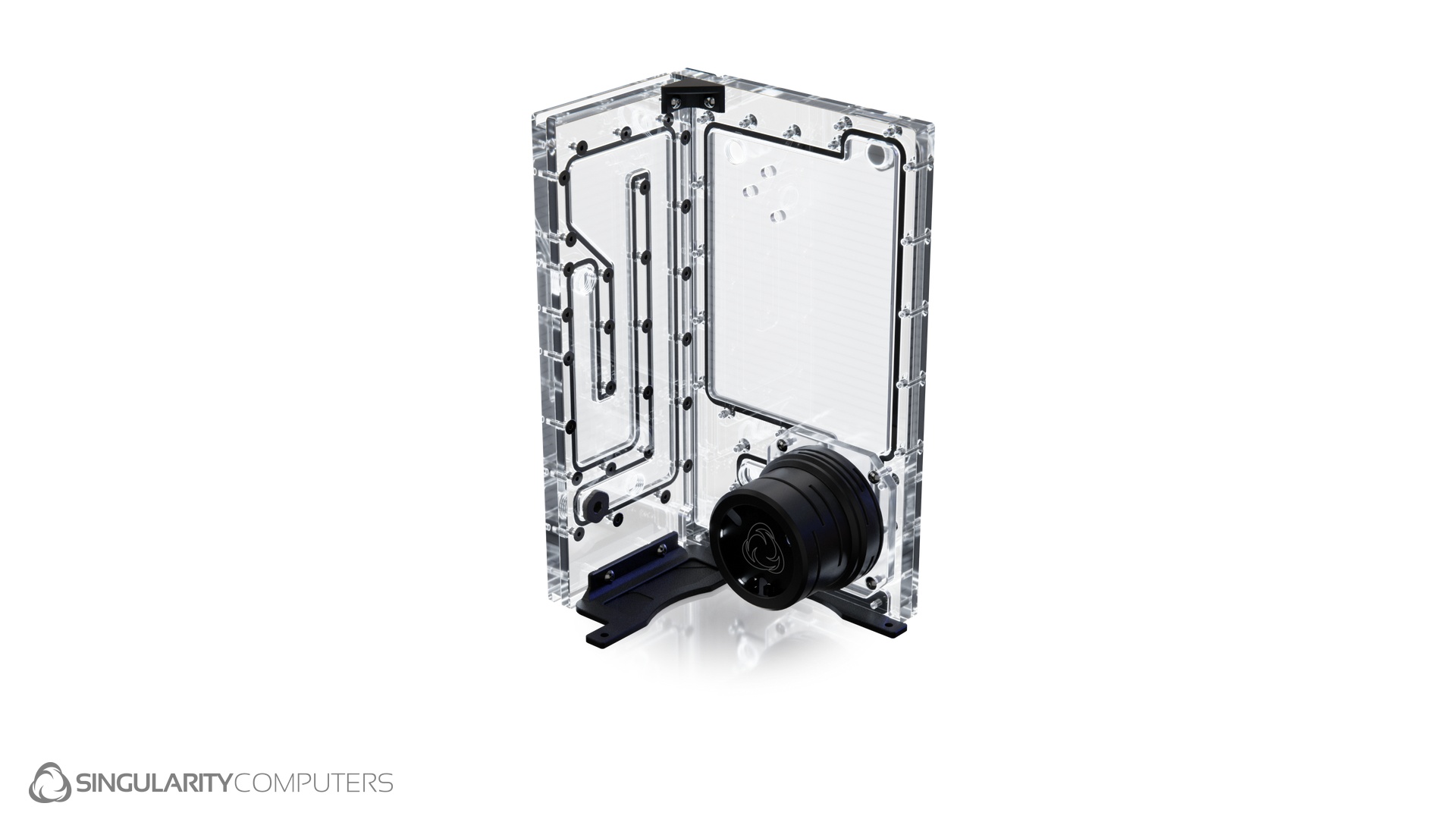

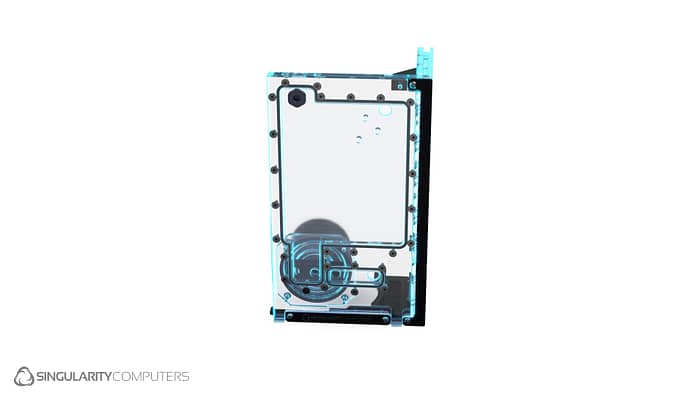

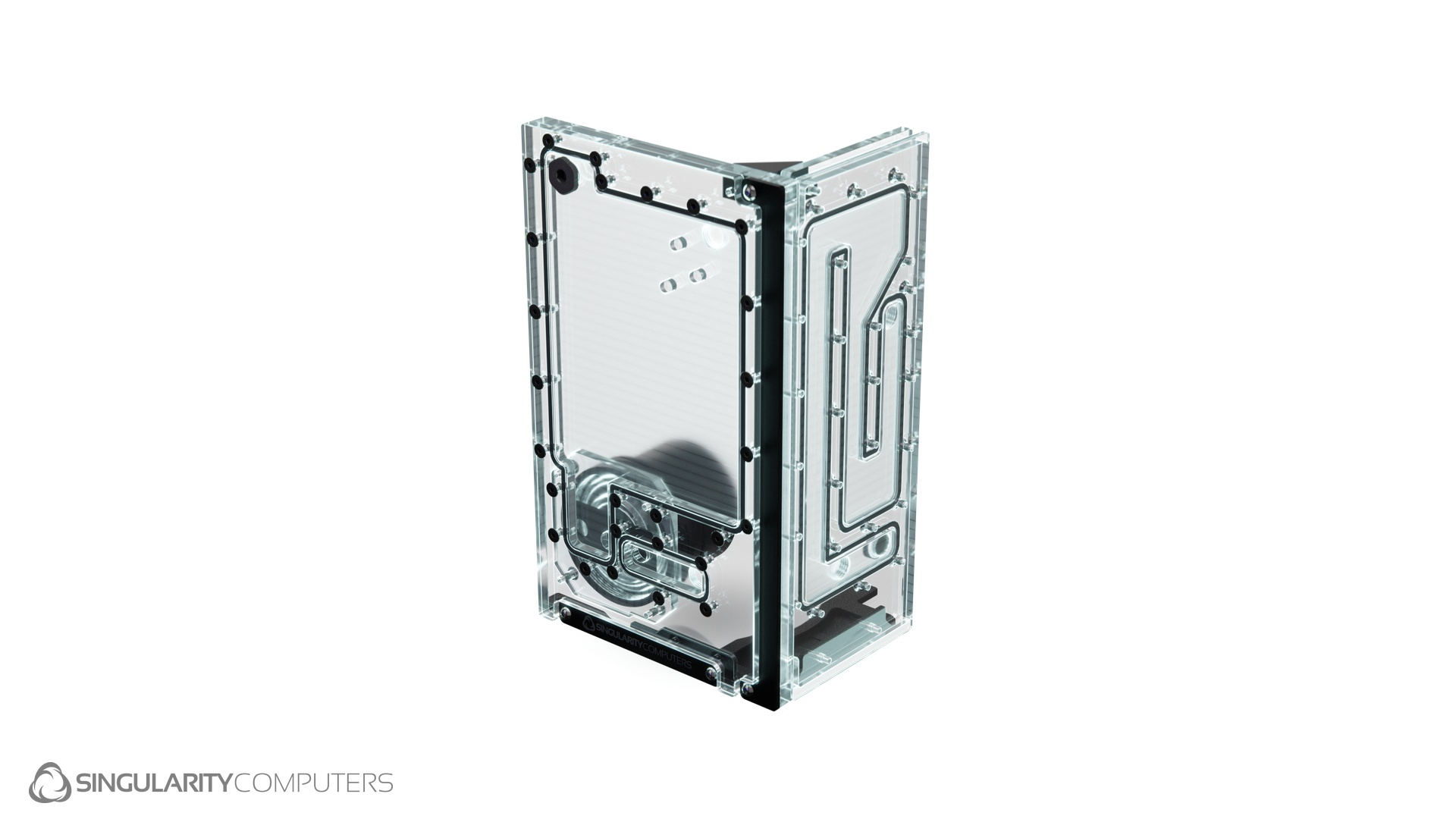

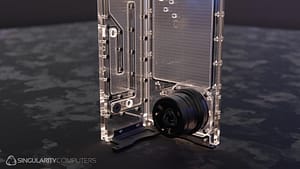

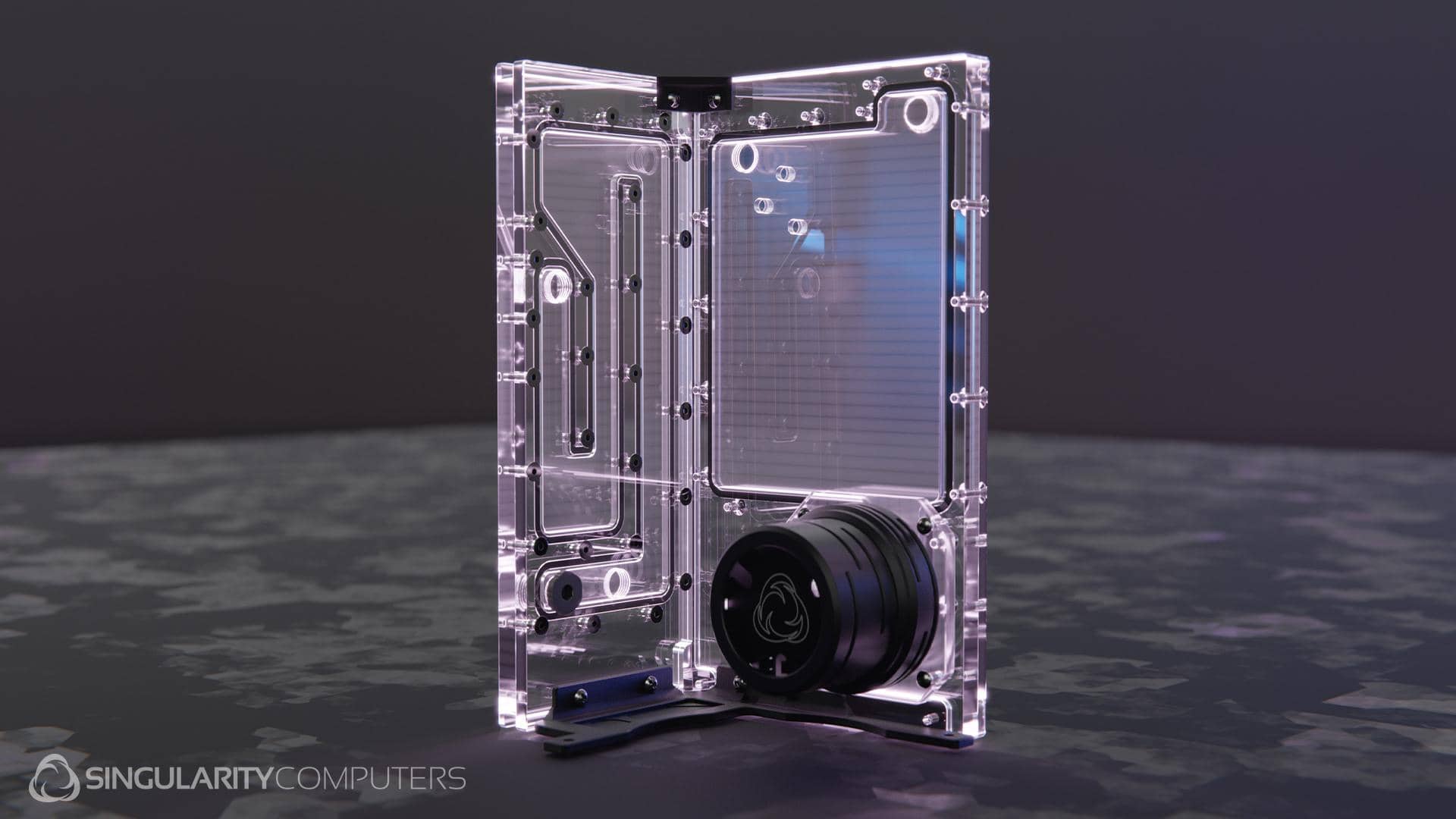

The Phanteks Evolve X2 Distribution Plate Set includes two Distribution Plates which are mounted at 90 Degrees in the front windowed area of the Phanteks Evolv X2 so that they can be seen from the front and both sides. The front distribution plate has an integrated Reservoir and D5 pump top. These distribution plates are designed to be used with a 360mm radiator mounted on the top panel of the case which can be up to 60mm thick and a 240mm radiator mounted onto the mid plate which can be up to 45mm thick. The case specifications do not list compatibility with a 240mm radiator on the mid plate but it does fit. The Distribution Plates are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. They have integrated ARGB LED strips with Accent Covers. Select from the different color options below for the Accent Covers.





Specifications

Phanteks Evolv X2 Distribution Plate Set.
Protium 3.0 ARGB D5 Pump Cover (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable x2.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Packaged Dimensions: L: 300mm x W: 120mm x H: 50mm.
Packaged Weight: 3kg.
Packaged Dimensions: L: 350mm x W: 200mm x H: 100mm.
Packaged Weight: 3.5kg.

Installation:
Installs into the front of the Phanteks Evolv X2.
