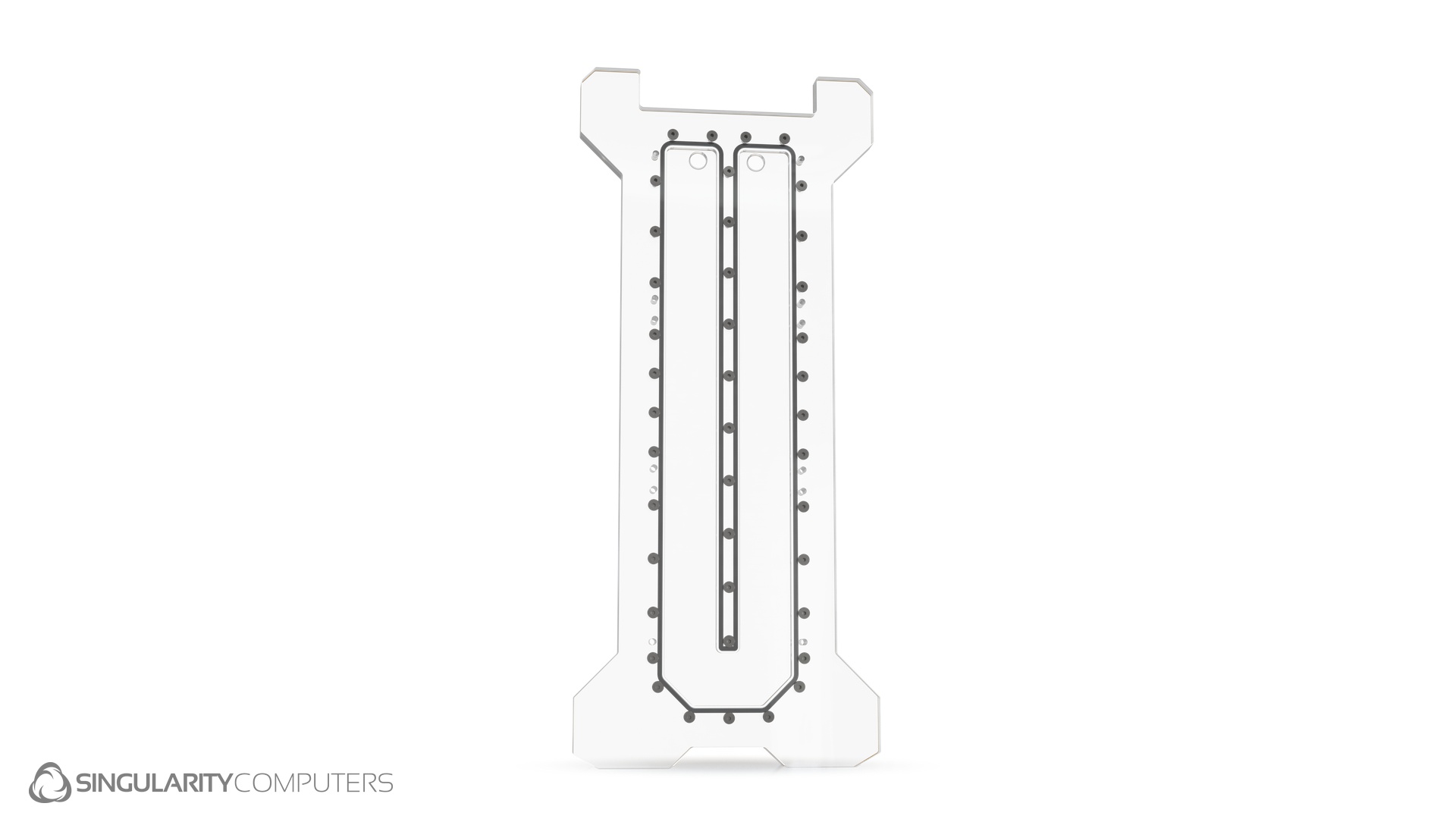

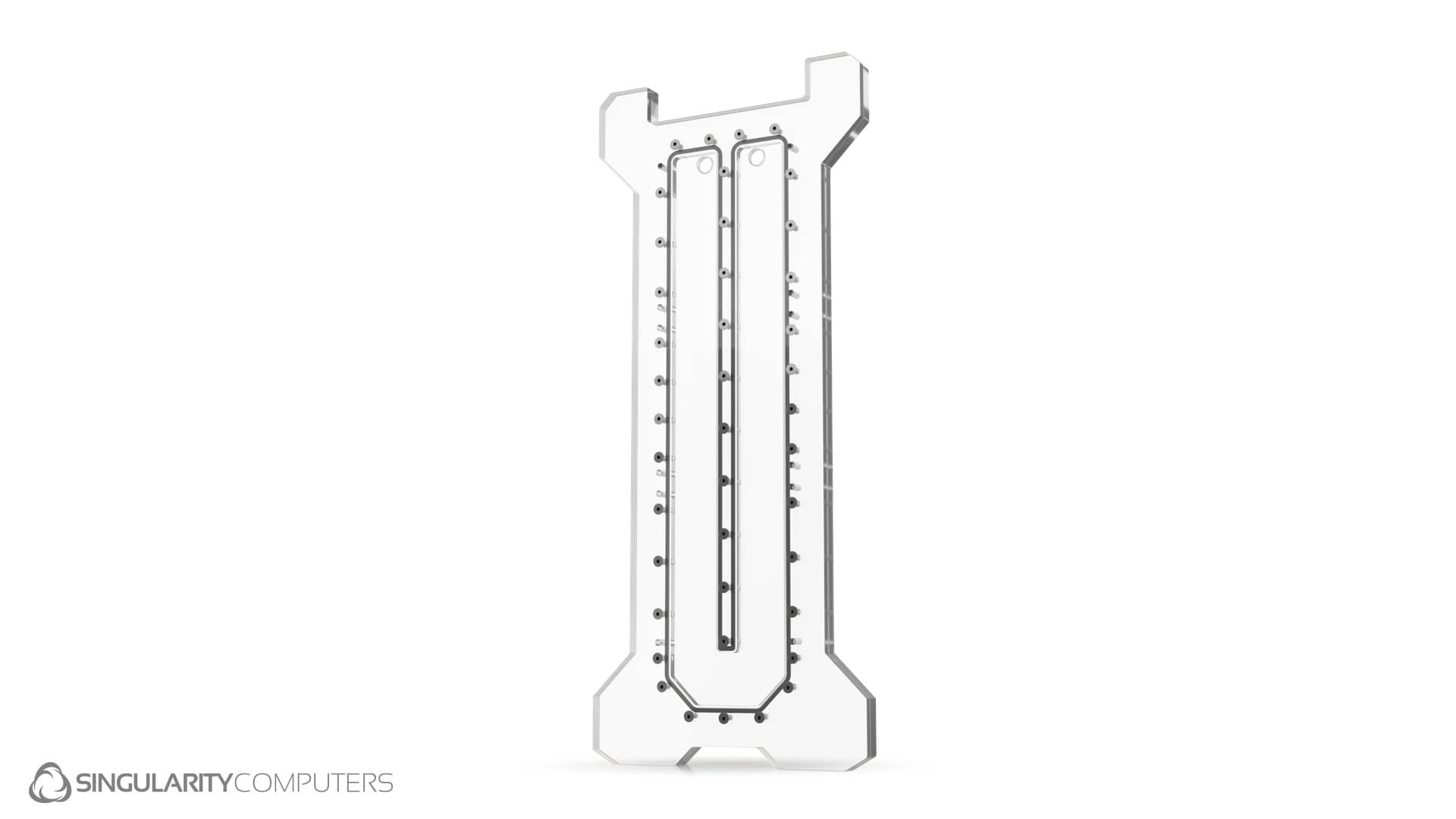

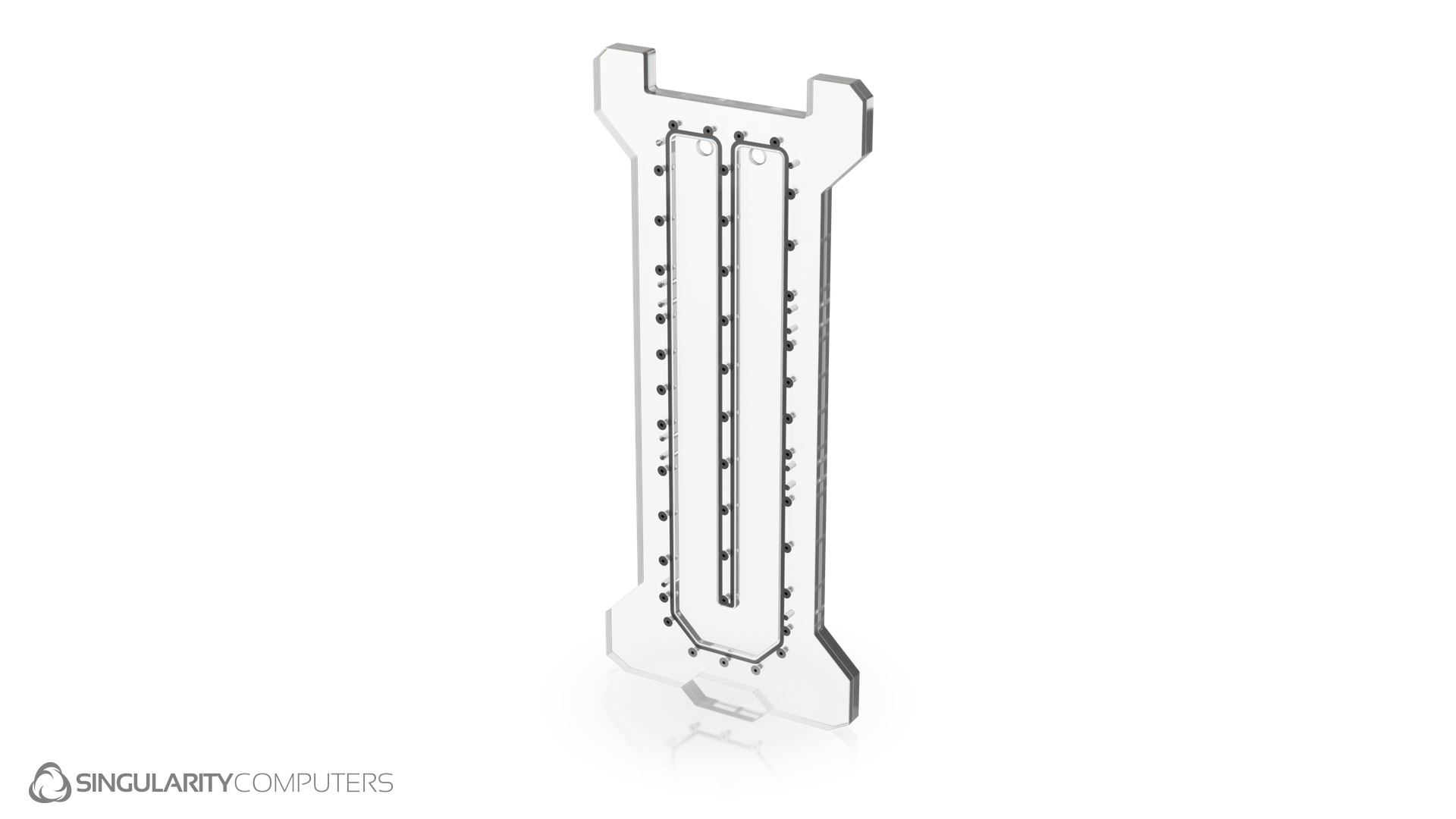

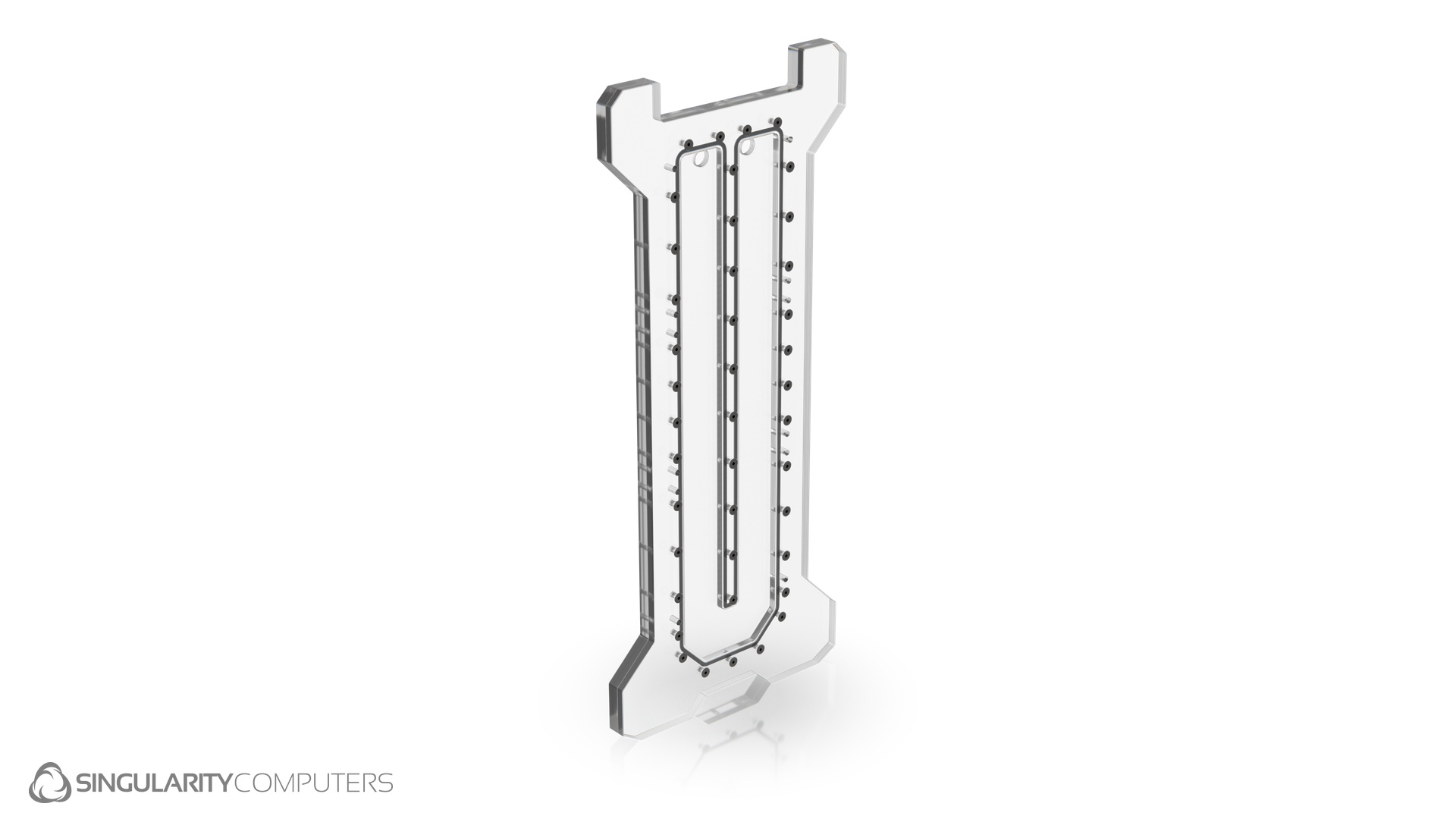

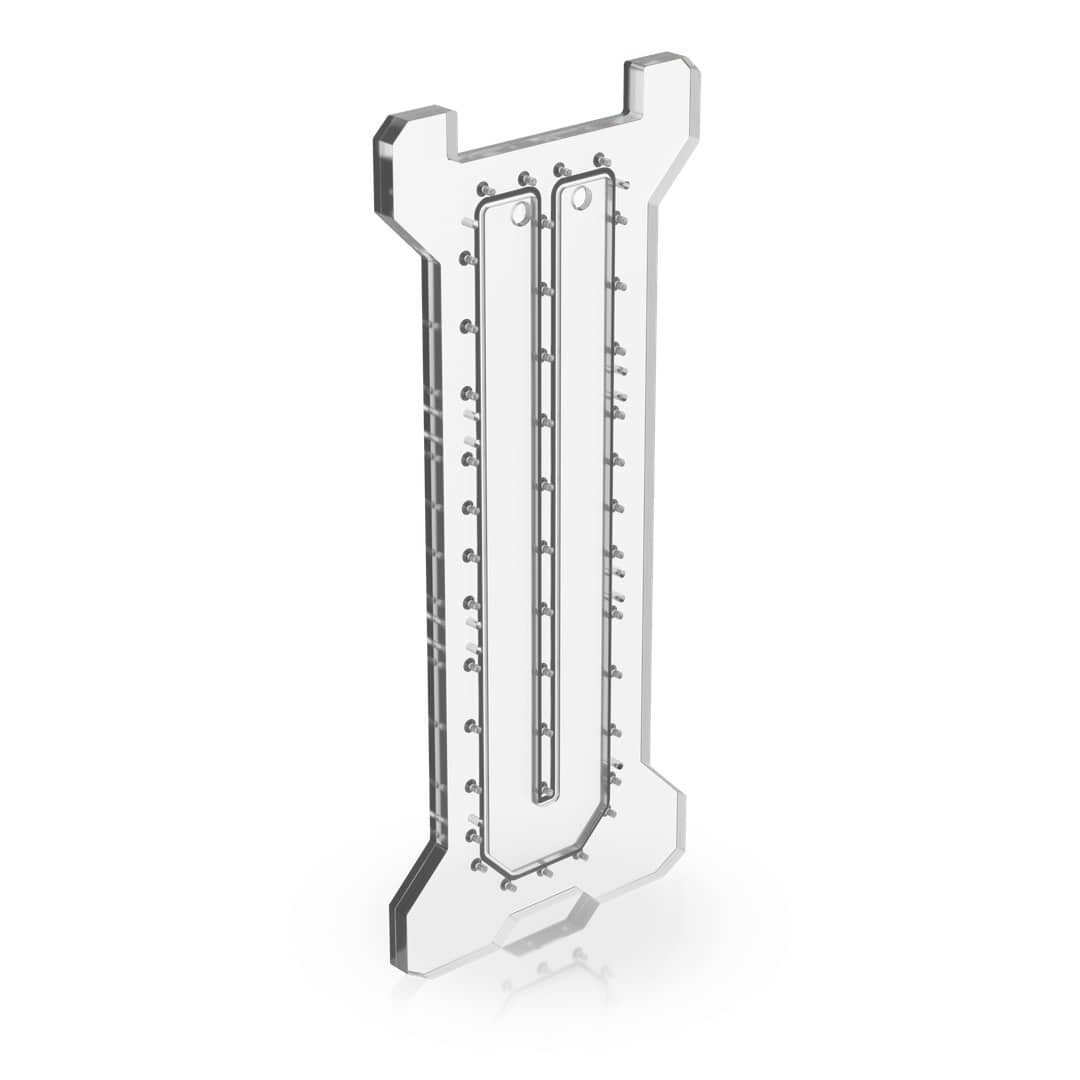

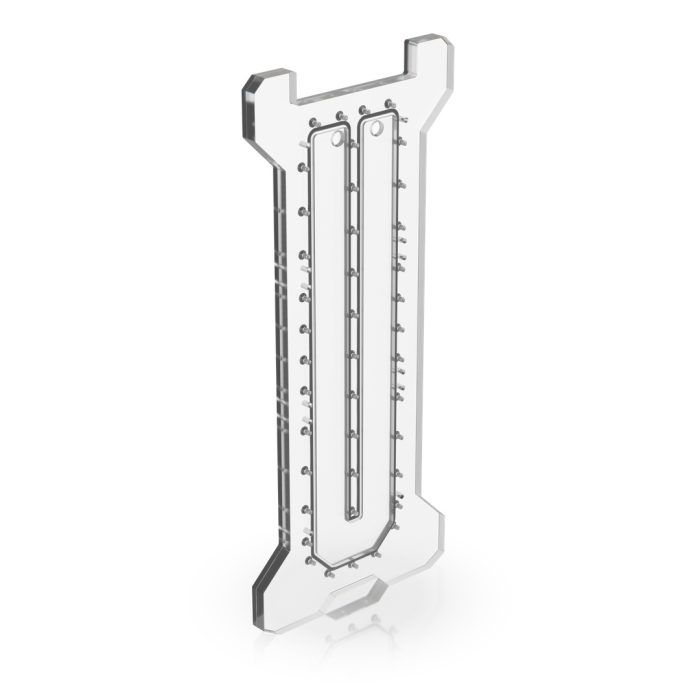

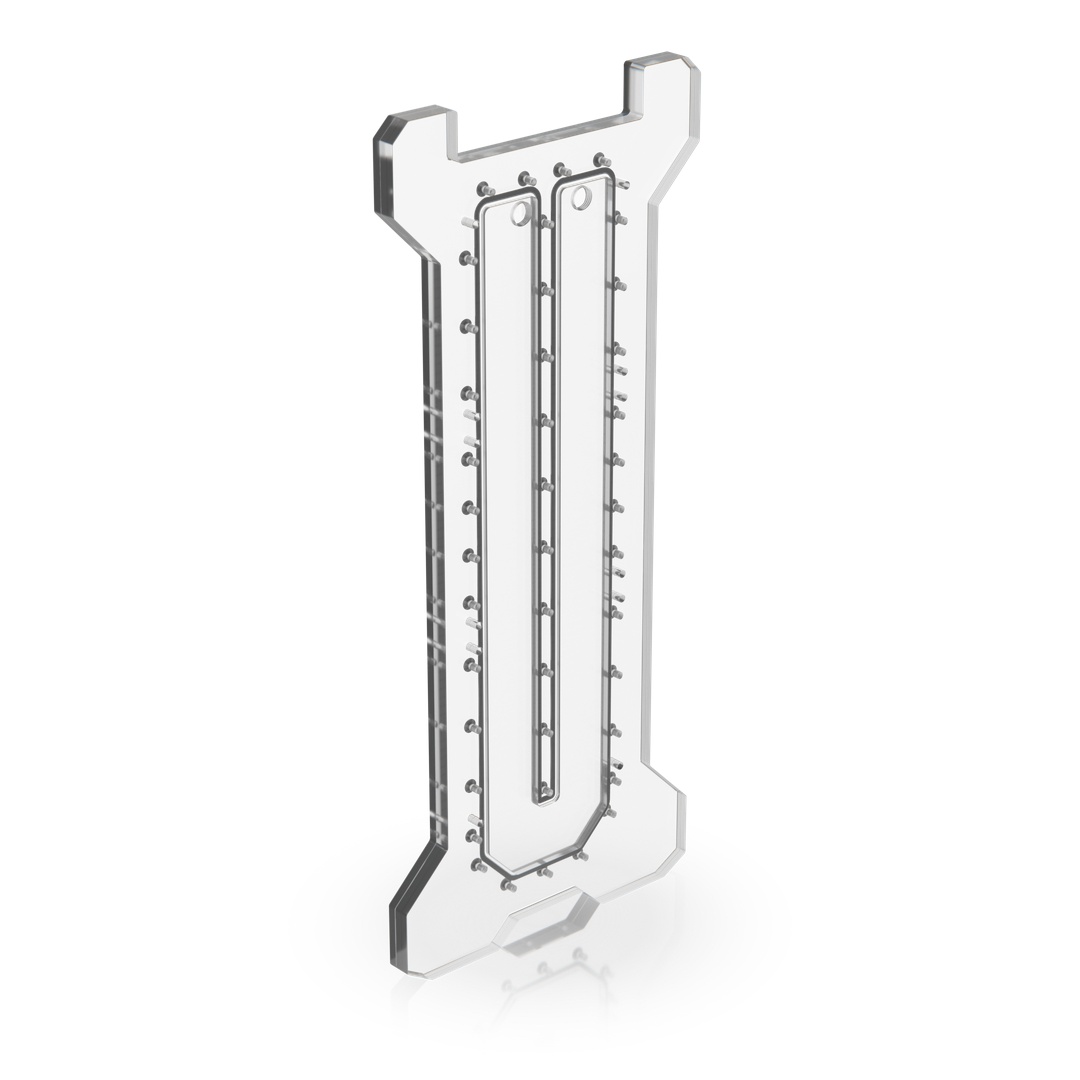

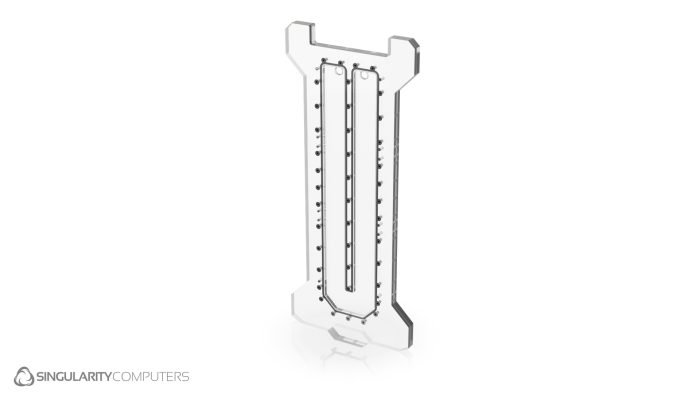

Phanteks Enthoo Evolv X Front Distribution Plate

In stock

Order processing time 1-2 days.

  • Front distribution plate for Phanteks Evolv X
  • Direct replacement for the stock front panel with no case modifications
  • Compatible with front-mounted radiators and/or fans
  • Designed for improved airflow compared to the stock front panel
  • Flexible inlet and outlet routing for integration into the water-cooling loop
  • CNC-machined clear cast acrylic with durable gasket seals
  • Integrated ARGB LED strip
  • Hand assembled with stainless steel fasteners

Manuals

US$199.00

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182005408 SKU: SC-PHANT-EVX-F-DIST Category:

Description

Read More +Read Less − full description

The Phanteks Evolv X Front Distribution plate mounts onto the front panel of the Phanteks Evolv X, replacing the stock front panel. It mounts without modifications to the case. It can be used with a radiator and/or fans mounted behind it or without. It is designed for improved airflow compared to the stock front panel. The Phanteks Evolv X Front Distribution Plate is designed to be an aesthetic feature, it has an inlet and outlet at the top and connects from any component in the loop and back to the front radiator (in any order). It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. Hand assembled with stainless steel fasteners. It comes included with an ARGB LED strip.

Specifications

Phanteks Evolv X Front Distribution Plate.
Spacer/Template 3mm Satin Black.
LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 500mm x W: 200mm x H: 16mm.
Weight: 3kg.
Packaged Dimensions: L: 600mm x W: 250mm x H: 50mm.
Packaged Weight: 3.5kg.

Installation:
Replaces the stock front panel of the Phanteks Evolv X.
