Lian Li DAN A3 Front Distribution Plate

Order processing time 1-2 days.

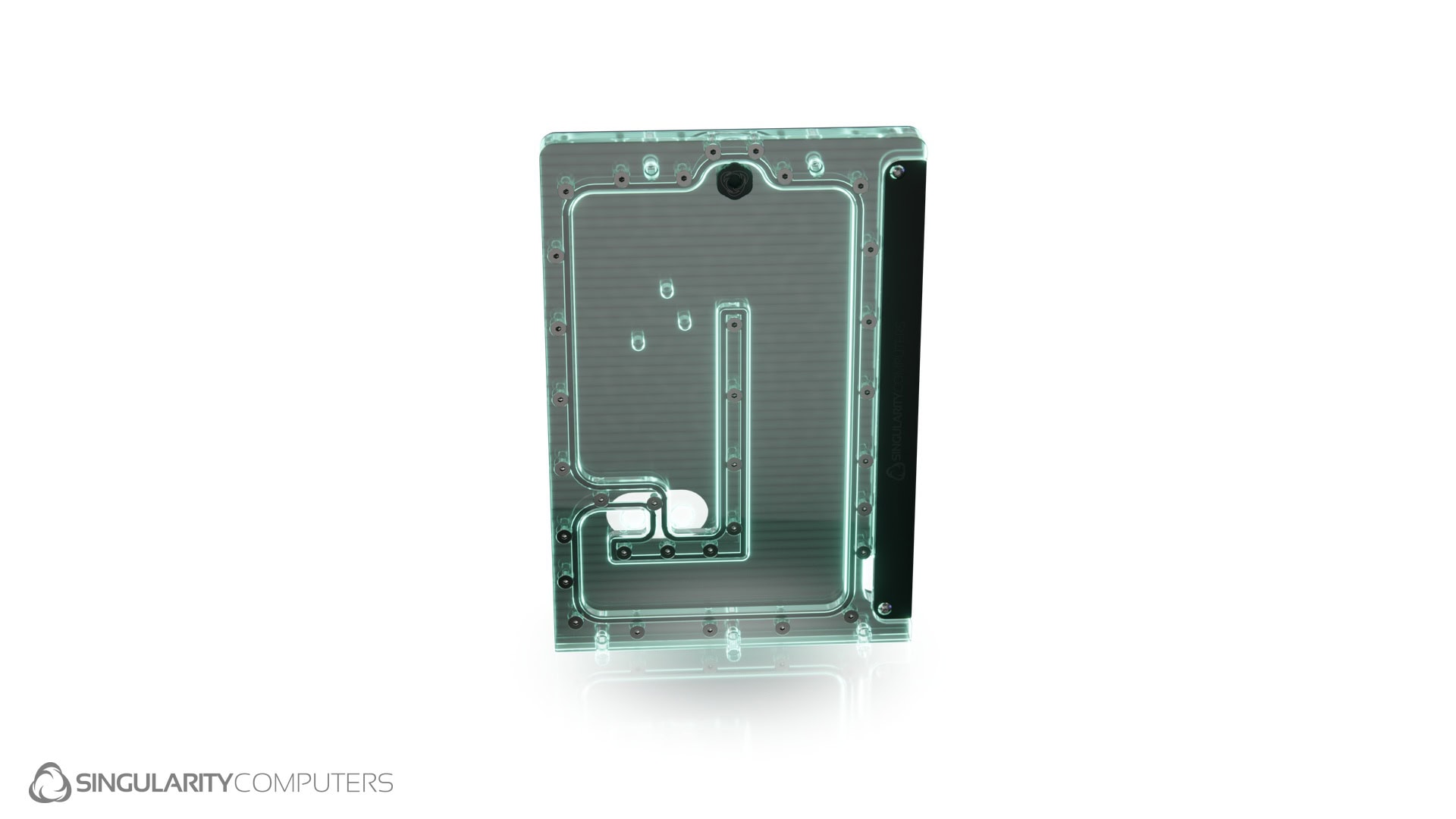

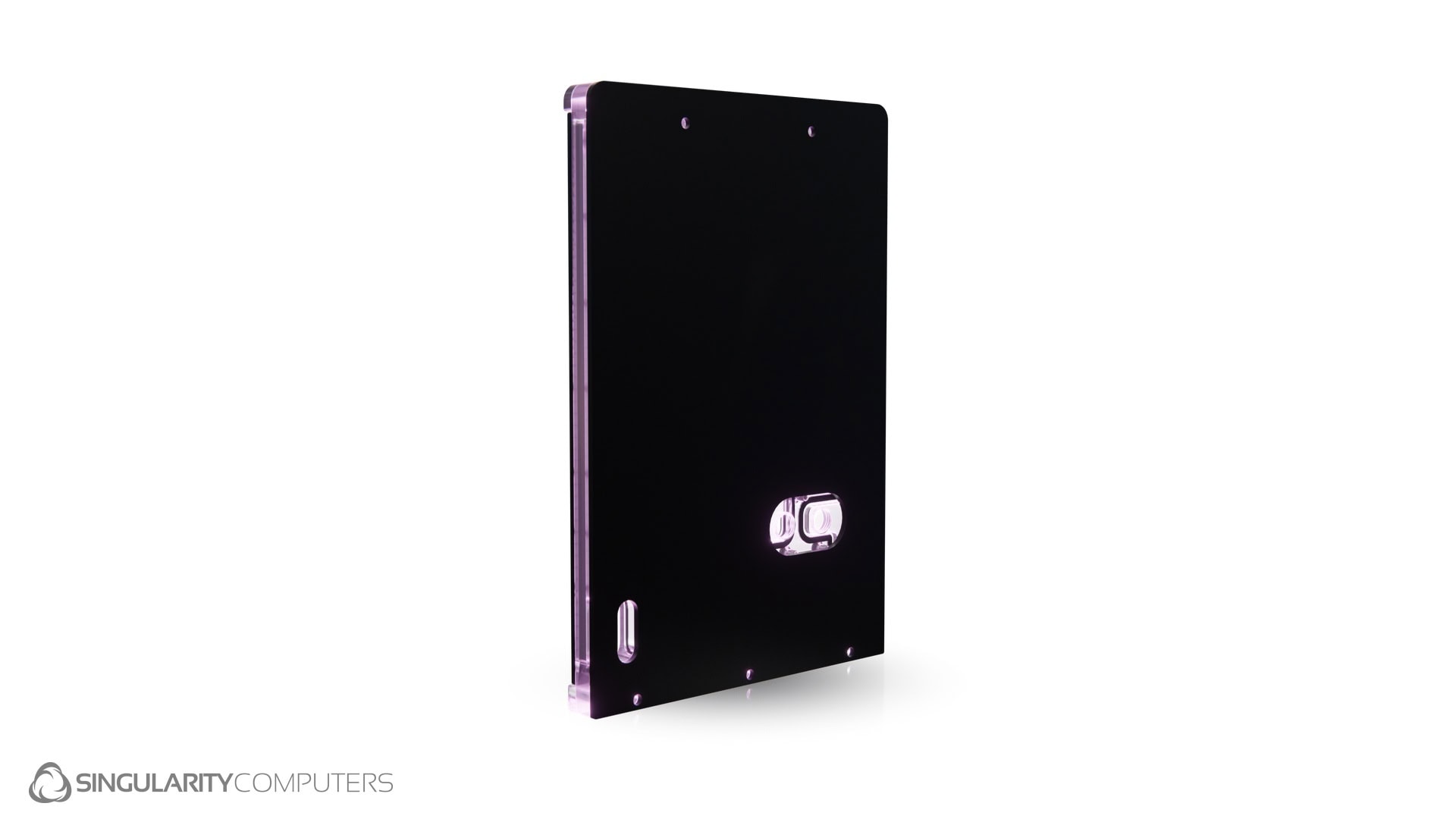

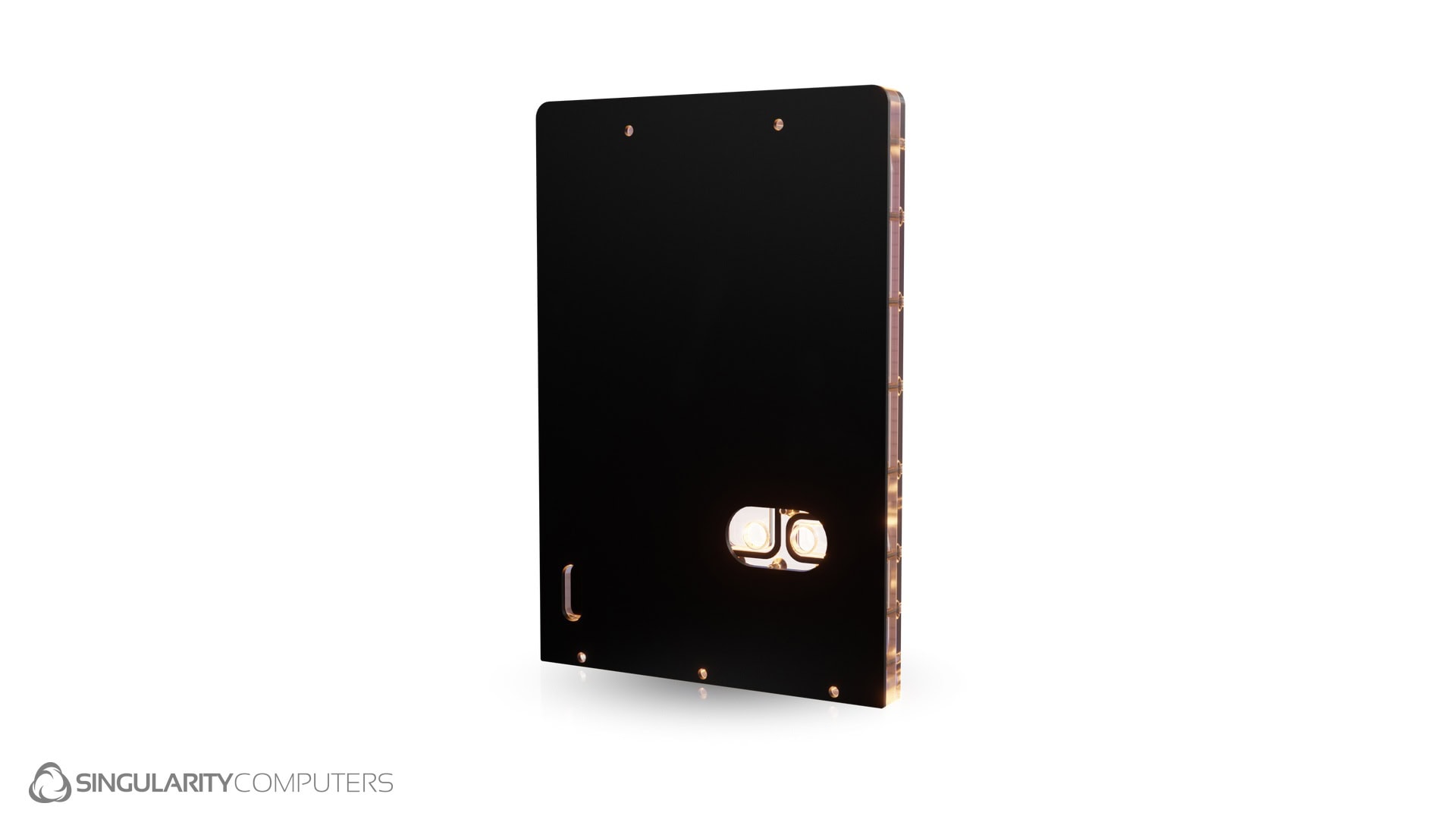

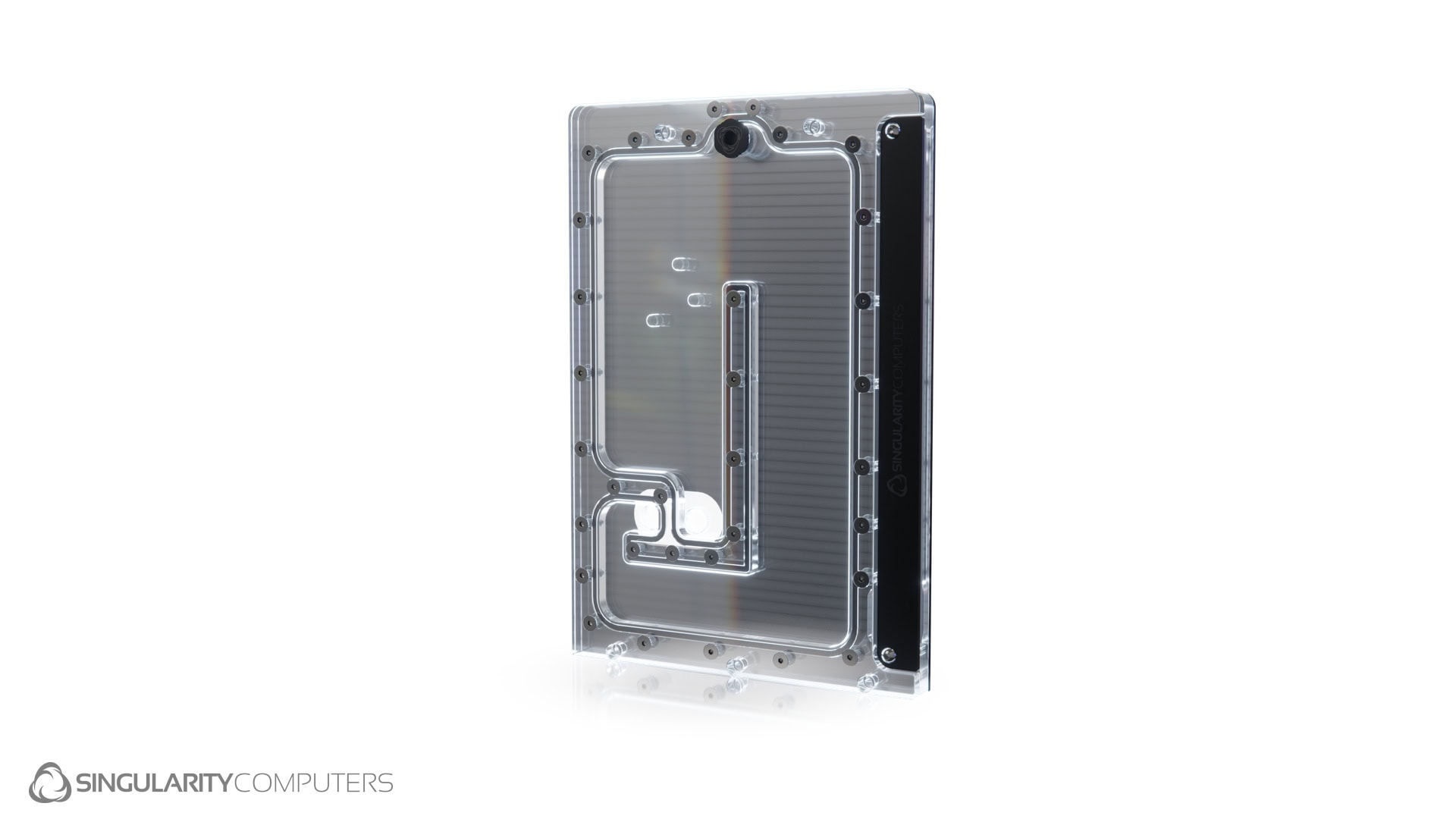

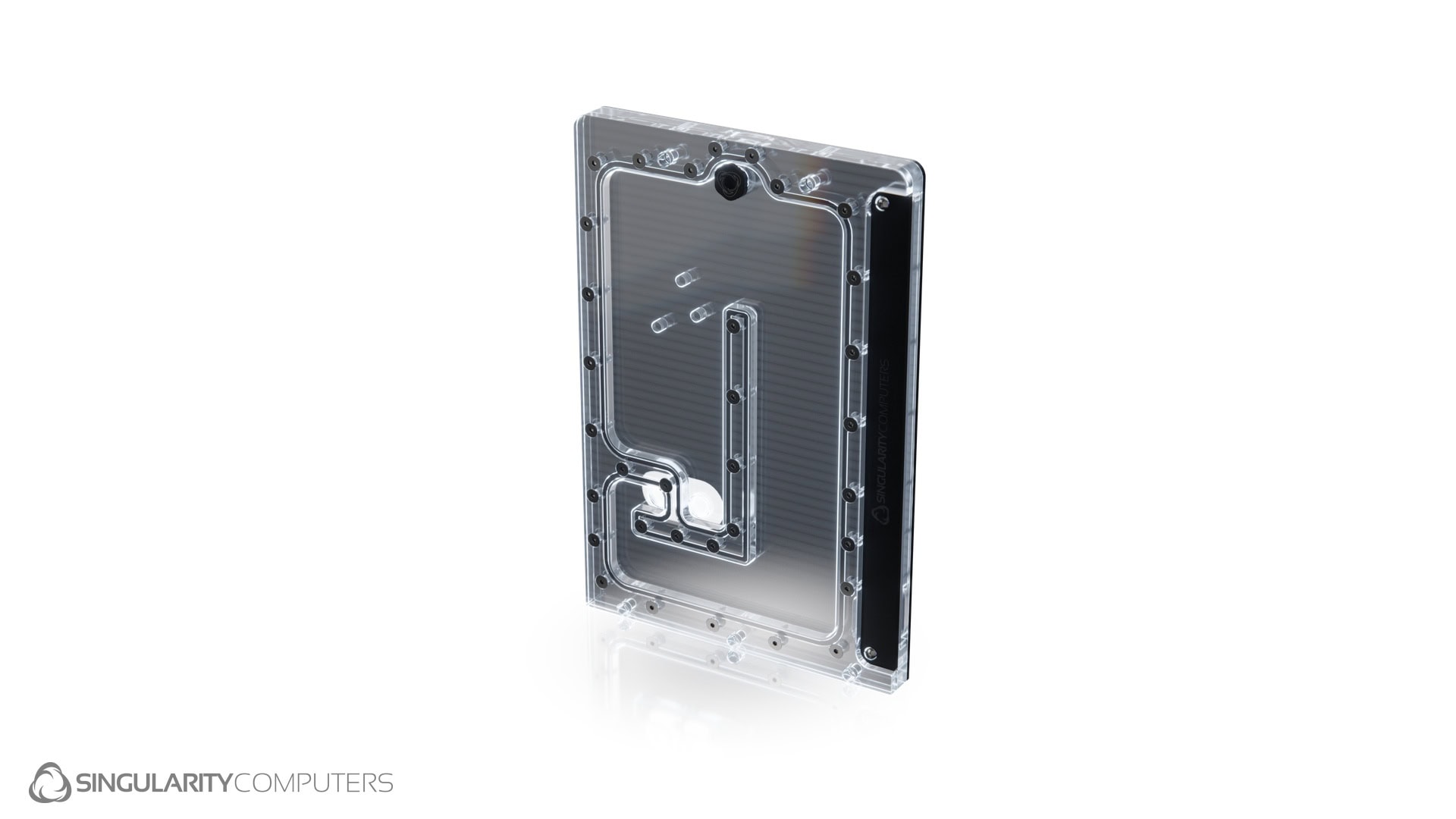

Front Panel Distribution Plate for the Lian Li A3 mATX Case. It attaches to the front panel replacing the original front panel. It mounts to existing holes on the case so there is no need for modifications. It has an integrated reservoir but no pump top so a pump will need to be installed somewhere else in the water-cooling loop. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. Hand assembled with stainless steel fasteners. There is an integrated ARGB LED strip with an Accent Cover. There is also a Back Plate included to cover the inside of the Distribution Plate, so that you can’t see the case panels behind it. Select from the different color options below for the Accent Cover and Back Plate.

Build Gallery

US$199.00

Select Acrylic Cover Color/Finish Options

The distribution plate will remain transparent, this colour option is for the covers.

None Satin Black Gloss Black Gloss White Carbon Mirror +US$16.00 Silver Mirror +US$16.00 Gold Mirror +US$16.00 Satin Black

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

Stop Fitting (optional) USD $4

Include stop fittings for all extra ports aside from the inlet and outlet.

None Yes +US$4.00
EAN: 9362188003152 SKU: SC-O11A3-DIST Categories: ,

Gallery

Specifications:
Lian Li DAN A3 Front Distribution Plate.
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 325mm x W: 195mm x H: 16mm.
Weight: 2kg.
Packaged Dimensions: L: 350mm x W: 220mm x H: 50mm.
Packaged Weight: 2.5kg.

Installation:

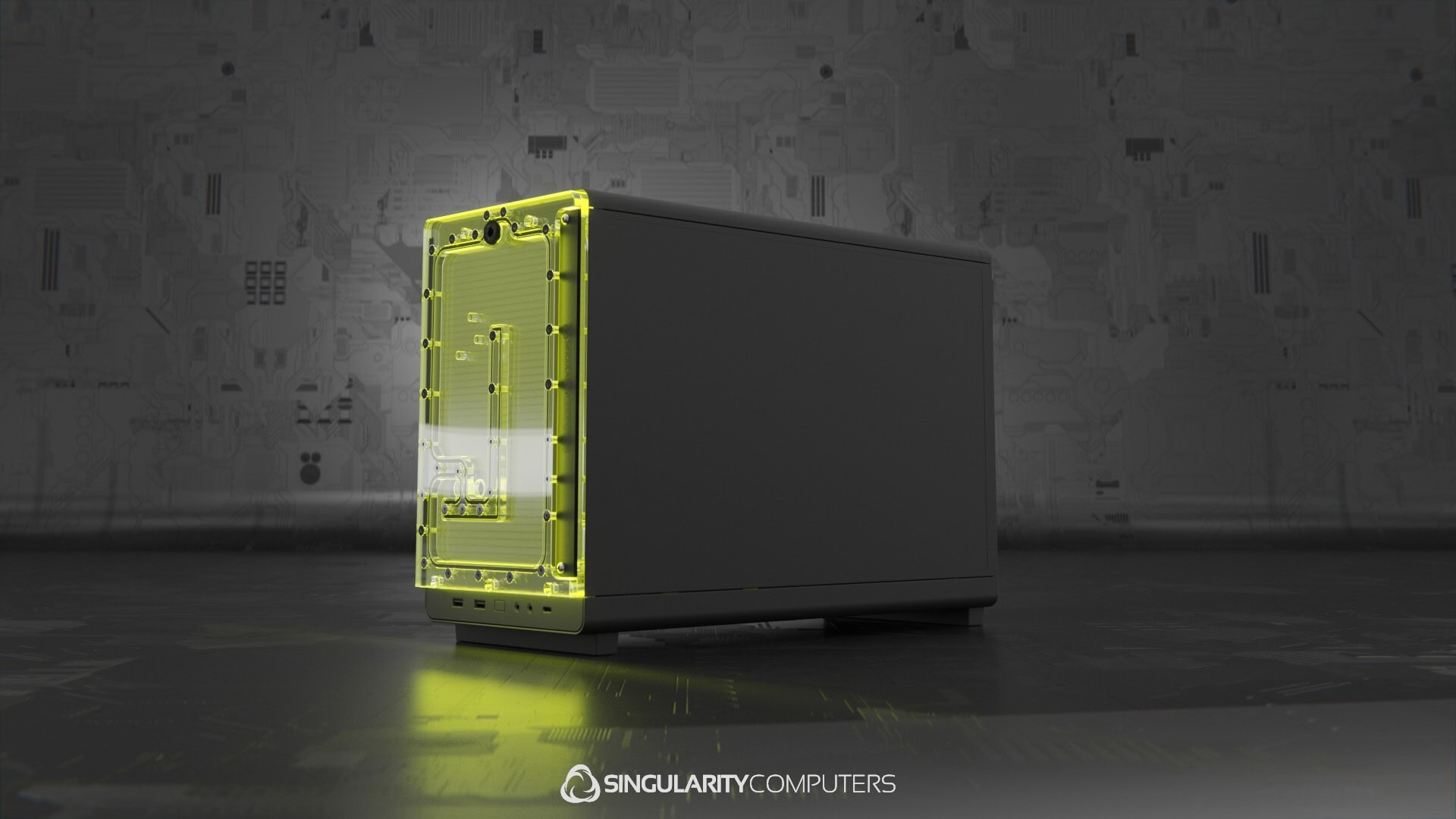

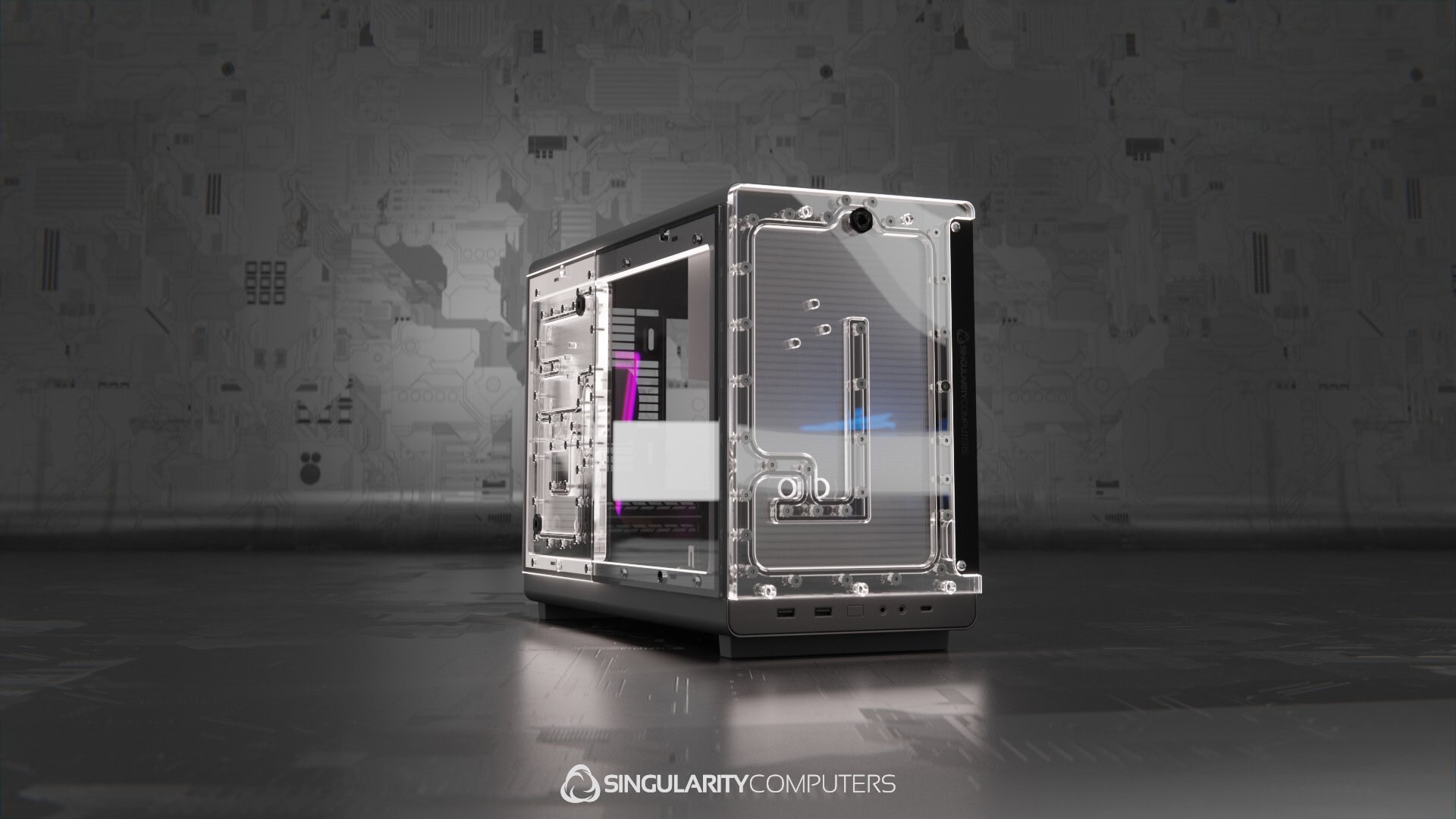

Install onto the front panel of the Lian Li DAN A3 mATX case. Replaces the existing front panel and attaches to existing mounting holes.

Youtube video
